    Ultra slim workstation goes BIG!

    TUXEDO InfinityBook Pro 16 - Gen7
    Max Performance Edition

    Intel Core i7-12700H
    14 cores| 20 threads

    Up to RTX 3070 Ti
    8 GB GDDR6 | Max. 95 watts

    16 inch HighRes display
    16:10 | 2560 x 1600 pixels

    Magnesium chassis
    1.7 cm thin| 1.7 kg light



    Large Linux ultrabook with high performance and 16:10 premium display!

    The new TUXEDO InfinityBook Pro 16, with its 17 mm thin and 1.7 kg light magnesium chassis in either Ice Grey or Deep Grey, is targeted at content creators, software developers or business users who value an extremely slim design, a high portability factor despite a large, high-quality 16-inch screen in highly requested 16:10 aspect ratio and high processing (and optional graphics) performance.

    While the large 80 Wh battery provides runtimes of up to 10 hours, the high-end Intel Core i7-12700H processor offers a full 14 cores for great performance for heavy workloads. For graphics-intensive applications, the InfinityBook Pro 16 can optionally be equipped with RTX graphics cards up to the NVIDIA GeForce RTX 3080.



    Workstation vs Max Performance:
    Choose your edition.

    Well balanced workstation or max graphics performance in an ultra slim chassis? The InfinityBook Pro 16 - Gen7 is available in two visually identical-looking versions:

    With the Intel Iris Xe graphics integrated into the processor, the Workstation Edition focuses on a great balance of high CPU performance, quiet dual-fan cooling and low surface temperatures. The optional NVIDIA GeForce RTX 3050 Ti (up to 65 watts) offers a greatly increased, solid graphics performance with of course also significantly increased fan noise levels.

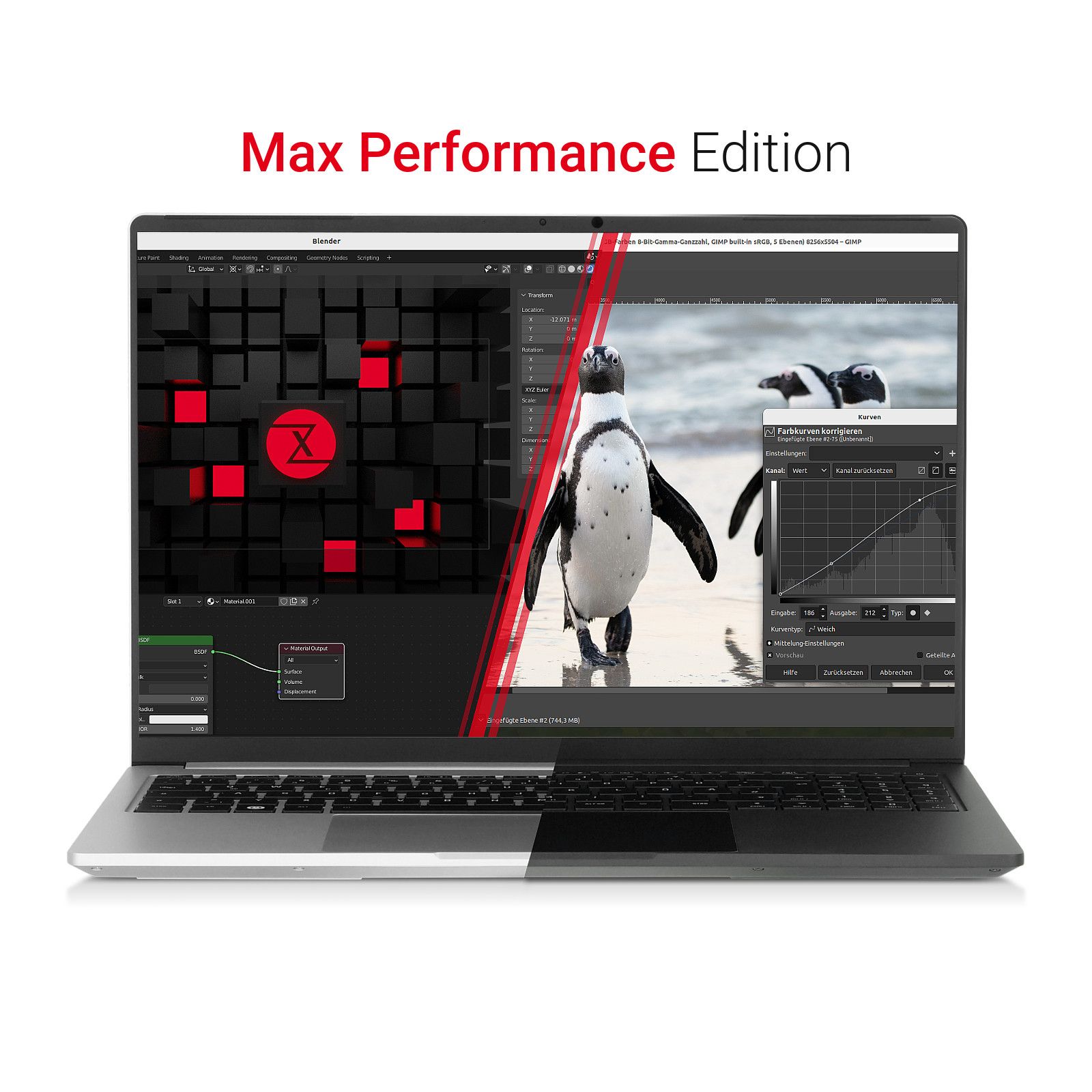

    The Max Performance Edition is designed for uncompromising performance in an ultra-slim chassis and offers newer DDR5-4800 MHz RAM and a display refresh rate of 240 Hz as well as upper-class GPUs in the form of the GeForce RTX 3060 and RTX 3070 Ti and recently also the RTX 3080 each with 70 to 95 watts of Total Graphics Power (TGP).

     Click here to get to the InfinityBook Pro 16 - Workstation Edition.



    Ultra slim workstation in
    lightweight magnesium chassis

    Infinitely thin: With an overall height of only 17 mm and an - especially for this notebook size - exceptionally low weight of 1.7 kg the InfinityBook Pro 16 - Max Performance Edition puts its main focus on an extremely slim and stylish build, which is achieved by its magnesium alloy according to the AZ91D standard for improved material stability and a metallic feel.

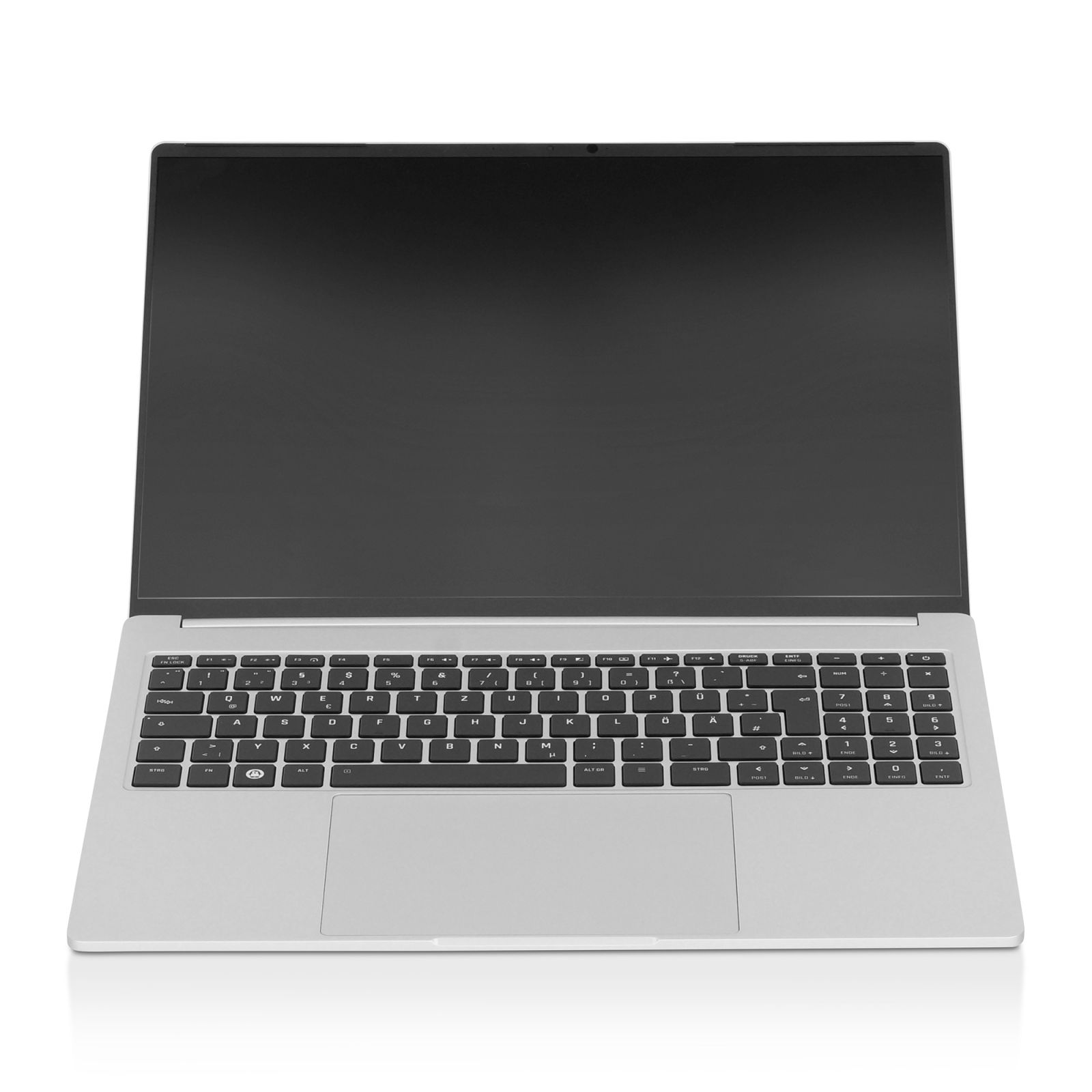

    The white backlit low-profile keyboard allows working in dim environments and features a number pad for quick numeric entry. Impossible to miss is the huge 15.5 x 10.0 cm clickpad, which can optionally be deactivated via a double finger tap in the upper left corner to prevent errors while typing. If preferred, also only the right half can be disabled via double tap in the upper right corner.

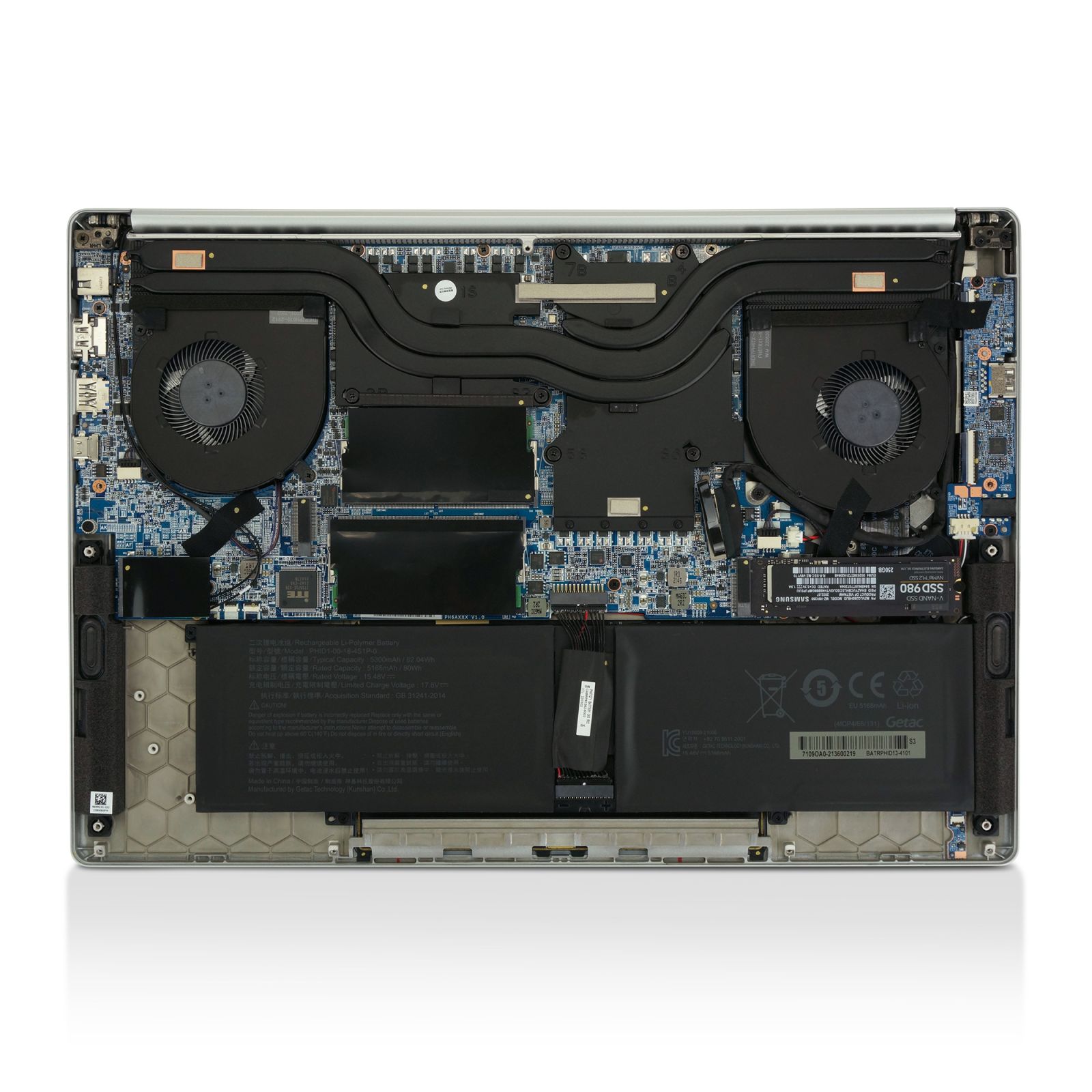

    Inside the case, in addition to the 80 Wh lithium polymer battery, there are two upgradeable slots for brand-new DDR5-4800 MHz RAM and two M.2 SSD slots (PCI-Express 4.0 x4) for up to 4 terabytes of storage, as well as two slim low profile fans and three copper heat pipes responsible for dissipating heat from the components.



    14 CPU cores for groundbreaking performance

    With Intel's 12th generation of their Core processor line-up (codename: Alder Lake), the chip giant is back at the top of performance. Responsible for this performance increase is the innovative hybrid architecture, which is completely new in the PC segment. The total of 14 processing units are divided into particularly energy-saving efficiency cores (8) and performance-optimized performance cores (6).

    At low load, the CPU saves energy by using the efficiency cores, while the faster performance cores are additionally switched on when the system is under full load. Thanks to hyperthreading technology, they can handle up to 12 processes and even 20 processes simultaneously together with the E cores.

    This not only results in a very high multi-core performance for content creators and developers equally, but also makes the InfinityBook Pro 16 - Gen7 stand out as maximum mobile CPU workstation.

    Intel Alder Lake H Mobilprozessor Banner



    Big display, small pixels!

    The 34.5 x 21.5 cm 16-inch display offers the ideal compromise between a large screen for working comfortably without the need for an external monitor, and a still compact chassis dimensions at 354 x 245 x 17 mm, which correspond to the size of typical, former 15.6-inch notebooks.

    In addition to the larger screen compared to usual 15.6 inch displays, the frequently requested 16:10 aspect ratio offers more vertical screen space.

    The high display resolution of 2560 x 1600 pixels (16:10) offers a very finely resolved image for pleasantly legible text, while photos, videos or games benefit from the vivid (100 % sRGB) and bright (350 nits) panel which in combination with its matte panel coating ensures outdoor usability in shadowy areas.



    Graphics upgrade for
    games and content creation

    In the base configuration of the Workstation Edition, the InfinityBook Pro 16 features the Intel Xe Graphics integrated in the CPU, which is suitable for all everyday graphically less demanding tasks and ensures pleasantly low fan noise levels and surface temperature even under high load.

    For graphically demanding applications, such as video rendering, 3D animation or PC gaming, optional NVIDIA graphics cards provide a huge step up in terms of performance:

    For the mid-range category, the GeForce RTX 3050 Ti, which is equipped with 4 GB GDDR6 video memory and a Total Graphics Power (TGP) of 50 to 65 watts, represents a performant and low-price entry for both productive use and PC gaming.

    The Max Performance Edition features GPUs from NVIDIA's top-tier category. The GeForce RTX 3060, which comes with 6 GB GDDR6 VRAM and at a higher power limit of 70 to 95 watts, achieves an around 40 % higher performance compared to the RTX 3050 Ti.

    The GeForce RTX 3070 Ti and the RTX 3080 operate within the same power envelope, but are equipped with 8 and even 16 GB GDDR6 VRAM respectively and boost performance by around 60 % (3070 Ti) to 75 % (3080) compared to the smallest RTX graphics option.



    Thunderbolt 4 with Power Delivery

    For the literal lightning-fast data exchange, the TUXEDO InfinityBook Pro 14 comes with Thunderbolt 4 for data speeds of max. 40 Gbit/s. This USB-C port furthermore supports Power Delivery DC-In* for charging the notebook via a practical USB-C travel power adapter and allows connecting up to two 4K monitors.

    Speaking of monitor ports: There is also a HDMI 2.1 (4K @ 120 Hz) interface on the right side of the chassis and a second USB-C connector with DisplayPort 1.4 functionality on the left.

    The connectivity is completed by two USB-A ports, the full size SD card reader, the combined headphone jack and microphone input and the Kensington Lock.

    *For more information, please have a look at our article Charging via USB-C power supply (Power Delivery DC-In).

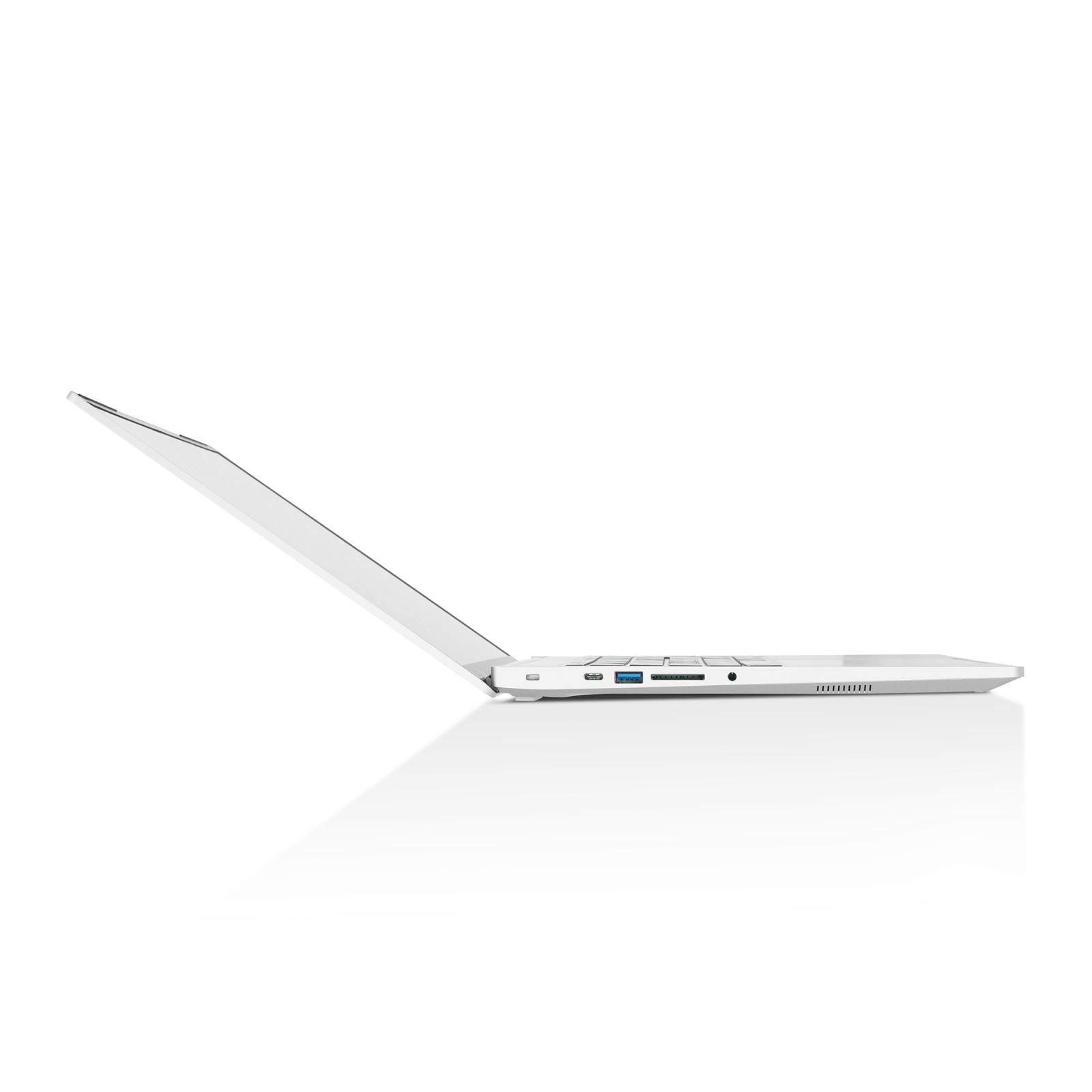

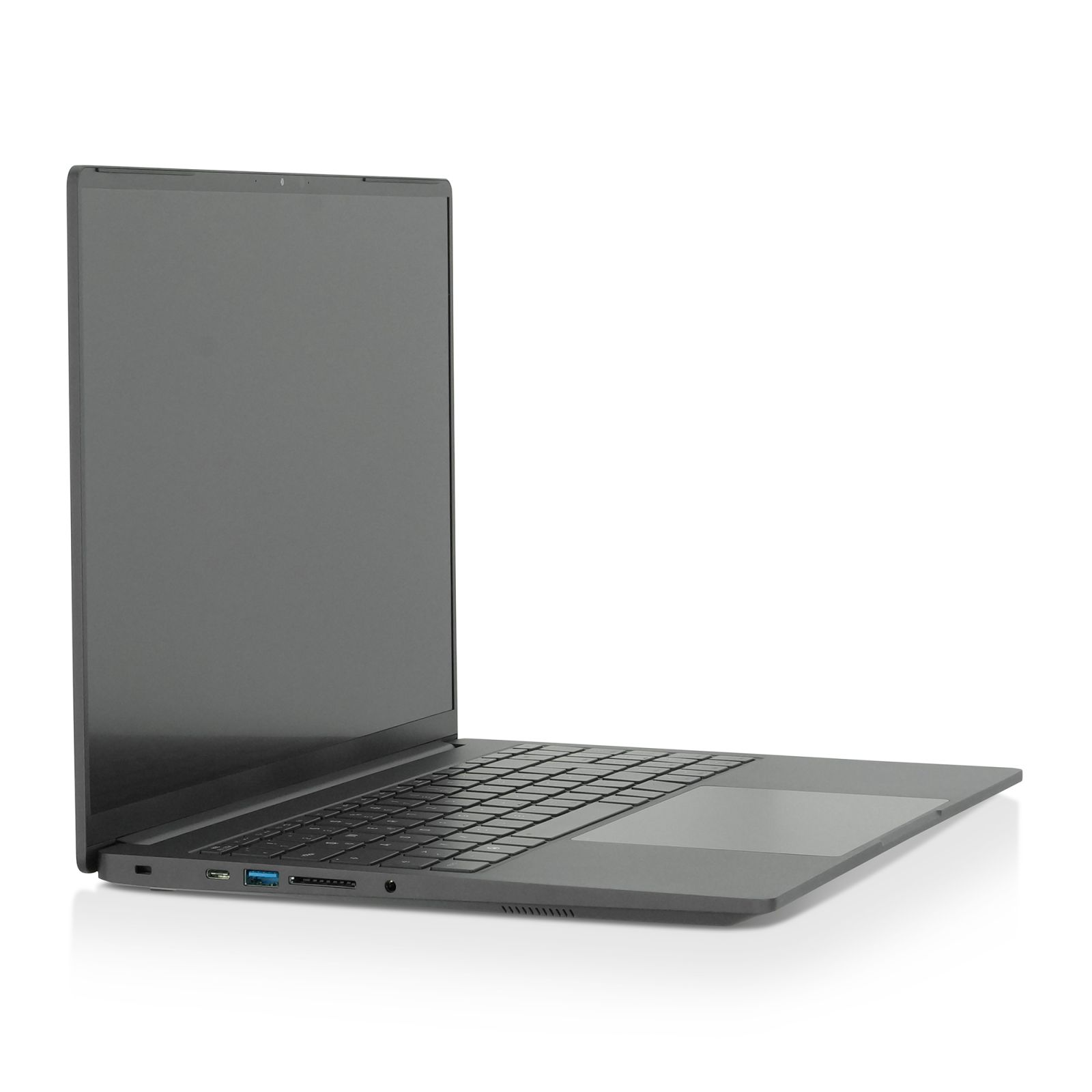

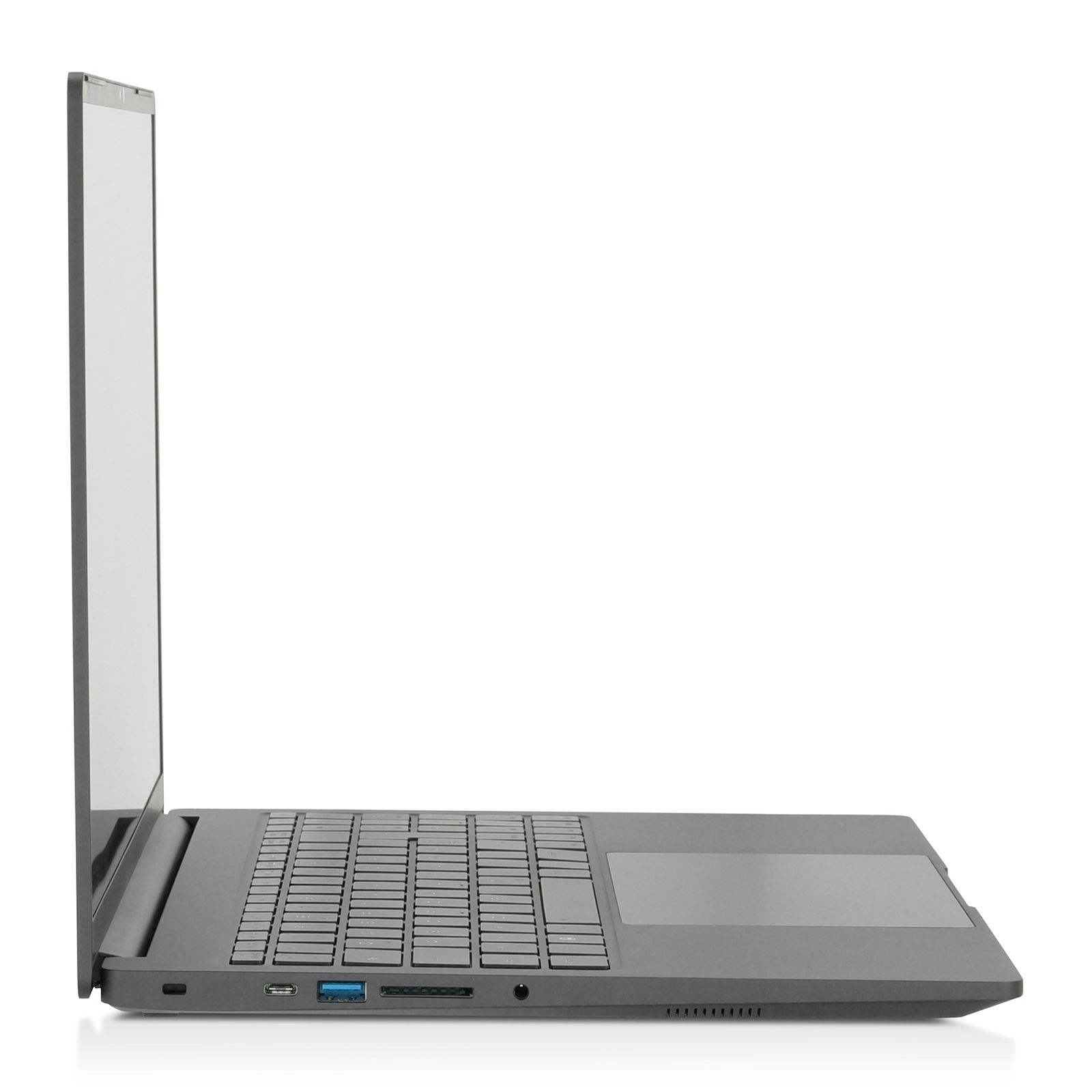

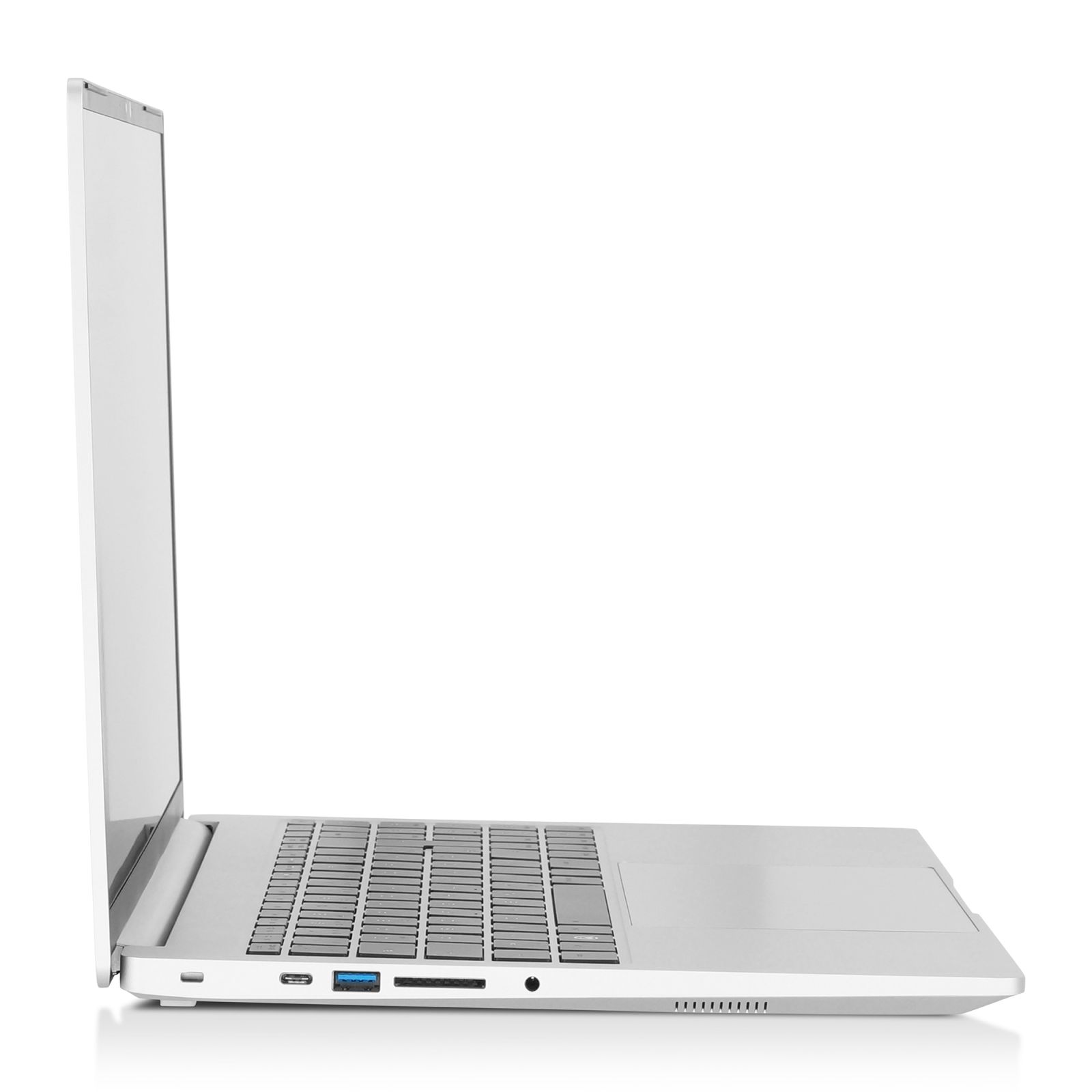

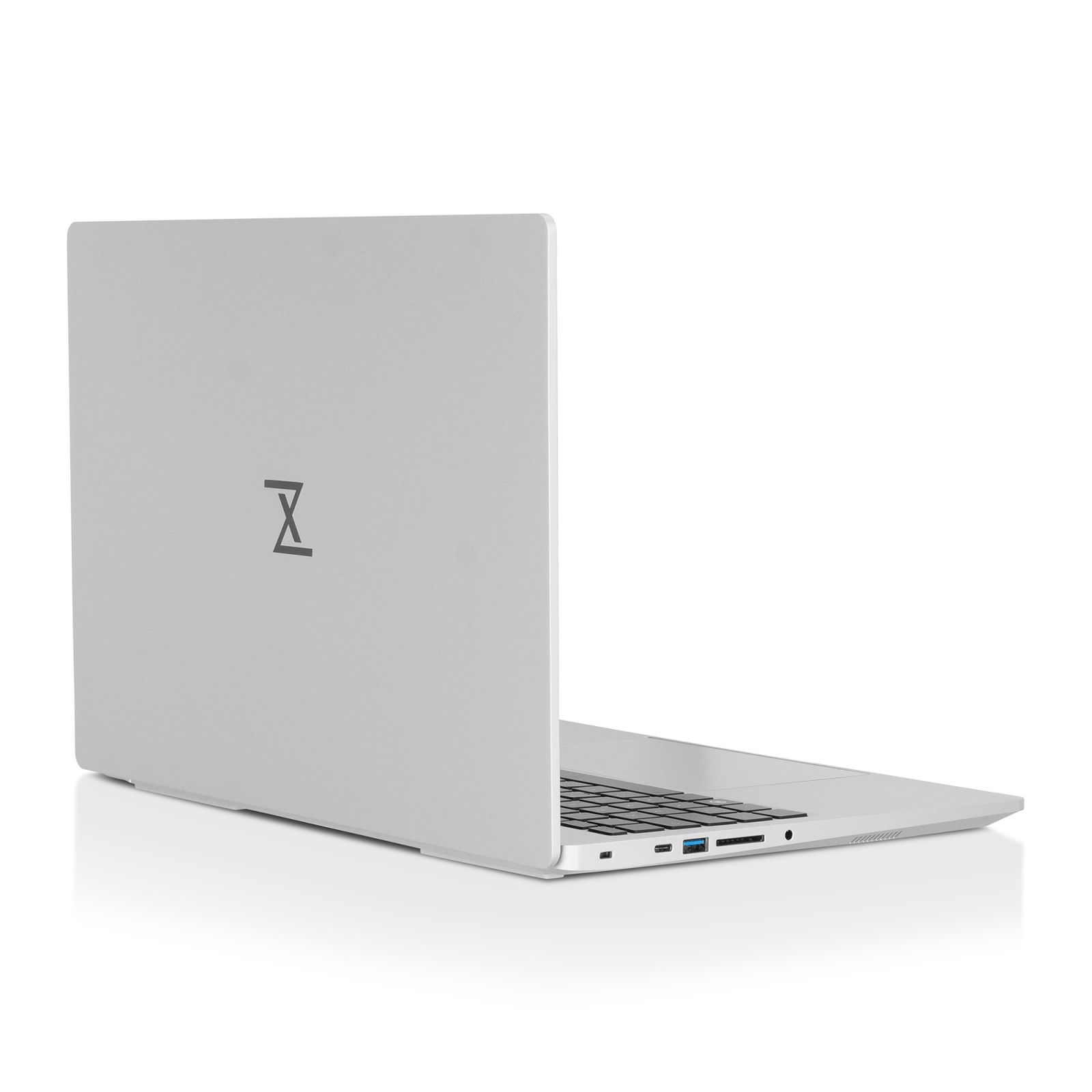

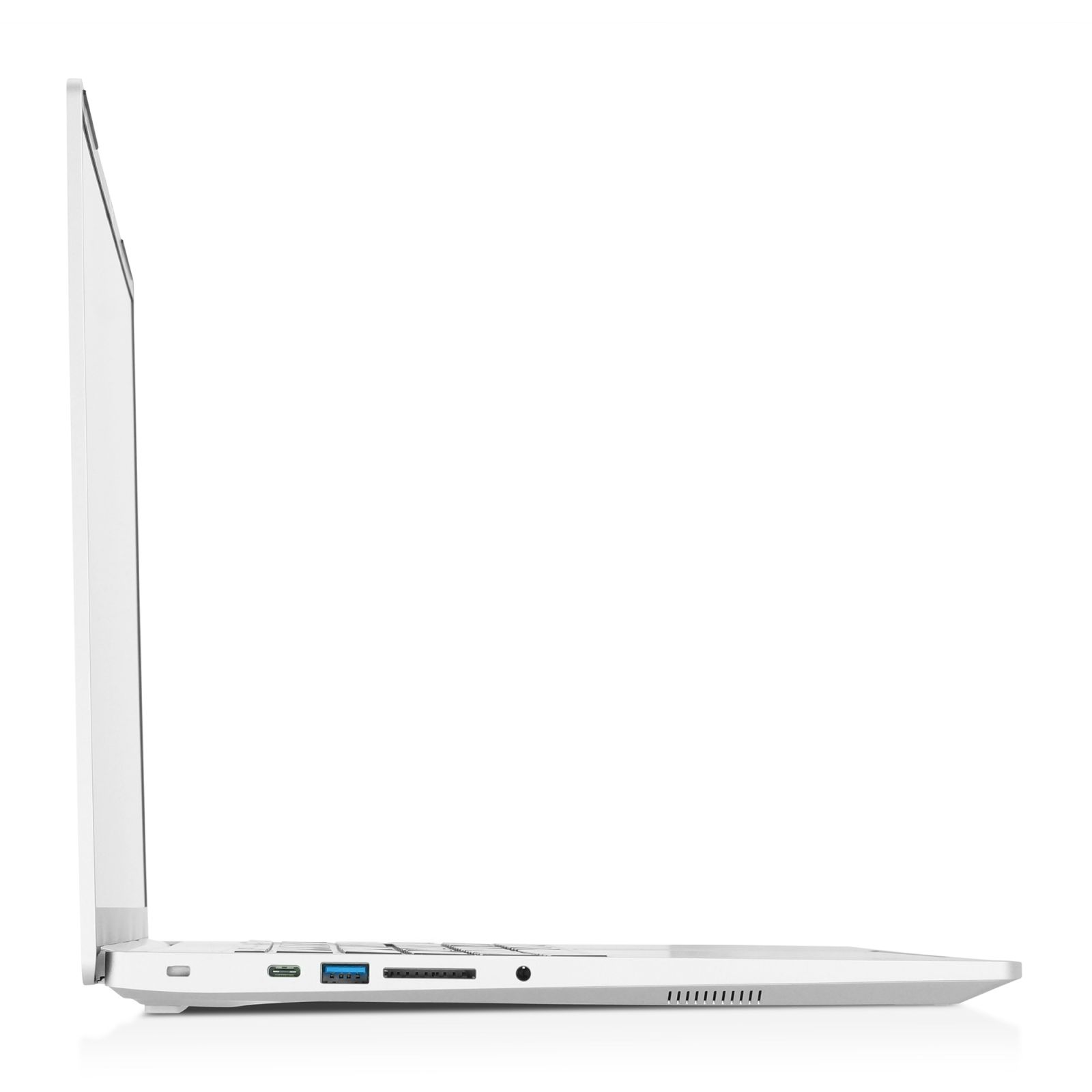

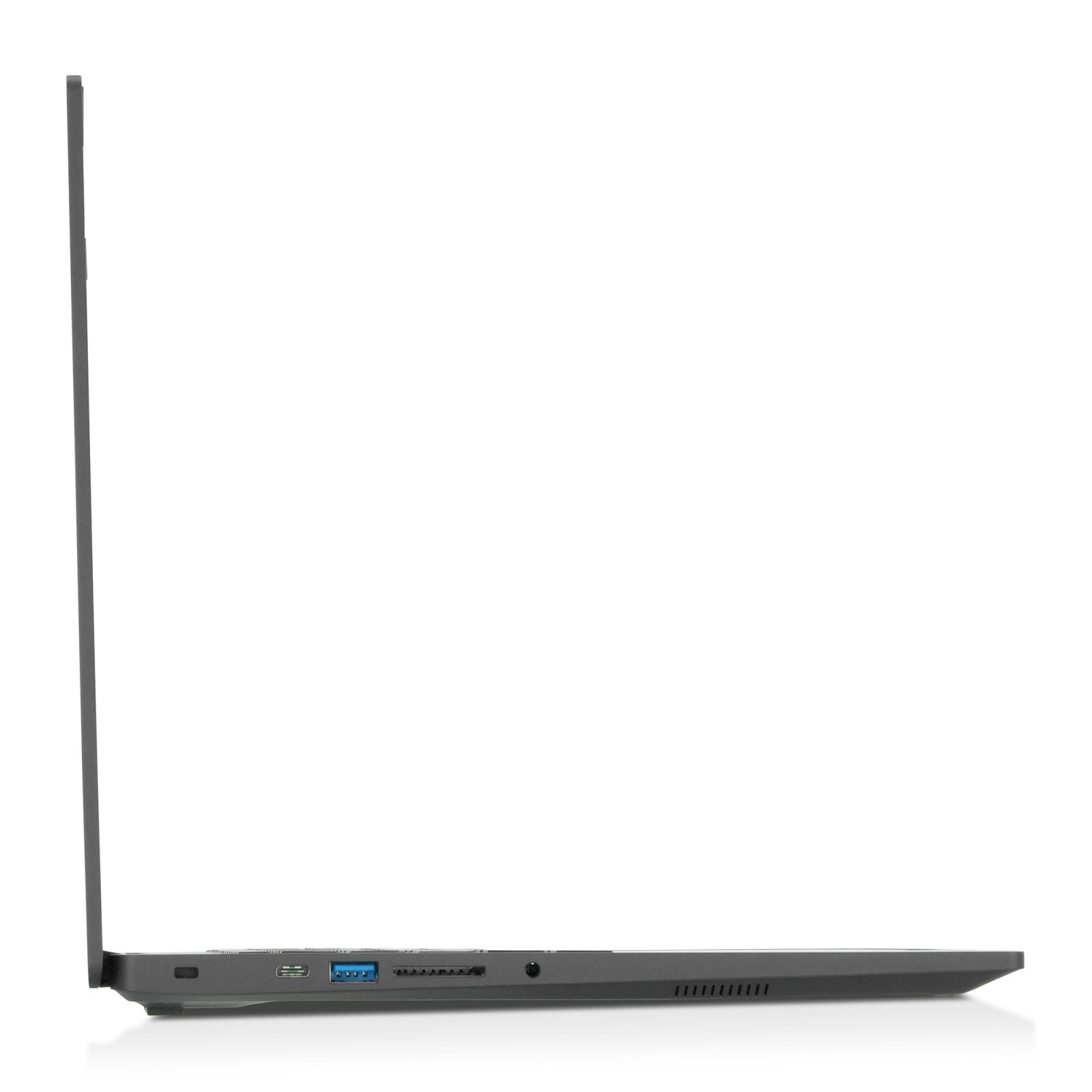

    InfinityBook 14 left ports

    From left to right: Kensington Lock (Nano), USB-C 3.2 Gen2 (DP 1.4 / Power Delivery), USB-A 3.2 Gen1, SD card reader,  2-in-1 audio (headphone + mic)

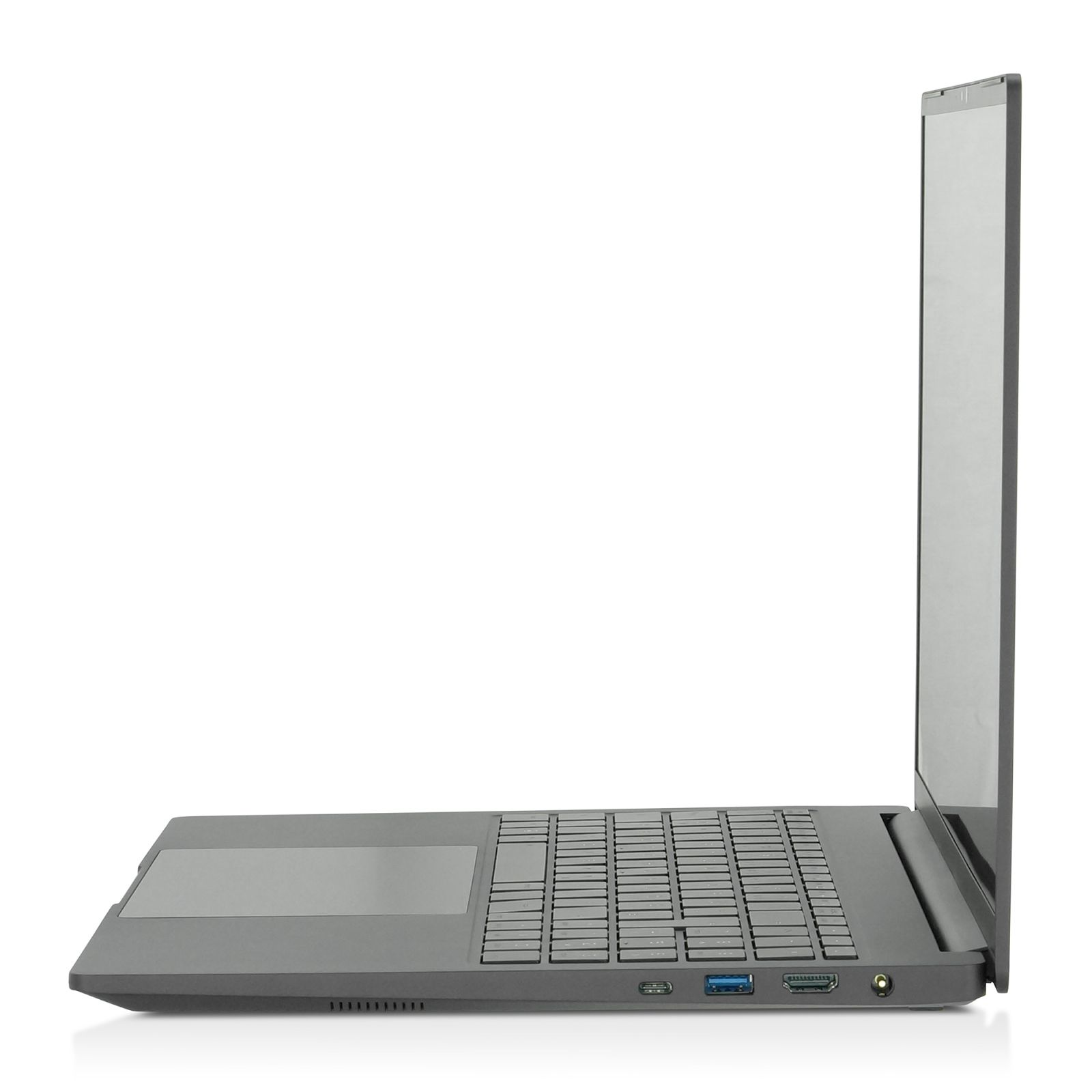

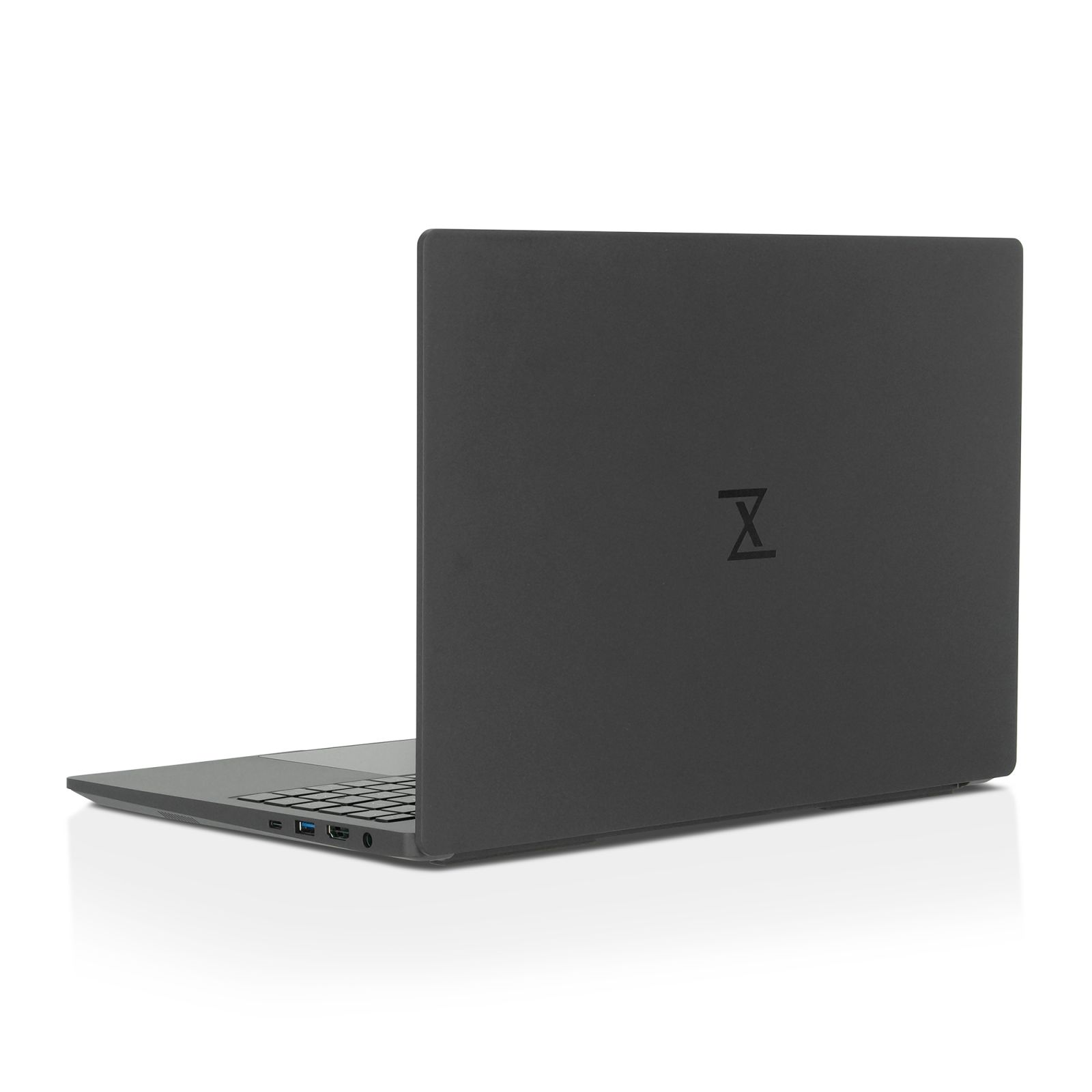

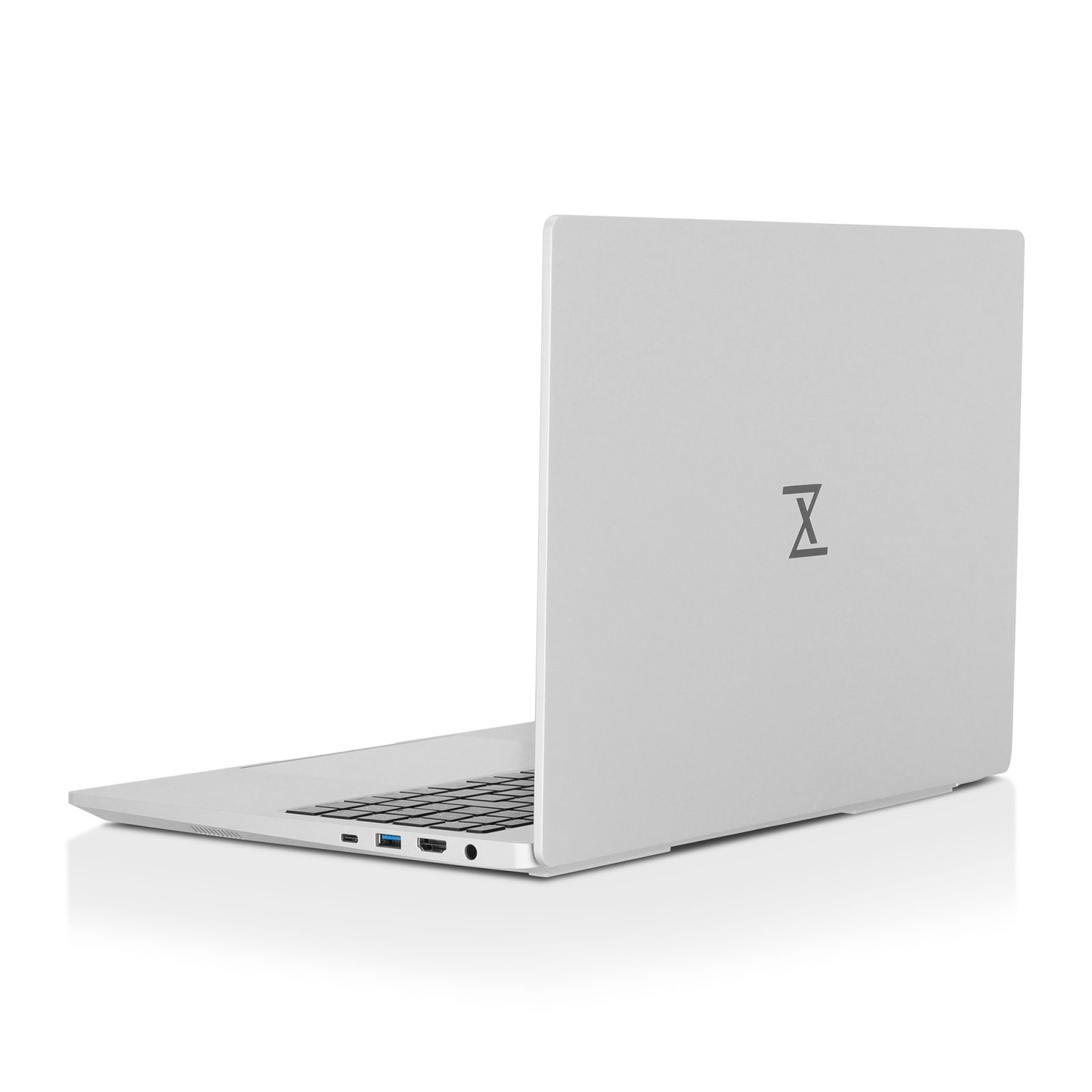

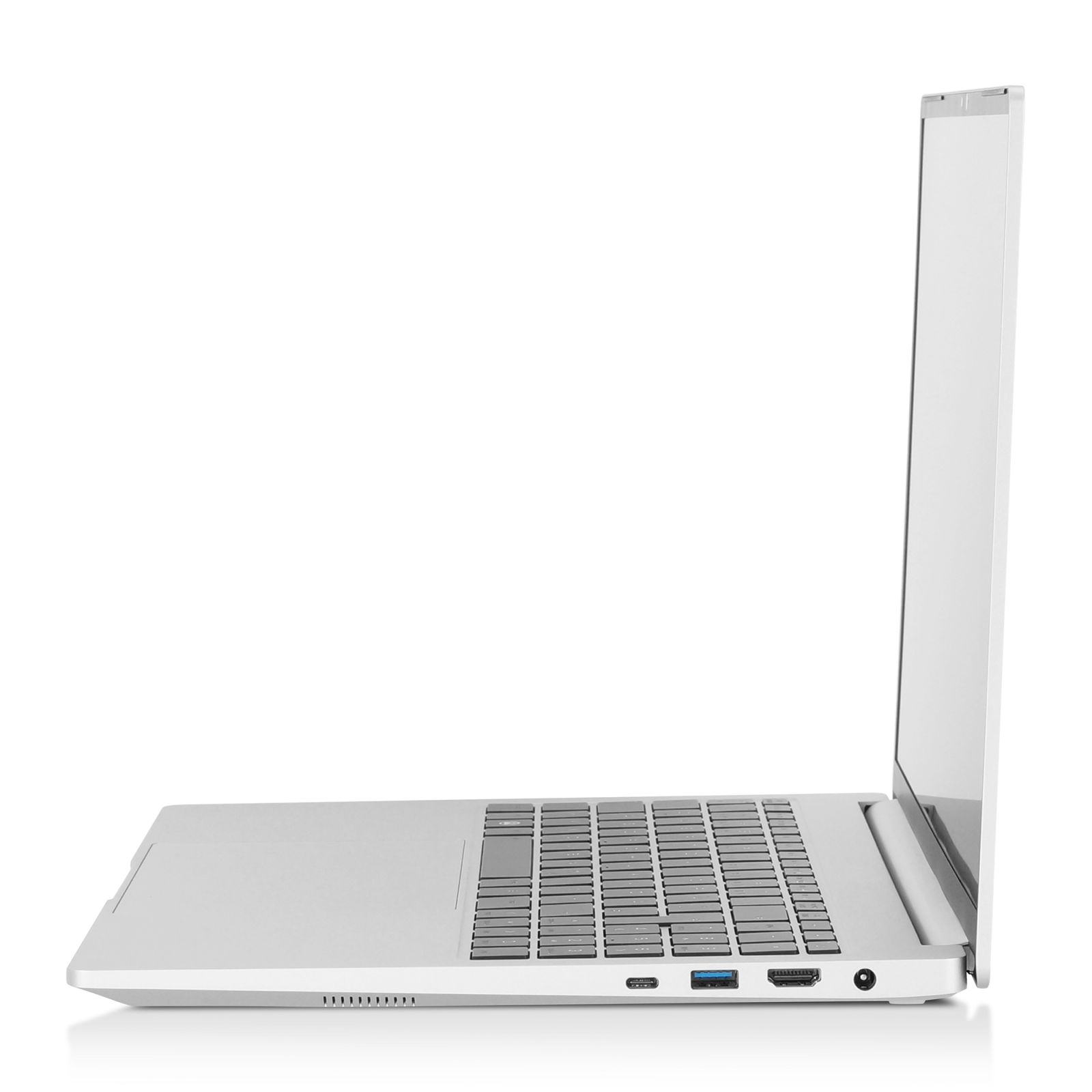

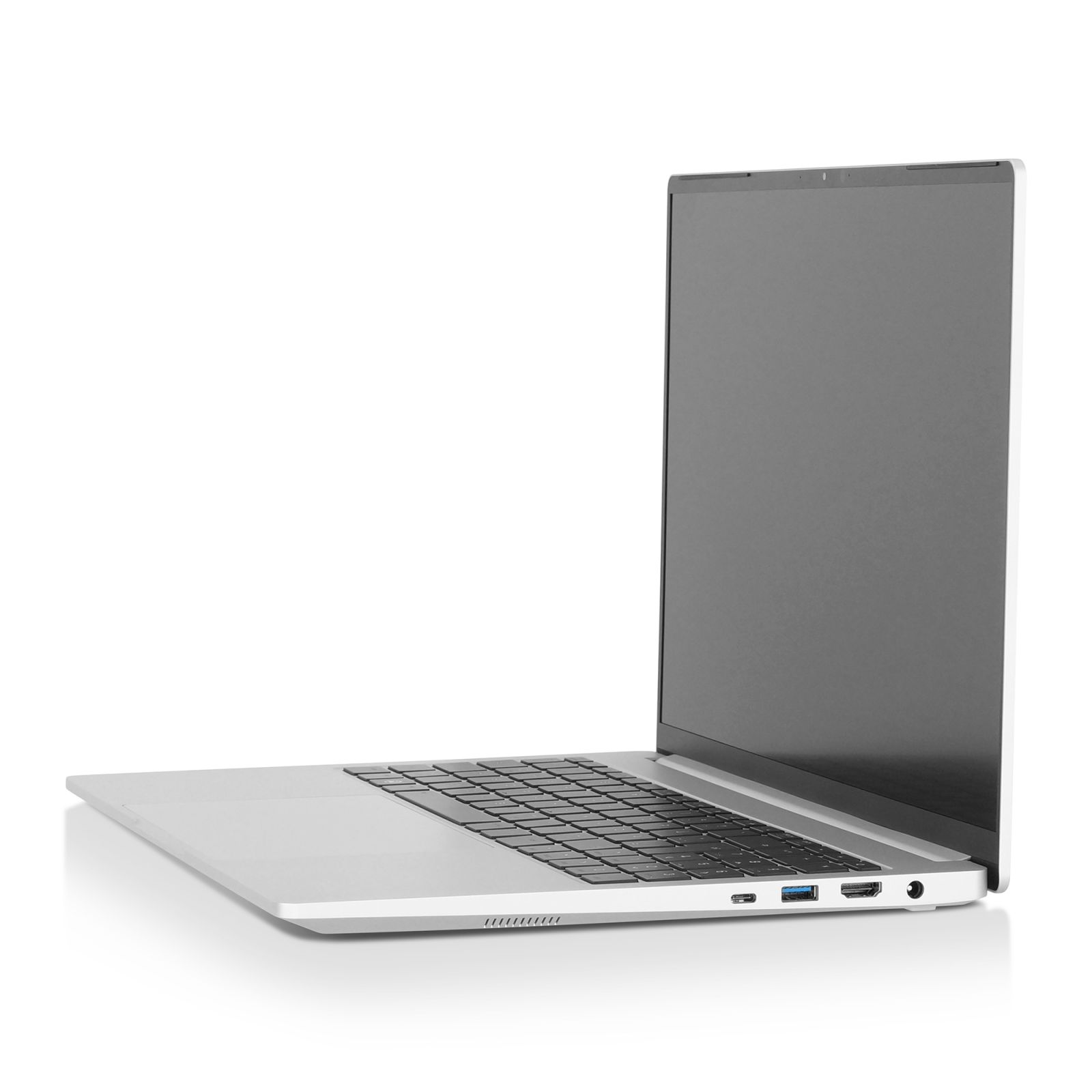

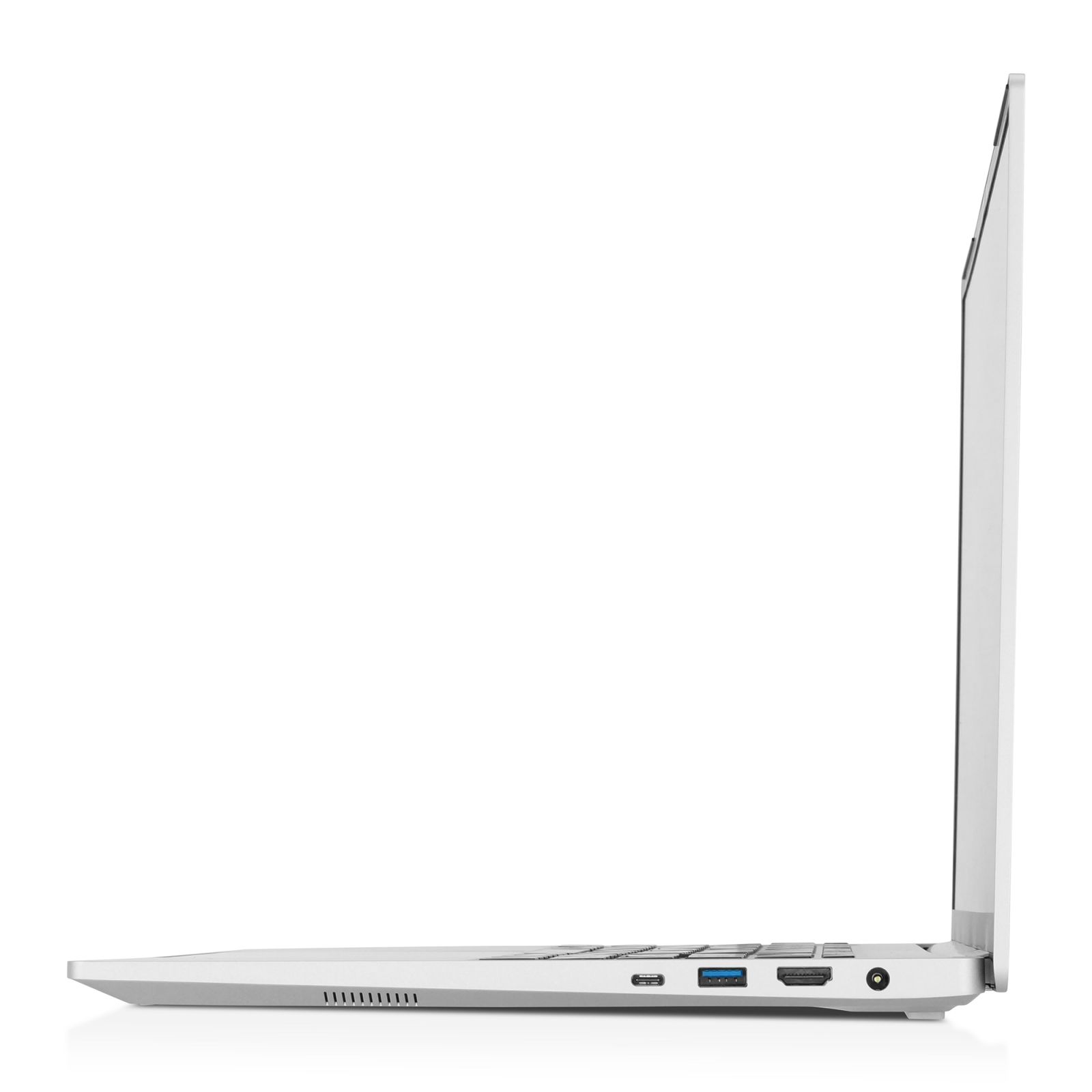

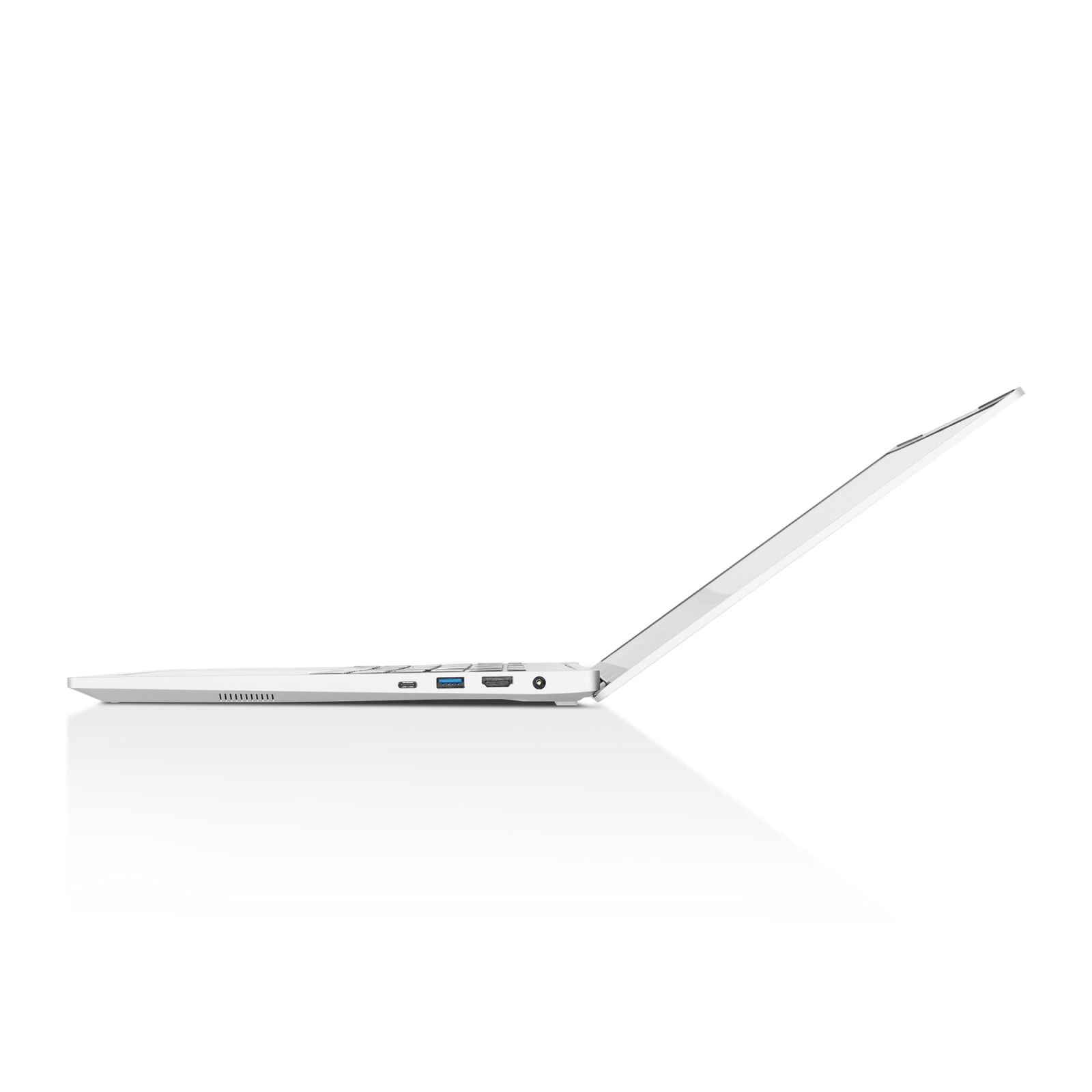

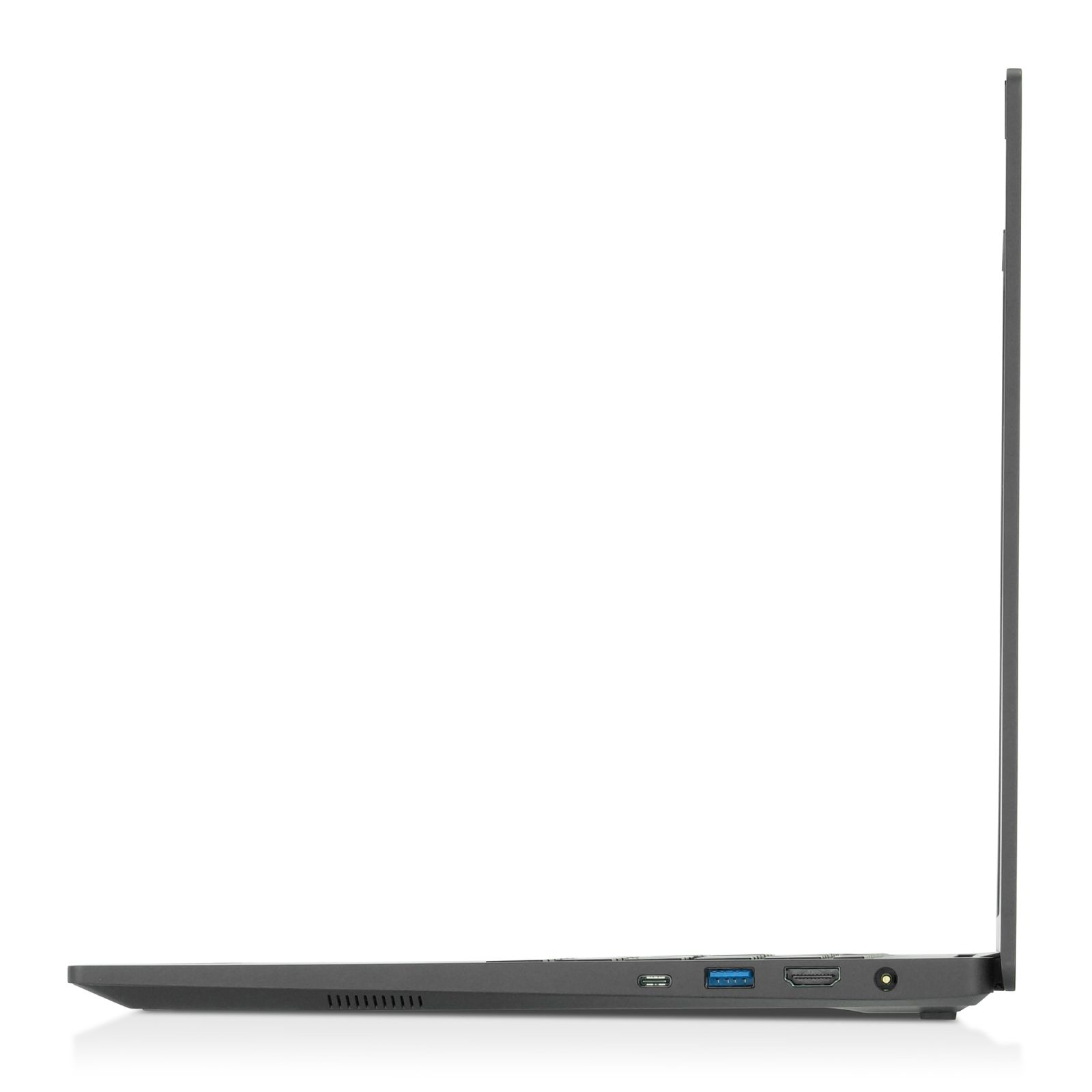

    InfinityBook 14 right ports

    From left to right: Thunderbolt 4 (DP 1.4 / Power Delivery), USB-A 3.2 Gen1, HDMI 2.0b, power connector




    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    16'' Omnia Display | non-glare | 240 Hz

    16:10, anti-reflective, LTPS
    Viewing angle: 89°/89°/89°/89°
    Resolution: 2560 x 1600 Pixel
    Color gamut (sRGB | AdobeRGB | DCI-P3): 100 % | 75 % | 80 %
    Maximum brightness: 350 nits
    Contrast: 1200:1
    Model: BOE NE160QDM-NZ1 V8.0

    For technical production reasons, the measured values always vary slightly from panel to panel. More information

    Display opening angle: approx. 40°



    Chassis

    Notebook: Length: 354 mm; Width: 245 mm; Height: 17 mm
    Weight: 1.7 kg incl. battery, depending on equipment
    Material: Display lid, top and bottom case made of magnesium alloy (AZ91D), Display frame made of plastic

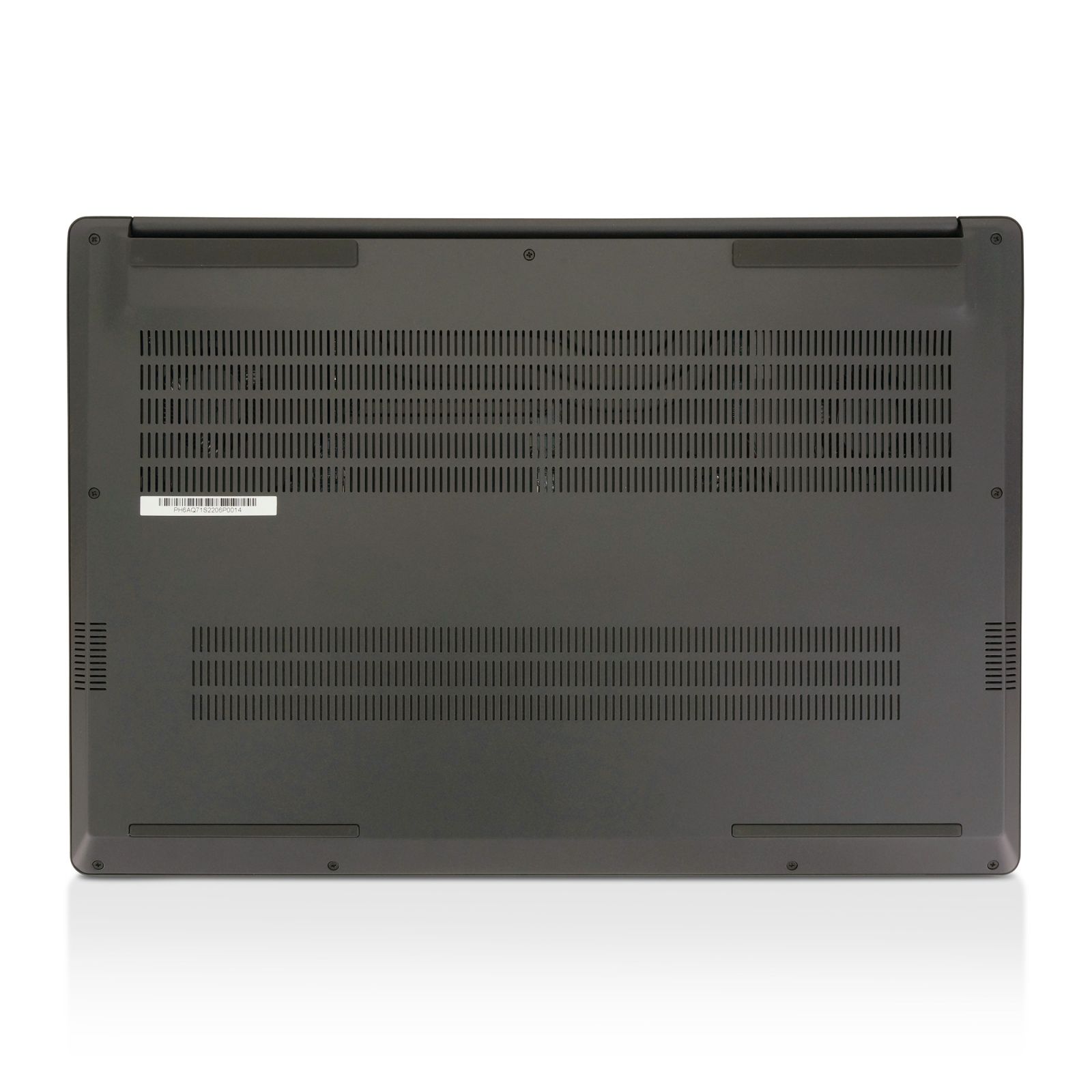

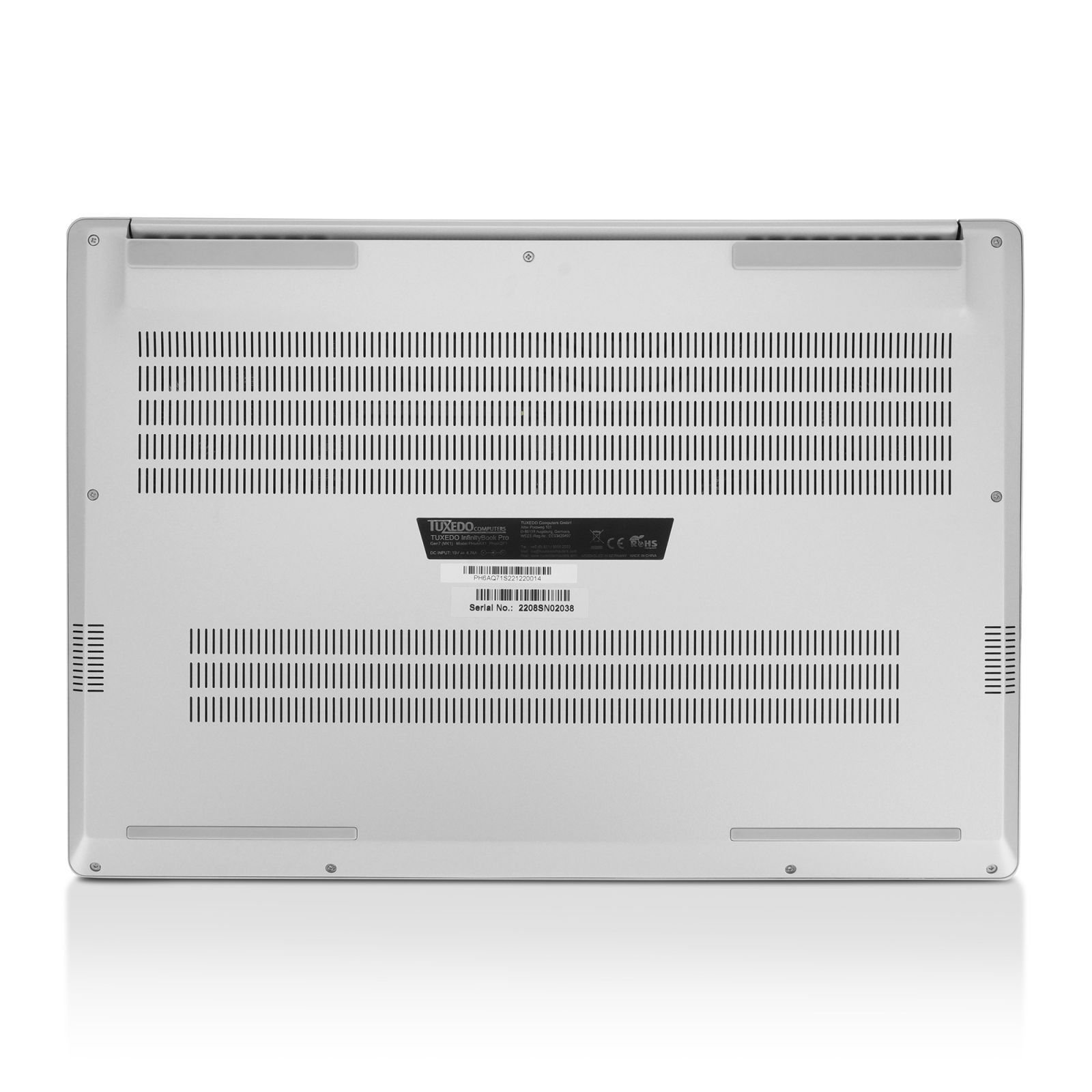

    Maintenance: After opening the base plate via a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.

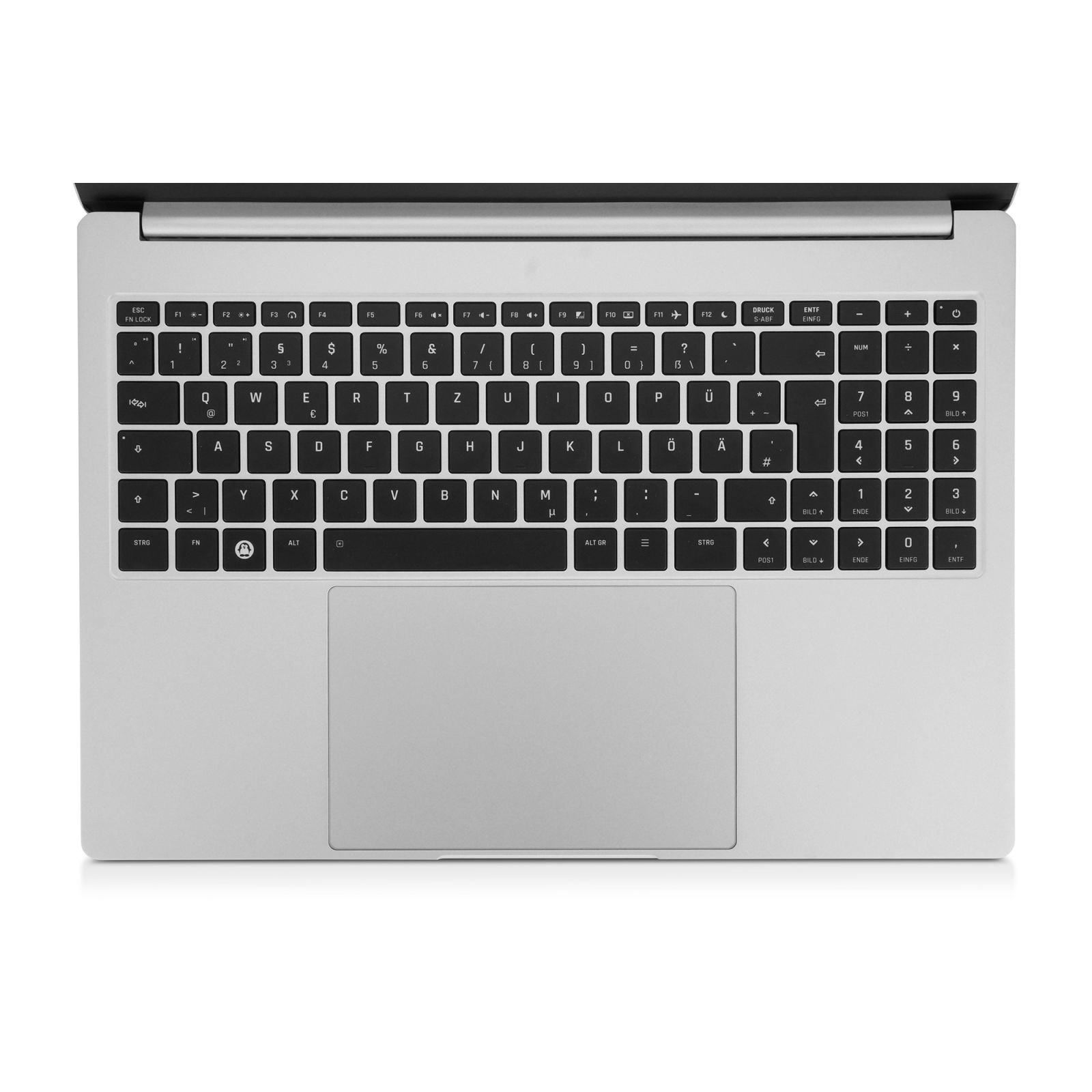

    Keyboard and Touchpad

    Monocolor (white) backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
    TUX super-key on all layouts!
    Huge precision glass clickpad (155 x 100 mm) with integrated buttons and multi-gesture- & scroll-function | Deactivatable via double tap in upper left corner | Right half deactivatable via double tap in upper right corner



    Ports

    2x USB-A 3.2 Gen1
    1x USB-C 3.2 Gen2 (inkl. DisplayPort 1.4, Power Delivery DC-In | Output: 5V/3A)

    • Hardwired to: dGPU (for best performance)
    • DisplayPort 1.4: yes (max. 7680 x 4320 @ 60 Hz or 2x 3840 x 2160 @ 60 Hz)
    • Power Delivery: yes (min. 20 V / 3,25 A (65 W))
      Power Delivery DC-In only when powered on or in energy-saving mode, not enabled when powered off or in sleep mode.
    • Support for VR headsets: no
    • no support for G-SYNC (proprietary), but compatible with Adaptive Sync (incl. FreeSync and G-SYNC compatible)

    1x Thunderbolt 4 (4x PCIe-Gen4-Lanes)

    • Hardwired to: iGPU (for power-efficient operation / NVIDIA Optimus)
    • DisplayPort 1.4: ja (max. 7680 x 4320 @ 60 Hz or 2x 3840 x 2160 @ 60 Hz)
    • Power Delivery: yes (min. 20 V / 3,25 A (65 W))
      Power Delivery DC-In even when powered off.
    • Support for VR headsets: no
    • no support for G-SYNC (proprietary), but compatible with Adaptive Sync (incl. FreeSync and G-SYNC compatible)

    1x HDMI 2.1

    • Hardwired to: dGPU (for best performance)
    • Max display resolution: 3840 x 2160 @ 120 Hz

    1x 2-in-1 audio (headphone + mic)
    1x Full size SD card reader
    1x DC-IN/power connection (also via USB-C*)
    1x Kensington Nano Security Slot



    Card reader

    Full size SD card reader (SD/SDHC/SDXC)
    Speed: UHS-I



    Security

    - Kensington-Lock mounting
    - Intel Management Engine (Intel ME) can be disabled directly via the BIOS
    - Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
    - WLAN & Bluetooth can be deactivated directly via the BIOS

    - TPM 2.0 (via Intel PTT) (can be activated/deactivated via BIOS)



    Battery & power supply

    Integrated 80 Wh lithium-polymer battery

    Power supply:
    (100 - 240V | 50 - 60 Hz)​
    180 W (AC) | 19,5 V / 9.23 A | 160 x 82 x 26 mm | 600 g | Plug: 5,5 x 2,5 x 12,5mm

    Power can also be supplied via USB-C (Power Delivery DC-In with max. 100 watts)
    Requirement: min. 20V/3.25A (65W), recommended 20V/5A (100W)

    For more information, please have a look at our article Charging via USB-C power supply (Power Delivery DC-In).



    Power plug:
    Type: Coaxial
    Inner diameter: 2.5mm
    Outer diameter: 5.5mm
    Length: 10mm



    Battery life:

    Unit with Intel integrated graphics only:
    Up to 10 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    Up to 6 hours at medium brightness with Wifi, at office work



    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Main processor

    Intel Core i7-12700H
    (14 Cores (6 Performance-cores | 8 Efficient-cores) | 20 Threads | Max. 4,7 GHz | 24 MB L3-Cache, 45 W TDP)

    Liquid metal thermal interface between CPU die and heat sink for optimized heat transfer



    Graphics card

    Energy efficient CPU integrated Graphics:
    Intel Iris Xe Graphics 96 | Max. clock speed: 1400 MHz | EUs (Execution Units): 96

    NVIDIA GeForce RTX 3060 | 6 GB GDDR6 VRAM | 70 W TGP (+25 W Dynamic Boost)
    NVIDIA GeForce RTX 3070 Ti | 8 GB GDDR6 VRAM | 70 W TGP (+25 W Dynamic Boost)
    NVIDIA GeForce RTX 3080 | 16 GB GDDR6 VRAM | 70 W TGP (+25 W Dynamic Boost)



    It is possible to drive 4 displays at the same time. 3 external plus the internal notebook display or 4 external displays.
    Max. resolution (HDMI 2.1): 3840 x 2160 @120 Hz (hardwired to the dGPU)
    Max. resolution (DisplayPort 1.4a): 7680 x 4320 @60 Hz oder 2x 3840 x 2160 @ 60 Hz (hardwired to the iGPU)



    Memory

    DDR5-4800 MHz SoDIMM | 2 sockets upgradeable | max. 64 GB | Dual Channel



    Mass storage (SSD / HDD)

    2x M.2 2280 for NVME (PCI-Express 4.0 x4)
    Intel Optane Technology



    Communication / Network

    Wireless/WIFI:
    Intel Wi-Fi 6 AX200 Series:
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX200 Series
    Version: Dual Mode Bluetooth 5.2



    Webcam / Laptop camera

    2.0 Megapixel (1920 x 1080 pixels) webcam with face detection



    Sound / Audio

    High Definition Audio
    2 x W integrated speakers
    Integrated microphone



    Cooling System & Fan

    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!







    Model-ID: IBP1607Mk2





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).



    For this purpose, the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth



    In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.



    Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
