msi-m-b560-tp
Mainboard:
Hersteller & Chipsatz: Intel B560 Chipset
256 Mbit AMI UEFI BIOS
Formfaktor: ATX (30,5 x 24,4 cm)
Netzwerk / Ethernet / LAN
2x LAN:
- 1x 2.5 Gigabit Realtek RTL8125BG (2.5 Gbit / 1 Gbit / 100 Mbit)
- 1x 1 Gigabit Intel I219 (1 Gbit / 100 Mbit)
- Unterstützt Wake-On-LAN
- Unterstützt PXE, uvm.
Sound / Audio:
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- High Definition Audio
- 2/4/5.1/7.1-channel
- S/PDIF Out

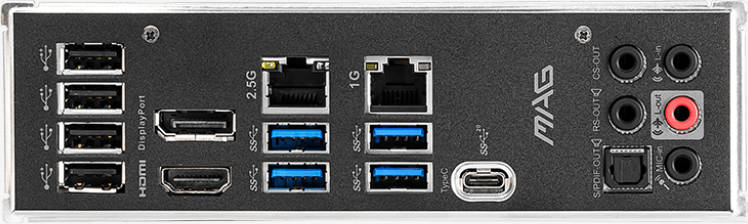

Mainboard-Anschlüsse auf der Rückseite:
2 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)
1 x DisplayPort 1.4
1 x HDMI 2.0b mit HDR
1 x USB-C USB 3.2 Gen2x2 20GBit/s (abwärtskompatibel)
4 x USB-A USB 3.2 Gen1 5GBit/s (abwärtskompatibel)
4 x USB-A USB 2.0
1 x Optischer S/PDIF out
6 x Audio Anschlüsse: 1x Audio Eingang/Line in; 1x Front Speaker; 1x Rear Speaker; 1x Subwoofer; 1x Mikrofon Eingang
Mainboard-Anschlüsse intern (teilweise durch verbaute Hardware belegt):
4 x DDR4 DIMM-Sockel (max. 128GB)
1 x PCI Express 4.0 x16 Slot, running at x16
1 x PCI Express 3.0 x16 Slot, running at x4
1 x PCI Express 3.0 x1 Slot
6 x SATA 6Gb/s connector(s)
3 x M.2 slots
1 x CPU fan header
1 x water cooling CPU fan header
5 x system fan headers
2 x system panel connectors
1 x front panel audio header
2 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
1 x USB 3.2 Gen 2 10Gbps Type-C port header
1 x USB 3.2 Gen 1 5Gbps header
2 x USB 2.0 headers
1 x TBT connector (Supports RTD3)
1 x Trusted Platform Module (TPM) connector
1 x Clear CMOS jumper
Festplattenanschlüsse:
1 x M.2 Socket (M2_1)
- Supports M Key type 2242/2260/2280/22110 M.2 PCI Express module up to Gen4 x4
1 x M.2 Socket (M2_2)
- Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 & SATA 6Gb/s
1 x M.2 Socket (M2_3)
- Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4; Intel Optane Memory Ready
6 x SATA 6Gb/s
