Ten times smaller than a shoebox

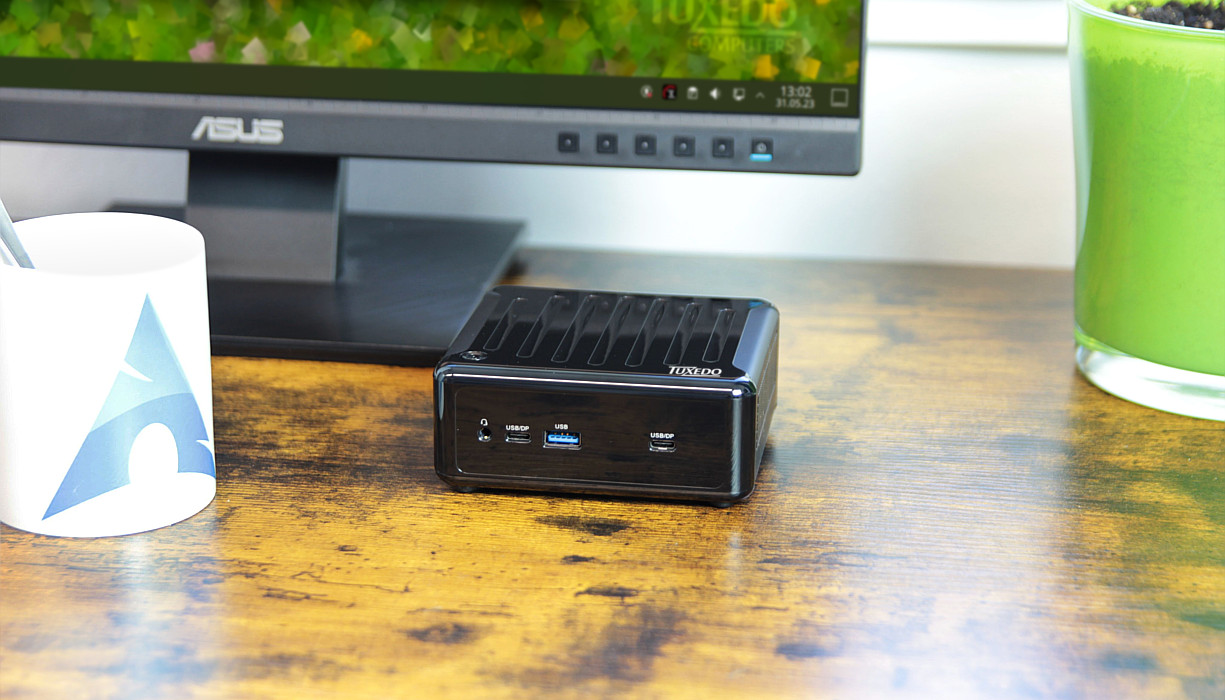

Let's put the TUXEDO Nano Pro's size into perspective: The TUXEDO Nano Pro's dimensions of 110 x 118 x 48 mm with a volume of only 0.62 liters are less than one tenth of the capacity of a standard shoebox!

Thanks to its incredible compact design and weight of only about 1 kg, the Linux Mini PC is perfectly suitable for any situation that requires the smallest possible form factor.

Whether it is a digital signage solution for public steles or digital info terminals, a home media station for the living room or an ultra portable home or work PC - the TUXEDO Nano Pro requires only a minimum of space for maximum flexibility.

Additional flexibility regarding the positioning of the Mini Linux PC is provided by the included VESA mount, which can be used to attach the Nano Pro to a wall or the back of a monitor or TV, for example.

The intelligent and highly efficient use of space in a sandwich construction combines upgradeability with easy access to RAM or mass storage via the removable base plate.

AMD Ryzen 7000U:
Power-efficient yet powerful!

AMD Ryzen processors in general and the Ryzen U series in particular stand for great energy efficiency resulting in a low power consumption yet great performance for multimedia purposes, content creation or even light gaming.

The AMD Ryzen 5 7535U, which comes with 6 processor cores including Simultaneous Multithreading (SMT), by means of which up to 12 threads can be processed simultaneously, marks the affordable entry-level-option which is suitable for all everyday tasks, such as web browsing, emails and office tasks.

For more demanding tasks, such as image editing, video editing and ultra-fast multitasking, the top model, the Ryzen 7 7840U, features 8 cores, which can also process two threads each in parallel thanks to SMT and thus up to 16 treads in total, for great performance while still consuming only 28 watts of power.

Fast yet power-saving graphics for multimedia and light gaming

Just like the Nano Pro - Gen11, the new Gen12's graphics are powered by AMD Radeon graphics integrated in the CPU. In contrary to its predecessor, the current AMD Ryzen 7000U graphics are significantly faster offering more performance for content creation and even "light gaming" in reduced quality settings.

The Ryzen 5 7535U comes with the Radeon 660M with 6 GPU cores and a maximum clock speed of 1900 MHz. It is well suited for all everyday tasks, work, office, web and multimedia, but struggles in terms of PC gaming.

The around 30-50 % faster Radeon 680M which is built into the Ryzen 7 7840U, features the double amount of GPU cores (12) and clock speeds of up to 2700 MHz. The AMD Radeon 780M is a great choice for graphically more demanding apps and even allows PC gaming at lower resolutions or reduced quality settings.

Please note: AMD Radeon graphics integrated in the main processor (iGPUs) do not have a dedicated graphics memory and therefore utilize the RAM. In order to provide full graphics performance we highly recommend to configure your Nano Pro with two identical RAM modules (Dual Channel) (e.g. 2x 8 GB instead of 1x 16 GB)!

Up to 12 TB storage and 64 GB DDR5 RAM

The disadvantage of such a tiny case is often the lack of storage capacity and upgradeability. Not so with the TUXEDO Nano Pro! Despite its ultra small form factor you neither have to do without upgradeable RAM nor extensible mass storage

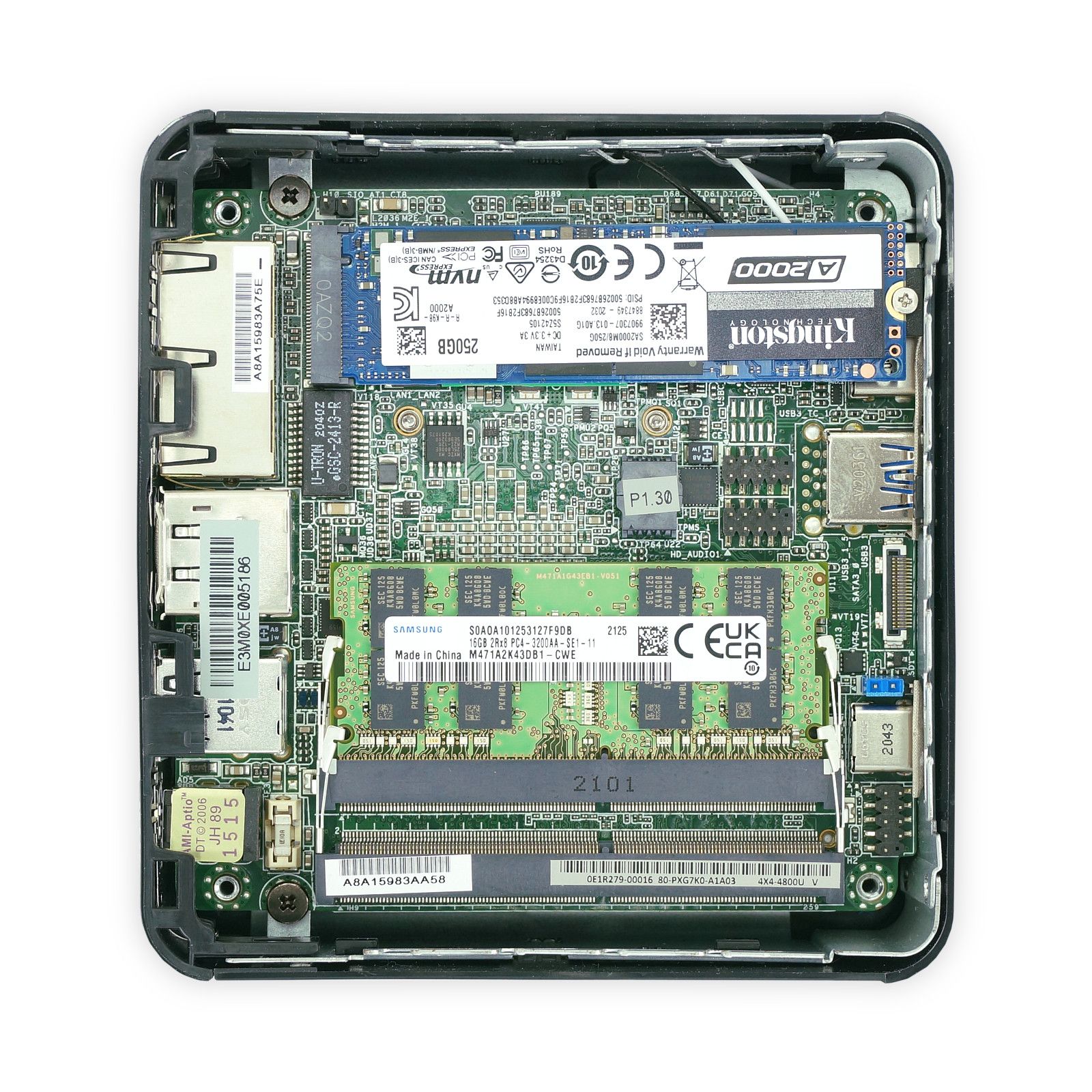

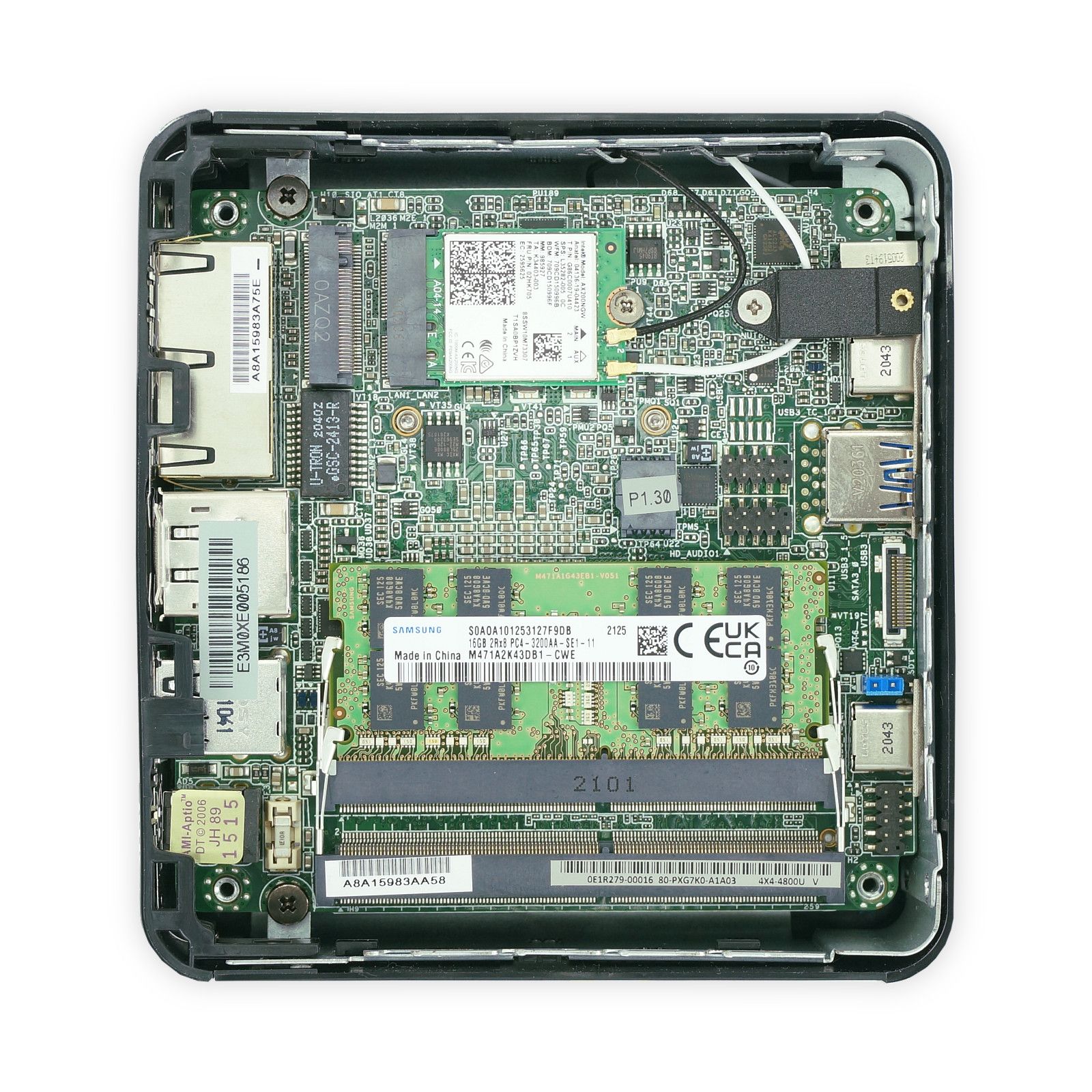

After removing the Linux Mini PC's bottom panel, which is of course covered by the warranty, two RAM slots for up to 64 GB of DDR5-4800 MHz memory as well as one M.2 SSD for max. 4 terabytes with PCIe Gen4 x4 high-speed connection and one 2.5'' SSD/HDD slot with SATA 3.0 speed and - last but not least - the Wi-Fi module (Wi-Fi 6E 802.11ax + BT 5.2) are easily accessible for replacement.

For even more storage space, you get 10 GB myTUXEDO cloud storage for free with every TUXEDO laptop or PC. This way, you can access your data conveniently and securely (encrypted and hosted in compliance with german data protection regulations) at any time from anywhere and with any Internet-capable laptop, PC or smartphone.

5x USB, 3x DisplayPort and 2x LAN

Despite its extremely small enclosure, the the TUXEDO Nano Pro offers an extensive ports selection for data transfers and for connecting up to 4 displays.

Speaking of monitors: For a multi-monitor setup, the Nano Pro comes with HDMI 2.0 und DisplayPort 1.4a at the back of the case and 2x USB-C with DisplayPort 1.4a at the front for hooking up to 4 screens to the Linux Mini PC.

For data transfers 2x Gigabit Ethernet LAN ports (1x 1 Gb, 1x 2.5 Gb) and three USB-A ports (1x USB 3.2 Gen2, 2x USB 2.0) are availble while the 2-in-1 audio jack and the obligatory Kensington Lock for theft protection at public places make the TUXEDO Nano Pro's ports selection complete.

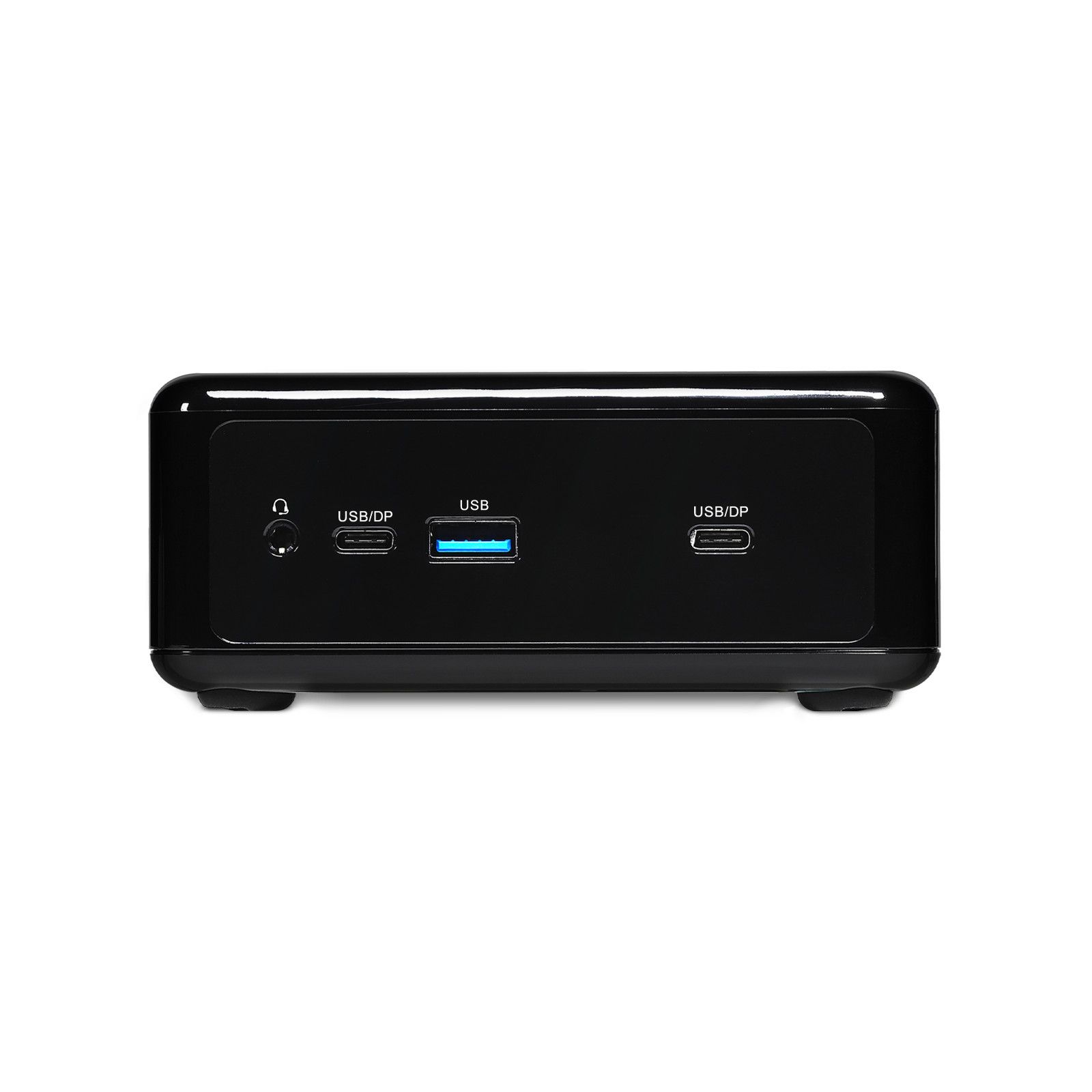

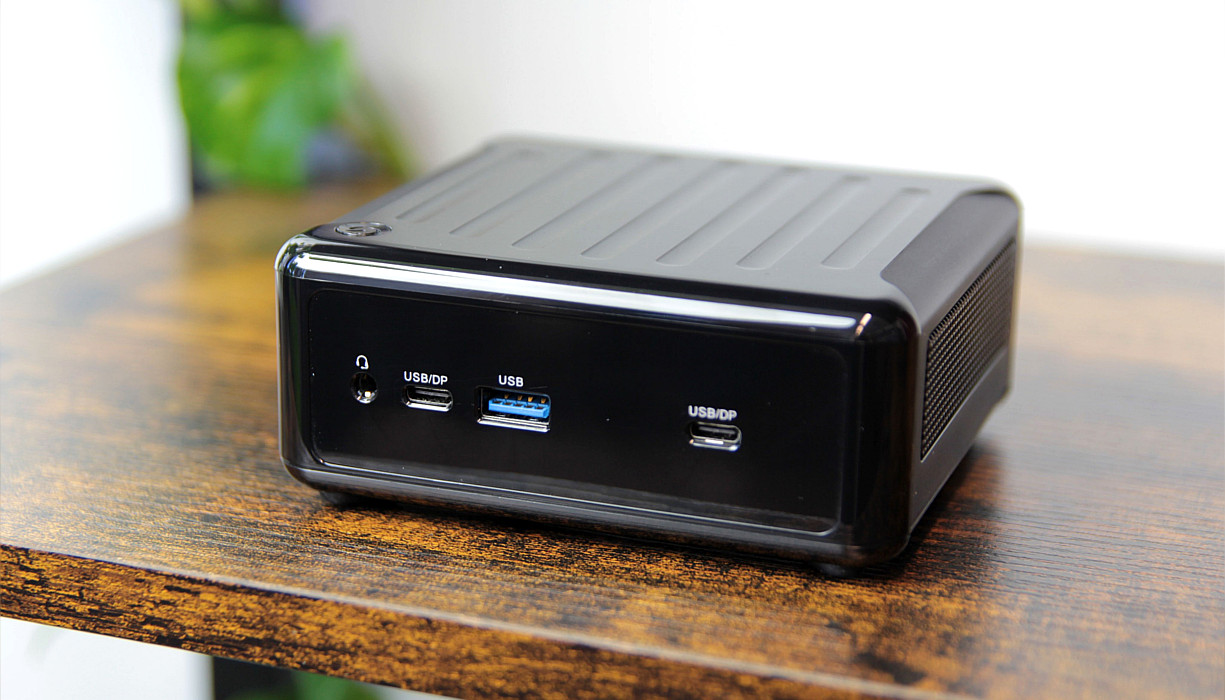

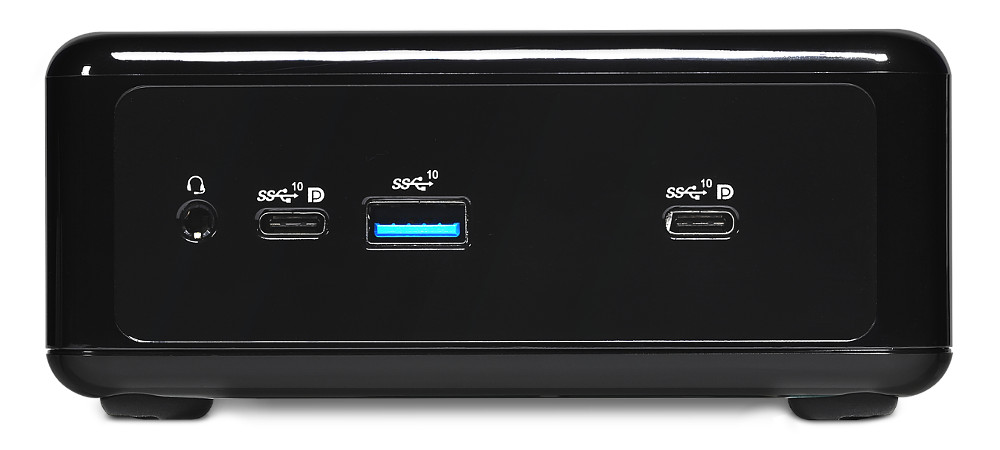

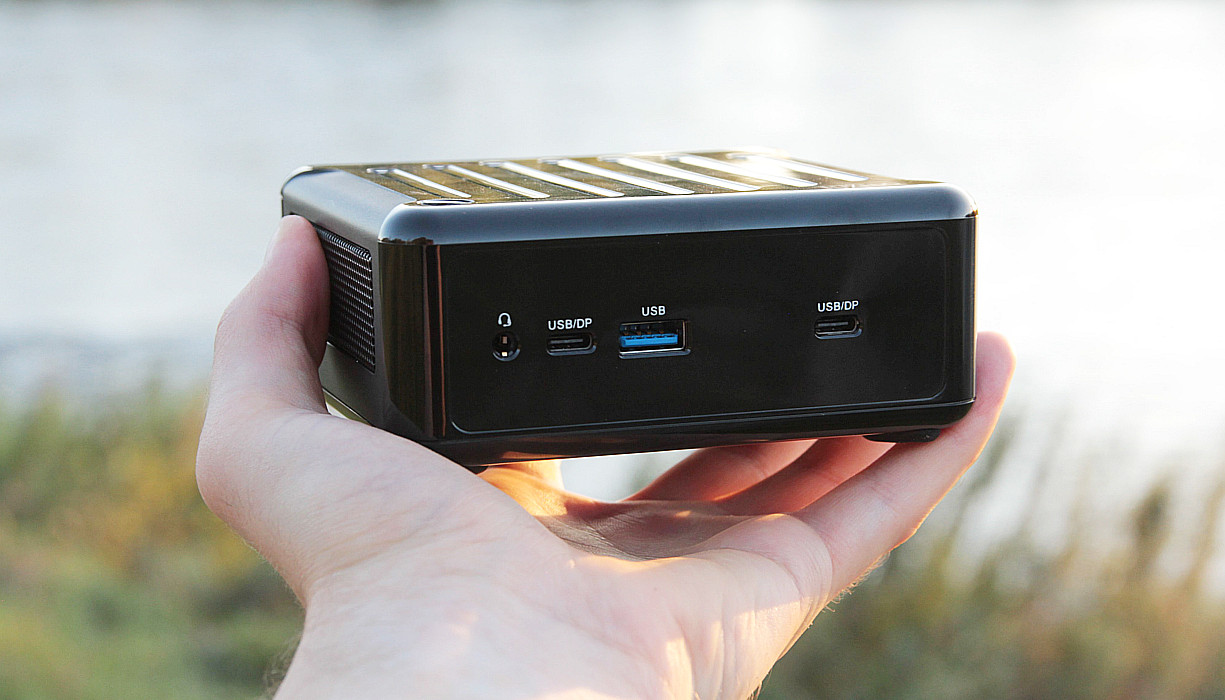

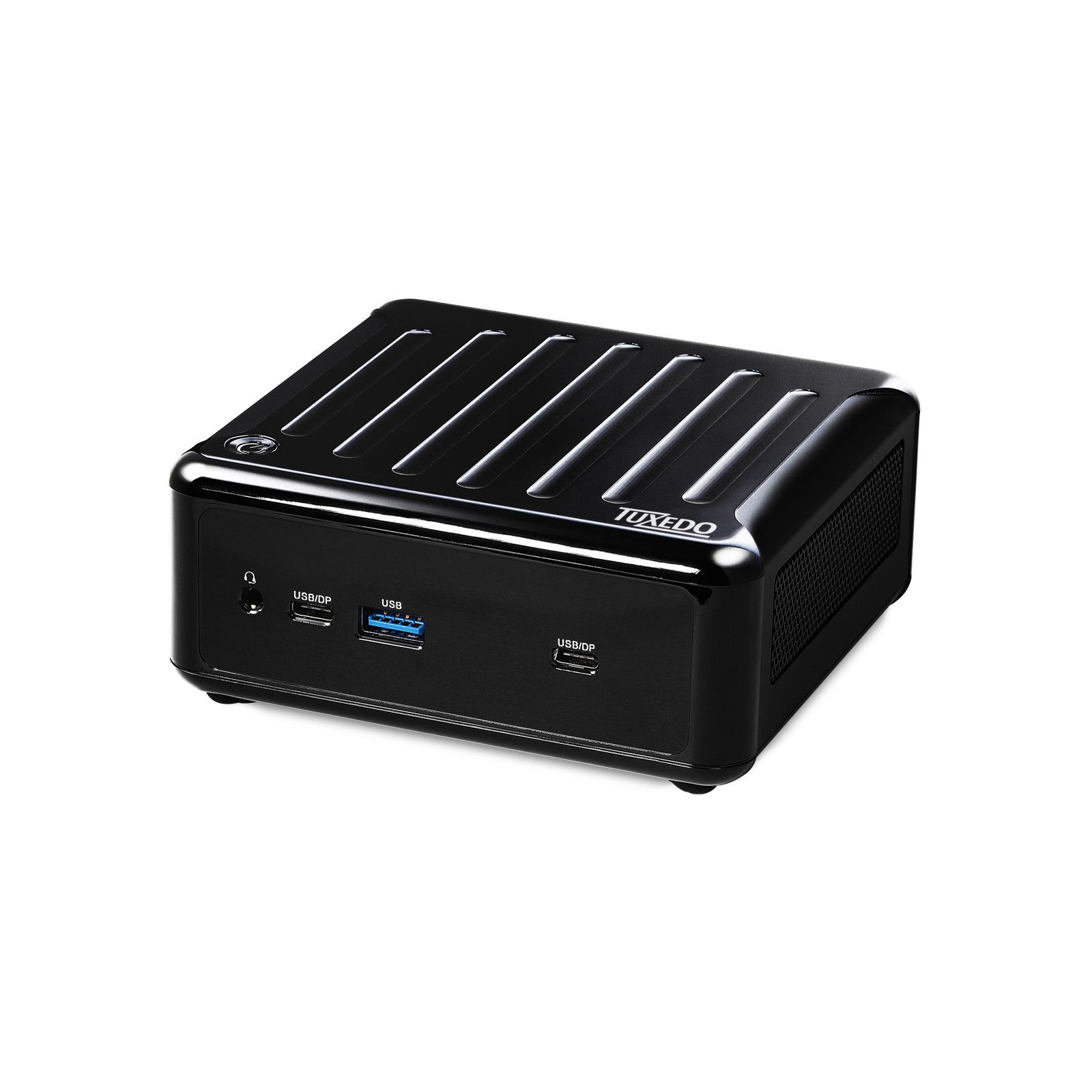

From left to right: 2-in-1 audio jack (headphone out + microphone in), USB-C 4 (incl. DisplayPort 1.4), USB-A 3.2 Gen2, USB-C 4 (incl. DisplayPort 1.4)

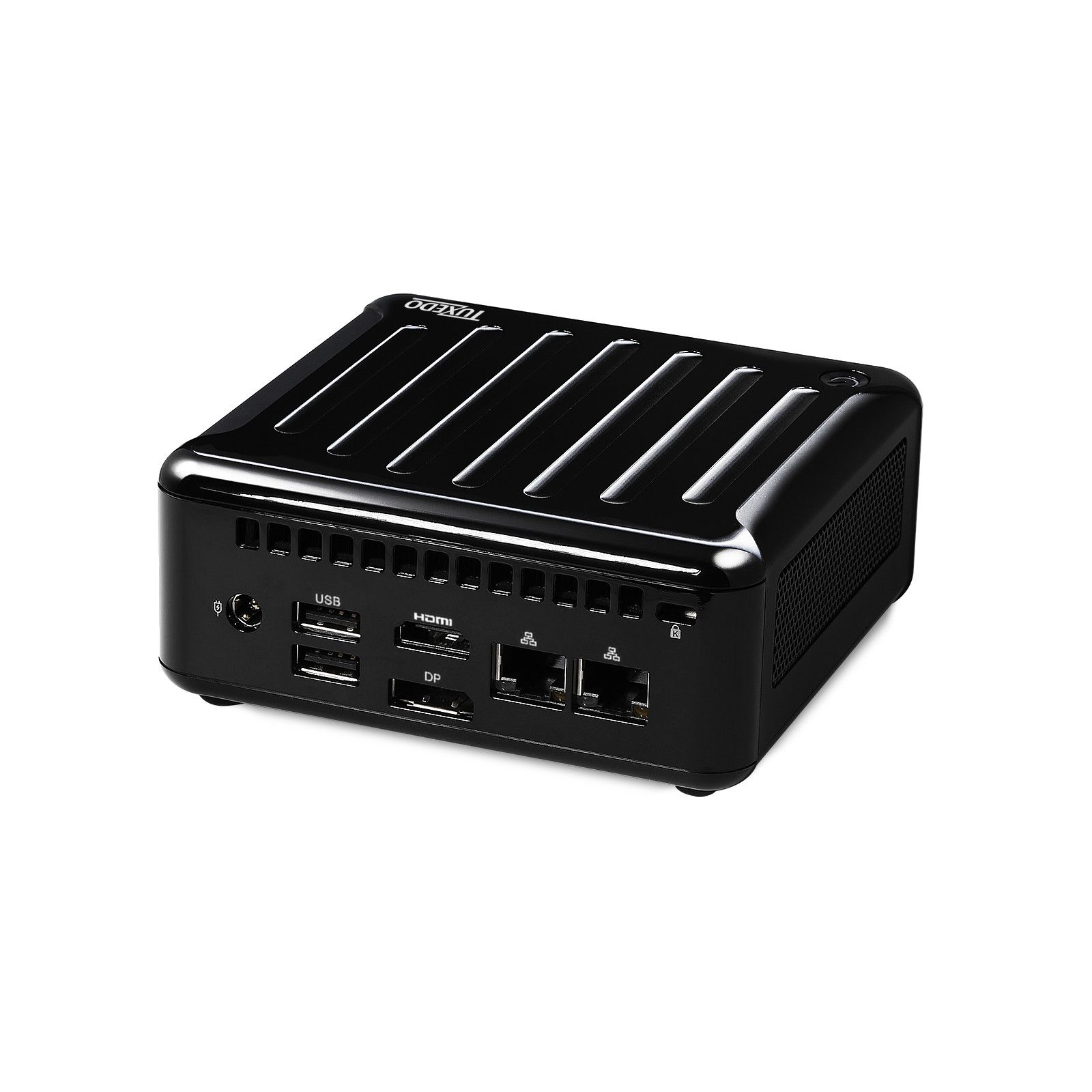

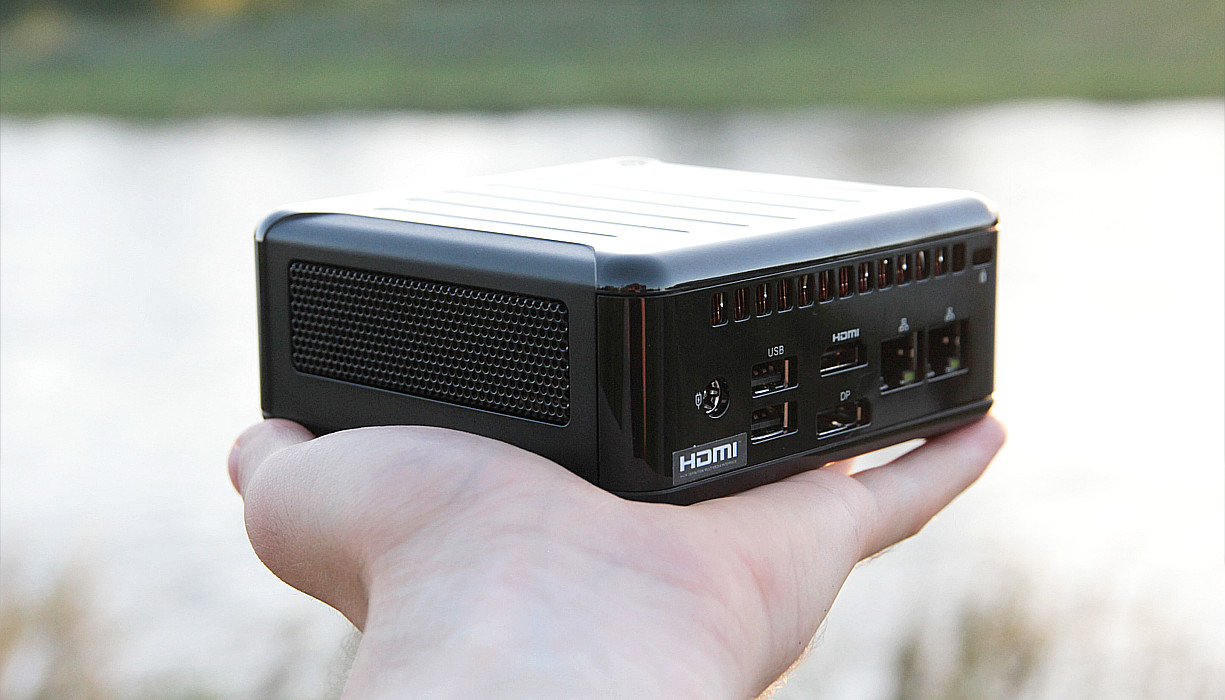

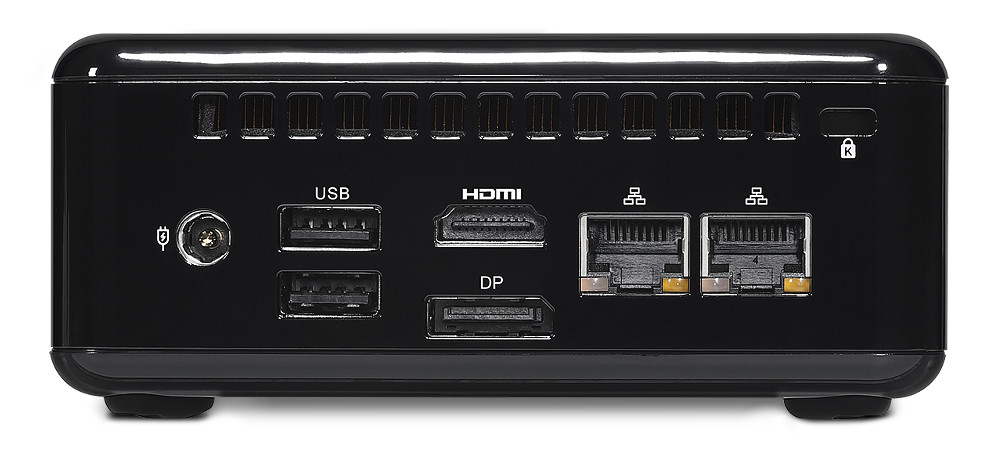

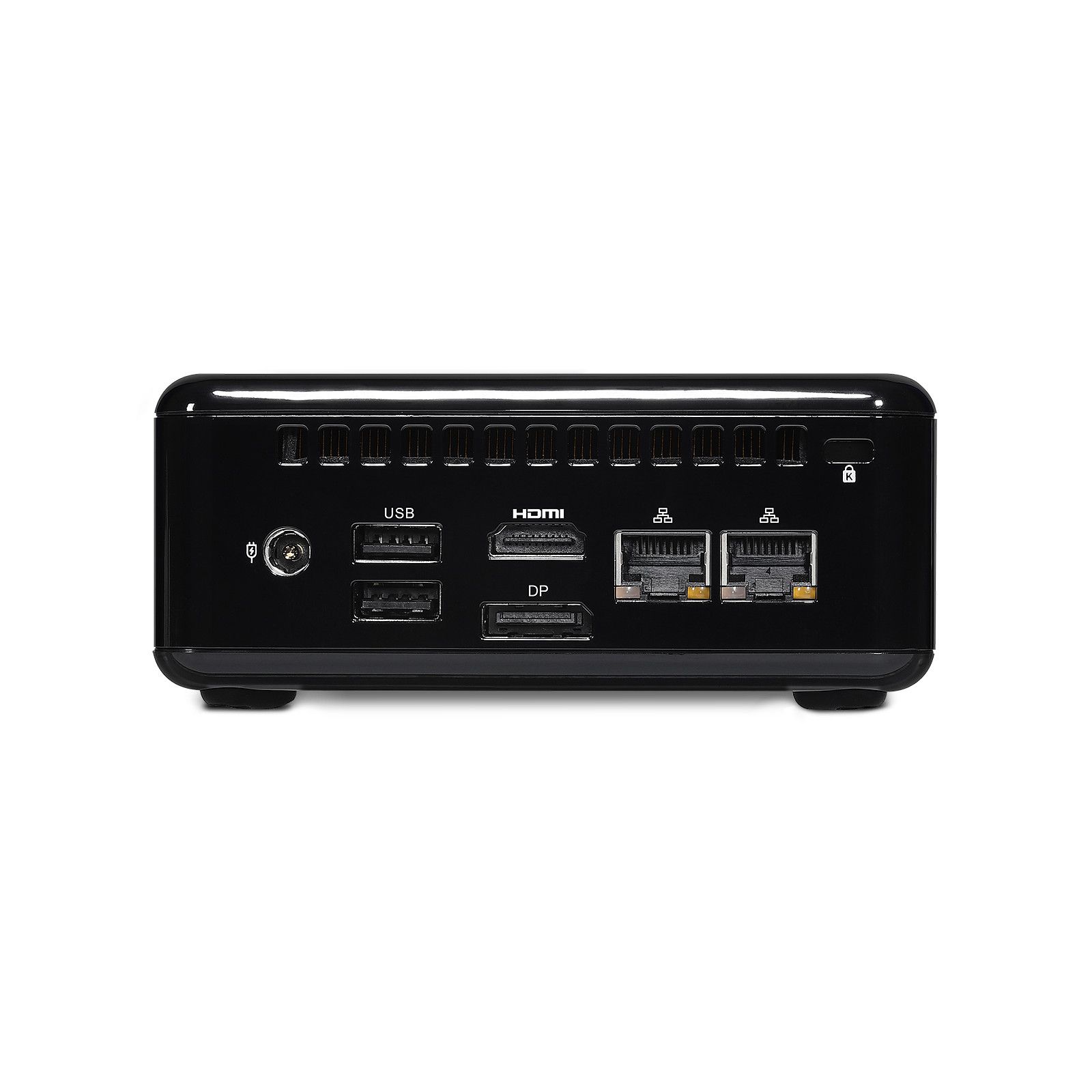

From left to right: Power connector (DC-In), 2 x USB-A 2.0, HDMI 2.0, DisplayPort 1.4a, 2x RJ45 LAN (1x 1 Gbit/s, 1x 2.5 Gbit/s), Kensington Lock
