ar-b860i-w
Mainboard:
Manufacturer & Chipset: Intel B860 Chipset
256 Mbit AMI UEFI BIOS
Formfactor: Mini-ITX (17 x 17 cm)
Network / Ethernet / LAN
2x LAN:
- 1x 2.5 Gigabit (Realtek RTL8125BG)
- 1x 1 Gigabit (Intel I219V)
- Supports Wake-On-LAN
- Supports PXE, and more
Wireless LAN / WLAN / WIFI
Intel Wi-Fi 6 AX200 Series
- Supports MU-MIMO TX/RX
- Supports 802.11 a/b/g/n/ac/ax
- Supports Bluetooth 5.3
Sound / Audio:
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- High Definition Audio
- 2/4/5.1/7.1-channel

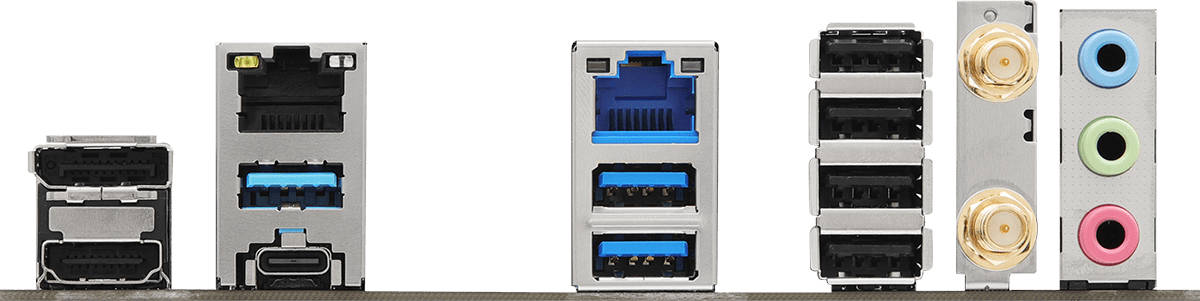

Rear Mainboard connectors:
2x RJ-45 LAN Port mit LED (ACT/LINK LED and SPEED LED)
1x HDMI 2.1 inkl. HDR (max. 4K@120Hz)
1x DisplayPort 1.4 (max. 8K@60Hz)
1x USB-C USB 3.2 Gen2x2 20GBit/s (backward compatible)
1x USB-A USB 3.2 Gen2 10GBit/s (backward compatible)
2x USB-A USB 3.2 Gen1 5GBit/s (backward compatible)
4x USB-A USB 2.0
2x Antenna connectors
3x Audio jacks: 1x Line in; 1x Front Speaker; 1x Mic-In
Mainboard connectors internally (partially populated by your configuration)::
2x DDR5 DIMM-Sockel
1x PCI Express 5.0 x16 Slot, running at x16
4x SATA 6Gb/s connector(s)
2x M.2 slots
1x Addressable LED Header
1x CPU Fan Connector (4-pin)
1x Chassis Fan Connector (4-pin)
1x AIO Pump Fan Connector (4-pin)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
1x USB 2.0 Header (Supports 2 USB 2.0 ports)
1x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)
1x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Storage connectors:
1x M.2 Socket (M2_1)
- Supports M Key type 2280 M.2 PCI Express module up to Gen5 x4
1x M.2 Socket (M2_2)
- Supports M Key type 2280 M.2 PCI Express module up to Gen4 x4
4x SATA 6Gb/s
- Supports RAID 0 and RAID 1 for SATA storage device,
