msi-m-x870e-th-wifi
Mainboard:
Manufacturer & Chipset: AMD X870E Chipset
256 Mbit AMI UEFI BIOS
form factor: ATX (30,5 x 24,4 cm)
Network / Ethernet / LAN
1x LAN:
- 1x 5 Gigabit Realtek 8126 (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit)
- Supports Wake-On-LAN
- Supports PXE
Wireless LAN / WLAN / WIFI
Qualcomm NCM865
- Supports MU-MIMO TX/RX
- Supports 802.11 a/b/g/n/ac/ax/be
- Supports Bluetooth 5.4
Sound / Audio:
7.1 CH HD Audio (Realtek ALC4080 Audio Codec)
- High Definition Audio
- 2/4/5.1/7.1-Kanal
- S/PDIF Out

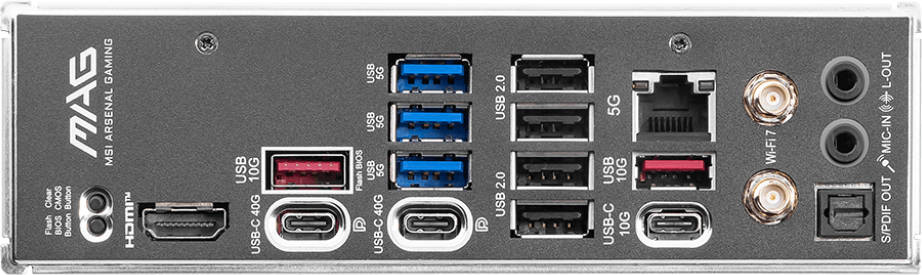

Rear Mainboard connectors:
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1x HDMI Port 2.1 incl. HDR
- Linux: HDMI 2.0 (max. 4K/60Hz)
- Windows: HDMI 2.1 (max. 8K/60Hz)
4x USB-A 2.0
2x USB-C 4.0 40GBit/s (backward compatible) inclusive DisplayPort 1.4
1x USB-C 3.2 Gen2 10GBit/s (backward compatible)
2x USB-A 3.2 Gen2 10GBit/s (backward compatible)
1x USB-A 3.2 Gen1 5GBit/s (backward compatible)
2x Antenna connectors
3x Audio: 1x Line Out; 1x Optical S/PDIF out; 1x microphone
Mainboard connectors internally (partially populated by your configuration):
4x DDR5 DIMM-Socket
1x PCI Express 5.0 x16 Slot, running at x16
1x PCI Express 3.0 x16 Slot, running at x1
1x PCI Express 4.0 x16 Slot, running at x4
4x SATA 6Gb/s connector
4x M.2 Steckplätze
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x ARGB+FAN+USB2.0 Header
2x Front Panel
1x Chassis Intrusion
1x Front Audio
3x Addressable V2 RGB LED connector
1x RGB LED connector
1x TPM pin header
Storage connectors:
1x M.2 Socket (M2_1)
- Supports M Key Typ 2280/2110 M.2 NVMe, up to Gen5 x4
1x M.2 Socket (M2_2)
- Supports M Key Typ 2260/2280 M.2 NVMe, up to Gen5 x4
1x M.2 Socket (M2_3)
- Supports M Key Typ 2280 M.2 NVMe, up to Gen4 x4
1x M.2 Socket (M2_4)
- Supports M Key Typ 2280 M.2 NVMe, up to Gen4 x4
4x SATA 6Gb/s
