msi-x670e-gpw
Mainboard:
Manufacturer & Chipsatz: : AMD X670E Chipset
256 Mbit AMI UEFI BIOS
Formfaktor: ATX (30,5 x 24,4 cm)
Network / Ethernet / LAN
1x LAN:
- 1x 2.5 Gigabit Realtek RTL8125BG (2.5 Gbit / 1 Gbit / 100 Mbit)
- Supports Wake-On-LAN
- Supports PXE, uvm.
Wireless LAN / WLAN / WIFI
AMD Wi-Fi 6E RZ616
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80Mhz, 160Mhz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
- Supports 802.11 a/b/g/n/ac/ax
- Supports Bluetooth 5.3
Sound / Audio:
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- High Definition Audio
- 2/4/5.1/7.1-channel

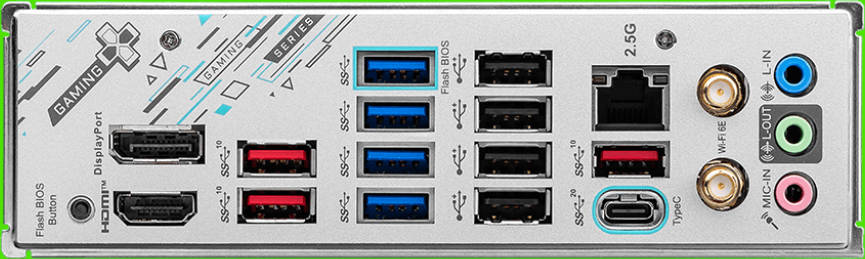

Rear Mainboard connectors:
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x DisplayPort 2.1 (4K@60Hz)
1 x HDMI 2.1 (4K@60Hz) with HDR
1 x USB-C USB 3.2 Gen2x2 20GBit/s (backward compatible)
3 x USB-A USB 3.2 Gen2 10GBit/s (backward compatible)
4 x USB-A USB 3.2 Gen1 5GBit/s (backward compatible)
4 x USB-A USB 2.0
2 x Antenna connectors
3 x Audio jacks: 1x Audio Line in; 1x Audio Line out; 1x Mic-In
Mainboard connectors internally (partially populated by your configuration):
4 x DDR5 DIMM-Sockel (max. 128GB)
1 x PCI Express 5.0 x16 Slot, running at x16
1 x PCI Express 4.0 x16 Slot, running at x4
1 x PCI Express 3.0 x16 Slot, running at x1
1 x PCI Express 3.0 x1 Slot
4 x SATA 6Gb/s connector(s)
4 x M.2 slots
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Front Audio (JAUD)
1x TBT connector (JTBT)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector
1 x Clear CMOS jumper
Storage connectors:
1 x M.2 Socket (M2_1)
- Supports M Key type 2280/22110 M.2 PCI Express module up to Gen5 x4
1 x M.2 Socket (M2_2)
- Supports M Key type 2260/2280 M.2 PCI Express module up to Gen4 x4
1 x M.2 Socket (M2_3)
- Supports M Key type 2260/2280 M.2 PCI Express module up to Gen4 x4
1 x M.2 Socket (M2_4)
- Supports M Key type 2260/2280 M.2 PCI Express module up to Gen4 x4
4 x SATA 6Gb/s
