Instructions for opening the device

    You can usually remove the bottom tray of TUXEDO notebooks in just a few steps. For example, you can clean the fans or replace the battery if necessary. The warranty states that opening the case is allowed for service reasons and does not lead to any loss of rights in case of defects or loss of warranty.

    Notes on opening our devices

    • To open the device, you usually only need a suitable screwdriver. In most cases we use commercially available Phillips screws. Exotic screw heads, which make opening more difficult and require special tools, are not available at TUXEDO.
    • To avoid defects caused by electrostatic discharge, we recommend ESD equipment including a wrist strap. Alternatively, it should also be sufficient to perform equipotential bonding by touching a grounded object (such as a radiator) before starting work.
    • To open parts that are clipped together, you should not use a screwdriver or other pointed tools made of metal, but either a special plastic tool similar to a plectrum, a guitar pick or even old plastic cards (for example an expired credit card).
    • On some models, there are screws underneath the keyboard on the top of the device. This has to be pushed out for this. For a better understanding, it is worth taking a look at our video tutorial for the InfinityBook Pro 13.

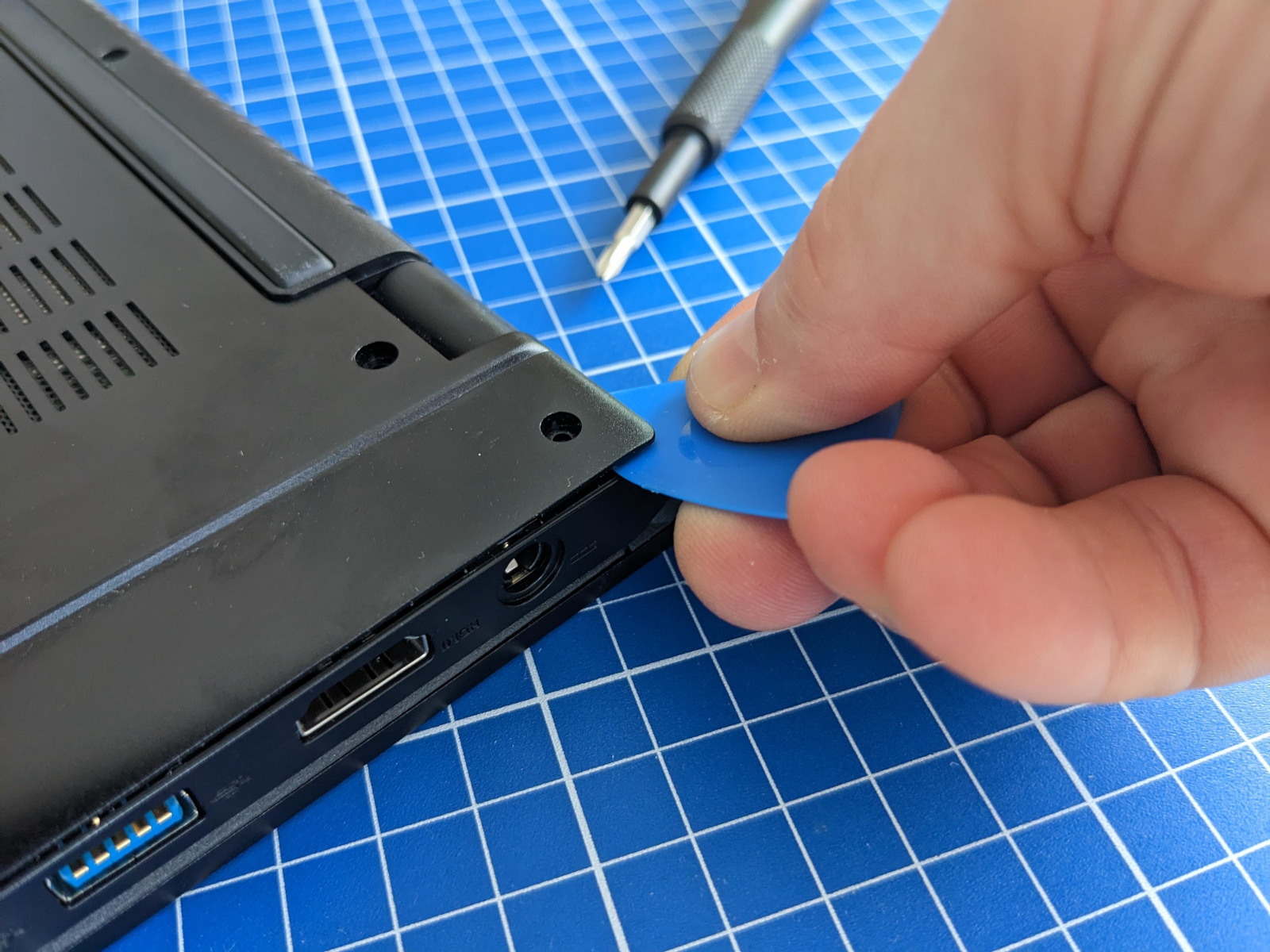

    Use a pick like tool to open parts, which are clipped together.
