With our TUXEDO CORE One Linux Complete PCs you get small but powerful Linux computers. They are packed full of branded hardware, quiet in operation and completely configured and set up at the factory!
In addition, the TUXEDO CORE One AMD-Ryzen-Series are particularly efficient and inexpensive to purchase, so you get an economical and fully equipped Linux PC with branded hardware at a special price.
It is the ideal all-round PC because it can act as an inconspicuous office or Internet PC and can also be equipped with the most powerful hardware for games, image processing and video editing.
TUXEDO CORE One is a PC with Micro ATX motherboard and tower. This means you'll get a compact computer that still offers full performance!
Of course, all TUXEDO devices are already fully functional in the standard configuration. We install, configure and update each computer in such a way that you only have to unpack, connect and switch it on after receipt.
Depending on the budget, you can also choose even better hardware, of course, all components are coordinated with each other!
When selecting the more expensive hardware, the following applies: The more the better. This means that if you decide on a more expensive processor, an expensive graphics card or more RAM, this component is also better than the cheaper one! In this way, you can adapt your desired PC individually to your budget, even without any in-depth knowledge.
The basis is provided by high quality housings with two front USB3.0 connectors, one front microphone and one front headphone jack and two mainboards, where we focus especially on high quality, speed and above all on high performance. value on durability. Customer satisfaction and a 24-month warranty on all parts of a Tuxedo are our top priority.
On the back you will find all necessary connections like USB-Type-C, USB 3.1 as well as USB 2.0, HDMI, DisplayPort and of course audio outputs and inputs.
Space, performance, multimedia capabilities and more are all at your fingertips thanks to multi-core processors, massive memory and multiple HDD and SSD drives.
For example, a combination of a medium-sized SSD paired with a large HDD is ideal. We install the operating system on the SSD and integrate the HDD as "data slaves". You've combined the extreme speed benefits of SSD hard drives with the low-cost storage space offered by regular HDDs.
If you're using performance-hungry and graphically demanding software, you can also choose a high-performance NVIDIA GeForce or AMD Radeongraphics card.
An optical drive for your DVDs or Blu-Rays completes the performance diversity of the TUXEDO One.
Chassis
High-quality processed noble housing:
- only 41,0cm deep, 17,5cm wide and 35,8cm high
- For larger housings see TUXEDO CORE Six
Power supply:
Manufacturer: Xilence / Bequiet
Certification: 85+ Gold
Voltage: 230V
Power output: Individually depending on hardware equipment
Power usage: depending on hardware and system load
Noise level: Temperature controlled 14cm Ultra-Silent fan
Noise growth / Cooling / Ventilation / Fan
Temperature controlled silent fan!
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.
Mainboard
Mainboard:
Manufacturer & Chipset: AMD B550
256 Mbit AMI UEFI BIOS
Form Factor: Micro ATX (24,4 x 24,4 cm)
Network / Ethernet / LAN
1x LAN:
- 1x 2.5 Gigabit Realtek (2.5 Gbit / 1 Gbit / 100 Mbit)
- Supports Wake-On-LAN
- Supports PXE, etc.
Sound / Audio:
7.1 CH HD Audio (Realtek ACL1200 Audio Codec)
- High Definition Audio
- 2/4/5.1/7.1-channel
- S/PDIF Out

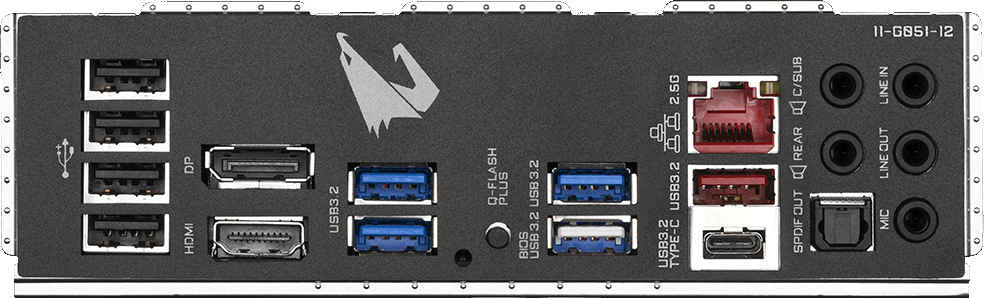

Rear Mainboard connectors:
1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x DisplayPort 1.4
1 x HDMI Port 2.1
1 x USB-C USB 3.2 Gen2 10GBit/s (downward compatible)
1 x USB-A USB 3.2 Gen2 10GBit/s (downward compatible)
4 x USB-A USB 3.2 Gen1 5GBit/s (downward compatible)
4 x USB-A USB 2.0
1 x Optical S/PDIF out
1 x Flash Button
5 x Audio Ports: 1x Line in; 1x Front Speaker; 1x Rear Speaker; 1x Subwoofer; 1x Microphon in
Mainboard connectors internally (partially populated by your configuration):
4 x DDR4 DIMM-Sockel (max. 128GB)
1 x PCI Express 4.0 x16 Slot, running at x16
1 x PCI Express 3.0 x16 Slot, running at x4
1 x PCI Express 3.0 x1 Slot, running at x1
4 x SATA 6Gb/s connector(s)
2 x M.2 Socket 3 connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
Storage connectors:
1 x M.2 Socket (M2A), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4 x4
1 x M.2 Socket (M2B), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4
4 x SATA3 6Gb/s port(s) (Support Raid 0, 1, 10 for SATA storage!)
Ports
Front:
2 x USB 3.0
1 x Headphones
1 x Microphone
Main processor
AMD Ryzen 5000-Series
Graphics card
The processor does not include an integrated graphics chip, so it is supplemented by a powerful NVIDIA GeForce or AMD Radeon RX graphics card.
Please refer to the configurator for details about these cards.
Memory
Type: DDR4 DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with 2 modules)
Hard drive
Mass storage as HDD or SSD
Drive:
CD/DVD burner & drive or
Blu-Ray burner & drive (incl. CD/DVD reading & burning feature)
Operating systems
We install Ubuntu and TUXEDO_OS (based on Ubuntu with Budgie Desktop) in the latest 64-bit version.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all those who are interested, we have provided downloads, instructions, tips & tricks in the
Help & Support section and offer
Tomte, a helper that automatically makes our adjustments.
Encrypted Installation
On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively you are free to download alle Windows-Drivers from here.
Warranty
2 years pick up and return
(12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return
(12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!
For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO preinstalled & configured
1x German power cord
1x Frist steps manual incl. short technical manual
1x Mainboard manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows
1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
