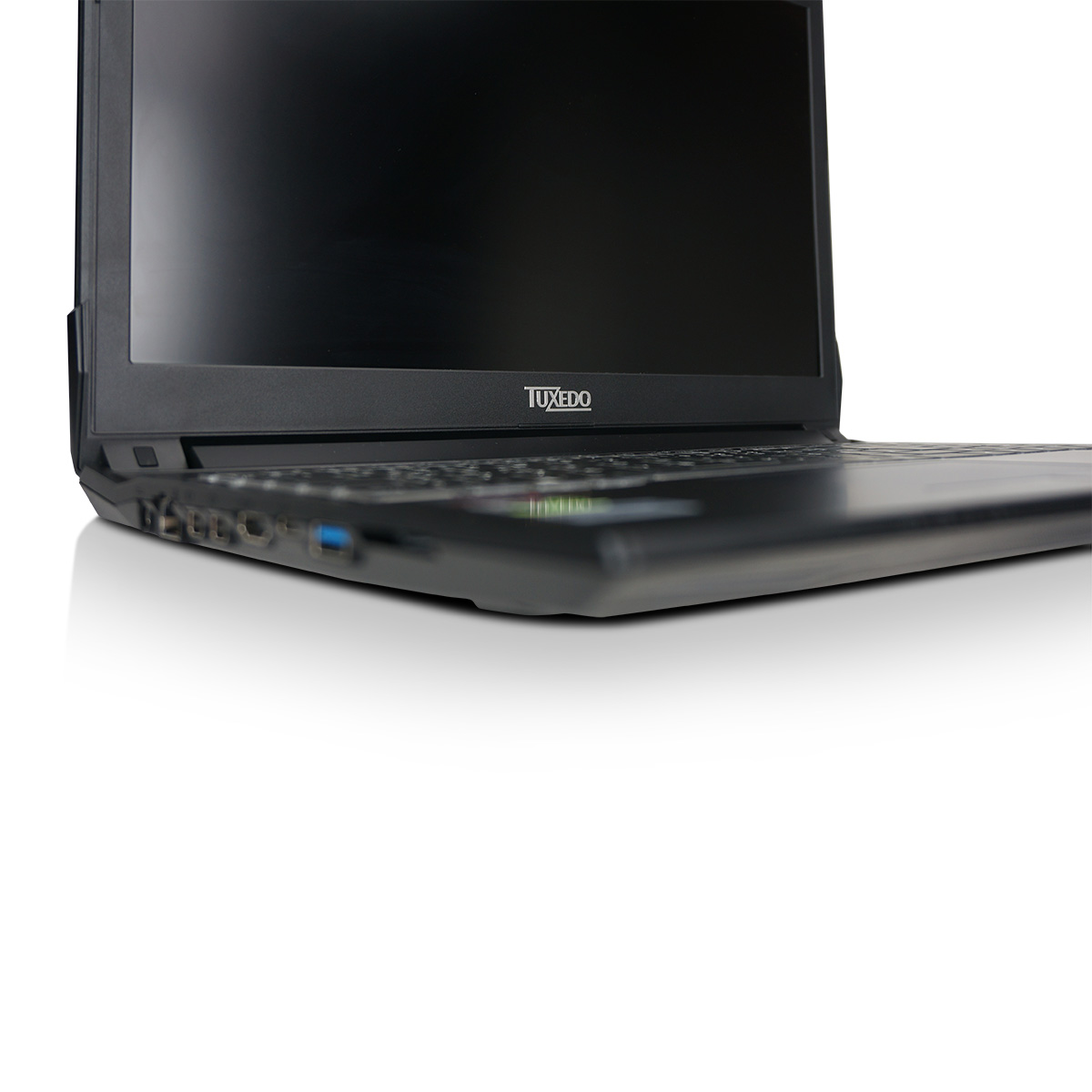

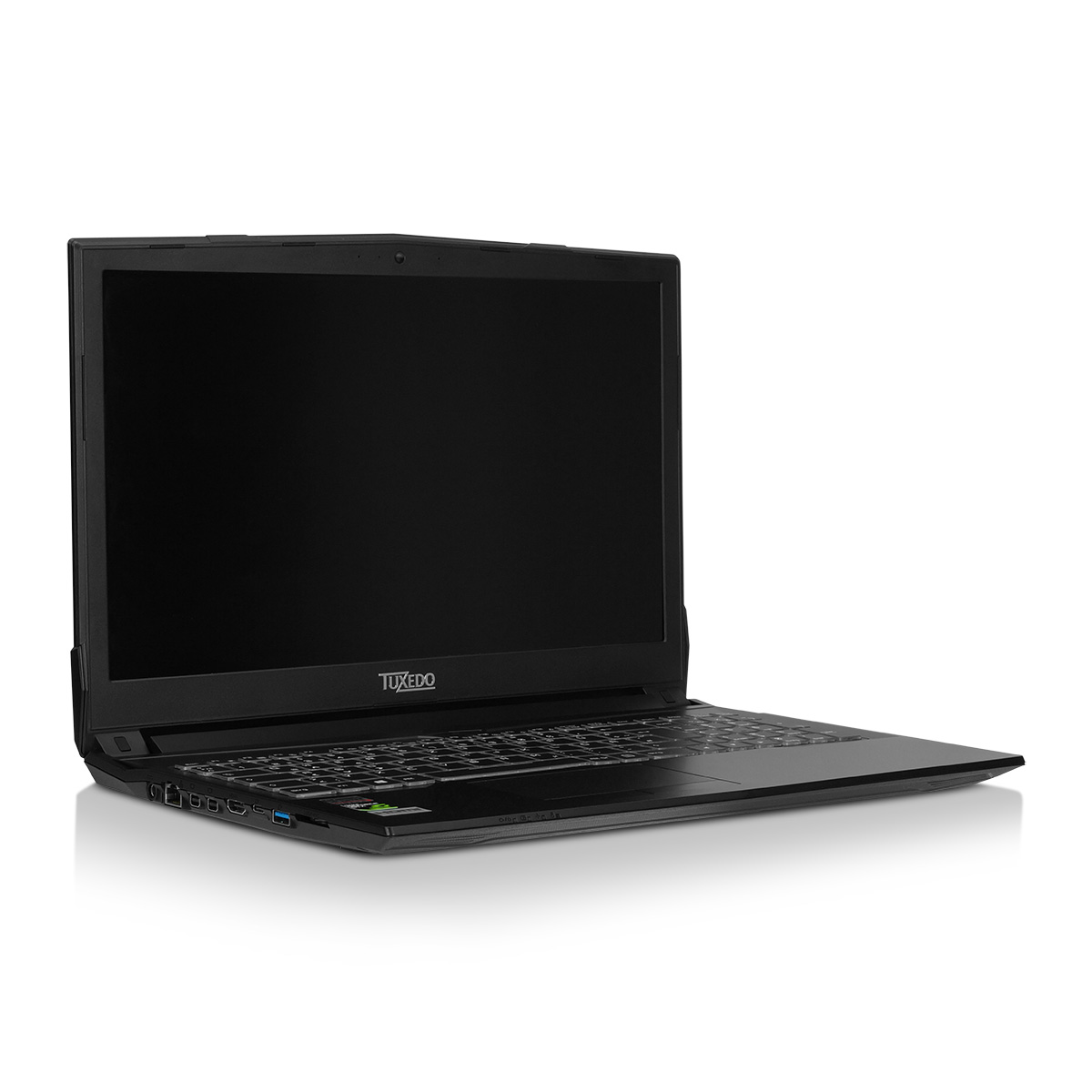

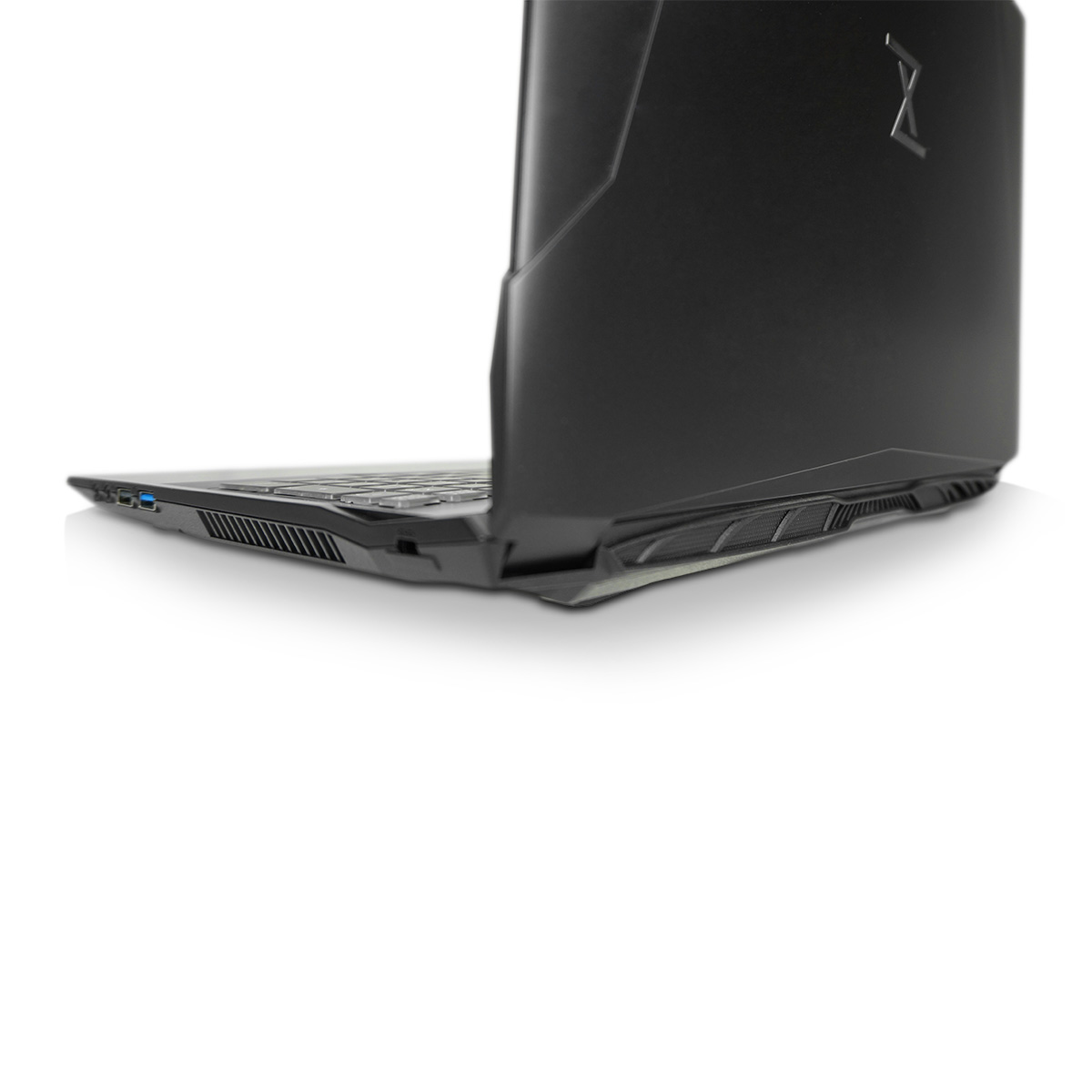

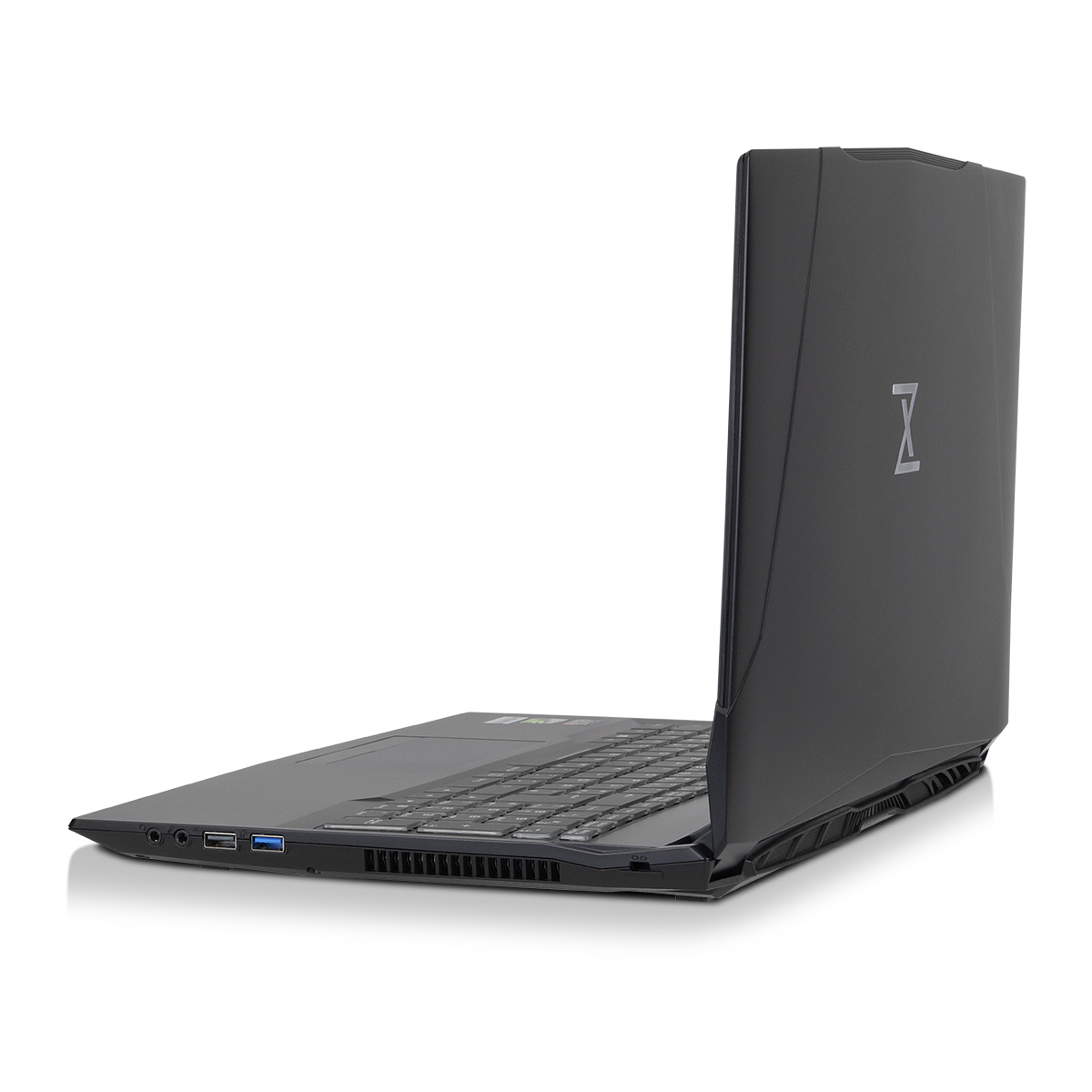

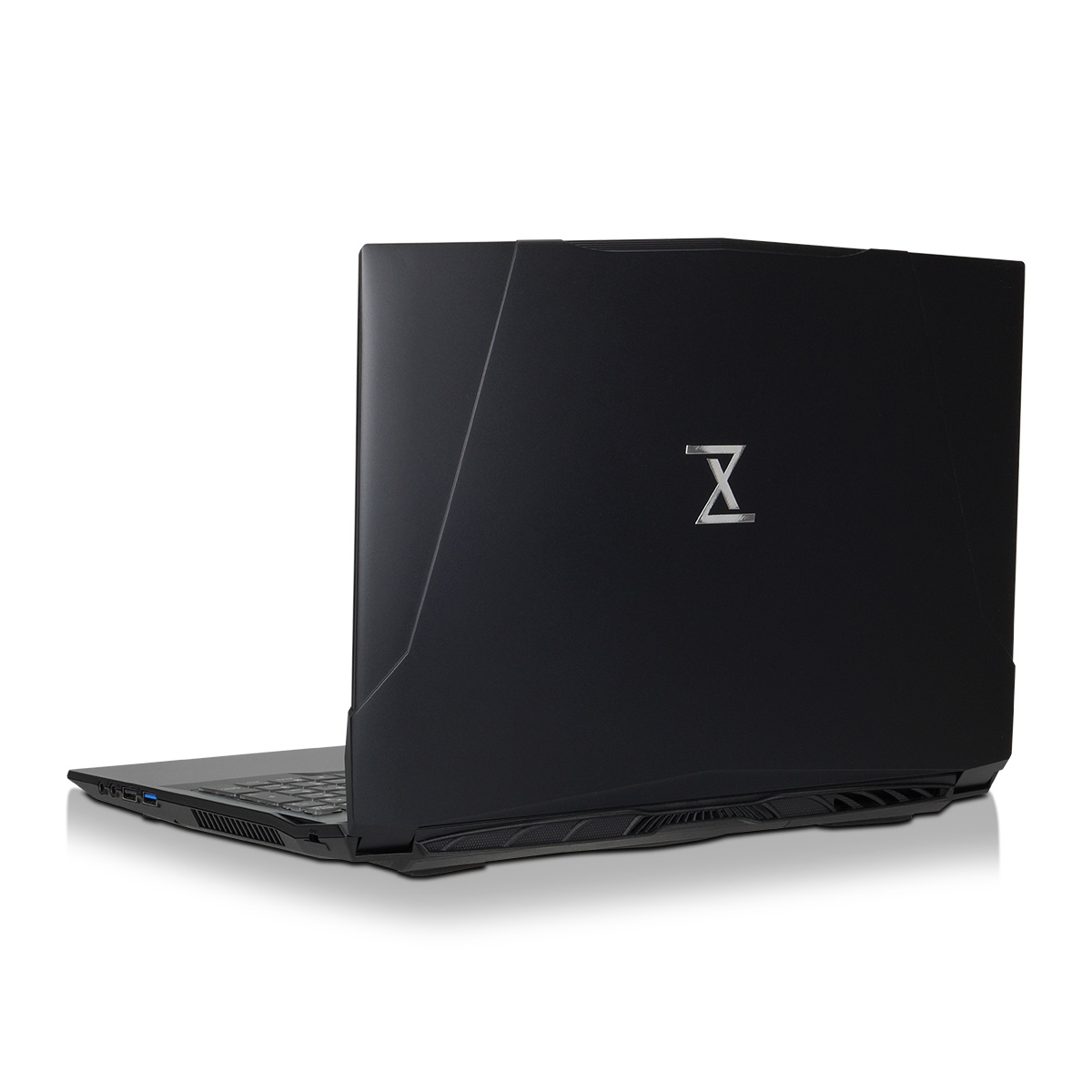

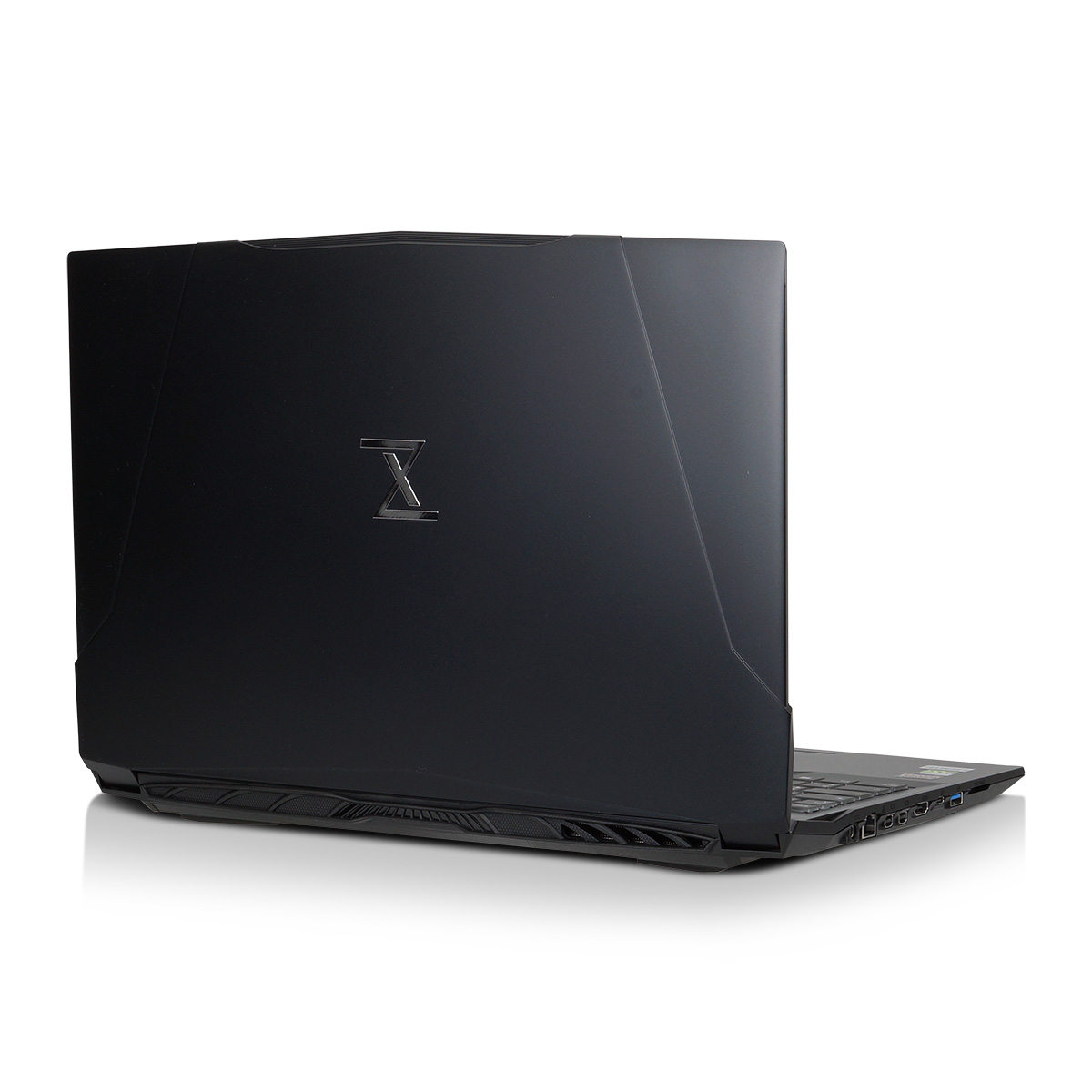

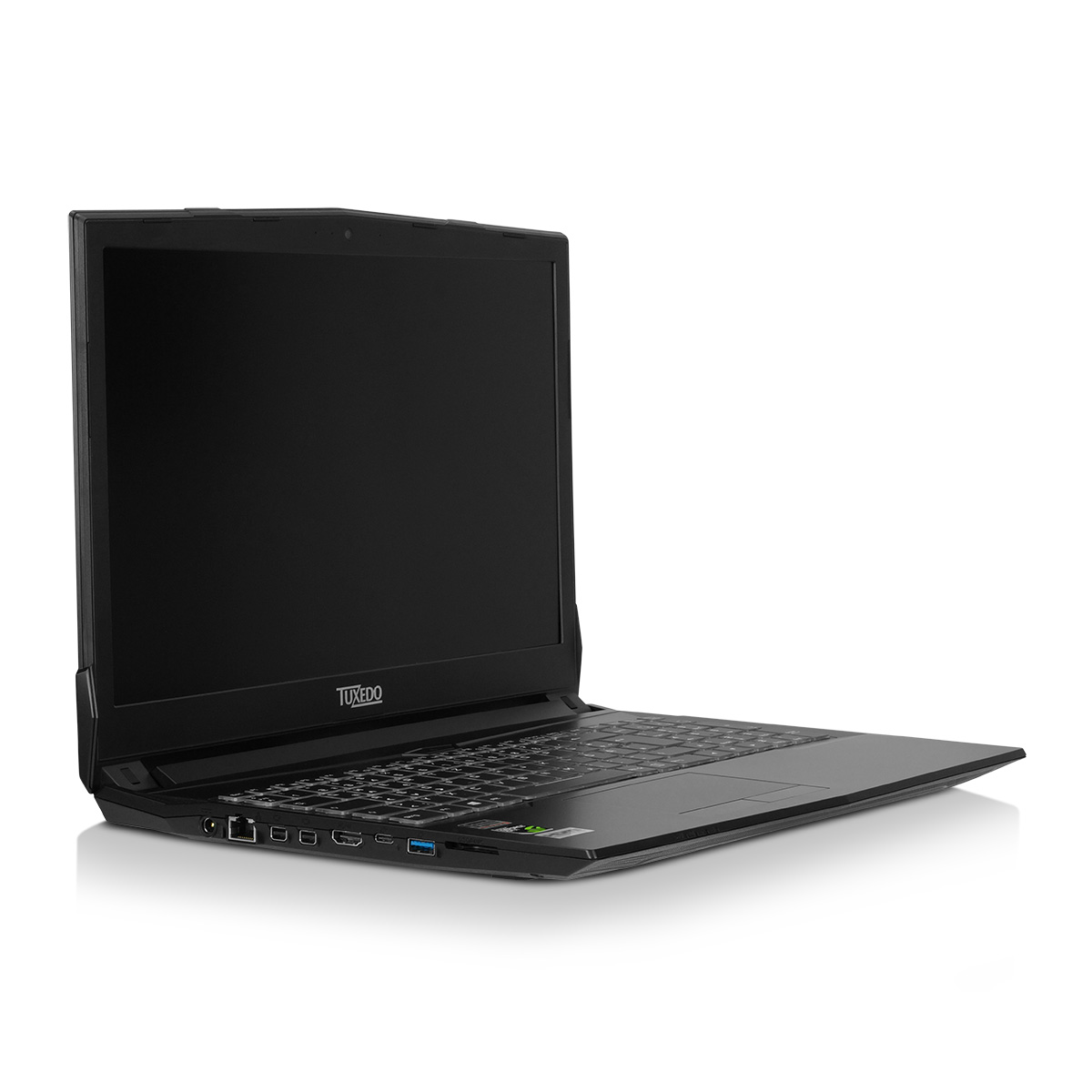

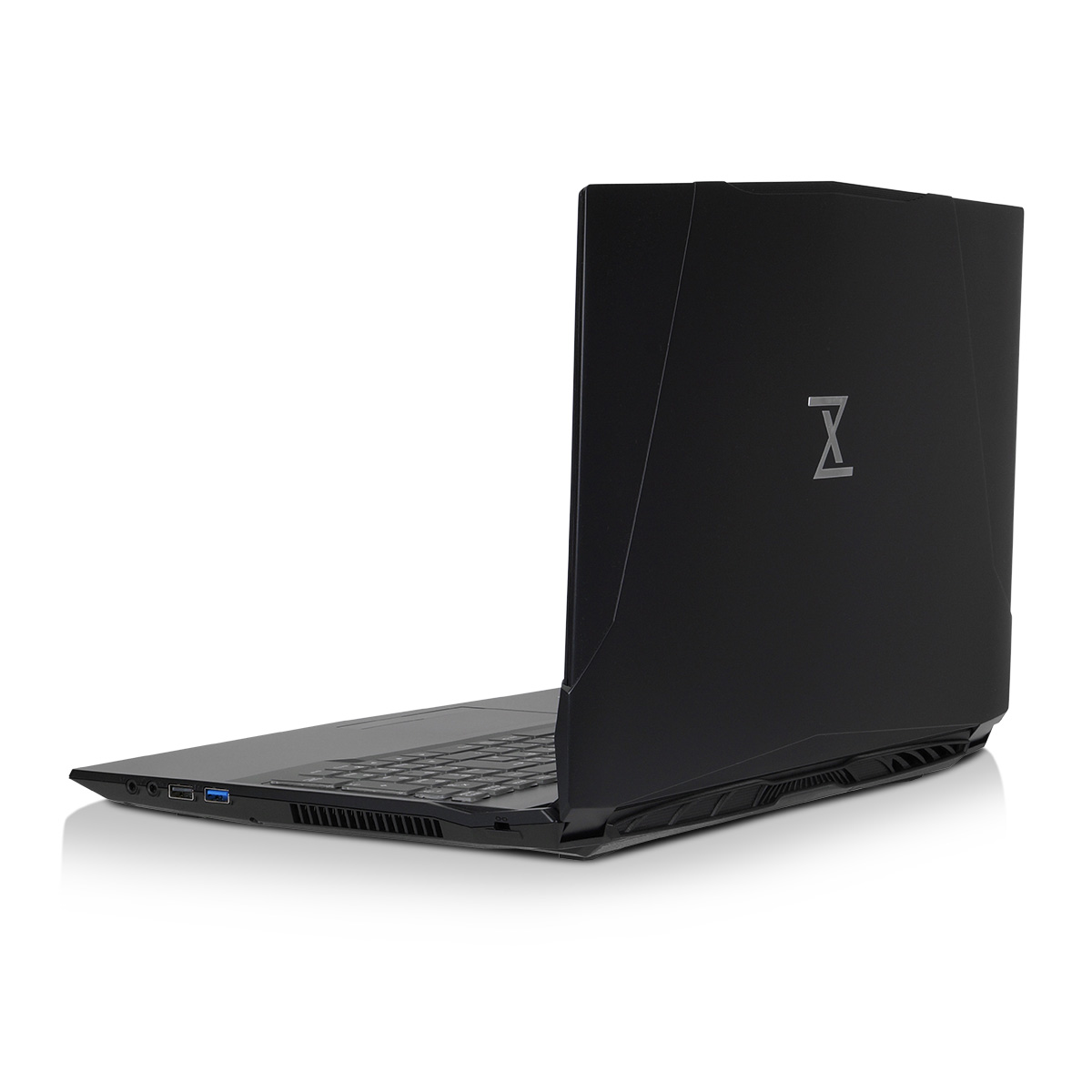

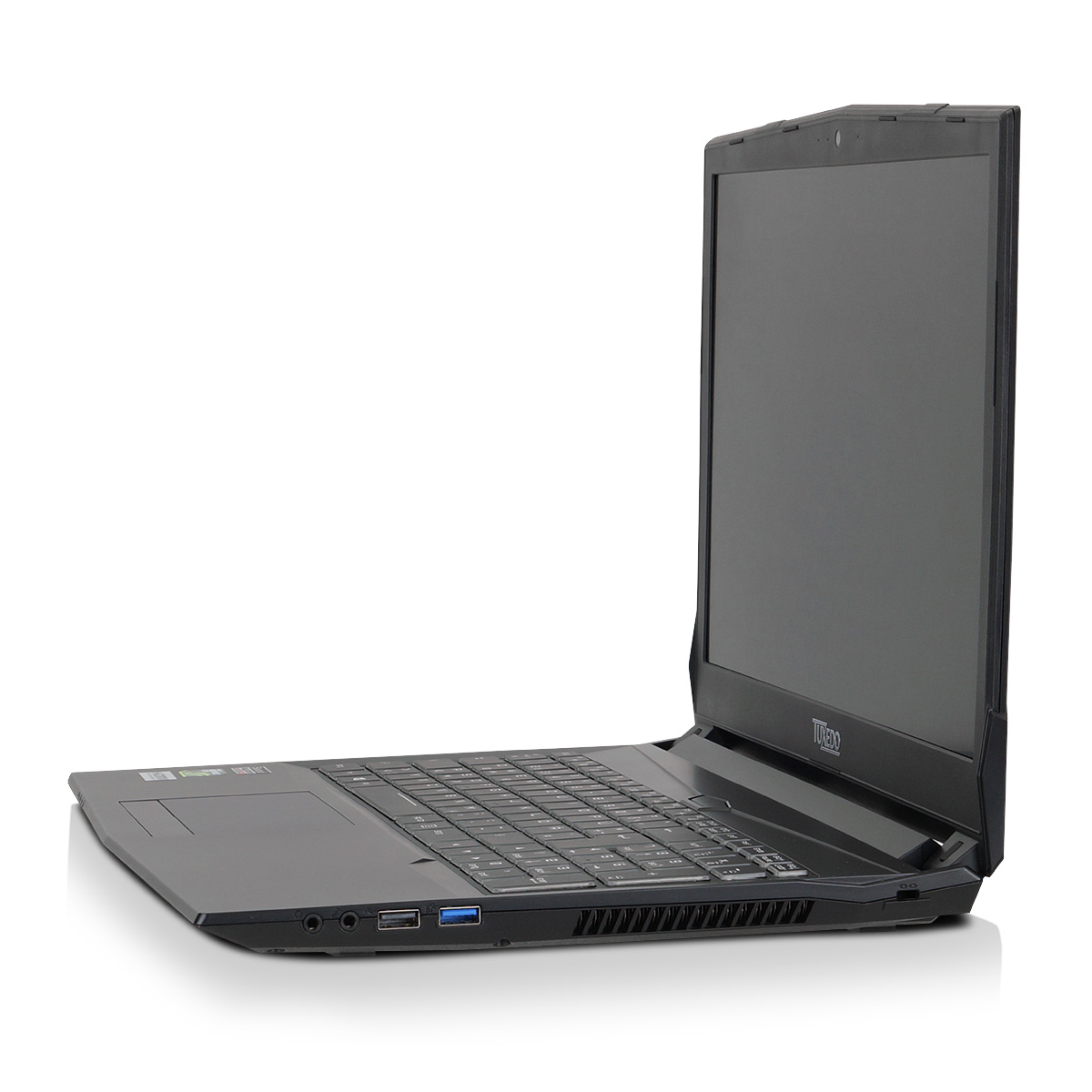

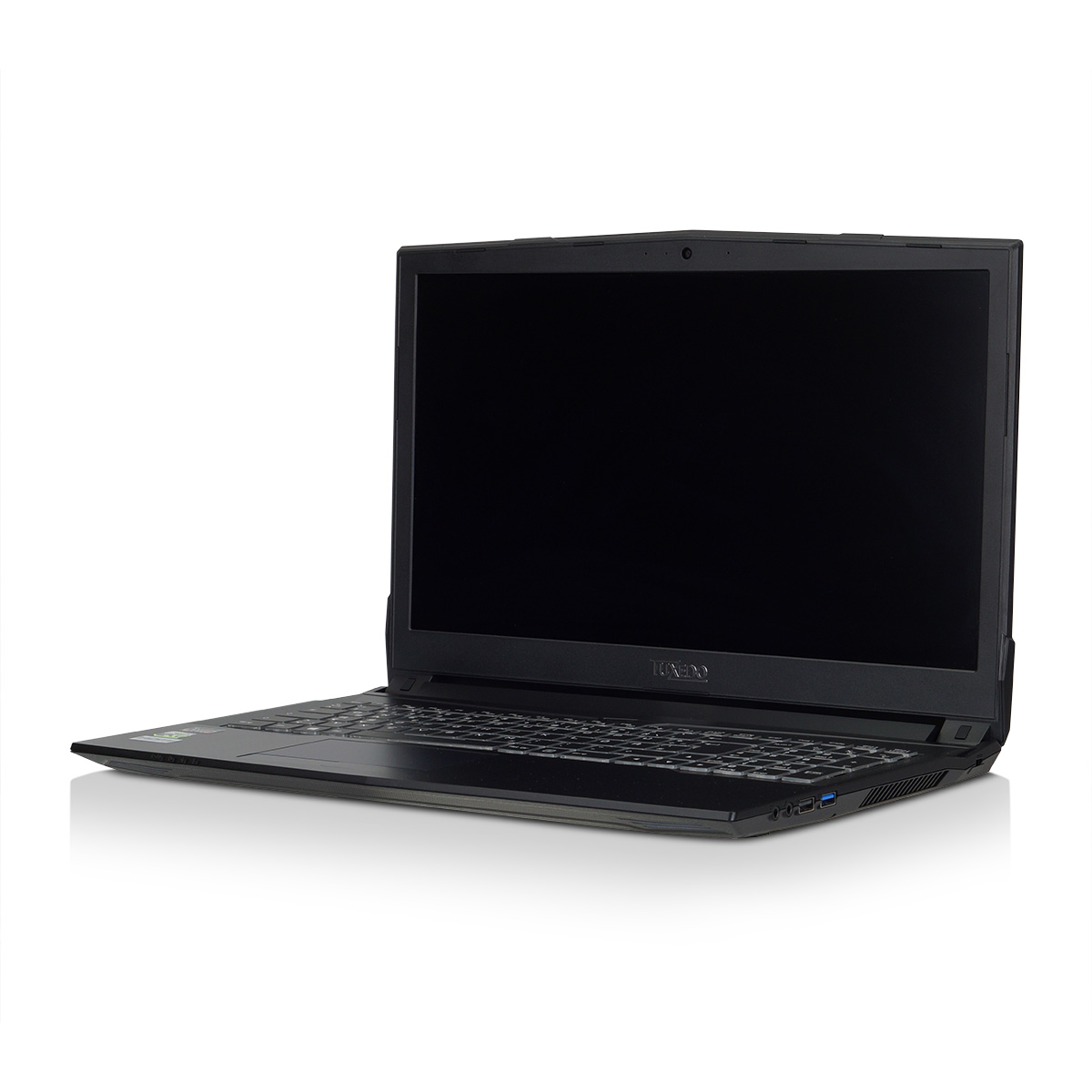

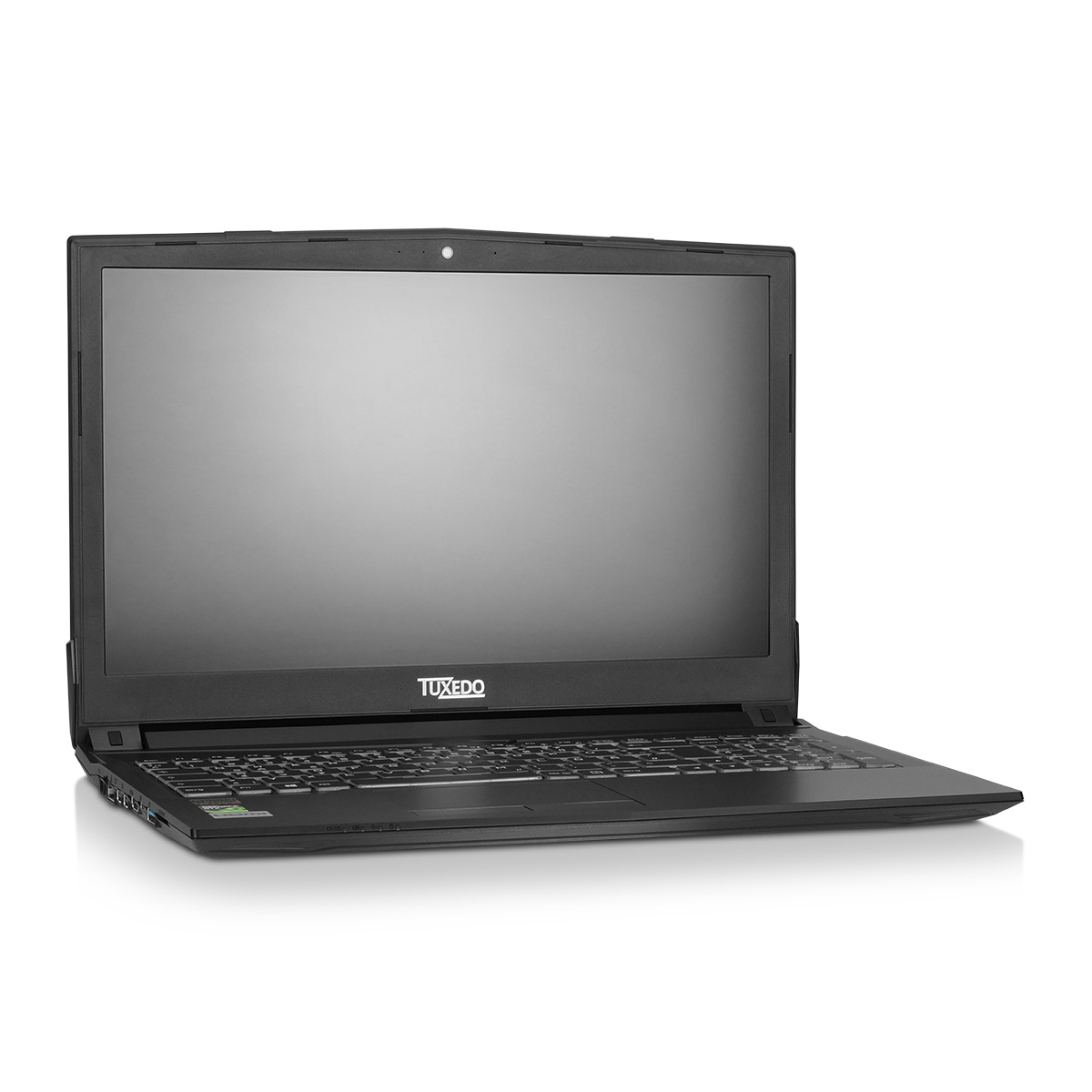

The TUXEDO Book DX1507 is a device of the D like [D]esire series.
Desire series devices combine the demands of everyday life with the desire for gaming-compatible hardware. It can therefore not only be equipped with the most powerful processors but also has a very good graphics chip.
According to the DX1507 , an extremely powerful NVIDIA GTX 1050 graphics card with 4 GB of its own memory (GDDR5) is used. It can also be equipped with the latest Intel Core i7 Quad-Core processor. Needless to say, 15.6 inch screen is a matt / non-glare LED backlight display with Full-HD resolution (1920 x 1080 pixels)! A illuminated keyboard completes the high-end requirements of this special device!

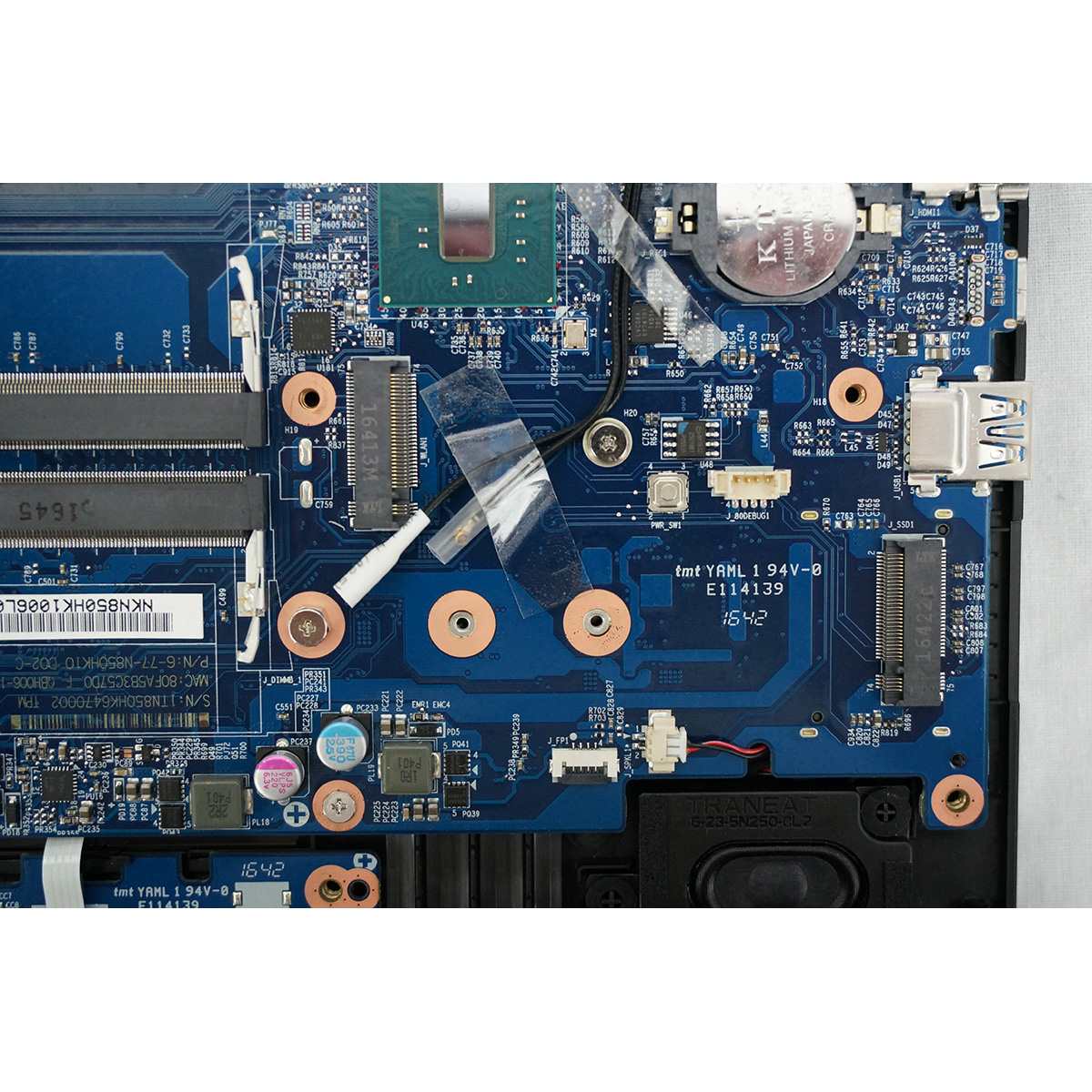

As special features the DX1507 offers the possibility to be equipped with a 2,5" HDD/SSD and a M. 2 SSD.

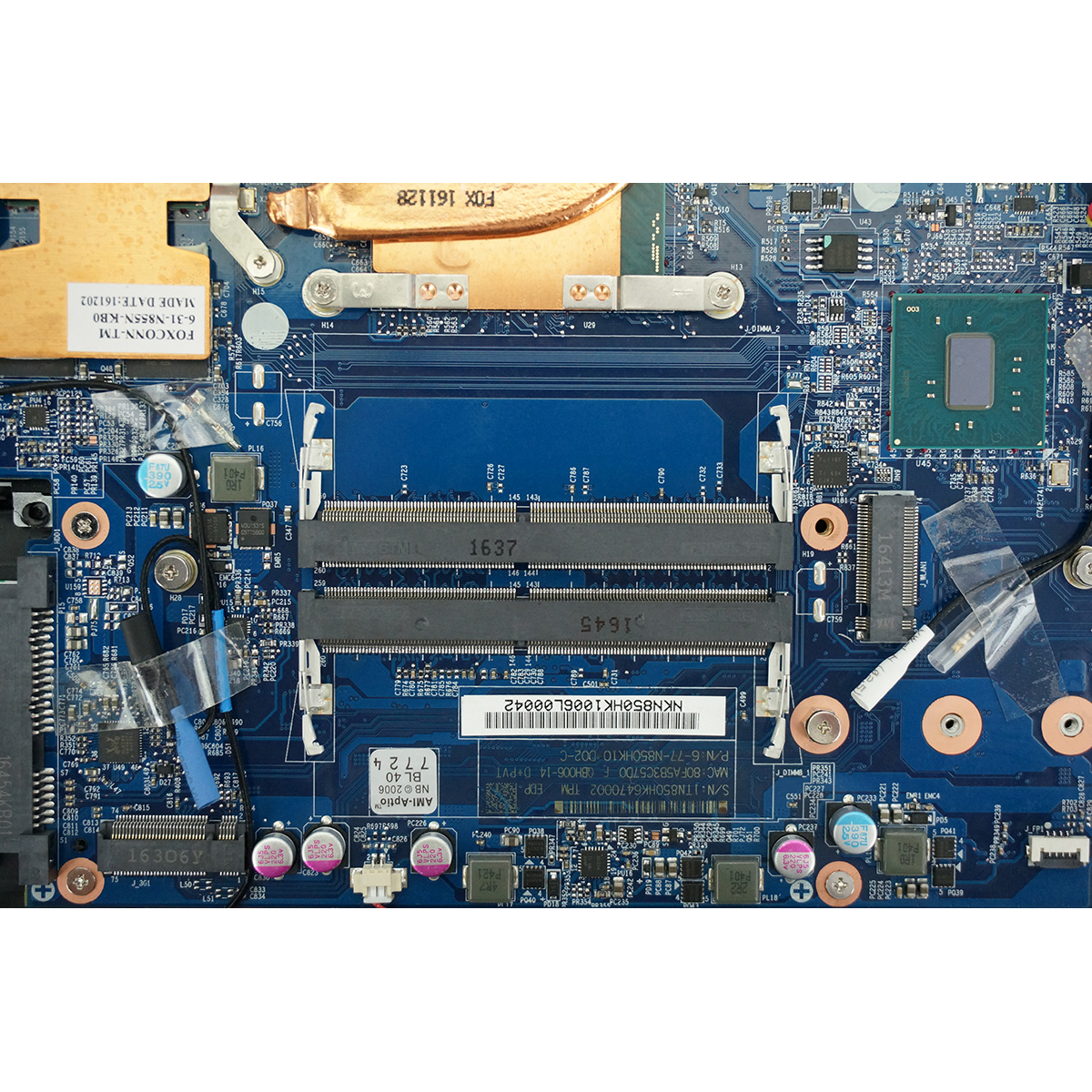

It also has two DDR4 memory slots.
By default, 8 GB DDR4 memory are already built in, but these can be uprated up to 32 GB.
To ensure a proper running performance in battery operation, an large 62 Wh rechargeable battery is included in the scope of delivery!
The 500 GB HDD harddisk already installed provides enough storage space. If you need more space, you can choose even more HDDs here. If you are looking for ultimate speed, you can also opt for an SSD!
SSDs bring an enormous performance boost! The TUXEDO Book DX1507 offers many design possibilities. So you can either replace the normal hard disk with an SSD or you can use a additional hard disk that is plugged into the M. 2 slot. This way, you can combine the speed benefits of SSDs with the space savings of HDDs and have two hard disks at your disposal!
We install Ubuntu and TUXEDO_OS (based on Ubuntu Budgie) in the latest 64-bit version.
For advanced users and selected devices we also offer openSUSE 15 with Xfce, Gnome or KDE plasma. Of course fully configured and installed with all available updates and device drivers.
For "self-installers" and everyone who is interested, we have set up a database with downloads, instructions, tips & tricks and offer a customization script called "tuxedo.sh", which makes our customizations automatically under openSUSE and Ubuntu: Help & Support Section | tuxedo.sh
Encrypted Installation
On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively you are free to download alle Windows-Drivers from here.
As accessories you can select an additional external display for enjoying dual display operating together with the laptop.
Furthermore we deliver a wired or wireless keyboard including a mouse or an additional wired mouse. These input devices are produced by Logitech and are only available with German layout!
What are we customizing at the time of installation
We don't just simply install Linux but also customize a lot so that you get a perfectly running and working system! This is what we do:
Driver installation, configuration of special keys, TUXEDO drivers, TRIM commands for SSDs, disabling shopping suggestions at Ubuntu search, various additional packages and tools for configuration and to enhance user friendliness, at devices with NVIDIA graphics the respective drivers including Prime for switching and much more!
TUXEDO driver / TUXEDO WMI
Laptop have some special keys which won't work out of the box with Linux. For example the so called "Flight mode key" for (de)activating WIFI & Bluetooth etc.
To get them running we developed our own drivers and preinstall them (if you select Linux als desired operating system). For everyone curious and manual installers this driver is available at our support database:
www.tuxedo.sh
For Windows there is a driver DVD included.
Customisations during manual installations / TUXEDO script / TUXEDO driver
If you prefer to install you Linux operating system by yourself or if you have to reinstall it, we provide you with everything necessary at our support database to get it running like we do!
The easiest way is to go with our customisation script "tuxedo.sh". On Ubuntu and Ubuntu-base systems this script automatically runs all customisations the way we do that during preinstallation: installing drivers, configuration for special keys, TUXEDO drivers, TRIM commands for SSDs, deactivating shopping recommendations in Ubuntu search, various additional packages and toos for configuration an to enhance user friendliness, respective driveres on devices with NVIDIA graphics incl. Prime for switching and many more! You can find the script and further instructions here:
www.tuxedo.sh
TUXEDO WebFAI
Reinstallation a la TUXEDO | System reset | automatic resinstallation
With our fully automated installation you can easily run your own Linux installation exactly the way we do before shipping a new notebook!
You can select from all the distributions we offer in our shop.
TUXEDO WebFAI offers you various possibilities:
+ Try out various Linux distributions easily
+ System reset | Factory reset
+ Didn't choose something appropriate during order? Uncertain? Re-decided?
With every TUXEDO you recieve a ready-to-go WebFAI USB stick!
Further details on TUXEDO WebFAI are available at www.webfai.de
Technical details:
15.6" (39,6 cm)
The display hinge's maximum opening angle is at around 140°.
Full-HD (1920 × 1080) Non-Glare IPS with G-SYNC
Model: LG LP156WF6-SPB1
Test data display brightness:
Maximum: 312 cd/m² Average: 291.6 cd/m² Minimum: 9 cd/m²
Illumination: 87 %
Brightness battery: 288 cd/m²
Contrast: 960:1 (Black level: 0.3 cd/m²)
ΔE Color 5.1 | - Ø
ΔE Greyscale 4.43 | - Ø
83% sRGB (Argyll) 55% AdobeRGB 1998 (Argyll)
Gamma: 2.46

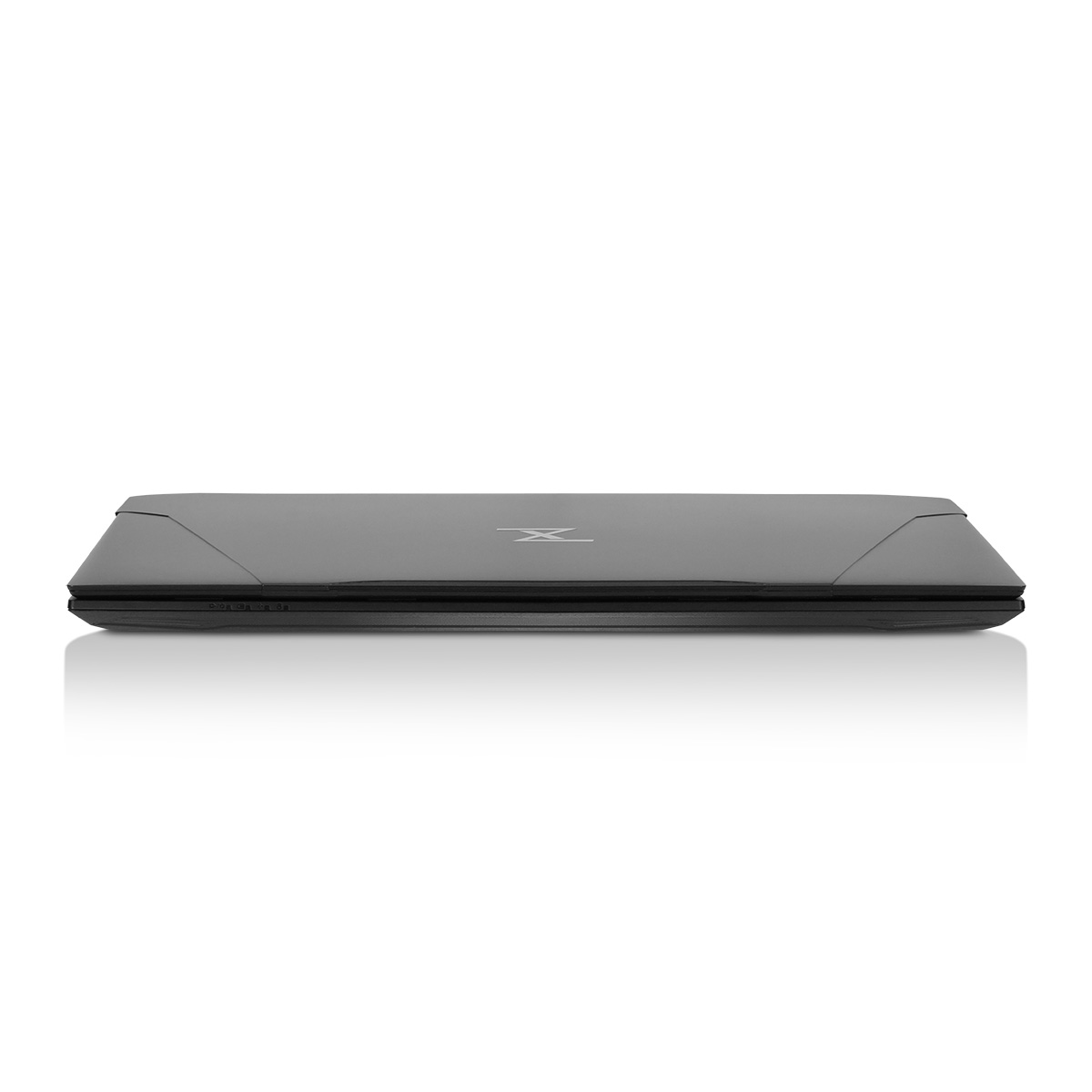

Case:
Dimensions: width: 37,8cm; height (max.): 2,7cm; depth: 26,9cm
Weight: 2,4 kg with battery incl. equipment
Multi-color illuminated keyboard
Akku:

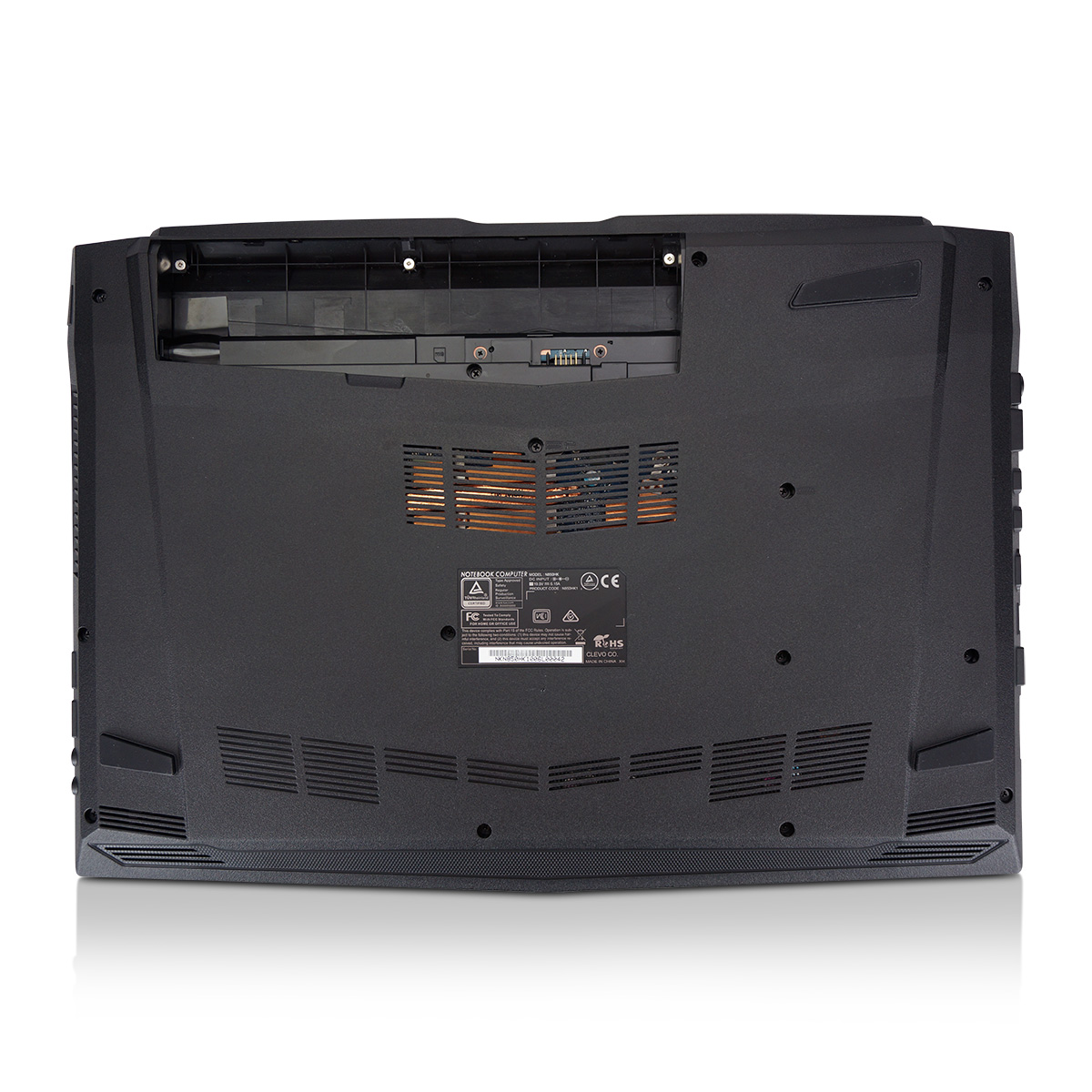

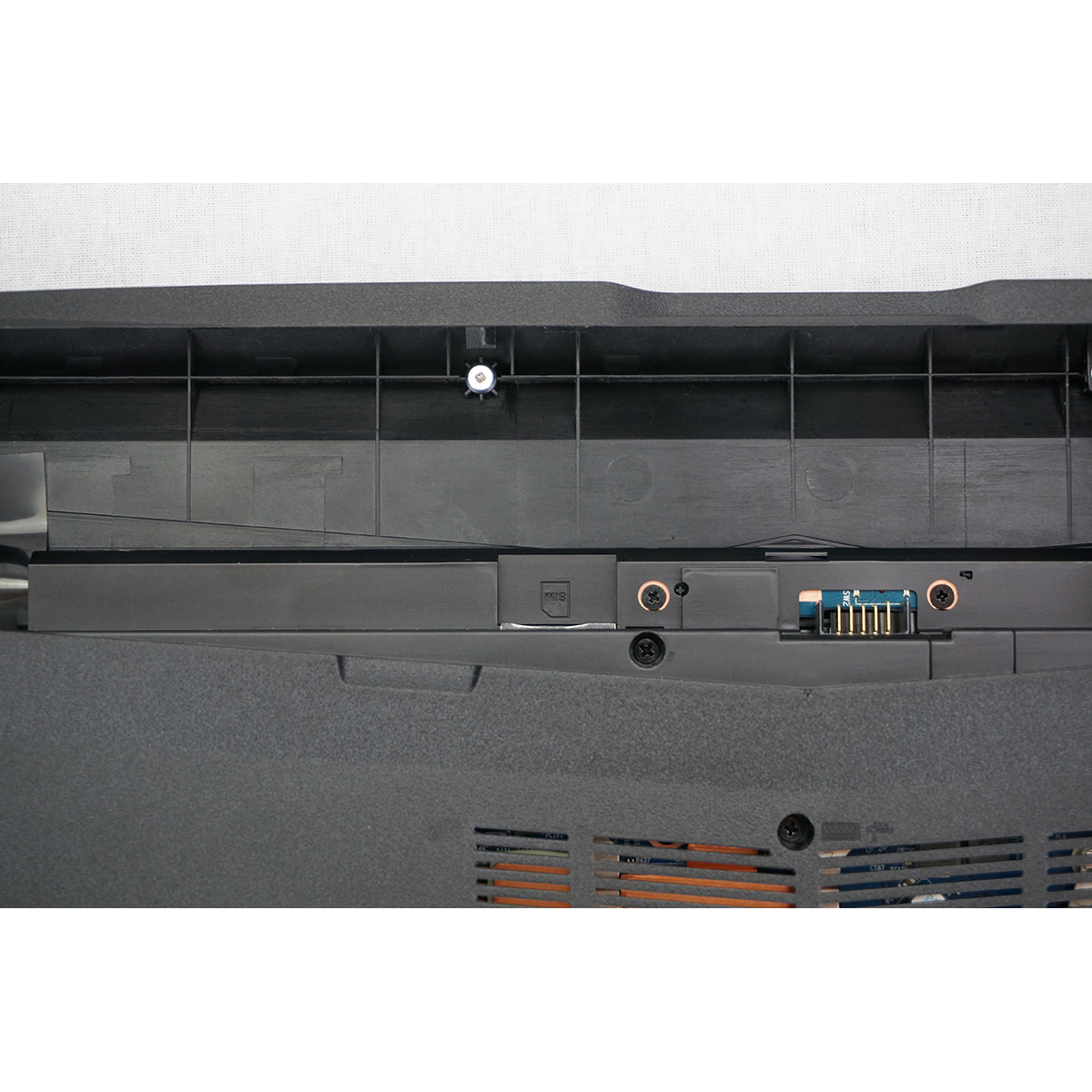

Large 6 cell lithium-ion battery, 62Wh
Approx. 5 hours with min. brightness at idle speed
Power supply:
- 120W power supply
- Dimensions: 167.5 x 82.0 x 25.4 mm (L x W x H)
Weight: 0,56 kg
Total cable length (from socket to notebook): 3.6m
Processor:
Intel Core seventh (7.) Generation "Kaby Lake" prozessors / CPUs.
Chipset: Mobile Intel HM175 Chipset
Intel Core i7-7700HQ (4x 2.80-3.80 GHz Quad-Core, 8 Threads, 6 MB Cache, 35-45 W TDP)
• Intel Core i5-7300HQ (4x 2.50-3.50 GHz Quad-Core, 4 Threads, 6 MB Cache, 35-45 W TDP)
Graphics card:
NVIDIA® GeForce® GTX 1050 4 GB GDDR5 VRAM (Pascal-Grafikchip)
Features: DirectX® 12, OpenGL 4.4, NVIDIA® Optimus, NVIDIA® CUDA, NVIDIA PhysX™, OpenCL
Additional: Energy-saving graphic chip integrated in the CPU: Intel HD Graphics 630
The notebook works with NVIDIA Optimus, which allows graphics switching between NVIDIA and Intel.
The following resolutions are possible via all connections individually or in parallel:
1x Notebook-Display: Full-HD 1920*1080@60Hz
Models with GTX 1050 und GTX 1050 Ti:
1x Mini-DisplayPort 1.2: 3840*2160@60Hz (connected to the Intel-Graphics)
1x Mini-DisplayPort 1.4: 3840*2160@60Hz (connected to the NVIDIA-Graphics)
1x HDMI: 1920*1080@60Hz (connected to the Intel-Graphics)
Modelle mit GTX 1060:
1x Mini-DisplayPort 1.2: 3840*2160@60Hz (connected to the NVIDIA-Graphics)
1x Mini-DisplayPort 1.4: 3840*2160@60Hz (connected to the NVIDIA-Graphics)
1x HDMI 2.0: 3840*2160@60Hz (connected to the Intel-Graphics)
With these maximum resolutions 4 displays can be controlled simultaneously, e. g. 1x notebook display and 3x external monitors.
Type: DDR4 SO-DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with 2 or 4 modules)
Current Laptop-U-CPUs do support 2400MHz RAM officially. So even 2666MHz RAM is shown with 2400MHz inside the system. But in fact, the high-performance-RAM with 2666MHz squeezes around 5% more performance out of your laptop!

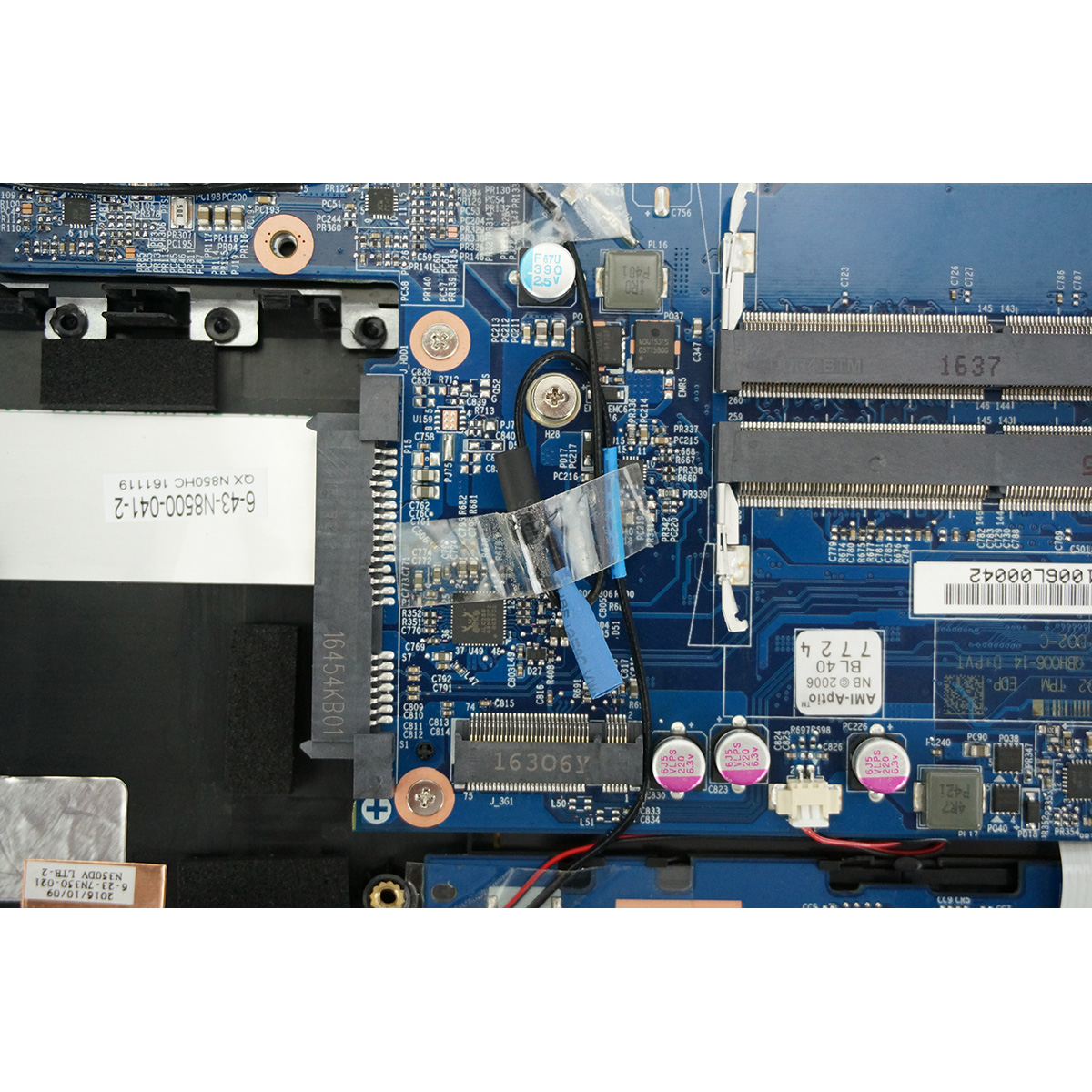

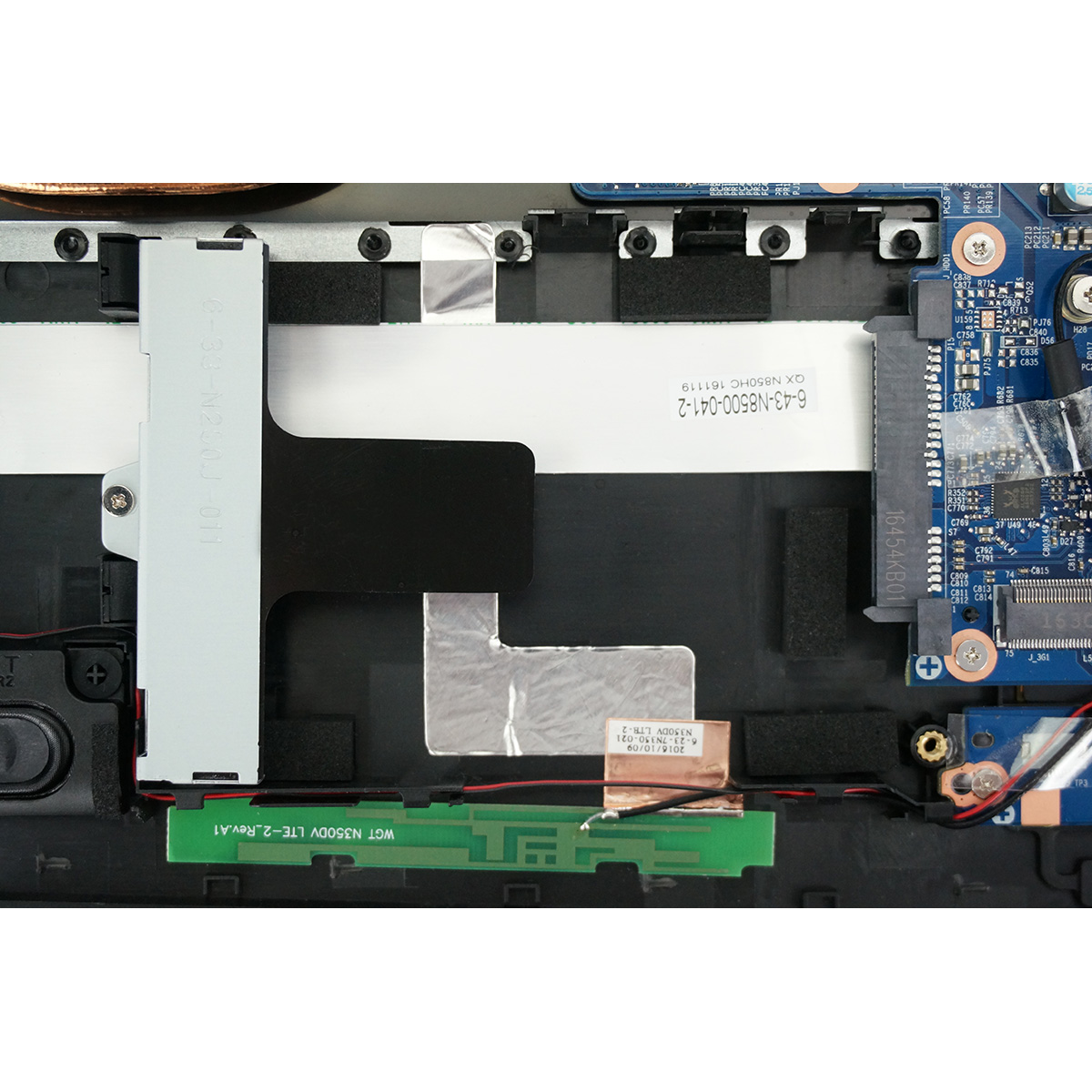

Standard 2,5" HDD or SSD, max. 7mm height
Manufacturer and speed see configurator
Standard and maximum see configurator
Fast M.2 SSDs
Manufacturer and speed see configurator
Standard and maximum see configurator
Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)
Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1
LTE/HSDPA+ 4G Huawei ME936
Form factor: M.2 Interface
Supported frequency bands
LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Transfer rates
LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
HSPA+: ↑ 11 Mbps ↓ 42 Mbps
WCDMA: ↑ 384 kbps ↓ 384 kbps
GPS
GPS Standalone, A-GPS, GPS XTRA, Glonass
LTE/HSDPA+ 4G Huawei ME906s
Form factor: M.2 Interface
Supported frequency bands
LTE (FDD): B1/B2/B3/B5/B7/B8/B20/B28
HSPA+/HSPA/UMTS: B1/B2/B5/B8
EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Transfer rates
LTE FDD: ↑ 50 Mbps ↓ 150 Mbps
HSPA+: ↑ 5.76 Mbps ↓ 42 Mbps
WCDMA: ↑ 384 kbps ↓ 384 kbps
GPS
GPS Standalone, A-GPS, GPS XTRA, Glonass
Security:
- Kensington Lock
- Fingerprint-Reader (not at variant with GTX 1060)
Webcam / Notebook camera:
2 Megapixel (2 MP) camera including microphone
Sound / Audio:
Sound Blaster Cinema 3
High Definition Audio
2 speakers (Onkyo)
Integrated microphone with noise reduction

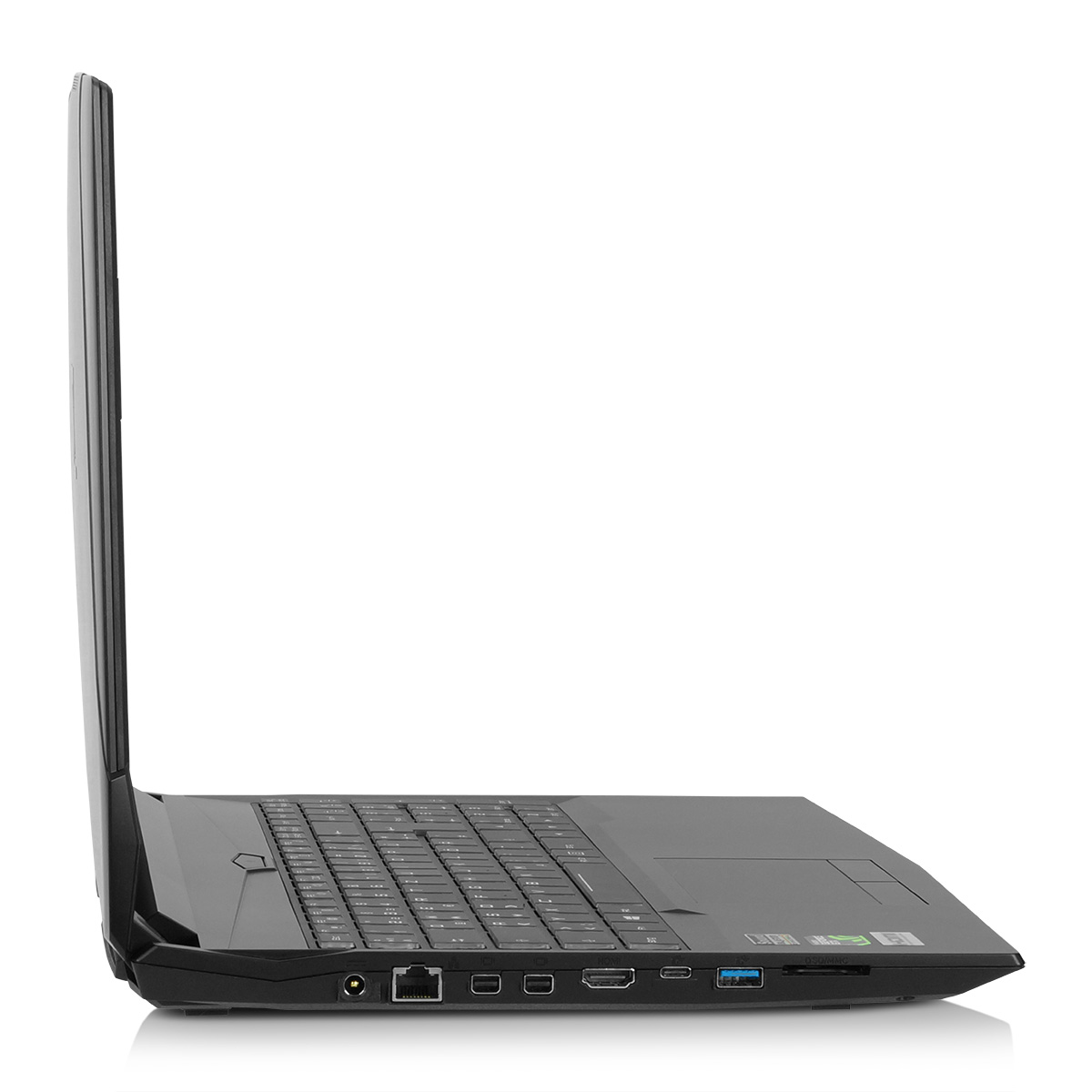

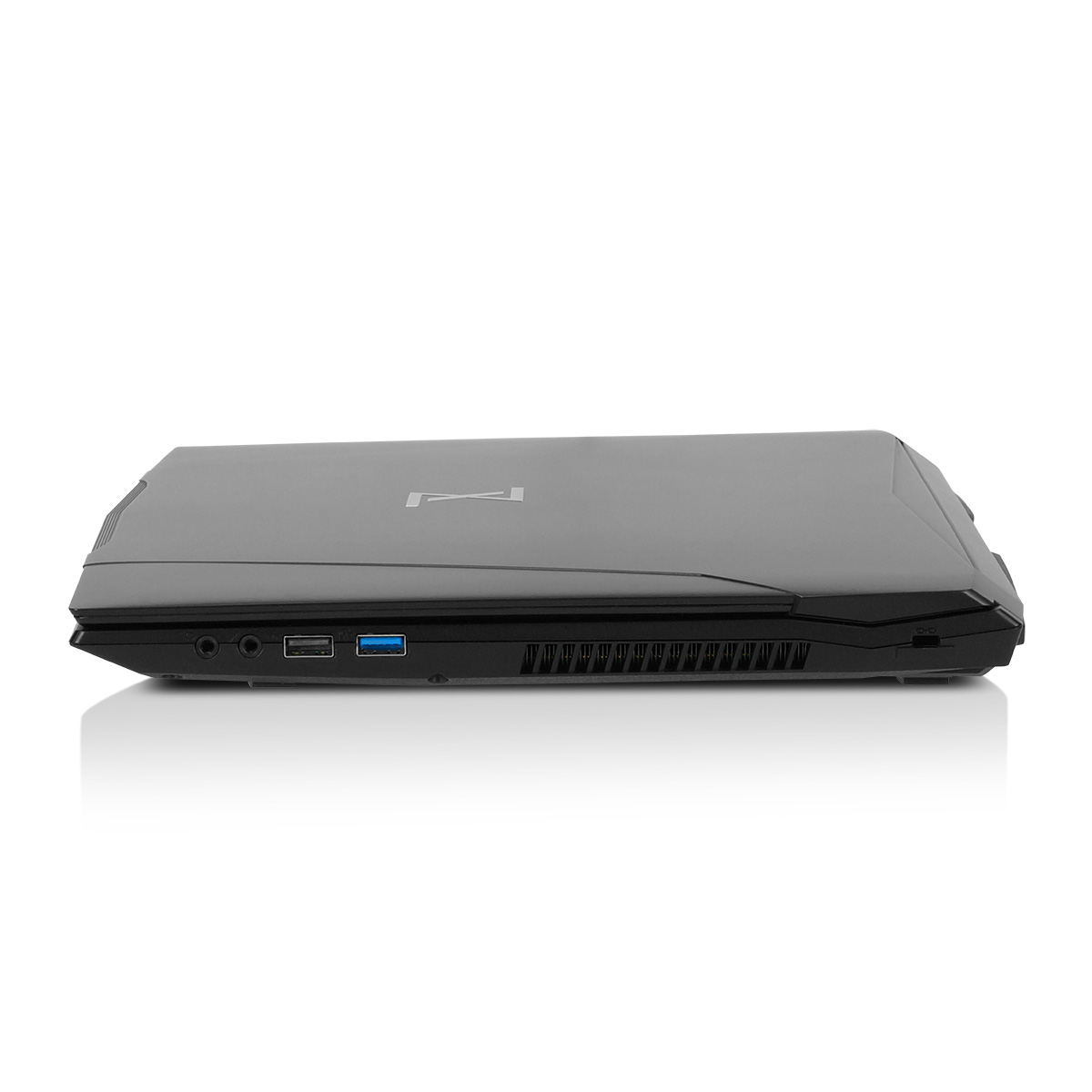

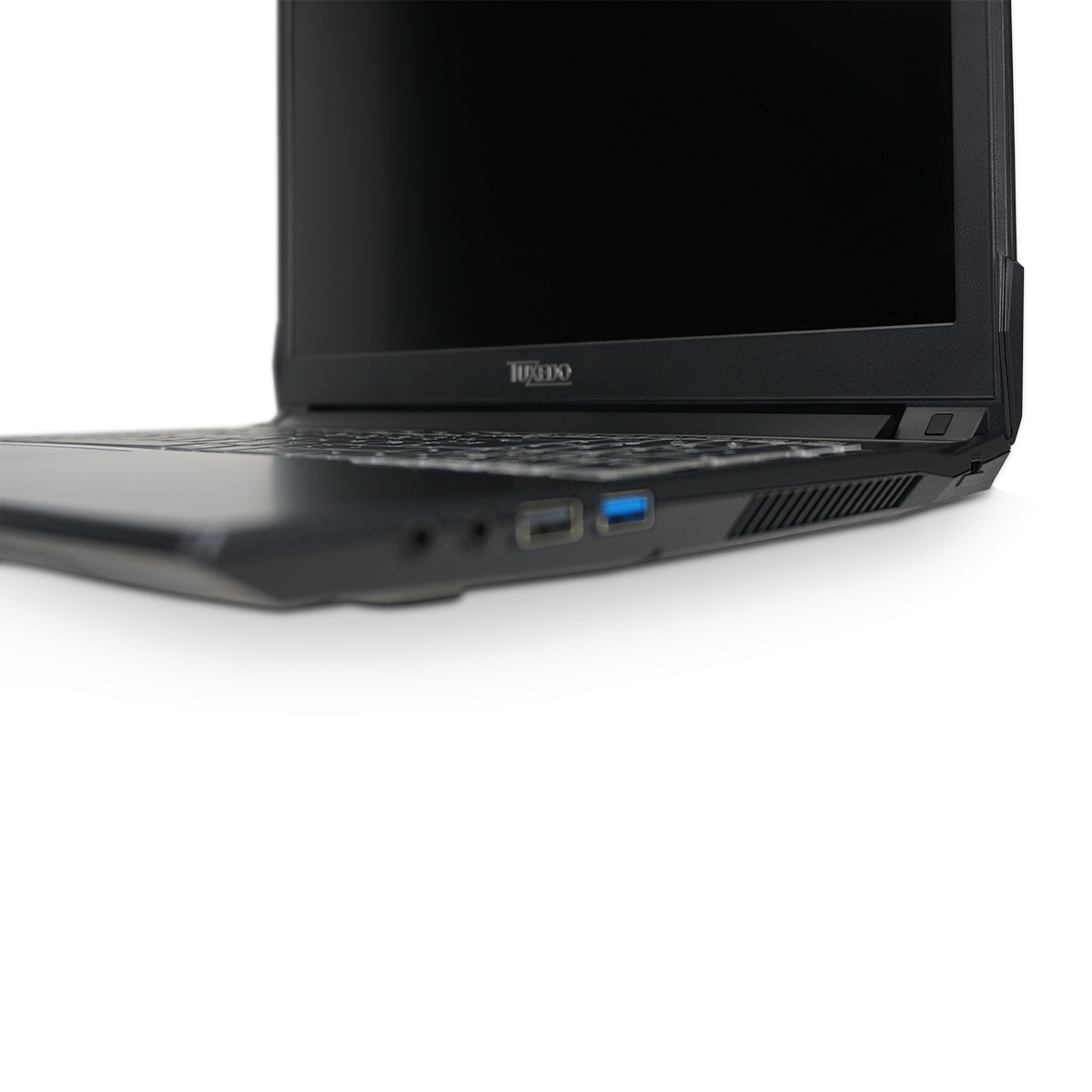

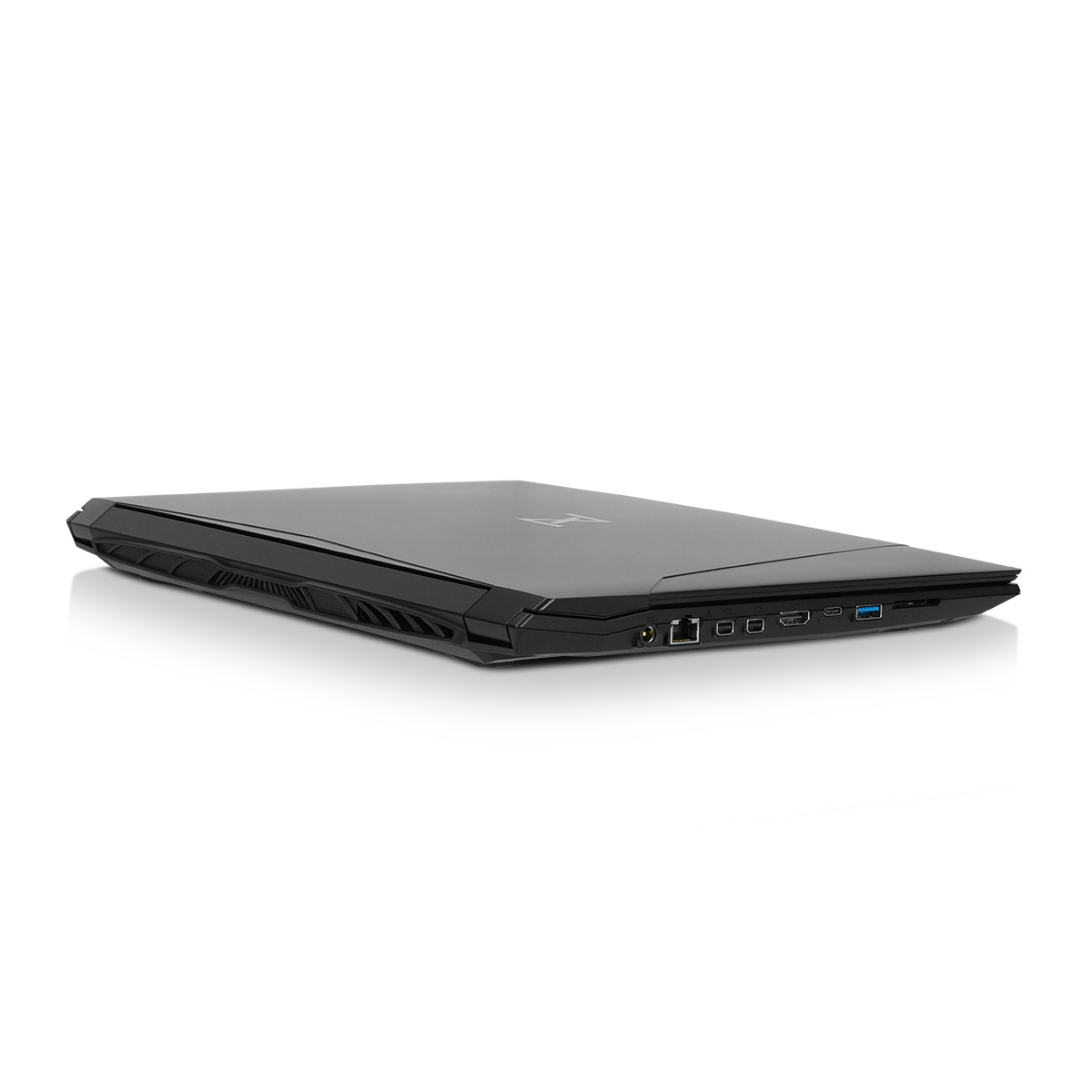

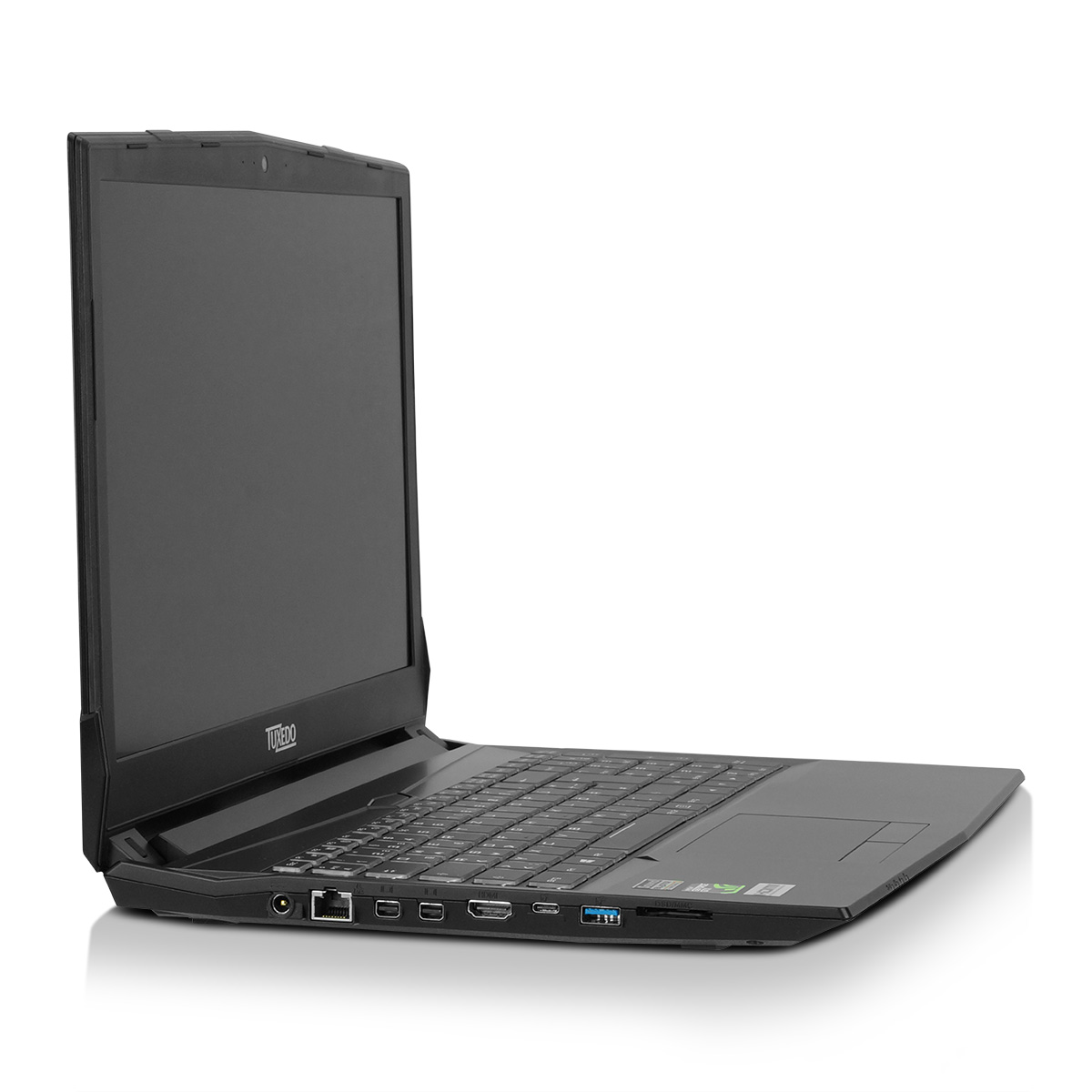

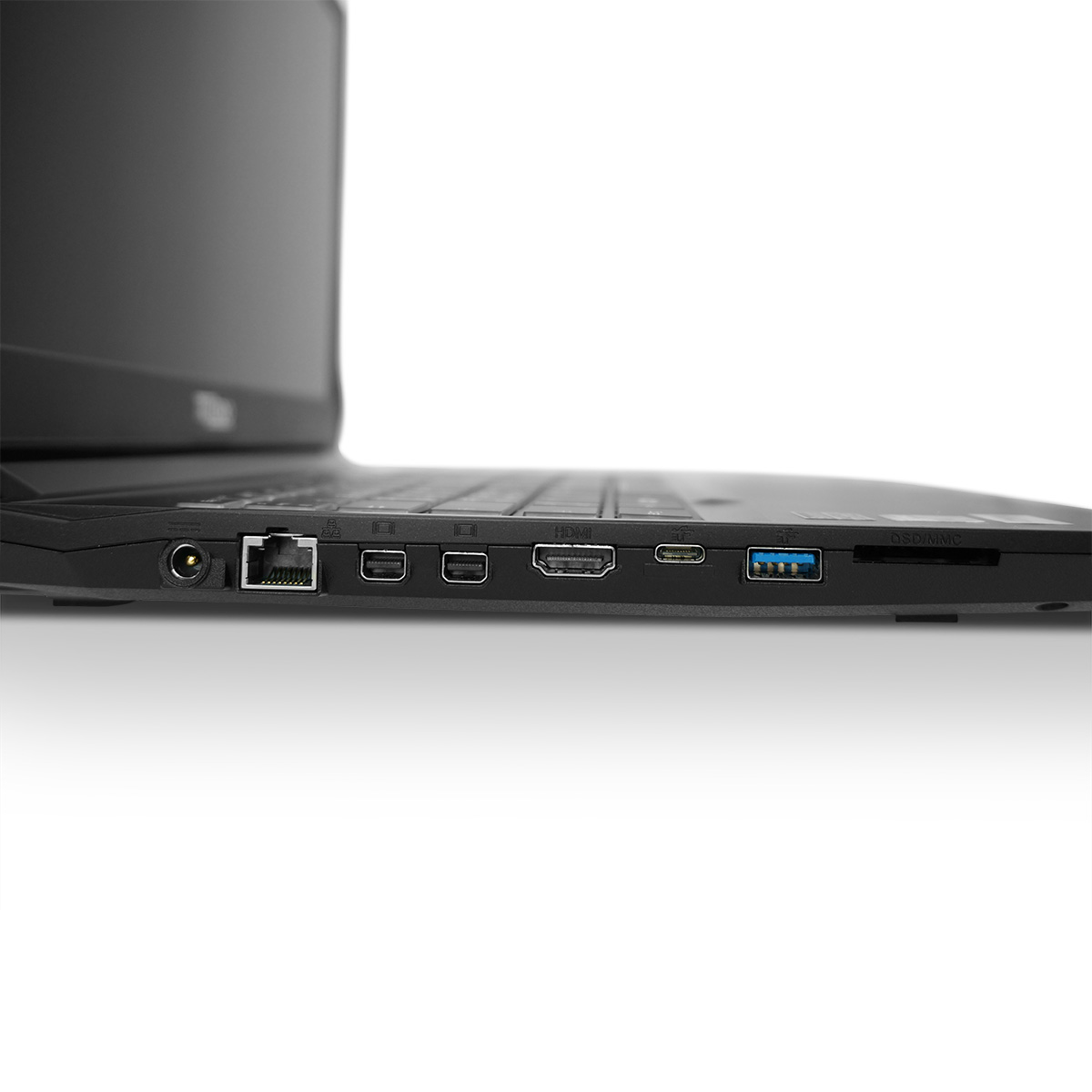

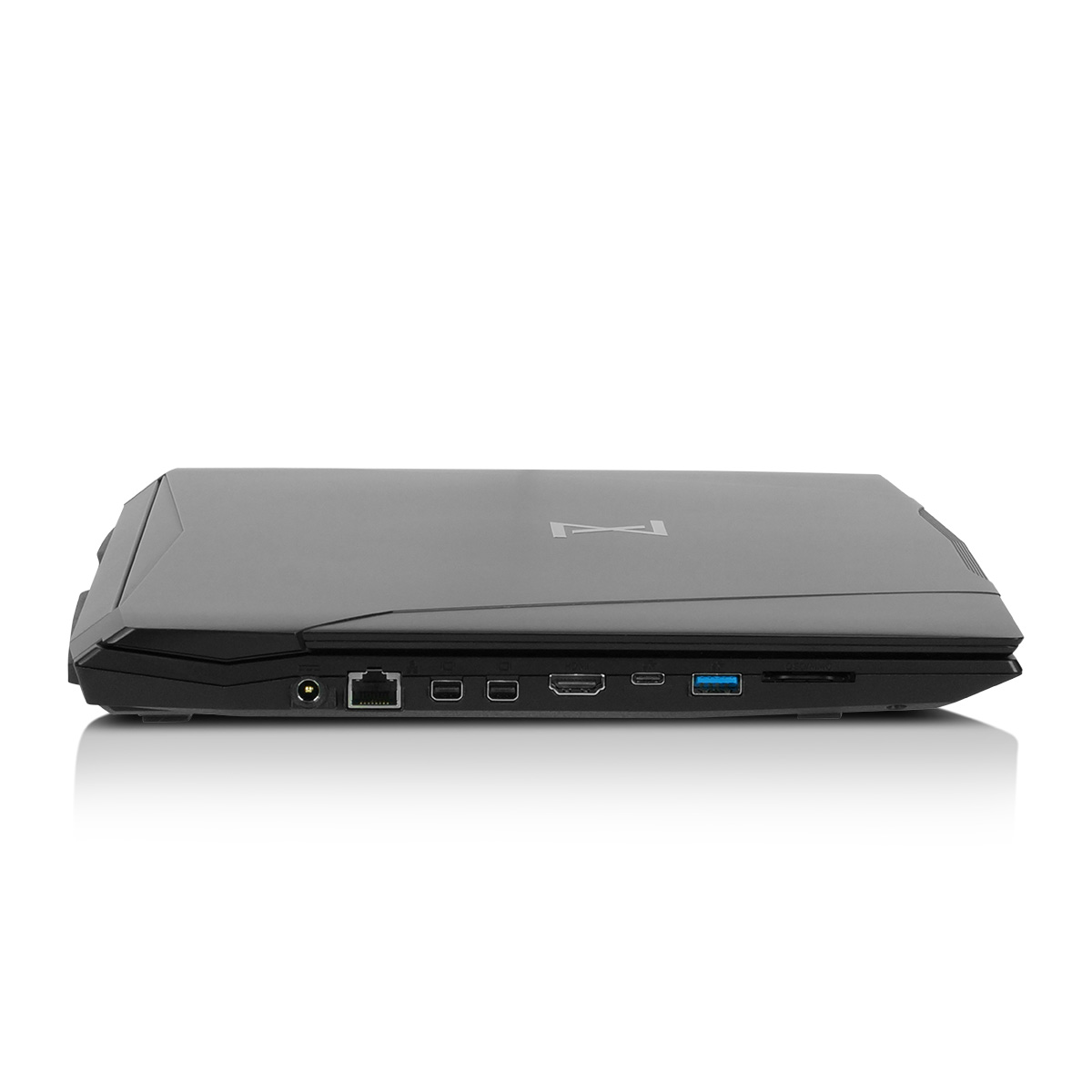

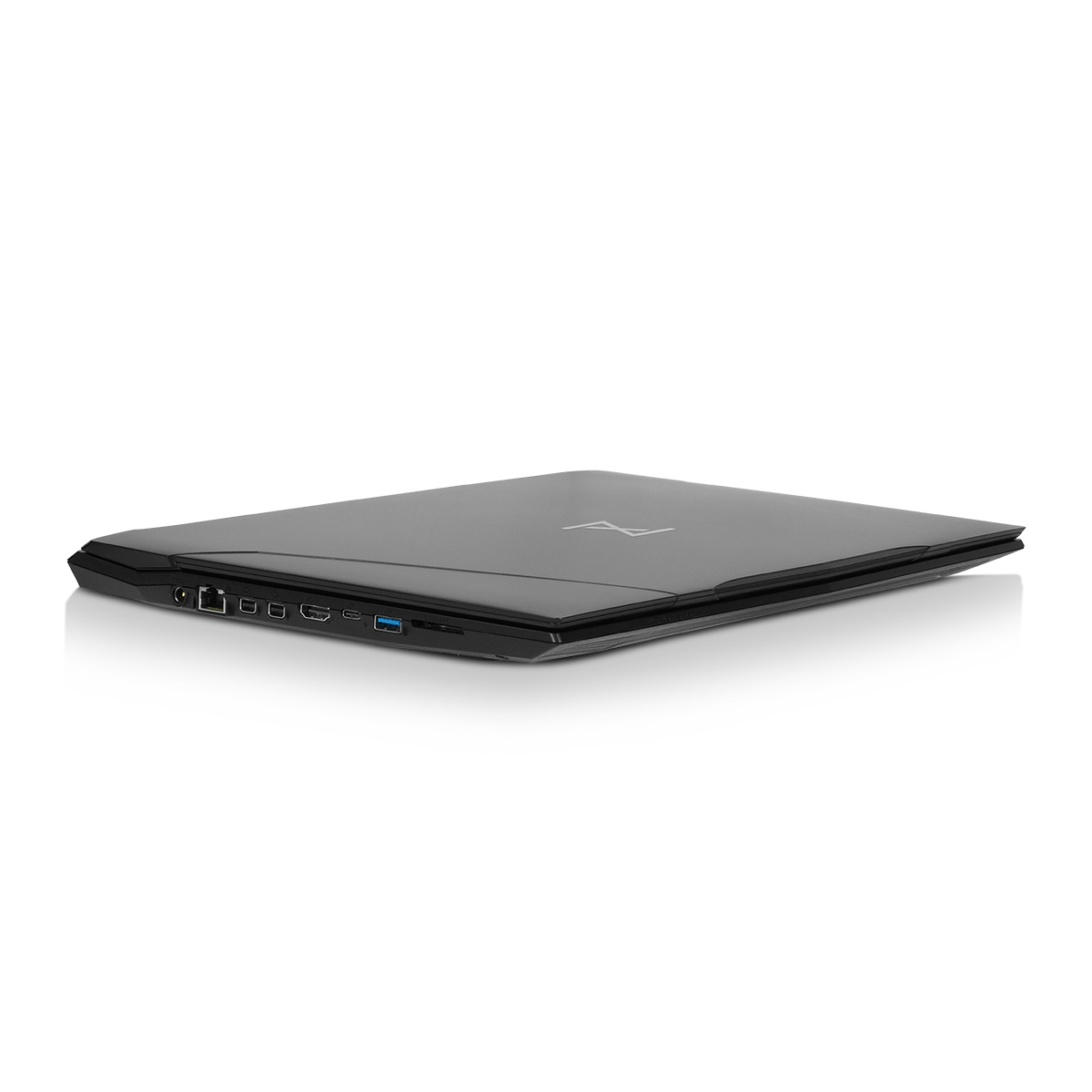

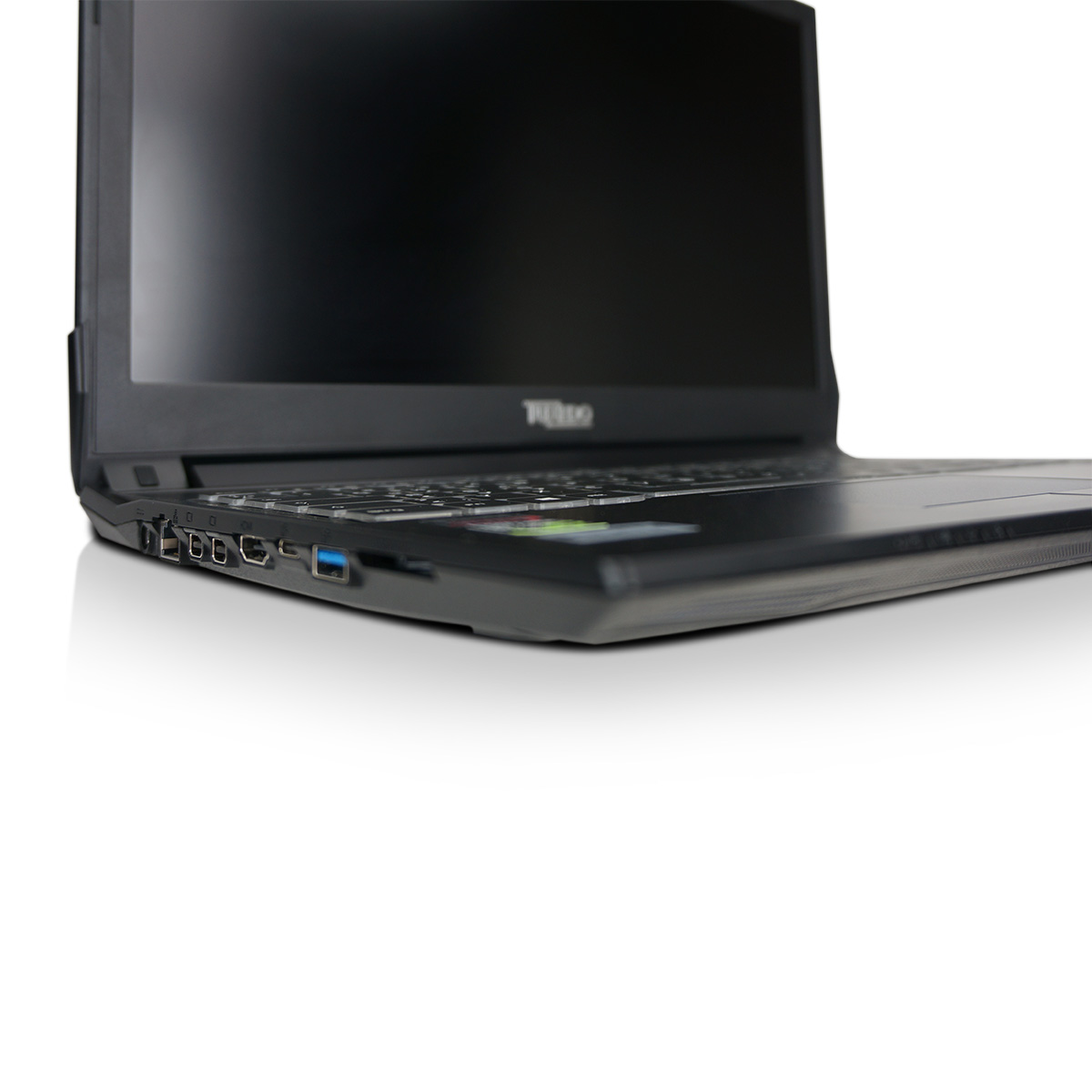

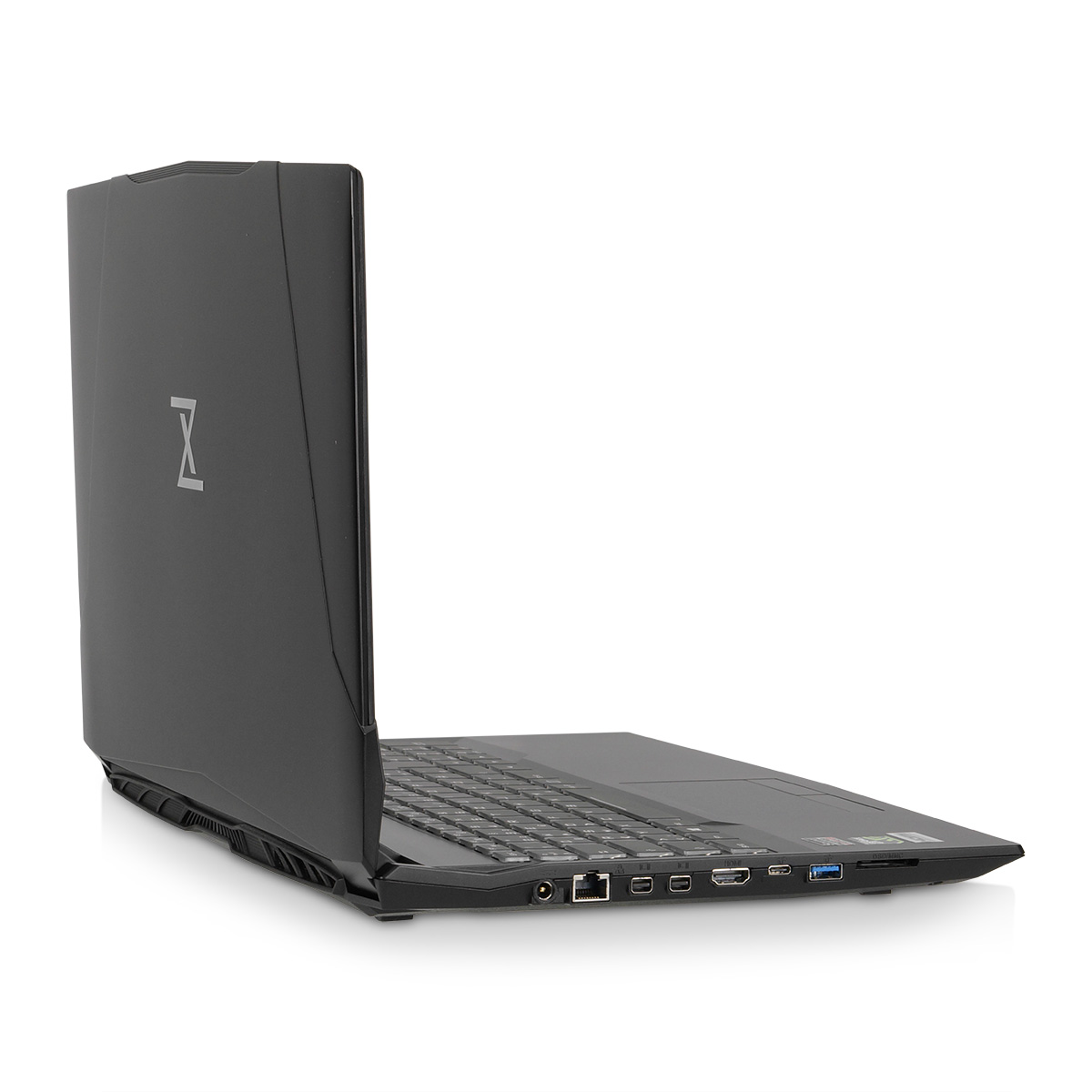

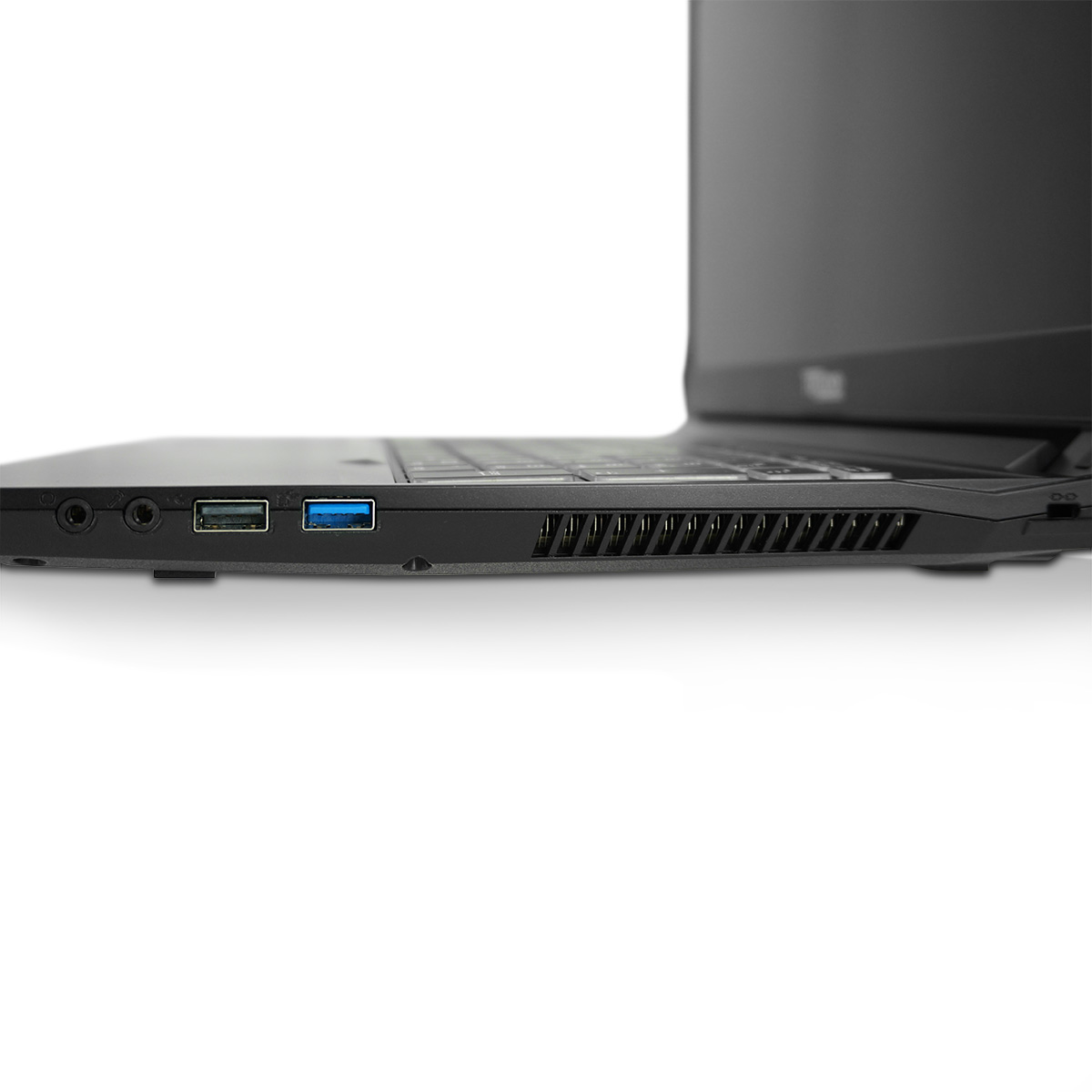

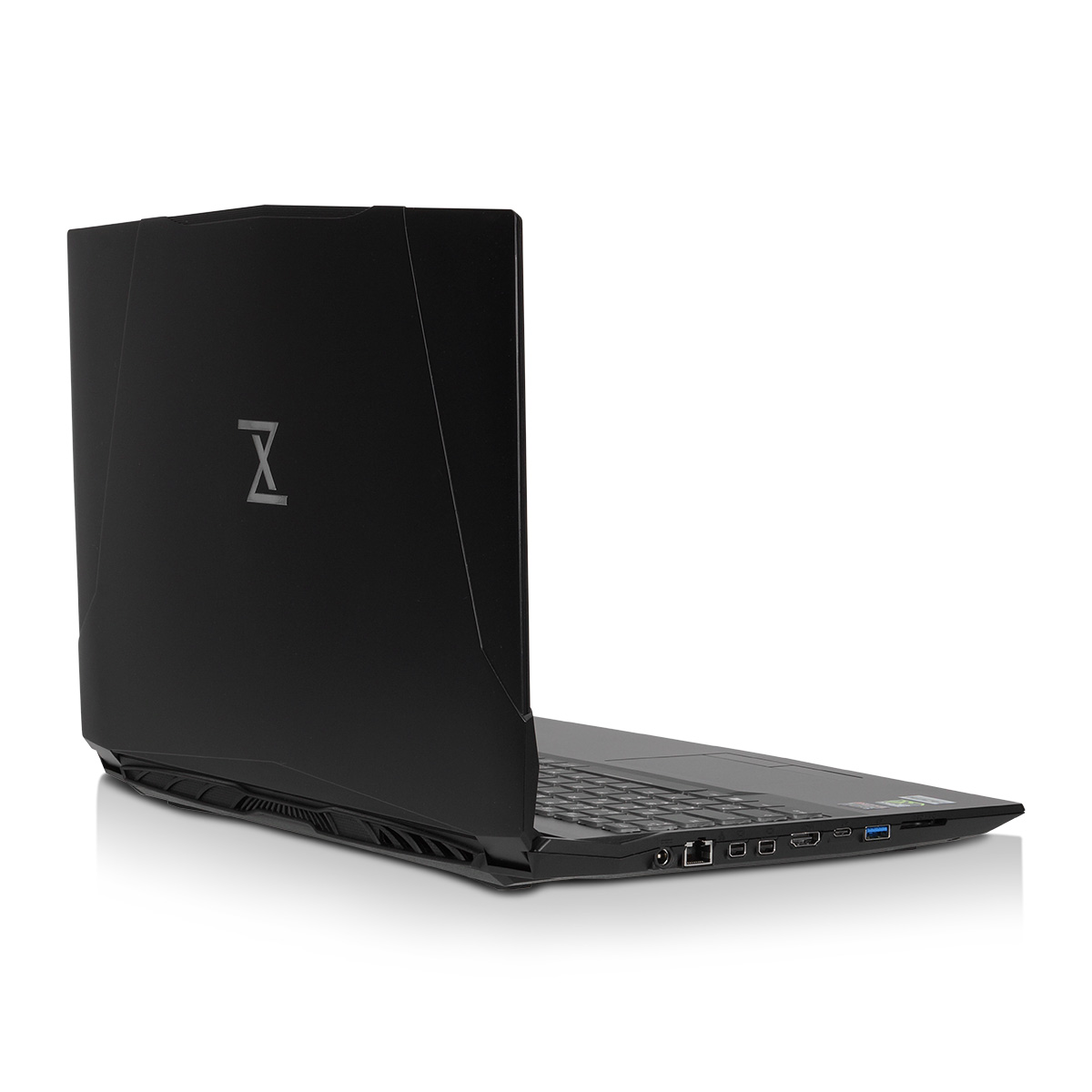

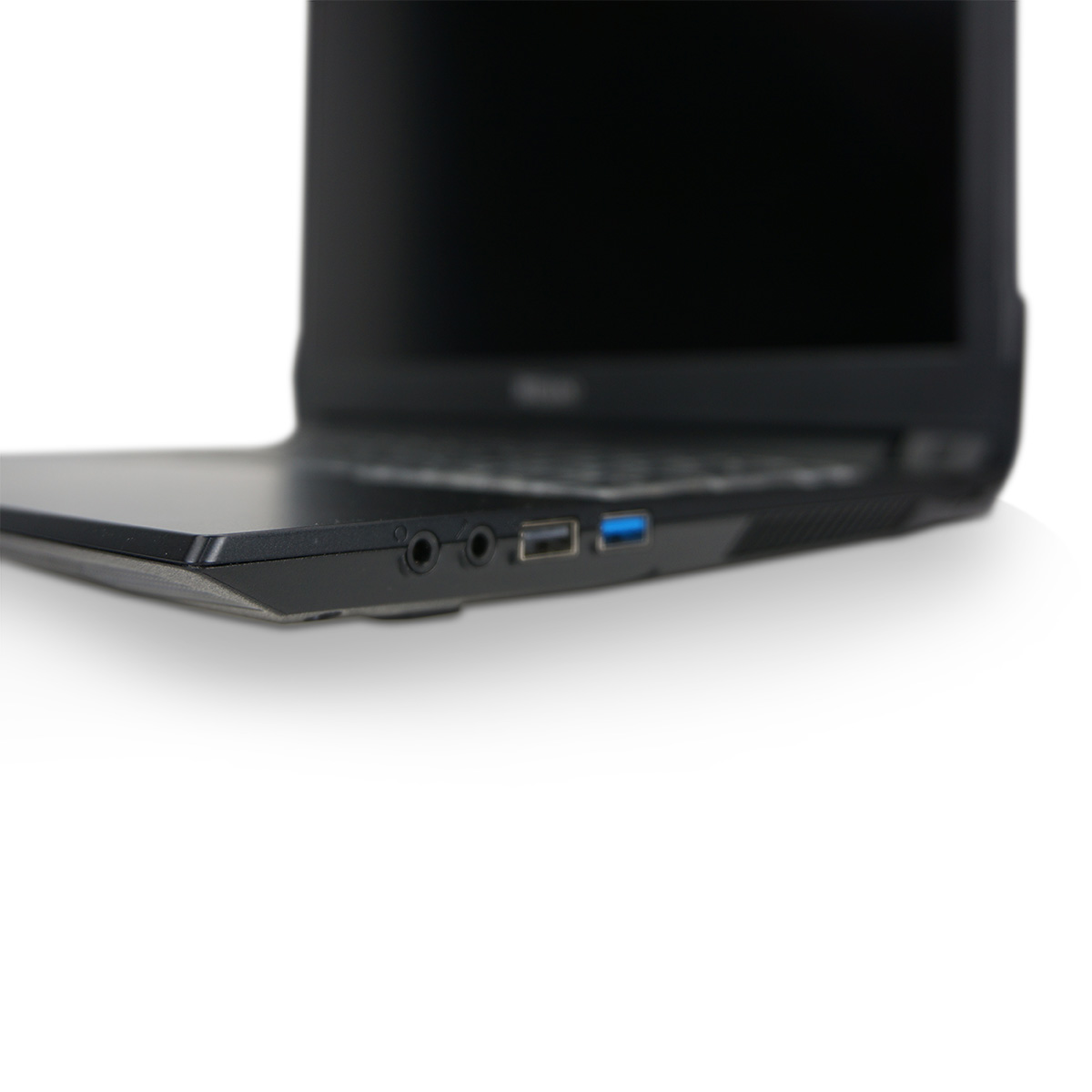

Ports:
1x USB 2.0 Typ-A
1x USB 3.0 Typ-A
1x USB 3.1 Typ-A Gen2 (10 Gbit/s)
1x USB 3.1 Typ-C Gen2 (10 Gbit/s)
1x HDMI 1.4b (mit HDCP) (1920*1080@60Hz) (connected to Intel graphics chip)
1x Mini-DisplayPort 1.4 (3840*2160@60Hz) (connected directly to NVIDIA graphics chip)
1x Mini-DisplayPort 1.2 (3840*2160@60Hz) (connected directly to NVIDIA graphics chip)
1x RJ45; Gigabit-LAN (10/100/1000 MB)
1x Microphone input
1x Line-Out
1x 2-in-1 Audio (Headphones & S/PDIF optical, 3,5mm koaxial)
1x Kensington Lock
1x 9-in-1 Card-Reader
9-in-1 Card Reader
- MMC / RSMMC
- SD / SDHC / SDXC / Micro SD (Adapter necesssary)
- MS / MS Pro / MS Duo
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)

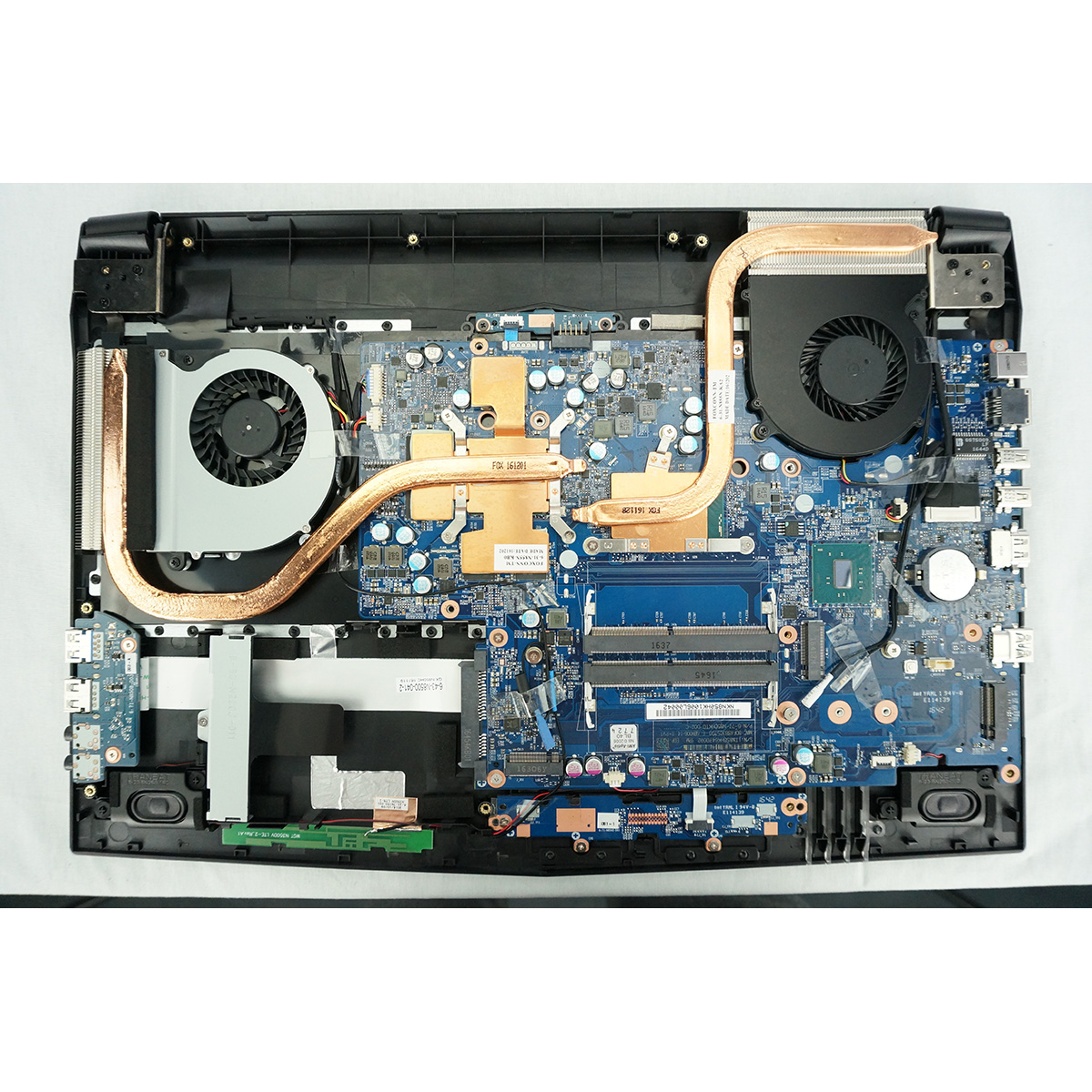

All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!
For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB pendrive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x TUXEDO fan stuff package

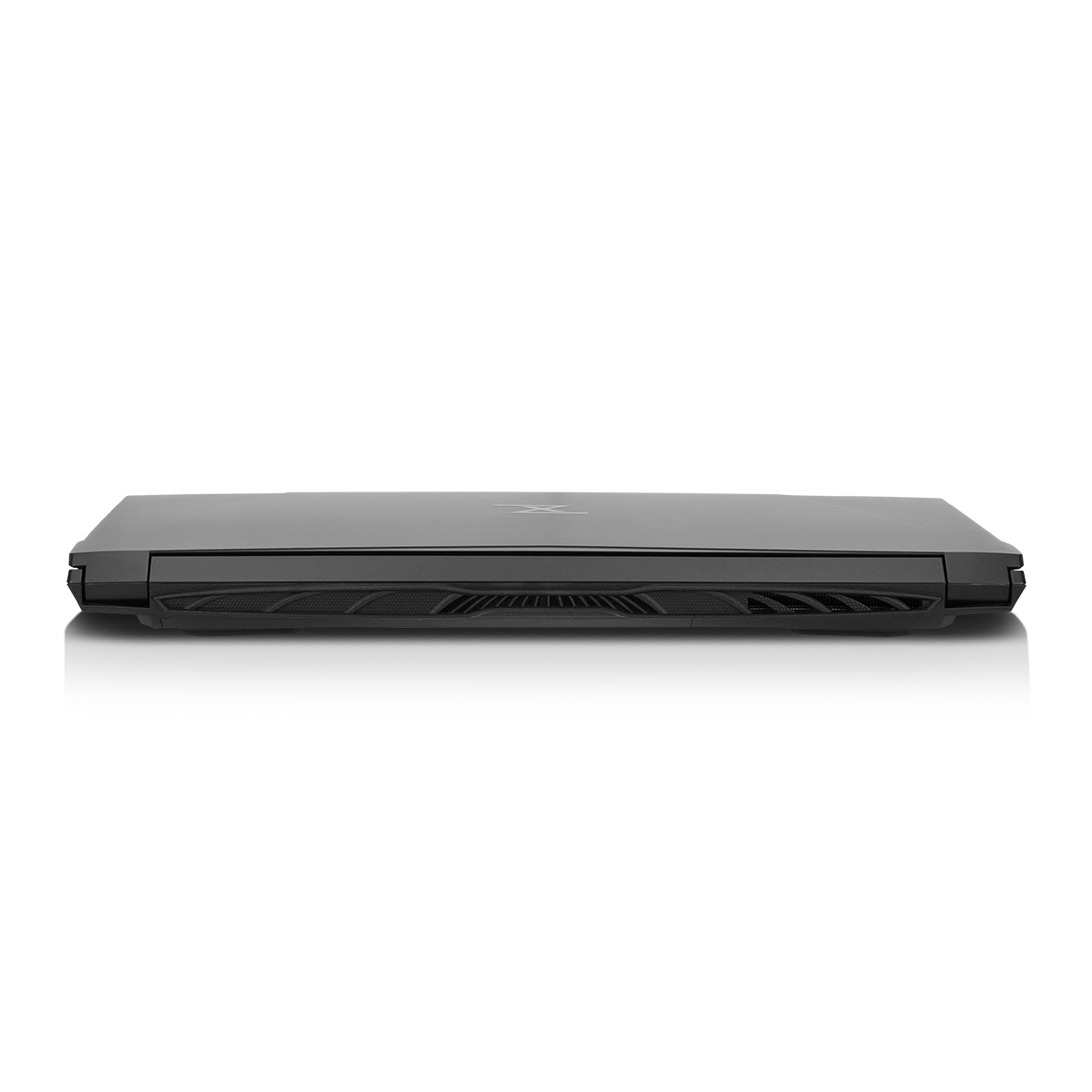

Noise growth / Cooling / Ventilation / Fan
Temperature controlled silent fan
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.
Custom fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the behavior of the fans at yourself. This means that you get the ability to make your device as silent as possible. You are able to set the device almost passive cooled, without any fan noise most of the time!
