[B]usiness Series notebooks have energy-saving Intel HD graphics and can be equipped with powerful processors, plenty of memory and large hard drives. Ideal for daily work and professional use.
BS stands for a [B]business device with [S]lim chassis! The ideal [S]ymbiosis out of both worlds: Portability and Powerfulness

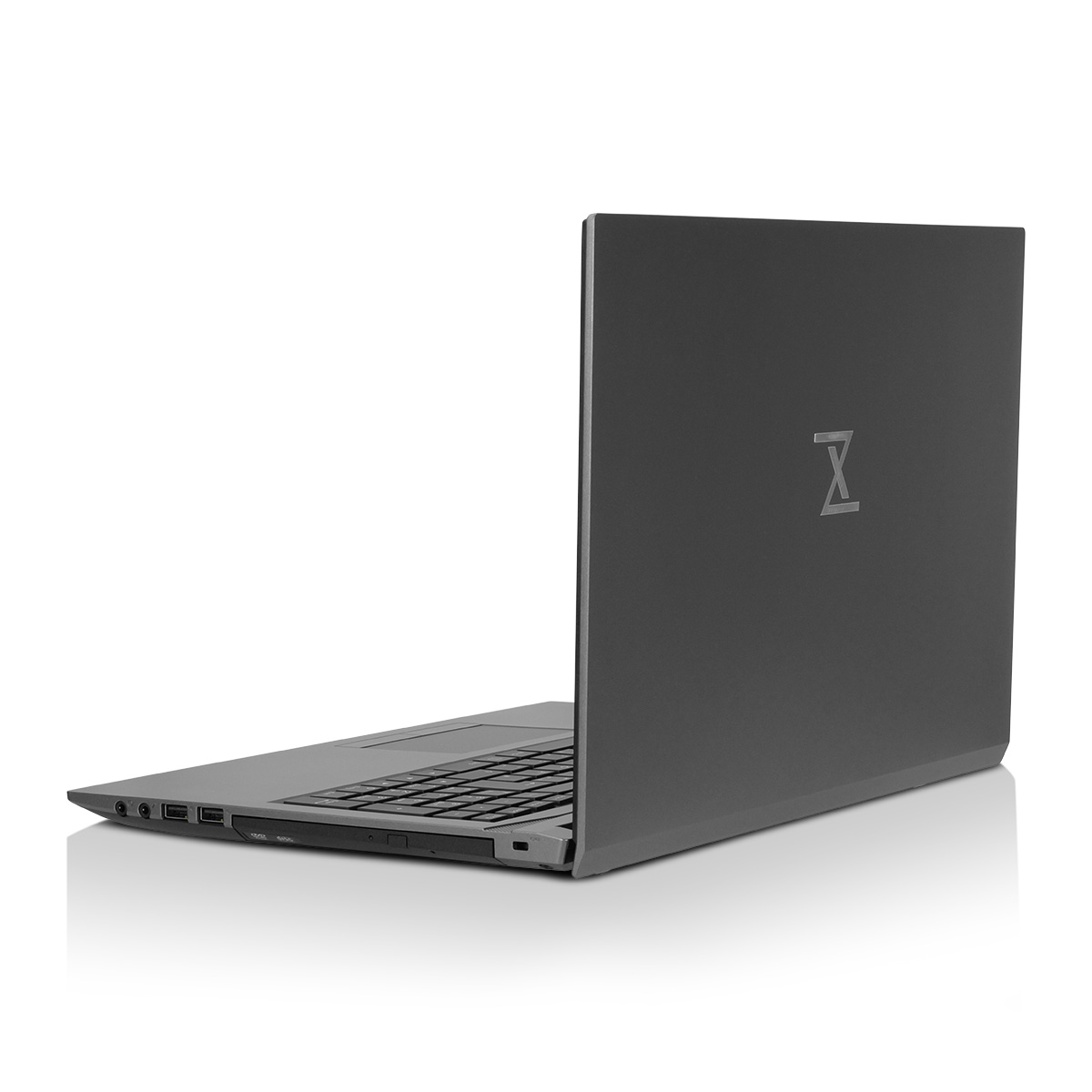

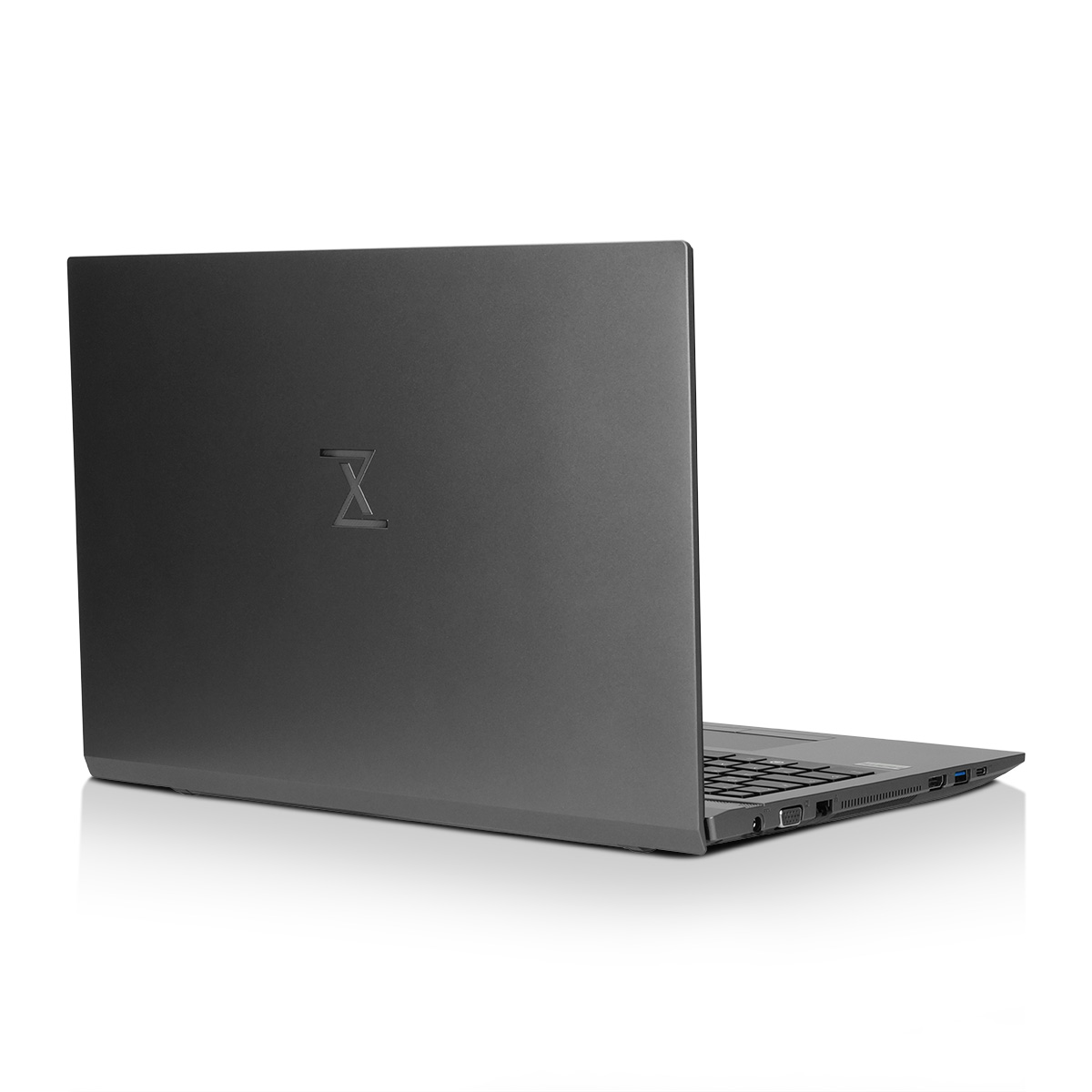

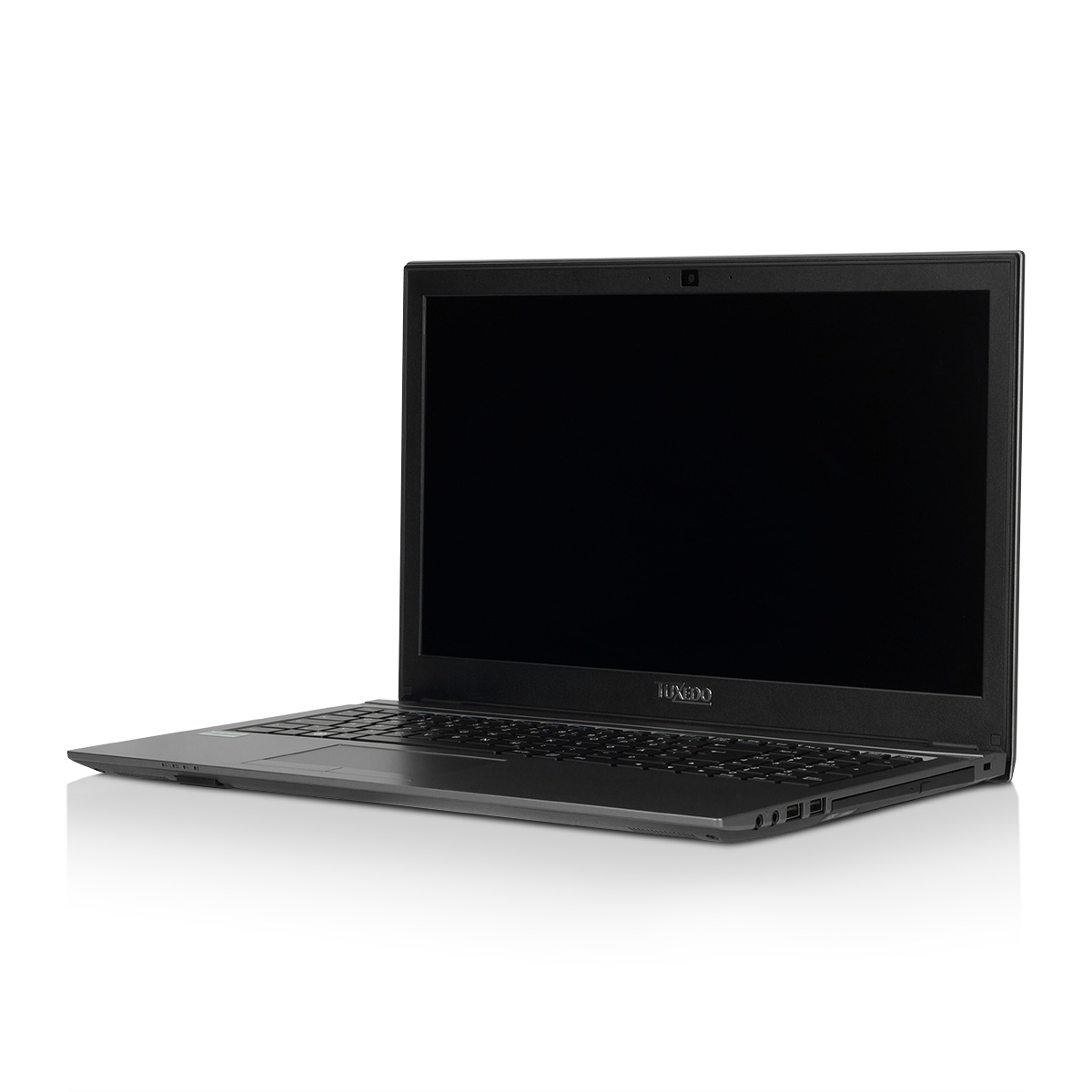

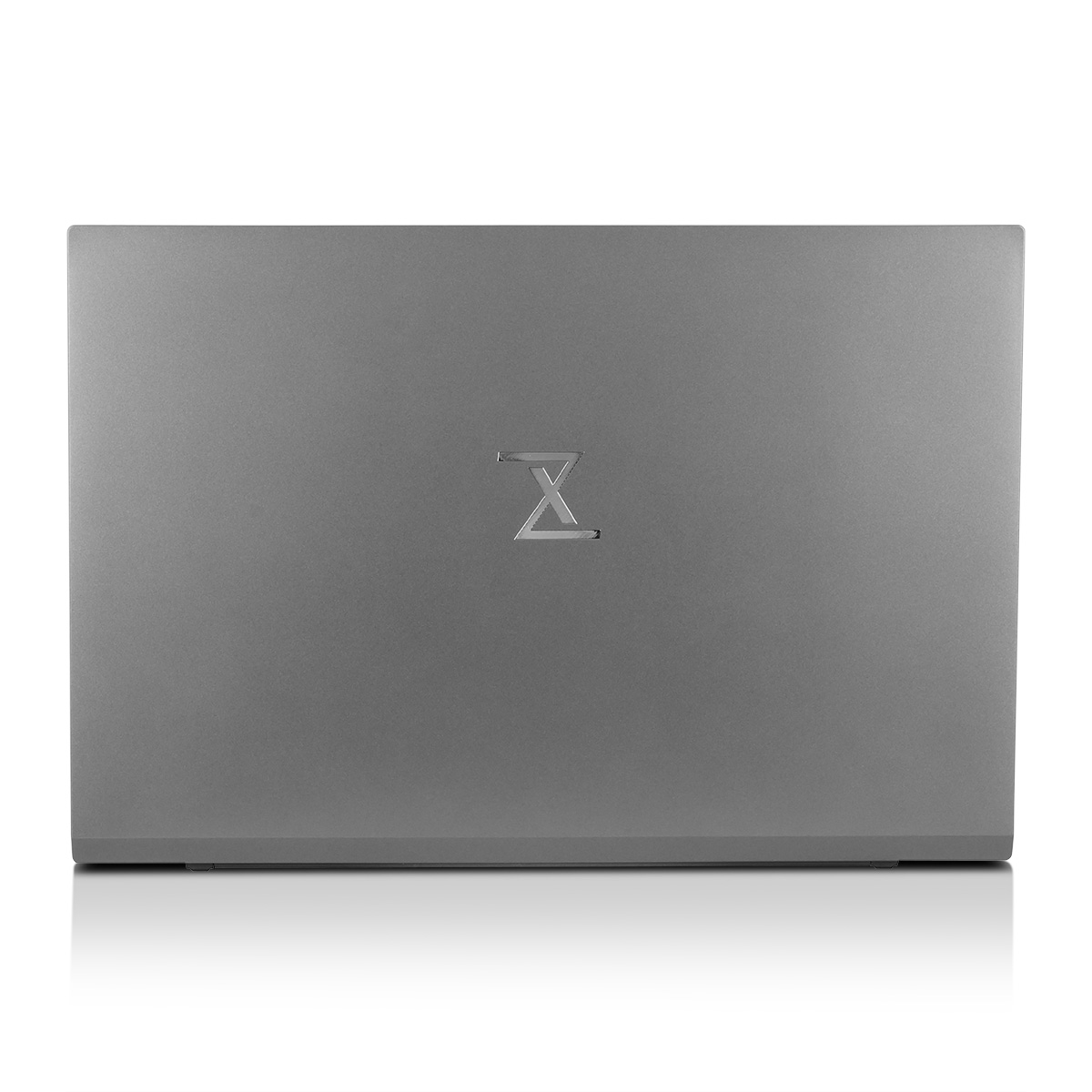

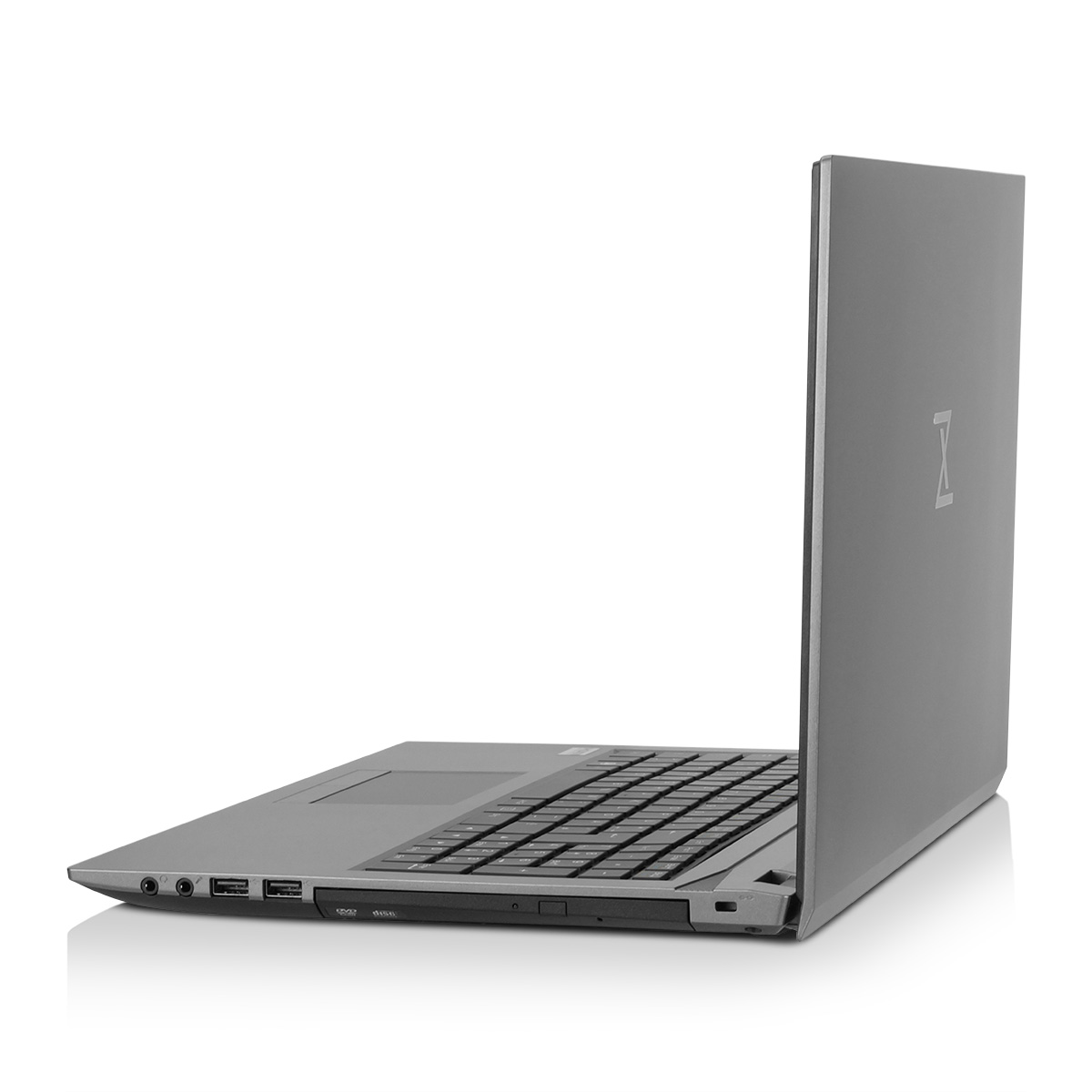

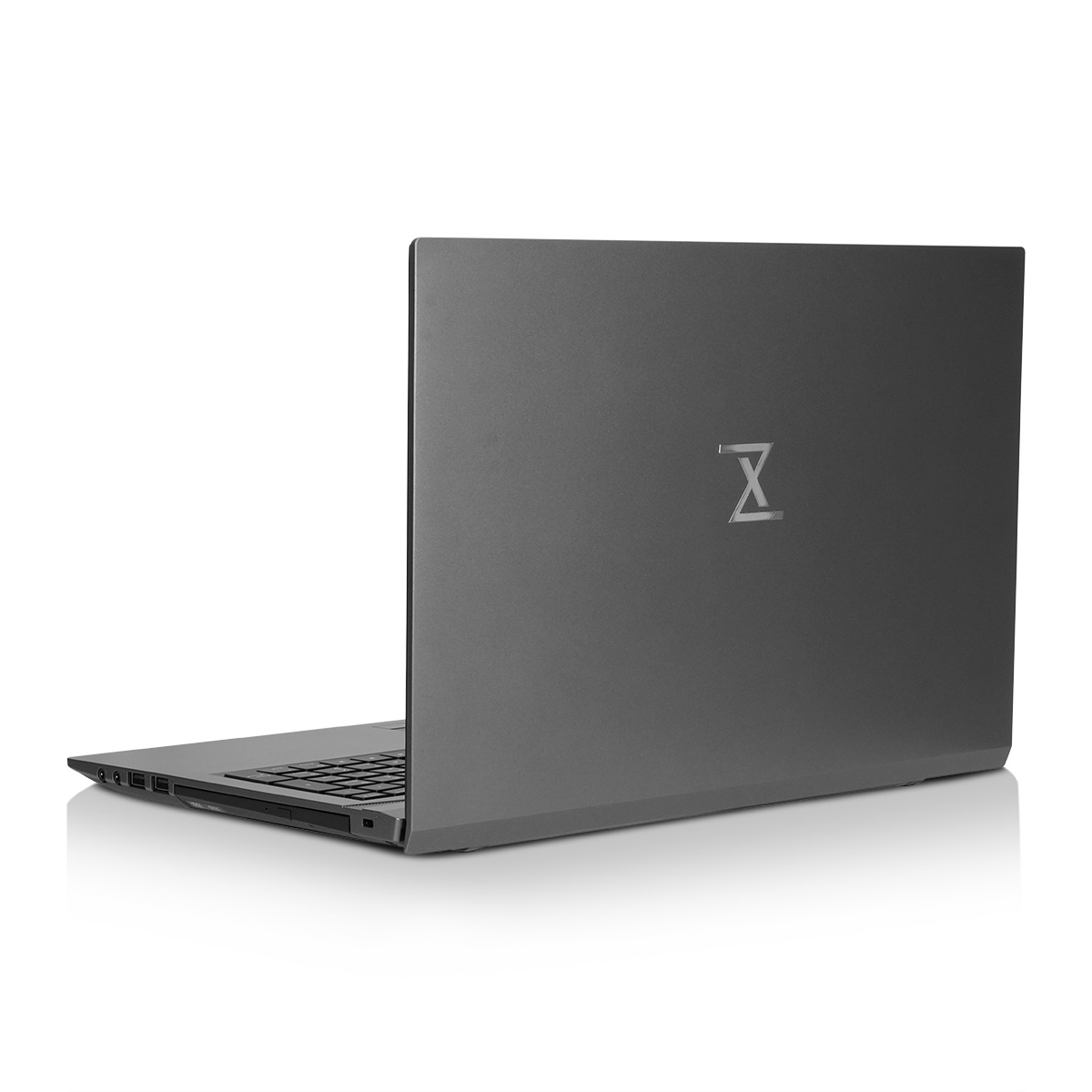

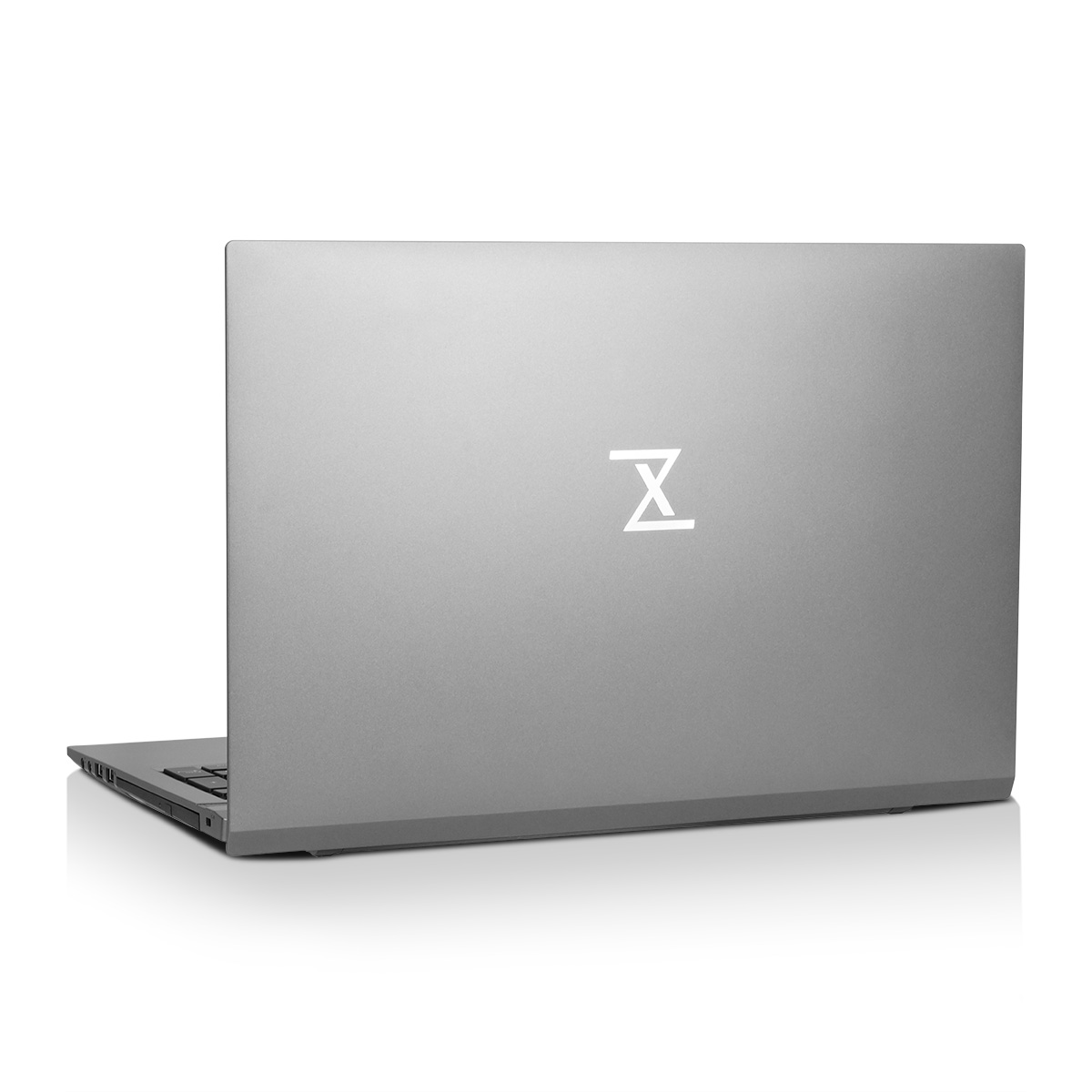

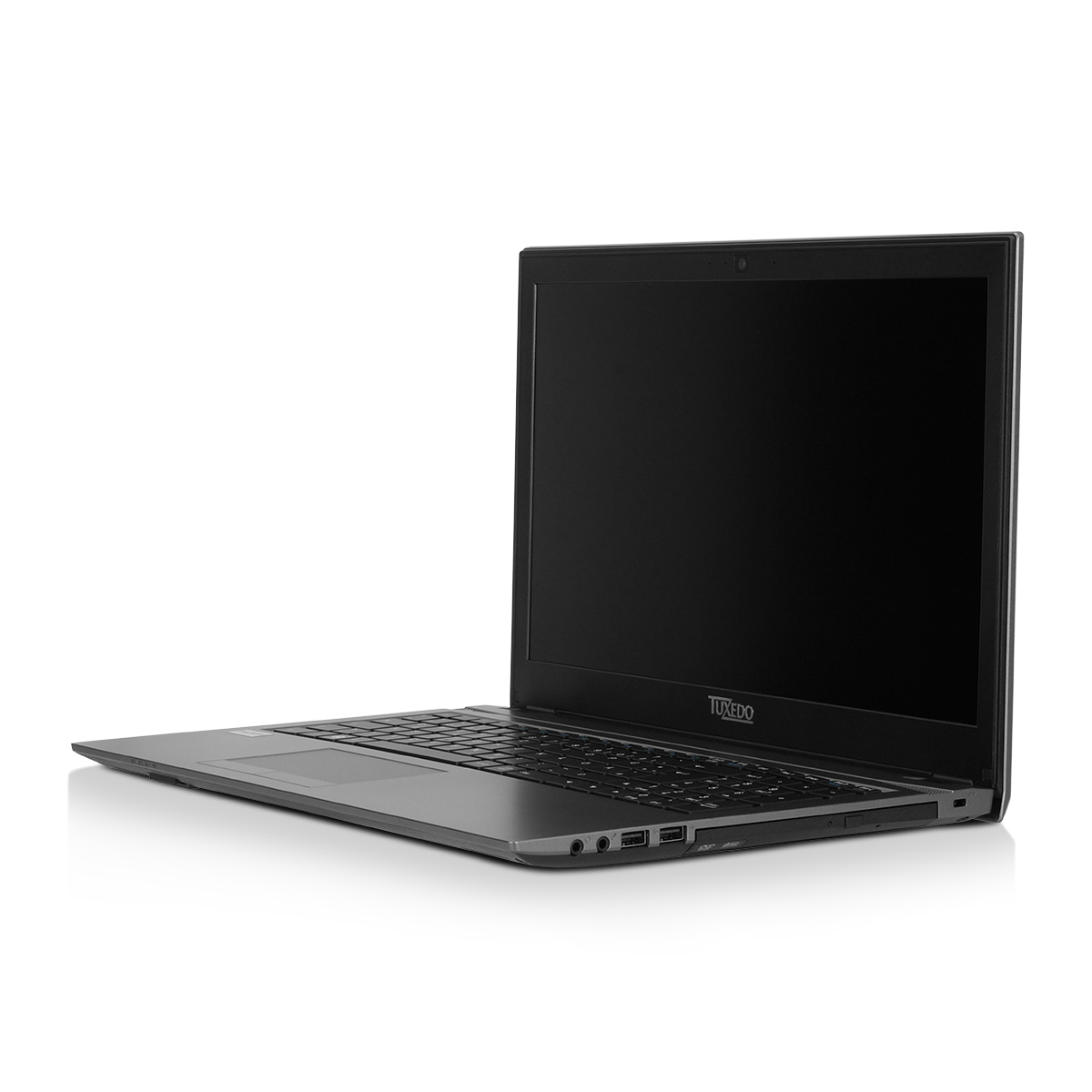

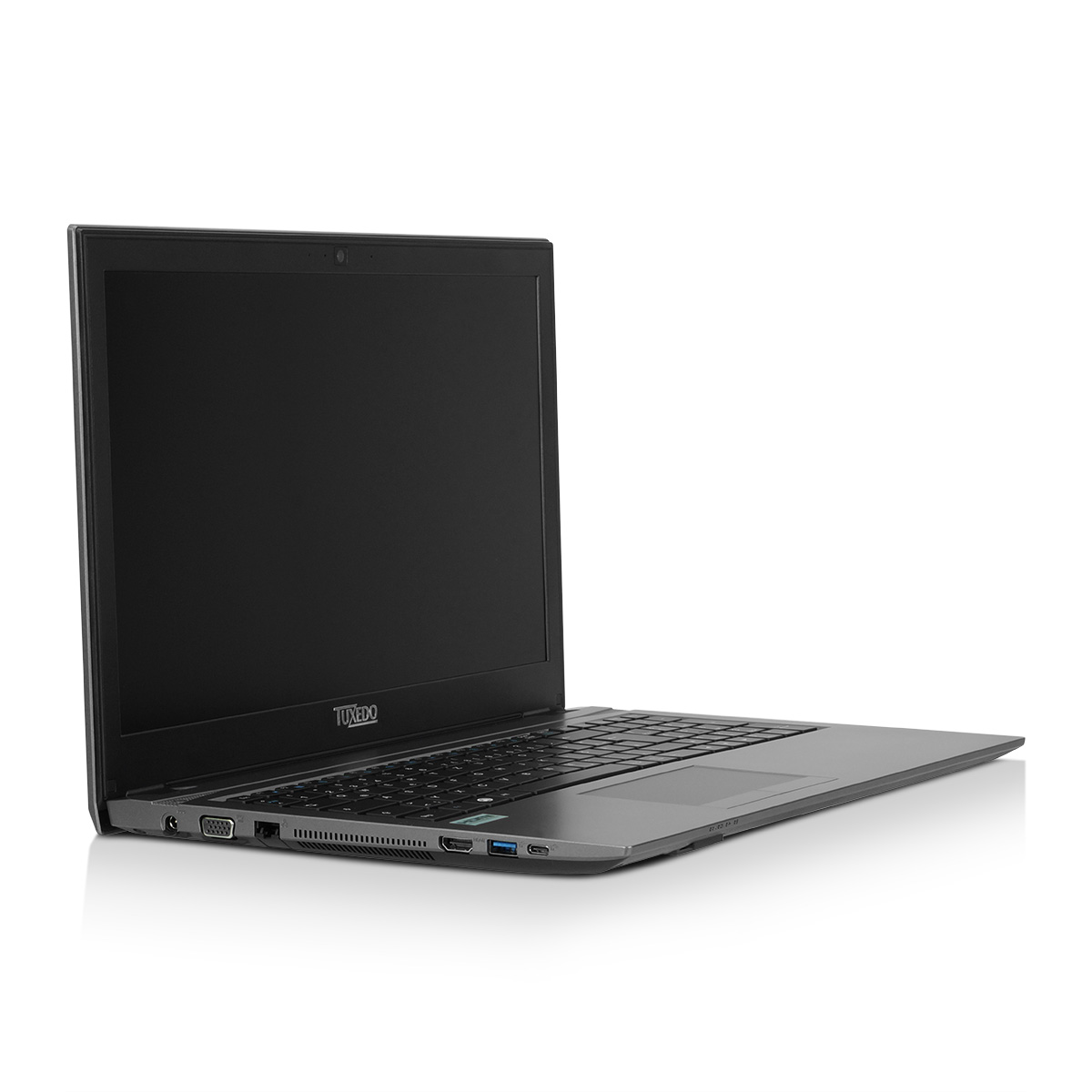

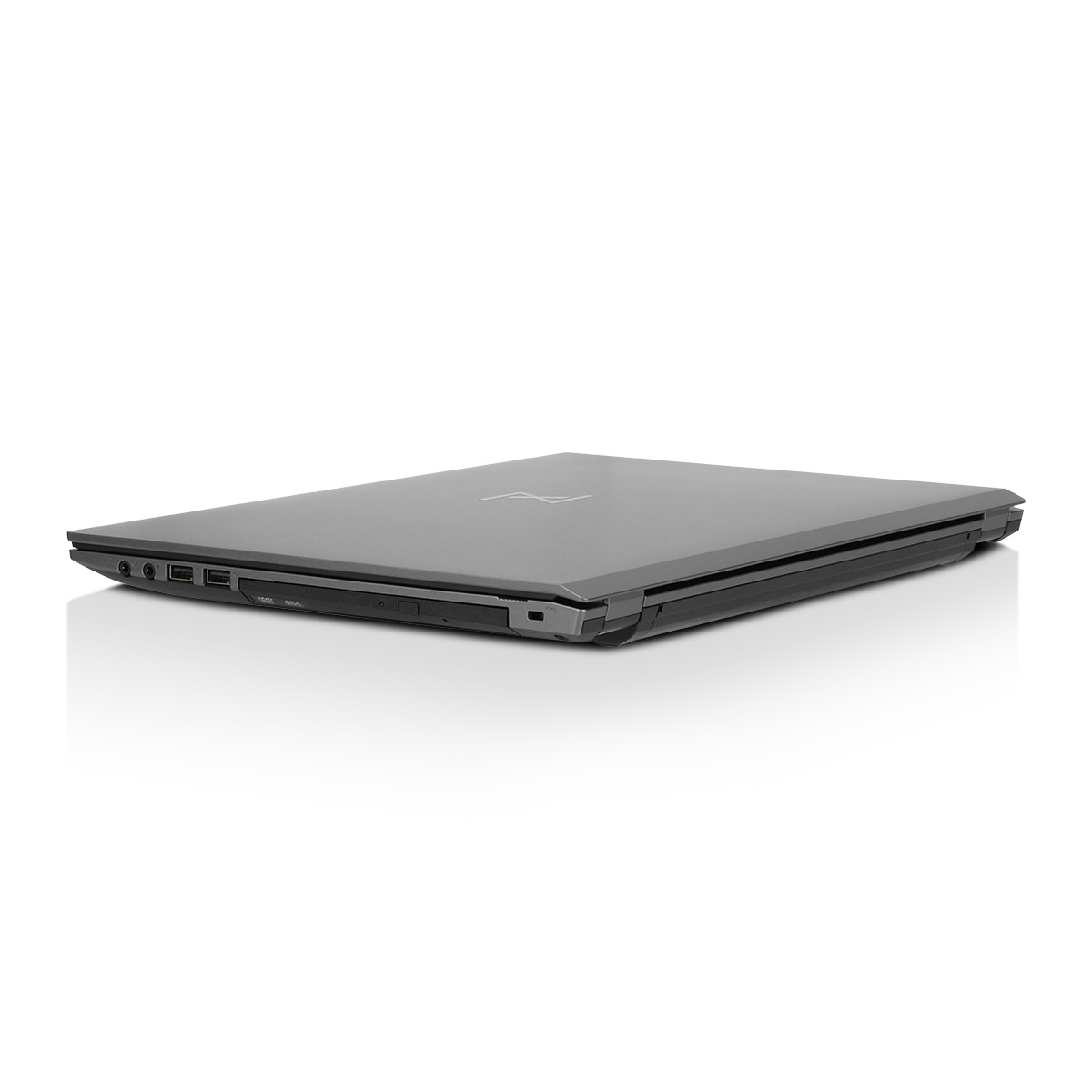

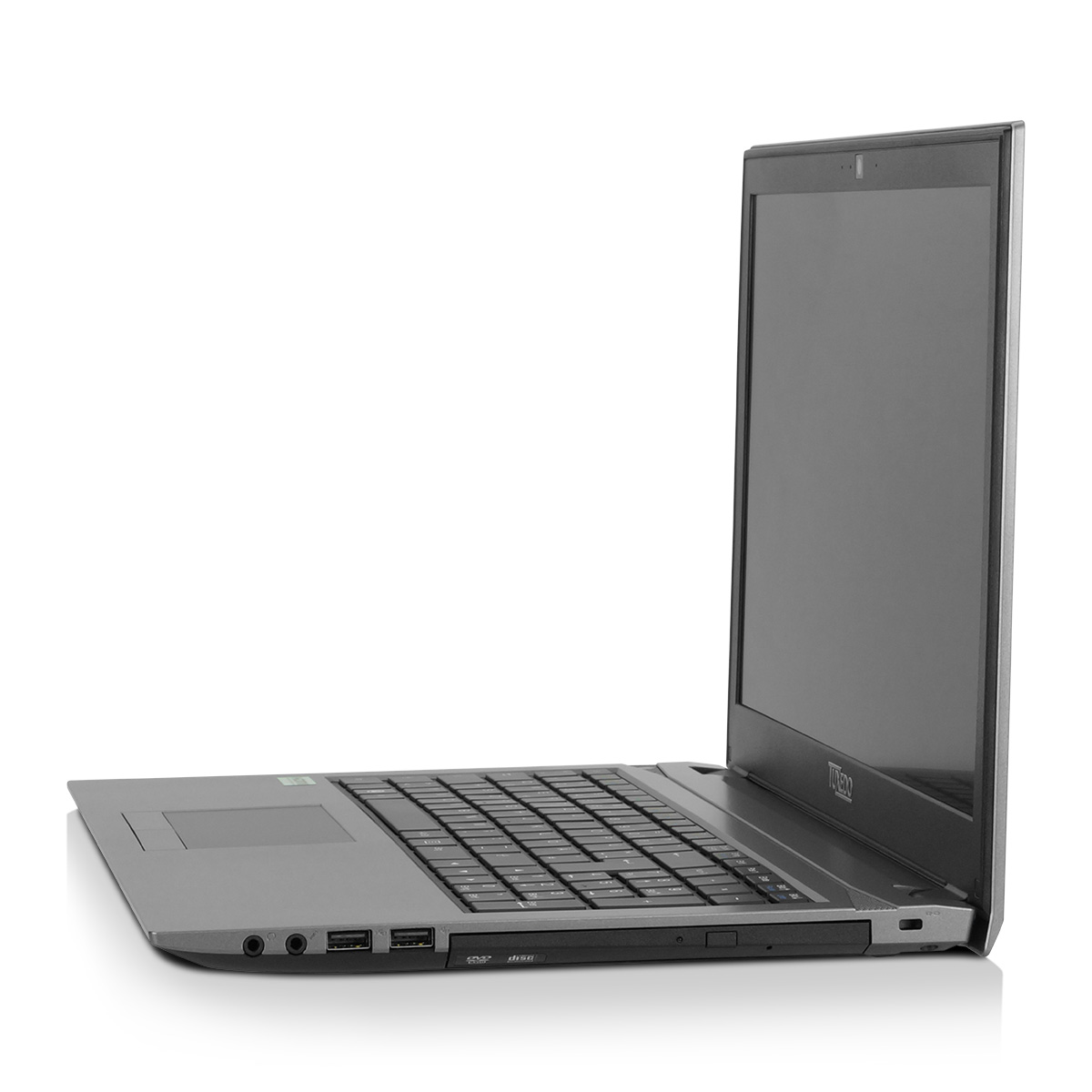

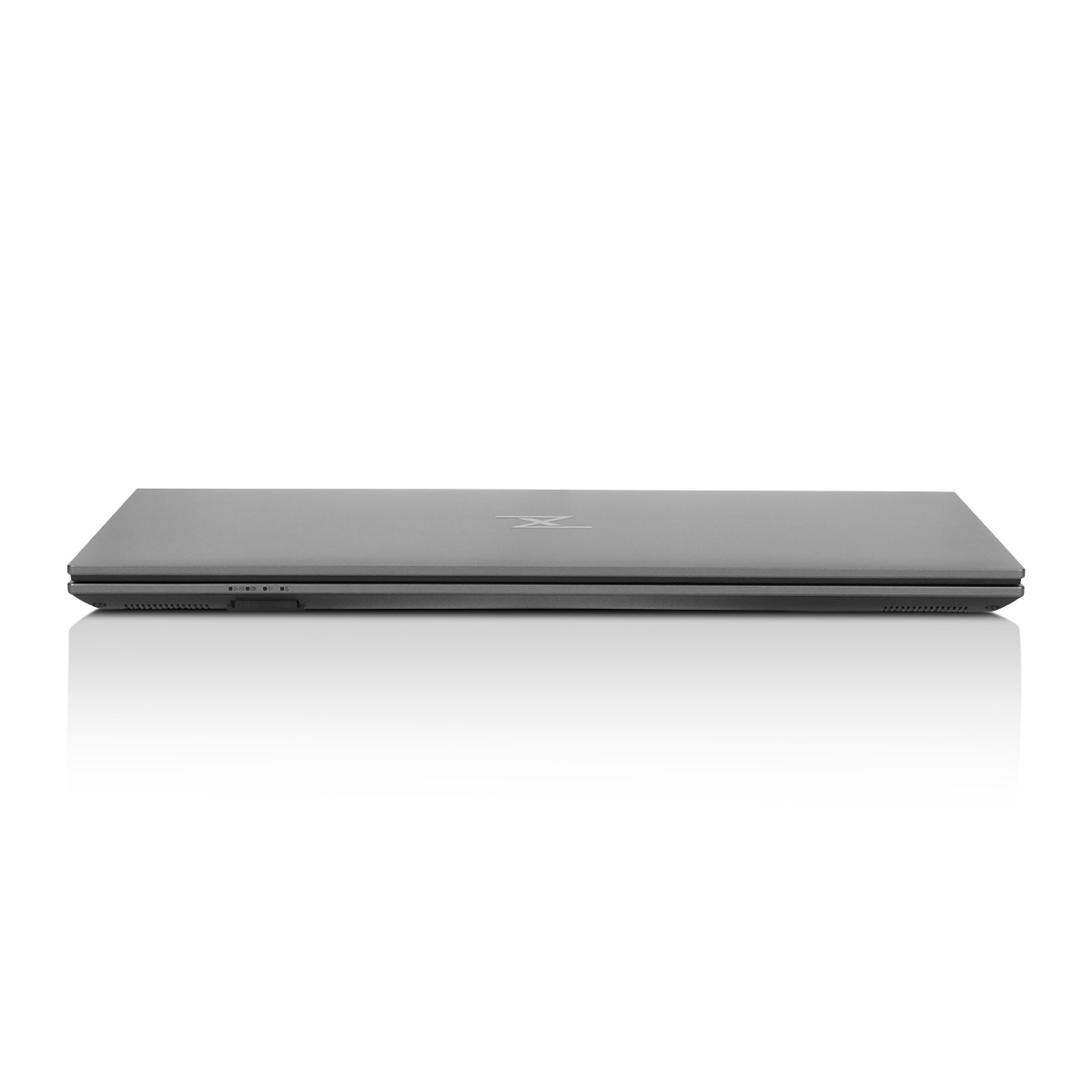

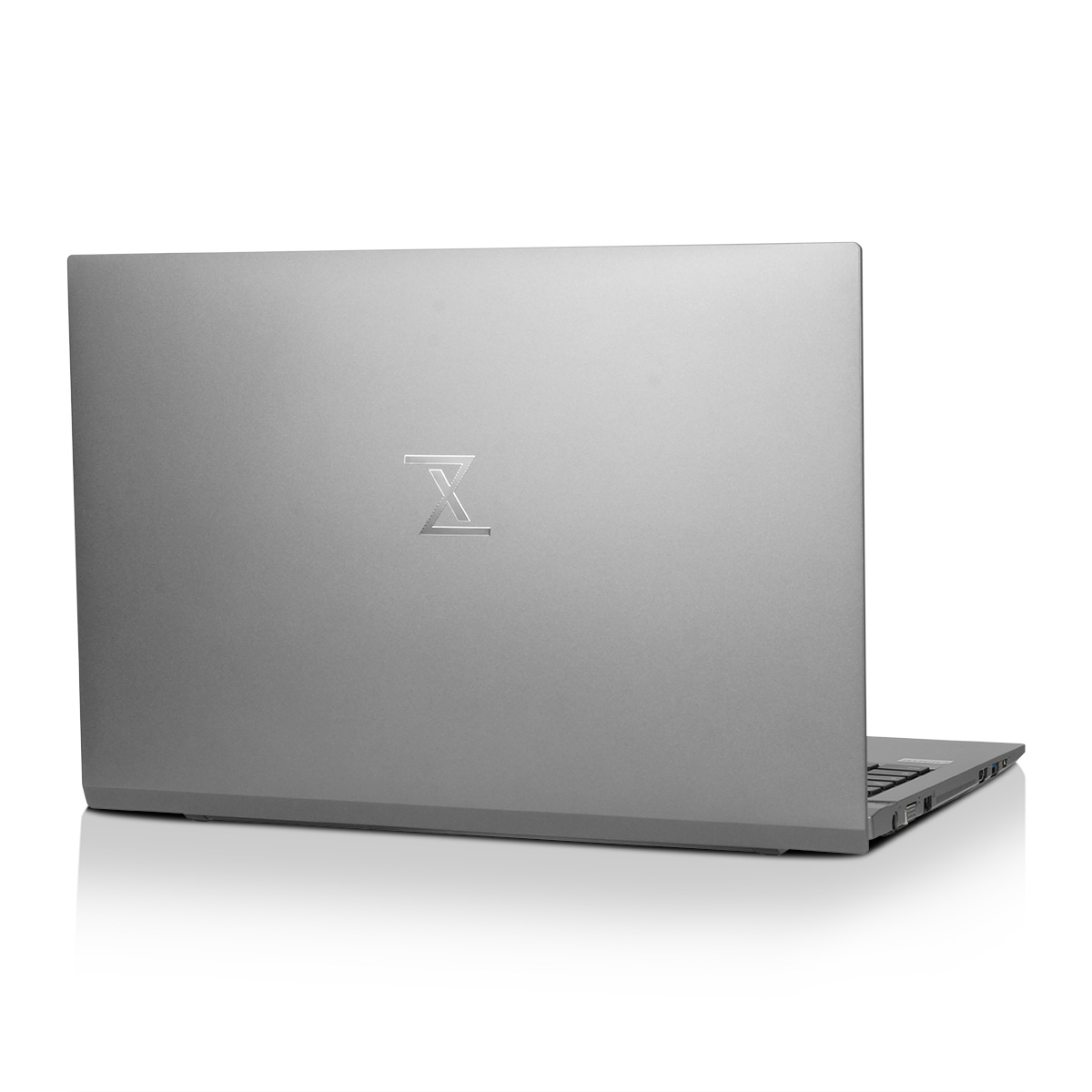

The shapely and sturdy plastic housing of the TUXEDO Book BS1507 is particularly rigid due to its special curved design and the double edges. The plugged-in battery ensures stress-free energy supply even when on the move - a spare battery can be ordered.

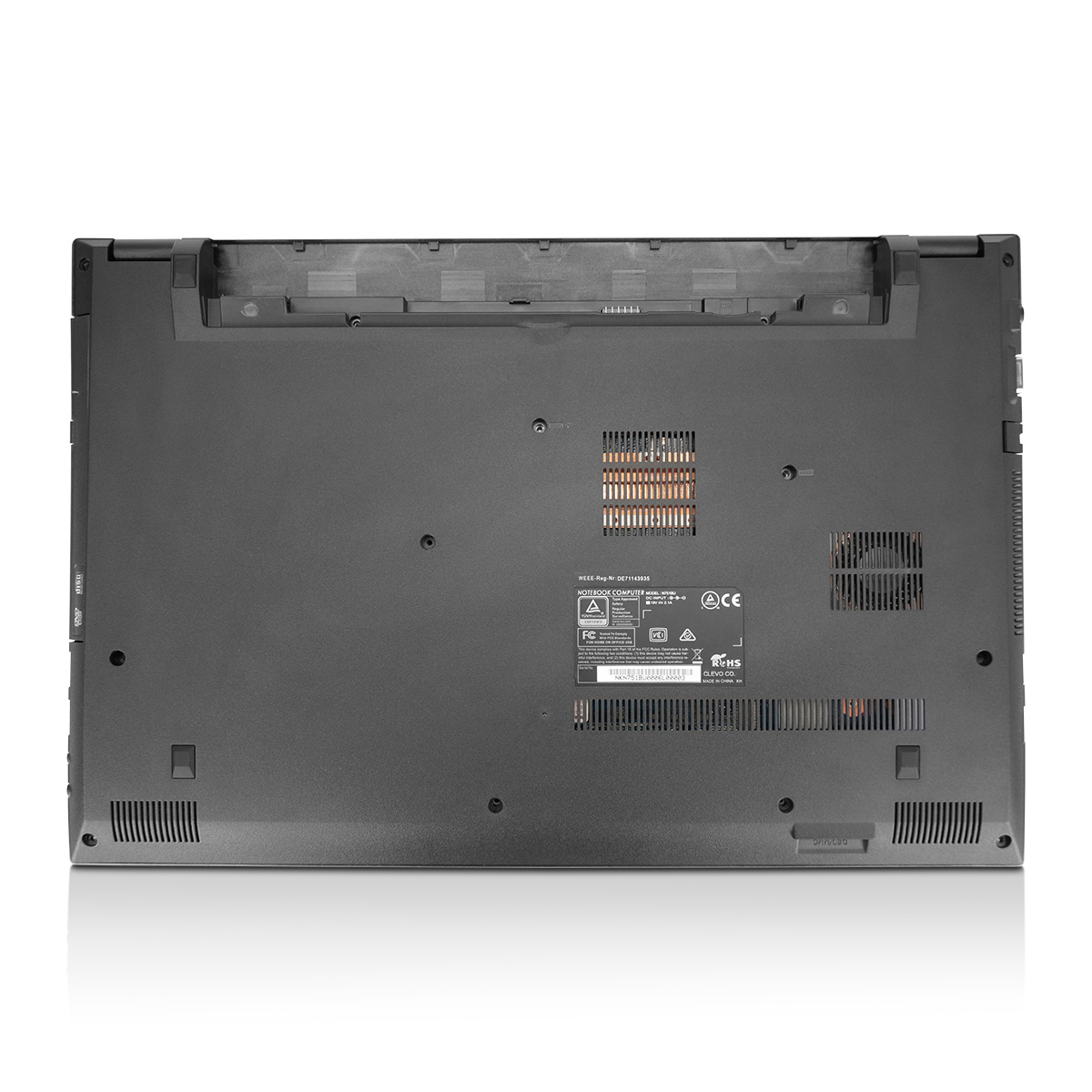

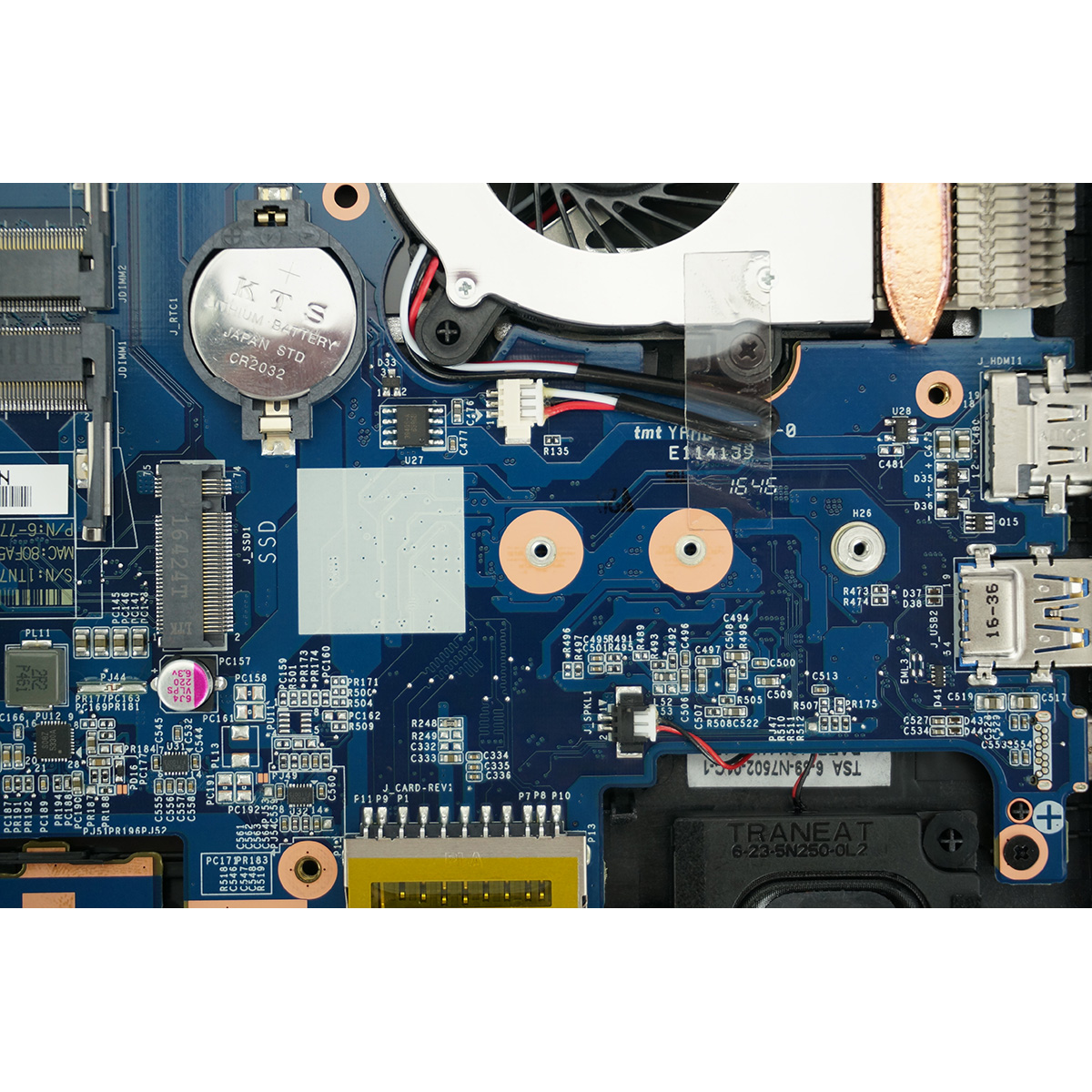

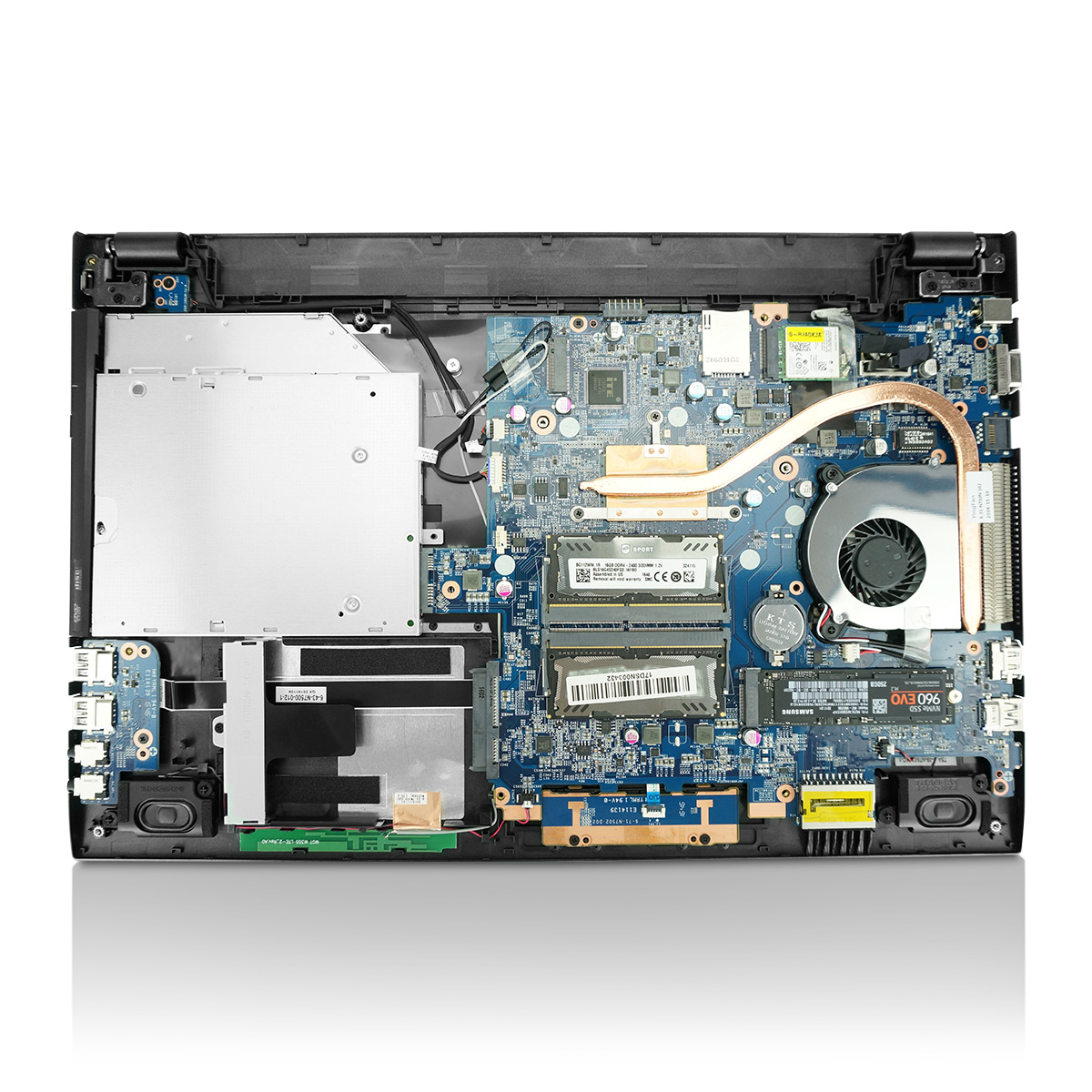

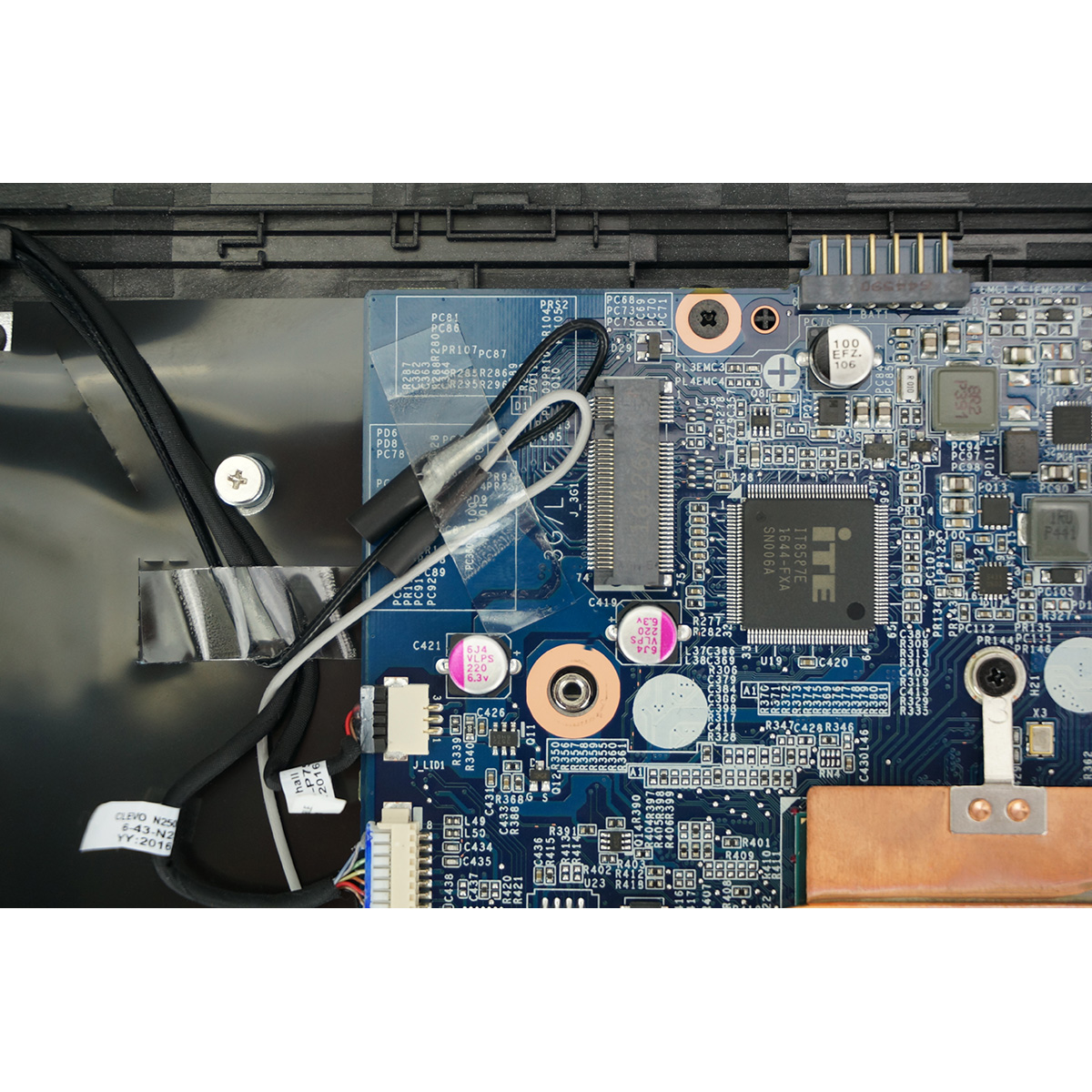

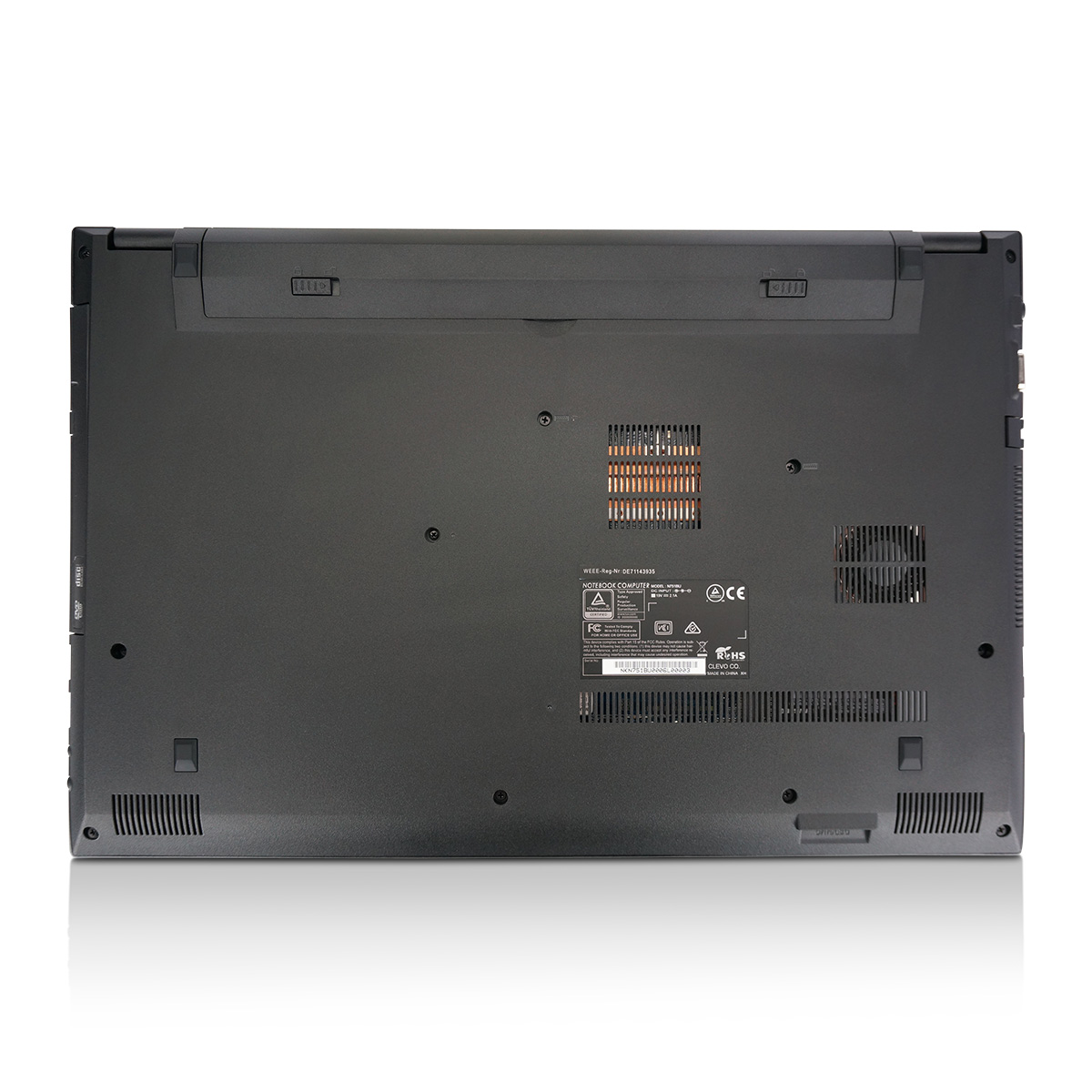

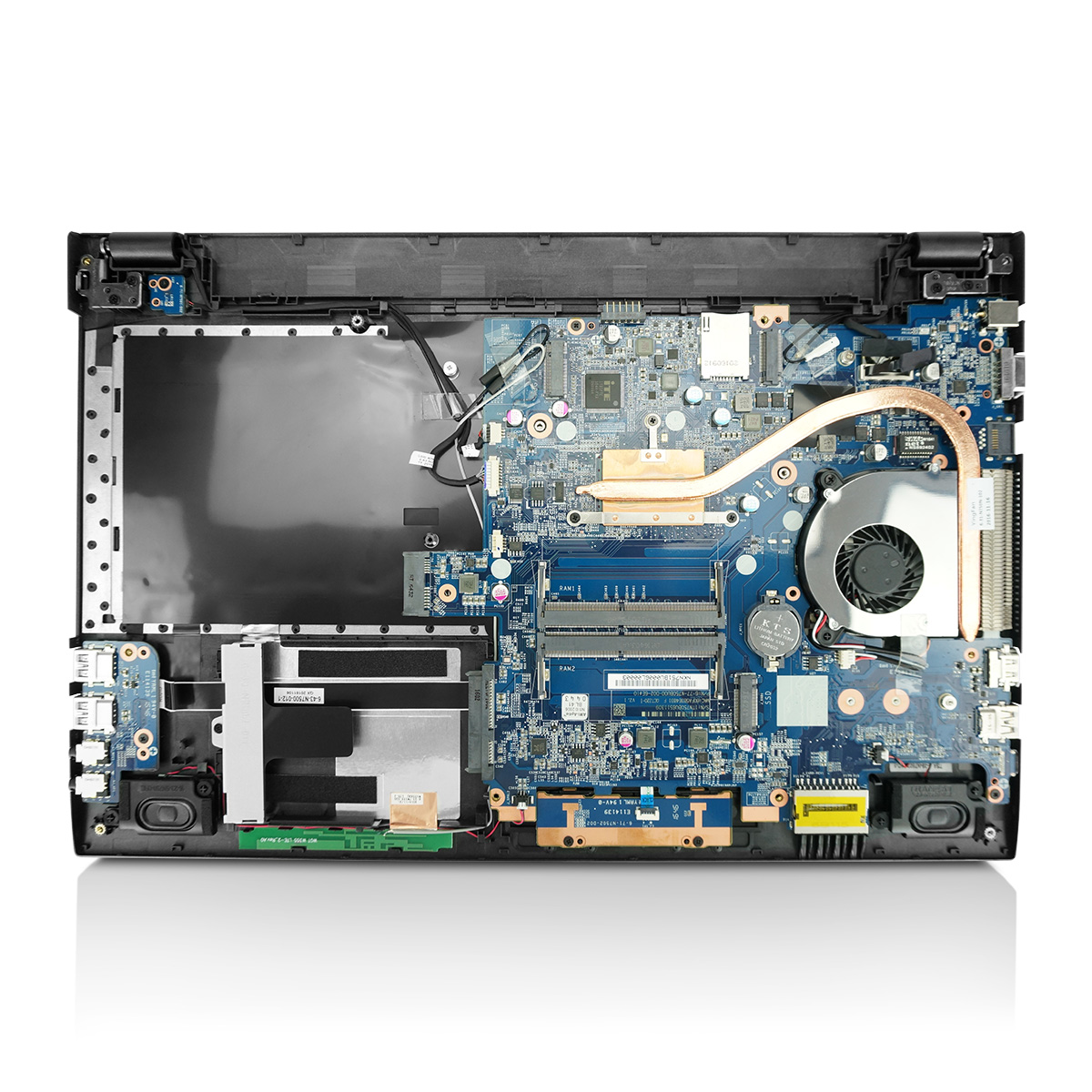

After removing the bottom of the housing, all components are easy to maintain or replace.

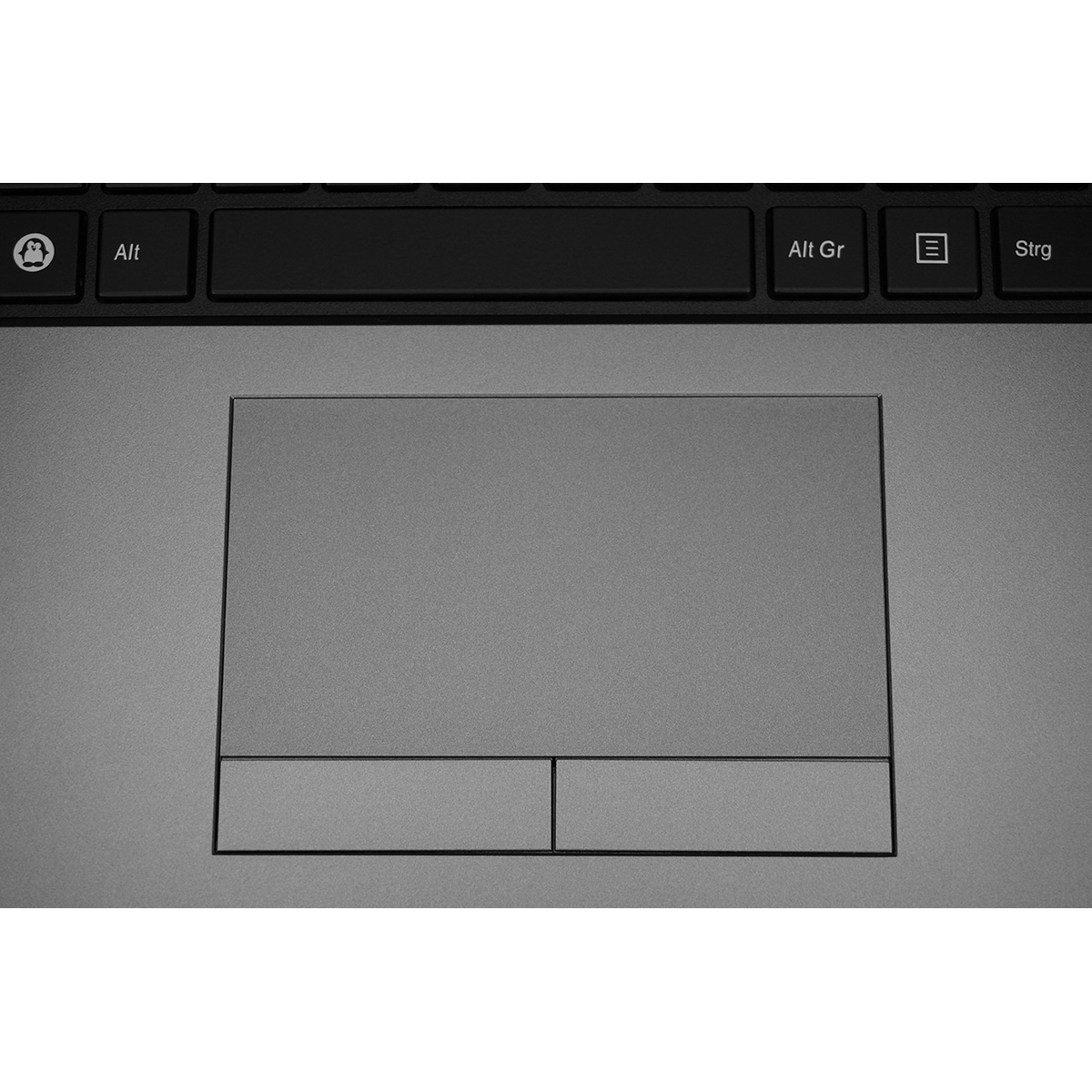

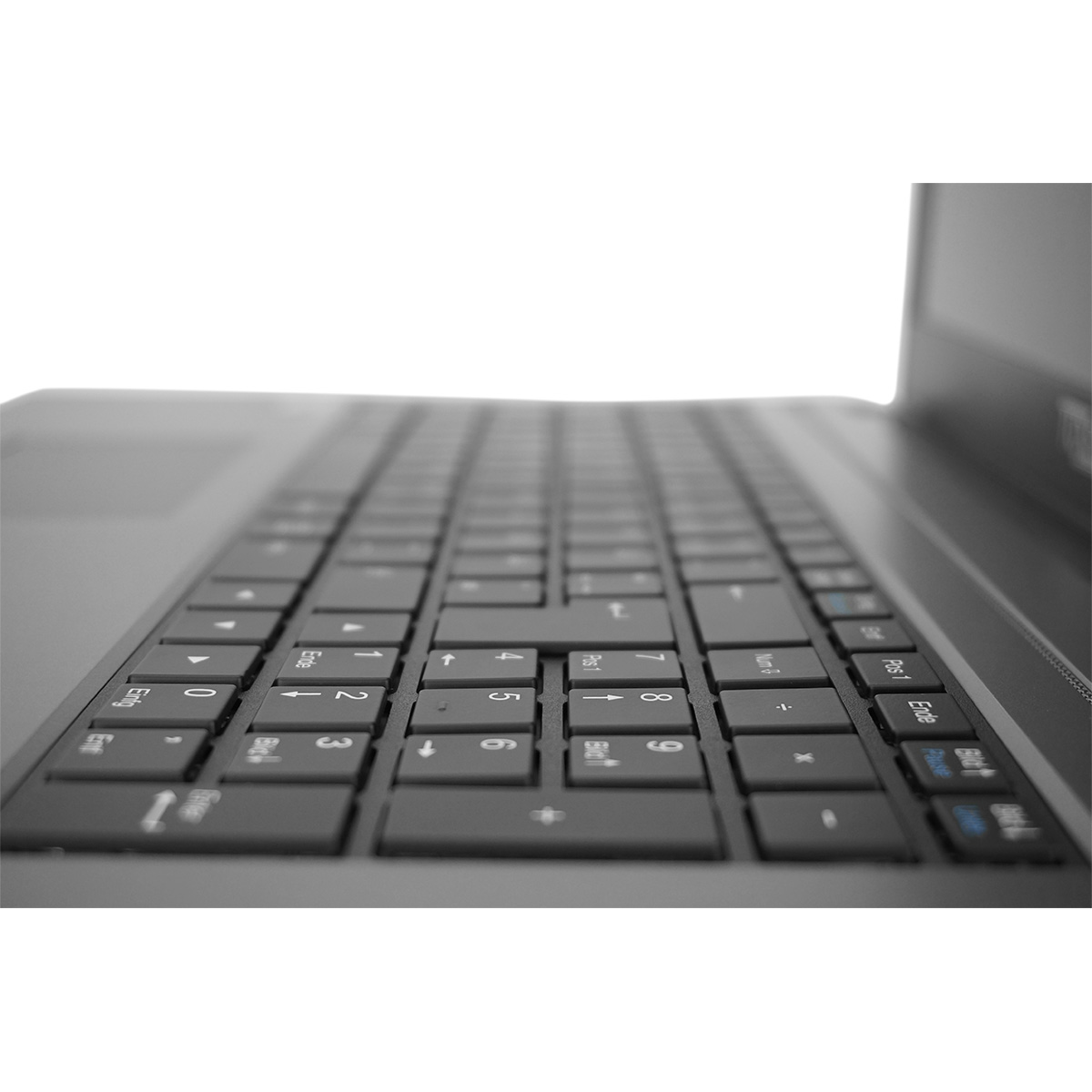

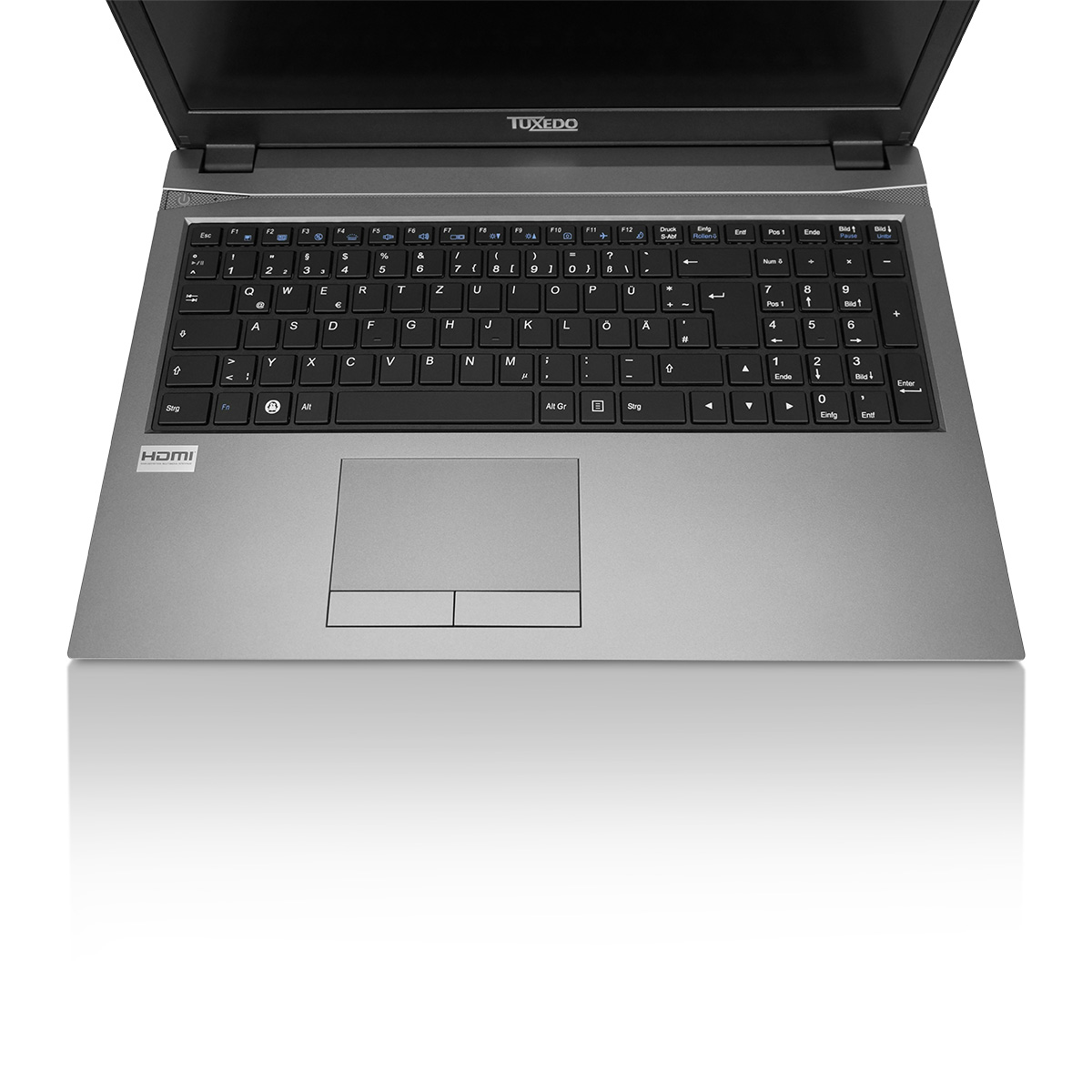

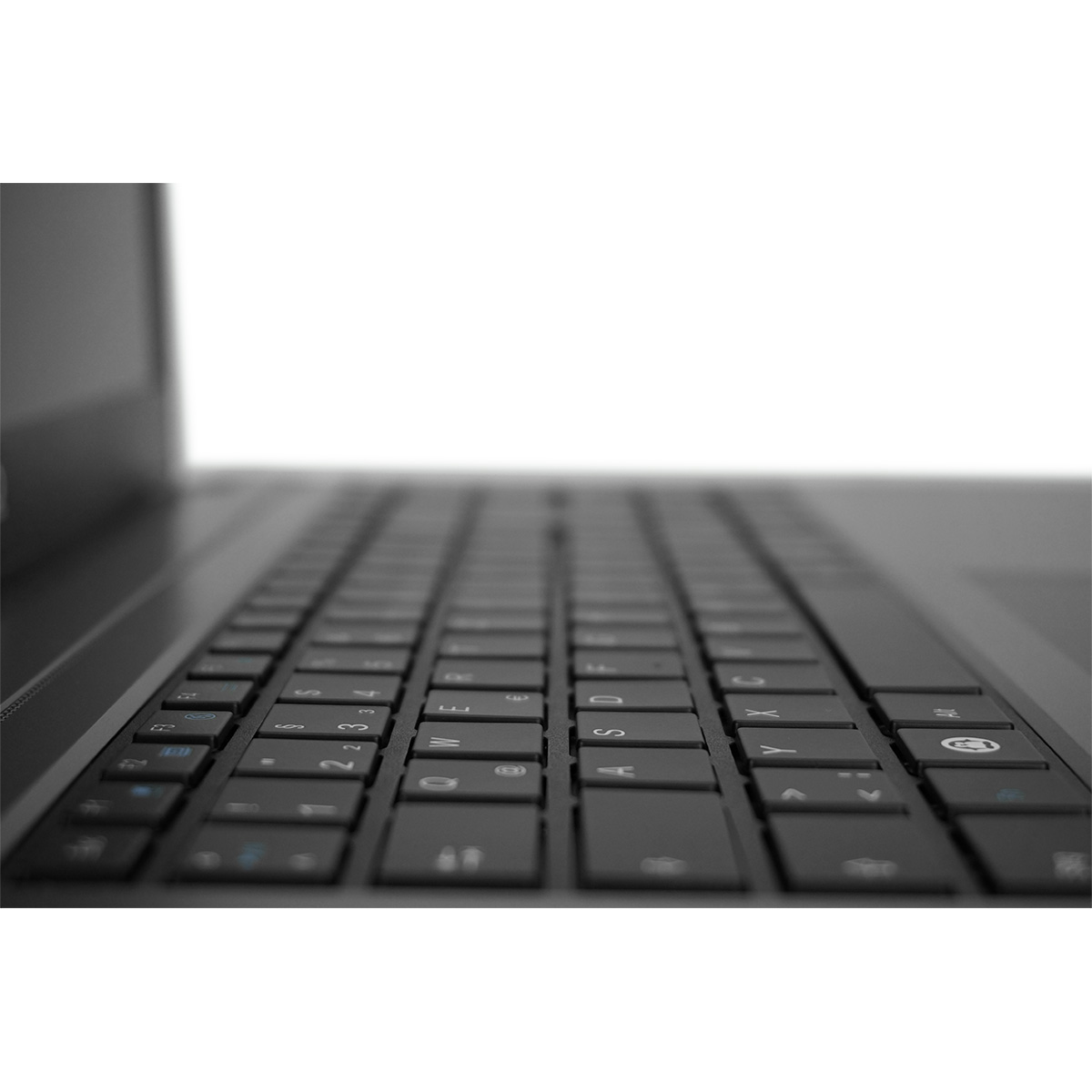

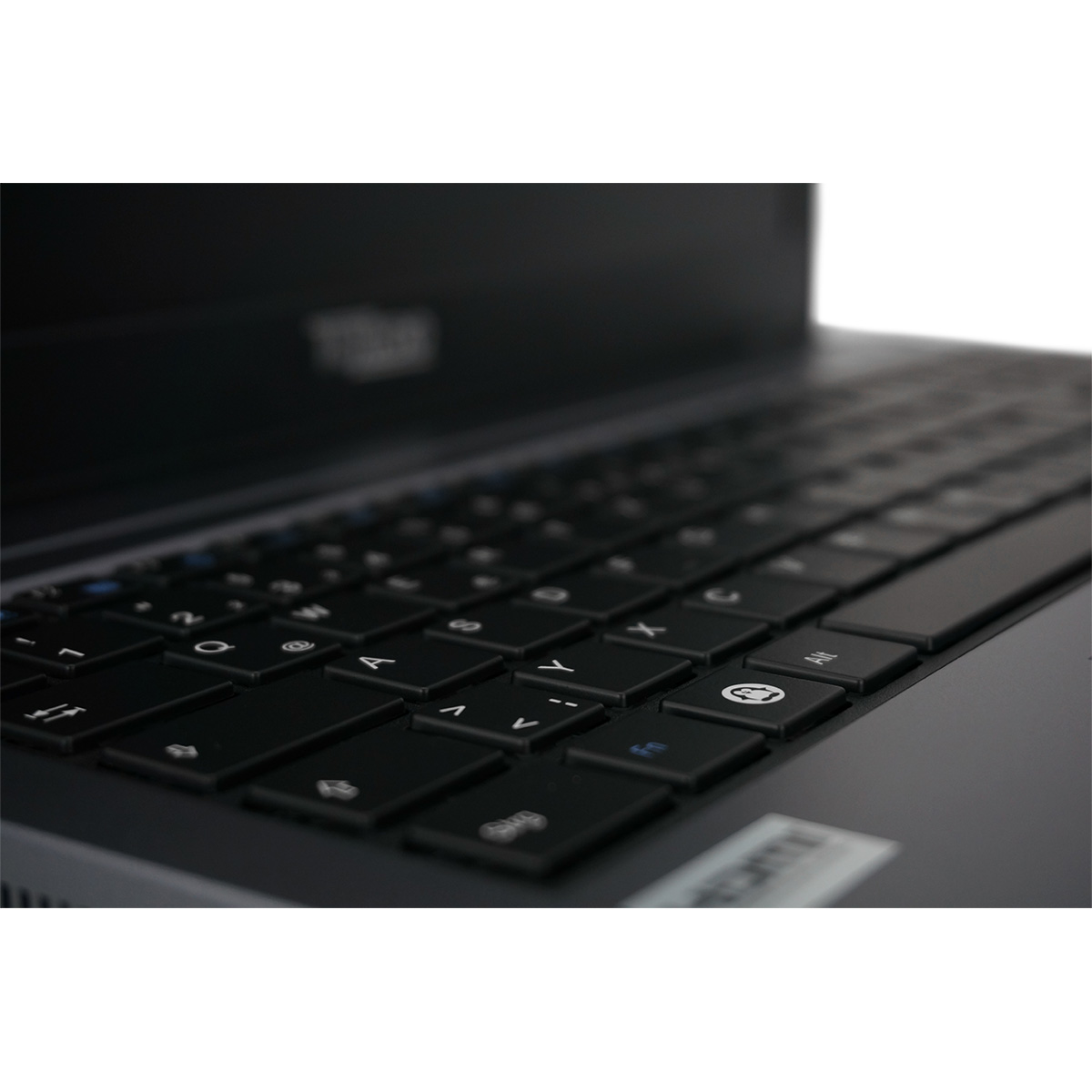

Many typists will love the illuminated keyboard. It has a clear keystroke and enough key stroke to keep the writer in a good mood even with longer "writing orgies" - not only because of the penguin super key: D
The TUXEDO Book BS1507 is a device of the [B]business series, featuring energy-saving and thus battery-friendly Intel HD 630 graphics and Intel's quad-core high-end processors, thus increasing the battery runtime. Moreover, it is slim what makes it the ideal companion and chic tool.

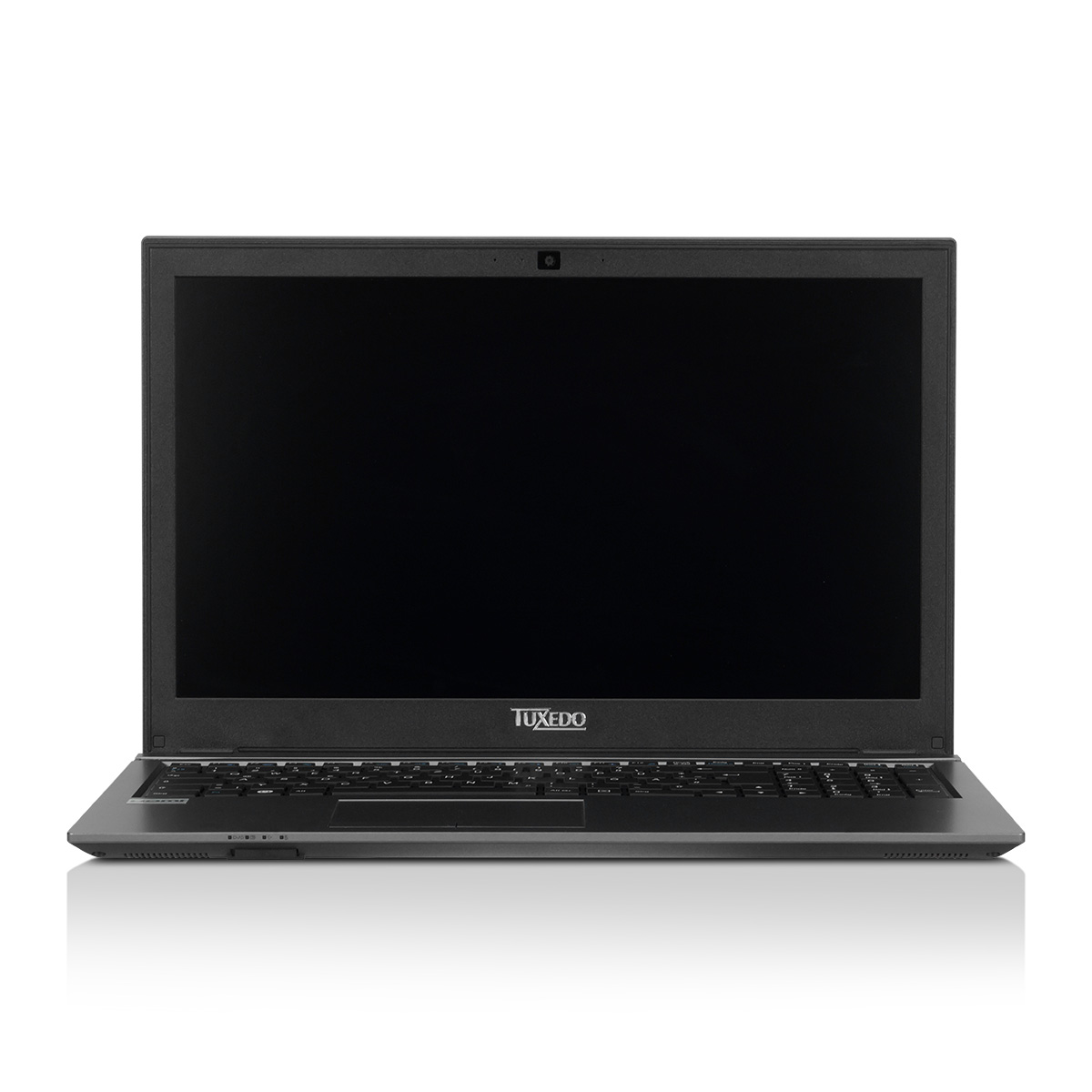

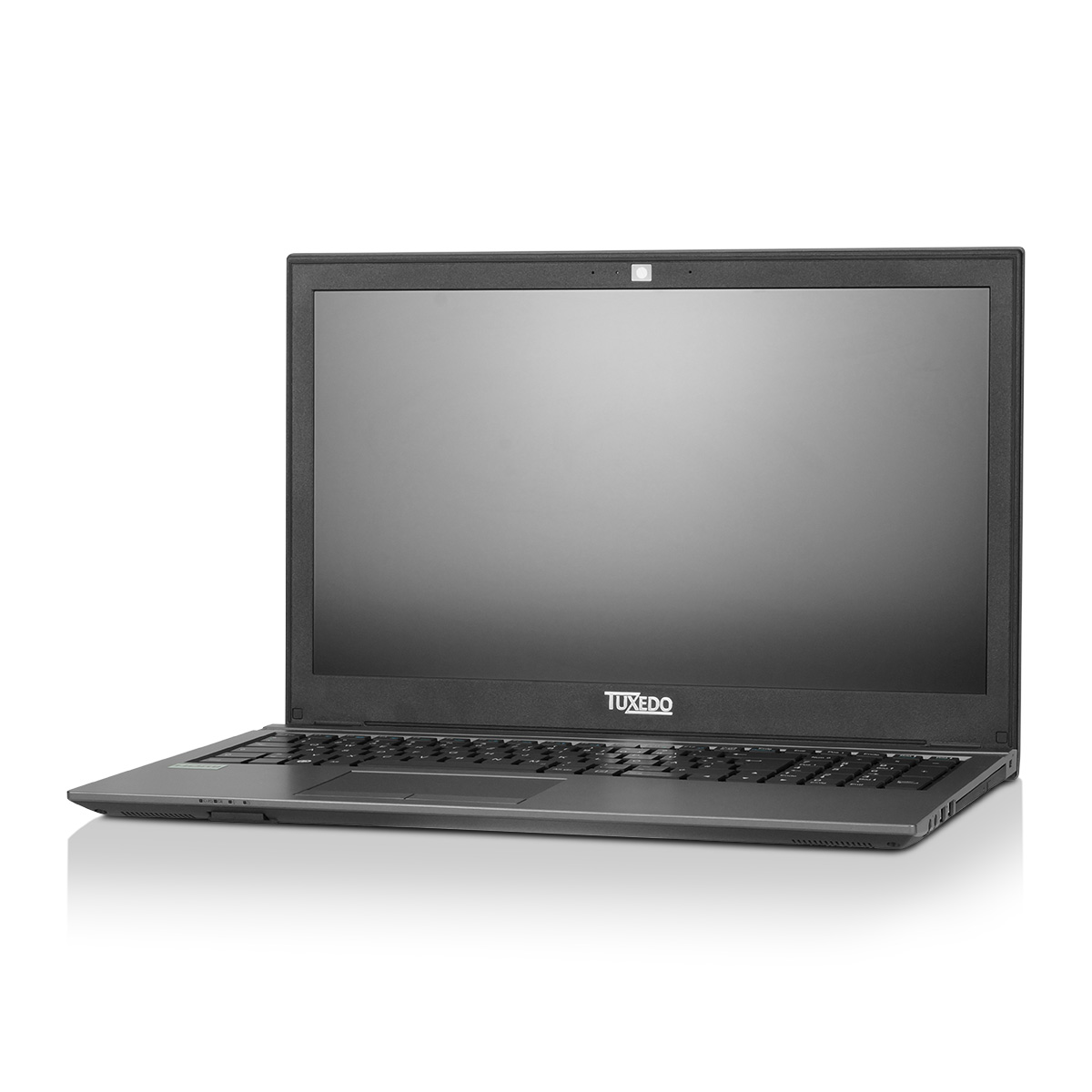

The 15,6 inch large screen is as with all TUXEDO Books matte. Thanks to this size, you have a full-size keyboard and a numeric keypad at your disposal! I. e. You can work almost like an external keyboard on a stationary PC.
To make sure that the display on the great screen runs smoothly, we haven chosen a high-end quad-core CPU, the Intel Core i7 7700HQ
The more powerful the processor, the faster programs run and the more you can push the purchase of a new notebook into the future. Because with time the system requirements of new and current programs increase more and more.
For the 2,5" hard disk you can use one HDD or SSD. In addition, the TUXEDO Book BS1507 has a M. 2 slot in which you can install special M. 2 SSDs. If you decide to use an M. 2-SSD, we will naturally install the operating system on this particularly fast storage medium. The further hard disk will then serve as a "data slave".

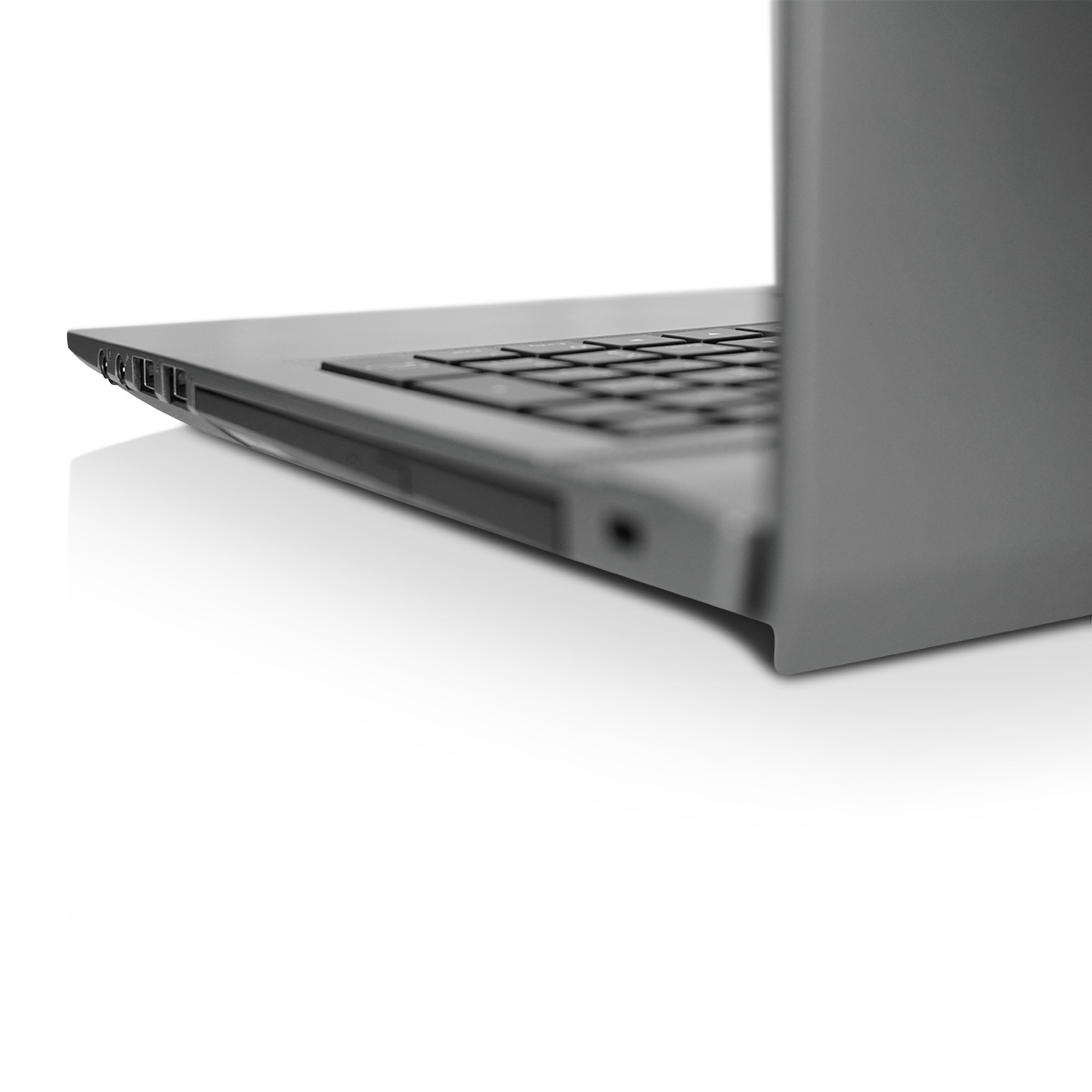

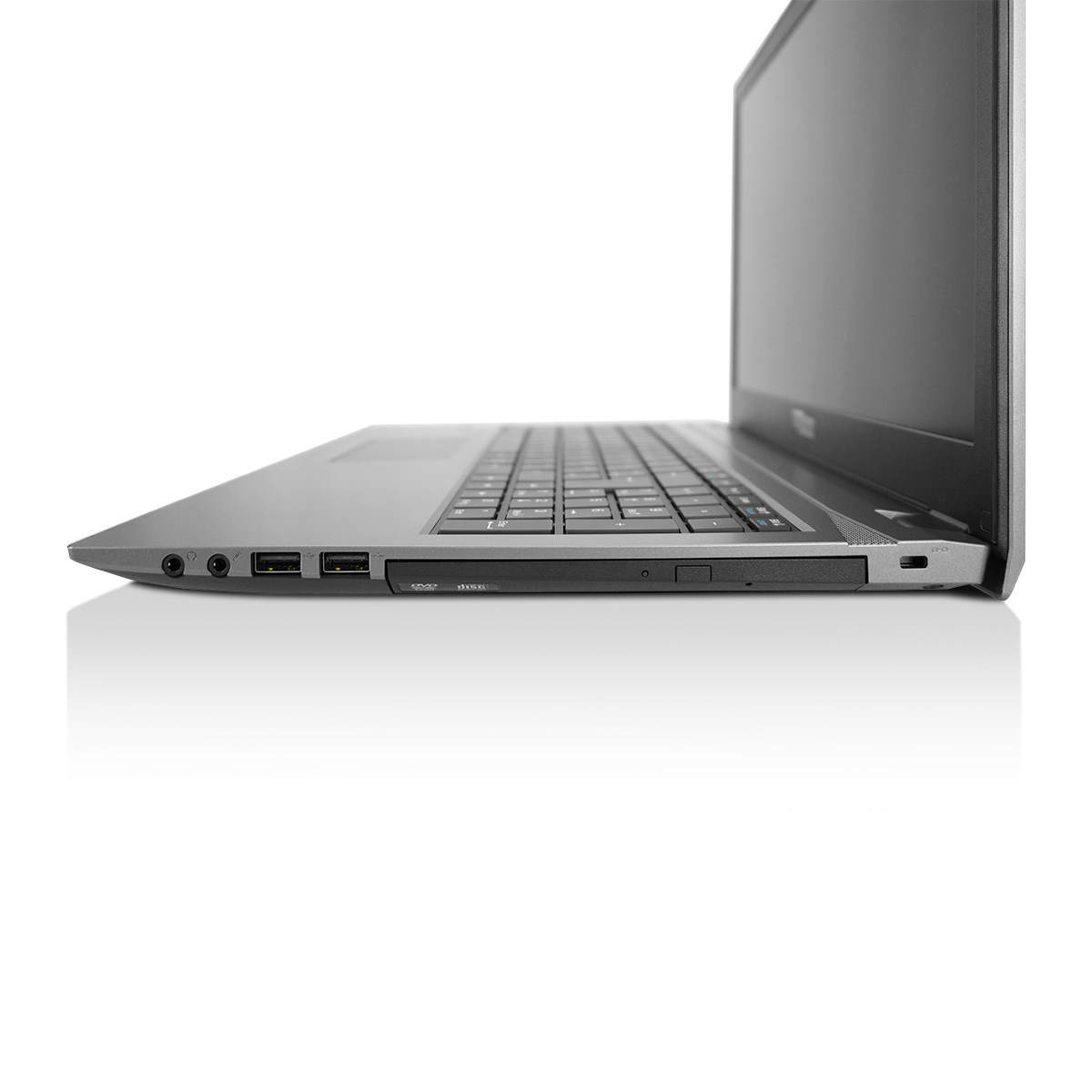

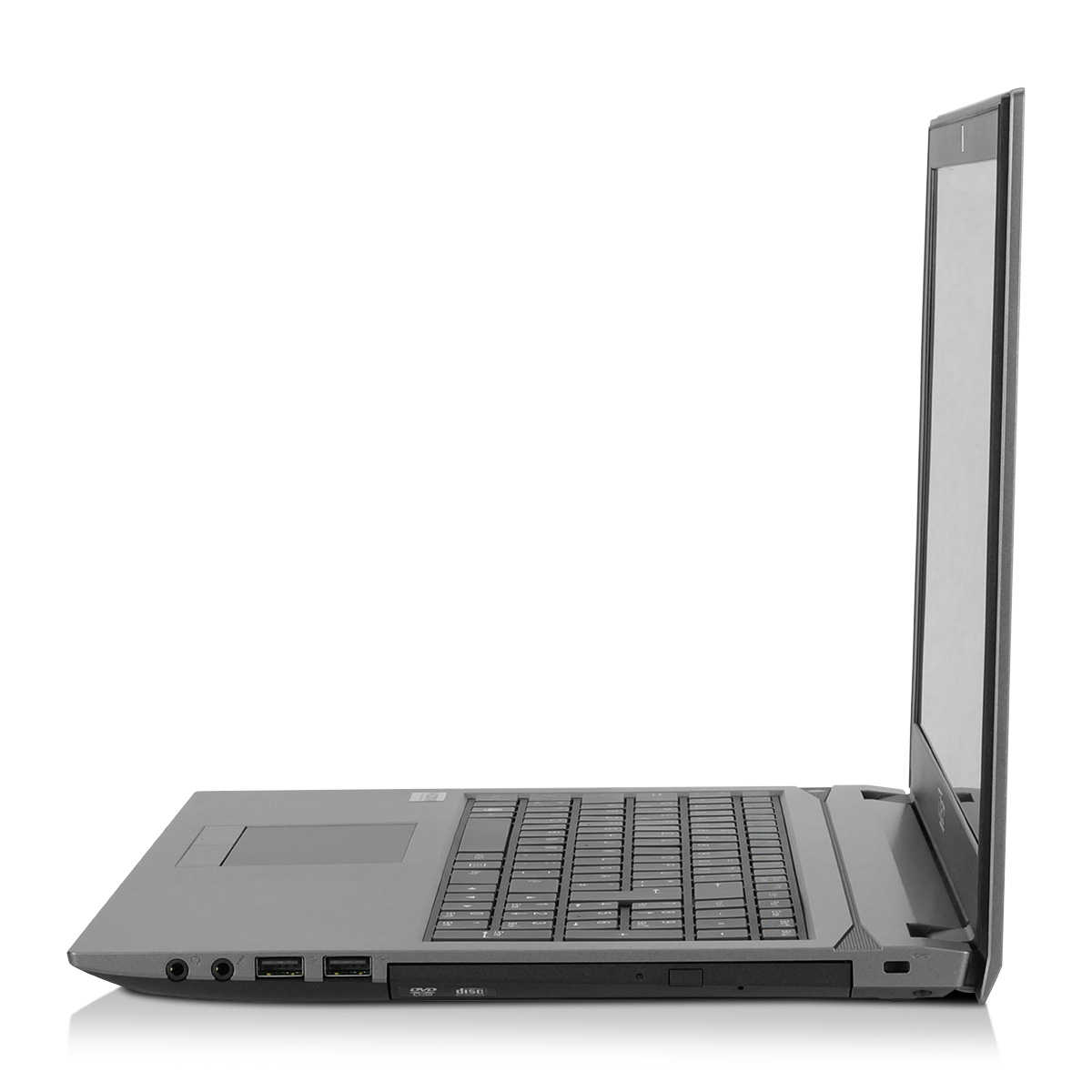

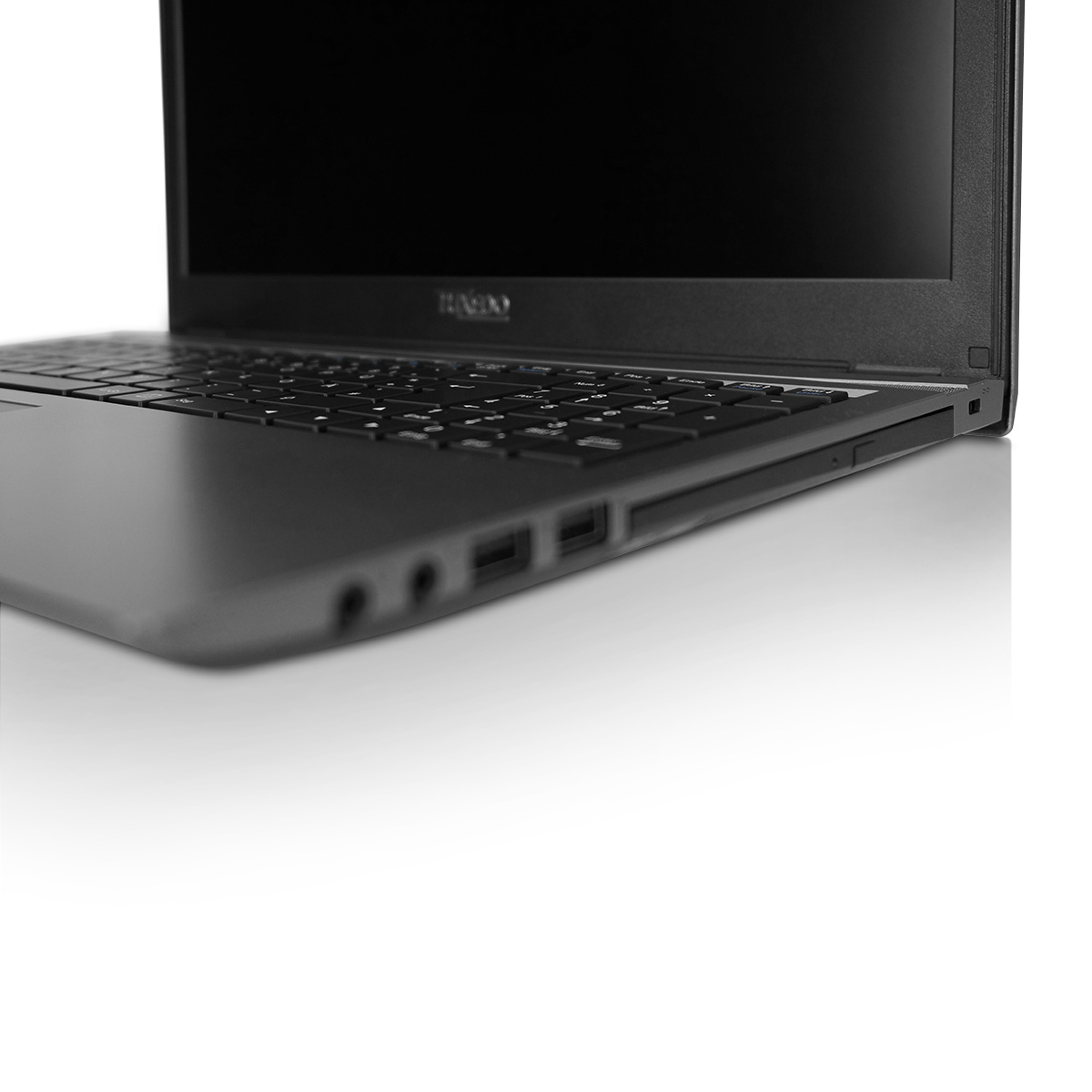

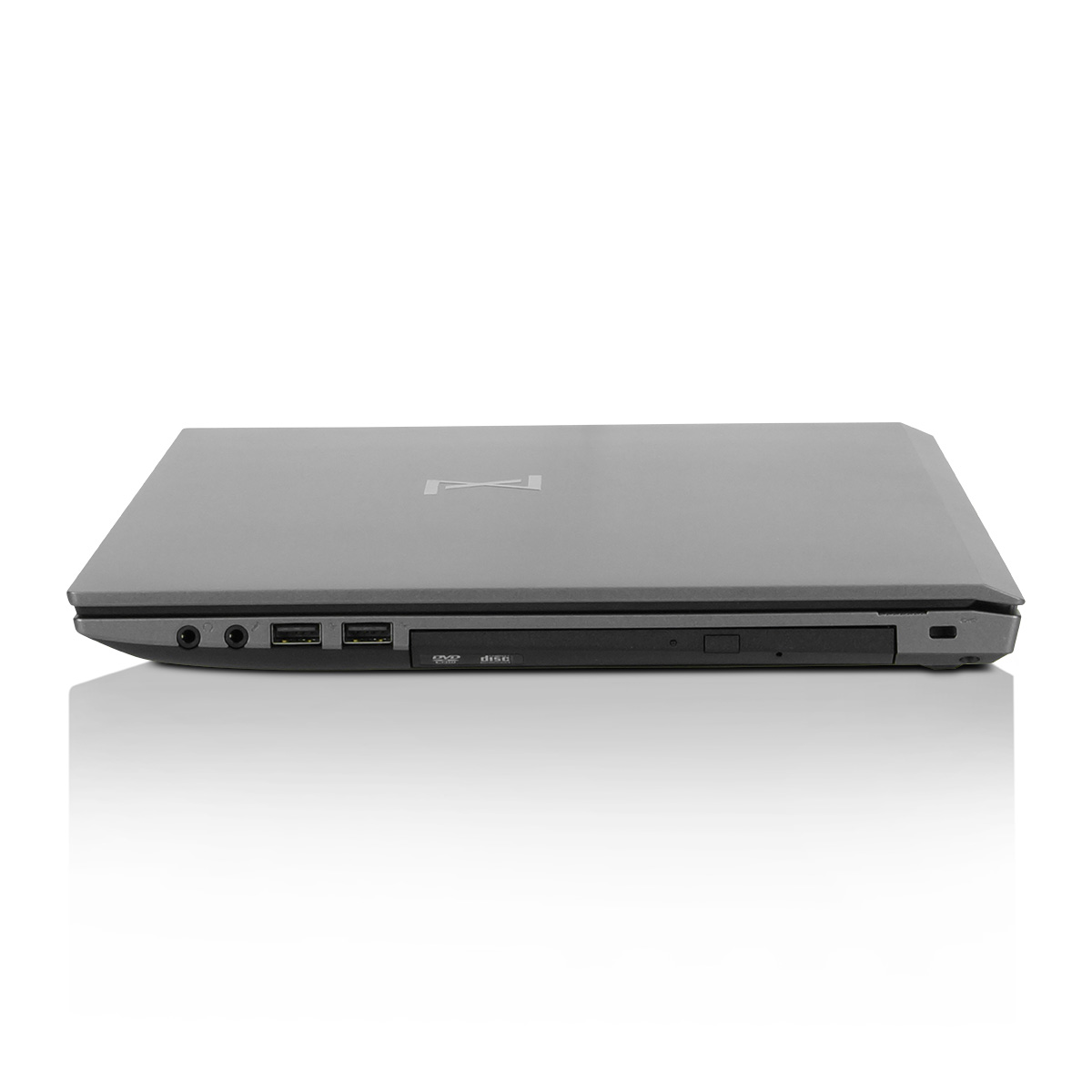

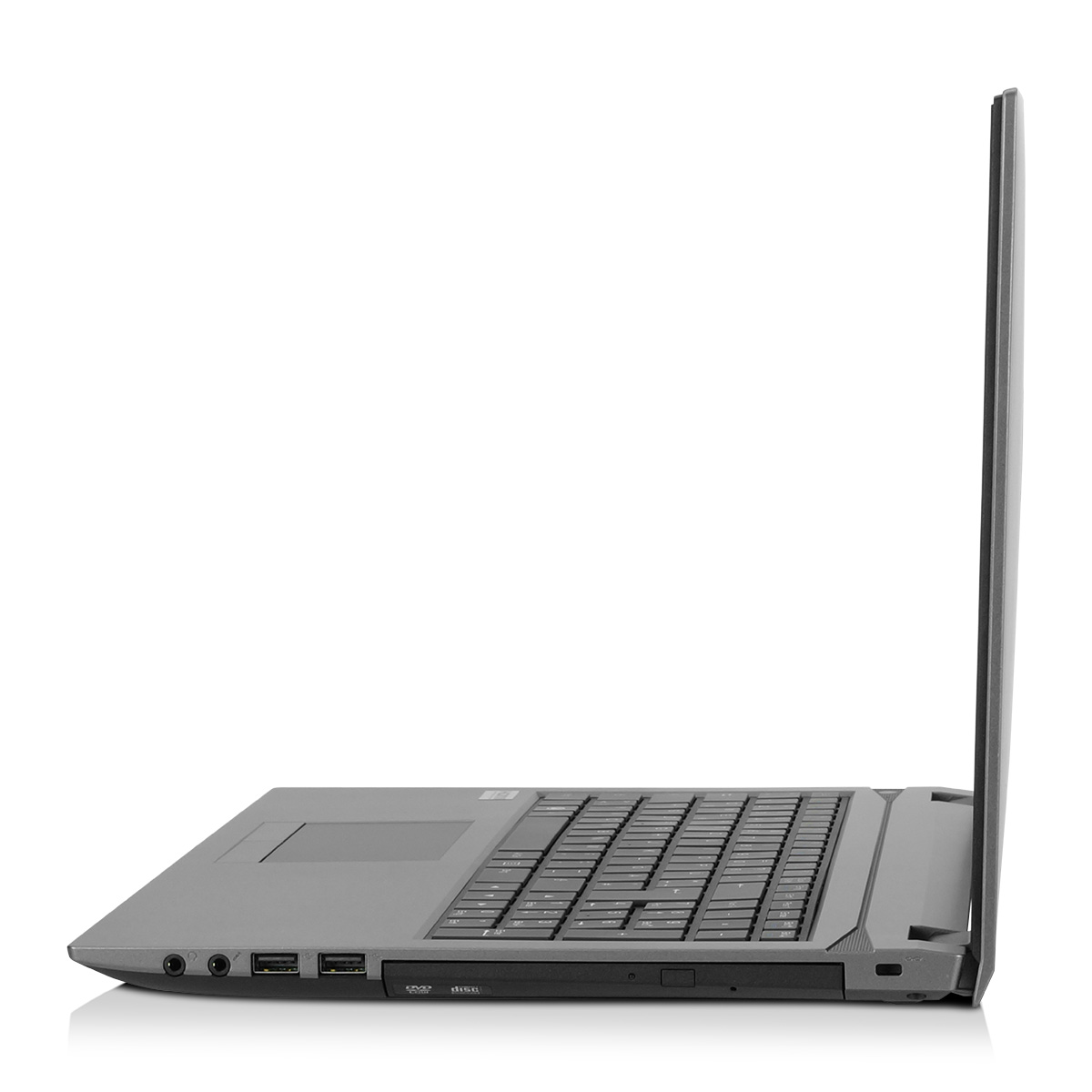

As a device with mobile multimedia capabilities, an optical drive in the form of a DVD or Blu-Ray burner must not be missing in addition to the various connections. This can be exchanged for especially "memory hungry" optionally also with a further hard disk!
You can provide the necessary network connections via WLAN in ac/a/b/g/n speed, Bluetooth or via cable-bonded Gigabit-LAN.

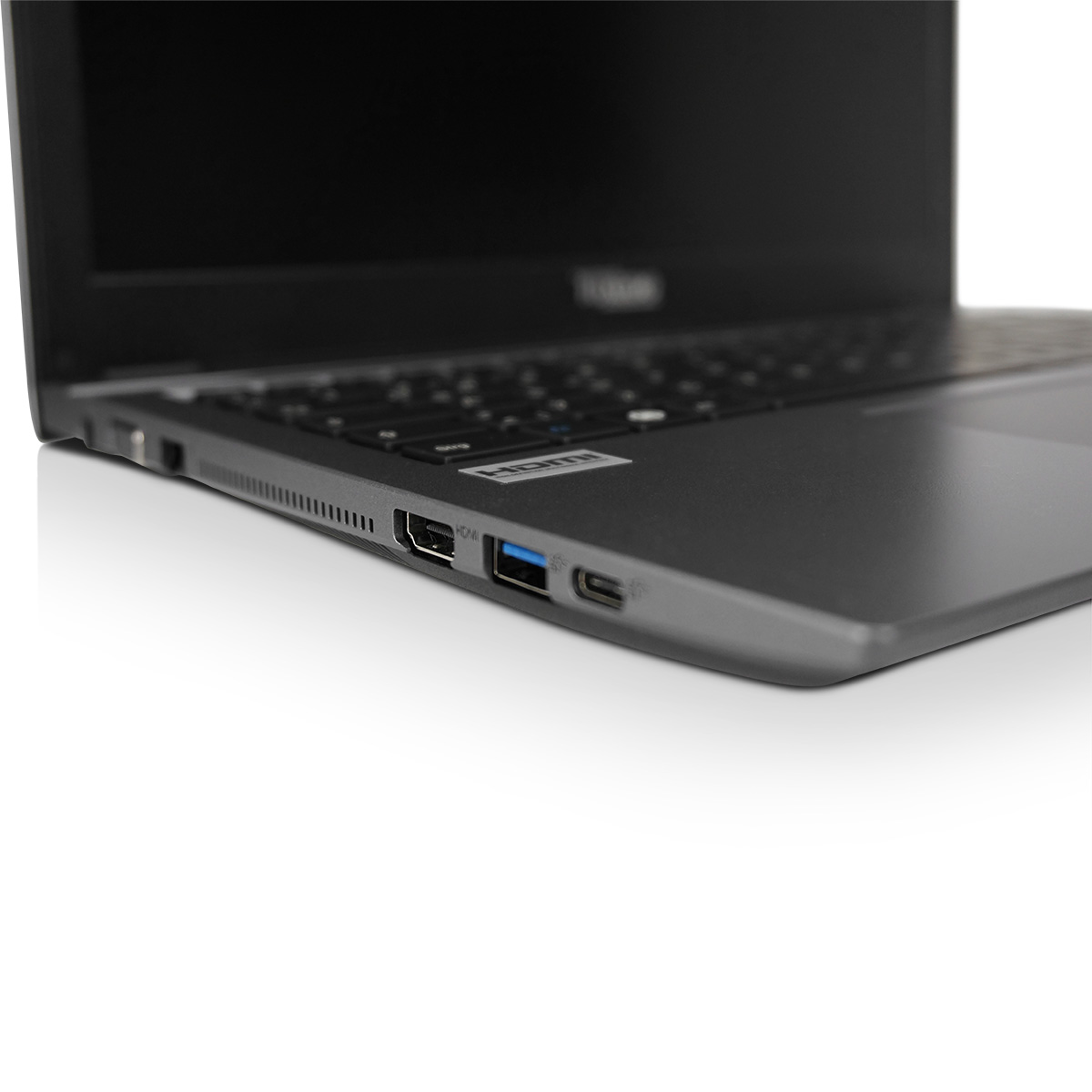

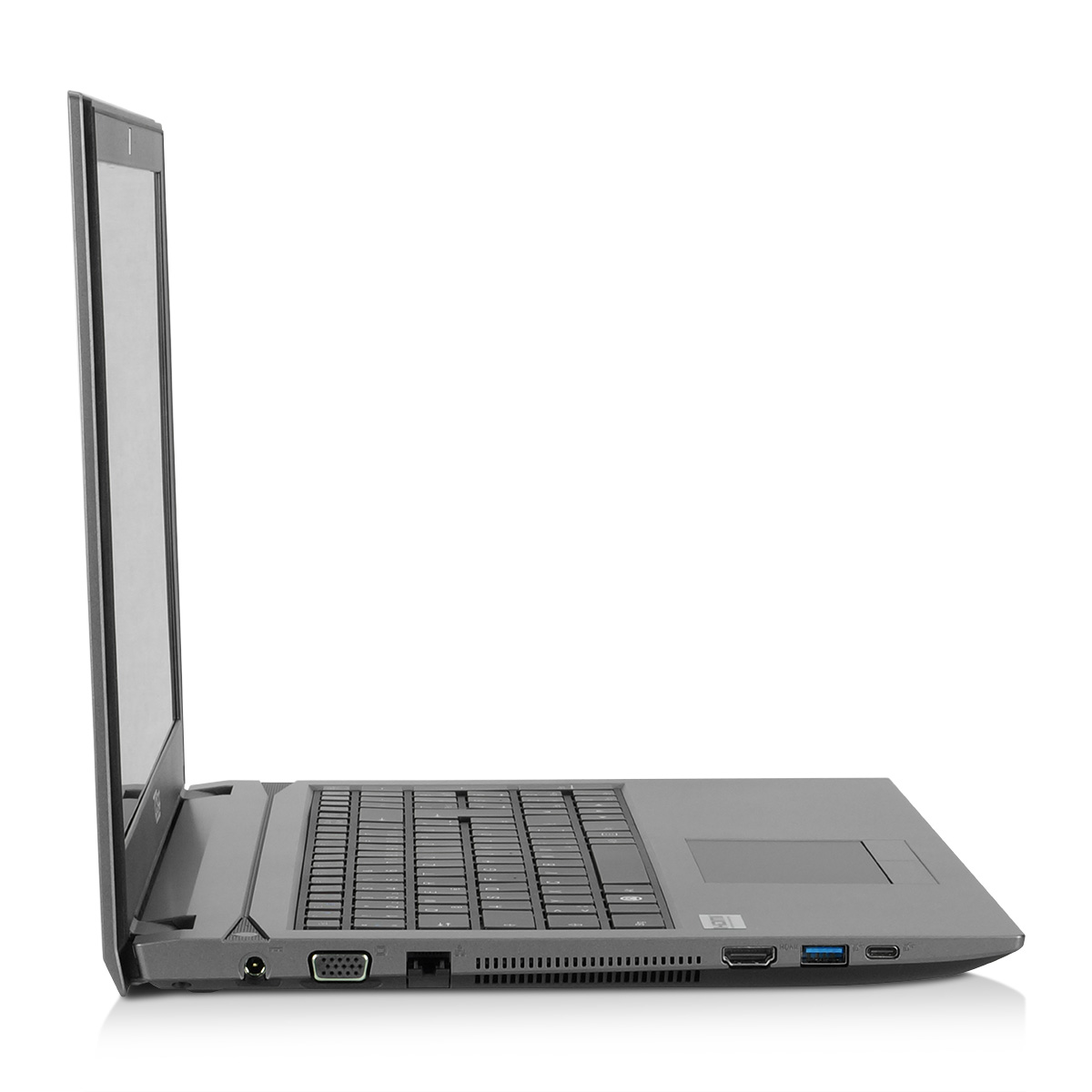

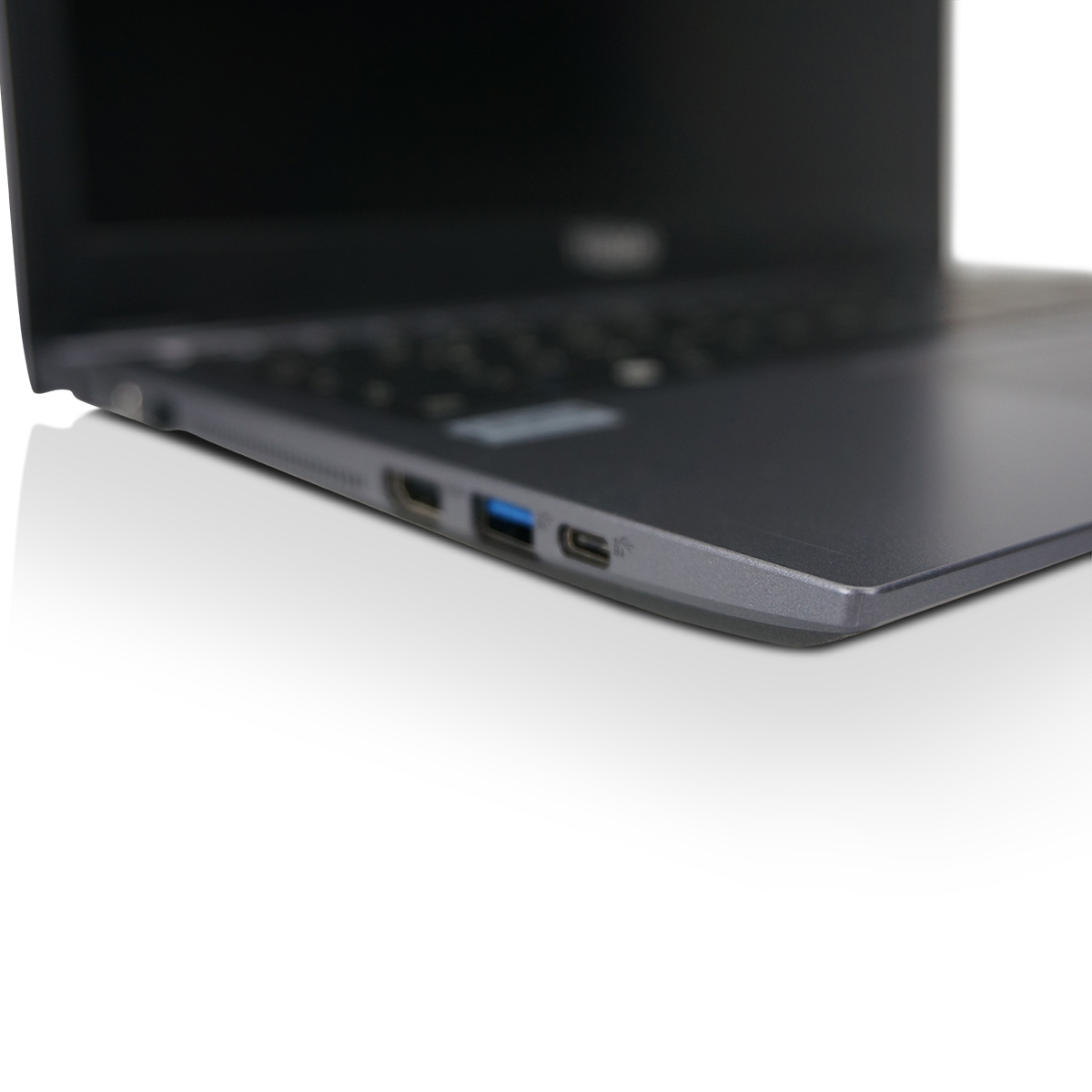

The other features leave nothing to be desired: 2,0 MP Webcam incl. Micro, USB3.1 Type-C Gen2 incl. Thunderbolt 3, USB3.0 and USB2.0, HDMI, VGA D-Sub, Card-Reader and of course ports for microphone and headphones. The latter also offers the function to serve as an optical output! (And as a special feature, the BS1507 has an Thunderbolt 3 Type-C Port!)
In addition, the BS1507 has white backlit buttons. This means that the white letters on the black keys light up! This keyboard lighting is of course controllable in its brightness and can be switched off.
We install Ubuntu and TUXEDO_OS (based on Ubuntu Budgie) in the latest 64-bit version.
For advanced users and selected devices we also offer openSUSE 15 with Xfce, Gnome or KDE plasma. Of course fully configured and installed with all available updates and device drivers.
For "self-installers" and everyone who is interested, we have set up a database with downloads, instructions, tips & tricks and offer a customization script called "tuxedo.sh", which makes our customizations automatically under openSUSE and Ubuntu: Help & Support Section | tuxedo.sh
Encrypted Installation
On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively you are free to download alle Windows-Drivers from here.
As accessories you can select an additional external display for enjoying dual display operating together with the laptop.
Furthermore we deliver a wired or wireless keyboard including a mouse or an additional wired mouse. These input devices are produced by Logitech and are only available with German layout!
What are we customizing at the time of installation
We don't just simply install Linux but also customize a lot so that you get a perfectly running and working system! This is what we do:
Driver installation, configuration of special keys, TUXEDO drivers, TRIM commands for SSDs, disabling shopping suggestions at Ubuntu search, various additional packages and tools for configuration and to enhance user friendliness, at devices with NVIDIA graphics the respective drivers including Prime for switching and much more!
TUXEDO driver / TUXEDO WMI
Laptop have some special keys which won't work out of the box with Linux. For example the so called "Flight mode key" for (de)activating WIFI & Bluetooth etc.
To get them running we developed our own drivers and preinstall them (if you select Linux als desired operating system). For everyone curious and manual installers this driver is available at our support database:
www.tuxedo.sh
For Windows there is a driver DVD included.
Customisations during manual installations / TUXEDO script / TUXEDO driver
If you prefer to install you Linux operating system by yourself or if you have to reinstall it, we provide you with everything necessary at our support database to get it running like we do!
The easiest way is to go with our customisation script "tuxedo.sh". On Ubuntu and Ubuntu-base systems this script automatically runs all customisations the way we do that during preinstallation: installing drivers, configuration for special keys, TUXEDO drivers, TRIM commands for SSDs, deactivating shopping recommendations in Ubuntu search, various additional packages and toos for configuration an to enhance user friendliness, respective driveres on devices with NVIDIA graphics incl. Prime for switching and many more! You can find the script and further instructions here:
www.tuxedo.sh
TUXEDO WebFAI
Reinstallation a la TUXEDO | System reset | automatic resinstallation
With our fully automated installation you can easily run your own Linux installation exactly the way we do before shipping a new notebook!
You can select from all the distributions we offer in our shop.
TUXEDO WebFAI offers you various possibilities:
+ Try out various Linux distributions easily
+ System reset | Factory reset
+ Didn't choose something appropriate during order? Uncertain? Re-decided?
With every TUXEDO you recieve a ready-to-go WebFAI USB stick!
Further details on TUXEDO WebFAI are available at www.webfai.de
Technical details:
Display / Monitor:
Type: LED backlight display, matt/mirror/non-glare
Size: 15,6" (39,62cm)
Resolution: Full-HD IPS-Panel, 1920 x 1080
Viewing Angle: 89°/89°/89°/89°
Display opening angle: approx. 140°.
Model: LG LP156WF6-SPB1
Chassis:
Dimensions: width: 37,7cm; height: 2,42cm; depth: 25,9cm
Weight: approx. 2 kg without battery, approx. 2.2 kg with battery (depending on equipment!)
Keyboard & Keyboard backlight:

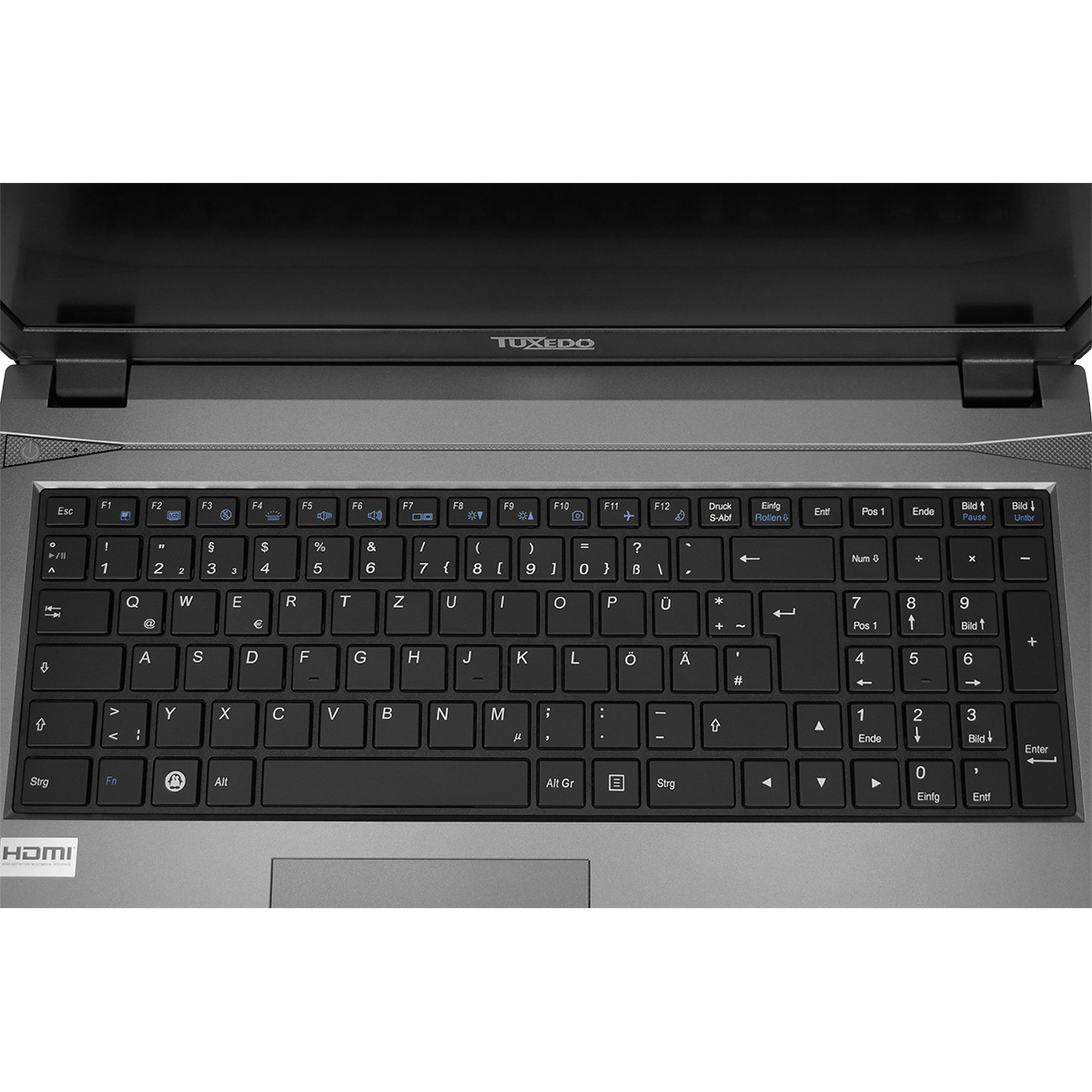

Full size keyboard, with numeric keypad.
White backlit keys, i. e. the illuminated labelling, can be controlled and switched off in 6 steps.
Battery:
Large 44 Wh battery, 4 cells lithium-ion, exchangeable, normally plugged in from outside.
Battery life: (With our optimization measures!)
Approx. 5 hours with min. brightness at idle speed
Processor:
Intel Core seventh (7.) Generation "Kaby Lake" prozessors / CPUs.
Chipset: Mobile Intel HM175 Chipset
Intel Core i7-7700HQ (4x 2.80-3.80 GHz Quad-Core, 8 Threads, 6 MB Cache, 35-45 W TDP)
Graphics card:
Energy-saving graphic chip integrated in the CPU:
Intel HD Graphics 630

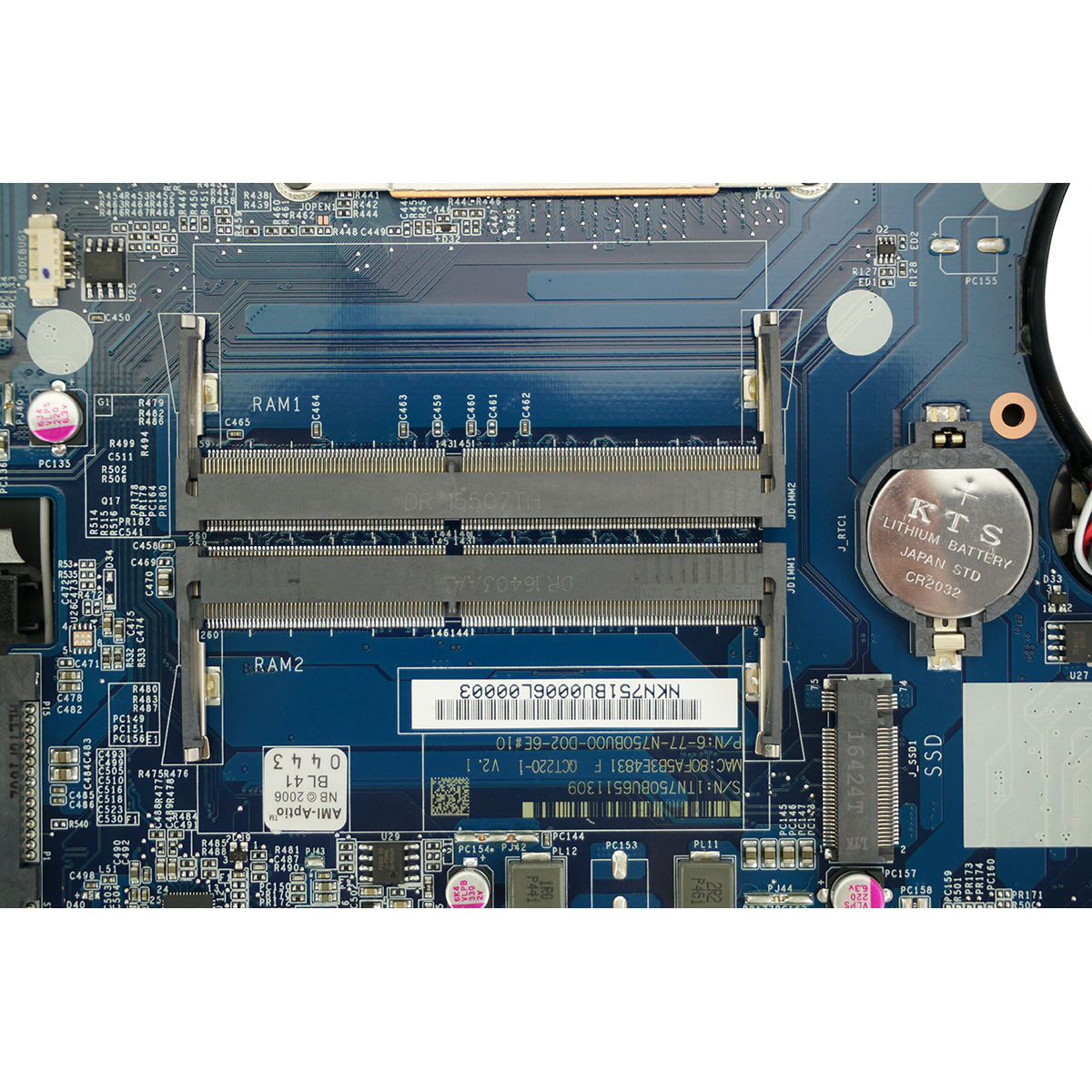

Type: DDR4 SO-DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with 2 or 4 modules)
Current Laptop-U-CPUs do support 2400MHz RAM officially. So even 2666MHz RAM is shown with 2400MHz inside the system. But in fact, the high-performance-RAM with 2666MHz squeezes around 5% more performance out of your laptop!
Manufacturer and speed see configurator
Standard and maximum see configurator

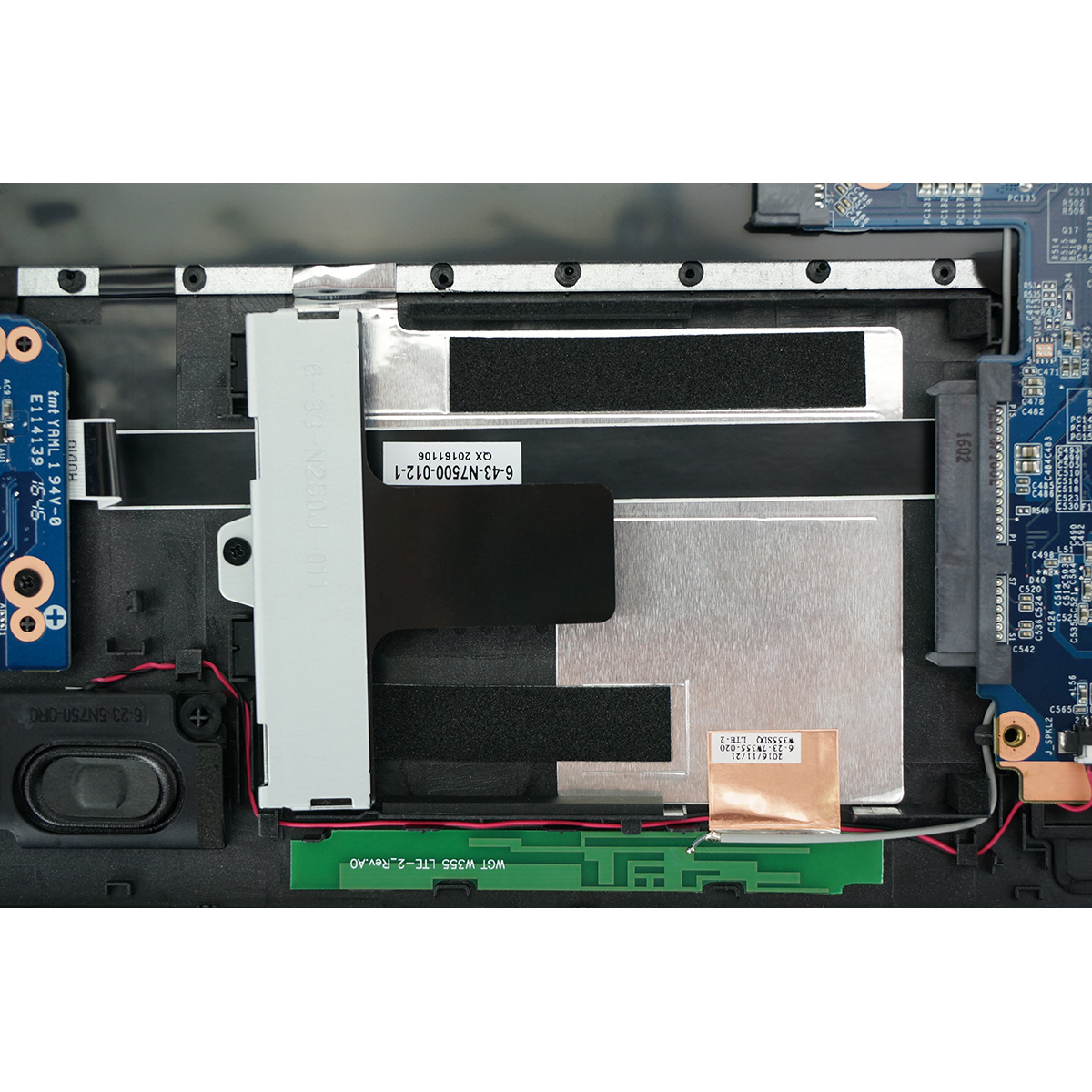

Hard drive: Standard 2,5" HDD or SSD, max. 7mm height
Hard drive 2: Standard 2,5" HDD or SSD, max. 7mm height – Instead of DVD or Blu-Ray drive!

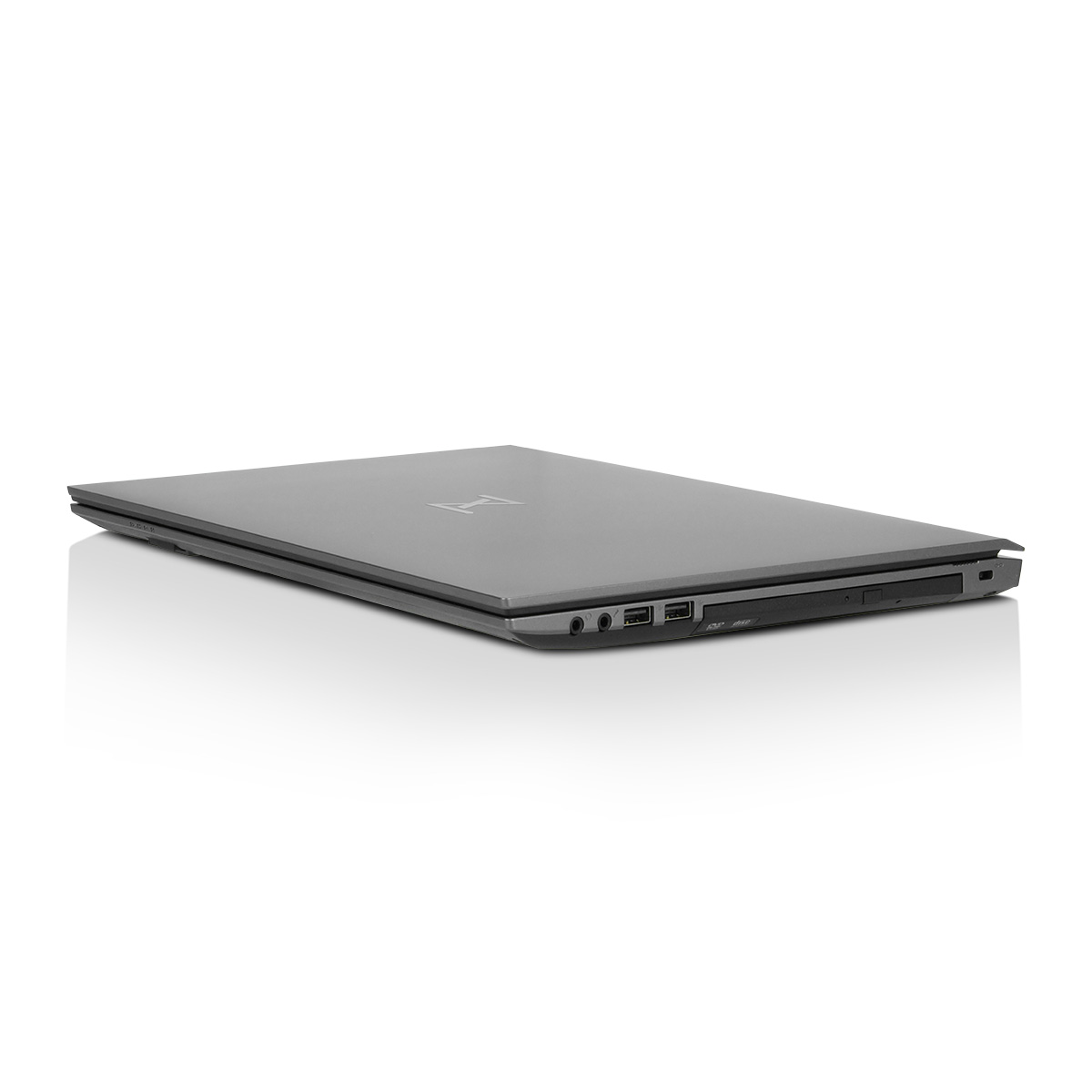

Optical drive:
CD/DVD burner & drive or Blu-Ray burner & drive (incl. CD/DVD reading and burning feature)
Or without any drive and instead leaving room for another hard drive
Fast M.2 SSDs
Manufacturer and speed see configurator
Standard and maximum see configurator
Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)
Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1
LTE/HSDPA+ 4G Huawei ME936
Form factor: M.2 Interface
Supported frequency bands
LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Transfer rates
LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
HSPA+: ↑ 11 Mbps ↓ 42 Mbps
WCDMA: ↑ 384 kbps ↓ 384 kbps
GPS
GPS Standalone, A-GPS, GPS XTRA, Glonass
LTE/HSDPA+ 4G Huawei ME906s
Form factor: M.2 Interface
Supported frequency bands
LTE (FDD): B1/B2/B3/B5/B7/B8/B20/B28
HSPA+/HSPA/UMTS: B1/B2/B5/B8
EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Transfer rates
LTE FDD: ↑ 50 Mbps ↓ 150 Mbps
HSPA+: ↑ 5.76 Mbps ↓ 42 Mbps
WCDMA: ↑ 384 kbps ↓ 384 kbps
GPS
GPS Standalone, A-GPS, GPS XTRA, Glonass
Webcam / Notebook camera:
2.0 Megapixel (2.0 MP) camera including microphone
Sound / Audio:
High Definition Audio
2 speakers: 2x 2W
Integrated microphone

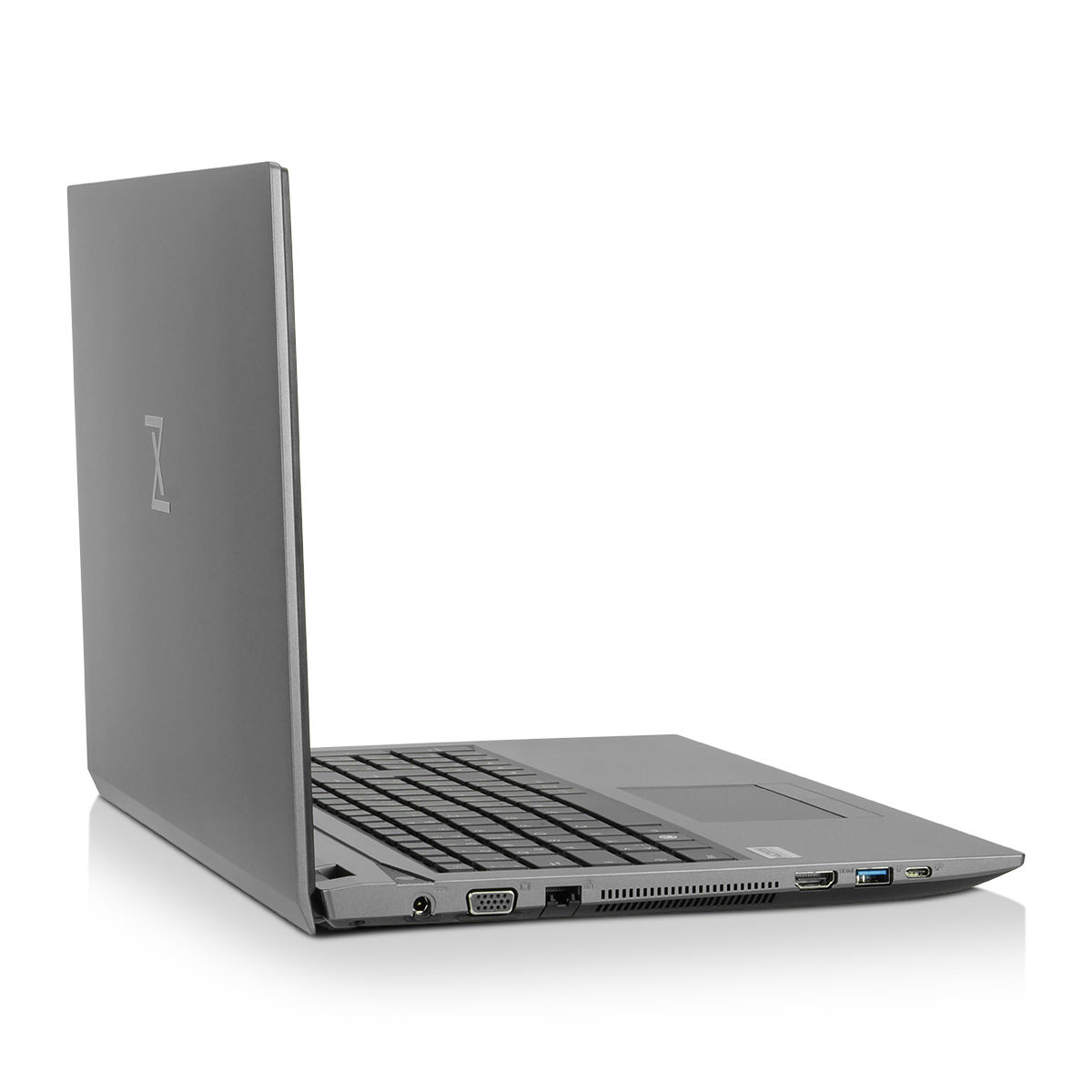

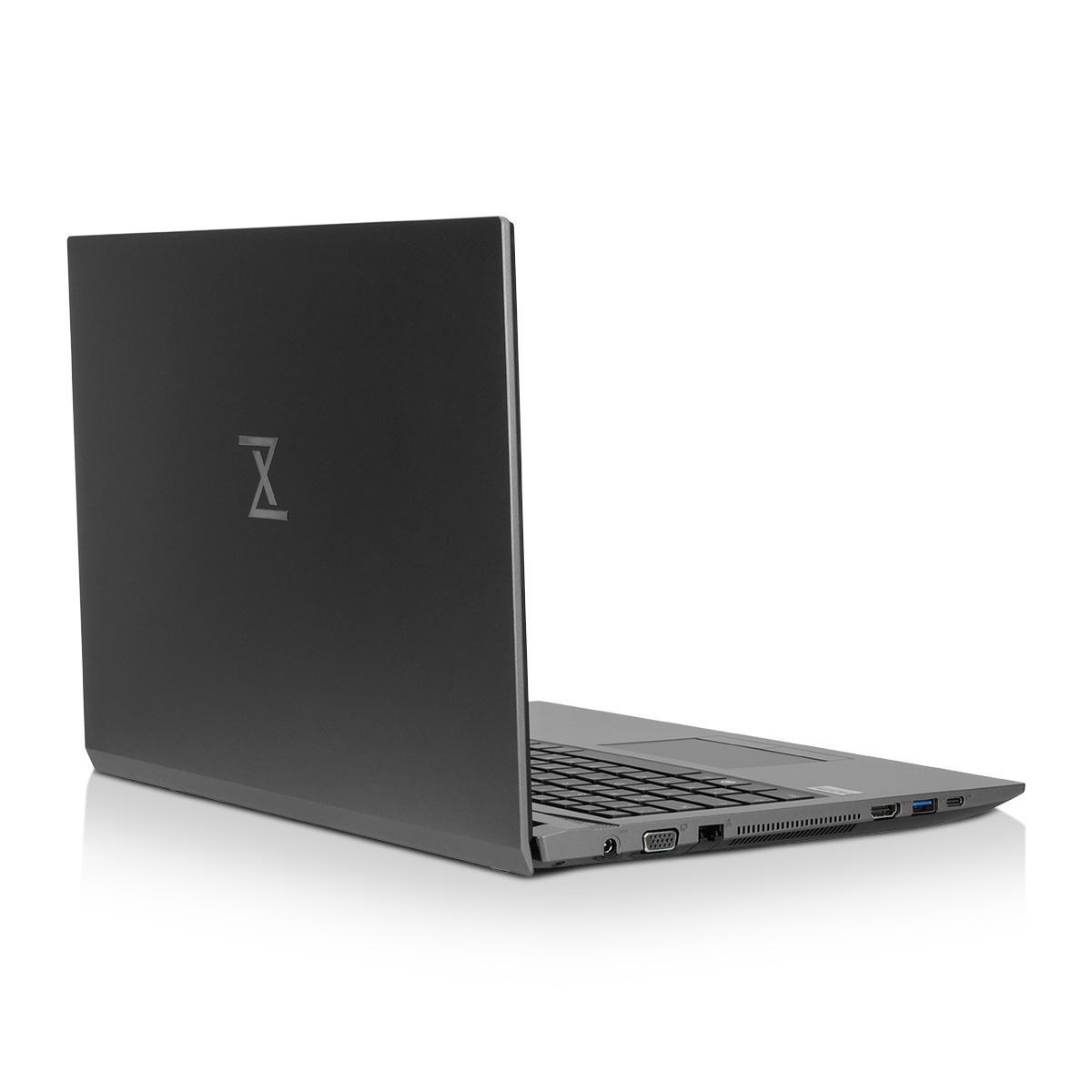

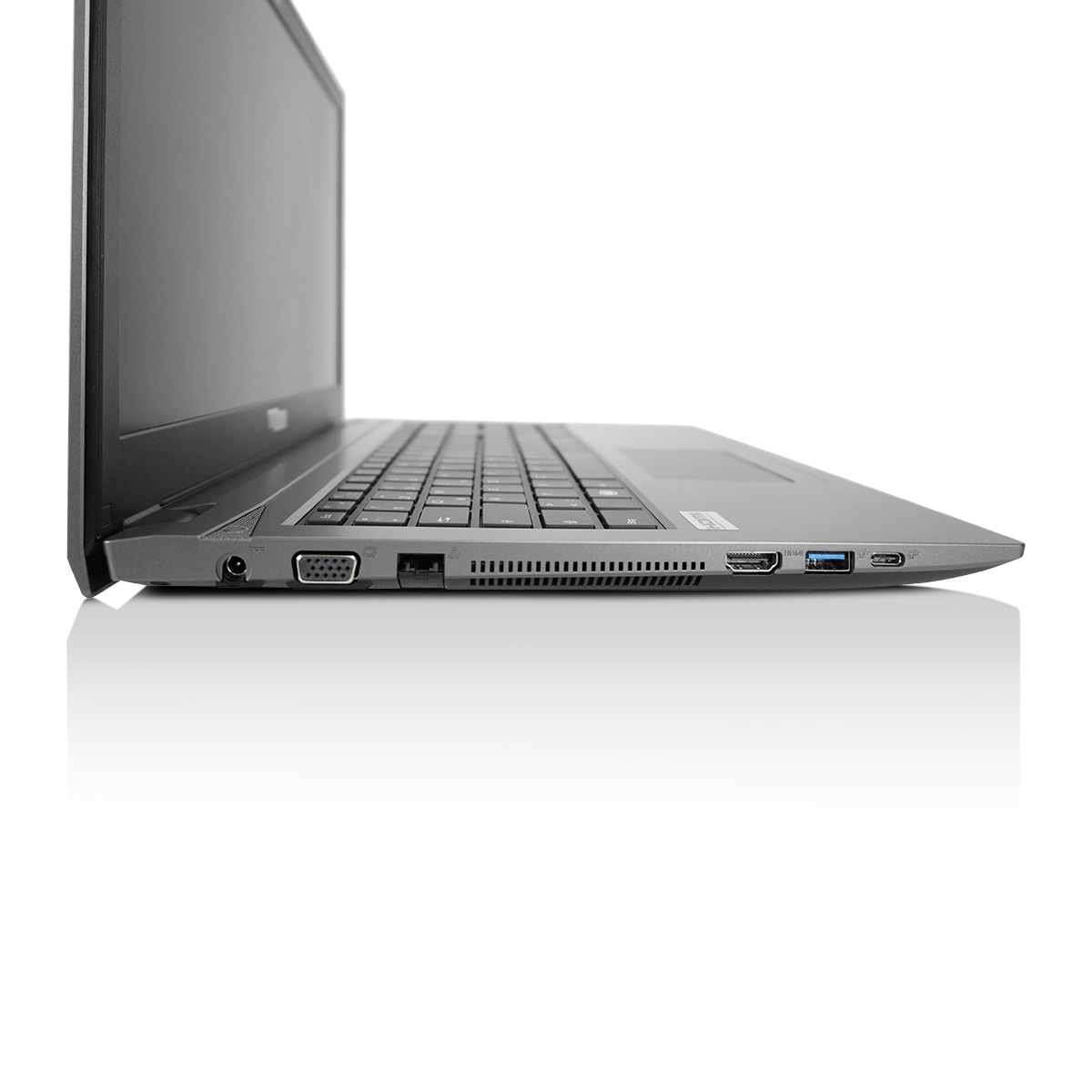

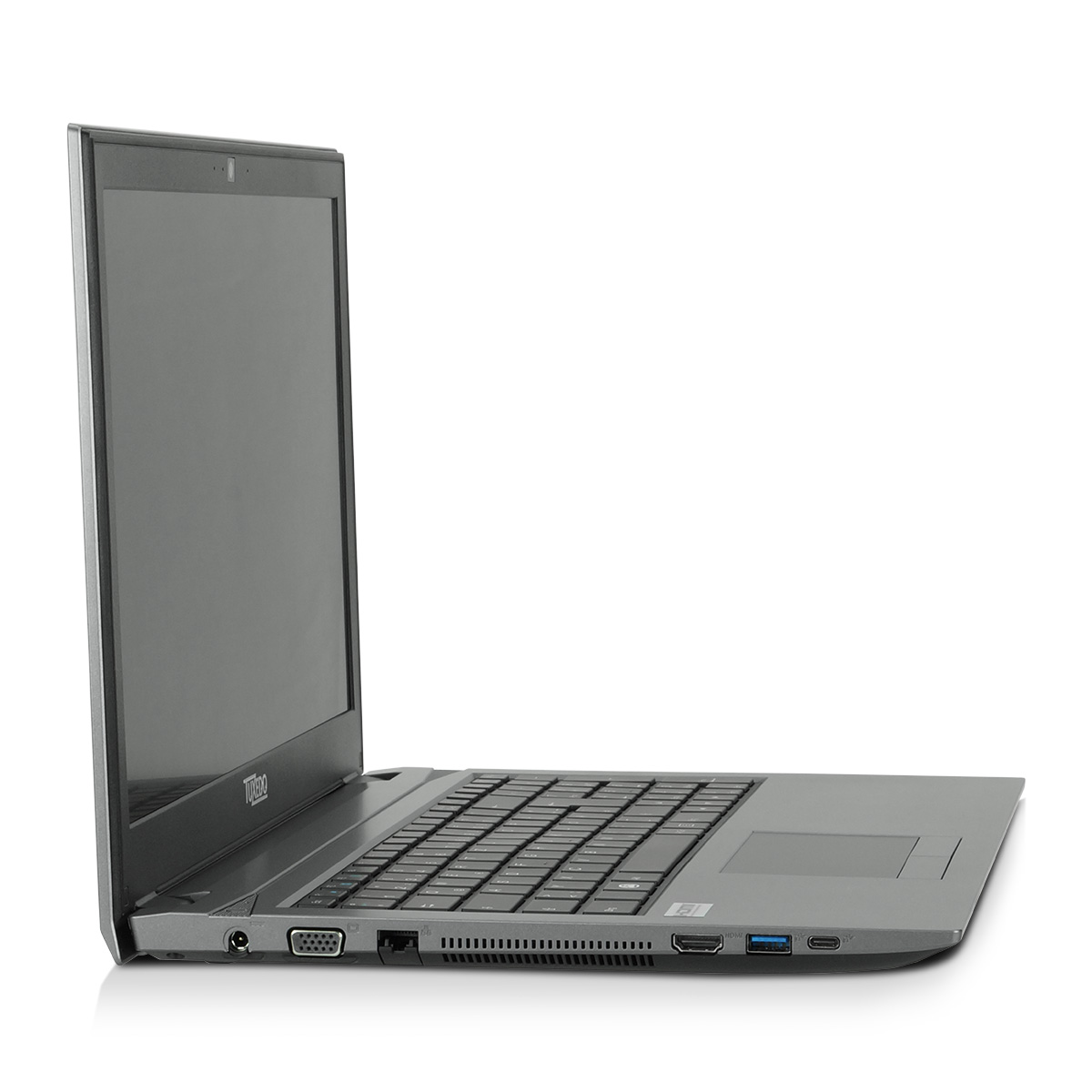

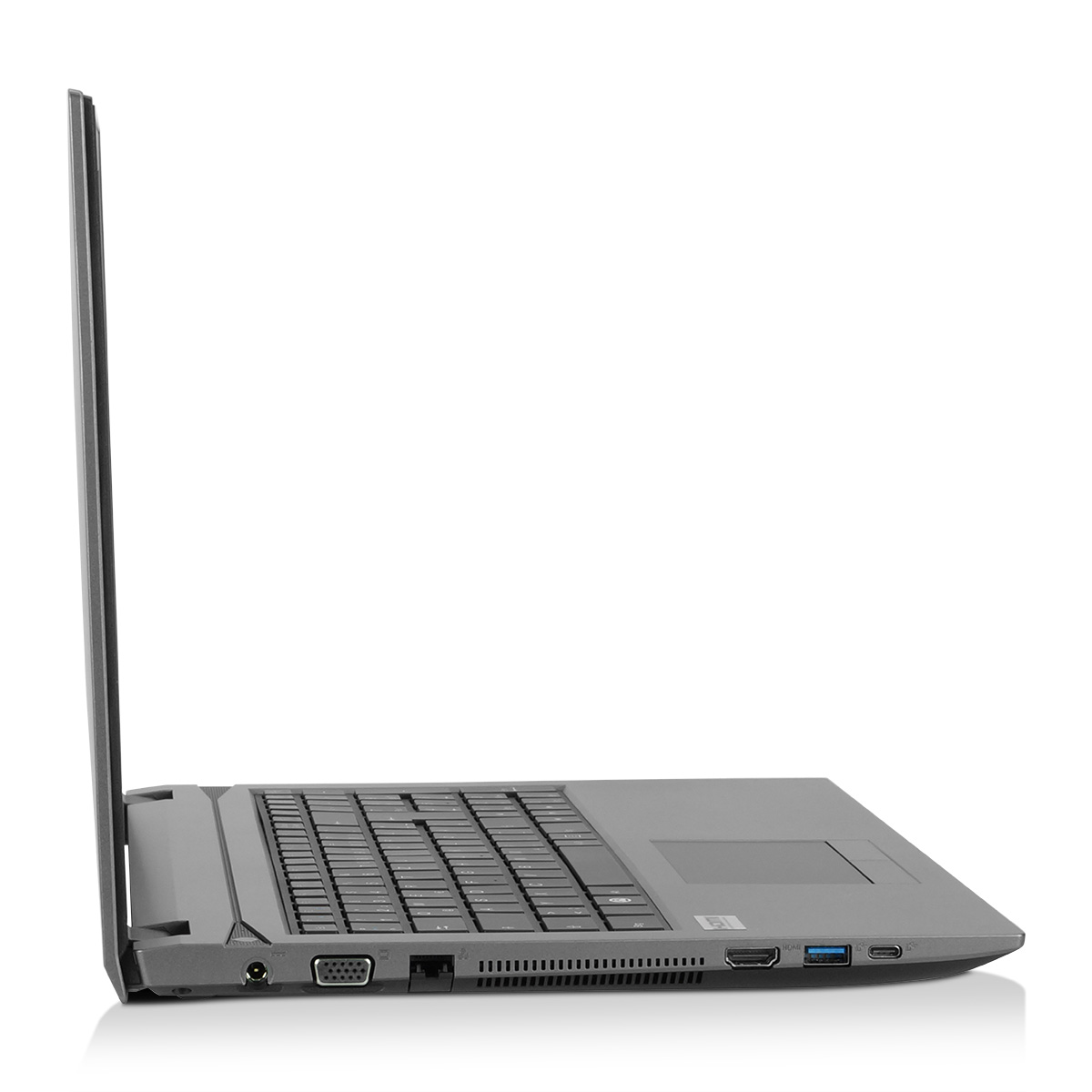

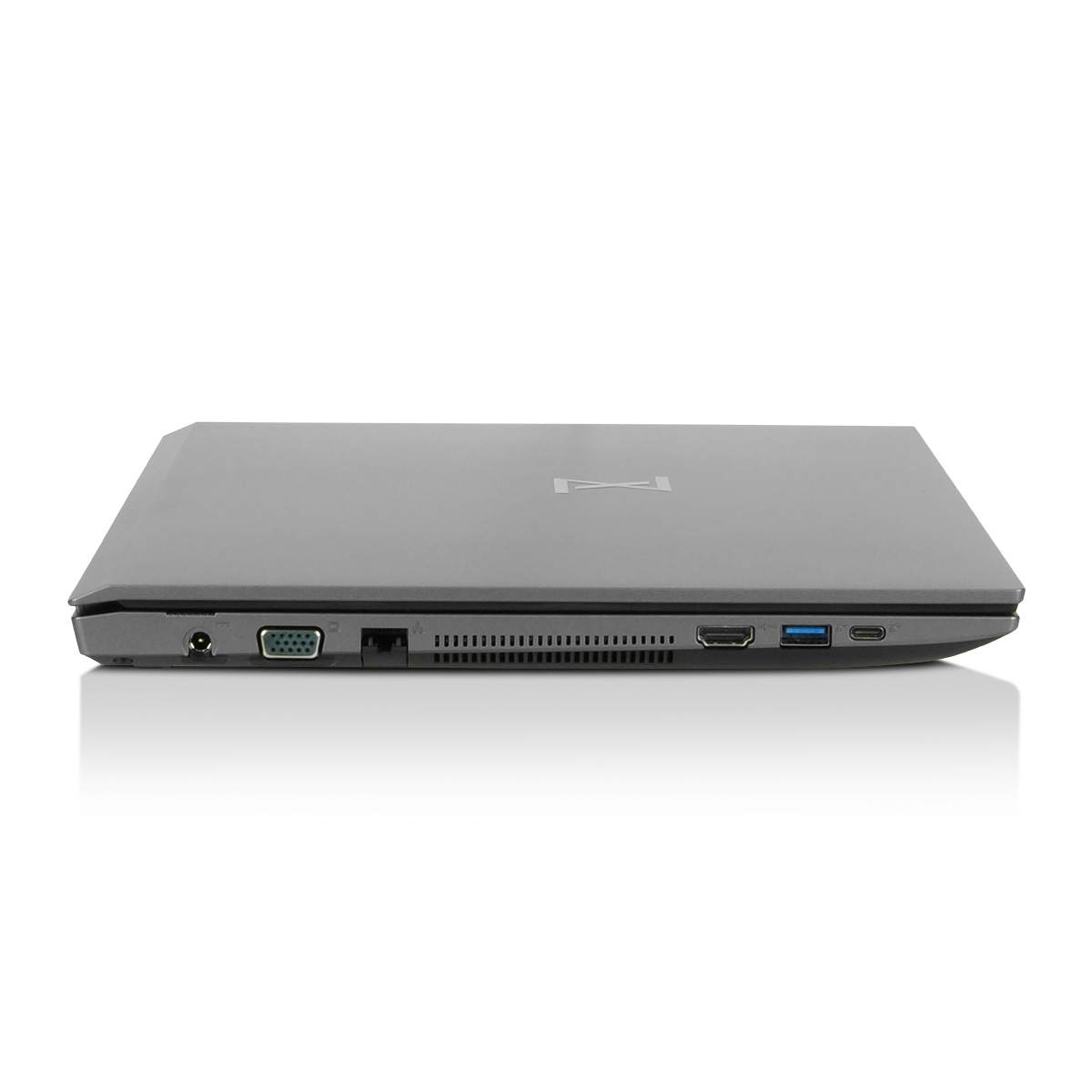

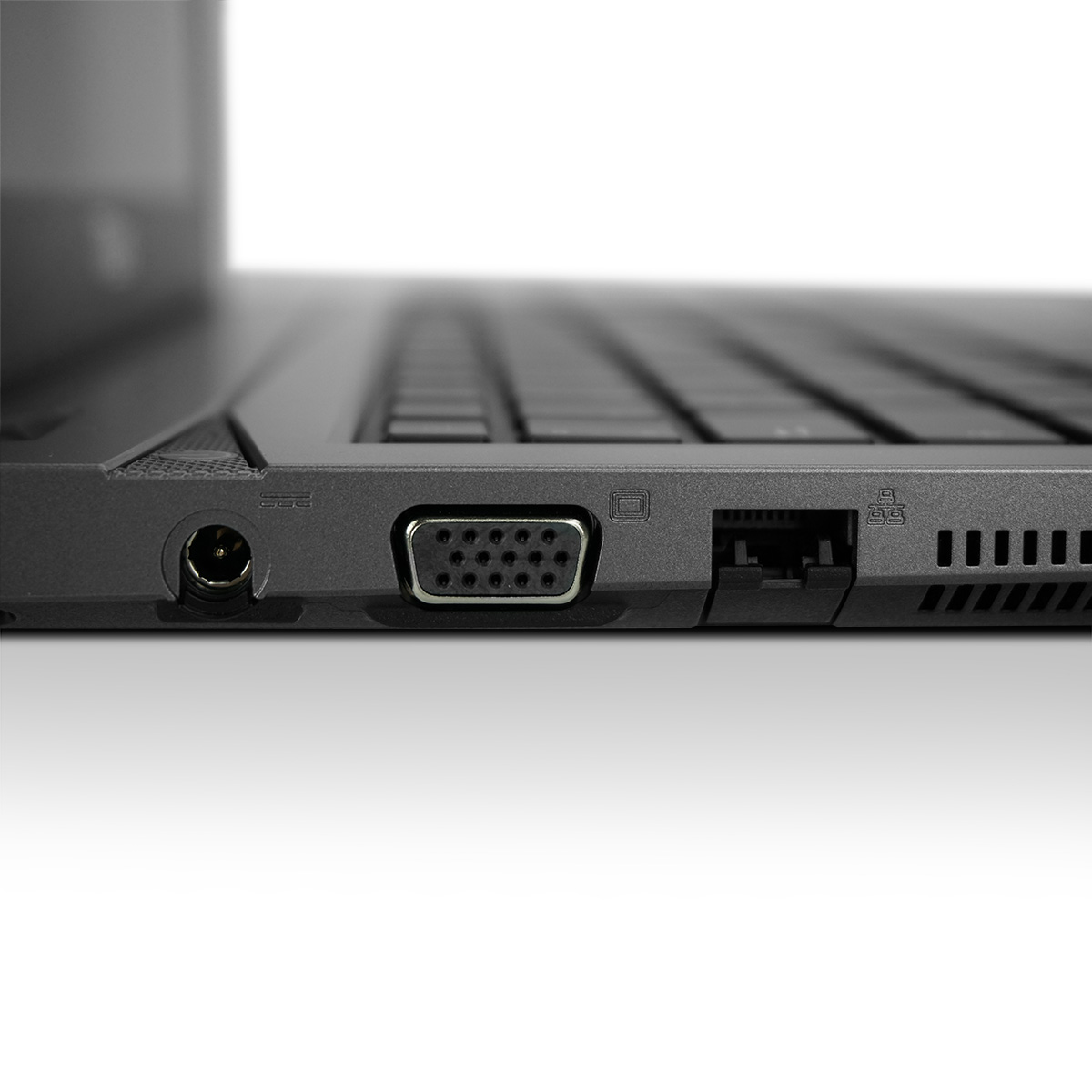

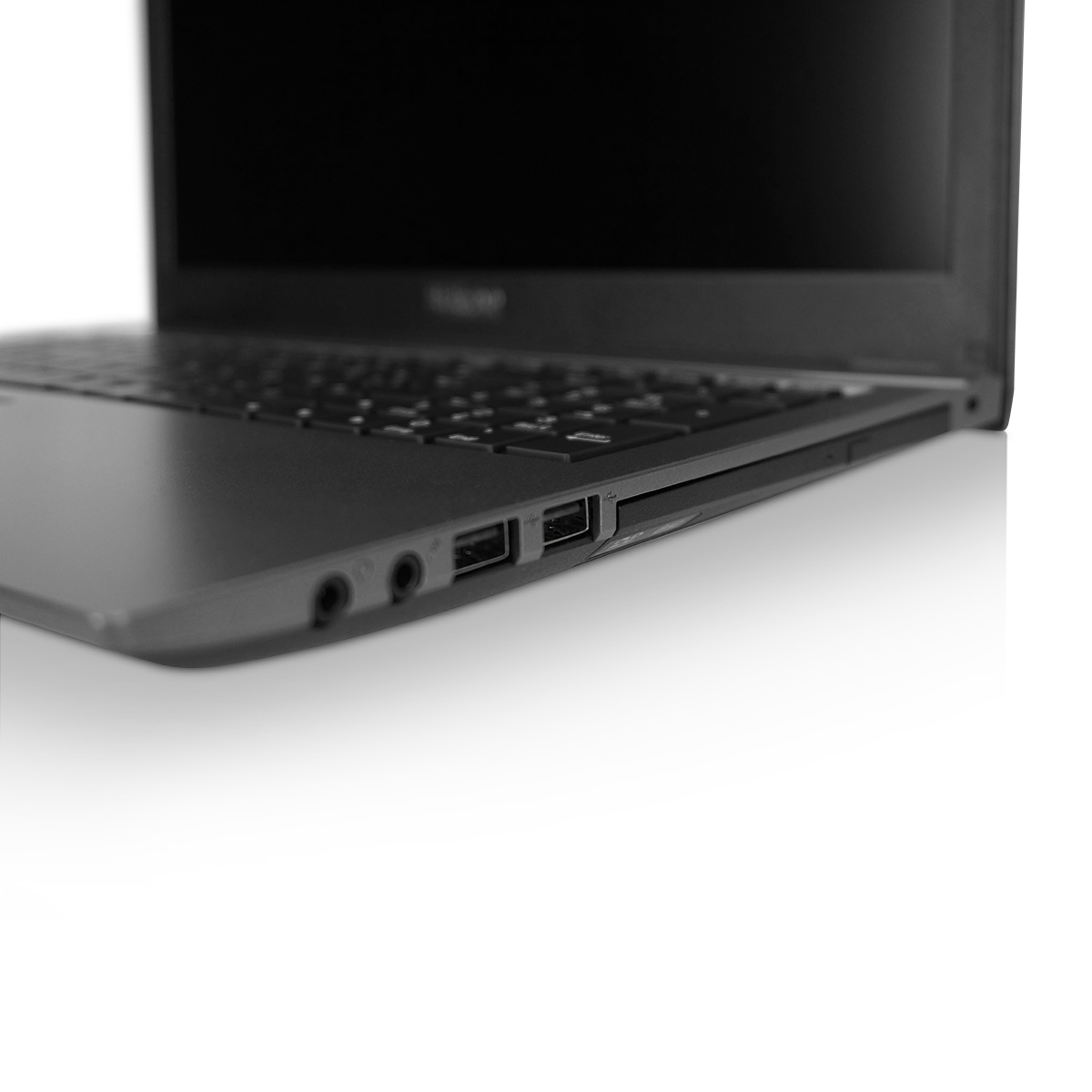

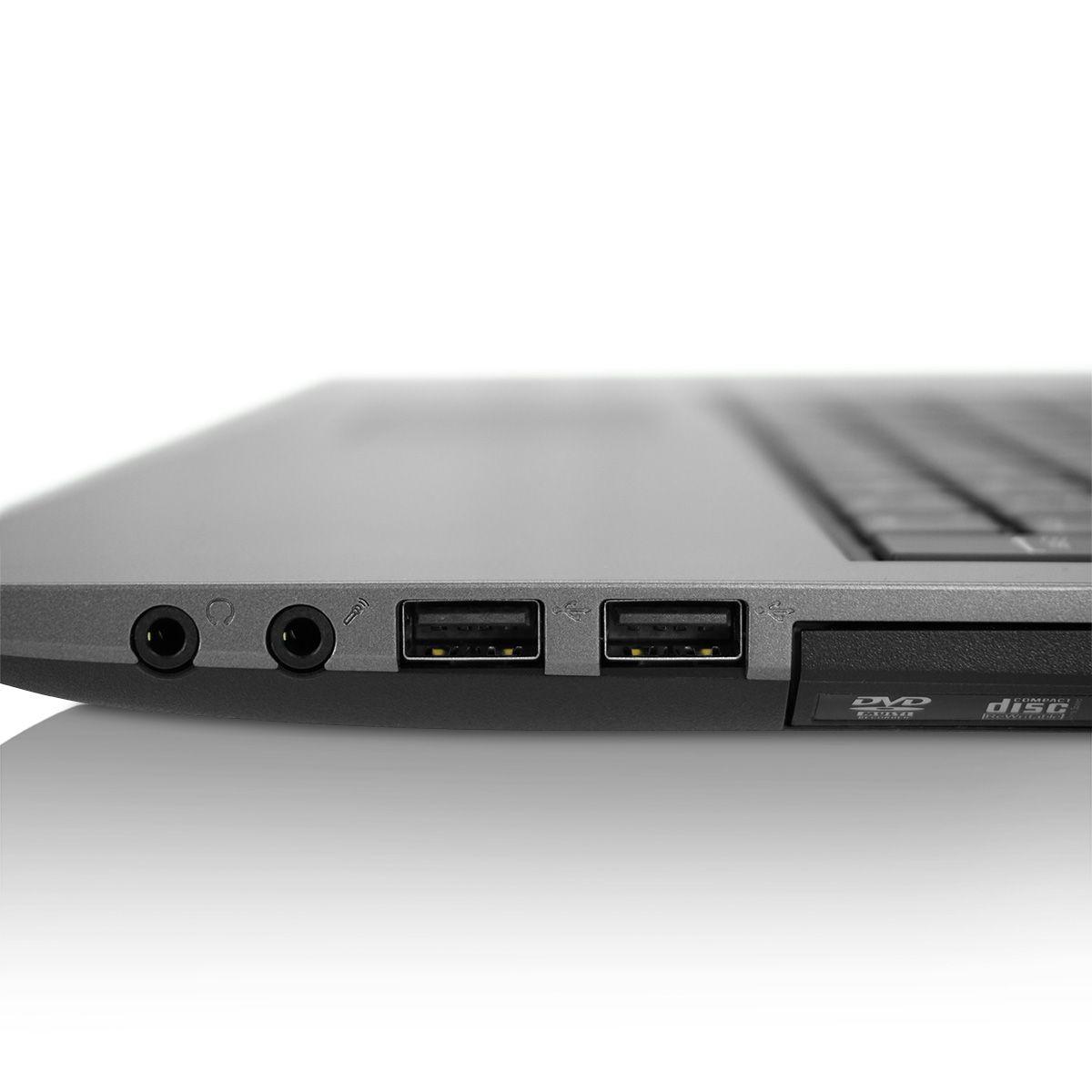

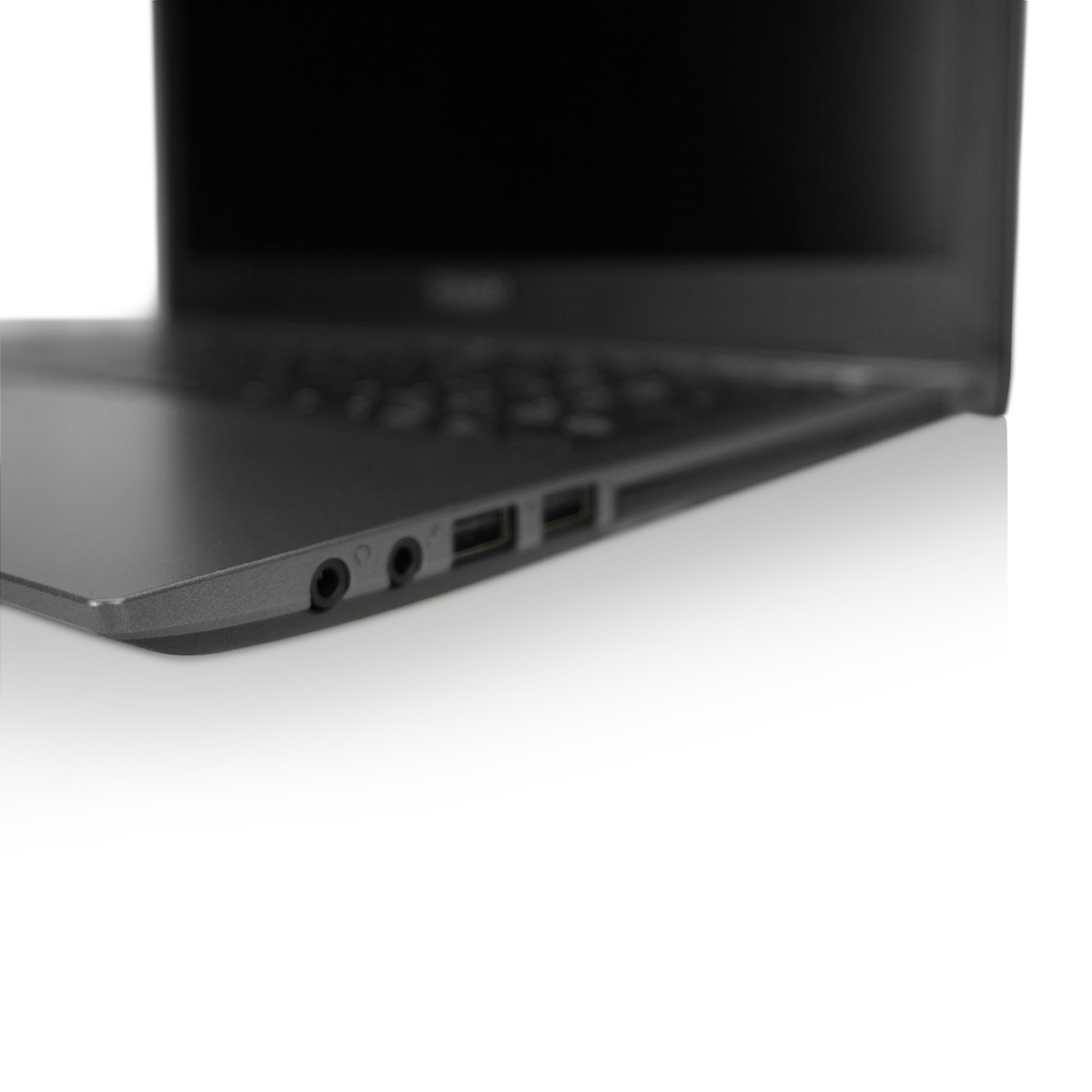

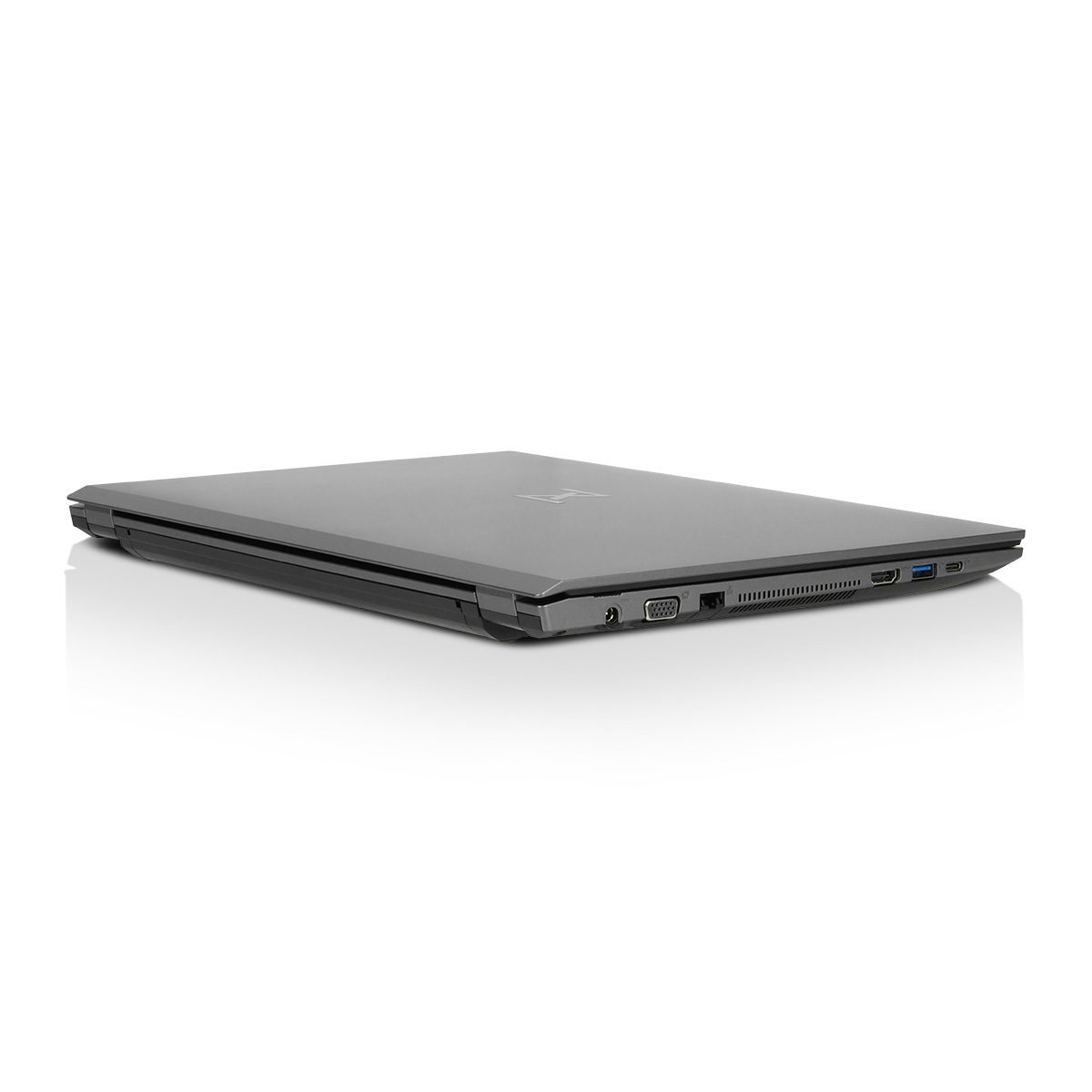

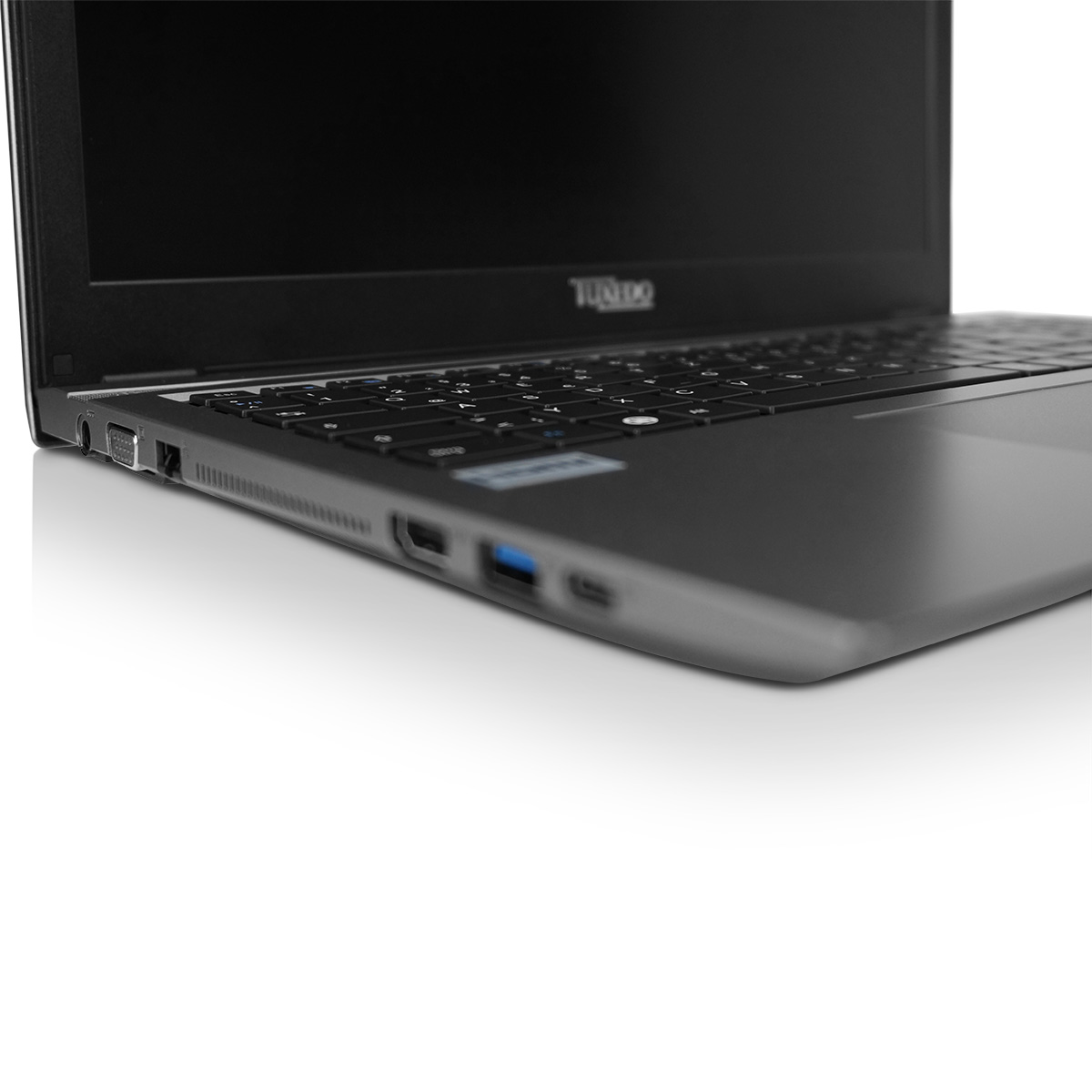

Ports:

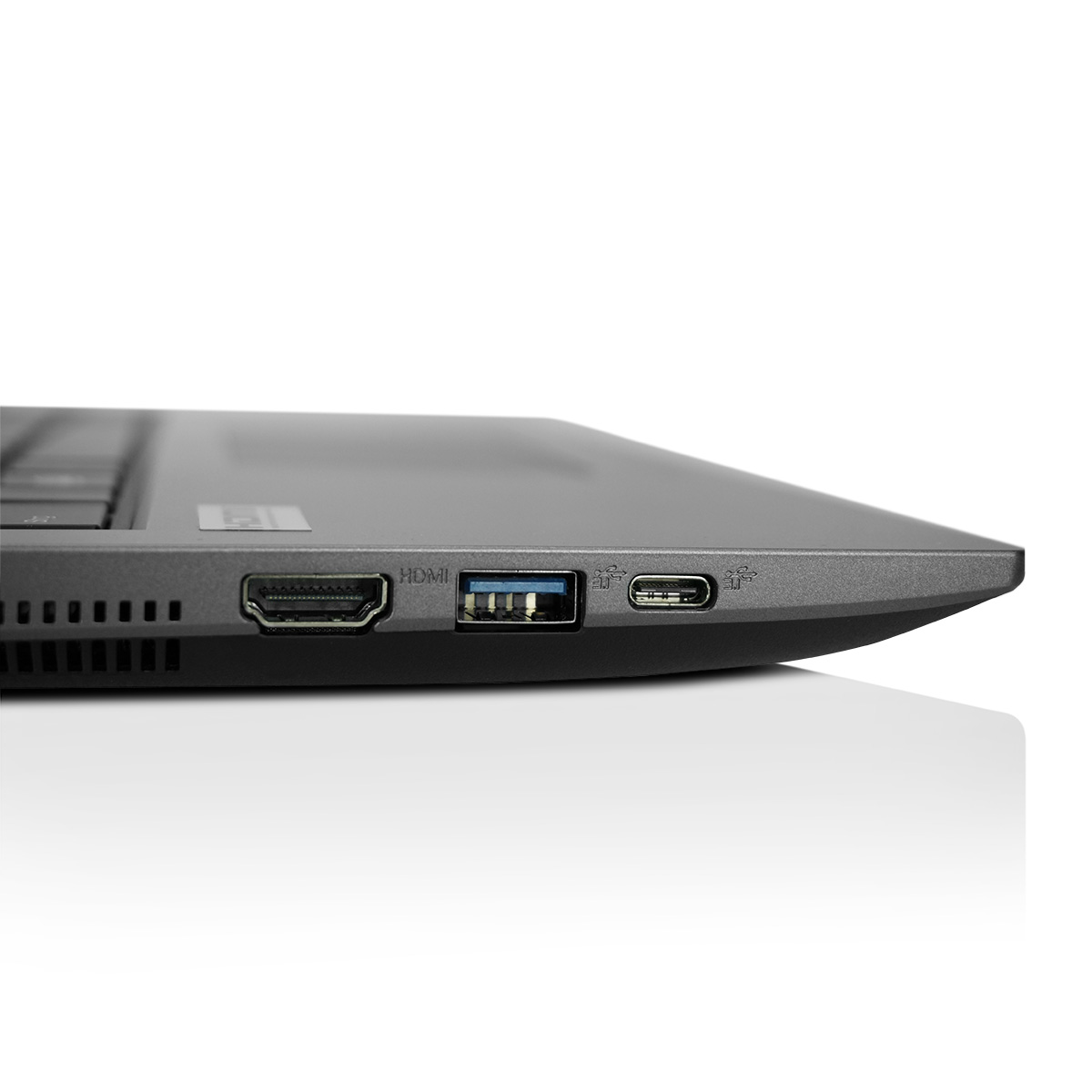

1x USB 3.1 Typ-C Gen2 incl. Thunderbolt 3
3x USB 3.0 (USB 3.1 Typ-A Gen1)
1x HDMI incl. HDCP

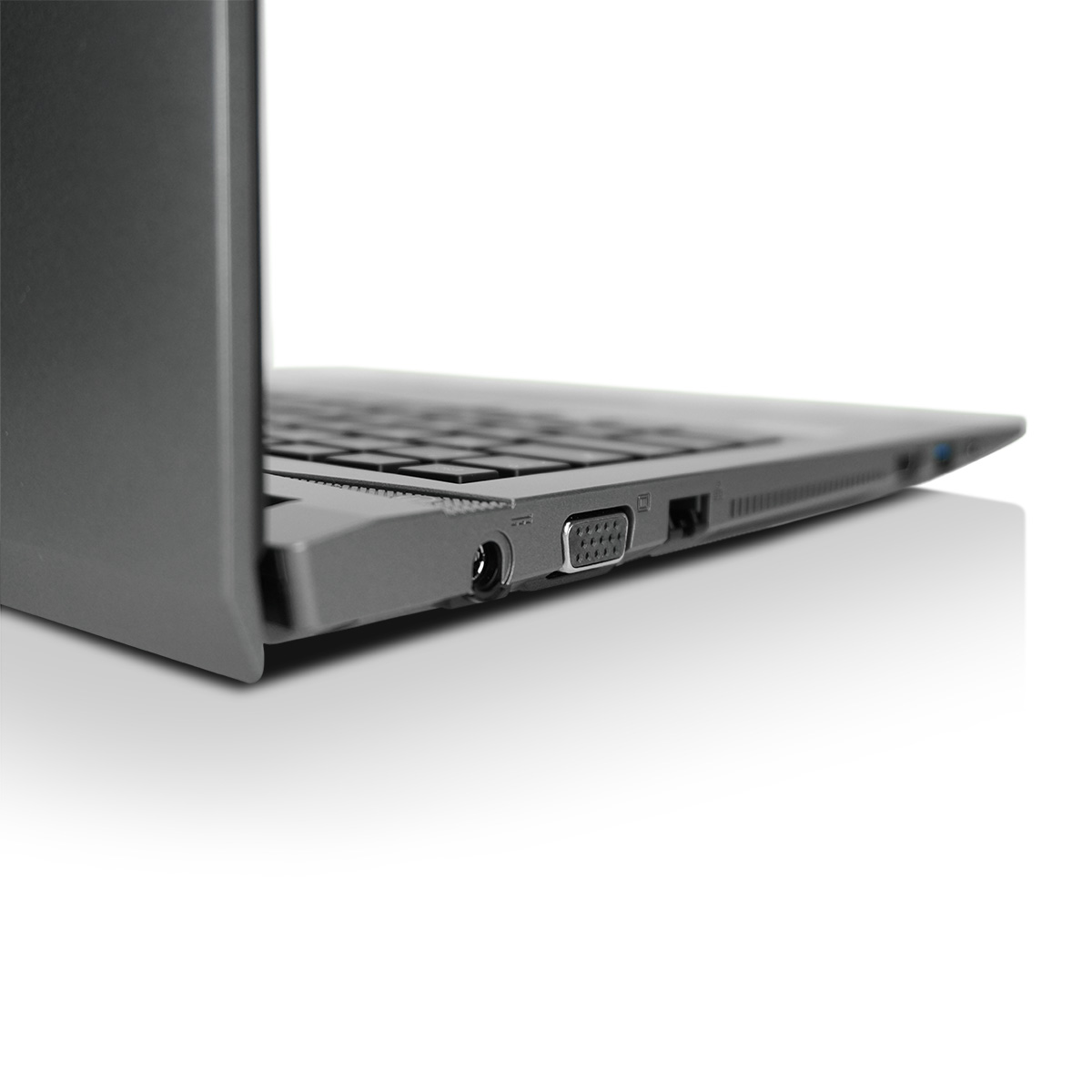

1x VGA
1x Gigabit LAN/Netzwerk RJ45
1x Microphone
1x Headphones & optical output

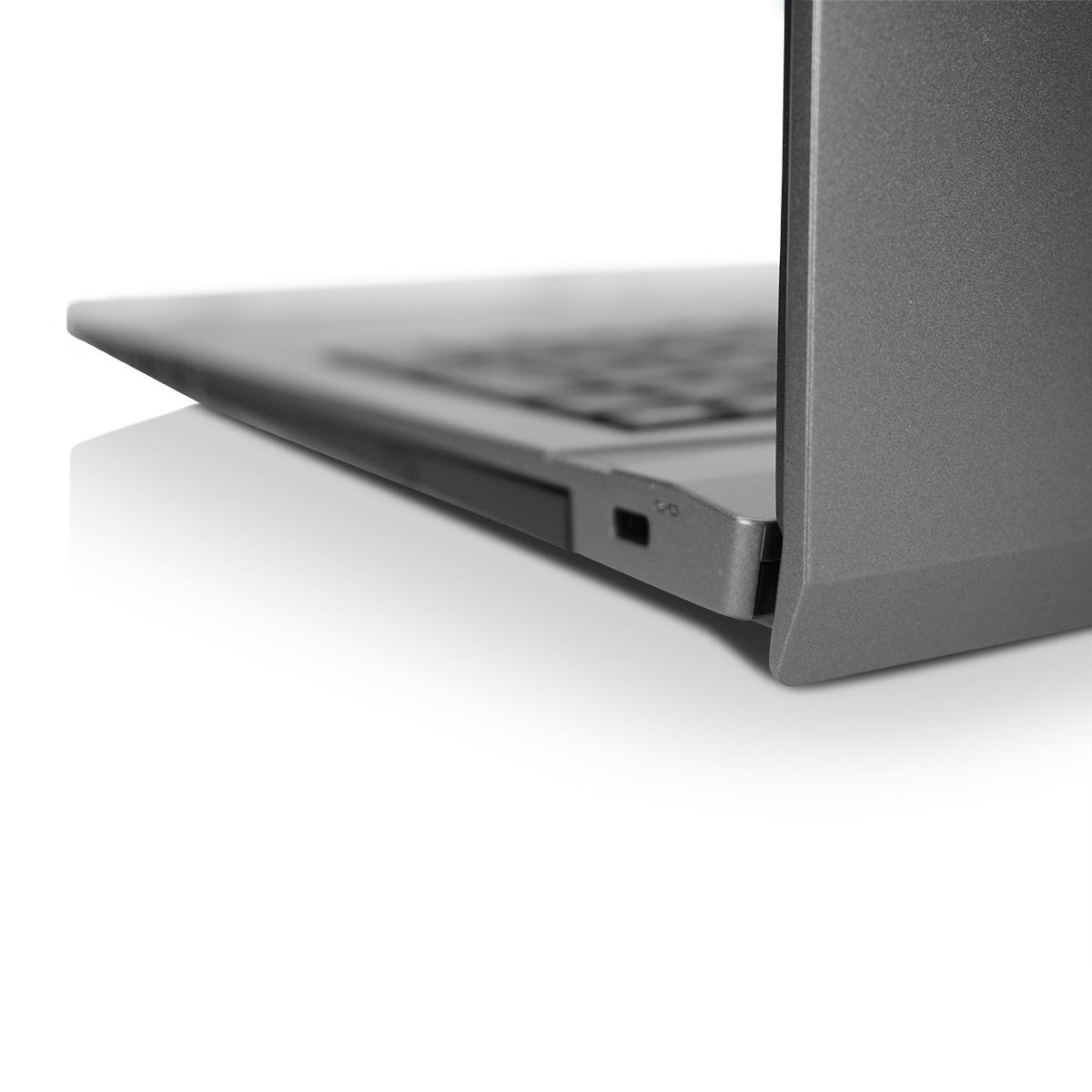

1x Kensington Lock
1x Card-Reader
9-in-1 Card Reader
- MMC / RSMMC
- SD / SDHC / SDXC / Micro SD (Adapter necesssary)
- MS / MS Pro / MS Duo
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)

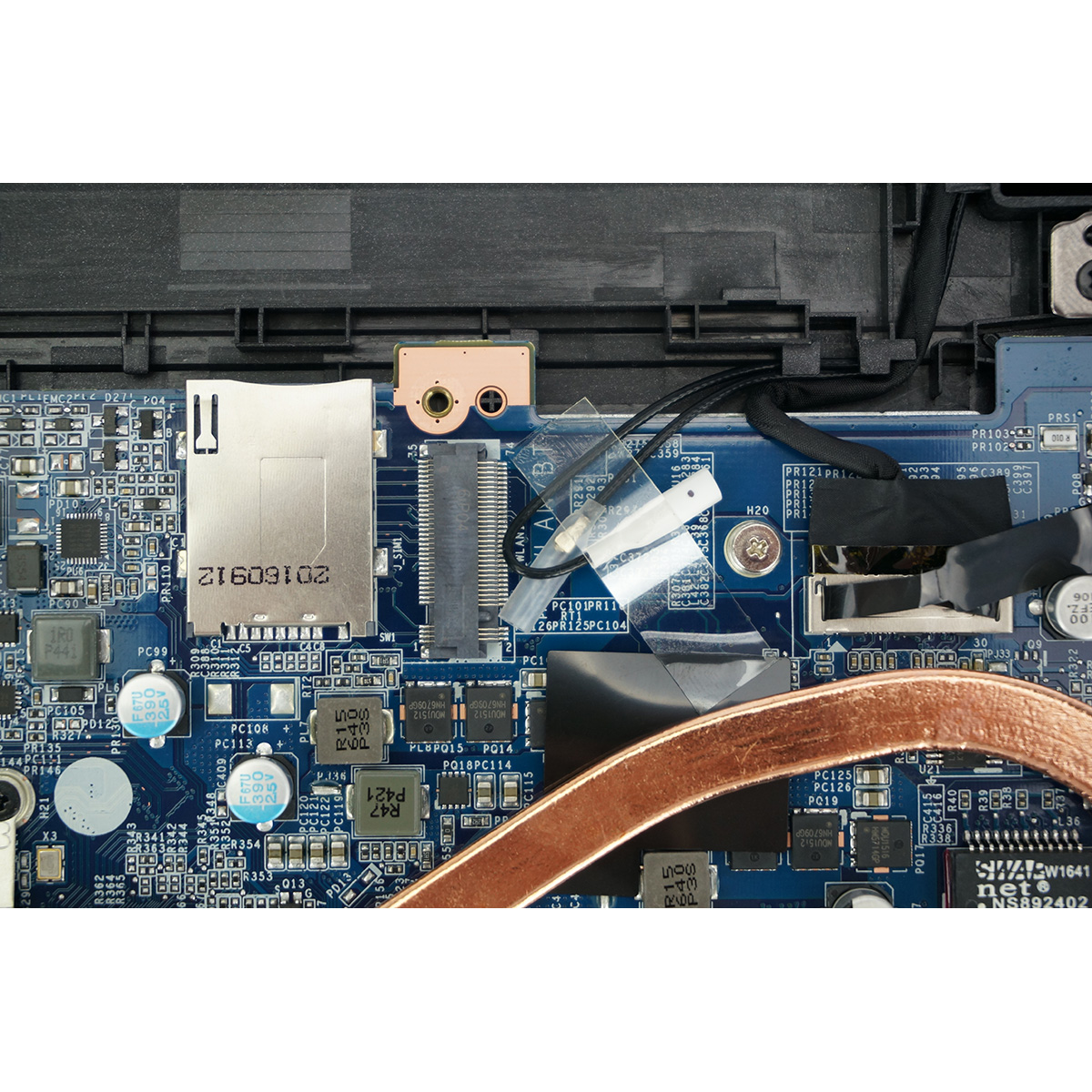

All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!
For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB pendrive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x TUXEDO fan stuff package
Noise growth / Cooling / Ventilation / Fan
Temperature controlled silent fan
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.
Custom fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the behavior of the fans at yourself. This means that you get the ability to make your device as silent as possible. You are able to set the device almost passive cooled, without any fan noise most of the time!
