With our TUXEDO CORE One Linux Complete PCs, you get small but powerful Linux computers. They are packed full of branded hardware, quiet in operation and completely configured and set up at the factory!
In addition, the TUXEDO CORE One AMD-Series are particularly efficient and inexpensive to purchase, so you get an economical and fully equipped Linux PC with branded hardware at a special price.
It is the ideal all-round PC because it can act as an inconspicuous office or Internet PC and can also be equipped with the most powerful hardware for games, image processing and video editing.

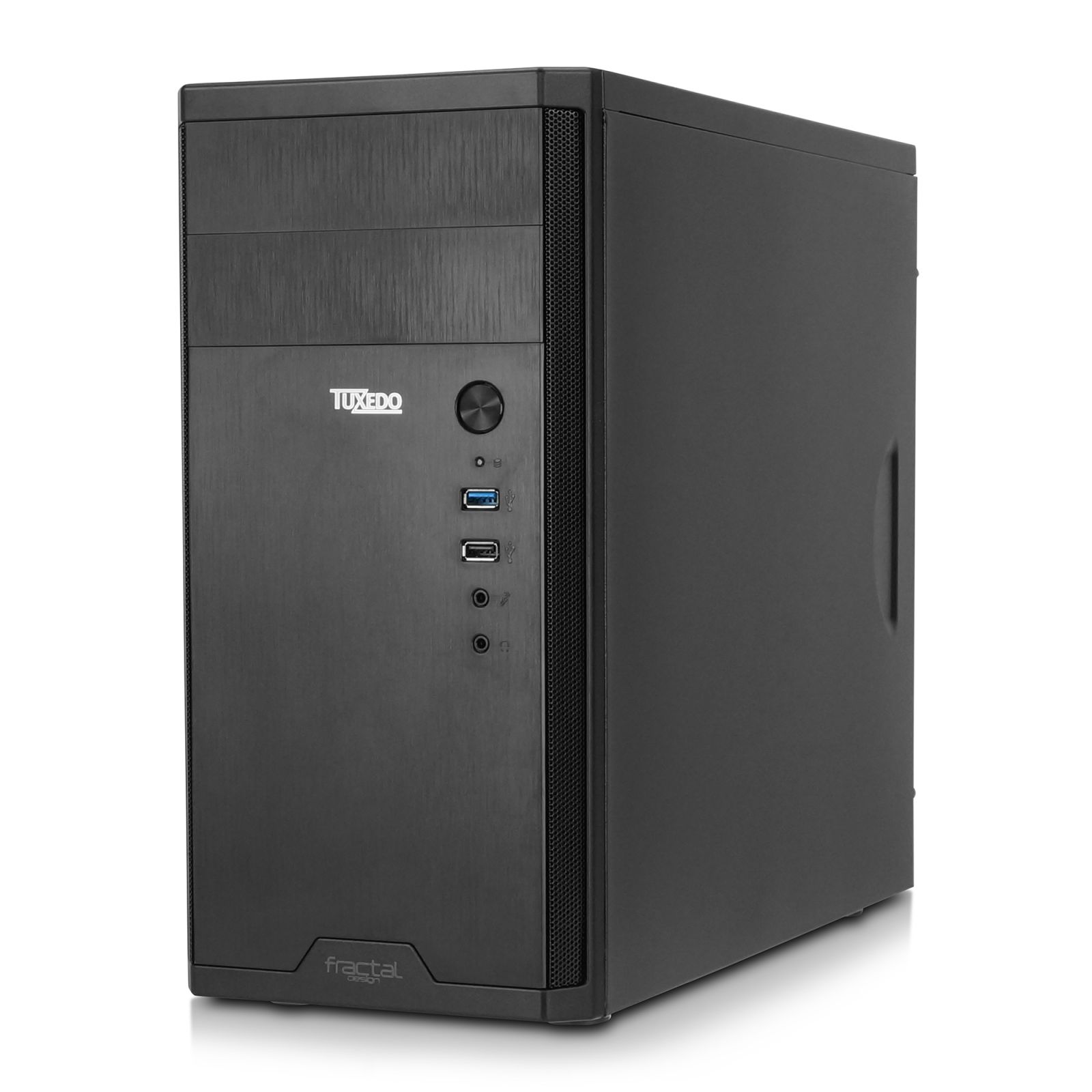

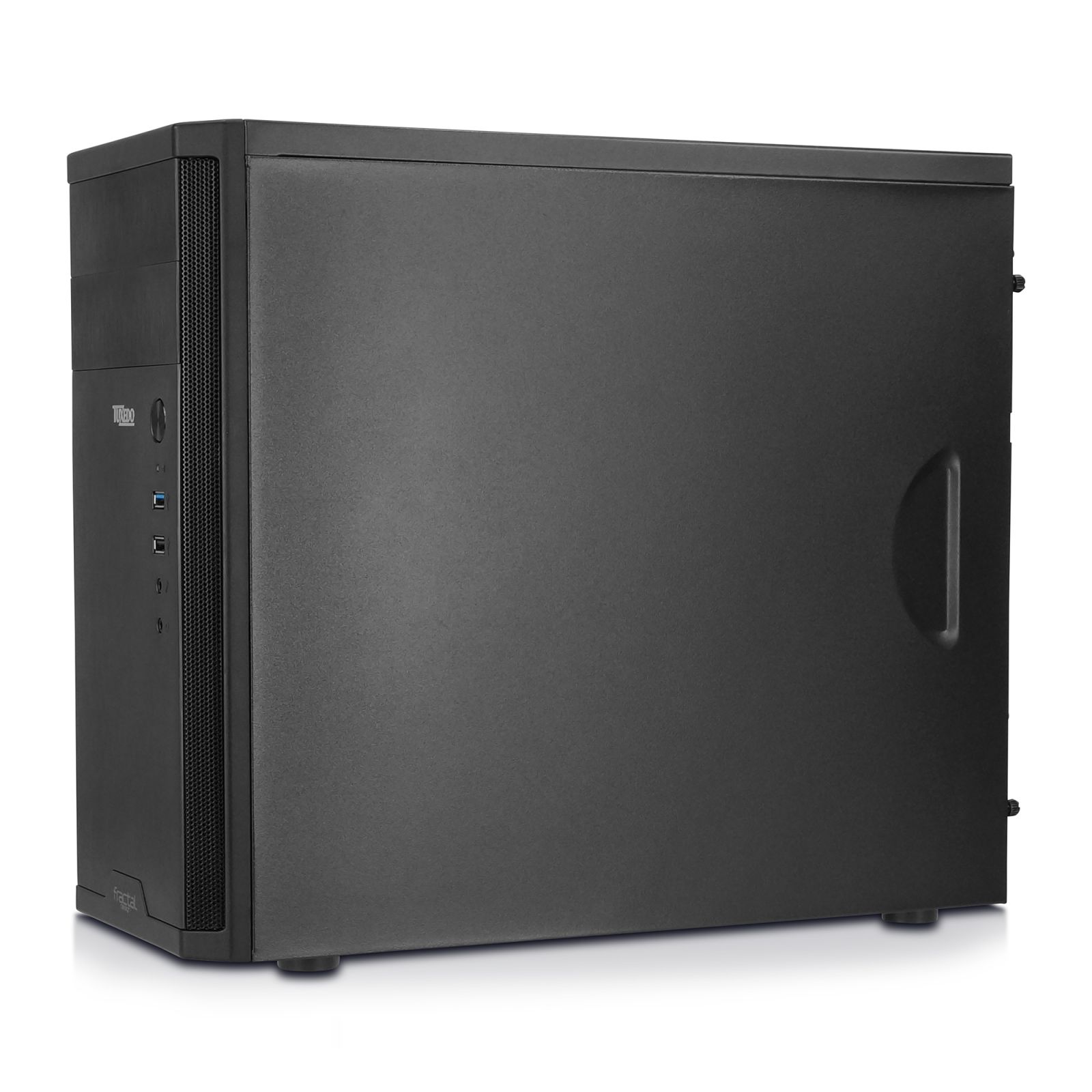

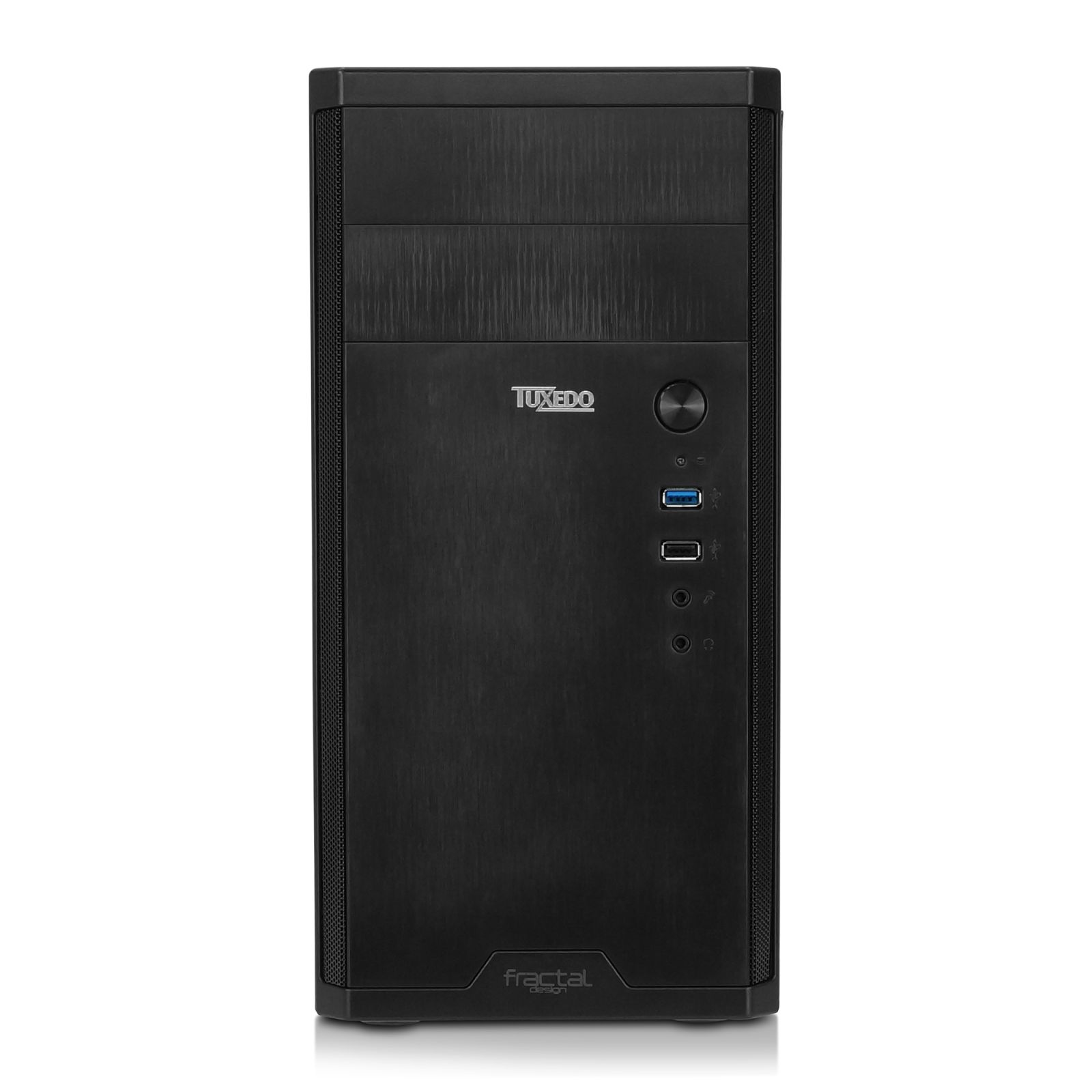

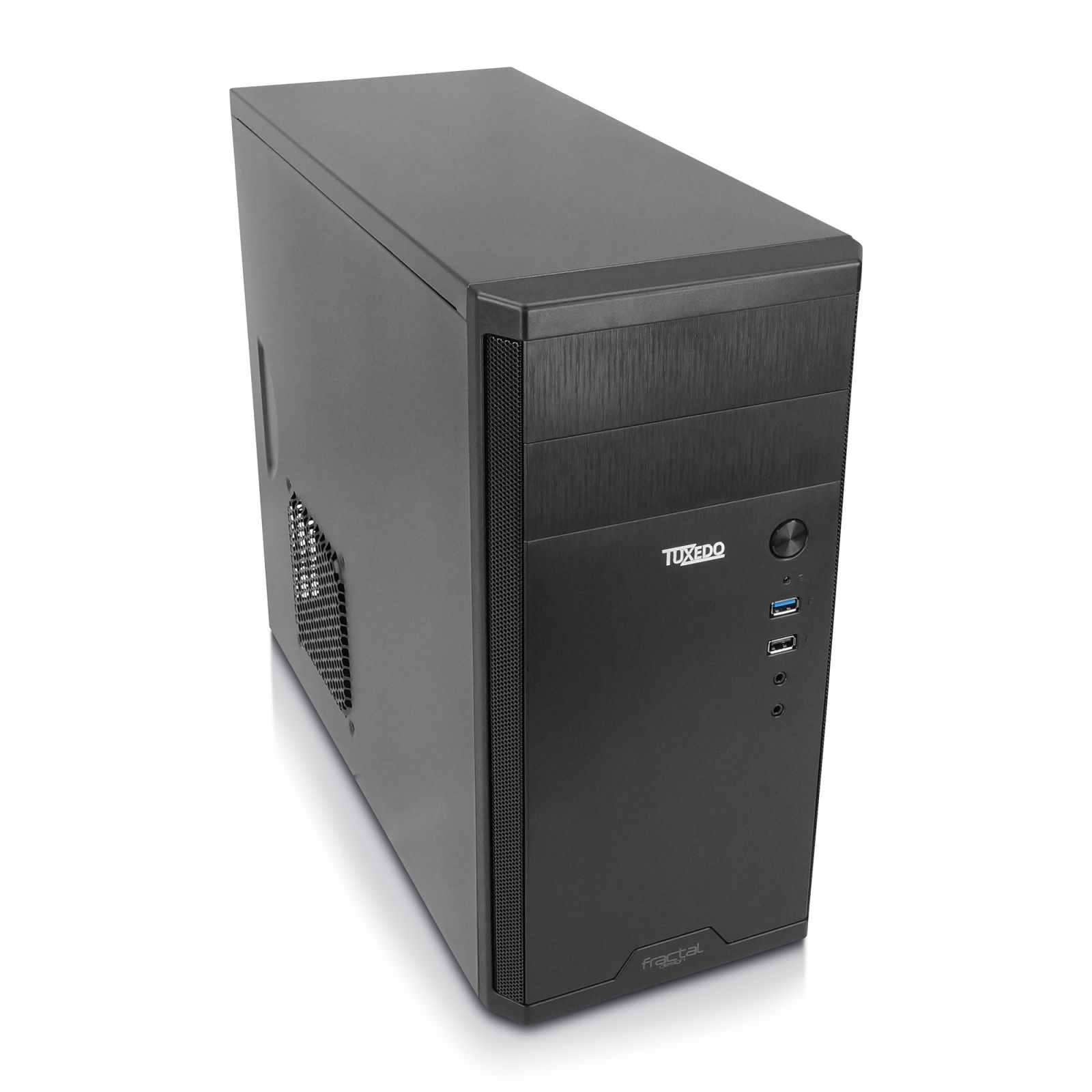

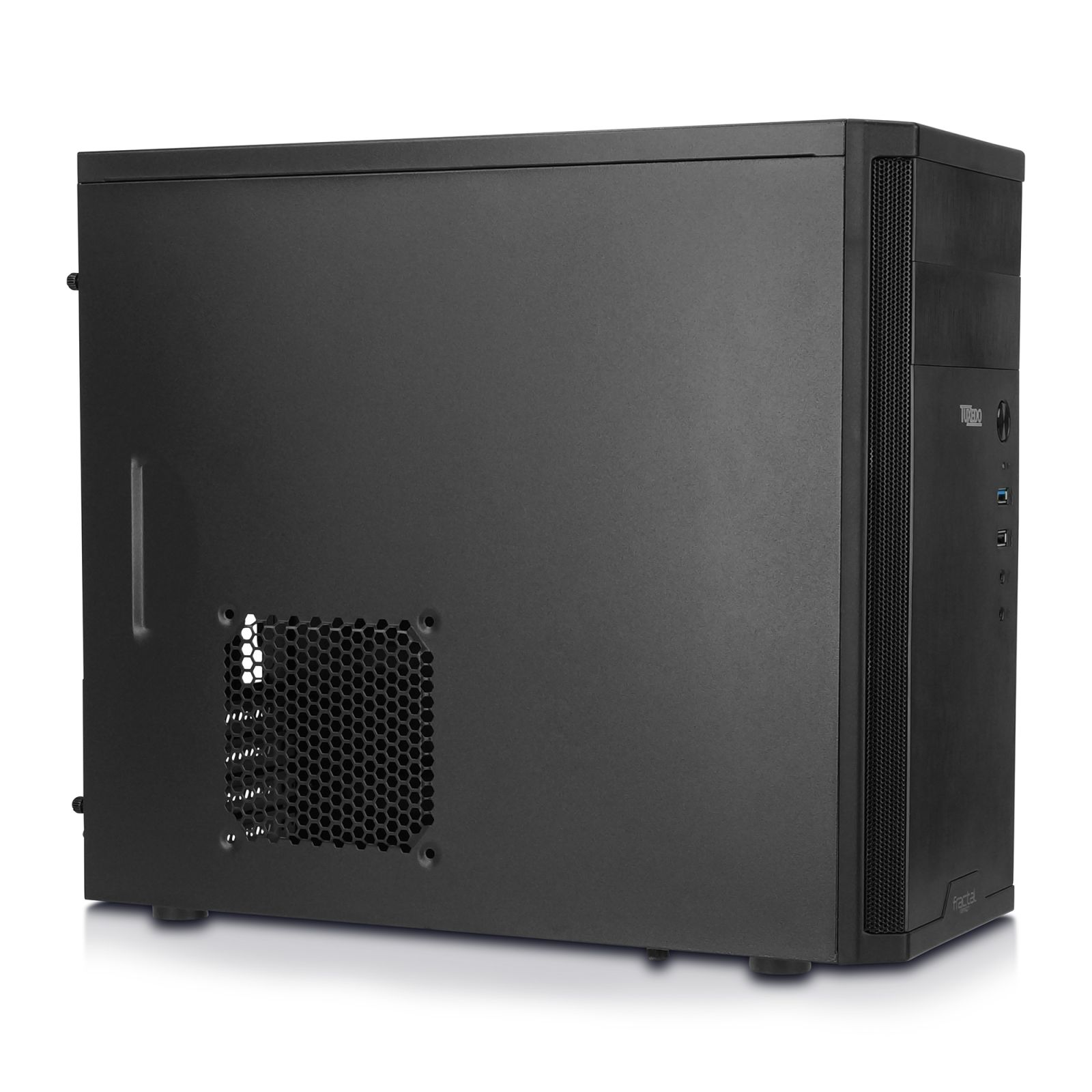

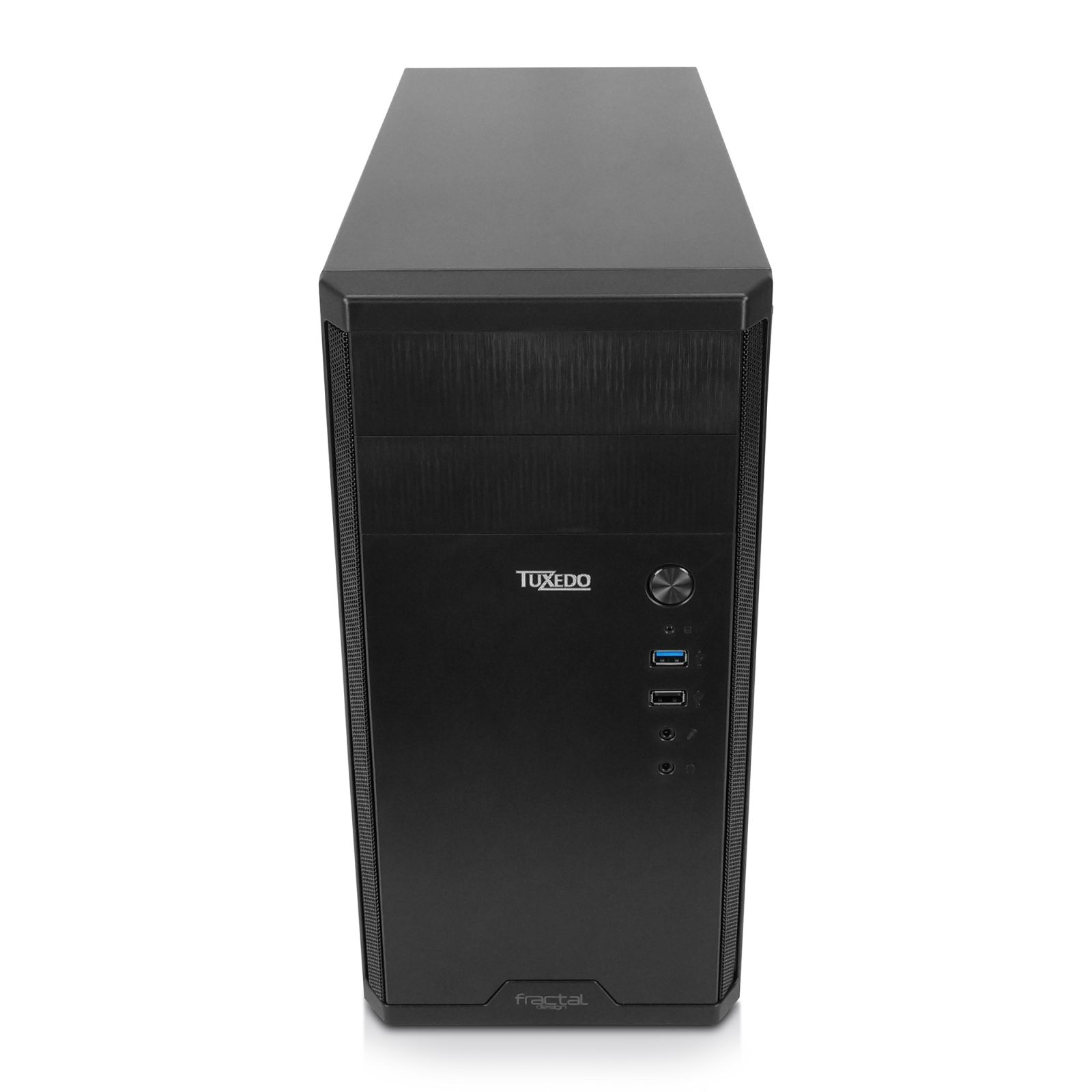

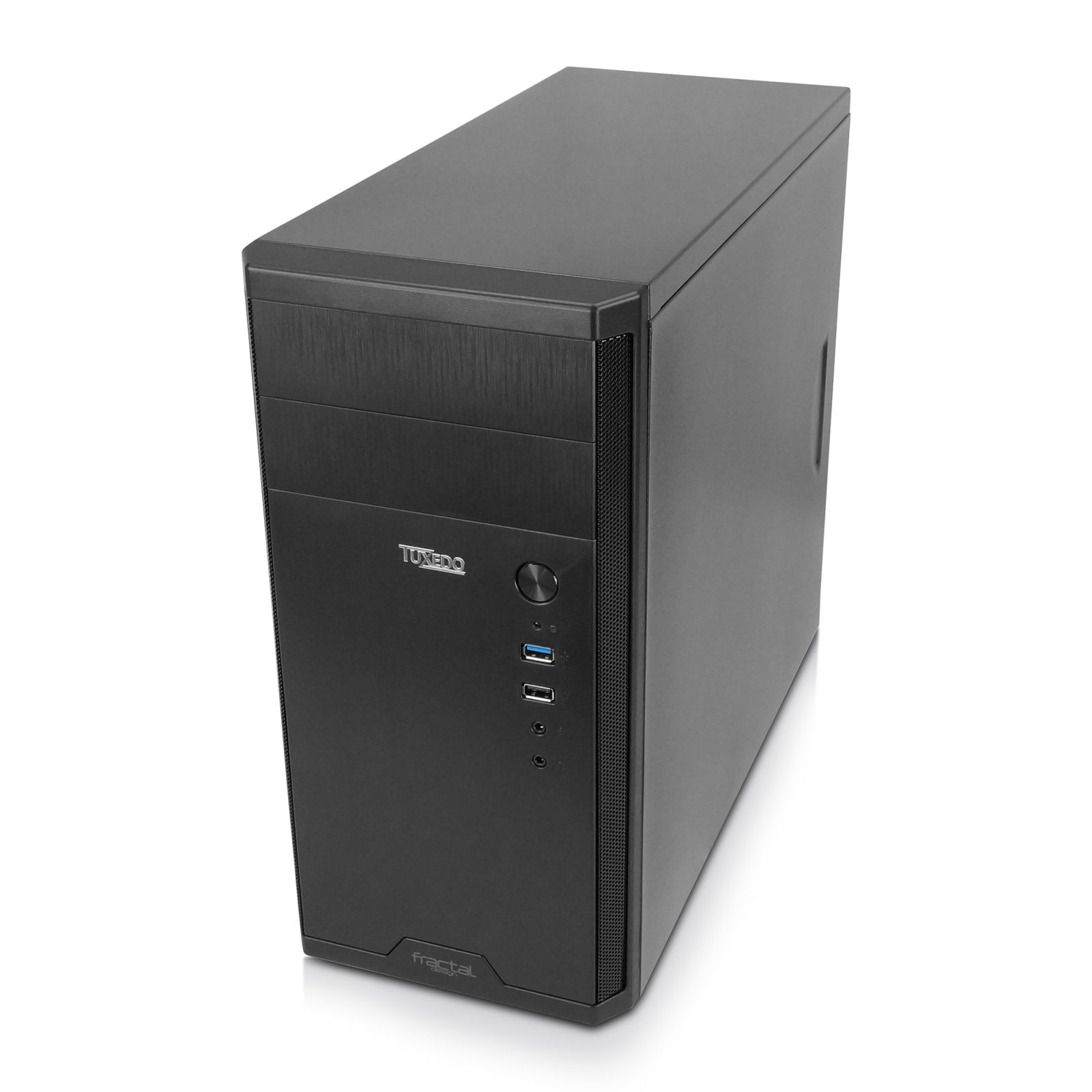

TUXEDO CORE One is a PC with Micro ATX motherboard and tower. This means you'll get a compact computer that still offers full performance!
Of course, all TUXEDO devices are already fully functional in the standard configuration. We install, configure and update each computer in such a way that you only have to unpack, connect and switch it on after receipt.
Depending on the budget, you can also choose even better hardware, of course, all components are coordinated with each other!
When selecting the more expensive hardware, the following applies: The more the better. This means that if you decide on a more expensive processor, an expensive graphics card or more RAM, this component is also better than the cheaper one! In this way, you can adapt your desired PC individually to your budget, even without any in-depth knowledge.
The basis is provided by a high quality housing with two front USB 3.2 Gen1 connectors, one front microphone and one front headphone jack and mainboards, where we focus especially on high quality, speed and above all on high performance. value on durability. Customer satisfaction and a 24-month warranty on all parts of a TUXEDO are our top priority.
Space, performance, multimedia capabilities and more are all at your fingertips thanks to multi-core processors, massive memory and multiple HDD and SSD drives.
For example, a combination of a medium-sized SSD paired with a large HDD is ideal. We install the operating system on the SSD and integrate the HDD as "data graves". You've combined the extreme speed benefits of SSD hard drives with the low-cost storage space offered by regular HDDs.
If you're using performance-hungry and graphically demanding software, you can also choose a high-performance NVIDIA GeForce or AMD Radeon RX graphics card.
An optical drive for your DVDs or Blu-Rays completes the performance diversity of your TUXEDO.
Chassis
High-quality processed noble housing:
- only 41,0cm deep, 17,5cm wide and 35,8cm high
- 1x Case fan preinstalled
- For larger housings see TUXEDO CORE Six
Power supply:
Manufacturer: Seasonic / Xilence (Bequiet)
Certification: 80+ Gold
Voltage: 100-240V
Power output: Individually depending on hardware equipment
Power usage: depending on hardware and system load
Noise level: Temperature controlled 14cm Ultra-Silent fan
Fan noise / Cooling / Ventilation
Temperature controlled silent fan!
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.
Mainboard
Mainboard:
Manufacturer & Chipset: AMD B650 Chipset
256 Mbit AMI UEFI BIOS
Form Factor: Micro ATX (24,4 x 24,4 cm)
Network / Ethernet / LAN
1x LAN:
- 1x 2.5 Gigabit Realtek RTL8125BG (2.5 Gbit / 1 Gbit / 100 Mbit)
- Supports Wake-On-LAN
- Supports PXE, uvm.
Wireless LAN / WLAN / WIFI
AMD Wi-Fi 6E RZ616
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80Mhz, 160Mhz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
- Supports 802.11 a/b/g/n/ac/ax
- Supports Bluetooth 5.2
Sound / Audio:
7.1 CH HD Audio (Realtek ALC4080 Audio Codec)
- High Definition Audio
- 2/4/5.1/7.1-channel
- S/PDIF Out
Rear Mainboard connectors:
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1x DisplayPort 1.4
1x HDMI Port 2.1 with HDR (max. 4K@60Hz)
1x USB-C USB 3.2 Gen2x2 20GBit/s (backward compatible)
3x USB-A USB 3.2 Gen2 10GBit/s (backward compatible)
4x USB-A USB 3.2 Gen1 5GBit/s (backward compatible)
1x Optical S/PDIF out
2x Antenna connectors
5x Audio jacks: 1x Line in; 1x Front Speaker; 1x Rear Speaker; 1x Subwoofer; 1x Mic-In
Mainboard connectors internally (partially populated by your configuration):
4x DDR5 DIMM-Sockel
1x PCI Express 4.0 x16 Slot, running at x16
1x PCI Express 4.0 x16 Slot, running at x4
1x PCI Express 3.0 x1 Slot
6x SATA 6Gb/s connector(s)
2x M.2 slots
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel
1x Chassis Intrusion
1x Front Audio
2x Addressable V2 RGB LED connector
2x RGB LED connector
1x TPM pin header (Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C port
Storage connectors:
1x M.2 Socket (M2_1)
- Supports M Key type 2260/2280 M.2 PCI Express module up to Gen4 x4
1x M.2 Socket (M2_2)
- Supports M Key type 2260/2280 M.2 PCI Express module up to Gen4 x4
6x SATA 6Gb/s
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage device, SATA_A1 & SATA_A2 don't support RAID function.
Ports

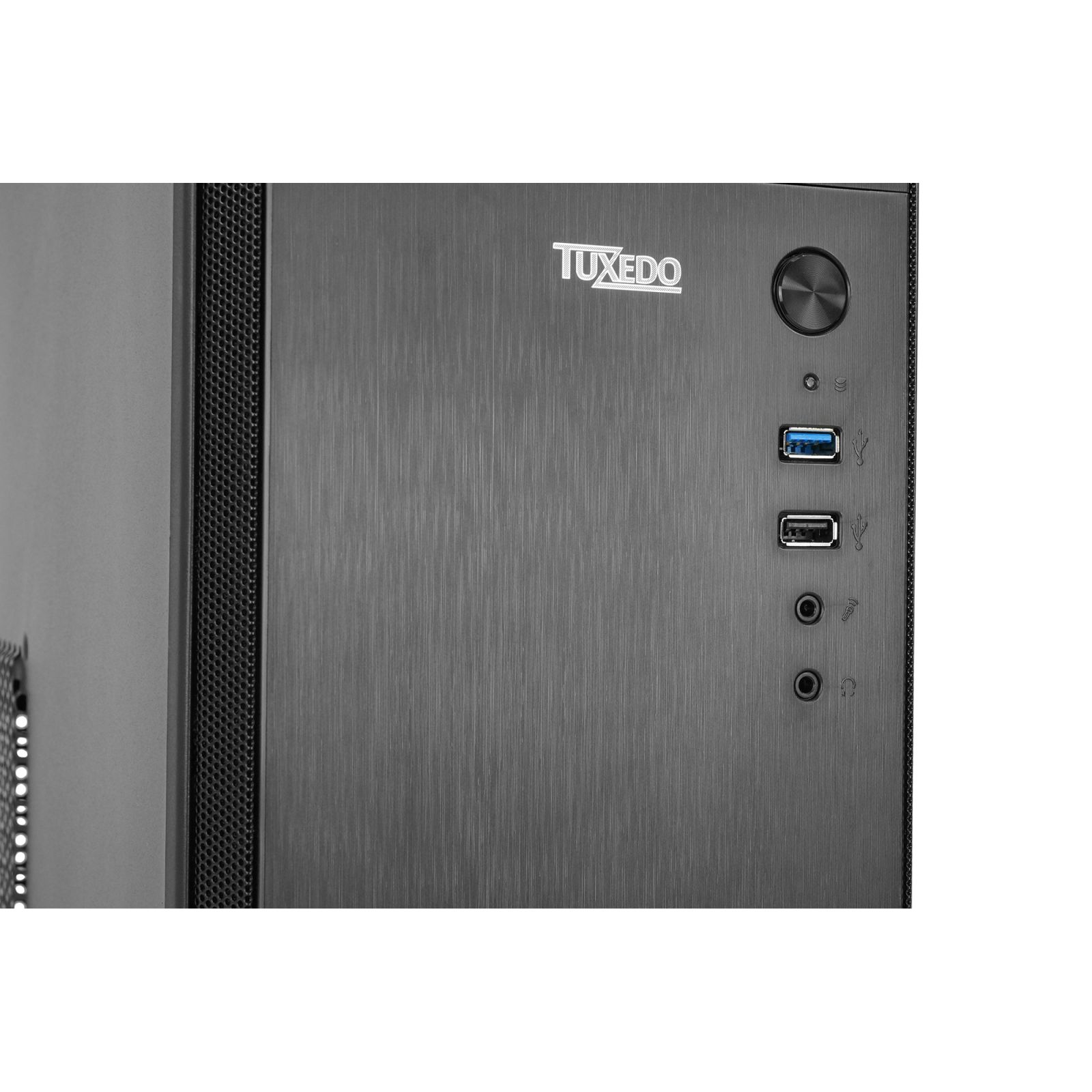

Front:
1 x USB 3.2 Gen1 (formerly USB 3.0), 1x USB 2.0
1 x Headphones
1 x Microphone
Main processor
Ryzen 7000 CPUs "Raphael"
Due to the low performance of the integrated graphics unit (iGPU), this model can only be ordered with a dedicated graphics card (dGPU)
Graphics card
The power efficient graphics chip integrated in the processor can be supersedet by a more powerful NVIDIA GeForce or AMD Radeon RX graphics card.
For details, please have a look at the configurator.
Memory
Type: DDR5 DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with 2 modules)
Hard drive
Mass storage as HDD or SSD
Drive:
CD/DVD burner & drive or
Blu-Ray burner & drive (incl. CD/DVD reading & burning feature)
Operating systems
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!
For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO preinstalled & configured
1x power cord
1x First steps manual incl. short technical manual
1x Mainboard manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
