With our TUXEDO CORE Six you get on of our most powerfull computers.
It is packed full of branded hardware, quiet in operation and completely configured and set up at the factory!
As with all devices from the TUXEDO series, special emphasis was placed on outstanding quality, future-proofing and quiet operation of the TUXEDO Core Six.
With the TUXEDO Core Six you are exactly right if you want to be prepared for all future contingencies! The large housing contains a full-size ATX mainboard (no Micro-ATX) and offers maximum expansion possibilities!
It is the ideal all-round PC because it can act as an inconspicuous office or Internet PC and can also be equipped with the most powerful hardware for games, image processing and video editing.
Of course, all TUXEDO devices are already fully functional in the standard configuration. We install, configure and update each computer in such a way that you only have to unpack, connect and switch it on after receipt.
Depending on the budget, you can also choose even better hardware, of course, all components are coordinated with each other!
When selecting the more expensive hardware, the following applies: The more the better. This means that if you decide on a more expensive processor, an expensive graphics card or more RAM, this component is also better than the cheaper one! In this way, you can adapt your desired PC individually to your budget, even without any in-depth knowledge.
The basis is provided by a high quality housing with two front USB 3.2 Gen1 connectors, one front microphone and one front headphone jack and mainboards, where we focus especially on high quality, speed and above all on high performance. value on durability. Customer satisfaction and a 24-month warranty on all parts of a TUXEDO are our top priority.
Space, performance, multimedia capabilities and more are all at your fingertips thanks to multi-core processors, massive memory and multiple HDD and SSD drives.
For example, a combination of a medium-sized SSD paired with a large HDD is ideal. We install the operating system on the SSD and integrate the HDD as "data graves". You've combined the extreme speed benefits of SSD hard drives with the low-cost storage space offered by regular HDDs.
If you're using performance-hungry and graphically demanding software, you can also choose a high-performance NVIDIA GeForce or AMD Radeon RX graphics card.
An optical drive for your DVDs or Blu-Rays completes the performance diversity of your TUXEDO.

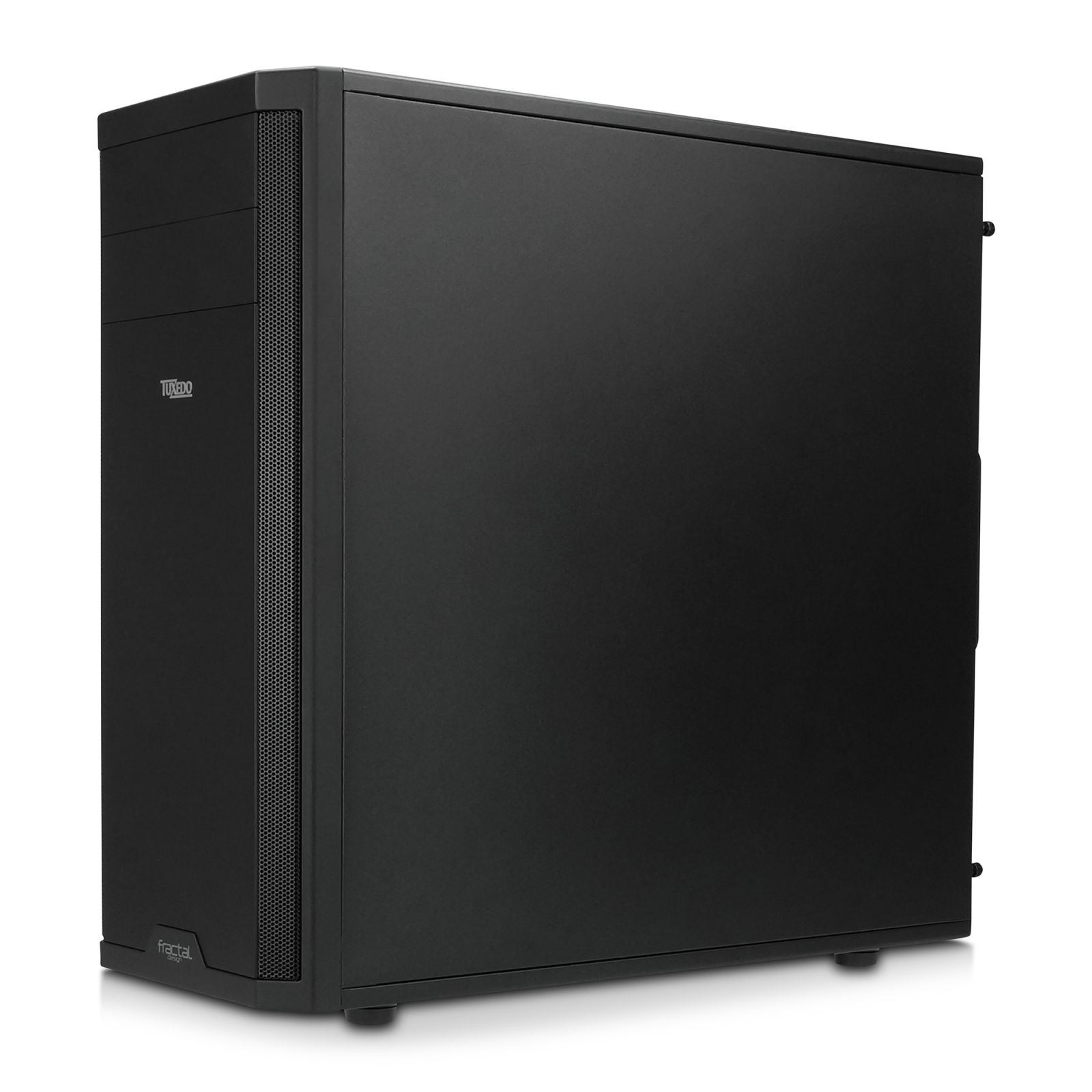

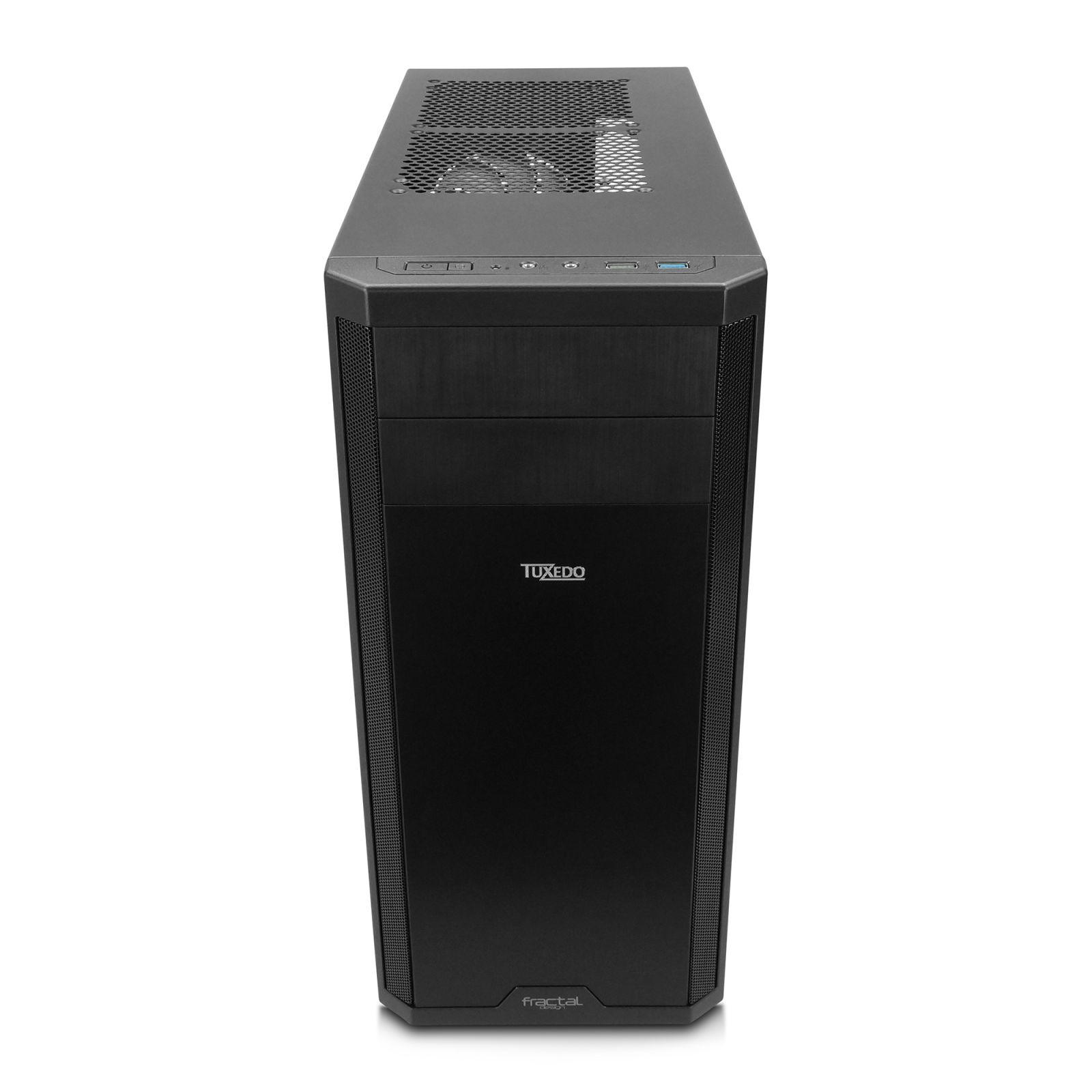

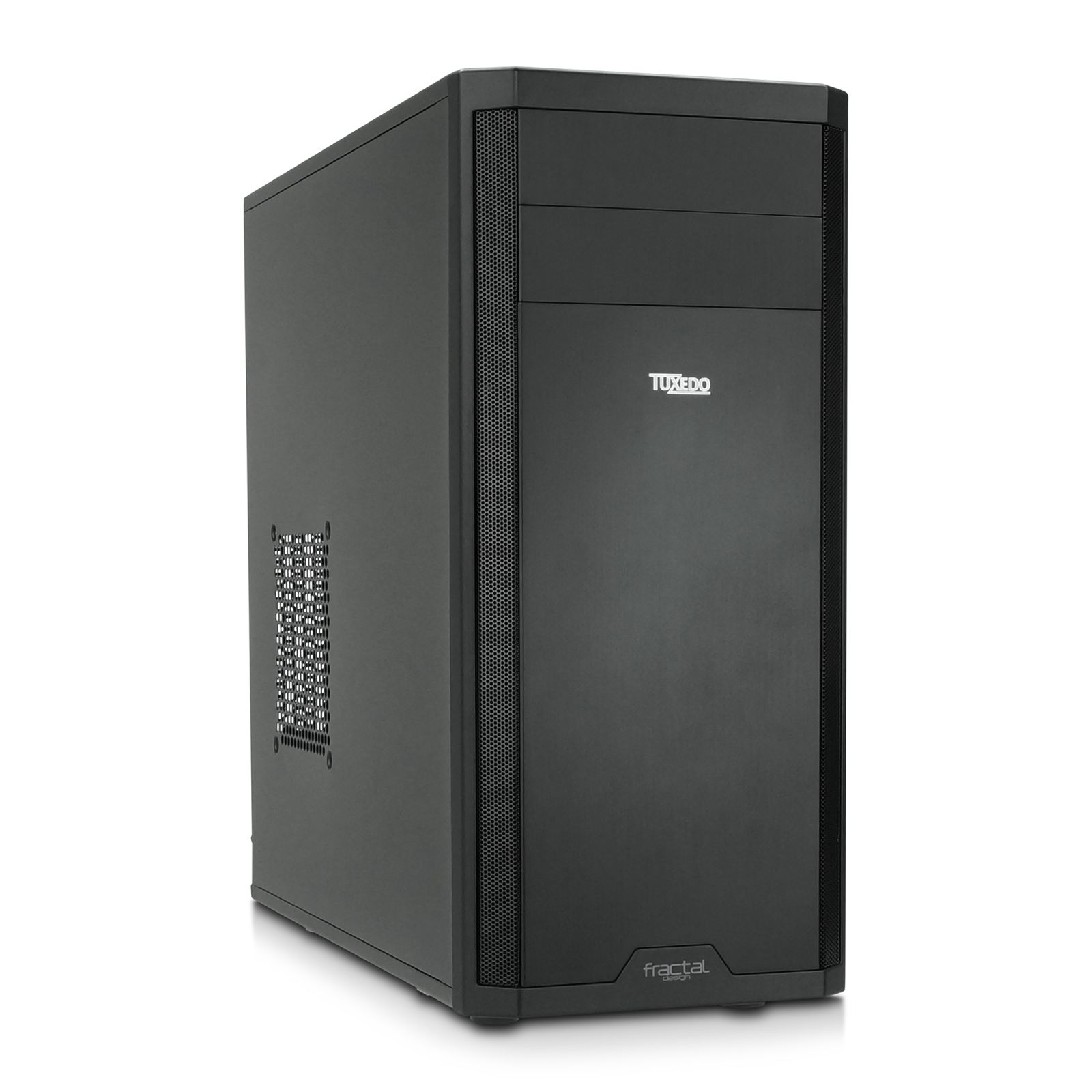

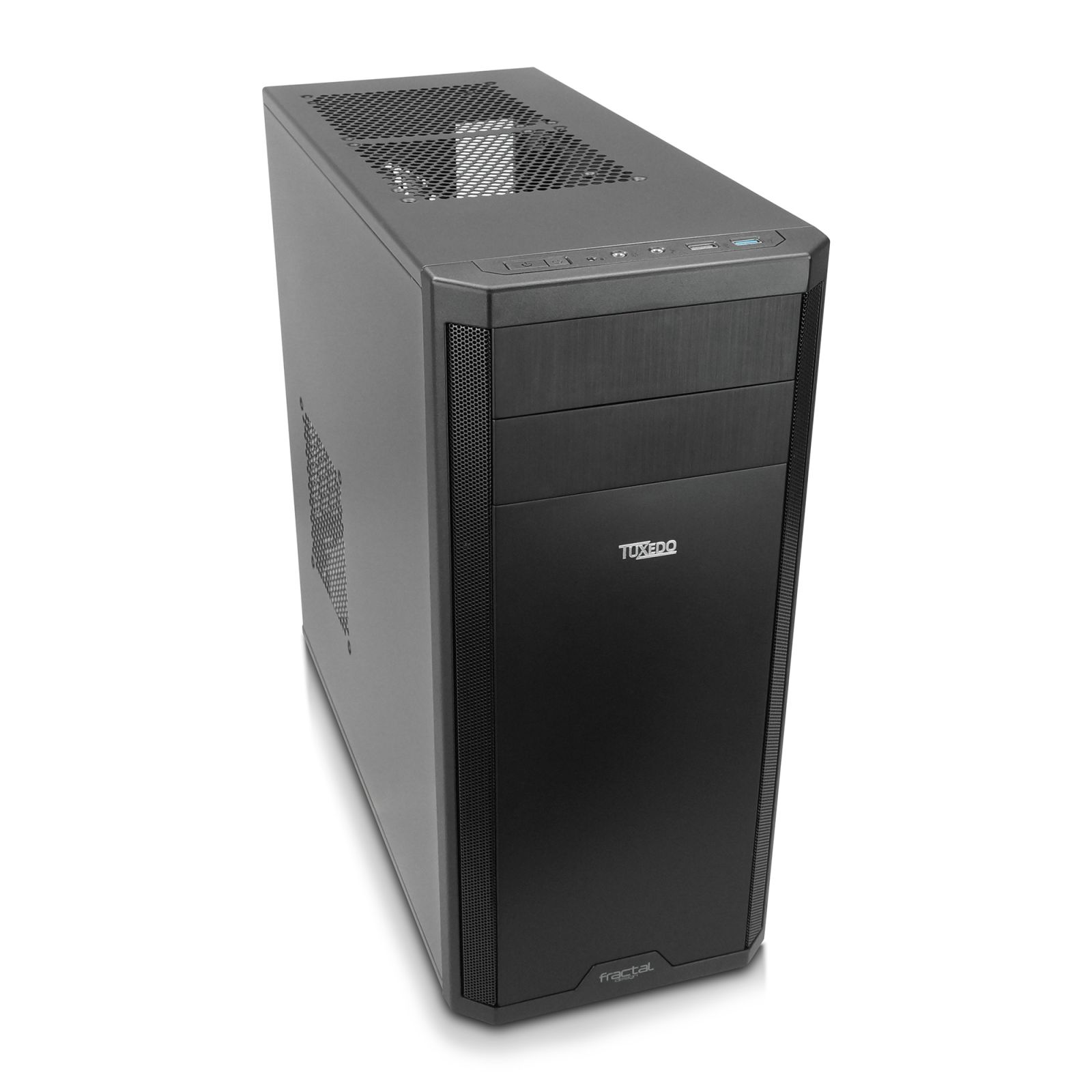

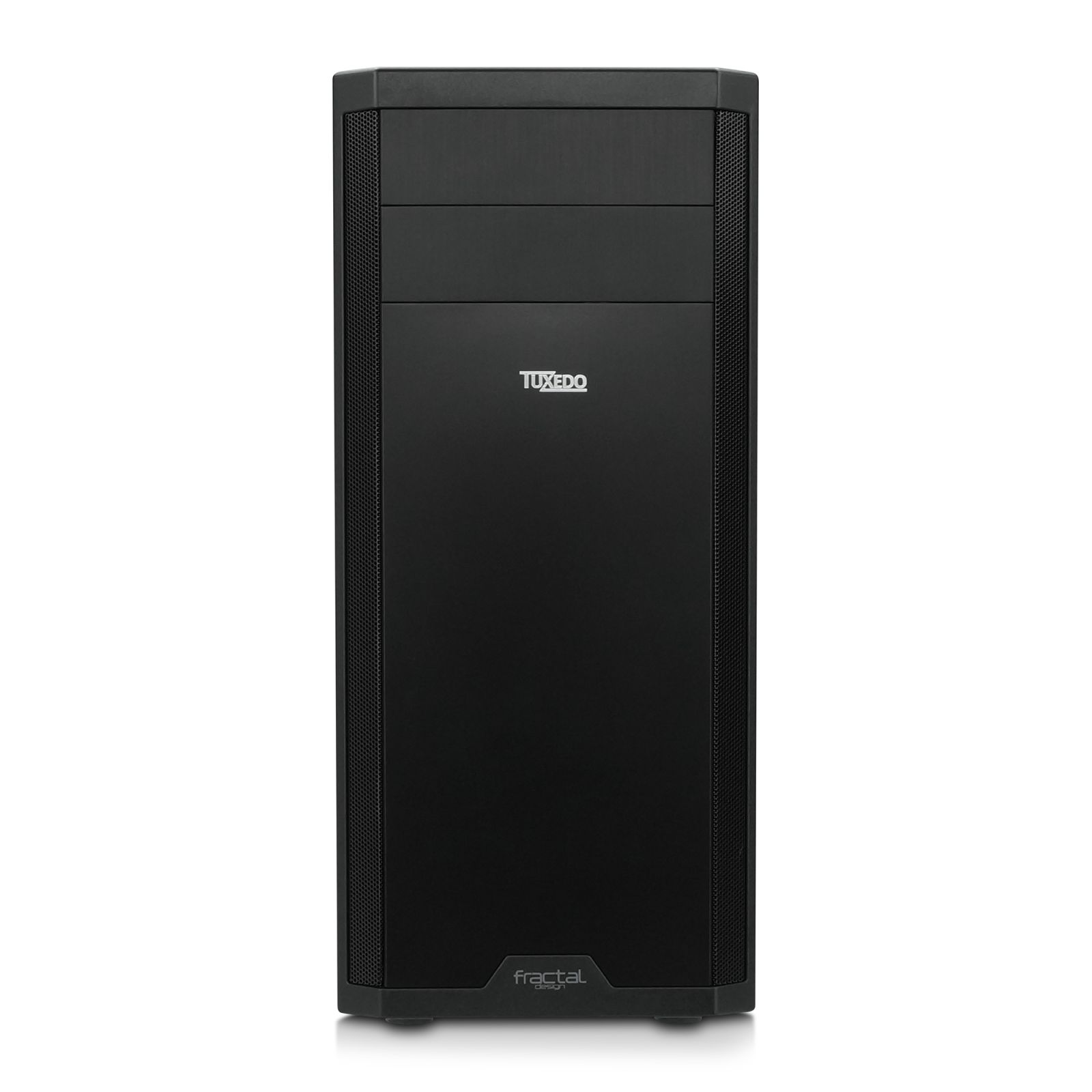

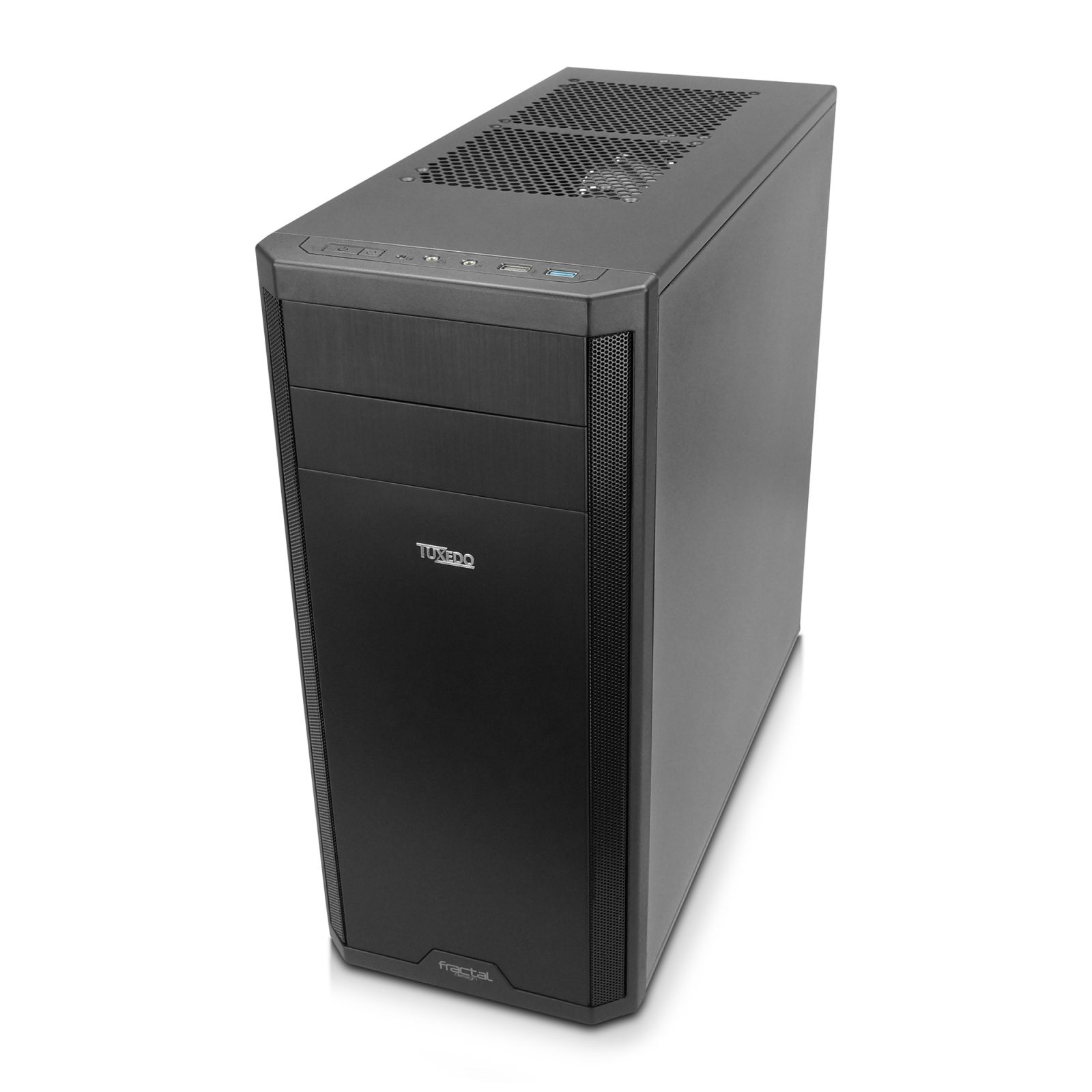

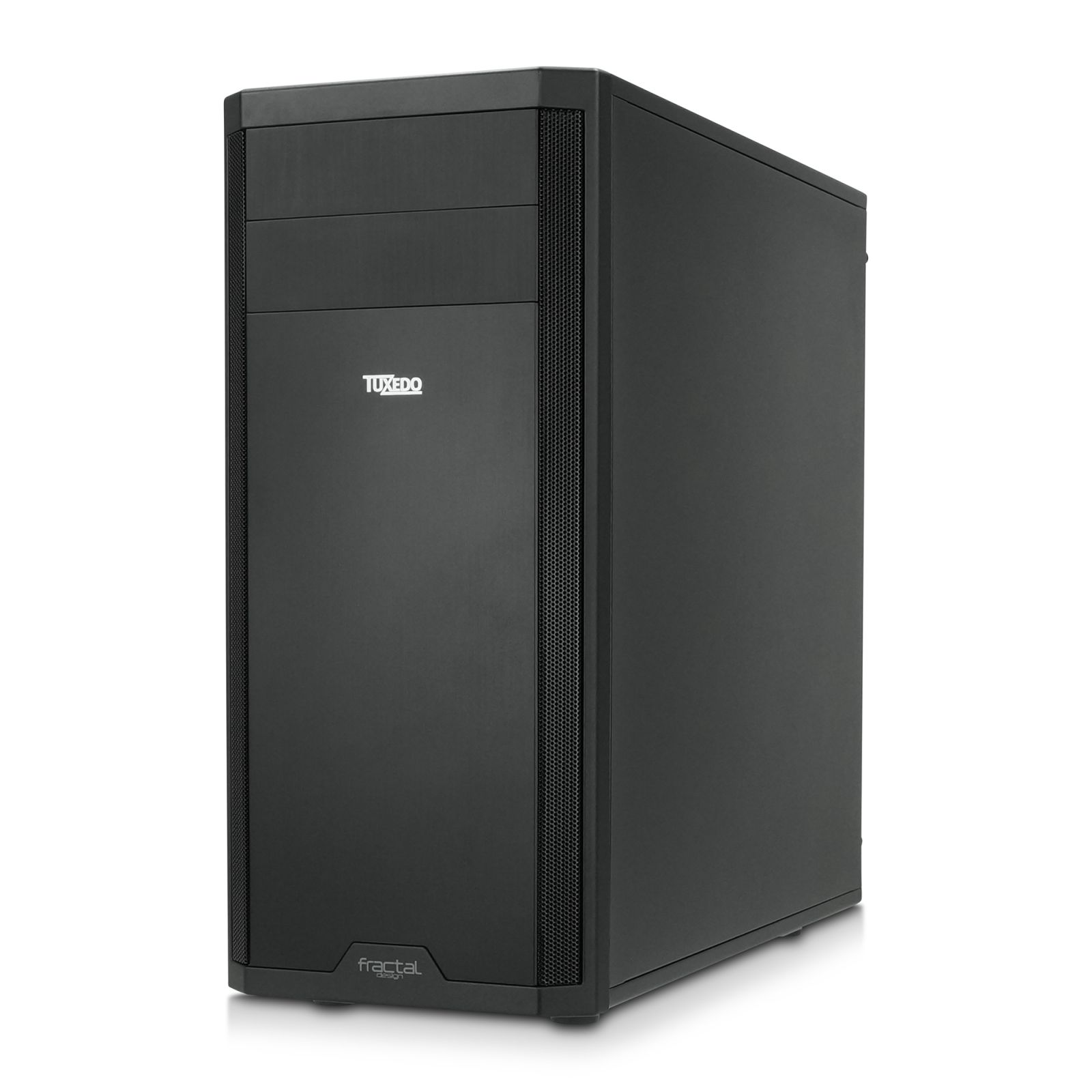

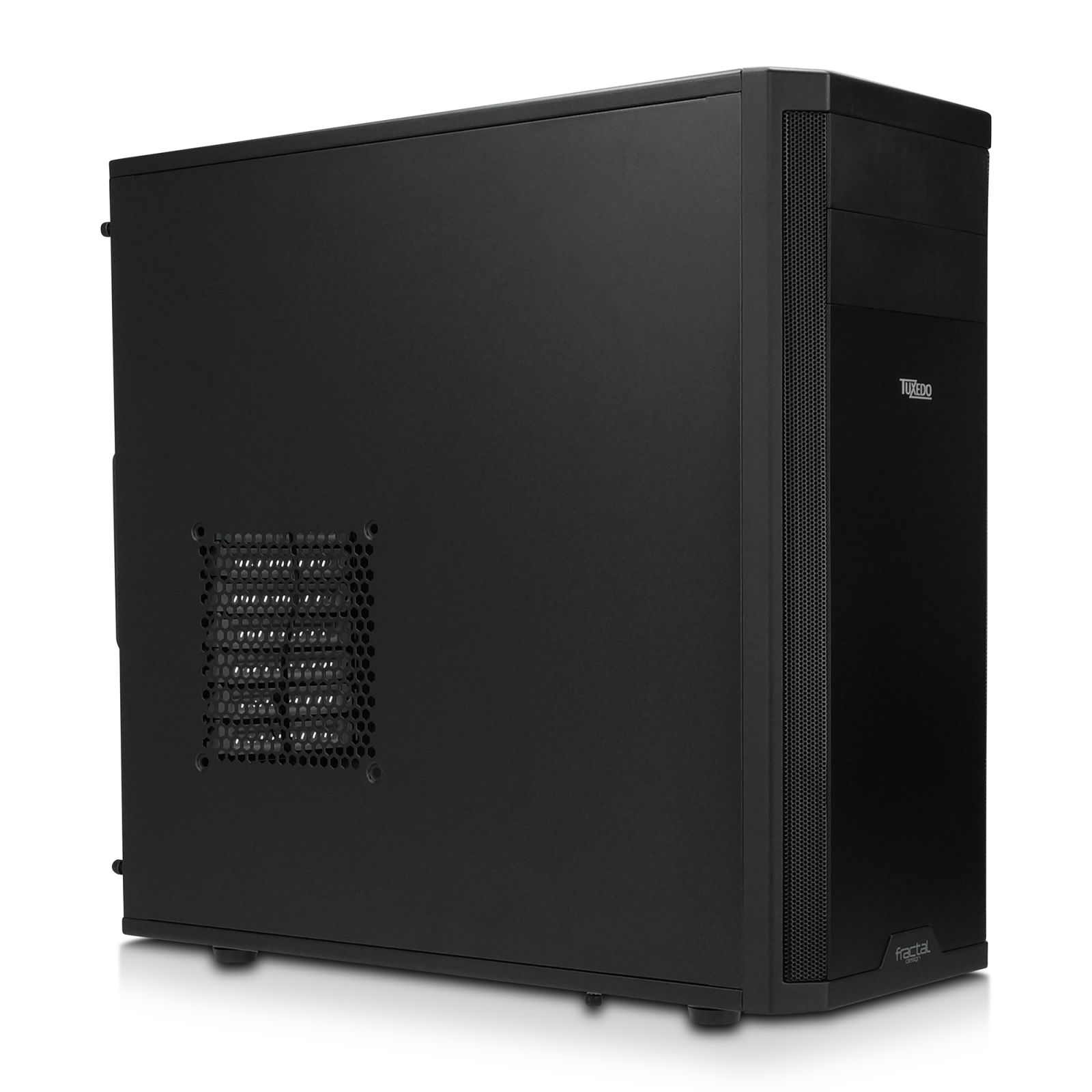

Chassis
High-quality processed noble housing:
- 45.0cm deep, 19.5cm wide and 43.1cm high
- 2x Case fans preinstalled
- For smaller housings see TUXEDO CORE One
Power supply:
Certification: 80+ Gold
Voltage: 100-240V
Power output: Individually depending on hardware equipment
Power usage: depending on hardware and system load
Noise level: Temperature controlled Ultra-Silent fan
Fan noise / Cooling / Ventilation
Temperature controlled silent fan!
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.
Ports

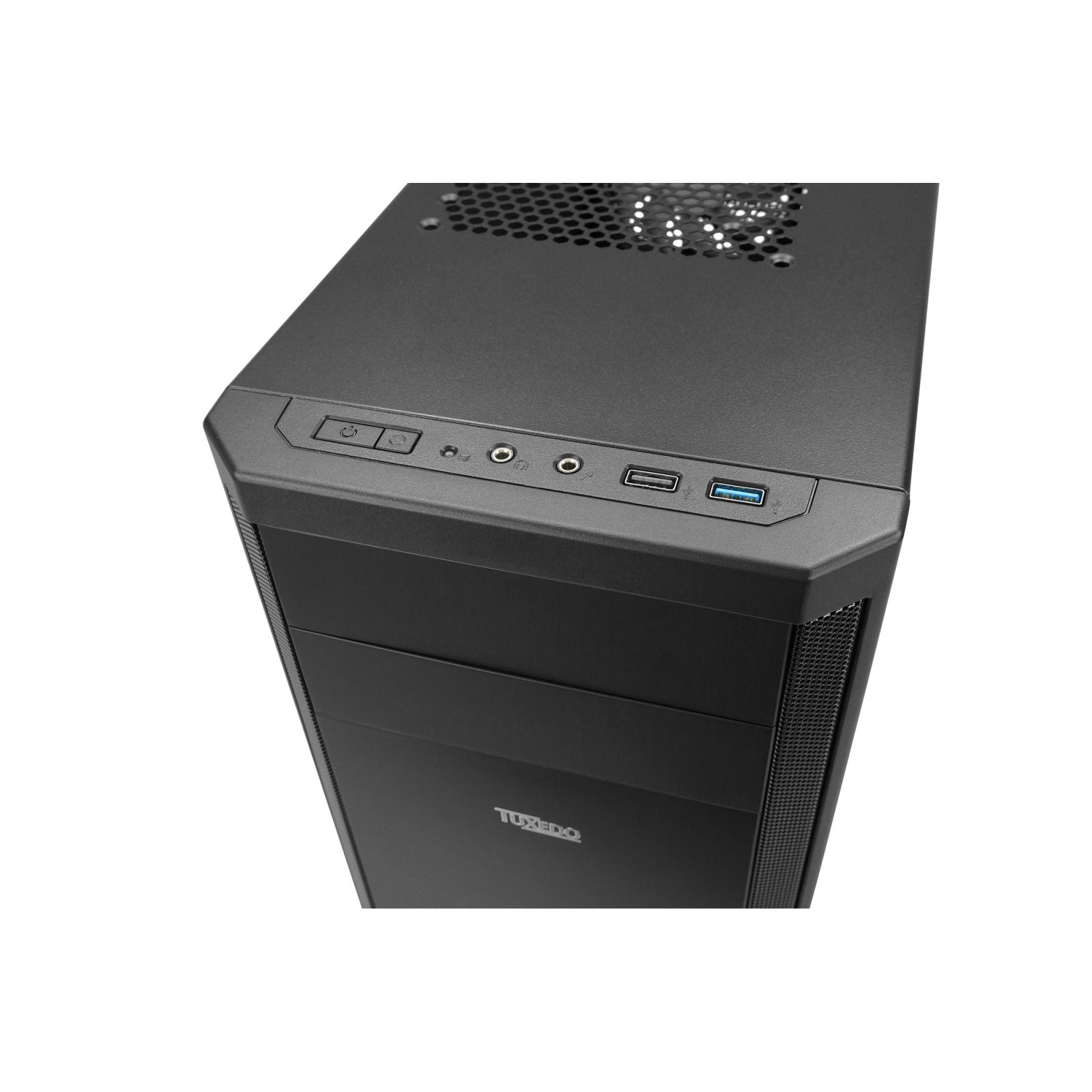

Front:
2 x USB 3.2 Gen1 (formerly USB 3.0)
1 x Headphones
1 x Microphone
Main processor
Intel Core CPU from the 12th generation "Alder Lake"
- High power CPUs capable for all tasks
- Intel Core i3-12100
4 cores (4 Performance-cores | 0 Efficient-cores) | 8 Threads | Max. 4,3 GHz | 12 MB Cache | 60 W TDP
- Intel Core i5-12500
6 cores (6 Performance-cores | 0 Efficient-cores) | 12 Threads | Max. 4,6 GHz | 18 MB-Cache | 65 W TDP
- Intel Core i7-12700
12 cores (8 Performance-cores | 4 Efficient-cores) | 20 Threads | Max. 4,9 GHz | 25 MB-Cache | 65 W TDP
- Intel Core i9-12900
16 cores (8 Performance-cores | 8 Efficient-cores) | 24 Threads | Max. 5,1 GHz | 30 MB-Cache | 65 W TDP
- High-End "K" CPUs with maxium power and possibility for overclocking
- Intel Core i5-12600K
10 cores (6 Performance-cores | 4 Efficient-cores) | 16 Threads | Max. 4,9 GHz | 20 MB Cache | 125 W TDP
- Intel Core i7-12700K
12 cores (8 Performance-cores | 4 Efficient-cores) | 20 Threads | Max. 5,0 GHz | 25 MB Cache | 125 W TDP
- Intel Core i9-12900K
16 cores (8 Performance-cores | 8 Efficient-cores) | 24 Threads | Max. 5,2 GHz | 30 MB Cache | 125 W TDP
- Intel Core i9-12900KS
16 cores (8 Performance-cores | 8 Efficient-cores) | 24 Threads | Max. 5,5 GHz | 30 MB Cache | 150 W TDP
- Efficient power-saving-CPU from T-Series
- Intel Core i3-12100T
4 cores (4 Performance-cores | 0 Efficient-cores) | 8 Threads | Max. 4,1 GHz | 12 MB-Cache | 35 W TDP
- Intel Core i5-12500T
6 cores (6 Performance-cores | 0 Efficient-cores) | 12 Threads | Max. 4,4 GHz | 18 MB-Cache | 35 W TDP
- Intel Core i7-12700T
12 cores (8 Performance-cores | 4 Efficient-cores) | 20 Threads | Max. 4,7 GHz | 25 MB-Cache | 35 W TDP
- Intel Core i9-12900T
16 cores (8 Performance-cores | 8 Efficient-cores) | 24 Threads | Max. 4,9 GHz | 30 MB-Cache | 35 W TDP
Graphics card
The power efficient graphics chip integrated in the processor can be supersedet by a more powerful NVIDIA GeForce or AMD Radeon RX graphics card.
For details, please have a look at the configurator.
Memory
Type: DDR4 DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with 2 modules)
Mass storage (SSD / HDD)
See "Storage connectors" under "Mainboard
Mainboard
Mainboard:
Manufacturer & Chipset: Intel Z690 Chipset
256 Mbit AMI UEFI BIOS (supports Coreboot)
Form Factor: ATX (30,5 x 24,4 cm)
Network / Ethernet / LAN
-1x LAN:
- 1x 2.5 Gigabit Intel I225V (2.5 Gbit / 1 Gbit / 100 Mbit)
- Supports Wake-On-LAN
- Supports PXE, uvm.
Wireless LAN / WLAN / WIFI (optional)
Intel Wi-Fi 6 AX200 Series
- Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/b/g/n/ac/ax
- Supports Bluetooth 5.2
Sound / Audio:
7.1 CH HD Audio (Realtek ALC897/ ALC892 Codec)
- High Definition Audio
- 2/4/5.1/7.1-channel
Rear Mainboard connectors:
1x RJ-45 LAN Port mit LED (ACT/LINK LED and SPEED LED)
1x DisplayPort 1.4
1x HDMI Port 2.1 mit HDR
4x USB-A USB 2.0
2x USB-A USB 3.2 Gen1 5GBit/s (backward compatible)
1x USB-A USB 3.2 Gen2 10GBit/s (backward compatible)
1x USB-C USB 3.2 Gen2x2 20GBit/s (backward compatible)
1x PS/2-Dualport
1x Flash BIOS Button
2x Antenna connectors (optional)
6x Audio: 1x Line in; 1x Front Speaker/Line-Out; 1x Rear Speaker; 1x Subwoofer; 1x Mikrofon Eingang; 1x Side Speaker Out
Mainboard connectors internally (partially populated by your configuration):
4x DDR4 DIMM-Sockel (max. 128GB)
1x PCI Express 5.0 x16 Slot, running at x16
1x PCI Express 3.0 x16 Slot, running at x4
1x PCI Express 3.0 x16 Slot, running at x1
1x PCI Express 3.0 x1 Slot
6x SATA 6Gb/s connector(s)
4x M.2 slots
1x CPU fan header
1x water cooling CPU fan header
6x system fan headers
2x system panel connectors
1x front panel audio header
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x USB 3.2 Gen 2 10Gbps Type-C port header
2x USB 3.2 Gen 1 5Gbps header
2x USB 2.0 headers
1x TBT connector (Supports RTD3)
1x Trusted Platform Module (TPM) connector
1x Clear CMOS jumper
Storage connectors:
1x M.2 Socket (M2_1)
- Supports M Key type 2242/2260/2280/22110 M.2 PCI Express module up to Gen4 x4; Supports RAID 0, RAID 1 and RAID 5
1x M.2 Socket (M2_2)
- Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4; Intel Optane Memory Ready; Supports RAID 0, RAID 1 and RAID 5
1x M.2 Socket (M2_3)
- Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 & SATA 6Gb/s; Intel Optane Memory Ready; Supports RAID 0, RAID 1 and RAID 5
1x M.2 Socket (M2_4)
- Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 & SATA 6Gb/s; Intel Optane Memory Ready; Supports RAID 0, RAID 1 and RAID 5
6x SATA 6Gb/s
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage device.
Operating systems
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in their latest version with long term support.
Using our WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! Depending on the distribution, you have the choice between different desktop interfaces. More informations, a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks.
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a physical Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are being uploaded and updated in our myTUXEDO cloud and can be found here!
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!
For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO preinstalled & configured
1x power cord
1x First steps manual incl. short technical manual
1x Mainboard manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
