    High-performance PC in an elegant Mini-ITX aluminum case

    TUXEDO Infinity M - Gen2 - Intel



    High performance, medium size, minimalistic design: TUXEDO Infinity M

    Bored of beige-colored bland designs or huge tower PC cases with a gamery look and feel? Great! So are we: TUXEDO Infinity M combines powerful desktop performance with a minimalistic yet elegant and robust aluminum chassis.

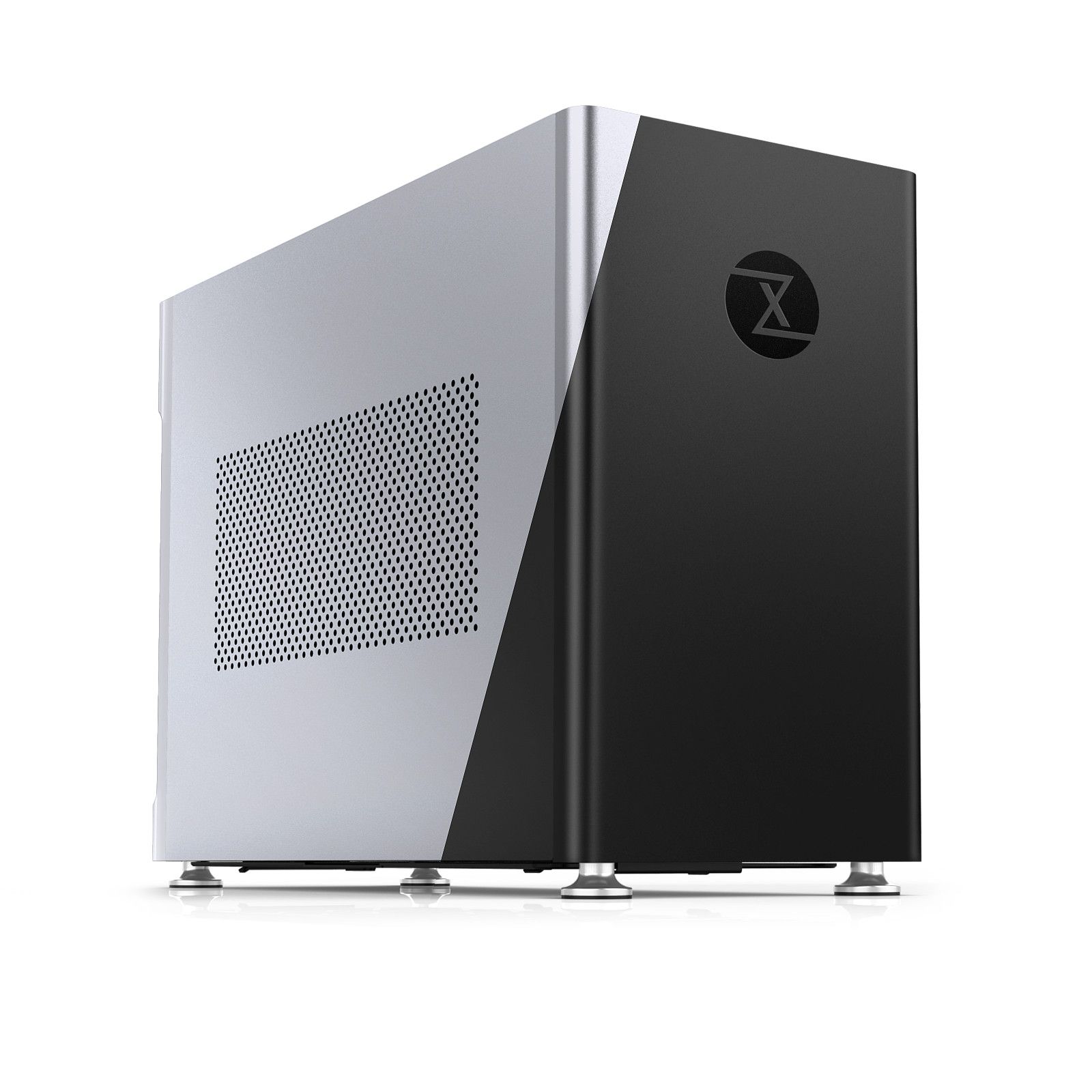

    Elegant aluminum case
    194 x 307 x 435 mm | black or silver

    Intel Core i9-14900K
    24 cores | 32 threads | 125 watts TDP

    High-performance graphics
    NVIDIA GeForce RTX | AMD Radeon RX

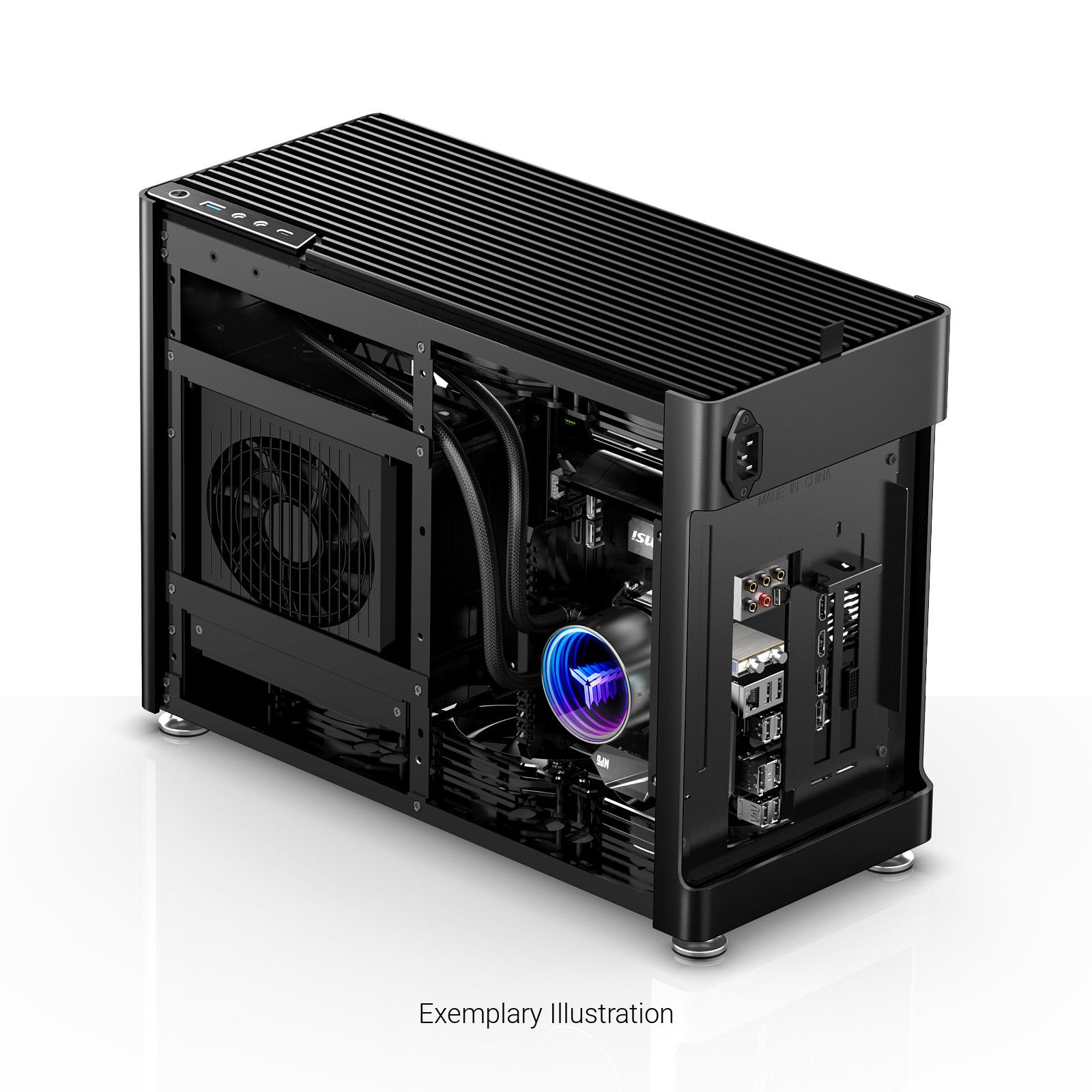

    Strong yet quiet cooling
    AIO Liquid cooling | 3x 120 mm case fans

    Behind its inconspicuous metal hood - available in black or silver -, the Infinity M features a lot of computing power if you wish so:

    With dimensions of 194 x 307 x 435 mm, the subtle-looking Mini-ITX Linux PC offers space for a powerful liquid cooling system, Intel processors up to Core i9-14900K and graphics cards up to NVIDIA GeForce RTX 4070 / AMD Radeon RX 7700 XT. Flanked by max. 96 GB RAM and four SSD memory slots (2x M.2, 2x 2.5''), TUXEDO Infinity M also accelerates highly demanding computing scenarios as well as PC games with highest graphics details.

    Icon Gehäuse

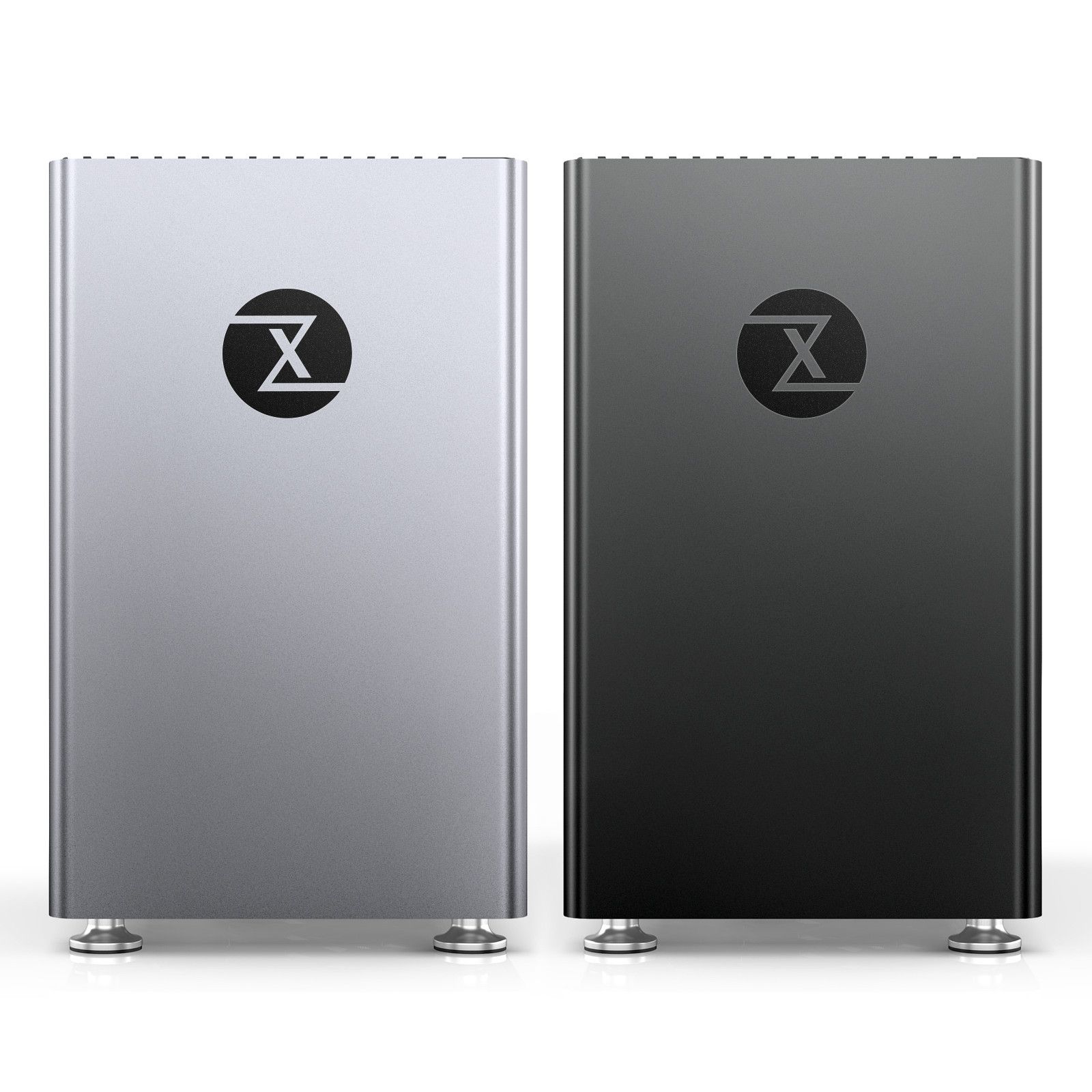

    Stylish yet minimalist aluminum case

    194 x 307 x 435 mm | Black or Silver

    Icon Kühlung

    Optimized for great cooling!

    AIO Liquid cooling  | 3x 120 mm case fans (optional)

    Icon CPU

    Up to

    Intel Core i9-14900K

    24 cores | 32 threads | 125 watts

    Icon GPU

    Optional

    NVIDIA/AMD high-performance graphics

    Geforce RTX vs Radeon RX

    Icon Speicher

    Up to

    96 GB (2x 48 GB) RAM

    SSD: 2x 2,5'', 2x M.2 | HDD: 1x 3,5''

    Icon Anschlüsse

    Plenty of ports for work & play!

    10x USB | Wi-Fi 6 | HDMI & DisplayPort

    Icon Netzteil

    Dust-Proof Design

    Low wind damping nylon 380 μm dust filter

    Dust-Proof Design

    Dust is the ultimate enemy of any cooling system, as it settles between the heatsink fins over time, preventing the hot air of being blown out of the housing unhindered.

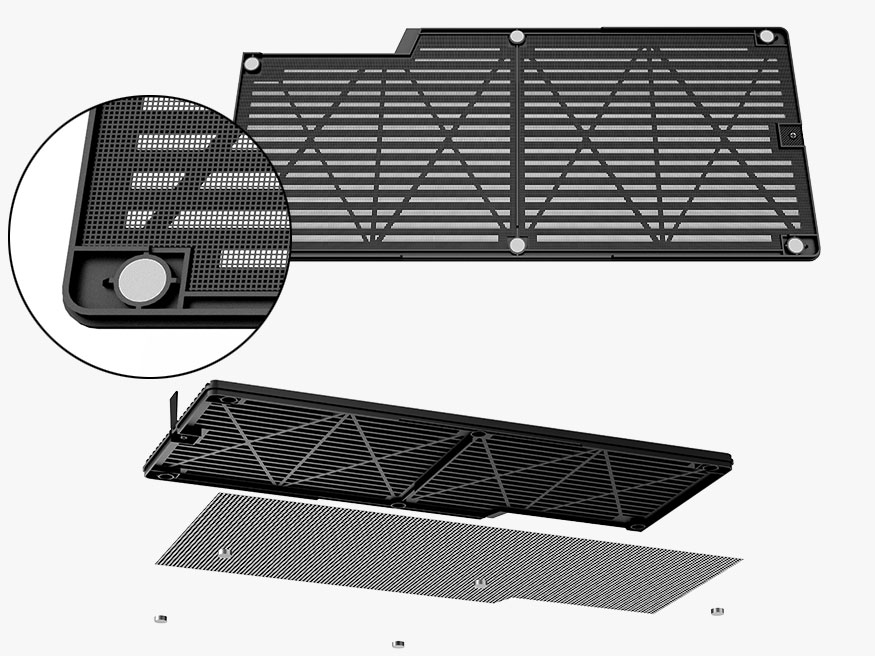

    Ultrasonic molded nylon 380 μm dust filters on all 4 sides of the case keep your TUXEDO Infinity M as dust-free as possible while at the same time allowing more air to be sucked in than conventional PVC dust filters for better cooling.

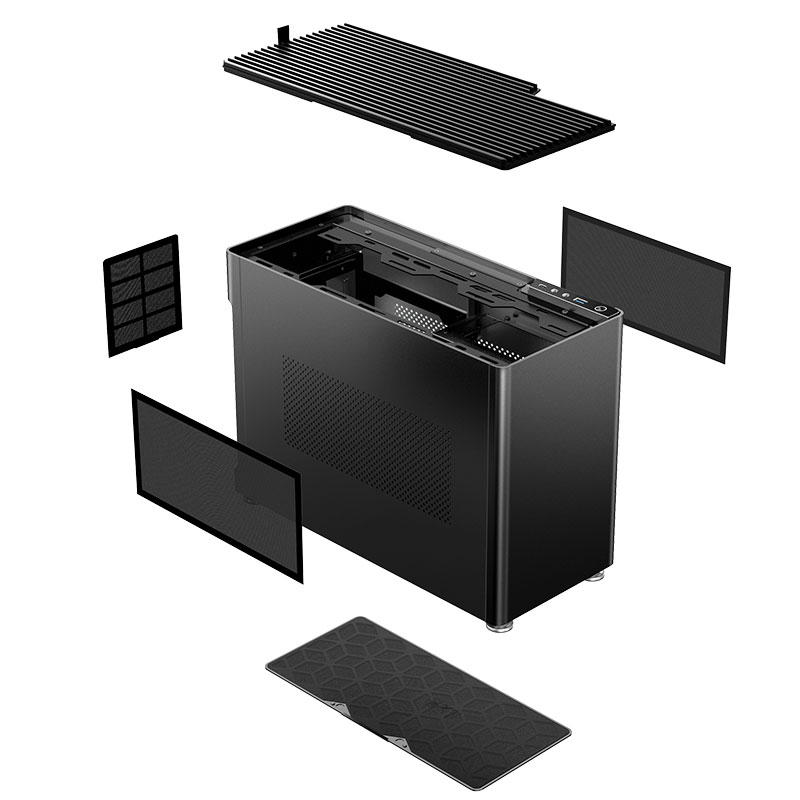

    TUXEDO Infinity M Dust Filters

    The magnetic attachment allows quick and easy removal for cleaning purposes for a nearly dust-free, quiet and cool running Linux desktop PC.

    TUXEDO Infinity M Dust Filters
    ×


    Configure and order now
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel
    • TUXEDO Infinity M - Gen2 - Intel

    Technical Details

    Chassis

    High-quality and elegant aluminium case in 2 colors (silver and black).

    Dimensions: 194 mm x 307 mm x 435 mm (without case feet). Case feet height: 20.5mm

    Materials:
    Front / back / side panel(s): 3 mm aluminum magnesium alloy (sandblasted)
    Top panel (grill): ABS + PC Mechanical purposes plastic
    Inner structure: 1.0 +1.5mm steel panel with black powder coat finishing
    Case feet: Dual layers case stand with aluminum alloy

    Power supply:
    Certification: 450W: 80+ Bronze | 850W: 80+ Platinum
    Voltage: 230V
    Power output: 450W or 850W.
    From NVIDIA RTX or AMD RX graphics the 850W power supply is needed!
    Power usage: depending on hardware and system load
    Noise level: Temperature controlled Silent fan



    Cooling options:
    Top: 240 mm Liquid Cooling Radiator (optional)
    Bottom: 3x 120mm case fans (highly recommended for NVIDIA or AMD graphics card)

    Fan noise / Cooling / Ventilation
    Temperature controlled silent fan!
    At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.



    Ports

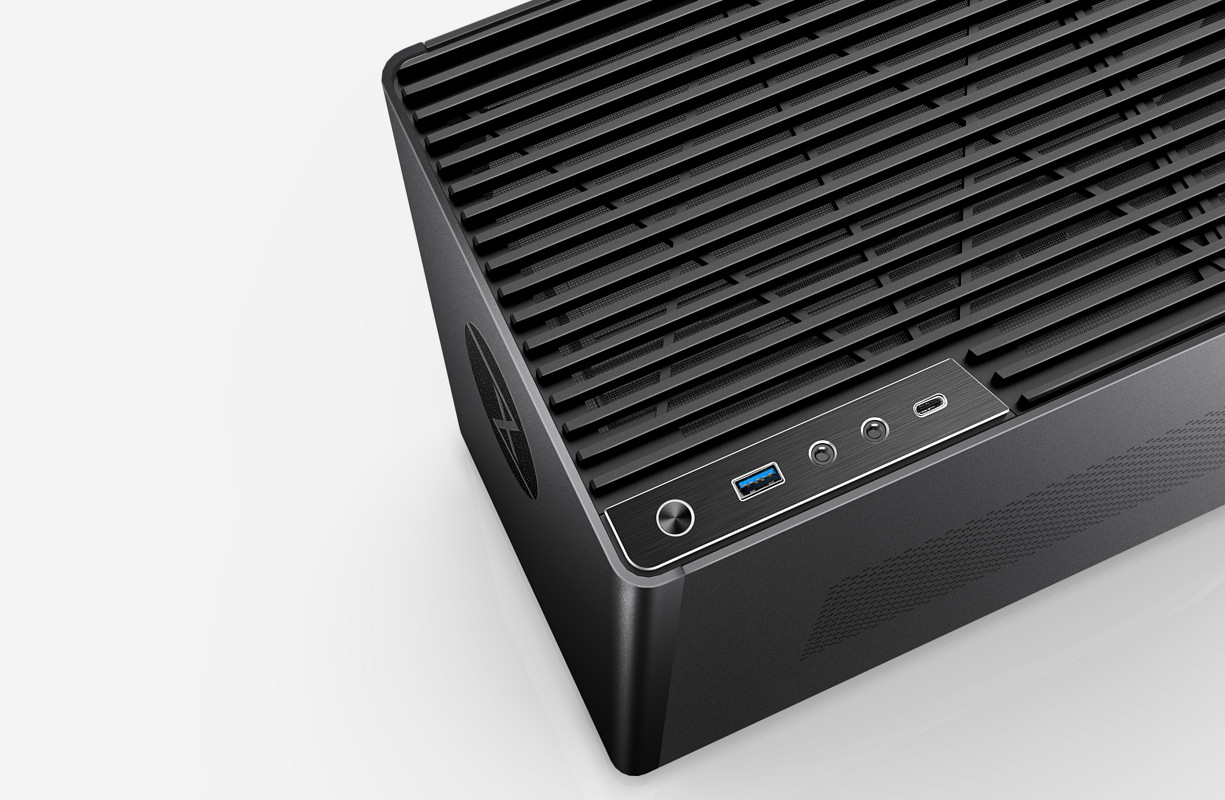

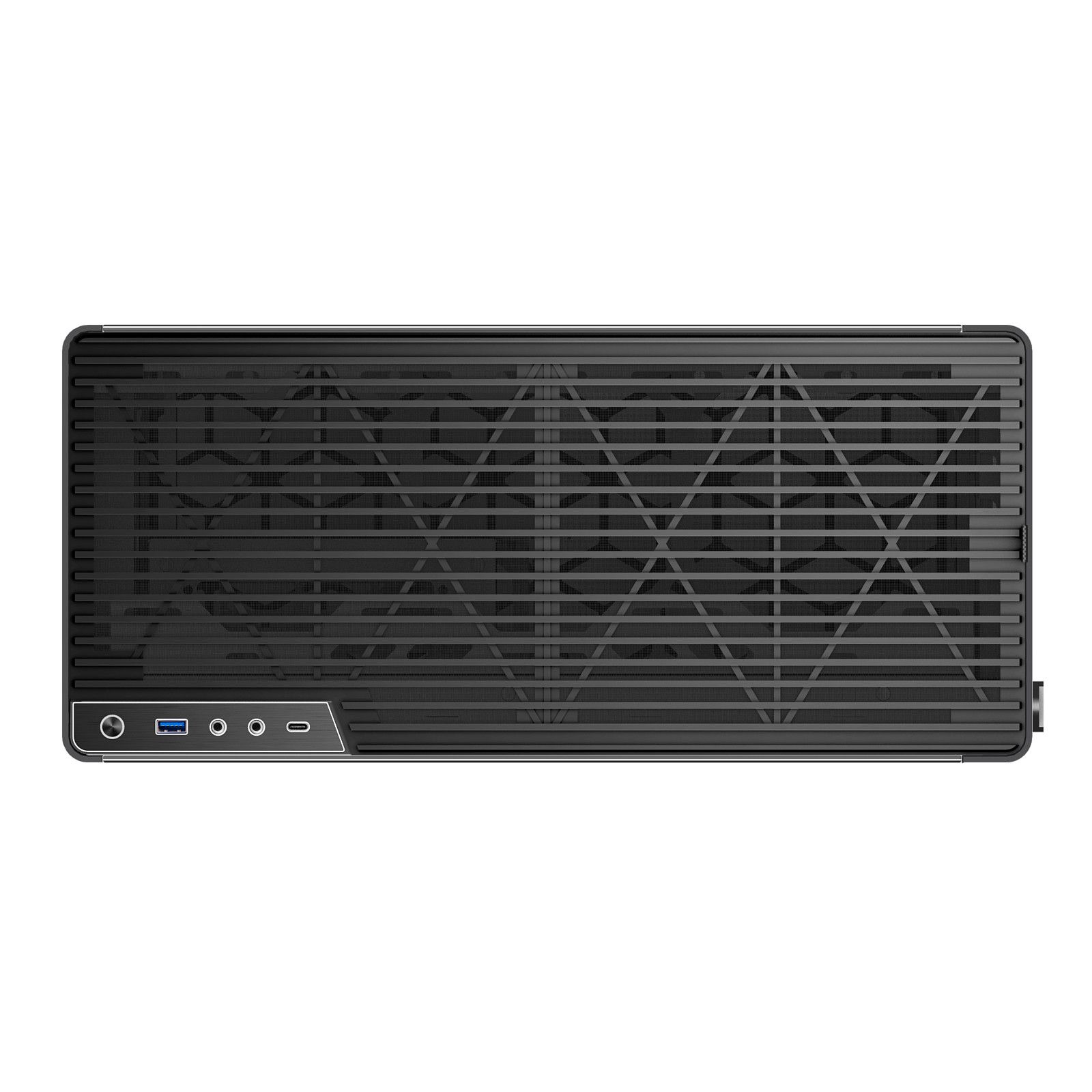

    Front:
    - Power button
    - USB-A 3.0
    - USB-C 3.1 Gen2
    - Audio and microphone jacks



    Main processor

    Energy efficient powersaving processors of the "T" series (TDP: 35 Watts)
    High-performance processors for gaming and content creation (TDP: 65 Watts)



    Graphics card

    The power efficient graphics chip integrated in the processor can be supersedet by a more powerful NVIDIA GeForce or AMD Radeon RX graphics card.
    For details, please have a look at the configurator.



    Memory

    Type: DDR5 DIMM
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Dual channel mode (with 2 modules)



    Mass storage (SSD / HDD)

    See "Storage connectors" under "Mainboard



    Mainboard

    Mainboard:
    Manufacturer & Chipsatz: Intel B760 Chipset
    256 Mbit AMI UEFI BIOS
    Formfactor: Mini-ITX (17 x 17 cm)

    Network / Ethernet / LAN
    - 1x LAN:
        - 1x 2.5 Gigabit Realtek 8125BG (2.5 Gbit / 1 Gbit / 100 Mbit)
        - Supports Wake-On-LAN
        - Supports PXE

    Wireless LAN / WLAN / WIFI
    Intel Wi-Fi 6 AX200 Series
    - Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps
    - Supports 802.11 a/b/g/n/ac/ax
    - Supports Bluetooth 5.2

    Sound / Audio:
    7.1 CH HD Audio (Realtek ALC897 Codec)
    - High Definition Audio
    - 2/4/5.1/7.1-channel

    Rear Mainboard connectors:
    1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    1x DisplayPort 1.4
    1x HDMI Port 2.1 (4K@60Hz) with HDR
    2x USB-A USB 2.0
    4x USB-A USB 3.2 Gen1 5GBit/s (backward compatible)
    1x USB-A USB 3.2 Gen2 10GBit/s (backward compatible)
    1x USB-C USB 3.2 Gen2 10GBit/s (backward compatible)
    2x Antenna connectors
    3x Audio: 1x Line in; 1x Line-Out; 1x microphone

    TUXEDO Intel B760 Mainboard

    Mainboard connectors internally (partially populated by your configuration):
    2x DDR5 DIMM sockets
    1x PCI Express 5.0 x16 slot, running at x16
    4x SATA 6Gb/s connector(s)
    2x M.2 slots
    1x CPU Fan
    1x Pump Fan
    1x System Fan
    2x Front Panel
    1x Chassis Intrusion
    1x Front Audio
    1x Addressable V2 RGB LED connector
    1x RGB LED connector
    1x TPM pin header (Support TPM 2.0)
    2x USB 2.0
    2x USB 3.2 Gen1 Type A
    1x USB 3.2 Gen2 Type C

    Storage connectors:

    1x M.2 Socket (M2_1)
    - Supports M Key type 2280 M.2 PCI Express module up to Gen4 x4
    1x M.2 Socket (M2_2)
    - Supports M Key type 2280 M.2 PCI Express module up to Gen4 x4 & SATA 6Gb/s
    4x SATA 6Gb/s





    Configure and order now


    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:

    • Help & Support Section
    • TUXEDO Tomte





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



    For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO preinstalled & configured
    1x power cord
    1x First steps manual incl. short technical manual
    1x Mainboard manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery



    Configure & Order

    Current Configuration
    Product No.: 12200017

    • [[ configurationAvailableNow() ? '' : 'Preorder now!' ]]


    • excl. taxes & customs excl. Shipping
      x

    was successfully added to your shopping cart.
    OK Show cart

    excl. taxes & customs excl. Shipping

    Delivery Time Frame

    The stated delivery/production times apply from Mon. to Fri. 8 a.m. - 4 p.m. and of course refer to the time of receipt of payment.

    Payments

    If you pay by PayPal, Amazon-Pay or credit card and successfully complete the payment process immediately after placing your order, we will ship your order within the specified time. The same applies to payment on invoice for B2B. When paying in advance, you must allow 2-3 working days for the bank to process your payment.

    Pre-orders

    Delays in the start of production cannot be ruled out for pre-orders. However, we make every effort to avoid these. However, should there be any deviations in the delivery date, we will inform you in good time.



    Service & Support

    Welcome to TUXEDO Support - how can we help you?

    Linux at TUXEDO

    Are you wondering if Linux is right for you? Our team will be happy to answer your questions and explain details about the free operating system at TUXEDO.
    Let the advantages and services convince you!

    Hardware

    Notebook, PC, both - and which model? Our technical service team also provides advice on selection, equipment and puts together suitable offers for your technical requirements.

    Questions and Answers

    Frequently asked questions and the corresponding answers can be found here. If you cannot find a solution to your problem here, it is also worth taking a look at the instructions section.


    Find out more

    Instructions and Tips

    Most situations can be solved quickly and easily by yourself. This saves you time and you can use your device directly again. We provide you with instructions, first steps and short tips for all TUXEDO models.


    Find out more

    System Recovery

    Even in the case of a case, you don't have to rely on us: Your device can be reset to the factory settings - completely automatically! Everything is included with your order and you can get started right away.


    Find out more

    Technical Service

    Our competent technicians are also happy to help with service requests. You have different possibilities to contact us. We are personally there for you Monday to Friday from 9 am to 1 pm and from 2 pm to 5 pm. But also outside these times, you can contact our team with your request by e-mail.
    An extra function is available in your customer account for repair requests (RMA).



    Contact

    We are personally there for you Monday to Friday from 9 am to 1 pm and from 2 pm to 5 pm (German time). But also outside these times you can contact our team with your request by e-mail. Please include your customer number, the model name of your laptop or PC and as detailed a description of your request as possible. The more details you give us, the faster we can process your request!

    We might not be able to answer questions about third party hardware or software. For questions about popular open source software (Thunderbird, Filezilla...) please contact a forum e.g. ubuntuforums.org. The research effort for application specific setup is immense and not manageable at the current time. Basic compatibility questions e.g. are of course still welcome!

    An extra function is available in your customer account for repair requests (RMA).



    Image of Tux

    Linux compatible
    image of 5 years warranty badge

    Up to 5 Years Warranty
    stylized image of a Rocket

    Immediately ready for use
    image of germany with a wrench in the center

    Assembled in Germany
    image of germany with a section sign in the center

    German Data Privacy
    stylized image of a tech support worker

    German Tech Support

    Guidance

    • Service & Support
    • B2B
    • Newsletter


    Mo - Fr: 9-13 & 14-17h
    +49 (0) 821 / 8998 2992

    About TUXEDO

    • Why TUXEDO
    • TUXEDO Control Center
    • TUXEDO Tomte
    • TUXEDO WebFAI
    • TUXEDO OS
    • TUXEDO Aquaris
    • Individual logos and keyboards

    Help & Support

    • Downloads & Drivers
    • System Diagnostics
    • Frequent questions (FAQ)
    • Instructions
    • Help with my device
    • Revocation right
    • Shipping costs & delivery times
    • Payment methods

    News & more

    • News & Blog
    • Press
    • Newsletter
    • Event Calendar
    • Jobs & Career
    • Sponsoring

    Community


    Your Linux specialist since 2004

    • Accessibility
    • Privacy policy
    • Imprint
    • Battery disposal
    • Conditions of Use

    Shipping costs & delivery times

    We ship your order to almost all countries, in Europe mostly even free of charge! The respective shipping costs and the cost threshold above which we will cover the costs for you can be found here or for international shipping in the table below.




    Free shipping within Germany

    There are no shipping costs within Germany for goods worth €100 or more.



    7.99 € shipping cost at max!

    No matter how many small articles you order, such as USB stick card reader, LAN adapters or fan articles, with us, you pay a maximum of 7.99 € shipping costs.

    • 7.99 € shipping fee for all orders below 100 € of goods
    • Free shipping from 100 € total value of goods

    You can check all occurring shipping costs or if we even deliver for free right before sending your order!




    International delivery

    Here are the shipping costs as well as the amount threshold for your order. The threshold is referring to the total amount of your order, which enables free shipping.


    Taxes and customs outside the EU:

    For orders outside the EU there might be additional duties, taxes or charges needed to be paid by the customer. These don't have to be paid to the supplier, but to local authorities. Please check for any details with your local customs or tax authorities before ordering! But as a benefit you don't have to pay German taxes, this means you save up to 19%!
    Due to the Brexit and the associated changes, there may be delays of several days in customs clearance on site for deliveries to the UK. This is not within our sphere of influence, so we ask for your understanding.




    ⚠️   Countries to which we unfortunately cannot ship, and information on how you can still order from us, can be found here!
    Country Shipping Fee Free Shipping From
    Albania 99,00 EUR -
    Andorra 59,00 EUR -
    Belarus Temporarily no delivery possible 59,00 EUR -
    Belgium 8,49 EUR 100 EUR
    Bulgaria 15,99 EUR 160 EUR
    Denmark 8,49 EUR 100 EUR
    Estonia 15,99 EUR 160 EUR
    Faroe Islands 129,00 EUR -
    Finland 14,99 EUR 150 EUR
    France 9,99 EUR 120 EUR
    Greece 22,90 EUR -
    United Kingdom 9,99 EUR 120 EUR
    Hong Kong 199,00 EUR -
    India 199,00 EUR -
    Ireland 14,99 EUR 150 EUR
    Island 129,00 EUR -
    Italy 9,99 EUR 120 EUR
    Japan 99,00 EUR -
    Canada 99,00 EUR -
    Croatia 34,90 EUR 500 EUR
    Latvia 15,99 EUR 160 EUR
    Lithuania 15,99 EUR 160 EUR
    Luxembourg 8,49 EUR 100 EUR
    Macau 199,00 EUR -
    Malta 34,90 EUR 500 EUR
    Macedonia 59,00 EUR -
    Moldova 199,00 EUR -
    Monaco 19,00 EUR -
    Montenegro 99,00 EUR -
    Netherlands 8,49 EUR 100 EUR
    Norway 14,99 EUR 150 EUR
    Austria 8,49 EUR 100 EUR
    Poland 15,99 EUR 160 EUR
    Portugal 14,99 EUR 150 EUR
    Romania 15,99 EUR 160 EUR
    San Marino 9,99 EUR 120 EUR
    Sweden 14,99 EUR 150 EUR
    Switzerland 13,99 EUR 150 EUR
    Serbia 34,90 EUR 500 EUR
    Singapore 199,00 EUR -
    Slovakia 15,99 EUR 160 EUR
    Slovenia 15,99 EUR 160 EUR
    Spain (without Canary Islands) 14,99 EUR 150 EUR
    Czech Republic 15,99 EUR 160 EUR
    Ukraine Temporarily no delivery possible 129,00 EUR -
    Hungary 15,99 EUR 160 EUR
    USA including Hawaii 99,00 EUR -
    United Arabic Emirates 199,00 EUR -
    Cyprus 34,90 EUR 500 EUR
    Qatar 199,00 EUR -
    ⚠️ Countries to which we unfortunately cannot ship, and information on how you can still order from us, can be found here!




    Time of delivery

    If not stated differently in the article's description, we deliver goods in:

    • 7-10 working days within Germany
    • 10-12 working days outside Germany

    For orders paid in advance, the delivery time starts with receipt of the payment. Please keep in mind that there is no delivery on Sundays or on holidays.
    For goods delivered as download, there will be no shipping fees due.
    Access data for downloads are sent out via e-mail 1-3 working days after contract formation. For orders with advanced payment, we will deliver after receiving the payment. You can download the item by using the link sent to you via e-mail.

    Self-pick-up of orders is not possible, unfortunately.
