TUXEDO InfinityBook 14 - 14" matte Full-HD IPS + passive / fanless + aluminium case + Intel Core i5 CPU + 8GB RAM + very long battery life + USB-Type-C etc. - TUXEDO InfinityBook 14 v2 (Archived) - TUXEDO Computers

  ATTENTION: To use our store you have to activate JavaScript and deactivate script blockers!
Thank you for your understanding!


  • TUXEDO InfinityBook 14 v2 (Archived)



    • Price:
      incl. 19 % Tax excl. Shipping costs

    • 10900143
    • [INFO] |

    • Assembling Time:
      Product gets built individually for you!
    • x

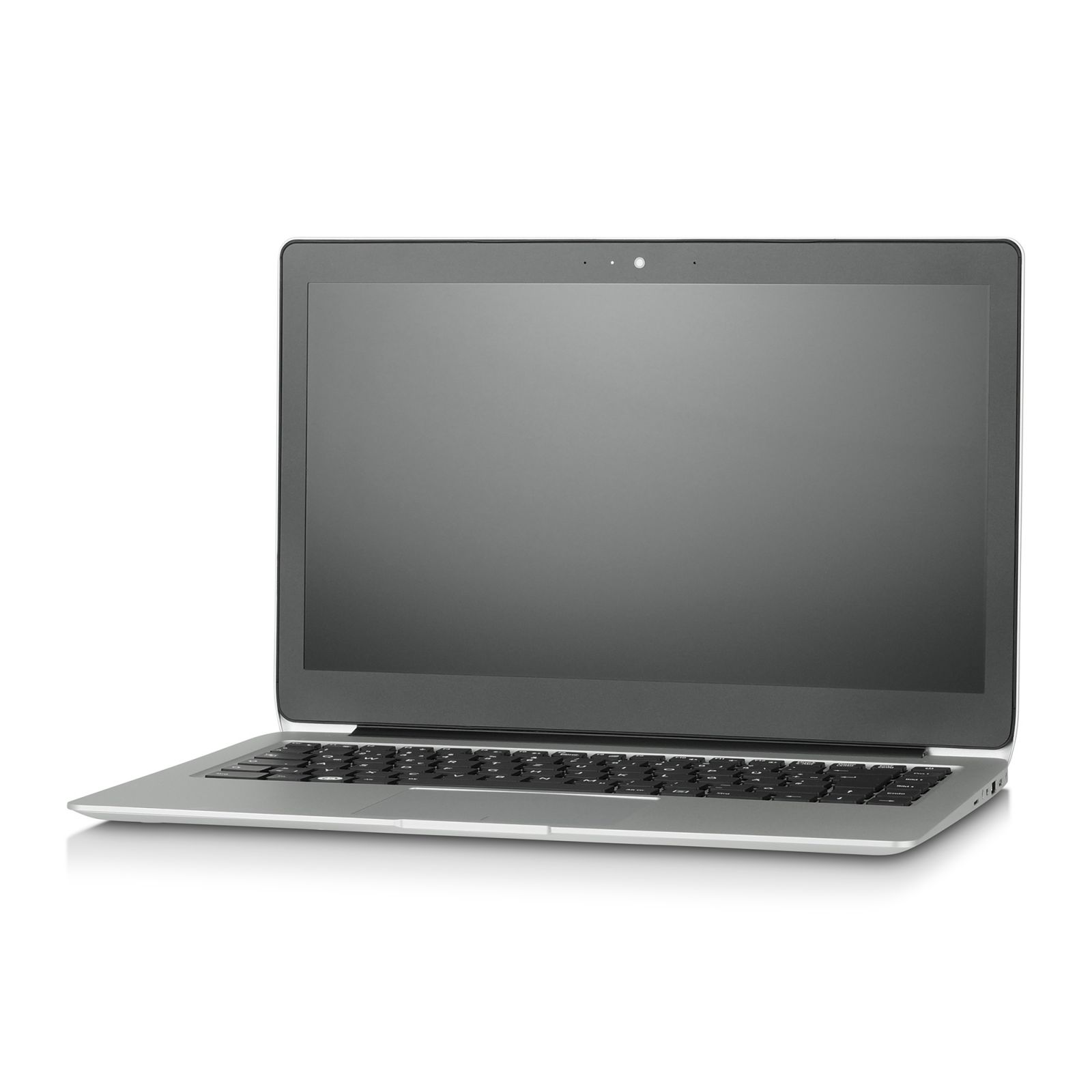

    TUXEDO InfinityBook because it is a TUXEDO notebook with almost infinite possibilities. Mobility, running time, performance, quality and flexibility in a single device with unibody completely made of aluminium! Combined with the Linux versions specially adapted for this notebook, it is a unique device with a unique user experience.

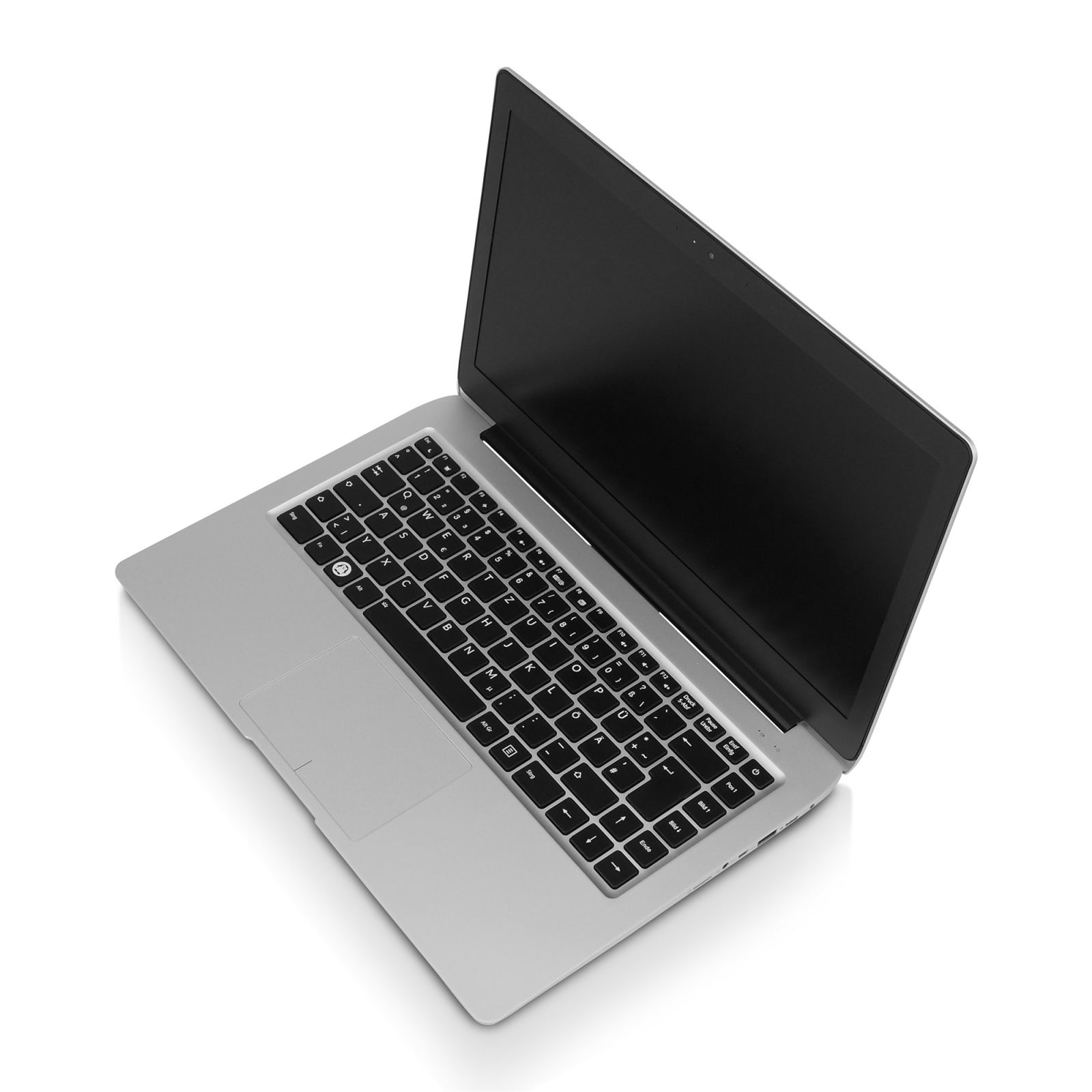

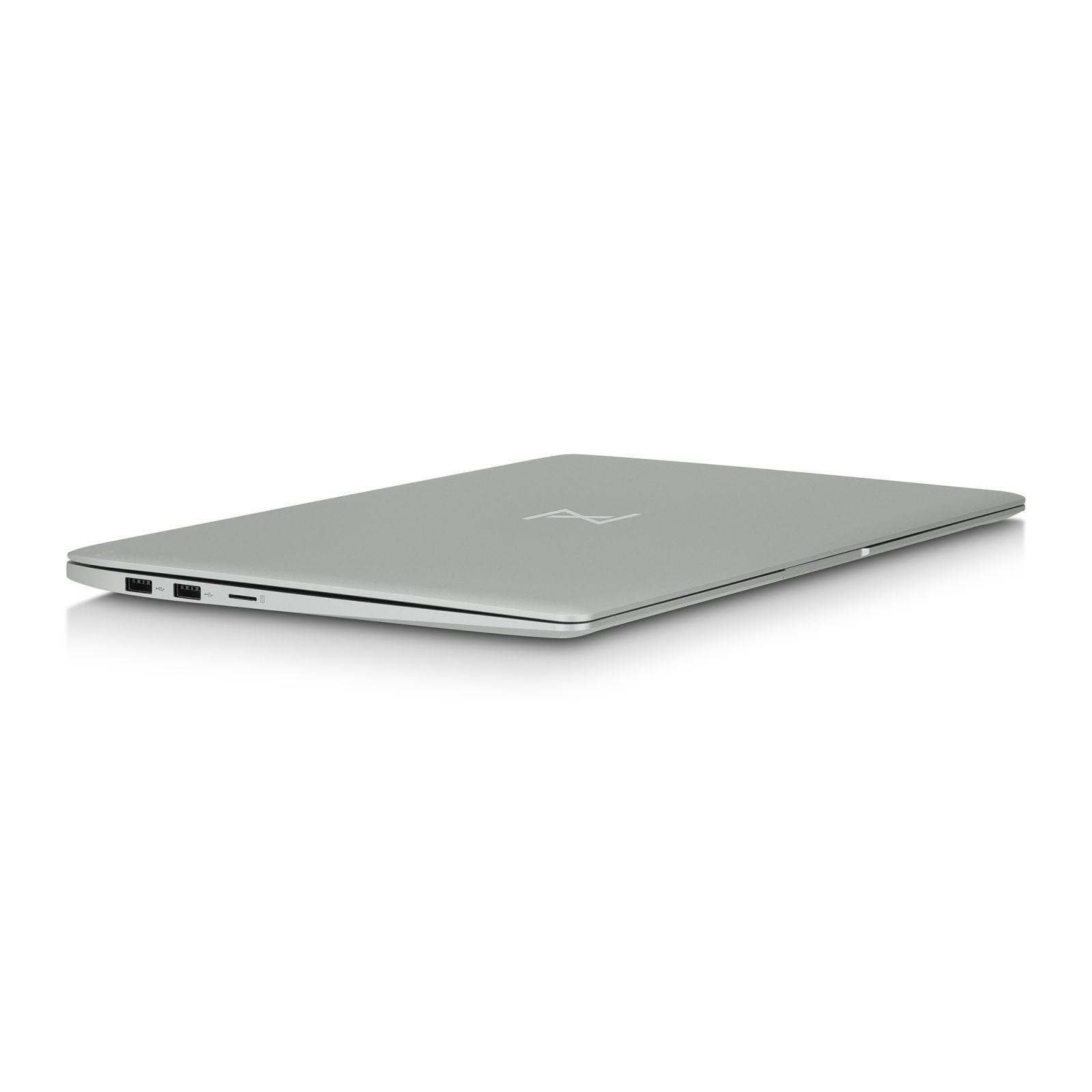

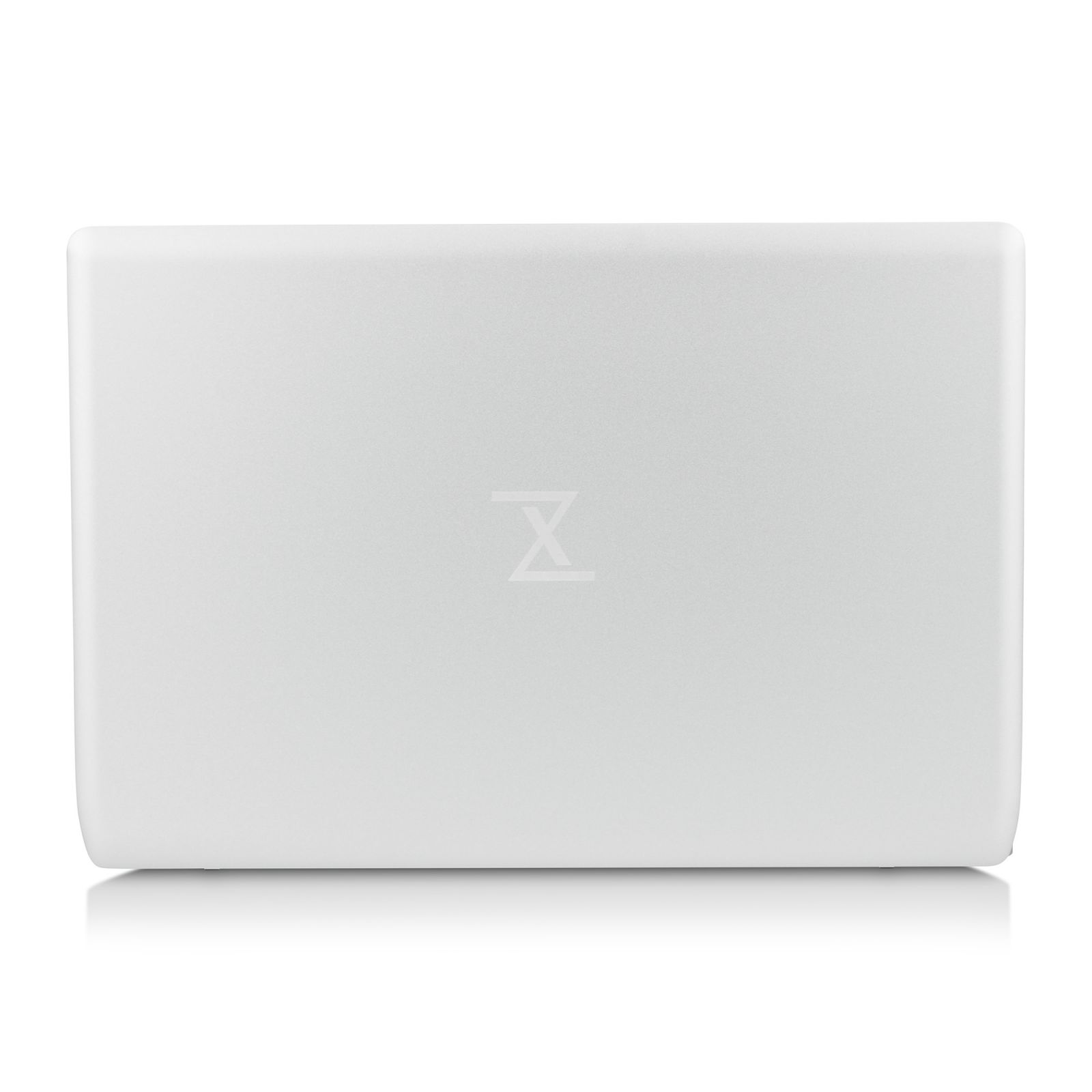

    The completely new developed InfinityBook 14 has a completely made of aluminium housing.
    It does not require any fan at all, so it is passively cooled and does not generate any noise! This makes it the ideal companion for meetings, lectures or in hotels.
    No fan, no moving parts! Thus nothing that can get dusty. It can also be safely placed on a tablecloth, couch or in bed and not overheated!
    Opening made easy. Keyword "one-hand opening"

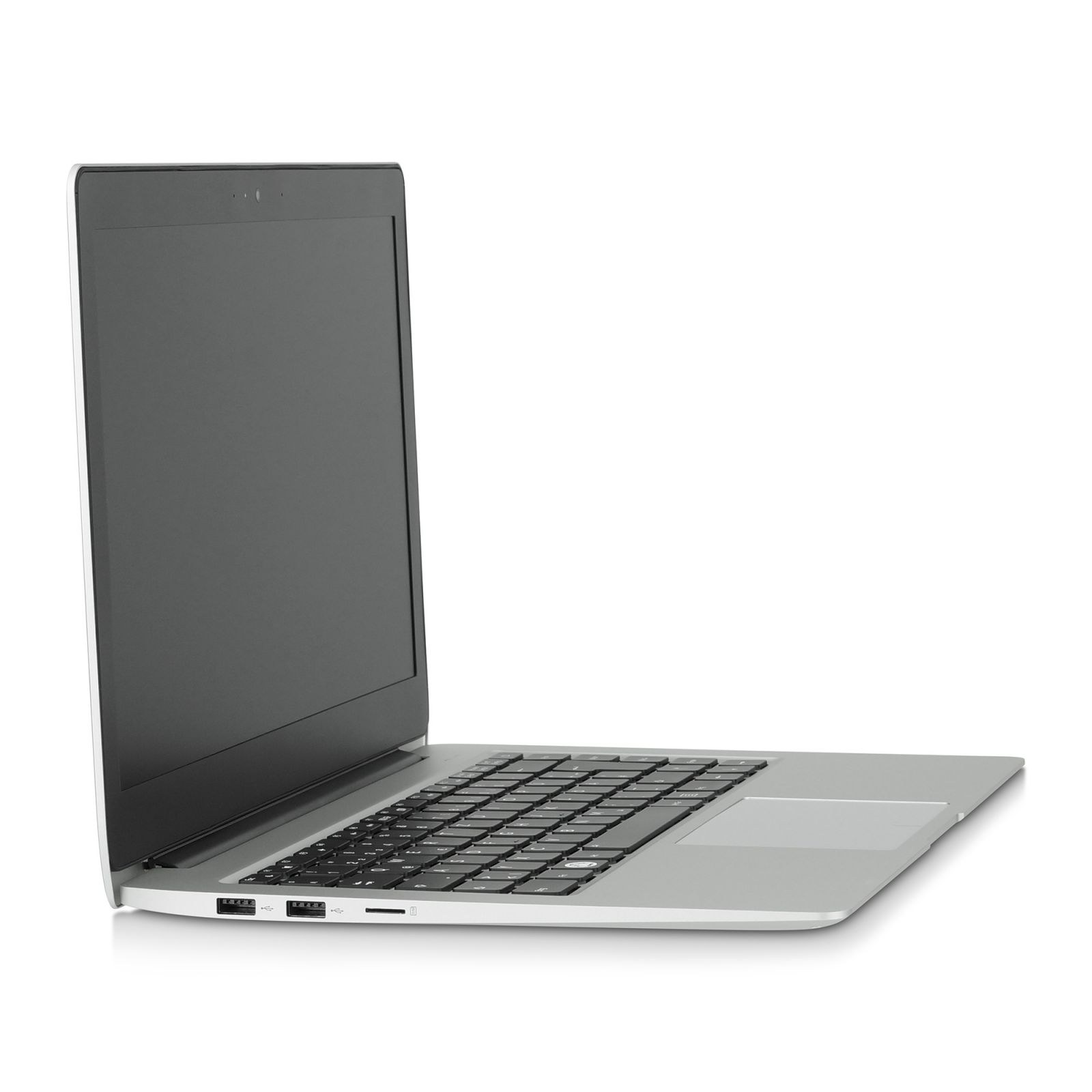

    The end-to-end display hinges provide a strong hold and allow operation with just one hand, so the notebook body does not have to be held in place when opening.

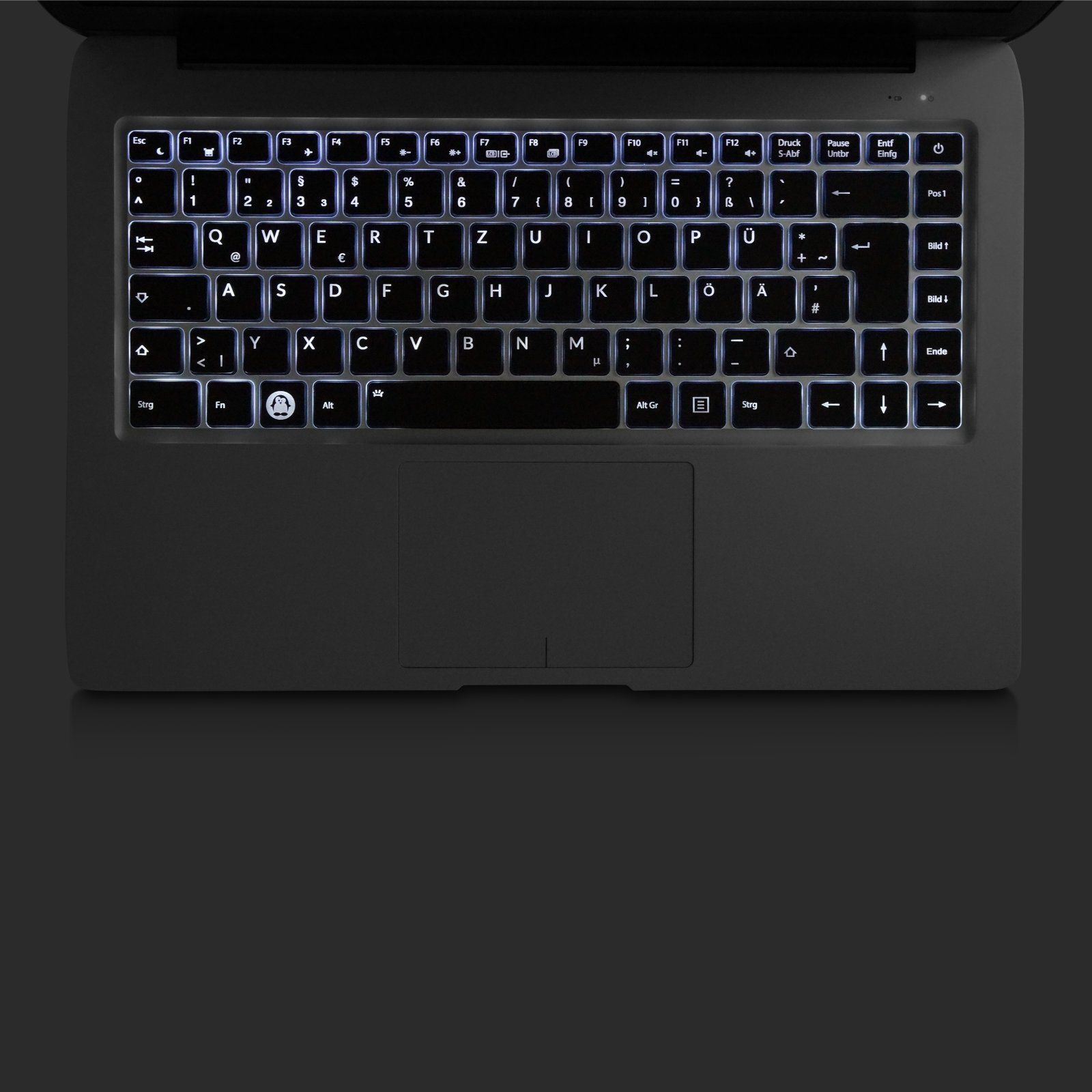

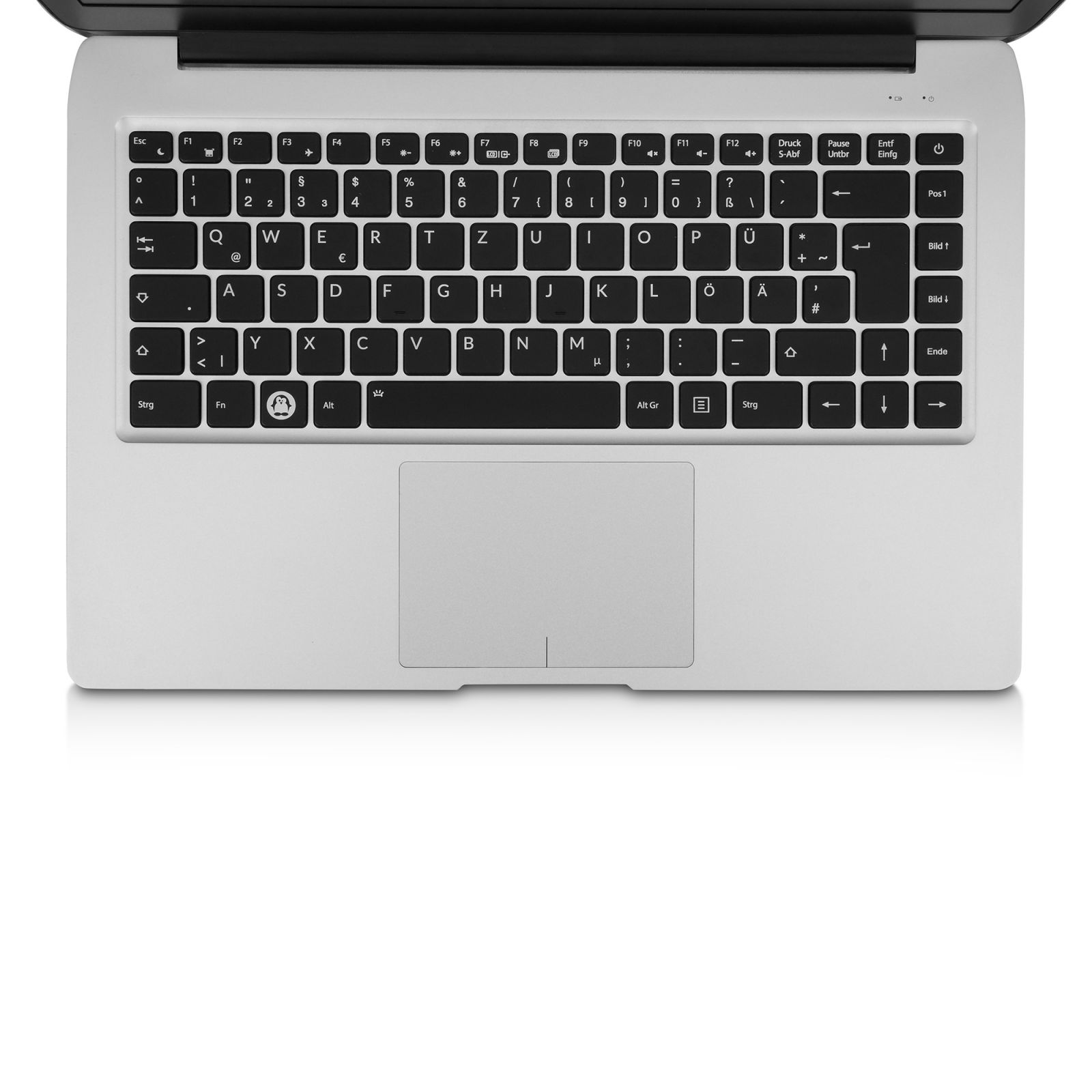

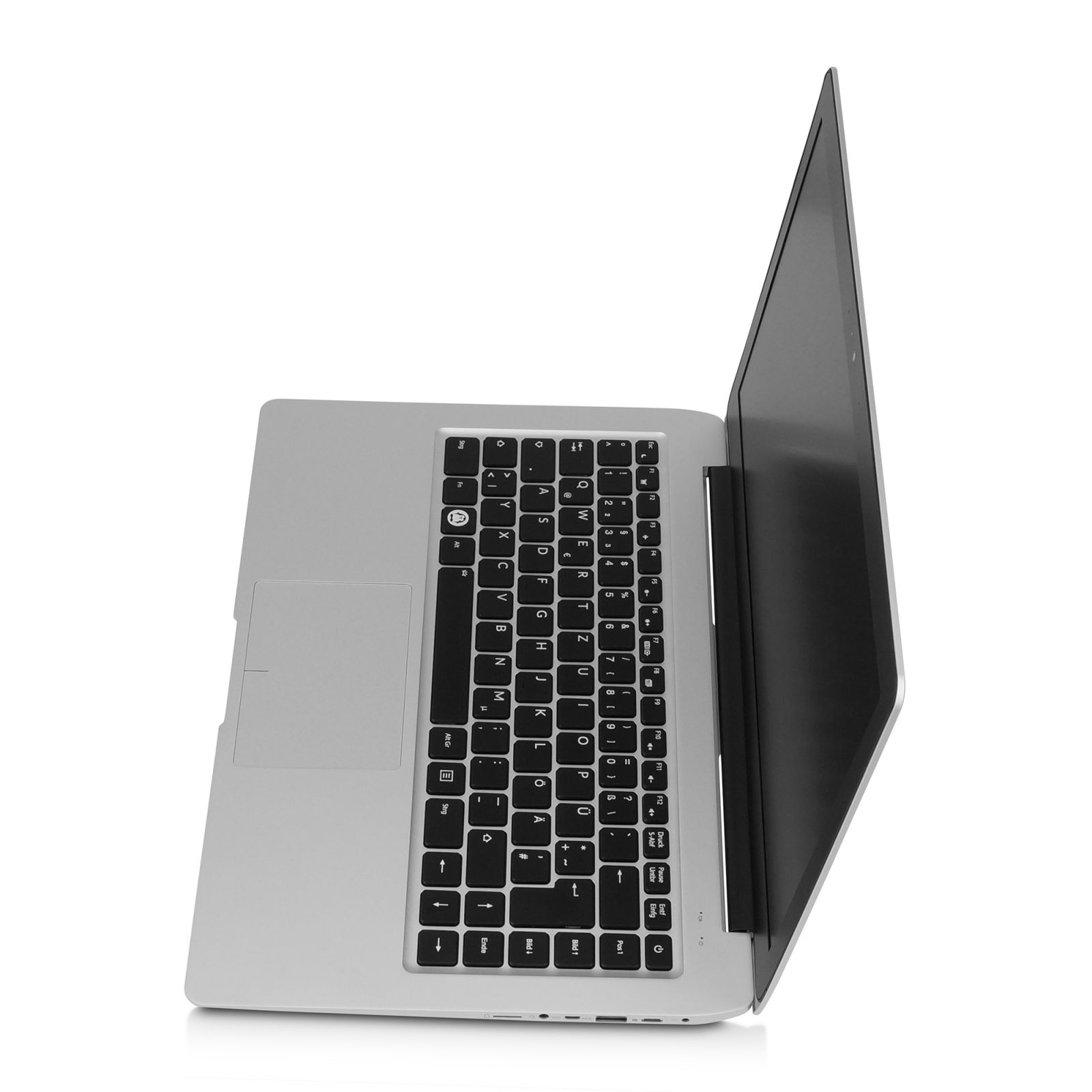

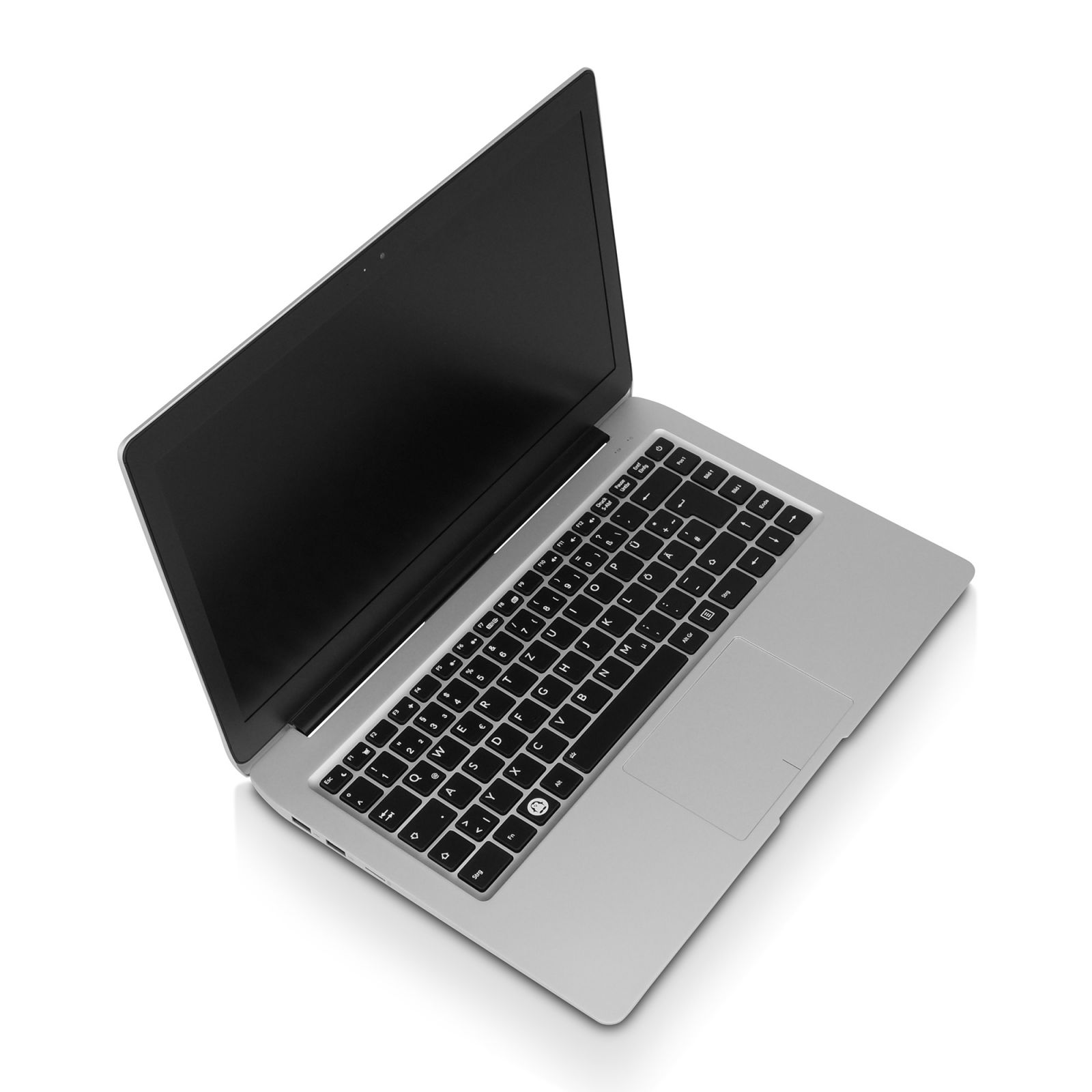

    The illuminated keyboard with penguin-super-button in full DIN-A4 size is also a novelty in this class. Even multiple typists can use it on the go without having to long for their stationary keyboard ;)

    bis zu 12 Stunden AkkulaufzeitThe passive 14-inch variant of our InfinityBook series is uncompromisingly designed for runtime.
    The maximum runtime for our tests is almost 24 hours!
    The operating time under normal load, with WLAN and Bluetooth and 50% display brightness is approx. 12 hours! In our tests in meetings, during which the display switches off completely due to inactivity, we came up with an energy consumption of 25% after 5 hours.

    These extreme runtimes allow the most economical processor series from Intel. In the InfinityBook 14, an Intel Core i5-8200Y dual-core processor with up to 3.9 Ghz per core performs its work completely noiselessly, since it is passively cooled - i. e. without a fan.

    Decent computing power requires storage space and enough memory.
    And the InfinityBook 14 does not lack this either. An M. 2 slot is available for M.2 SSDs with up to 2 TeraByte storage space. 8 GB RAM are already built in as you choose!

    The InfinityBook 14 does not make any compromises on the connection side either:

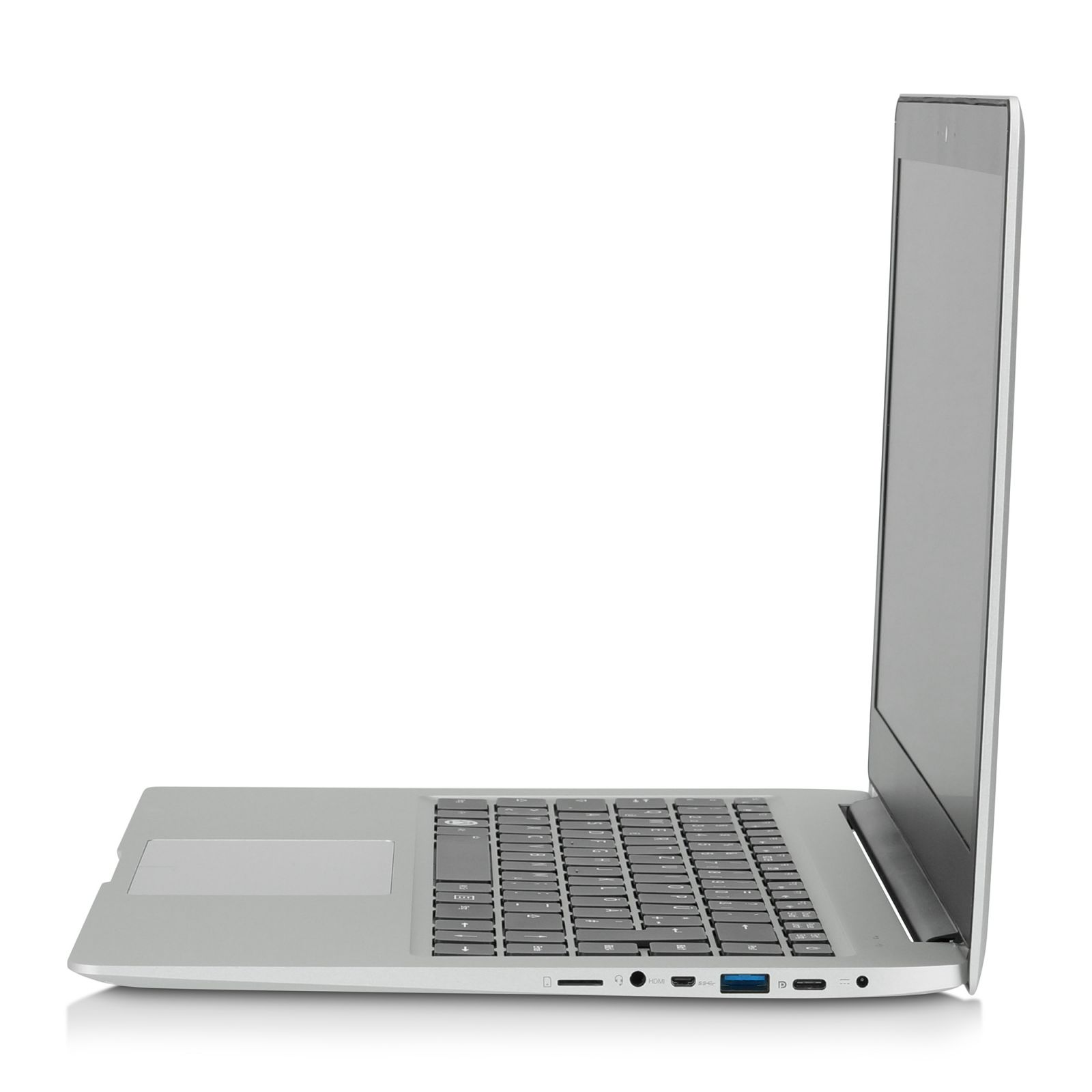

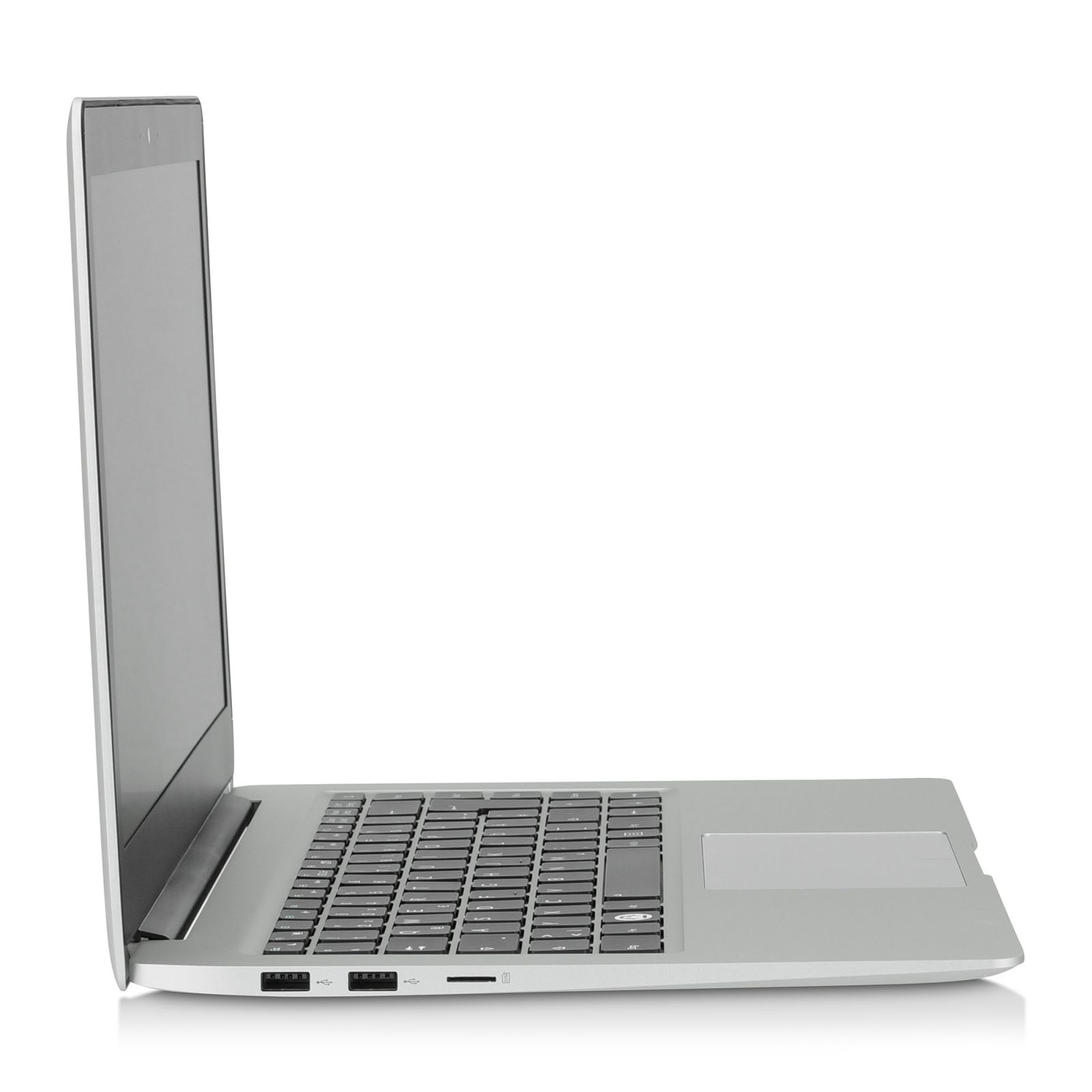

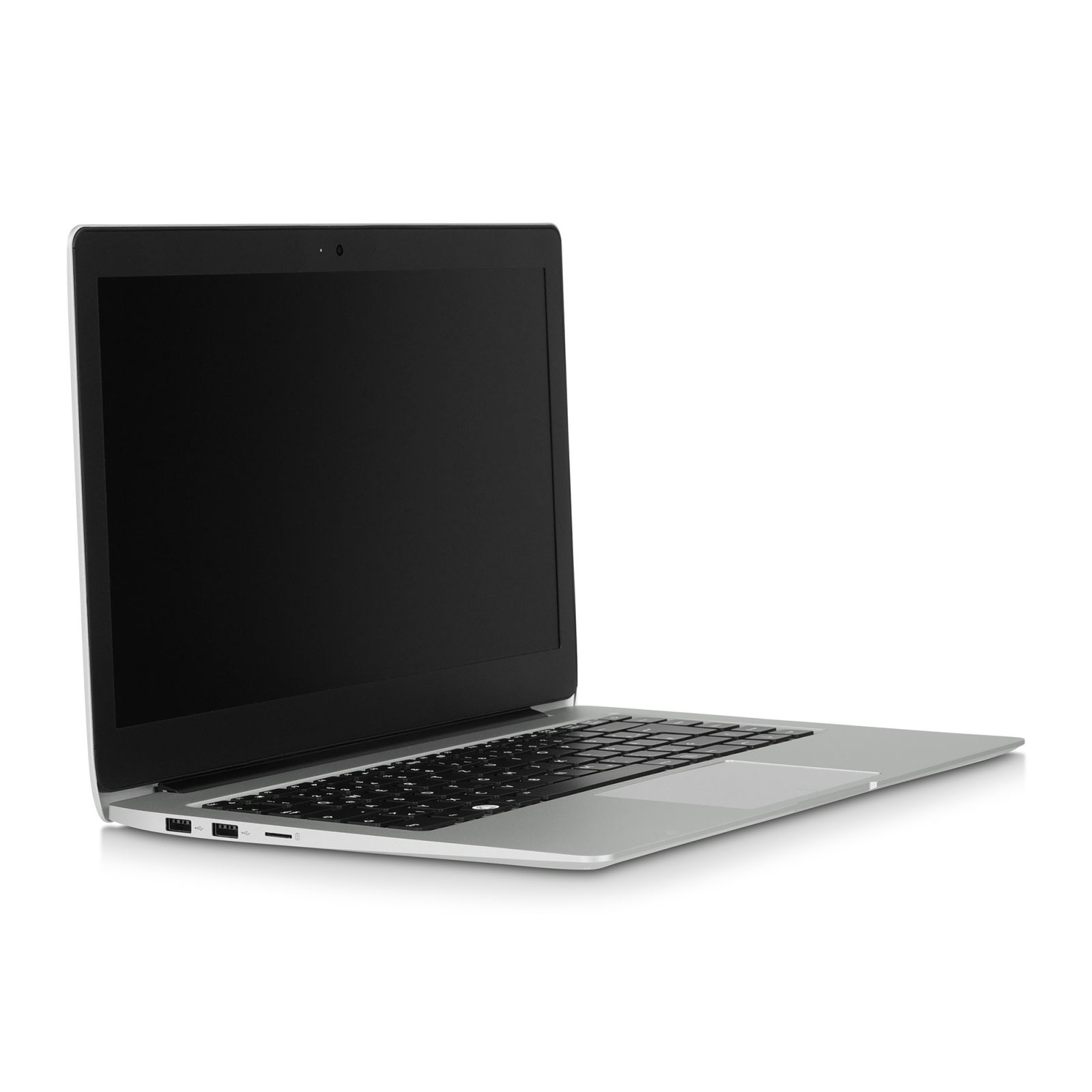

    Micro-HDMI, USB2.0, USB3.0, USB-Typ-C with DisplayPort and charging function etc. Combo connection for headphones and microphone is available as well as the obligatory card reader and a separate charging port.

    The USB type C is a highlight, because besides USB 3.1 it also masters DisplayPort and can easily drive 4k/UHD screens! The InfinityBook 14 can also be charged via the USB type C port.

    If you're a mobility-freak it's up to you to build-in a 4G / LTE module and have your internet access everywhere everytime!

    On board are of course an integrated webcam and a microphone, two loudspeakers, a clickpad and of course an illuminated keyboard with penguin super key :D (instead of a windows symbol).

    After removing the underside of the housing, all components are easy to maintain, clean or replace.



    Configure and order now

    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    Type: LED-Backlight Display
    Size: 14" (35.56cm)
    Model: BOE NV140FHM-N41 (FHD IPS N4)

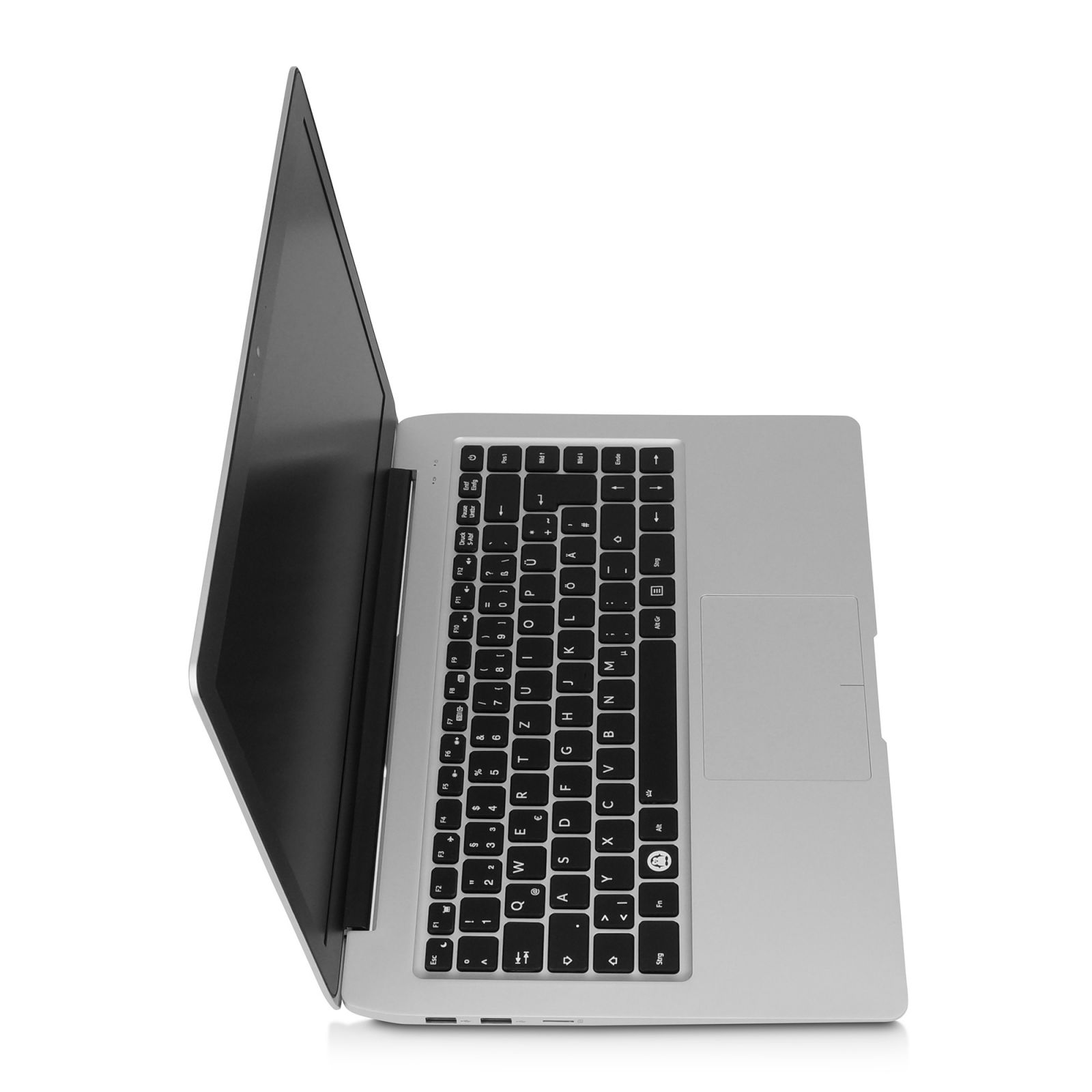

    The opening angle of the display hinges is approximately 145°.
    Resolution: Full-HD IPS-Panel, 1920 x 1080, mate/non-glare



    Chassis

    Material: aluminium, plastic display frame
    Unibody consisting of 4 parts: Display top shell, housing bottom shell, display frame and keyboard shell. Except for the display frame, all parts are completely made of aluminium.
    Dimensions: Width: 340mm; Height: 17mm; Depth: 235mm
    Weight: approx. 1.45 kg incl. battery
    Maintenance: After opening the base plate with a series of screws, all components are easily accessible, easy to maintain, clean and replace.

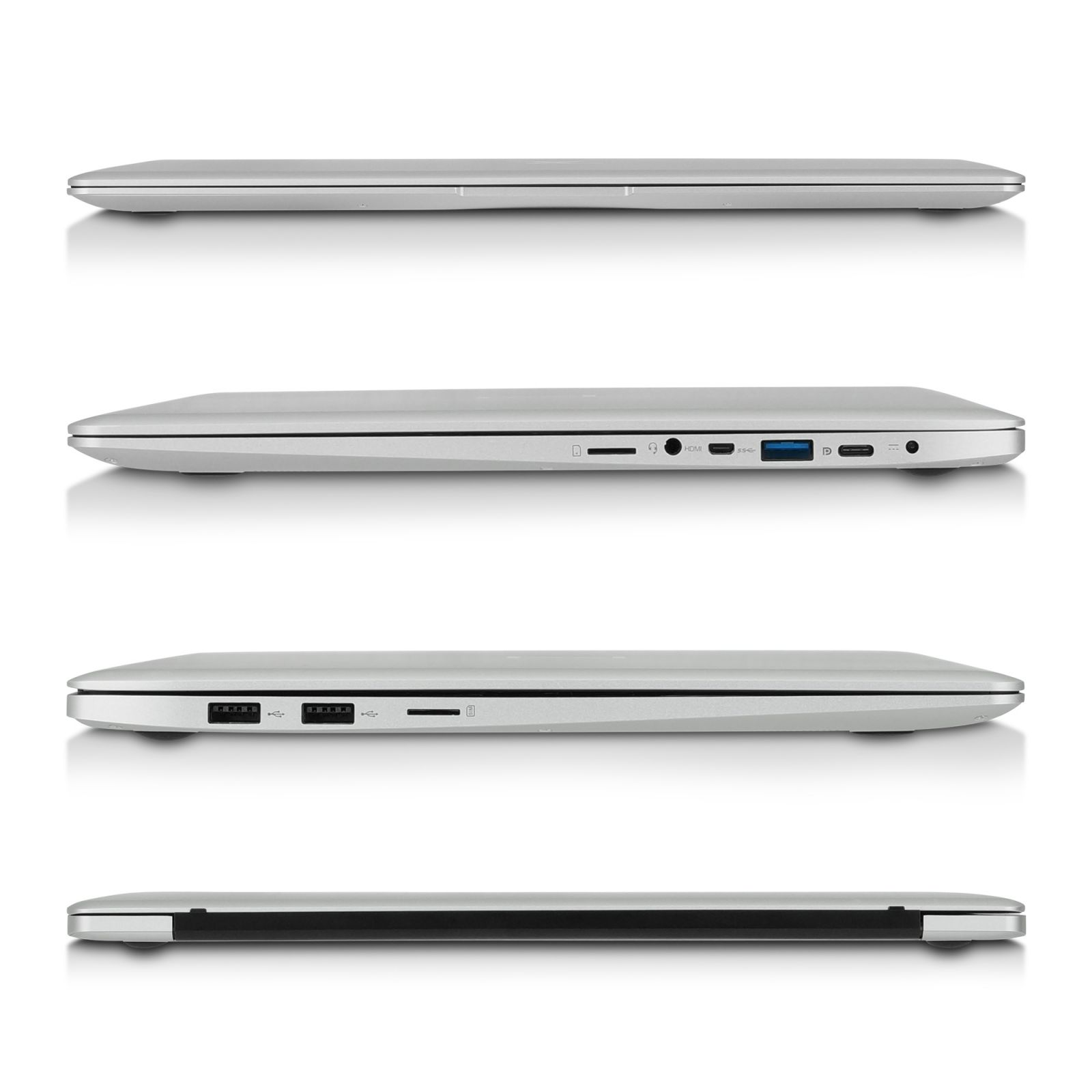

    Ports

    1x USB 3.1 Typ-C Gen1 with DisplayPort (max. 3840x2160@60Hz) and charging function (USB Power-Delivery / USB-PD / DC-IN; Needs 12V charger)
    1x USB 3.0 Typ-A / USB 3.1 Typ-A Gen1 (up to 5Gbit/s)
    2x USB 2.0 Typ-A
    1x Micro-HDMI 1.4b (max. 2560x1600@60Hz; 3840x2160@30Hz)
    1x Headphones/Microphone combo port
    1x Charging port
    1x Cardreader
    1x SIM-Card slot (microSIM shape)

    Battery & power supply

    Large 39.96 Wh lithium-ion battery. (Interchangeable after opening the base plate.
    Mini power supply unit, only 88x35x26mm (LxWxH), 100g or 200g with all cables, 36W 12V 3A
    Charging by USB-C: Possible with an USB-C-Powersupply with 12V 3A output! 5V mobile-phone-charger will not work due to the lower output-voltage.



    Battery runtime

    Up to 24h battery runtime.

    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Main processor

    Intel Core i5-8200Y (2x 1.3-3.9GHz Dual-Core, 4 Threads, 4MB Cache, 5W TDP)



    Graphics card

    Energy-saving graphic chip integrated in the CPU:

    Intel UHD Graphics 615



    Memory

    8 GB (2x 4 GB Dual-Channel) DDR3 1866MHz Samsung



    Mass storage (SSD / HDD)

    Fast M.2 SSDs
    Manufacturer and speed see configurator
    Standard and maximum see configurator



    Communication / Network

    WIFI:
    Intel Dual AC 9260 & Bluetooth (M.2 2230):
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 1,73Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wireless-AC 9260
    Version: Dual Mode Bluetooth 5



    LTE module

    LTE/HSDPA+ 4G Huawei ME936
    Form factor: M.2 Interface

    Supported frequency bands
    LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
    HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
    EDGE/ GPRS/GSM: 1900/1800/900/850 MHz

    Transfer rates
    LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
    HSPA+: ↑ 11 Mbps ↓ 42 Mbps
    WCDMA: ↑ 384 kbps ↓ 384 kbps

    GPS
    GPS Standalone, A-GPS, GPS XTRA, Glonass


    LTE/HSDPA+ 4G Huawei ME906s
    Form factor: M.2 Interface

    Supported frequency bands
    LTE (FDD): B1/B2/B3/B5/B7/B8/B20/B28
    HSPA+/HSPA/UMTS: B1/B2/B5/B8
    EDGE/ GPRS/GSM: 1900/1800/900/850 MHz

    Transfer rates
    LTE FDD: ↑ 50 Mbps ↓ 150 Mbps
    HSPA+: ↑ 5.76 Mbps ↓ 42 Mbps
    WCDMA: ↑ 384 kbps ↓ 384 kbps

    GPS
    GPS Standalone, A-GPS, GPS XTRA, Glonass

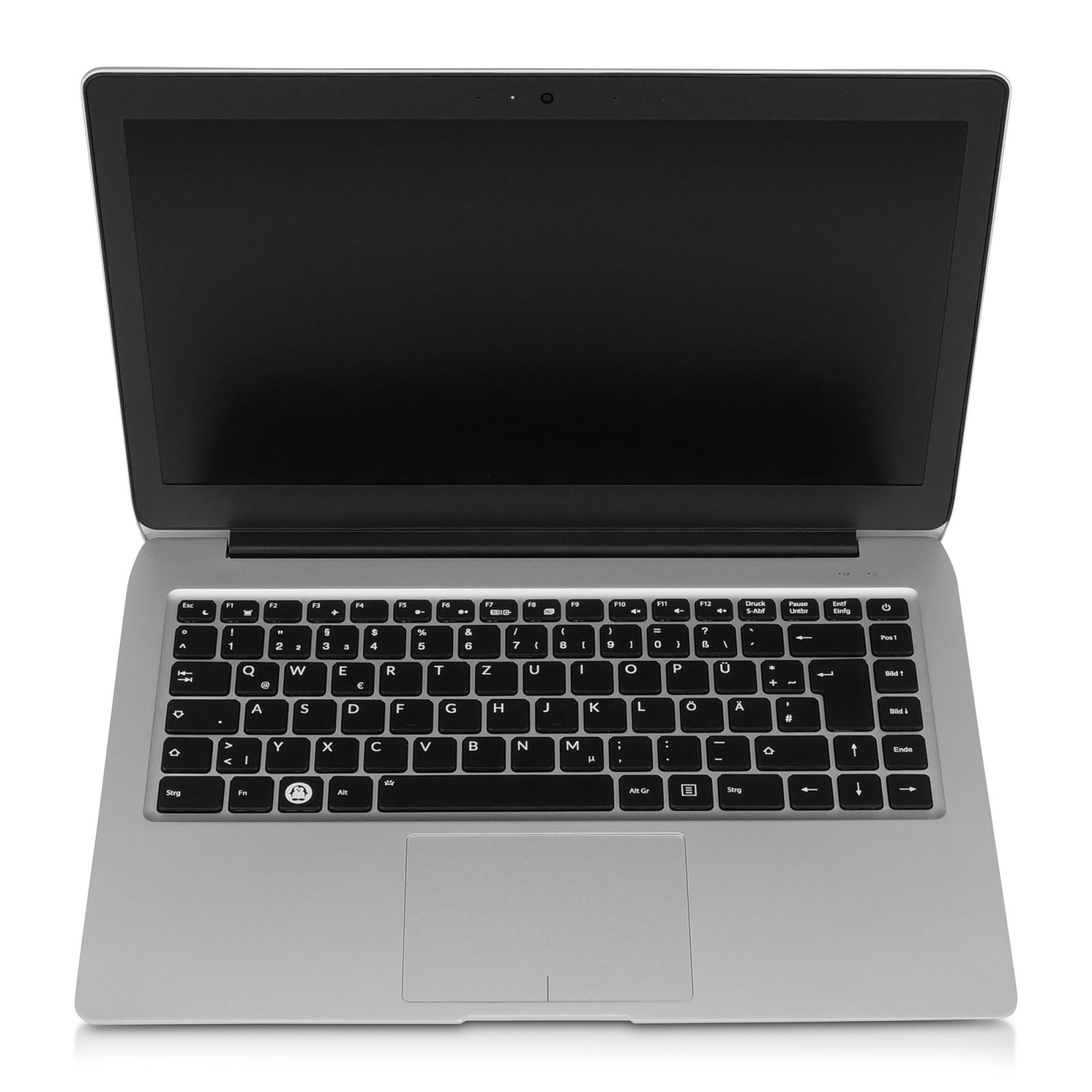

    Keyboard and Touchpad

    - Full-Size keyboard
    - Unicoloured illuminated, adjustable in three levels
    - Penguin super key



    Touchpad

    Touchpad with multi-gesture and scroll function



    Webcam / Laptop camera

    1,0 Megapixel (1,0 MP) camera including microphone



    Sound / Audio

    High Definition Audio
    2 speakers: 2x 2W
    Integrated microphone



    Card reader

    Micro-SD-Cardreader



    Cooling System & Fan

    Fanless system
    This notebook does not have a fan, so there is no noise or noise. The notebook is completely cooled by the case made of solid aluminium, which dissipates the heat.



    Self-developed heatsink paste
    Optimal cooling lies at our hearts of course. To get the most out of it we examined lots of different heatsink pastes. The result is that we let produce our own heatsink paste! This heatsink paste optimized and customized for our systems is used with every TUXEDO.



    Configure and order now

    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).



    For this purpose, the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth



    In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.



    Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
