    [B]usiness Series notebooks have energy-saving Intel HD graphics and can be equipped with powerful processors, plenty of memory and large hard drives. Ideal for daily work and professional use.

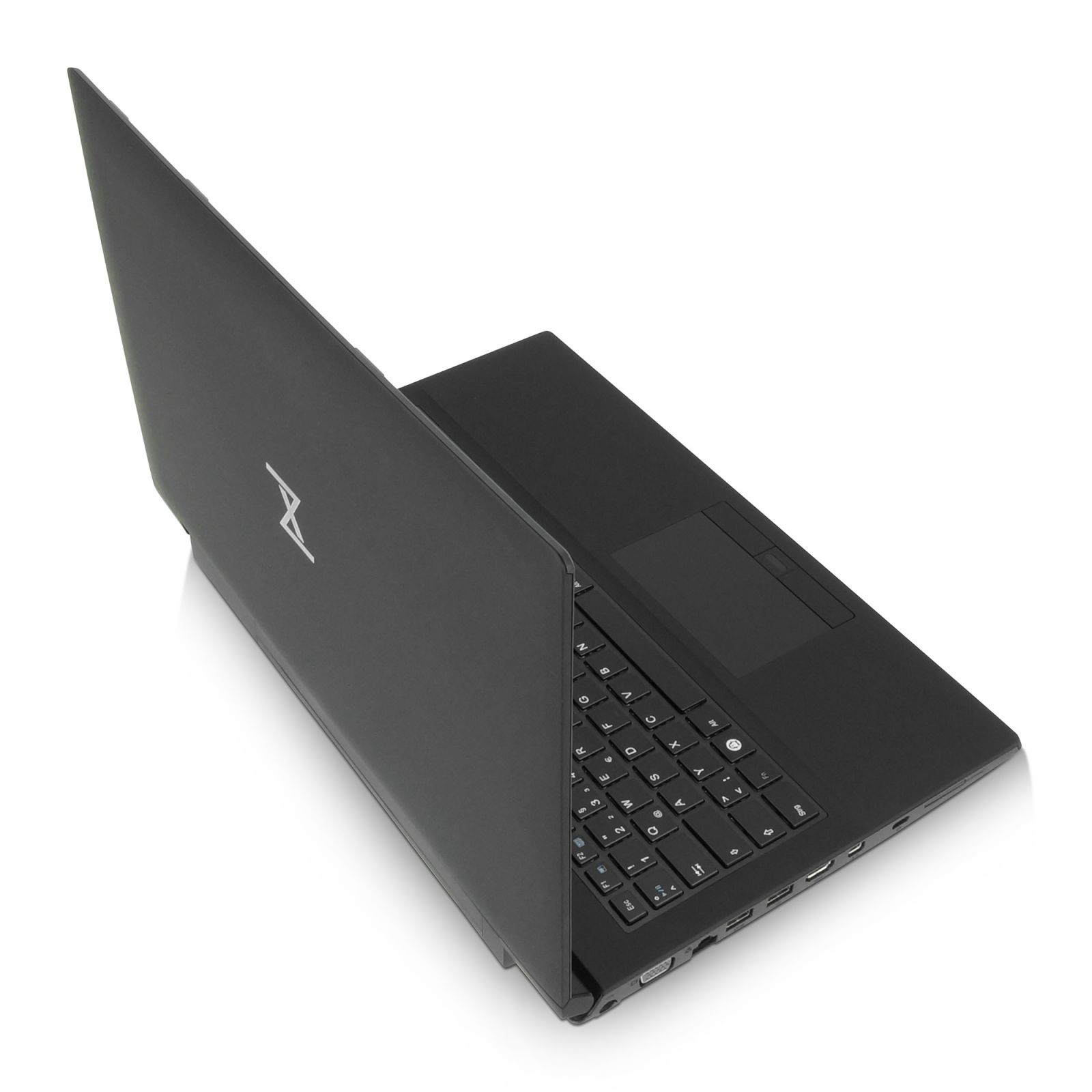

    The shapely and robust plastic chassis of the TUXEDO Book BX1510 is particularly rigid. Thanks to its slightly rubberized surface, it feels very pleasant to the touch and therefore does not slip out of your hand, even if you transport it frequently.

    The inserted battery ensures stress-free energy supply even when you are on the move - a replacement battery can be ordered in addition.

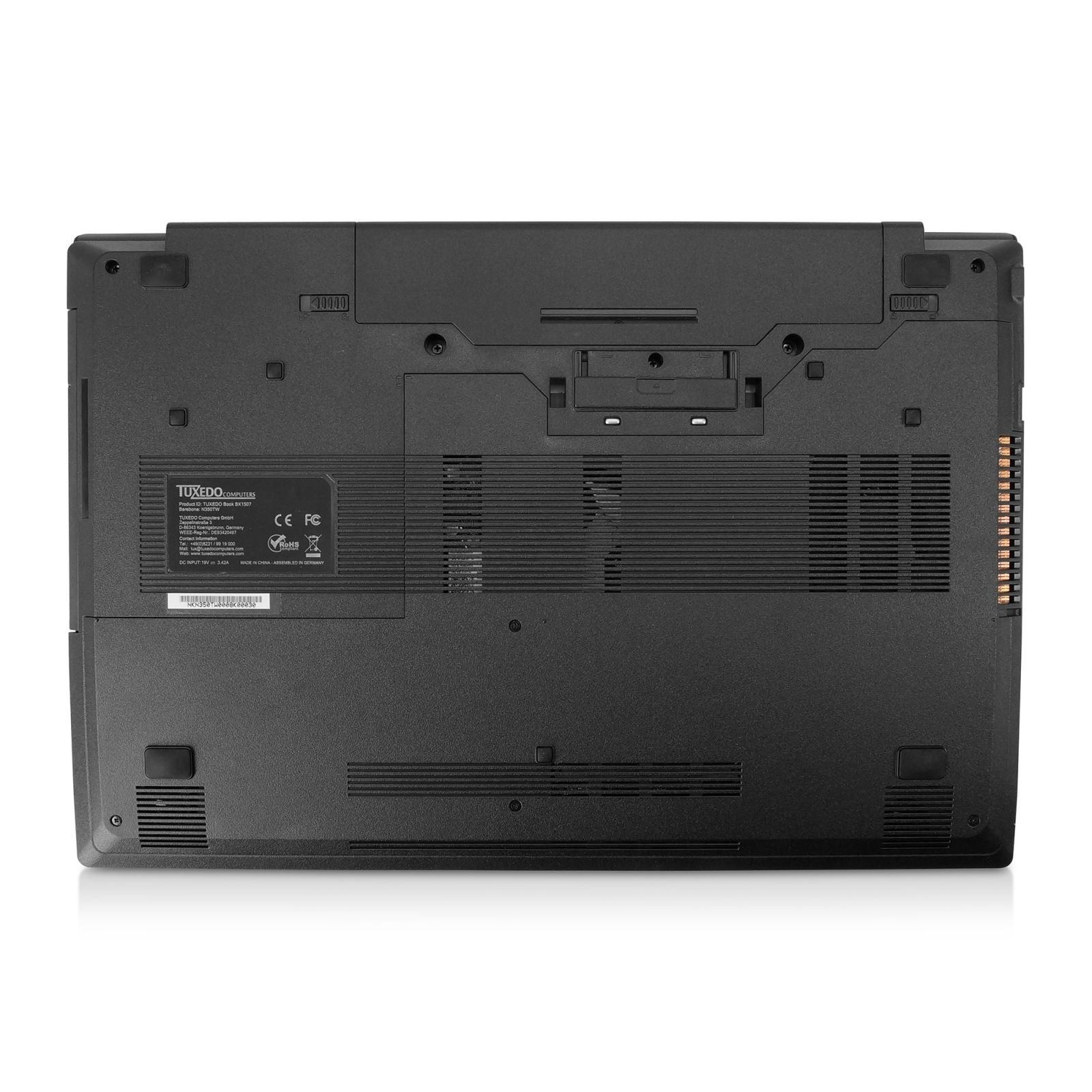

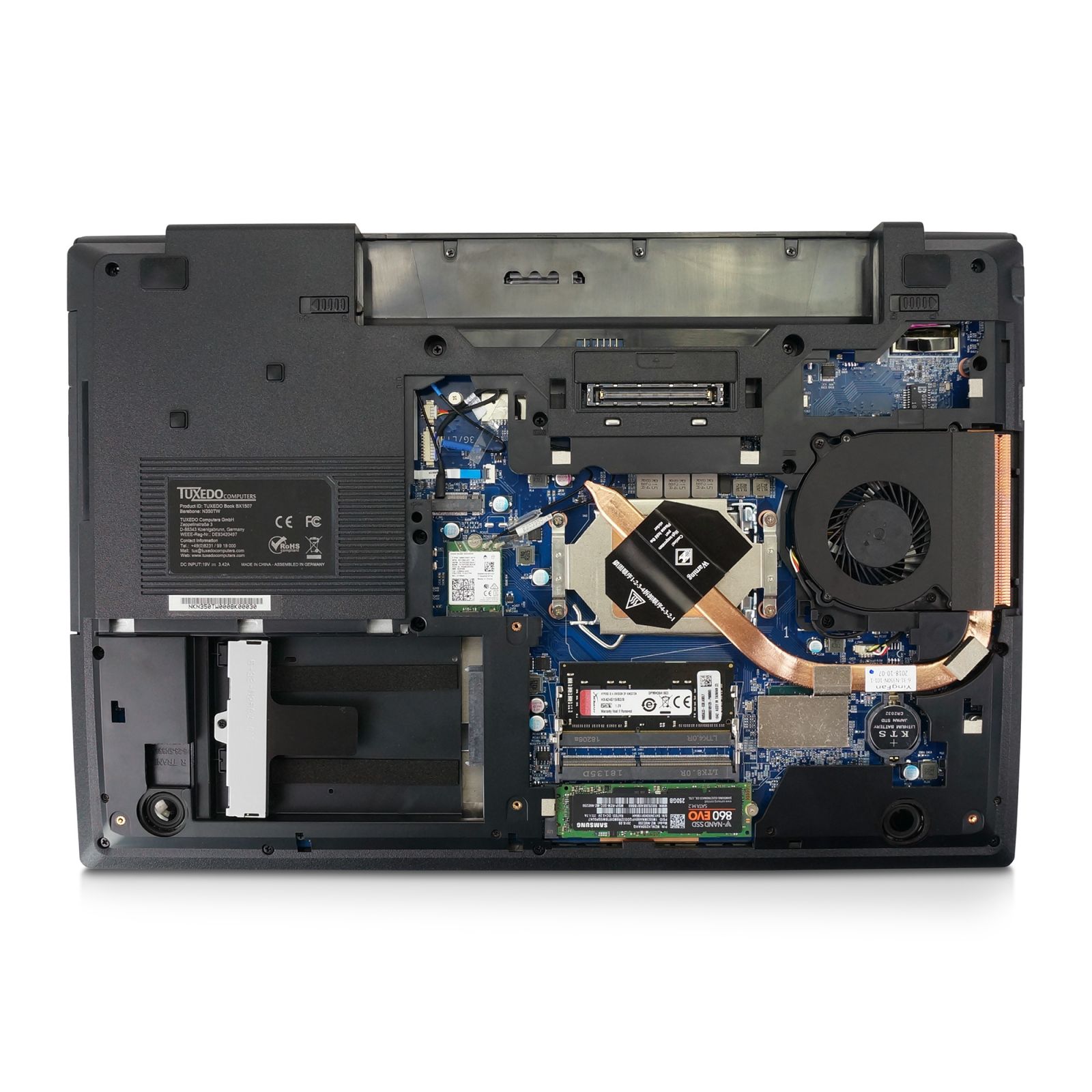

    After removing the underside of the chassis, all components are easy to service or replace.

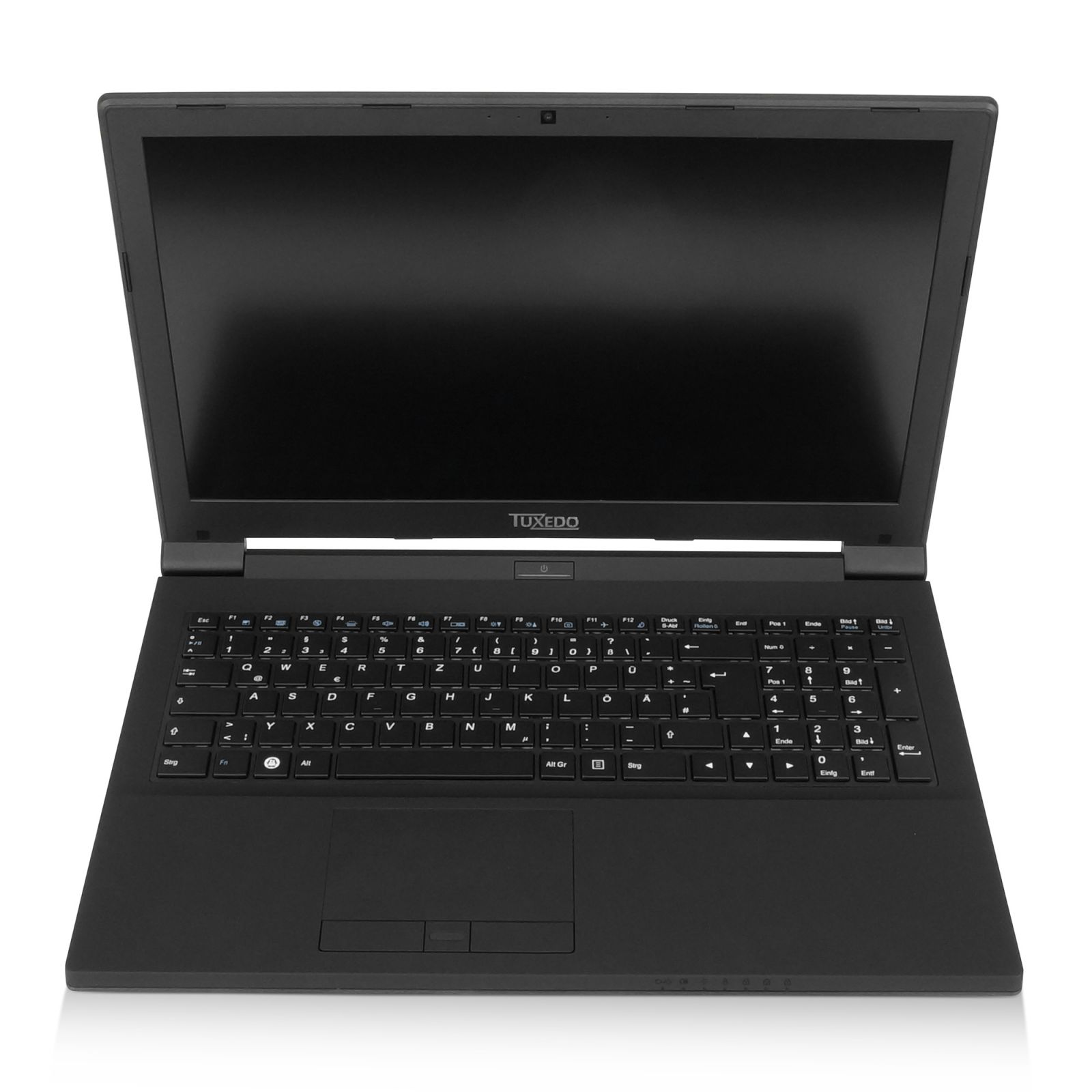

    Especially frequent typers will love the illuminated keyboard. It has a clear keystroke and enough keystroke to keep the typer in good spirits even during long "orgies of typing". In addition, the German version has a penguin super button ;)

    The TUXEDO Book BX1510 as a device of the [B]usiness series features energy-saving and therefore battery-saving Intel UHD 630 graphics, which increases the battery life to up to 6 hours despite the strong processors.
    As with all TUXEDO Books, the 15.6 inch screen is matt / non-glare and can display a resolution of 1920 x 1080 pixels, which corresponds to Full HD! It can be folded back 180°.
    As a special feature, the BX1510 can be equipped with Intel desktop processors of the T series compared to the usual notebooks! Thus with up to Intel Core i7 T Six-Core processor and 64 GB RAM.

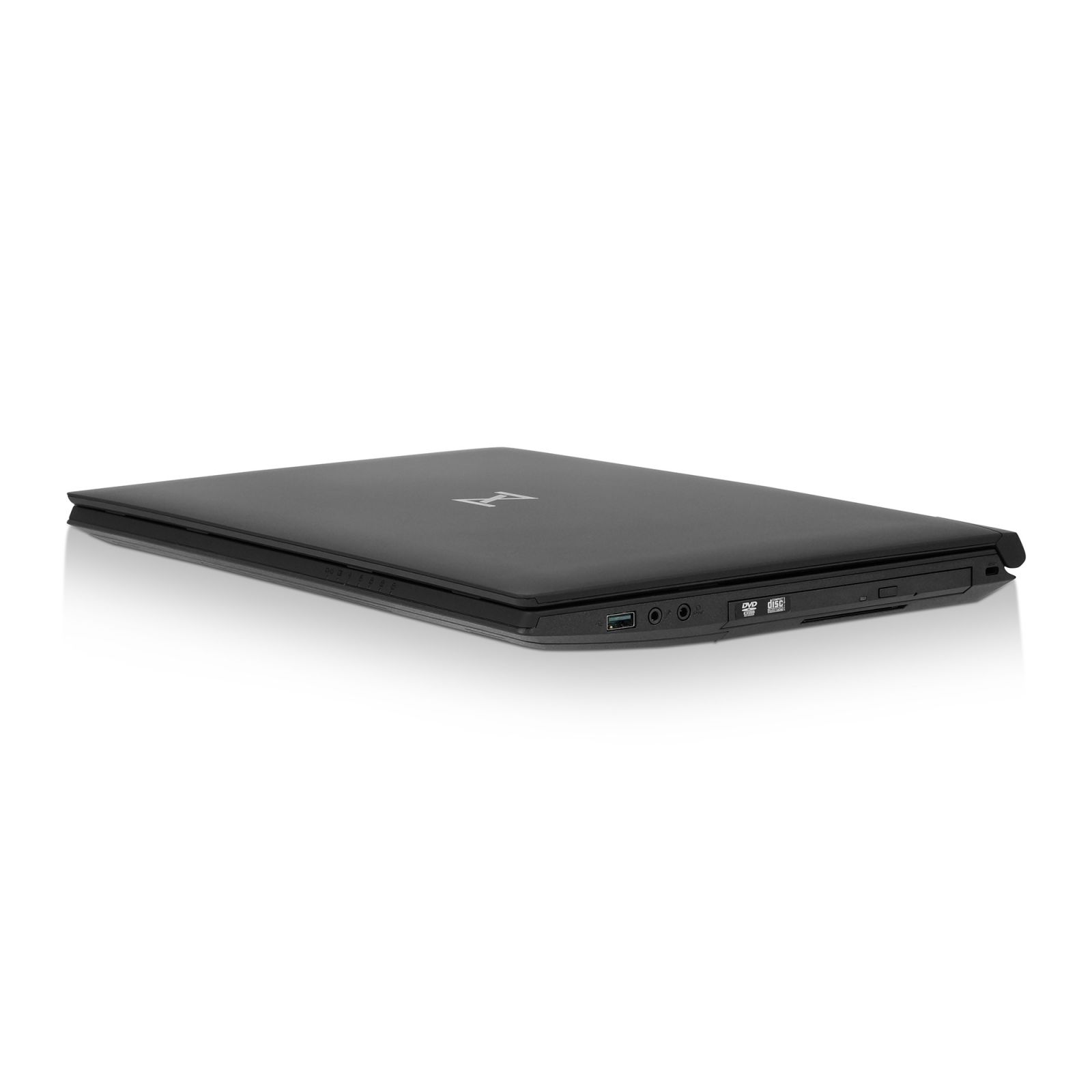

    The standard DVD burner can be replaced with a Blu-Ray burner on request.
    For the hard drive on the fast SATA3 port, you can choose either a classic 2.5" HDD hard drive or an SSD. You can also opt for an M.2 SSD. If that's not enough, you can replace the DVD burner with another hard drive and install an HDD or SSD as a third hard drive!
    You can provide the necessary network connections via WLAN, Bluetooth or wired Gigabit LAN. In addition, you can also install a UMTS or LTE modem. The other features also leave nothing to be desired: 1 MP HD webcam incl. microphone, USB3.0 and USB2.0, HDMI, VGA D-Sub, MiniDisplayPort, Thunderbolt 3, card reader, smart card reader, one connection each for microphone and headphones, and much more.

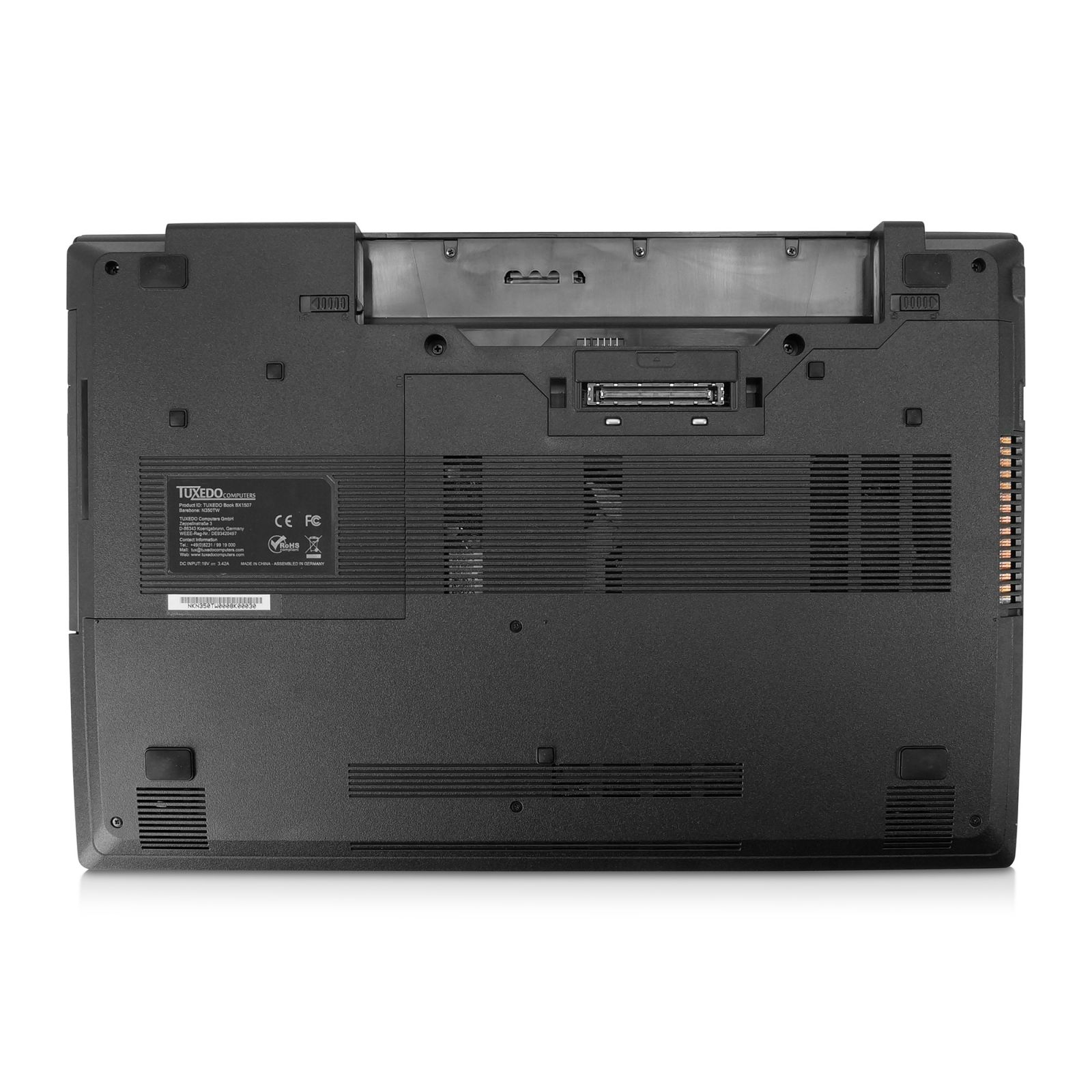

    The TUXEDO Book BX1510 offers a docking port as a special feature compared to almost all other notebooks. The separately available docking station not only allows you to charge the TUXEDO Book, but also to firmly wire up your stationary monitors, printers, hard disks and other devices without having to reconnect everything every time. Simply insert the TUXEDO Book BX1510 into the docking station and all peripherals are connected!

    The docking station for your desk offers following ports:
    3x USB 2.0 ports
    4x USB 3.0 ports (1x powered USB port)
    1x VGA (max. 1920x1200@60Hz)
    1x DVI-D output port (max. 1920x1200@60Hz)
    1x HDMI 1.4b incl. HDCP (max. 2560x1600@60Hz bzw. 3840x2160@30Hz)
    1x Headphone
    1x Microphone
    1x S/PDIF output
    1x Network/LAN Port RJ45
    1x RS232 port
    1x Docking port (hot plug)
    1x Power supply



    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    Type: LED-Backlight Display, matt/non-glare
    Size: 15,6" (39,62cm)
    Resolution: Full-HD IPS, 1920 x 1080
    Display opening angle: approx. 180°



    Chassis

    Dimensions: width: 38 cm; height (max.): 3,3 cm; depth: 25,9 cm
    Weight: approx. 2 kg (without battery and power supply) | approx. 2,5 kg incl. battery



    Battery & power supply

    Large 62,16 Wh battery, 6 cells Lithium-Ionen
    90 Wh power supply
    Plugged in from the outside, easy to remove without opening the notebook!
    Approx. 8 hours battery life in everyday office life with medium display brightness
    Up to 15 h in idle test.

    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.





    Lifetime of batteries

    The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information





    Main processor

    Intel Core CPUs from the 9th generation "Coffee Lake Refresh".

    • Efficient Energy Saving Processors of the "T" Series



    Graphics card

    Energy-saving graphic chip integrated in CPU:
    Intel UHD Graphics 630



    Memory

    Type: DDR4 SO-DIMM
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Dual channel mode (with at least 2 modules)
    Current Laptop-U-CPUs do support only 2400MHz RAM officially. So even 2666MHz RAM is shown with 2400MHz inside the system. But in fact, the high-performance-RAM with 2666MHz squeezes around 5% more performance out of your laptop!



    Hard drive

    Manufacturer and speed see configurator
    Standard and maximum see configurator

    Hard drive: Standard 2,5" HDD or SSD, max. 7mm height
    Hard drive 2: Standard 2,5" HDD or SSD, max. 7mm height – Instead of DVD or Blu-Ray drive!

    Optical drive:
    CD/DVD burner & drive or Blu-Ray burner & drive (incl. CD/DVD reading and burning feature)
    Or without any drive and instead leaving room for another hard drive



    Mass storage (SSD / HDD)

    Fast M.2 SSDs
    Manufacturer and speed see configurator
    Standard and maximum see configurator



    Communication / Network

    Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)

    Wireless/WIFI (optional):
    Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX 200
    Version: Dual Mode Bluetooth 5.1



    LTE module

    LTE/HSDPA+ 4G Huawei ME936
    Form factor: M.2 Interface

    Supported frequency bands
    LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
    HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
    EDGE/ GPRS/GSM: 1900/1800/900/850 MHz

    Transfer rates
    LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
    HSPA+: ↑ 11 Mbps ↓ 42 Mbps
    WCDMA: ↑ 384 kbps ↓ 384 kbps

    GPS
    GPS Standalone, A-GPS, GPS XTRA, Glonass


    LTE/HSDPA+ 4G Huawei ME906s
    Form factor: M.2 Interface

    Supported frequency bands
    LTE (FDD): B1/B2/B3/B5/B7/B8/B20/B28
    HSPA+/HSPA/UMTS: B1/B2/B5/B8
    EDGE/ GPRS/GSM: 1900/1800/900/850 MHz

    Transfer rates
    LTE FDD: ↑ 50 Mbps ↓ 150 Mbps
    HSPA+: ↑ 5.76 Mbps ↓ 42 Mbps
    WCDMA: ↑ 384 kbps ↓ 384 kbps

    GPS
    GPS Standalone, A-GPS, GPS XTRA, Glonass



    Security

    - Kensington-Lock mounting
    - Intel Management Engine (Intel ME) can be disabled directly via the BIOS
    - Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
    - WLAN & Bluetooth can be deactivated directly via the BIOS

    - TPM 2.0 Chip (per BIOS de-/aktivierbar)



    Webcam / Laptop camera

    1 Megapixel (1 MP) HD camera inclusive Microphone



    Sound / Audio

    High Definition Audio
    2 speakers: 2x 2W
    Integrated Microphone

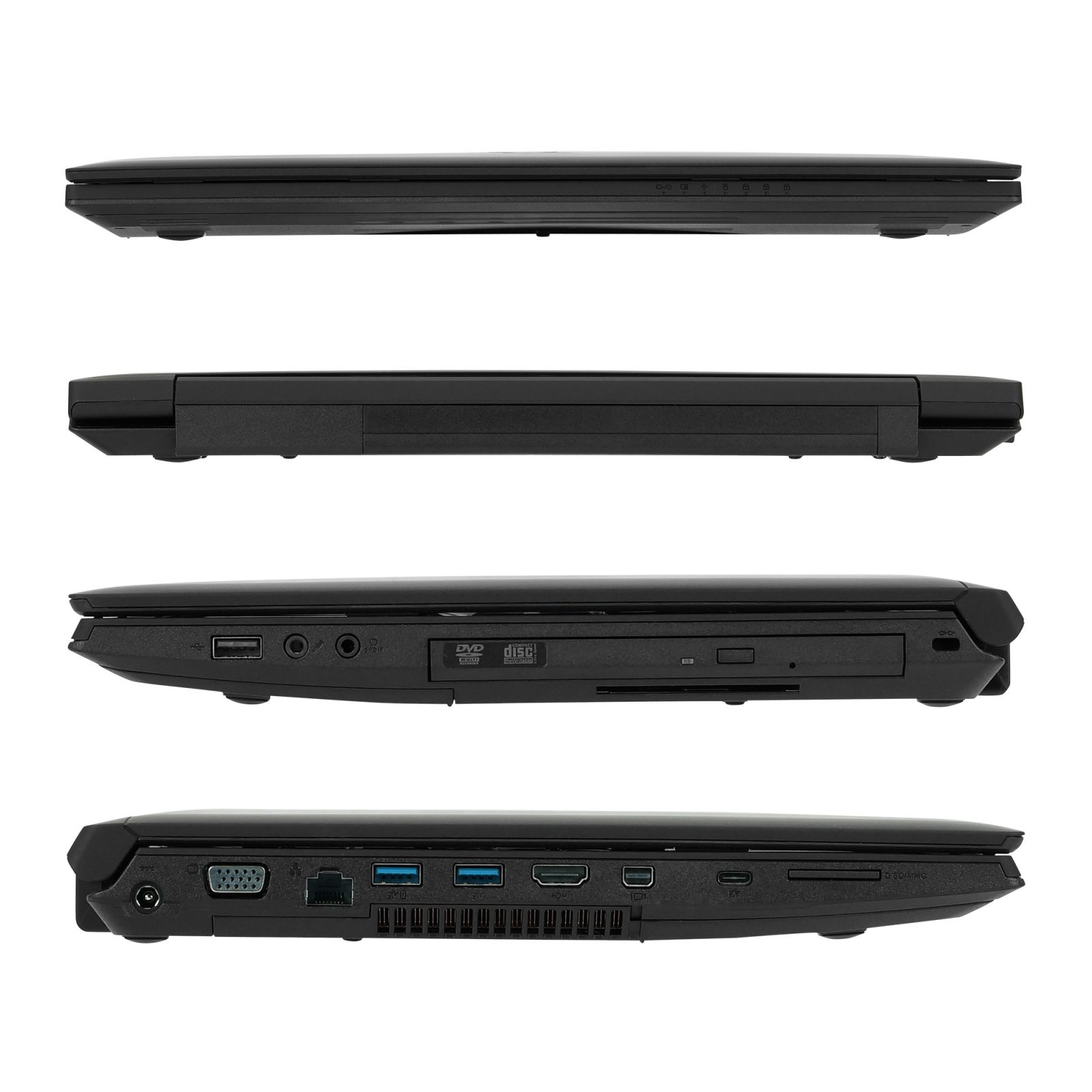

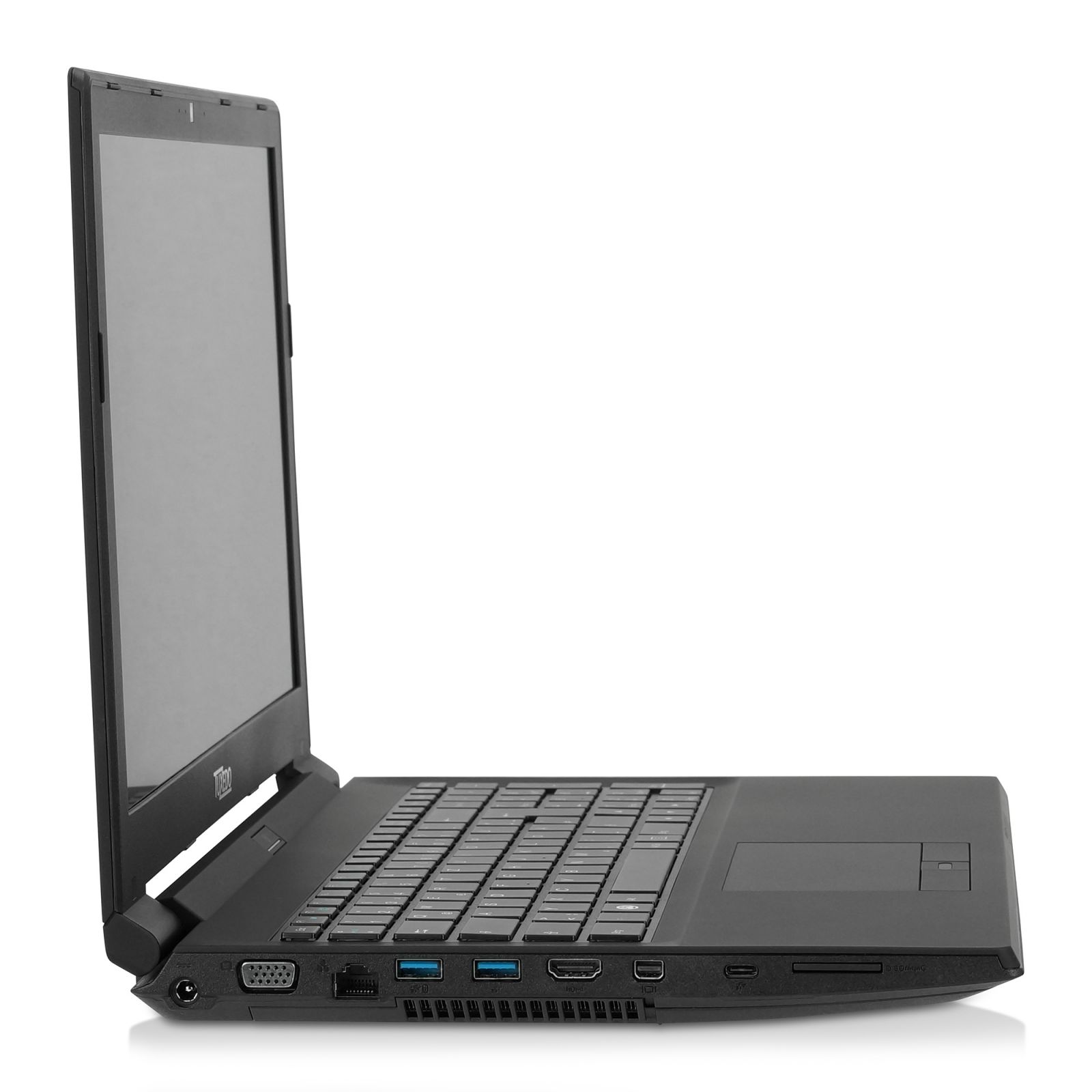

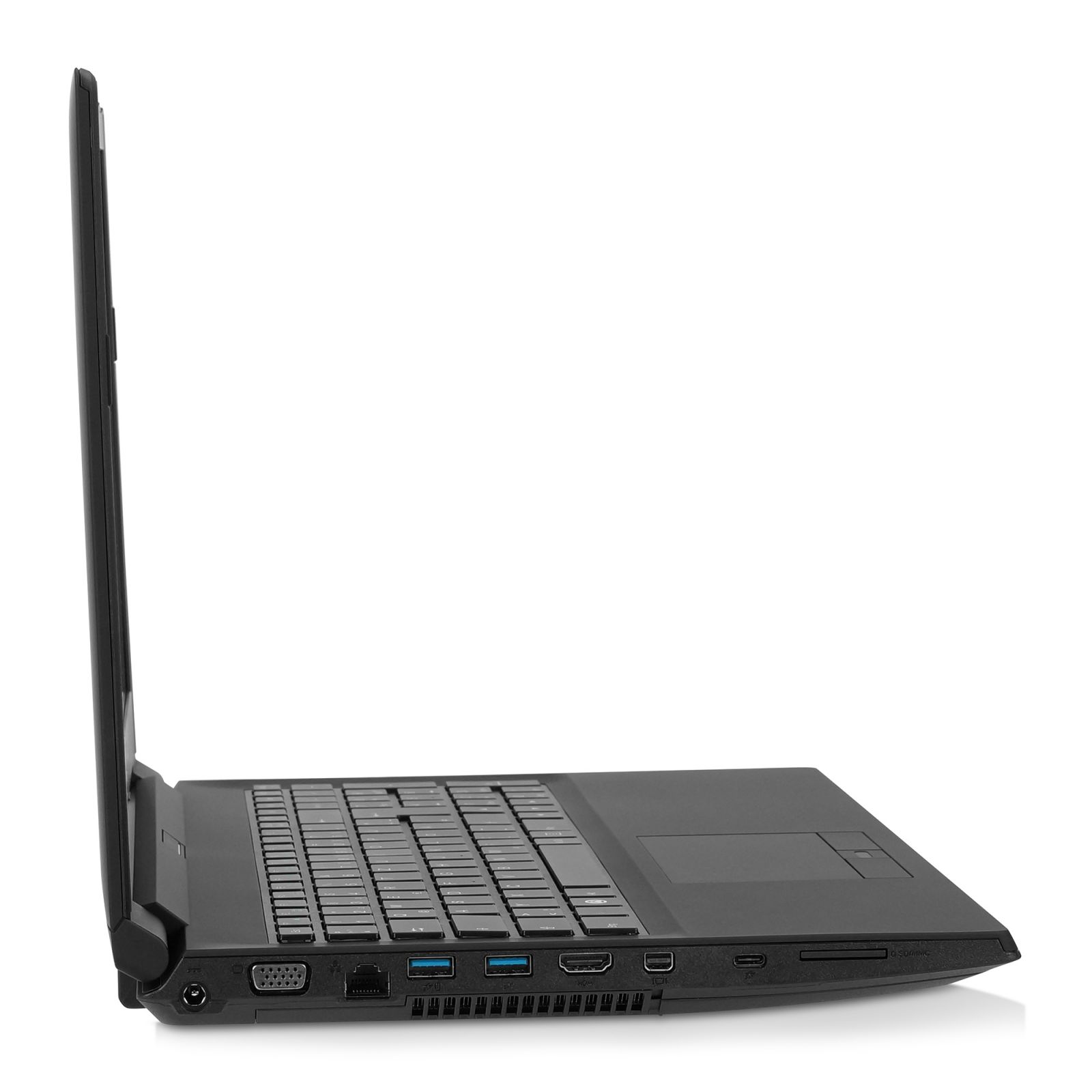

    Ports

    1x USB 2.0 High-Speed
    3x USB 3.0 Super-Speed (1x powered USB port)
    1x USB Typ-C with Thunderbolt 3 incl. Display port (max. 3840x2160@60Hz) (no USB Power Delivery/USB-PDDC-IN)
    Additionally, external dedicated graphics cards (eGPU) are supported by the Thunderbolt 3 port!
    1x USB 3.1 Gen2 & Thunderbolt 3 Combo-Port (
    1x HDMI 1.4b incl. HDCP (max. 2560x1600@60Hz bzw. 3840x2160@30Hz)
    1x MiniDisplayPort 1.2 (max. 3840x2160@60Hz)
    1x VGA (max. 1920x1200@60Hz)
    1x headphone (2-in-1: Kopfhörer & SPDIF out)
    1x Microphone Port
    1x Netzwerk/LAN Port RJ45
    1x Stromanschluss
    1x Kensington Lock
    1x Card-Reader
    1x Smart Card-Reader
    1x Docking Port



    Card reader

    9-in-1 Card Reader
    - MMC / RSMMC
    - SD / SDHC / SDXC / Micro SD (Adapter necesssary)
    - MS / MS Pro / MS Duo





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB pendrive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable

    Noise growth / Cooling / Ventilation / Fan
    Temperature controlled silent fan
    At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.

    Custom fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the behavior of the fans at yourself. This means that you get the ability to make your device as silent as possible. You are able to set the device almost passive cooled, without any fan noise most of the time!
