TUXEDO InfinityBook because it is a TUXEDO notebook with almost infinite possibilities. Mobility, running time, performance, quality and flexibility in a single device! Combined with the TUXEDO_OS, Ubuntu Linux or openSUSE specially adapted for this notebook, it is a unique device with a unique user experience.

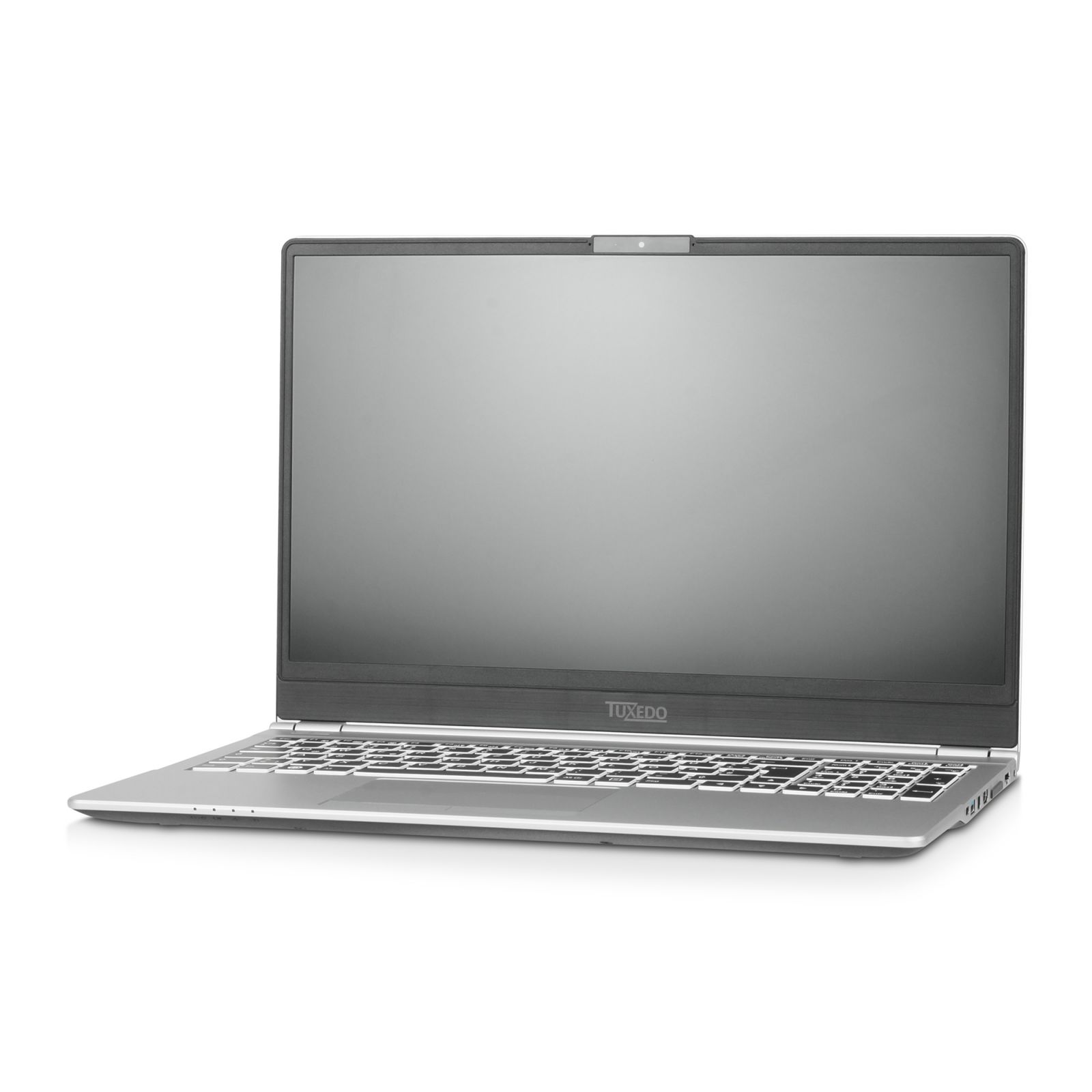

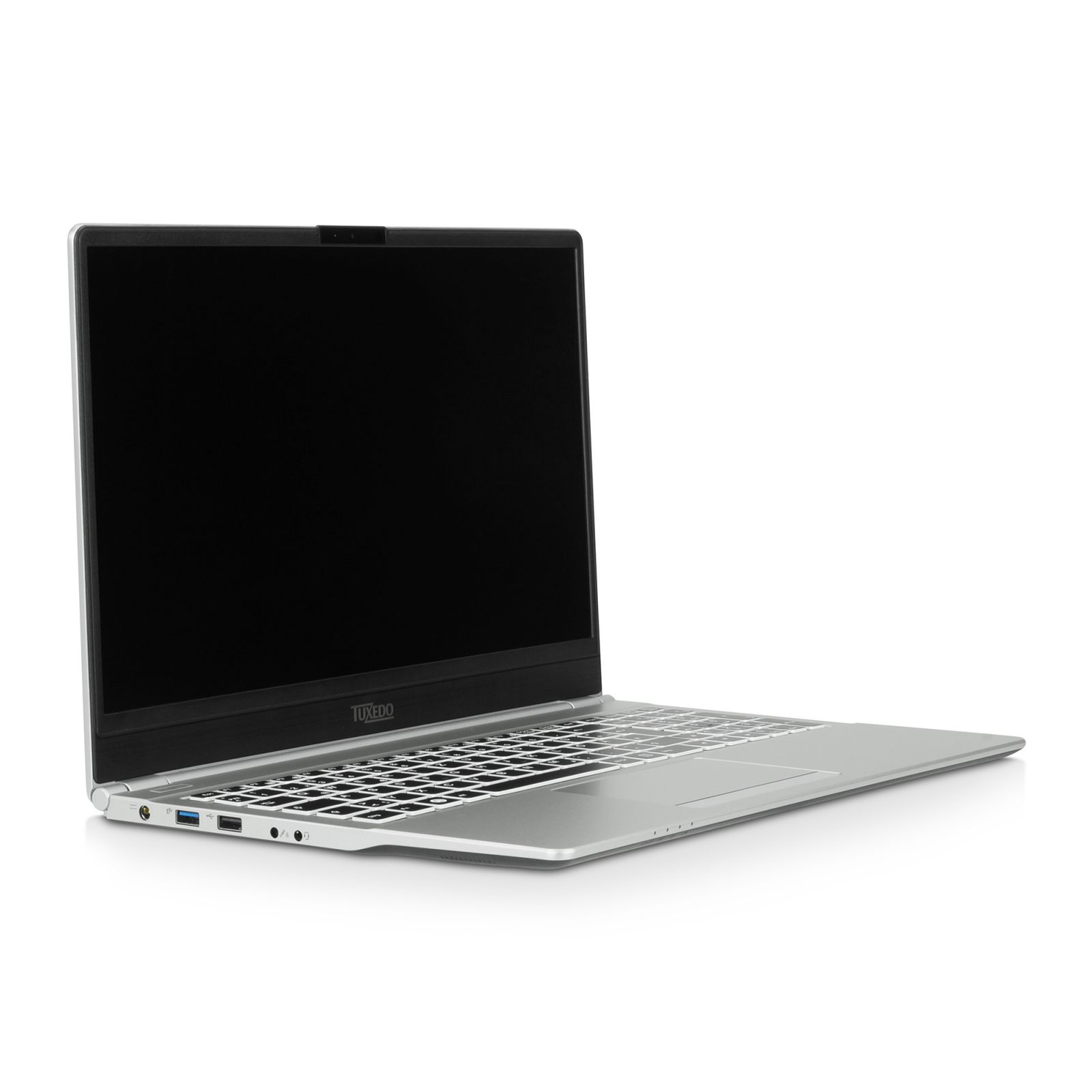

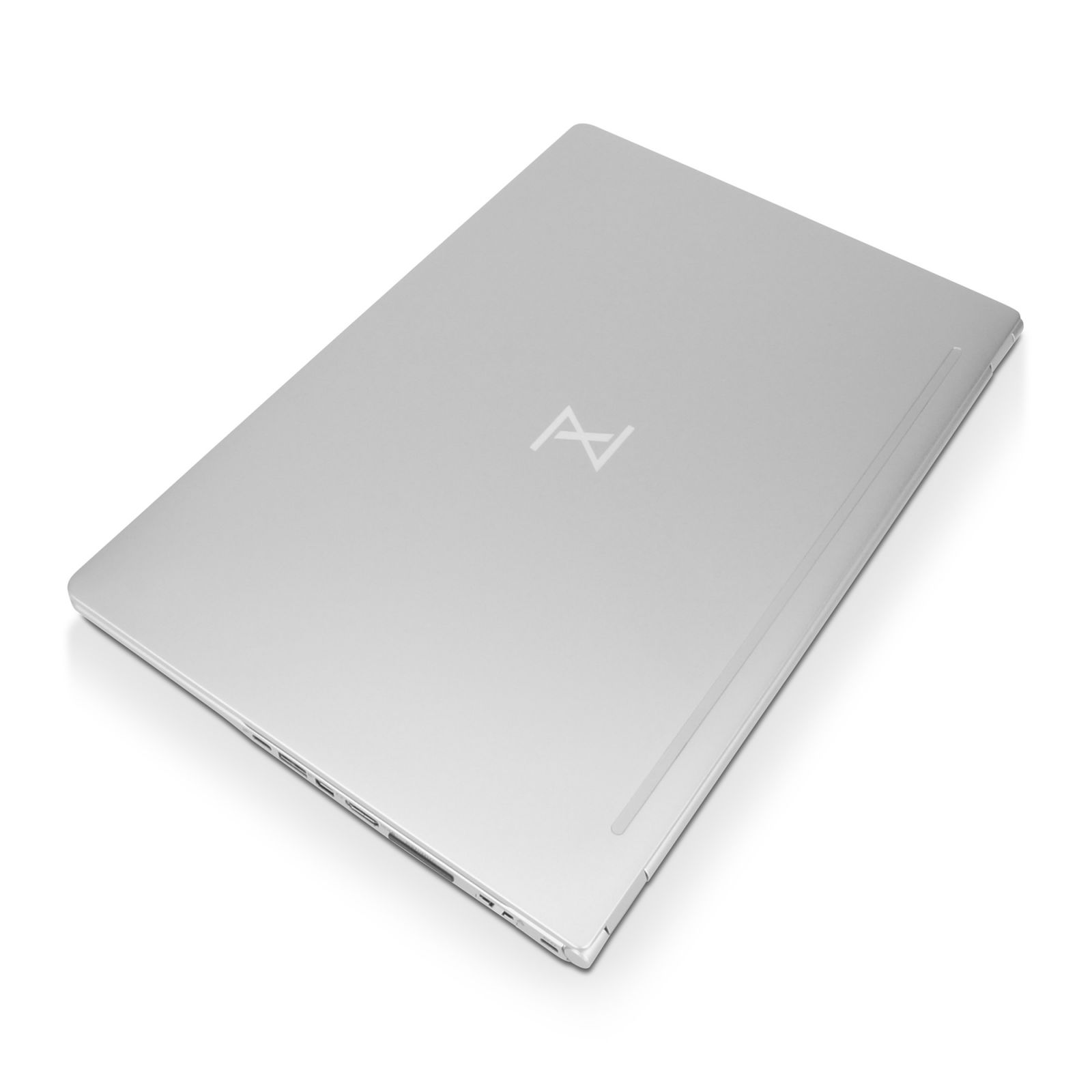

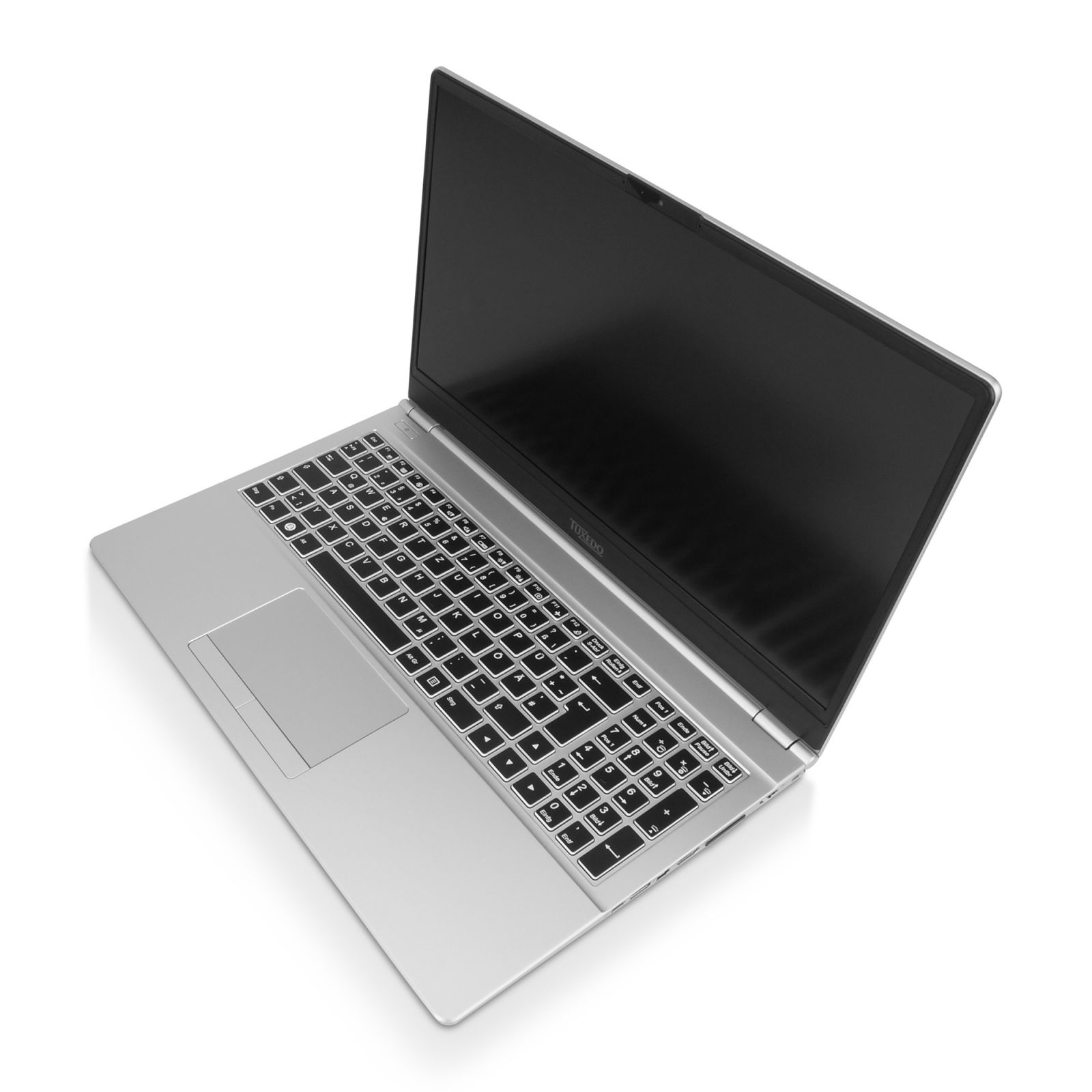

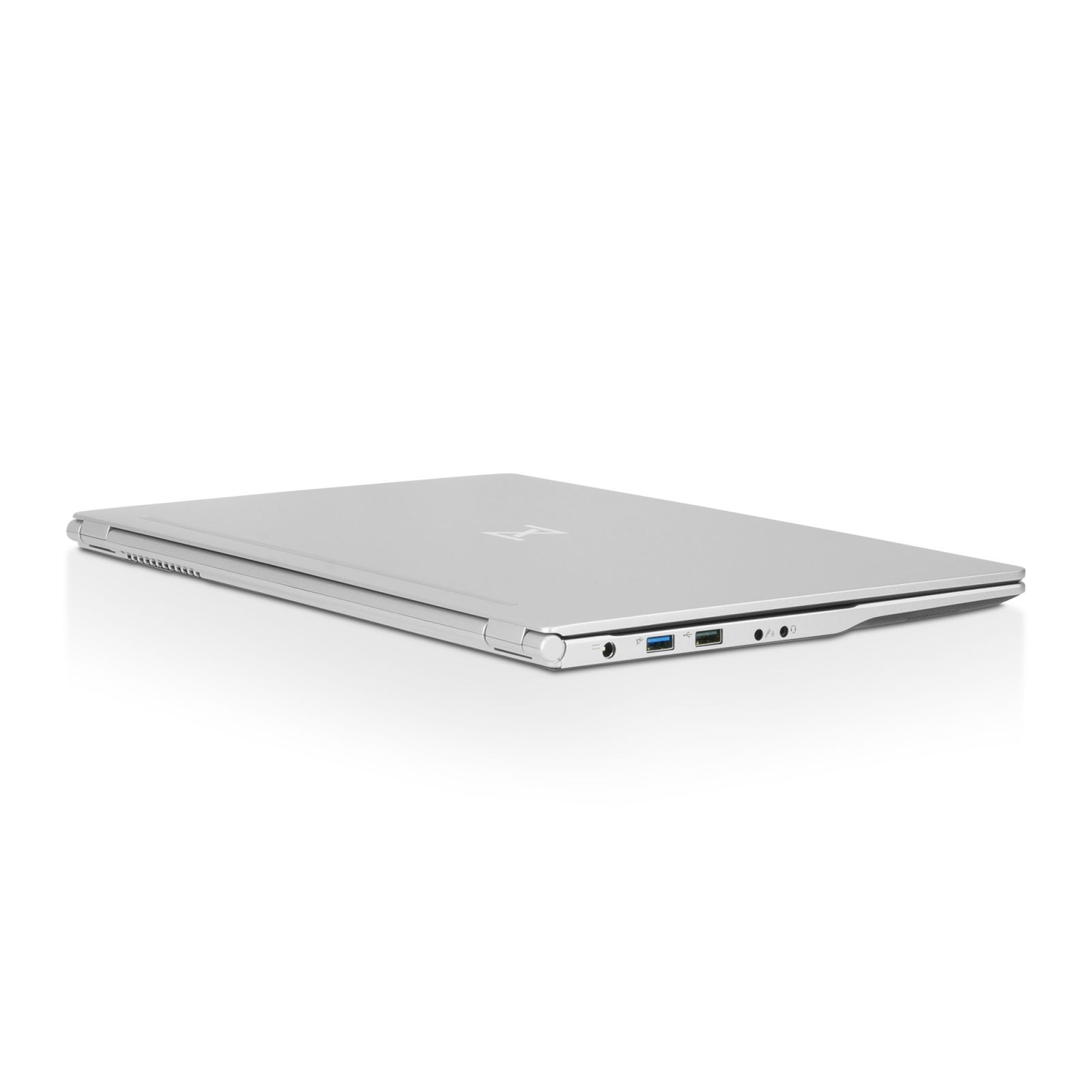

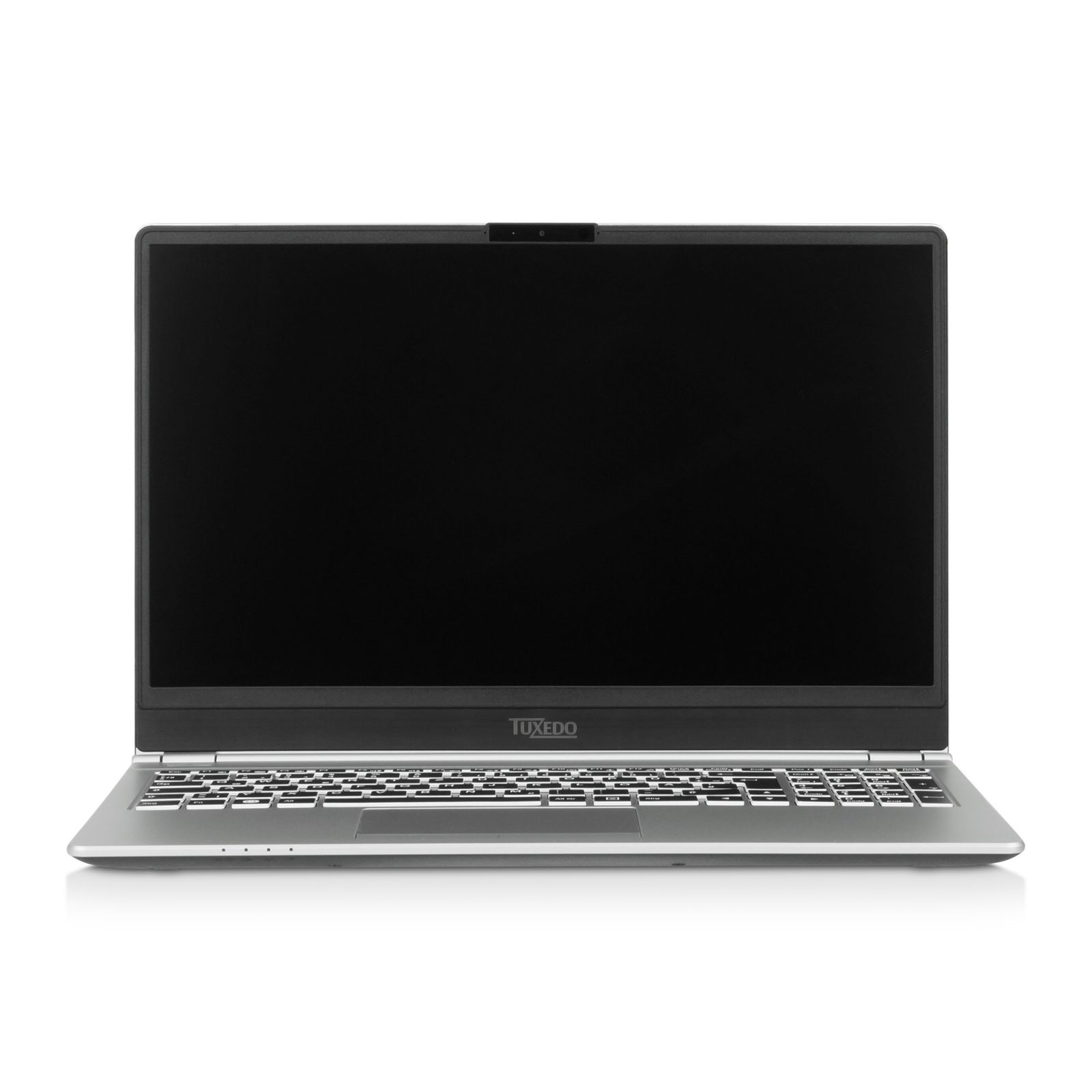

The completely new developed InfinityBook Pro 15 has a housing with aluminium cover and inner side. It is designed to be as small and thin as possible! Therefor it is equipped with a thin display bezel and optimized constrution to be as portable as possible. Nevertheless it has all connectors like bigger notebooks!
The illuminated keyboard with penguin-super-button in full DIN-A4 size is also a novelty in this class. Even multiple typists can use it on the go without having to long for their stationary keyboard ;) Thanks to the RGB light, you're free to choose your most loved color for the keyboard-backlit!
The Pro version of our InfinityBook series is uncompromisingly designed for maximum performance and best features, paired with a battery life of up to 12 hours.
To live up to this claim, Intel's 15,6-inch InfinityBook Pro contains Intel's strongest Ultrabook processor Core i7 with four cores (quad-core) and eight threads and up to 4.9 GHz per core!
Despite the low weight of only approx. 1.7kg and a height of only 19,9mm, the device can equipped with a M. 2 format SSD with SATA or NVME/PCIe connection. Of course, it is also possible to install the obligatory WLAN/Bluetooth module.
Tidy computing power paired with a lot of storage space, only enough memory is missing.
And the InfinityBook Pro 15 has no shortage of this either. Two slots are available which can hold up to 64GB DDR4 RAM.
The InfinityBook Pro 15 does not make any compromises on the connection side either:

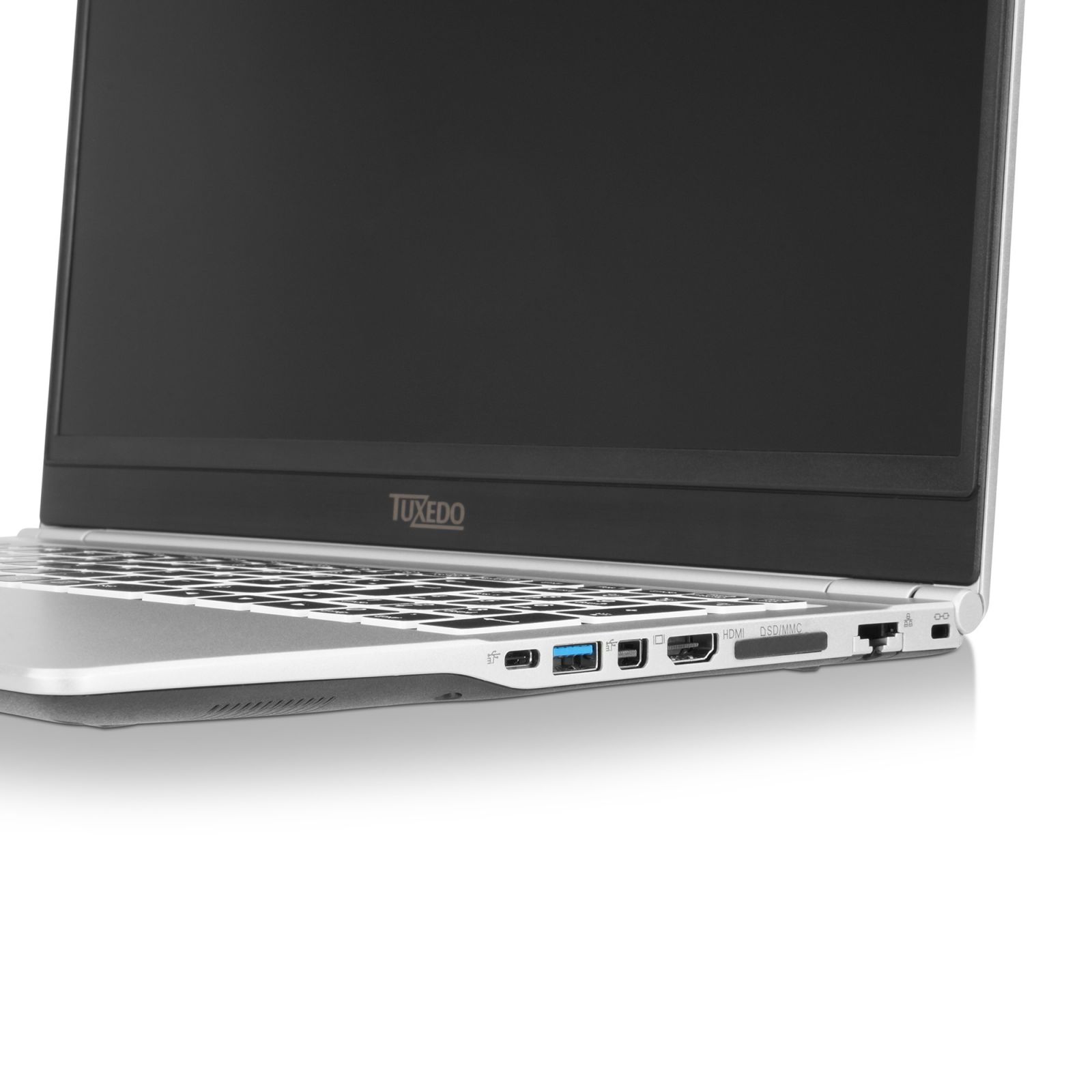

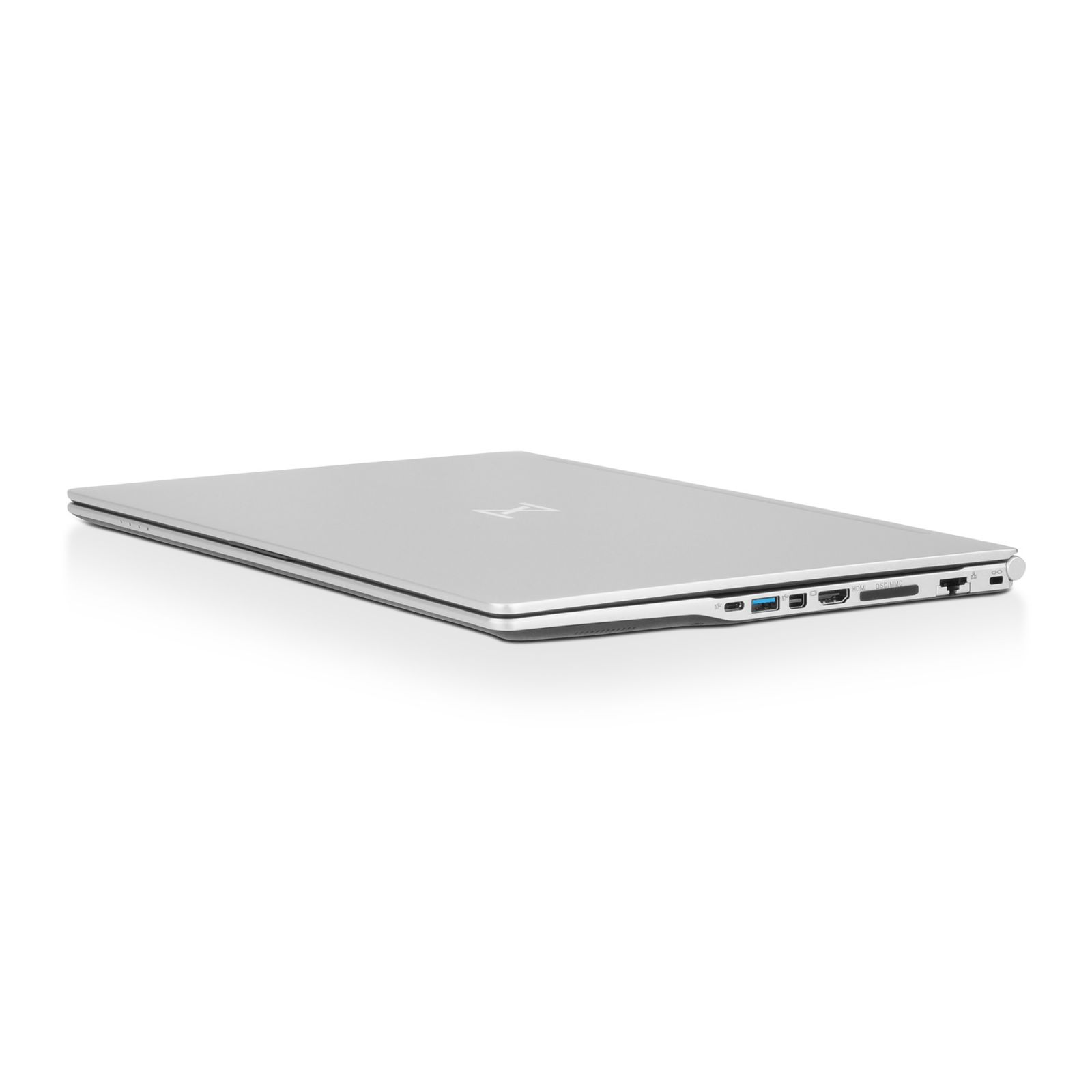

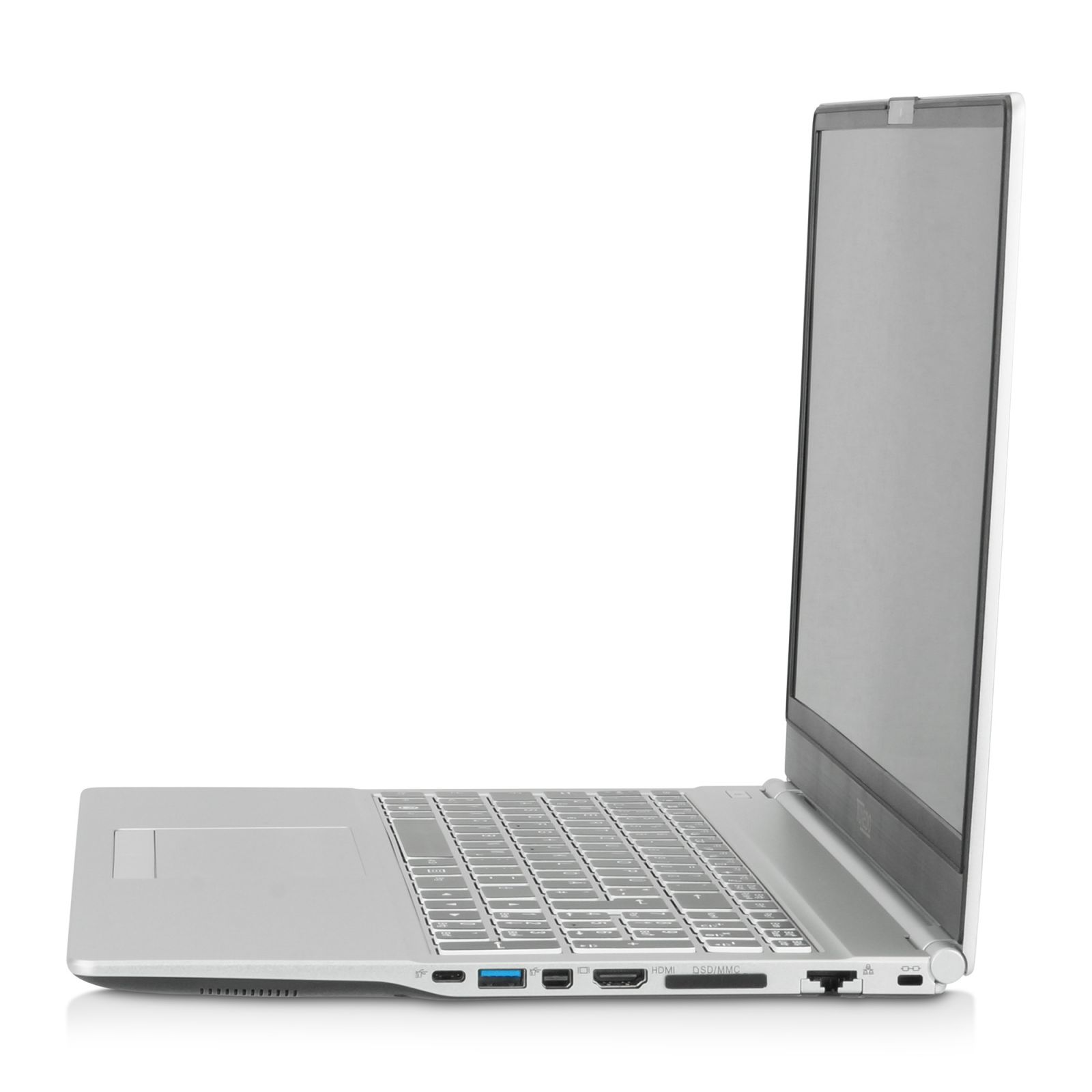

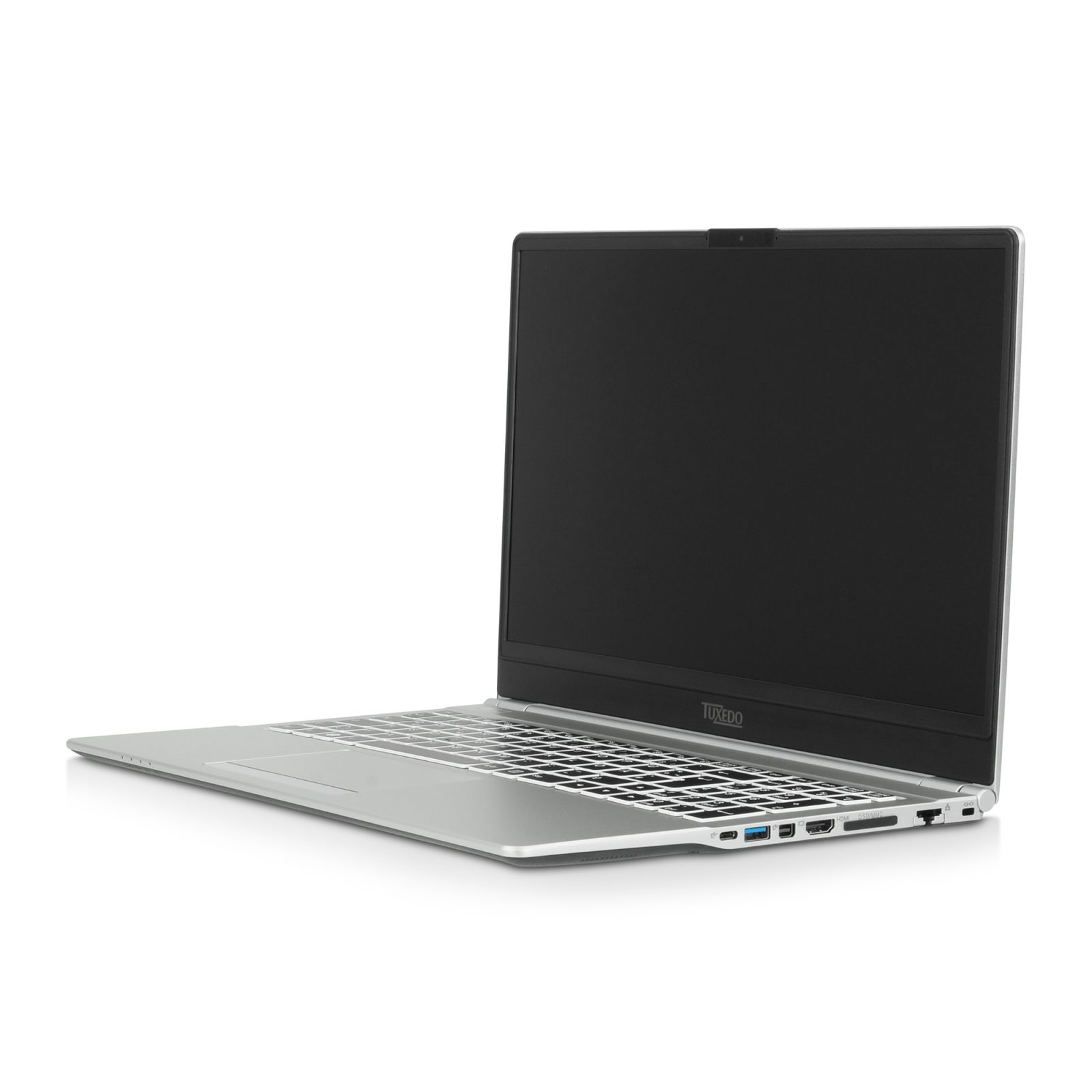

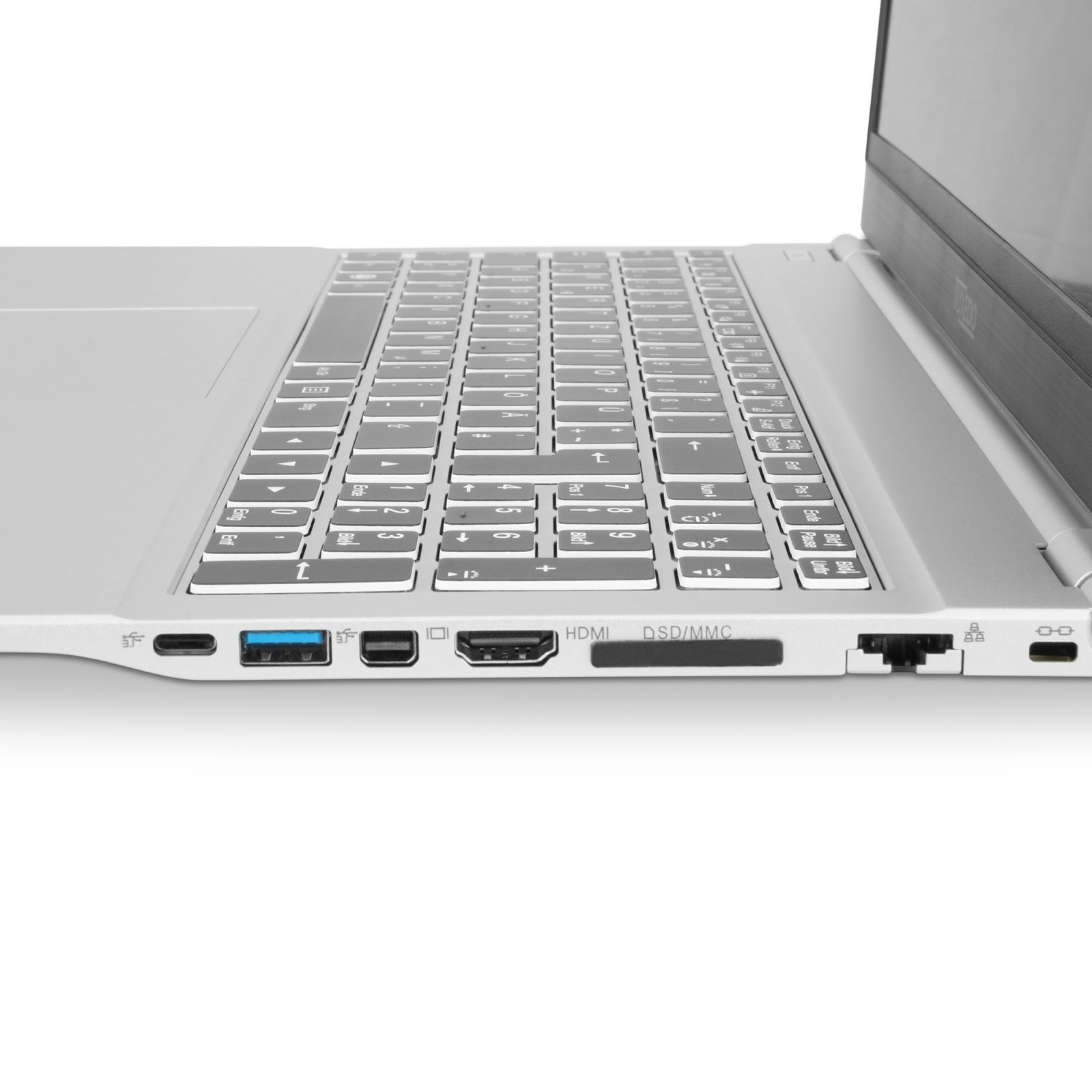

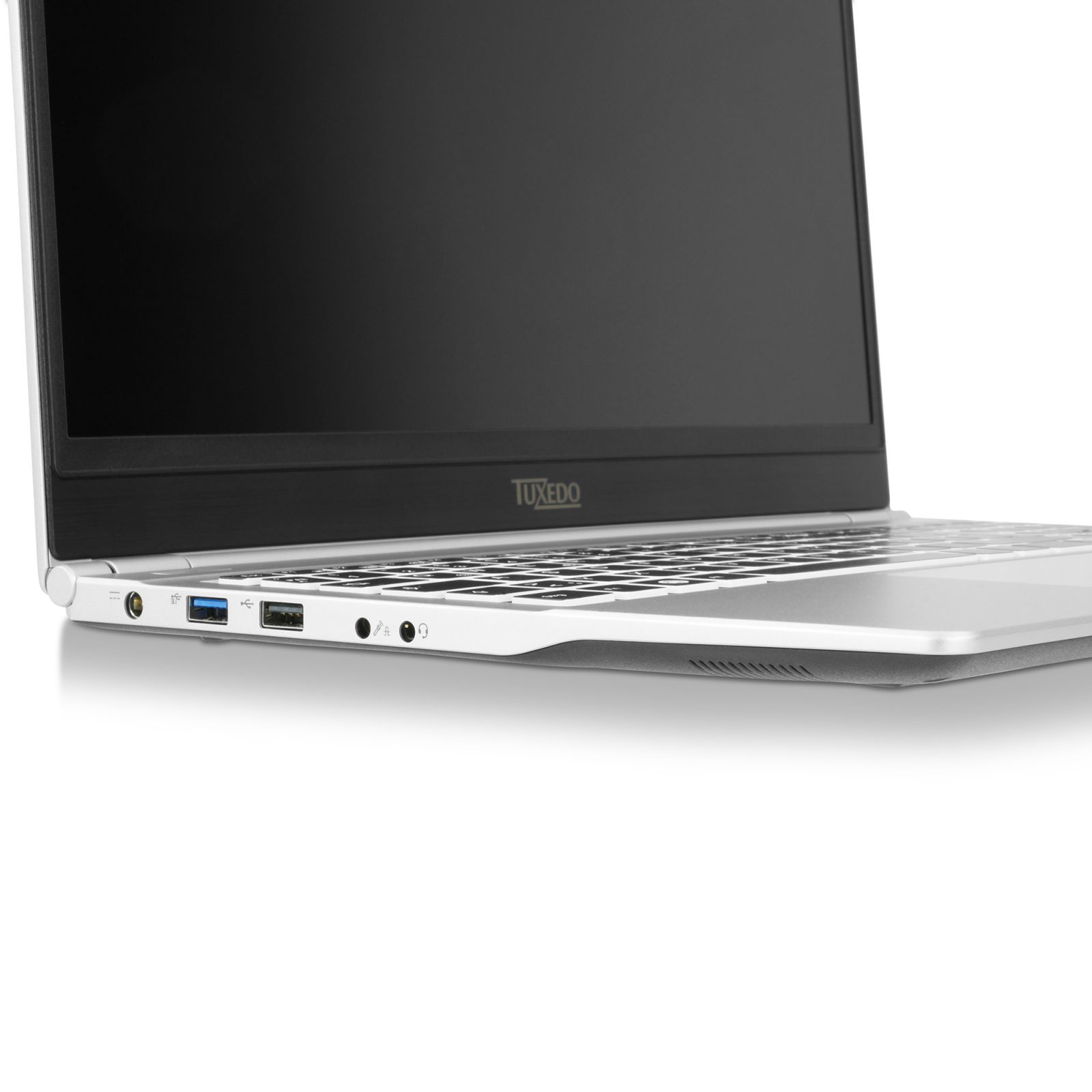

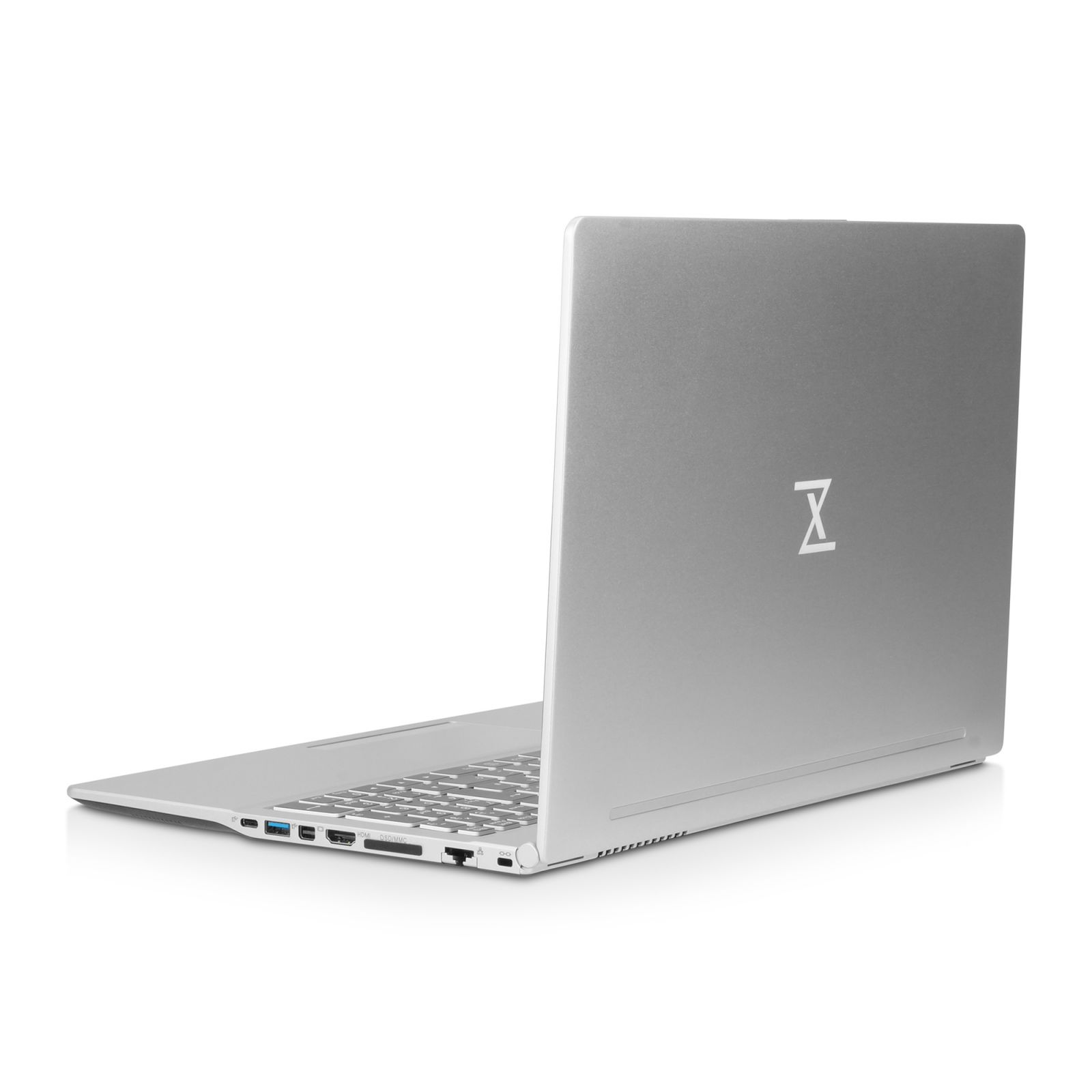

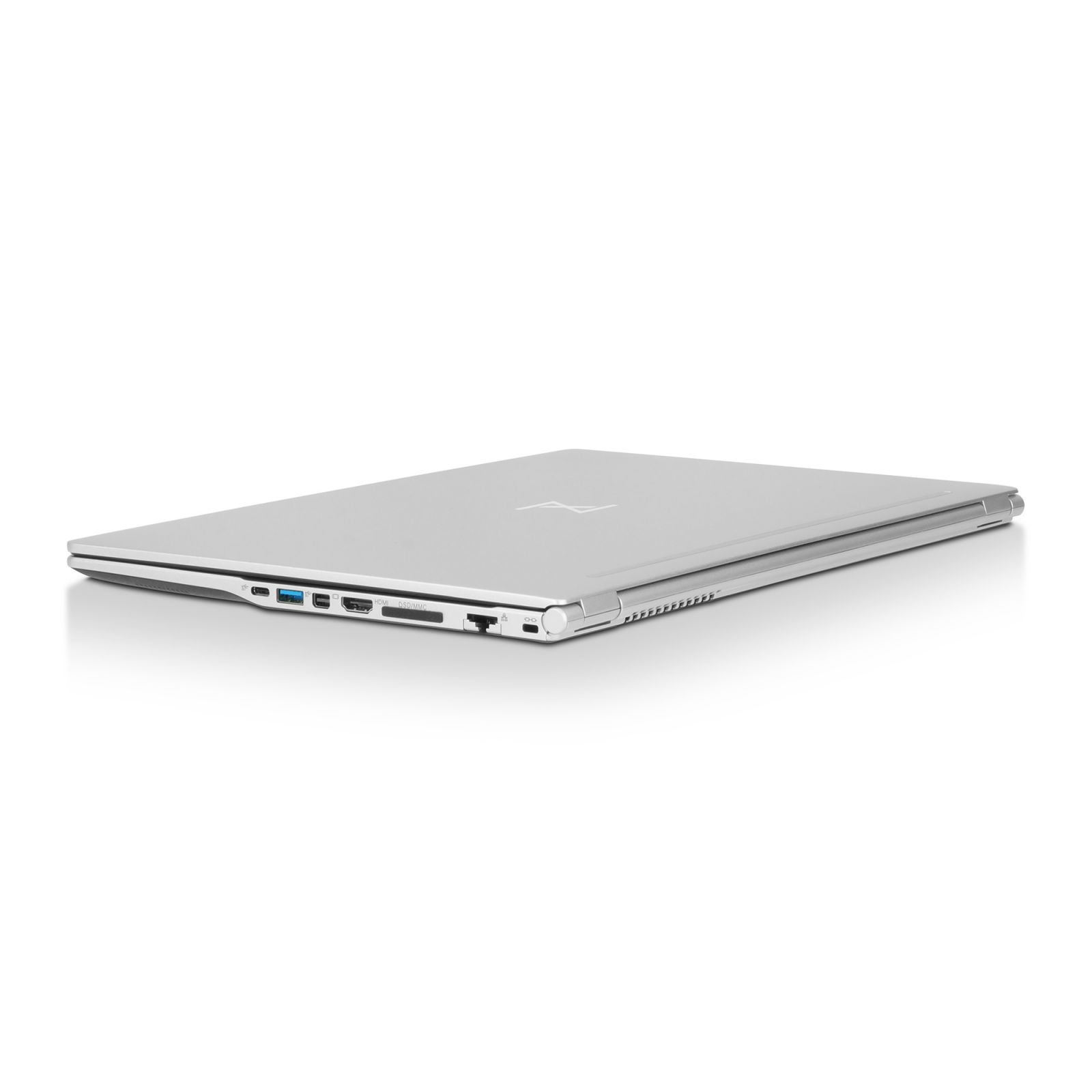

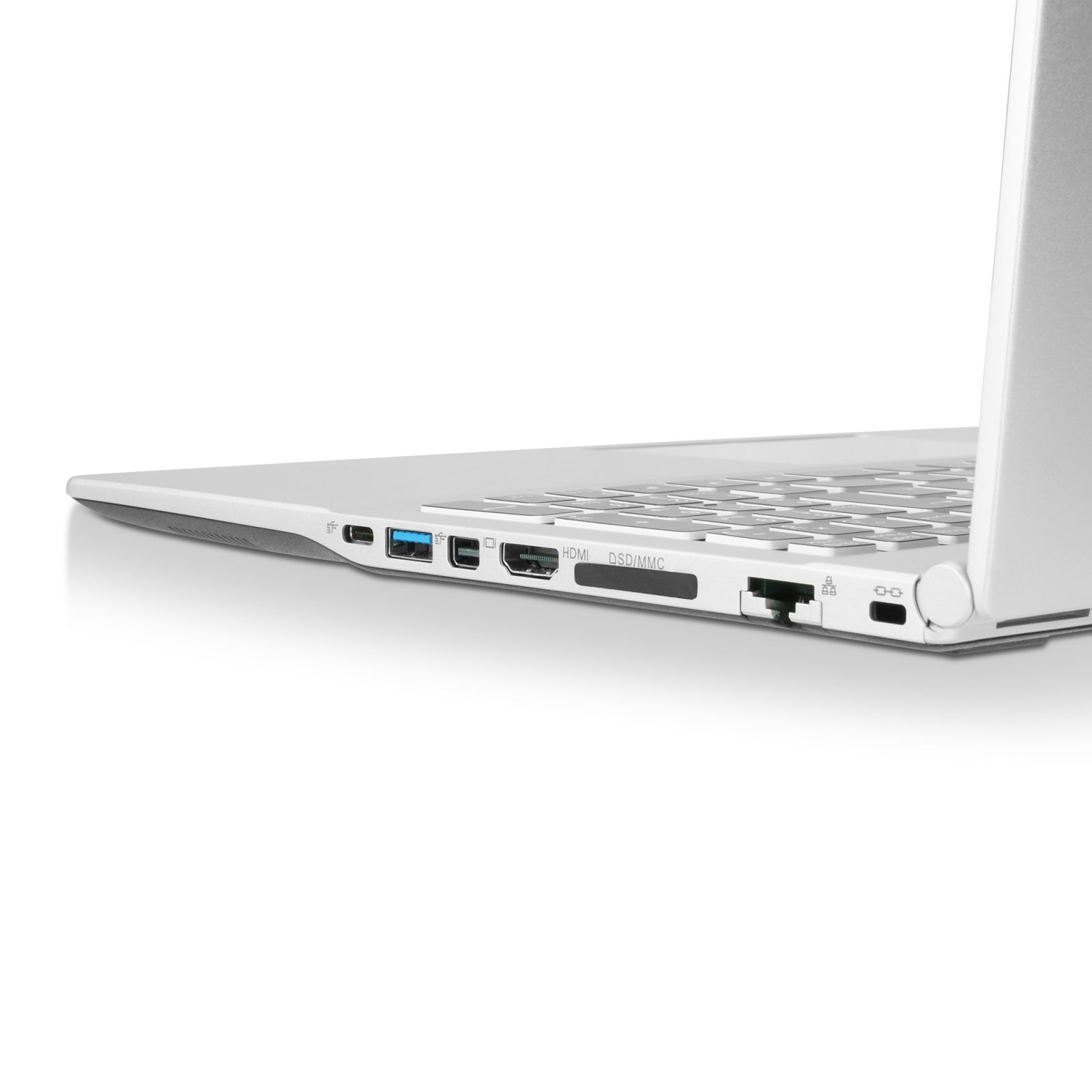

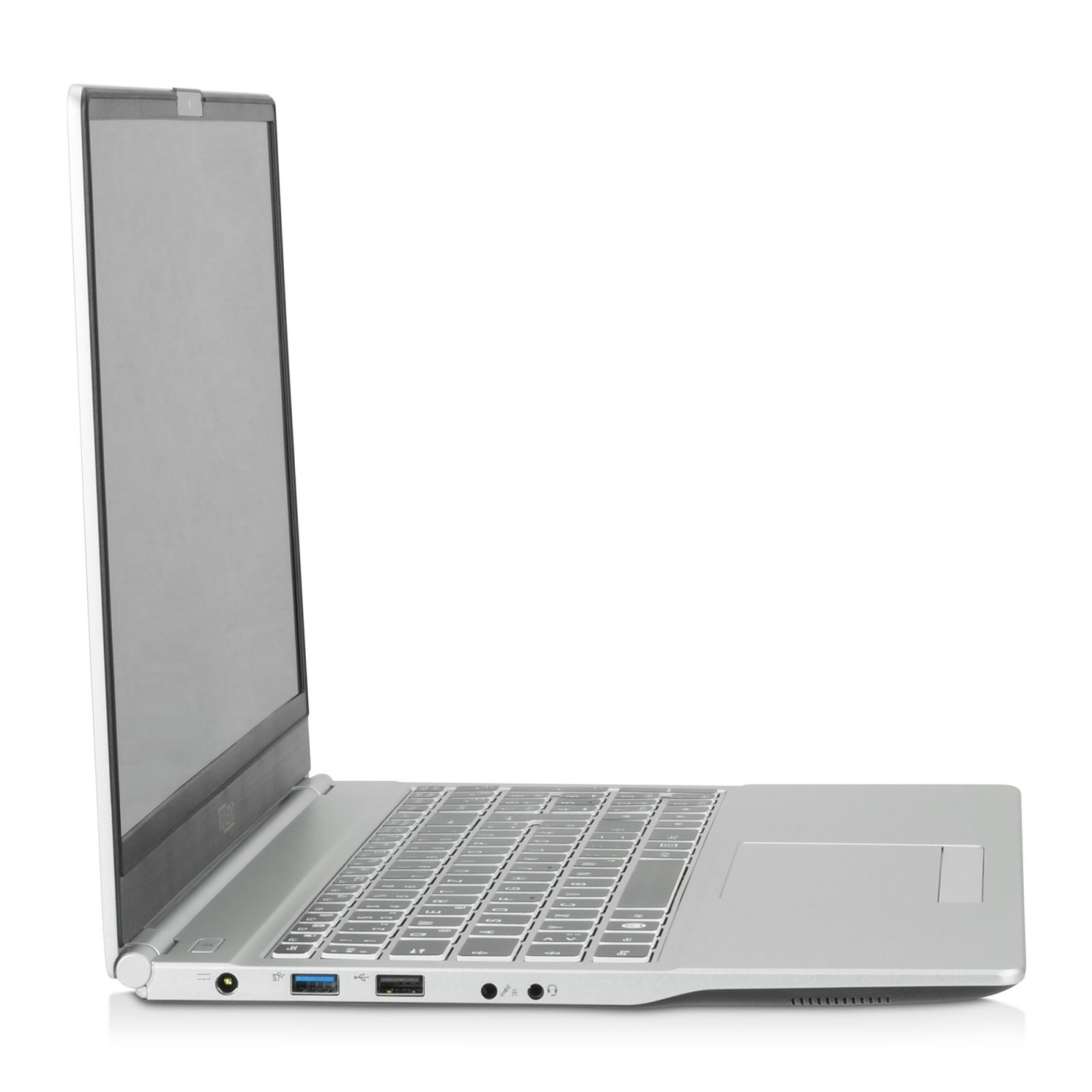

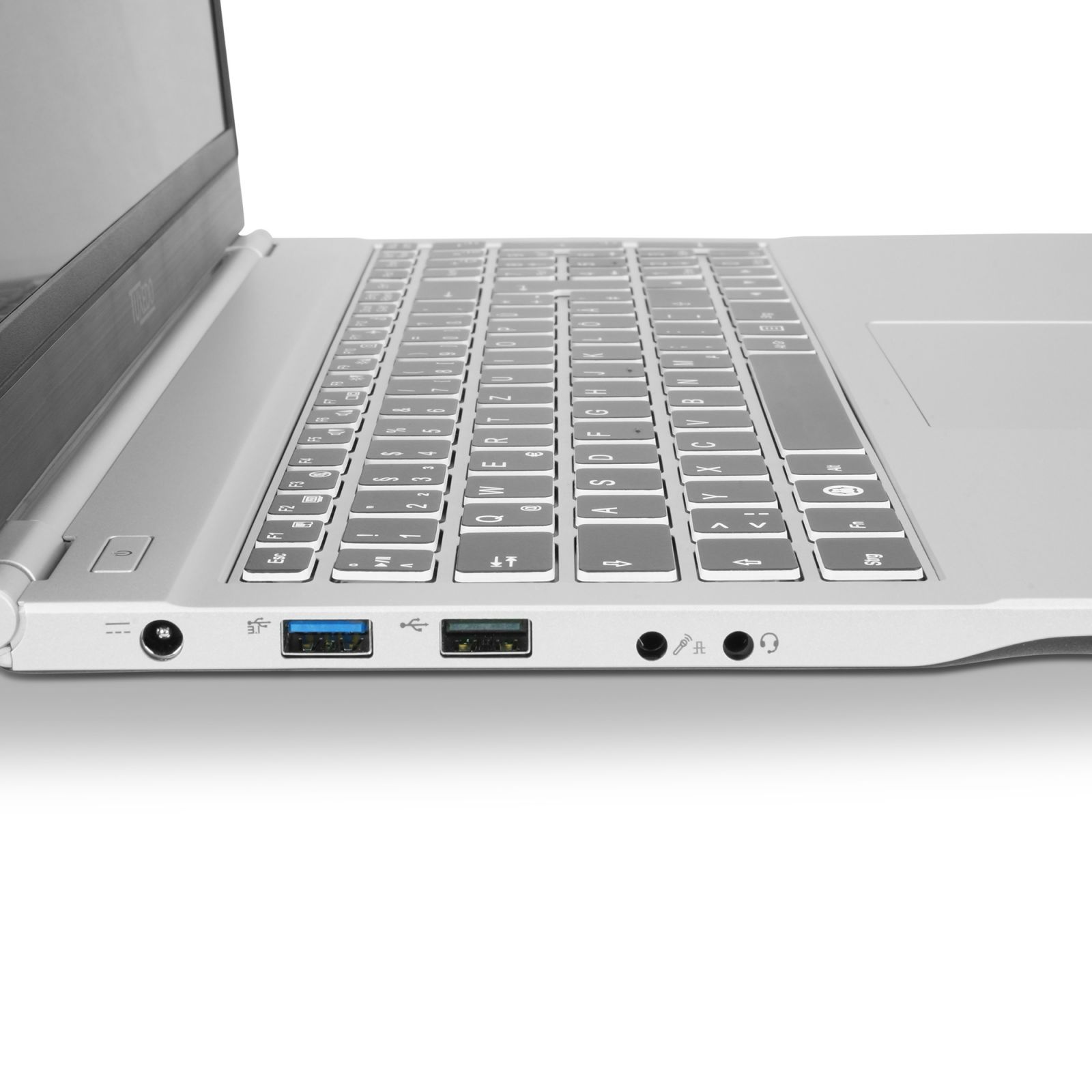

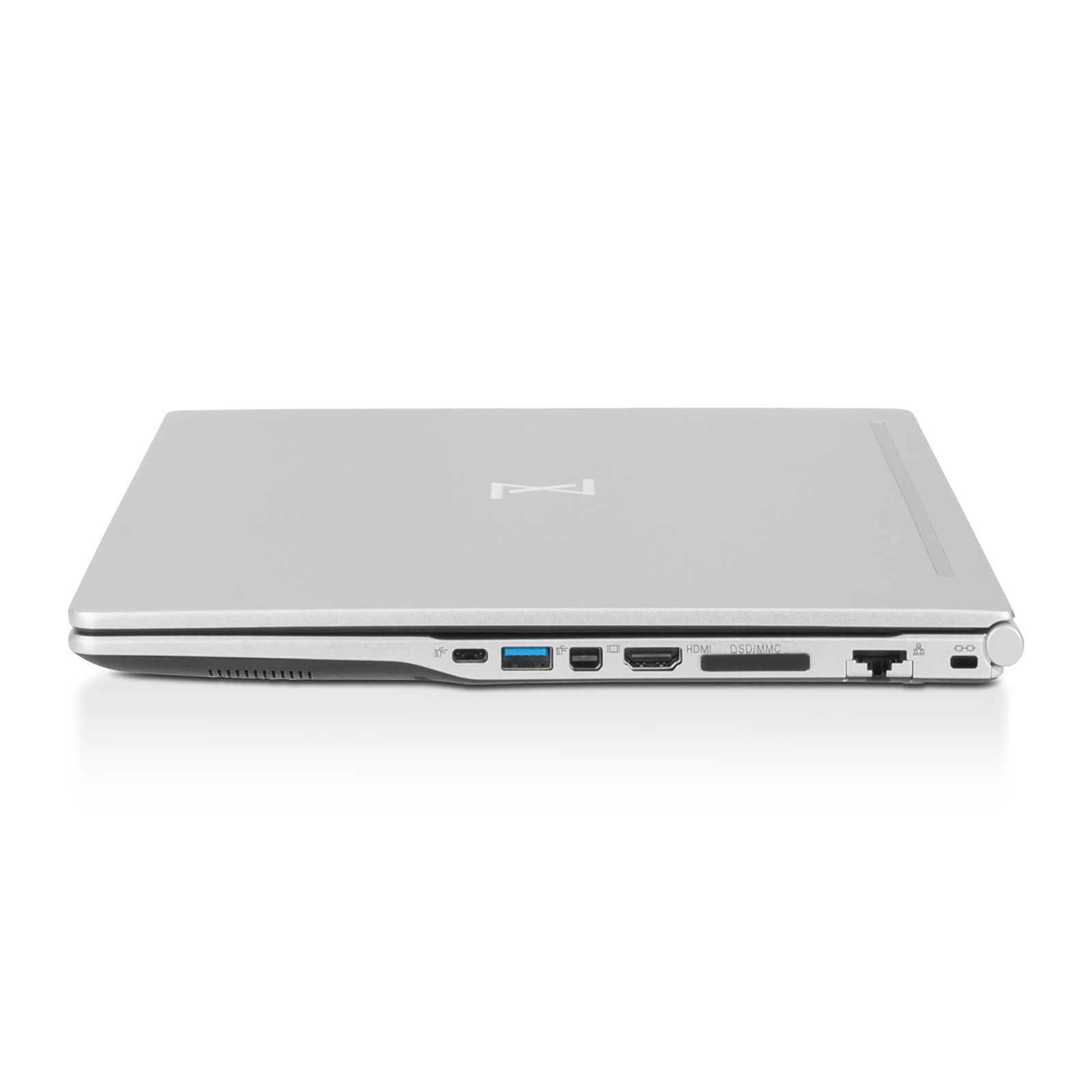

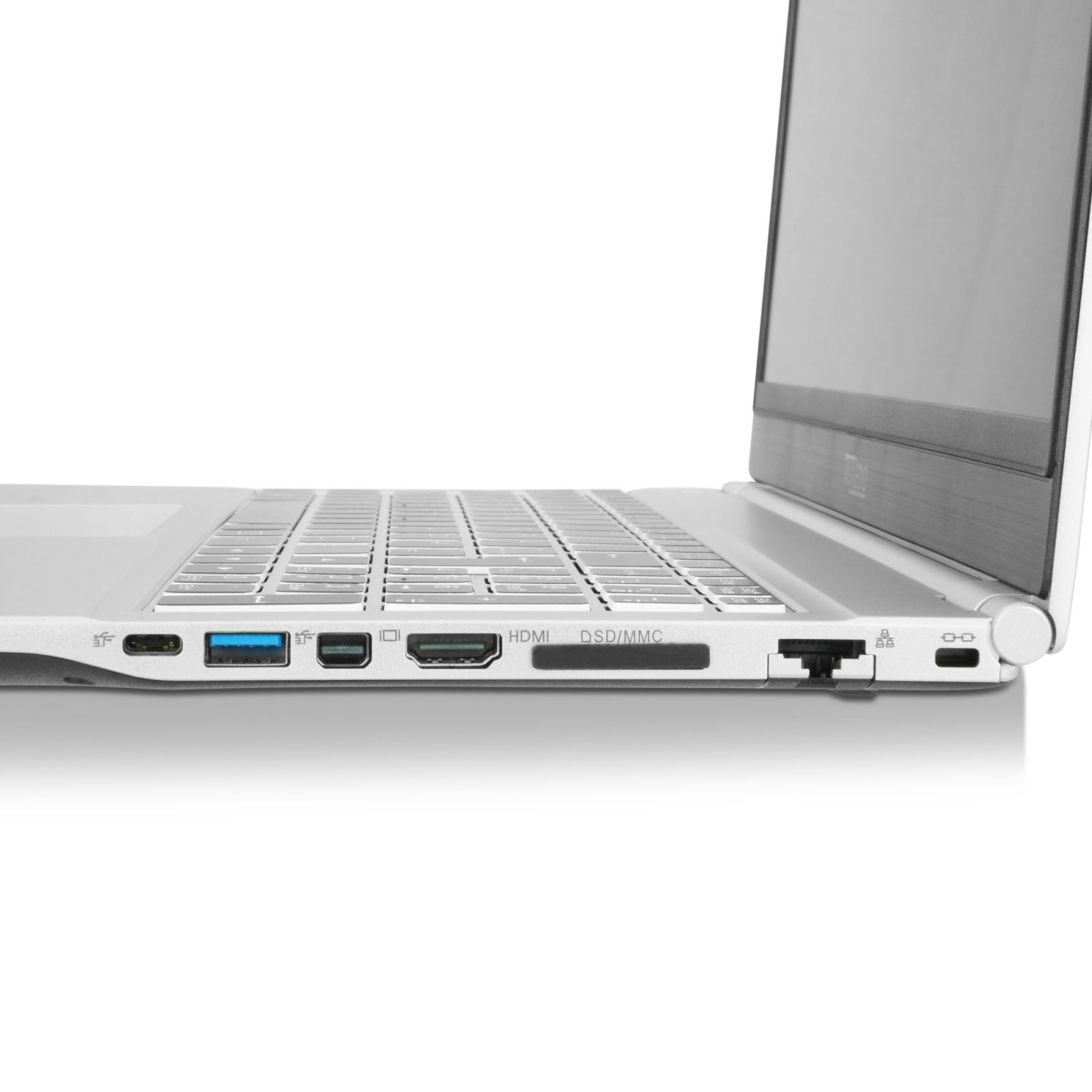

A Mini-DisplayPort, an HDMI connection, a Gigabit LAN port, a USB type C with Thunderbolt 3 and several USB ports and connections for headphones and microphone are available.
The USB type C is a further highlight, because besides USB 3.1 Gen2 (10Gb/s) it also masters Thunderbolt 3 and DisplayPort in is capable to load the battery! This means that you can use a Thunderbolt 3 Dockingstation over USB C.

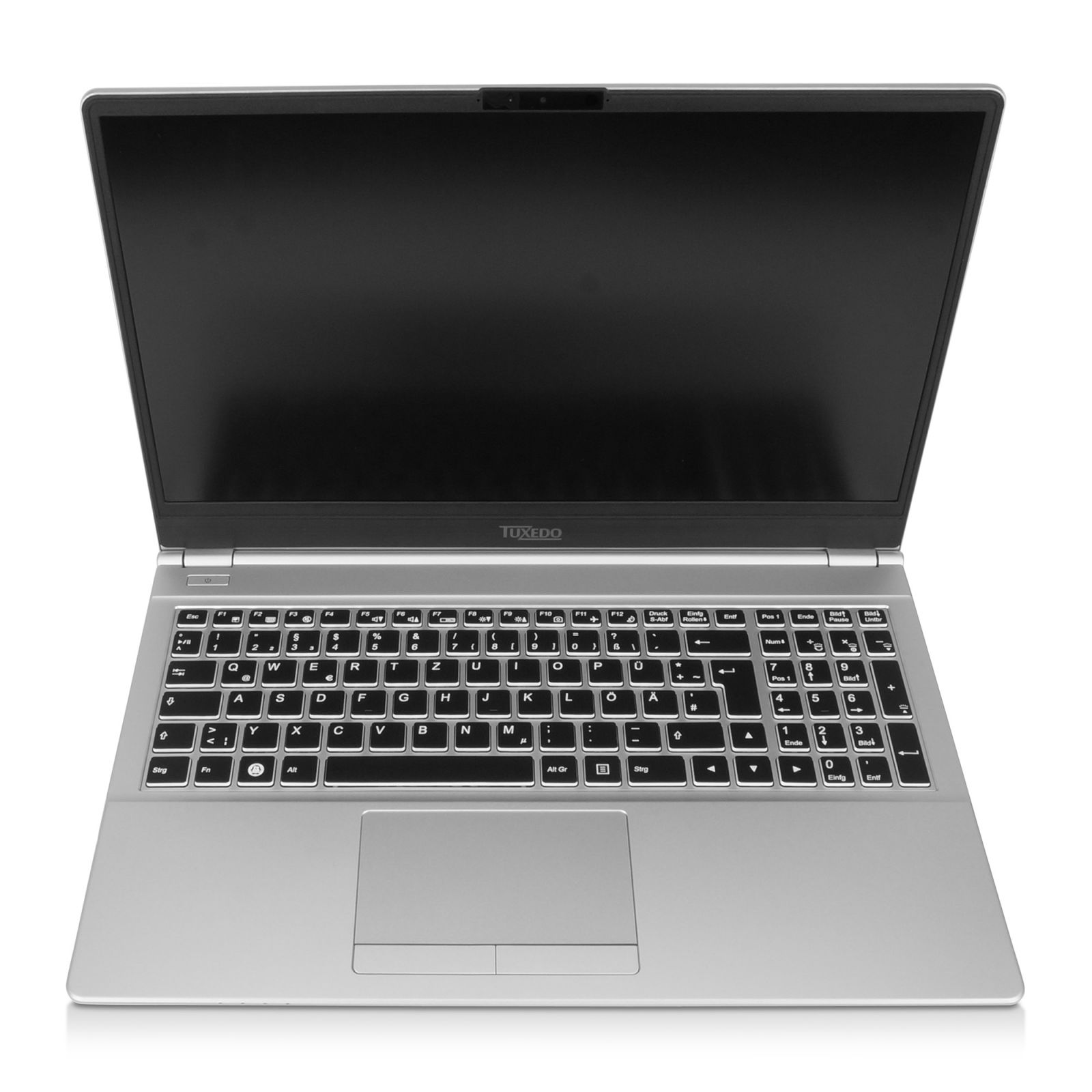

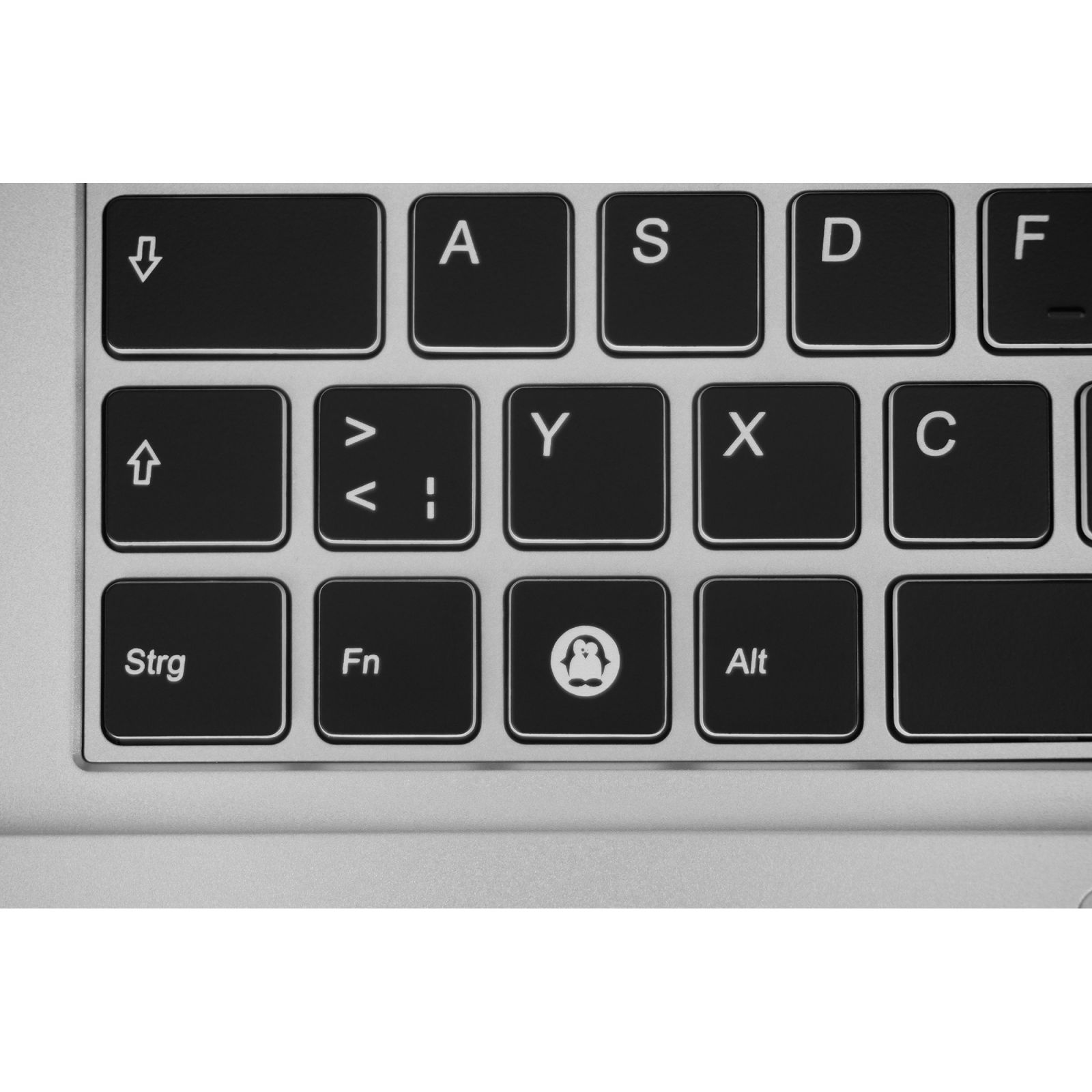

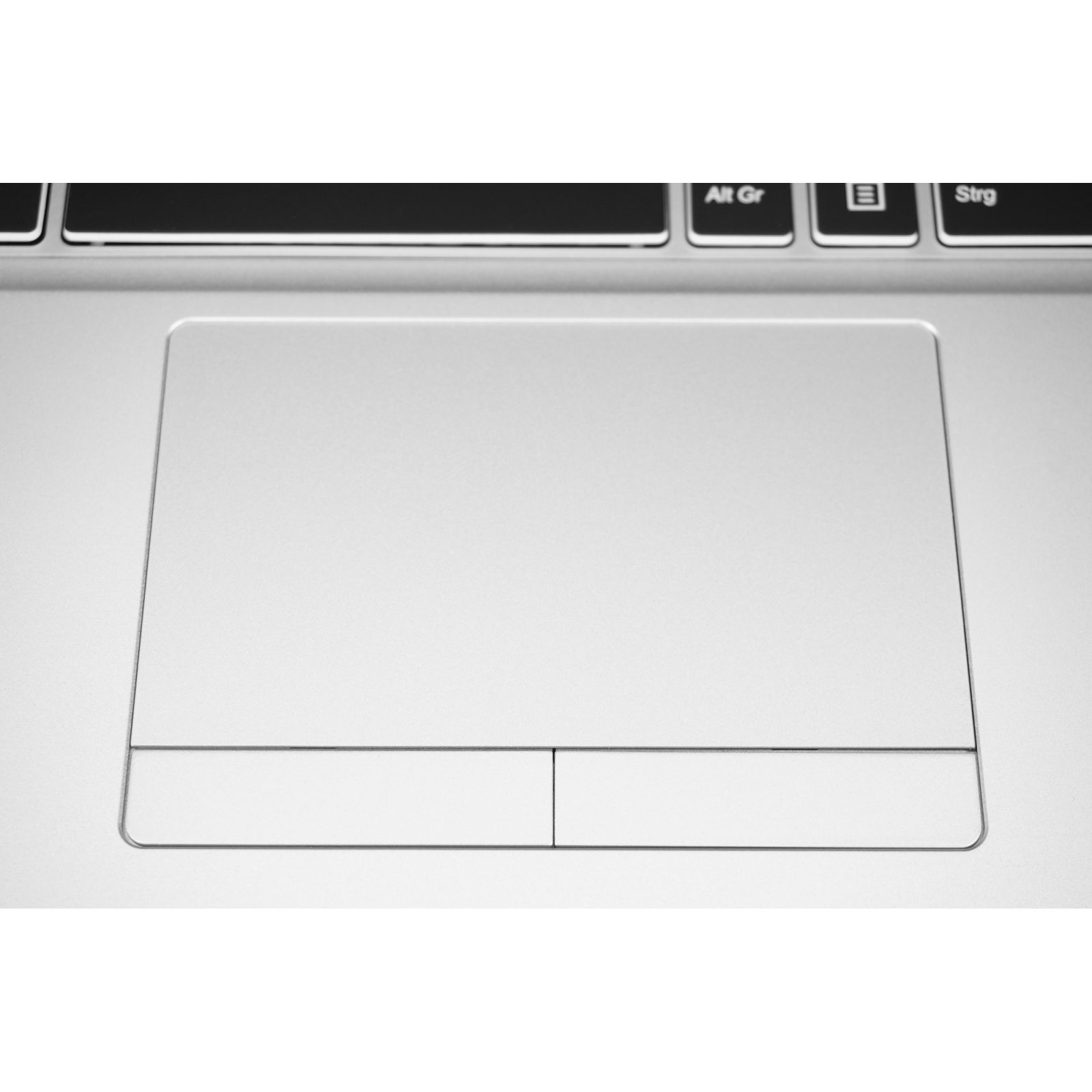

Of course, there is also an integrated webcam and a microphone, two loudspeakers, a touchpad with separate mouse buttons, a multi-card reader and the obligatory illuminated keyboard with penguin super key :D (instead of the windows symbol).

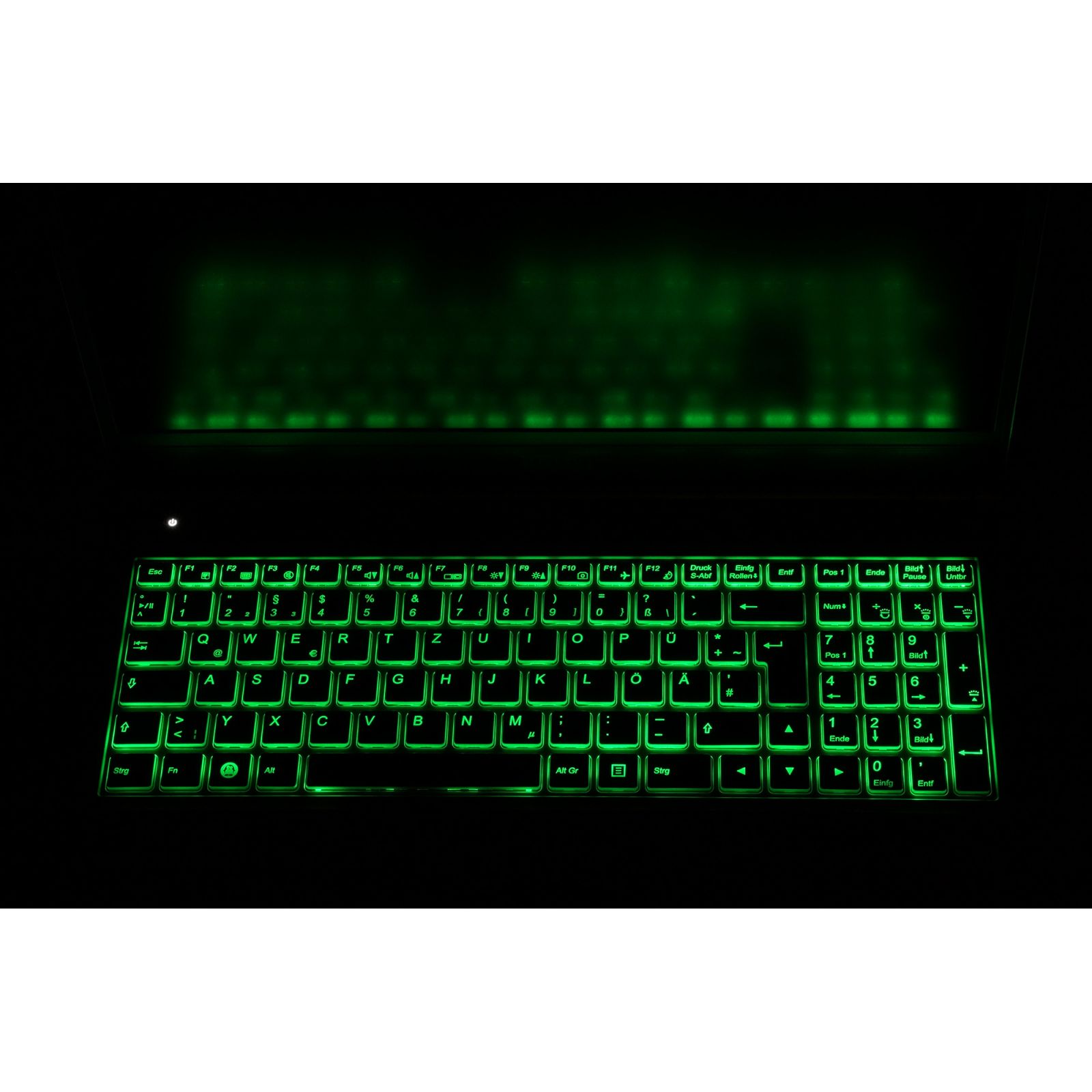

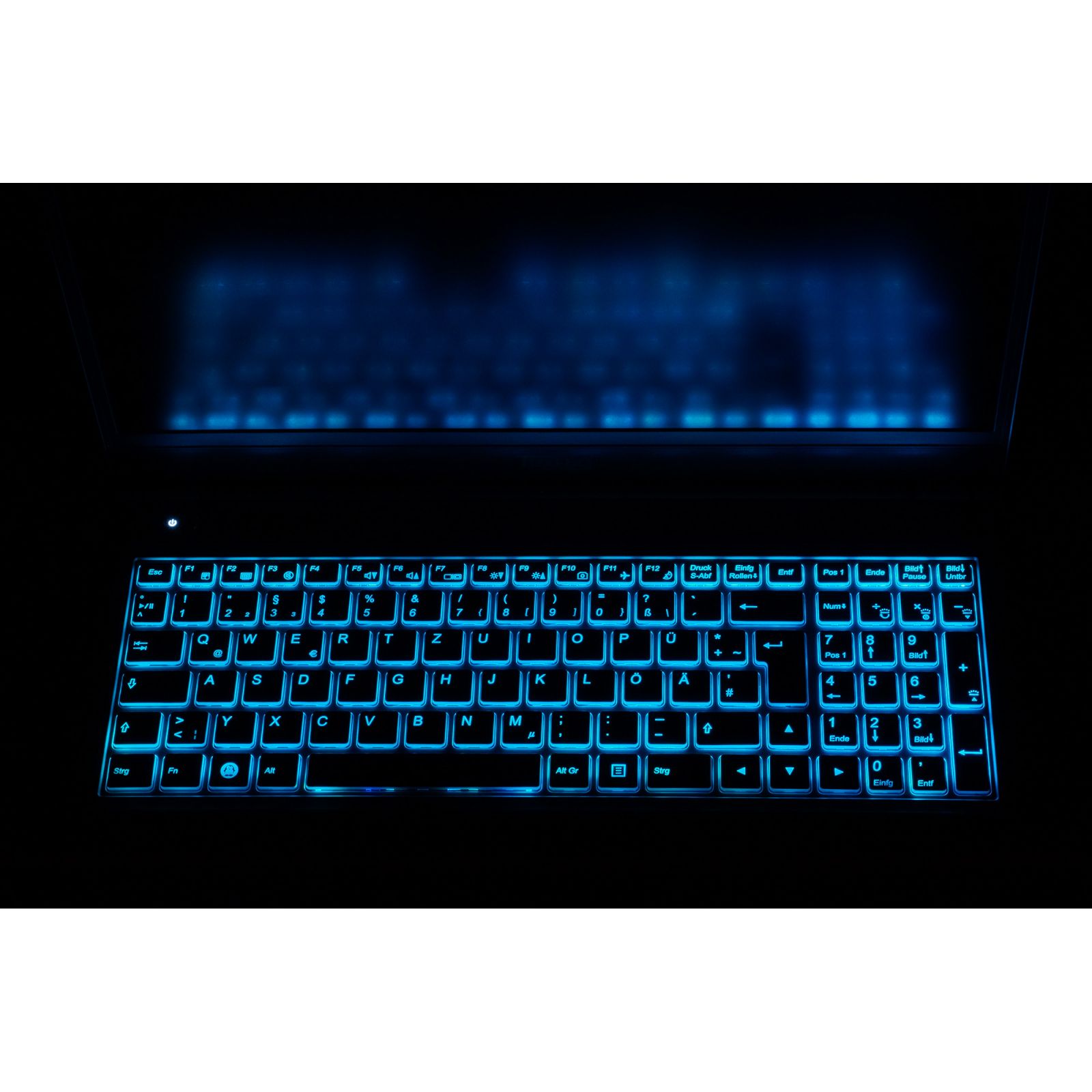

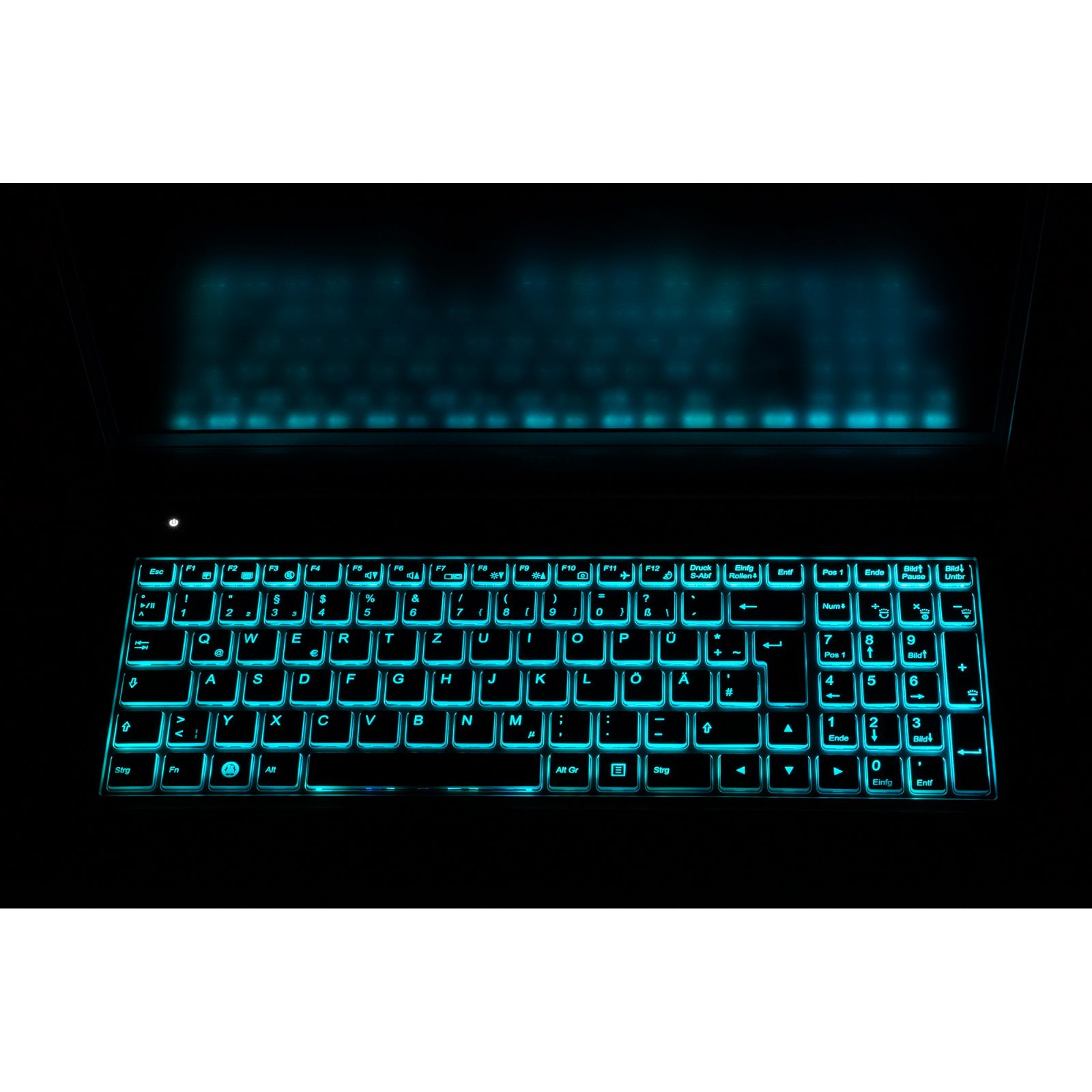

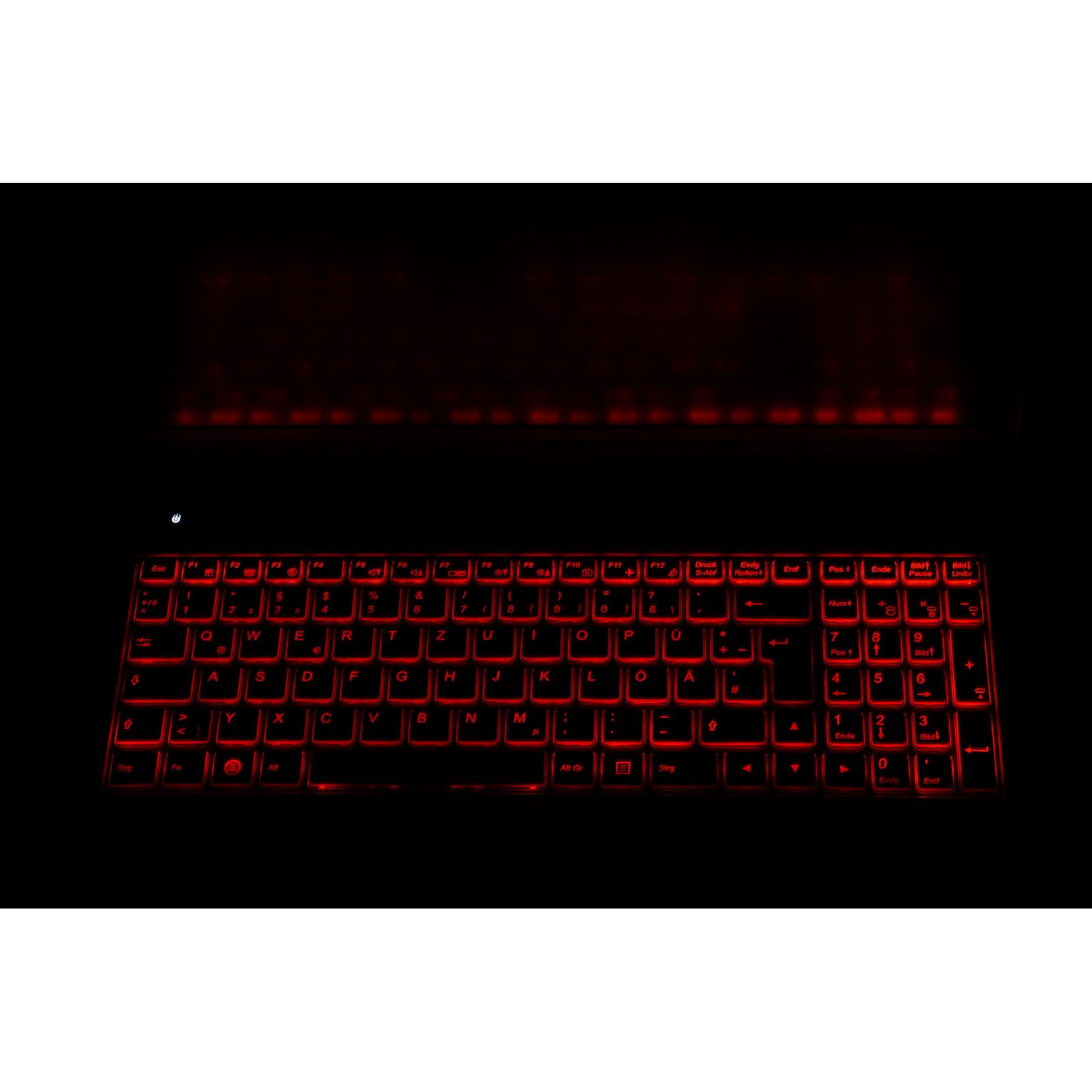

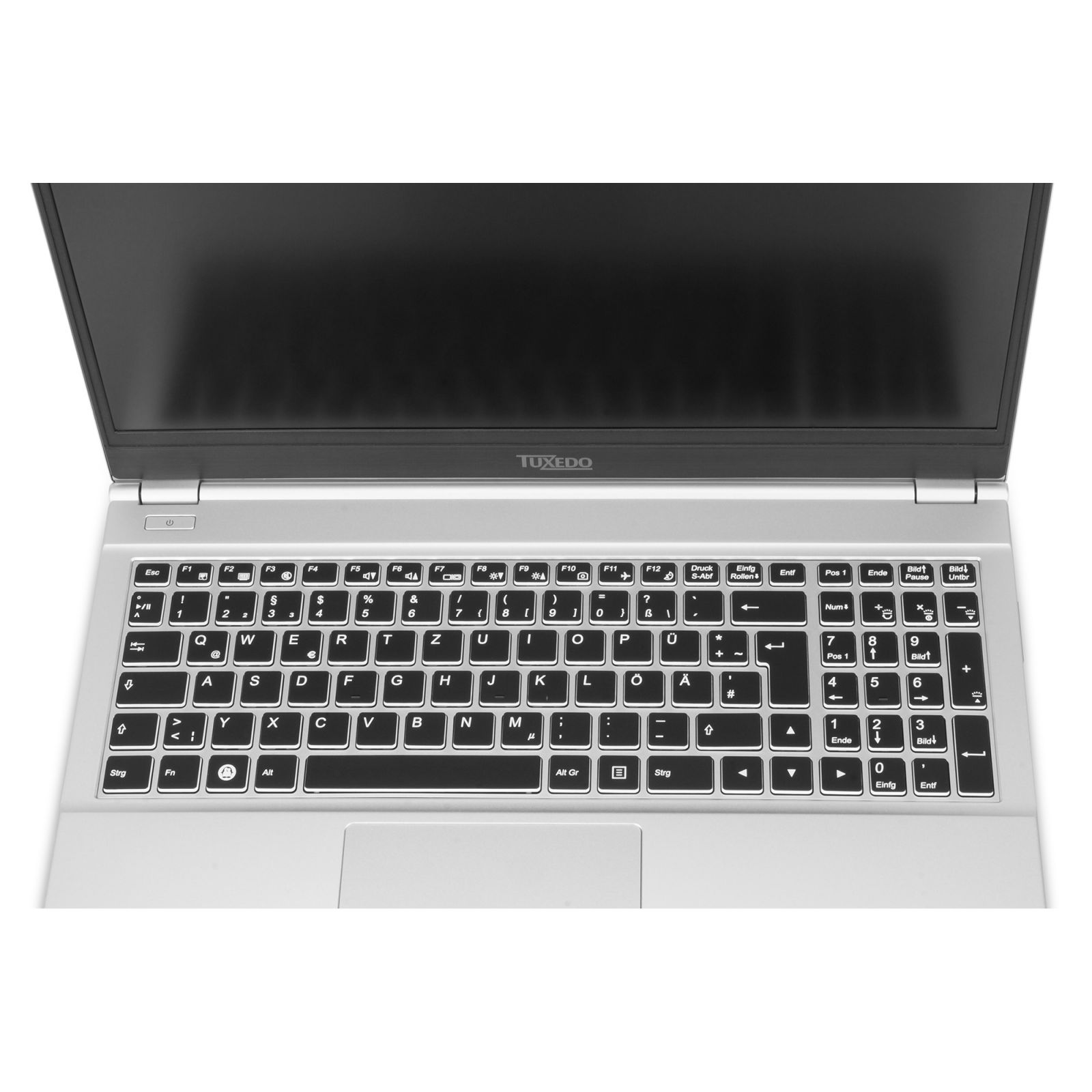

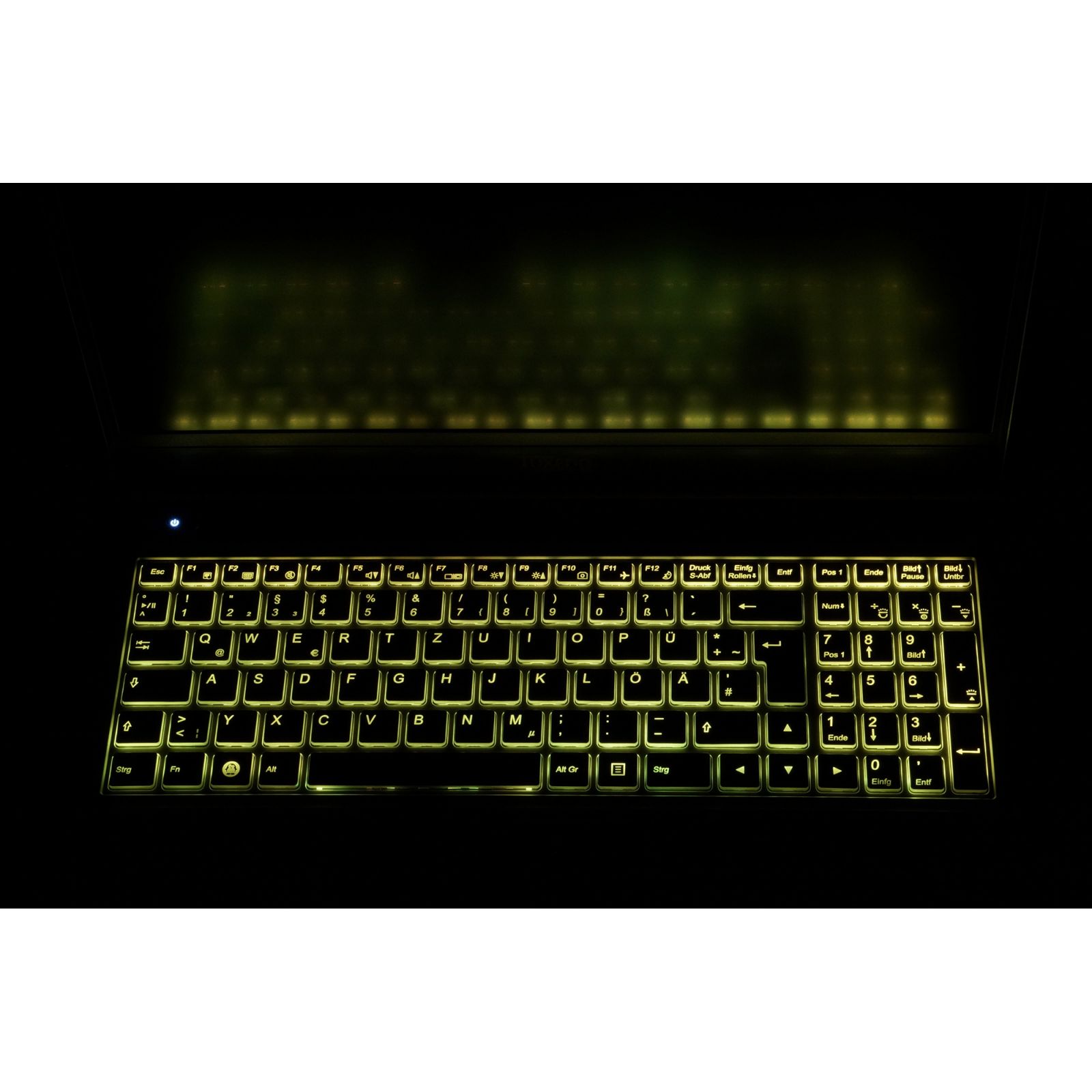

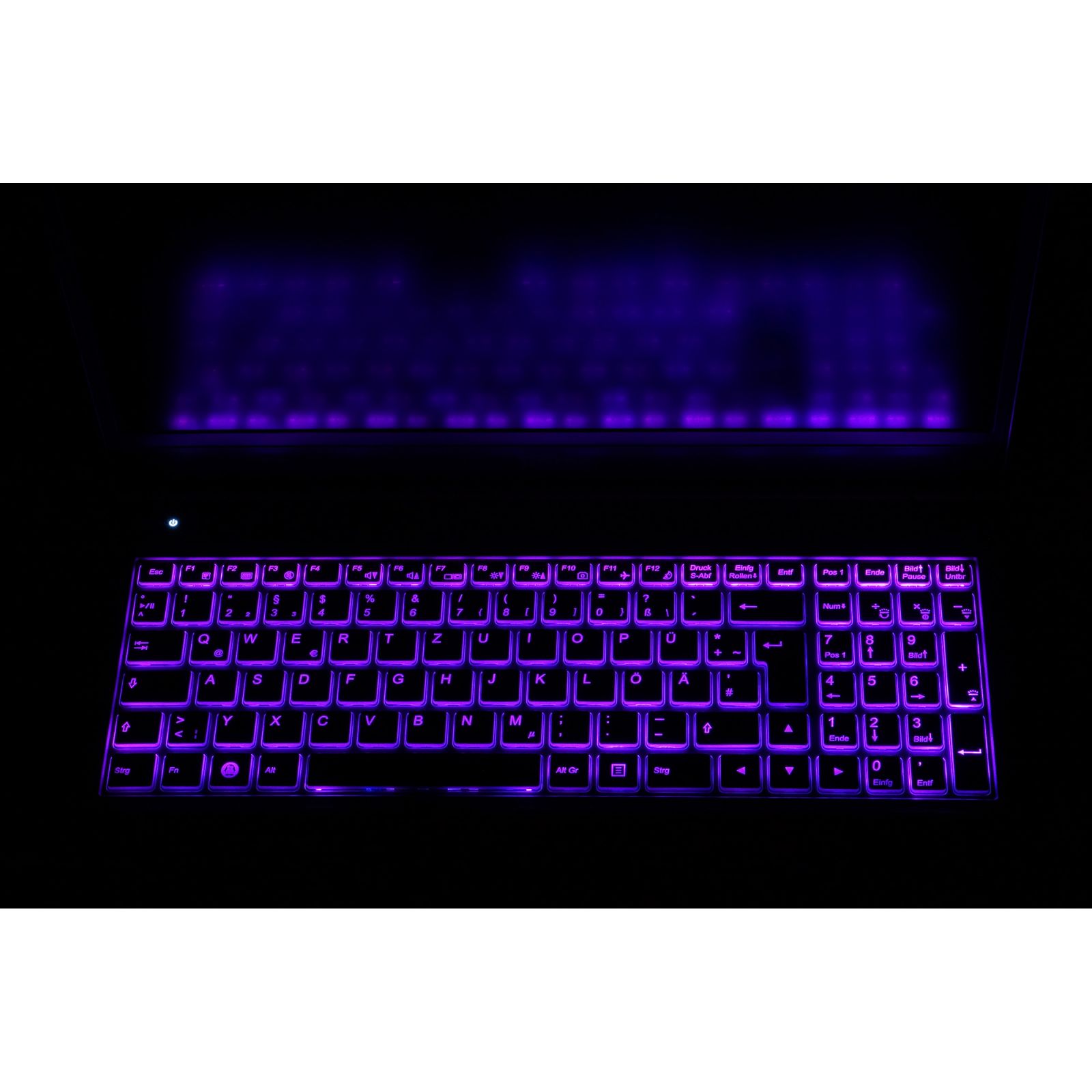

The multicolor illuminated full-size keyboard is also a pleasure for those who type often. It has a clear and rather hard keystroke and enough key stroke to keep the tipper in a good mood even when writing for a long time. A keyboard that can only be found on bigger sized 15 and 17 inch devices! For the backlit your free to configure your beloved color lighting.

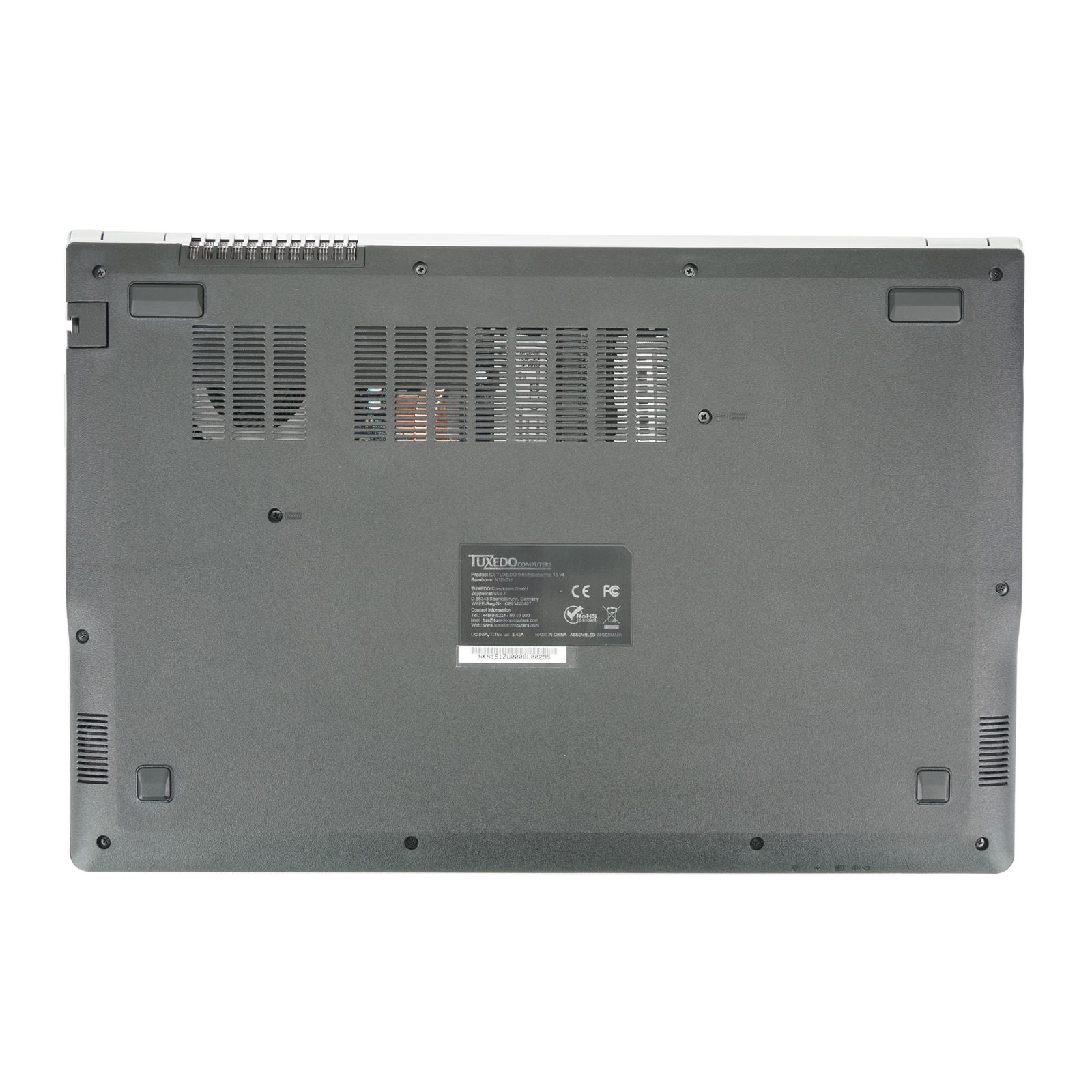

After removing the underside of the housing (= maintenance flap), all components are easy to maintain, clean or replace.
Display / Monitor
Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons.
Type: LED backlight display
Size: 15,6 inch (39,62cm)

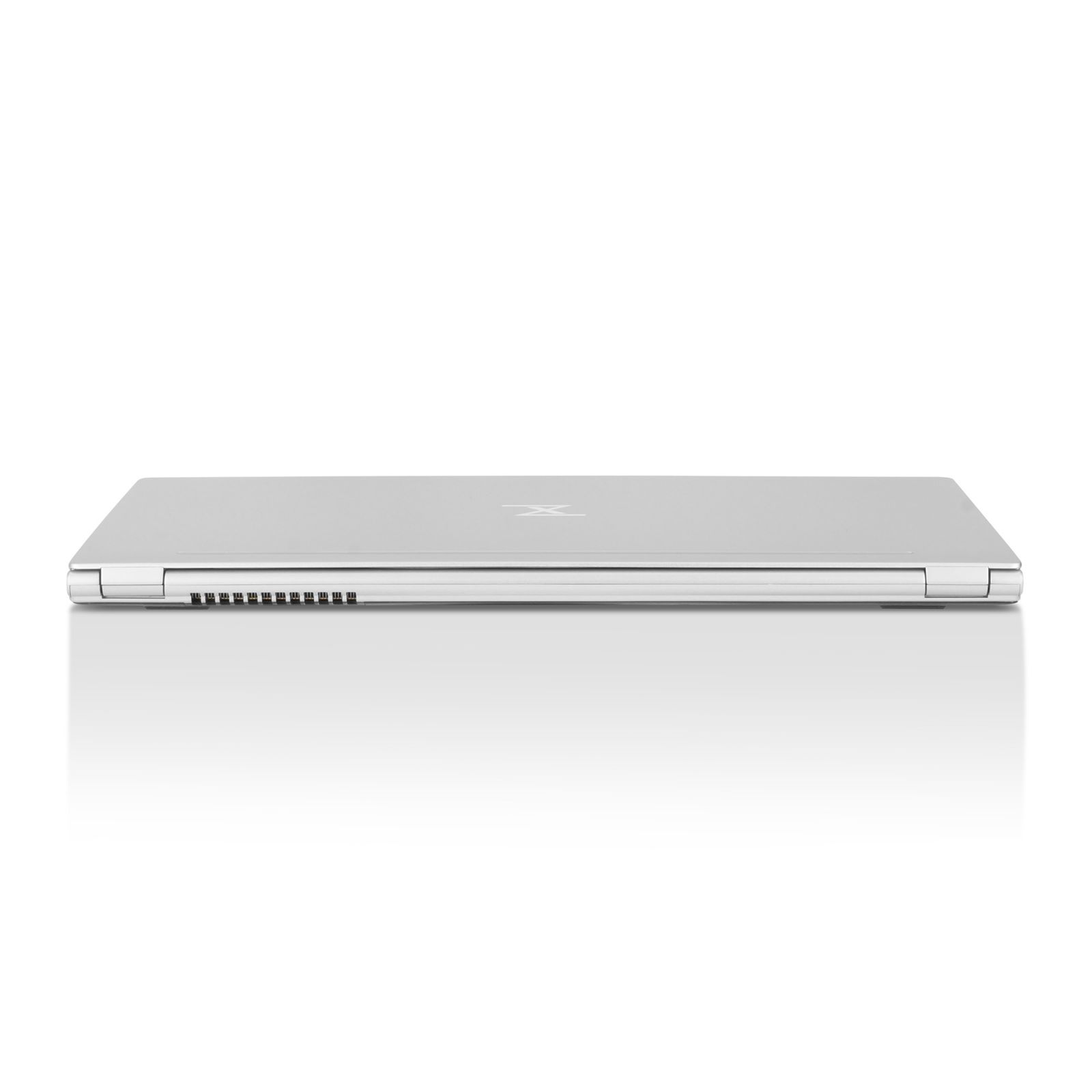

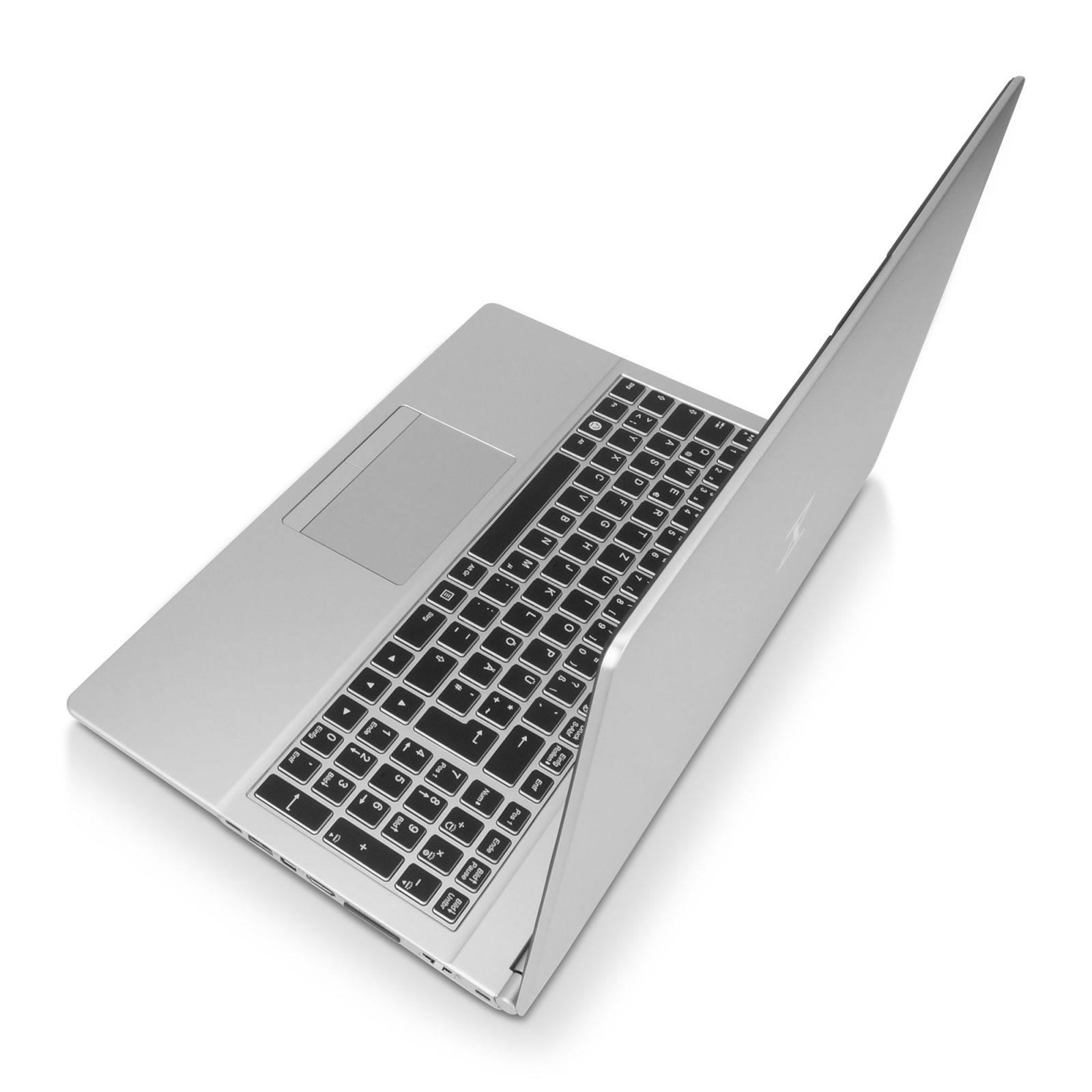

The opening angle of the display hinges is about 140°.
Resolution: Full-HD IPS-Panel, 1920 x 1080, matte/non-glare
Brightness: >330 cd/m² | Contrast: ca. 1200:1
NTSC: N7 | sRGB: 90%
Dimensions: Width: 360,4mm; Height: 19,9mm; Depth: 244,5mm
Weight: approx. 1.7 kg incl. battery, depending on equipment

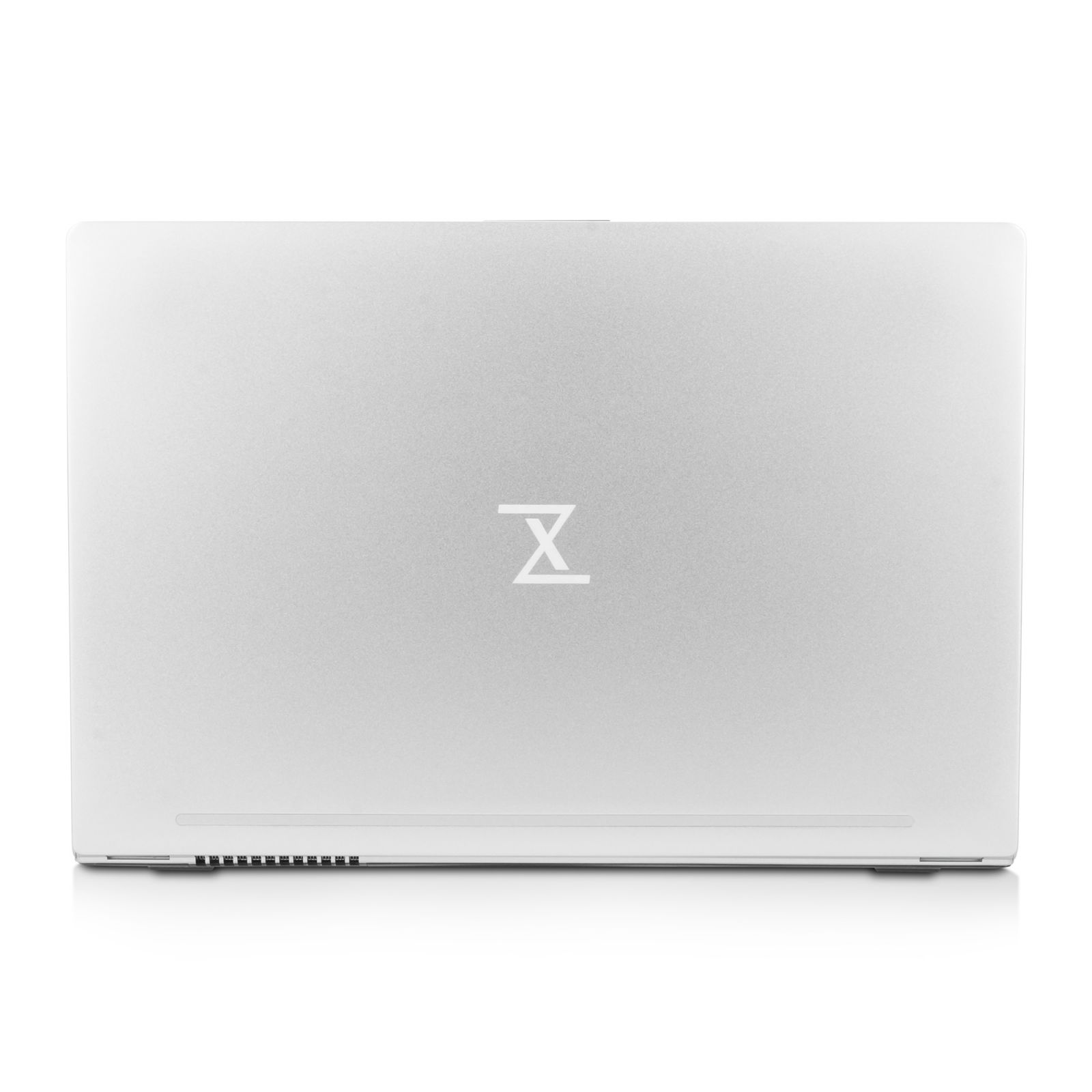

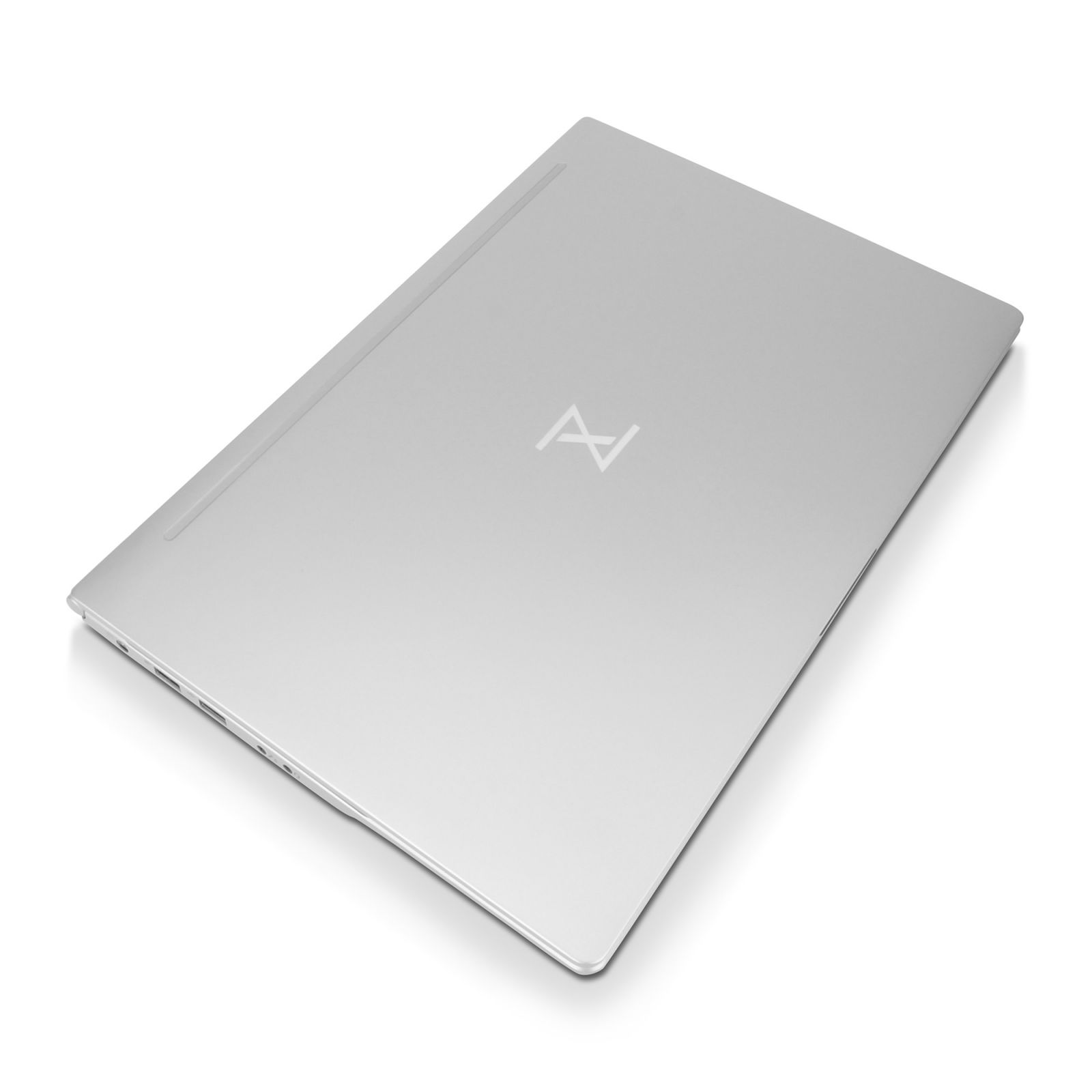

Material: aluminium cover, aluminium inside (hand rest), plastic display frame and bottom cover
Unibody consisting of 4 parts: Display top shell, housing bottom shell, display frame and keyboard shell.
Maintenance: After opening the base plate with a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.

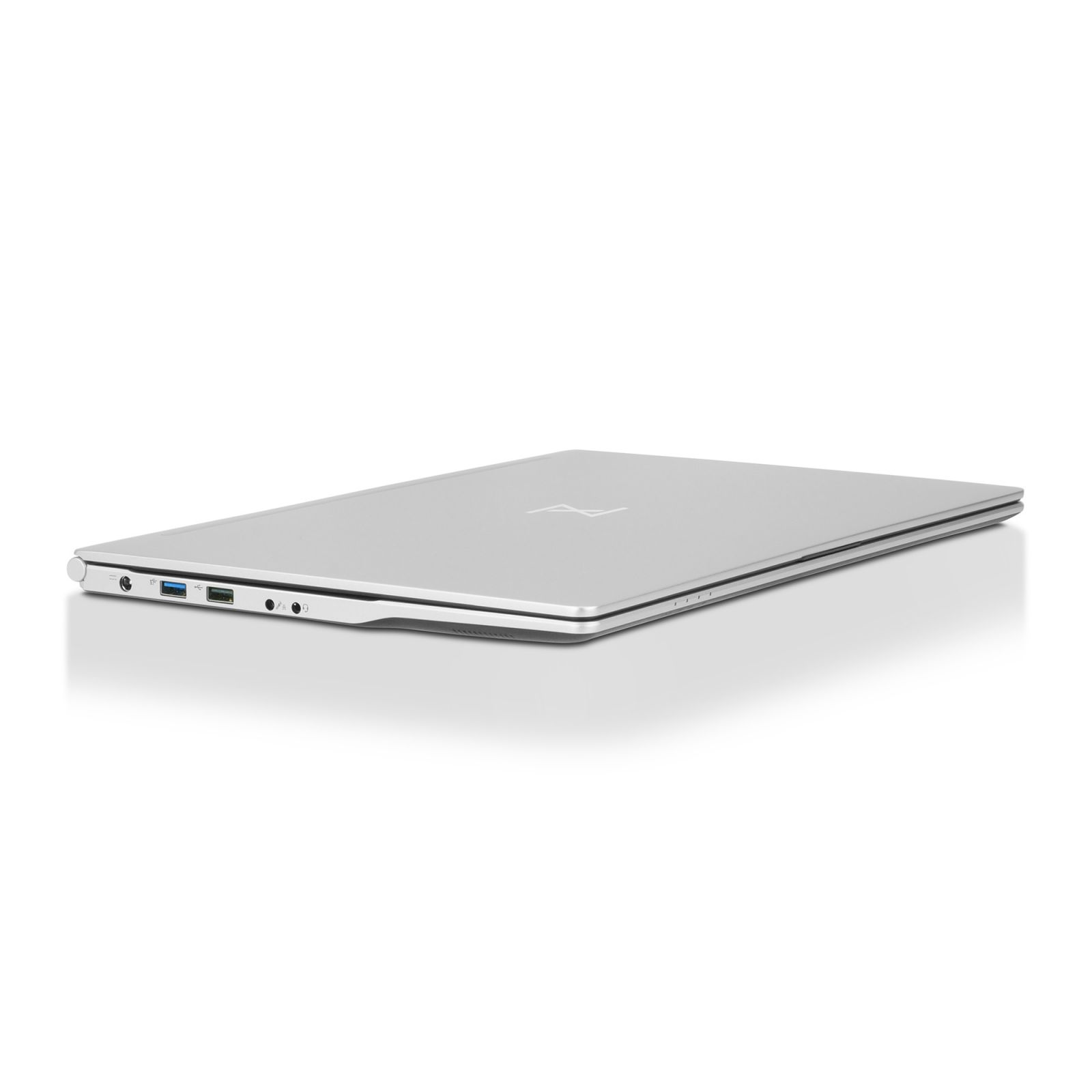

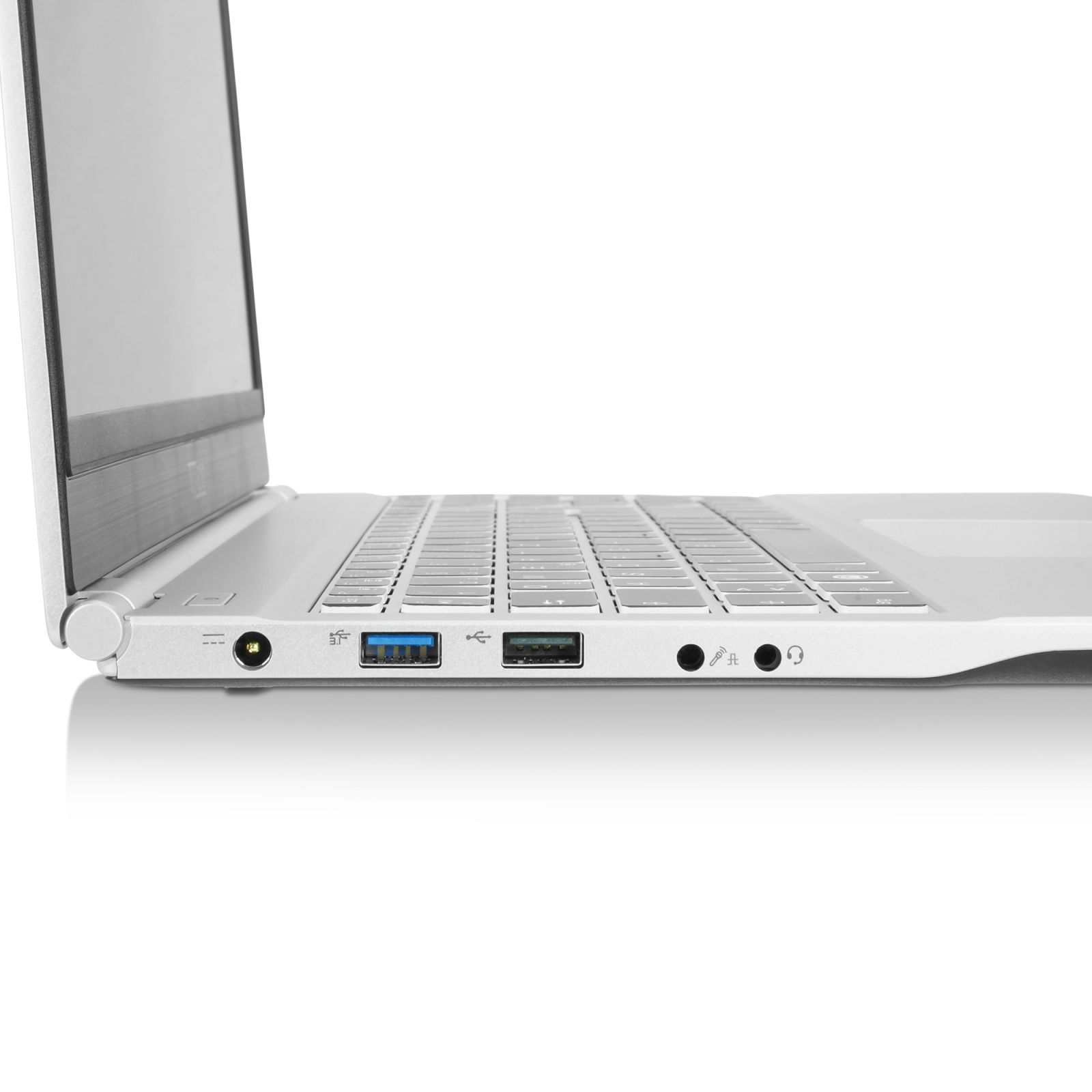

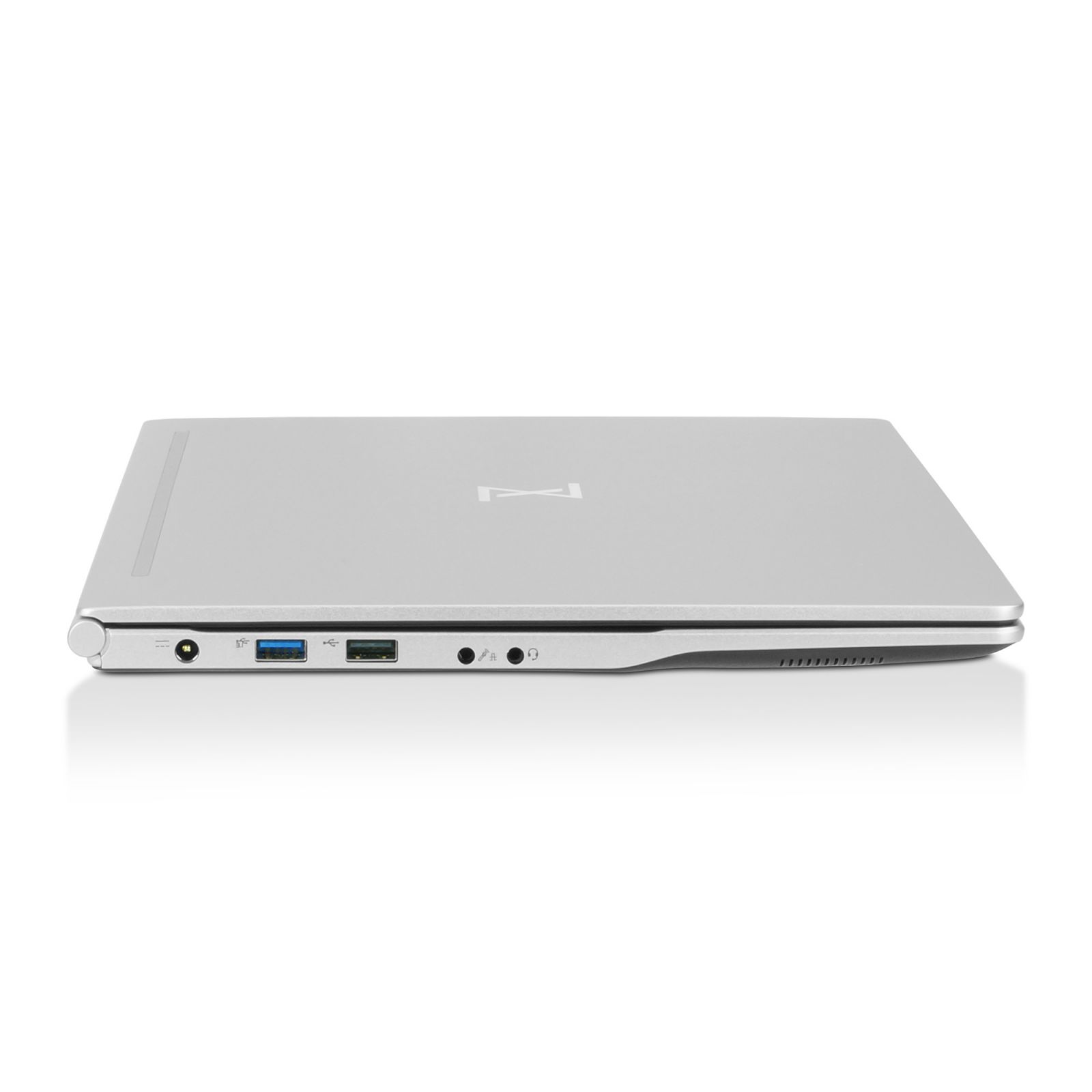

2x USB 3.1 Typ-A Gen1 up to 5Gbit/s
1x USB Typ-C 3.1 Gen2 with Thunderbolt 3 incl. DisplayPort (max. 3840x2160@60Hz) and Charging-Function (USB Power-Delivery / USB-PD / DC-IN; min. 20V/3A (60W), recommended 20V/3.25A (65W) charger)
Additionally, external dedicated graphics cards (eGPU) are supported by the Thunderbolt 3 port!
1x MiniDisplayPort 1.3 (max. 3840x2160@60Hz)
1x HDMI 1.4b with HDCP (max. 2560x1600@60Hz; 3840x2160@30Hz)
1x Charging port
- Kensington-Lock mounting
- Intel Management Engine (Intel ME) can be disabled directly via the BIOS
- Webcam & audio can be deactivated directly via the BIOS
- WLAN & Bluetooth can be deactivated directly via the BIOS
- TPM 2.0 Chip (per BIOS de-/activeable)
- Fingerprint-Reader (Windows only!)
Battery & power supply
Large 54 Wh lithium-ion battery. (Interchangeable after opening the base plate.
Power supply, only 106x43x29mm (LxWxH), 200g, 65W 19V 3.42A
Lifetime of batteries
The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information
Approx. 12 hours tested with TUXEDO_OS and Ubuntu 18.04 with 32GB RAM, 500GB Samsung 860 EVO and Kernel 4.15.
We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, WIFI & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!).
This way you get an information of maximal possible battery life. Starting from this you can manage your individual battery life depending on your demands and to influence it e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.
Energy efficient Intel Core-i Mobile-CPU:
Intel Core i5-10210U (4x 1.6-4.2GHz Quad-Core, 8 Threads, 6MB Cache, 15W TDP)
Intel Core i7-10510U (4x 1.8-4.9GHz Quad-Core, 8 Threads, 8MB Cache, 15W TDP)
Energy-saving graphic chip integrated in the CPU:
Intel UHD Graphics 620
Type: DDR4 SO-DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with at least 2 modules)
Hard drive M.2 SSD
Fast M.2 SSDs
Manufacturer and speed see configurator
Standard and maximum see configurator
Communication / Network
Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1
Webcam / Laptop camera
1,0 Megapixel (1,0 MP) camera including microphone
Sound / Audio
High Definition Audio
2 speakers: 2x 2W
9-in-1 Card Reader
- MMC / RSMMC
- SD / SDHC / SDXC / Micro SD (Adapter necesssary)
- MS / MS Pro / MS Duo
We install Ubuntu and TUXEDO_OS (based on Ubuntu with Budgie Desktop) in the latest 64-bit version.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For advanced users and selected devices we also offer openSUSE 15 with Xfce, Gnome or KDE plasma. Of course fully configured and installed with all available updates and device drivers.
For "self-installers" and everyone who is interested, we have set up a database with downloads, instructions, tips & tricks and offer a customization script called "tuxedo.sh", which makes our customizations automatically under openSUSE and Ubuntu: Help & Support Section | tuxedo.sh
On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively you are free to download alle Windows-Drivers from here.
With all our notebooks you have the possibility to protect your privacy already on BIOS level. For this purpose the following functions can be completely deactivated:
- Intel Management Engine (IntelME)
- Audio (Microphone & Sound)
- WLAN & Bluetooth
In addition, our Premium BIOS allows chipset-specific settings and definitions for components via various profiles in order to operate the device optimally depending on its use. The profiles can be found in the BIOS menu under:
Advanced > Advanced Chipset Control > Performance Profile Select.
Further information can be found here in our manual.
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!
For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB pendrive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
Noise growth / Cooling / Ventilation / Fan
Temperature controlled silent fan
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.
Custom fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the behavior of the fans at yourself. This means that you get the ability to make your device as silent as possible. You are able to set the device almost passive cooled, without any fan noise most of the time!
