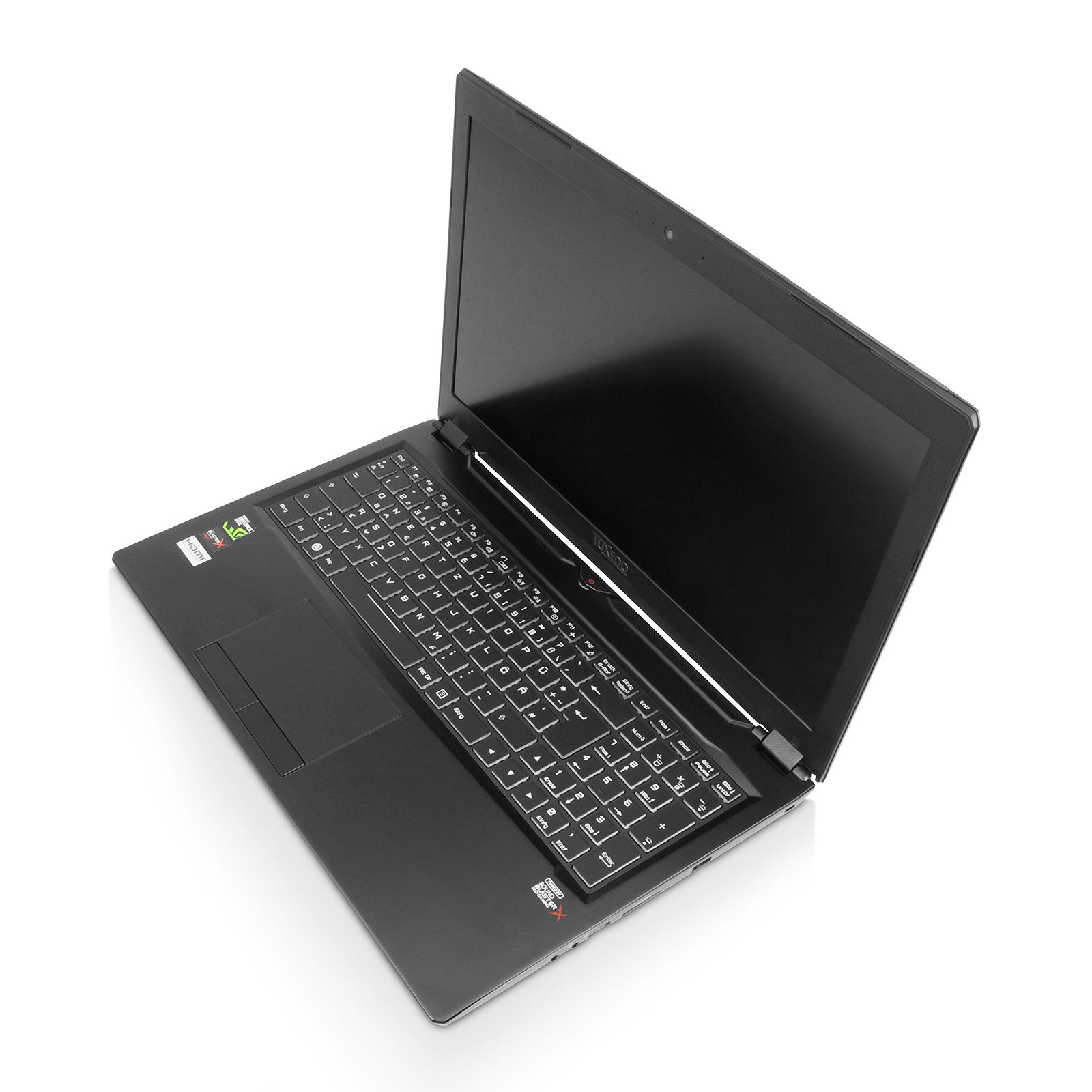

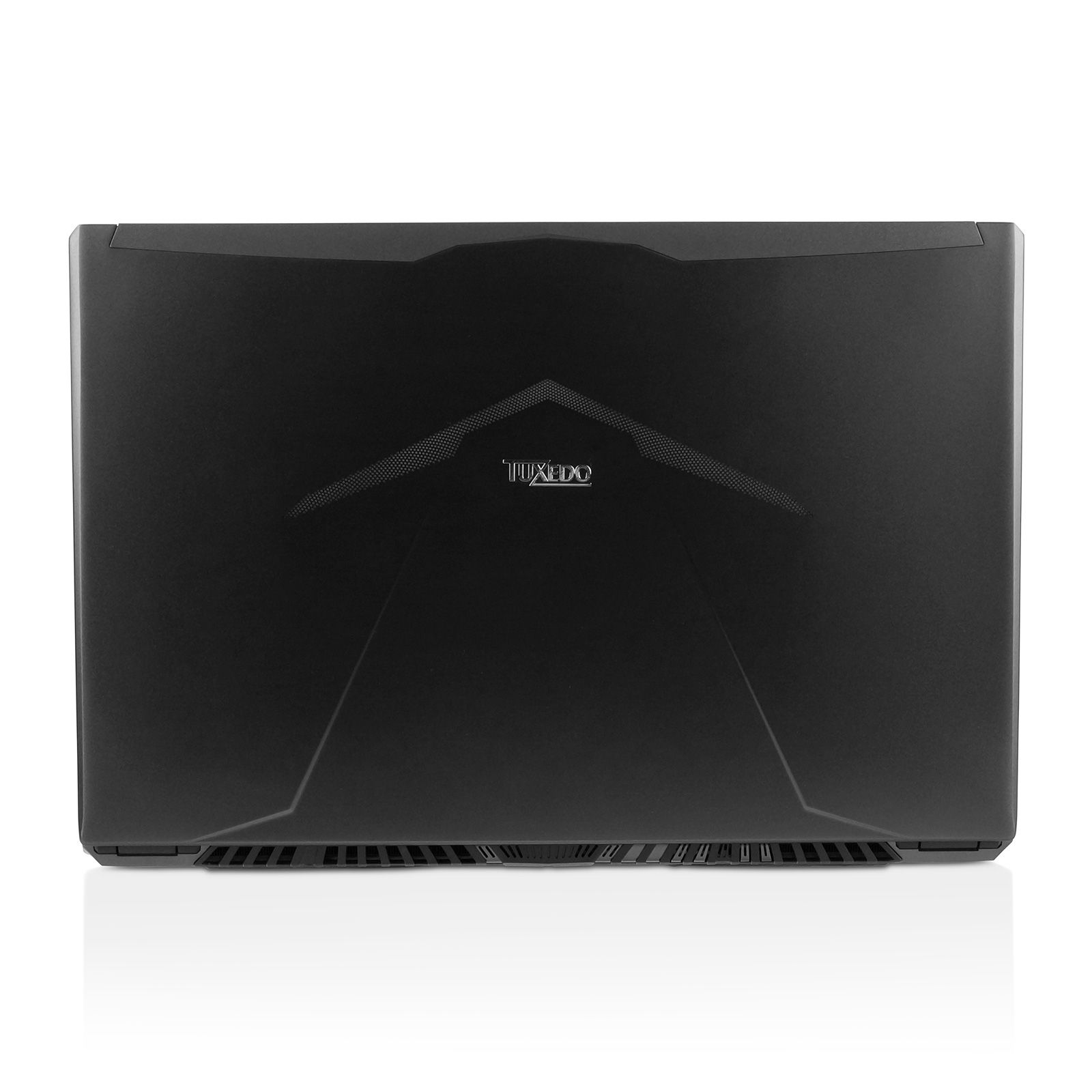

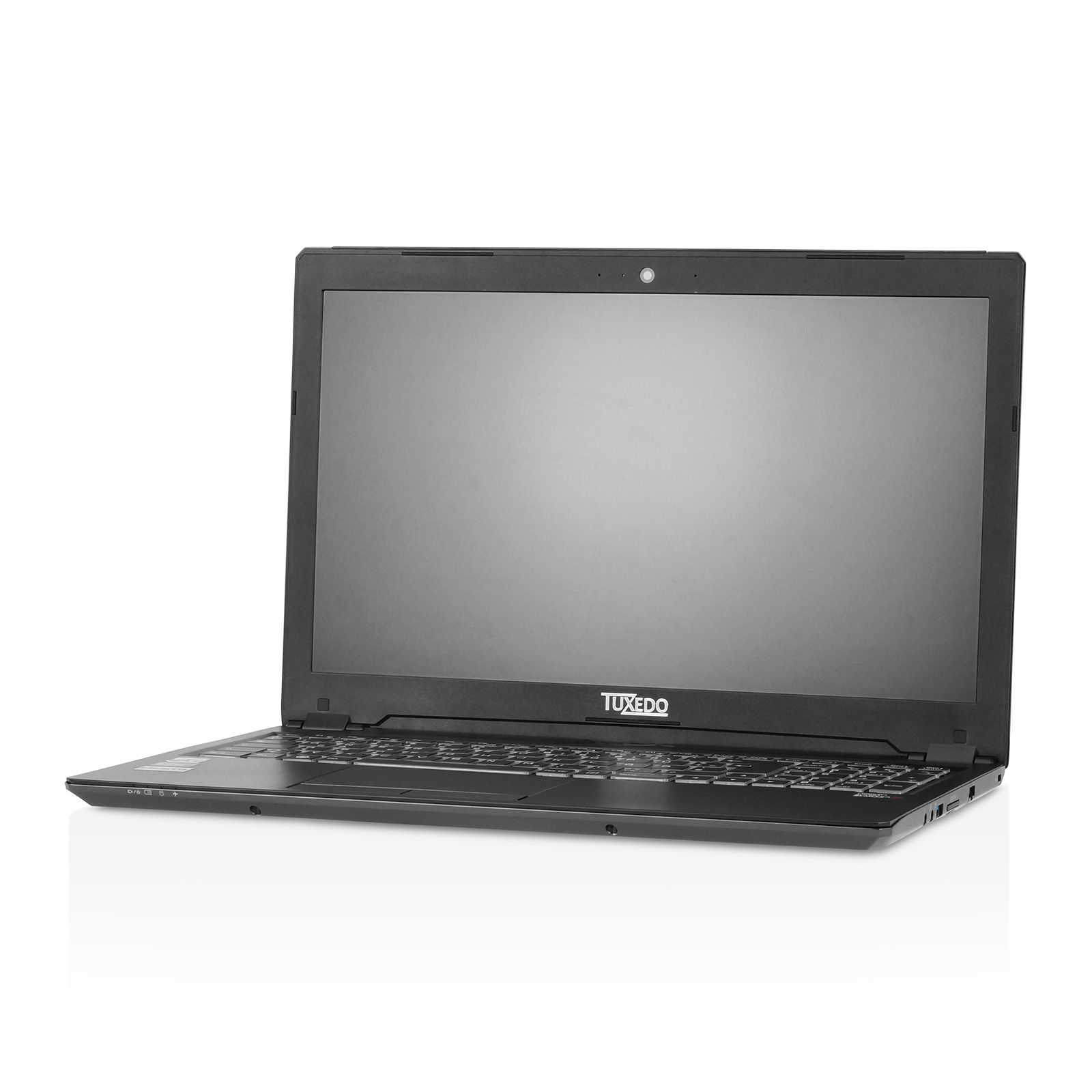

    The InsanityBook combines Ultrabook features with high-performance processors and graphics cards. A crazy combination combined in a high-quality designed and processed aluminium housing.

    Features such as DisplayPort connectors, USB-C, dual-channel memory, six-core CPUs and much more are also included.

    With its height of only 18,6mm and only 1,9kg it is almost as portable as an Ultrabook. The powerful NVIDIA GTX graphics card, paired with Intel's Six-Core CPU also make it a real arithmetic monster. This means that you can always have your implement with you and still always have full power at your disposal.

    An ultra-fast M. 2 NVMe PCI-Express SSD provides the data hunger for your high-performance notebook at a reasonable speed and on another 2.5" SATAIII 6Gb/s HDD or SSD you will find your terrabyte of data that you always need to have with you.

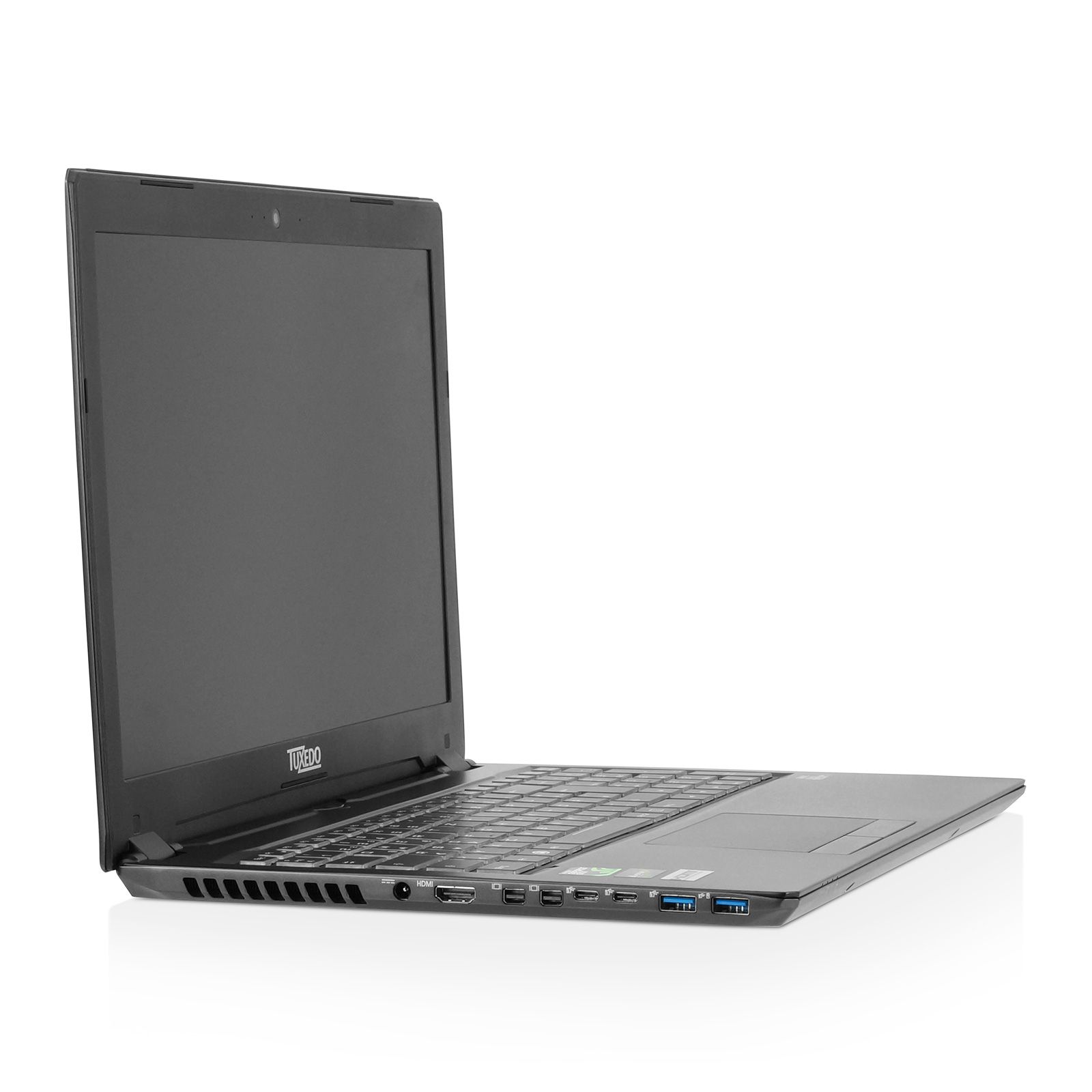

    The two mini display port and one HDMI connectors allow you to operate monitors with up to 4k resolution at 60Hz.

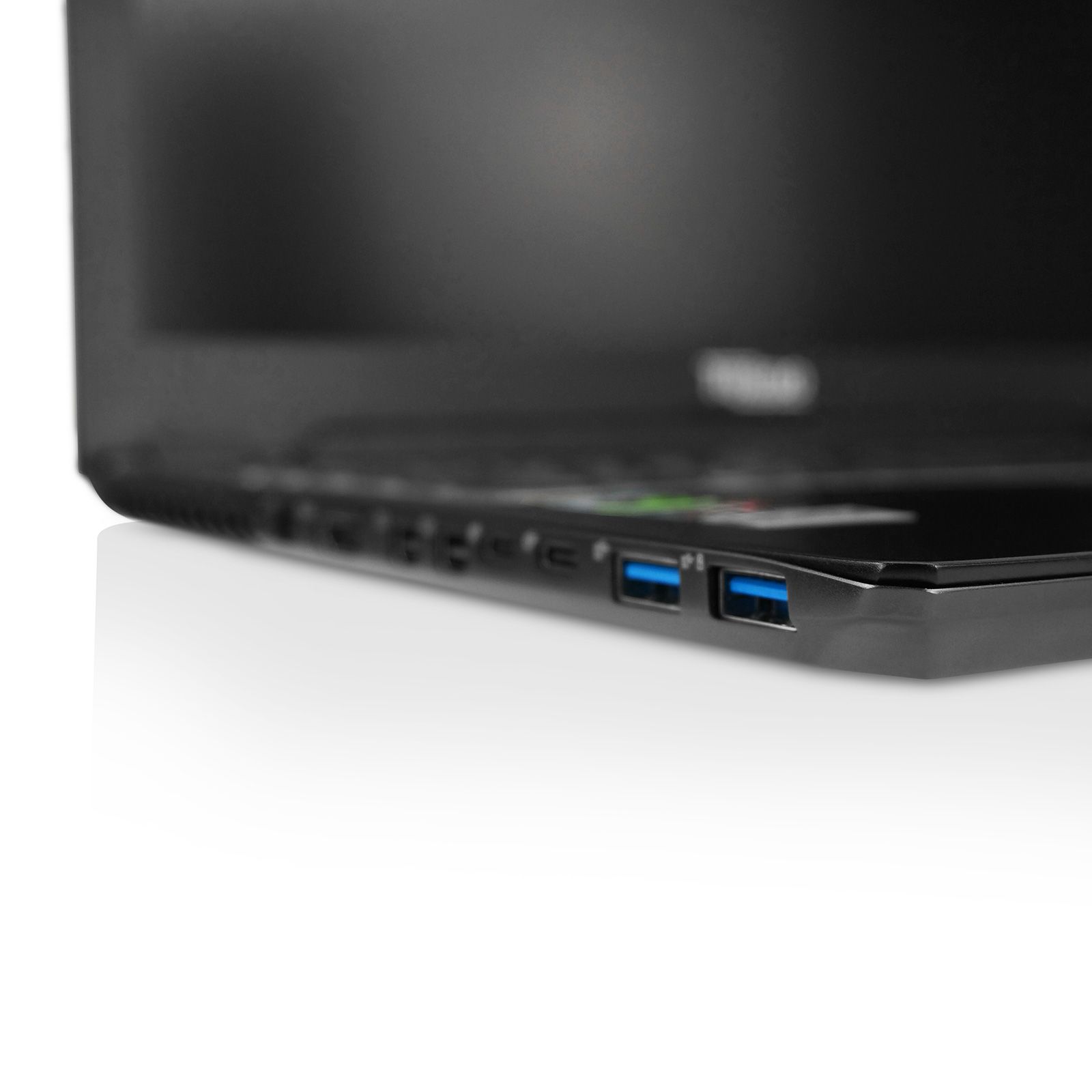

    Two USB 3.1 Gen2 Gen2 Type-C with full 10Gb/s speed and three more USB 3.0 Type-A ports let you connect all your devices in a contemporary way.

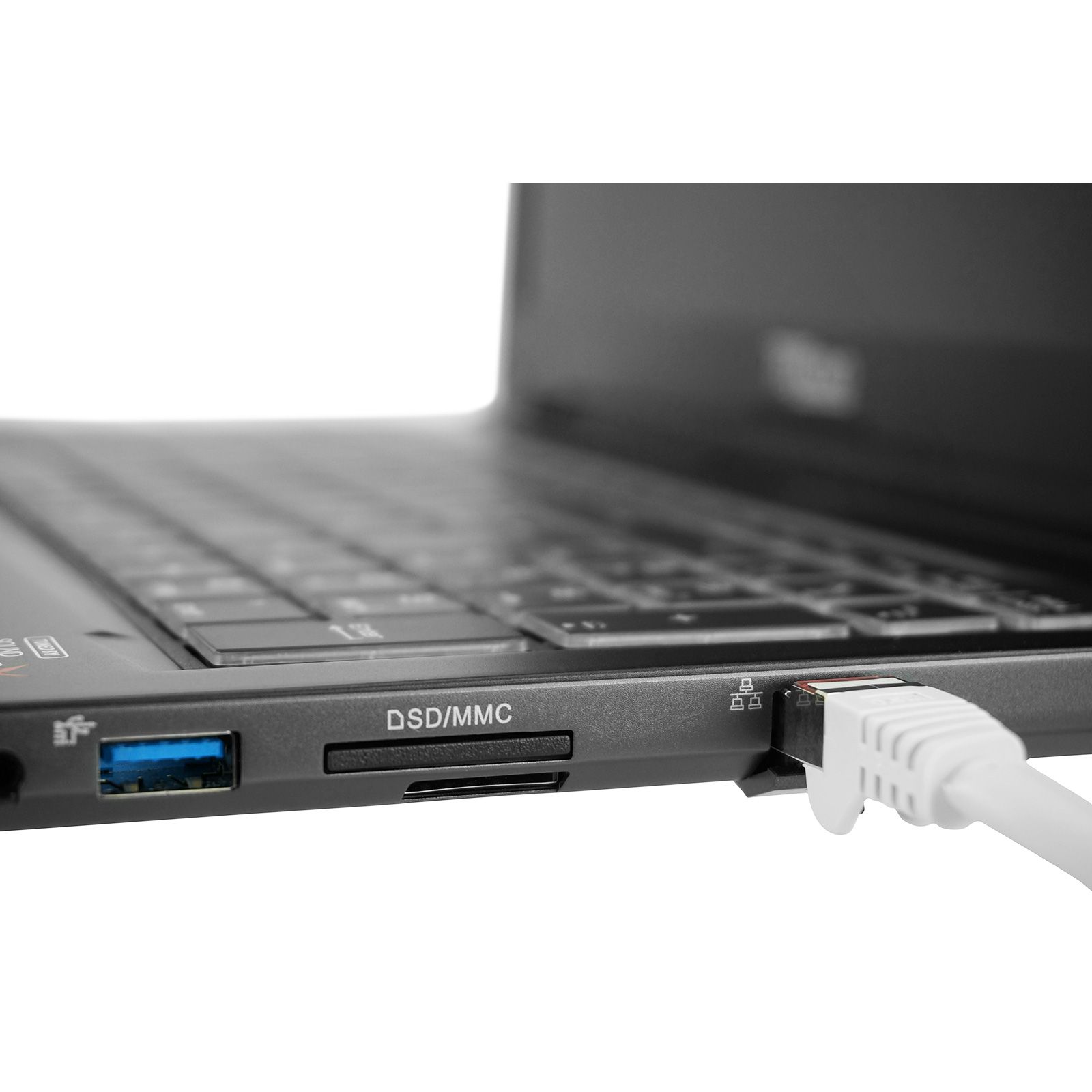

    A full-fledged/normal network connection / Ethernet port (RJ45) provides besides WLAN & Bluetooth as well as wired network fun.

    And so that you don't run out of network on the go, we can also install an LTE/4G modem on request! (downward compatible)Of course, a 2MP webcam, microphone, card reader, headphone connections etc. are obligatory.



    Configure and order now

    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    15.6" (39,6 cm)
    The maximum opening angle of the display hinges is about 140°.
    Full-HD (1920 × 1080) Non-Glare IPS
    Ultra-HD (3840 x 2160( Non-Glare IPS



    Chassis

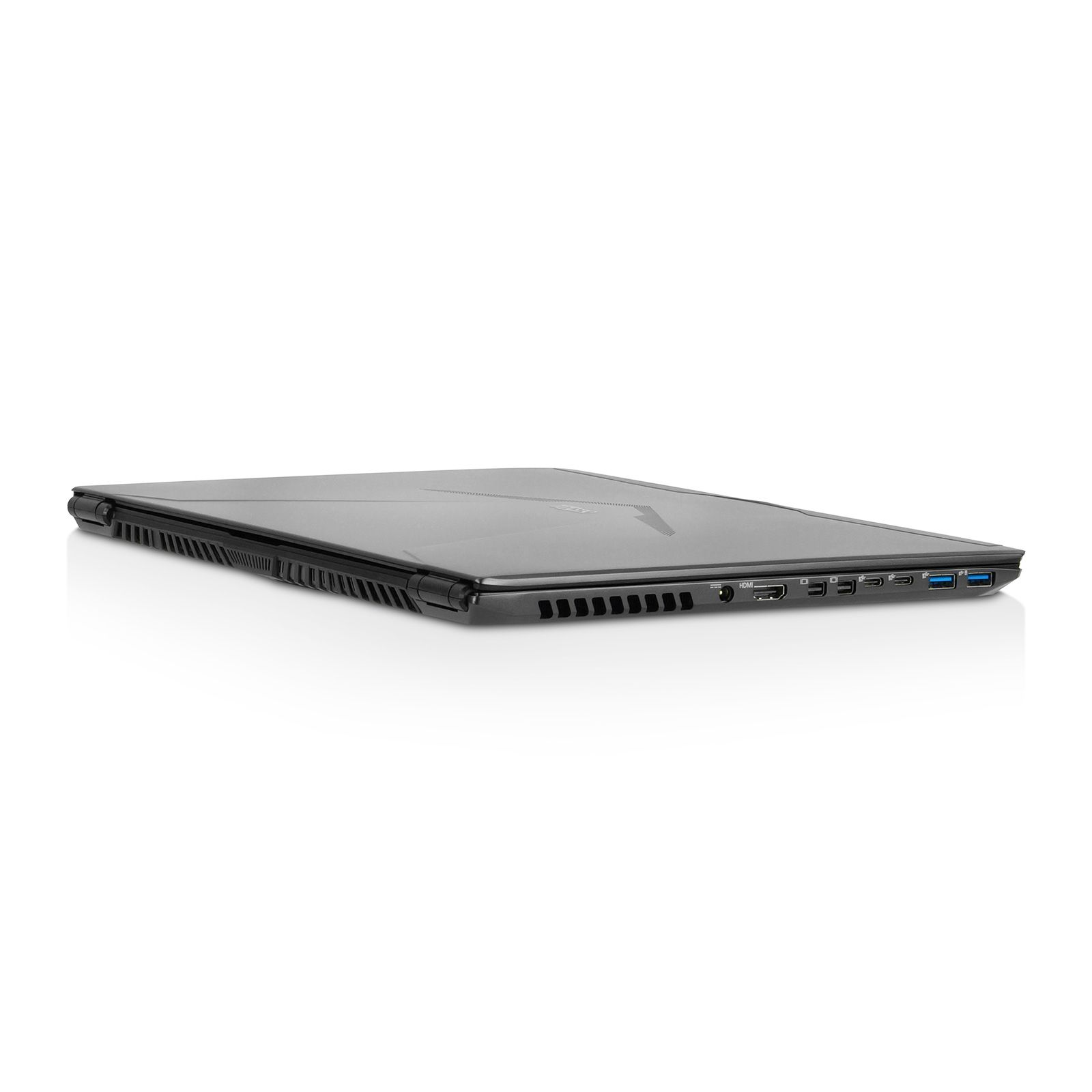

    Dimensions (W x D x H): 380 x 249 x 18.6 mm
    Weight: 1.9 kg incl. battery

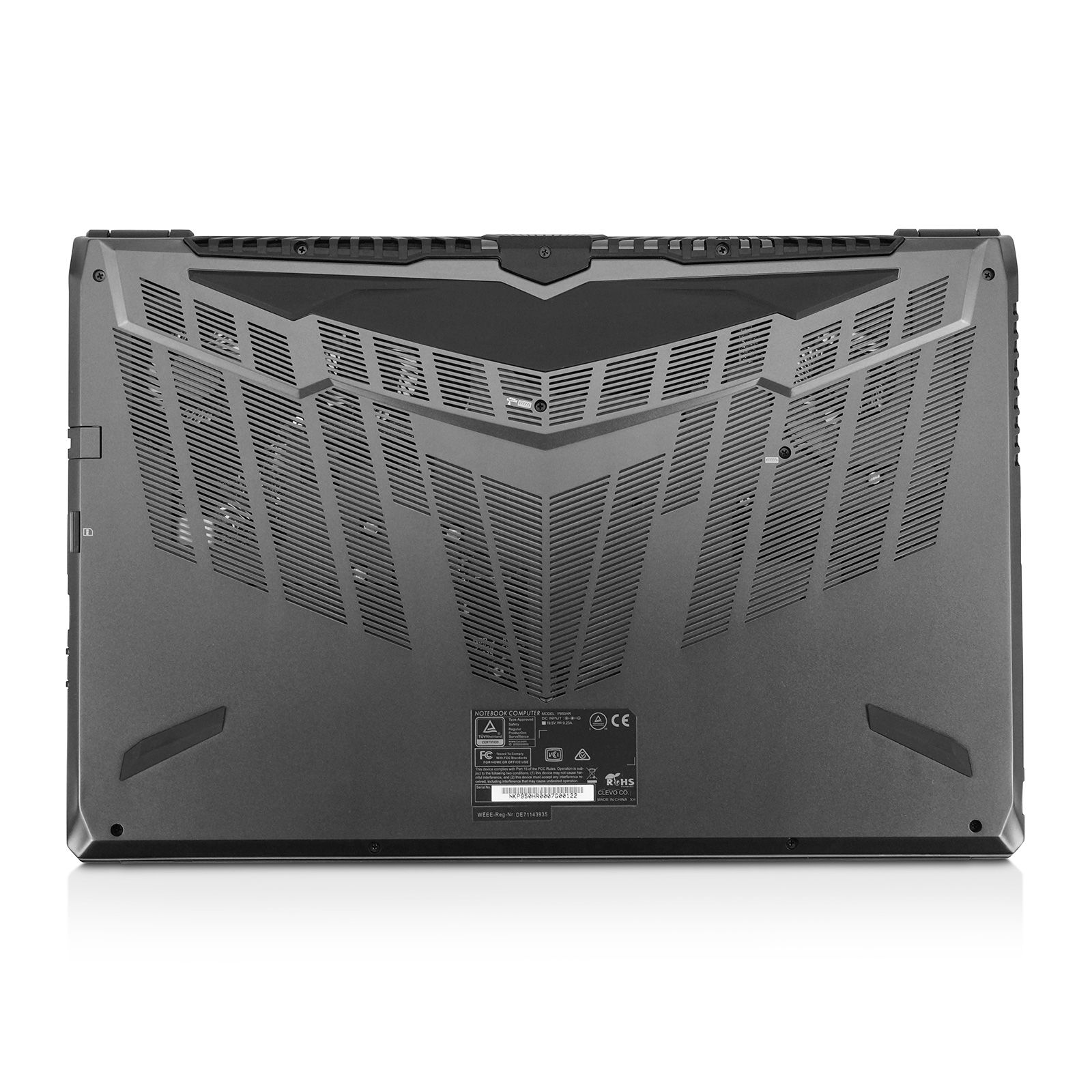

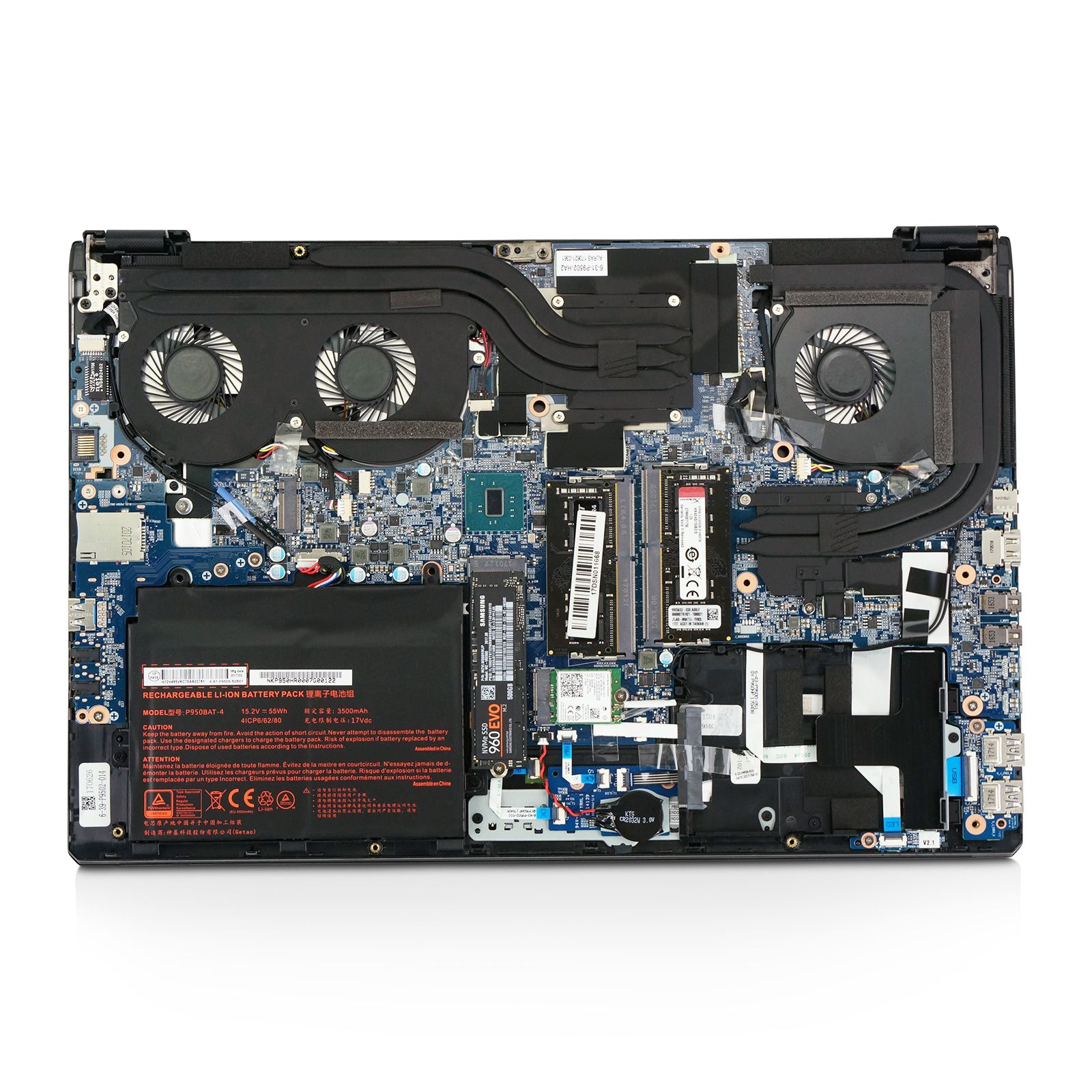

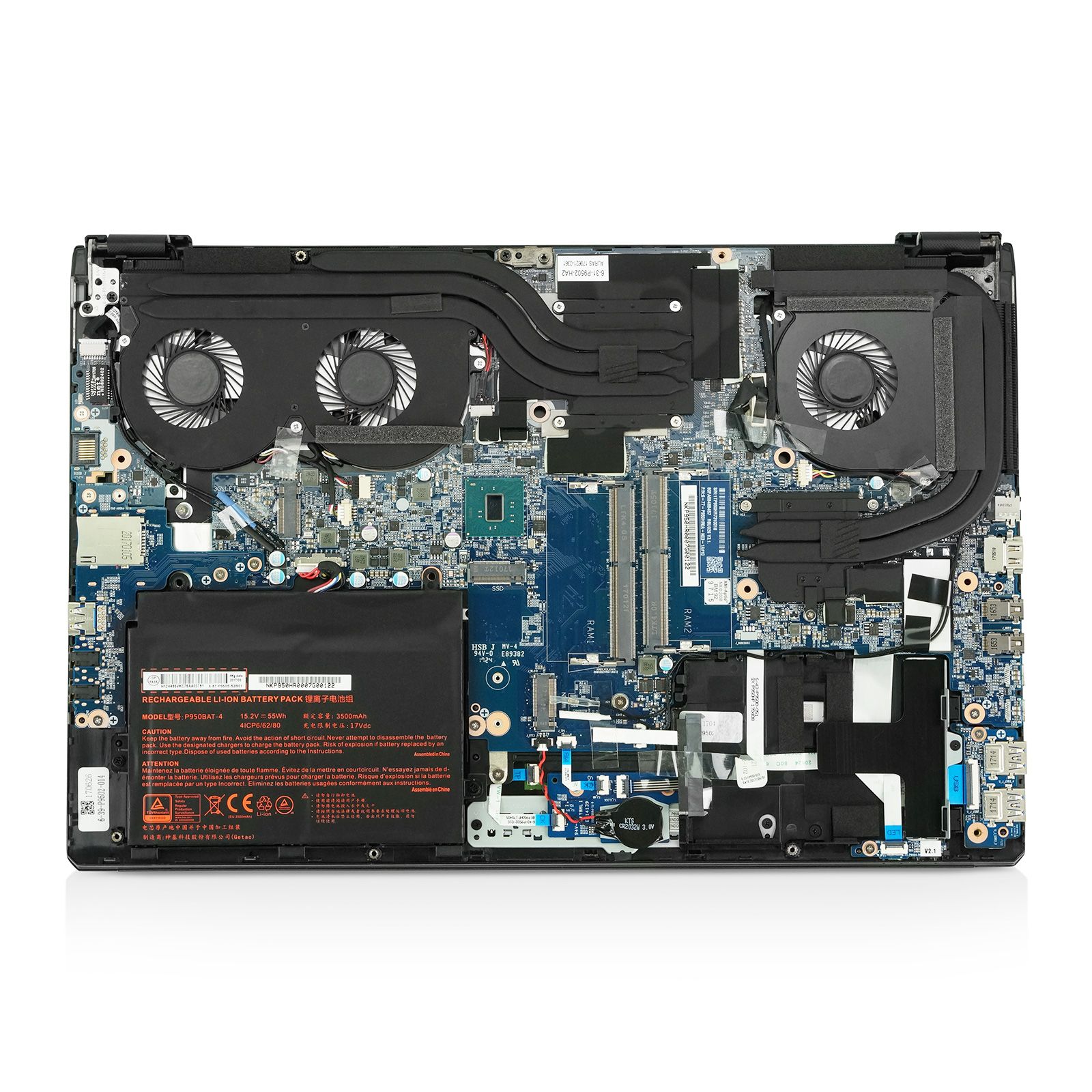

    After opening the base plate, the components & heatsink can be cleaned without loss of warranty.



    Battery & power supply


    4-cell lithium-ion battery, 55 Wh
    To change the battery, the base plate must be removed. Afterwards, it can be replaced with only two screws without any problems. It's not glued in.

    Netzteil:
    150W power supply
    Dimensions: 167.5 * 82.0 * 25.4 mm
    As a mobile travel power supply we recommend our 60/65W power supply. Power your notebook with enough power to perform normal office work on the go. An alternative is our 120W slim power supply, which covers almost all power requirements at maximum load. This supplies the device with sufficient energy on the road, but is relatively light and small. And if there should be a shortterm bottleneck, there is the built-in notebook battery!



    Lifetime of batteries

    The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information



    Battery runtime


    Approx. 5 hours of battery life at low load in Intel mode



    Main processor

    Intel Core CPU from the 8th generation "Coffee Lake".



    Graphics card

    NVIDIA® GeForce® GTX 1070 Max-Q 8 GB GDDR5 VRAM (Pascal graphics chip)

    Features: NVIDIA Optimus, NVIDIA G-SYNC, NVIDIA CUDA, NVIDIA PhysX, NVIDIA BatteryBoost, NVIDIA GPU Boost 3.0, NVIDIA Ansel, NVIDIA ShadowPlay, NVIDIA WhisperMode, NVIDIA GeForce Experience, NVIDIA Surround, DirectX 12, Vulkan 1.0, OpenGL 4.6, OpenCL 1.2, Dynamic Super Resolution (DSR), Virtual Reality (VR Ready)

    Additional: Energy-saving graphic chip integrated into the CPU: Intel HD Graphics 630

    The notebook works with NVIDIA Optimus, which allows graphics switching between NVIDIA and Intel.

    The following resolutions are possible for all connections individually or in parallel:
    1x notebook display: Full-HD 1920*1080@120Hz
    1x Mini-DisplayPort 1.4: 1080p@240Hz, 1440p@240Hz, 1600p@200Hz, 4K@120Hz, 5K@60Hz, 8K@60Hz (with DSC) (connected directly to NVIDIA graphics chip)
    1x Mini-DisplayPort 1.4: 1080p@240Hz, 1440p@240Hz, 1600p@200Hz, 4K@120Hz, 5K@60Hz, 8K@60Hz (with DSC) (connected directly to NVIDIA graphics chip)
    1x HDMI 2.0: 3840*2160@60Hz (connected directly to NVIDIA graphics chip)

    With these maximum resolutions, 4 displays can be controlled simultaneously, e. g. 1x notebook display and 3x external monitors.



    Memory

    Type: DDR4 SO-DIMM
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Dual channel mode (with 2 or 4 modules)
    Current Laptop-U-CPUs do support 2400MHz RAM officially. So even 2666MHz RAM is shown with 2400MHz inside the system. But in fact, the high-performance-RAM with 2666MHz squeezes around 5% more performance out of your laptop!



    Hard drive

    Standard 2,5" HDD or SSD, max. 7mm height
    Manufacturer and speed see configurator
    Standard and maximum see configurator



    Mass storage (SSD / HDD)

    Fast M.2 SSDs
    Manufacturer and speed see configurator
    Standard and maximum see configurator



    Communication / Network

    Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)

    Wireless/WIFI (optional):
    Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX 200
    Version: Dual Mode Bluetooth 5.1



    LTE module

    LTE/HSDPA+ 4G Huawei ME936
    Form factor: M.2 Interface

    Supported frequency bands
    LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
    HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
    EDGE/ GPRS/GSM: 1900/1800/900/850 MHz

    Transfer rates
    LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
    HSPA+: ↑ 11 Mbps ↓ 42 Mbps
    WCDMA: ↑ 384 kbps ↓ 384 kbps

    GPS
    GPS Standalone, A-GPS, GPS XTRA, Glonass


    LTE/HSDPA+ 4G Huawei ME906s
    Form factor: M.2 Interface

    Supported frequency bands
    LTE (FDD): B1/B2/B3/B5/B7/B8/B20/B28
    HSPA+/HSPA/UMTS: B1/B2/B5/B8
    EDGE/ GPRS/GSM: 1900/1800/900/850 MHz

    Transfer rates
    LTE FDD: ↑ 50 Mbps ↓ 150 Mbps
    HSPA+: ↑ 5.76 Mbps ↓ 42 Mbps
    WCDMA: ↑ 384 kbps ↓ 384 kbps

    GPS
    GPS Standalone, A-GPS, GPS XTRA, Glonass



    Security

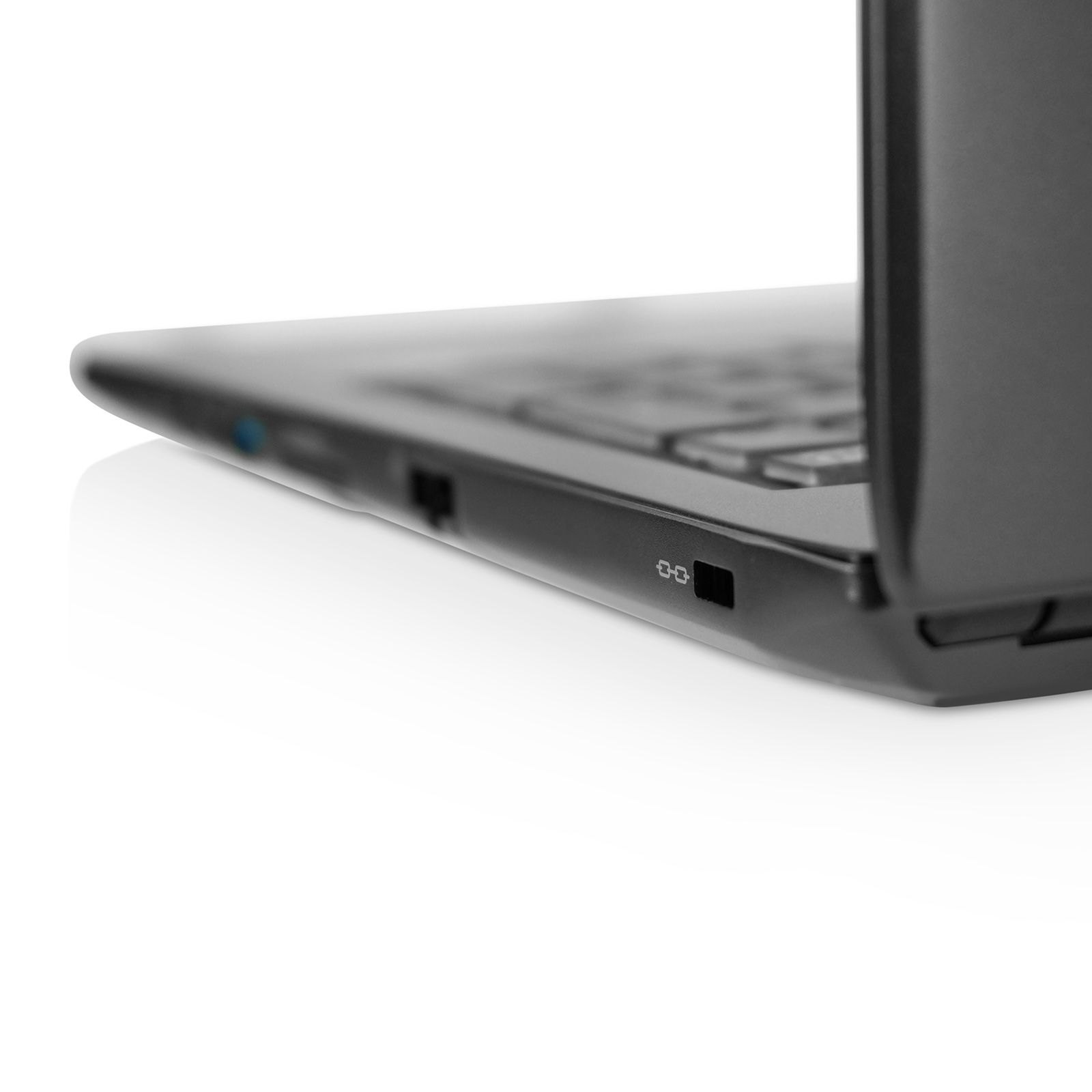

    Kensington Lock
    TPM 2.0 (completely disabled/disableable in BIOS)



    Webcam / Laptop camera

    2 Megapixel (2 MP) camera including microphone



    Sound / Audio

    High Definition Audio
    SOUND BLASTER® X-FI® MB5
    Onkyo 2.0 System Speaker-System
    Built-in microphone
    S/PDIF digital output (optical)

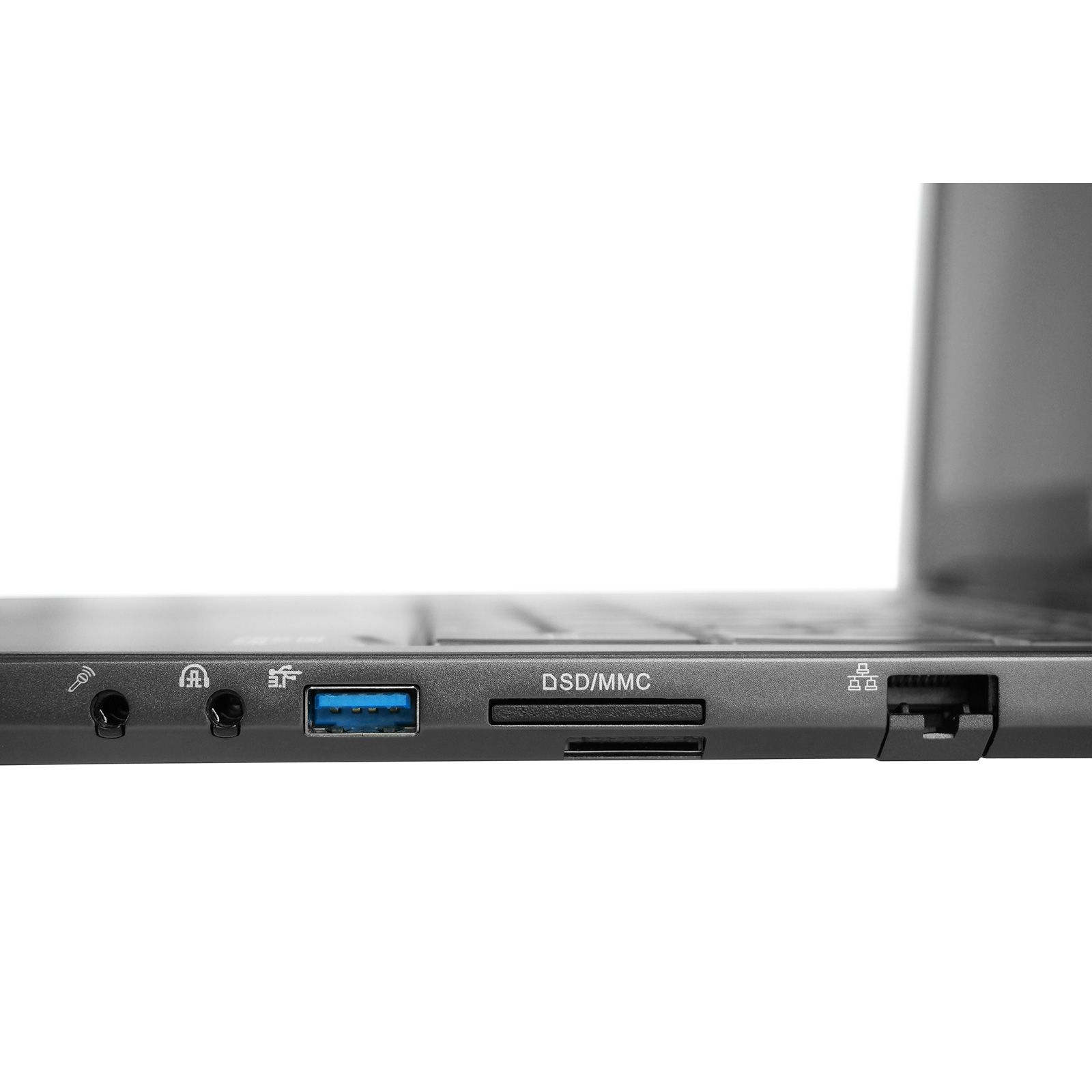

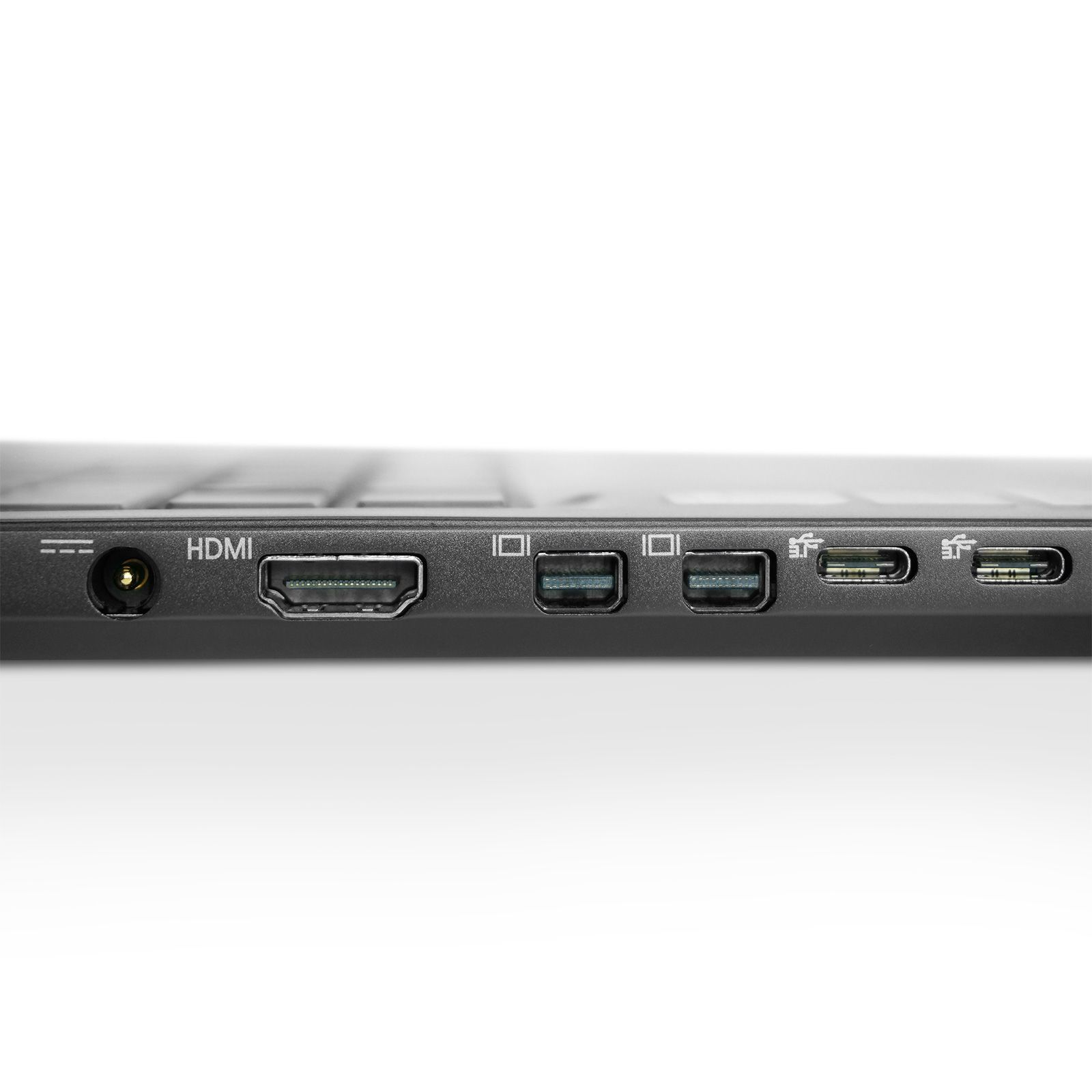

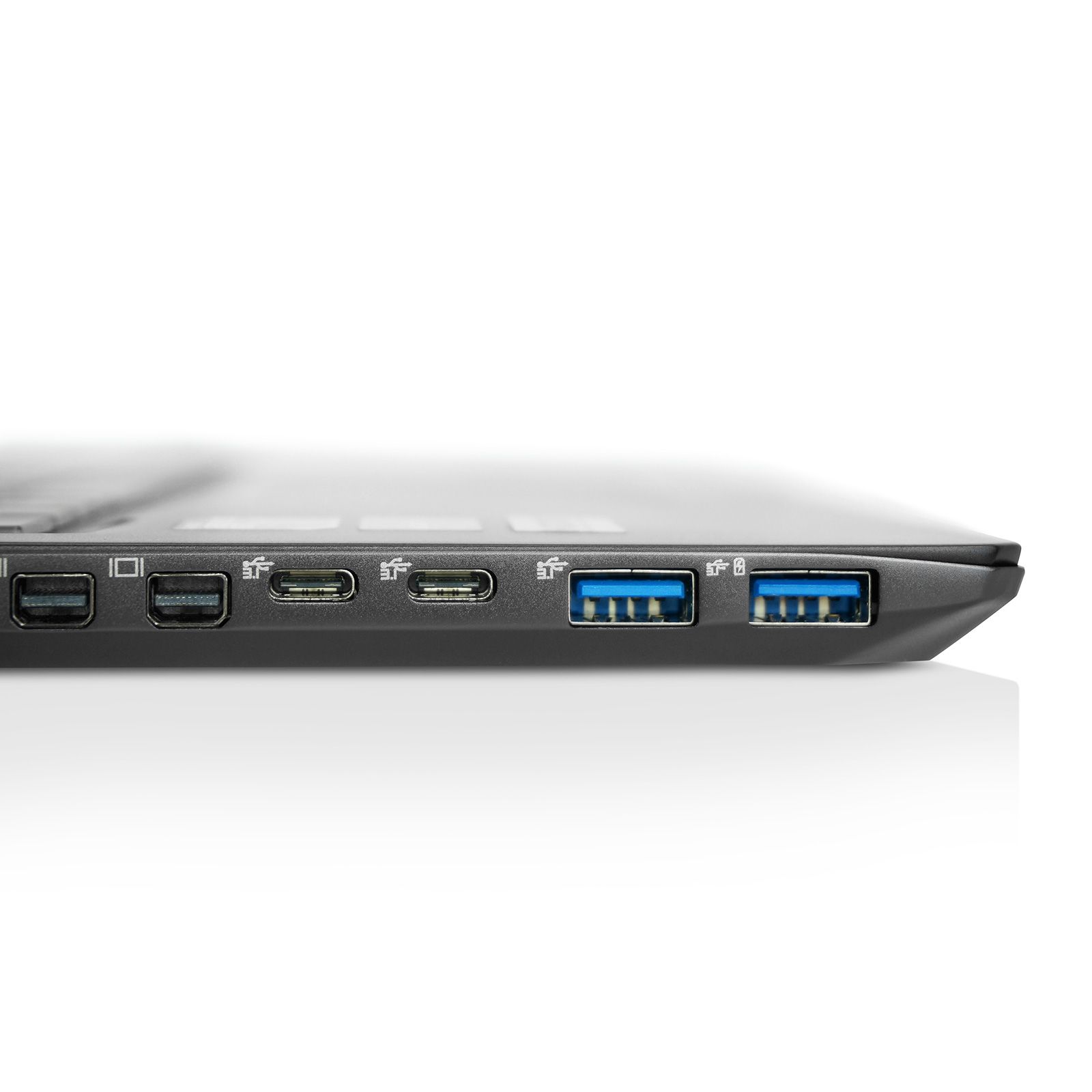

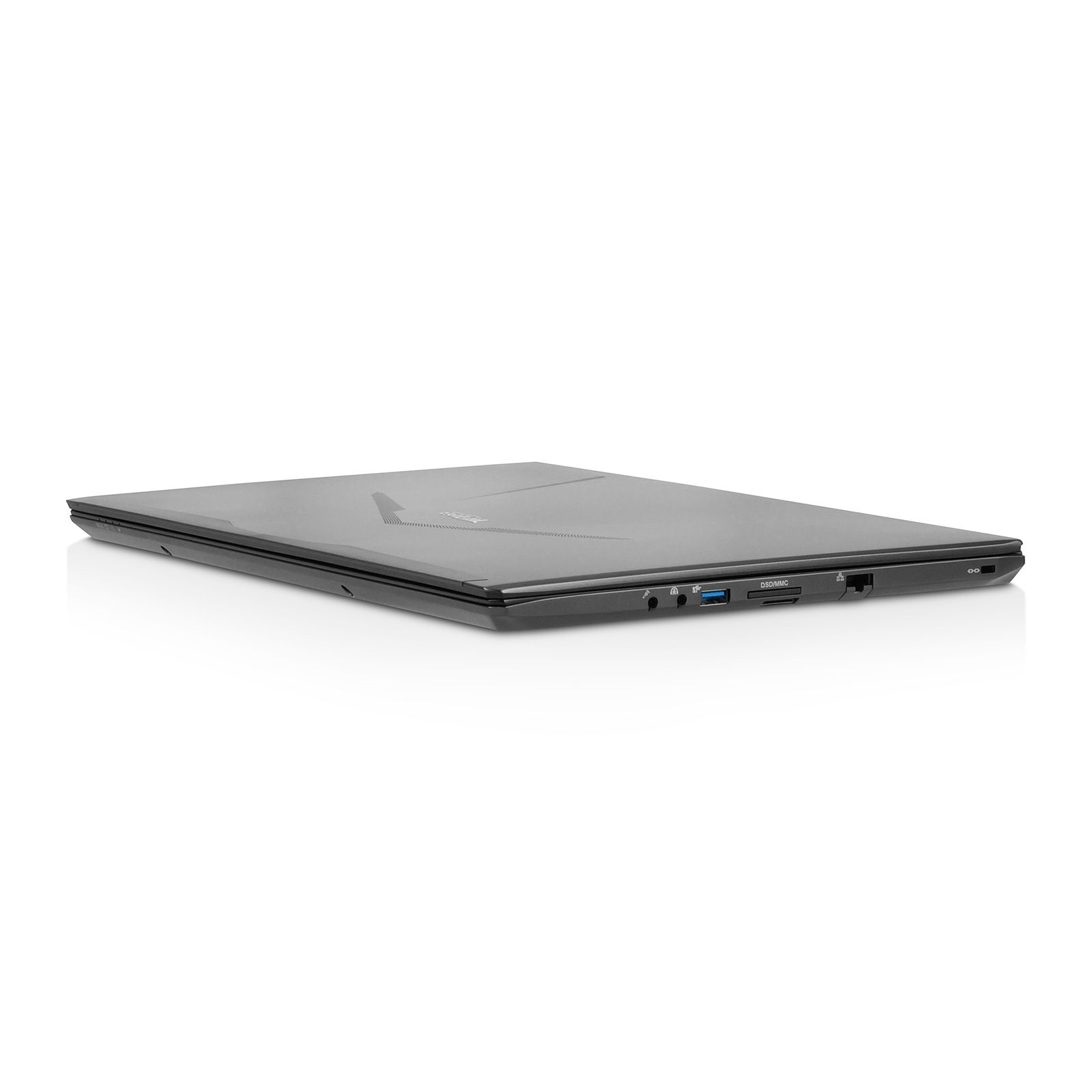

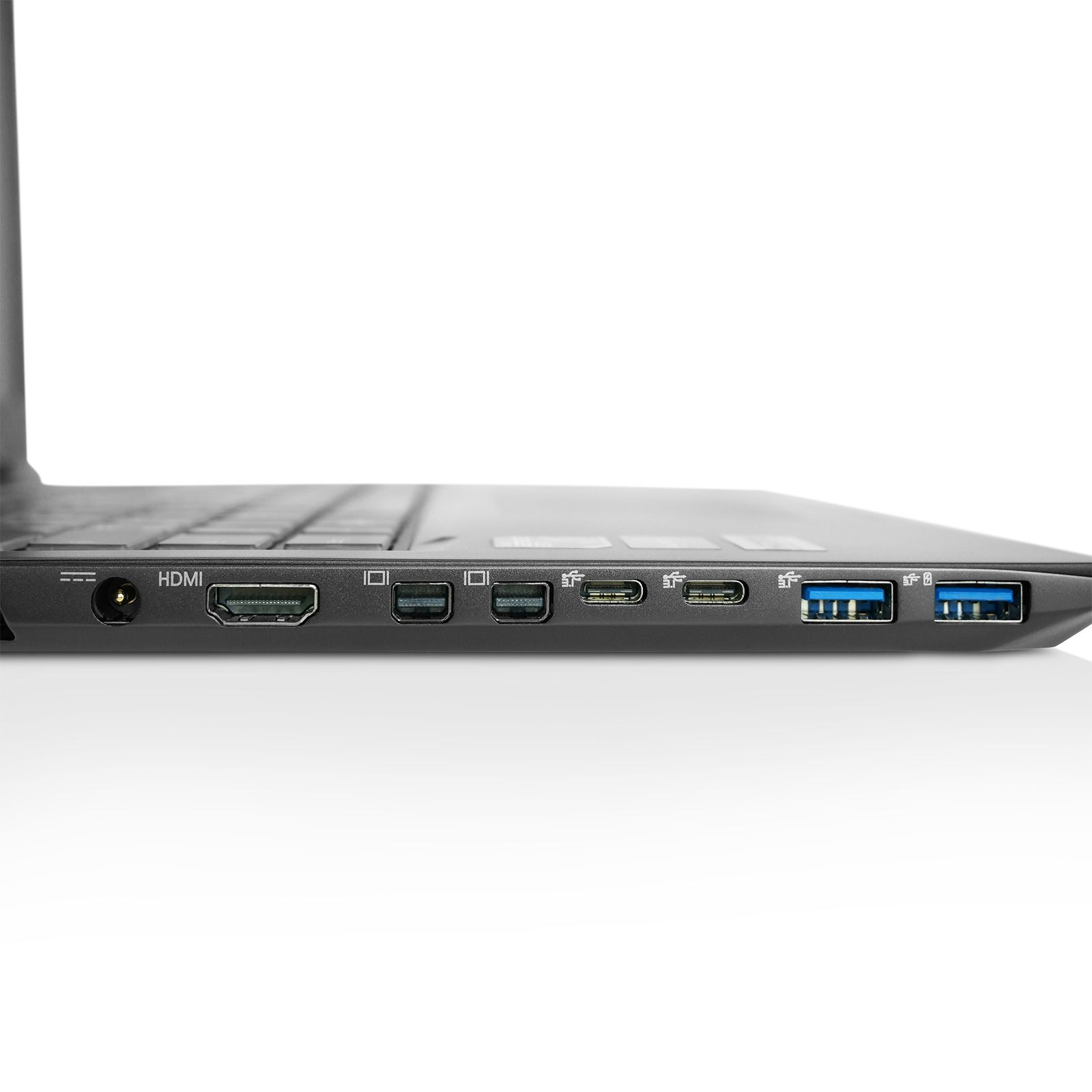

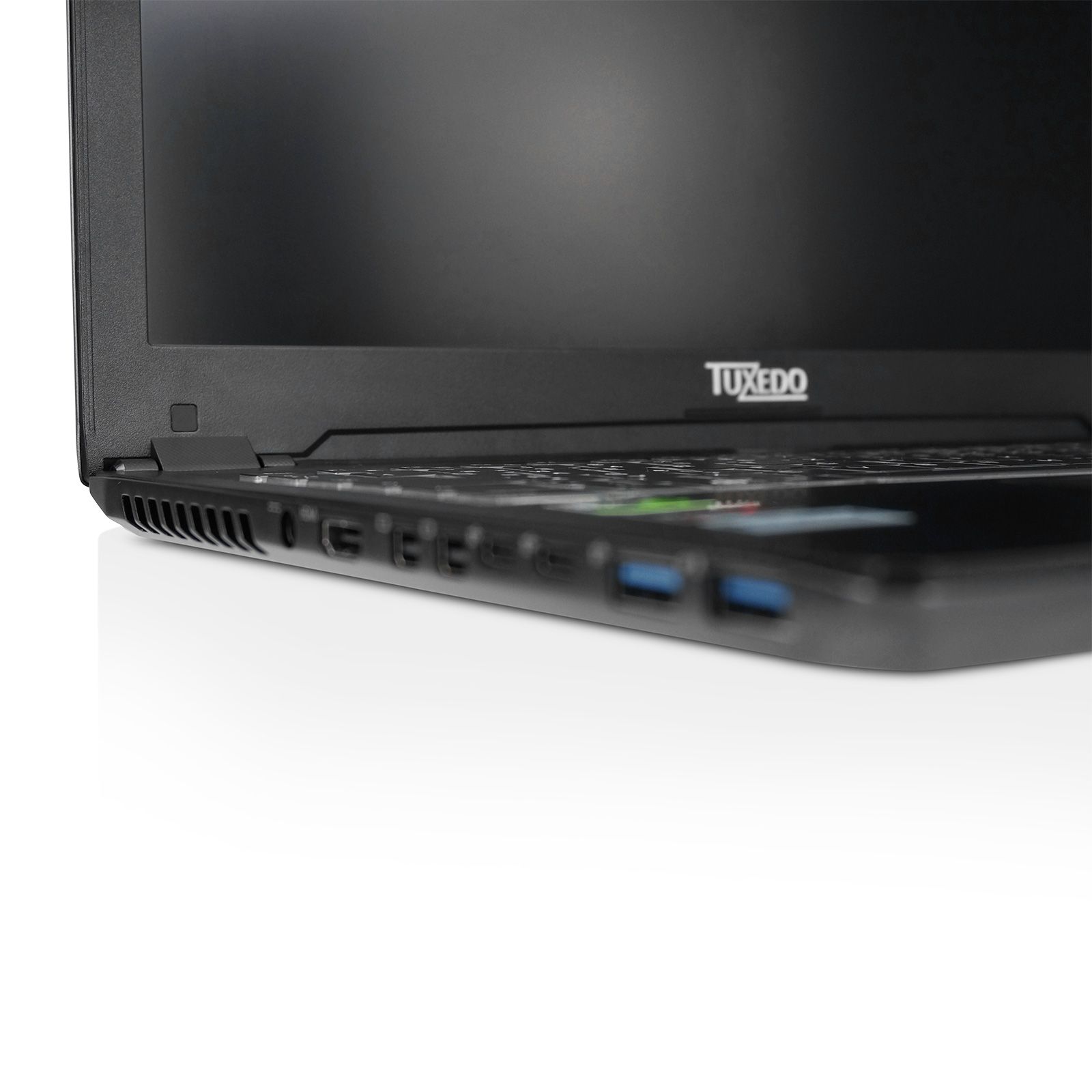

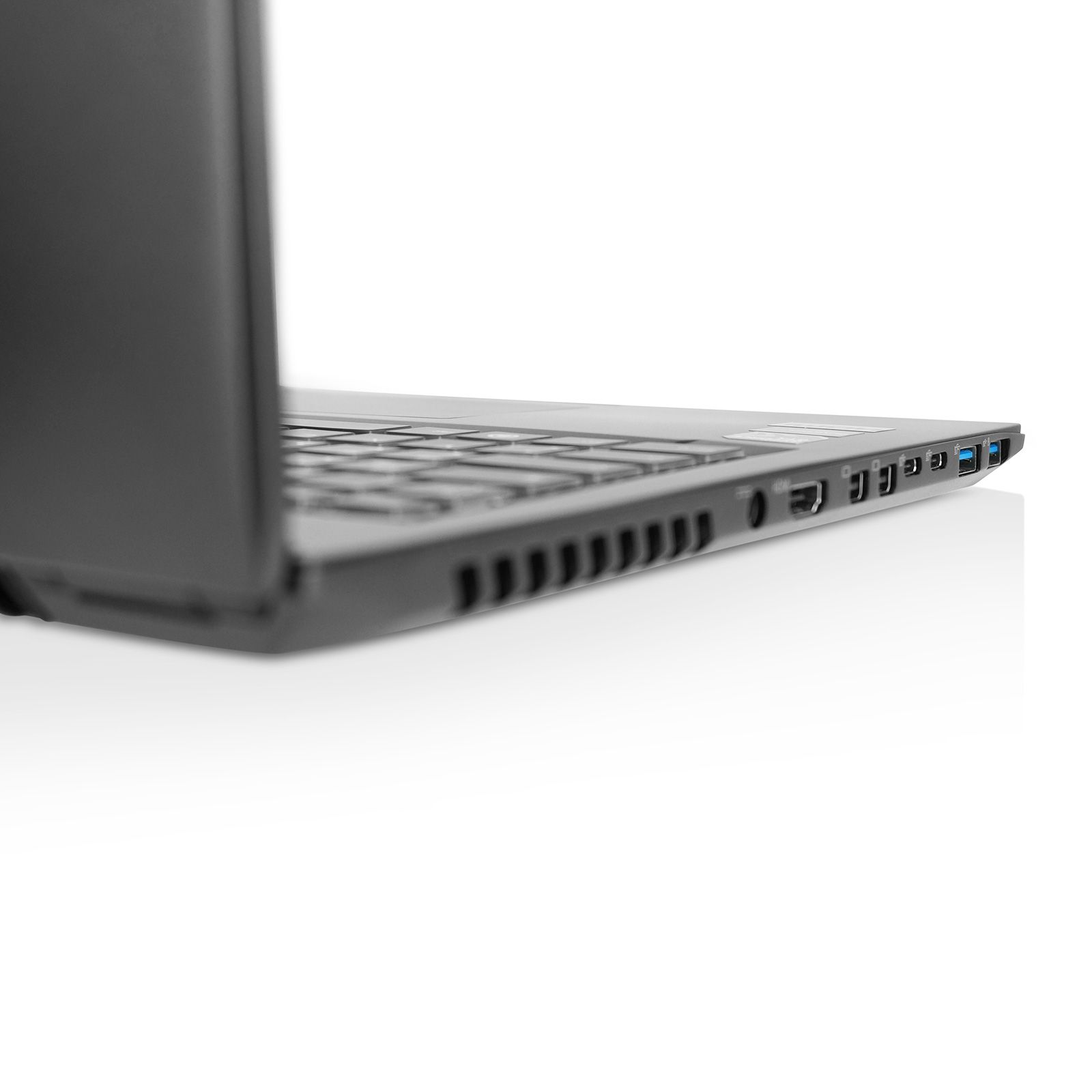

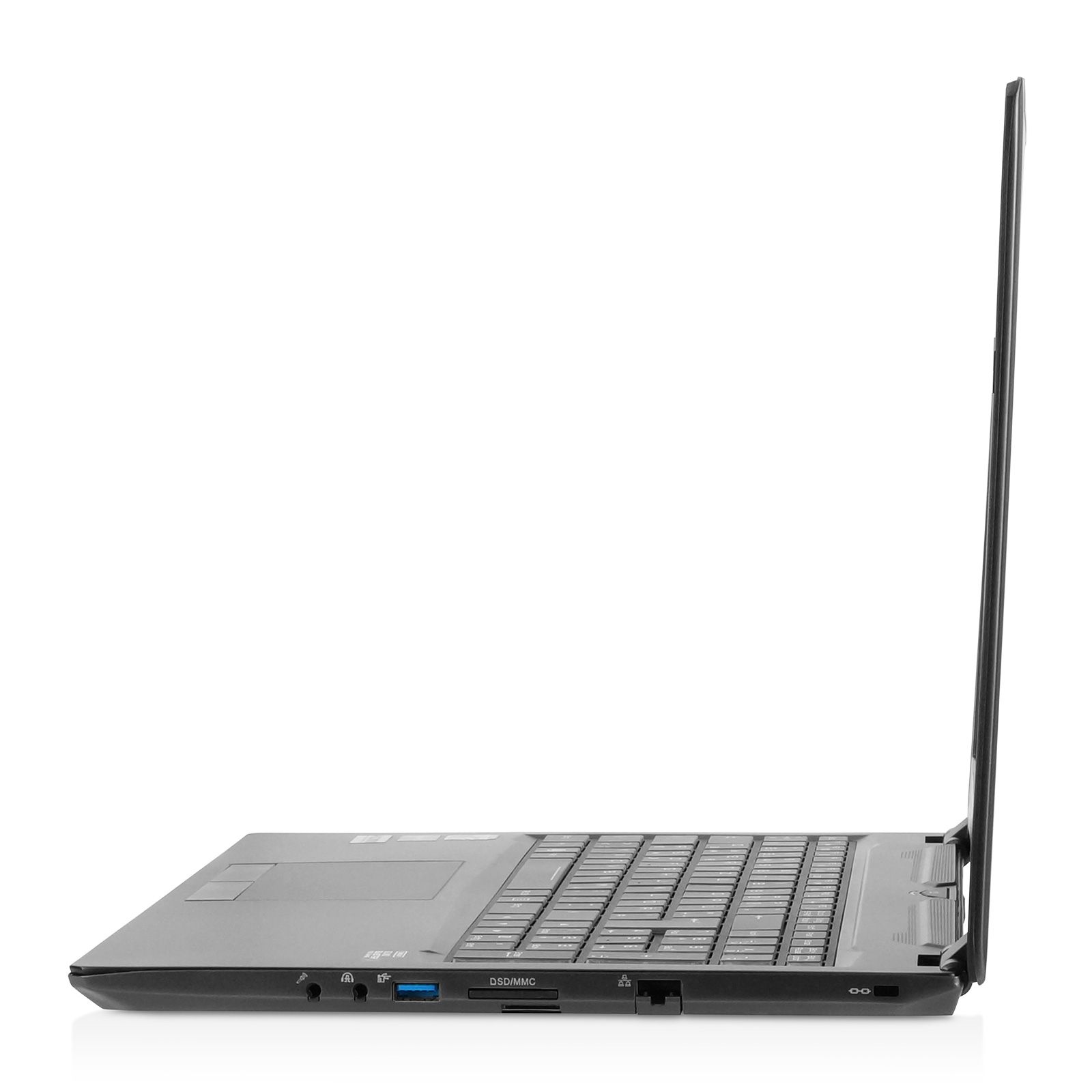

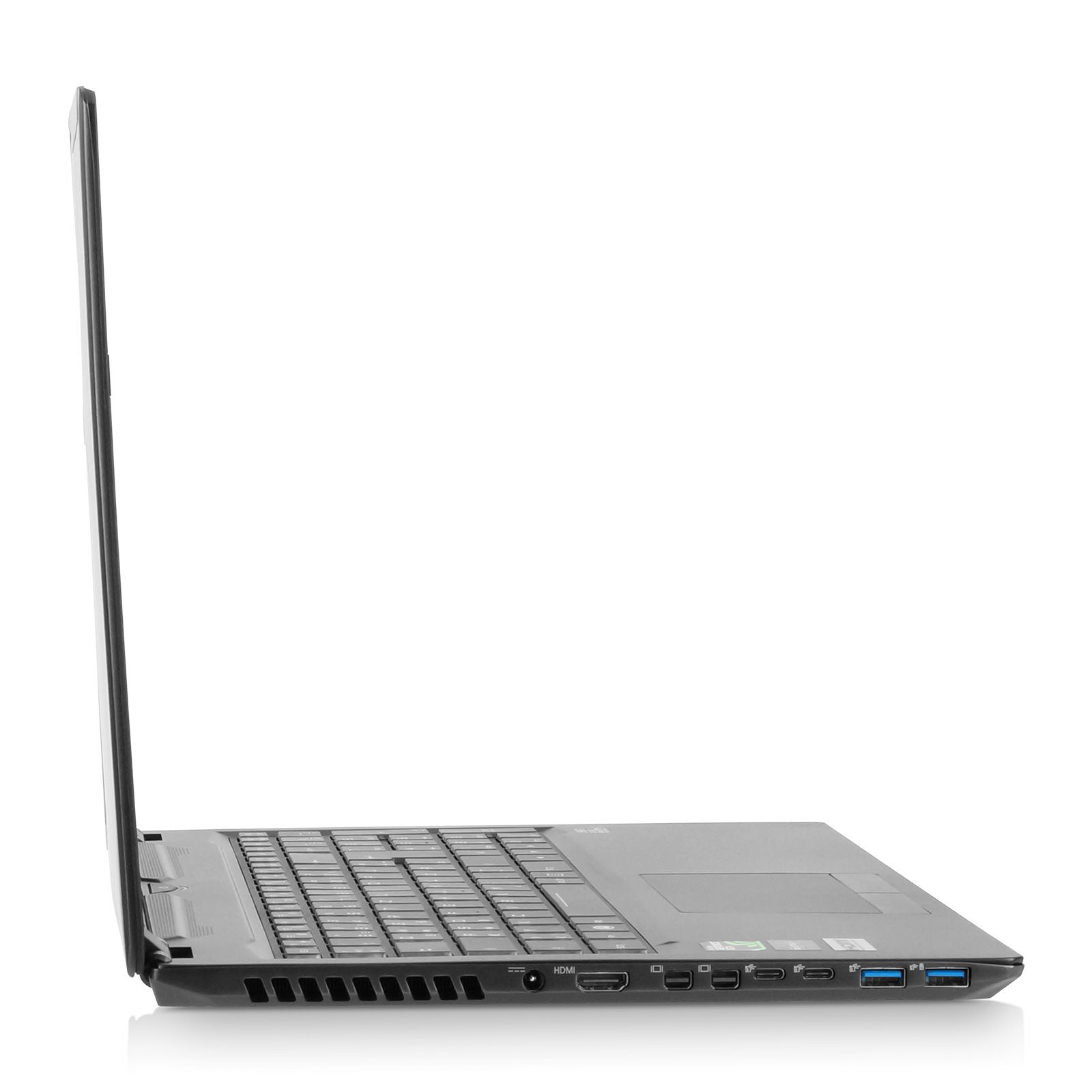

    Ports

    1x HDMI 2.0 (with HDCP) (3840*2160@60Hz or 2560*1600@120Hz)
    2x Mini-DisplayPort 1.4 (1080p@240Hz, 1440p@240Hz, 1600p@200Hz, 4K@120Hz, 5K@60Hz, 8K@60Hz (with DSC)
    2x USB 3.1 type C Gen2
    3x USB 3.0 Type-A (1x with Power-Off charging function)
    1x RJ45; Gigabit LAN (10/100/1000 MB)
    1x 9-in-1 Card-Reader
    1x 2-in-1 audio (headphone + S/PDIF optical)
    1x microphone input
    1x Line-Out
    1x SIM card slot
    1x Kensington Lock



    Card reader

    9-in-1 Card Reader
    - MMC / RSMMC
    - SD / SDHC / SDXC / Micro SD (Adapter necesssary)
    - MS / MS Pro / MS Duo



    Configure and order now

    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    Accessories

    As accessories you can select an additional external display for enjoying dual display operating together with the laptop.



    Furthermore we deliver a wired or wireless keyboard including a mouse or an additional wired mouse. These input devices are produced by Logitech and are only available with German layout!



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB pendrive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x TUXEDO fan stuff package

    Noise growth / Cooling / Ventilation / Fan
    Temperature controlled silent fan
    At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.

    Custom fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the behavior of the fans at yourself. This means that you get the ability to make your device as silent as possible. You are able to set the device almost passive cooled, without any fan noise most of the time!
