X like [X]treme and eXtrem is the performance of the X-series devices actually! Xtreme series devices are aimed at customers who simply want to have the strongest and best that the hardware market has to offer! The strongest graphics paired with the most memory, multiple hard drives and of course the fastest processors!
The ultimate all-purpose weapon

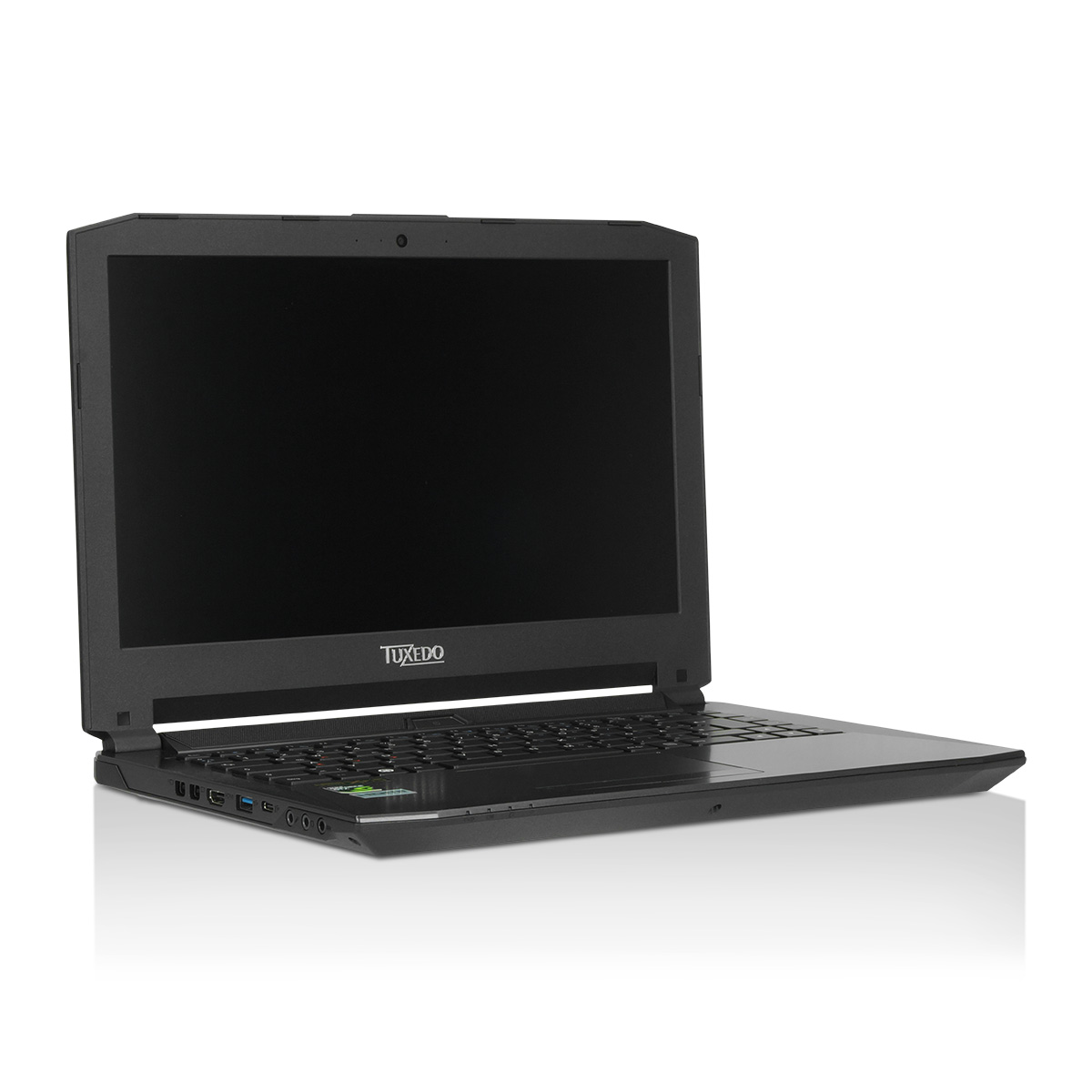

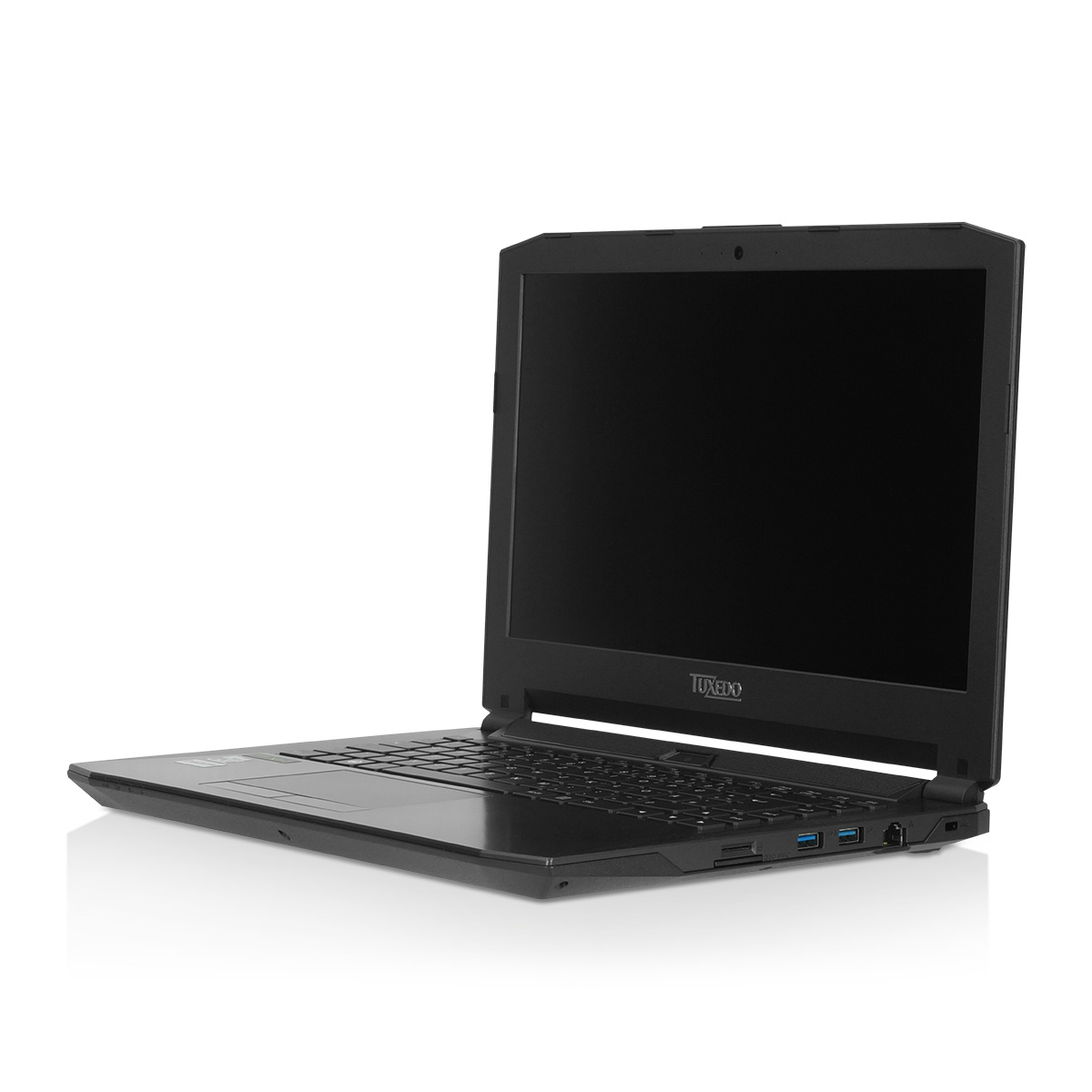

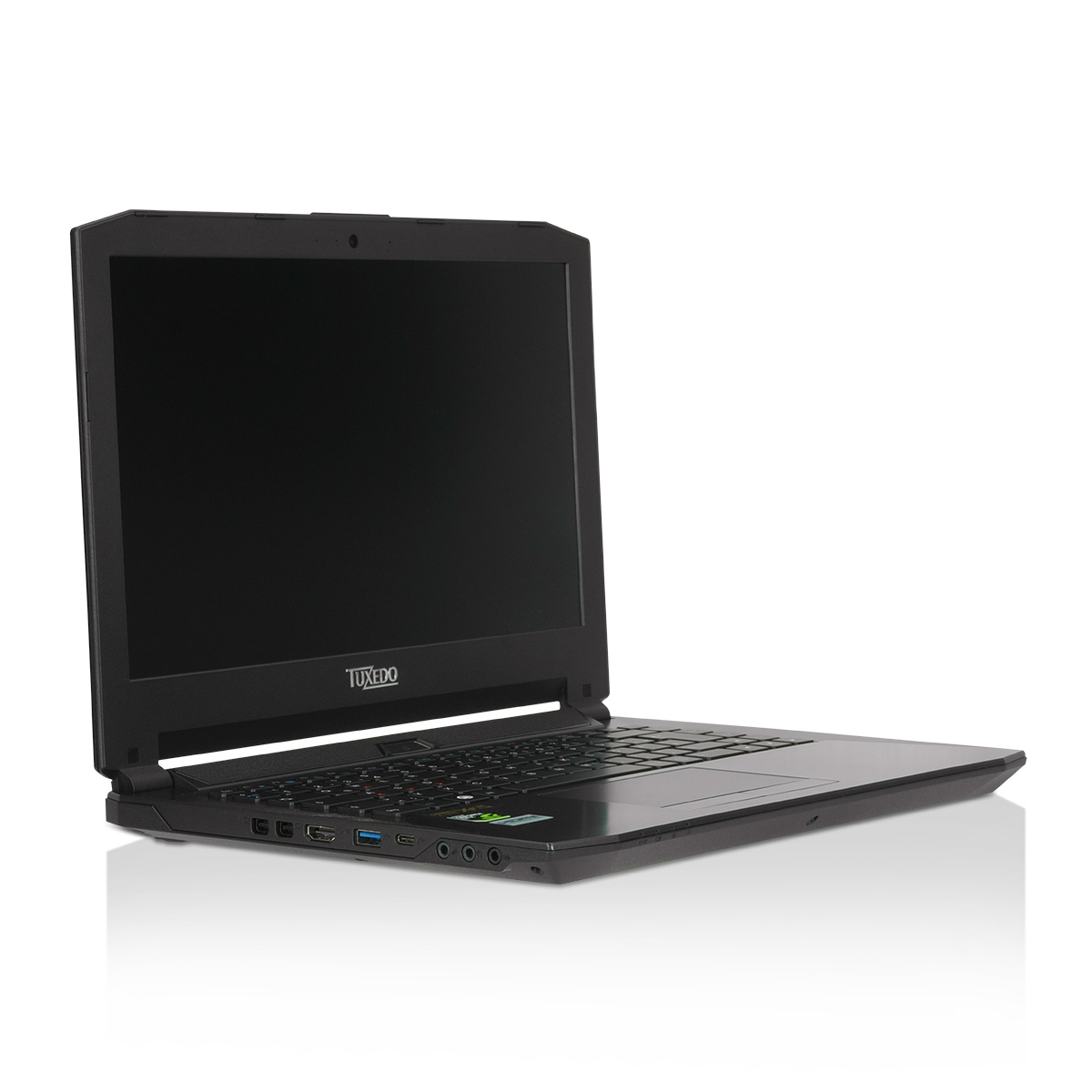

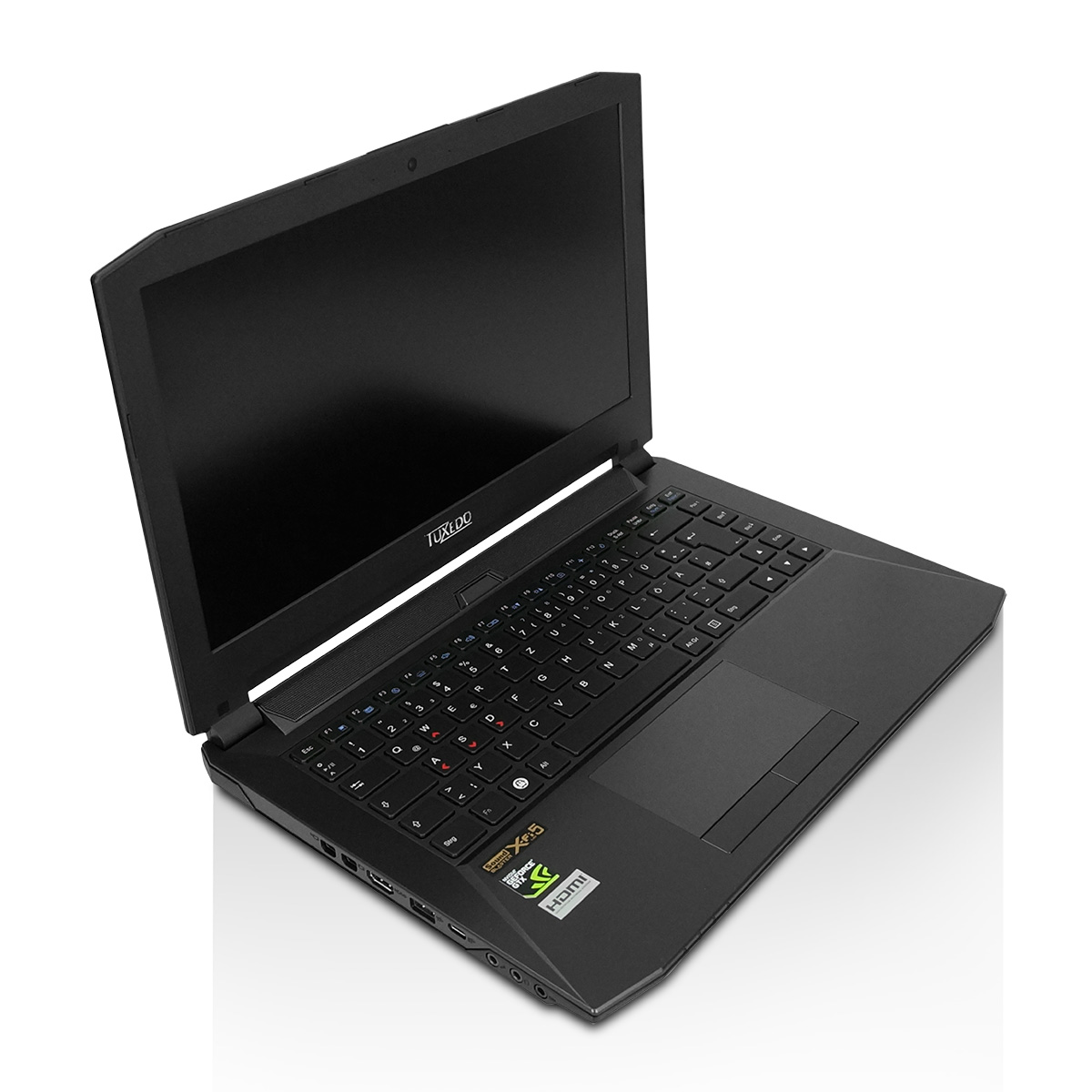

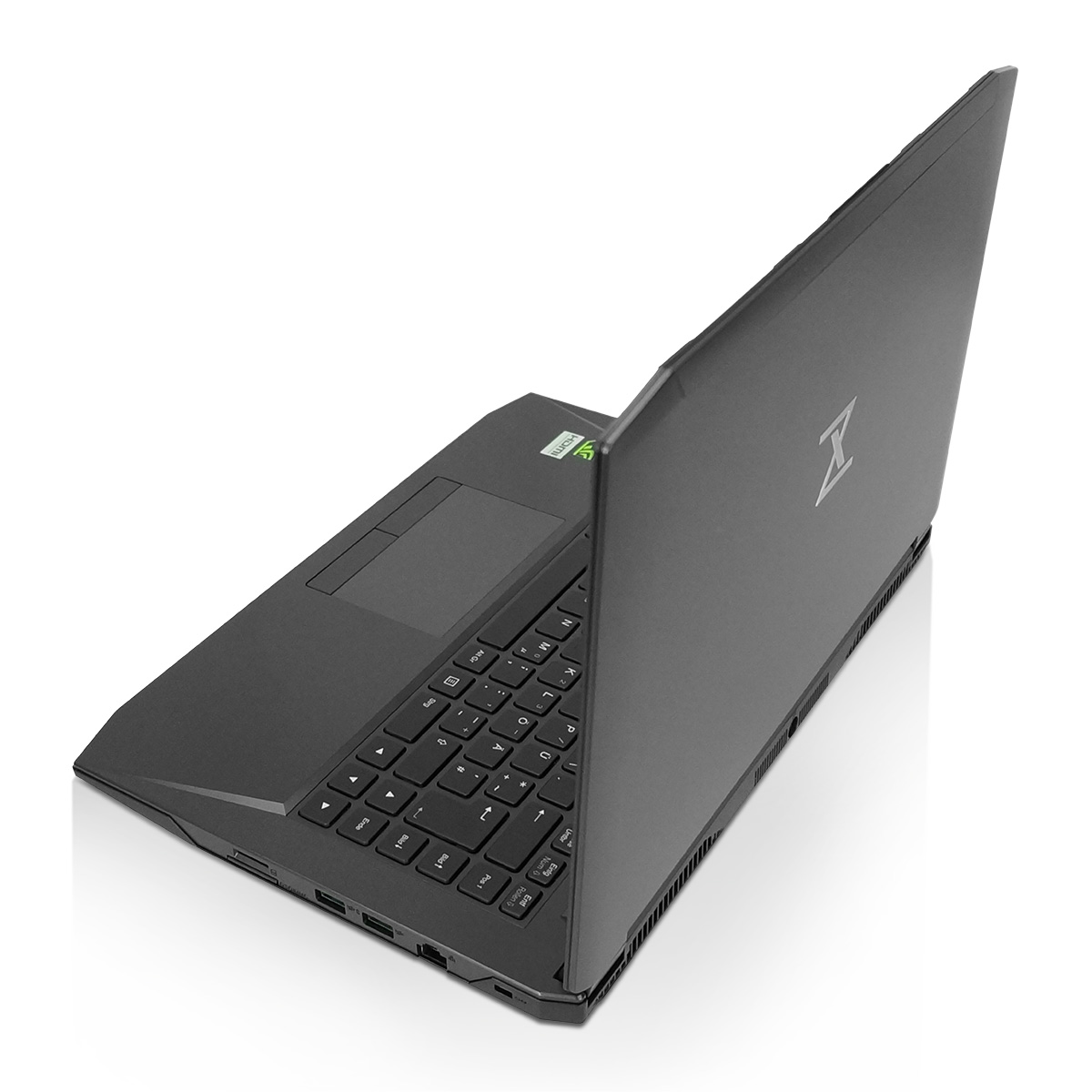

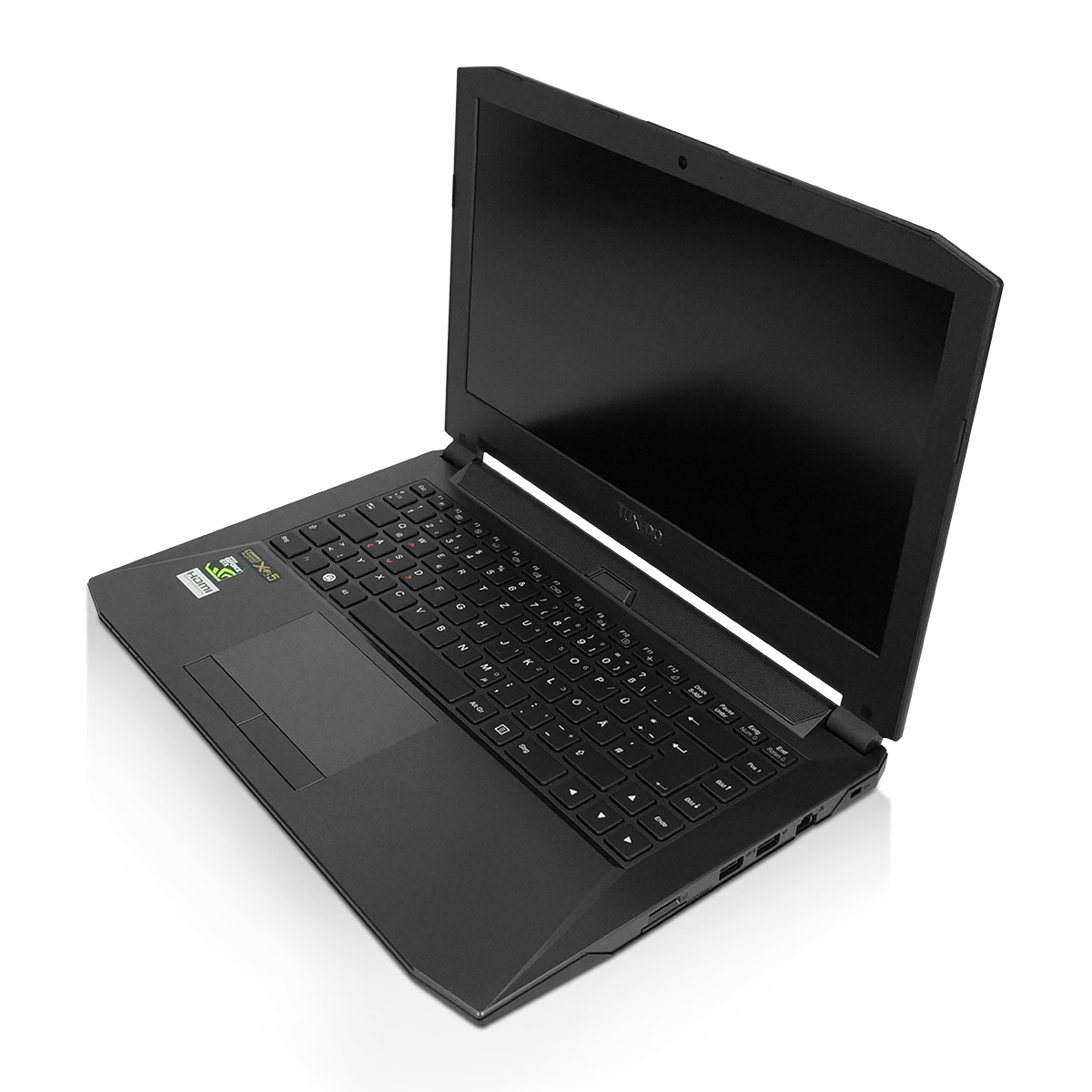

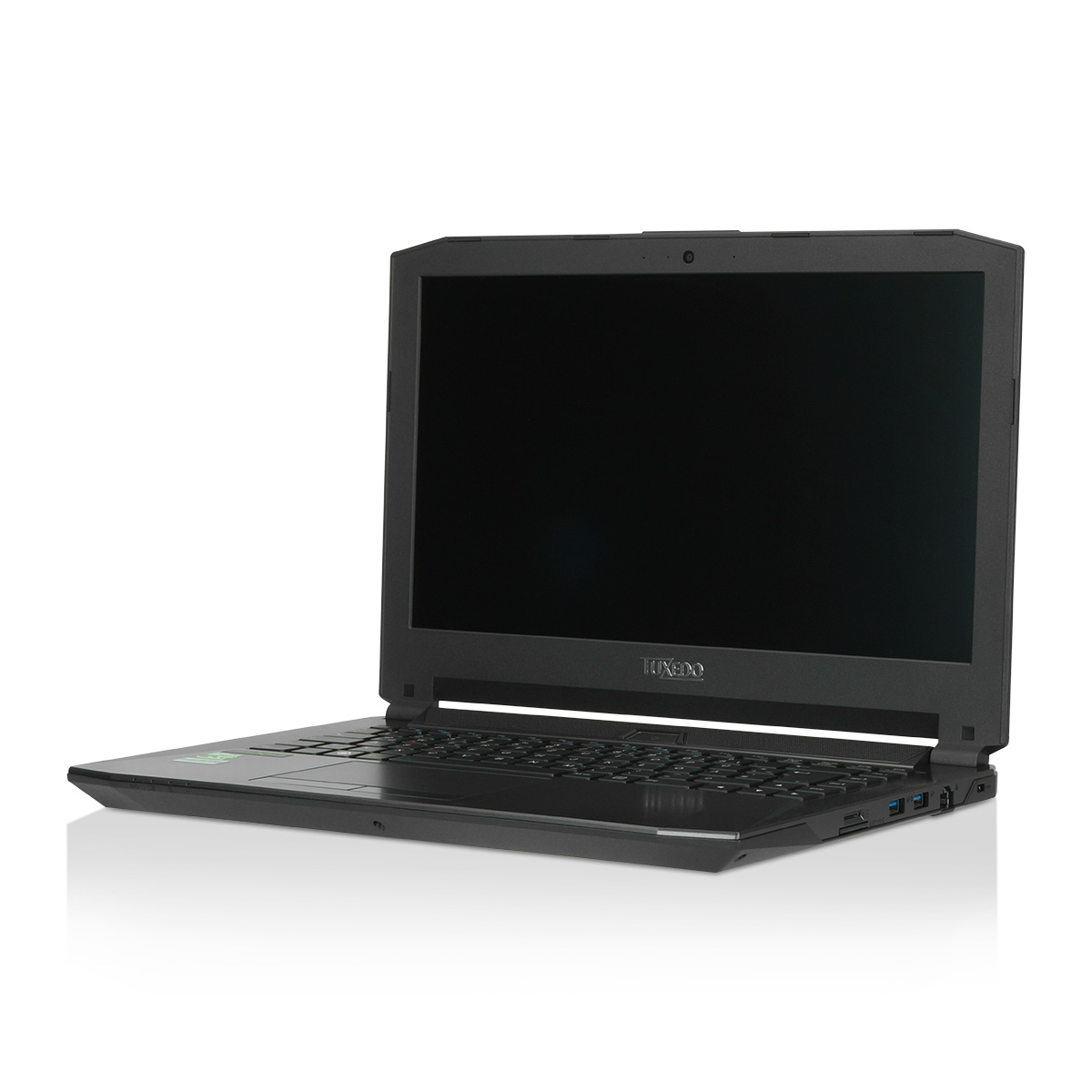

The TUXEDO Book XC1407 is the little brother of one of our most popular devices, the XC1506, but small are only the dimensions of 14" in diameter and only 2.5cm in thickness. In terms of performance, the TUXEDO Book XC1406 is no less powerful than its bigger brothers and sisters! Enormously powerful NVIDIA GeForce GTX 1050 Ti paired with Intel Core i7-Quad-Core and DDR4 memory as well as three external monitor connections leave nothing to be desired! If you are on the road, especially valuable is an keyboard illumination with penguin super key and a LTE module, both of which are naturally present in the XC1407!
The hardware's hunger for performance is satisfied by fastest M. 2 SSDs with PCI-Express x4 and is supplemented by a 2.5" SATA3 slots with sufficient data memory.

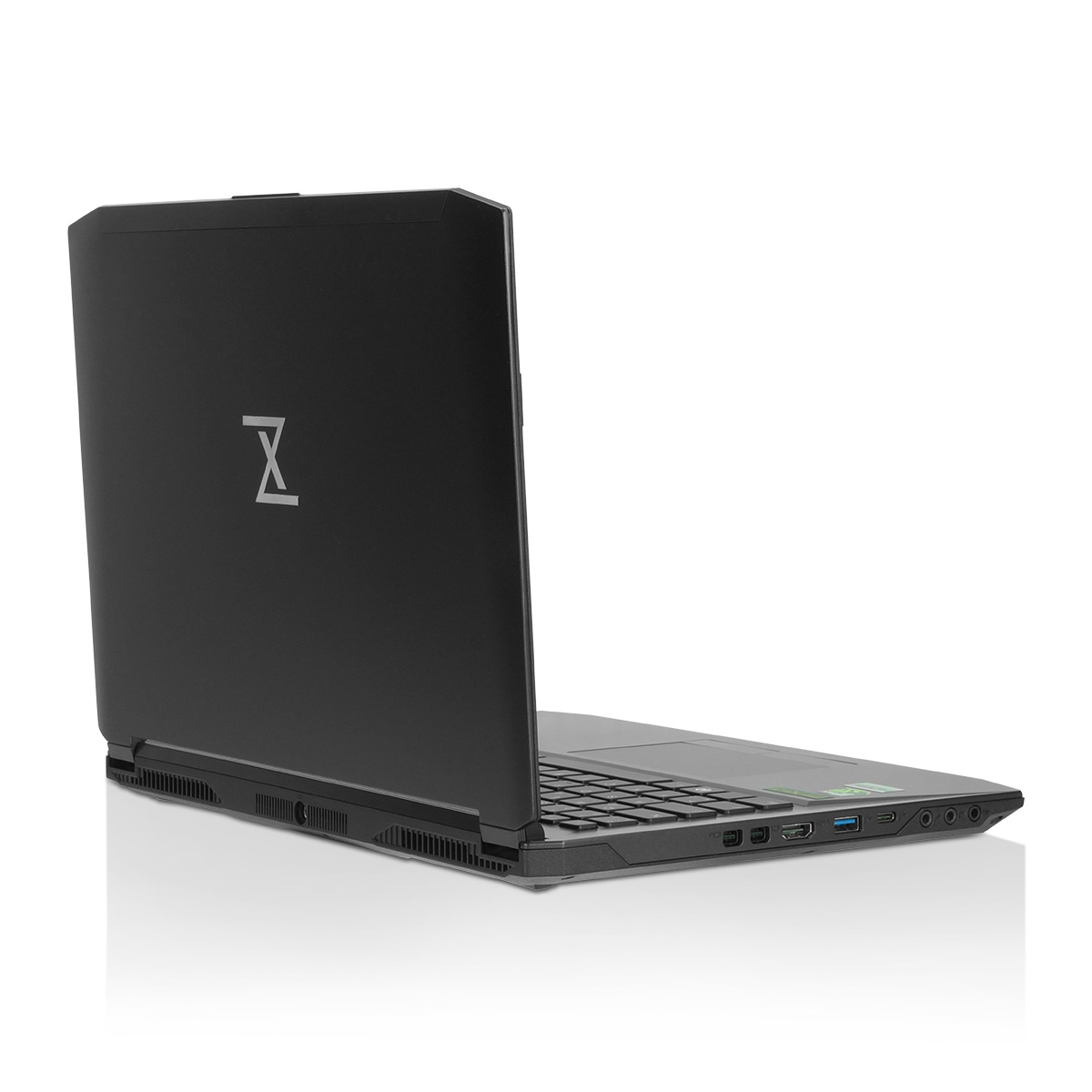

An aluminum cover, USB3.1 type C, two mini-display ports, HDMI, Gigabit LAN, WLAN, and and and and complete this device to the ultimate all-purpose weapon!

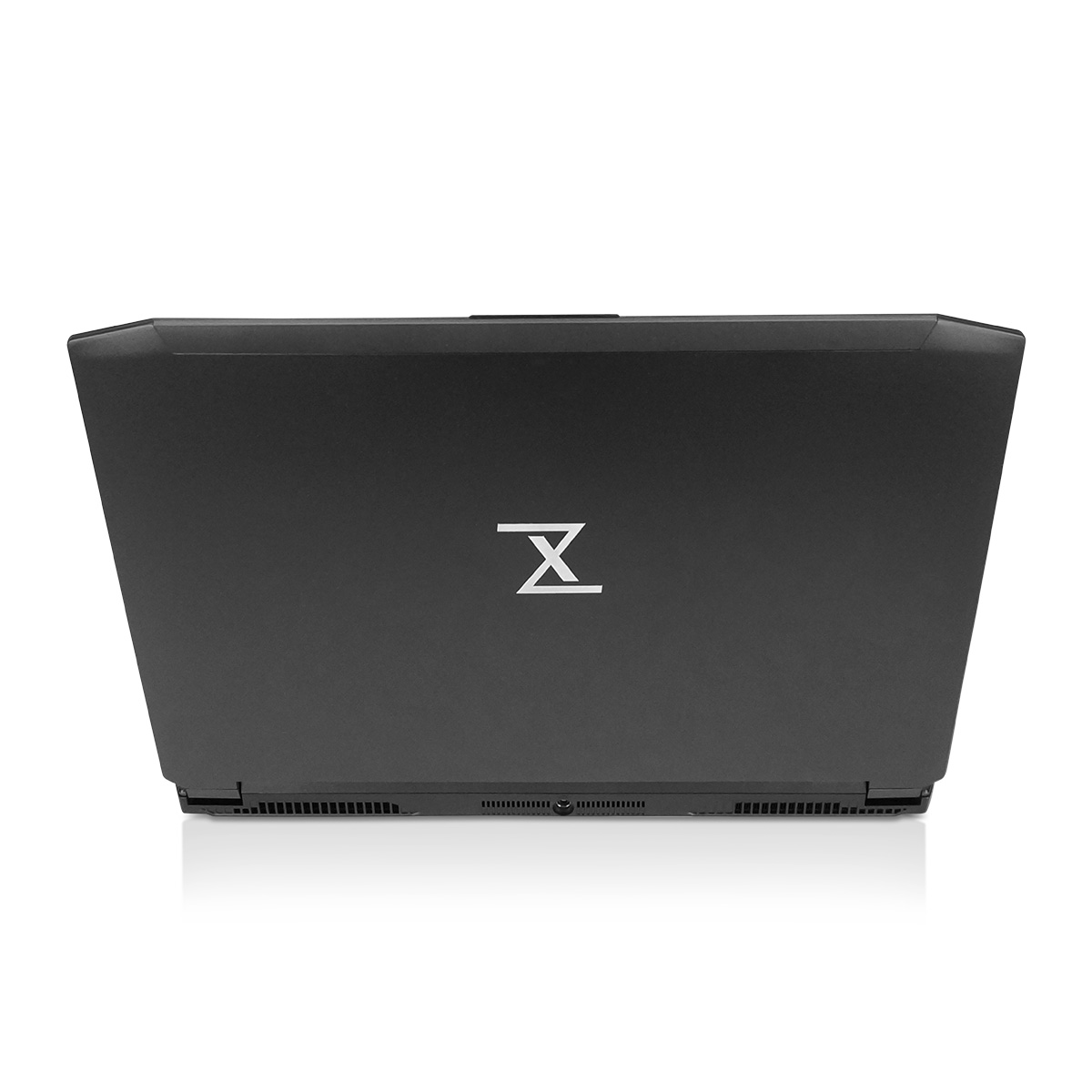

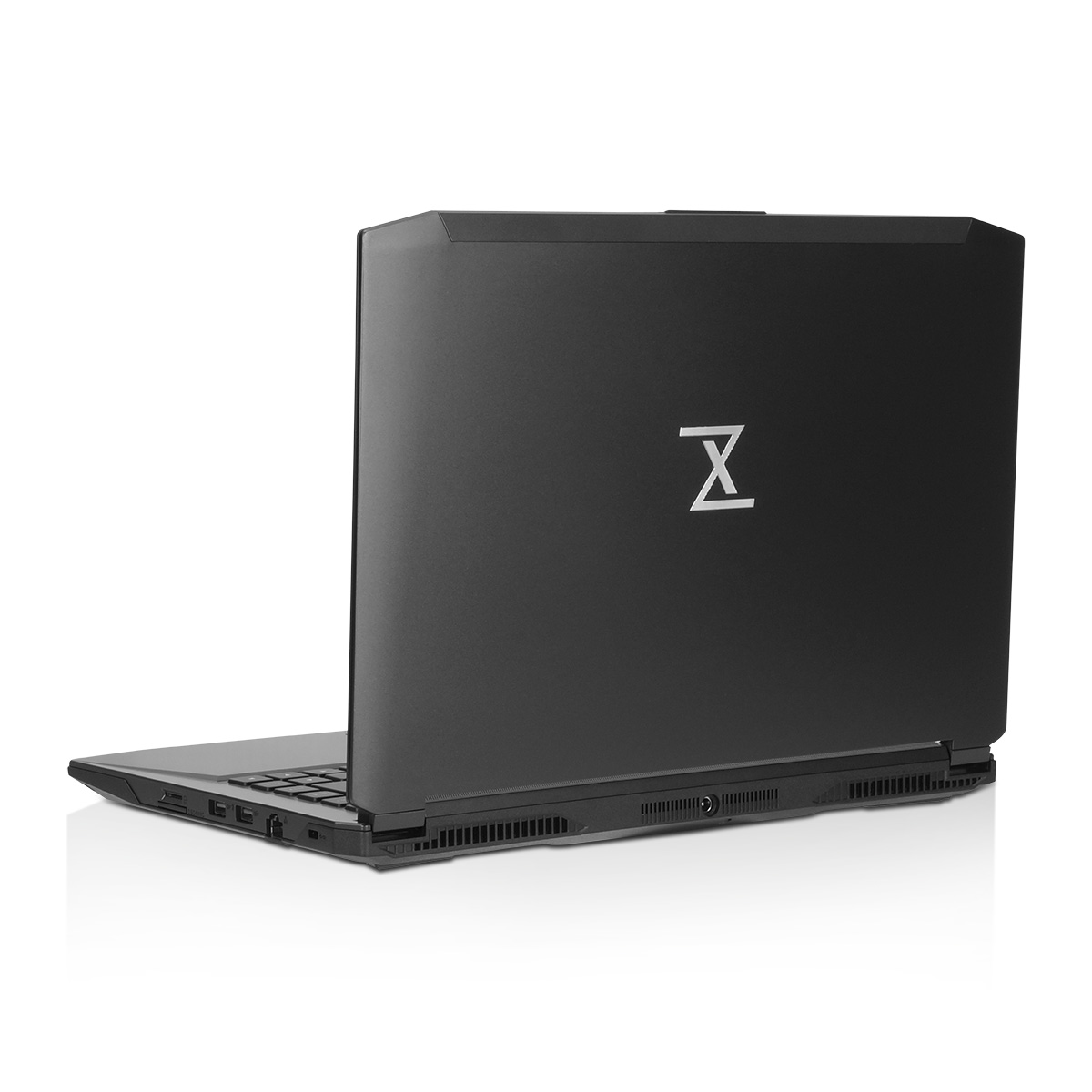

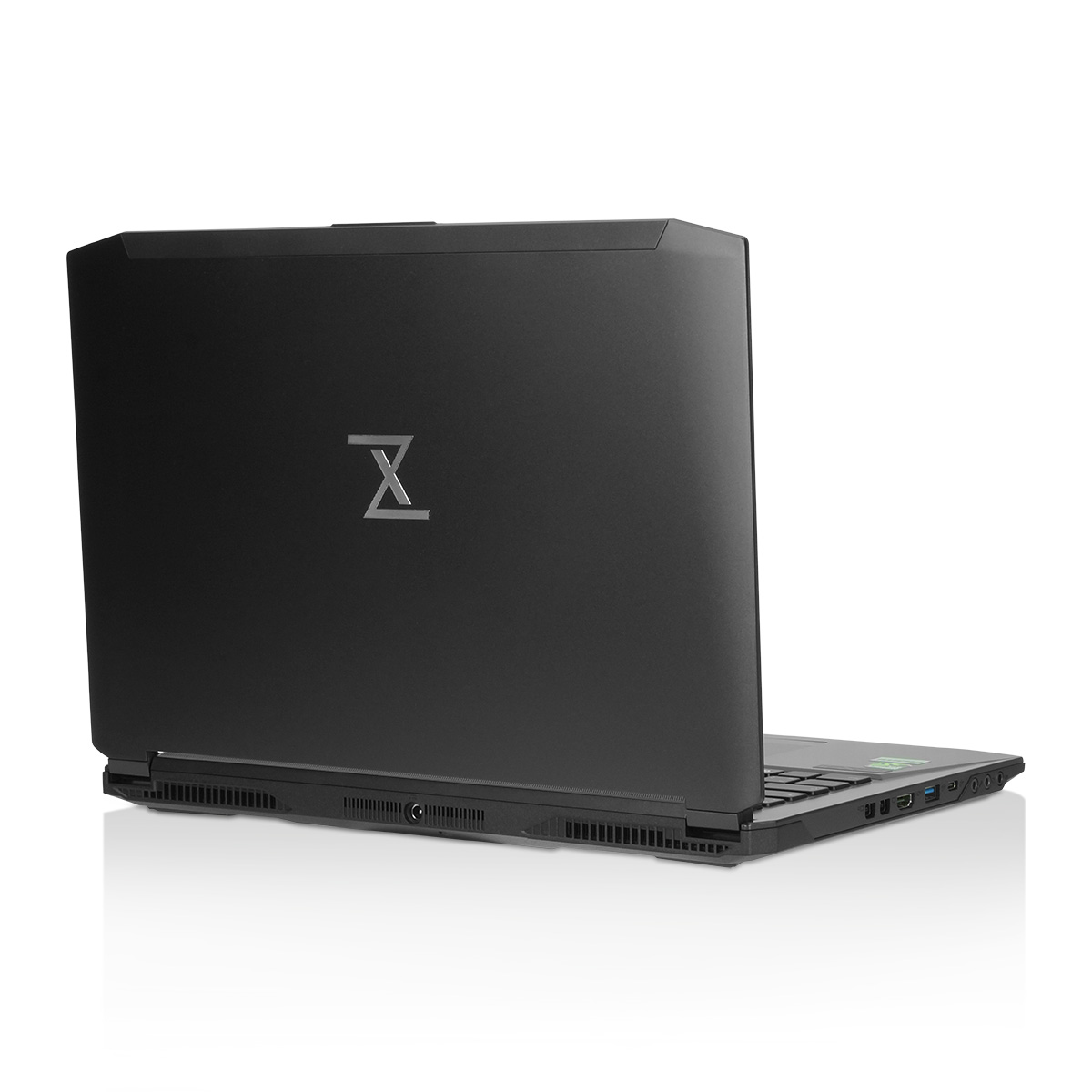

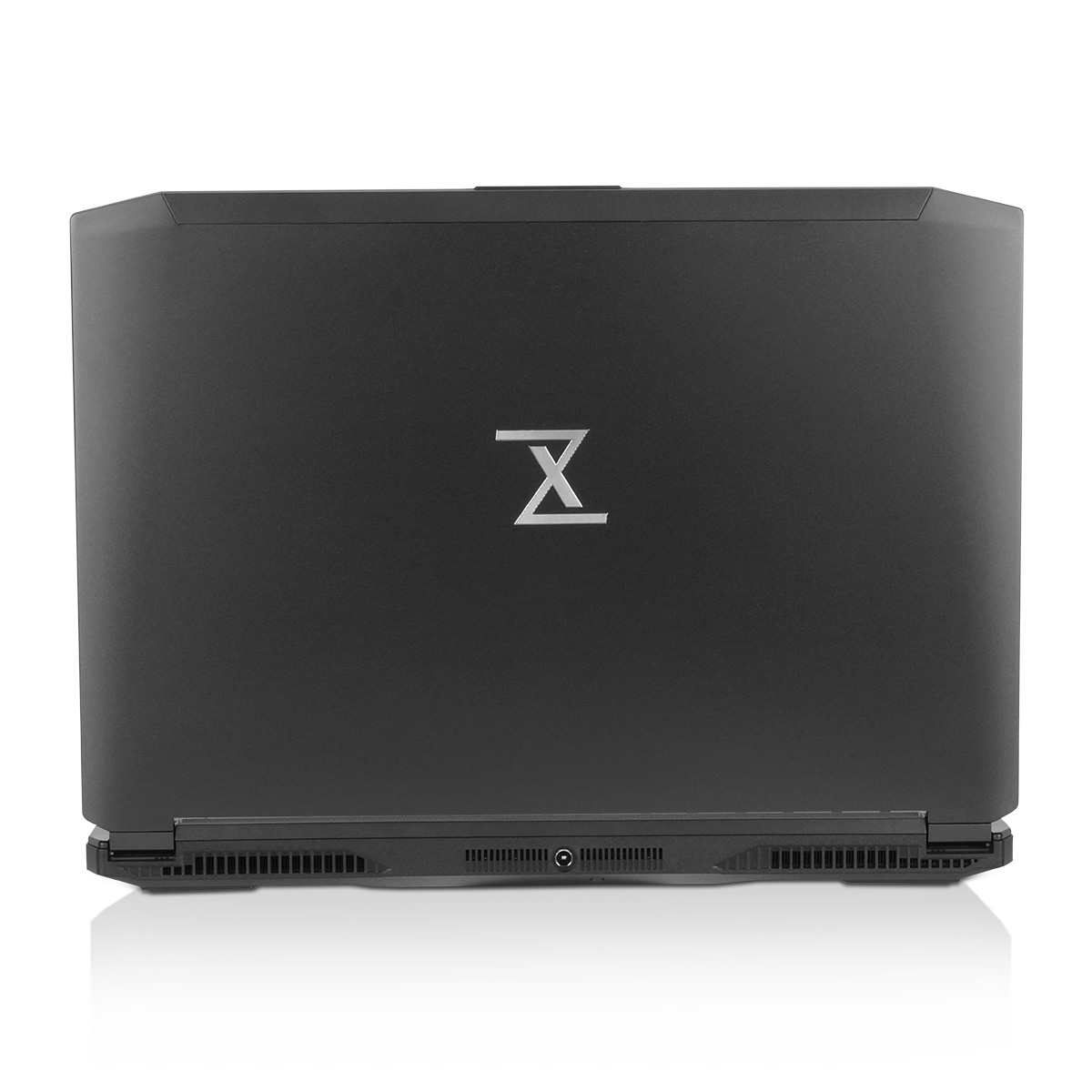

The case of the TUXEDO Book XC1407 is made of high-quality plastic with a particularly smooth, resistant and therefore almost metallic surface. The housing cover and the A-cover are made of aluminium.
Coupled with the even weight distribution inside the walking area, it is a very mobile device and comfortable to take with you.
The battery consisting of prismatic cells is therefore not only very light but also powerful.

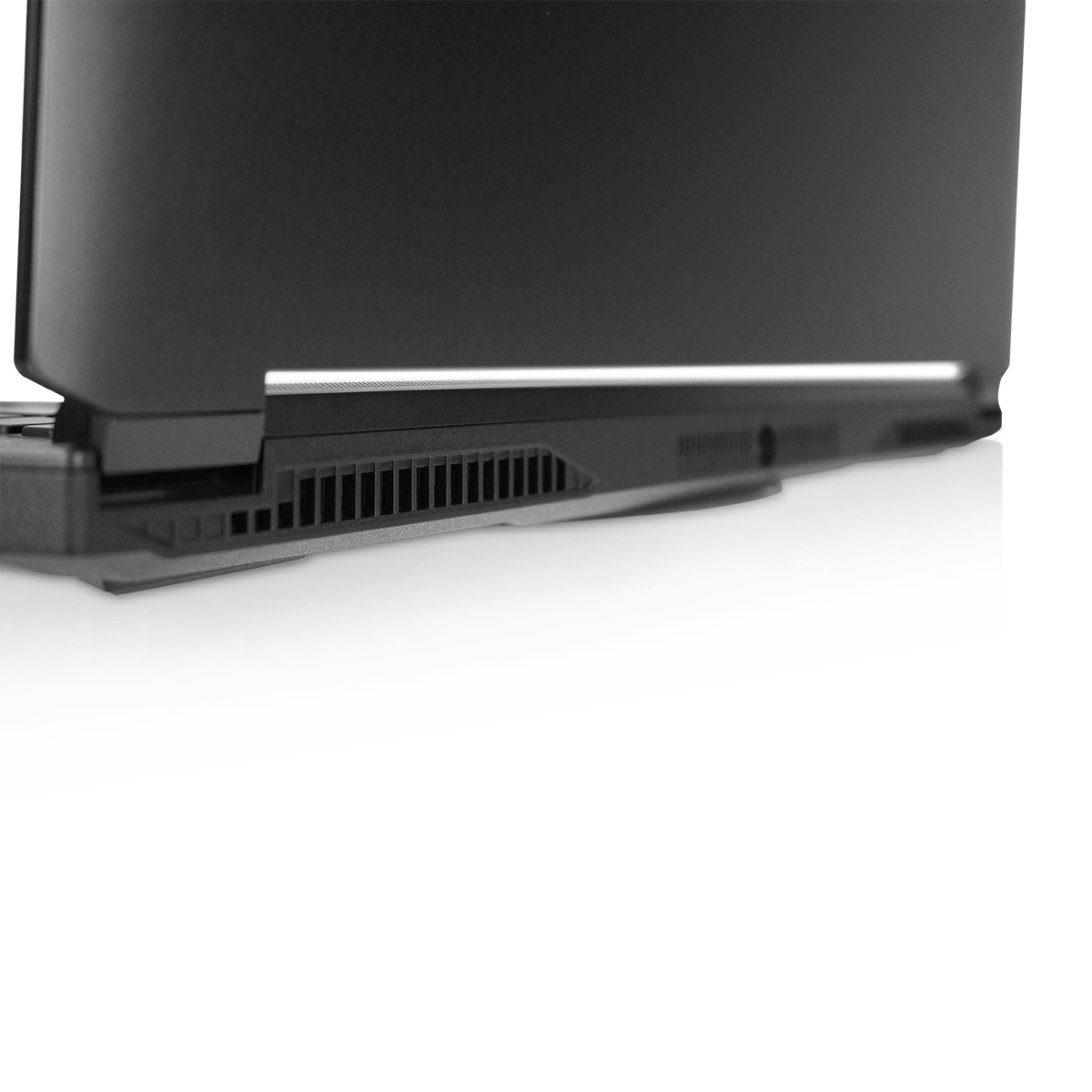

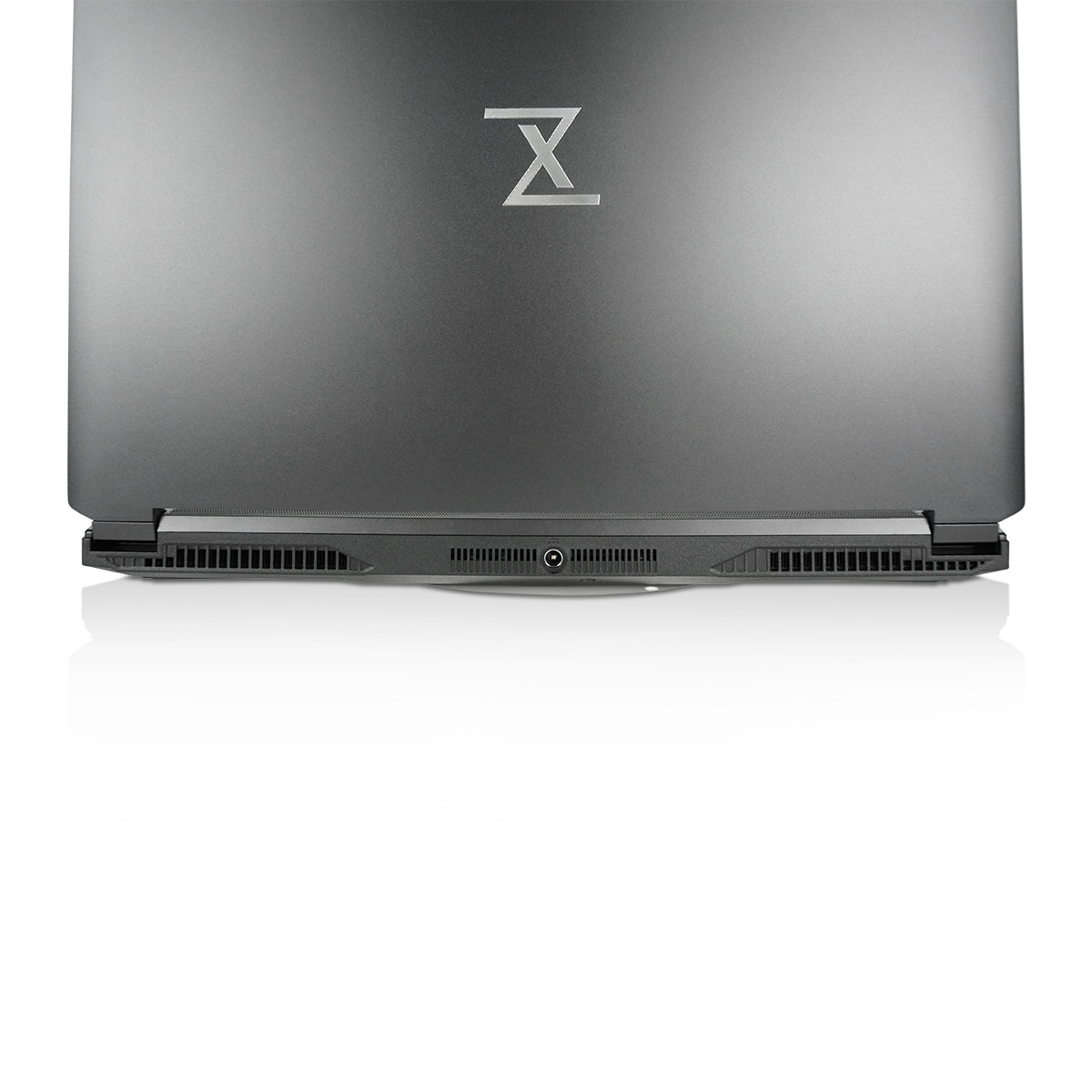

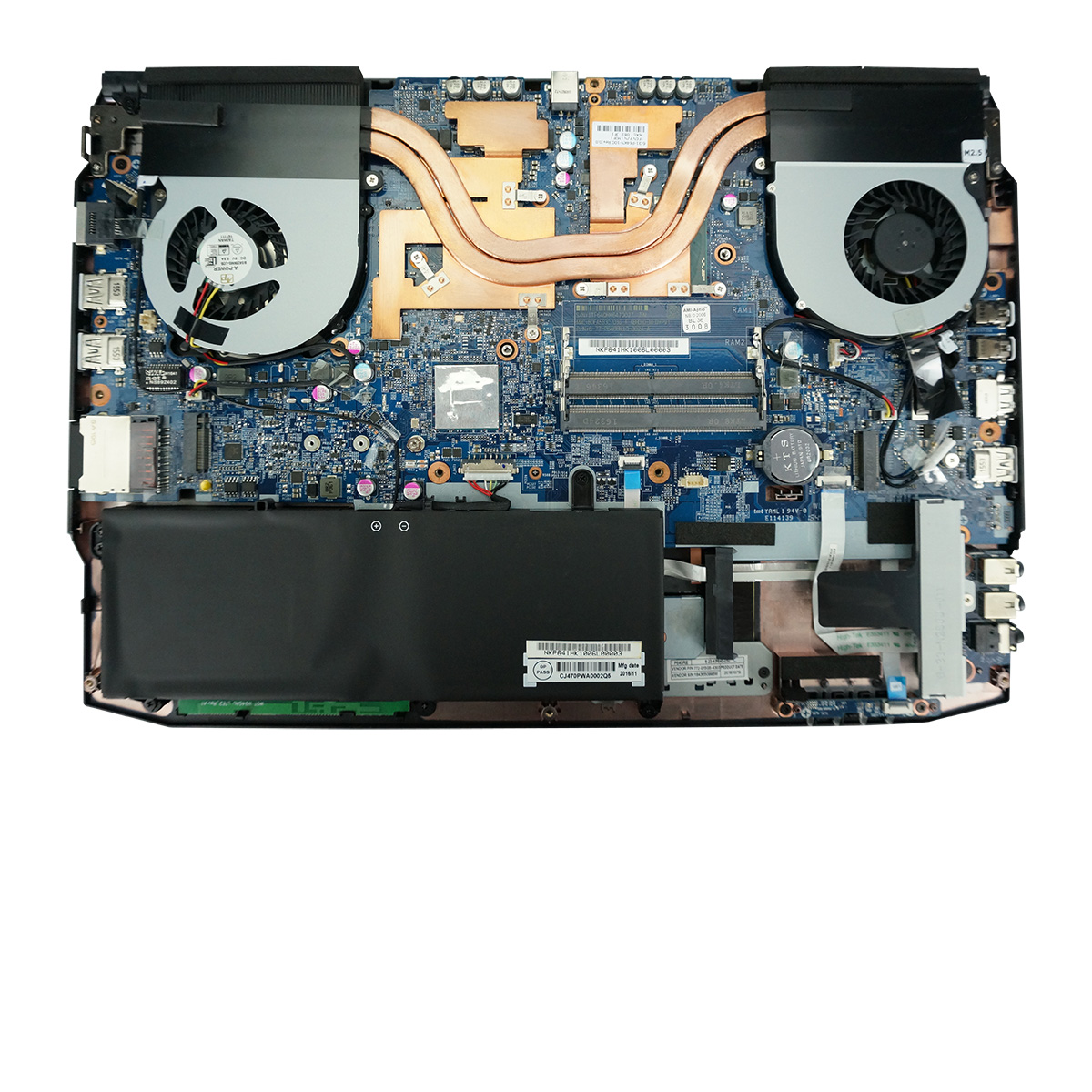

Despite its low construction height, the device is able to operate with very low noise, even under strong or uneven loads. The reason for this is the well-balanced structure of the cooling system: Two connected heatpipes and fans are symmetrically distributed in the housing and collectively cool the entire system!

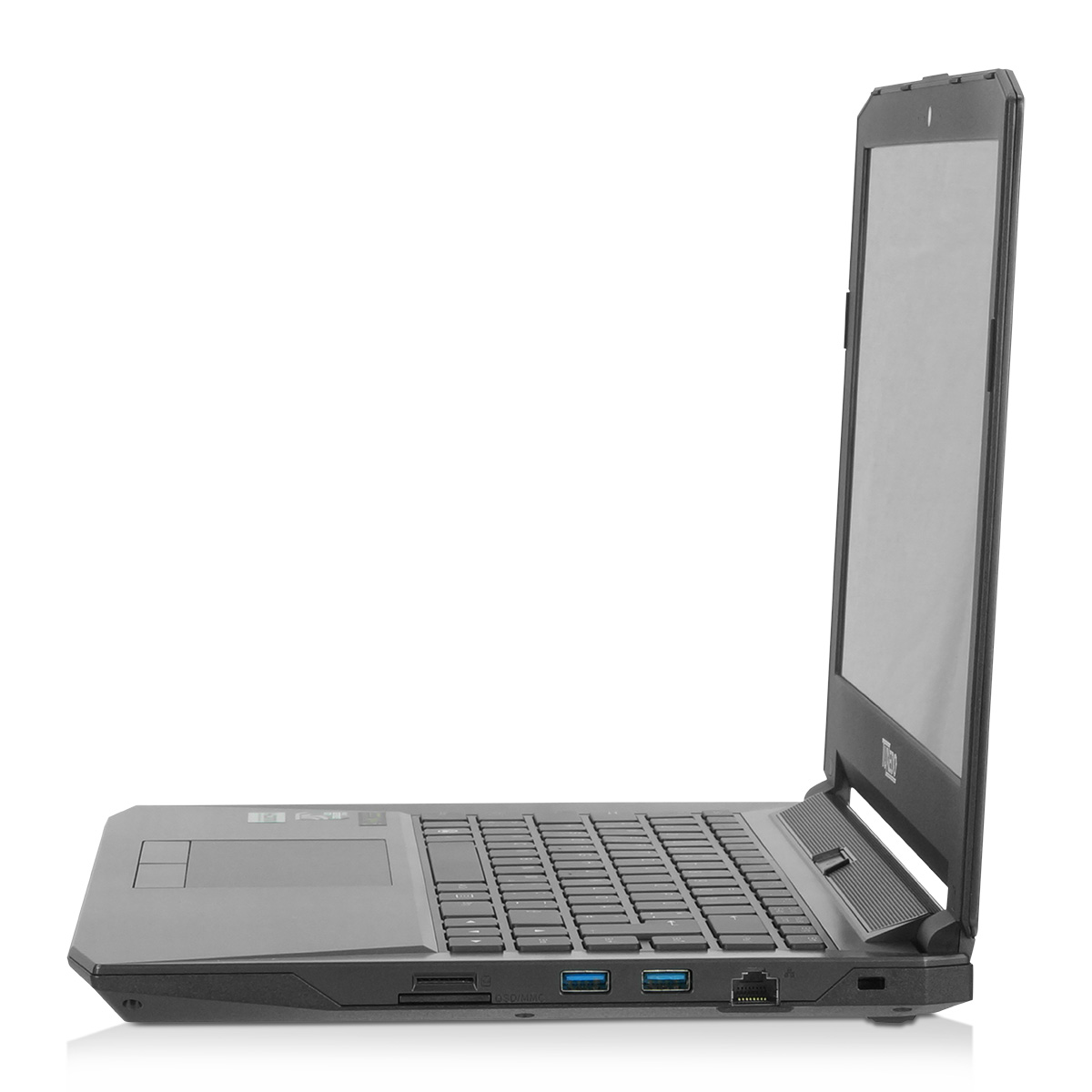

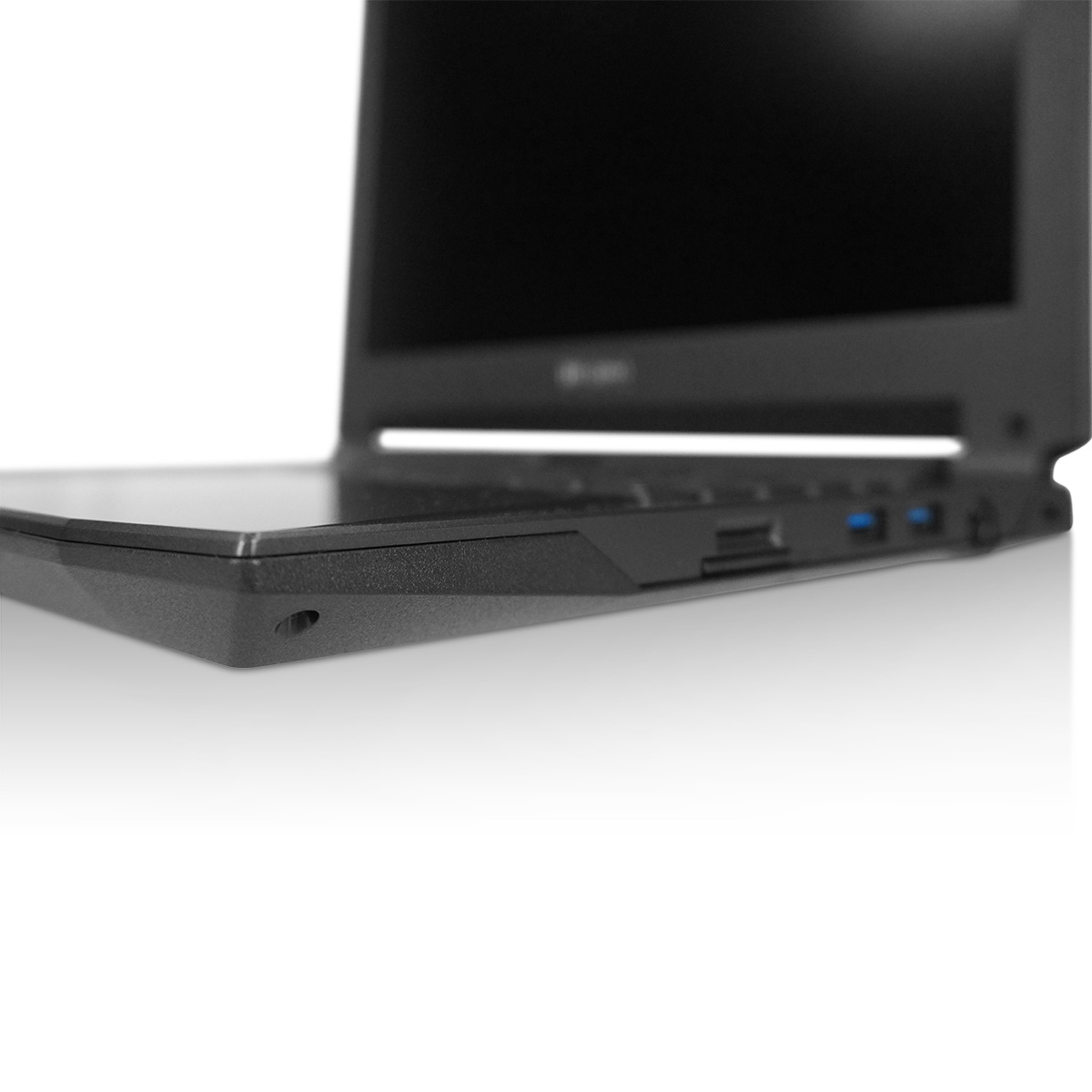

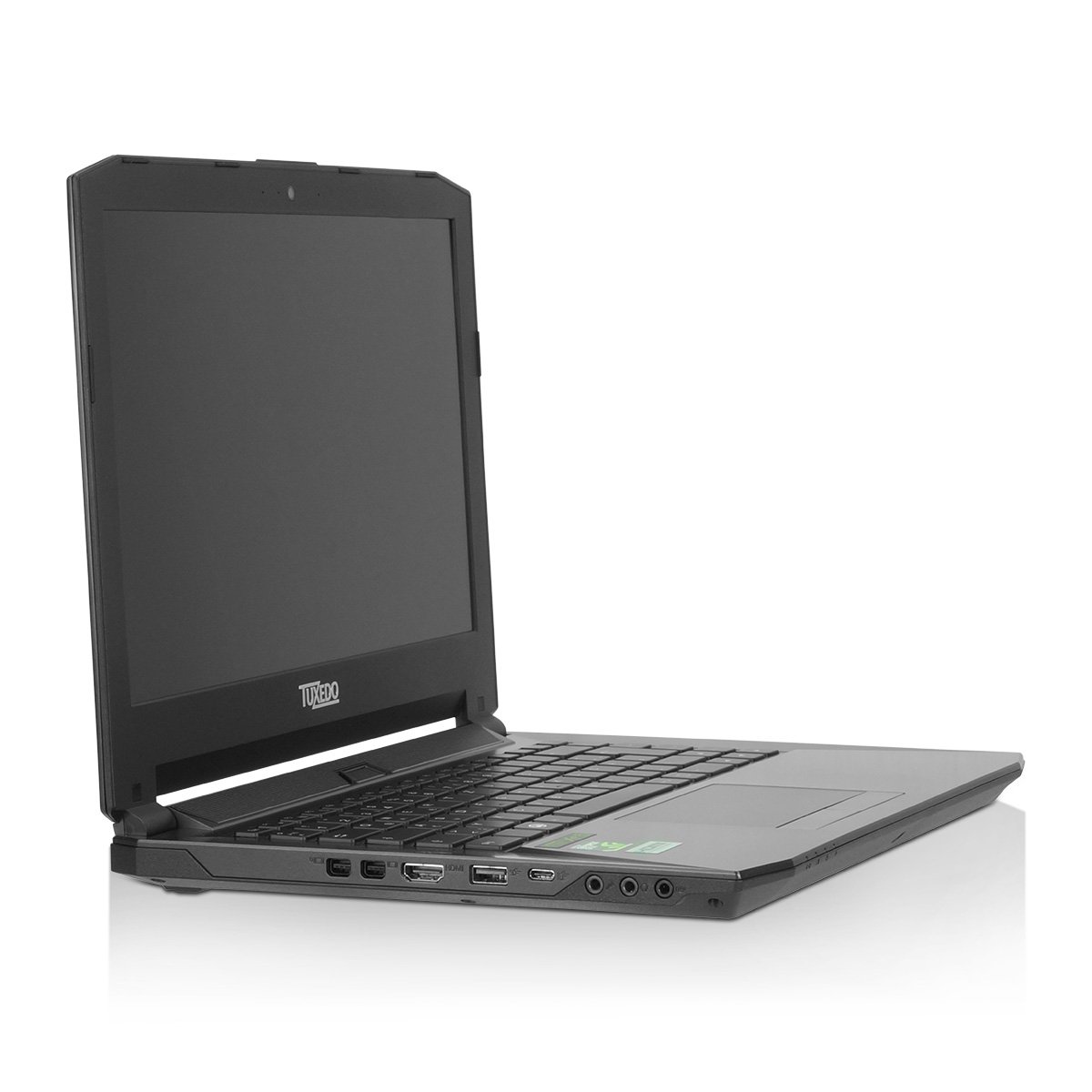

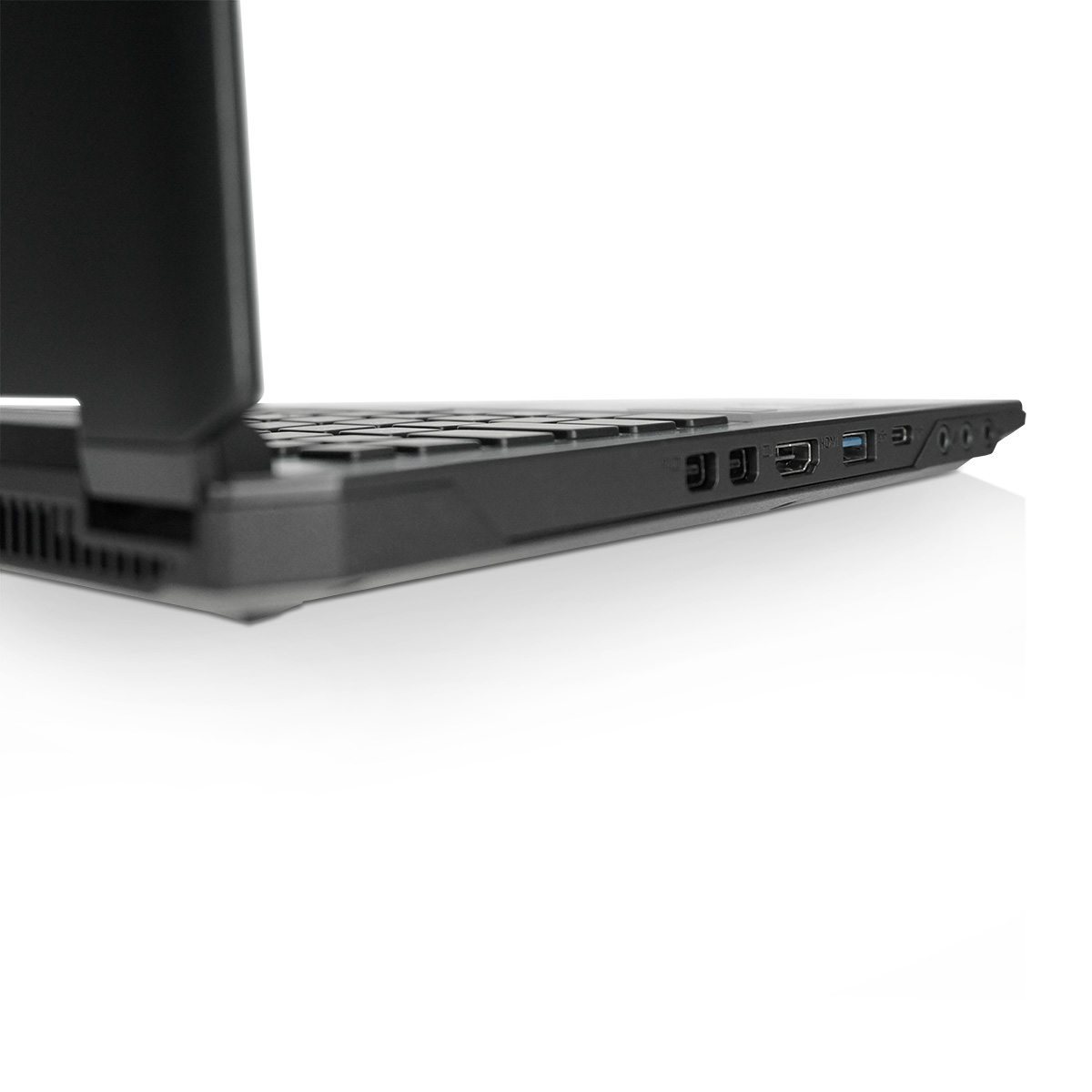

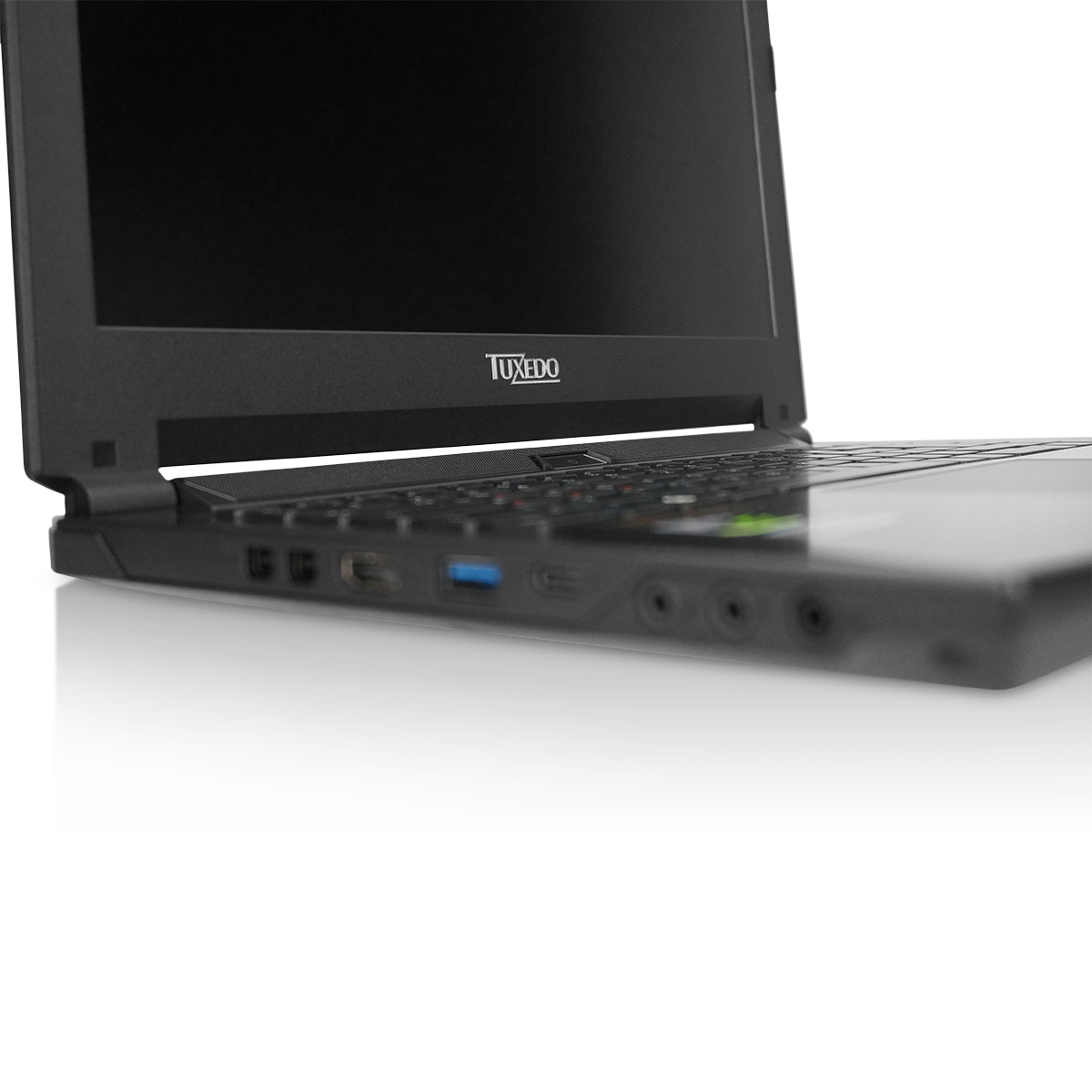

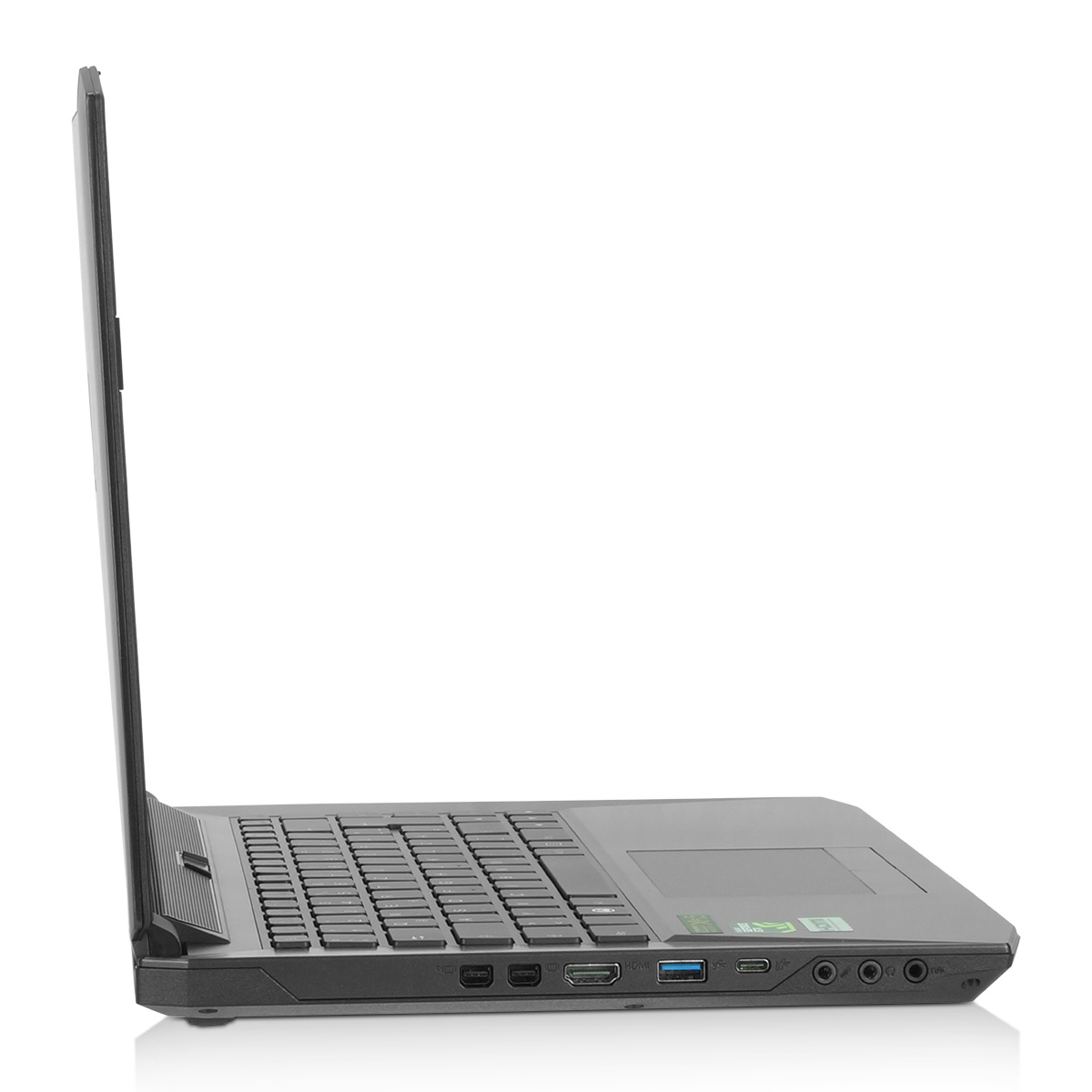

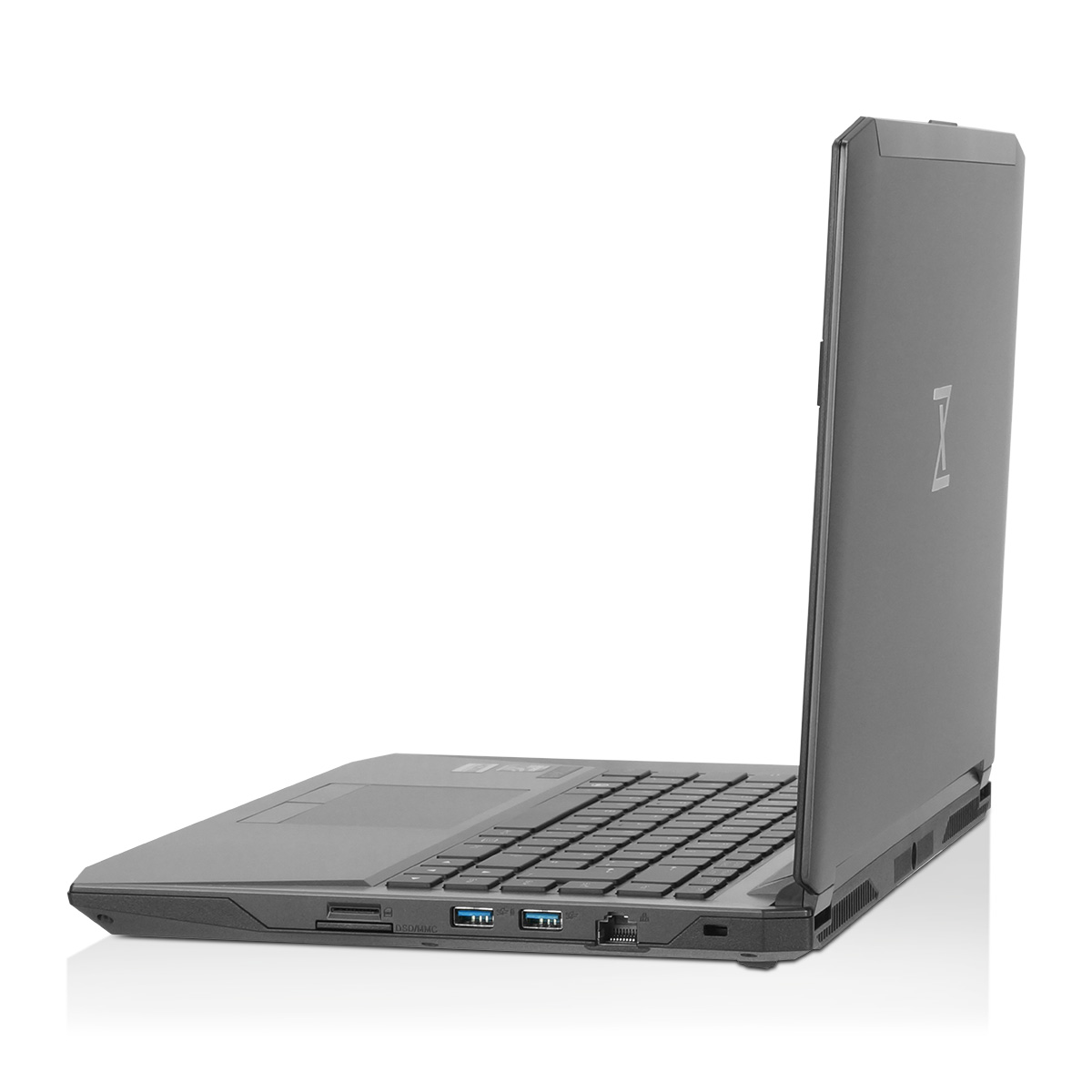

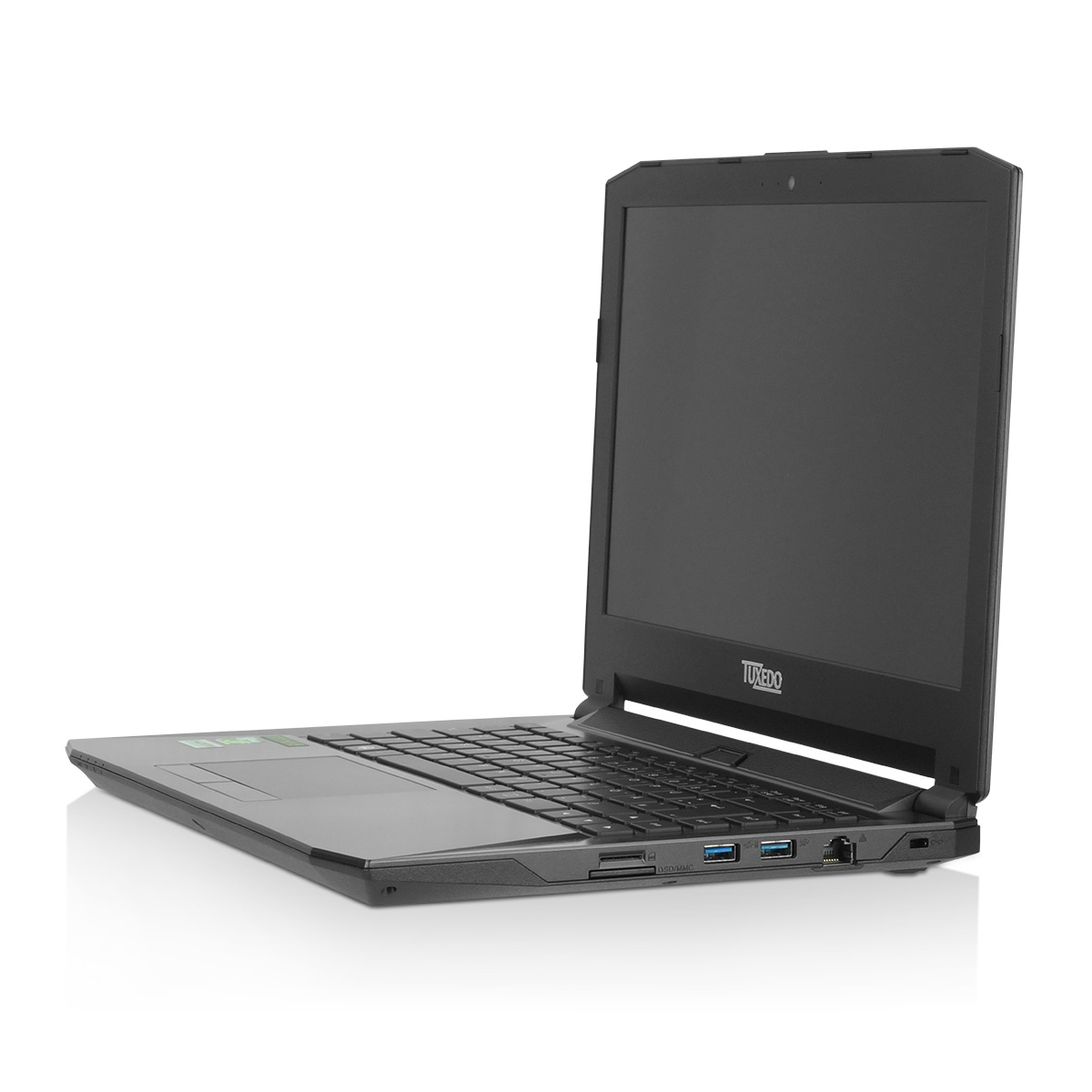

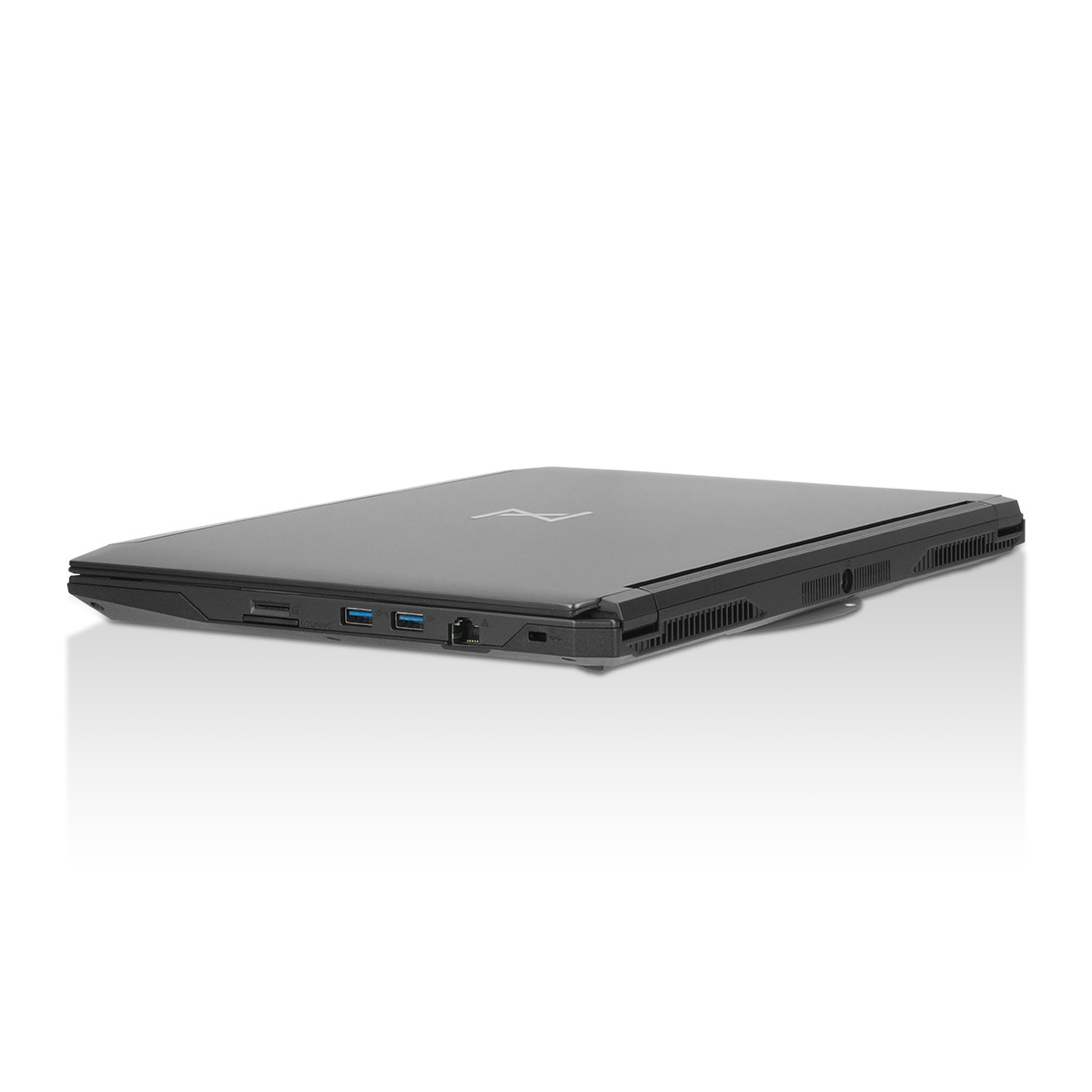

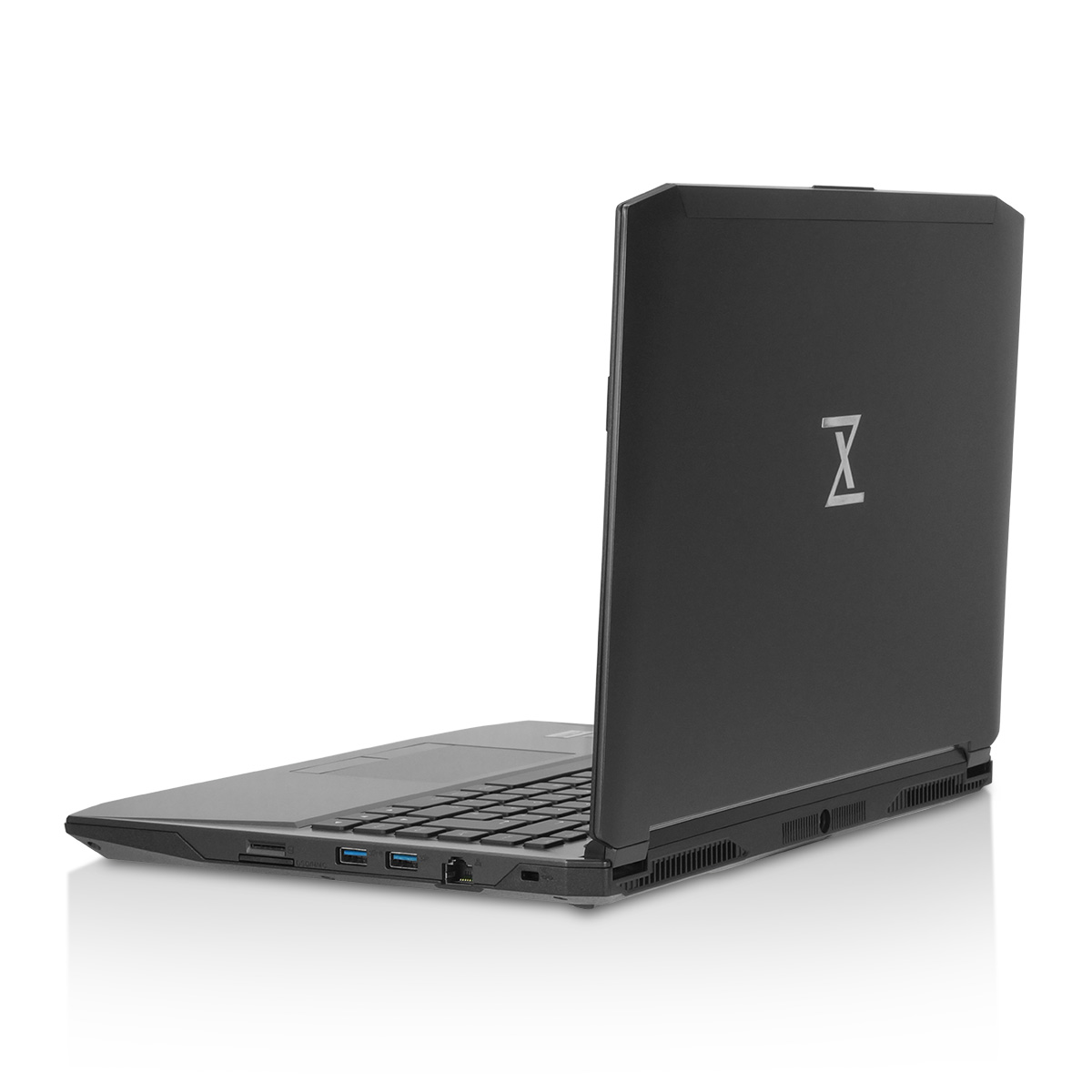

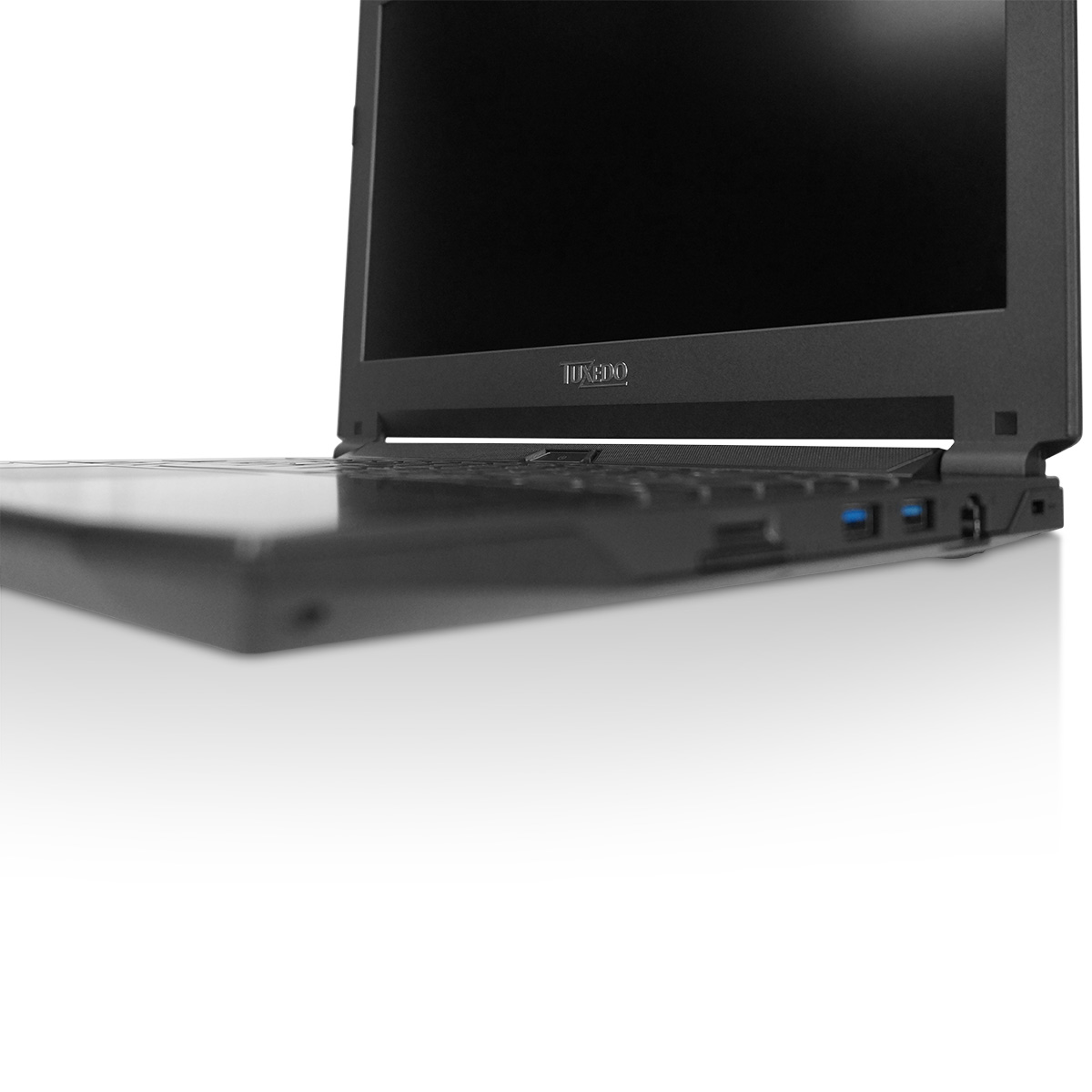

So that you always find the right connection, USB3.1 type C Gen2, USB3.0, HDMI, two mini-displayPort, Gigabit-LAN, WLAN, Bluetooth 4.0 and a multi-card reader are available.

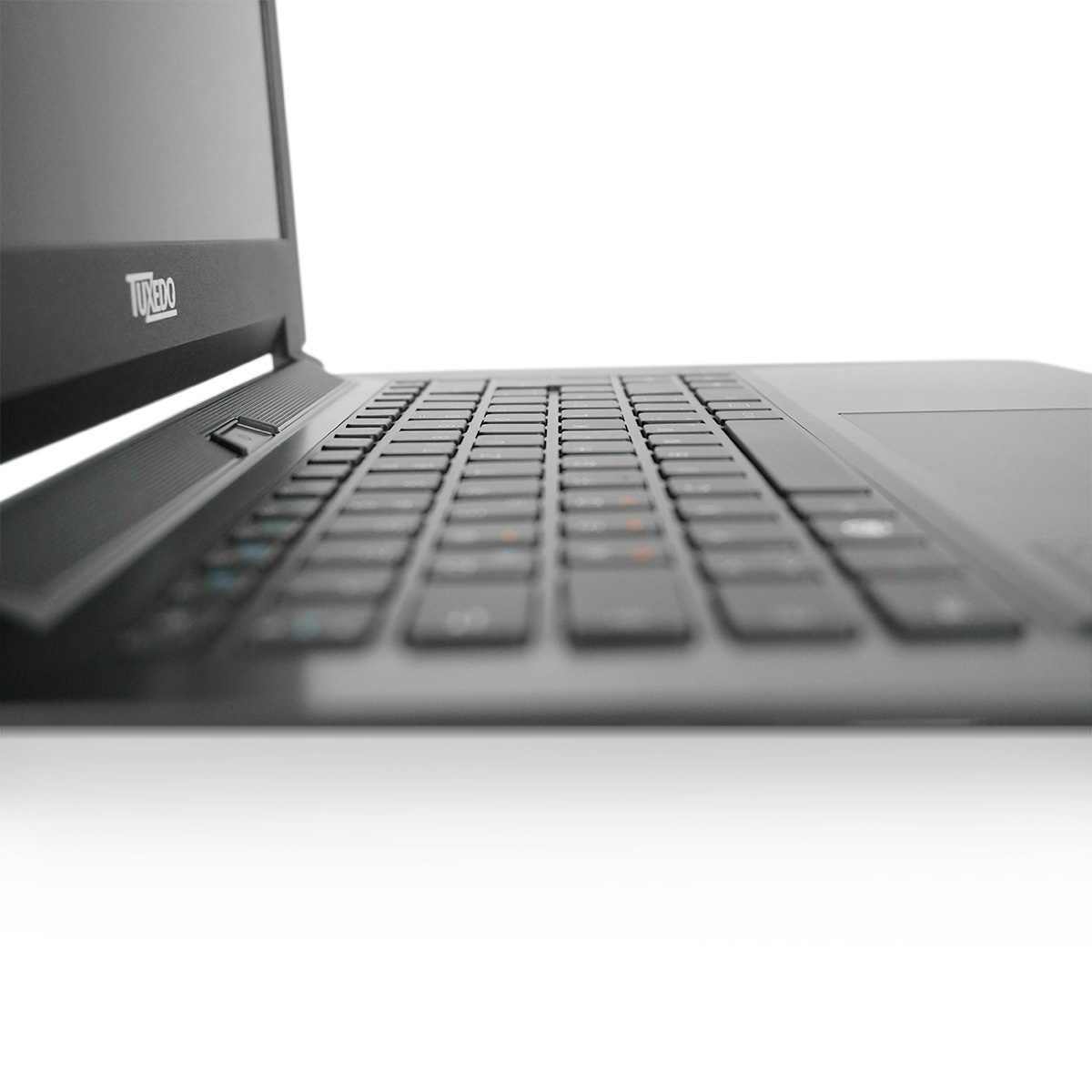

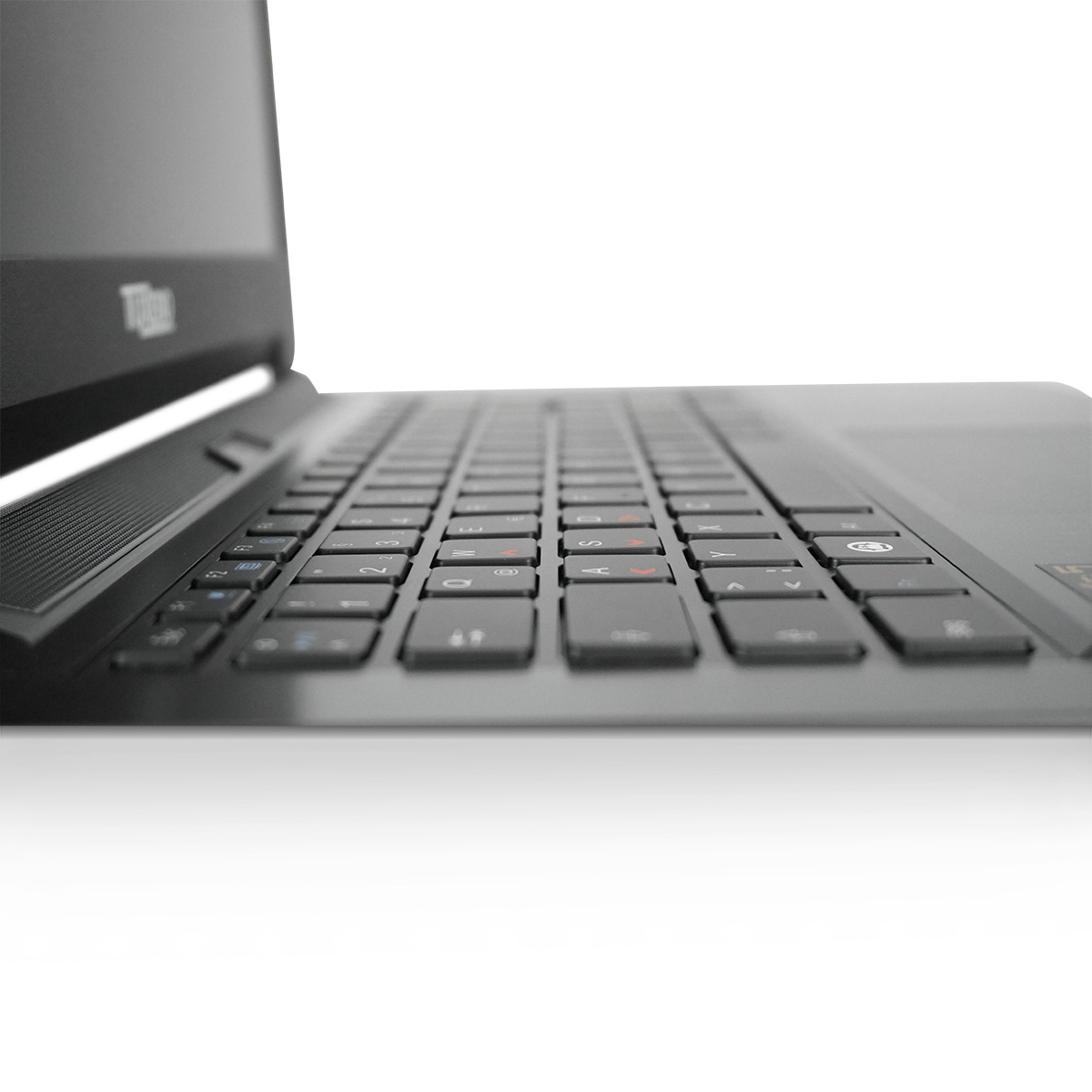

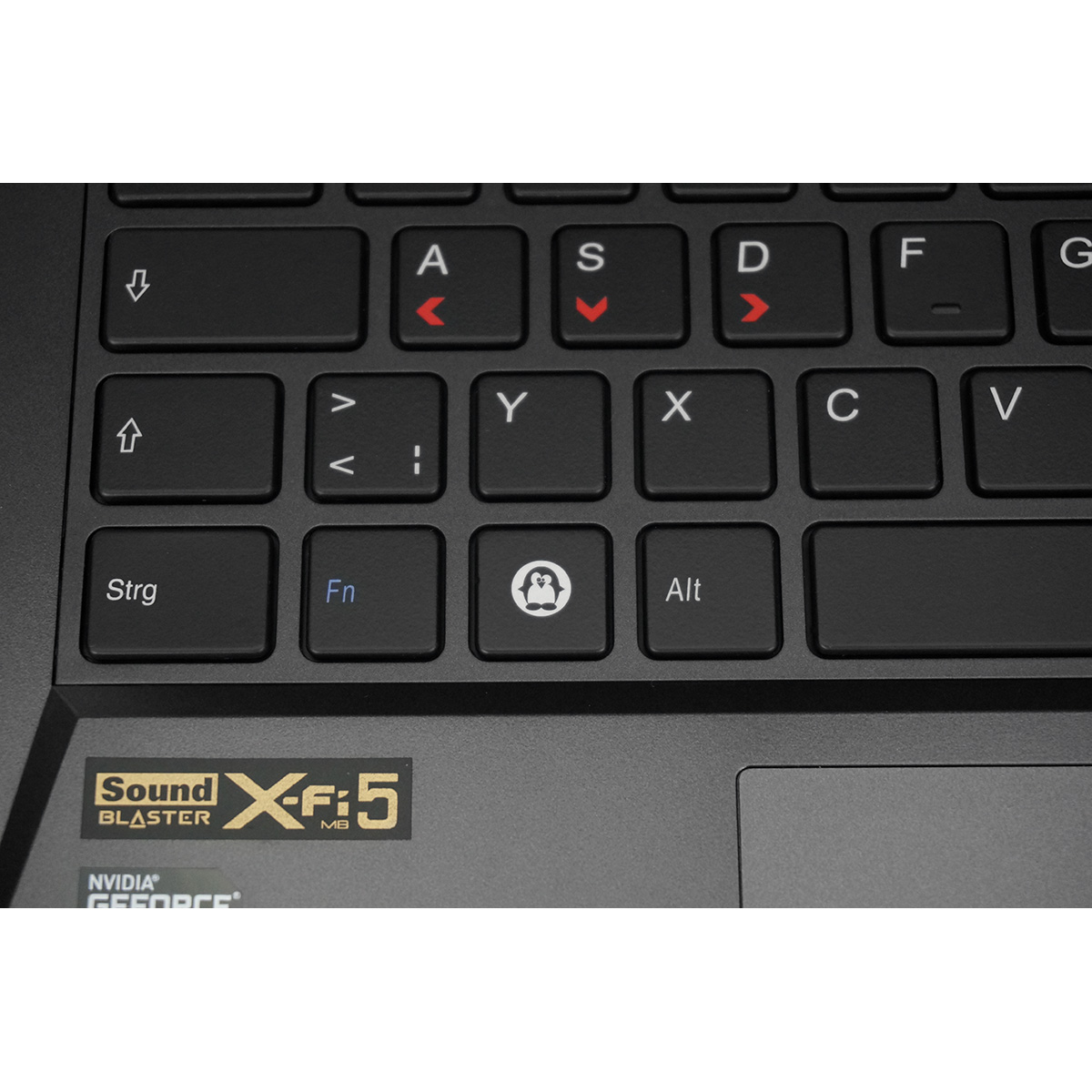

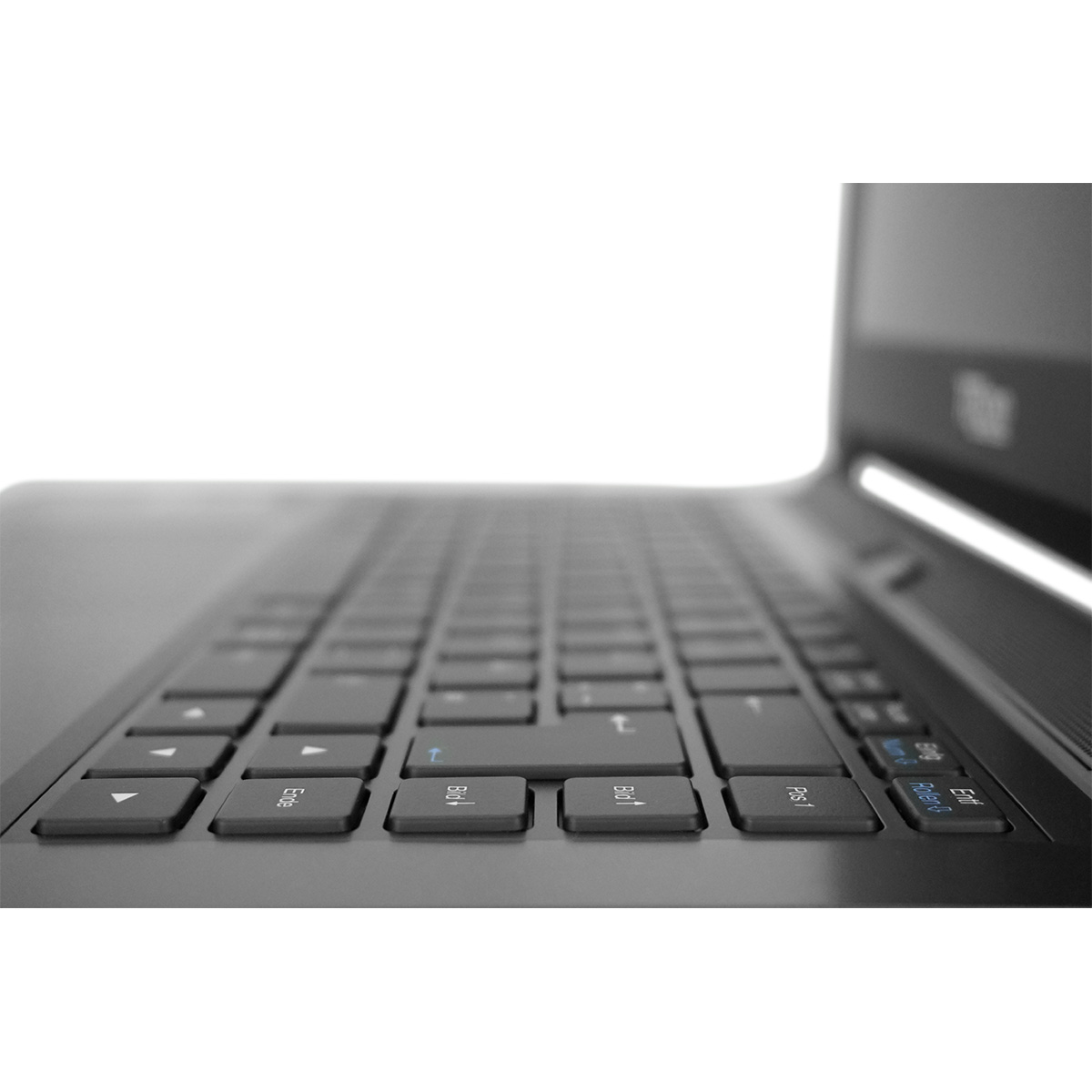

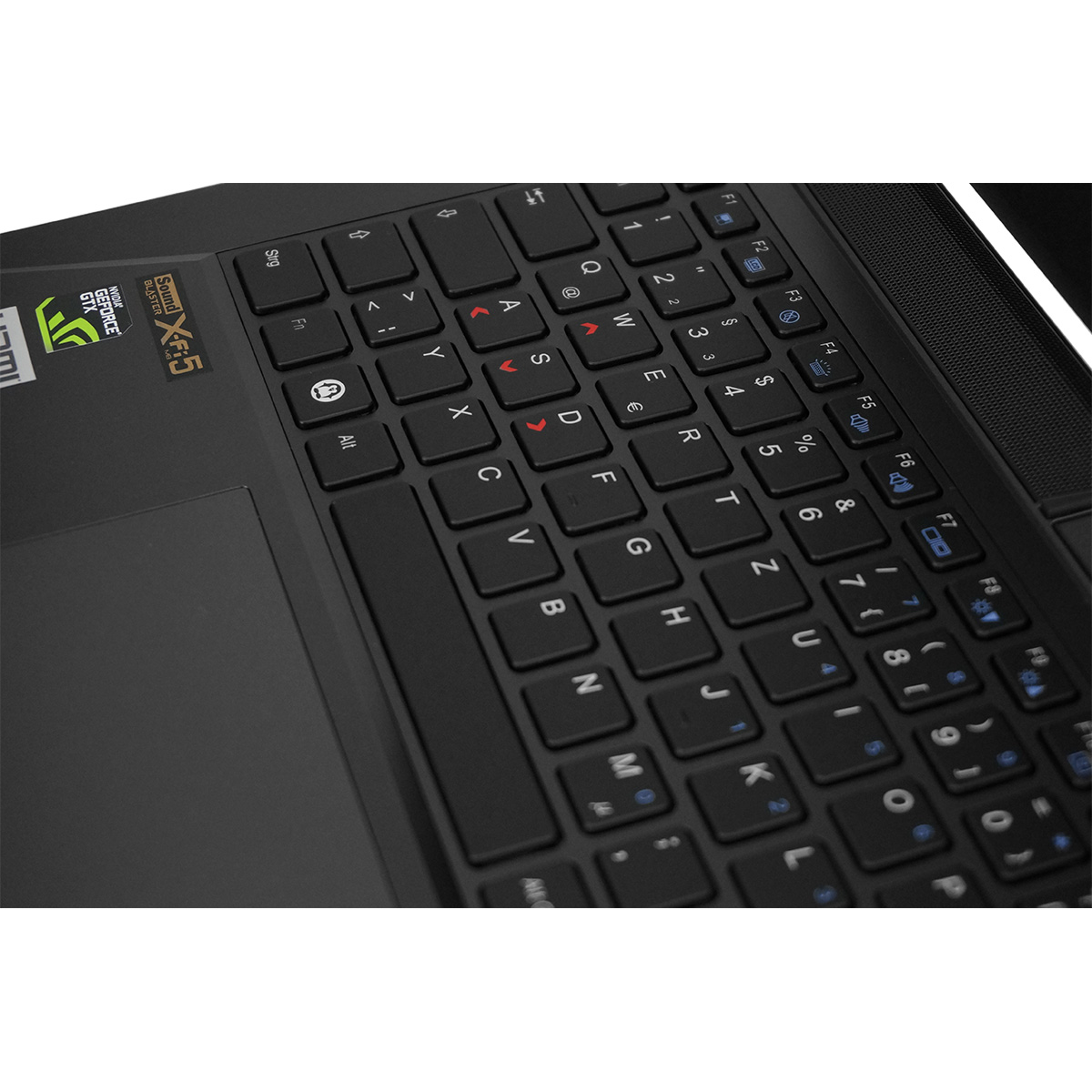

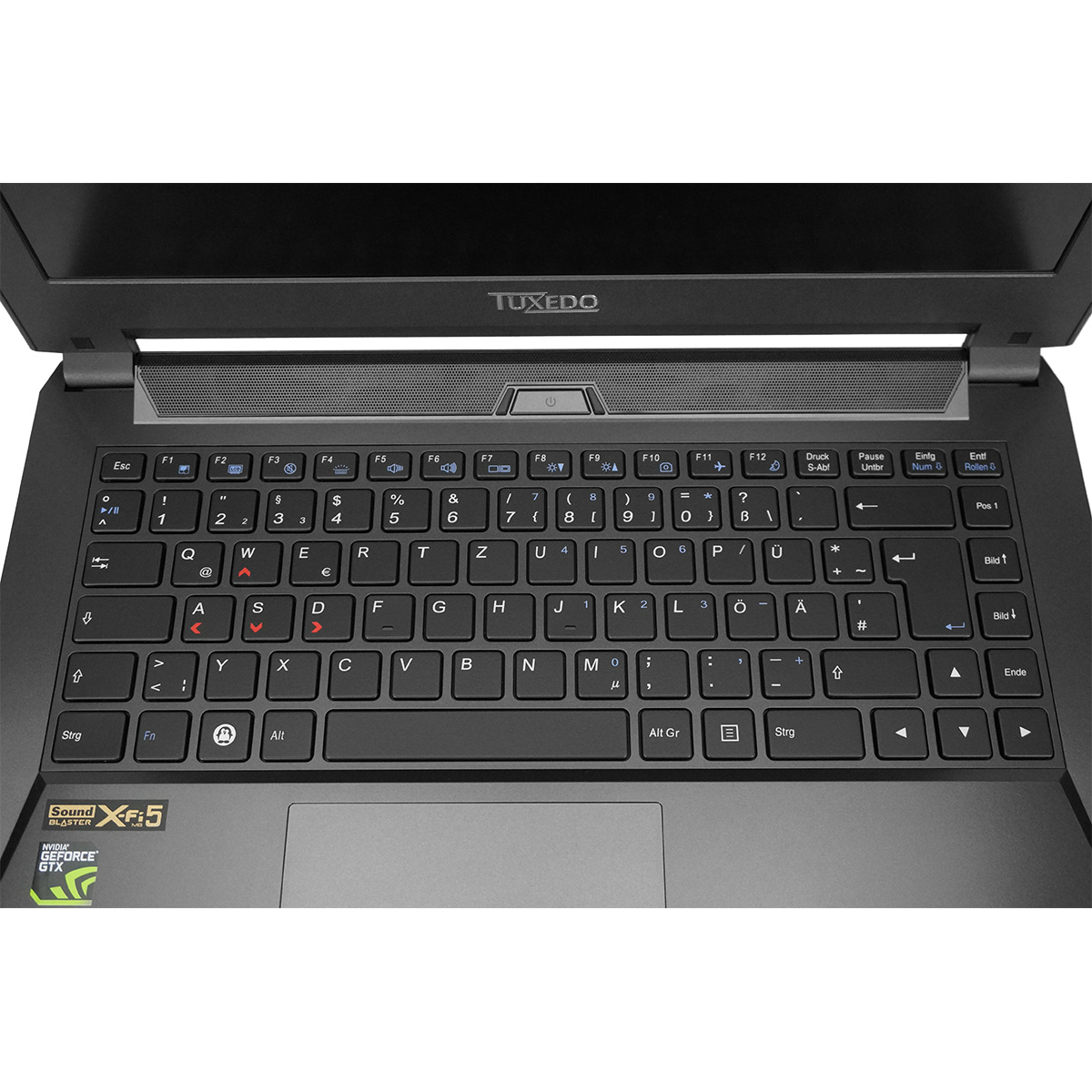

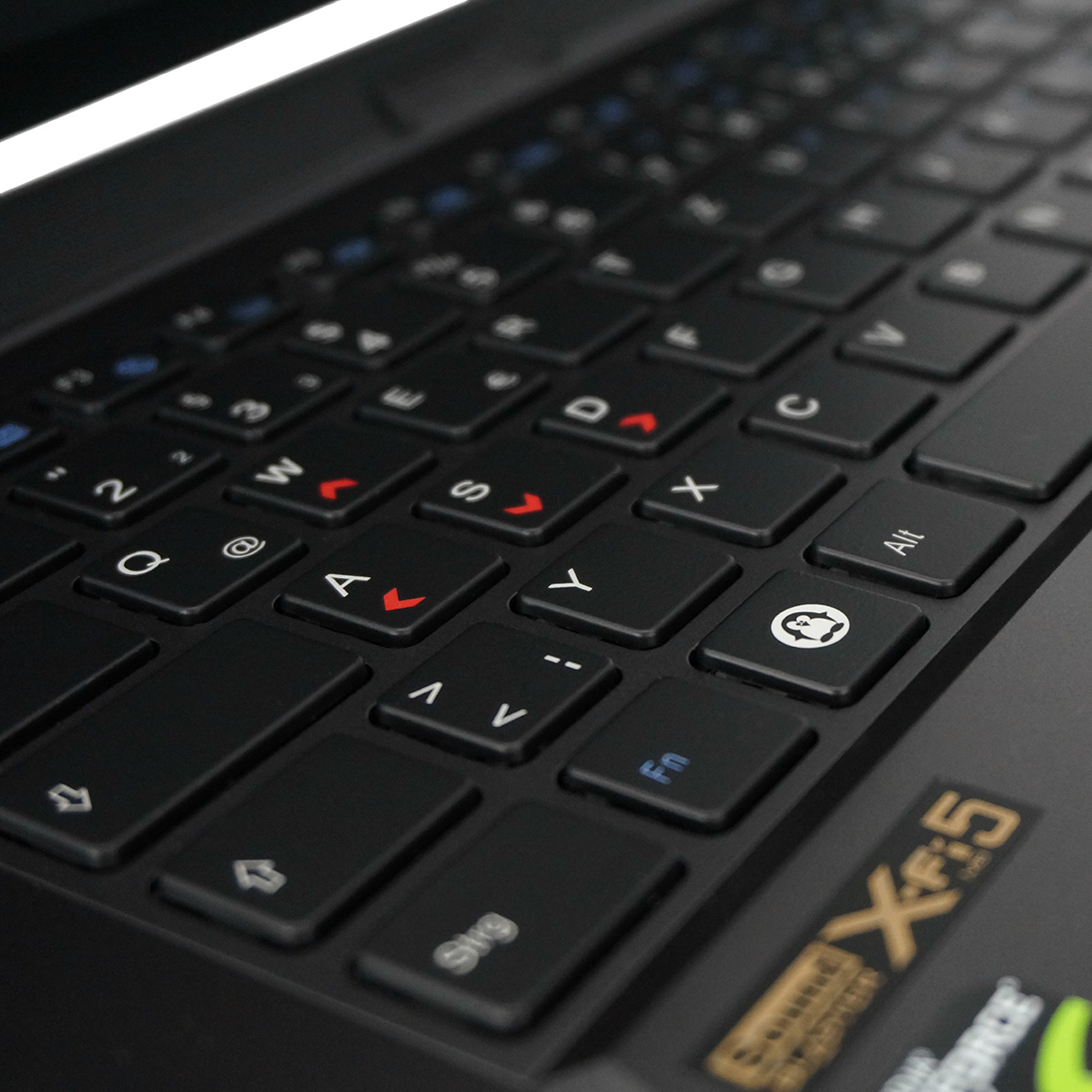

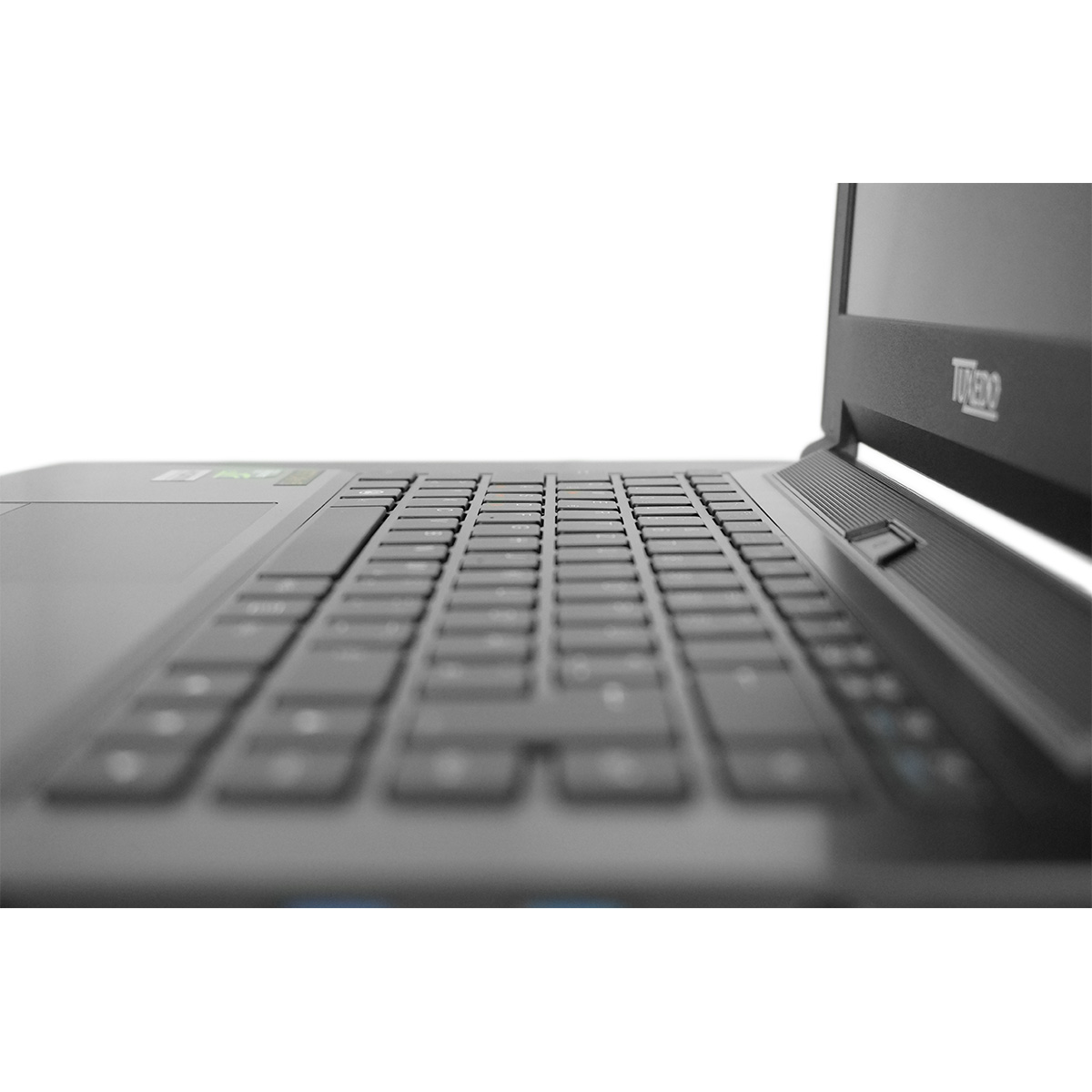

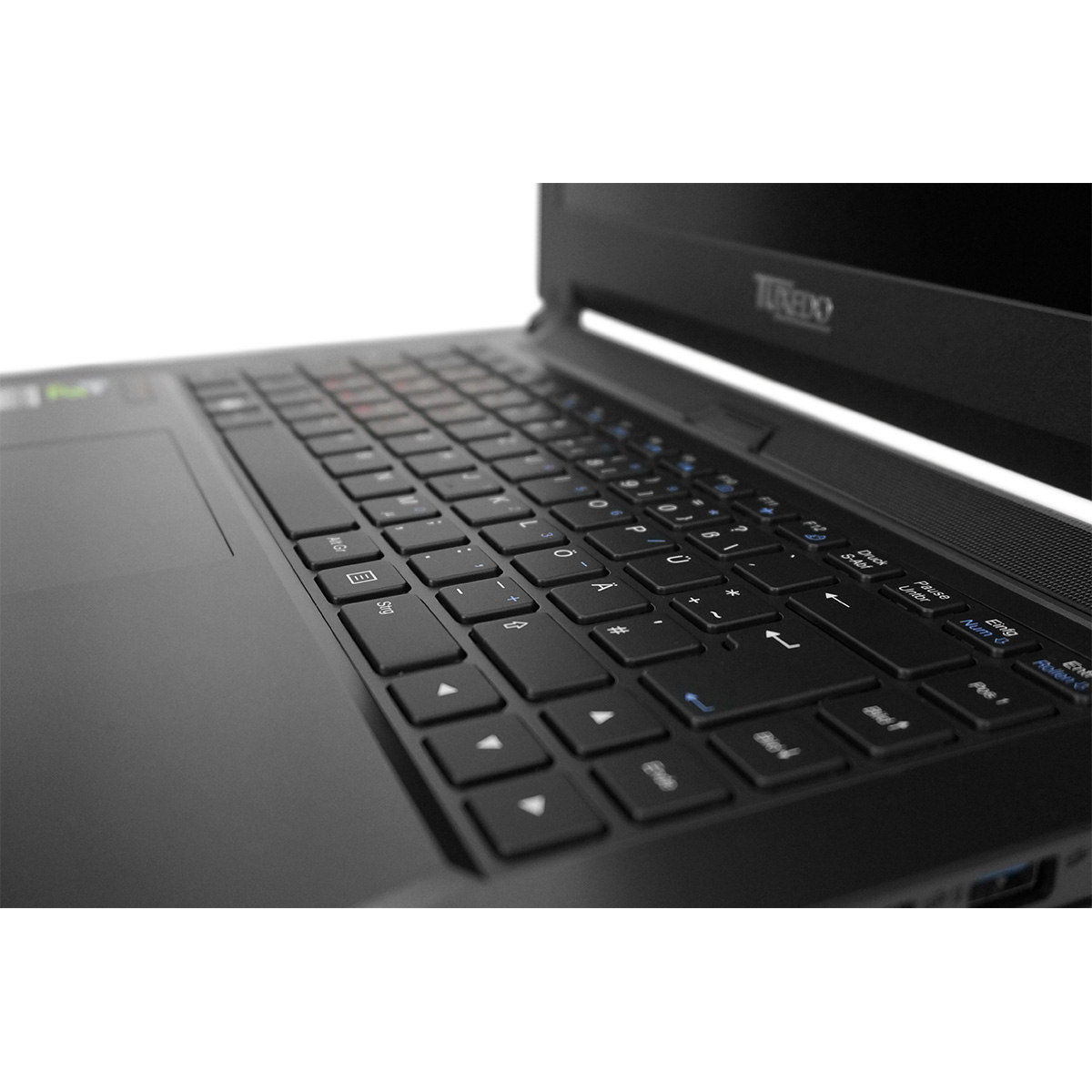

The backlit keyboard with penguin super key also makes typing even more comfortable. The white lighting can be regulated in steps and, of course, can also be deactivated. The entire keyboard background is illuminated, and the individual letters of the keys light up.

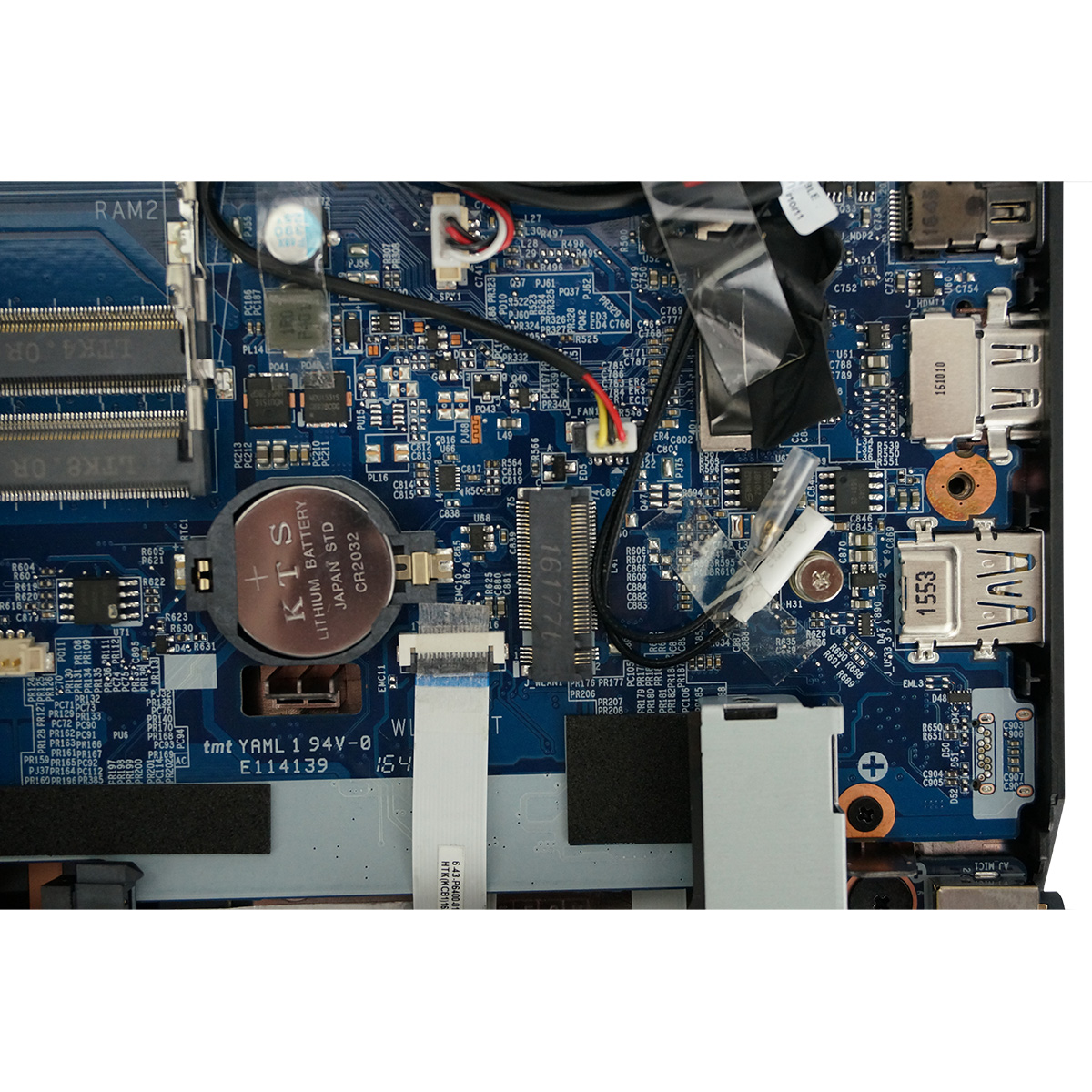

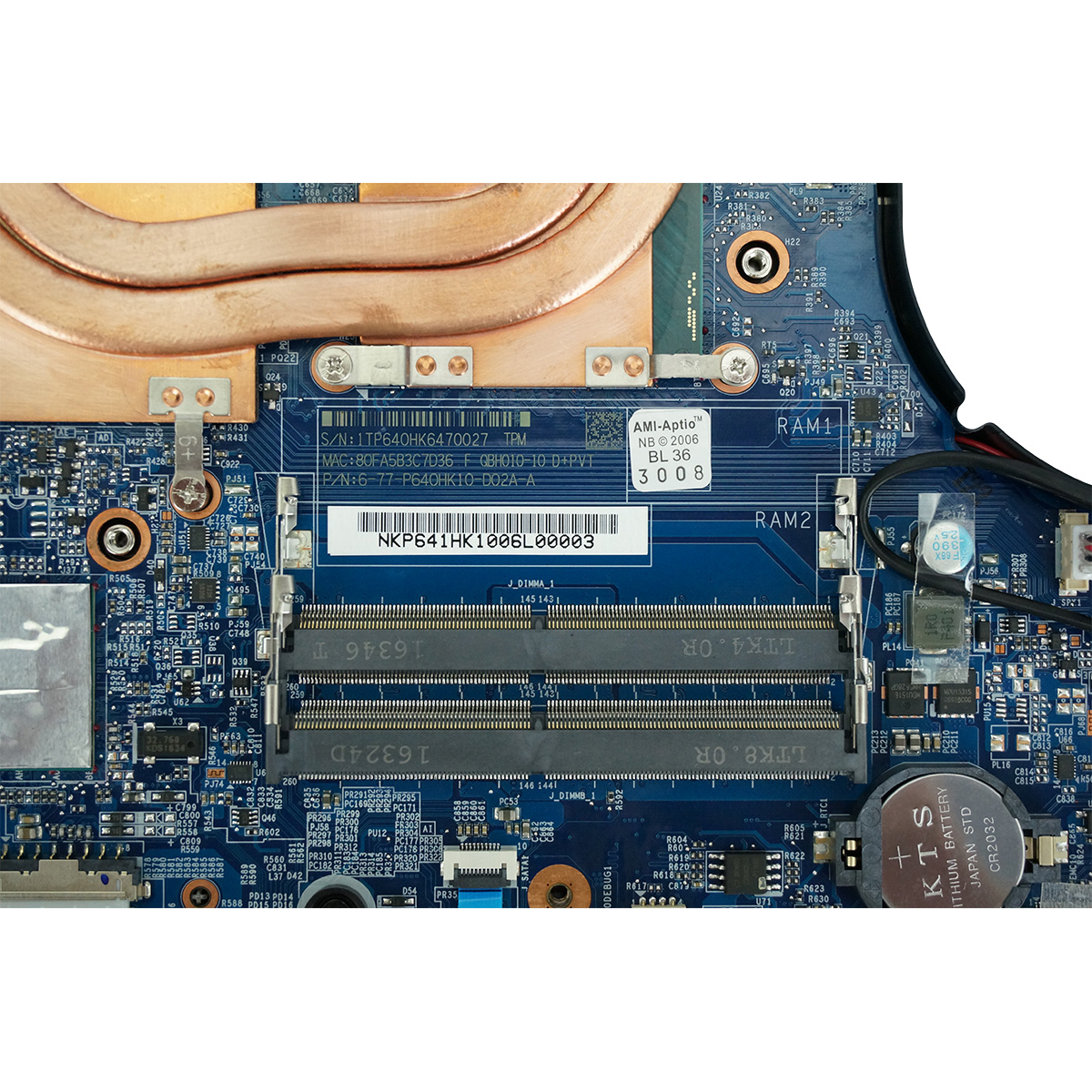

By default, 8 GB DDR4 memory is already built in, but upgrading to up to 64 GB is no problem thanks to the two RAM slots!

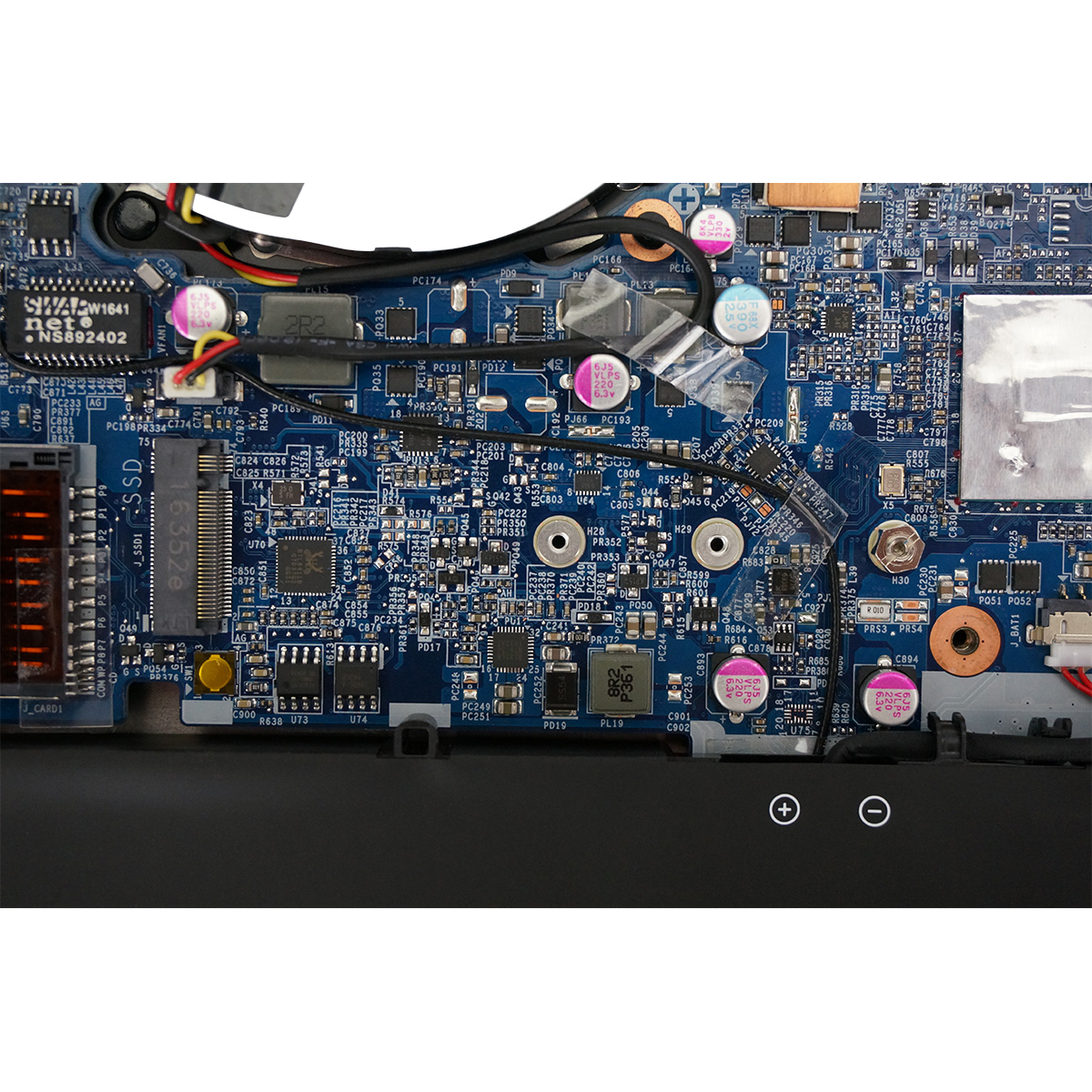

A harddisk with 500 GB comes in the basic configuration and can of course be replaced by disks with more memory or an SSD. If that is still not enough, you can choose an additional M. 2-SSD hard disks with up to PCI-Express x4 connection!

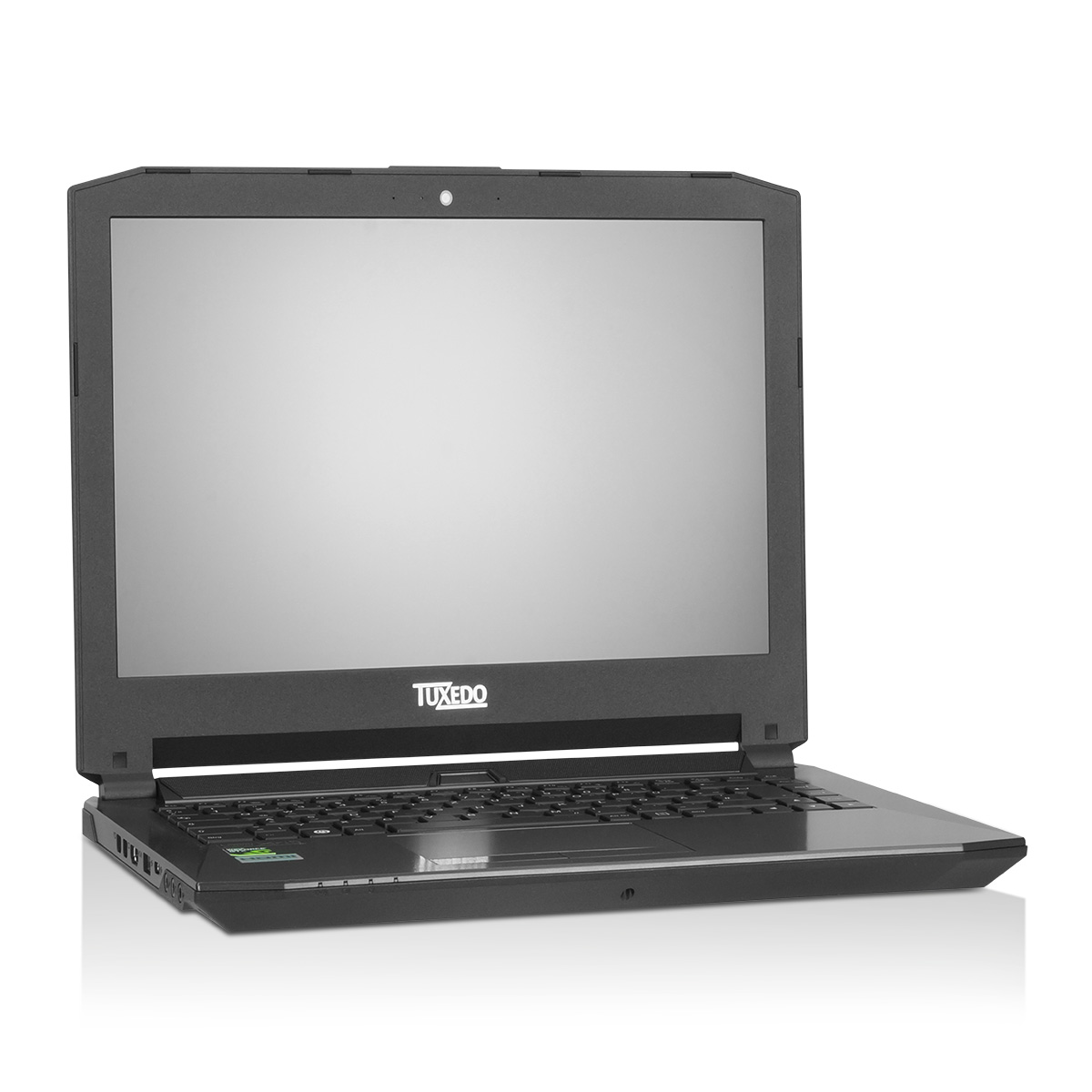

Display / Monitor
Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.
14" (35,6 cm)
Full-HD (1920 × 1080) Non-Glare IPS
Model: LG LP140WF1-SPK1
The display hinge's maximum opening angle is at around 140°.
Test data display brightness:
Maximum: 315 cd/m² Average: 281.6 cd/m² Minimum: 25 cd/m²
Illumination: 80 %
Brightness battery: 298 cd/m²
Contrast: 1104:1 (Black level: 0.27 cd/m²)
ΔE Color 4.42 | - Ø
ΔE Greyscale 4.11 | - Ø
82% sRGB (Argyll) 54% AdobeRGB 1998 (Argyll)
Gamma: 2.5
Chassis
Dimensions: 349 x 247 x 25.4 mm (W x D x H)
Weight: approx. 1.9 kg incl. battery

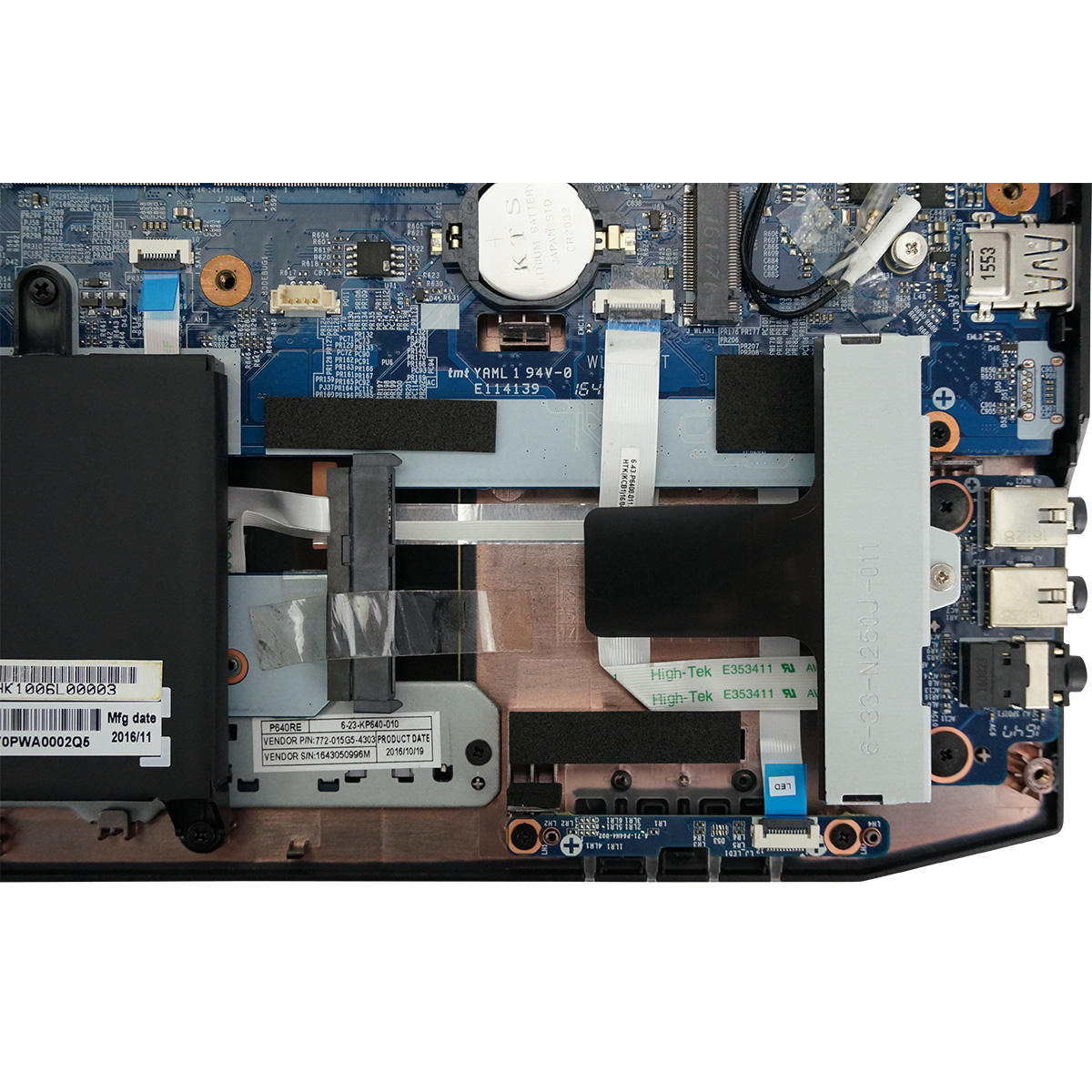

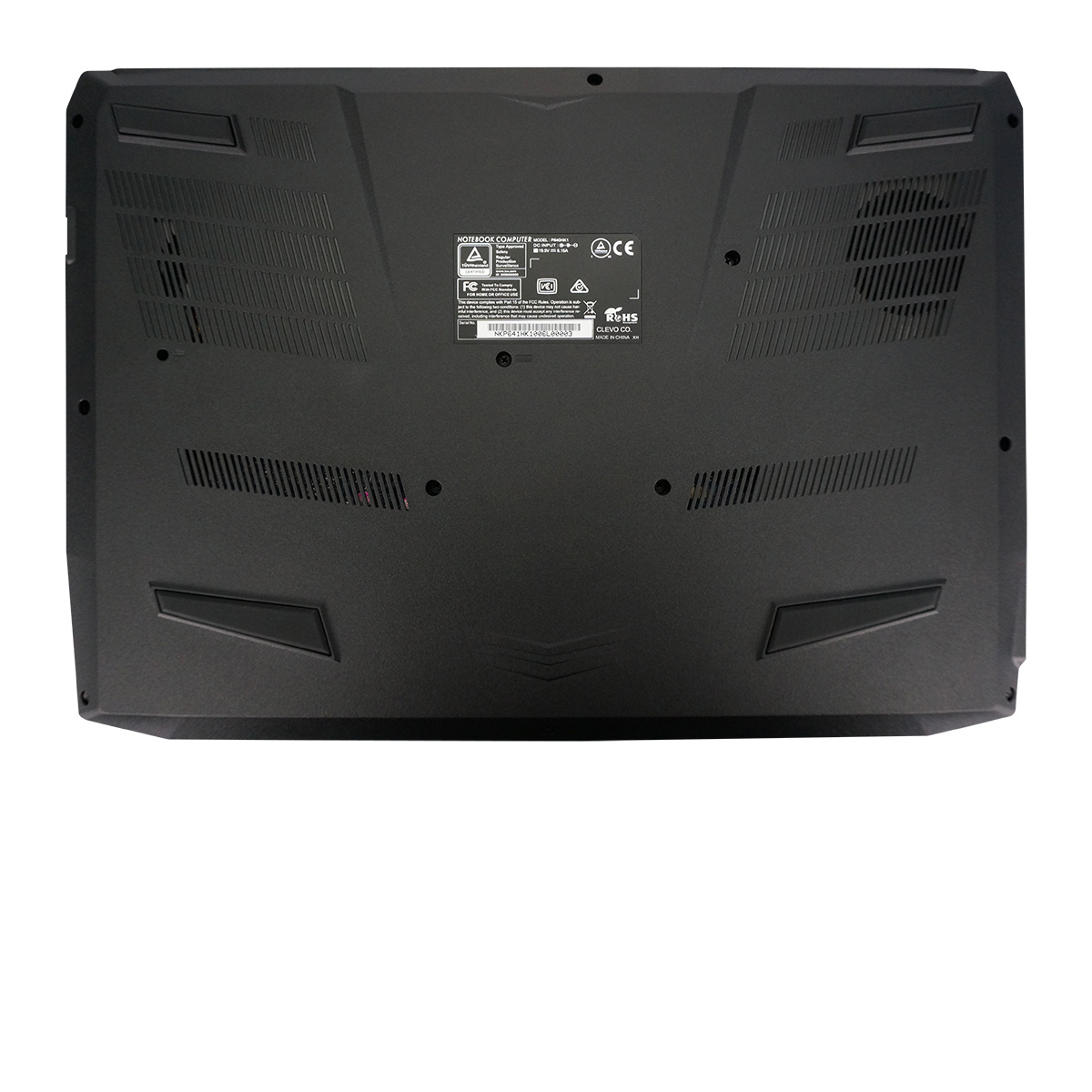

After opening the base plate, the components & heatsink can be cleaned without loss of warranty.
Battery & power supply
Lithium-ion battery, 45 Wh
To change the battery, the base plate must be removed. It can then be easily removed and replaced with just two screws. It's not glued in.
120W power supply
Dimensions: 167.5 x 82.0 x 25.4 mm (L x W x H)
Weight: 0,56 kg
Total cable length (from socket to notebook): approx. 2,6m
Lifetime of batteries
The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information
Battery runtime
Up to 6 hours of battery life
Approx. 4 hours battery life at low load.
Main processor
Processor:
Intel Core seventh (7.) Generation "Kaby Lake" prozessors / CPUs.
Chipset: Mobile Intel HM175 Chipset
Intel Core i7-7700HQ (4x 2.80-3.80 GHz Quad-Core, 8 Threads, 6 MB Cache, 35-45 W TDP)
Graphics card
Energy-saving graphic chip integrated in the CPU: Intel HD Graphics 630 and additional:
NVIDIA® GeForce® GTX 1050 Ti 4GB GDDR5 VRAM (Pascal graphics chip)
Features: DirectX® 12, OpenGL 4.4, NVIDIA® Optimus, NVIDIA® CUDA, NVIDIA PhysX™, OpenCL
The following resolutions are possible via all connections individually or in parallel:
1x Notebook-Display: Full-HD 1920*1080@60Hz
2x Mini-DisplayPort 1.3: 2x 3840*2160@60Hz oder 2560*1600@120Hz
1x HDMI 2.0: 3840*2160@60Hz or 2560*1600@120Hz
With these maximum resolutions 4 displays can be controlled simultaneously, e. g. 1x notebook display and 3x external monitors.
Memory
Type: DDR4 SO-DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with at least 2 modules)
Hard drive
Standard 2,5" HDD or SSD, max. 7mm height
Manufacturer and speed see configurator
Standard and maximum see configurator
Mass storage (SSD / HDD)
Fast M.2 SSDs
Manufacturer and speed see configurator
Standard and maximum see configurator
Communication / Network
Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)
Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1
LTE module
LTE/HSDPA+ 4G Huawei ME936
Form factor: M.2 Interface
Supported frequency bands
LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Transfer rates
LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
HSPA+: ↑ 11 Mbps ↓ 42 Mbps
WCDMA: ↑ 384 kbps ↓ 384 kbps
GPS
GPS Standalone, A-GPS, GPS XTRA, Glonass
LTE/HSDPA+ 4G Huawei ME906s
Form factor: M.2 Interface
Supported frequency bands
LTE (FDD): B1/B2/B3/B5/B7/B8/B20/B28
HSPA+/HSPA/UMTS: B1/B2/B5/B8
EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Transfer rates
LTE FDD: ↑ 50 Mbps ↓ 150 Mbps
HSPA+: ↑ 5.76 Mbps ↓ 42 Mbps
WCDMA: ↑ 384 kbps ↓ 384 kbps
GPS
GPS Standalone, A-GPS, GPS XTRA, Glonass
Security
- Kensington Lock
- TPM 2.0 (completely de-/activatable in BIOS)
Webcam / Laptop camera
2 Megapixel (2 MP) camera including microphone
Sound / Audio
High Definition Audio
2.0 System Speaker-System
integrated microphone
S/PDIF digital output (optical)

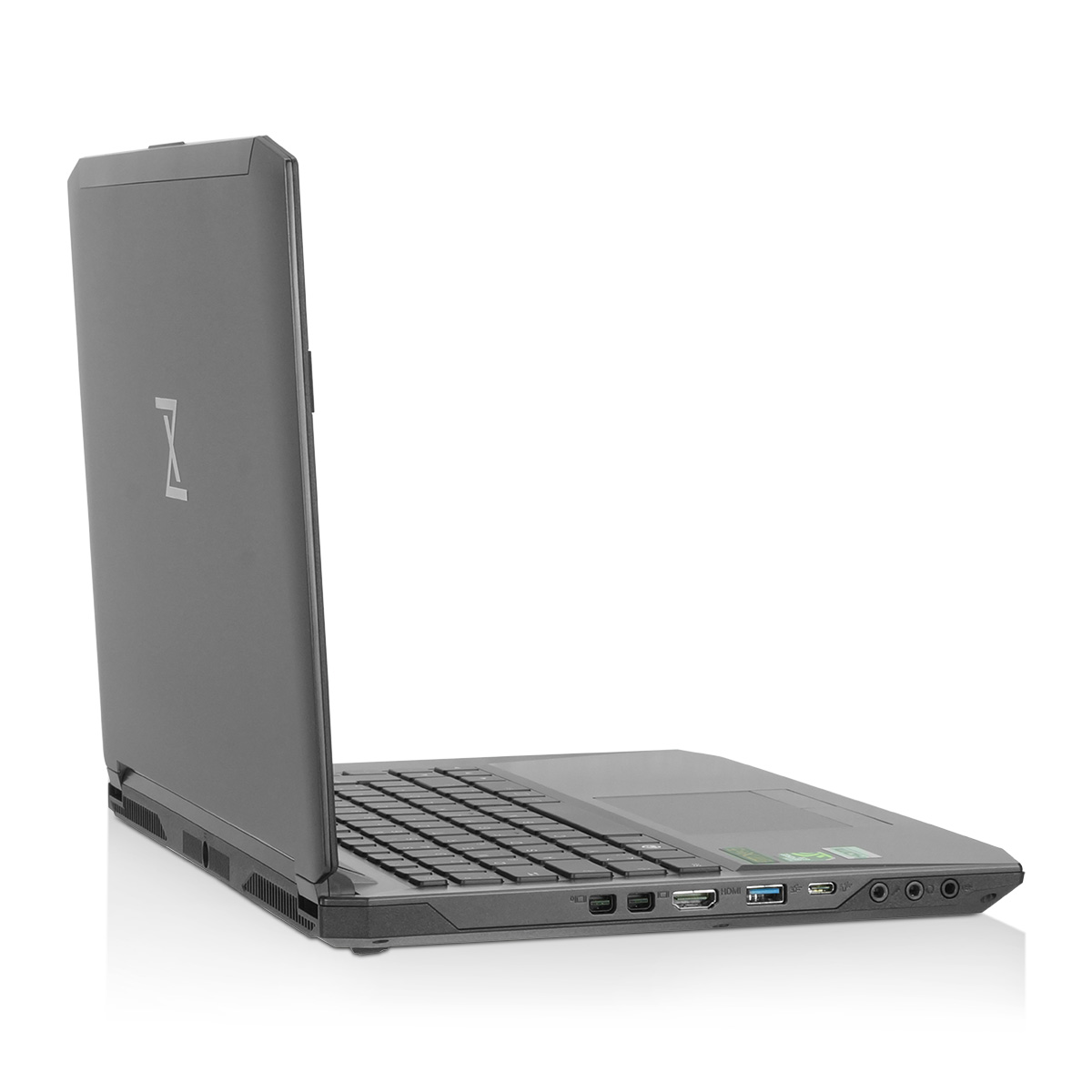

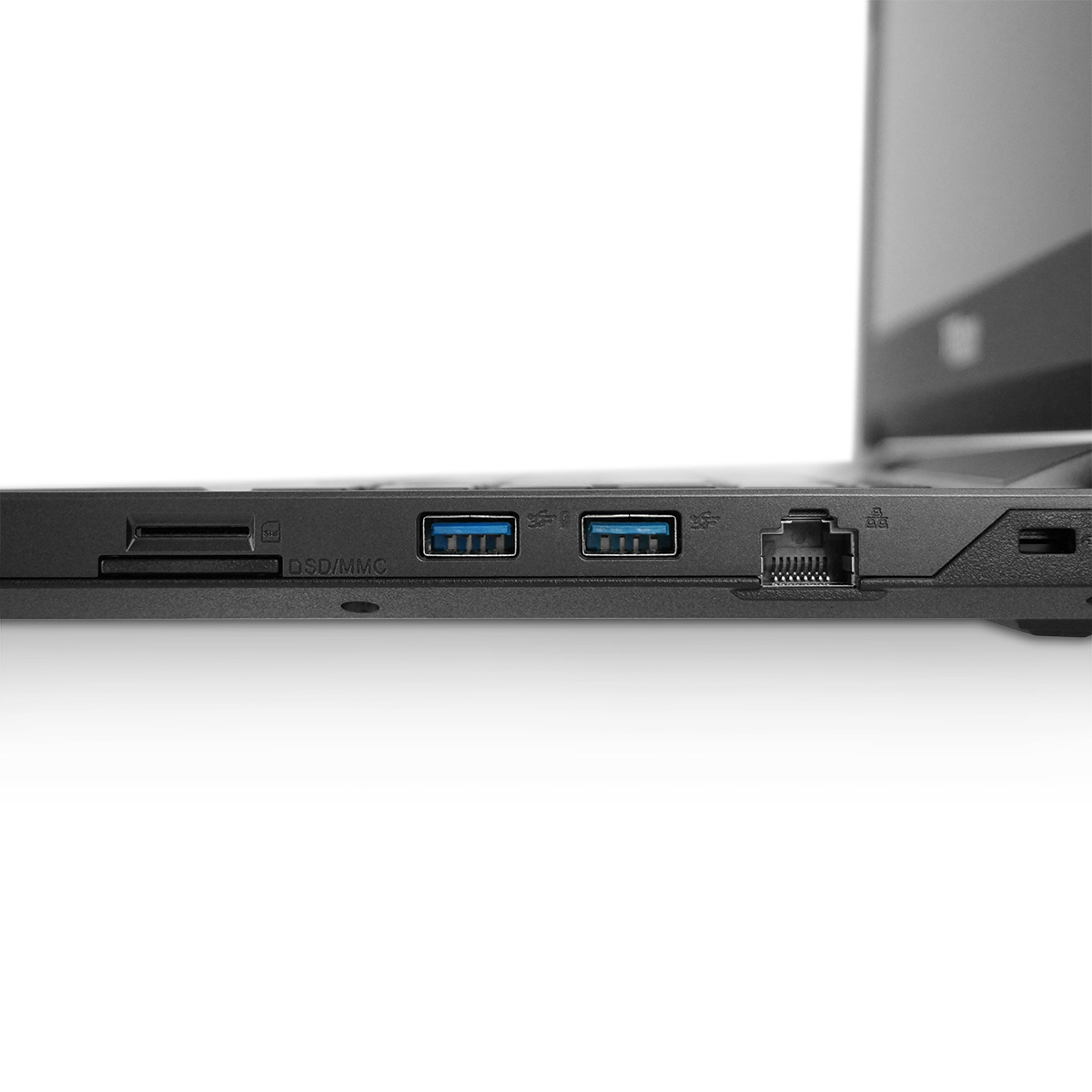

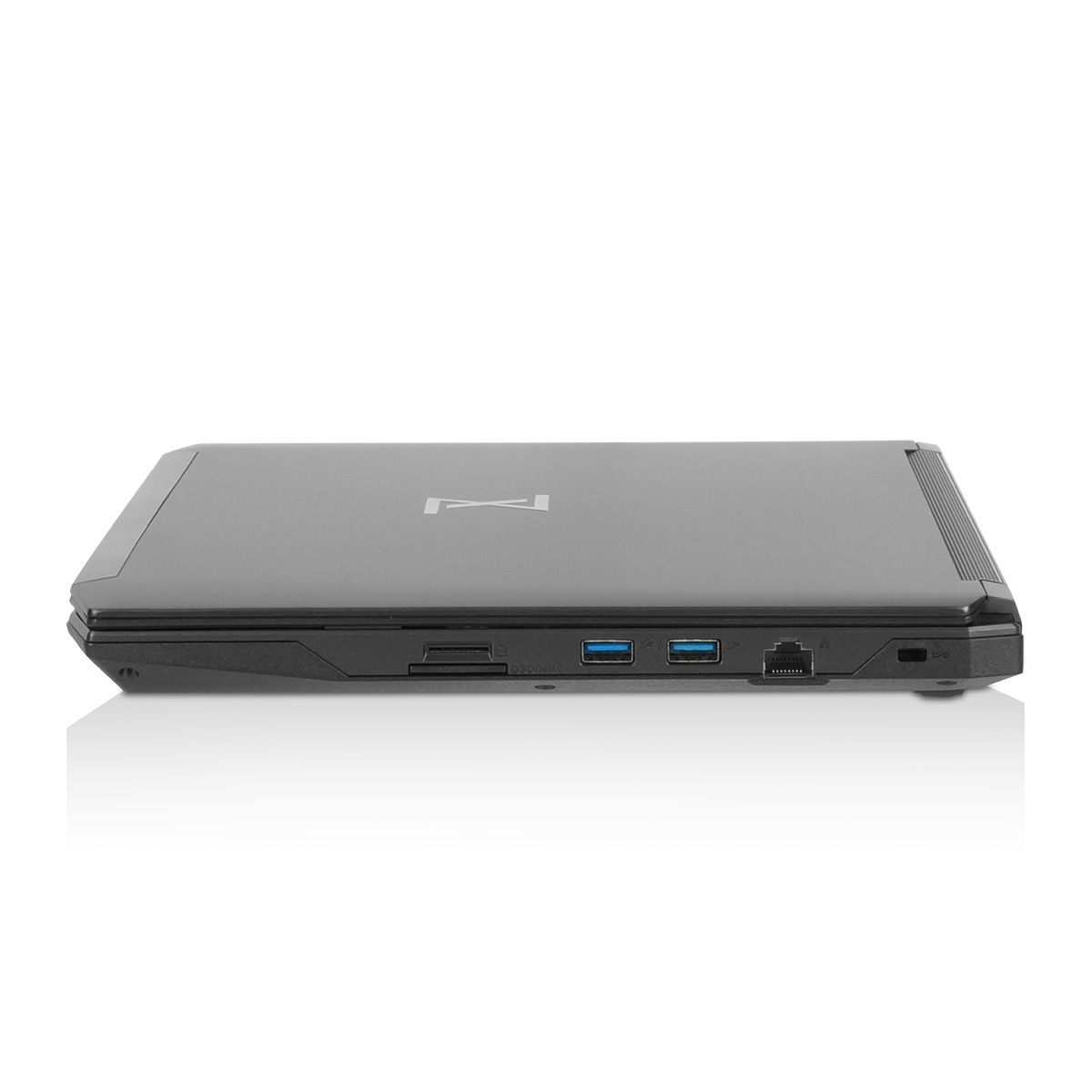

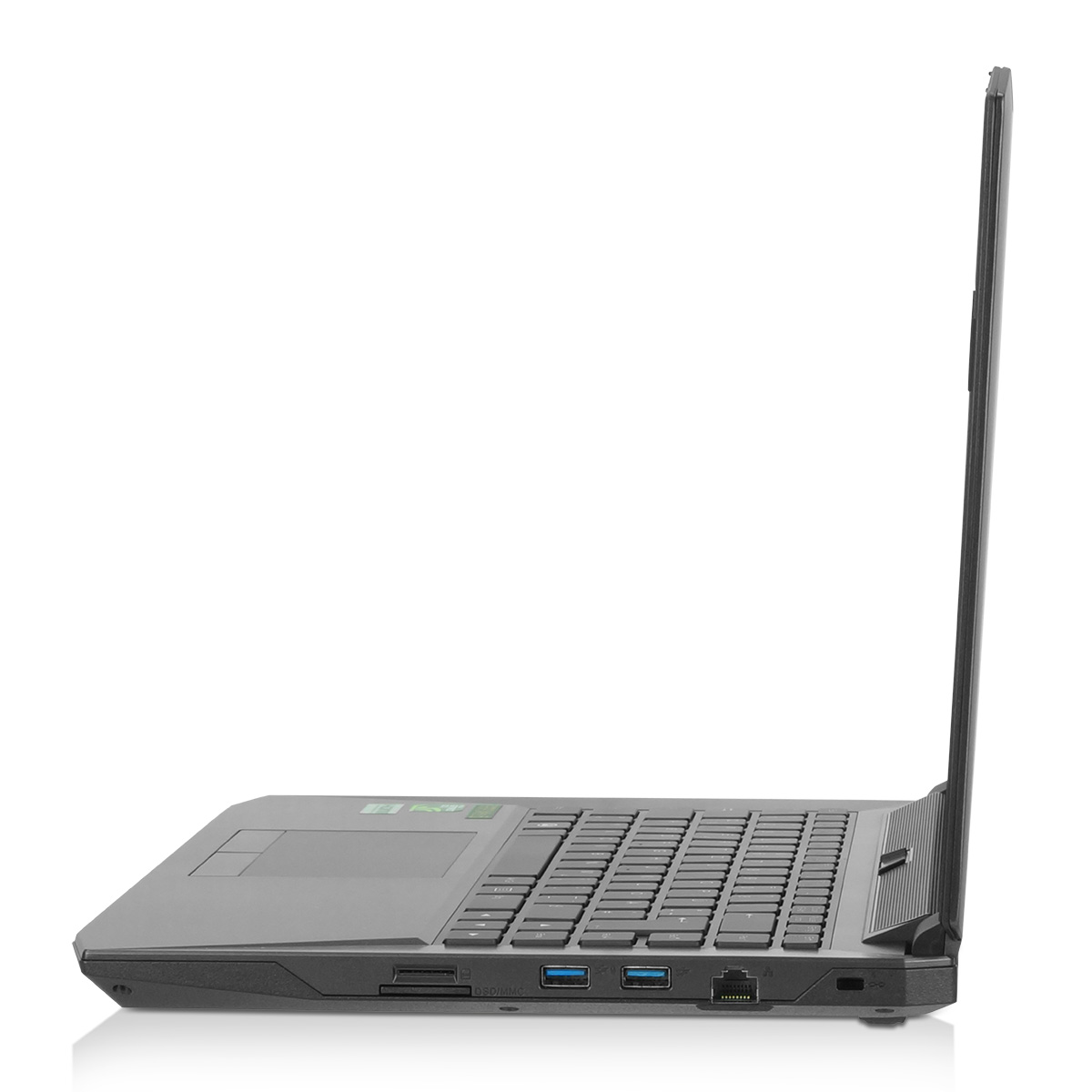

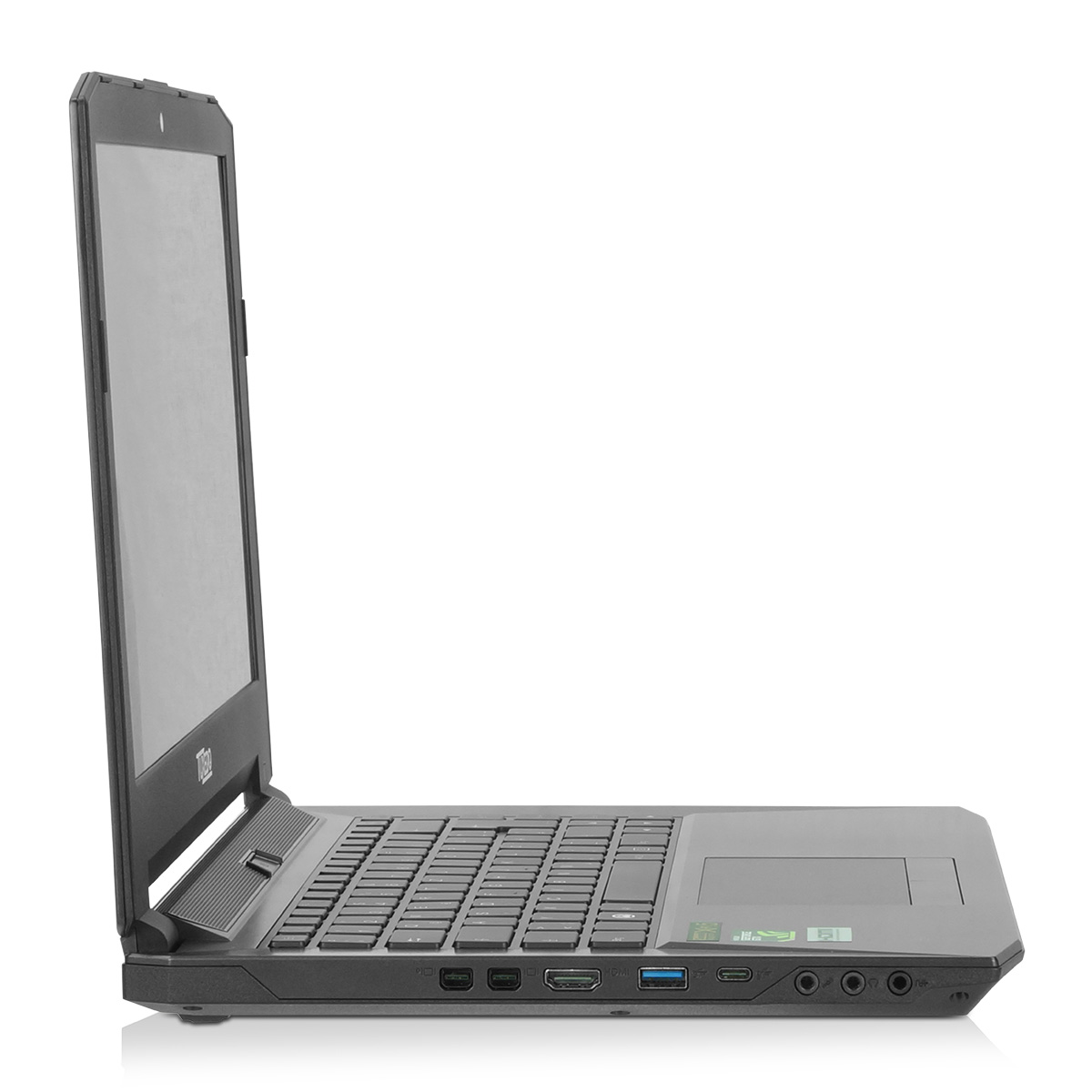

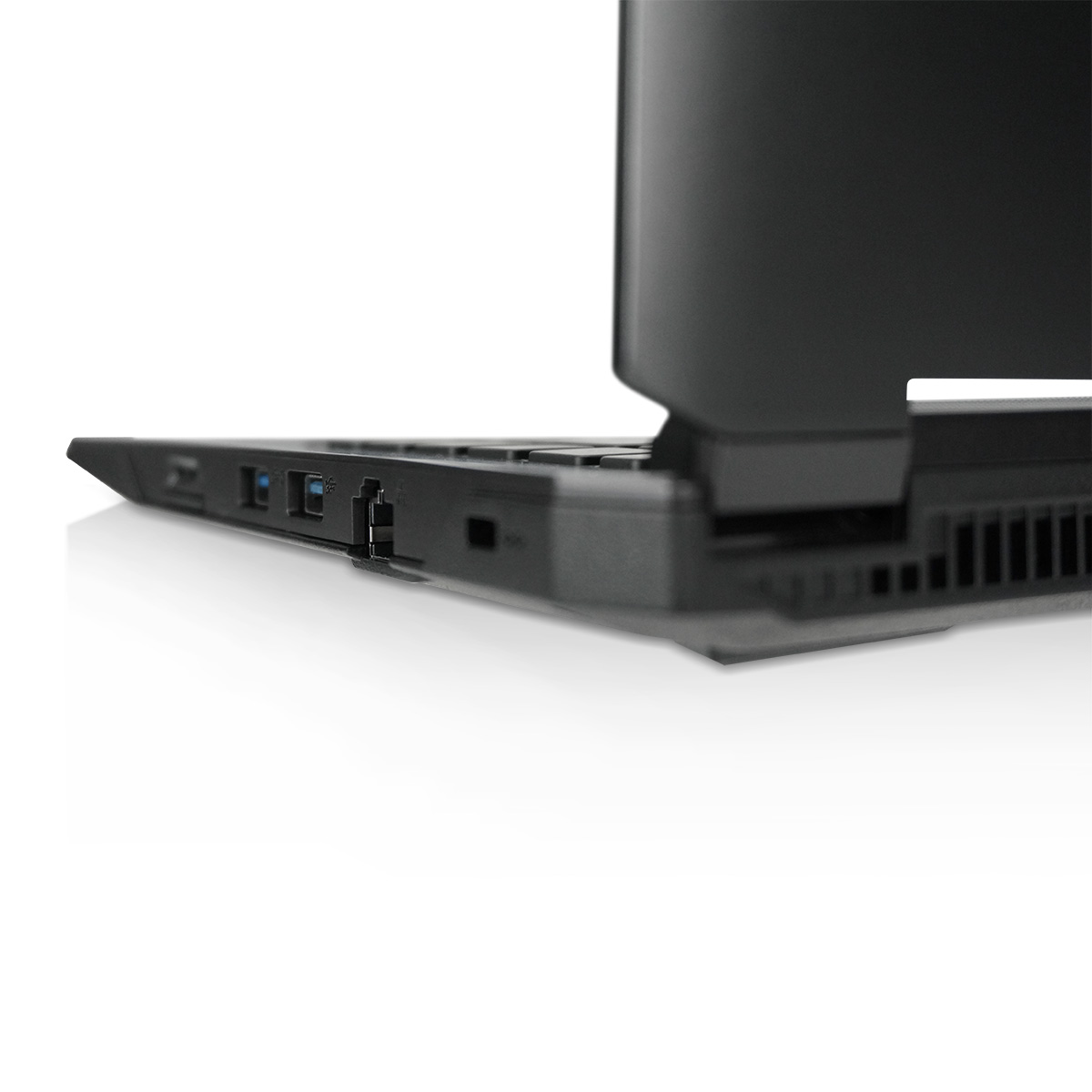

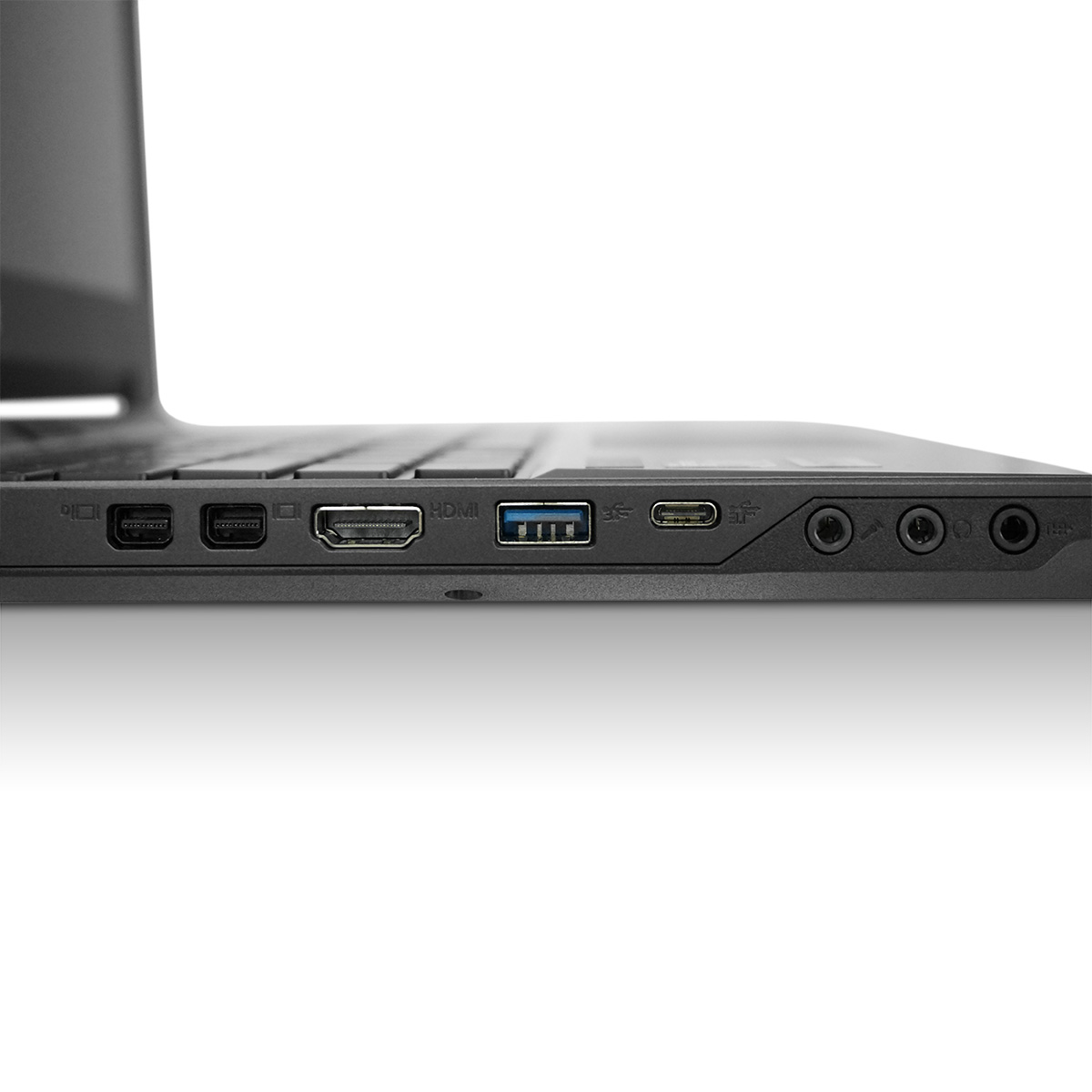

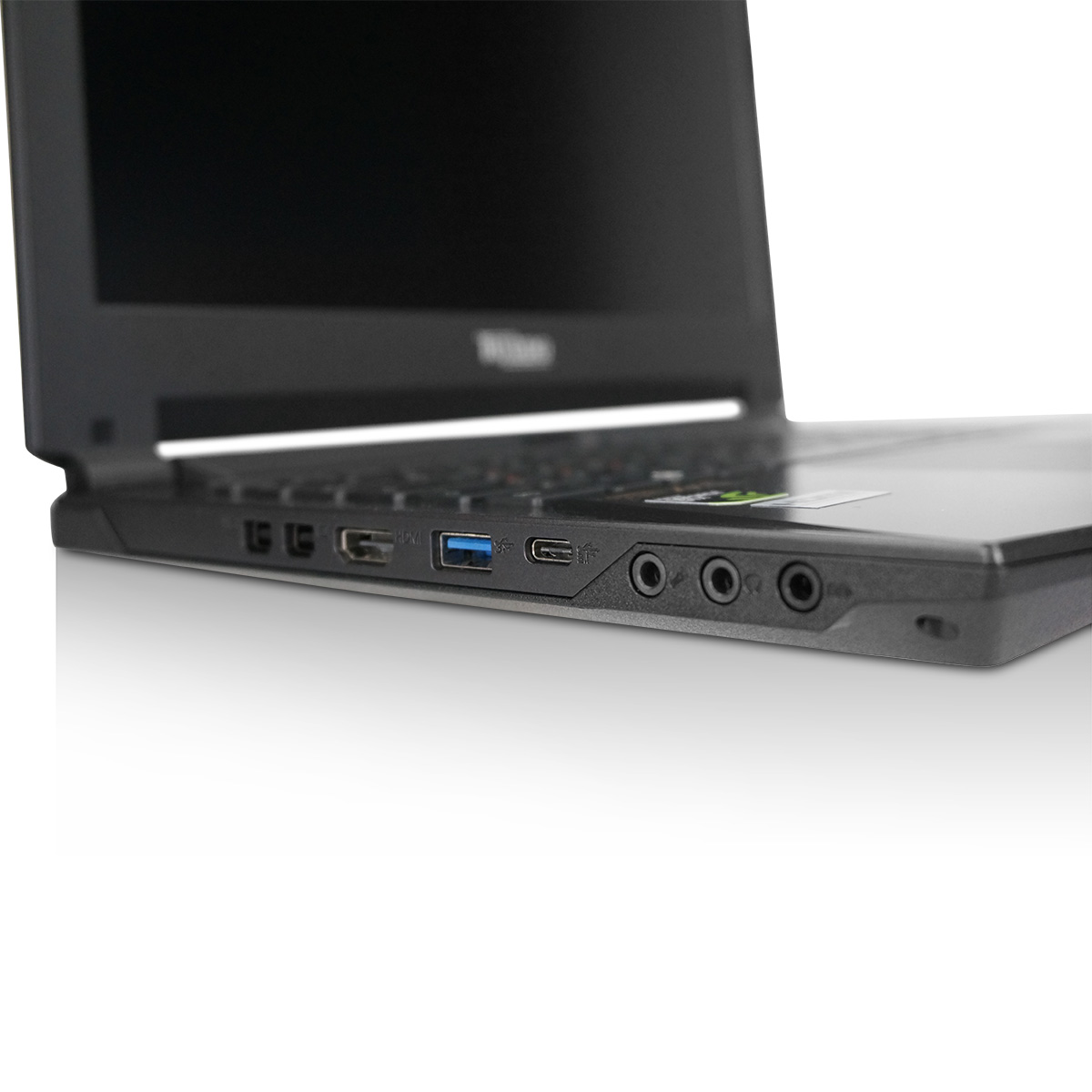

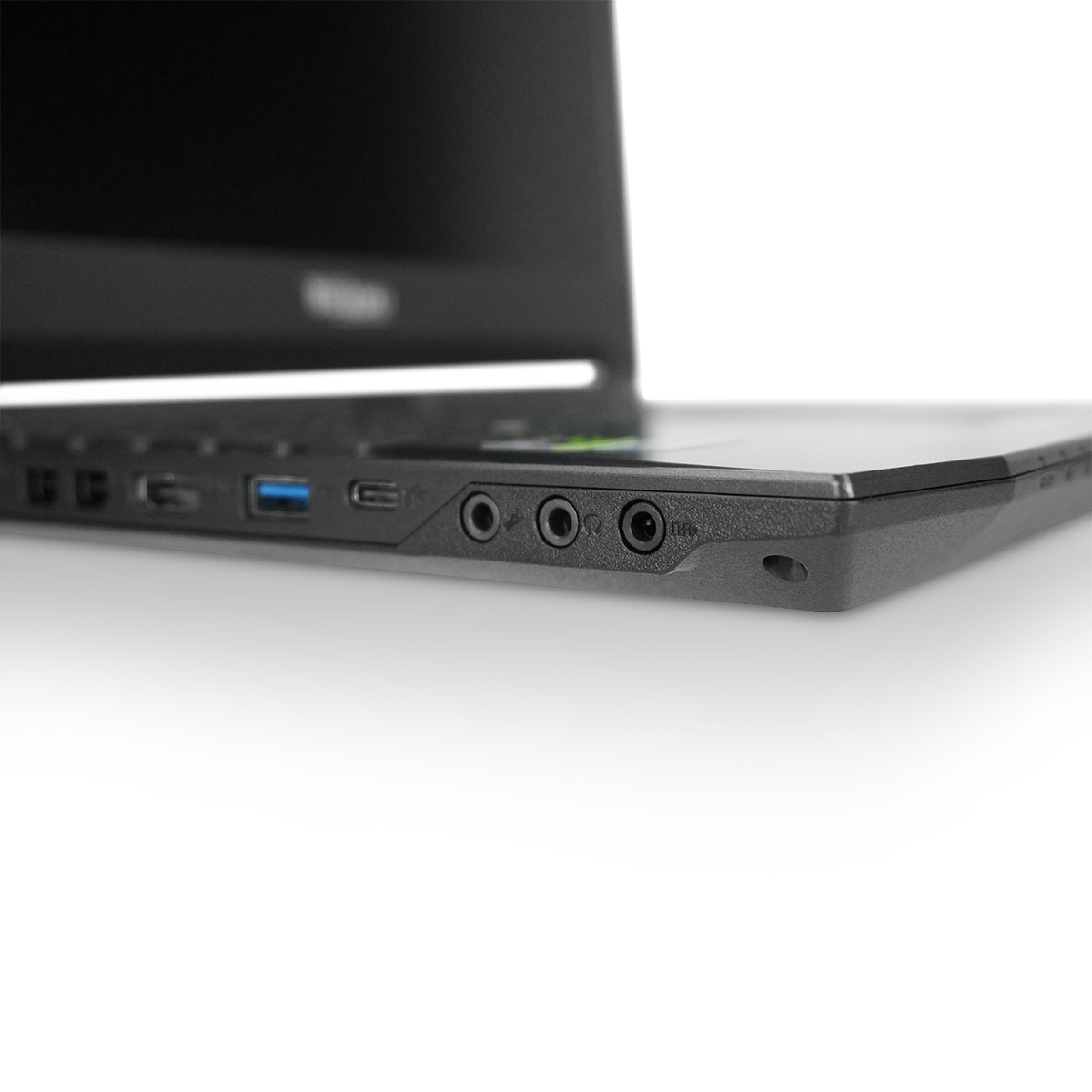

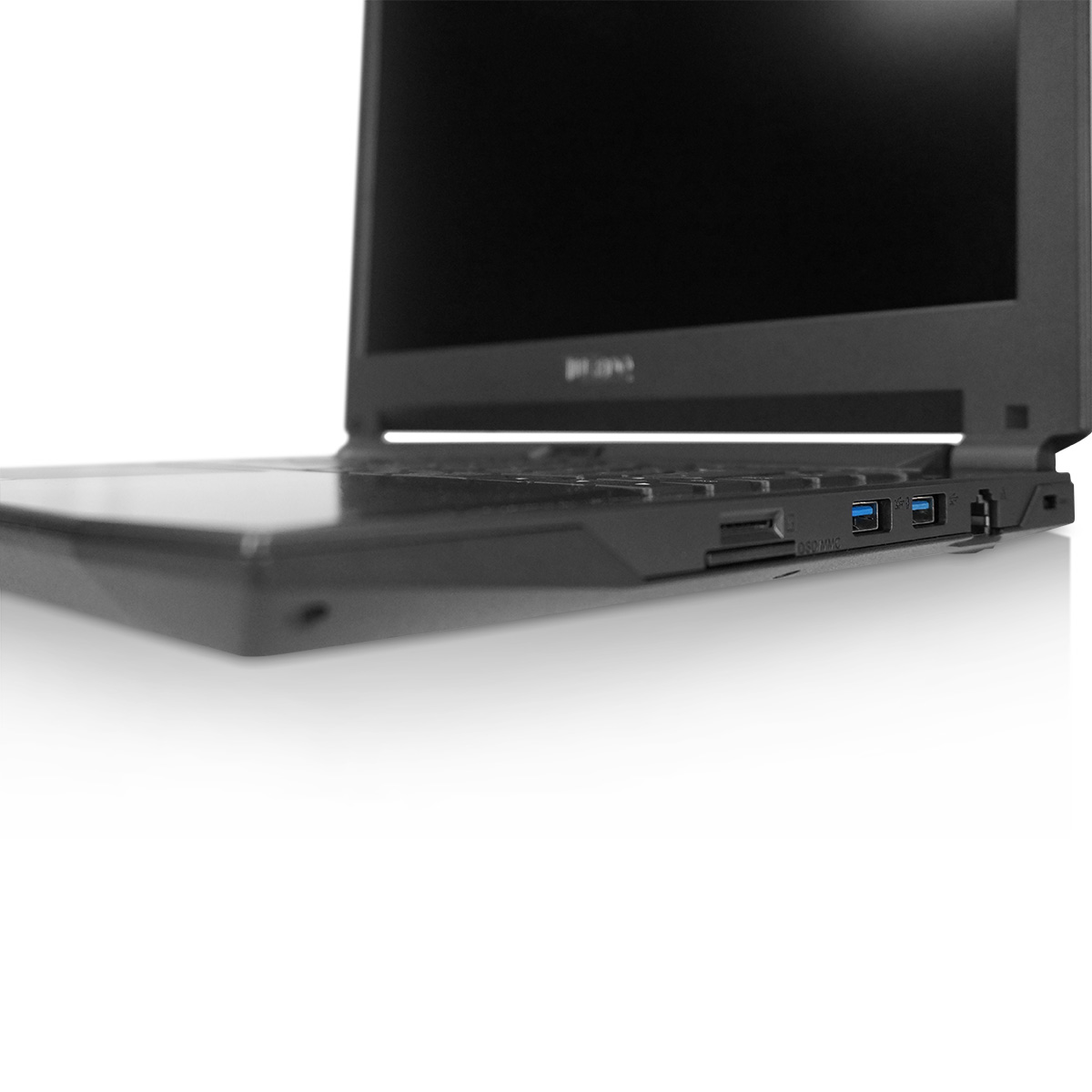

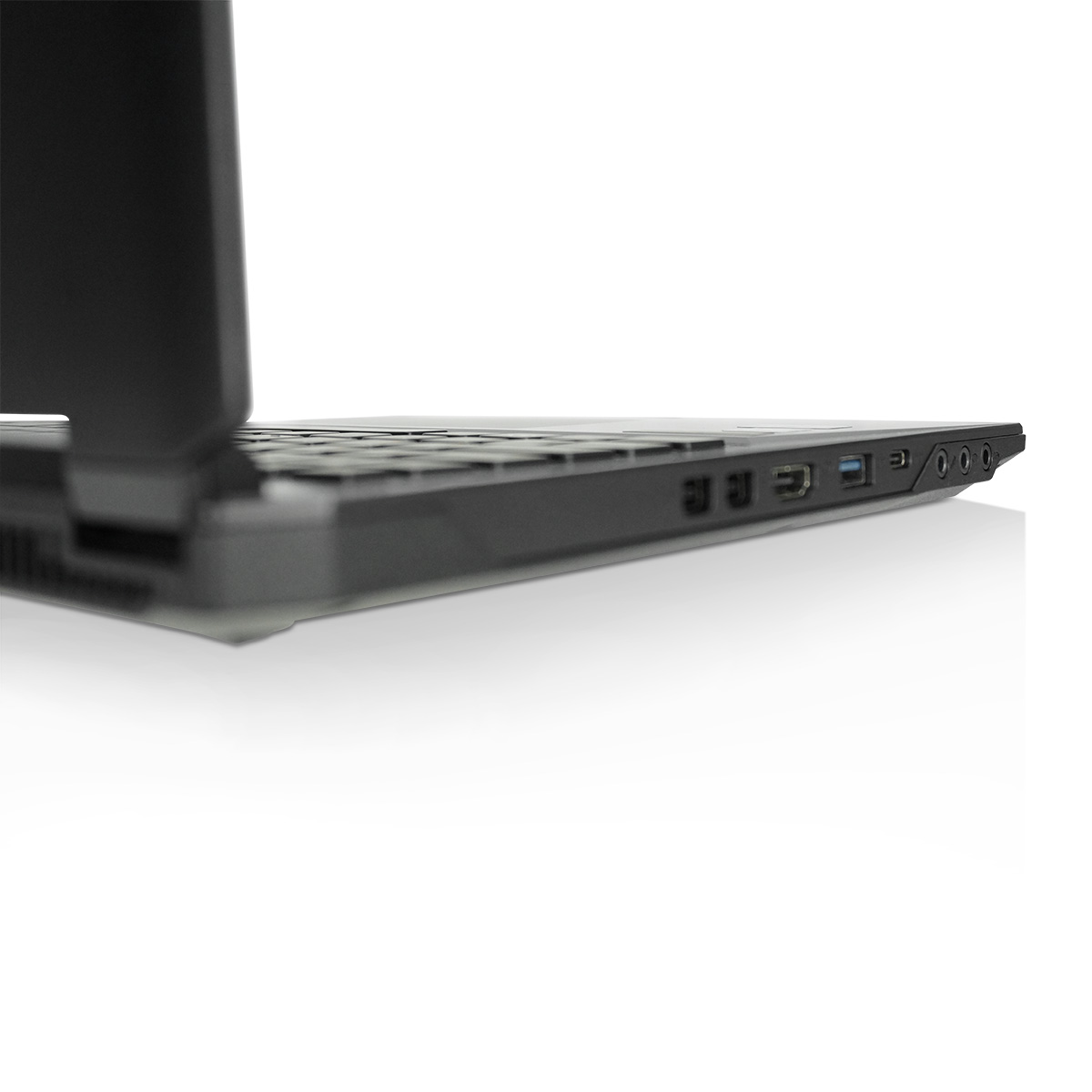

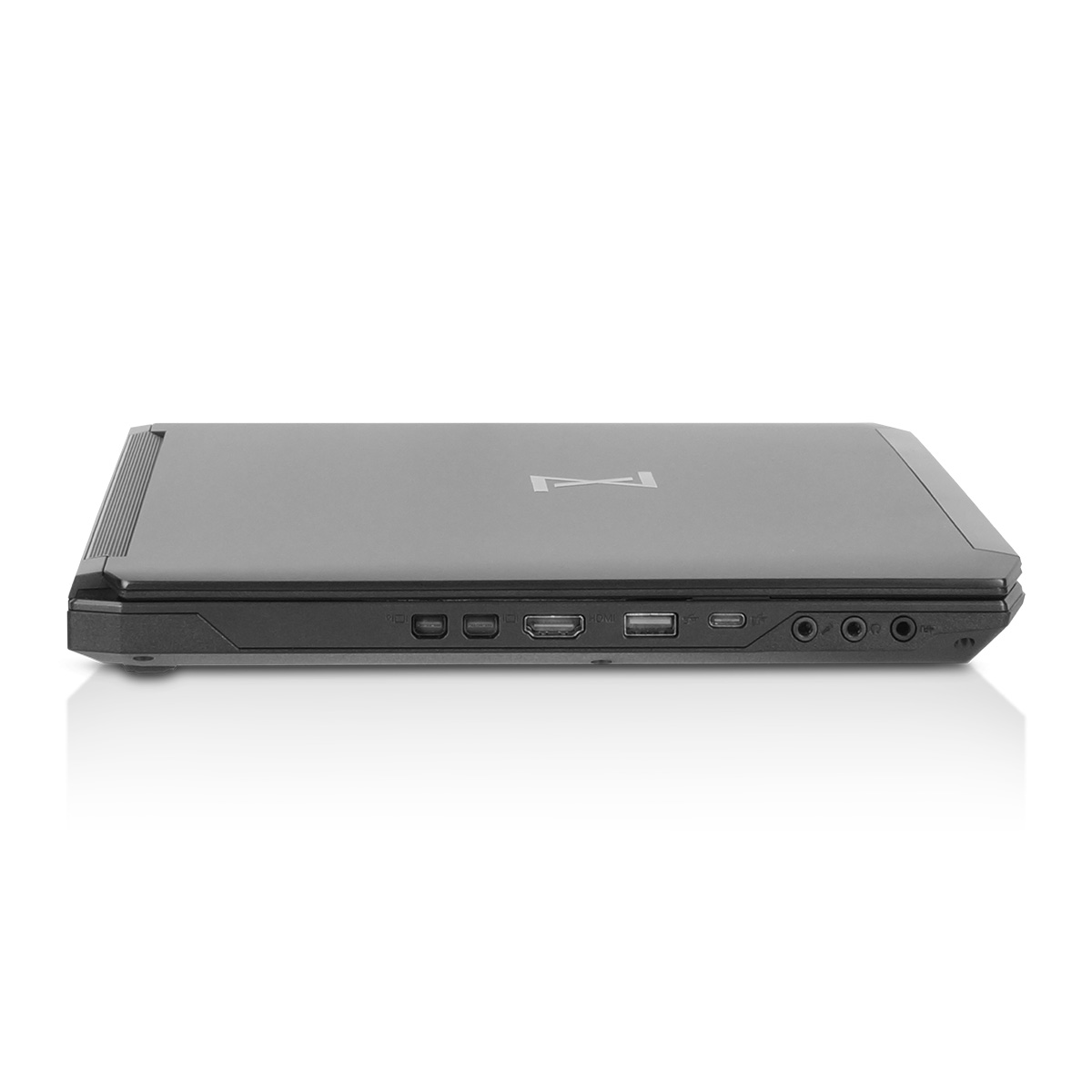

Ports
1x HDMI 2.0 (with HDCP) (3840*2160@60Hz or 2560*1600@120Hz)
2x Mini-DisplayPort 1.3 (2x 3840*2160@60Hz or 2560*1600@120Hz)
1x USB 3.1 Typ-C Gen2 (10 GBit/s)
3x USB 3.0 (1x with Power-Off charging feature)
1x RJ45; Gigabit-LAN (10/100/1000 MB)
1x 9-in-1 Card-Reader
1x Microphone
1x Headphones
1x S/PDIF (optical)
1x SIM card slot

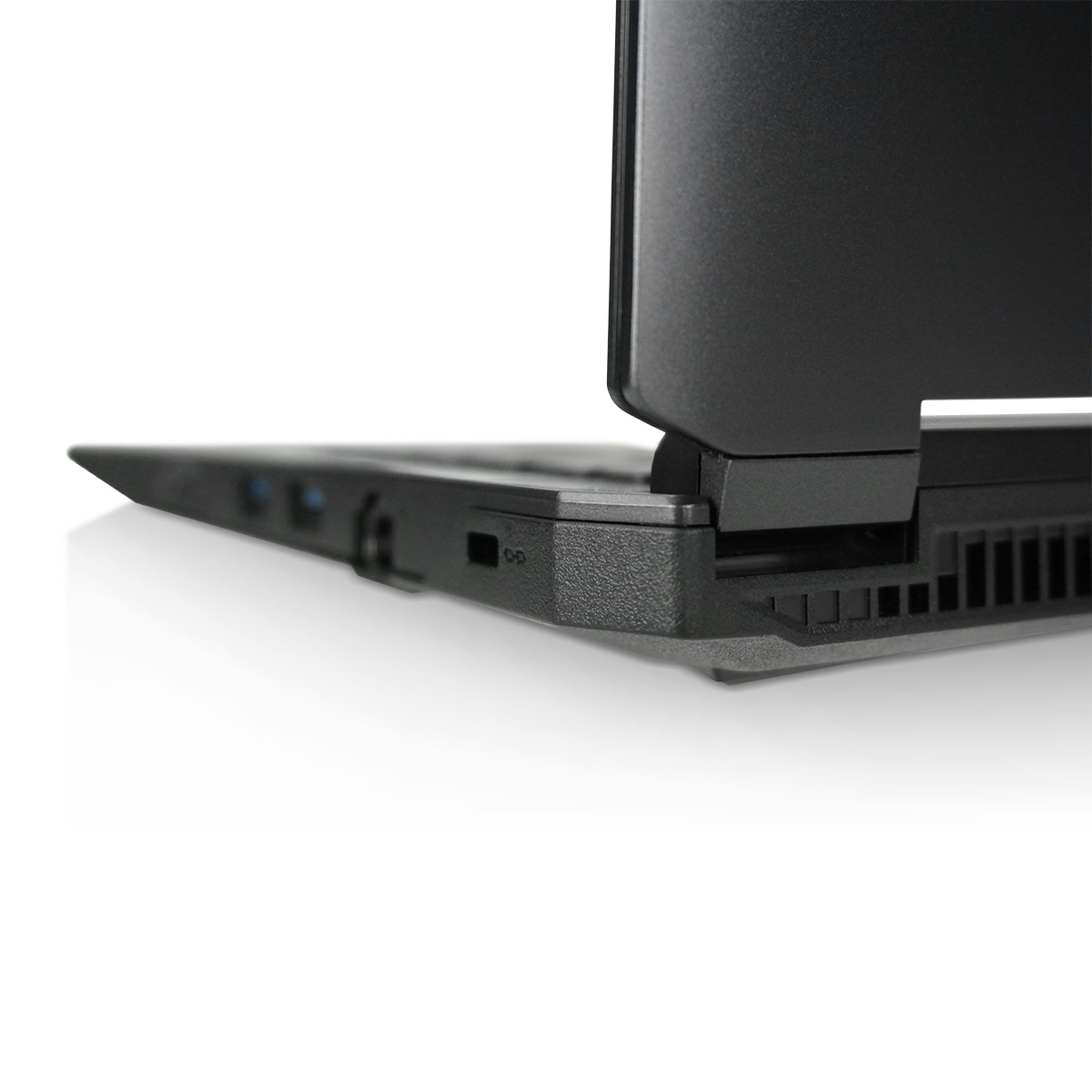

1x Kensington Lock

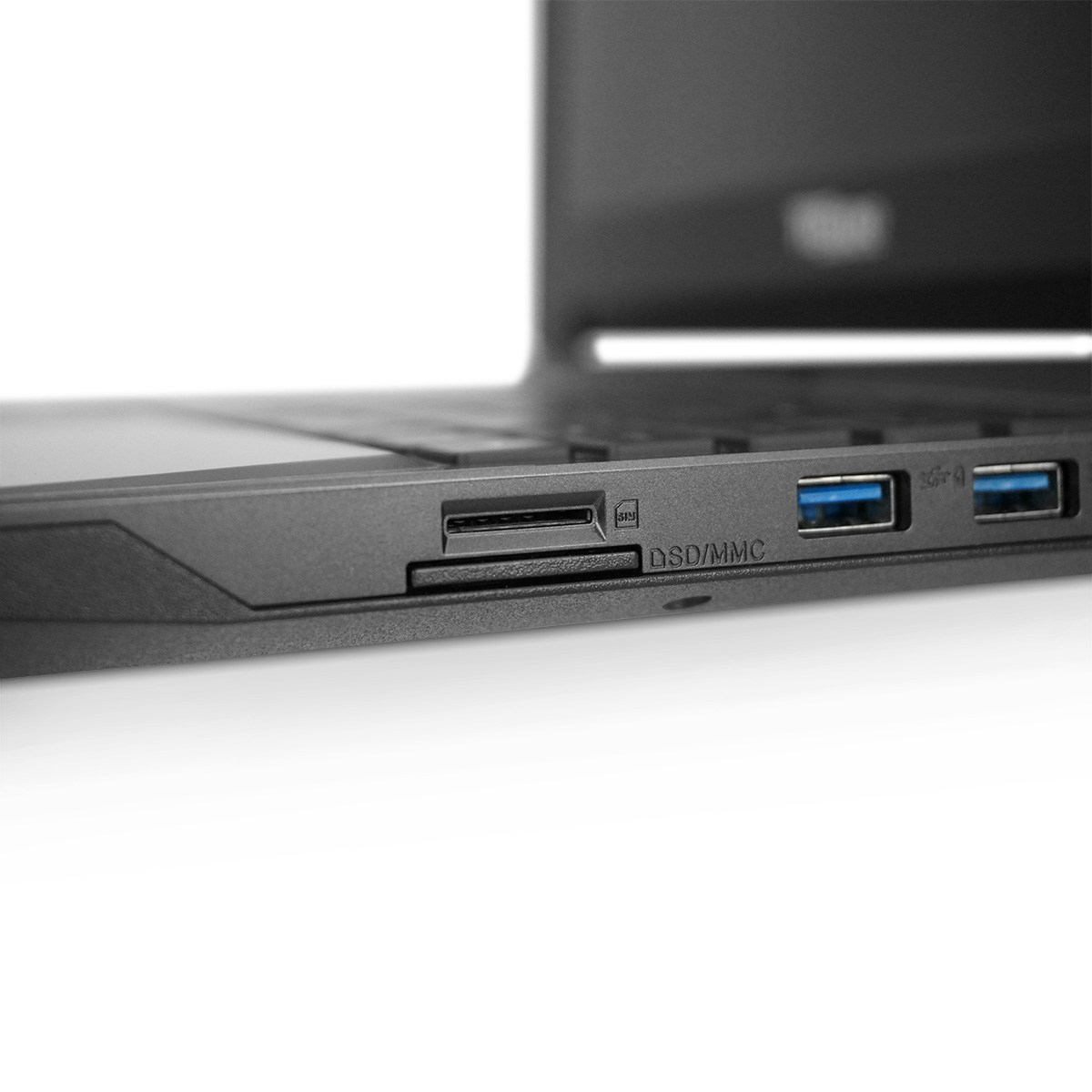

Card reader
9-in-1 Card Reader
- MMC / RSMMC
- SD / SDHC / SDXC / Micro SD (Adapter necesssary)
- MS / MS Pro / MS Duo
Cooling System & Fan
Temperature controlled fan
At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.
Custom performance and fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!
Operating systems
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!
For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
1x TUXEDO fan stuff package
