strong>TUXEDO InfinityBook because it is a TUXEDO notebook with almost infinite possibilities. Mobility, running time, performance, quality and flexibility in a single device with unibody completely made of aluminium! Combined with the TUXEDO_OS or Ubuntu Linux specially adapted for this notebook, it is a unique device with a unique user experience.

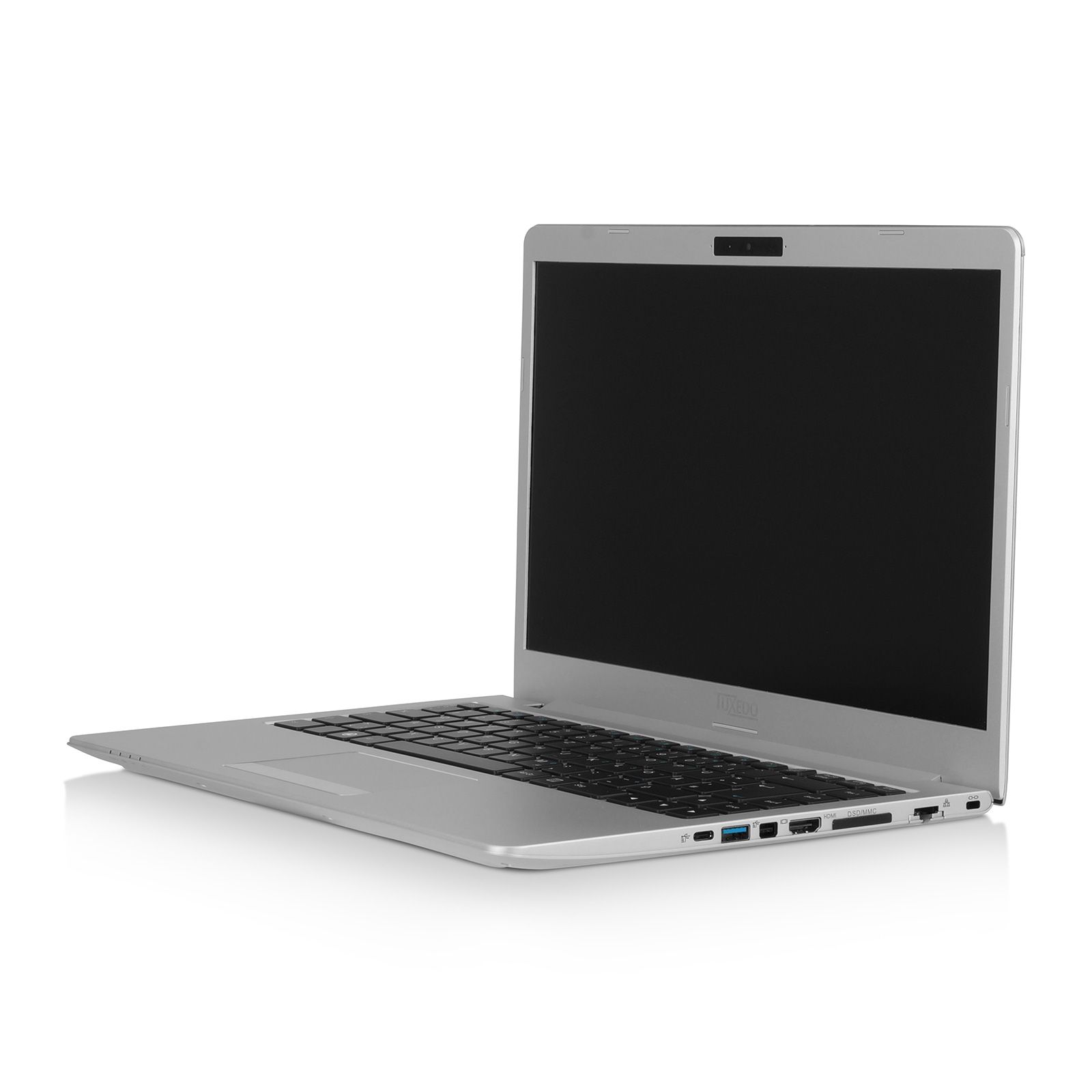

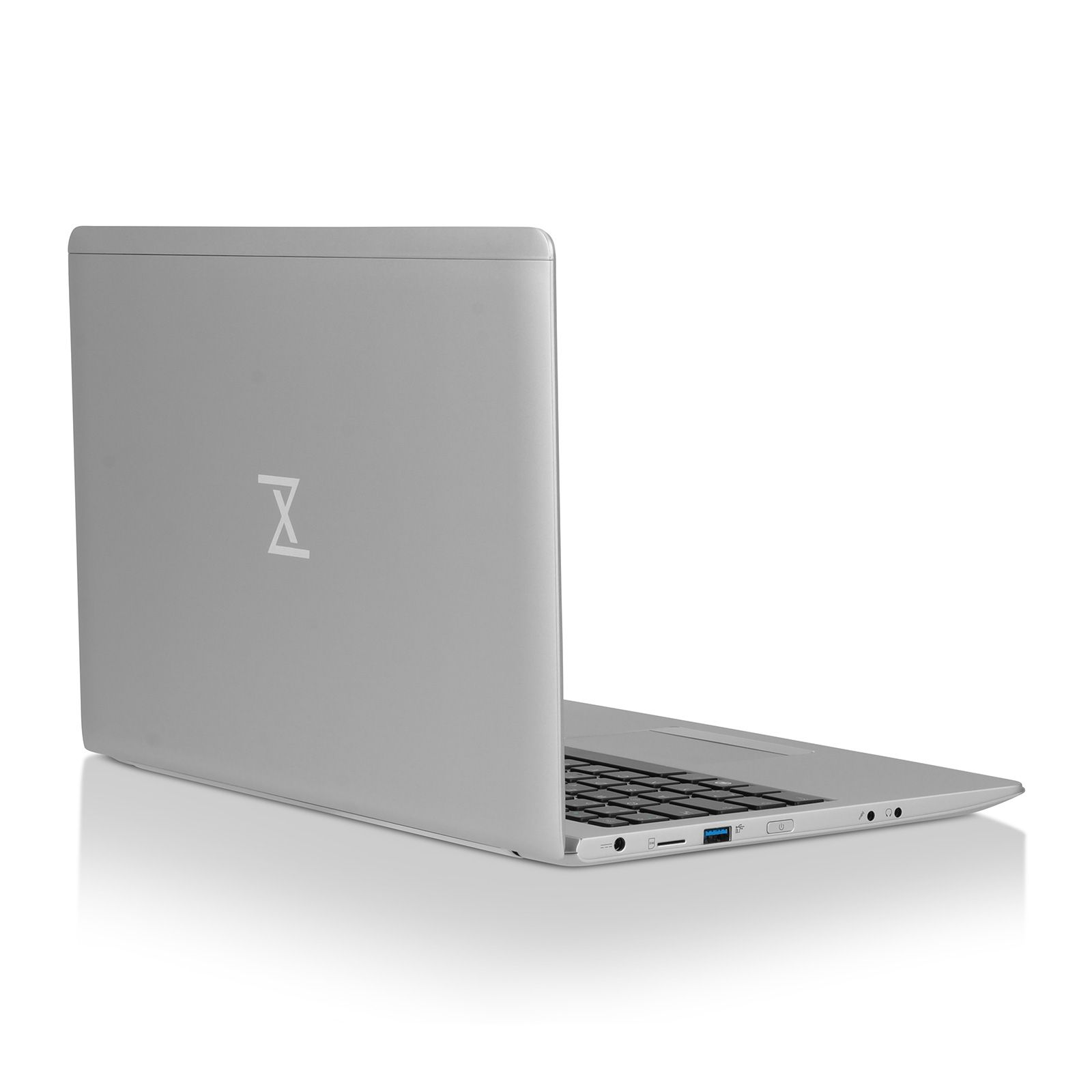

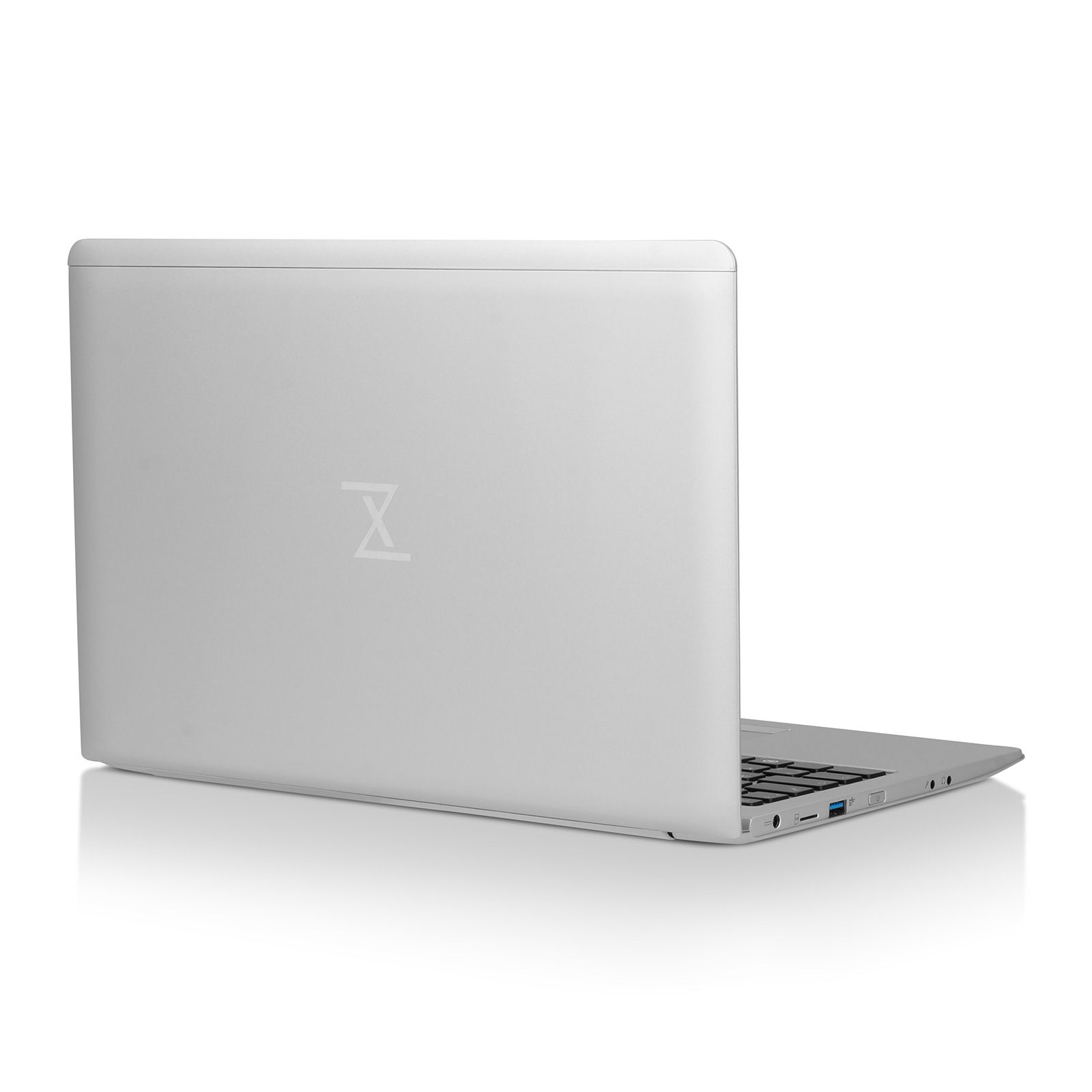

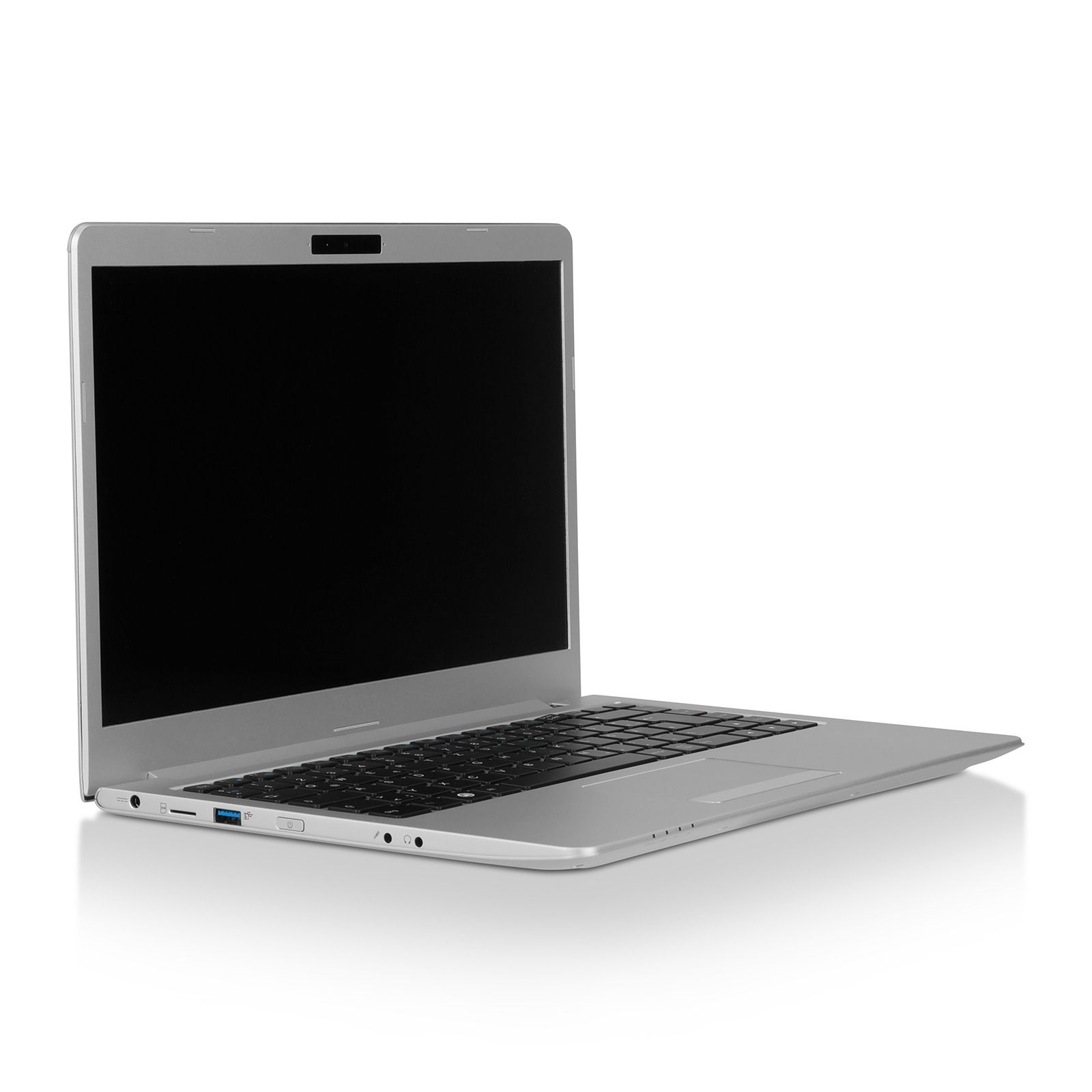

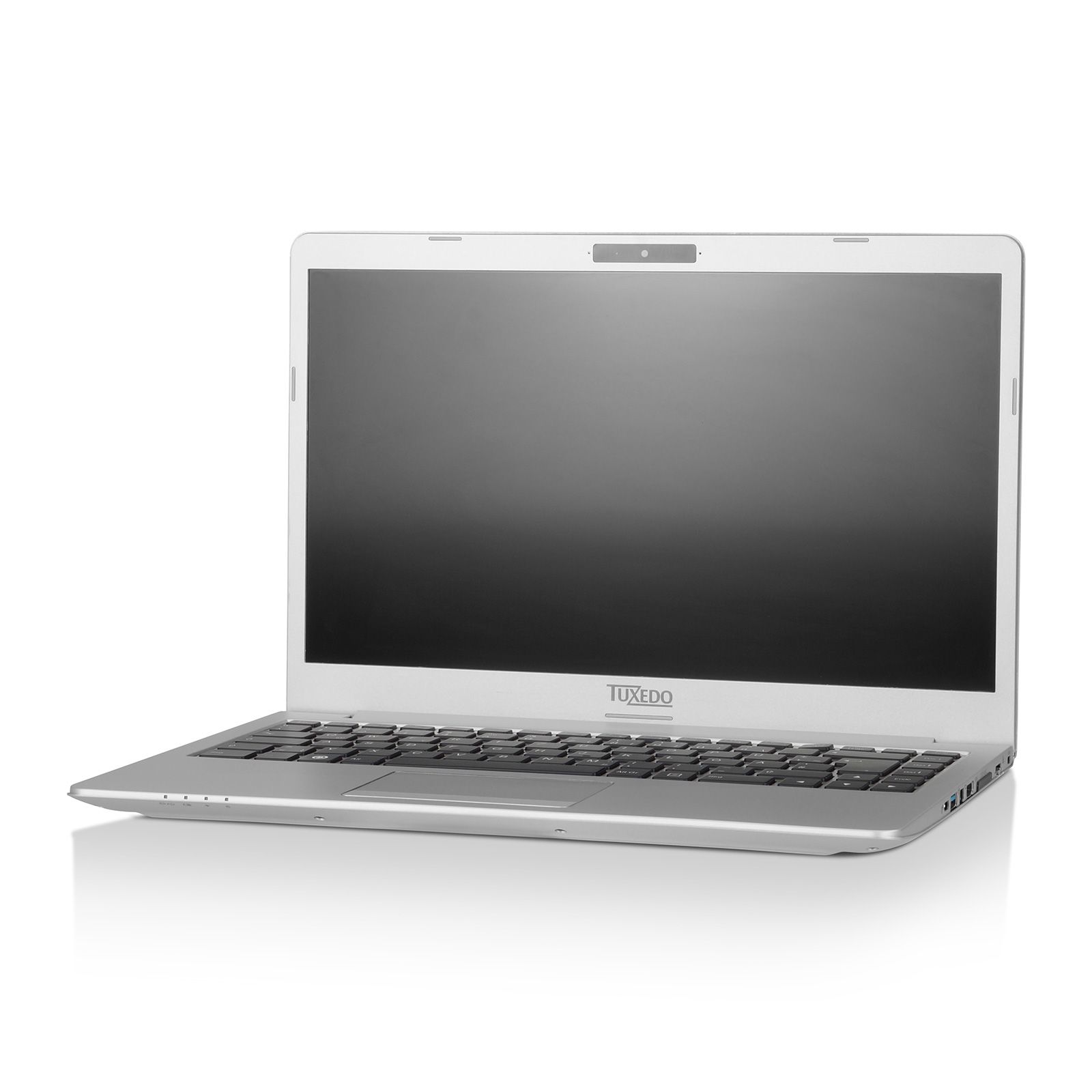

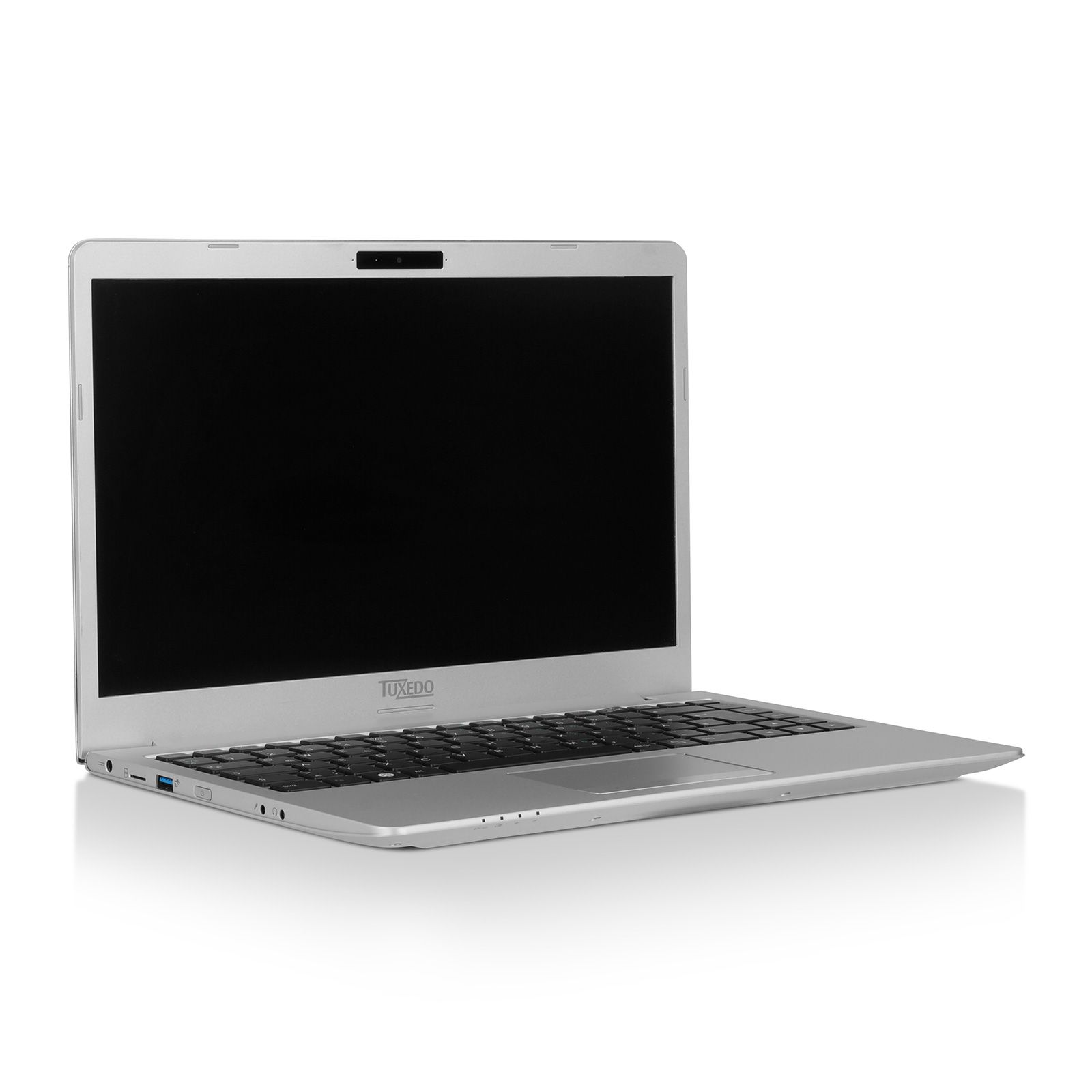

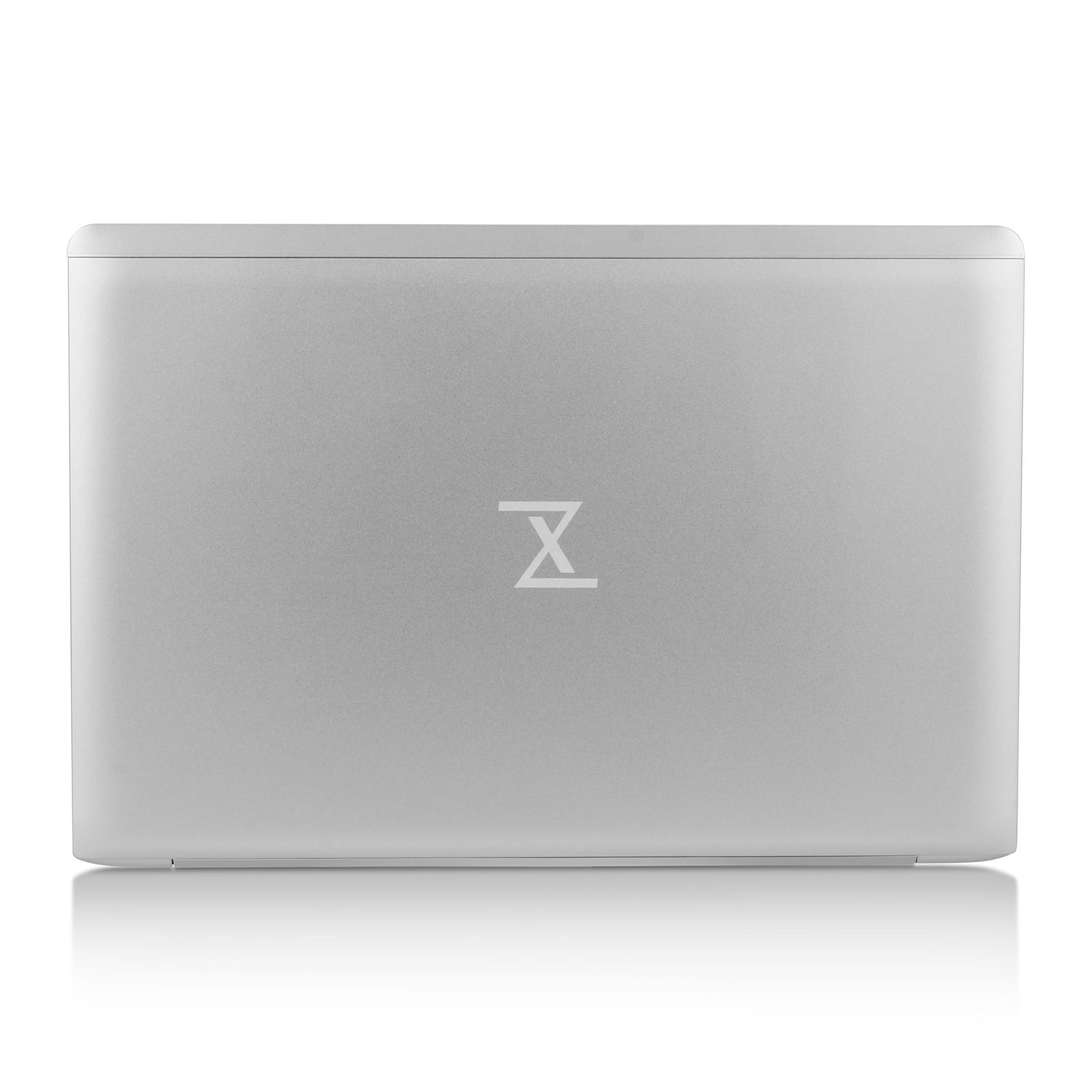

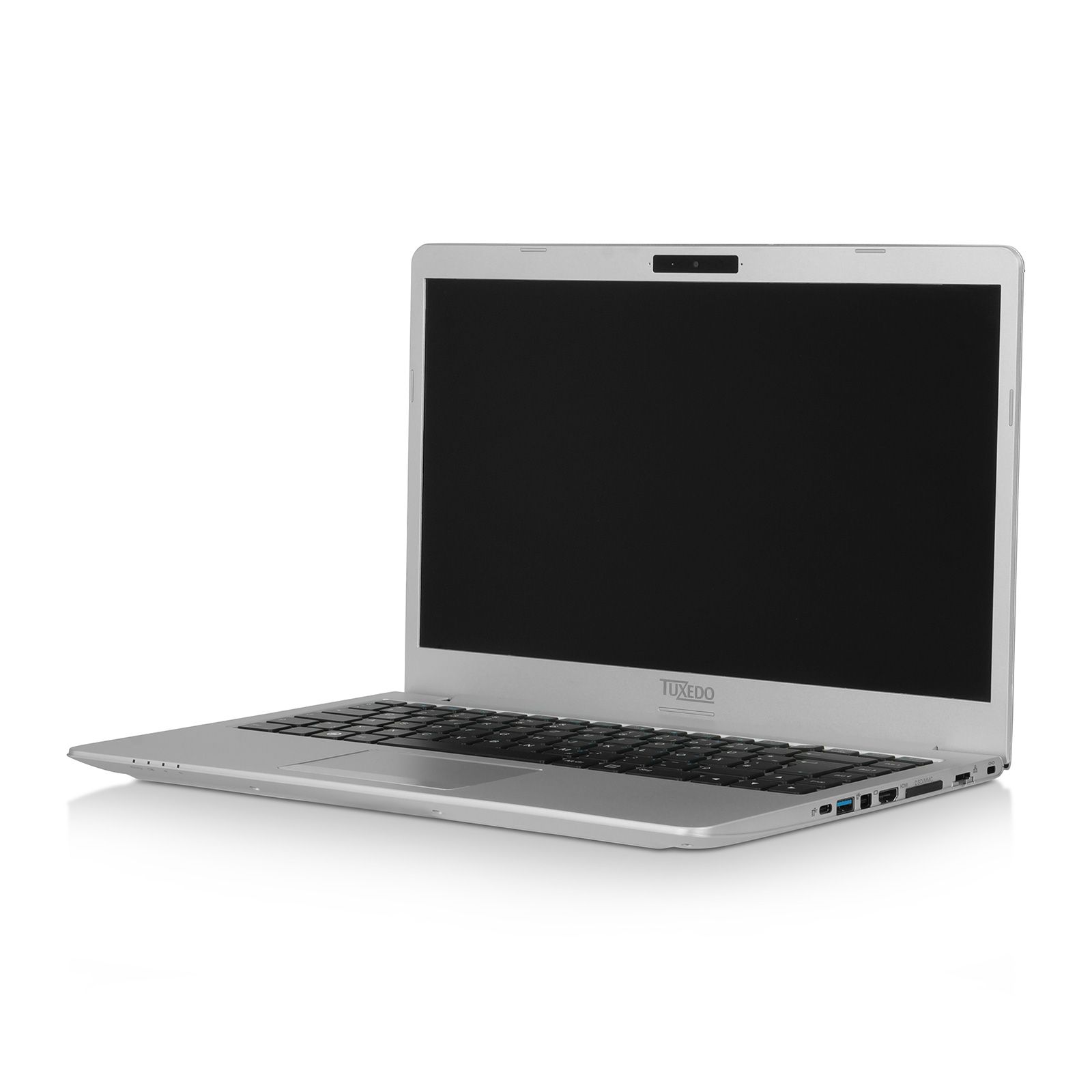

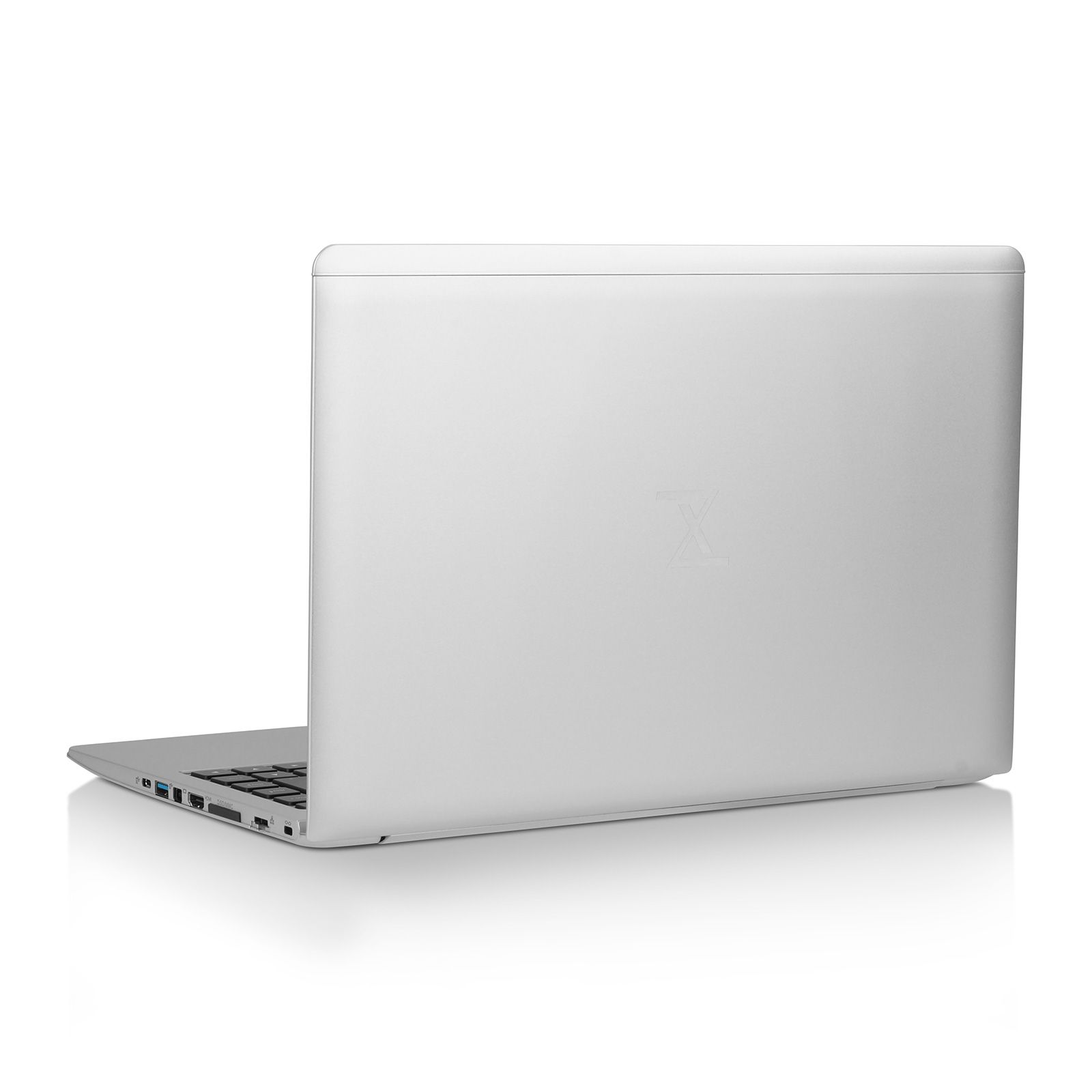

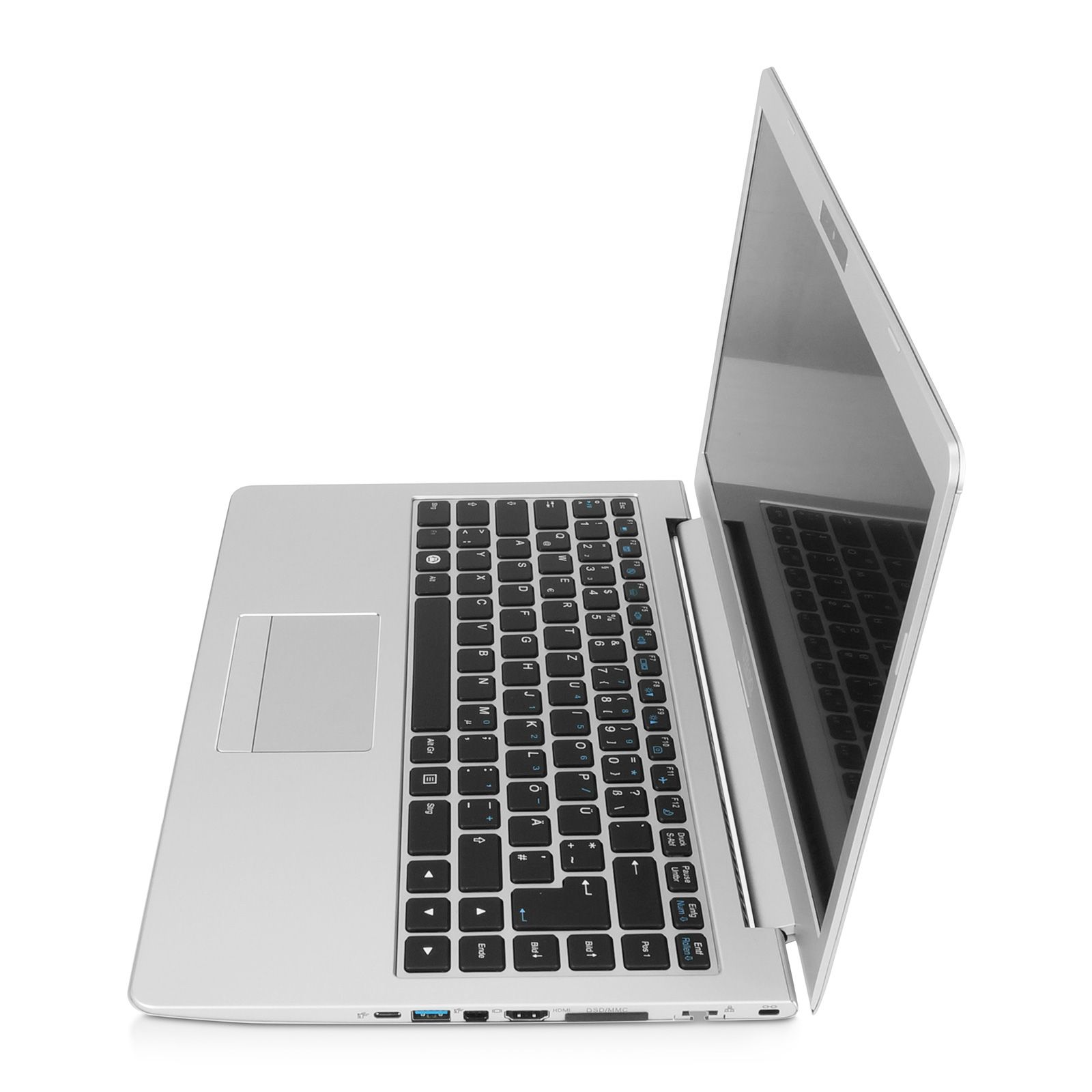

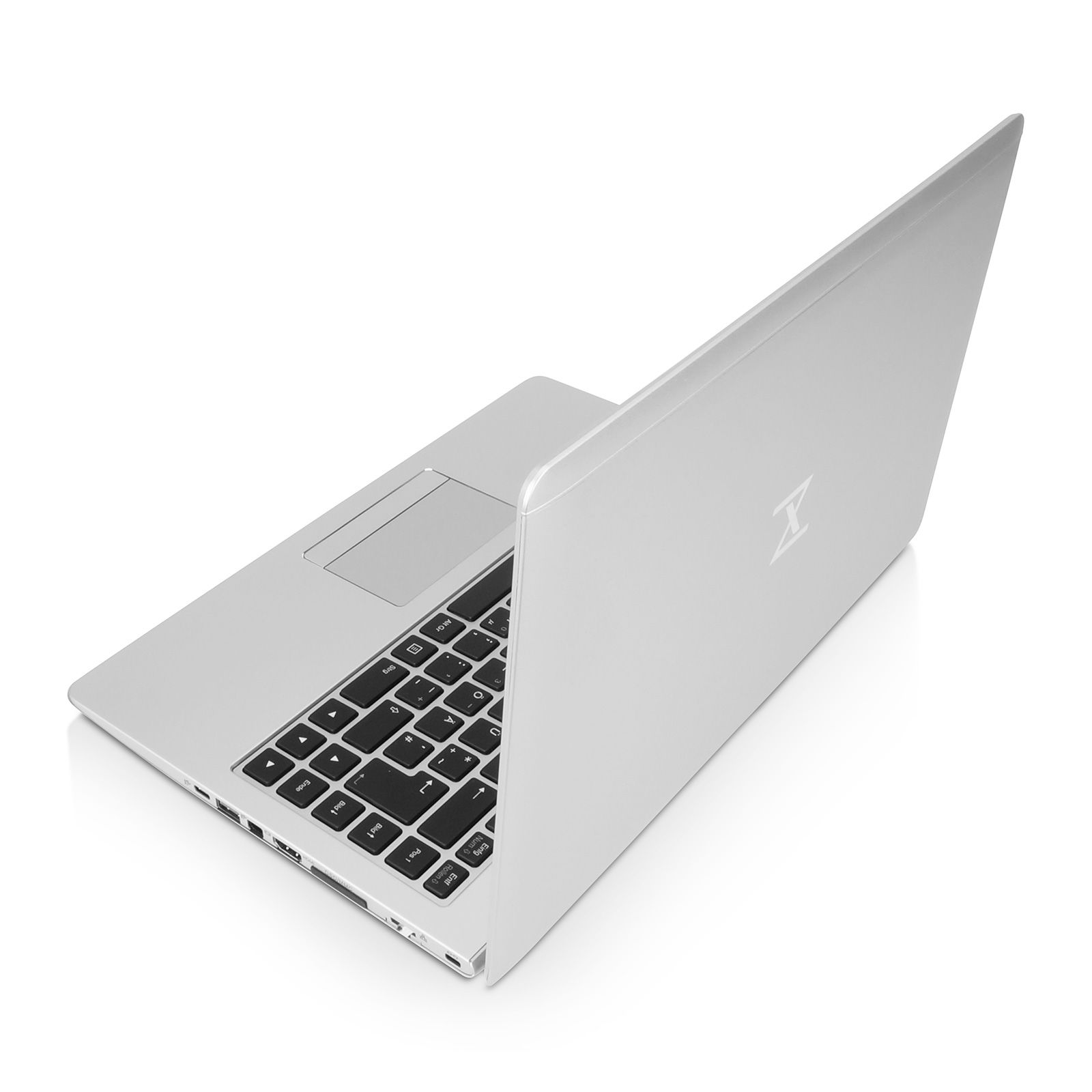

The completely new developed InfinityBook Pro 14 has a completely made of aluminium housing.
For better protection, the upper and lower shells cover the valuable hardware like a book cover - in a book cover kinda design.
In addition, it has two continuous rubber feet to ensure optimum grip even over corners.

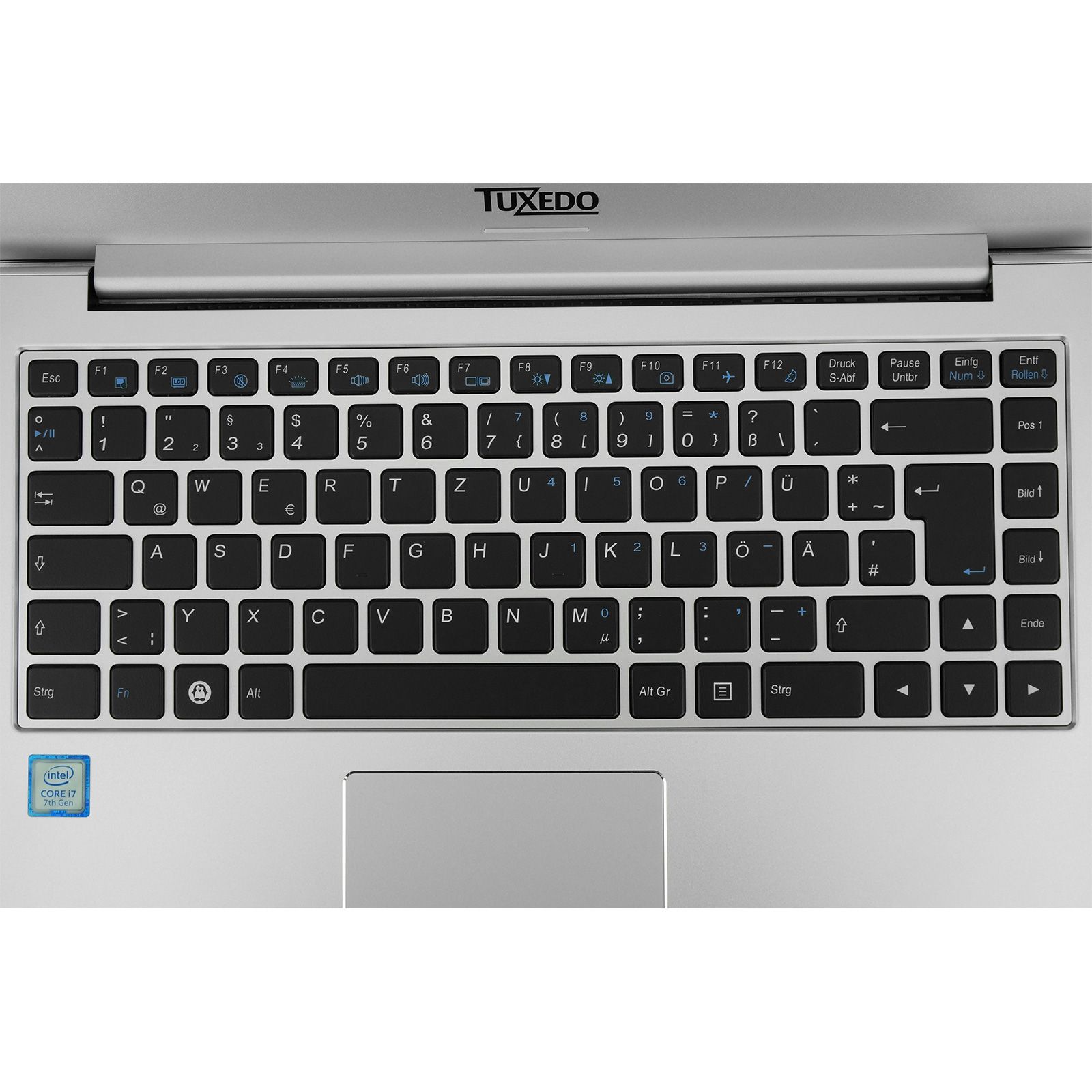

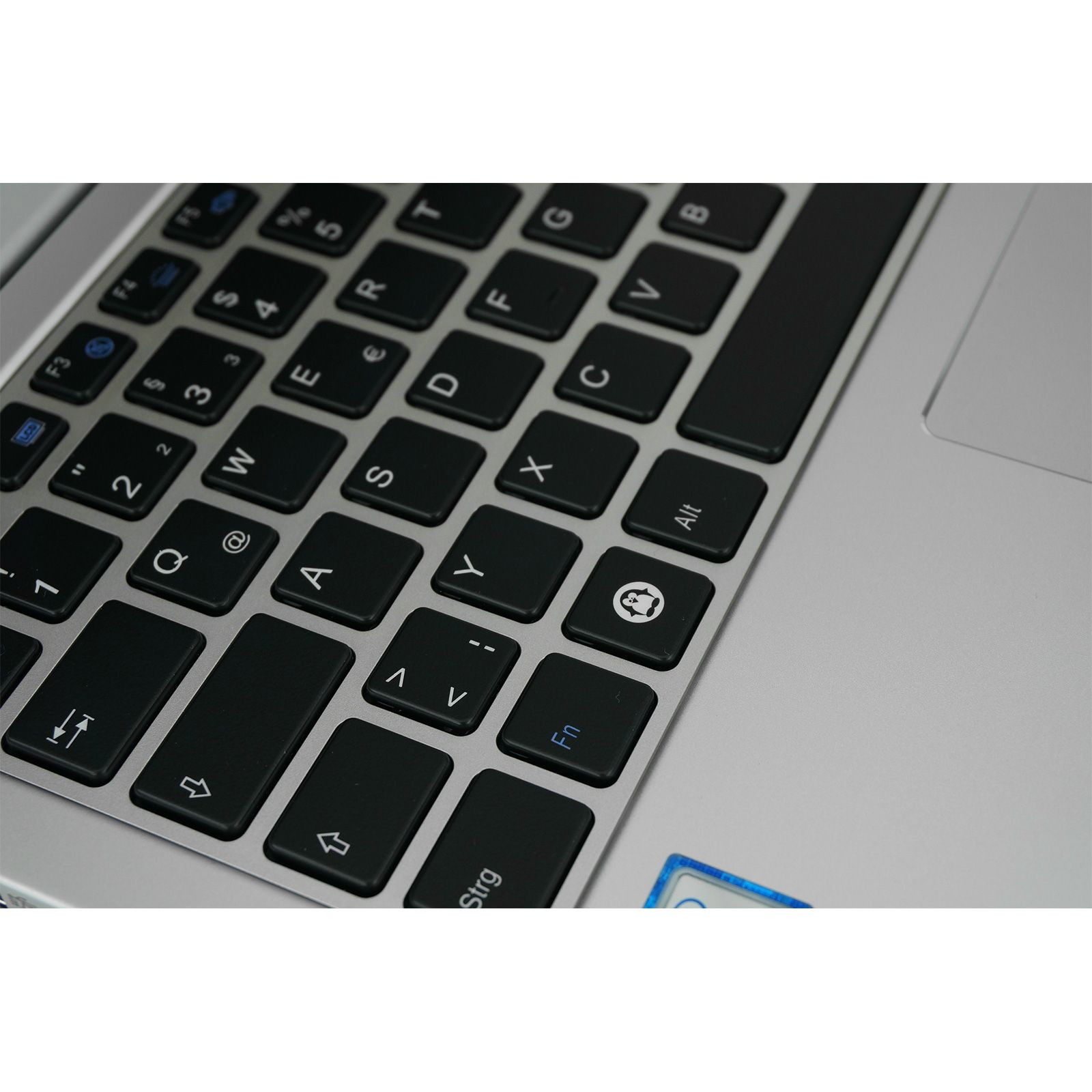

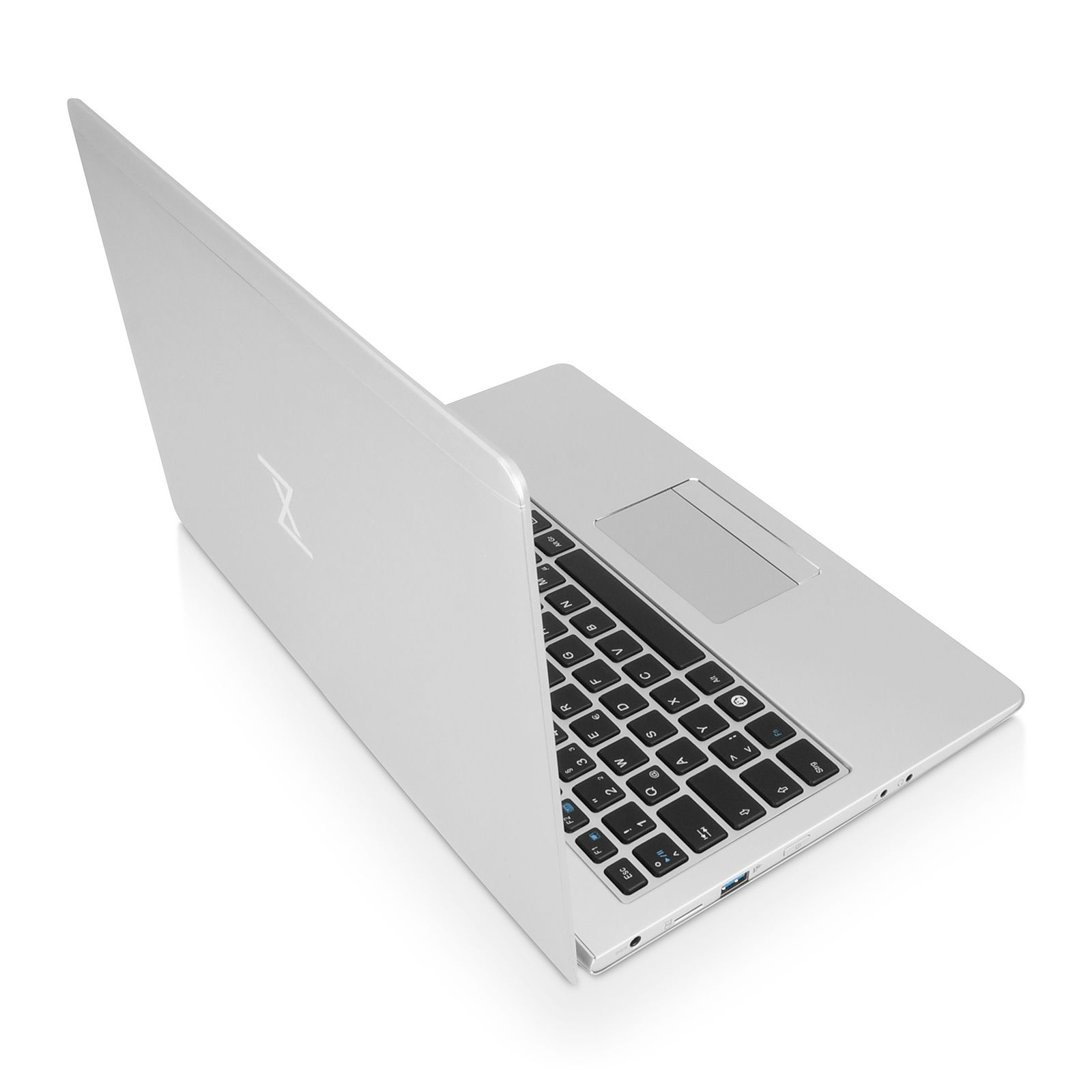

The illuminated keyboard with penguin-super-button in full DIN-A4 size is also a novelty in this class. Even multiple typists can use it on the go without having to long for their stationary keyboard ;)
The Pro version of our InfinityBook series is uncompromisingly designed for maximum performance and best features, paired with a battery life of up to 8 hours.
To live up to this claim, Intel's 14-inch InfinityBook Pro contains Intel's strongest Ultrabook processor Core i7 with four cores (quad-core) and eight threads and up to 4.9 GHz per core!
Despite the low weight of only approx. 1.4kg and a height of only 19mm, the device can accommodate a 2.5" hard disk as HDD or SSD as well as an M. 2 format SSD with SATA or NVME/PCIe connection. Of course, it is also possible to install an 4G/LTE module and the obligatory WLAN/Bluetooth module.
Tidy computing power paired with a lot of storage space, only enough memory is missing.
And the InfinityBook Pro 14 has no shortage of this either. Two slots are available which can hold up to 64GB DDR4 RAM.
The InfinityBook Pro 14 does not make any compromises on the connection side either:

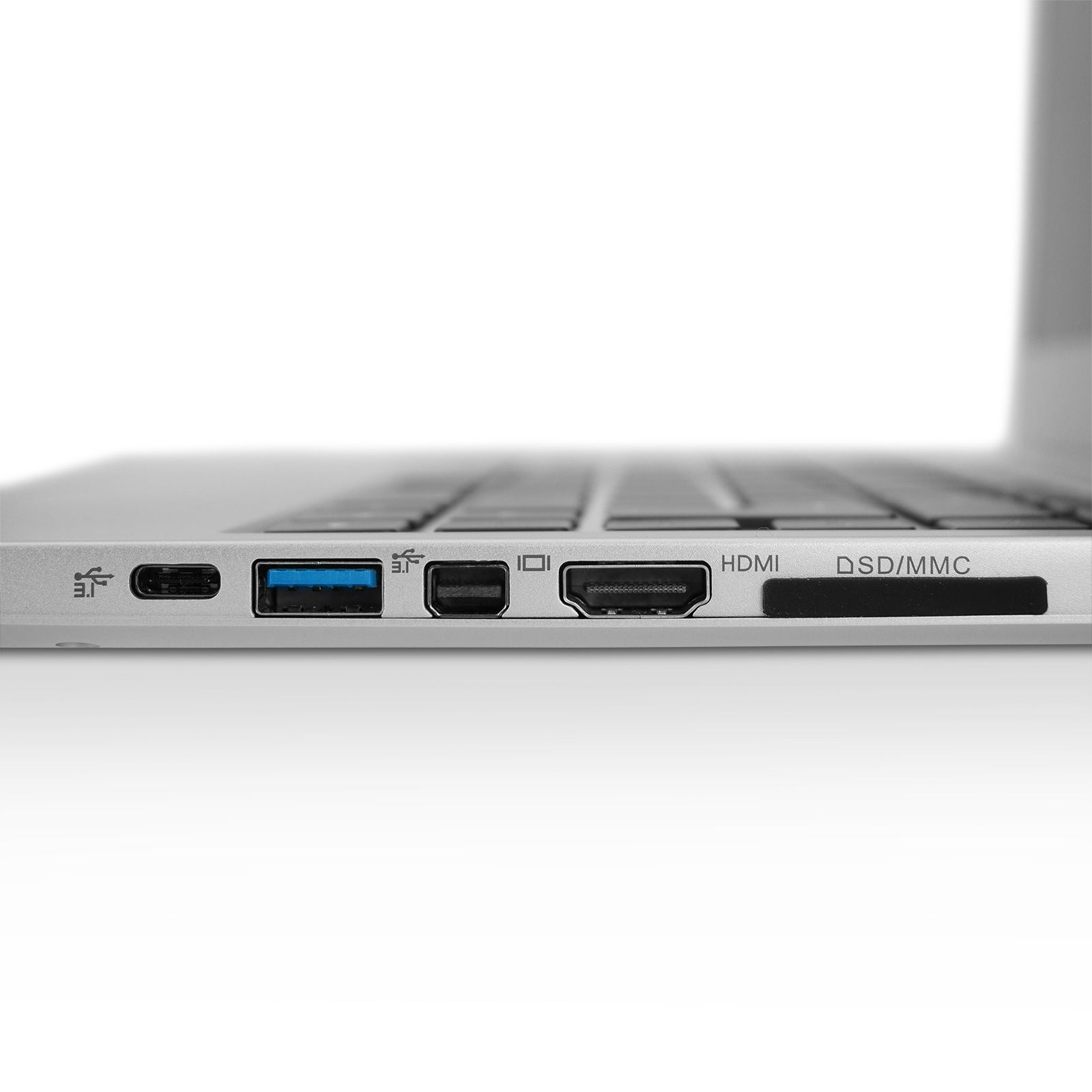

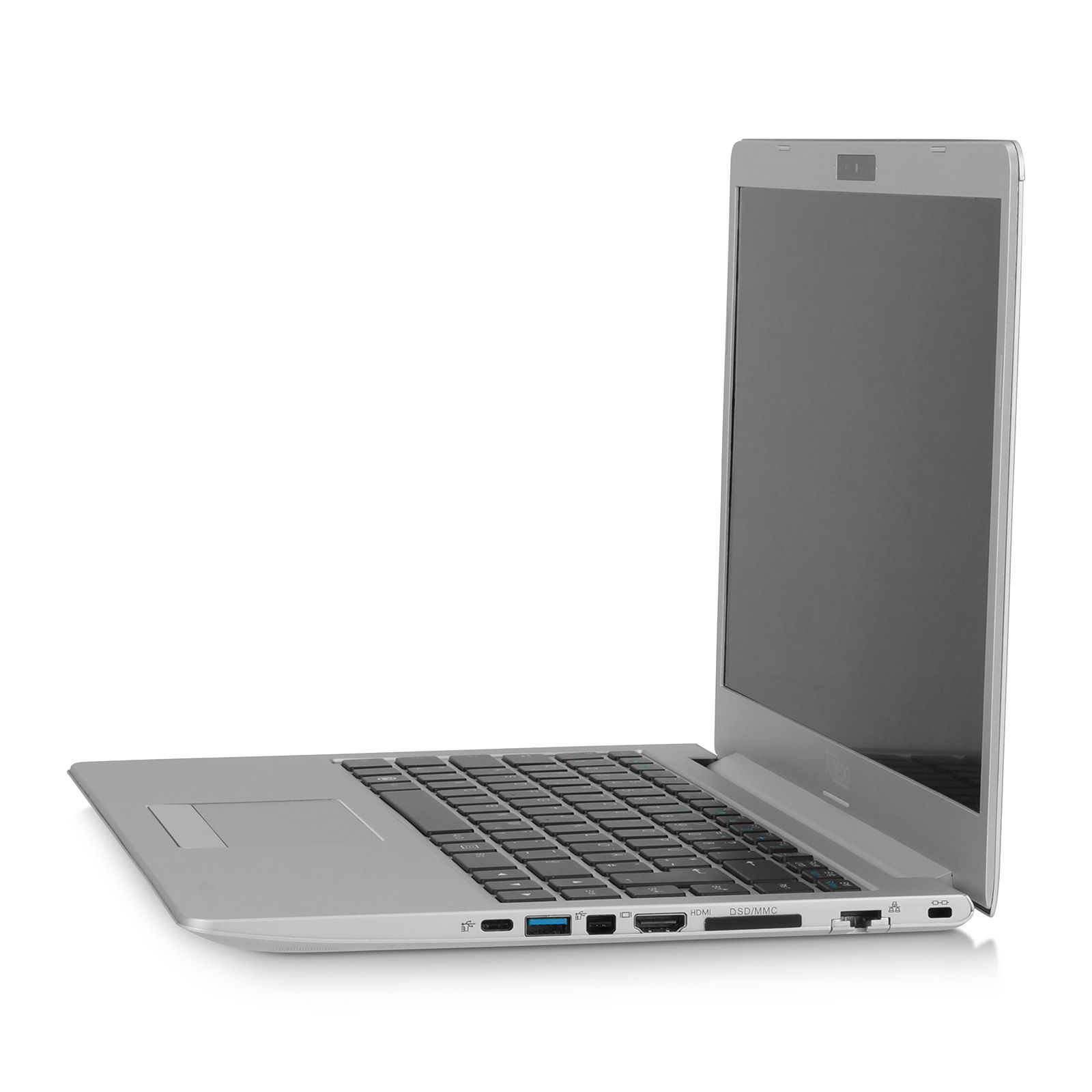

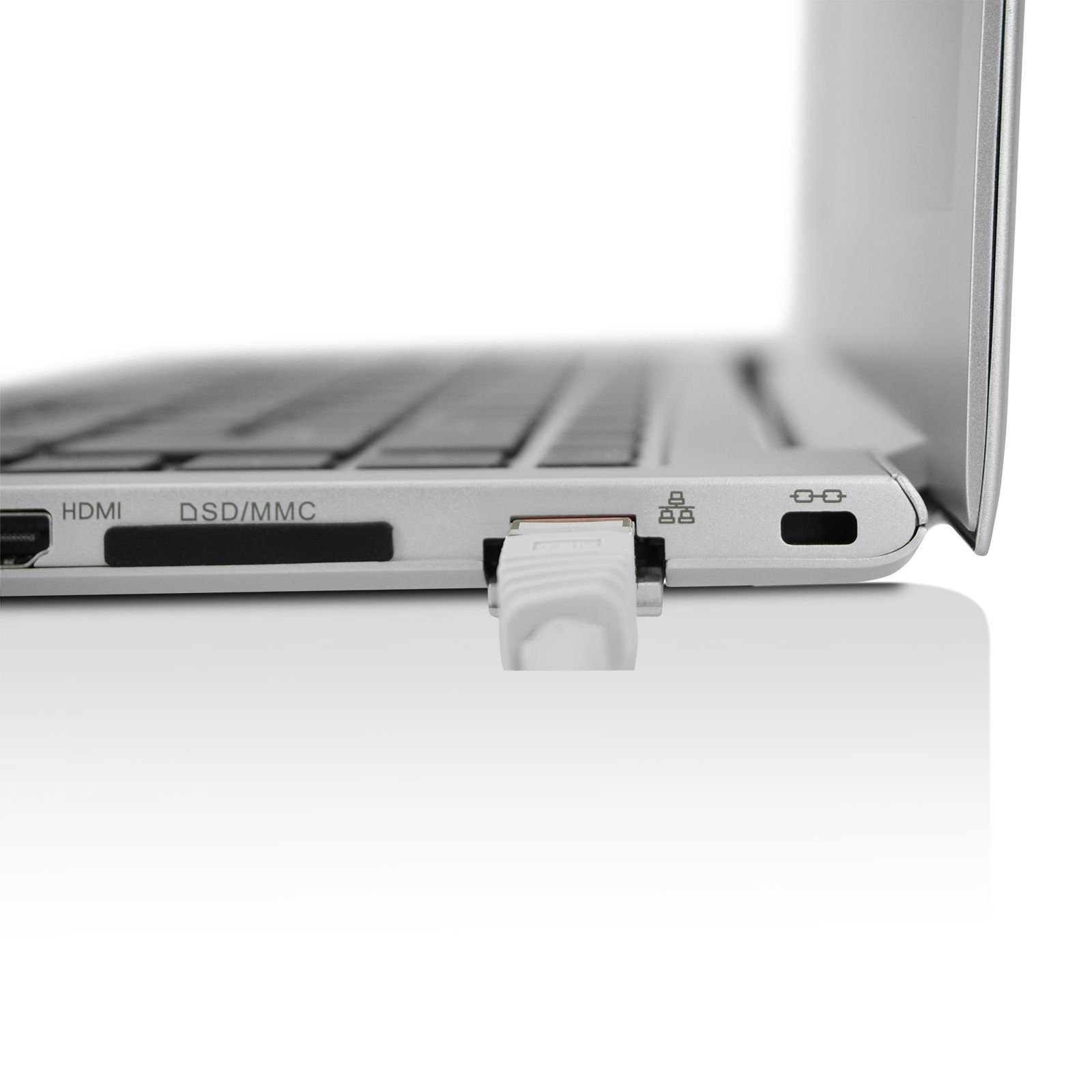

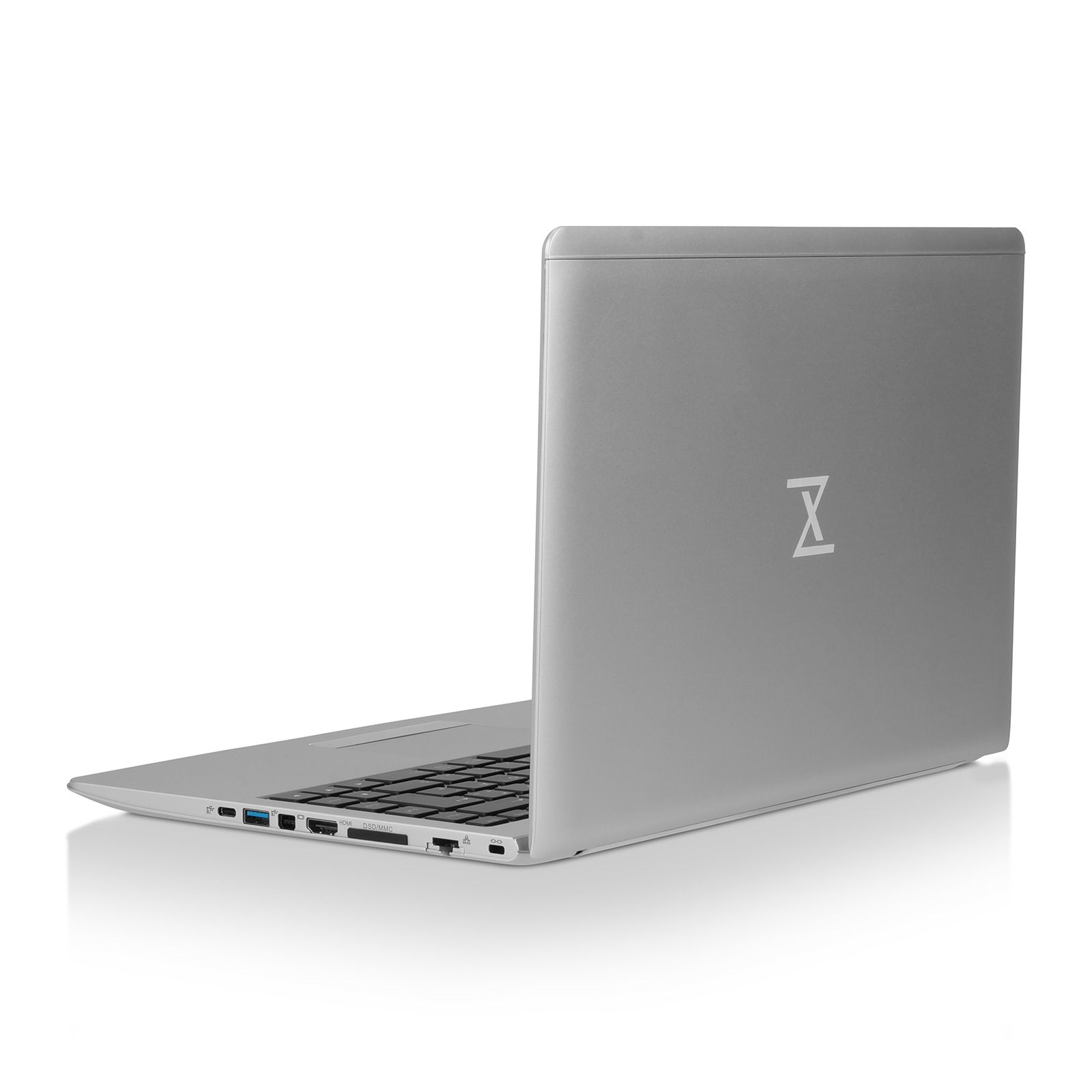

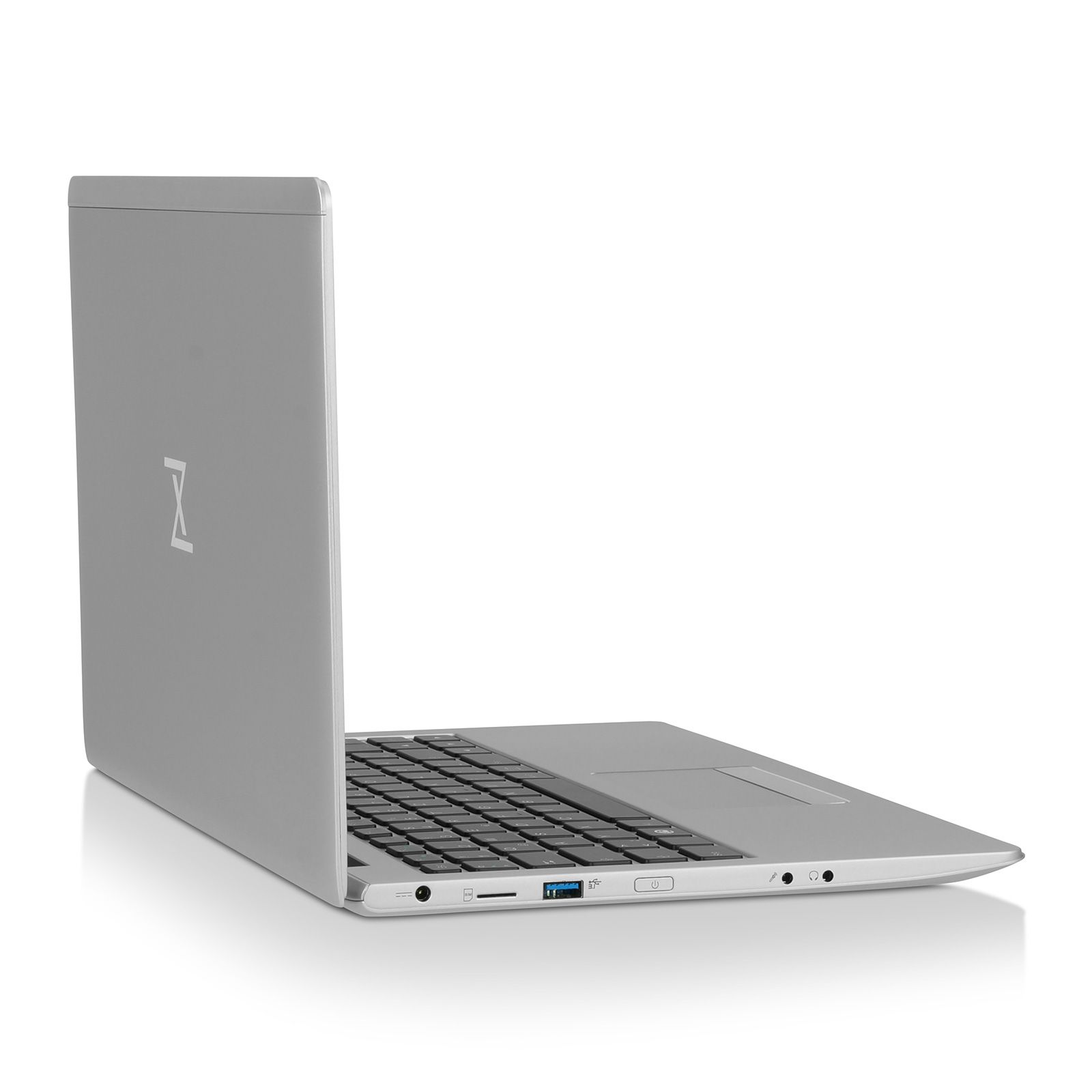

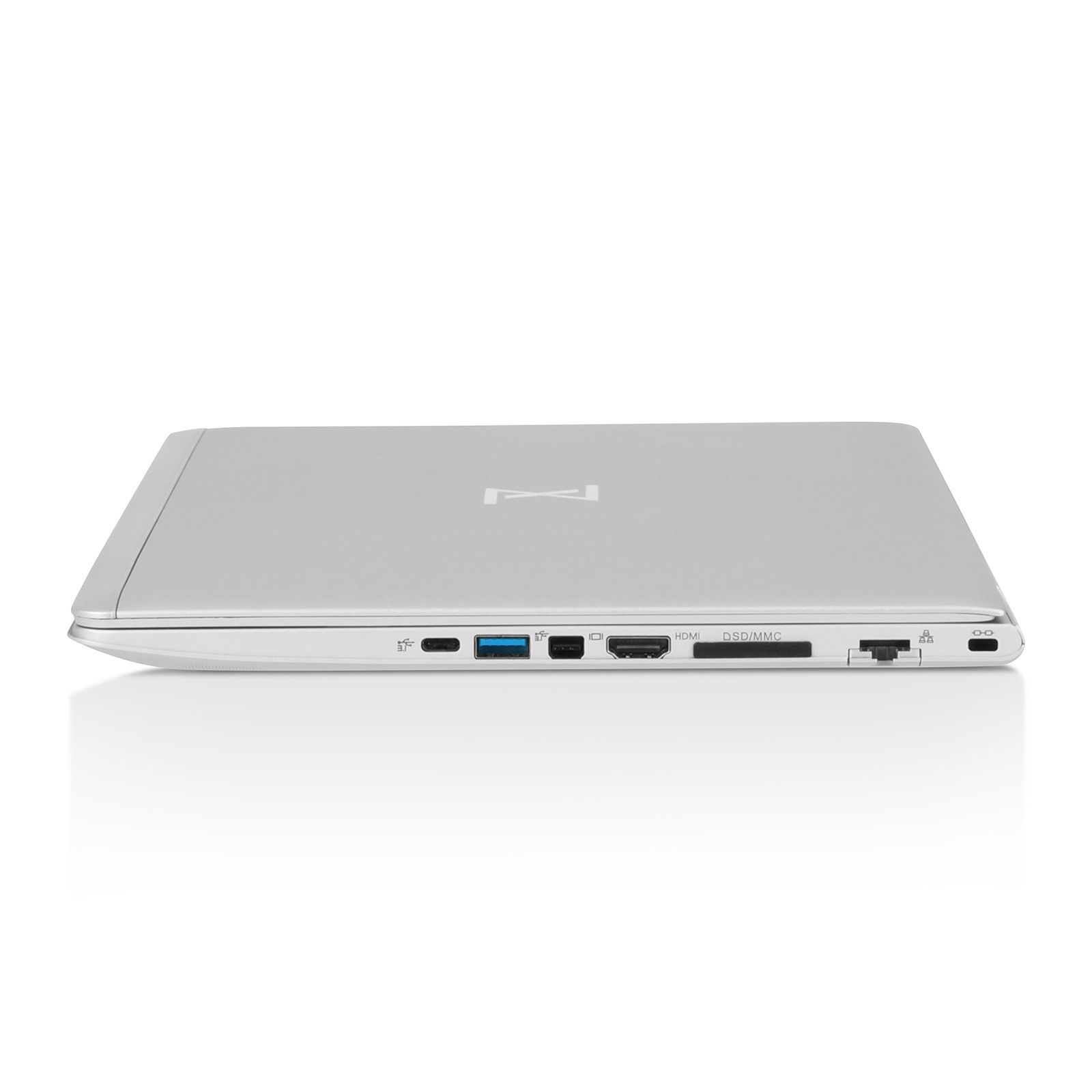

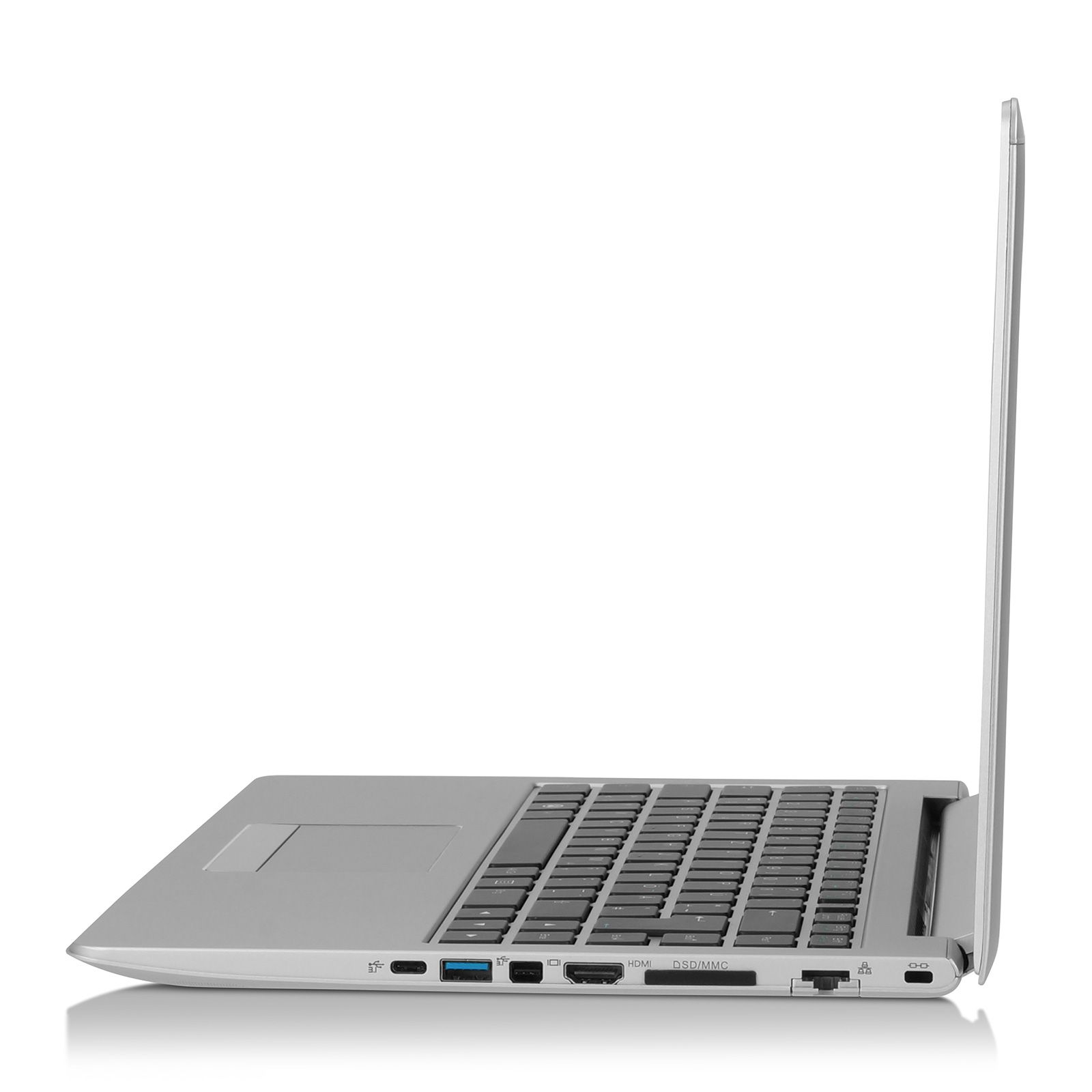

A Mini-DisplayPort, an HDMI connection, a Gigabit LAN port, a USB type C with Thunderbolt 3 and several USB ports and connections for headphones and microphone are available.
The USB type C is a further highlight, because besides USB 3.1 Gen2 (10Gb/s) it also masters Thunderbolt 3 and DisplayPort in is capable to load the battery! This means that you can use a Thunderbolt 3 Dockingstation over USB C.
Of course, there is also an integrated webcam and a microphone, two loudspeakers, a touchpad with separate mouse buttons, a multi-card reader and the obligatory illuminated keyboard - in the German and US version with penguin super key :D (instead of the windows symbol).

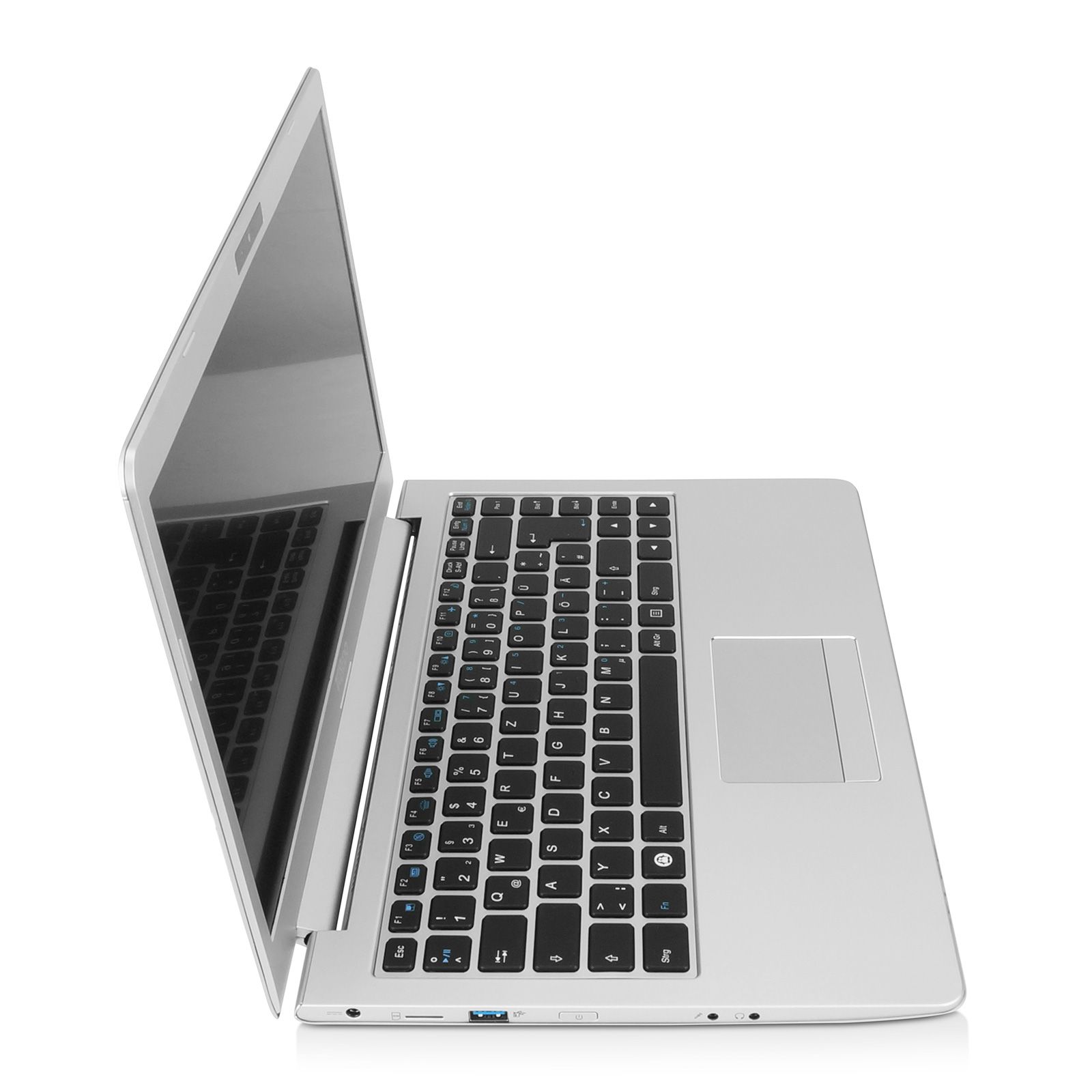

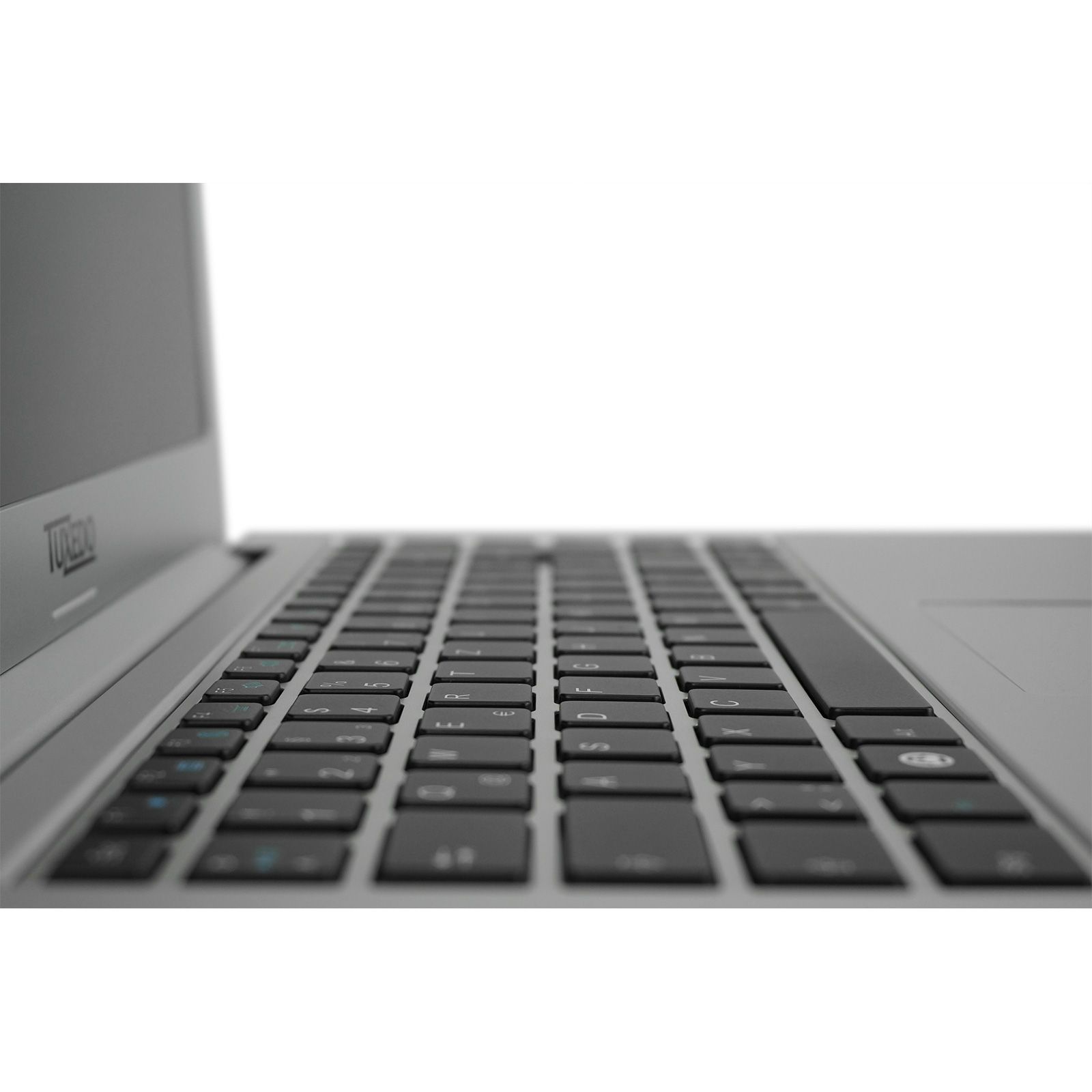

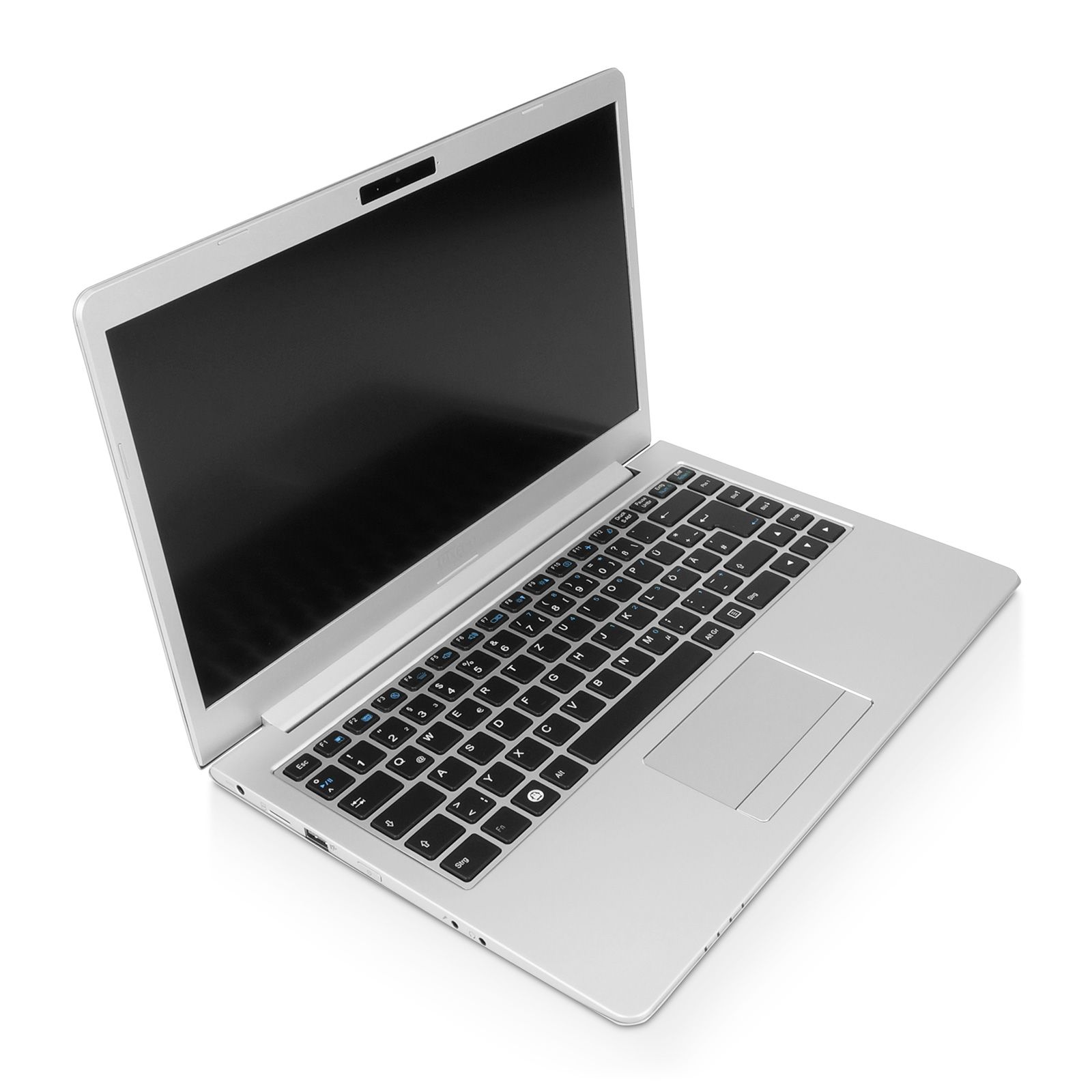

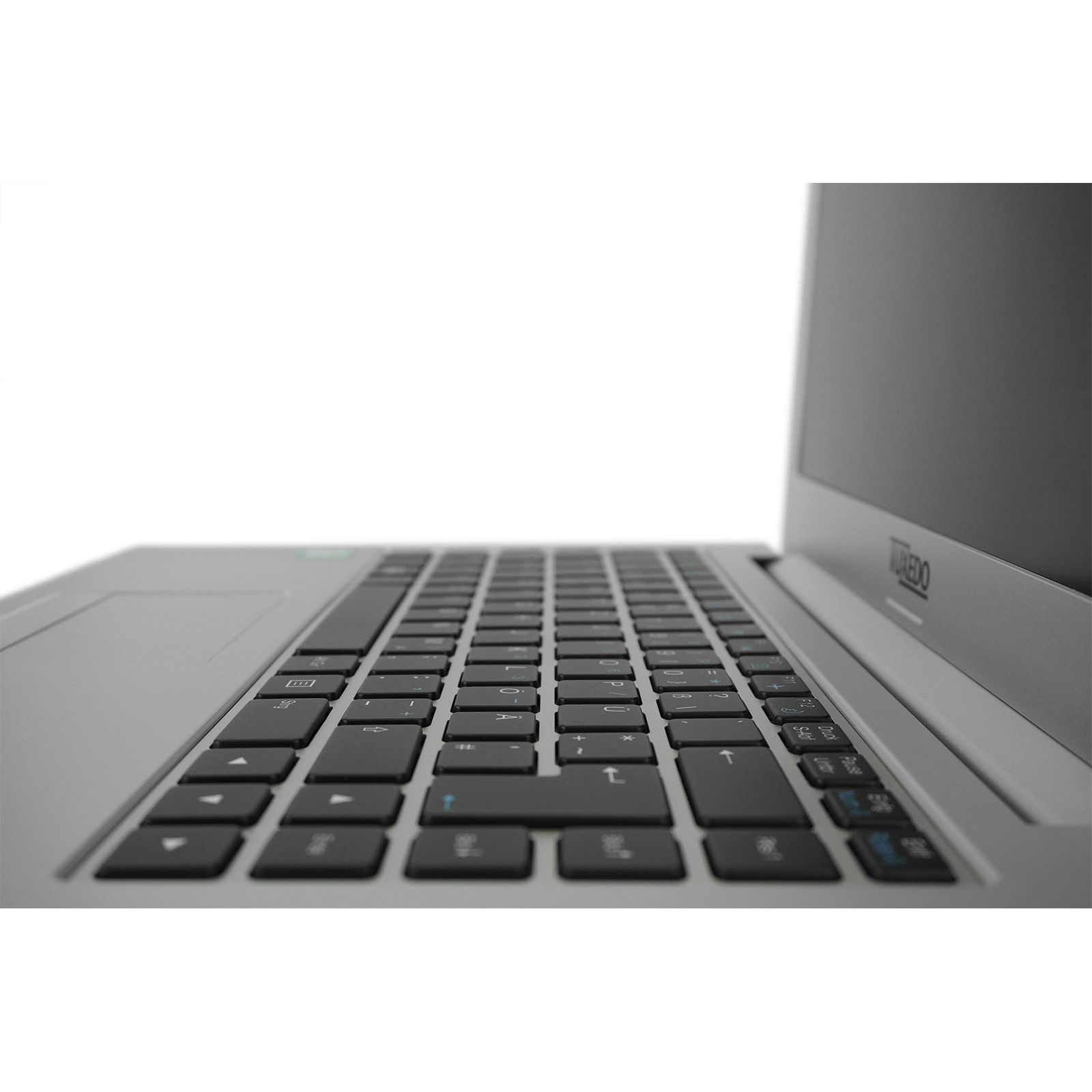

The illuminated full-size keyboard is also a pleasure for many typists. It has a clear and rather hard keystroke and enough key stroke to keep the tipper in a good mood even when writing for a long time. A keyboard that can only be found on 15 and 17 inch devices!
After removing the underside of the housing (= maintenance flap), all components are easy to maintain, clean or replace.

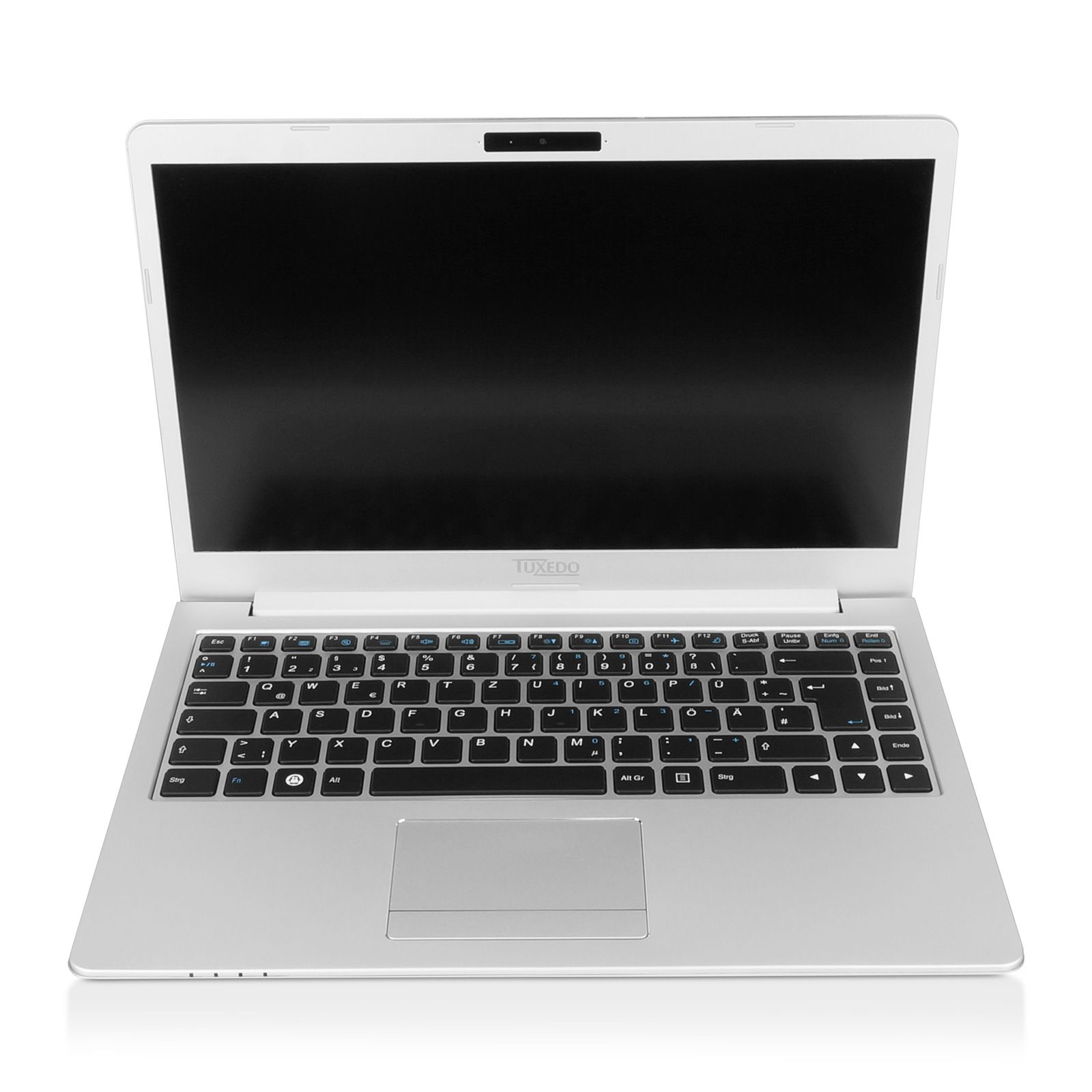

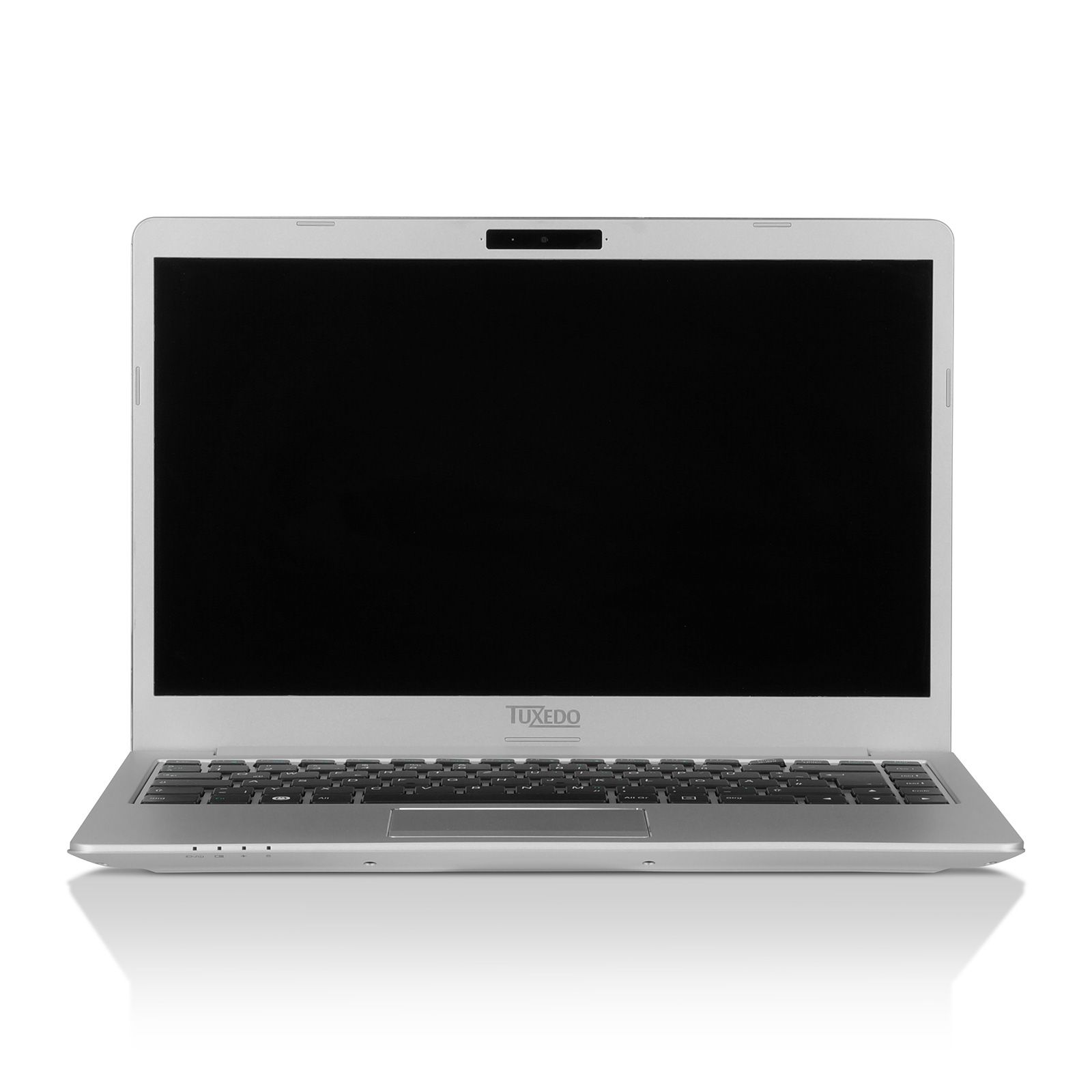

Display / Monitor
Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.
Type: LED backlight display
Size: 14 inch (35,56cm)
Viewing Angle: 89°/89°/89°/89°

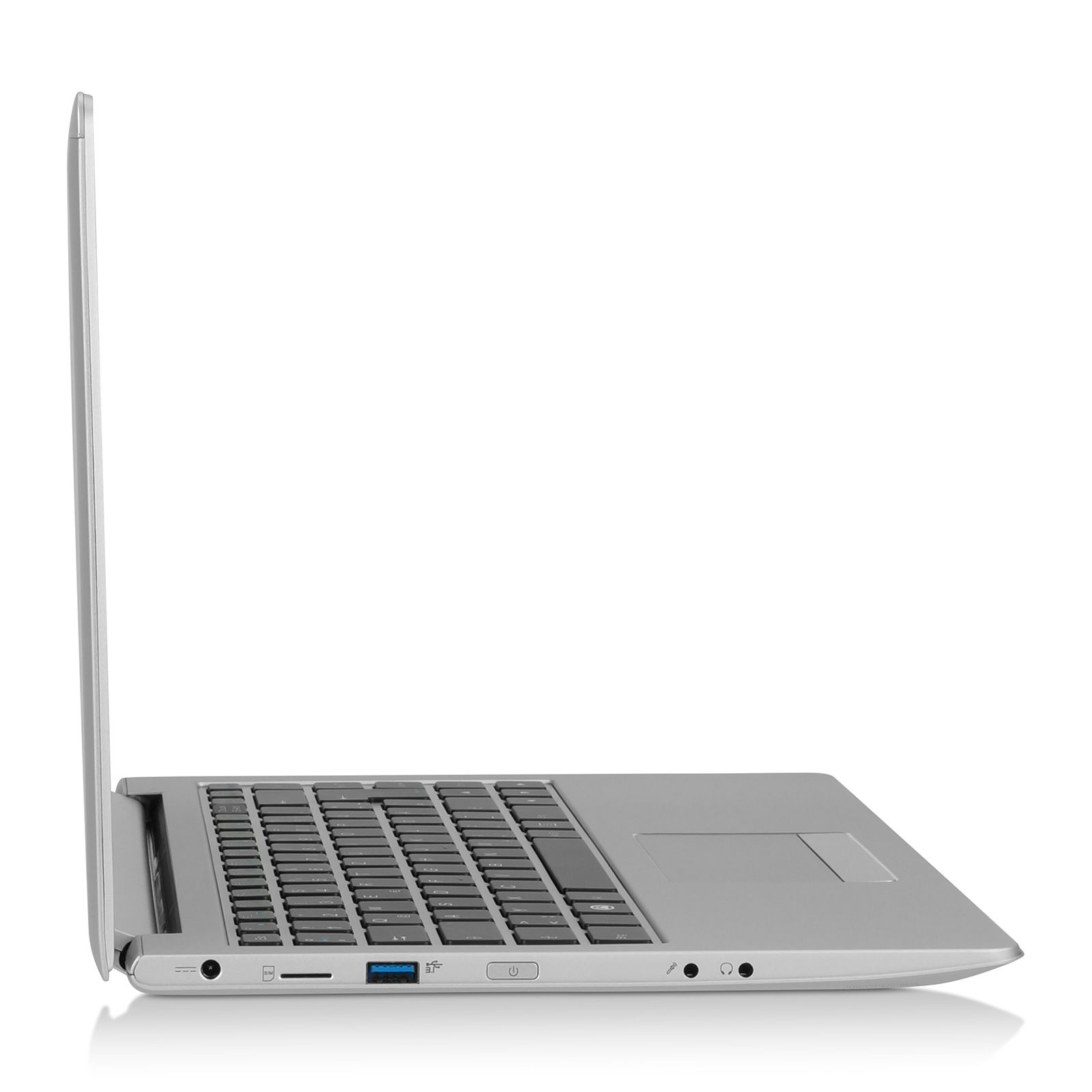

The opening angle of the display hinges is about 135°.
Resolution: Full-HD IPS-Panel, 1920 x 1080, matte/non-glare
Maximum brightness: 372 cd/m²
Maximum contrast: 1377:1
NTSC: N7 | sRGB: 98%

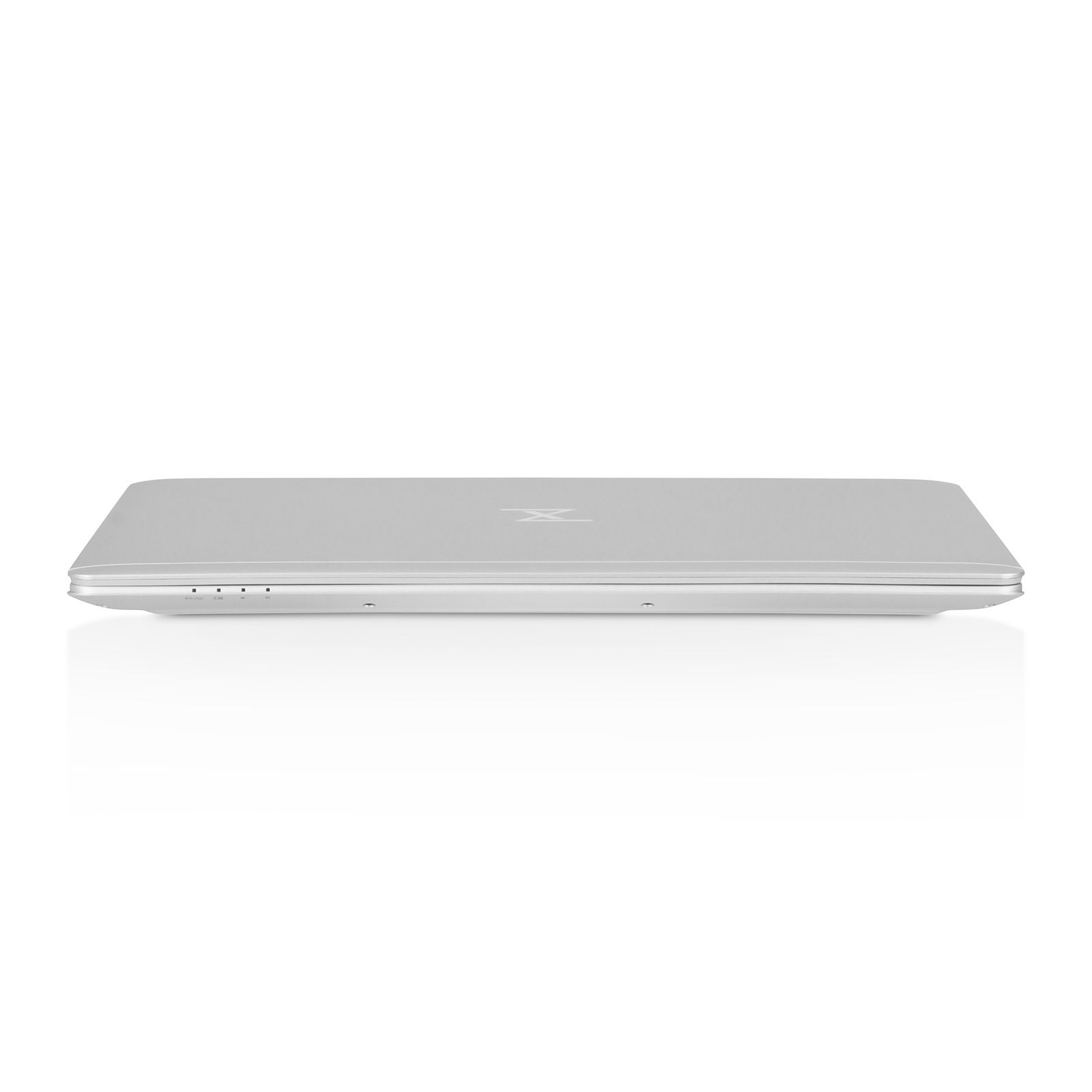

Chassis

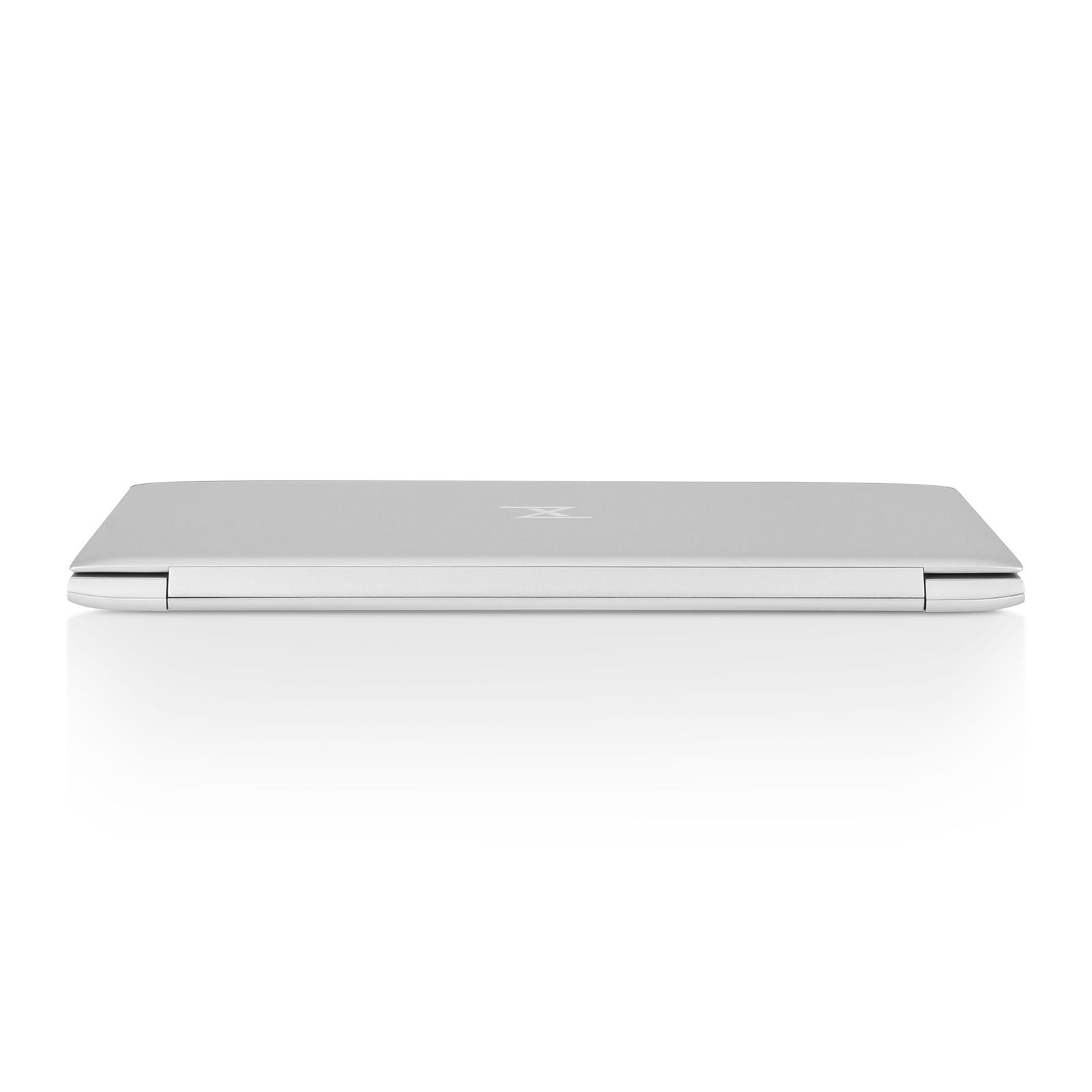

Dimensions: Width: 329,8mm; Height: 18,8mm; Depth: 225,0mm
Weight: approx. 1.4 kg incl. battery, depending on equipment
Material: aluminium, plastic display frame (Leads to better WIFI/BT connection!)
Unibody consisting of 4 parts: Display top shell, housing bottom shell, display frame and keyboard shell. Except for the display frame, all parts are completely made of aluminium.

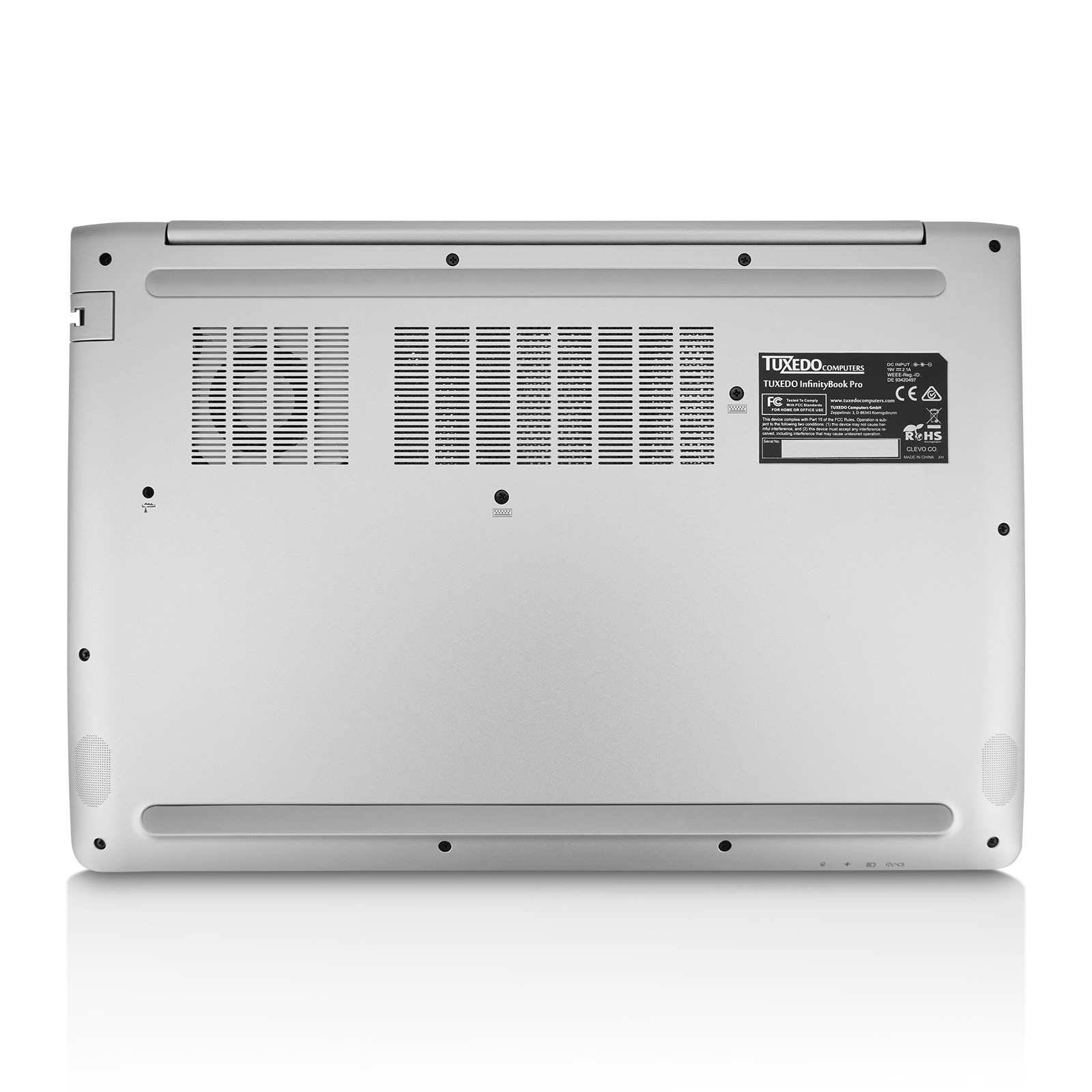

Maintenance: After opening the base plate with a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.

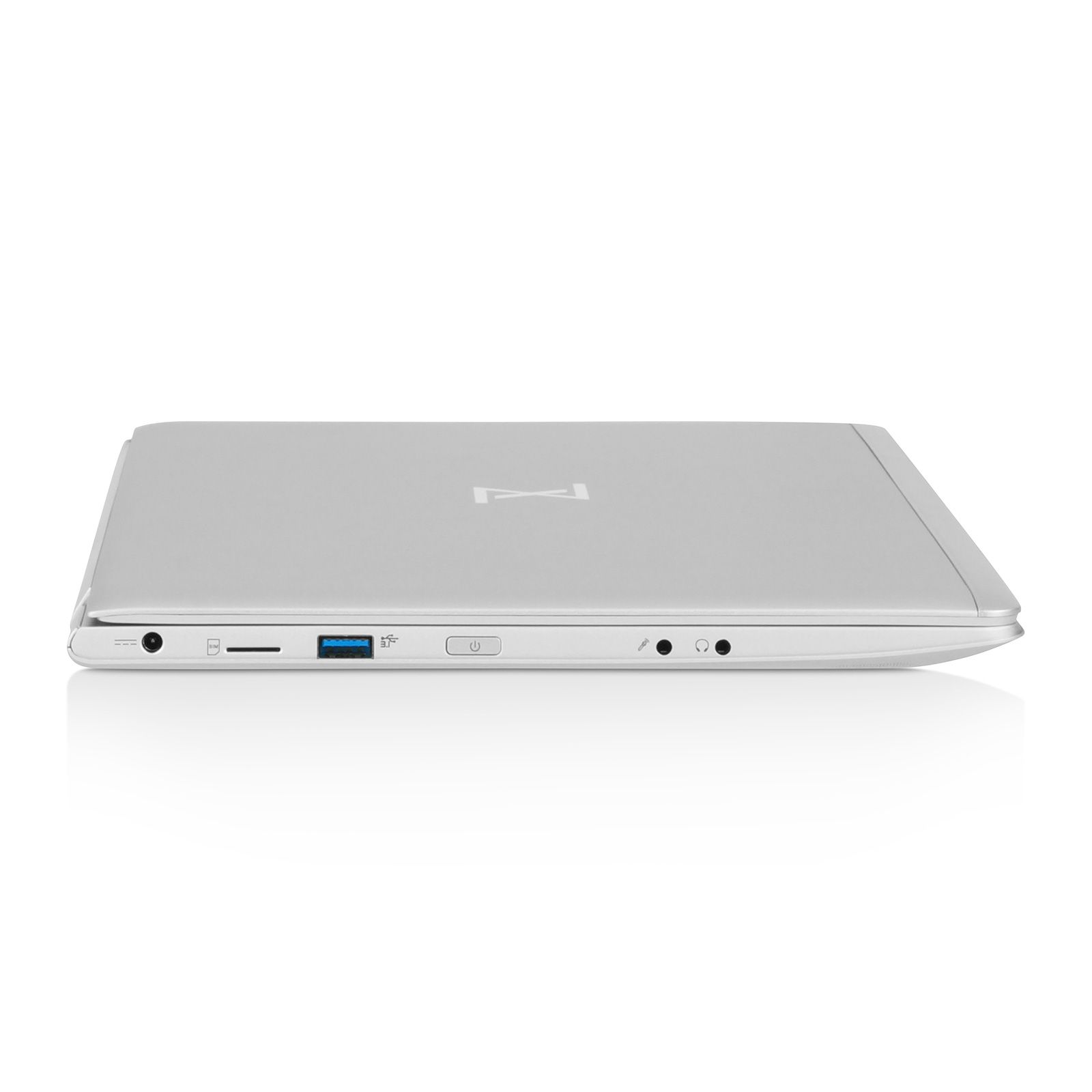

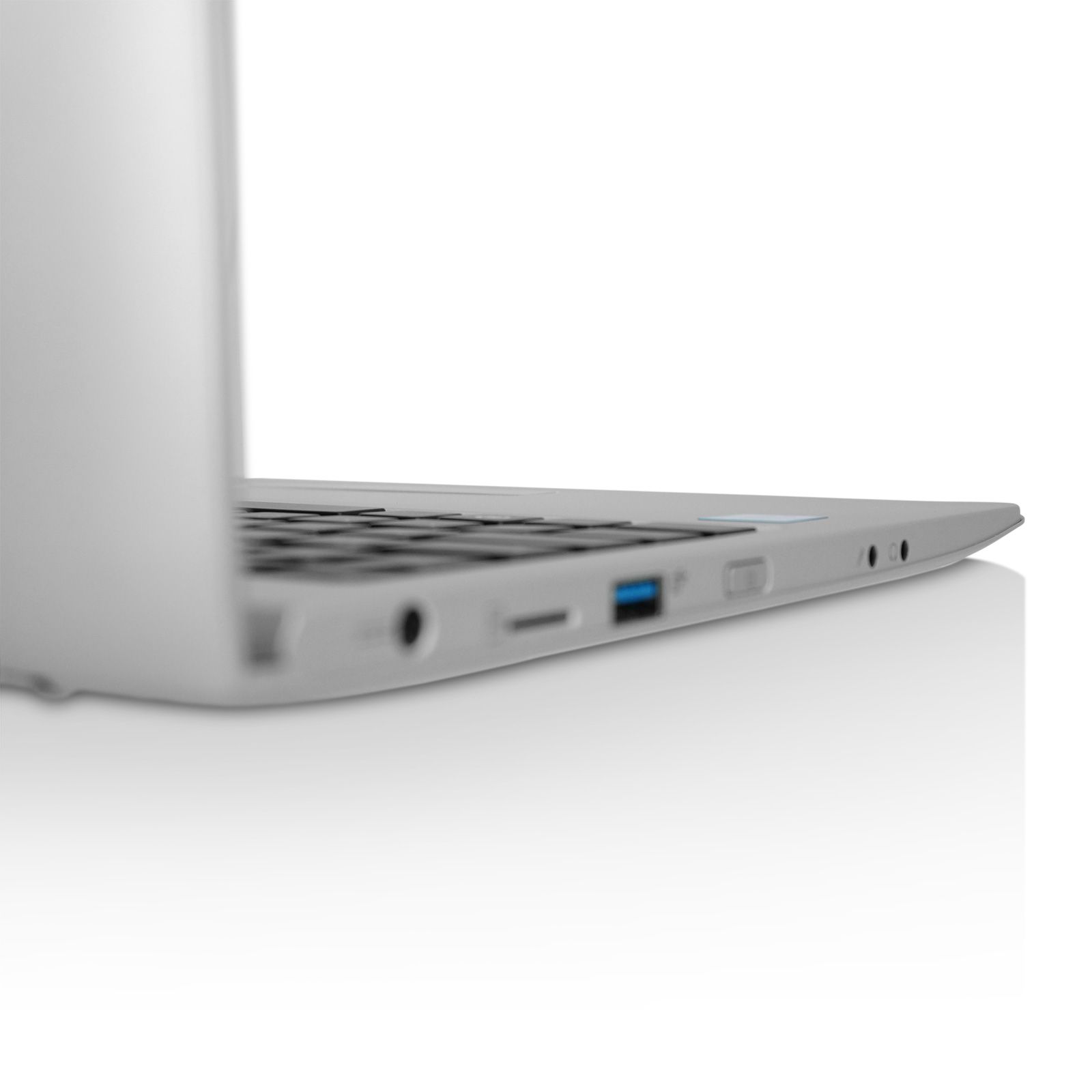

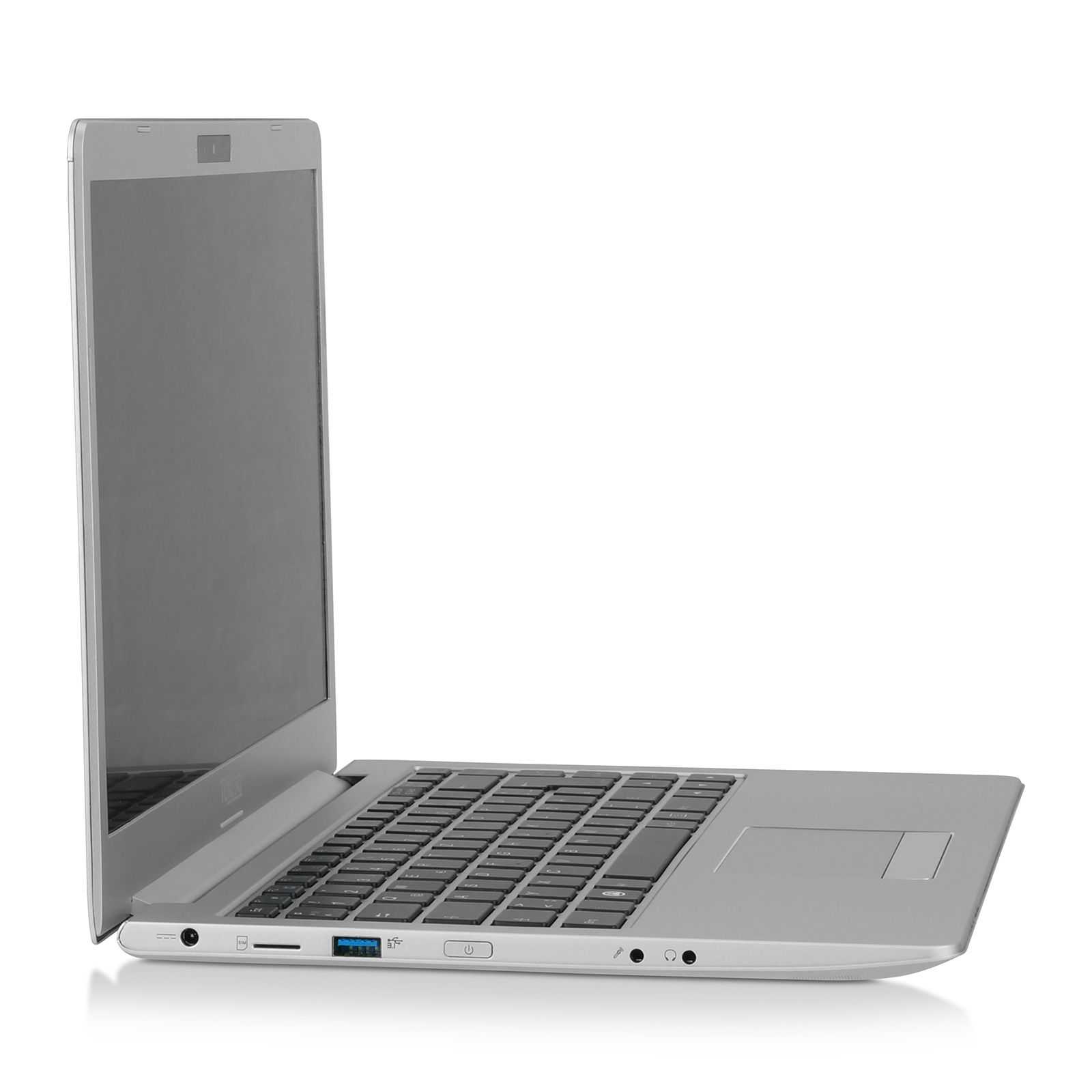

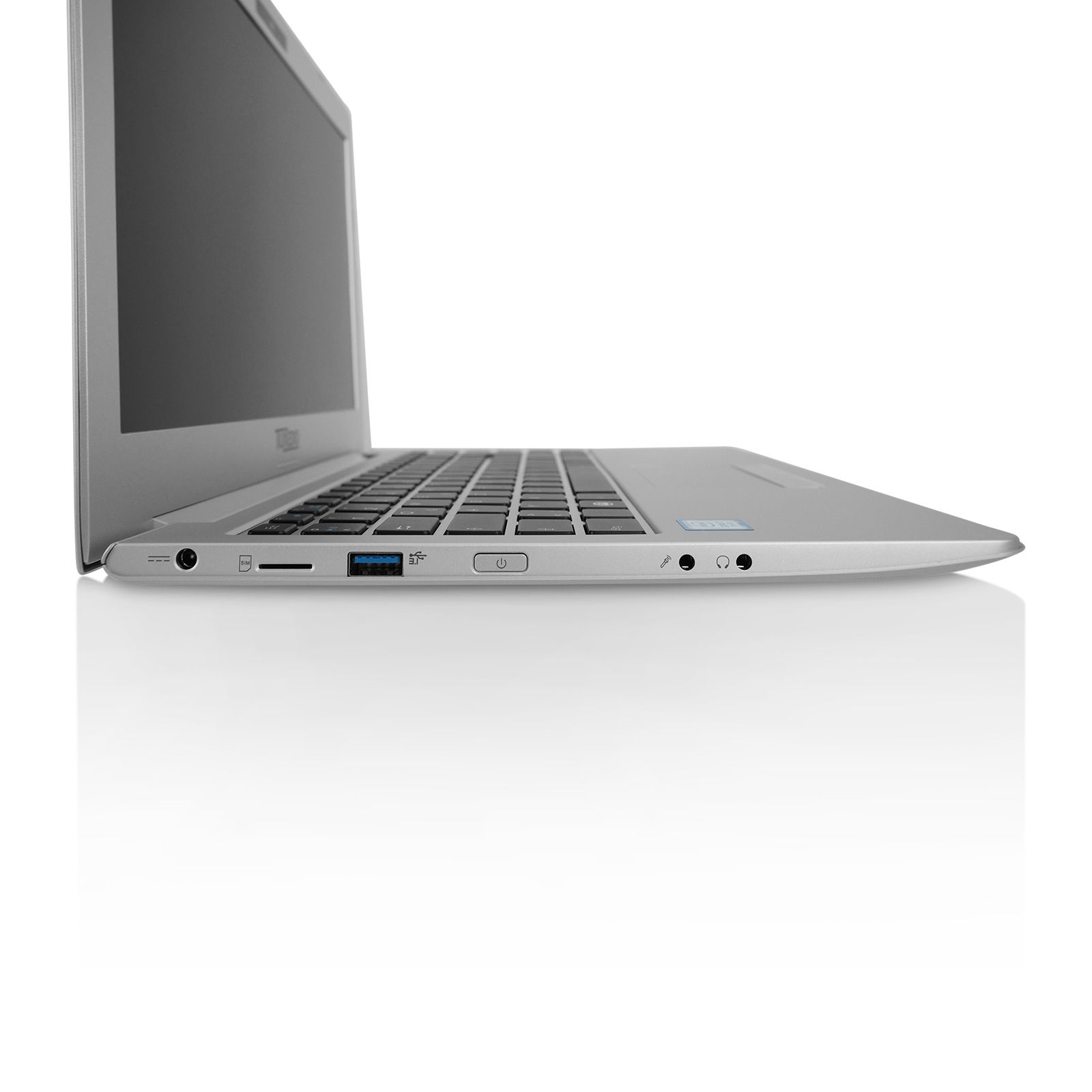

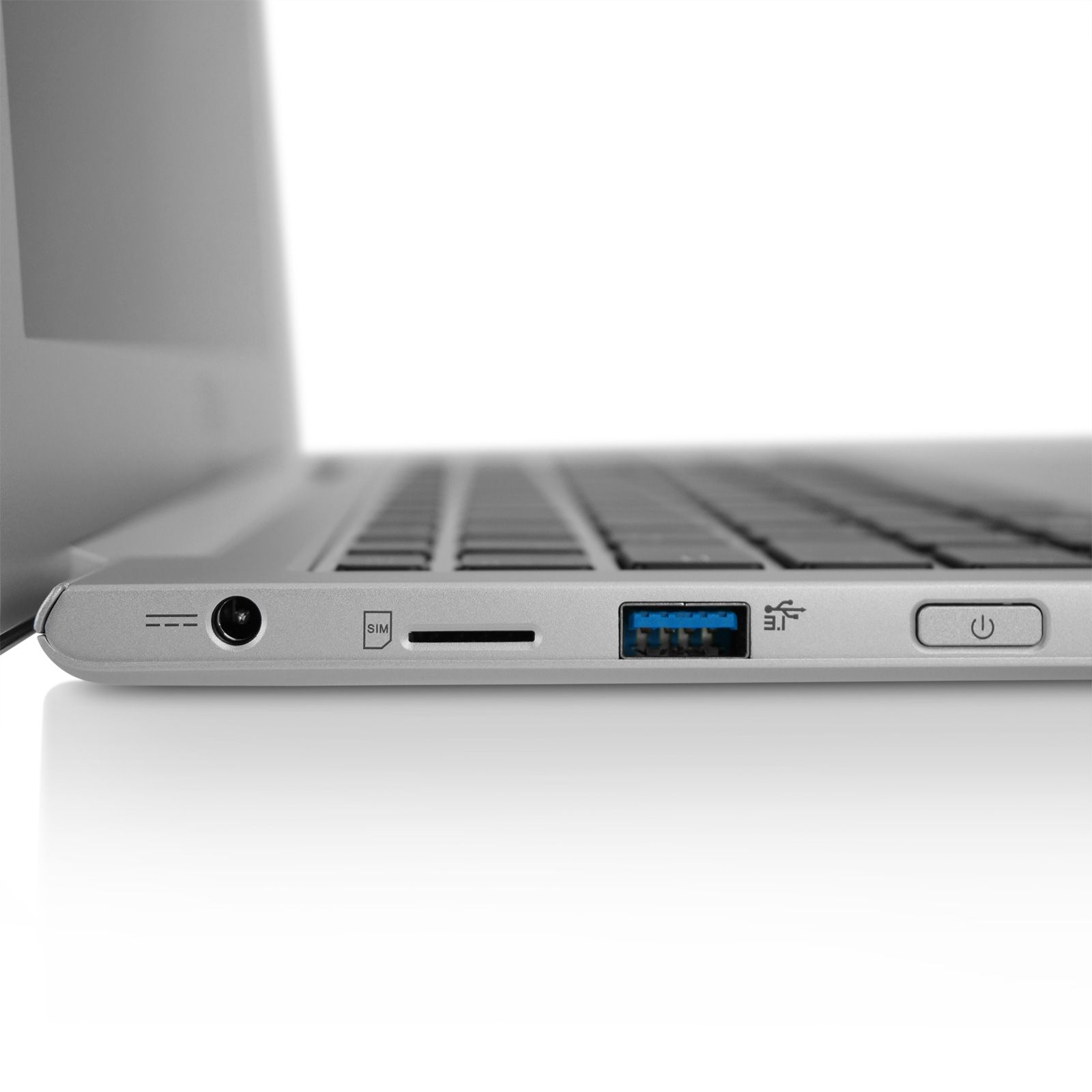

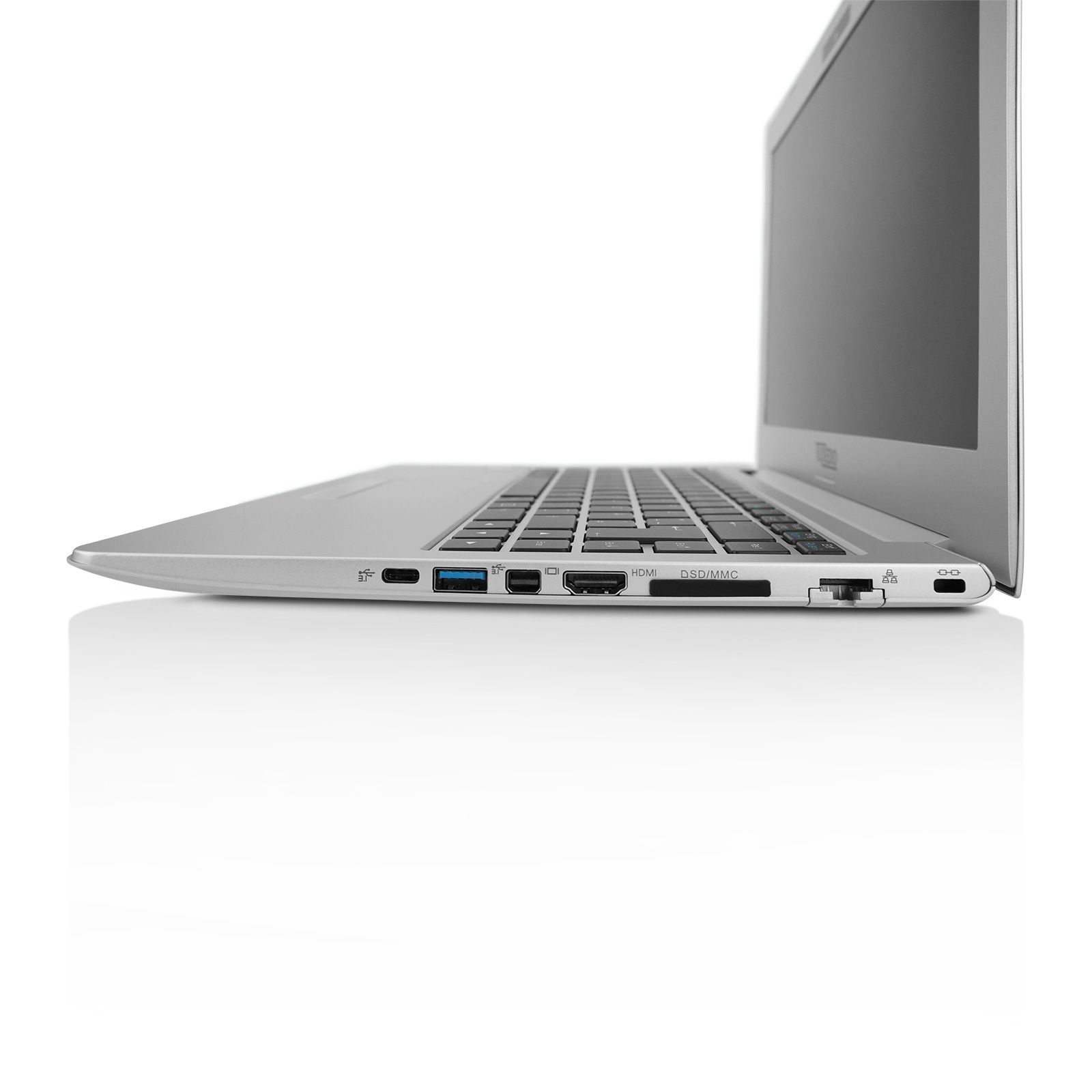

Ports
2x USB 3.1 Type-A Gen1 up to 5Gbit/s
1x USB Type-C 3.1 Gen2 with Thunderbolt 3, DisplayPort (max. 3840x2160@60Hz) and Charging-Function (USB Power-Delivery / USB-PD / DC-IN; Needs at least 20V/2.1A charger)
Additionally, external dedicated graphics cards (eGPU) are supported by the Thunderbolt 3 port!
1x MiniDisplayPort 1.3 (max. 3840x2160@60Hz)
1x HDMI 1.4b with HDCP (max. 2560x1600@60Hz; 3840x2160@30Hz)

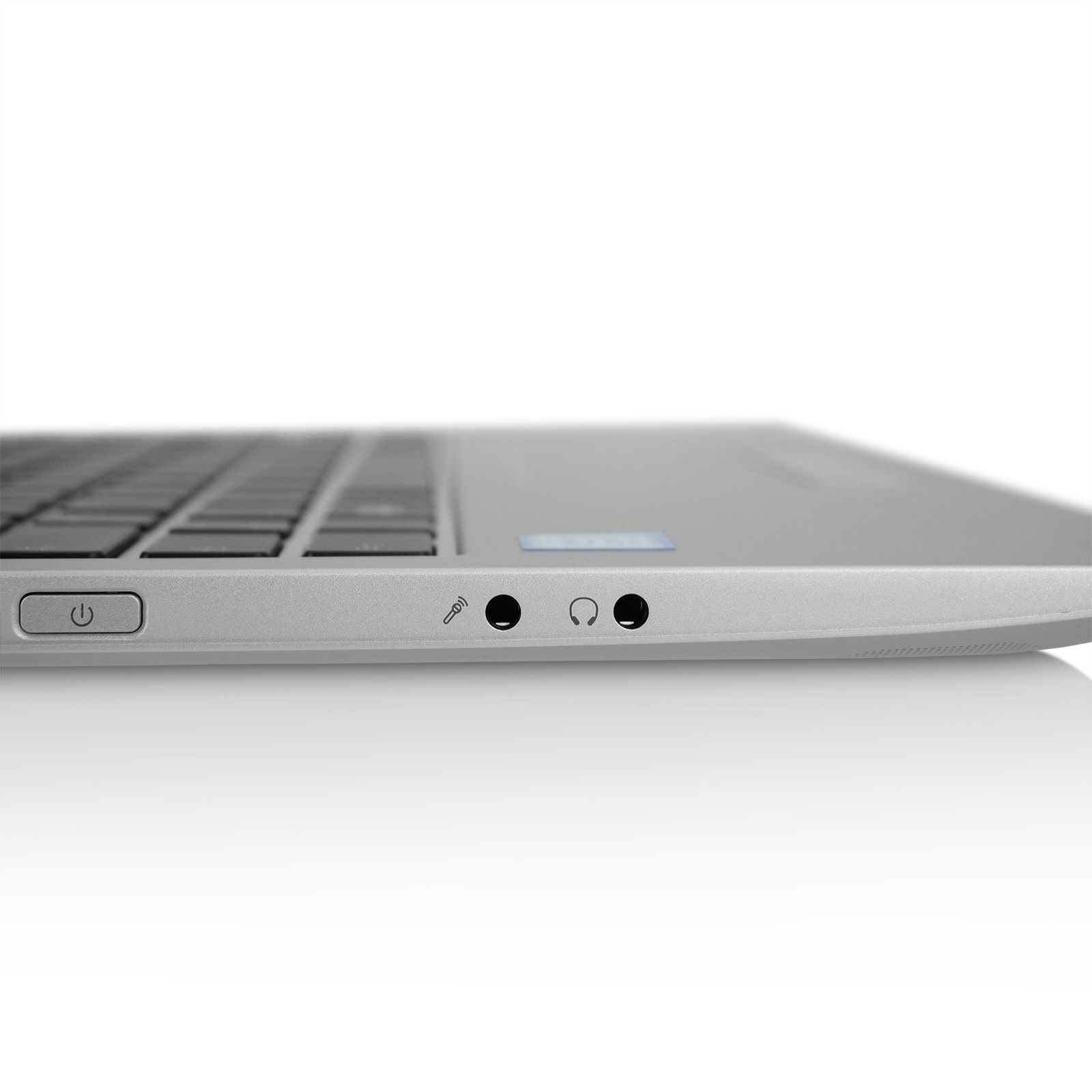

1x Headphones
1x Microphone

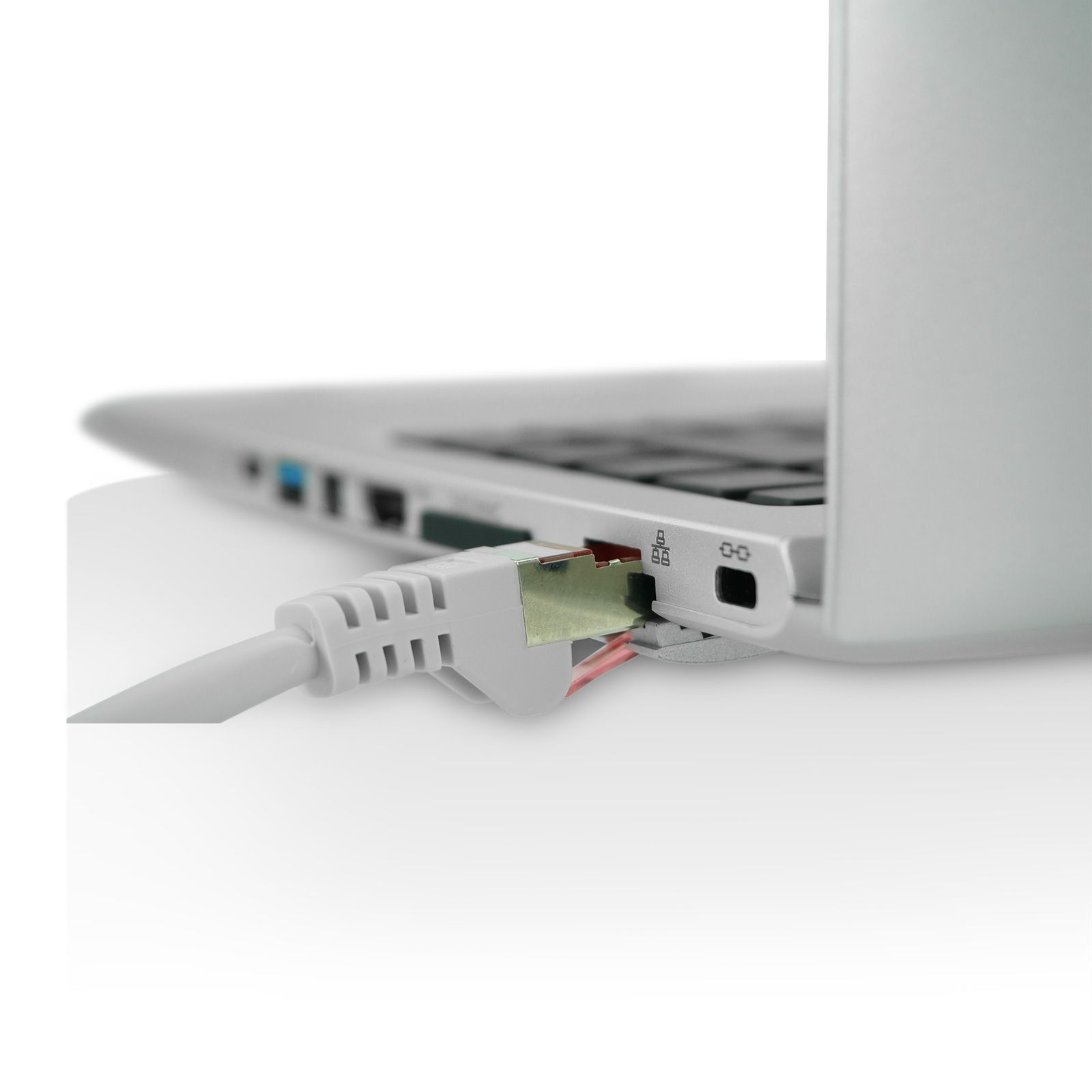

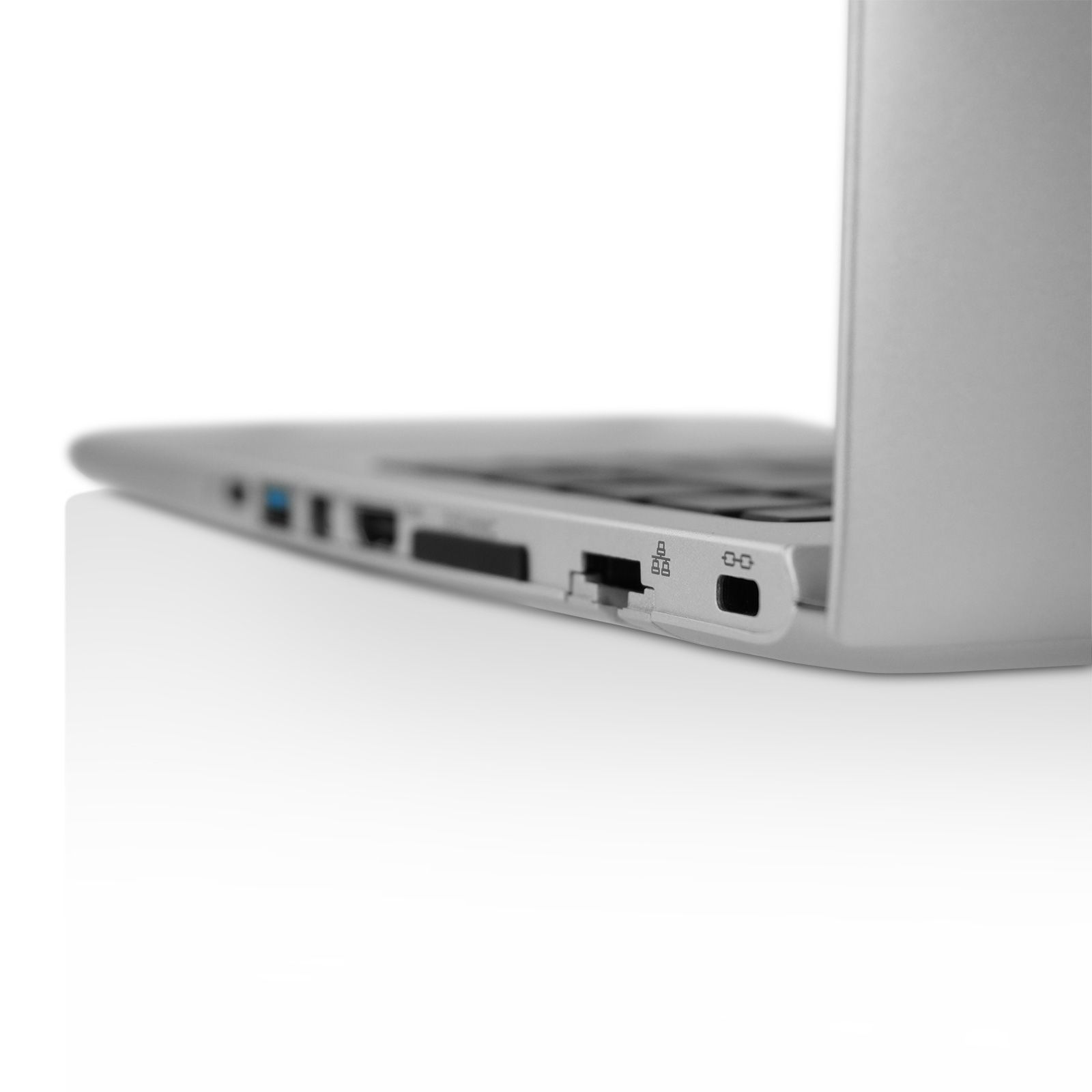

1x Gigabit-LAN-Port
1x Charging port
1x Card-Reader
1x SIM-Card Slot (microSIM shape)
1x Kensington

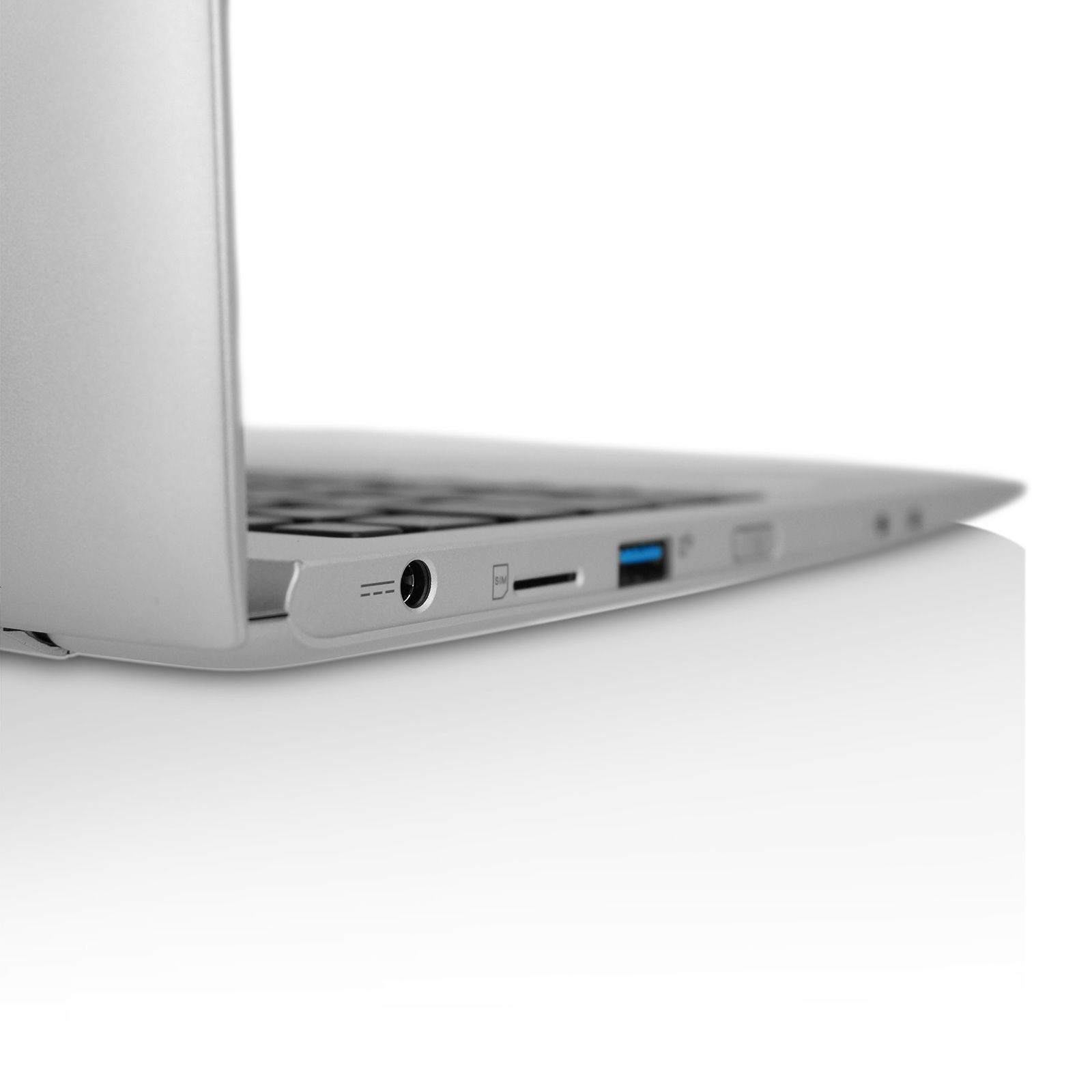

1x DC-IN/power connection
Security
- Kensington-Lock mounting
- Intel Management Engine (Intel ME) can be disabled directly via the BIOS
- Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
- WLAN & Bluetooth can be deactivated directly via the BIOS
- TPM 2.0 Chip (per BIOS de-/activeable)
Battery & power supply
Large 36 Wh lithium-ion battery. (Interchangeable after opening the base plate.
Mini power supply unit, only 88x35x26mm (LxWxH), 100g or 200g with all cables, 40W 19V 2.1A
Power plug:
Type: Coaxial
Inner diameter: 1.7mm
Outer diameter: 4.0mm
Length: 11mm
Lifetime of batteries
The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information
Battery runtime
Approx. 8 hours tested with TUXEDO_OS and Ubuntu 20.04 with 8GB RAM, 250GB Samsung 860 EVO and Kernel 5.4.
We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.
Main processor
Energy efficient Intel Core-i Mobile-CPU:
Intel Core i5-10210U (4x 1.6-4.2GHz Quad-Core, 8 Threads, 6MB Cache, 15W TDP)
Intel Core i7-10510U (4x 1.8-4.9GHz Quad-Core, 8 Threads, 8MB Cache, 15W TDP)
Graphics card
Energy-saving graphic chip integrated in the CPU:
Intel UHD Graphics 620
Memory
Type: DDR4 SO-DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with at least 2 modules)
Hard drive
Standard 2,5" HDD or SSD, max. 7mm height
Manufacturer and speed see configurator
Standard and maximum see configurator
Mass storage (SSD / HDD)
Fast M.2 SSDs
Manufacturer and speed see configurator
Standard and maximum see configurator
Communication / Network
Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)
Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1
LTE module
LTE/HSDPA+ 4G Huawei ME936
Form factor: M.2 Interface
Supported frequency bands
LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Transfer rates
LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
HSPA+: ↑ 11 Mbps ↓ 42 Mbps
WCDMA: ↑ 384 kbps ↓ 384 kbps
GPS
GPS Standalone, A-GPS, GPS XTRA, Glonass
LTE/HSDPA+ 4G Huawei ME906s
Form factor: M.2 Interface
Supported frequency bands
LTE (FDD): B1/B2/B3/B5/B7/B8/B20/B28
HSPA+/HSPA/UMTS: B1/B2/B5/B8
EDGE/ GPRS/GSM: 1900/1800/900/850 MHz
Transfer rates
LTE FDD: ↑ 50 Mbps ↓ 150 Mbps
HSPA+: ↑ 5.76 Mbps ↓ 42 Mbps
WCDMA: ↑ 384 kbps ↓ 384 kbps
GPS
GPS Standalone, A-GPS, GPS XTRA, Glonass
Webcam / Laptop camera
1,0 Megapixel (1,0 MP) camera including microphone
Sound / Audio
High Definition Audio
2 speakers: 2x 2W
Integrated microphone
Card reader
9-in-1 Card Reader
- MMC / RSMMC
- SD / SDHC / SDXC / Micro SD (Adapter necesssary)
- MS / MS Pro / MS Duo
Cooling System & Fan
Temperature controlled fan
At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.
Custom performance and fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!
Operating systems
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
UEFI firmware
With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).
For this purpose, the following functions can be completely deactivated:
- On Intel CPUs: Intel Management Engine (IntelME)
- Webcam
- On Intel CPUs: Audio (Microphone & Sound)
- WLAN & Bluetooth
In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.
Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!
For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
