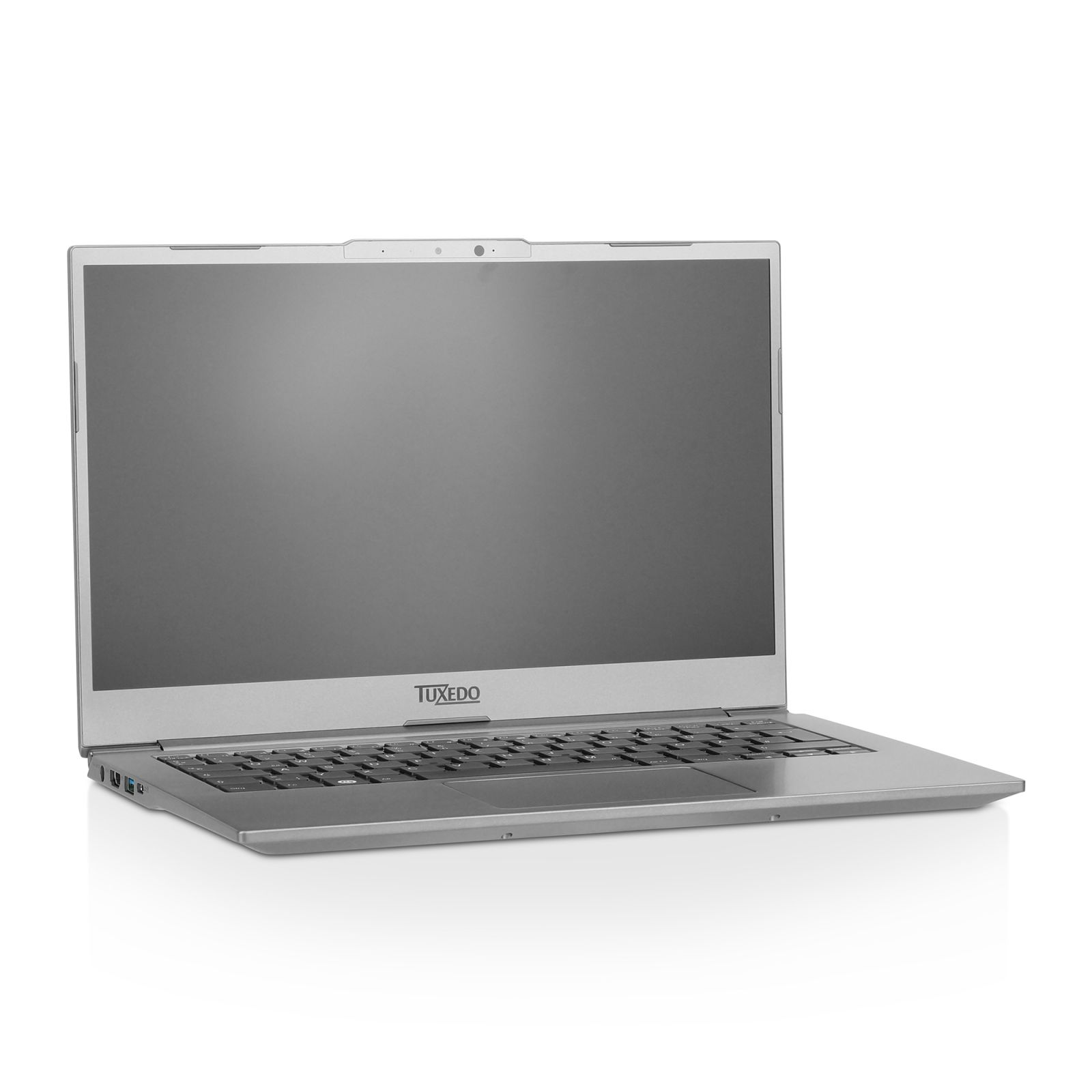

Display / Monitor

Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.

Typ: LED-Backlight Display
Model: AUO B140HAN06.2
Size: 14 Inch (35,56cm)
Viewing Angle: 89°/89°/89°/89°

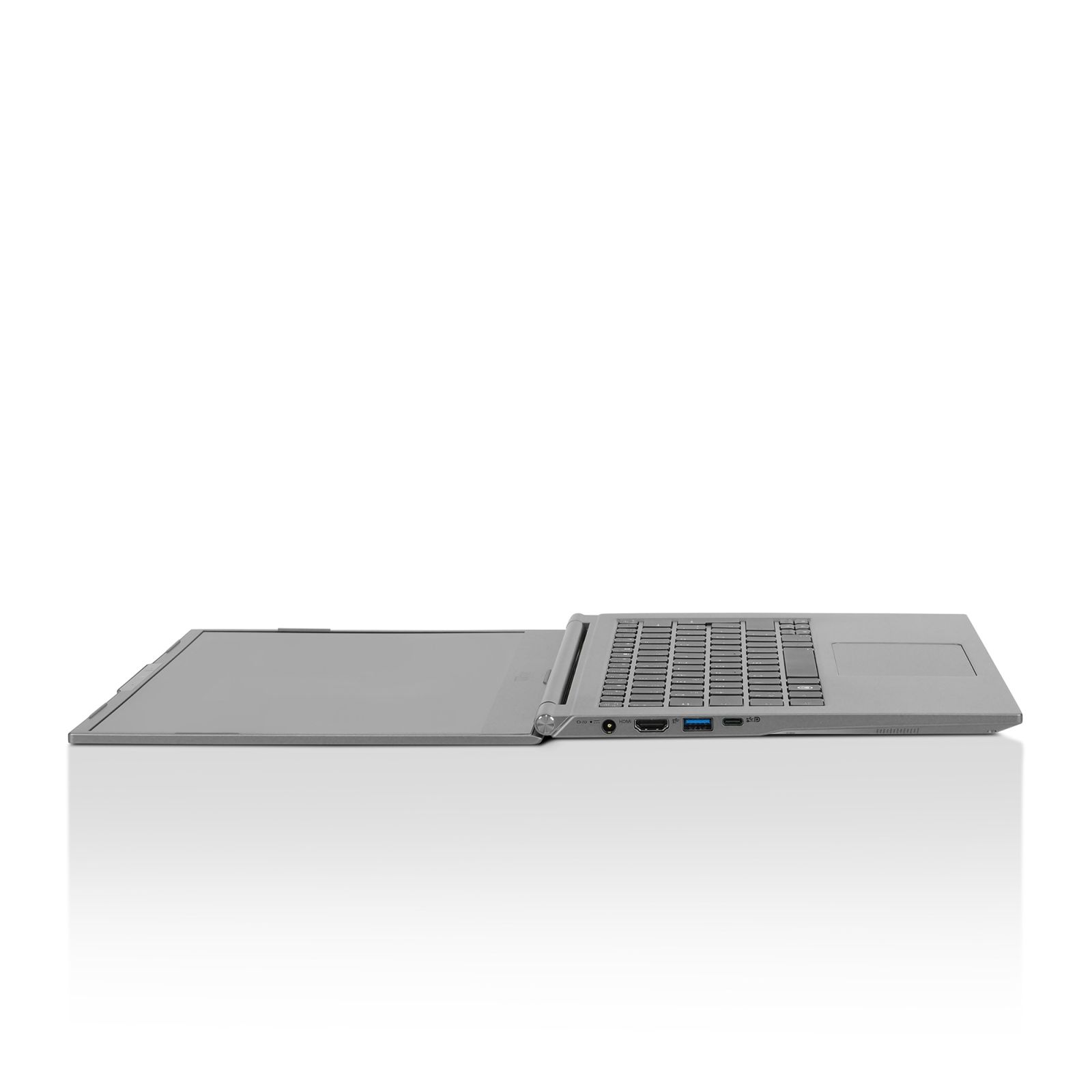

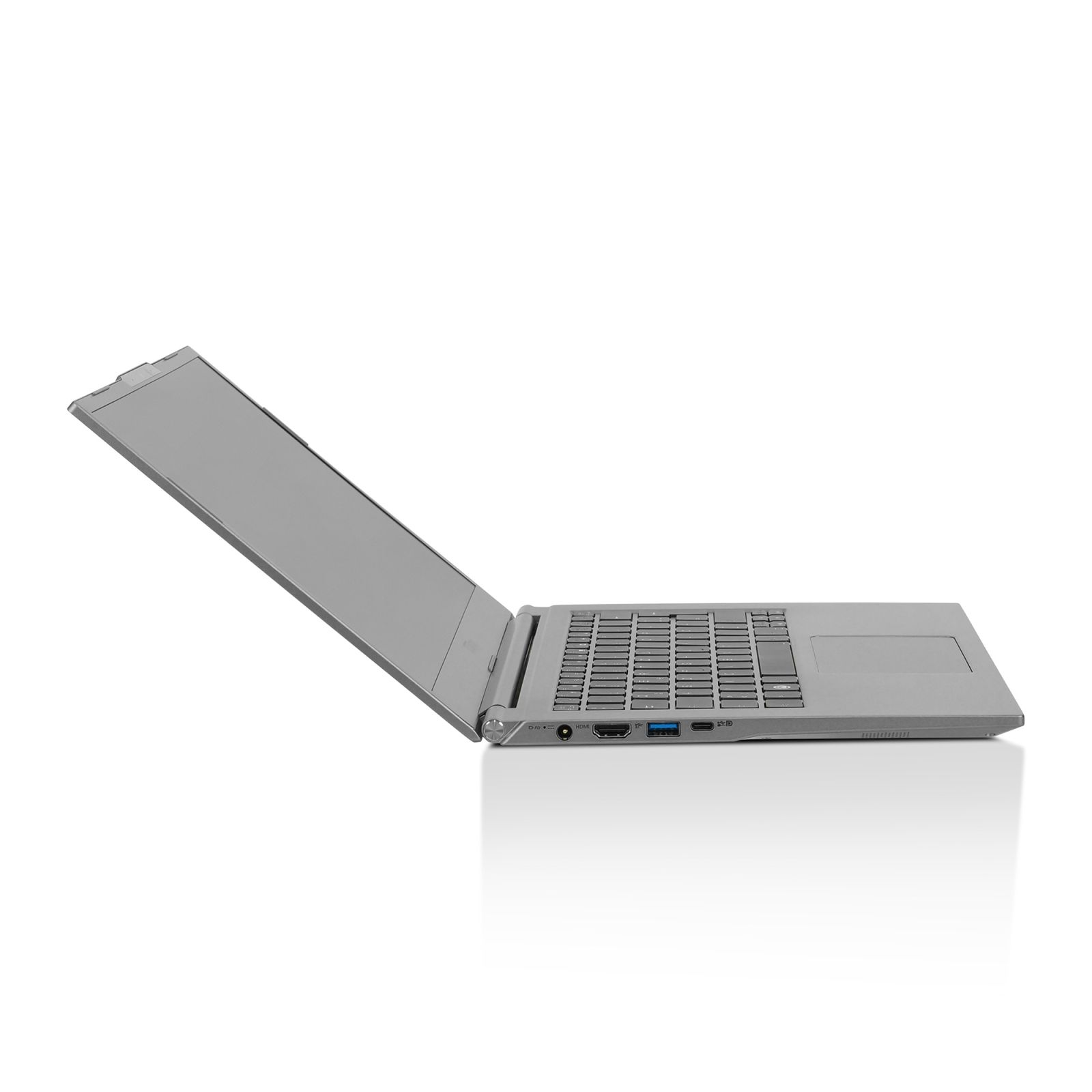

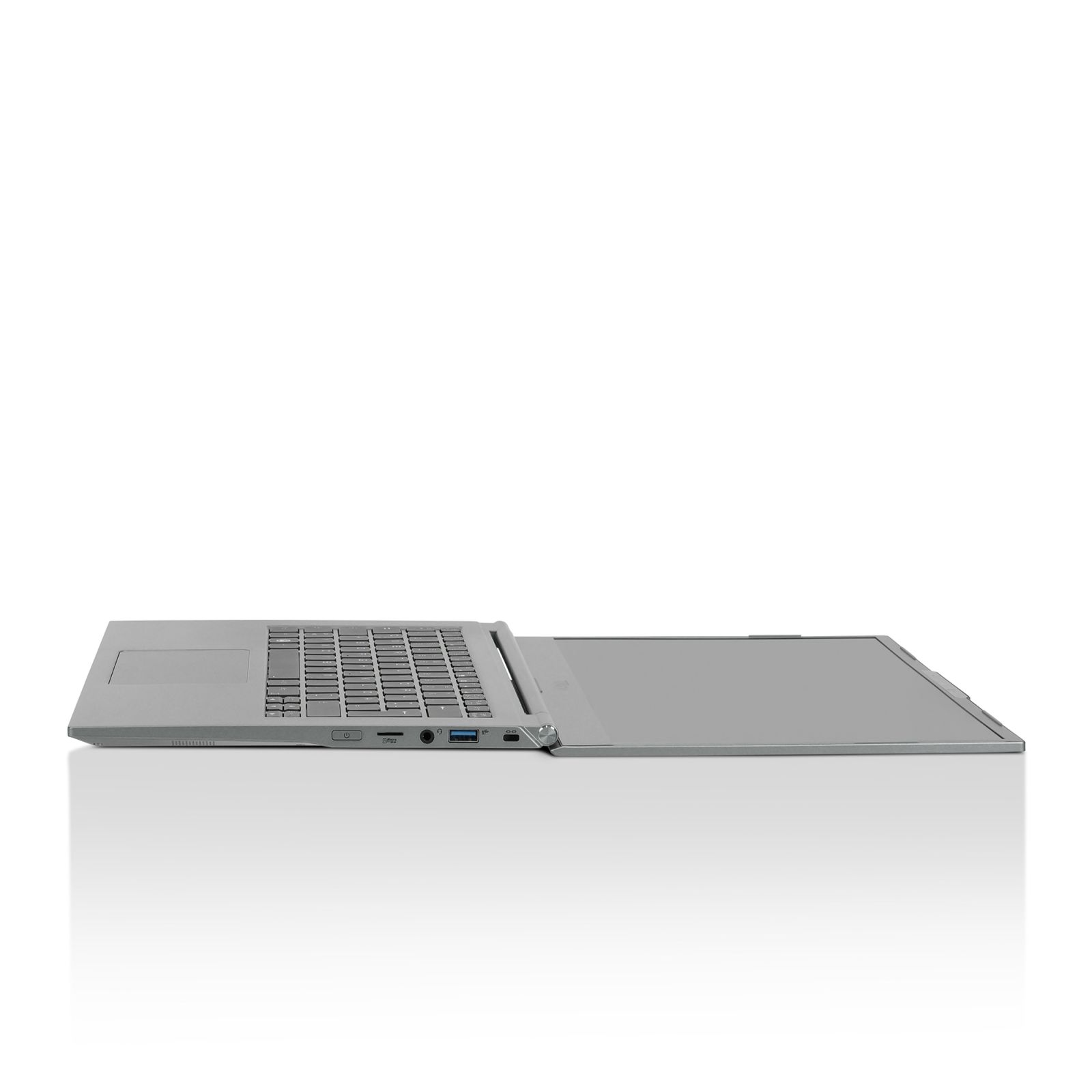

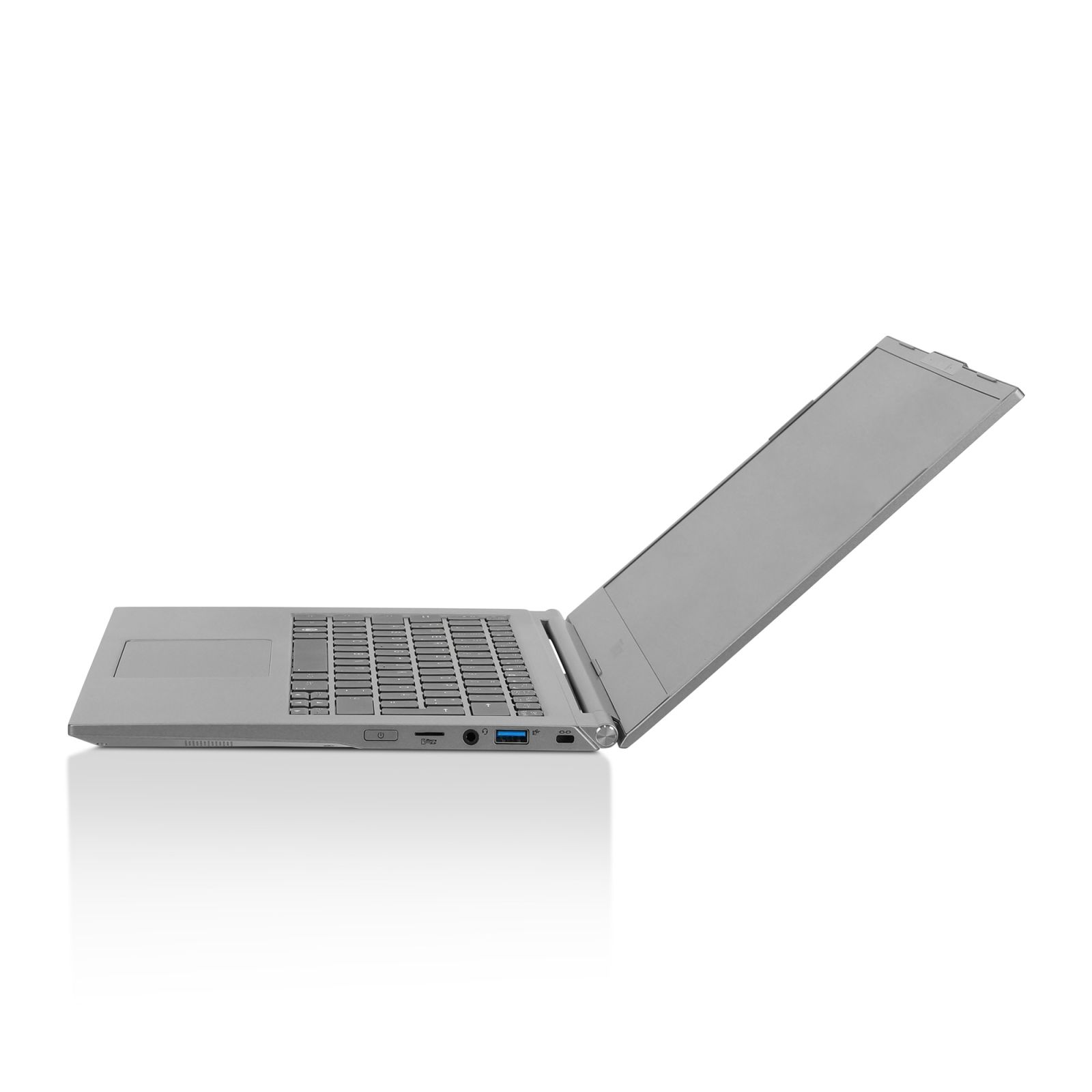

The opening angle of the display hinges is 180°
Resolution: Full-HD IPS-Panel, 1920 x 1080, matt/anti-reflective/non-glare
Power consumption: Low power design (max. 1,65 W)
Maximum brightness: 300 cd/m²
Maximum contrast: 1200:1
NTSC: N7 | sRGB: 100%

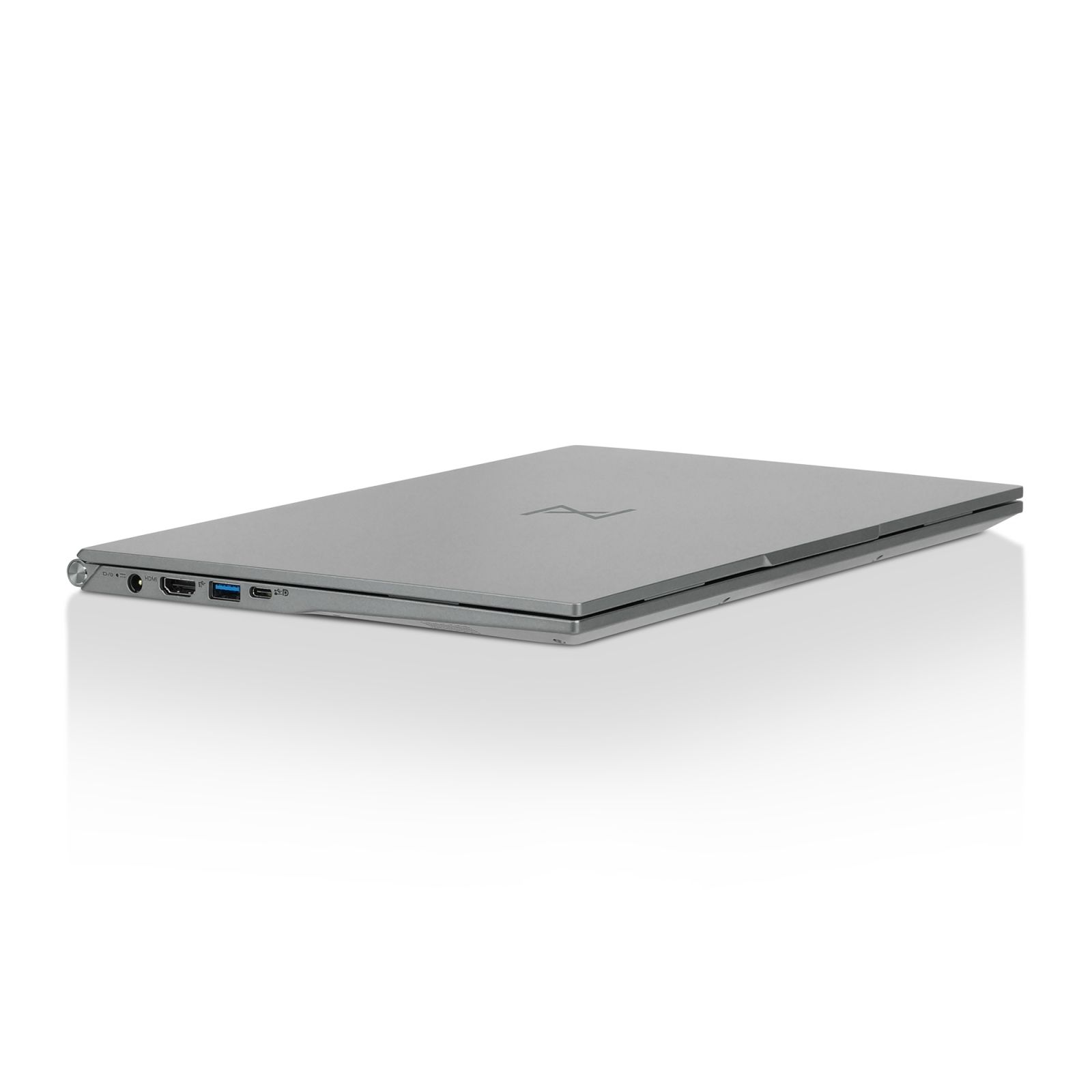

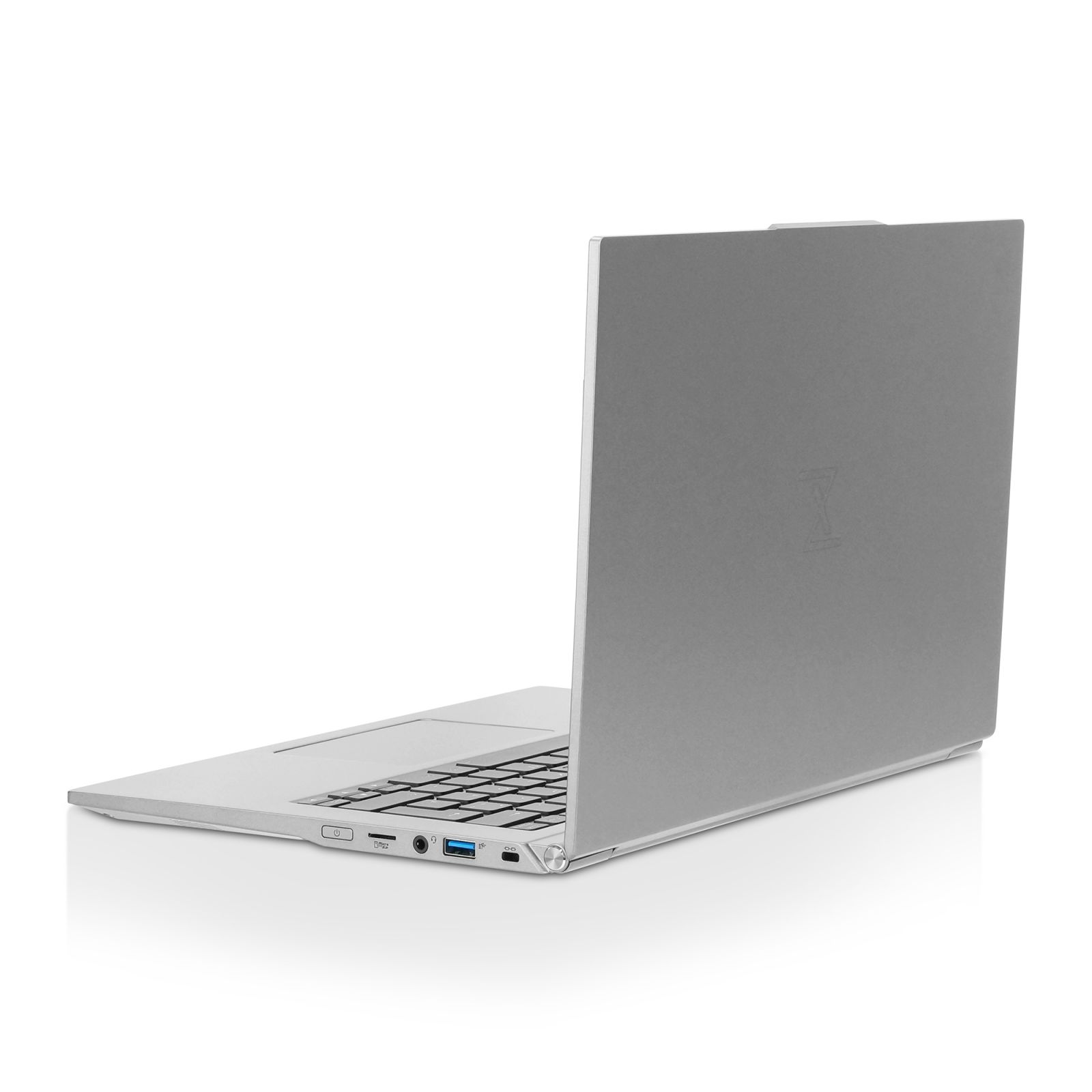

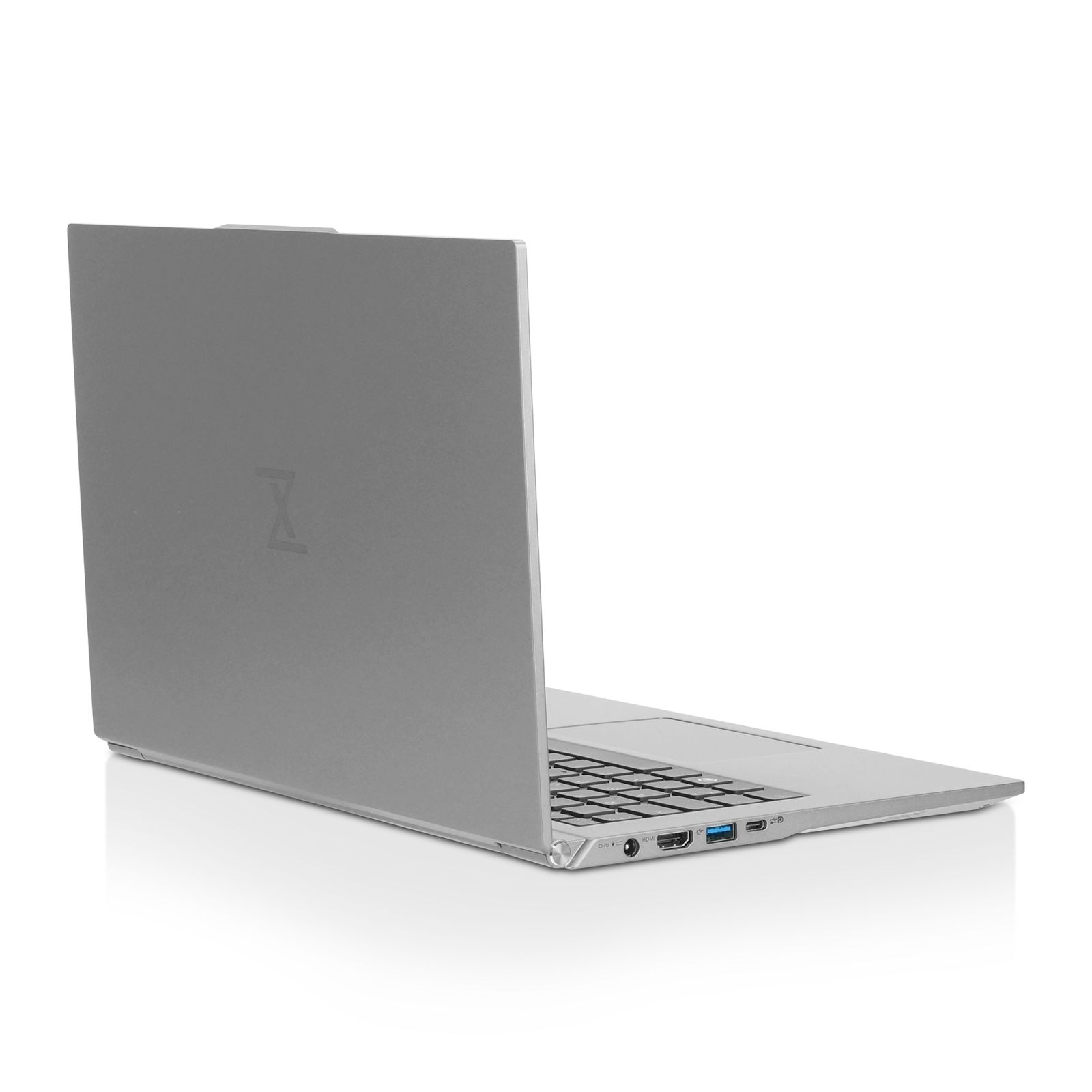

Chassis

Notebook: Length: 322 mm; Width: 216,8 mm; Height: 16,5 mm
Weight: ca. 1,1 kg incl. battery, depending on equipment

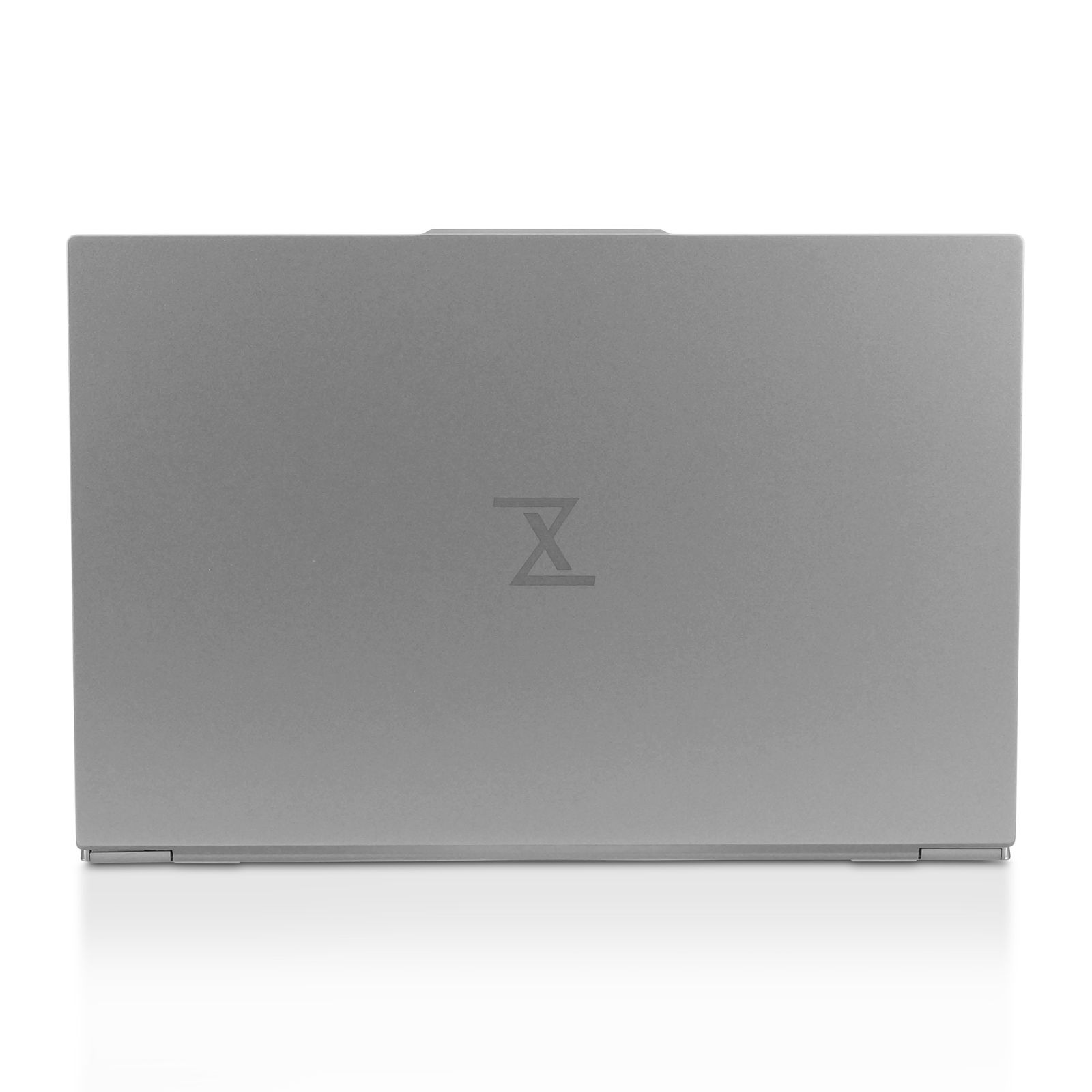

Material: Display lid, top and bottom case made of magnesium alloy (AZ91D), Display frame made of resin
Certified according to military standard MIL-STD 810G

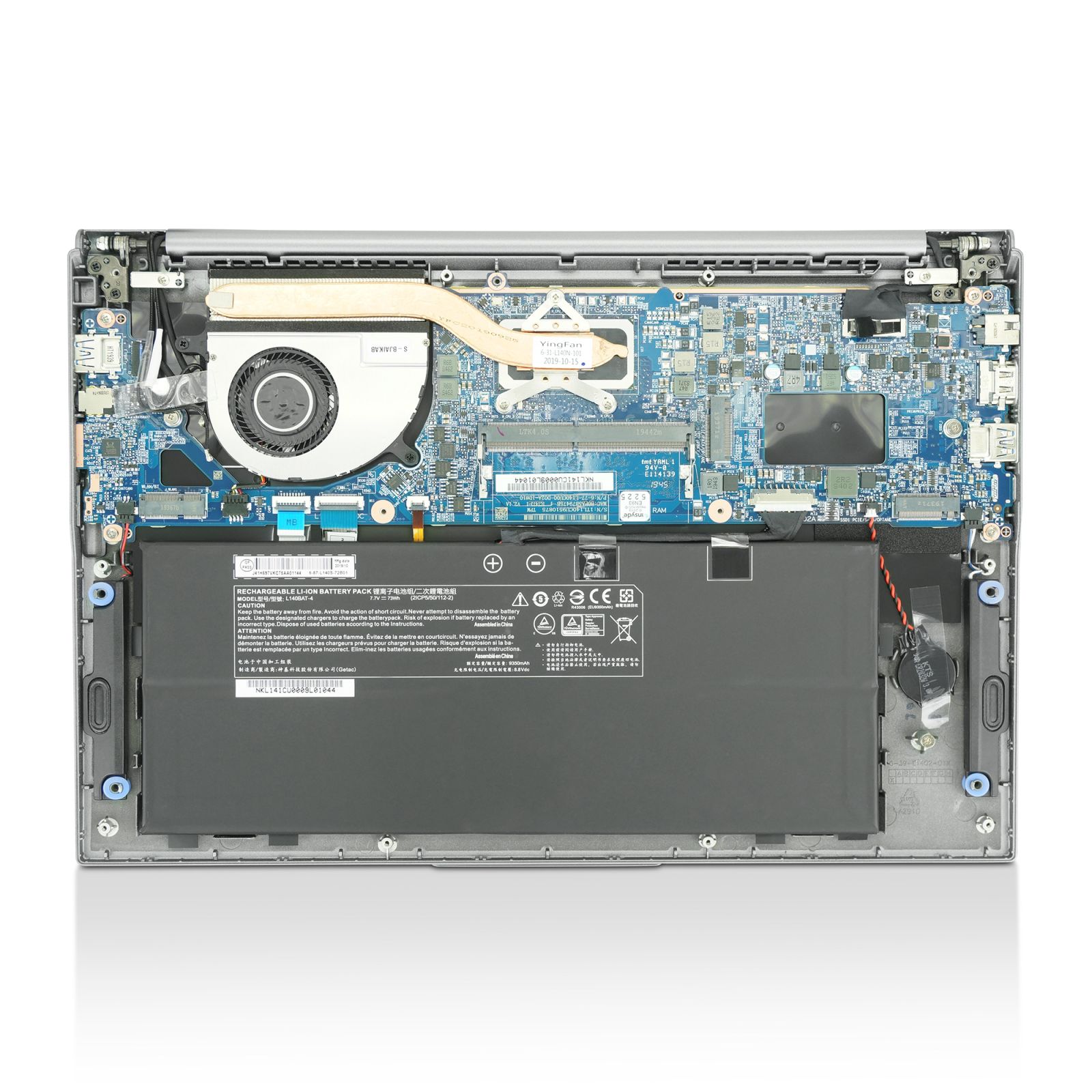

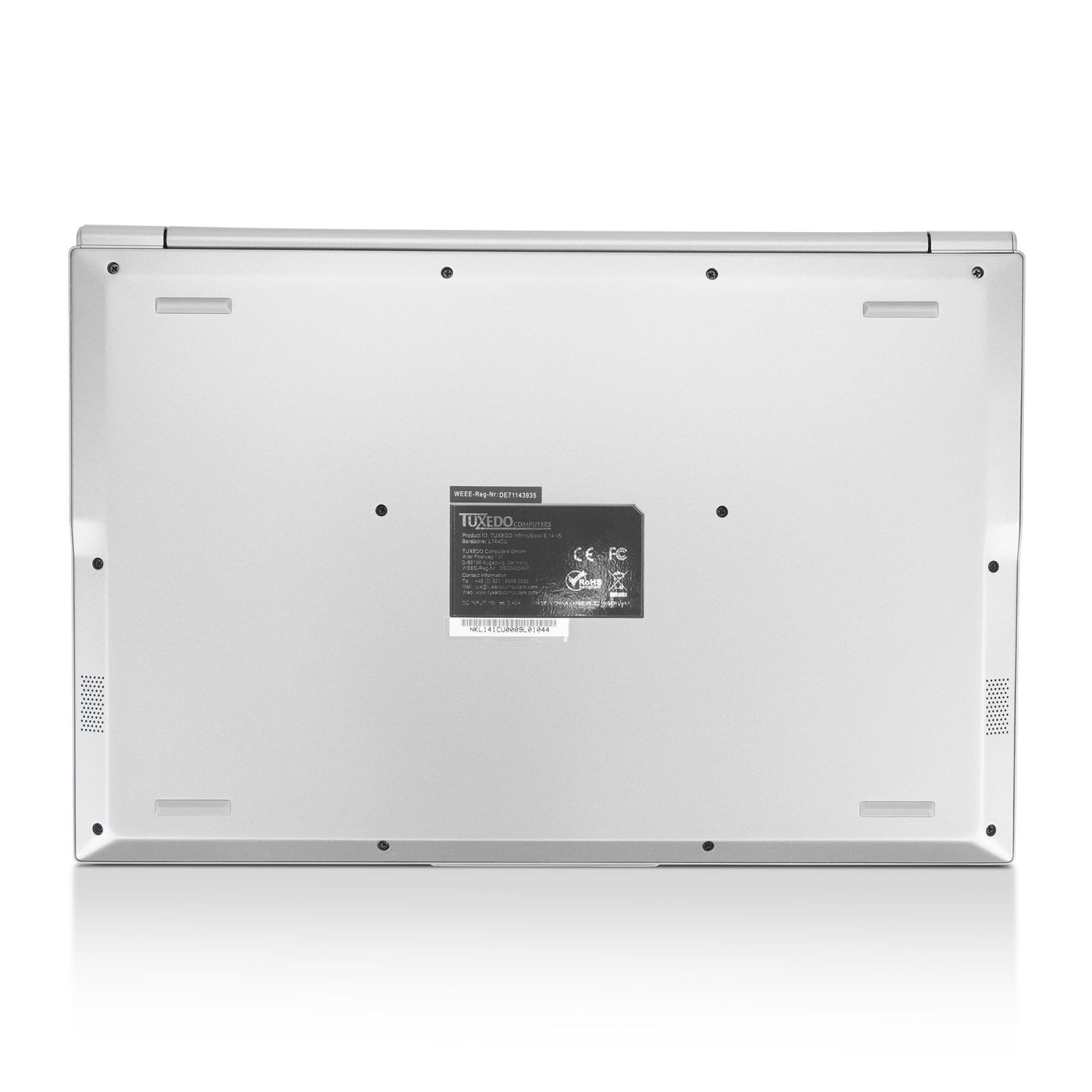

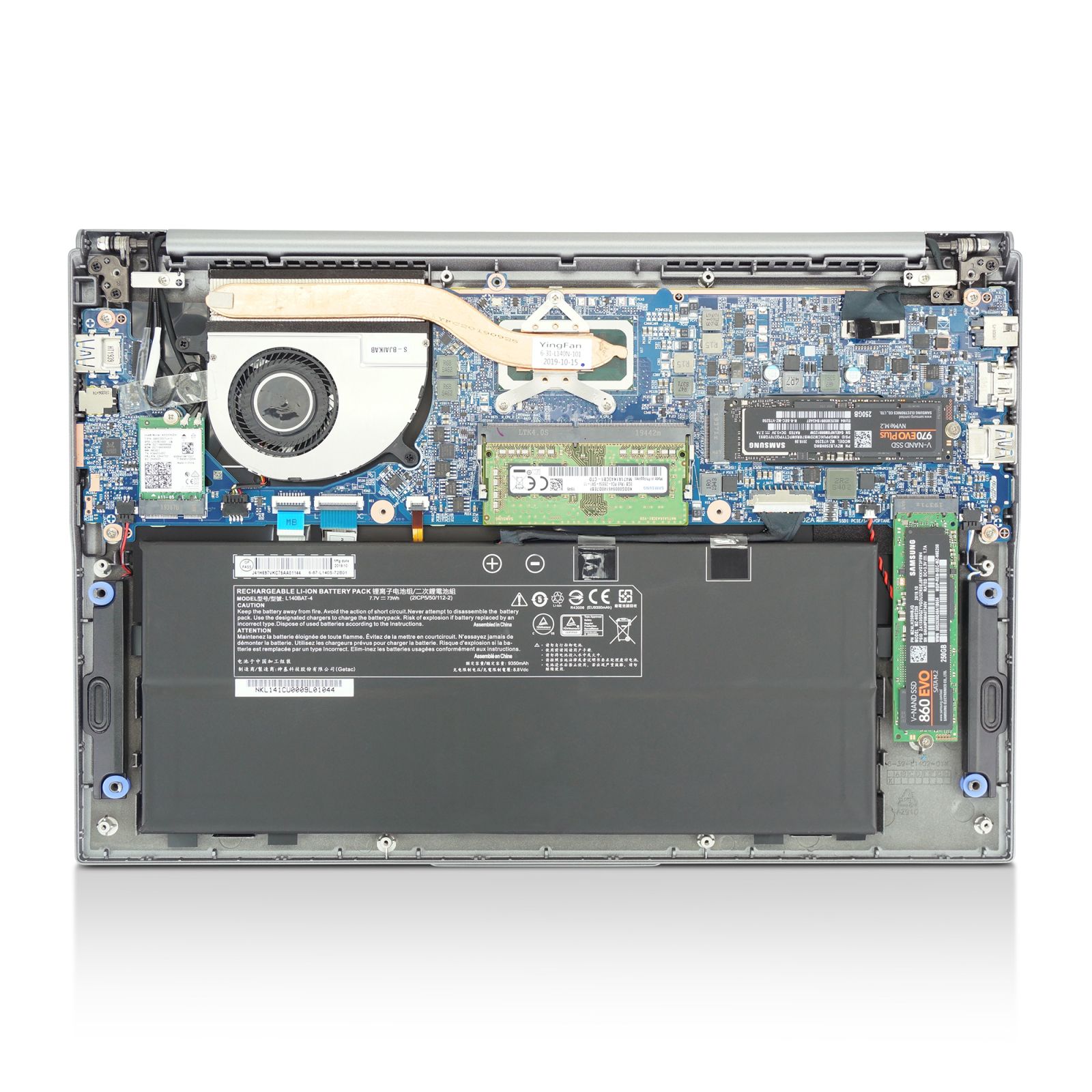

Maintenance: After opening the base plate via a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.
Power supply: Length: 97 mm; Width: 52 mm; Height: 15 mm | 0,14kg

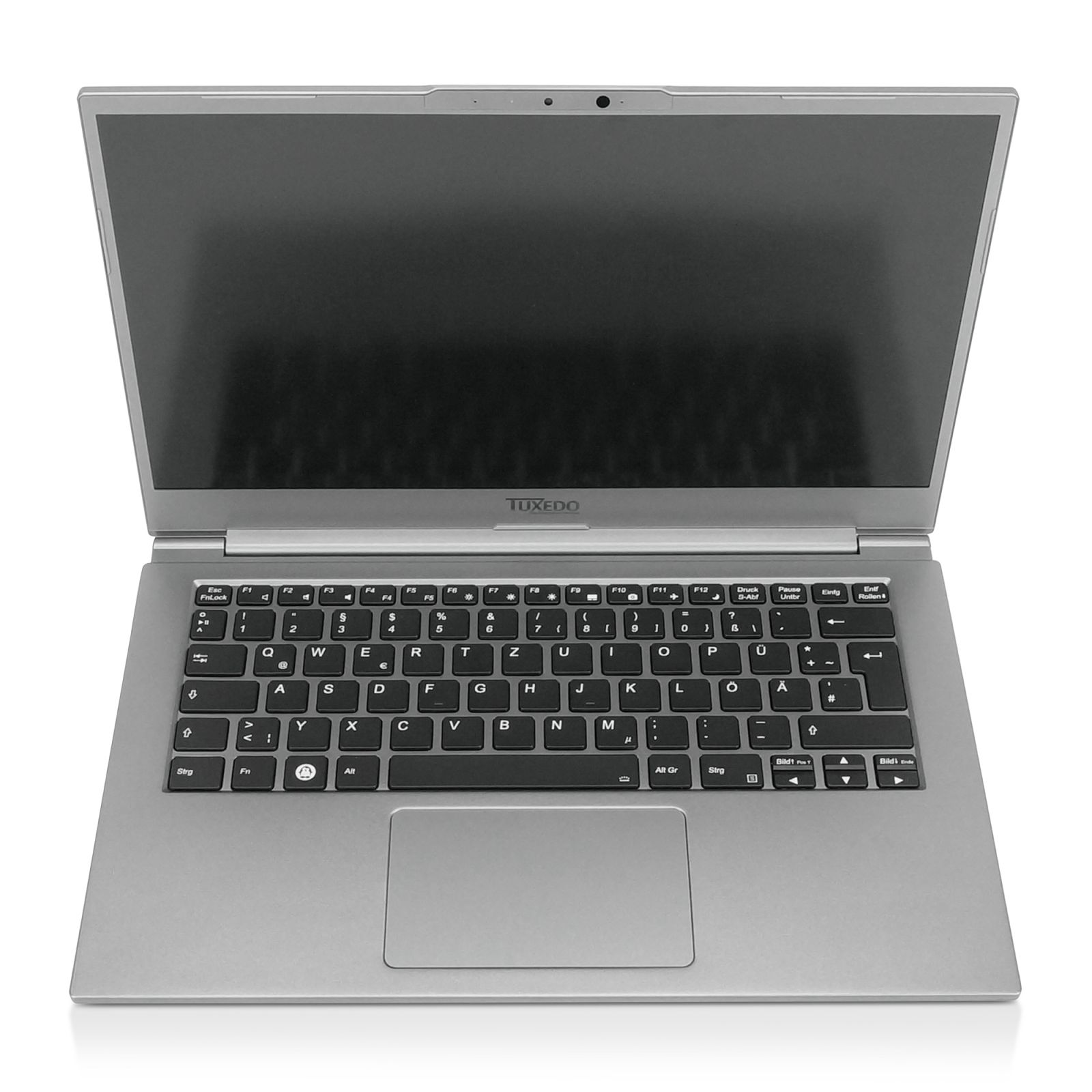

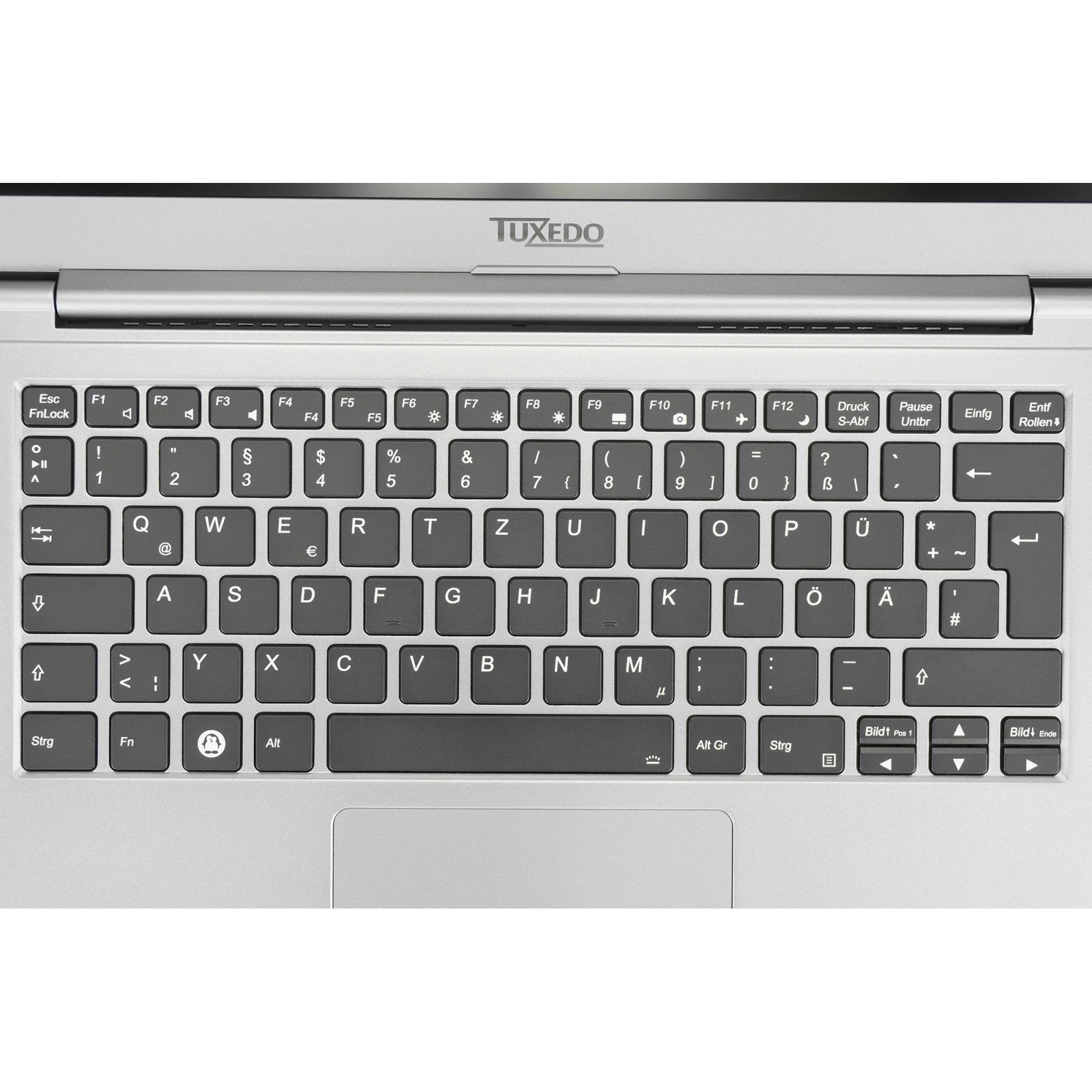

Keyboard and Touchpad

Monocolor (white) backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
TUX super-key on all layouts!
Big precision clickpad with integrated buttons and multi-gesture- & scroll-function

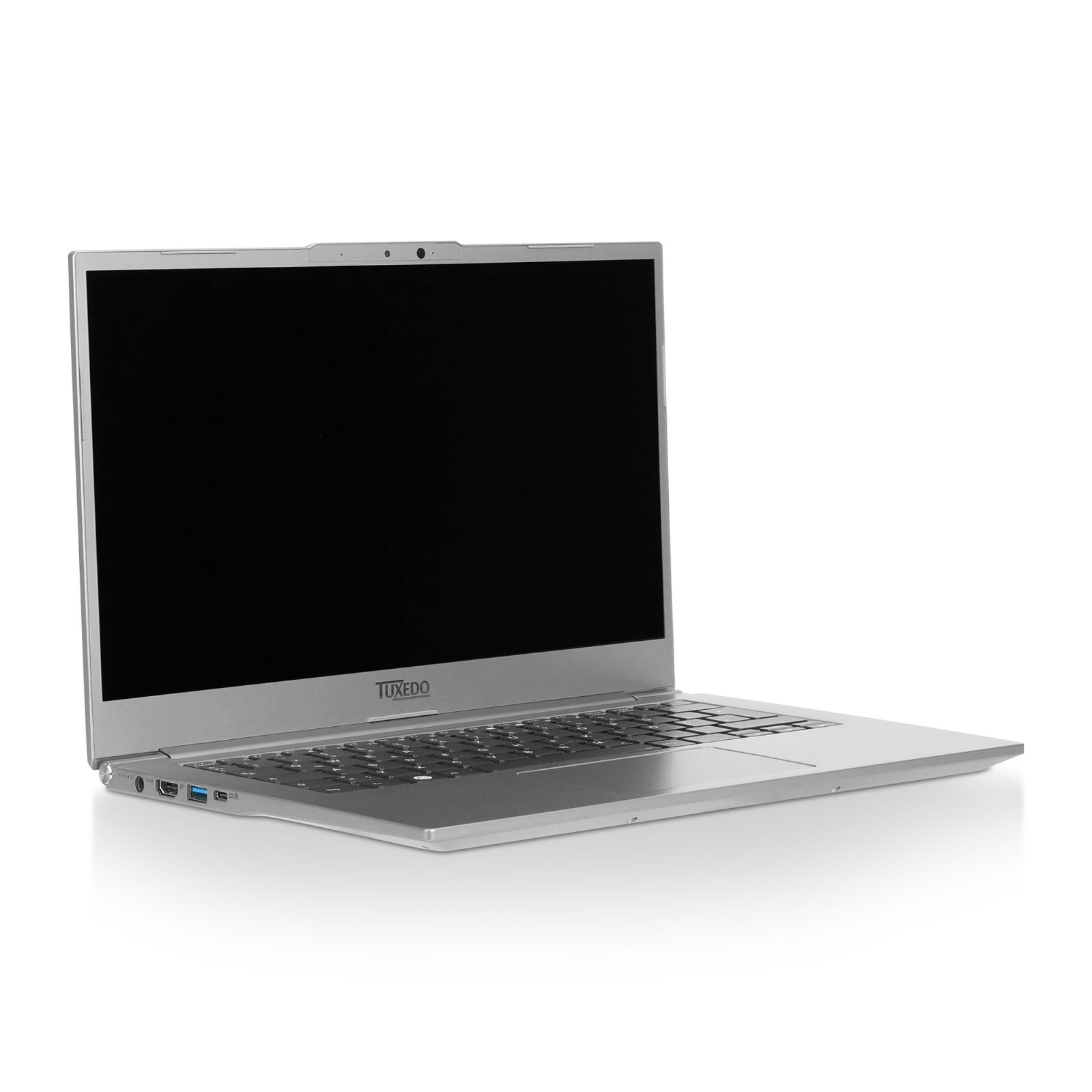

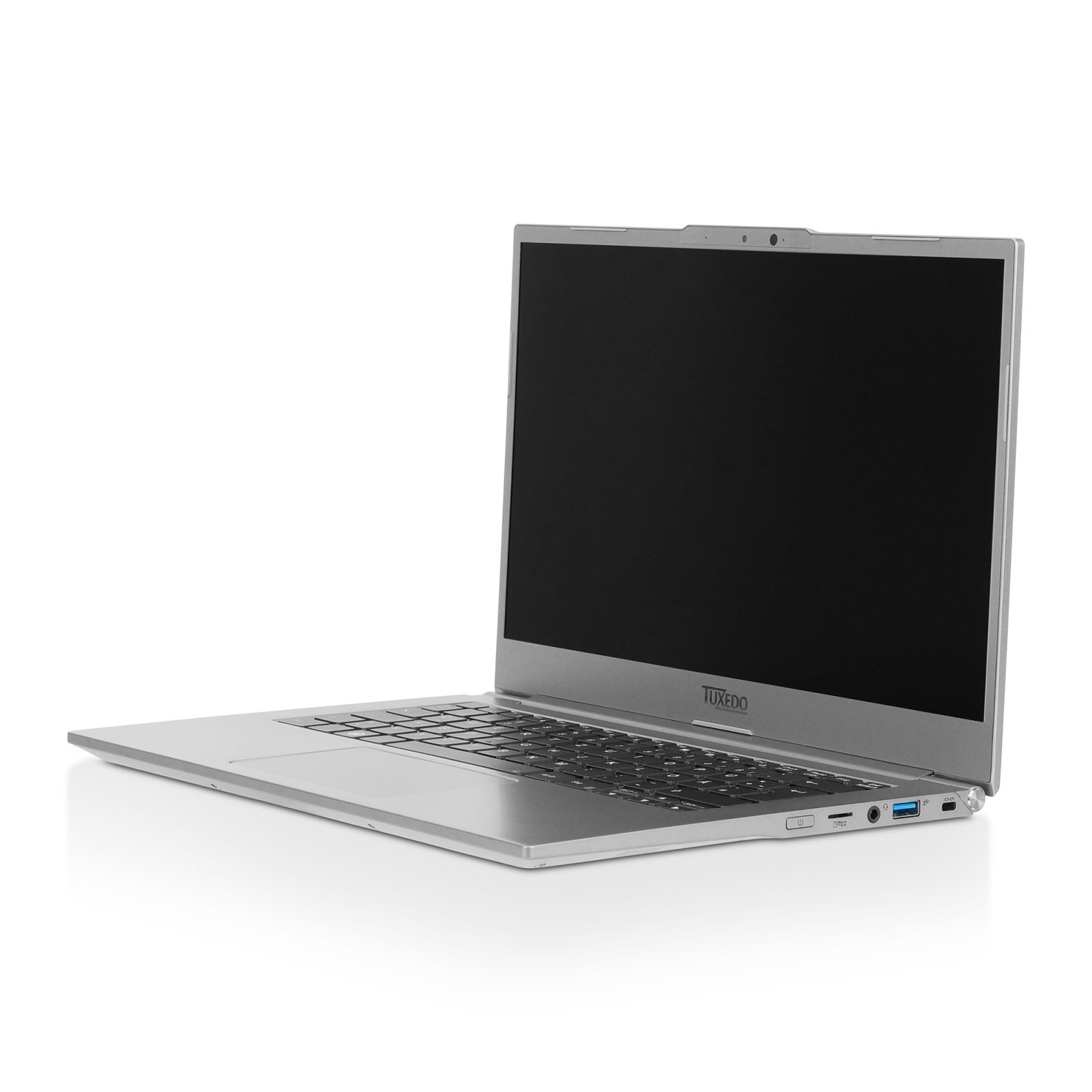

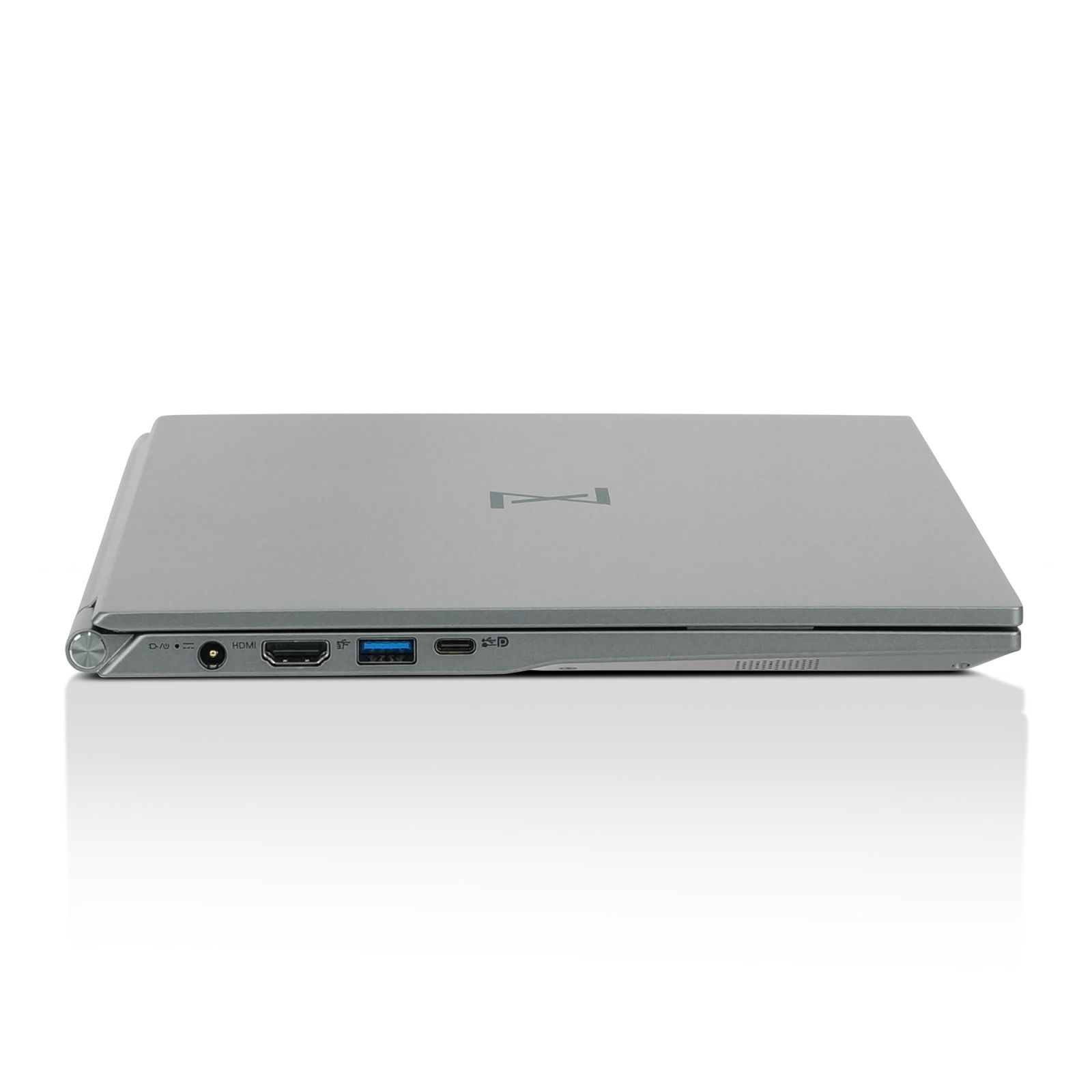

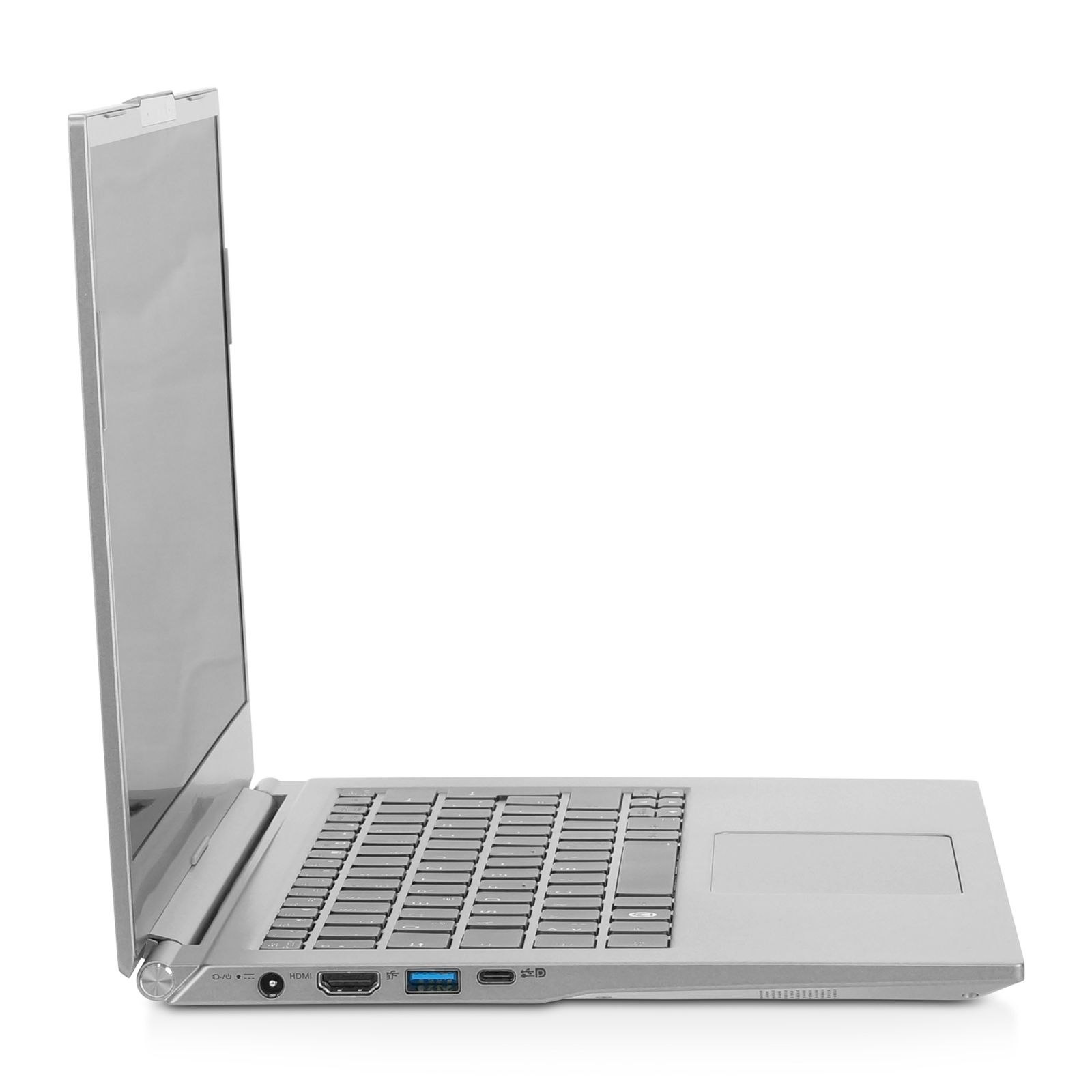

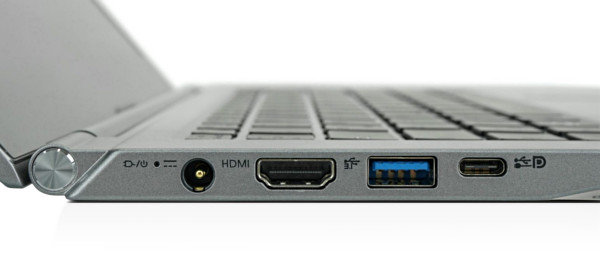

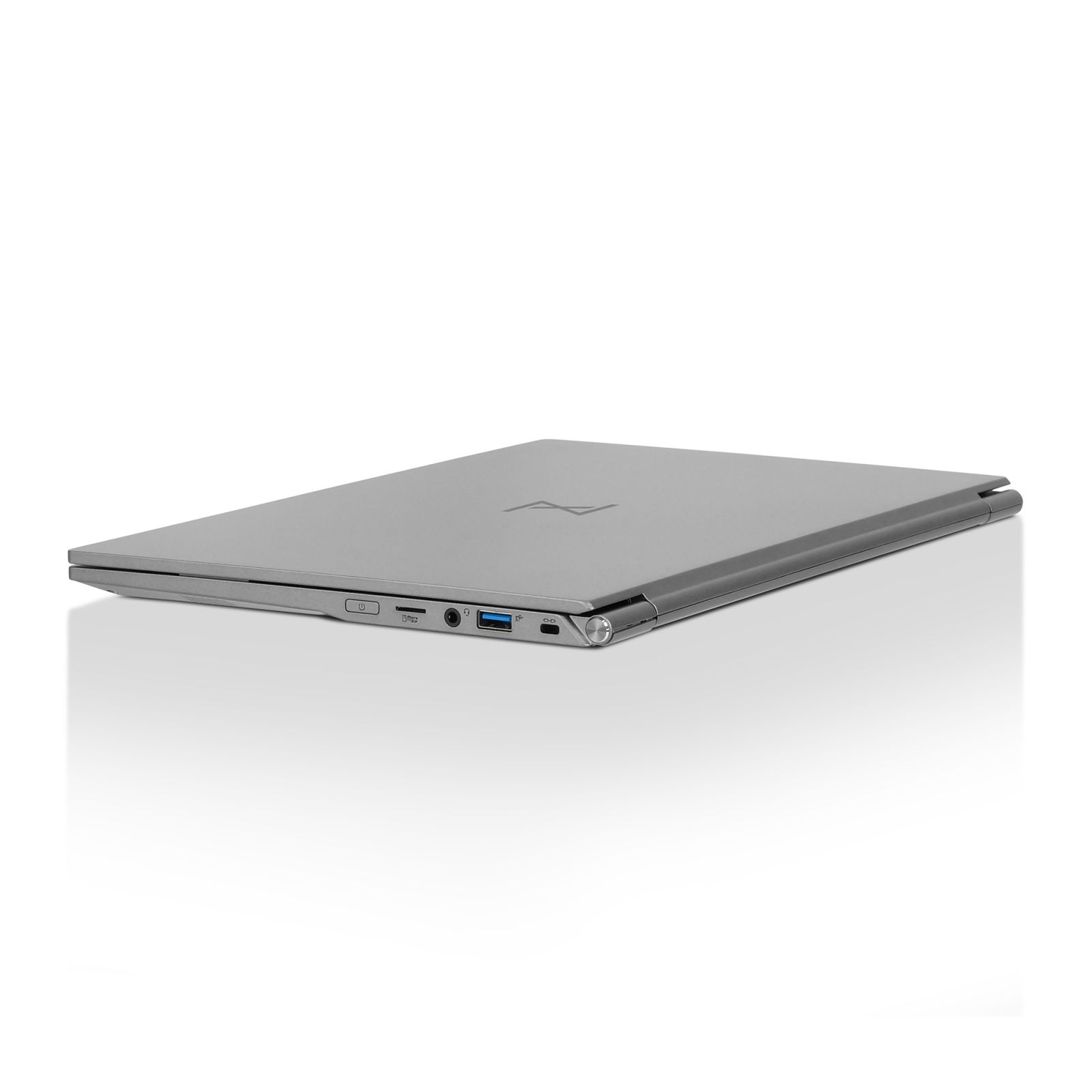

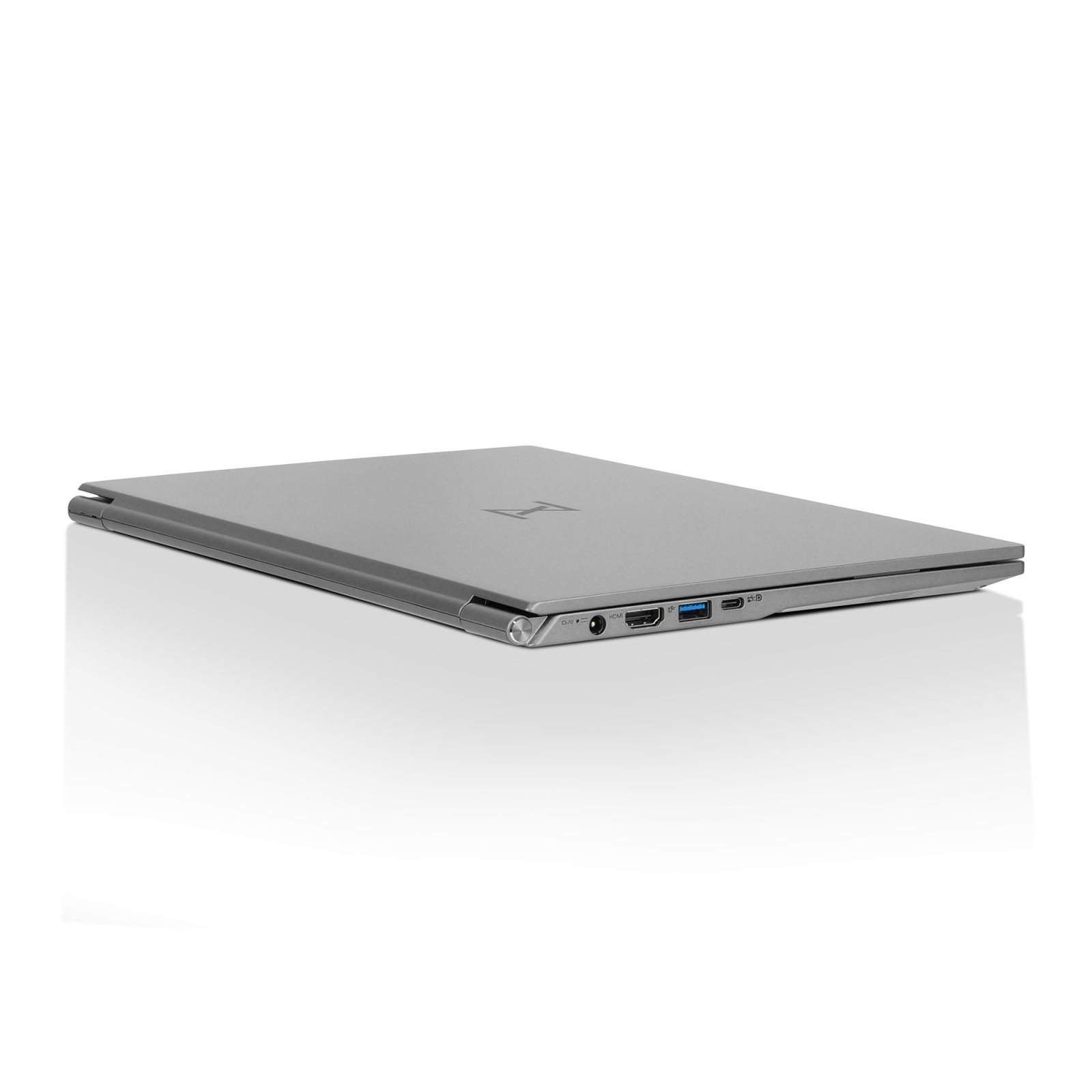

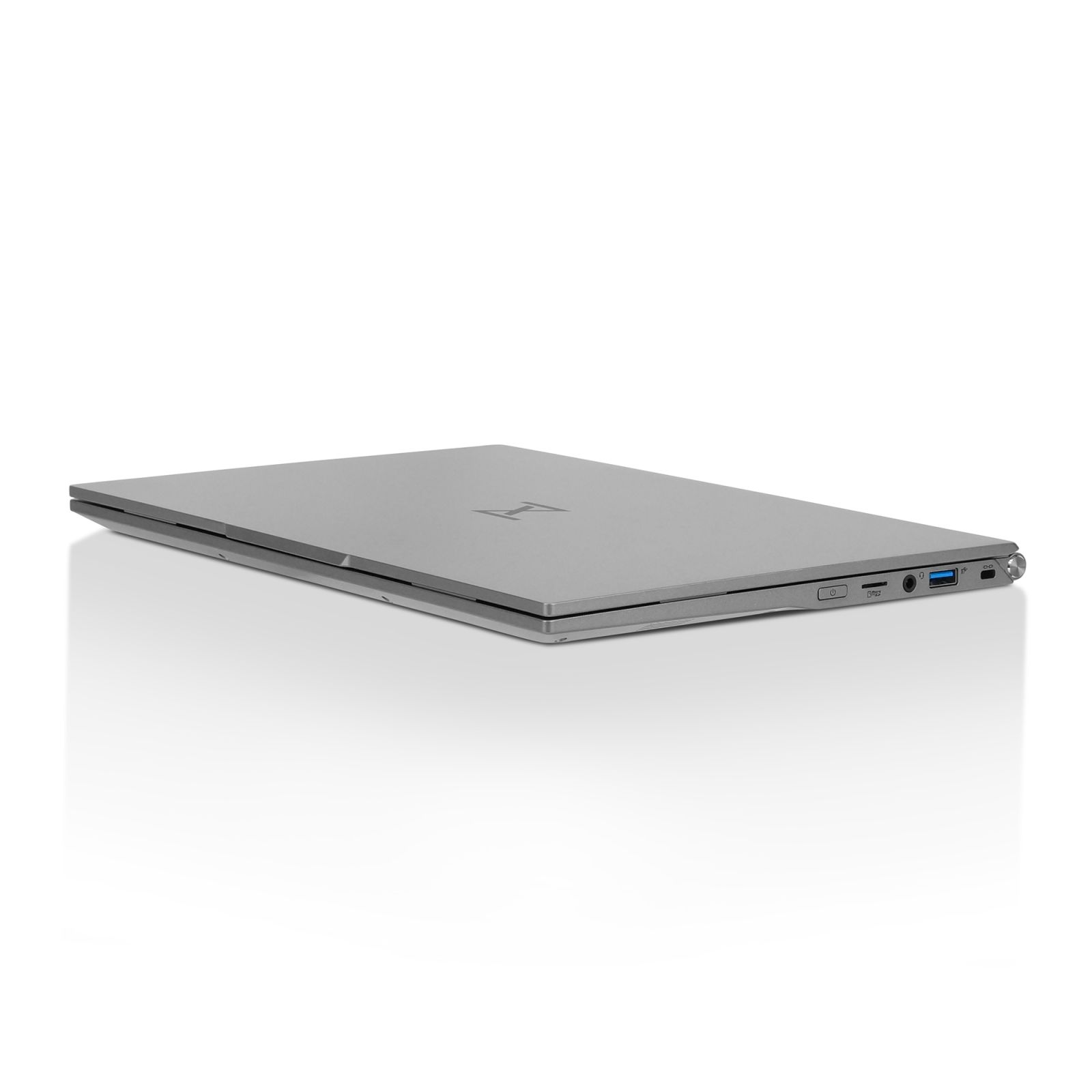

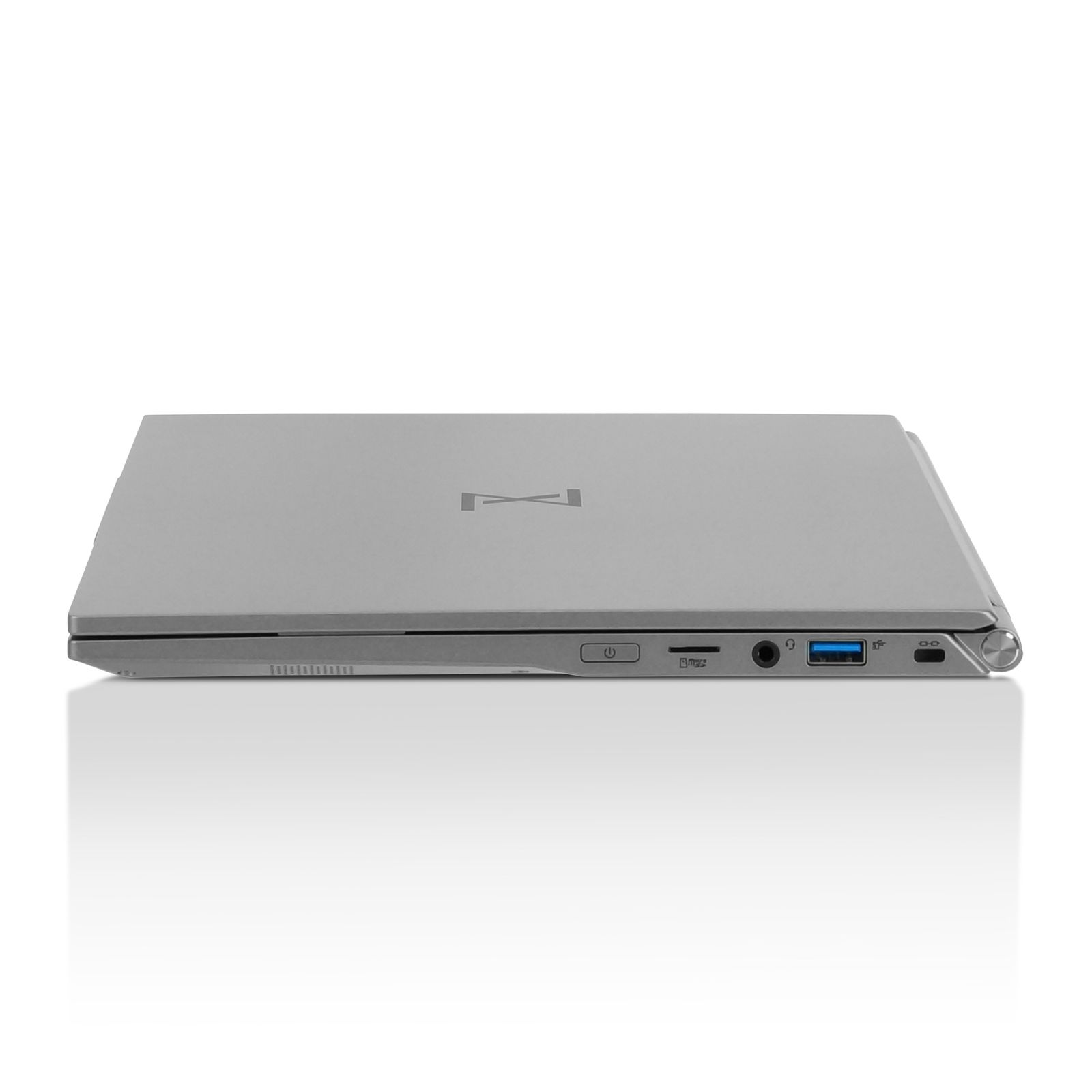

Ports

1x USB-A 3.2 Gen1
1x USB-A 3.2 Gen2
1x Thunderbolt 4 (PCIe Gen3 4 Lanes) / USB-C 4.0 Gen3x2 (DisplayPort 1.4a, Power Delivery DC-In*)
1x HDMI 1.4b (with HDCP)
1x 2-in-1 audio (headphone + mic)
1x microSD card reader
1x SIM card slot (LTE; Size: Micro-SIM)
1x DC-IN/power connection (also via USB-C*)

* Requirement: 20V, min. 2A

Card reader

Micro SD Cardreader
SIM card slot (LTE; Size: Micro-SIM)

Security

- Kensington-Lock mounting
- Intel Management Engine (Intel ME) can be disabled directly via the BIOS
- Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
- WLAN & Bluetooth can be deactivated directly via the BIOS

- TPM 2.0 chip (can be activated/deactivated via BIOS)

Battery & power supply

Integrated 73 Wh polymer smart lithium-ion battery (glued, but easy to detach)
65 W mini power supply (AC) | 97 (L) x 52 (W) x 15 (H) mm | 0,14kg | 100 - 240V | 50 - 60 Hz | Currrent (DC) Output 19 V, 3.42 A
Power can also be supplied via USB-C. Requirement: 20V, min. 2A
Shipping Mode (mode for minimizing battery discharge in the off state)

Power plug:
Type: Coaxial
Inner diameter: 2.5mm
Outer diameter: 5.5mm
Length: 10mm

Battery life:
Up to 24 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
Up to 14 hours at medium brightness with Wifi, at office work

We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.

Lifetime of batteries

The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information

Main processor

Intel Core i7-1165G7
(max. 4.7GHz Quad-Core, 4 cores /8 threads, 12MB Cache, 15W TDP)

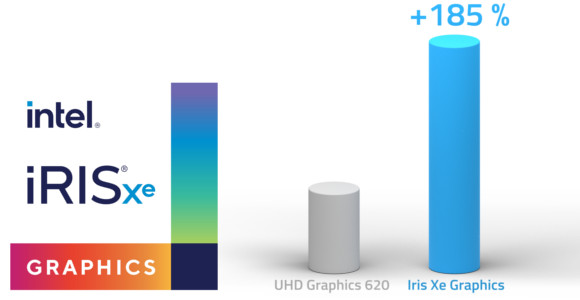

Graphics card

Intel Iris Xe Graphics | Integrated CPU graphics | Clock rates: 1300 MHz | EUs (Execution Units): 96

It is possible to drive 4 displays at the same time. 3 external plus the internal notebook display or 4 external displays.
Max. resolution (HDMI 1.4b): 3840 x 2160 @30 Hz
Max. resolution (DisplayPort 1.4a): 7680 x 4320 @60 Hz oder 2x 3840 x 2160 @ 60 Hz

Memory

DDR4 3200 MHz SoDIMM | 8 GB on board | 1 socket changeable | Max. 40 GB | Dual Channel up to 16 GB

Mass storage (SSD / HDD)

1x M.2 2280 for NVME or SATA SSD (PCI-Express 4.0 x4 or PCI-Express 3.0 x4)
1x M.2 2280 for a LTE module (not usable for SSDs!)
Intel Optane Technology

Communication / Network

Wireless/WIFI:
Intel Wi-Fi 6 AX200 Series:
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX200 Series
Version: Dual Mode Bluetooth 5.2

Webcam / Laptop camera

1.0 Megapixel webcam with face detection

Sound / Audio

High Definition Audio
2 x integrated speakers
Integrated microphone

Cooling System & Fan

Temperature controlled fan
At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

Custom performance and fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!

Operating systems

UEFI firmware

With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).

For this purpose, the following functions can be completely deactivated:

• On Intel CPUs: Intel Management Engine (IntelME)
• Webcam
• On Intel CPUs: Audio (Microphone & Sound)
• WLAN & Bluetooth

In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.

Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.

Warranty

2 years pick up and return (12 months on wearing parts like battery & power supply)

Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)

All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!

For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions

Package Contents

1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
