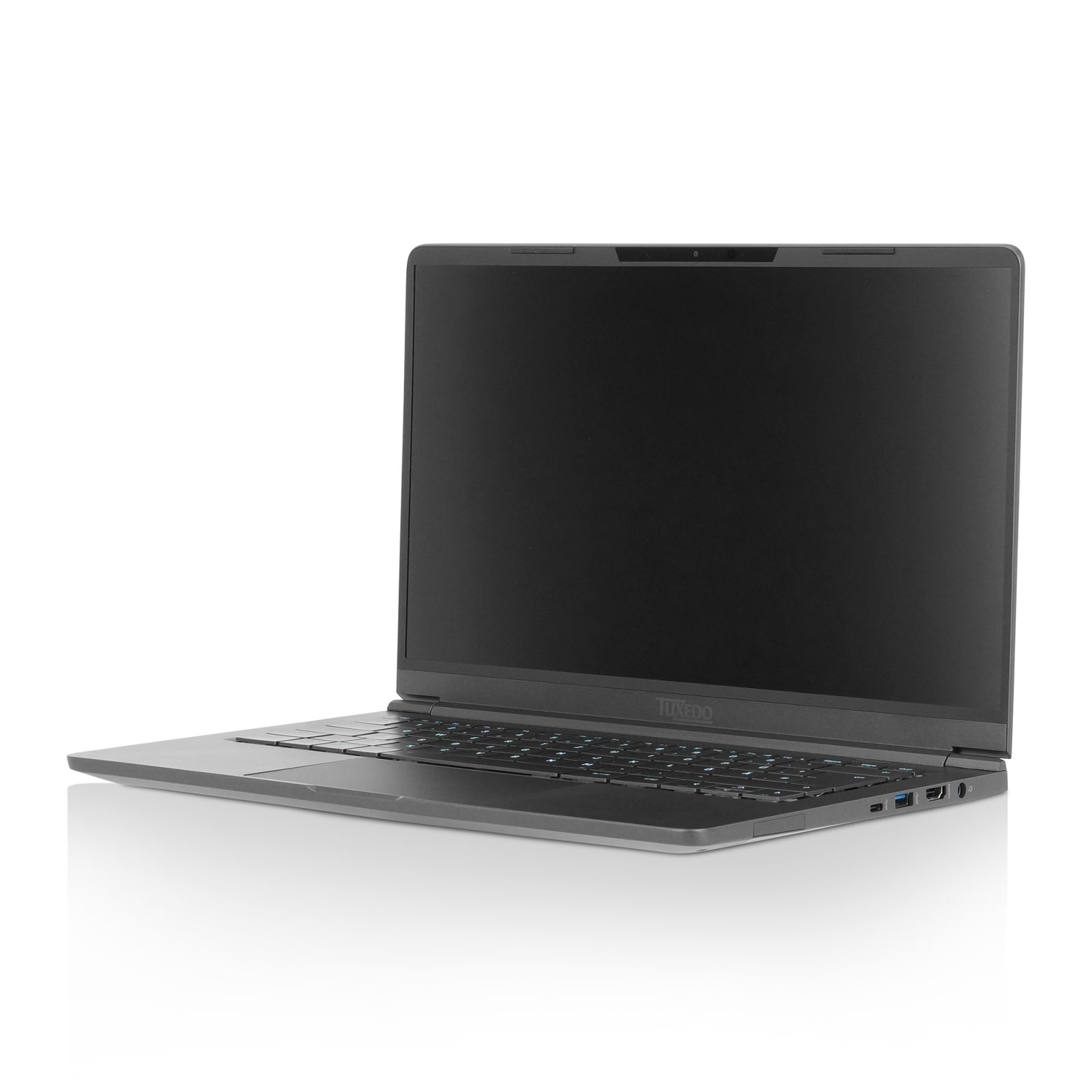

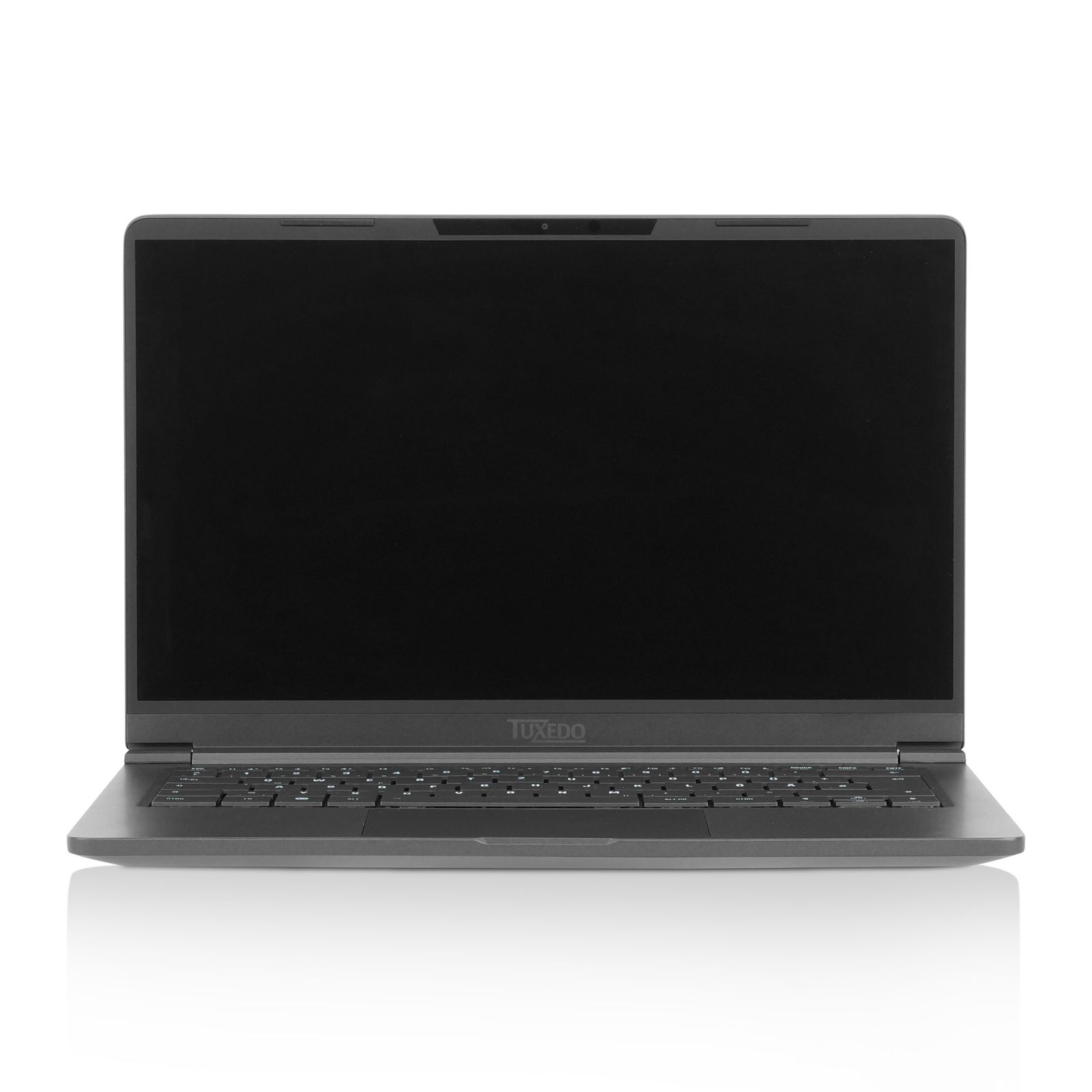

Display / Monitor

Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



Type: LED-Backlight Display, non-glare
IPS technology (particularly strong colours, extremely bright, very stable viewing angle)
Size: 14,0" (35,56cm)
Resolution: Full-HD, 1920 x 1080
Color Gamut: 100% sRGB
Viewing Angle: 89°/89°/89°/89°
Display opening angle: approx. 145°
Model: Innolux N140HCE-EN2 Rev. C2
Contrast: 700:1
Luminance: ~300 cd/m²

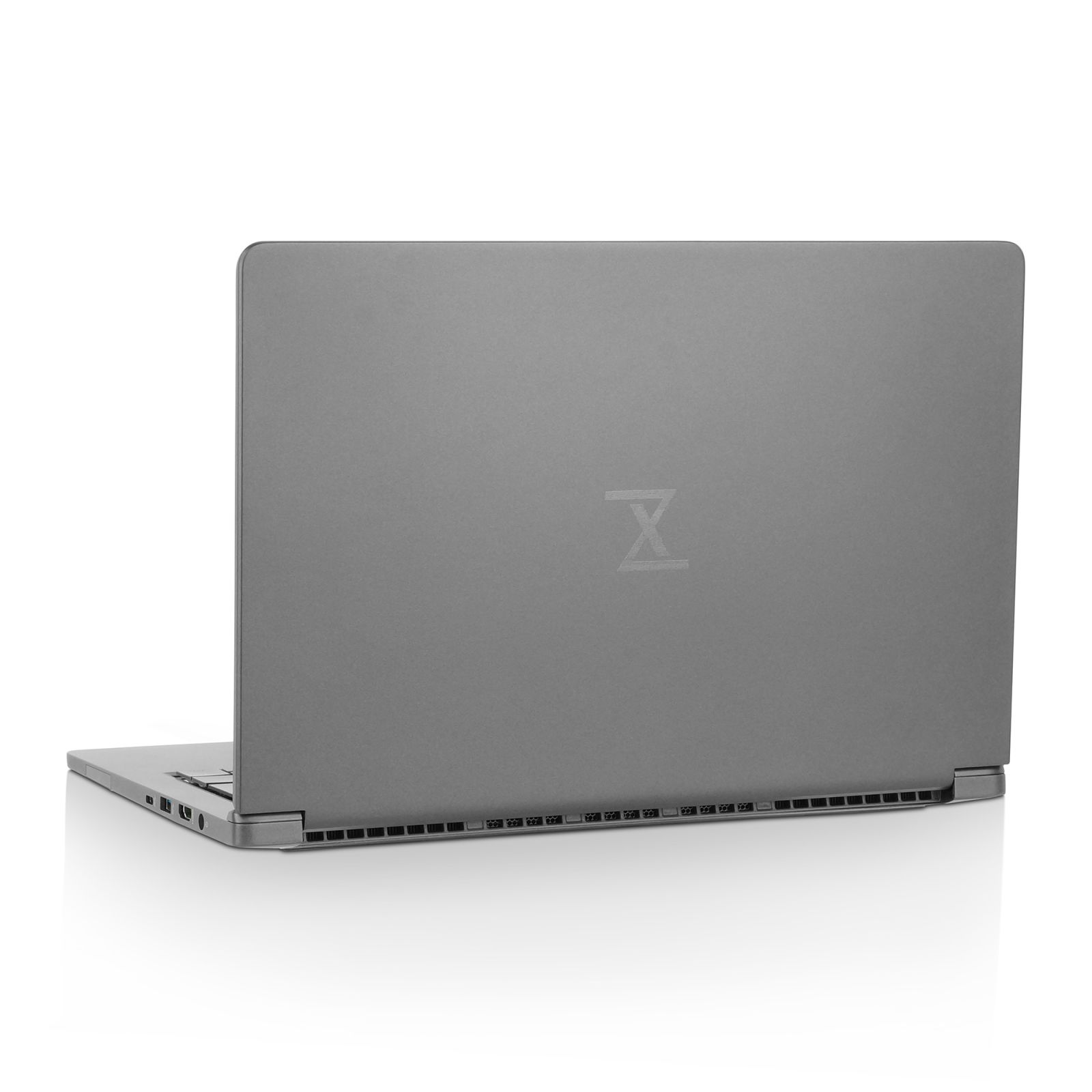

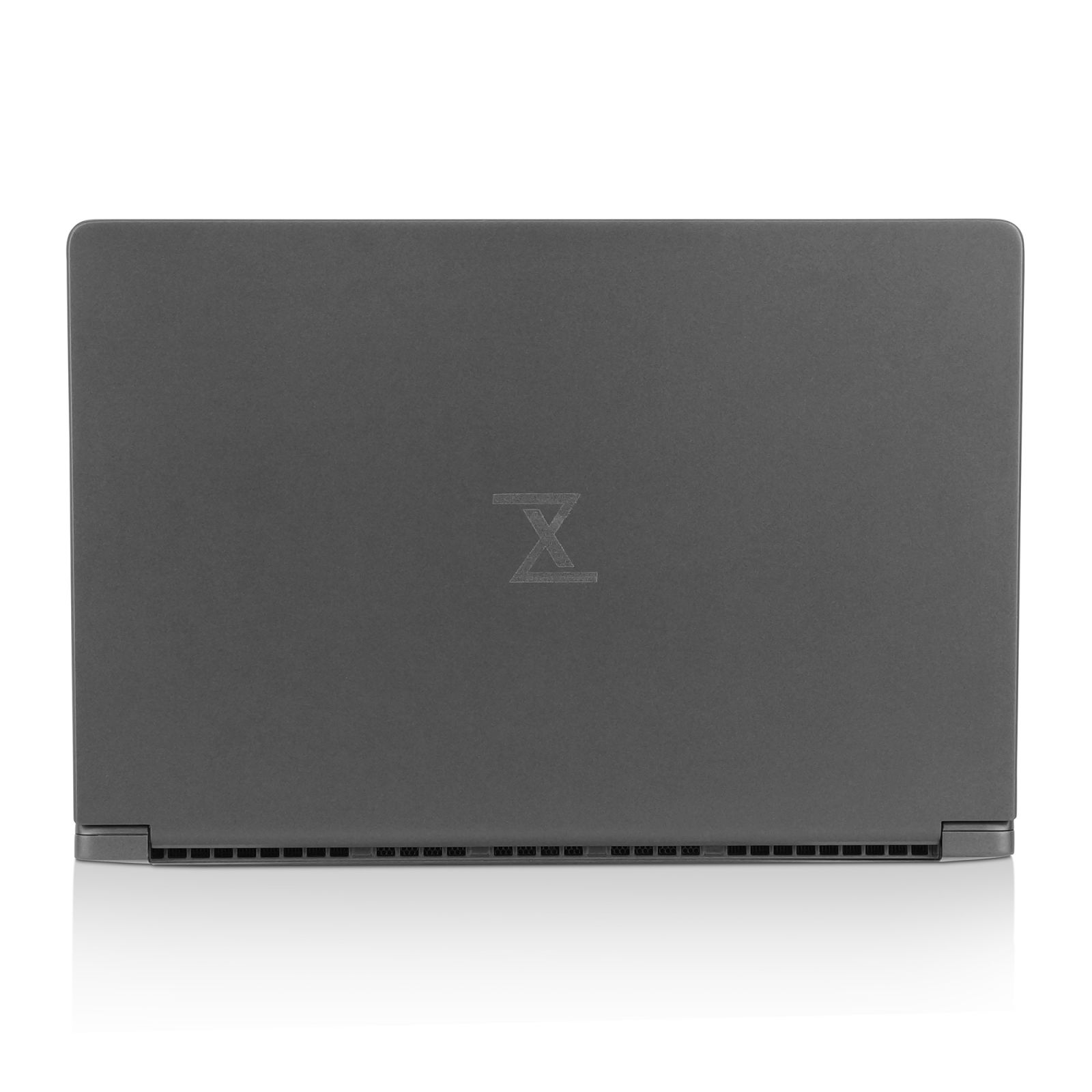

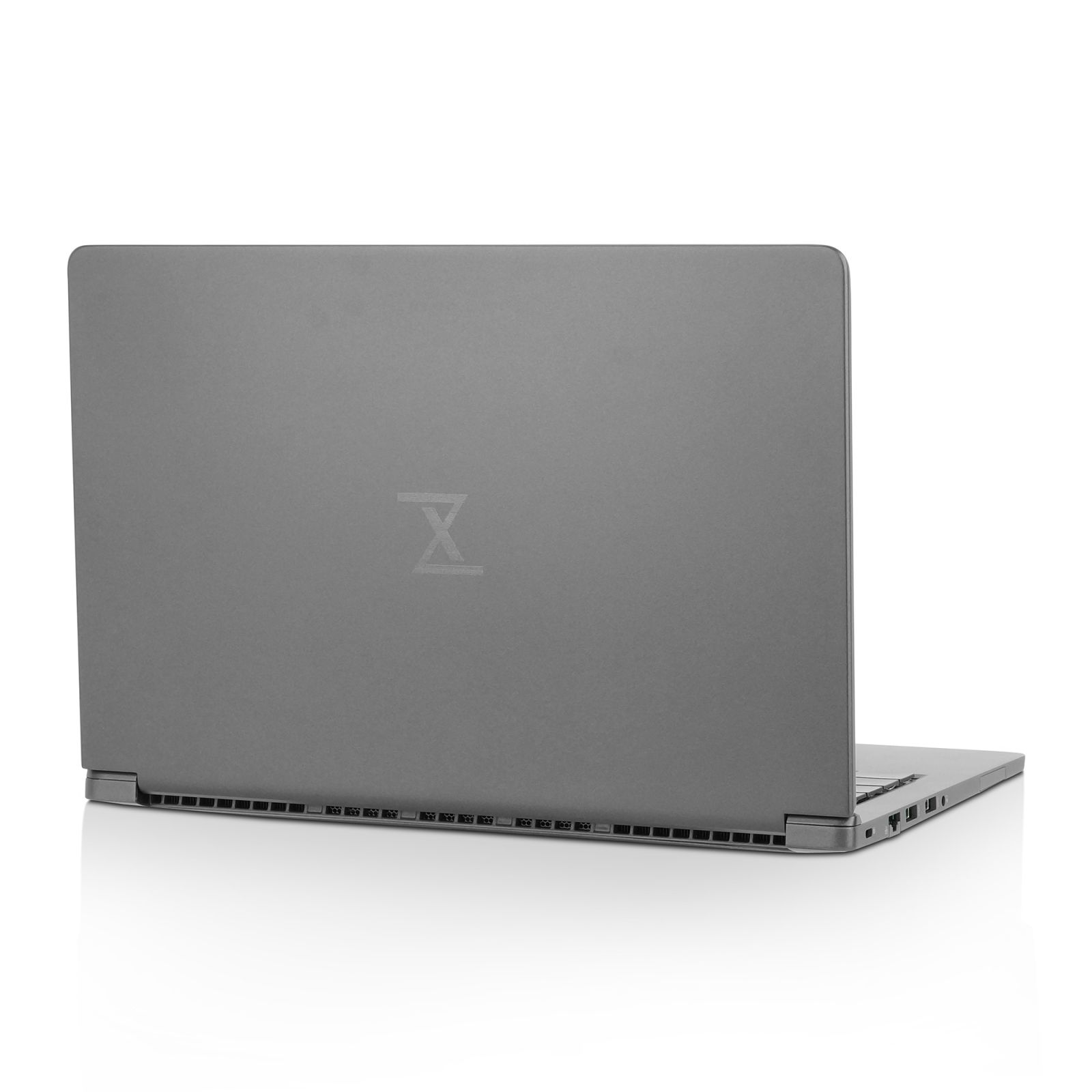

Chassis

Display lid and top case made of magnesium alloy (AZ91D)
Bottom case made of metal
Display frame made of resin
Dimensions: width: 32,0cm; height: 1,7cm; depth: 21,5cm
Weight: approx. 1,1 kg with battery

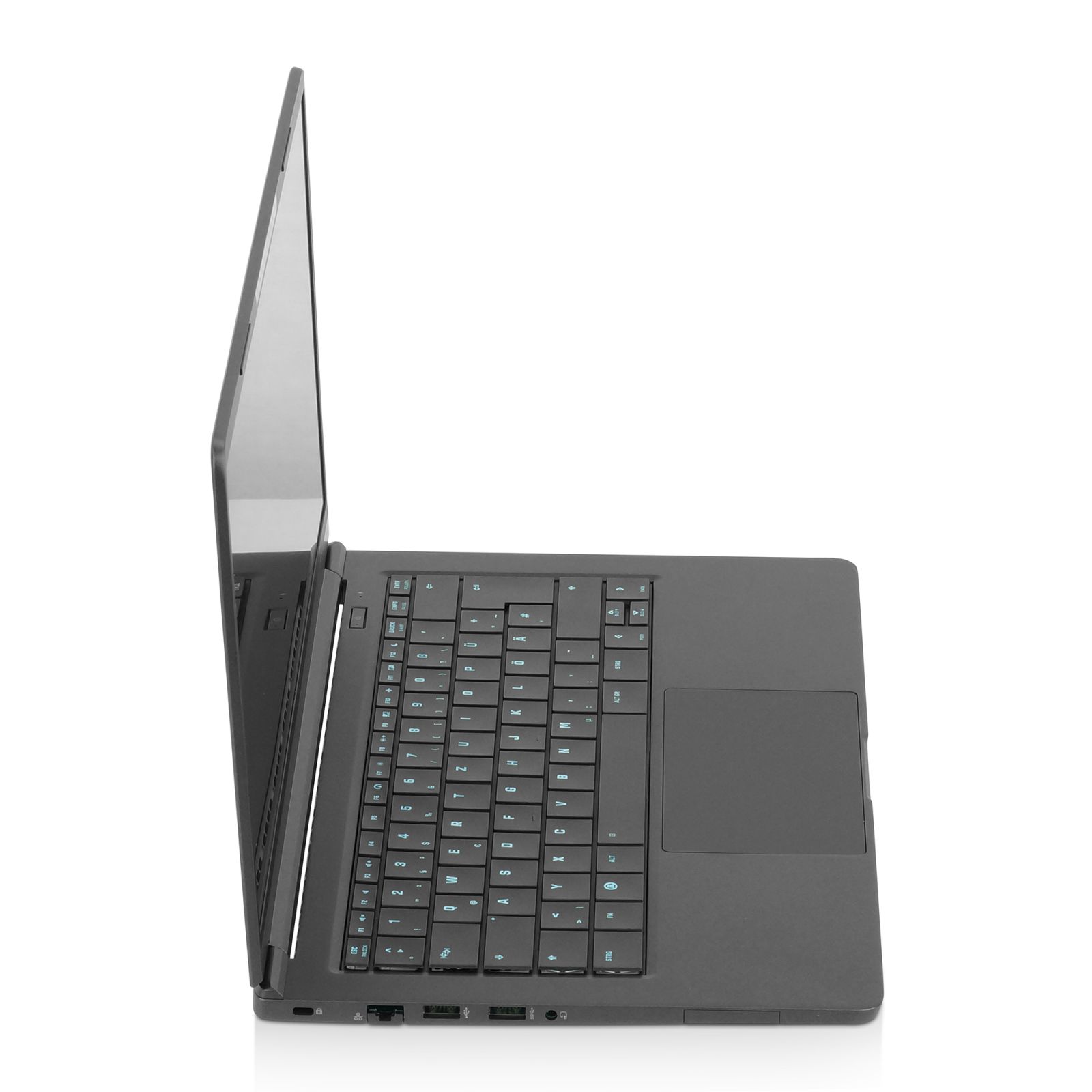

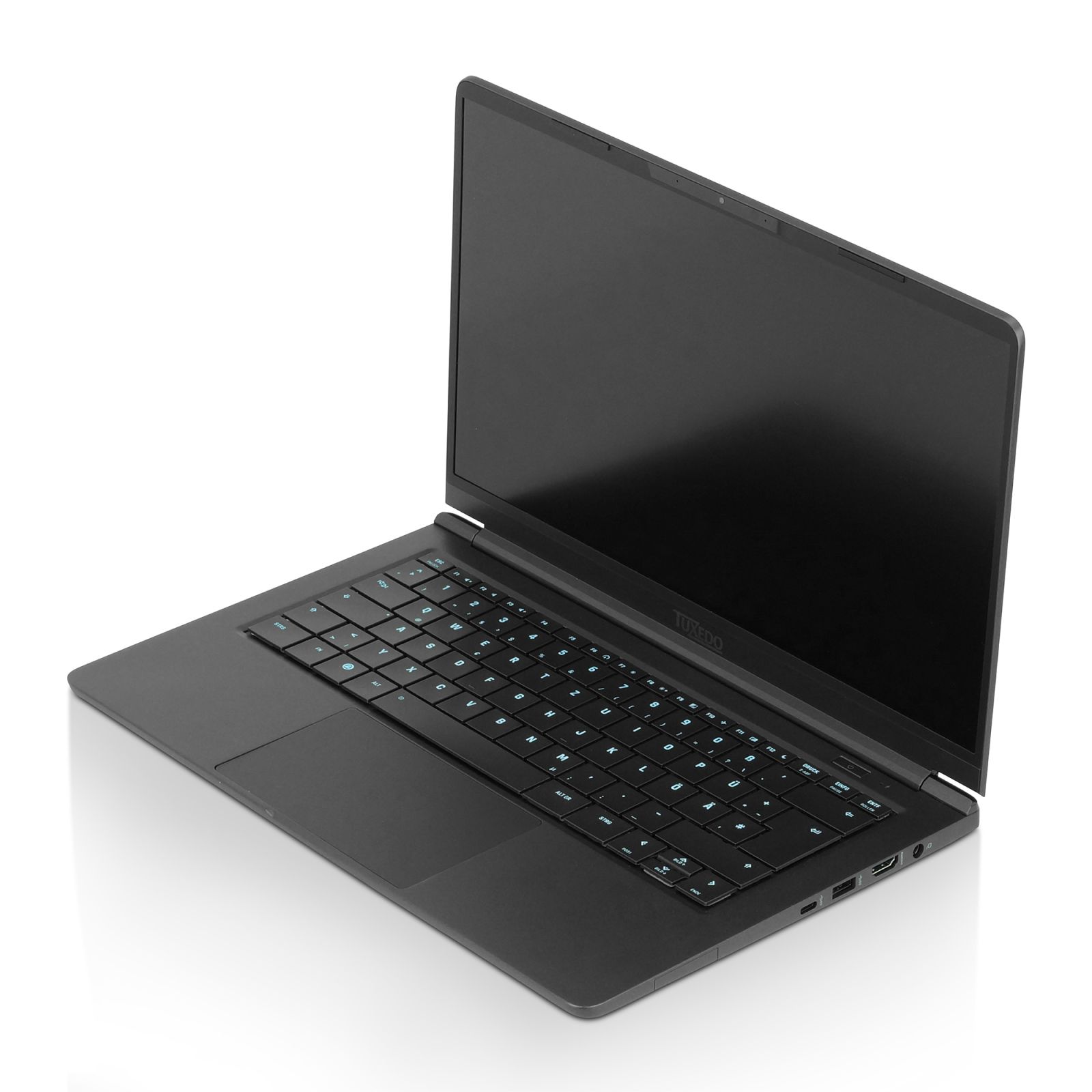

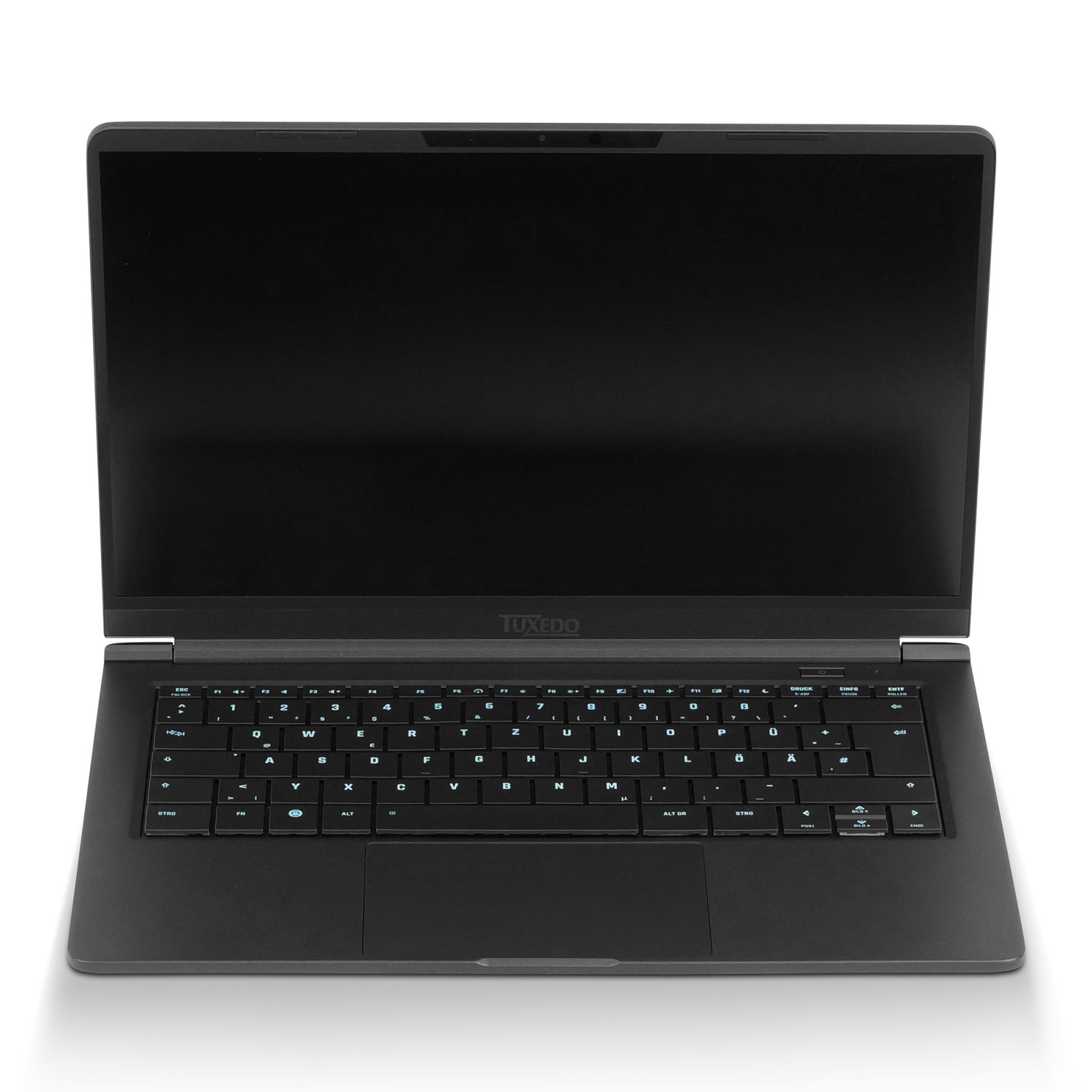

Keyboard

Full sized keyboard. Extra large keys.
Monocolor (white) backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
TUX super-key on all layouts!
Big precision clickpad with integrated buttons and multi-gesture- & scroll-function

Security

- Kensington-Lock mounting
- Intel Management Engine (Intel ME) can be disabled directly via the BIOS
- Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
- WLAN & Bluetooth can be deactivated directly via the BIOS

- fTPM (BIOS switchable)
- TPM 2.0 (BIOS switchable)

Battery & power supply

46,74 Wh battery, 3 cells lithium-polymer
Changeable (screwed inside)
90 Watt Power supply unit

Power plug:
Type: Coaxial
Inner diameter: 2.5mm
Outer diameter: 5.5mm
Length: 11mm

Battery life: (with our optimizations)
over 12 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
over 7 hours at medium brightness with Wifi, at office work

We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, WIFI & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!).
This way you get an information of maximal possible battery life. Starting from this you can manage your individual battery life depending on your demands and to influence it e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.

Main processor

• AMD Ryzen 5 4600H
  6x 3.0 - 4.0 GHz Hexa-Core, 12 Threads, 8 MB L3-Cache, 45 W TDP)
• AMD Ryzen 7 4800H
  8x 2.9 - 4.2 GHz Octa-Core, 16 Threads, 8 MB L3-Cache, 45 W TDP)

Graphics card

Energy efficient CPU integrated Graphics:
AMD Radeon™ RX Vega 6 Graphics (AMD Ryzen 5 4600H)
AMD Radeon™ RX Vega 7 Graphics (AMD Ryzen 7 4800H)
For external 4k monitors with 60Hz via HDMI, please use high quality HDMI cables of at least HDMI 2.1 specification and max. 0.5m length! In some cases there appears rare flickering at 4k@60Hz! Alternatively you can use downsampling 4:2:0 with reduced color reproduction.

Memory

Typ: DDR4 SO-DIMM (up to 3200 MHz)
Manufacturer and speed see configurator
Default and maximum see configurator
Performant Dual Channel mode (2 slots)

Mass storage (SSD / HDD)

One slot for super fast SSDs in space-saving M.2 form factor

1x M.2 2280 SSD via PCI Express 3.0 x4

Communication / Network

Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)

Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1



Webcam / Laptop camera

HD Webcam / camera including microphone

Sound / Audio

High Definition Audio
2 speakers: 2x 2W
Integrated microphone

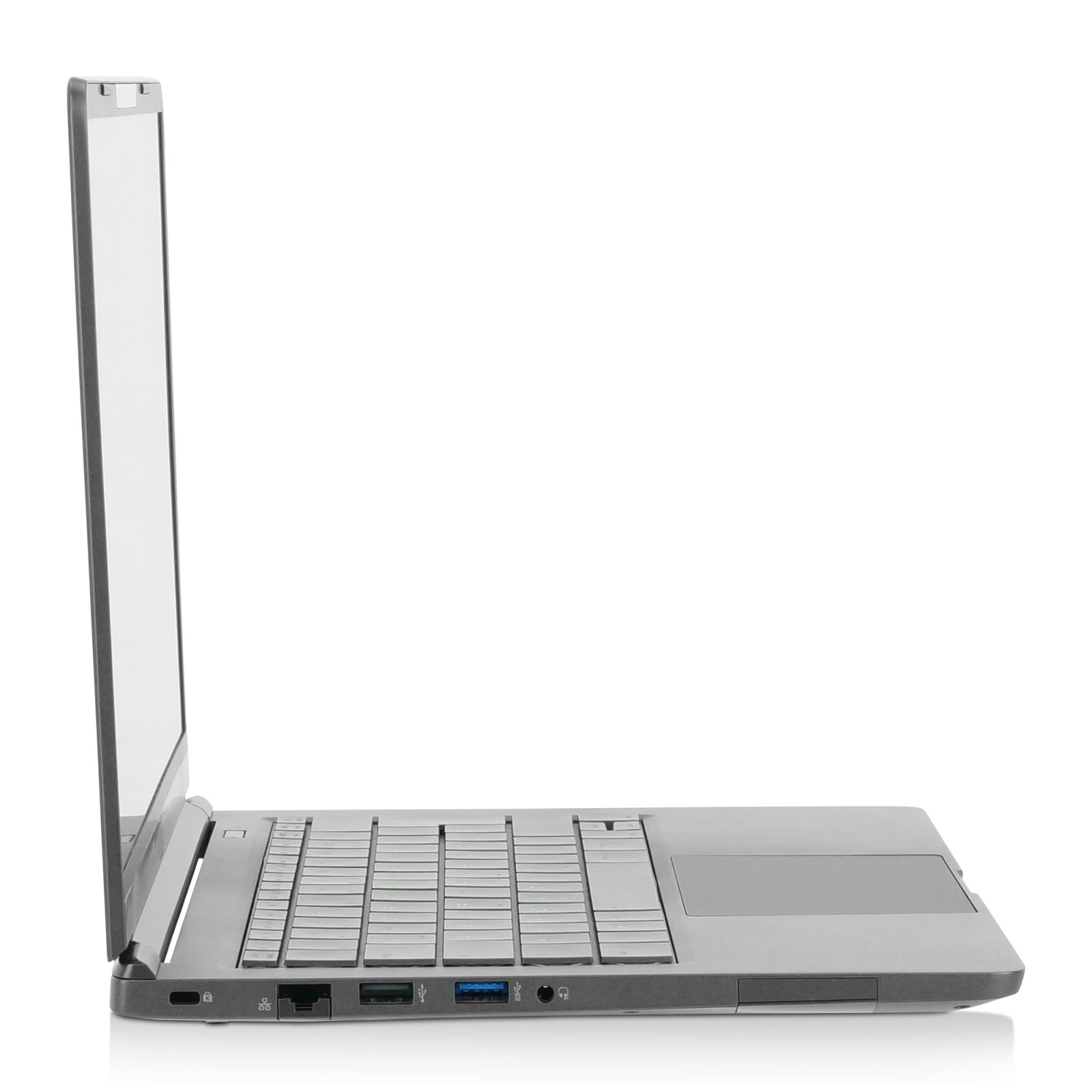

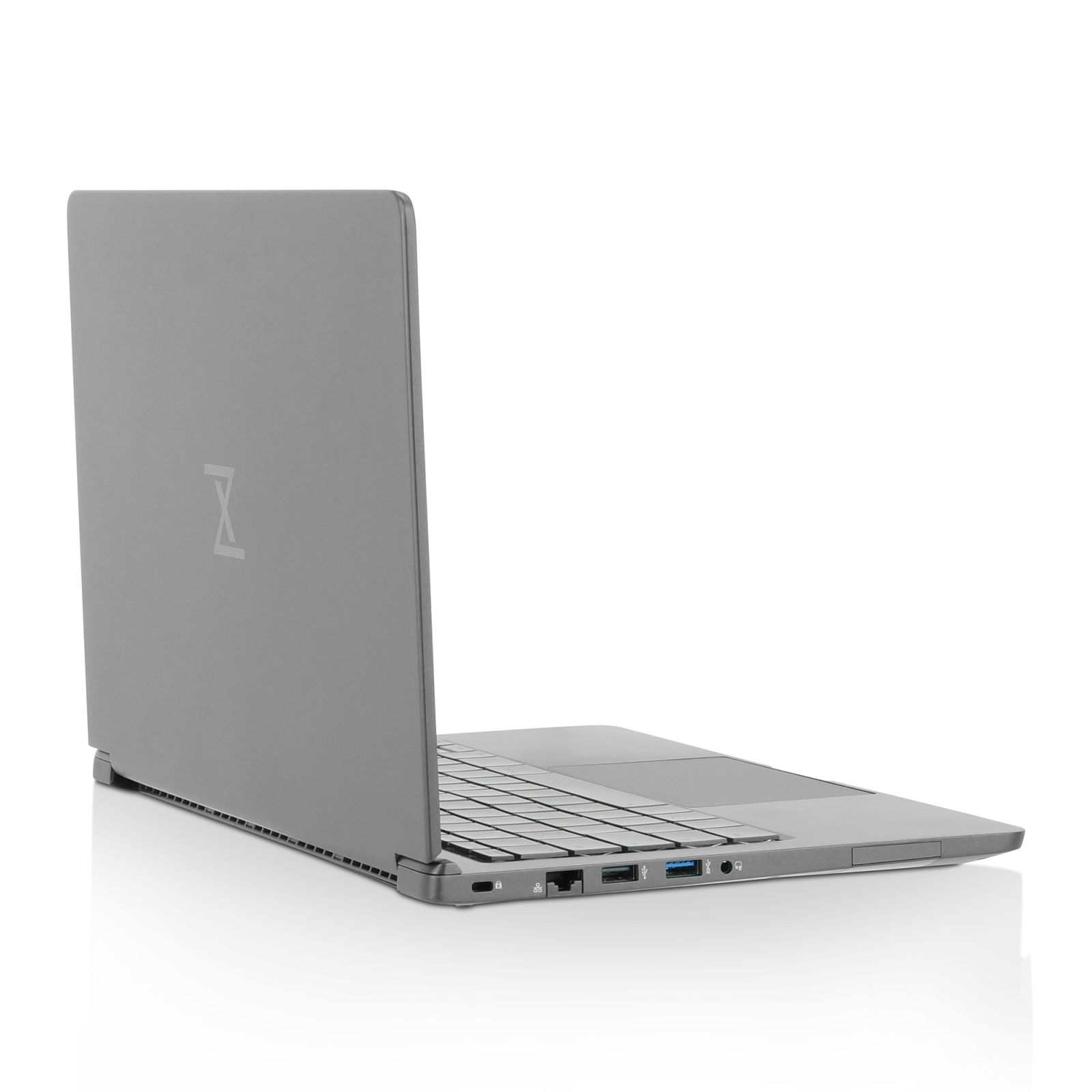

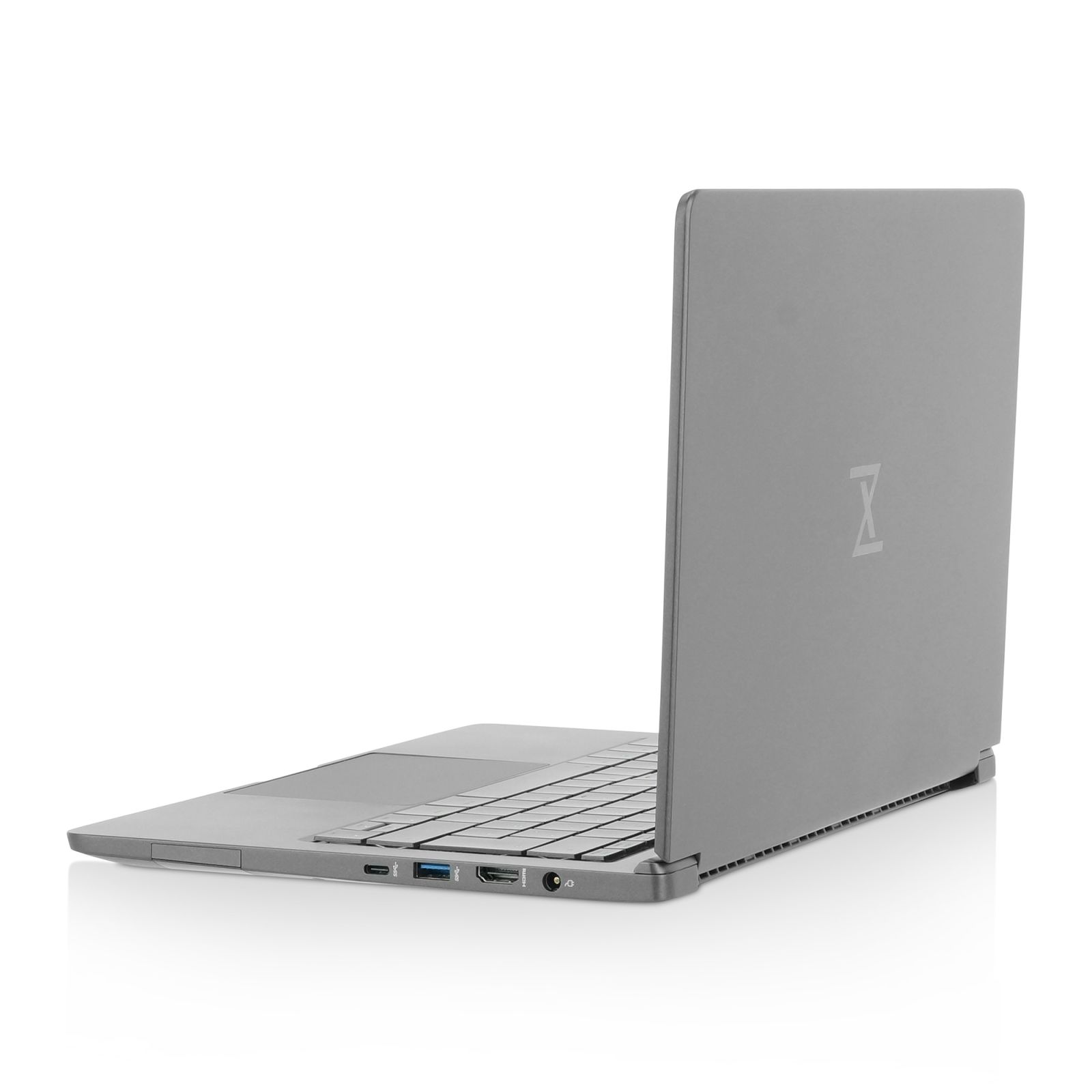

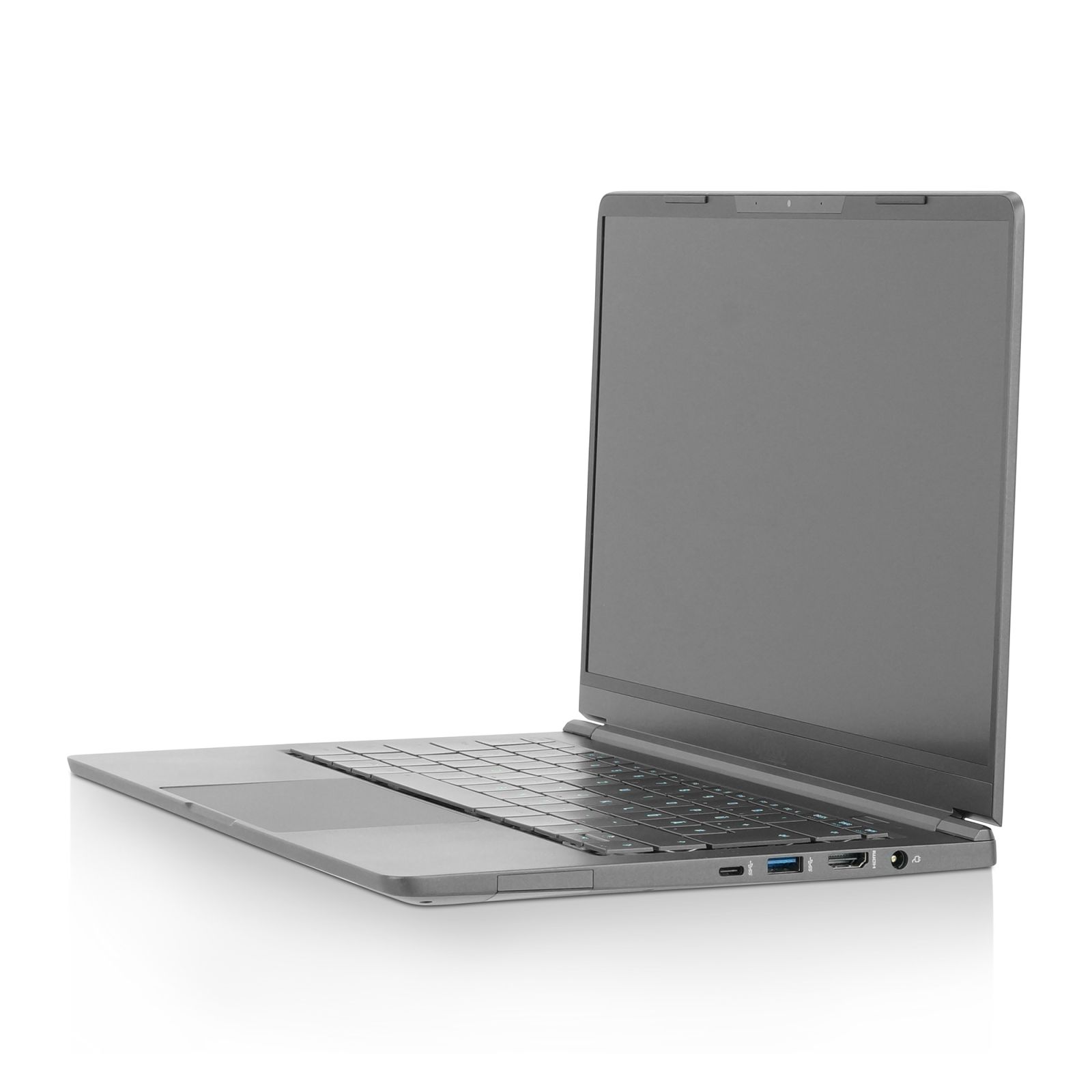

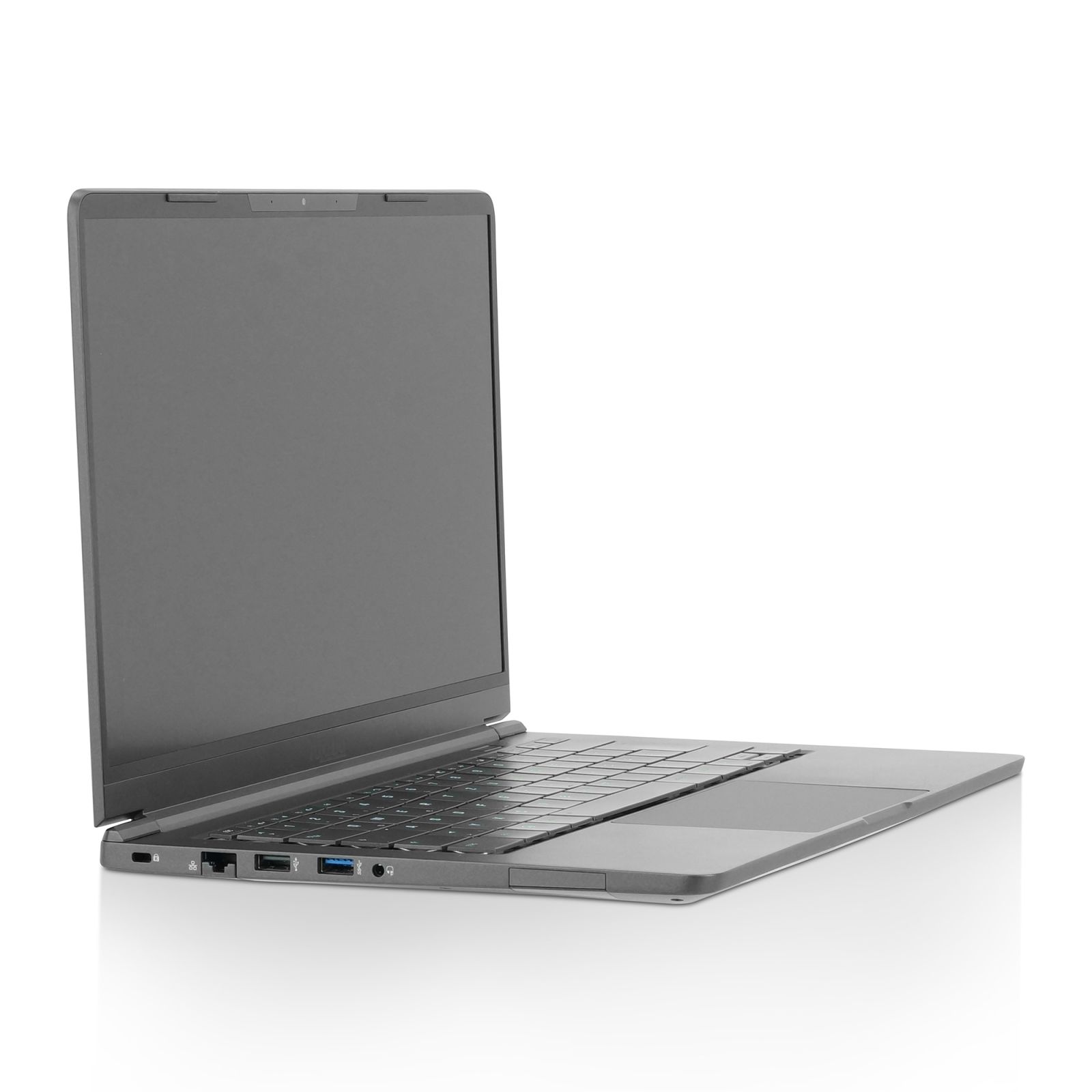

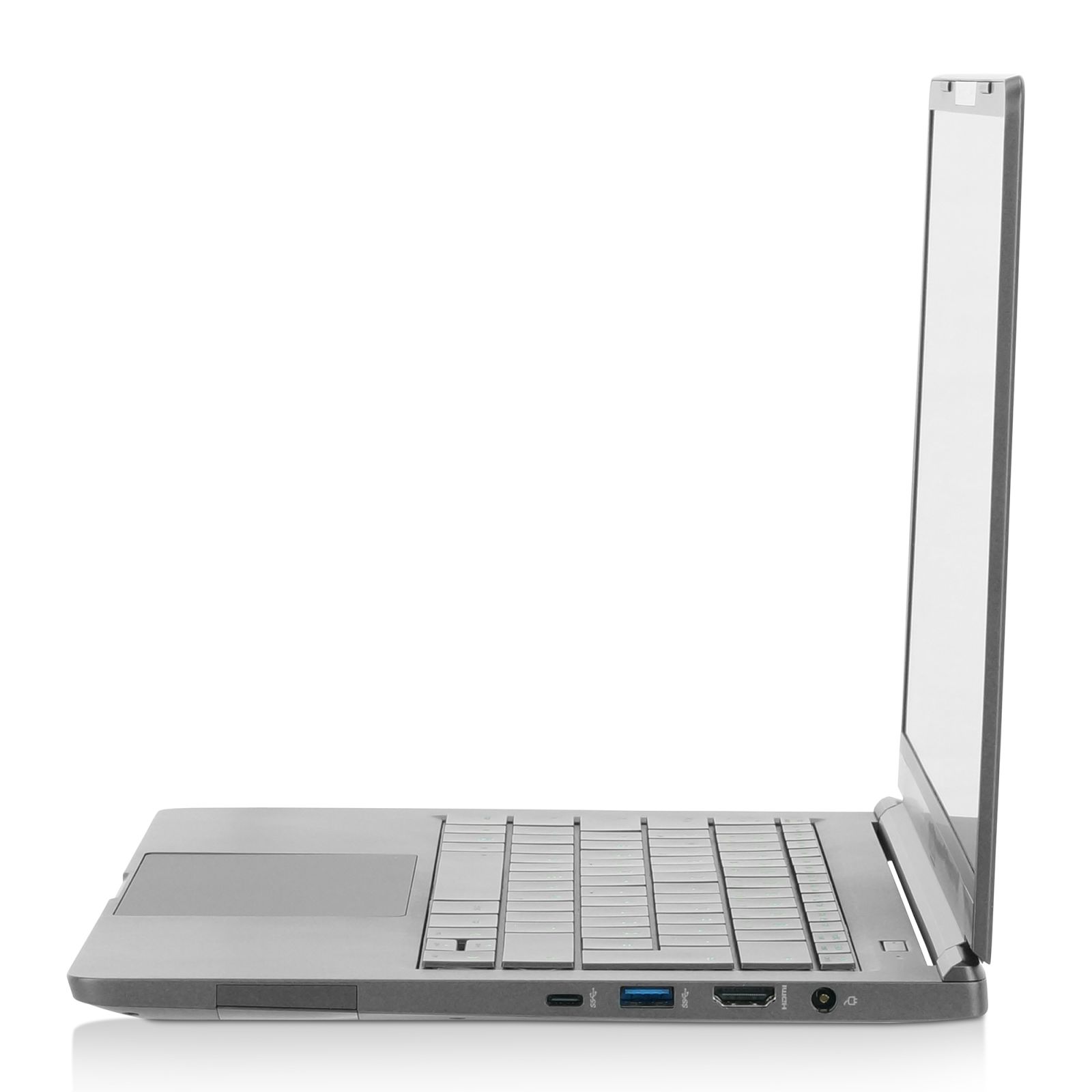

Ports

1x USB 3.2 Gen1 Typ-C (DisplayPort: no; Power Delivery/DC-IN: yes, 20V/4.5A)
2x USB 3.2 Gen1 Typ-A
1x USB 2.0 Typ-A
1x HDMI 2.0 inkl. HDCP (4k UHD@60Hz / 2k FHD@120Hz)*
* Please note the information & limitations for 4k@60Hz under "Graphics card".
1x Gigabit LAN/Netzwerk RJ45
1x 2-in-1 Headphone/Headset (Headphone & Microphon
1x Kensington Lock
1x DC-IN/power connection

Cooling System & Fan

Temperature controlled silent fan
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.

Custom fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the behavior of the fans at yourself. This means that you get the ability to make your device as silent as possible. You are able to set the device almost passive cooled, without any fan noise most of the time!

Operating systems







BIOS

With all our notebooks you have the possibility to protect your privacy already on BIOS level. For this purpose the following functions can be completely deactivated:

• On Intel CPUs: Intel Management Engine (IntelME)
• Webcam
• On Intel CPUs: Audio (Microphone & Sound)
• WLAN & Bluetooth

In addition, our Premium BIOS allows chipset-specific settings and definitions for components via various profiles in order to operate the device optimally depending on its use. The profiles can be found in the BIOS menu under:

Advanced > Advanced Chipset Control > Performance Profile Select.

Further information can be found here in our manual.

Warranty

2 years pick up and return (12 months on wearing parts like battery & power supply)

Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions

Package Contents

1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
