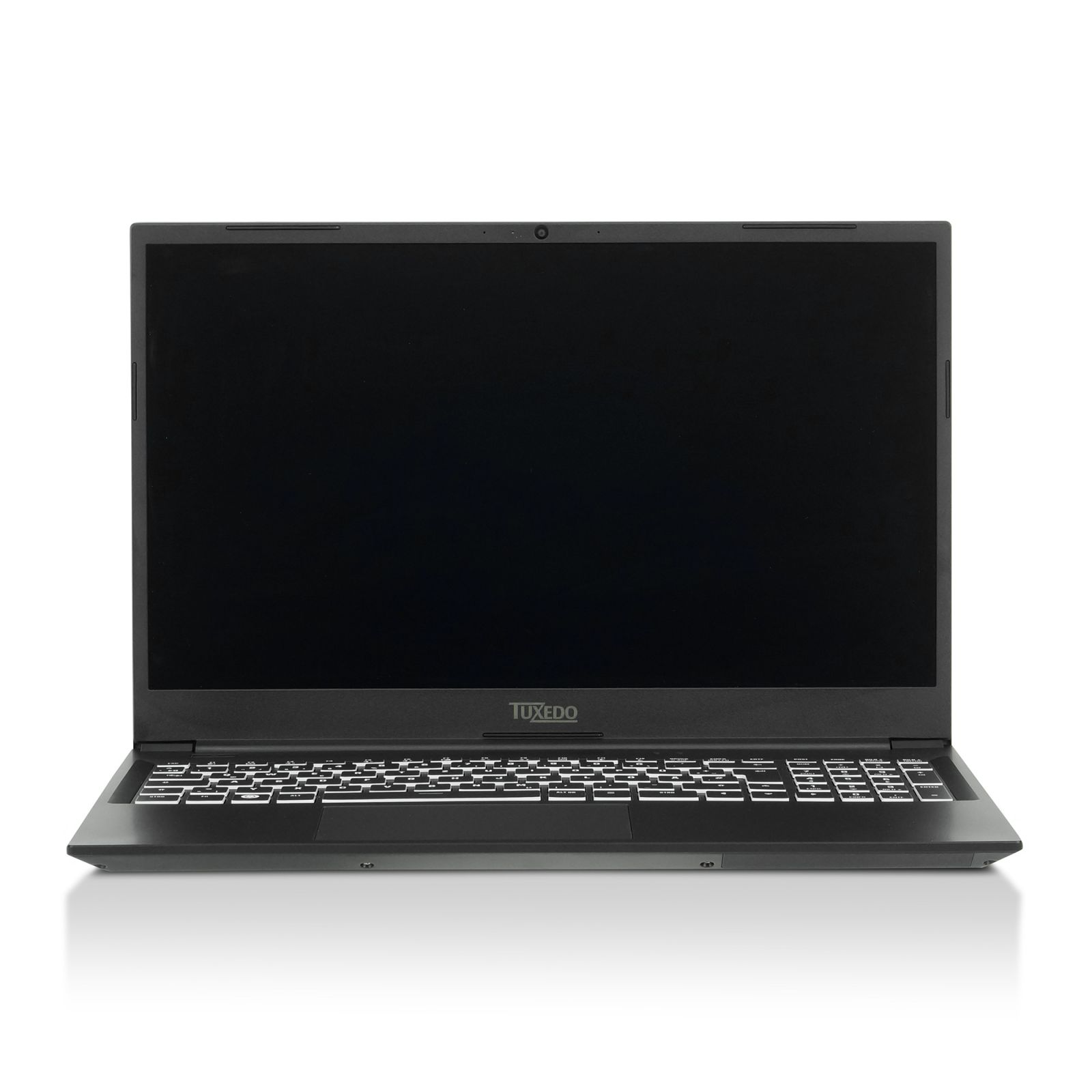

Display / Monitor

Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



Type: LED-Backlight Display, non-glare
IPS technology (particularly strong colours, extremely bright, very stable viewing angle)
Size: 15,6" (39,62cm)
Resolution: Full-HD, 1920 x 1080
Color Gamut: 95% sRGB
Viewing Angle: 89°/89°/89°/89°
Model: Innolux N156HCA-EA1
Contrast: 700:1
Luminance: ~300 cd/m²

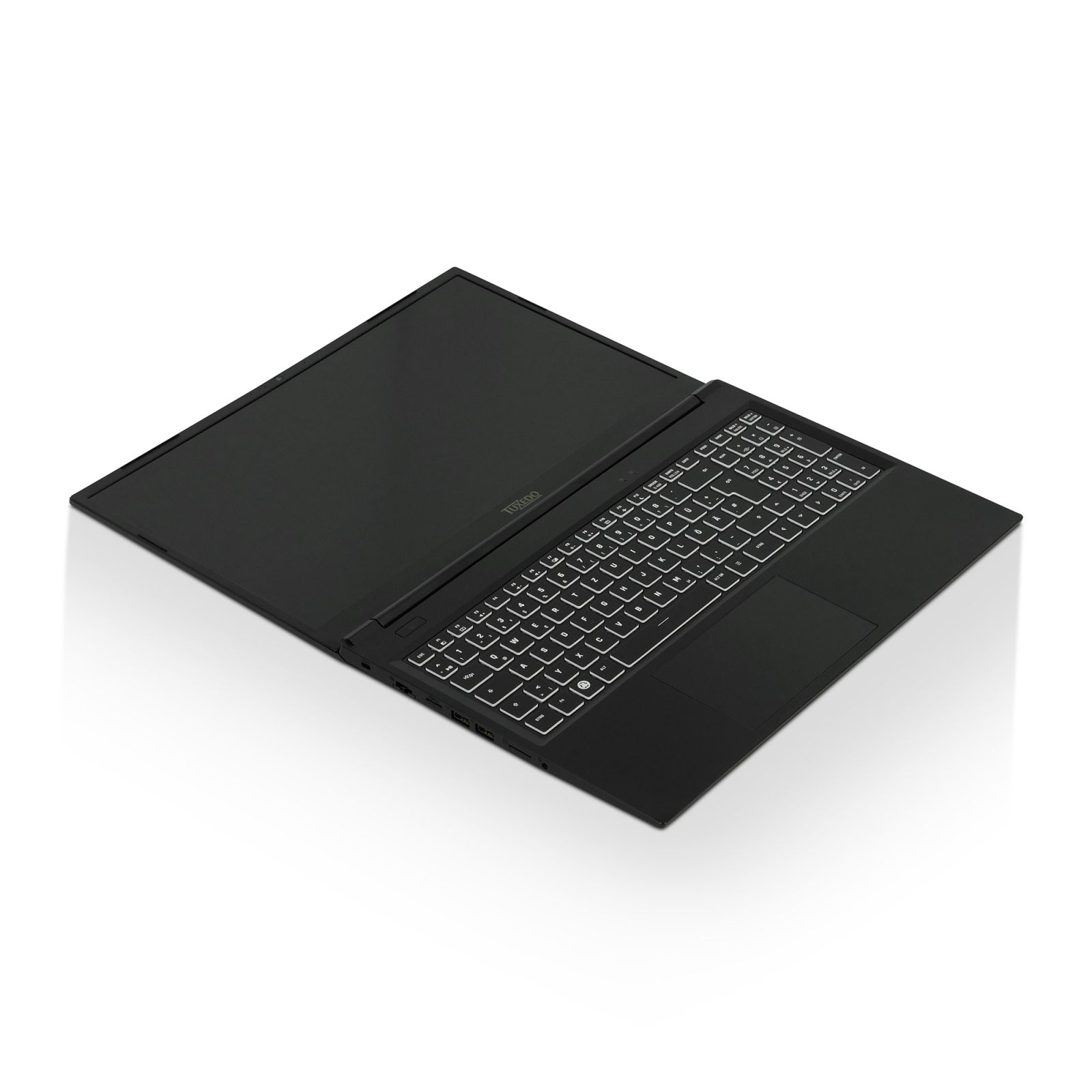

Display opening angle: 180°

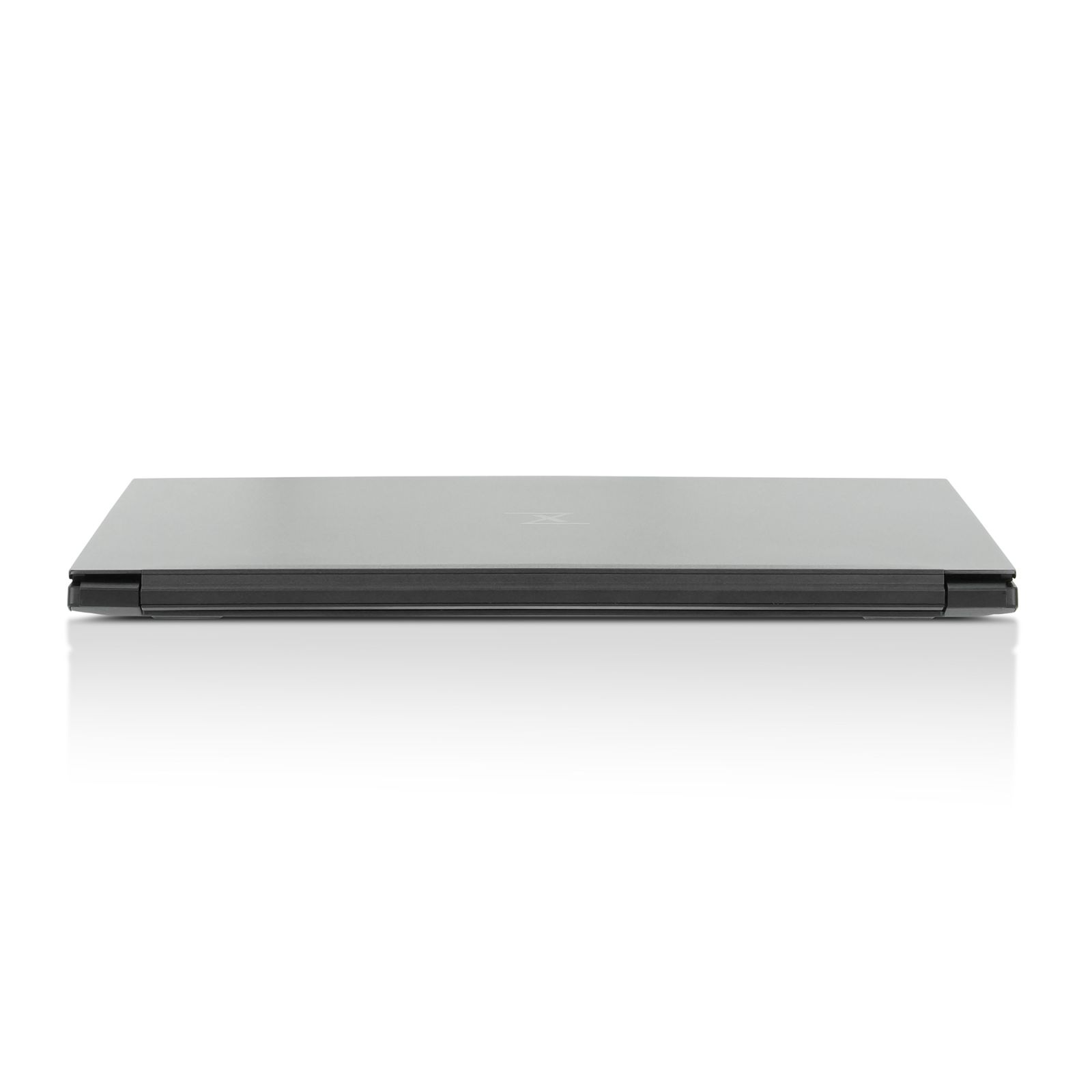

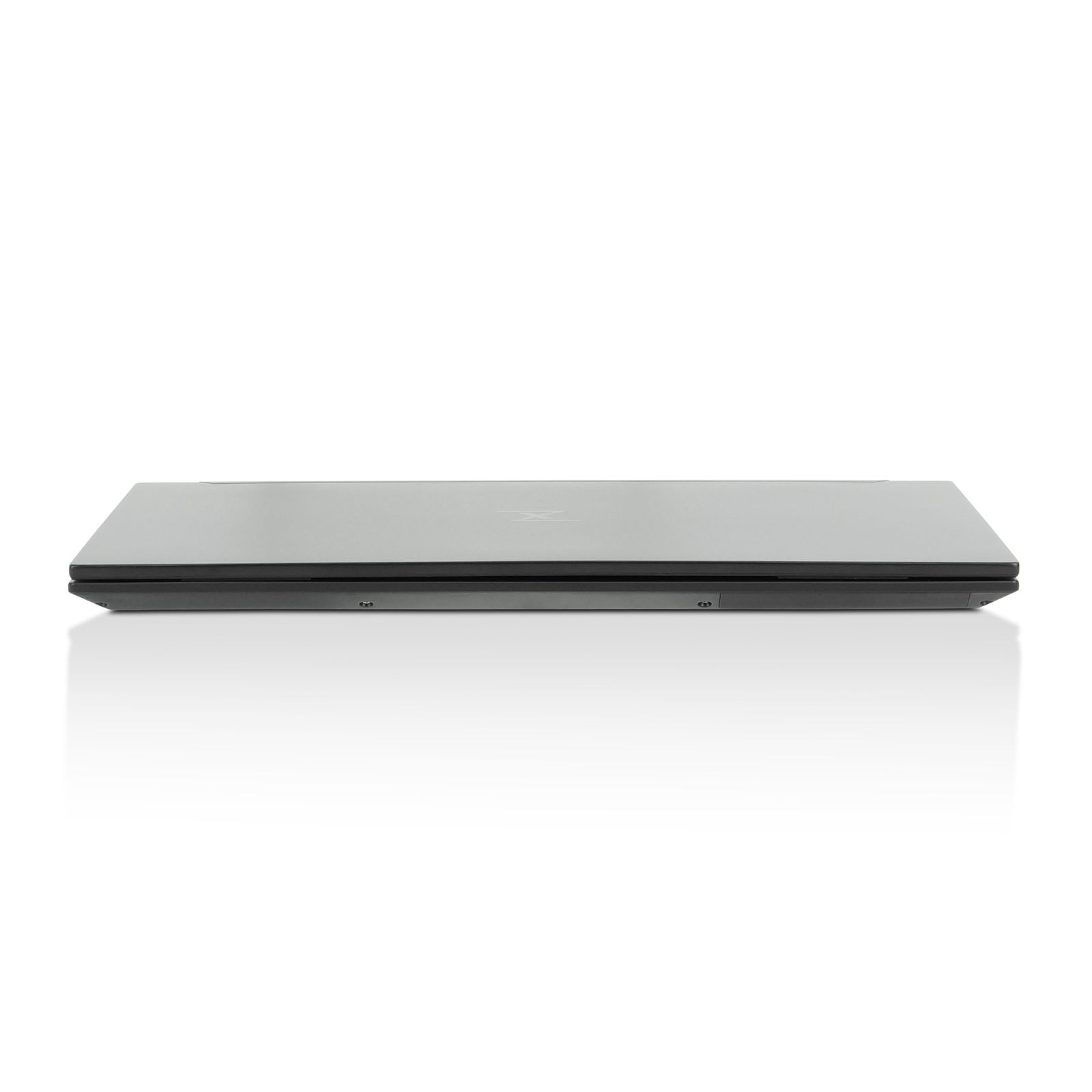

Chassis

Notebook: Length: 360 mm; Width: 239 mm; Height: 19,9 mm
Weight: ca. 1,65 kg incl. battery, depending on equipment
Material: Aluminum (Displaylid and bottom case), plastic (Screen bezel and wrist rest)

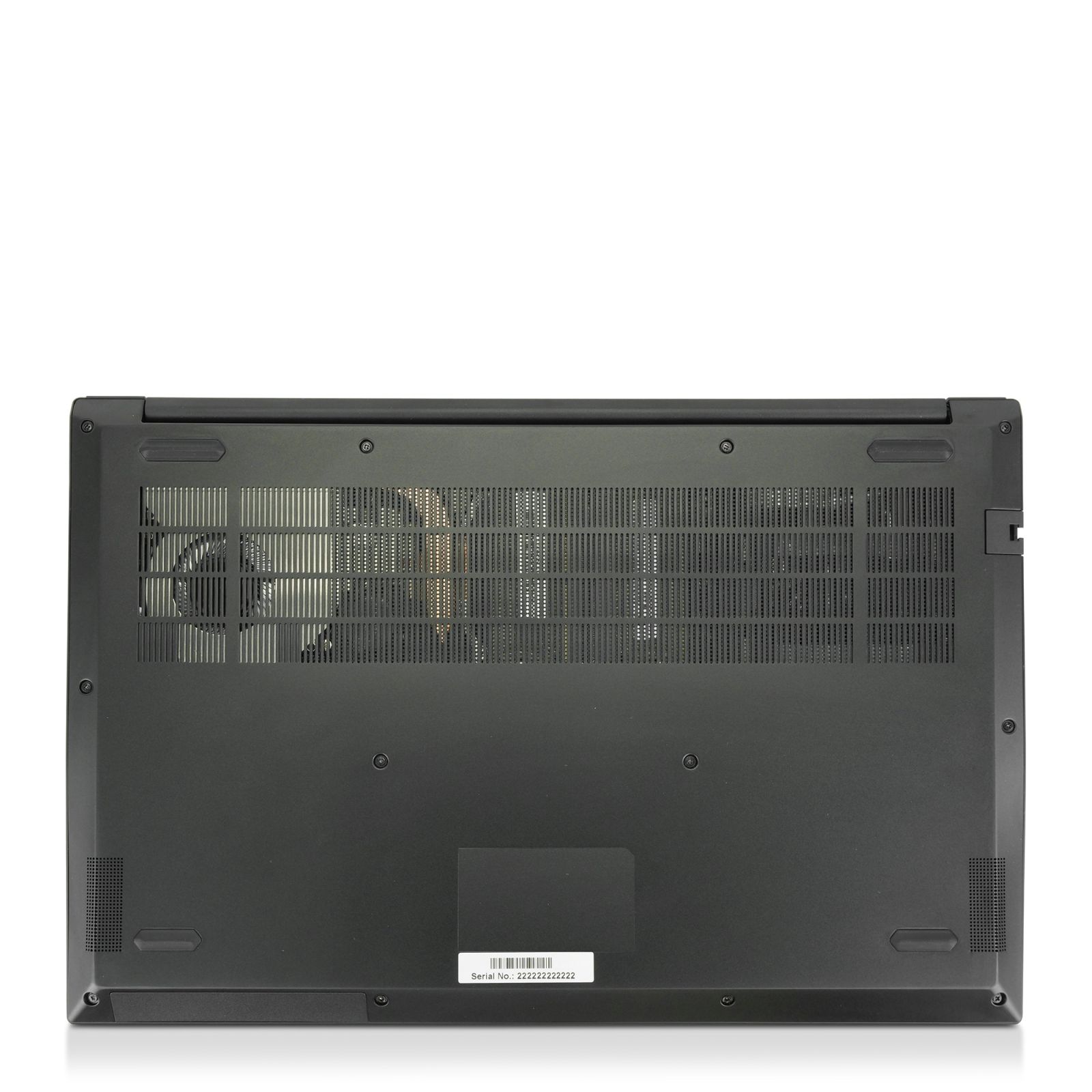

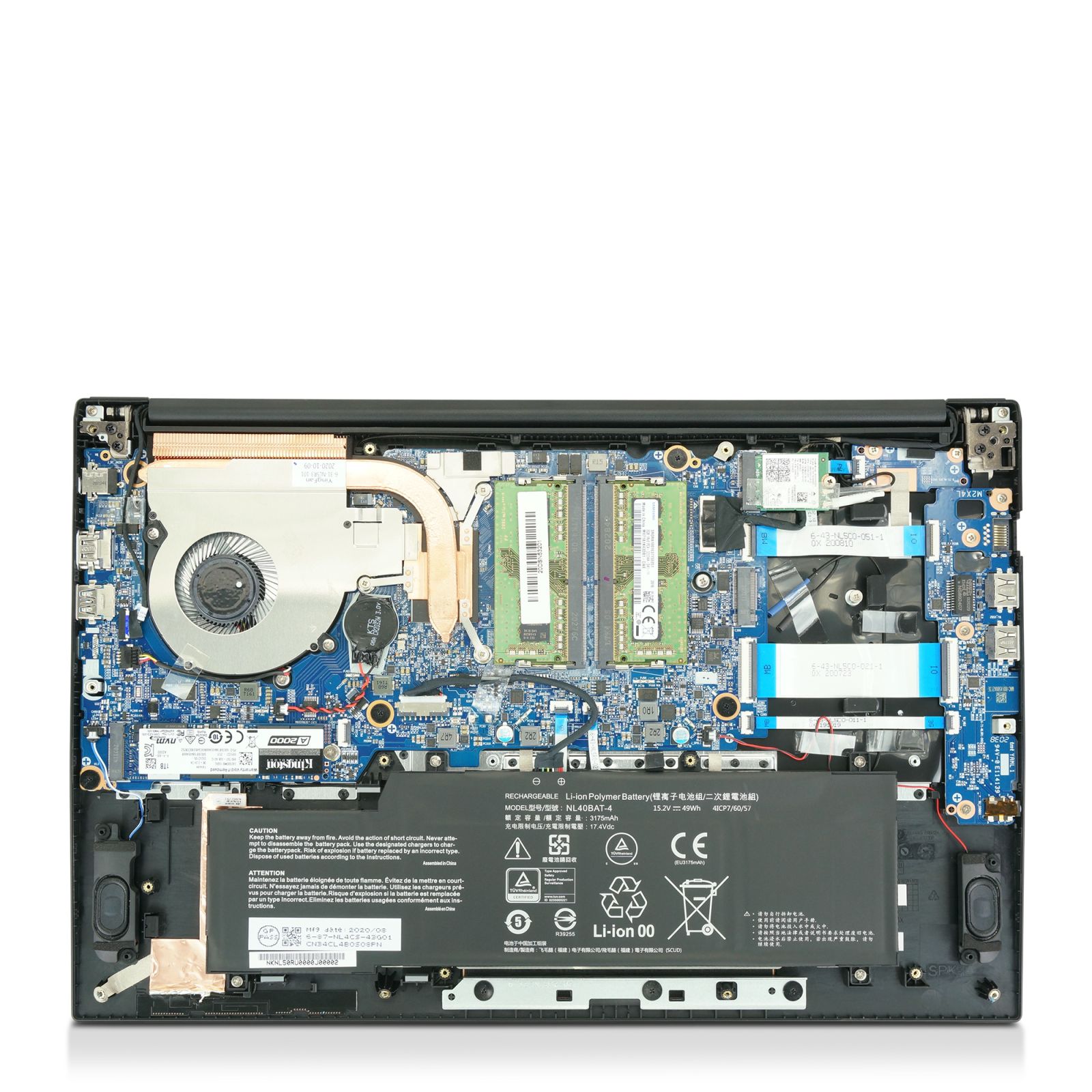

Maintenance: After opening the base plate via a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.
Power supply: Length: 95 mm; Width: 40 mm; Height: 26 mm | 280 grams

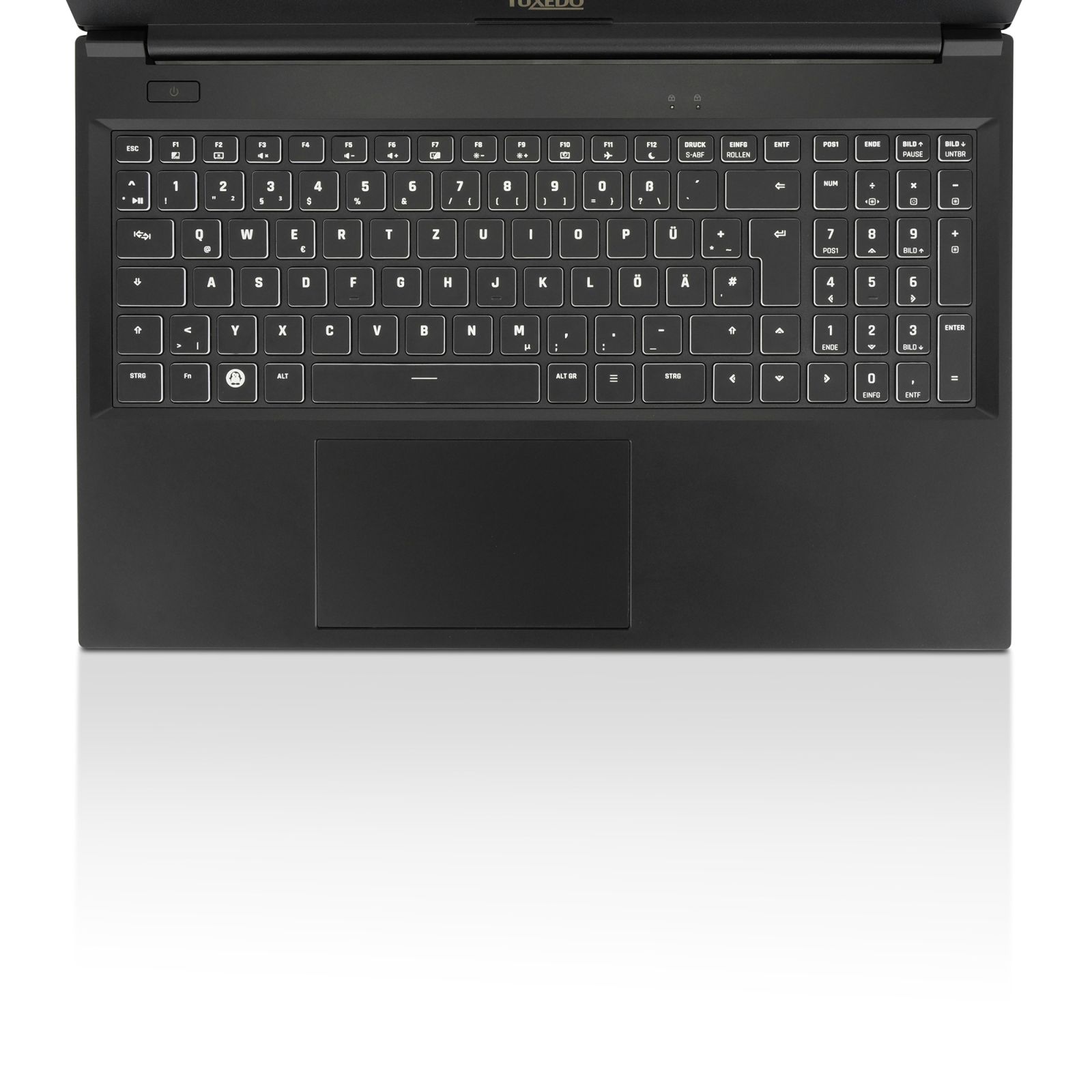

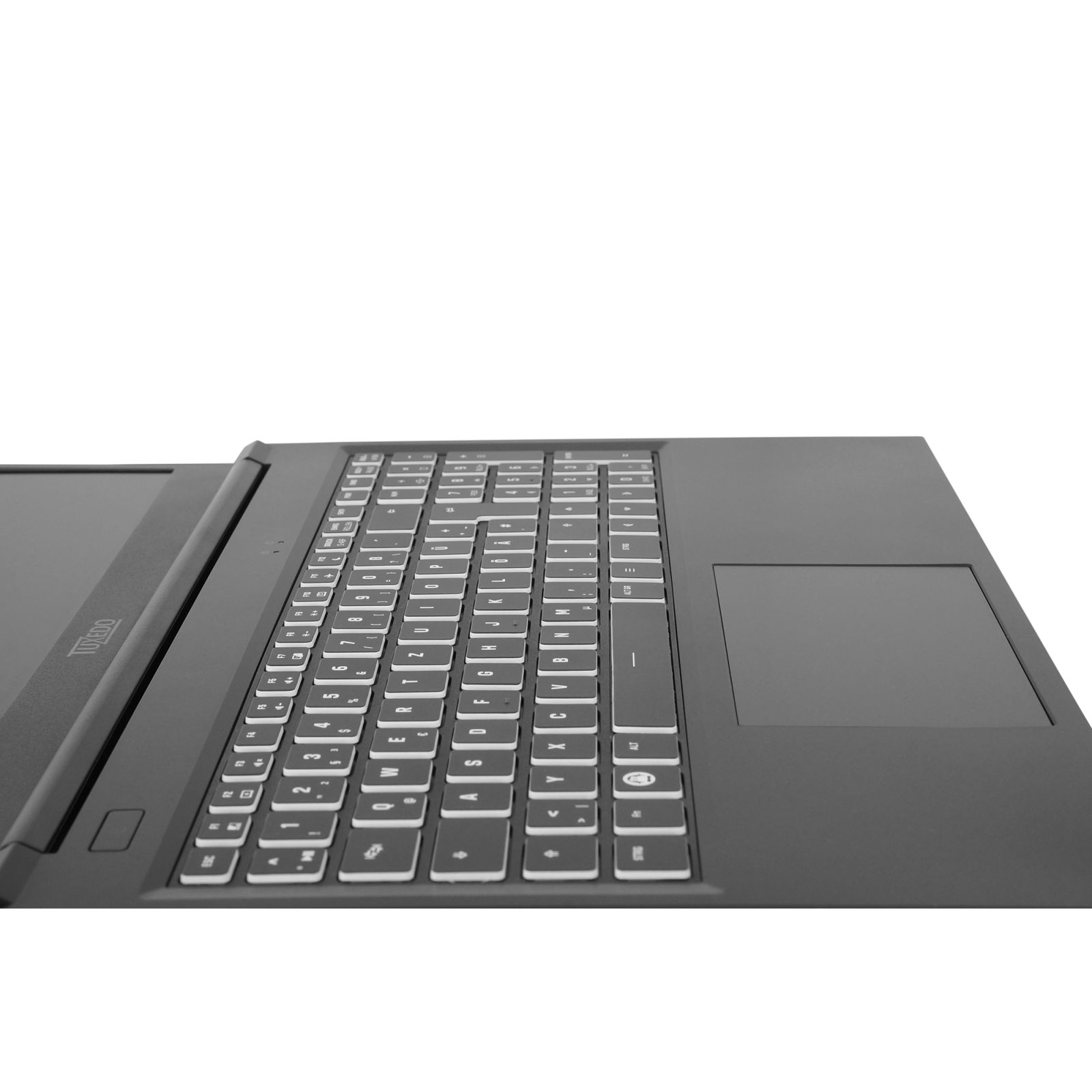

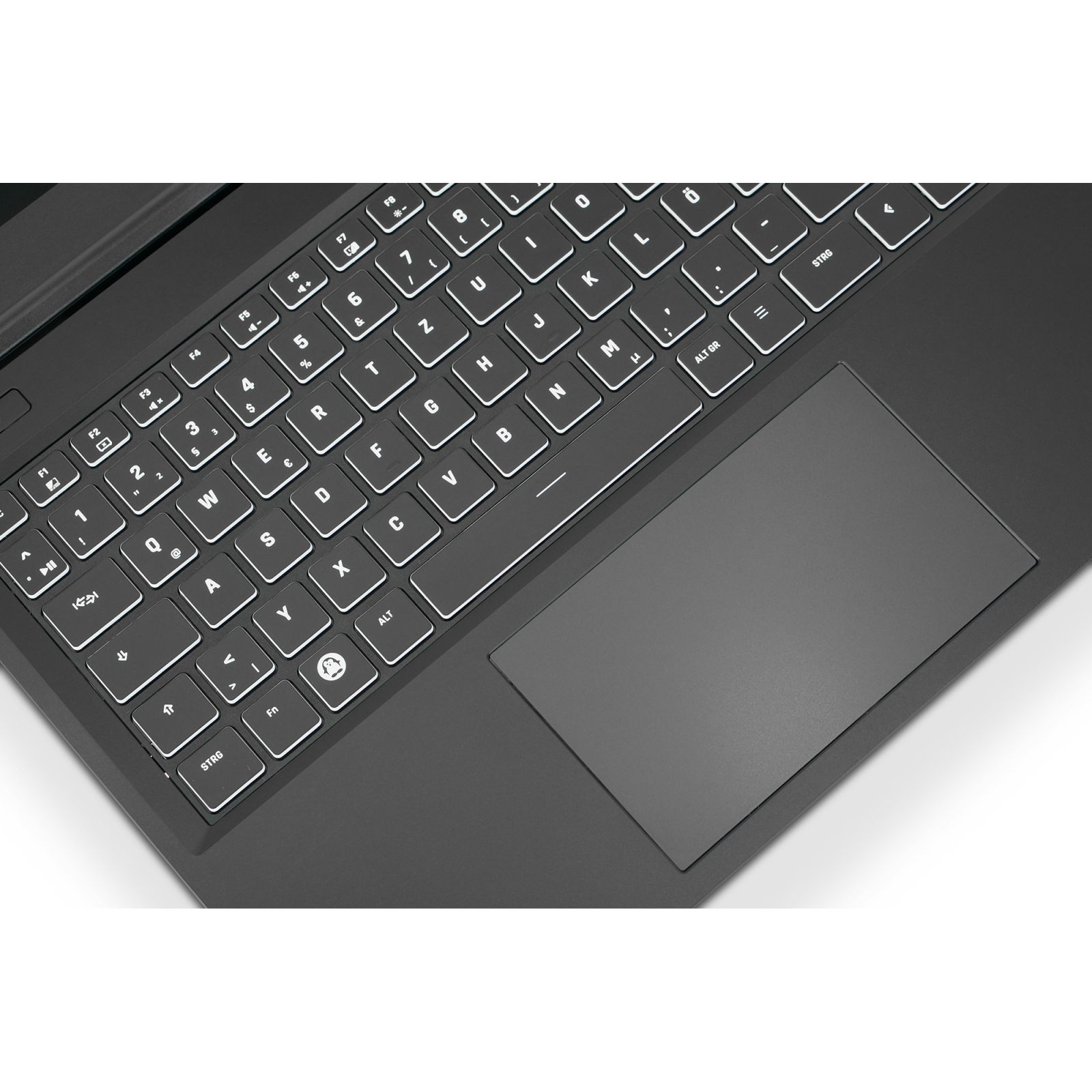

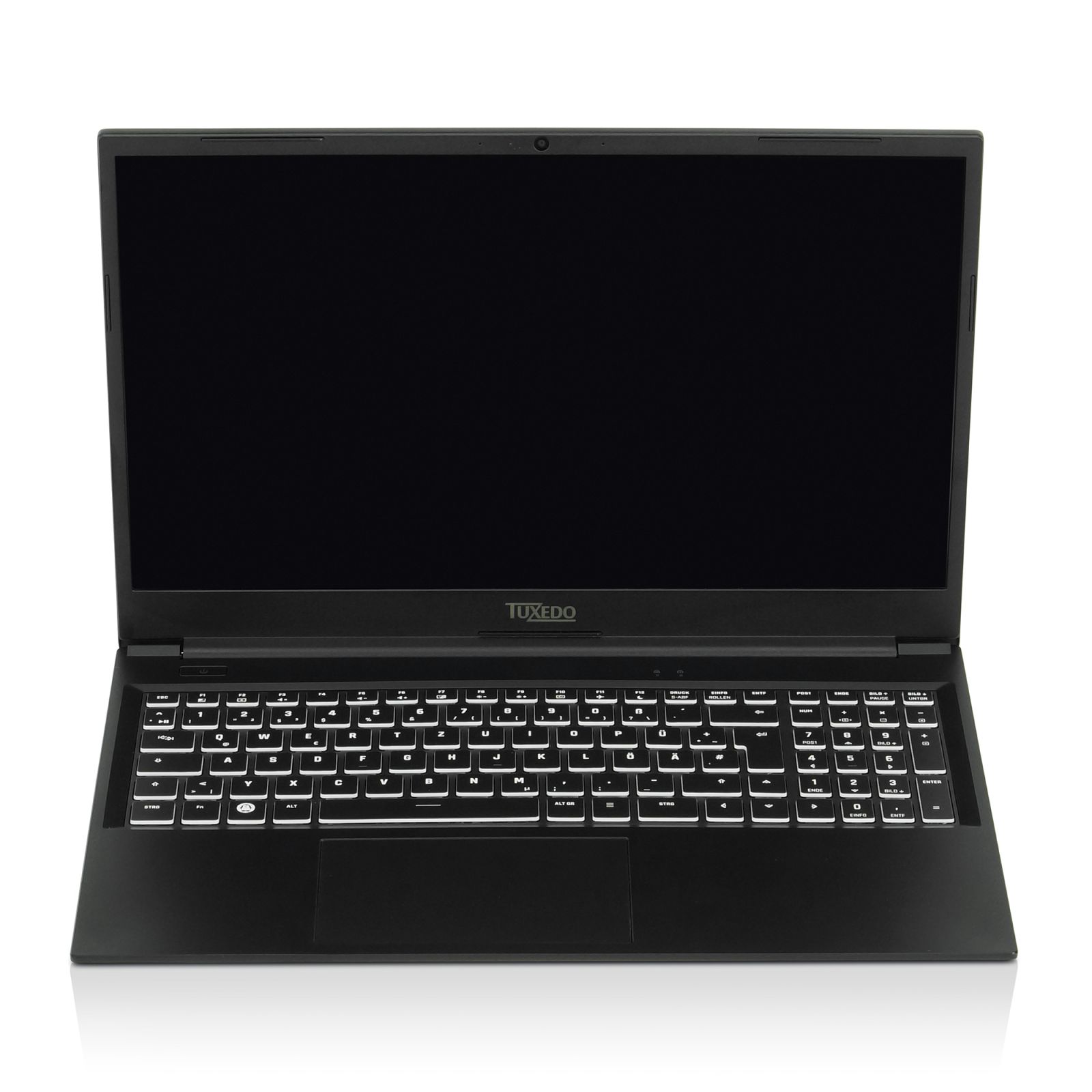

Keyboard

Full sized keyboard with number pad
Mulit-color backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.

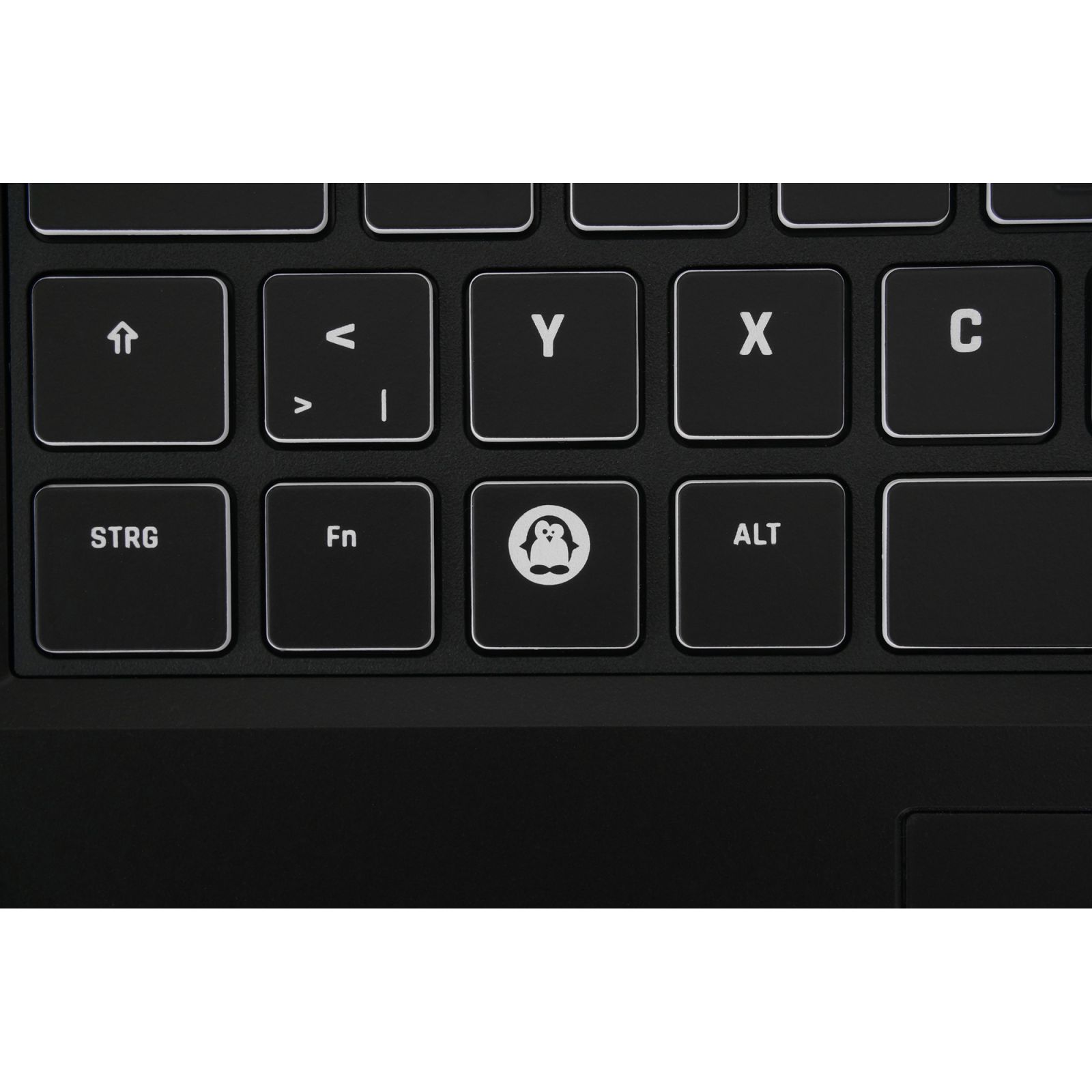

TUX super-key on all layouts!
Big clickpad (120 x 72 mm) with integrated buttons and multi-gesture- & scroll-function

Battery & power supply

49 Wh battery, 4 cells Lithium-Ion
Changeable (screwed inside)
65 watts power supply unit (included)
(Length: 95 mm; Width: 40 mm; Height: 26 mm | 280 grams)

Power plug:
Type: Coaxial
Inner diameter: 2.5mm
Outer diameter: 5.5mm
Length: 11mm

Alternatively, the device can also be charged via USB-C, USB-C power supply is not included.



Lifetime of batteries

The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information

Battery life: (with our optimizations)
up to 15 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
up to 9 hours at medium brightness with Wifi, at office work



We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.

Main processor

max. AMD Ryzen 7 4700U
(8x 2.0 - 4.1 GHz Octa-Core, 8 Threads, 8 MB L3-Cache, 15 W TDP)

Graphics card

Energy efficient CPU integrated Graphics:
AMD Radeon™ RX Vega Graphics

Memory

Typ: DDR4 SO-DIMM (up to 3200 MHz)
Manufacturer and speed see configurator
Default and maximum see configurator
Performant Dual Channel mode (2 slots)

Mass storage (SSD / HDD)

1x SATAIII or NVMe / PCIe Gen3 x4

Communication / Network

Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)

Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1



Webcam / Laptop camera

1MP Webcam / camera including microphone

Sound / Audio

High Definition Audio
2 speakers: 2x 2W
Integrated microphone

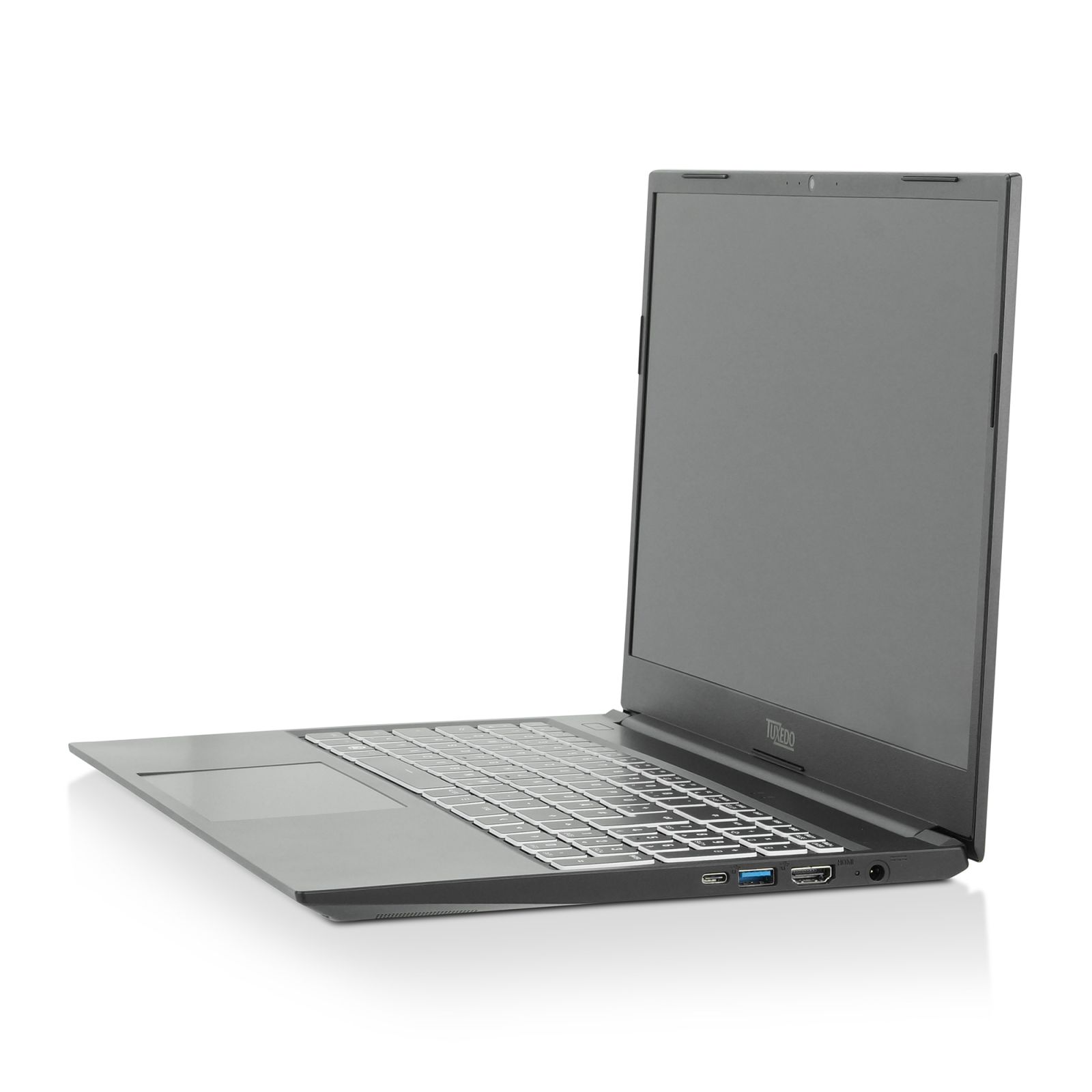

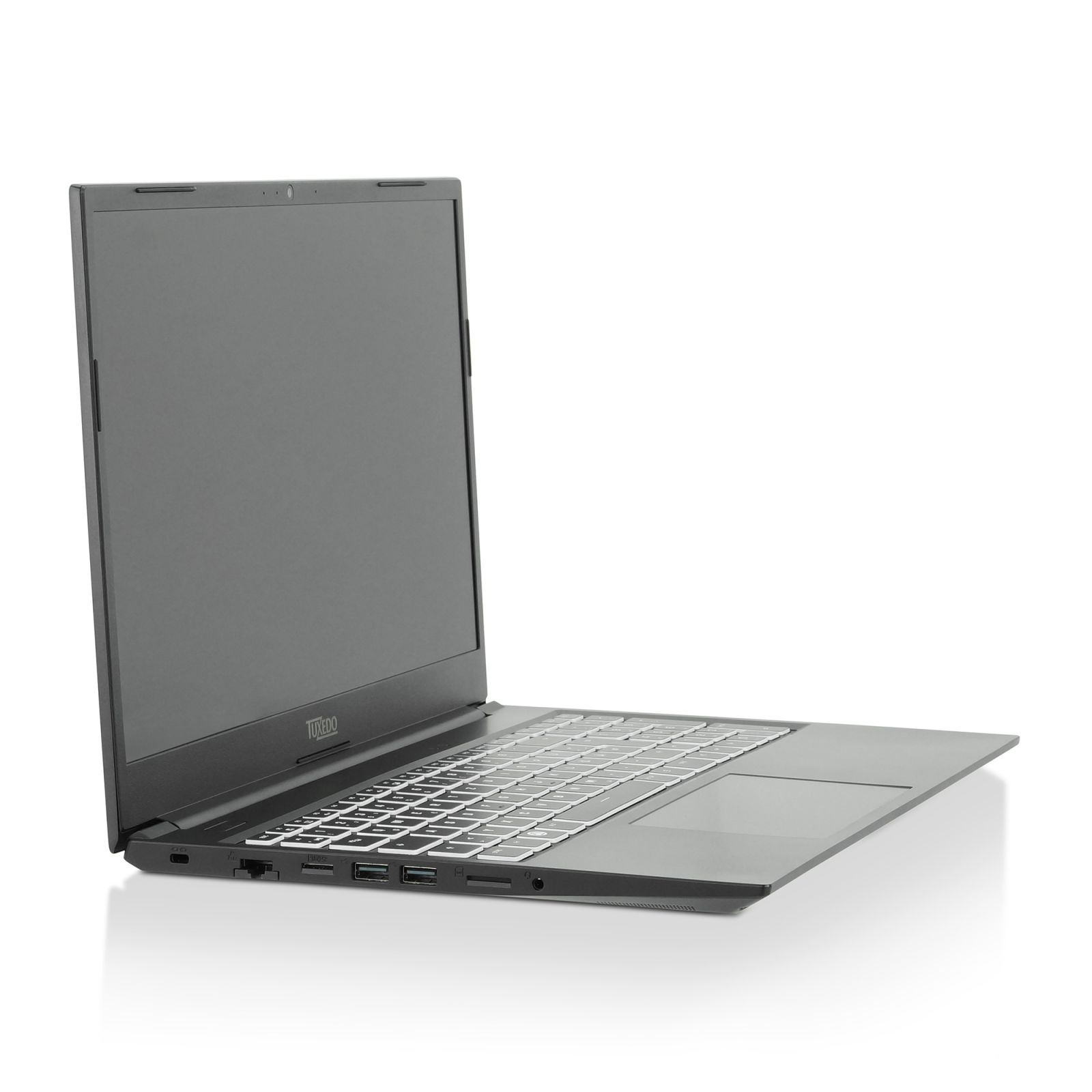

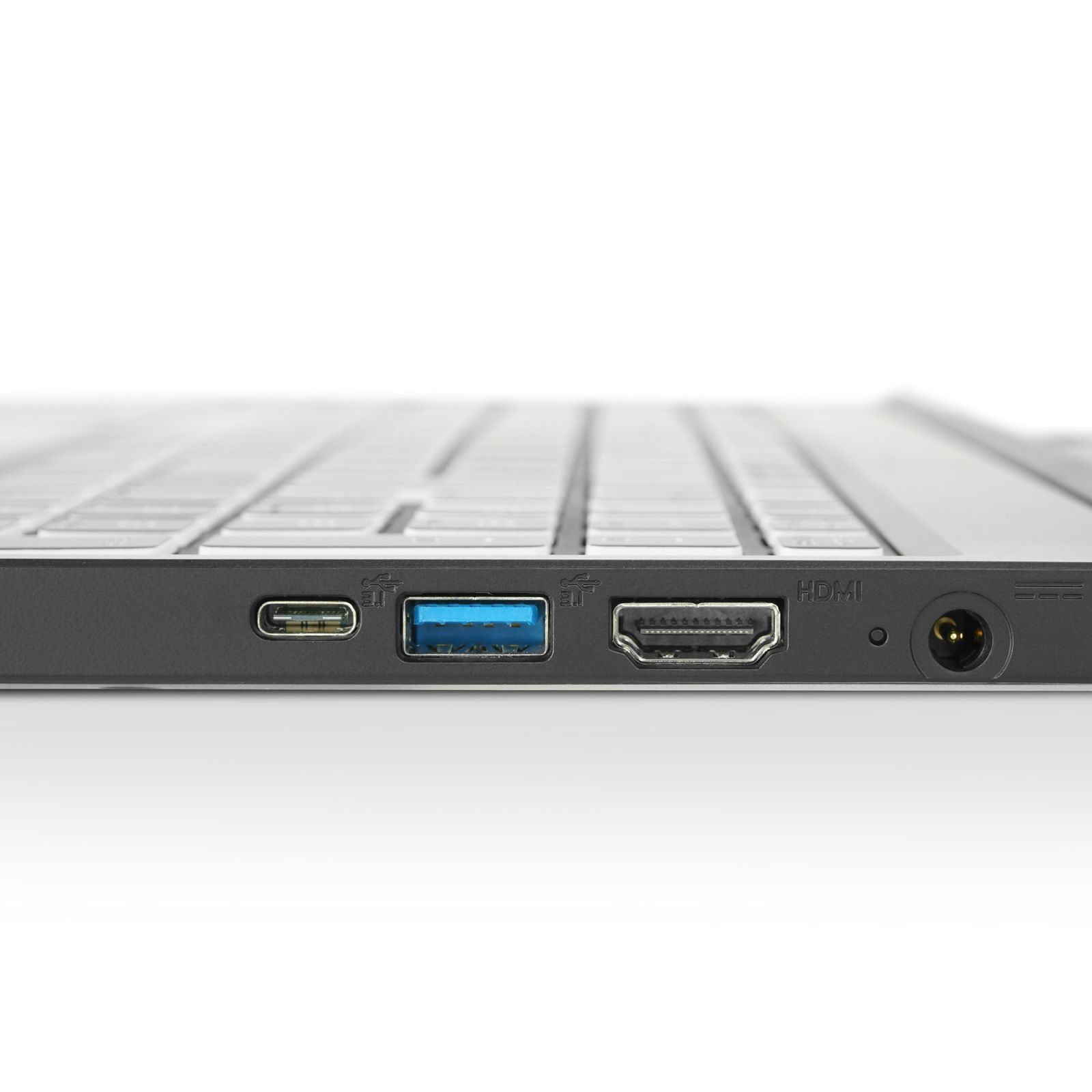

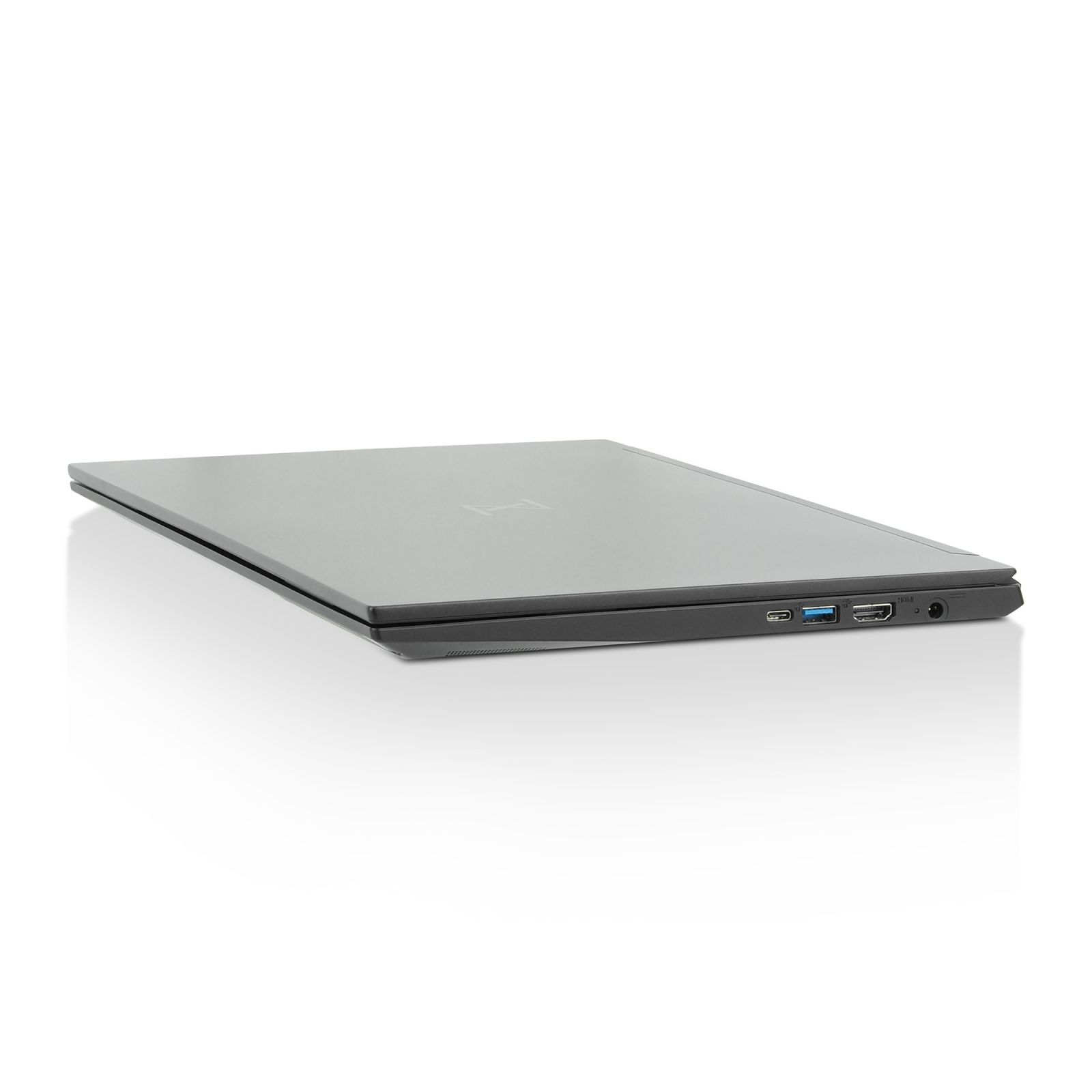

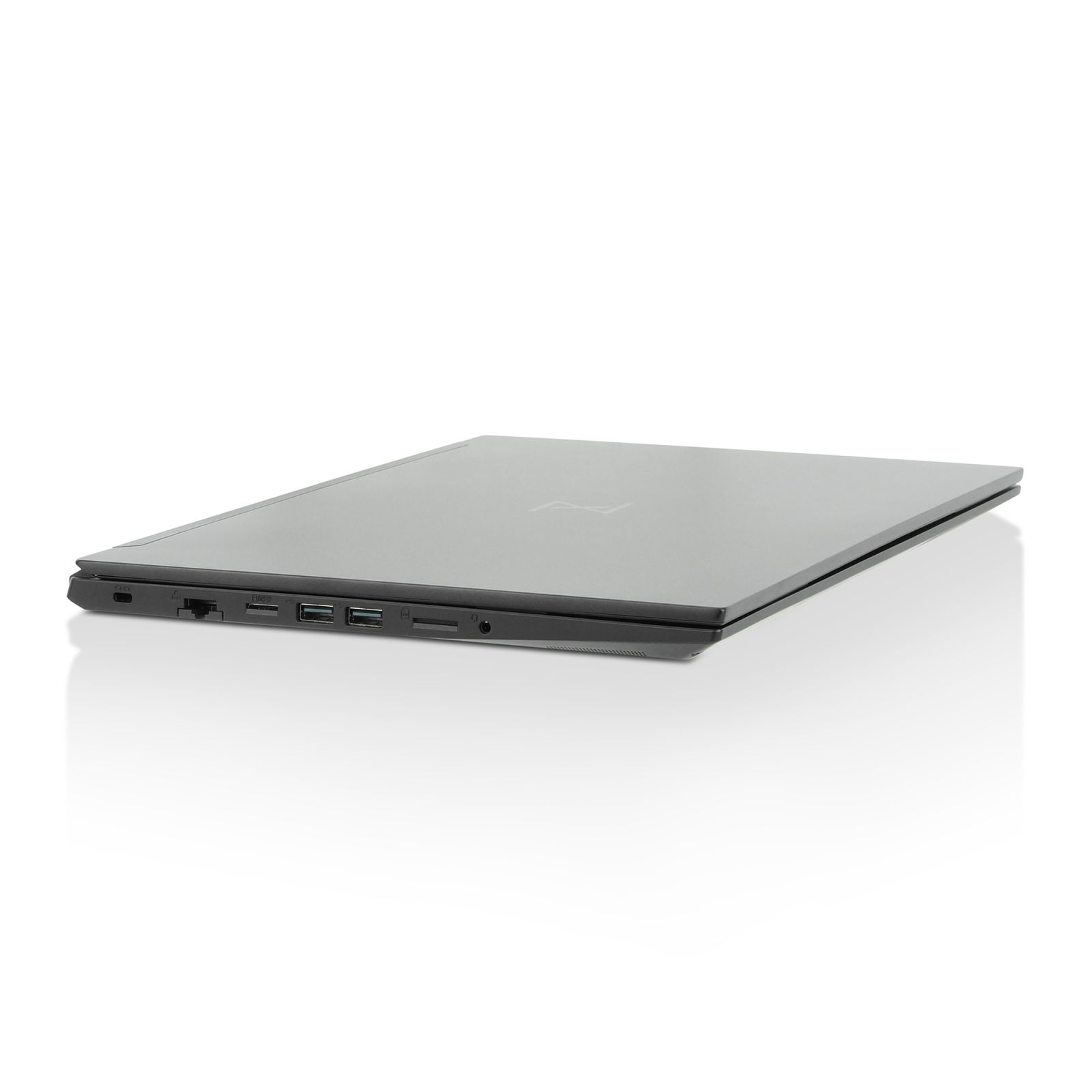

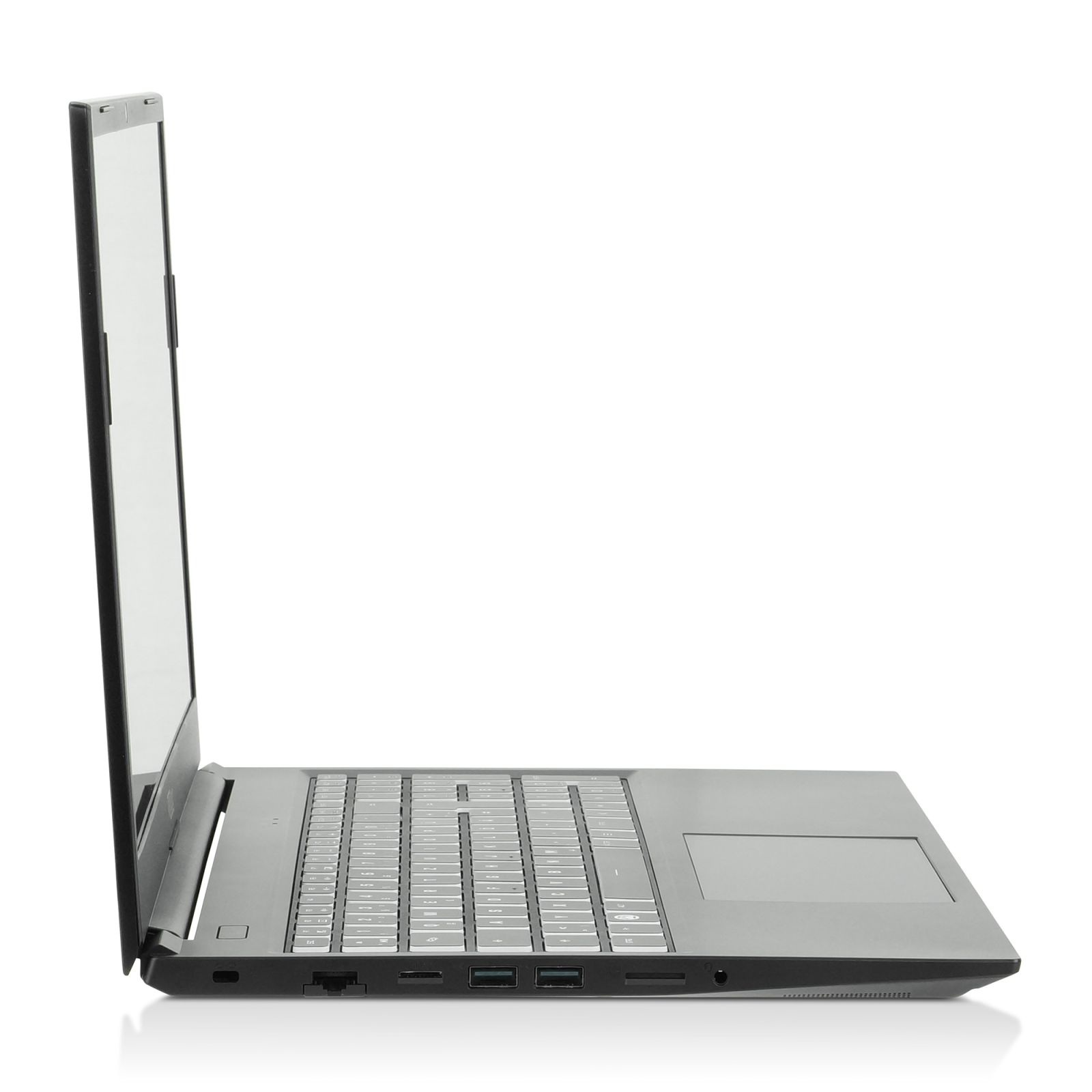

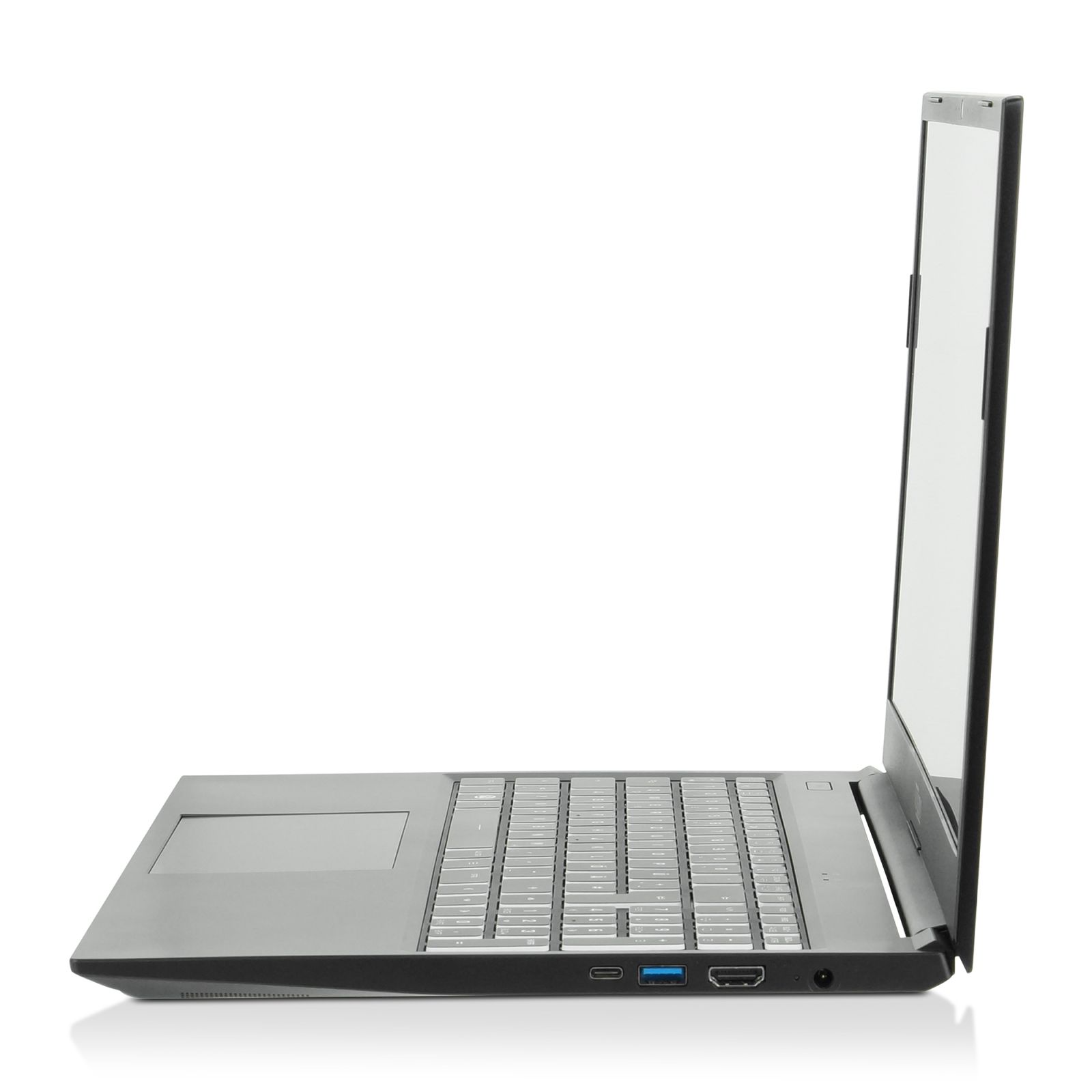

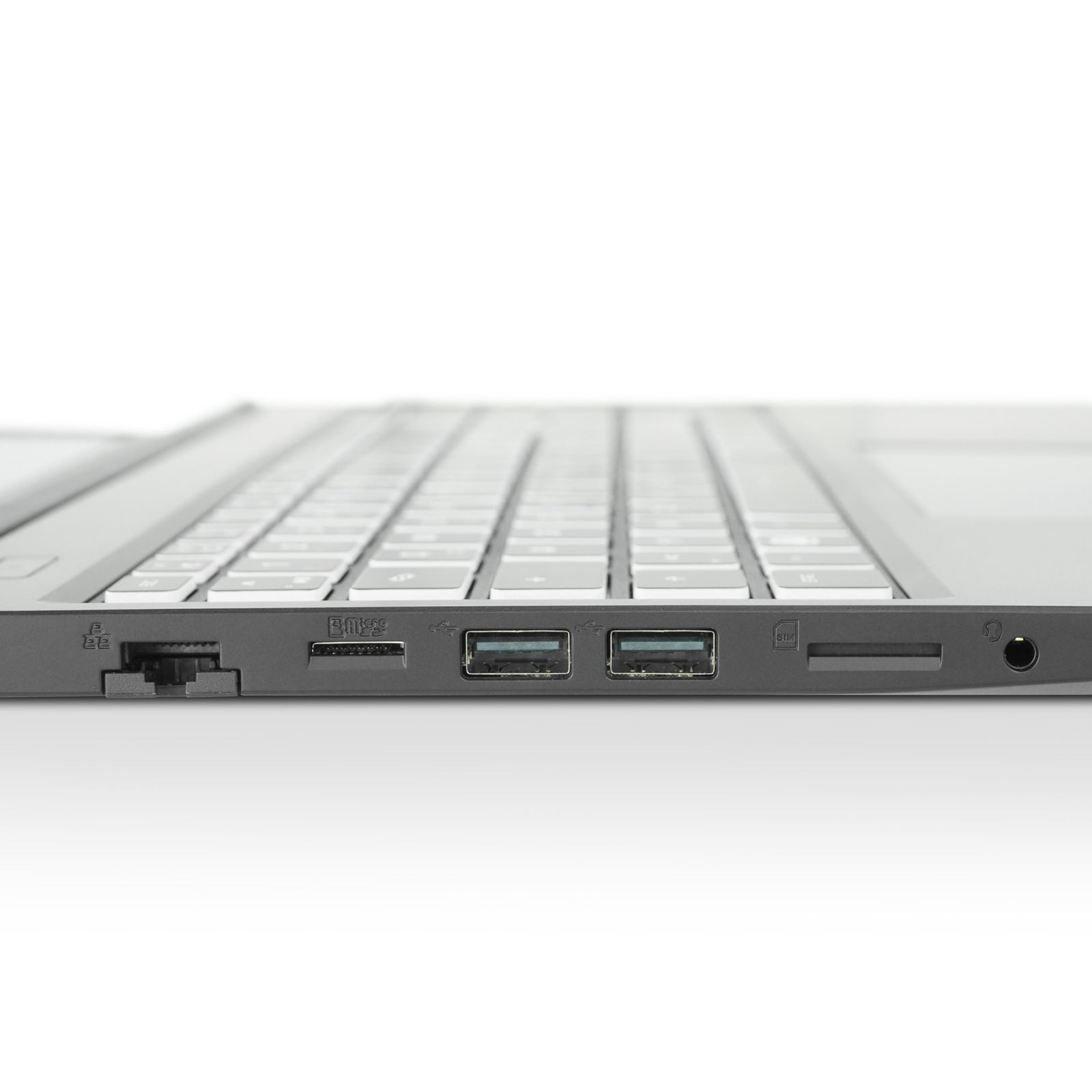

Ports

1 x USB 3.2 Gen2 Typ C Full-Featured (Displayport 1.4 (max. 7680 × 4320@60Hz), Power Delivery DC in Charging-Function*)
1x USB 3.2 Gen1 Typ-A
2x USB 2.0 Typ-A
1x HDMI 2.0 inkl. HDCP (4k UHD@30Hz (Linux) | 4k UHD @60Hz (Windows))
1x Gigabit LAN/Netzwerk RJ45
1x 2-in-1 Headphone/Headset (Headphone & Microphon
1x Kensington Lock
1x Card-Reader (micro-SD)
1x SIM card slot (LTE; Size: Mini-SIM)
1x DC-IN/power connection (also via USB-C*)

* Needs at least 20V/3.25A USB-C power supply

Card reader

Micro SD Cardreader
SIM card slot (LTE; Size: Micro-SIM)

LTE/HSDPA+ 4G Huawei ME936
Form factor: M.2 Interface



Supported frequency bands
LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
EDGE/ GPRS/GSM: 1900/1800/900/850 MHz



Transfer rates
LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
HSPA+: ↑ 11 Mbps ↓ 42 Mbps
WCDMA: ↑ 384 kbps ↓ 384 kbps



GPS
GPS Standalone, A-GPS, GPS XTRA, Glonass

Cooling System & Fan

Temperature controlled fan
At low system workload there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

Custom performance and fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!

Operating systems





BIOS

With all our notebooks you have the possibility to protect your privacy already on BIOS level. For this purpose the following functions can be completely deactivated:

• Webcam
• WLAN & Bluetooth

In addition, our Premium BIOS allows chipset-specific settings and definitions for components via various profiles in order to operate the device optimally depending on its use. The profiles can be found in the BIOS menu under:

Advanced > Advanced Chipset Control > Performance Profile Select.

Further information can be found here in our manual.

Warranty

2 years pick up and return (12 months on wearing parts like battery & power supply)

Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions

Package Contents

1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
