    Feel your pulse ryzing!

    Thin and light CPU powerhouse

    AMD Ryzen 7 4800H
    8 cores | 16 threads

    91 Wh
    Li-Polymer battery

    magnesium chassis
    elegant & robust

    1,5 kg light
    16,8 mm thin

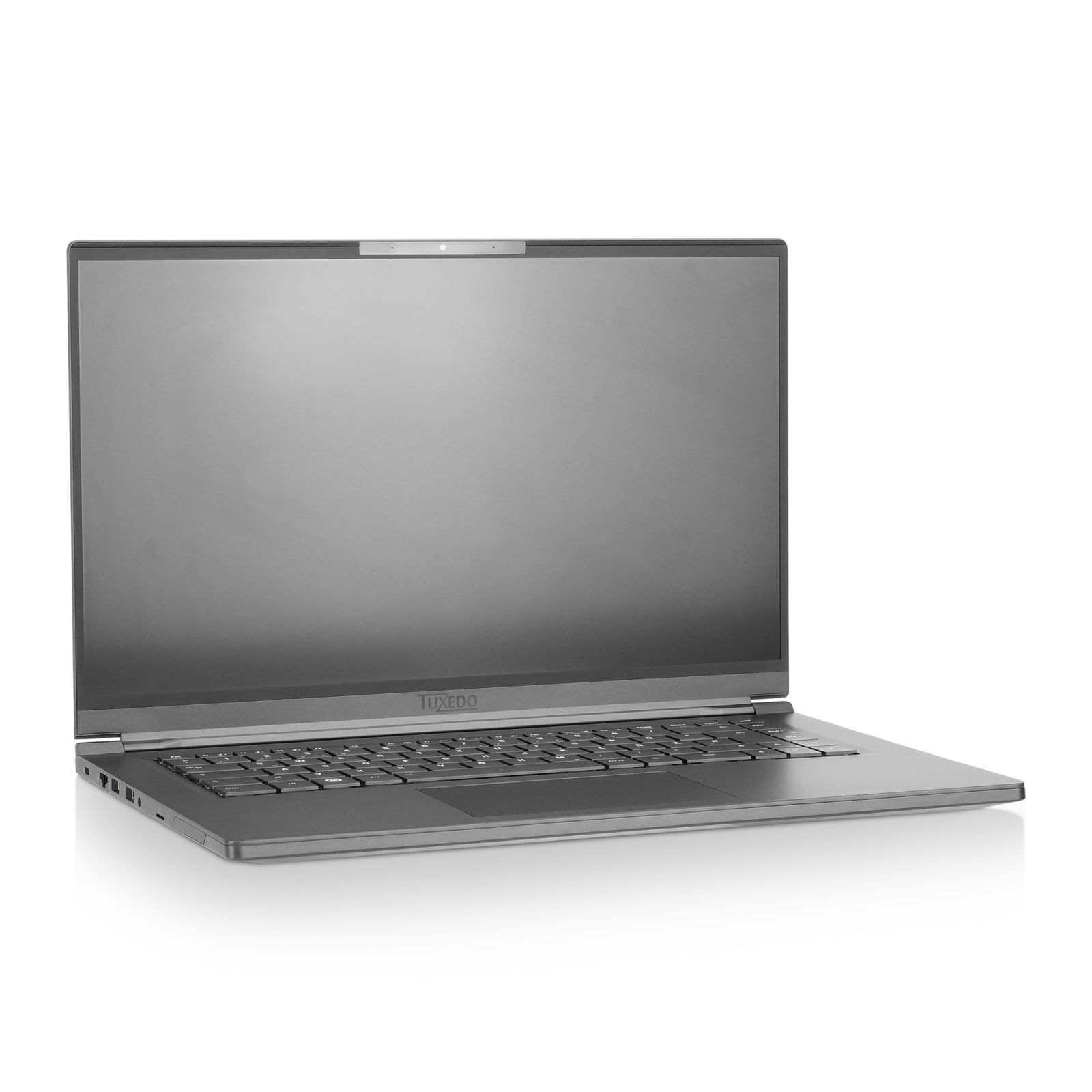

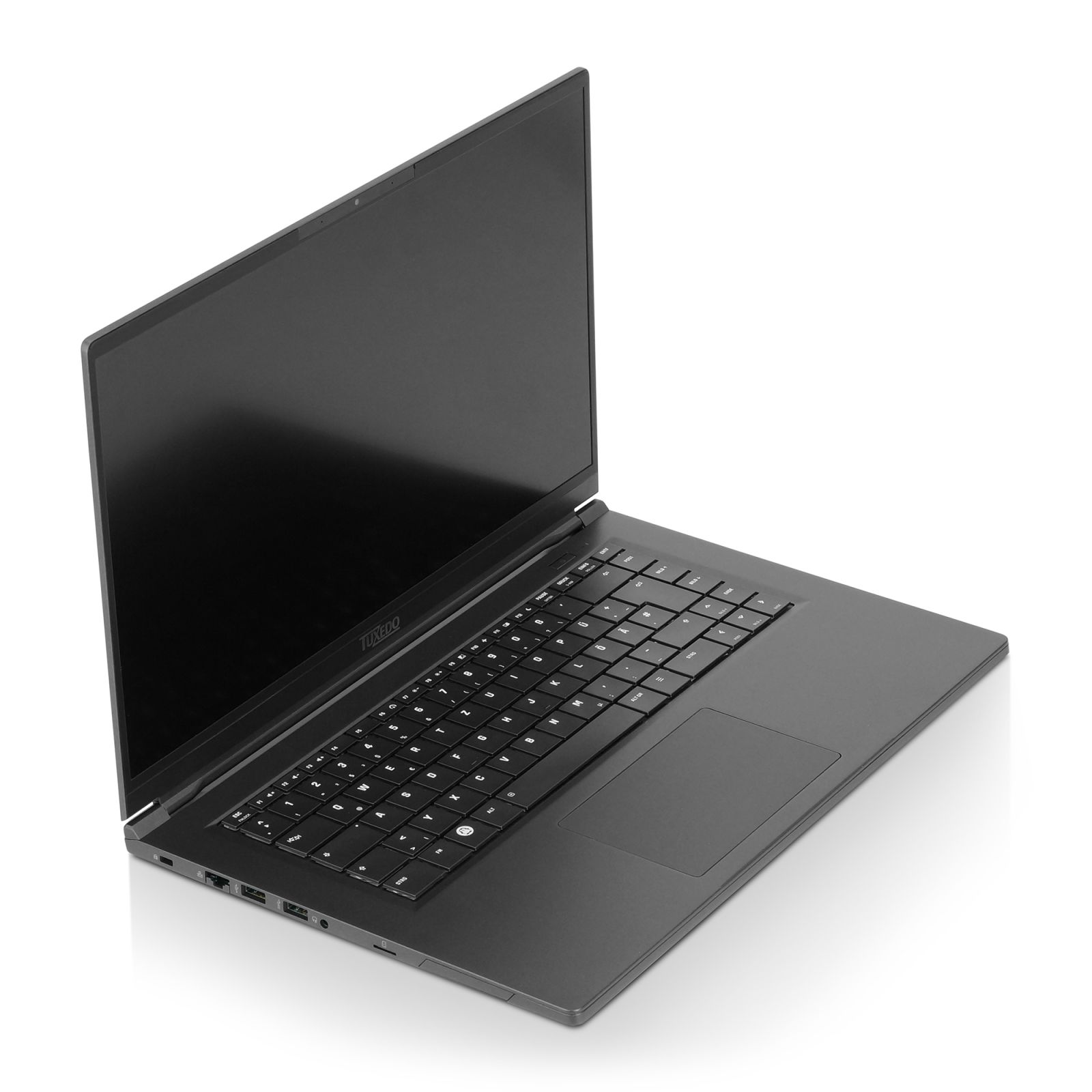

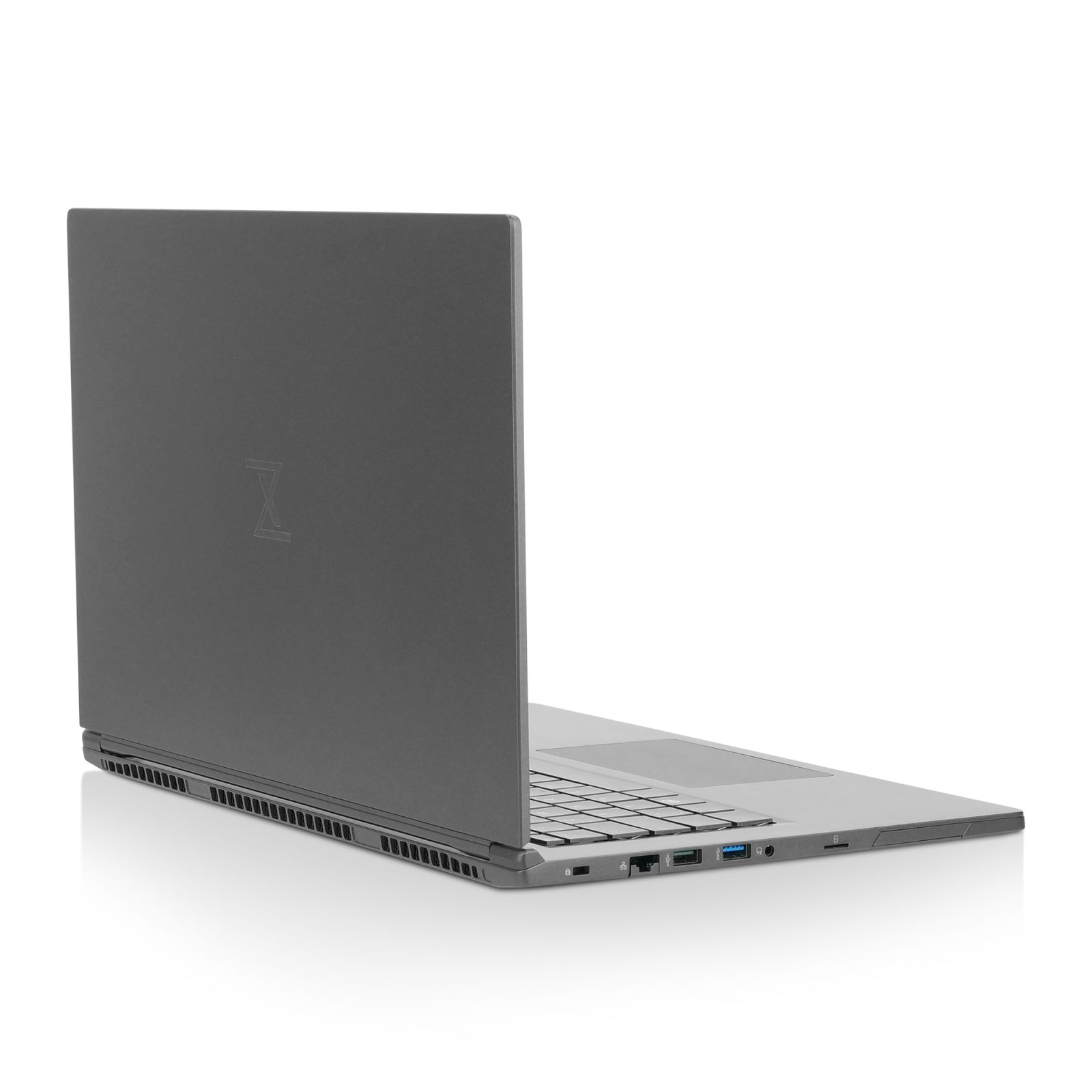

    TUXEDO Pulse 15



    Ultrabook with high-end AMD Ryzen: The TUXEDO Pulse 15.



    The TUXEDO Pulse 15 redefines the class of super thin and light ultra-mobile laptops and raises the bar to a completely new performance level: Instead of a usual power-saving ULV (ultra low voltage) processor, the Pulse 15 comes with high-end CPUs, namely the 8-core AMD Ryzen 7 4800H or the 6-core AMD Ryzen 5 4600H!



    In combination with the huge 91 Wh lithium-polymer battery and the colorful screen (100% sRGB), the 1.5 kg light and under 17 mm thin Ultrabook proves to be the ultimate and ultra mobile CPU workstation.





    Thin and light like an ultrabook...



    With a weight of only 1.5 kg and ultra compact dimensions of 356.4 x 233.73 x 16.8 mm, the TUXEDO Pulse 15 is the ideal mobile computer for users who are on the go a lot and frequently transport this thin power machine.



    The low weight as well as its compact design is due to the robust magnesium chassis, which gives the powerful AMD-only Linux Notebook a very elegant touch.



    The excellent mobility is not least due to the huge battery, which provides the TUXEDO Pulse 15 with a capacity of 91 Wh energy for more than 20 hours (idle mode at minimum display brightness). In practical operation with ~150 cd/m2 brightness and 1080p video streaming, users can expect over 10 hours of runtime.





    ... powerful like a workstation



    The heart of the TUXEDO Pulse 15 consists of AMD's brand new high-end mobile processors Ryzen 7 4800H or Ryzen 5 4600H.



    The 7 nm APU of the "Renoir" generation offers 8 cores, which can process up to 16 threads simultaneously and performs with a maximum clock rate of up to 4.2 GHz (single core). The thermal design power (TDP) of th eight-core CPU is listed at 45 W, whereby higher TDPs of up to 54 W can be achieved for short periods of time.



    The AMD Ryzen APU is also responsible for graphics processing and image output: The integrated Radeon RX Vega 7 provides 7 GPU cores, which perform with up to 1600 MHz and in combination with up to 64 GB DDR4 3200 MHz Dual Channel RAM the Pulse 15 even provides a decent amount of graphics performance.

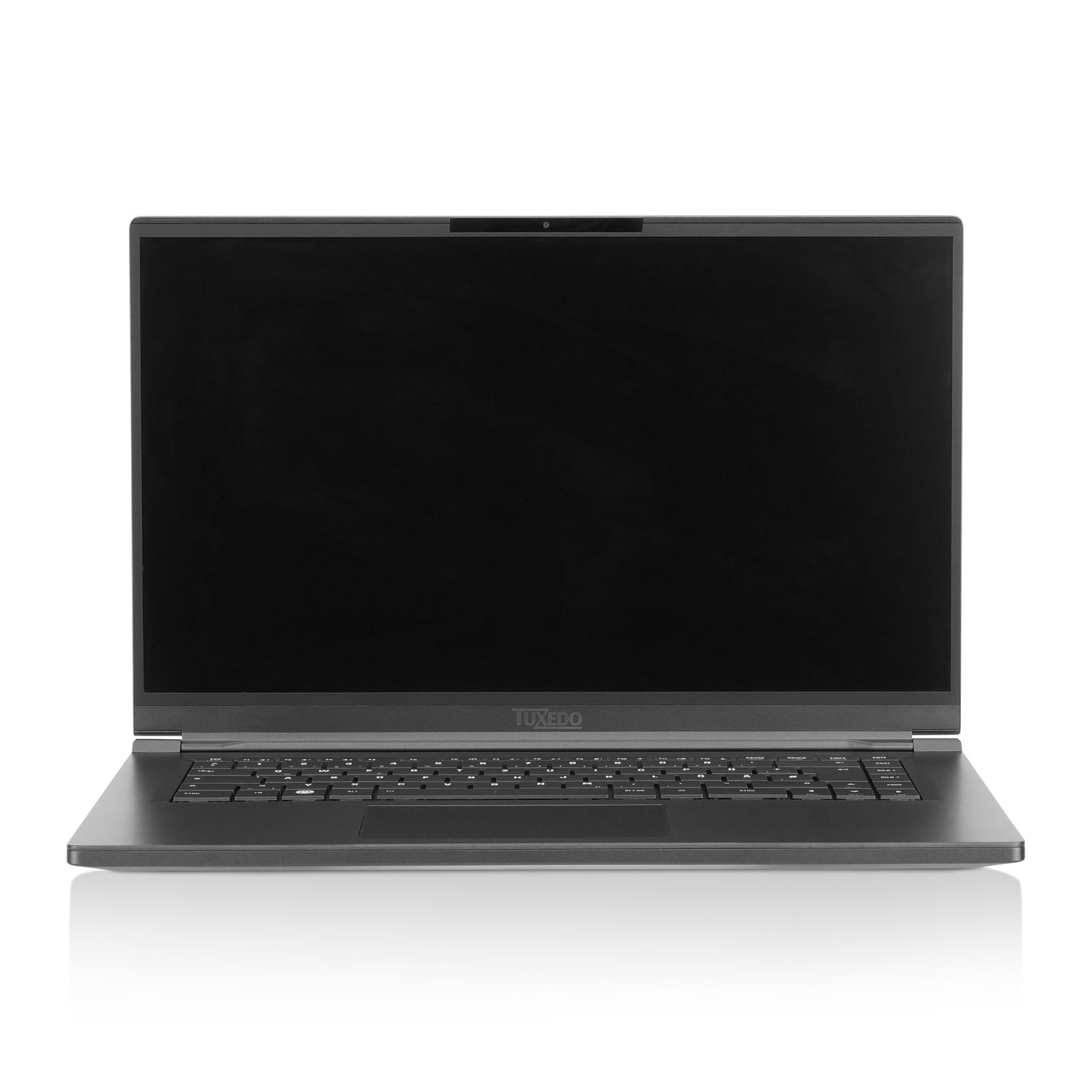

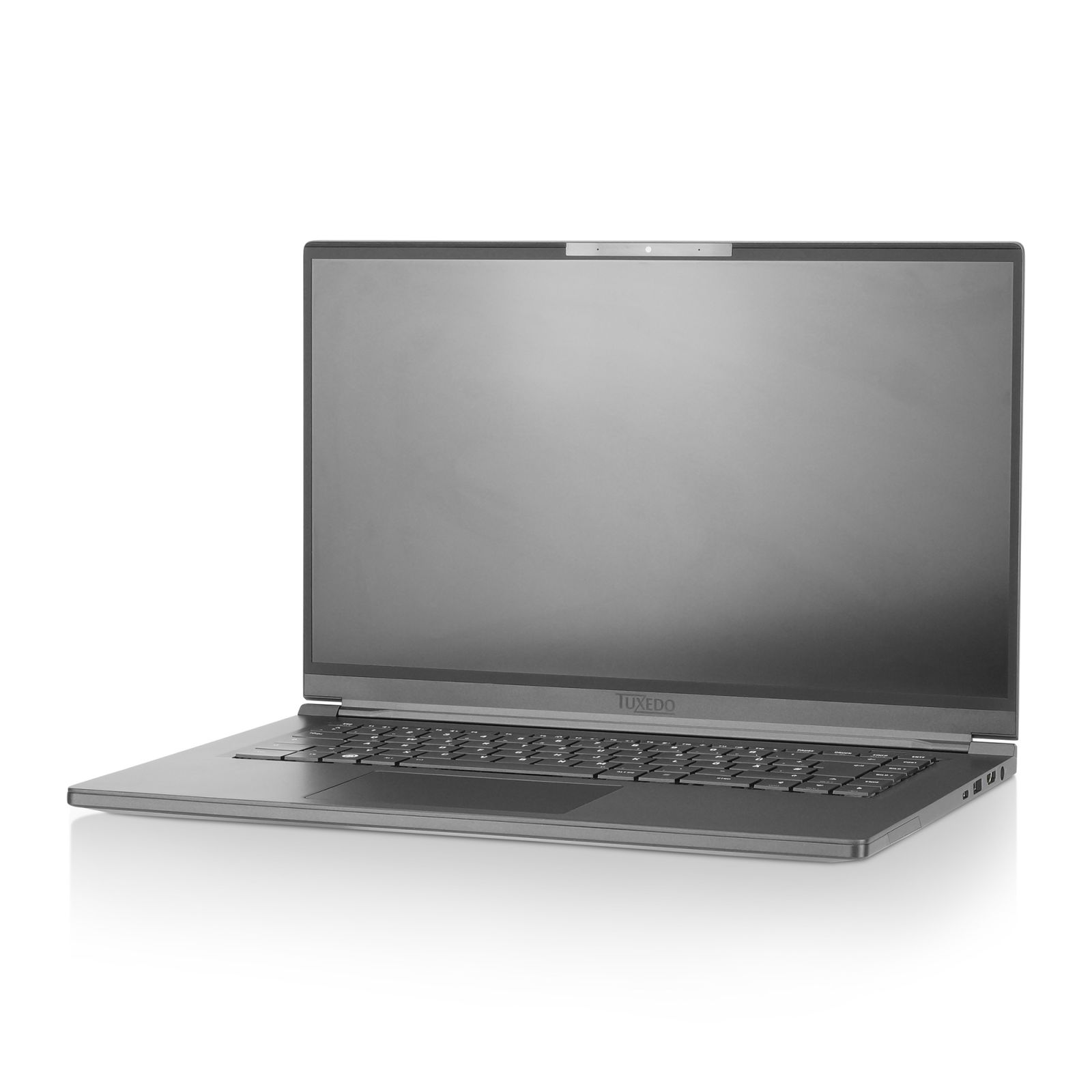

    100 % sRGB thin bezel display



    The image output of the AMD Radeon Graphics gets displayed on a 15.6 inch FullHD (1920 x 1080 pixels) 60 Hz panel, which particularly benefits content creators due to the high color gamut of 100% sRGB coverage and with its IPS-typical wide viewing angles.



    The white backlit membrane keyboard convinces with a pleasant typing feel thanks to relatively large keys as well as a well defined feedback. The same applies for the large (114.5 x 70 mm) precision touchpad with integrated mouse buttons, which enables a precise navigation of the AMD power ultrabook.

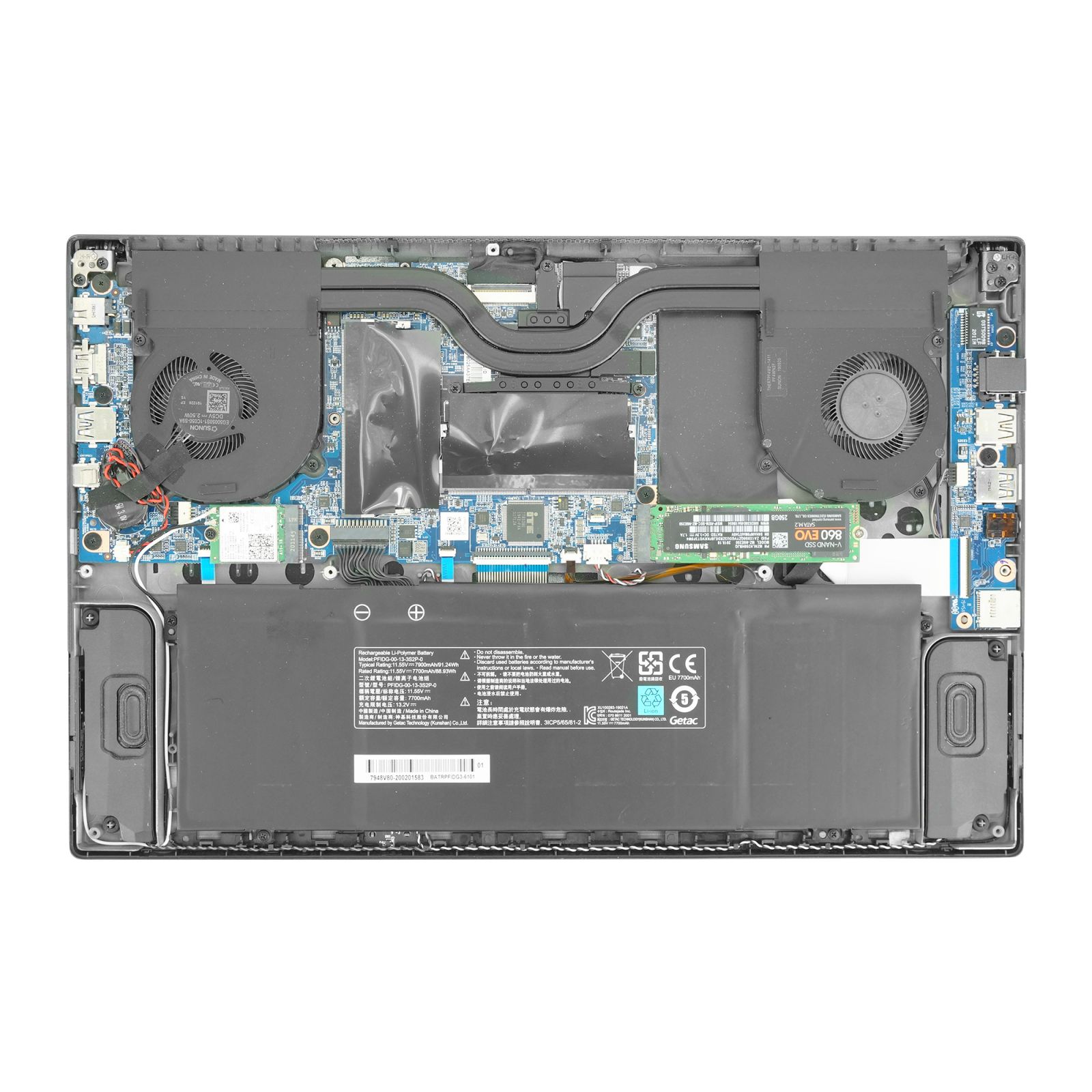

    Dual channel RAM and Card reader



    Via 2x DDR4 RAM slots, the TUXEDO Pulse 15 can be equipped with up to 64 GB RAM with up to 3200 MHz in high-performance dual channel mode.



    The ultra mobile CPU-workstation offers 1x M.2 2280 slot with NVMe PCIEx4 connection for up to 2 TB of storage. Externally, the Pulse 15 integrates 3x USB 3.2 (Gen1) (2x type A, 1x type C) as well as 1x USB 2.0, HDMI, LAN RJ45, Audio out & Mic in as well as a Kensington Lock. The Micro SD card reader completes the connection equipment.



    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    Type: LED-Backlight Display, non-glare
    IPS technology (particularly strong colours, extremely bright, very stable viewing angle)
    Size: 15,6" (39,62cm)
    Resolution: Full-HD, 1920 x 1080
    Color Gamut: 100% sRGB
    Viewing Angle: 89°/89°/89°/89°
    Display opening angle: approx. 145°
    Model: Innolux N156HCE-EN1
    Contrast: 1212:1
    Luminance: 321 cd/m²



    Chassis

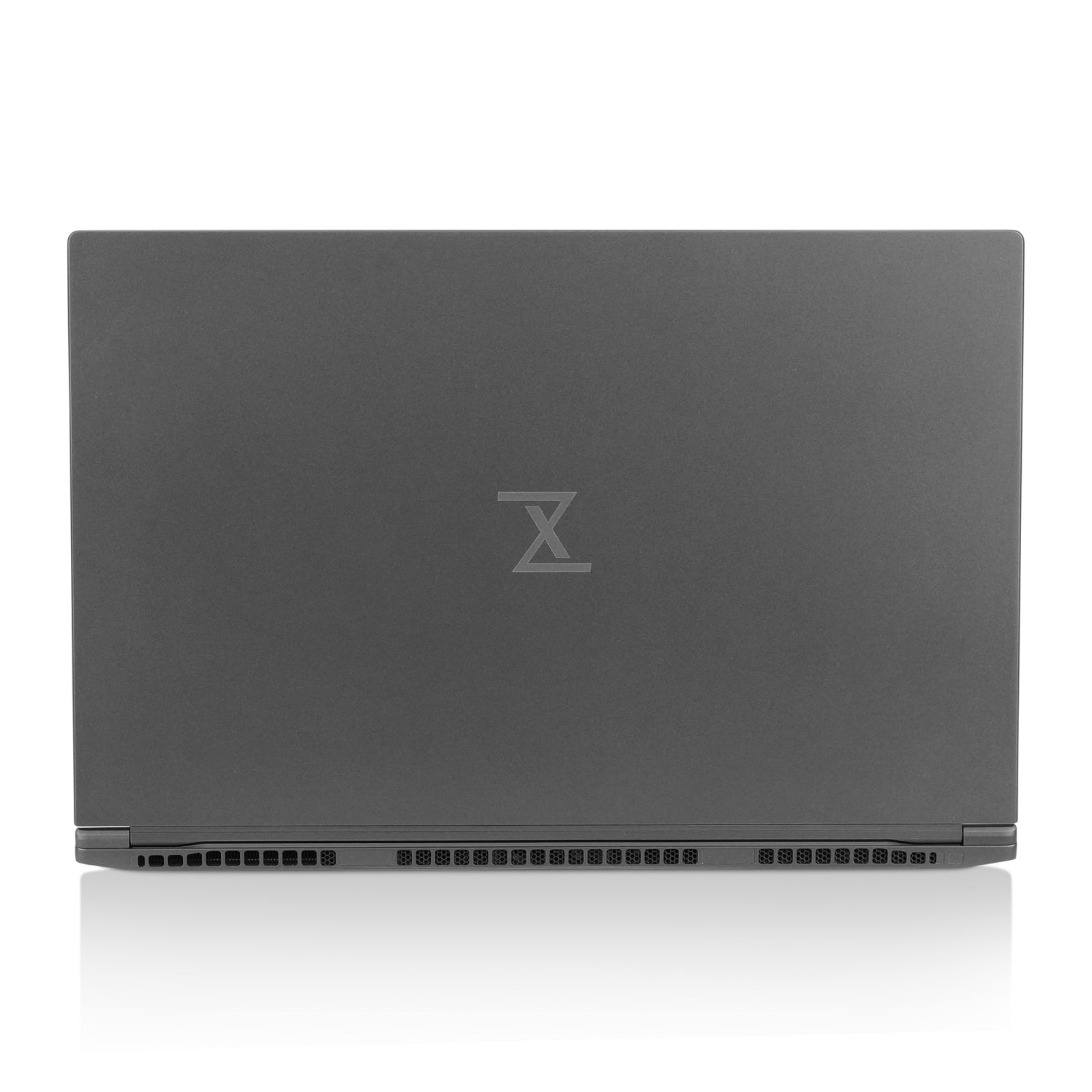

    Display lid and top case made of magnesium alloy (AZ91D)

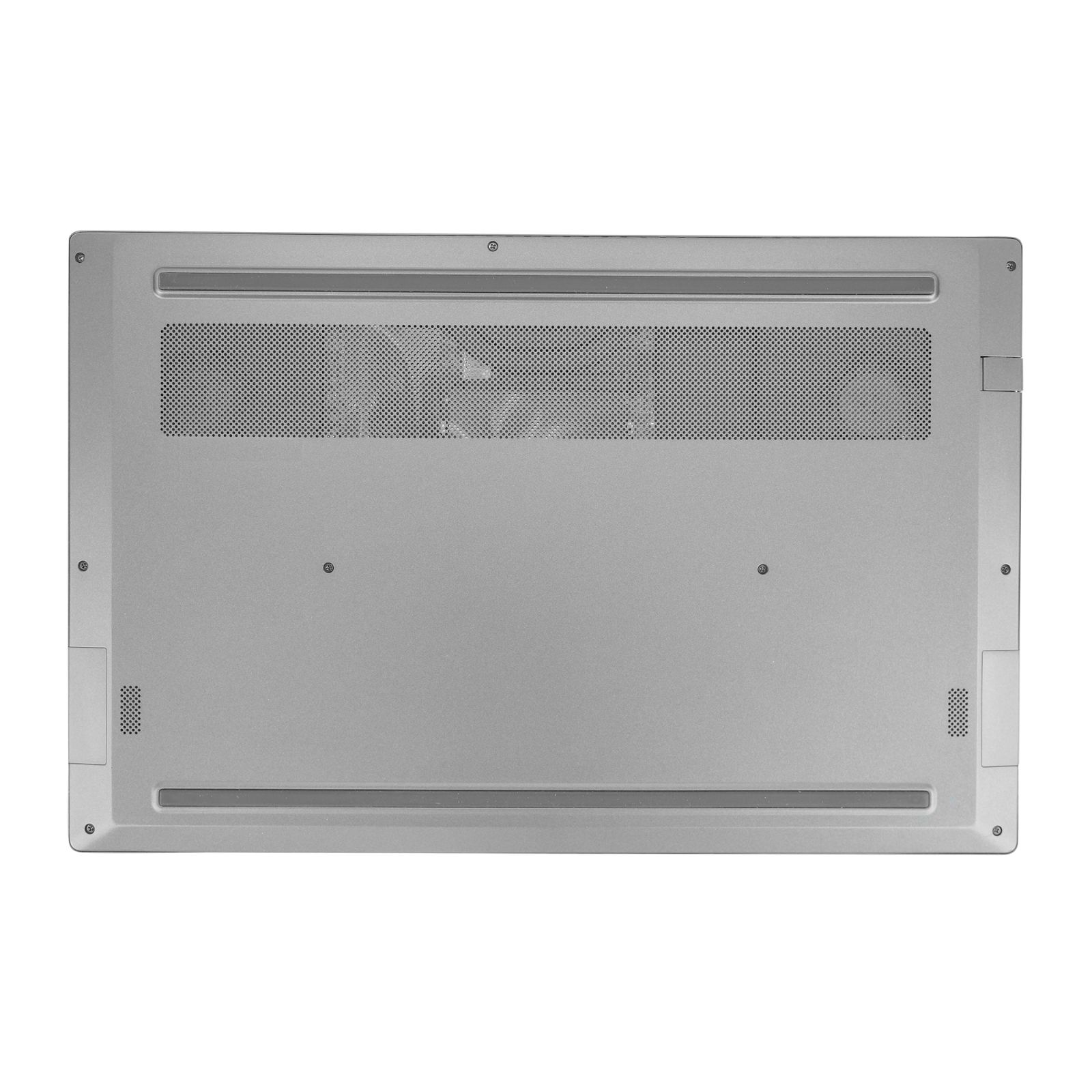

    Bottom case made of metal
    Display frame made of resin
    Dimensions: width: 35,6cm; height: 1,7cm; depth: 23,4cm
    Weight: approx. 1,5 kg with battery

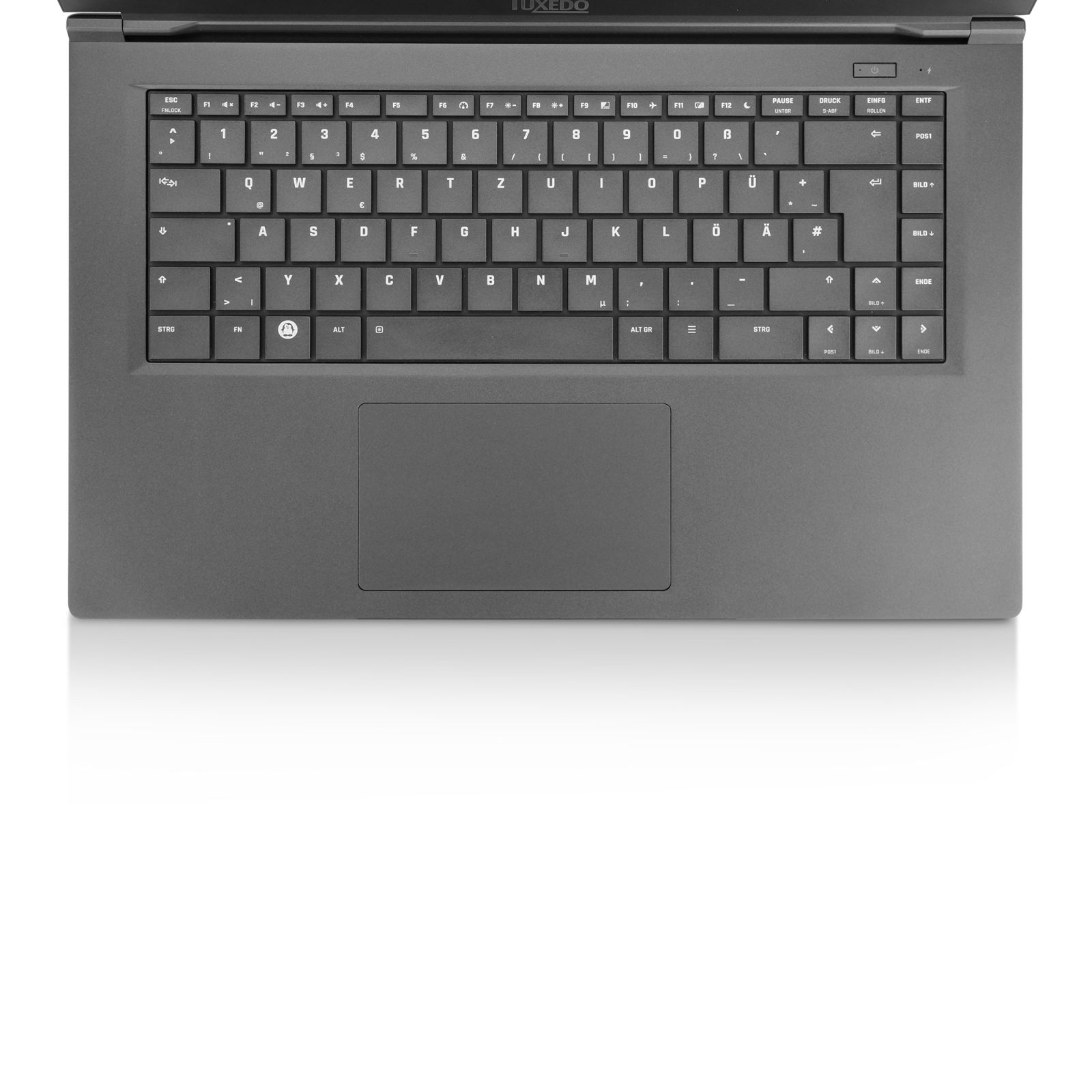

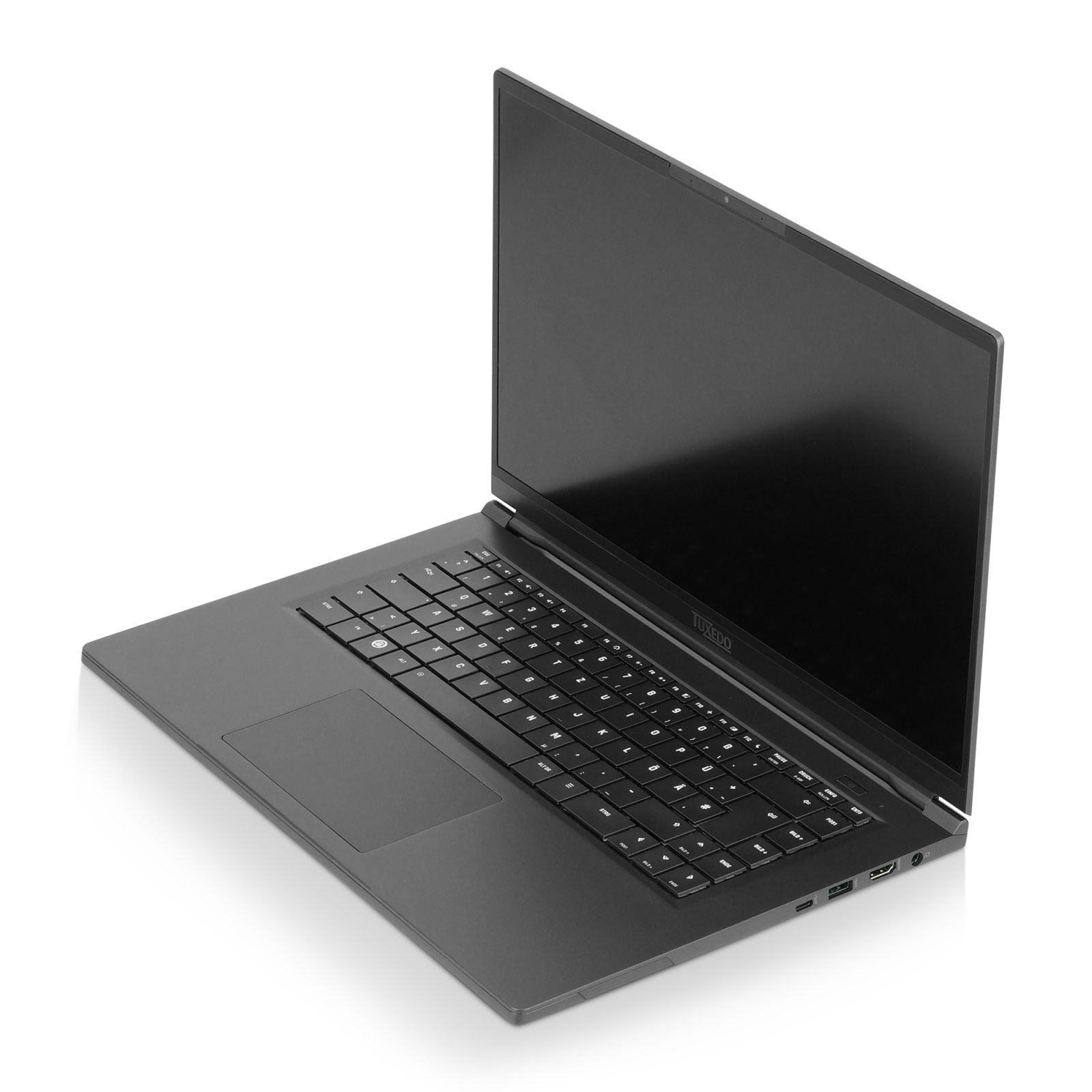

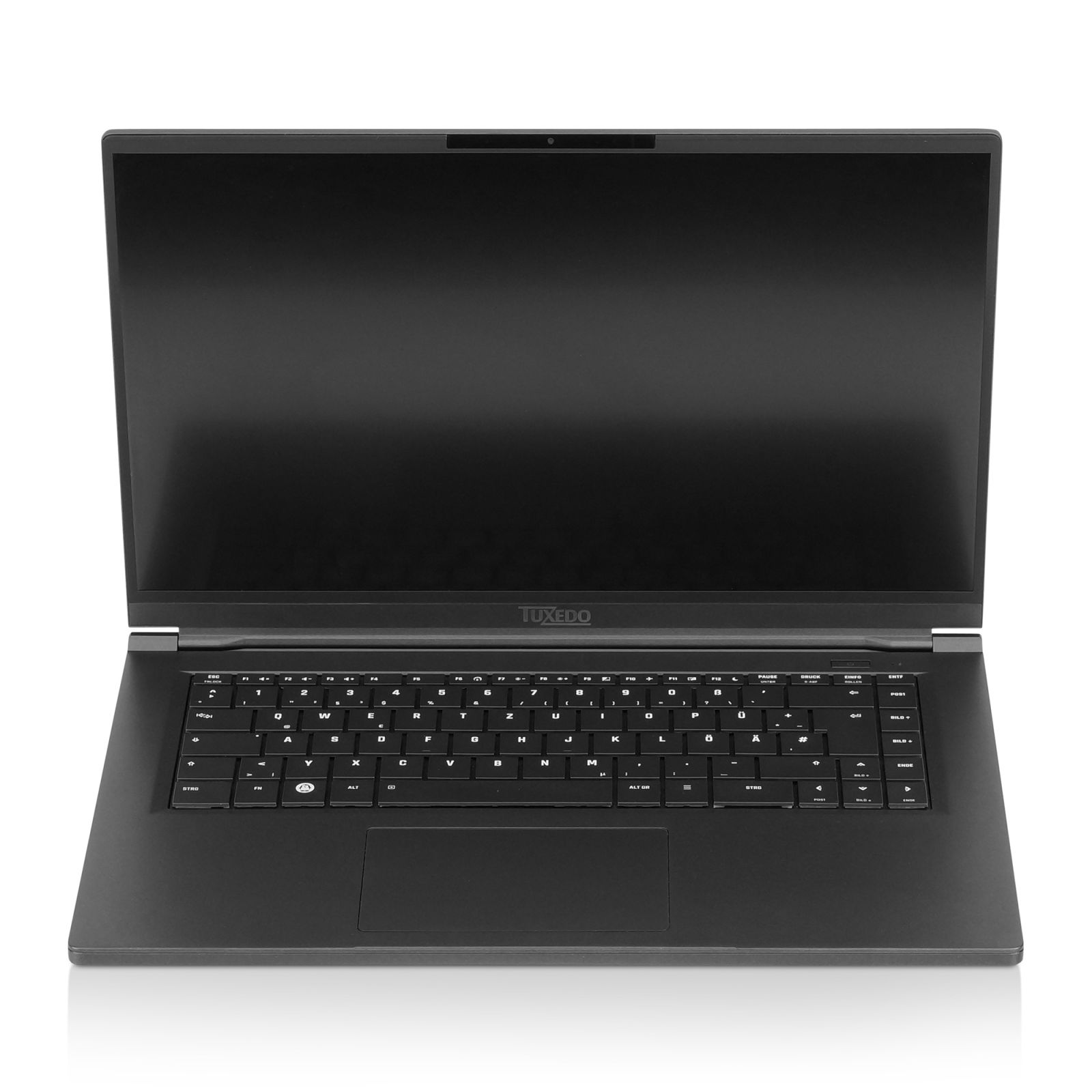

    Keyboard and Touchpad

    Full sized keyboard. Extra large keys.
    Monocolor (white) backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
    TUX super-key on all layouts!
    Big precision clickpad with integrated buttons and multi-gesture- & scroll-function



    Security

    - Kensington-Lock mounting
    - Intel Management Engine (Intel ME) can be disabled directly via the BIOS
    - Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
    - WLAN & Bluetooth can be deactivated directly via the BIOS

    - fTPM (BIOS switchable)
    - TPM 2.0 (BIOS switchable)



    Battery & power supply

    Huge 91,25 Wh battery, 4 cells lithium-polymer
    Changeable (screwed inside)
    90 Watt Power supply unit

    Power plug:
    Type: Coaxial
    Inner diameter: 2.5mm
    Outer diameter: 5.5mm
    Length: 12.5mm



    Battery life: (with our optimizations)
    over 20 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    over 11 hours at medium brightness with Wifi, at office work

    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Main processor

    • AMD Ryzen 5 4600H
      6x 3.0 - 4.0 GHz Hexa-Core, 12 Threads, 8 MB L3-Cache, 45 W TDP)
    • AMD Ryzen 7 4800H
      8x 2.9 - 4.2 GHz Octa-Core, 16 Threads, 8 MB L3-Cache, 45 W TDP)



    Graphics card

    Energy efficient CPU integrated Graphics:
    AMD Radeon™ RX Vega 6 Graphics (AMD Ryzen 5 4600H)
    AMD Radeon™ RX Vega 7 Graphics (AMD Ryzen 7 4800H)
    *For external 4k monitors with 60Hz via HDMI, please use high quality HDMI cables of at least HDMI 2.1 specification and max. 0.5m length! In some cases there appears rare flickering at 4k@60Hz! Alternatively you can use downsampling 4:2:0 with reduced color reproduction.



    Memory

    Typ: DDR4 SO-DIMM (up to 3200 MHz)
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Performant Dual Channel mode (2 slots)



    Mass storage (SSD / HDD)

    One slot for super fast SSDs in space-saving M.2 form factor

    1x M.2 2280 SSD via PCI Express 3.0 x4



    Communication / Network

    Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)

    Wireless/WIFI (optional):
    Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX 200
    Version: Dual Mode Bluetooth 5.1



    Webcam / Laptop camera

    HD Webcam / camera including microphone



    Sound / Audio

    High Definition Audio
    2 speakers: 2x 2W
    Integrated microphone

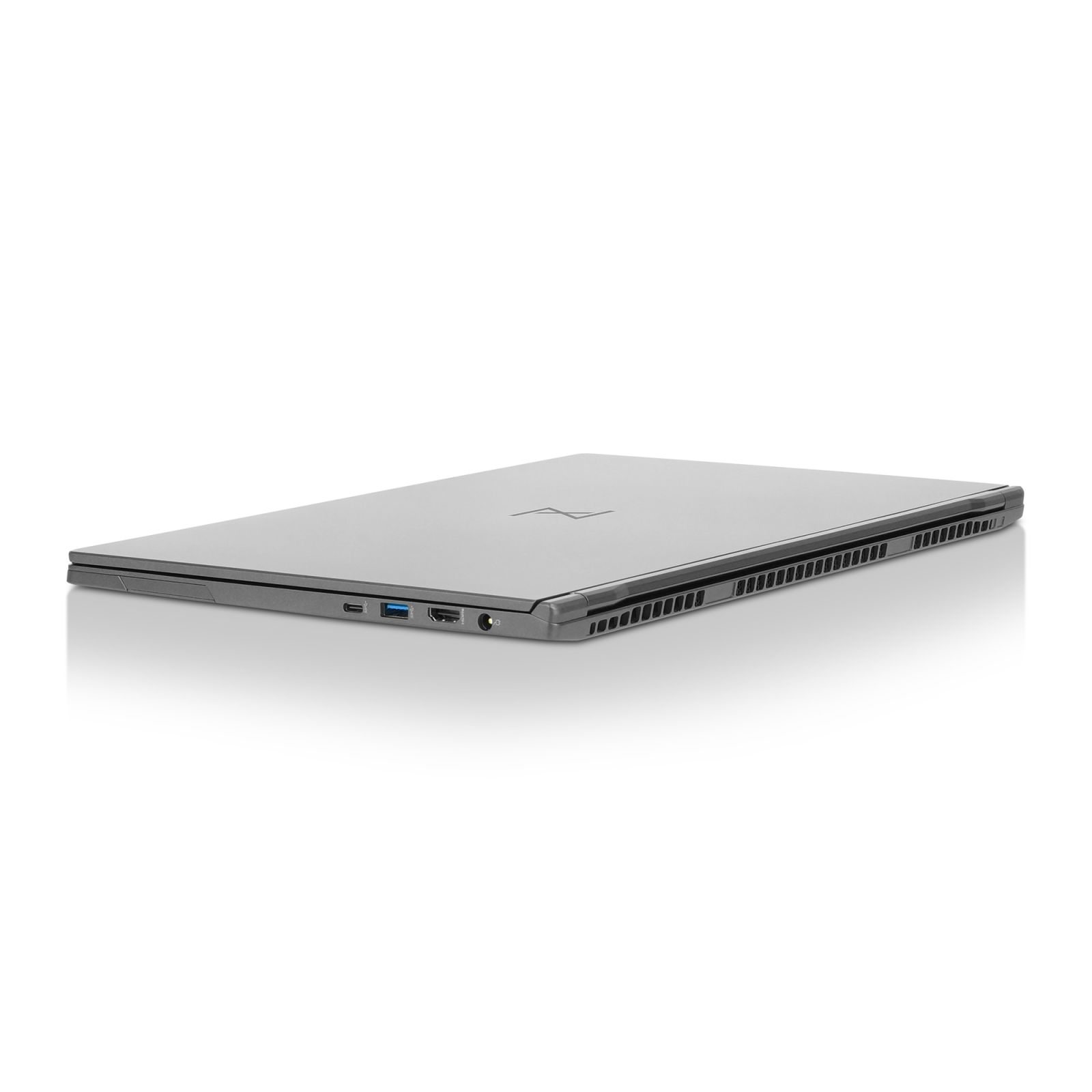

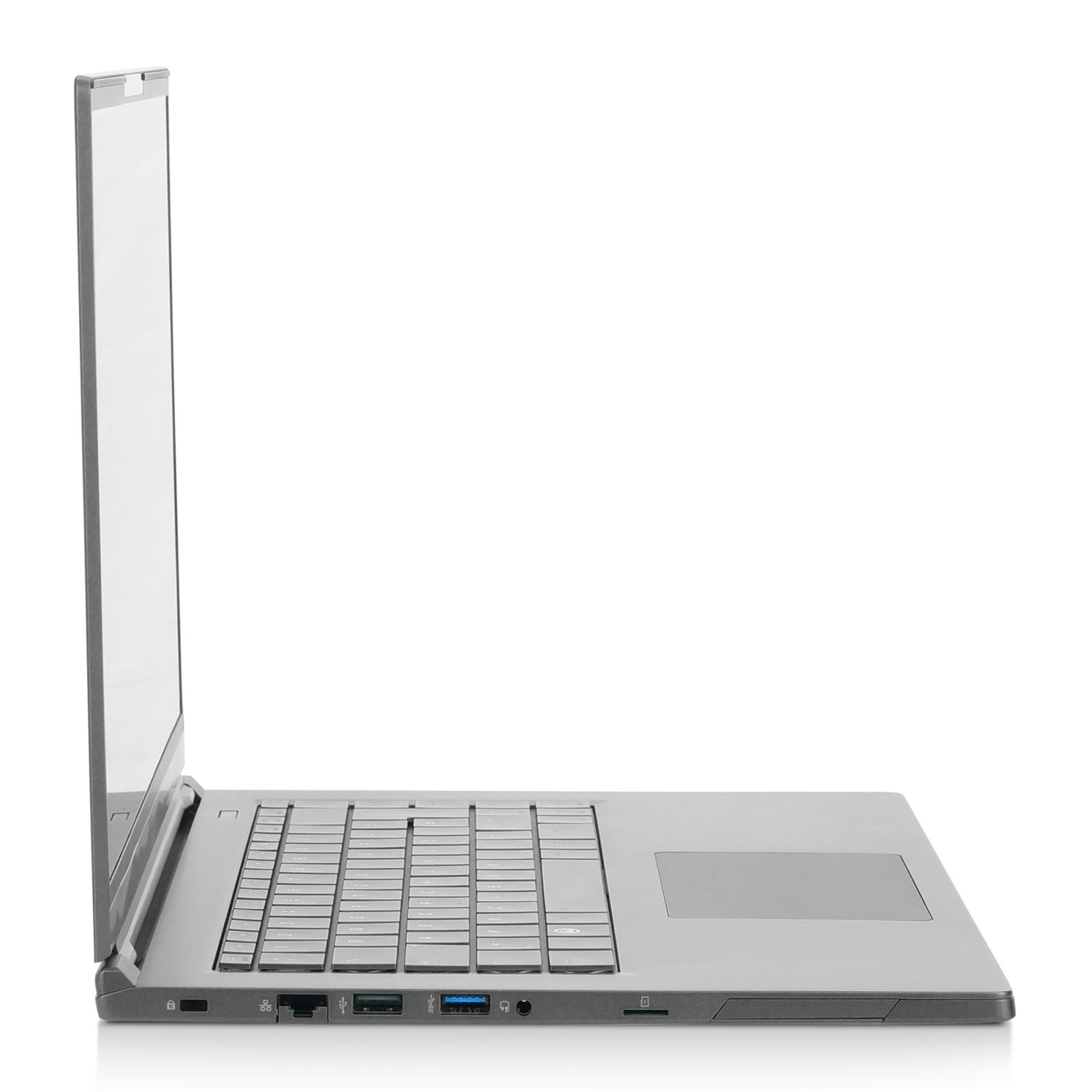

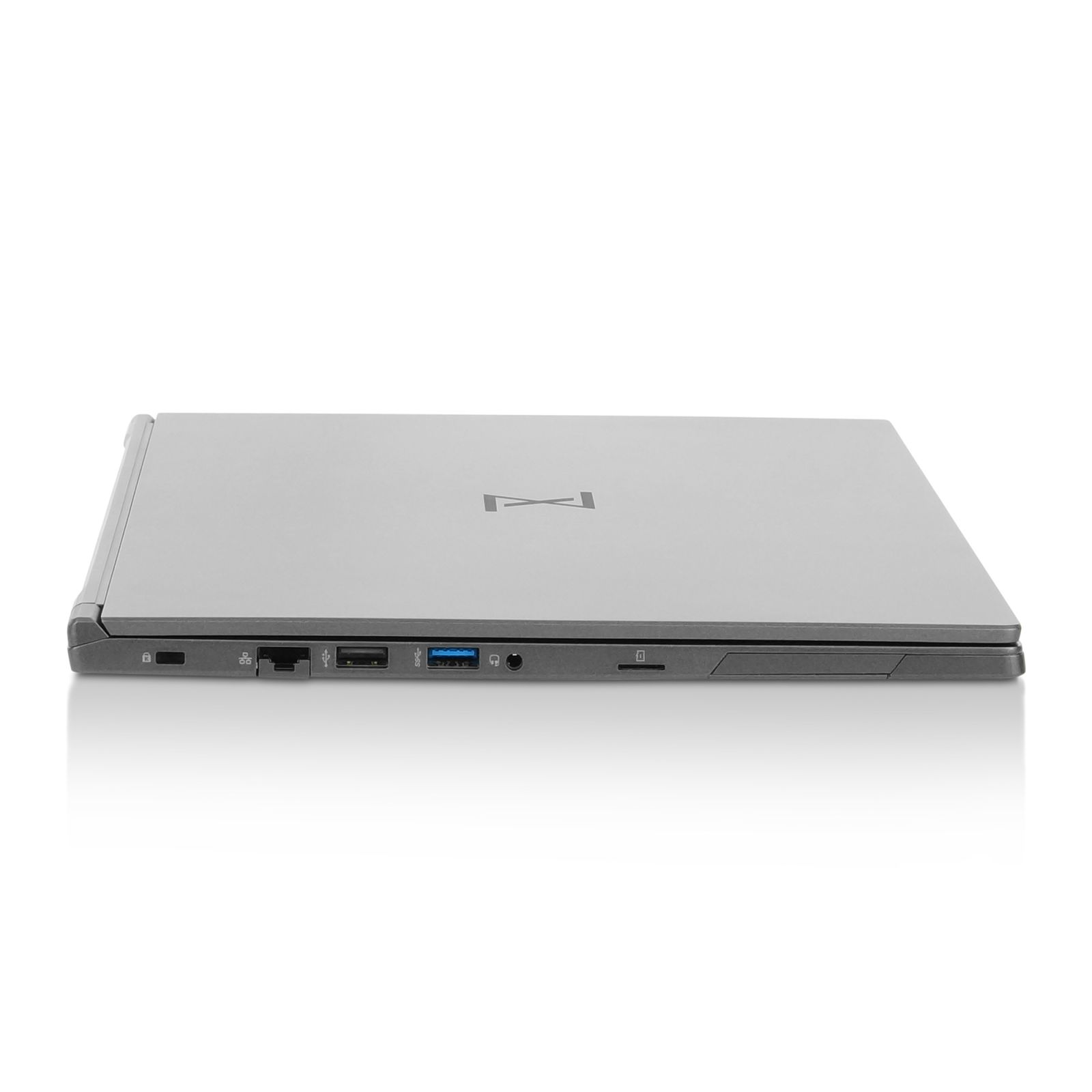

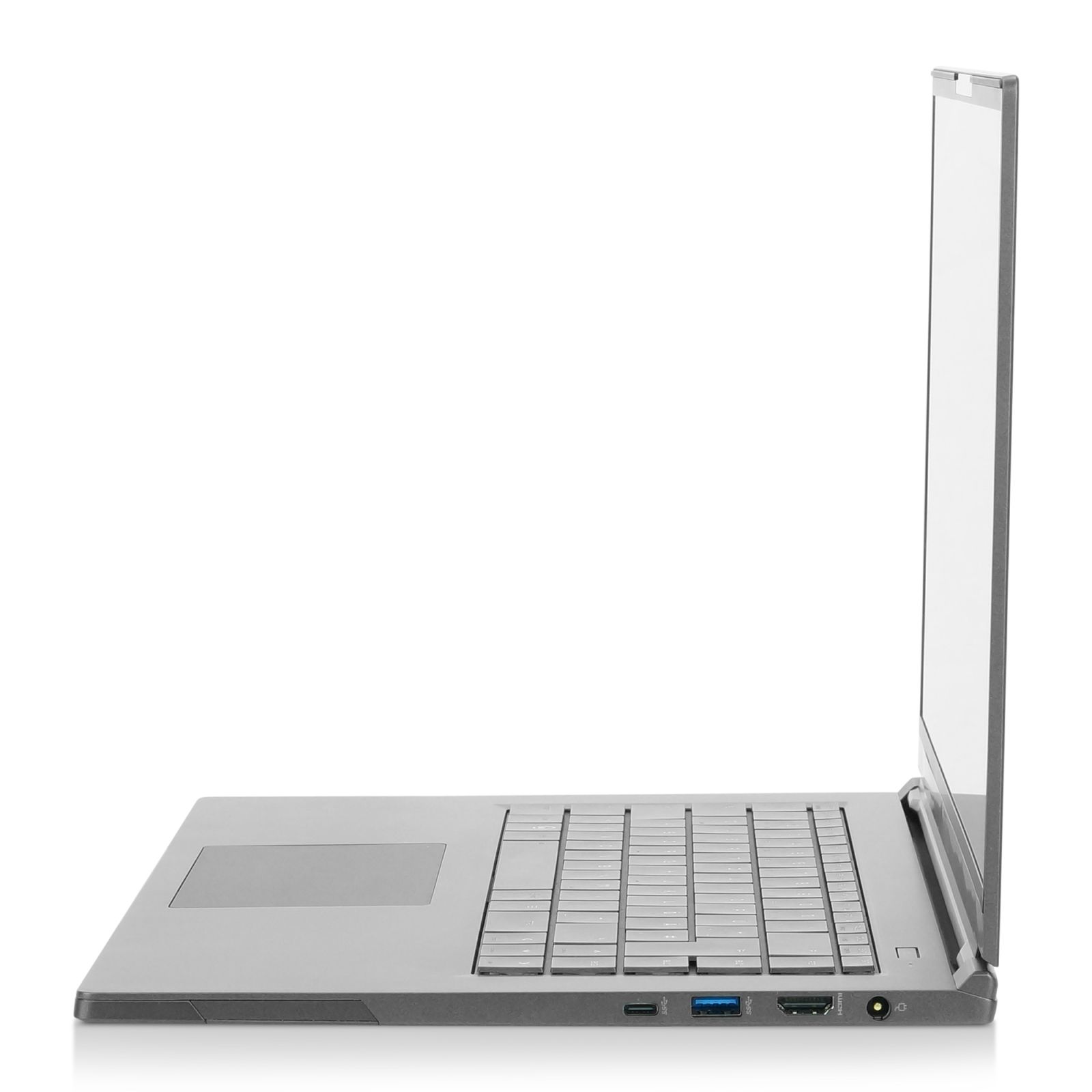

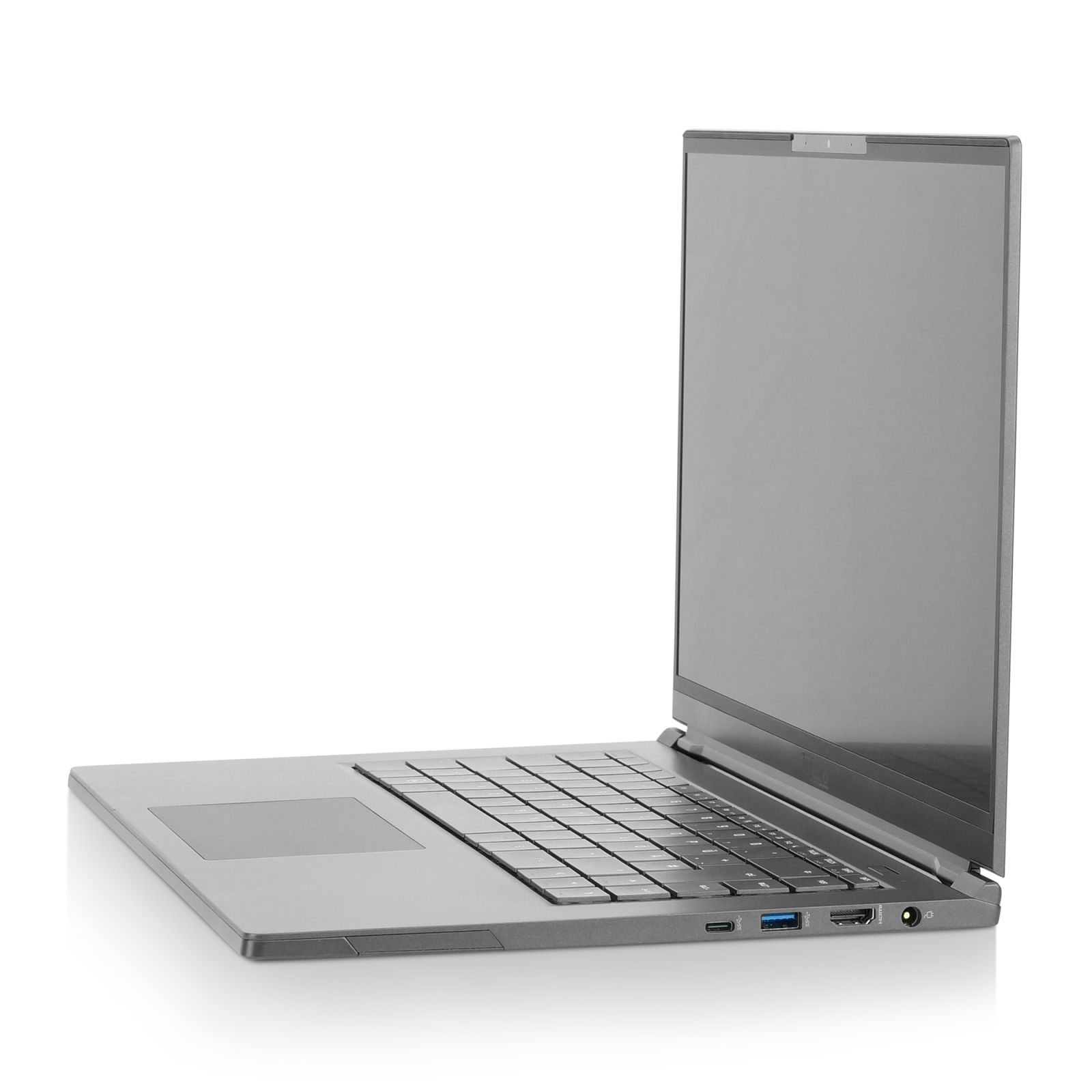

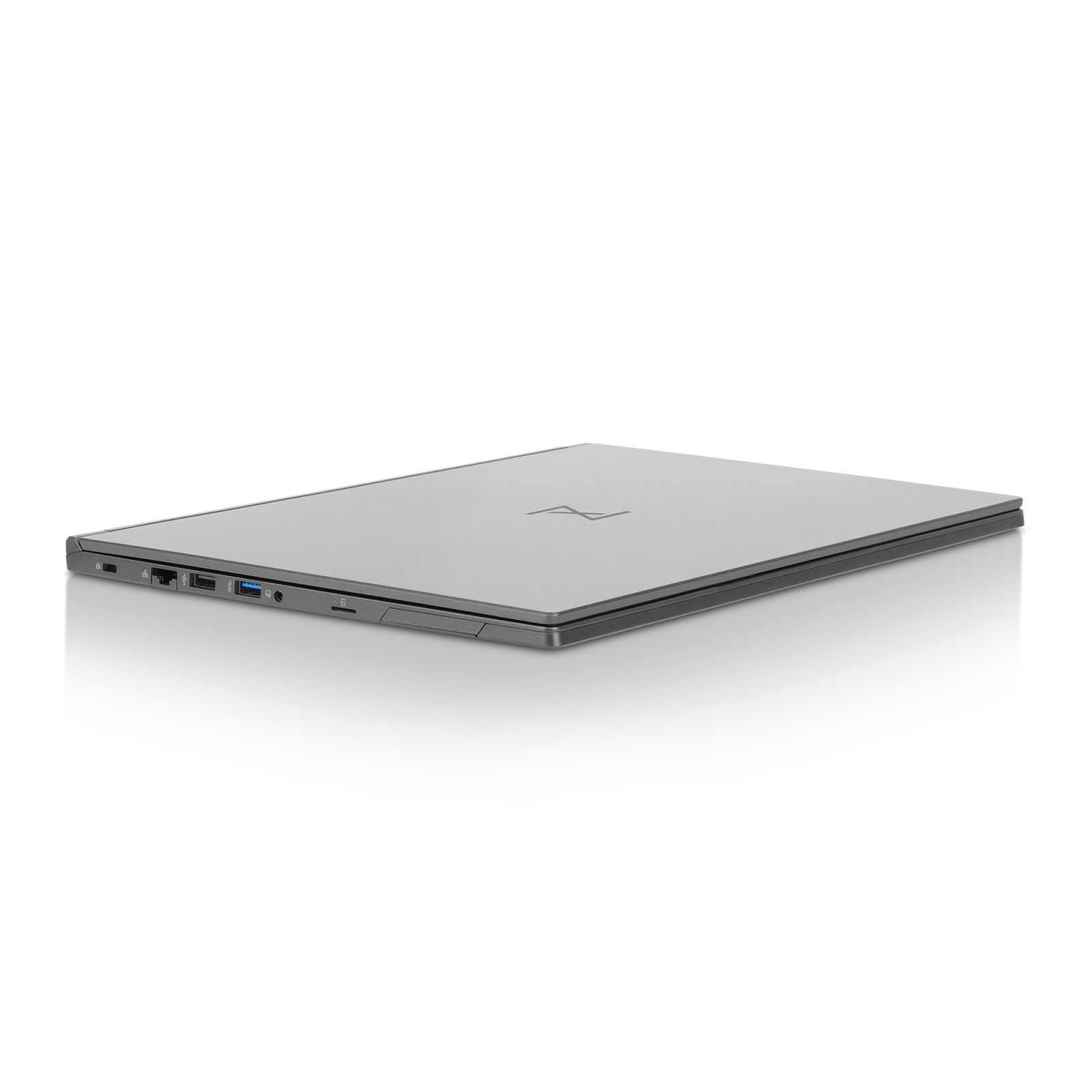

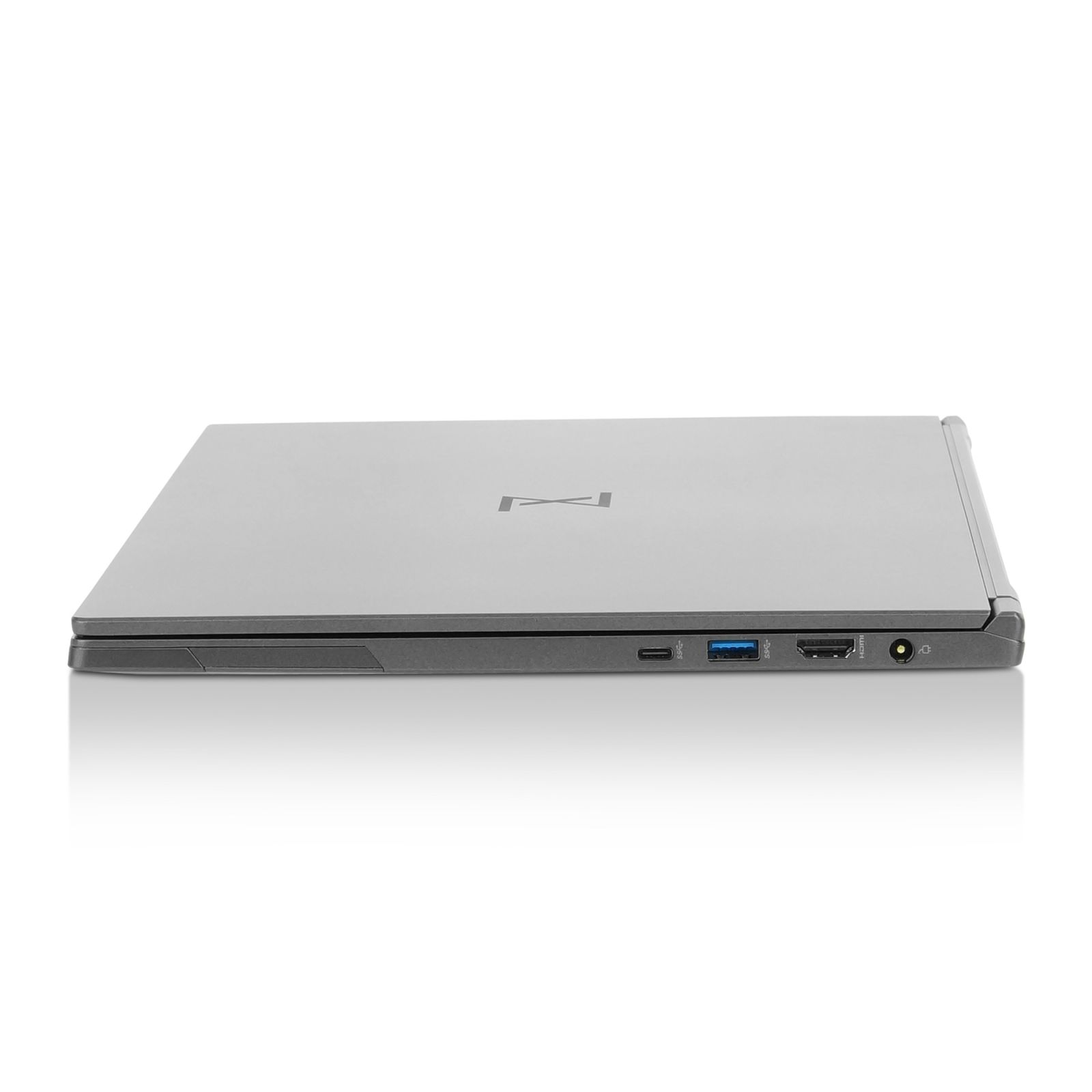

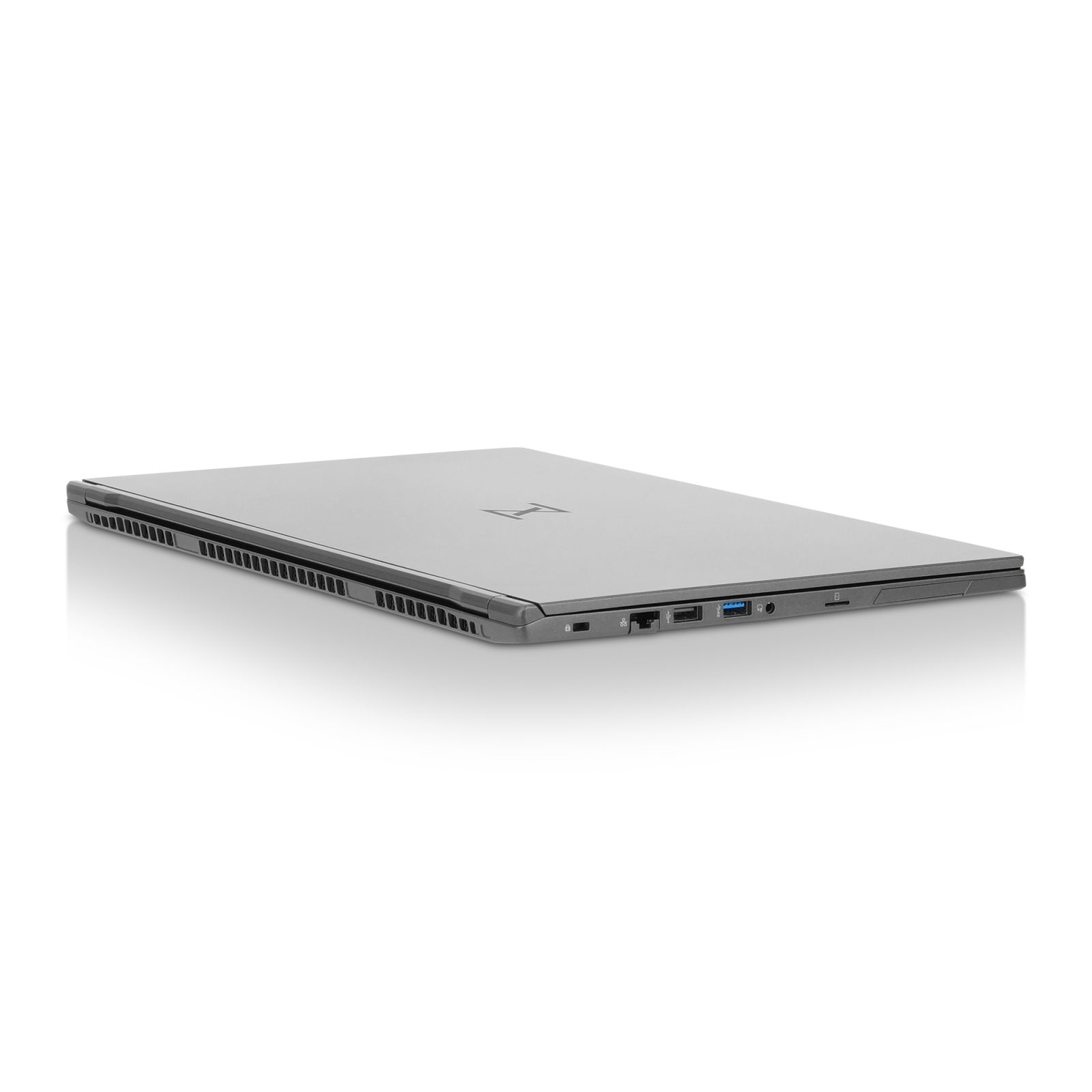

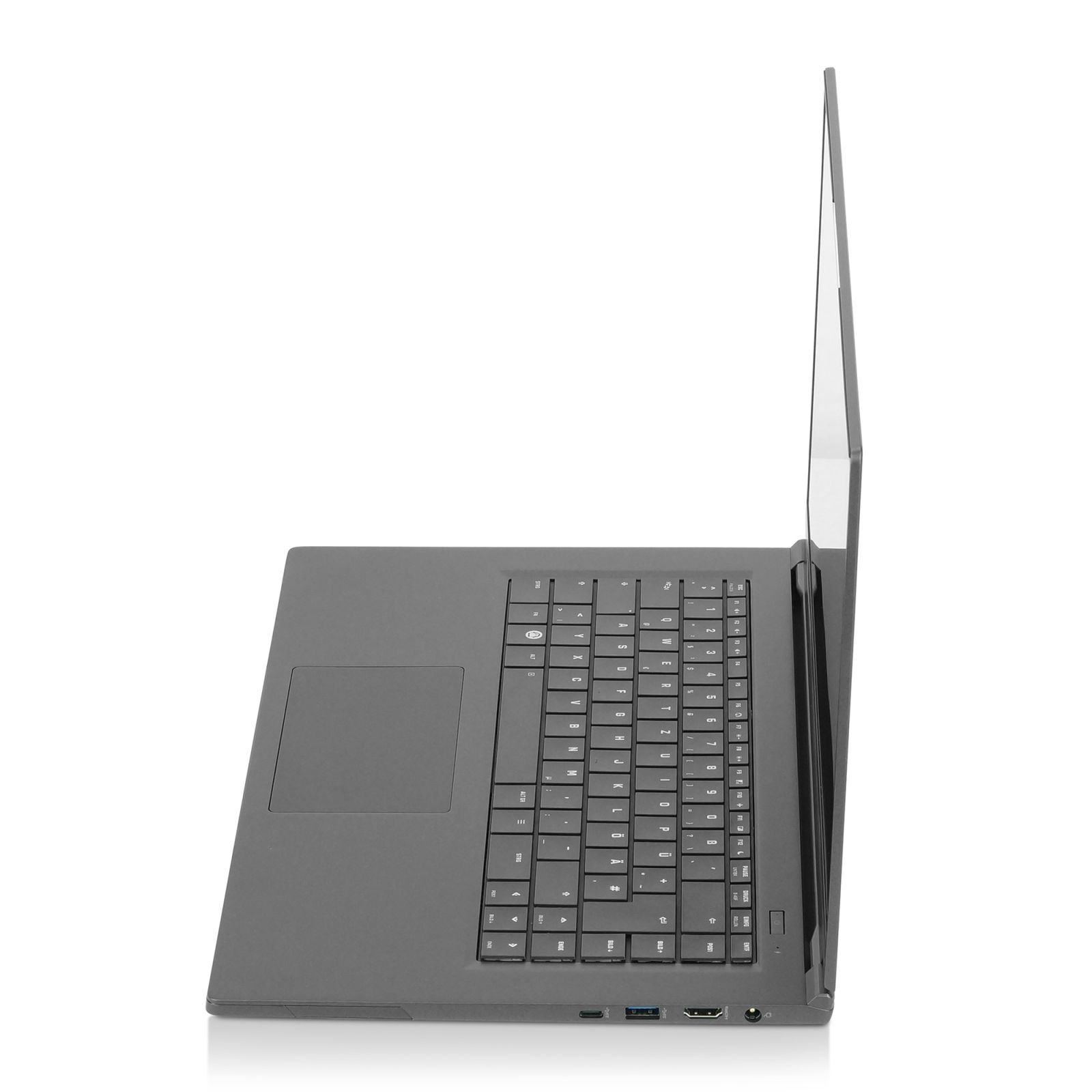

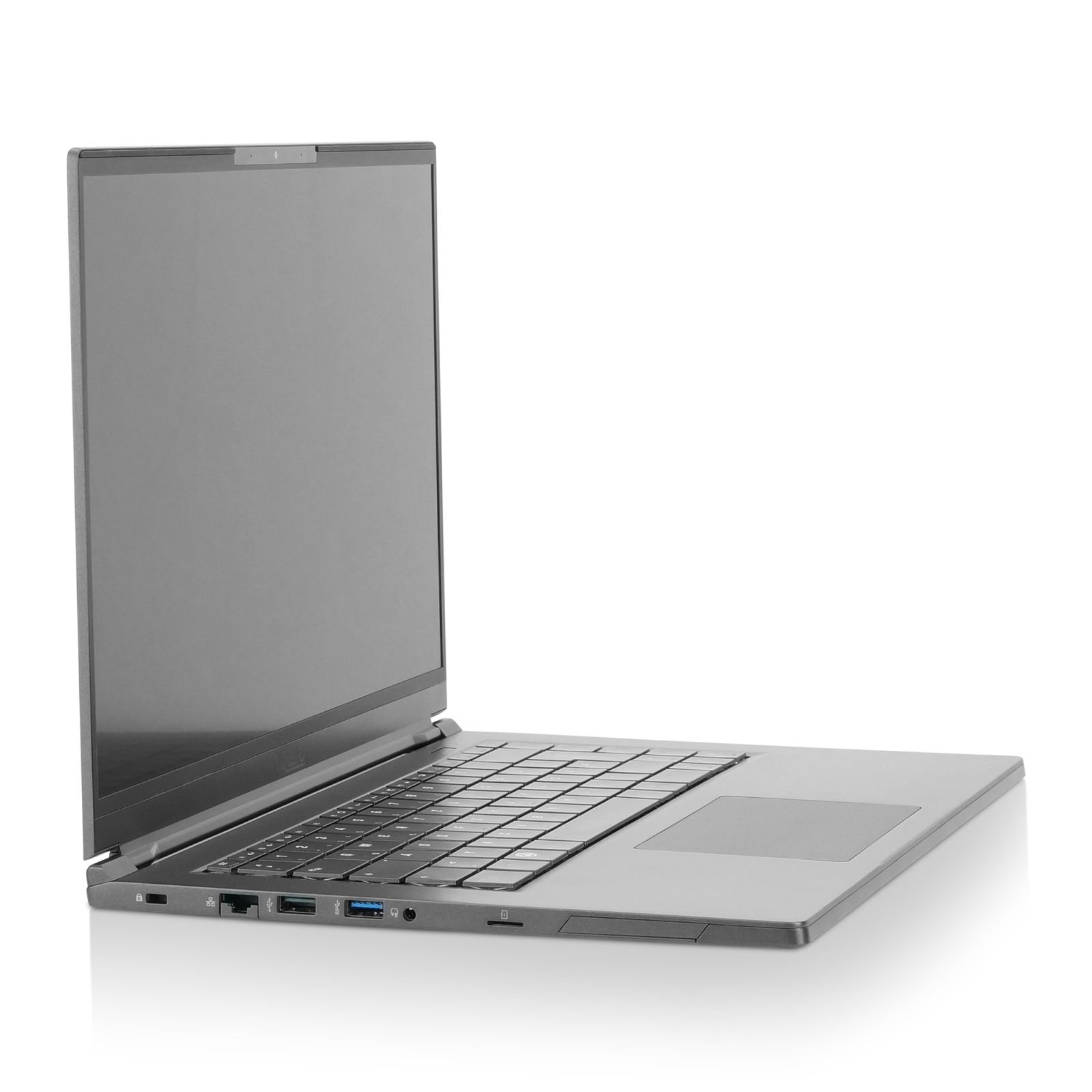

    Ports

    1x USB 3.2 Gen1 Typ-C (DisplayPort: no; Power Delivery/DC-IN: yes, 20V/4.5A)
    2x USB 3.2 Gen1 Typ-A
    1x USB 2.0 Typ-A
    1x HDMI 1.4b inkl. HDCP (4k UHD@60Hz / 2k FHD@120Hz)*
    * Please note the information & limitations for 4k@60Hz under "Graphics card".
    1x Gigabit LAN/Netzwerk RJ45
    1x 2-in-1 Headphone/Headset (Headphone & Microphon
    1x Kensington Lock
    1x Card-Reader (micro-SD)
    1x DC-IN/power connection



    Card reader

    Micro SD Cardreader

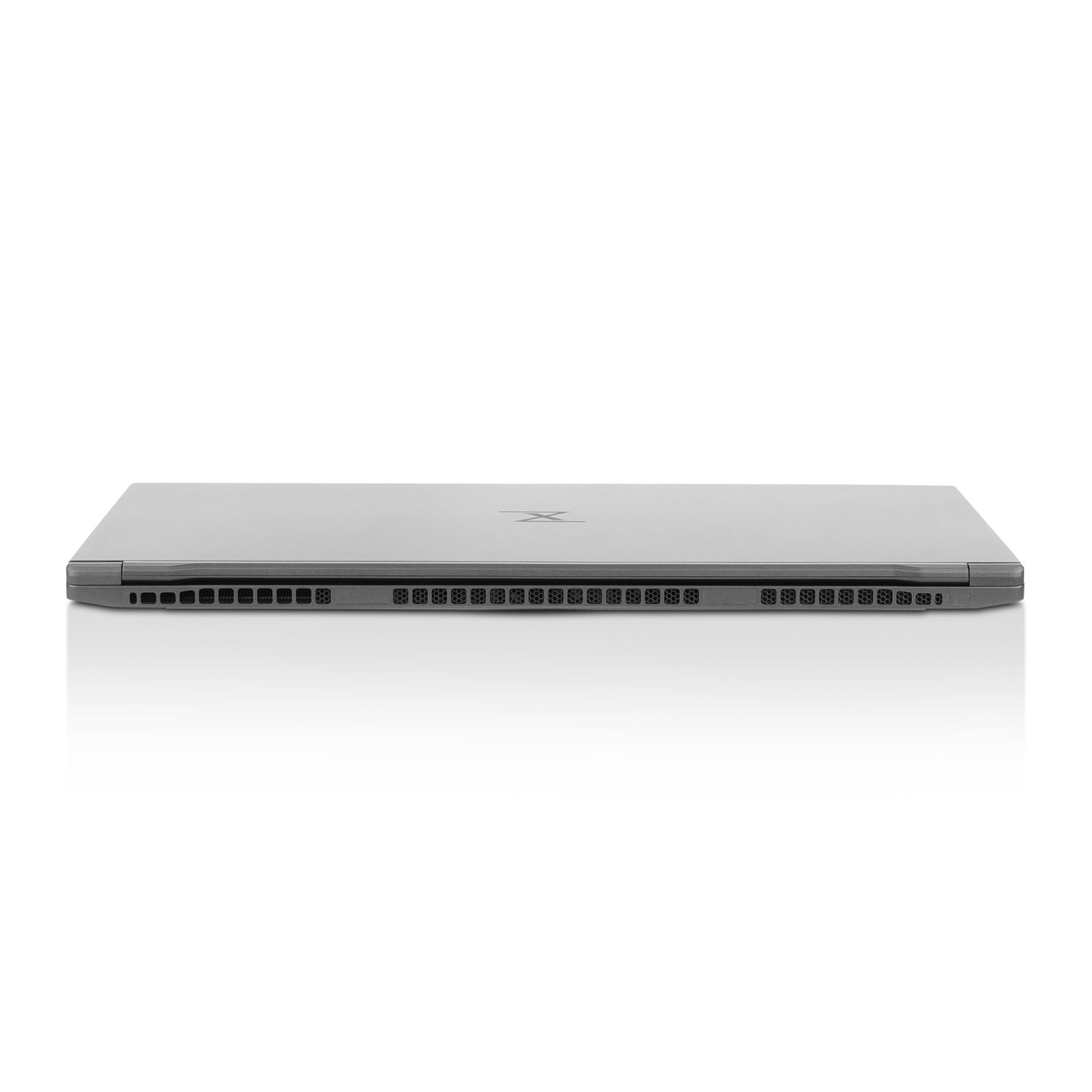

    Cooling System & Fan

    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!





    Model-ID: PULSE1501





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks you have the possibility to protect your privacy already on BIOS level. For this purpose the following functions can be completely deactivated:

    • Webcam
    • WLAN & Bluetooth

    In addition, our Premium BIOS allows chipset-specific settings and definitions for components via various profiles in order to operate the device optimally depending on its use.

    Further information can be found here in our manual.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
