Display / Monitor
Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.
Full-HD IPS 144Hz
15,6", non-glare, IPS
Resolution: 1920 x 1080 Pixel
Refresh rate: 144Hz
sRGB Coverage: 90%
Chassis
Aluminium-Cover & Resin Body
Dimensions: width: 36,1cm; height: 3,25cm; depth: 25,8cm
Weight: approx. 2.6 kg incl. battery

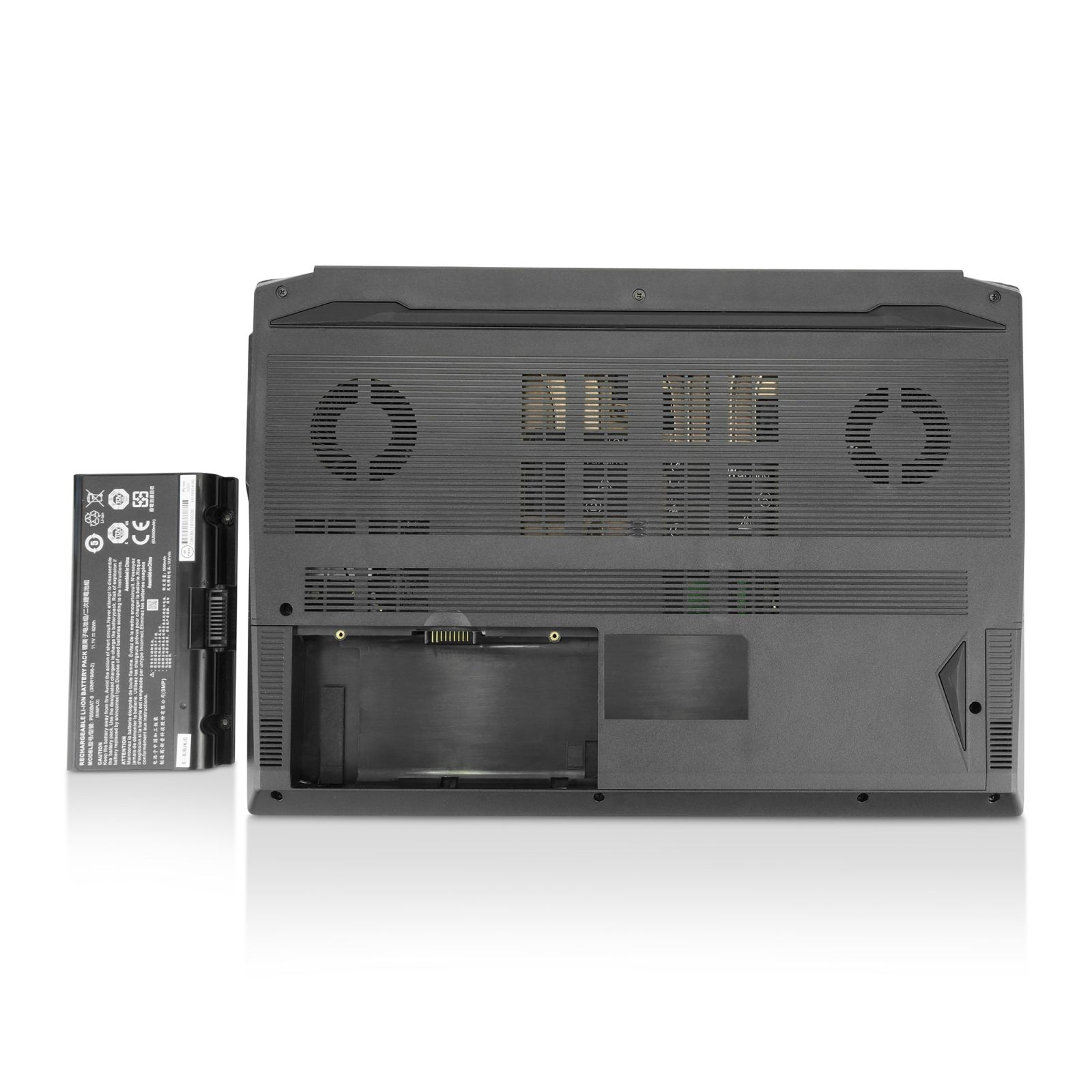

Battery & power supply
Large lithium ion battery, 62Wh
Changeable from the outside, screwed
Power supply:
230W power supply
Lifetime of batteries
The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information
Battery runtime
Battery life approx. 5 hours with min. brightness in idle mode
We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, WIFI & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!).
This way you get an information of maximal possible battery life. Starting from this you can manage your individual battery life depending on your demands and to influence it e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.
Main processor
AMD Ryzen 3000 Series
Chipset: AMD B450
Graphics card
NVIDIA® GeForce® RTX 2060 Refresh 6 GB GDDR6 VRAM (N18E-G1-B) | max. 115W
NVIDIA® PhysX®, GeForce CUDA technology
NVIDIA® GeForce® RTX 2070 Refresh 8 GB GDDR6 VRAM (N18E-G1R) | max. 115W
NVIDIA® PhysX®, GeForce CUDA technology
There is no integrated graphics chip, means that there is no graphics switch needed!
The following resolutions are possible over all connections individually or parallel:
1x Notebook display:
Full-HD 1920 x 1080
1x Mini-DisplayPort 1.4:
1080p@240Hz, 1440p@240Hz, 1600p@200Hz, 4K@120Hz, 5K@60Hz, 8K@60Hz (with DSC)
1x DisplayPort 1.4 through USB-C:
1080p@240Hz, 1440p@240Hz, 1600p@200Hz, 4K@120Hz, 5K@60Hz, 8K@60Hz (with DSC)
1x HDMI 2.0:
1080p@240Hz, 1440p@120Hz, 1600p@120Hz, 4K@60Hz
With these maximum resolutions, 4 displays can be controlled simultaneously, e.g. 1x notebook display and 3x external monitors. DaisyChaining also rows further displays together.
Memory
Type: DDR4 SO-DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with at least 2 modules)
Hard drive
Standard 2,5" HDD or SSD, max. 7mm height
Manufacturer and speed see configurator
Standard and maximum see configurator
Mass storage (SSD / HDD)
Fast M.2 SSDs
Manufacturer and speed see configurator
Standard and maximum see configurator
Communication / Network
Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)
Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1
Security
Kensington Lock
TPM 2.0 (completely disabled/disableable in BIOS)
Fingerprint reader (Windows only)

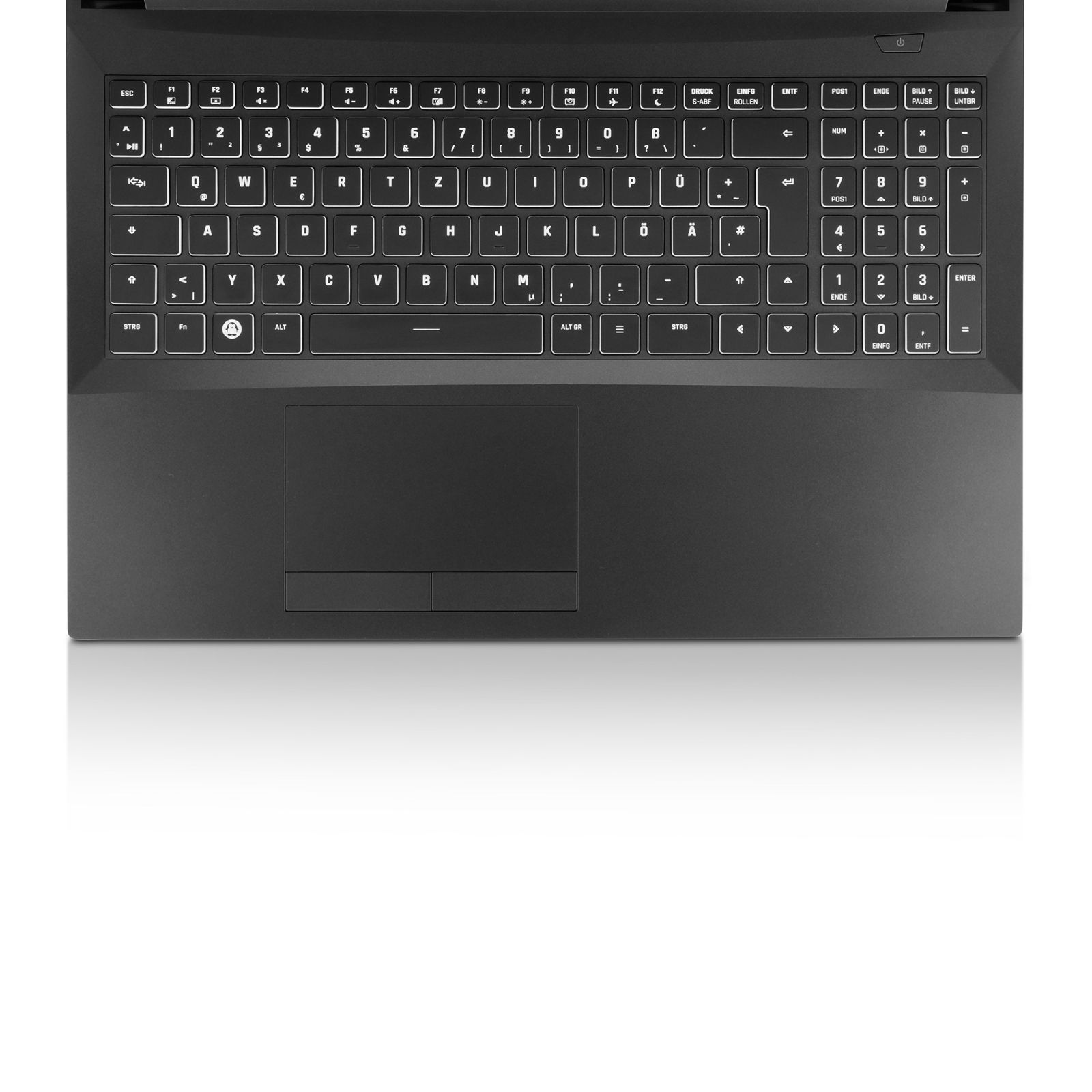

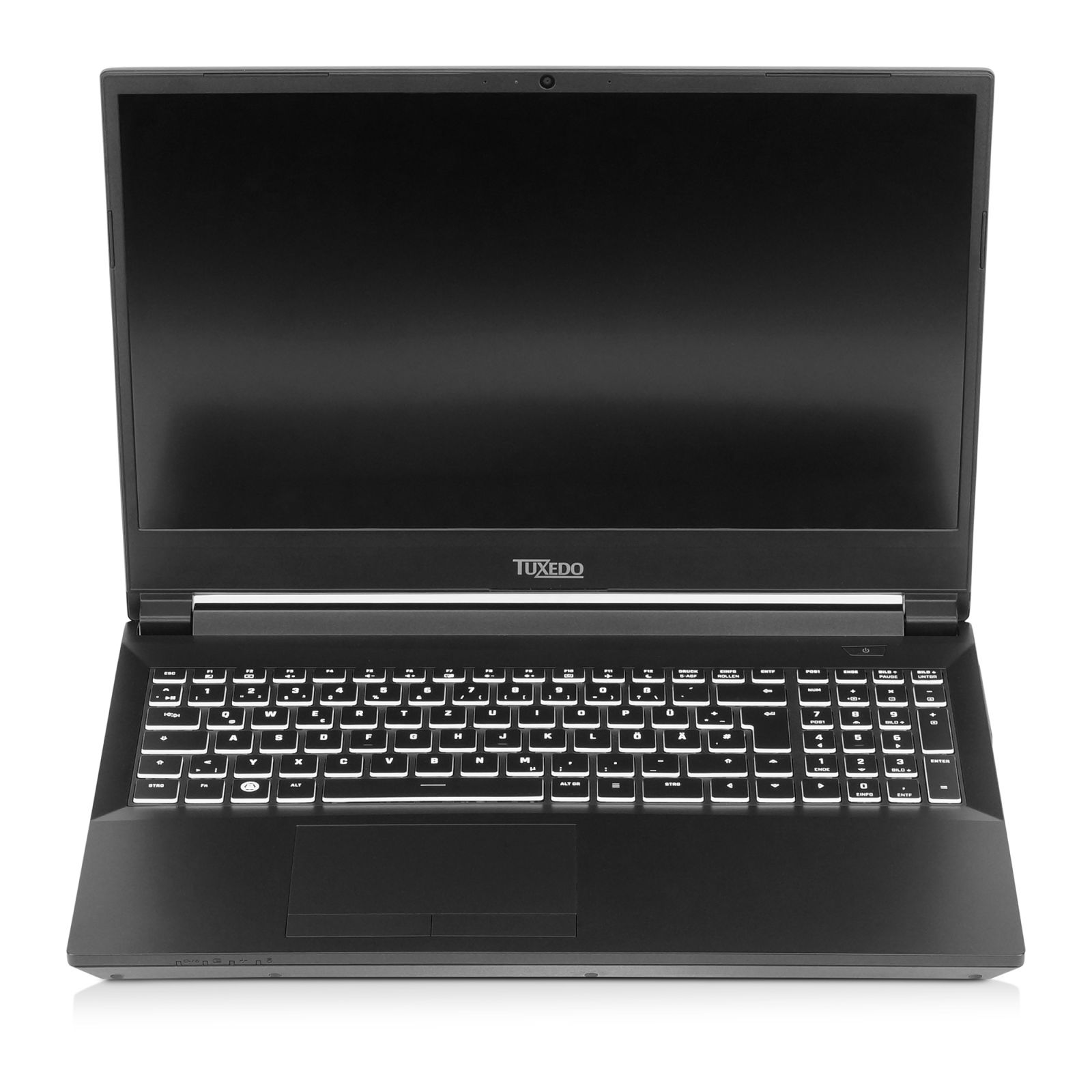

Keyboard
Multi-coloured illuminated keyboard with penguin super key.
Precision Touchpad with multi-gesture- & scroll-functions incl. two mouse-buttons
Area Fingerprint-Reader (Windows only!)
Webcam / Laptop camera
Full-HD camera including microphone
Sound / Audio
High Definition Audio
Stereo loudspeaker system
Integrated microphone with noise suppression
Sound Blaster Cinema 6 (Windows only)

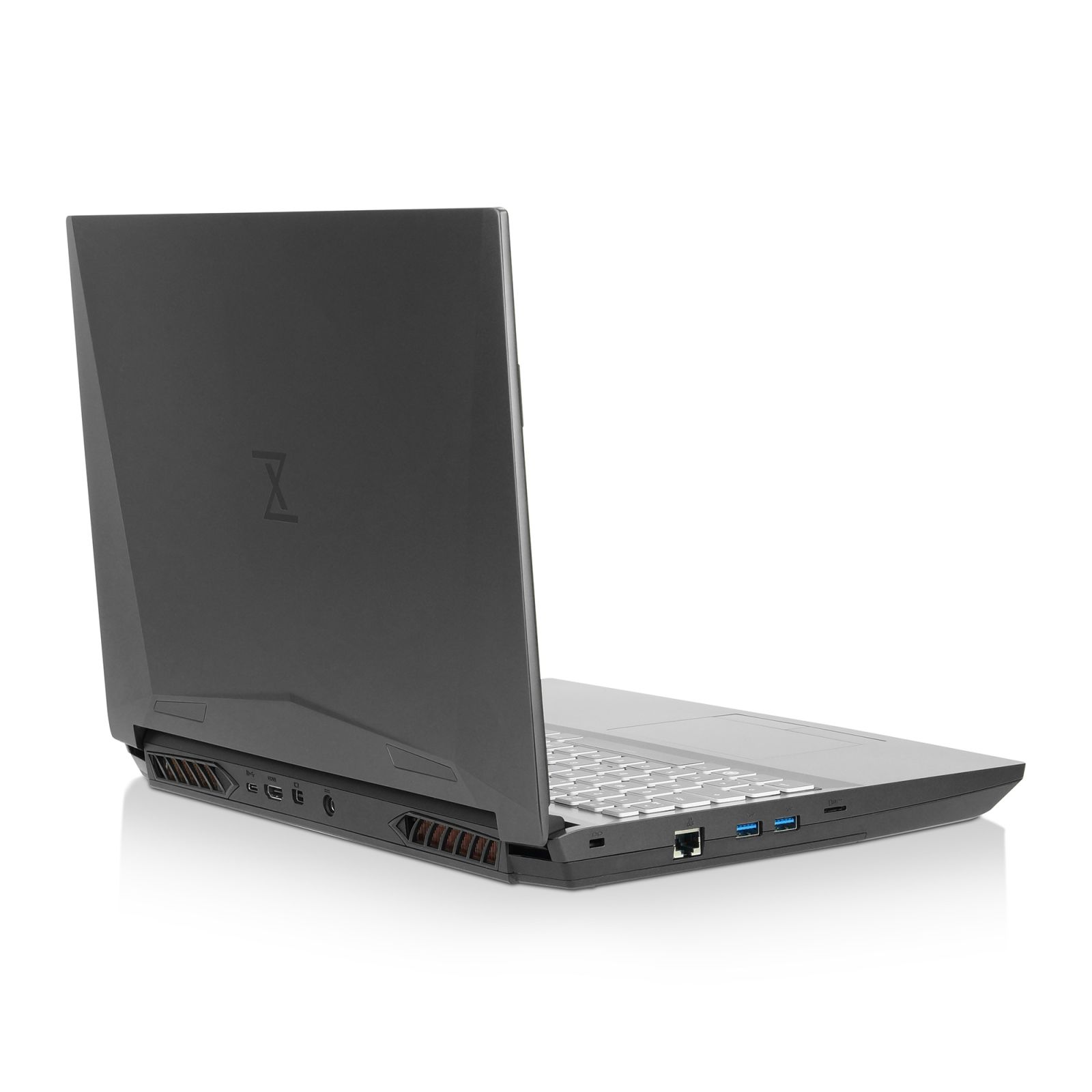

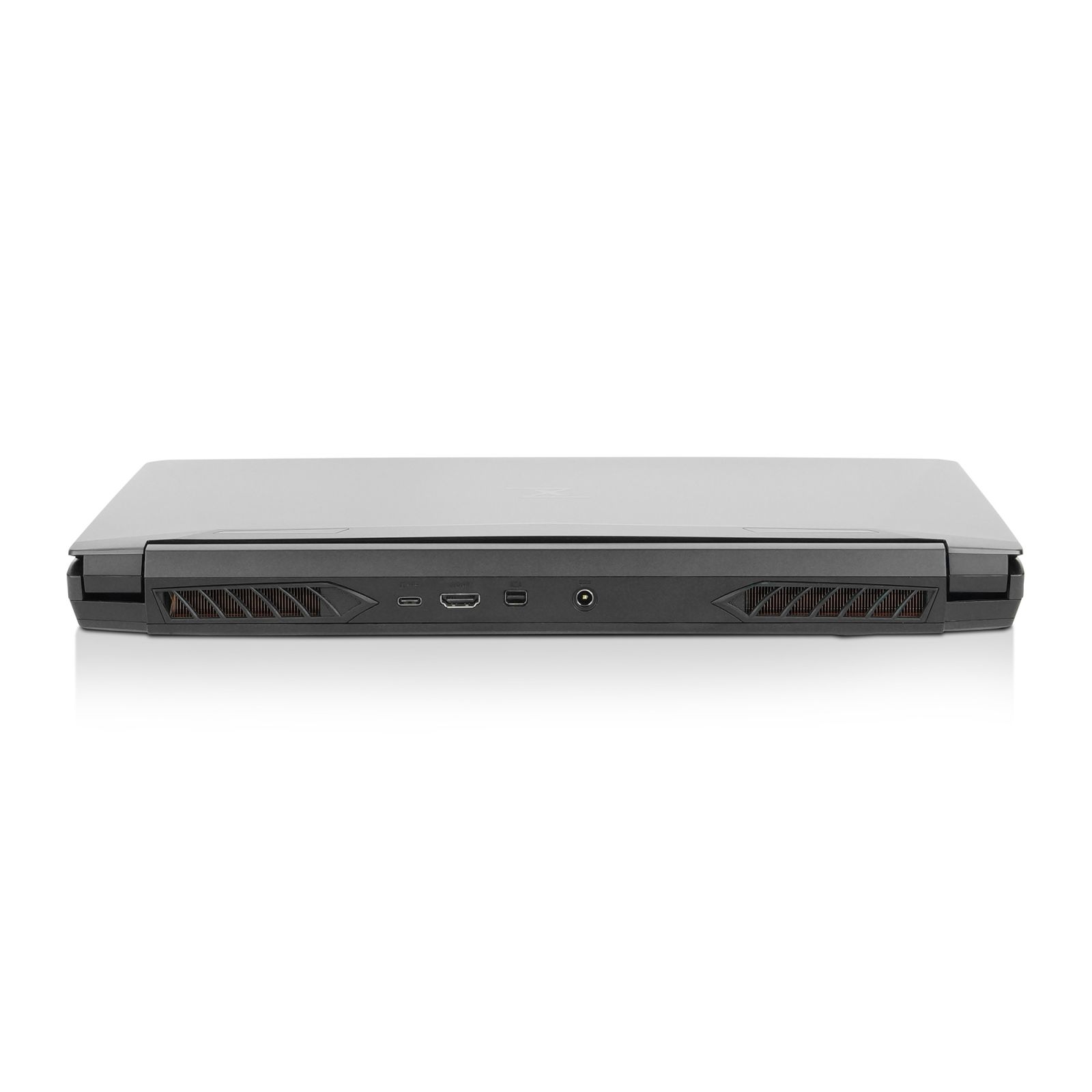

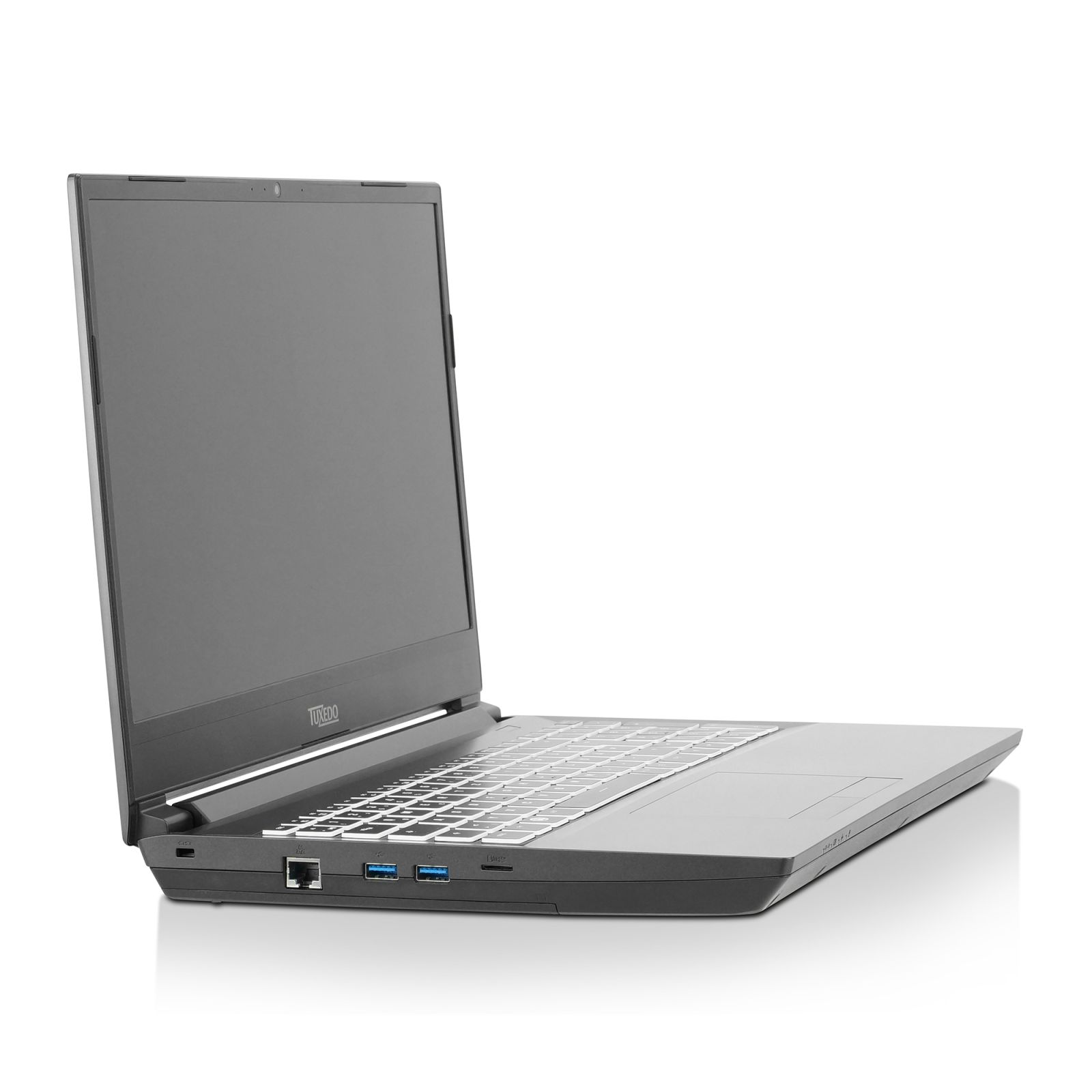

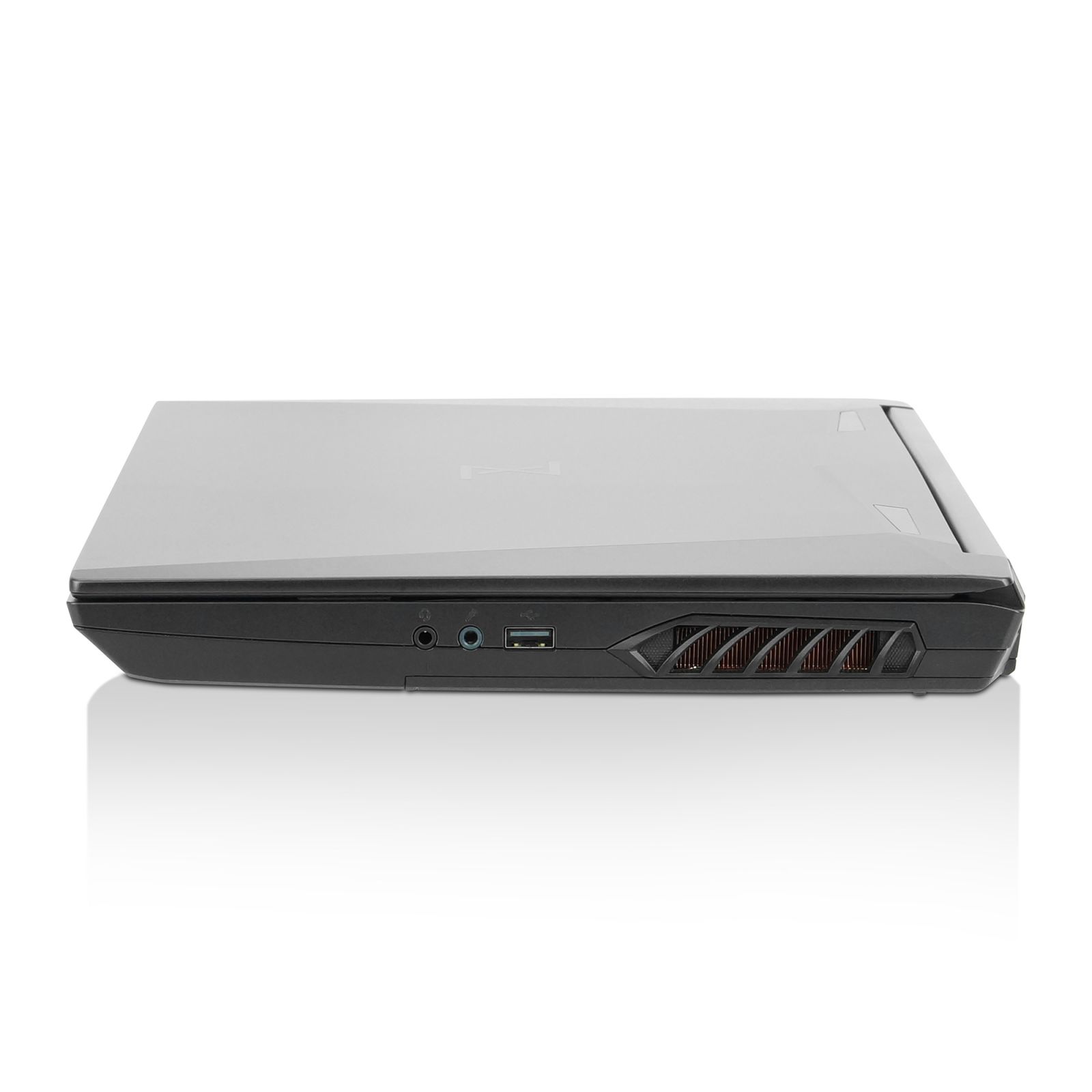

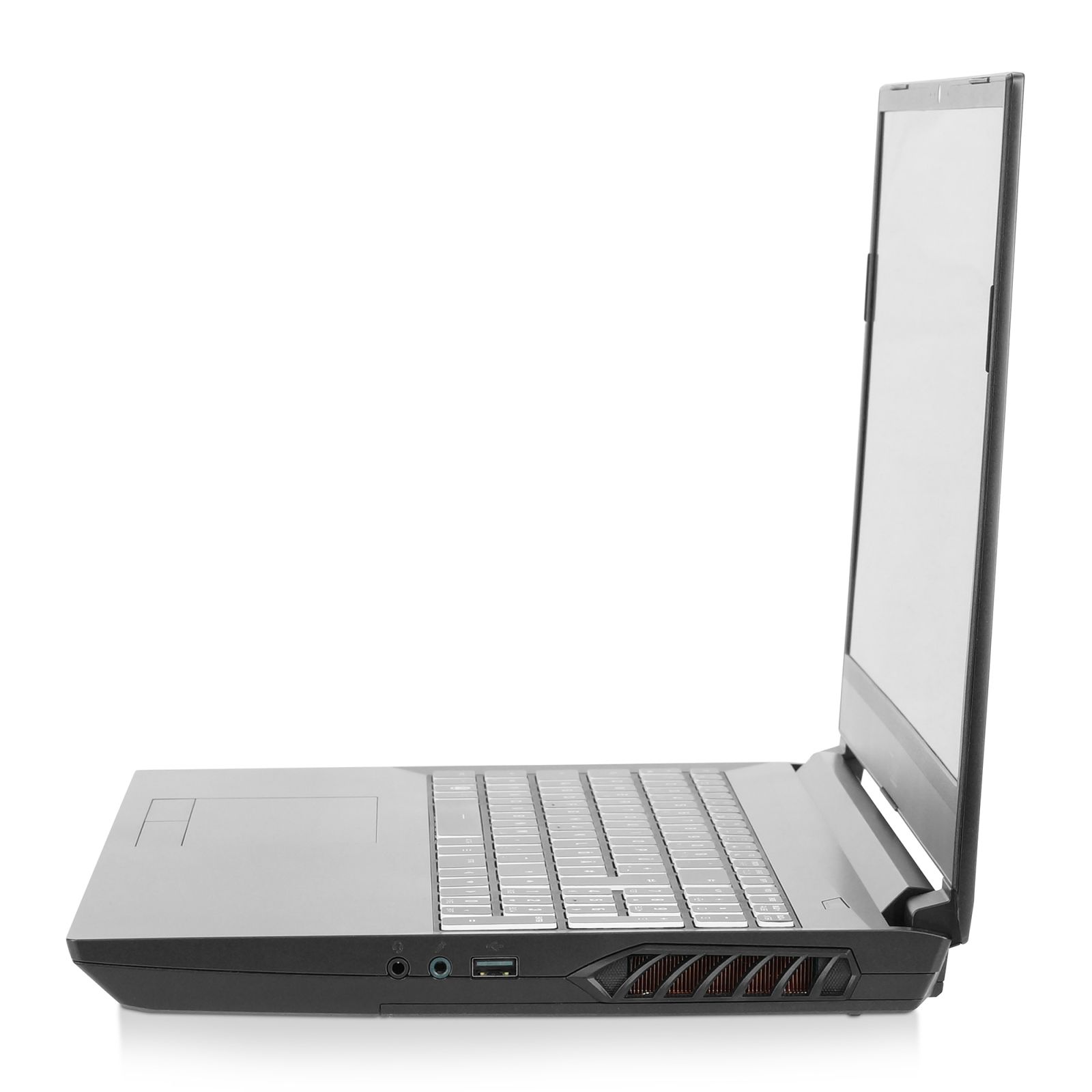

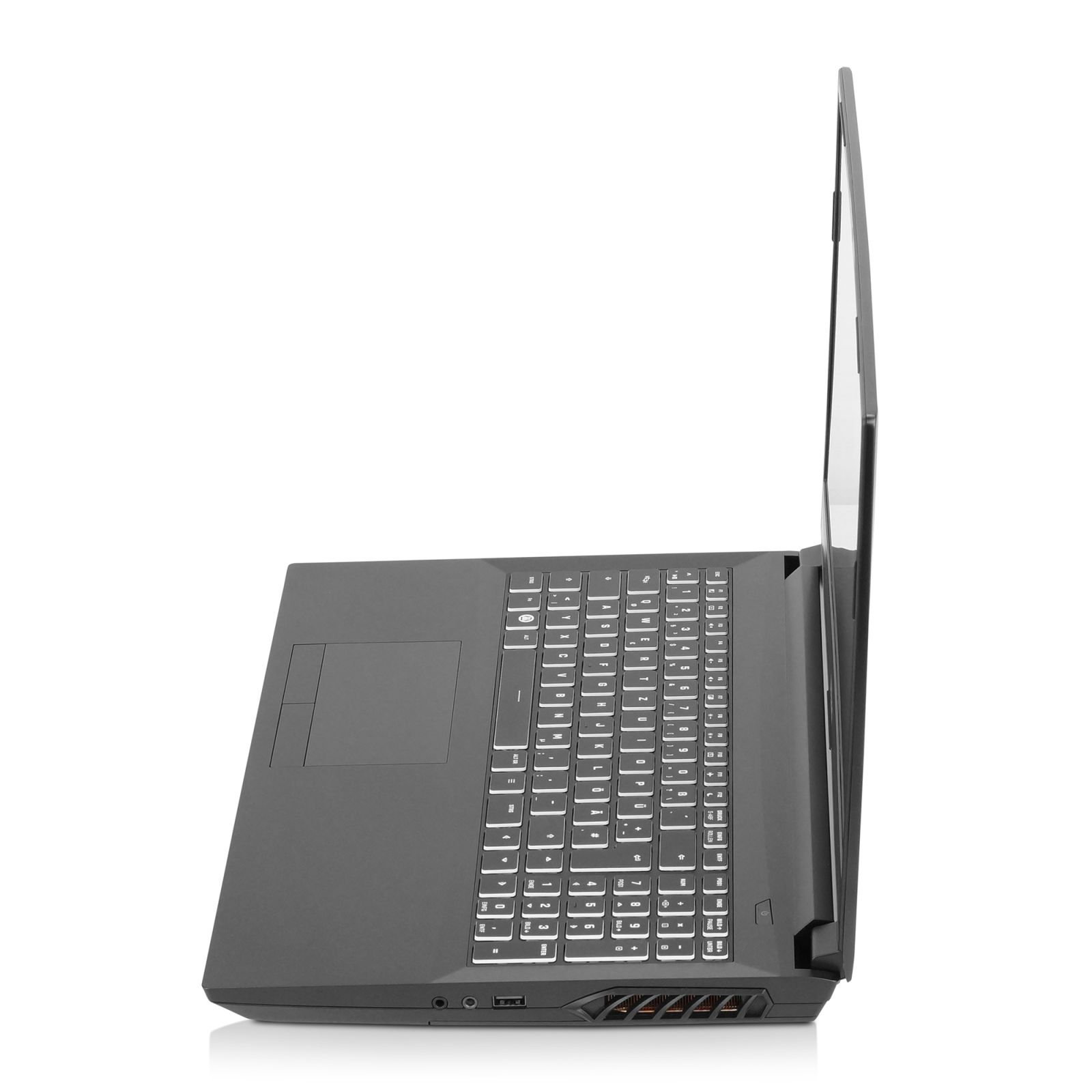

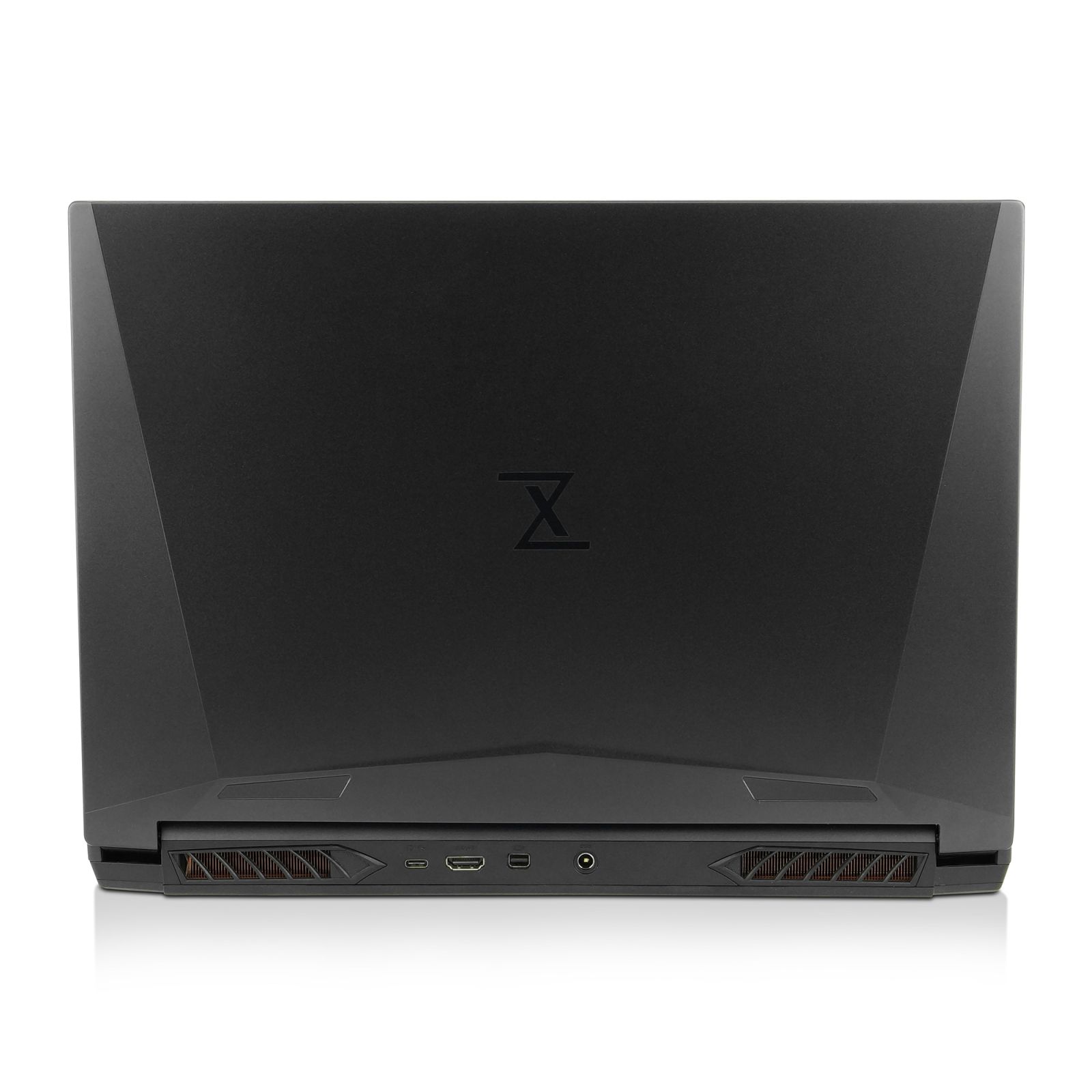

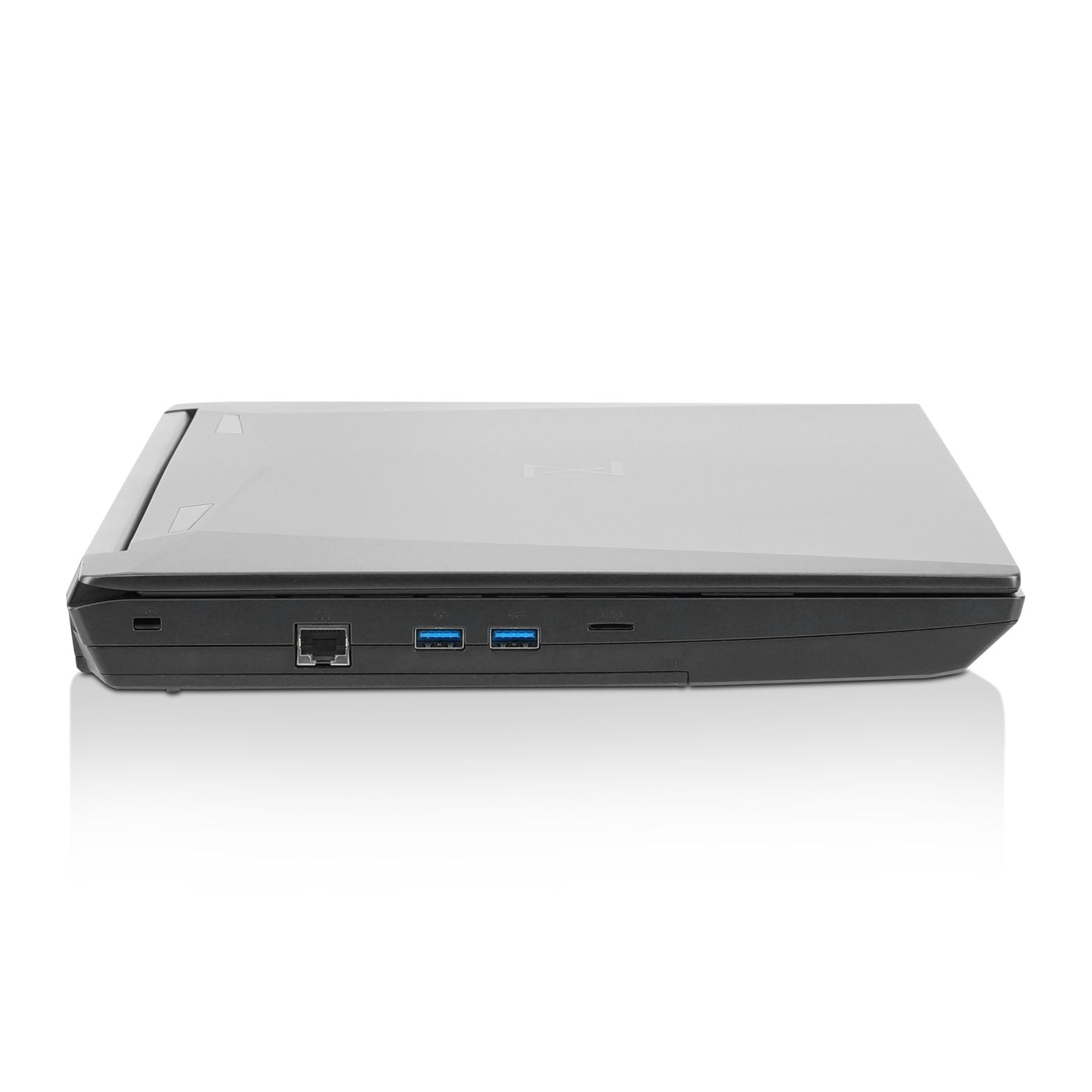

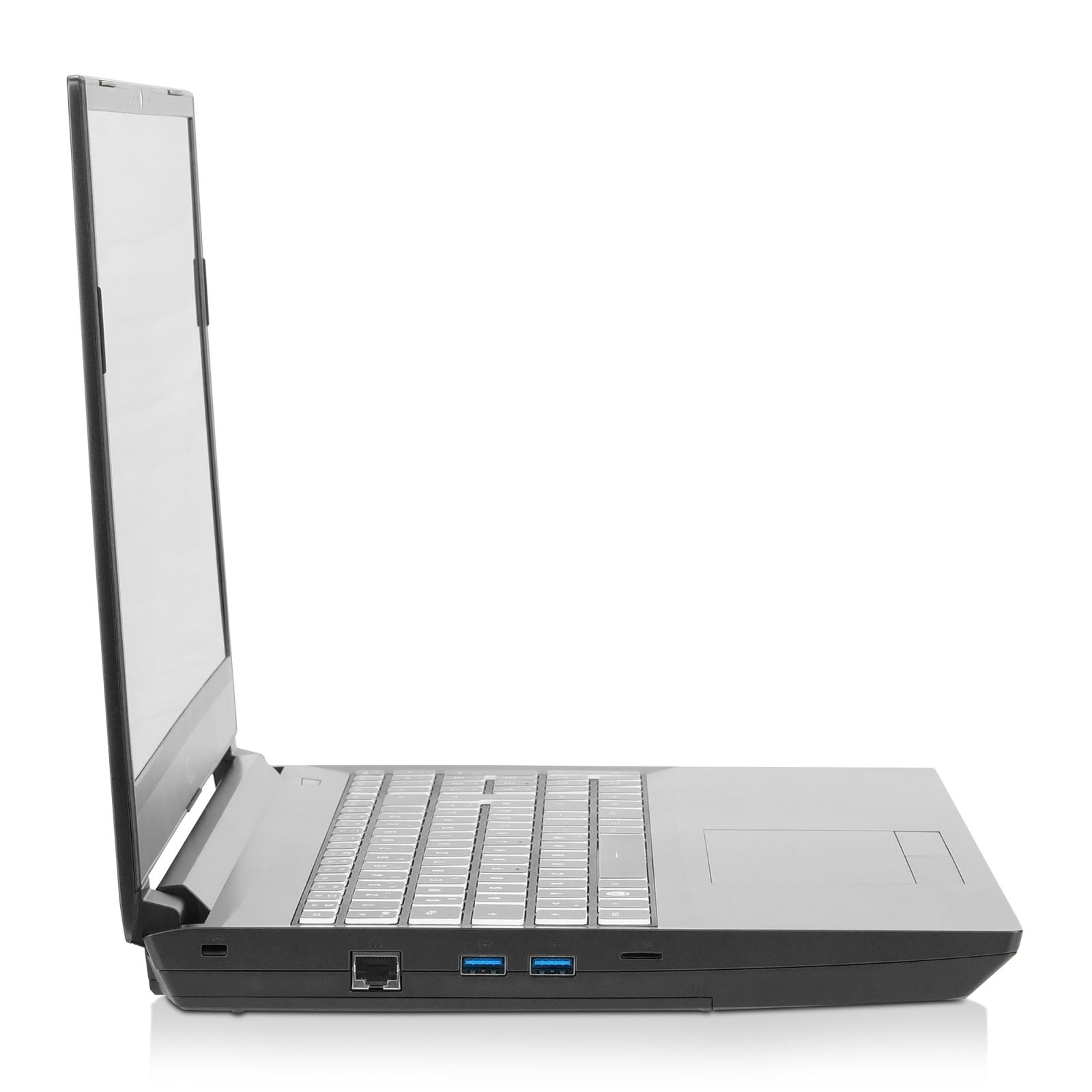

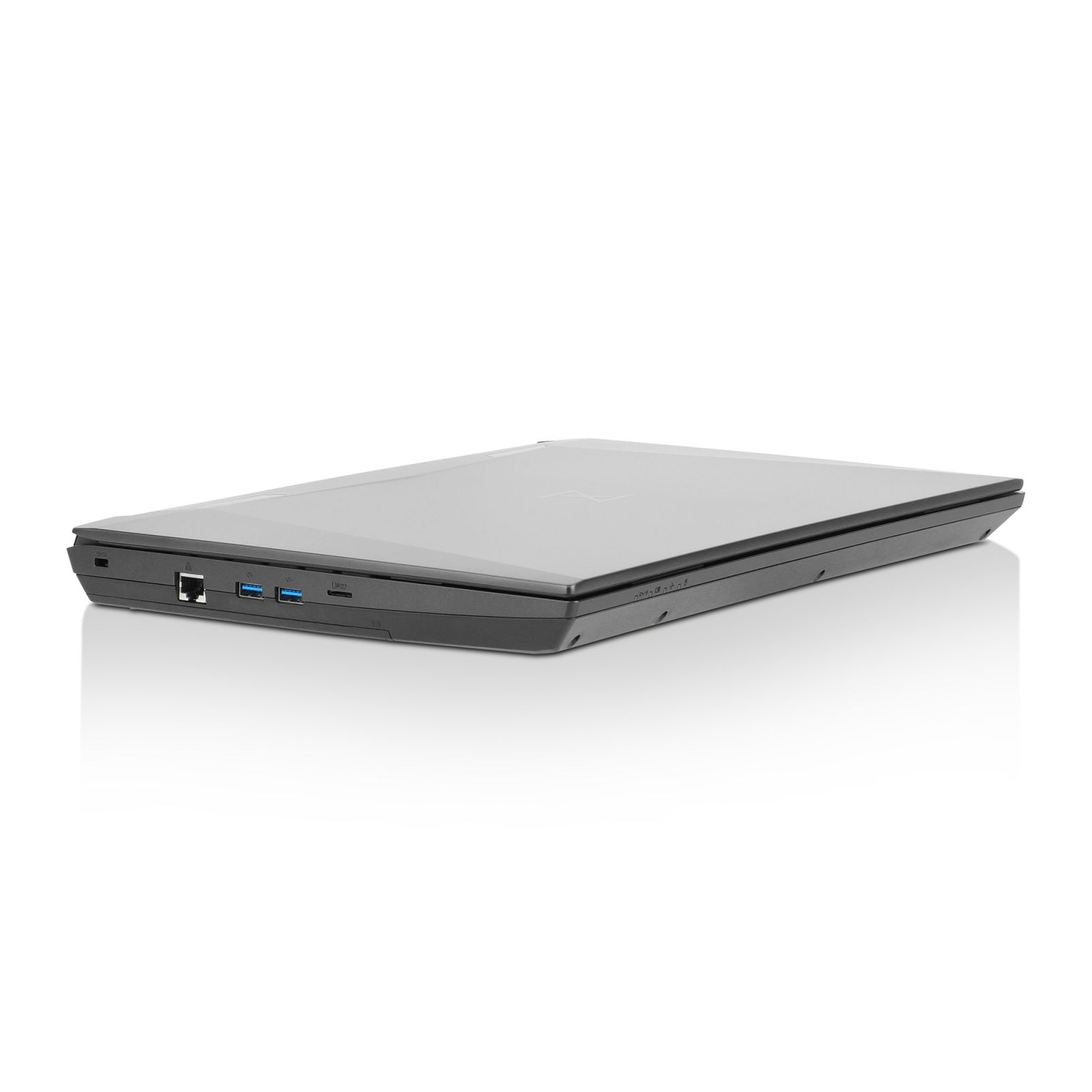

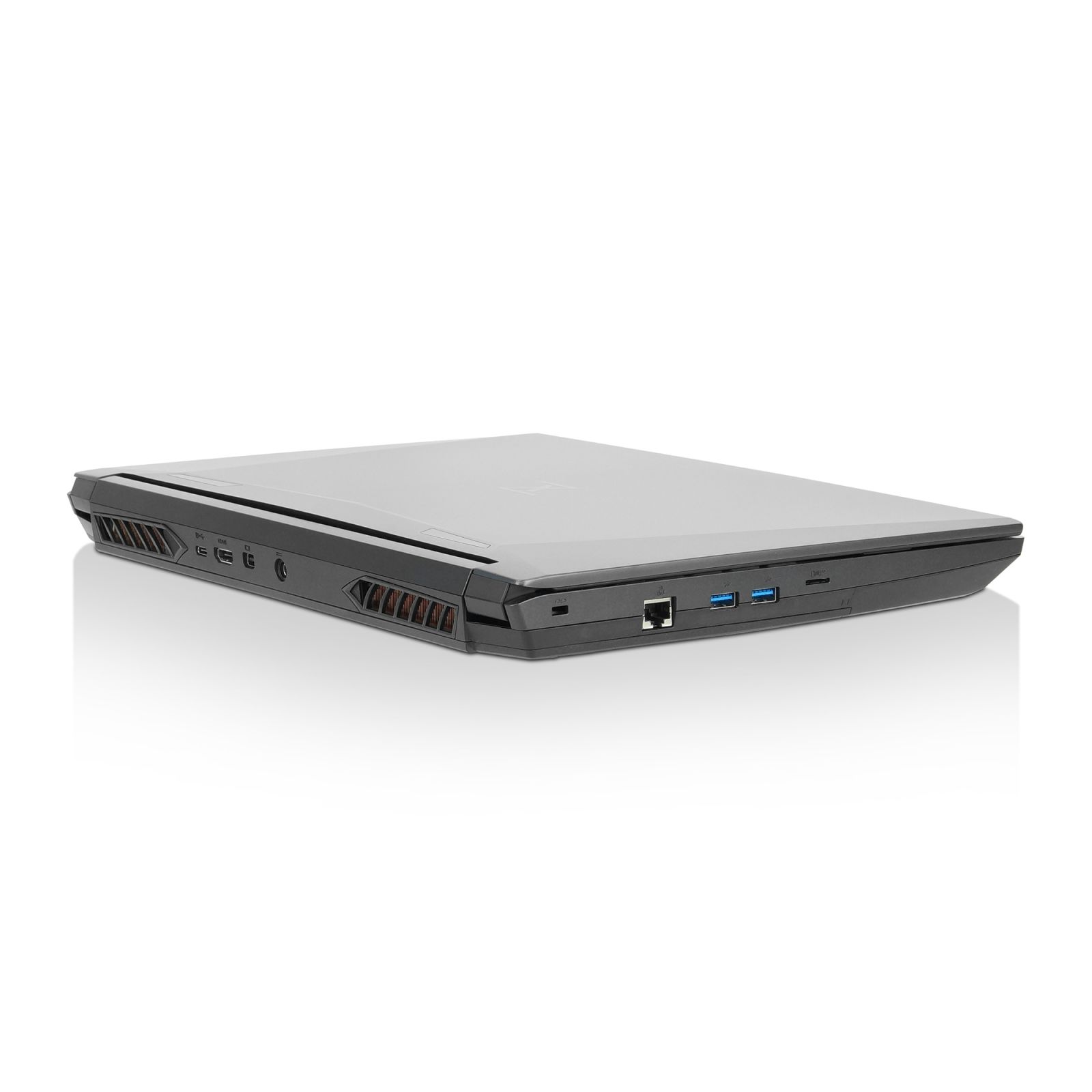

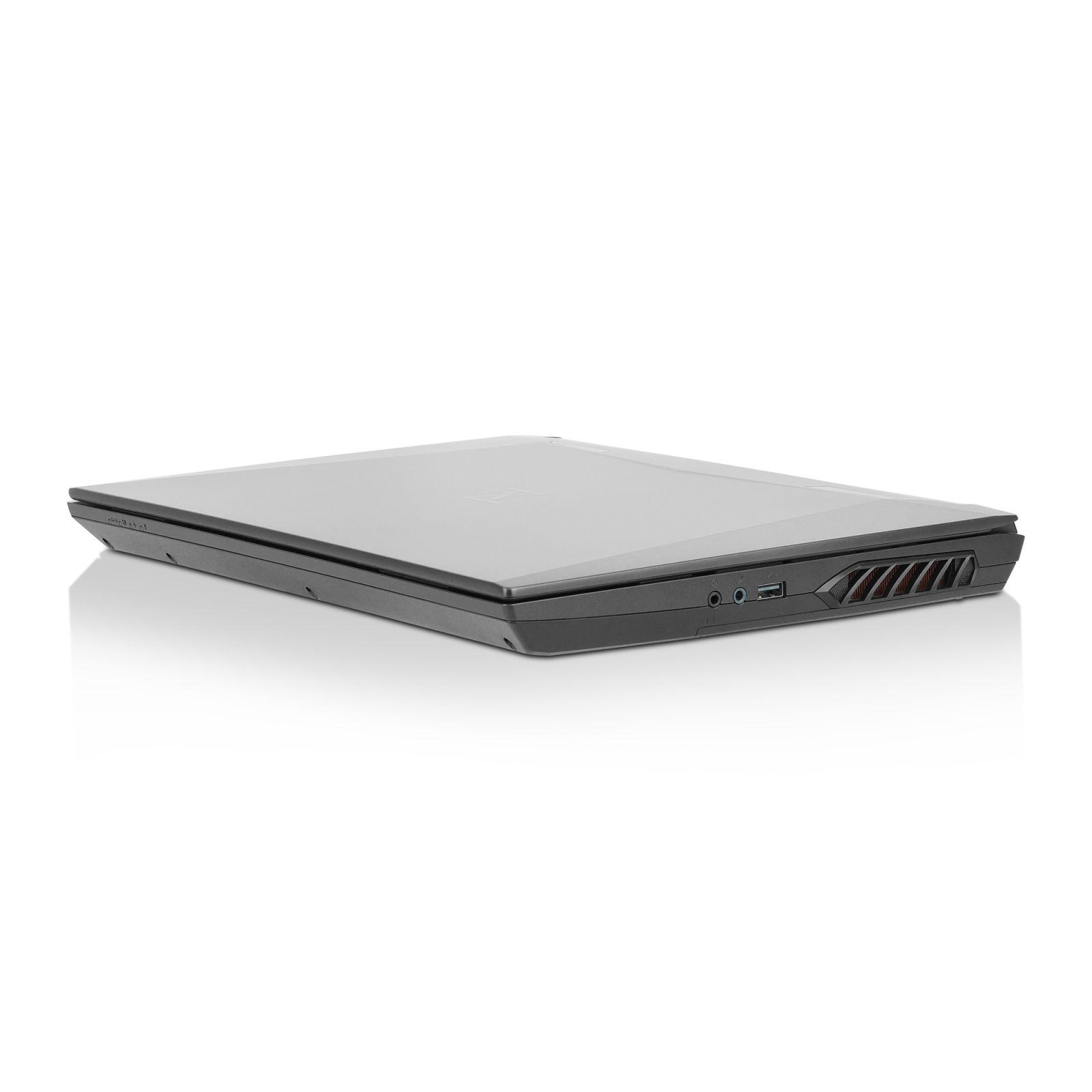

Ports
1x USB 2.0 Typ-A
2x USB 3.2 Typ-A Gen2 (10 Gbit/s)
1x USB 3.2 Typ-C Gen2 (10 Gbit/s) incl. DisplayPort 1.4 (no power-delivery/DC-IN)
1x DisplayPort 1.4 by USB-C
1x HDMI 2.0 (with HDCP)
1x Mini-DisplayPort 1.4 (supports G-SYNC capable monitors)
1x Gigabit-LAN (10/100/1000 MB) / Ethernet Port, RJ45
1x Kopfhöhrerausgang 2-in-1 Audio (Headphones & Microphone), 3.5mm coaxial)
1x Mikrophone-In (3,5mm koaxial)
1x Kensington Lock
1x 6-in-1 Card-Reader
1x DC-IN/power connection
Card reader
Multi-Card-Reader
- MMC / RSMMC
- SD / SDHC / SDXC / Micro SD (Adapter necesssary)
- SD Express / UHS-II
- MS / MS Pro / MS Duo

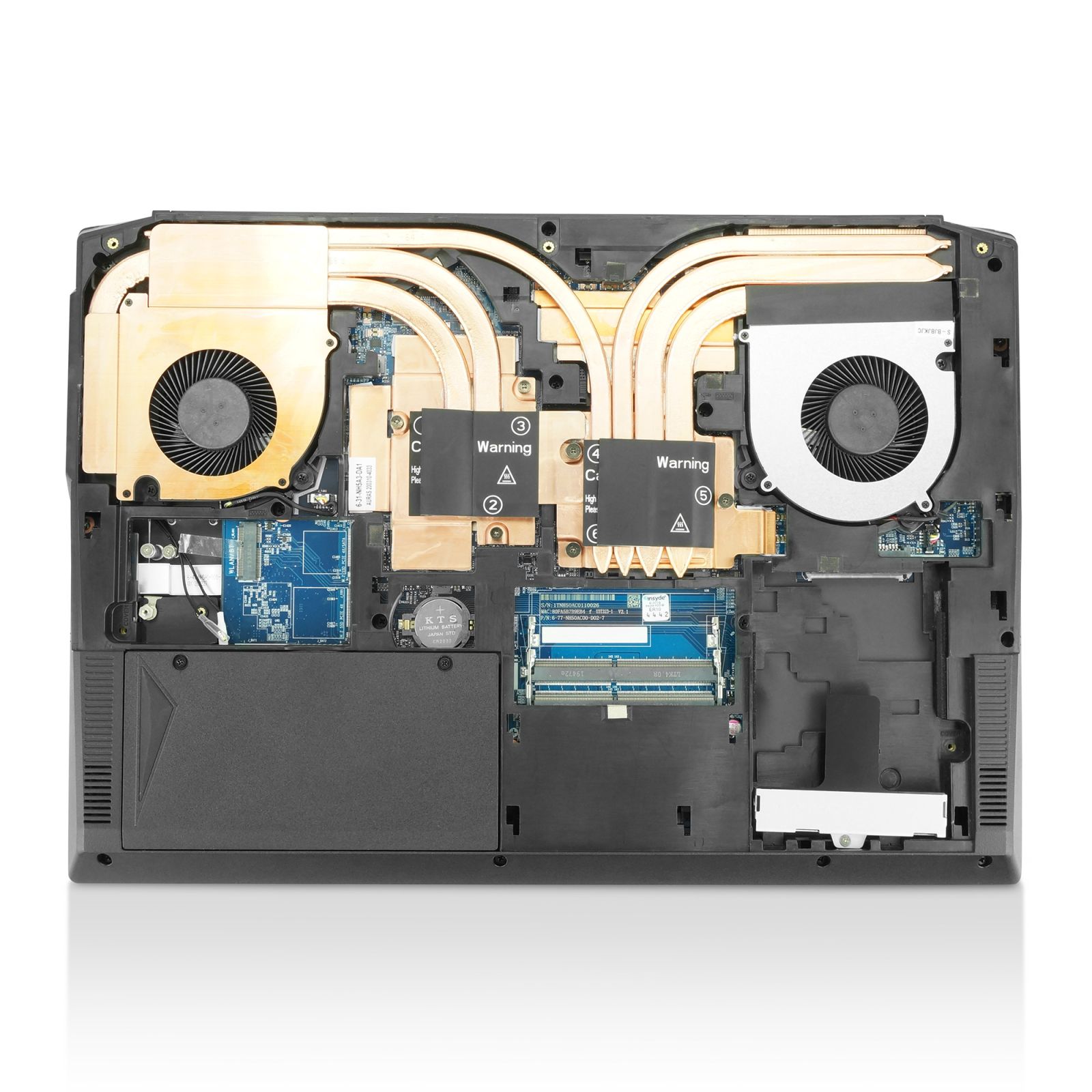

Cooling System & Fan
Temperature controlled high-end cooling solution
Notebooks designed for extreme performance (especially those with high-end desktop processors) generate significantly more heat than systems with typical notebook processors, even under low load.
Therefore slightly higher basic fan noise levels are to be expected for this device. Under full load, the energy consumption of this device is far above that of a "normal" notebook, which accordingly results in higher temperatures and increased fan speeds.
The device does not produce any high-frequency sound or rattling, but a very clearly perceptible "air swooshing".
Custom fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the behavior of the fans, as well as limit performance and therefore energy consumption according to your preferences and current needs / use case scenario. This way you can lower fan noise levels of your device significantly!
Model-ID: XA1510
Operating systems
We install Ubuntu and TUXEDO_OS (based on Ubuntu with Budgie Desktop) in the latest 64-bit version.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For advanced users and selected devices we also offer openSUSE 15 with Xfce, Gnome or KDE plasma. Of course fully configured and installed with all available updates and device drivers.
For "self-installers" and everyone who is interested, we have set up a database with downloads, instructions, tips & tricks and offer a customization script called "tuxedo.sh", which makes our customizations automatically under openSUSE and Ubuntu: Help & Support Section | tuxedo.sh
Encrypted Installation
On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively you are free to download alle Windows-Drivers from here.
BIOS
With all our notebooks you have the possibility to protect your privacy already on BIOS level. For this purpose the following functions can be completely deactivated:
- Webcam
- Audio (Microphone & Sound)
- WLAN & Bluetooth
In addition, our Premium BIOS allows chipset-specific settings and definitions for components via various profiles in order to operate the device optimally depending on its use. The profiles can be found in the BIOS menu under:
Advanced > Advanced Chipset Control > Performance Profile Select.
Further information can be found here in our manual.
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)

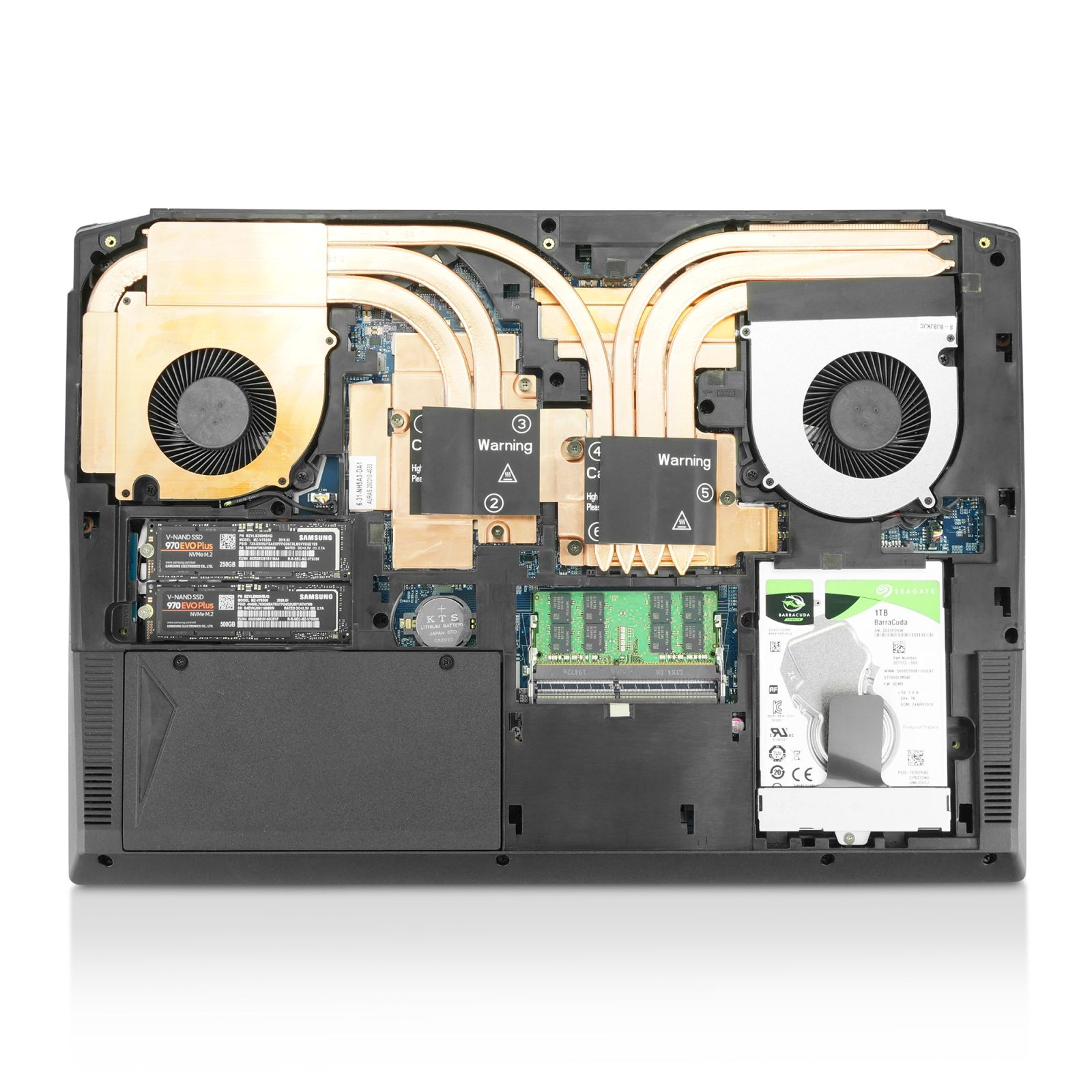

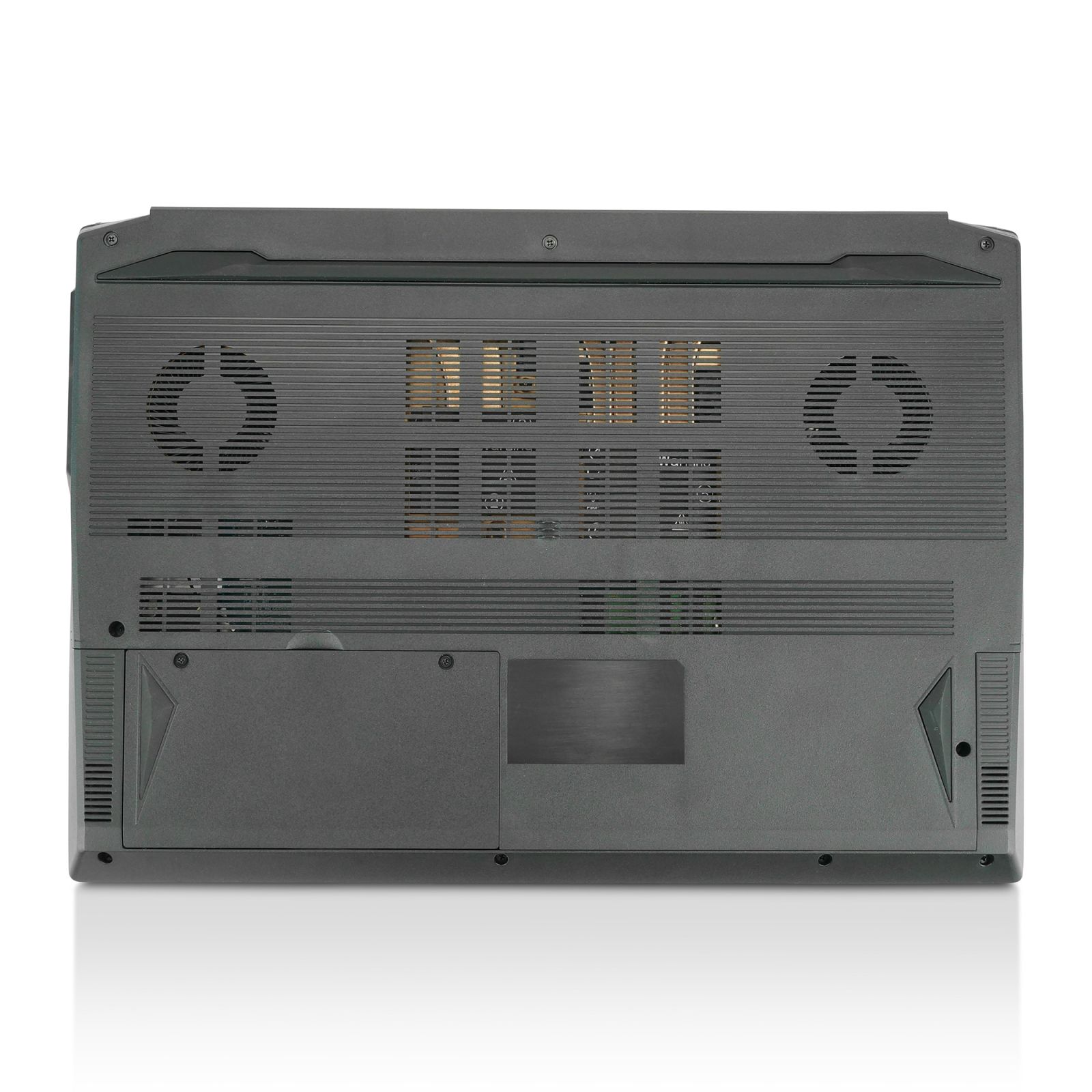

All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!
For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
