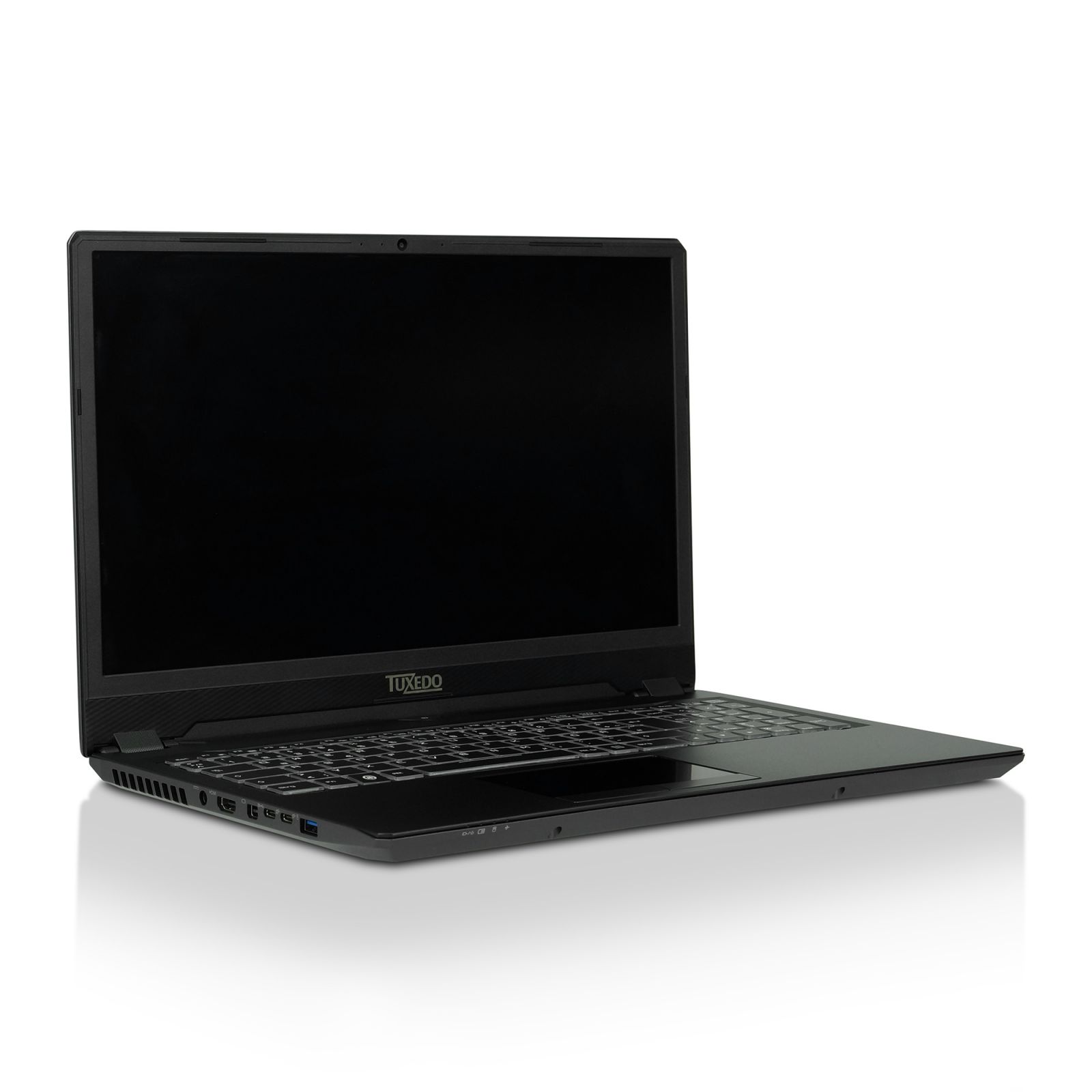

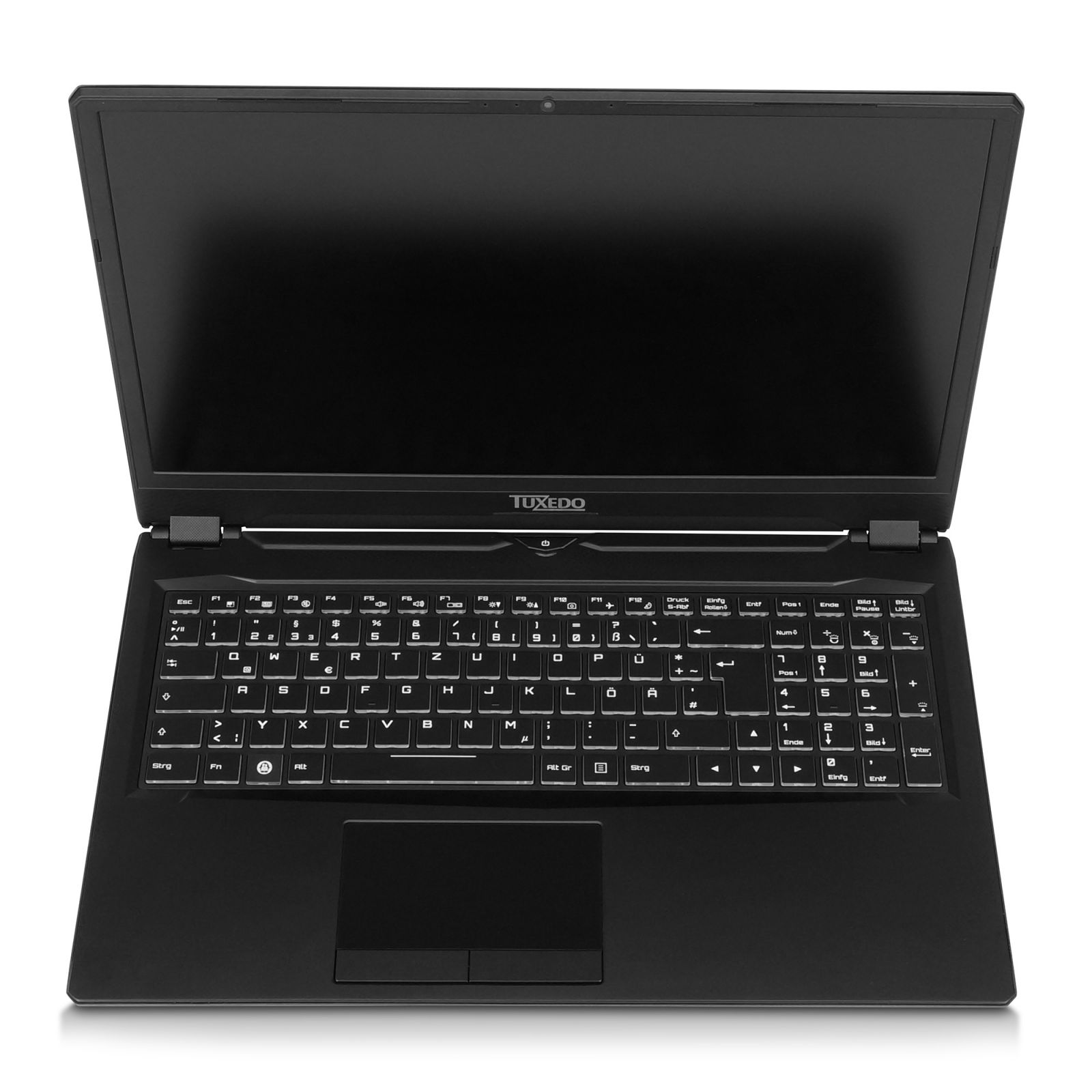

TUXEDO Book XP1609

    • Price:

      incl. 19 % Tax excl. Shipping costs
    • 10900139

    • Product gets built individually for you!
      Ready to ship within 5 working days.
      • 16,1 inches non-glare Full-HD IPS-Display
      • Slim full metal chassis! Only 1.99cm thick and 2kg light!
      • illuminated keyboard
      • Intel Core i eighth generation Coffee Lake
      • Intel Core i7-8750H Six-Core
      • up to NVIDIA GeForce RTX 2080 Max-Q (GDDR6)
      • up to 64 GB DDR4 memory
      • SATA3 HDD or SSD + 2x M.2 NVMe PCIe SSD
      • 1x Mini-DisplayPort, 1x DisplayPort via USB-C, 1x HDMI, NVMe, LAN, etc.
      • 2x USB 3.1 Typ-C Gen2
    • Product Description
    • Technical Details
    • System & Service
    • Configure & Order
  • Product description

    You are looking for a high-end device with professional look and feel? You need a portable high-end notebook? You are a professional user? Then the XP-series is exactly what you are looking for! It combines e[X]treme power and [P]rofessional claims into one [P]ortable premium notebook!
    The XP1609 is made totally from aluminium and is extrem powerfull but anyhow ultra slim, lightweight and portable!



    Features such as DisplayPort connectors, USB-C, dual-channel memory, six-core CPUs and much more are also included.



    With its height of only 19,9mm and only 2kg it is almost as portable as an Ultrabook. The powerful NVIDIA RTX graphics card, paired with Intel six-core CPU also make it a real arithmetic monster. This means that you can always have your implement with you and still always have full power at your disposal.



    Up to two ultra-fast M. 2 NVMe PCI-Express SSD provides the data hunger for your high-performance notebooks at a reasonable speed and on another 2.5" SATAIII 6Gb/s HDD or SSD you will find your terrabyte of data that you always need to have with you.



    The two mini display port connectors - one through USB-C - allow you to operate monitors with up to 4k resolution at 60Hz. An HDMI port is also available for image output.



    Two USB 3.1 Gen2 Gen2 Type-C with full 10Gb/s speed and two more USB 3.0 Type-A ports let you connect all your devices in a contemporary way.



    A full-fledged/normal network connection / Ethernet port (RJ45) provides besides WLAN & Bluetooth as well as wired network connection.



    A multicolor illuminated backlit keyboard with penguin super-key and a Precision Glass-Touchpad with multi-gesture- & scrolling-function incl. two mouse-buttons let you work smoothly everytime with your XP1609.



    Of course, a Full-HD webcam, microphone, card reader, headphone connections etc. are obligatory.

    Technical Details

    Display / Bildschirm

    16,1" (40,89 cm)
    The maximum opening angle of the display hinges is about 140°.
    Full-HD (1920 × 1080) Non-Glare IPS
    Model: Innolux N161HCA-GA1
    Luminance: mind. 300cd/m²
    Contrast ratio: 1000:1
    Viewing angle: 89°



    Chassis

    Dimensions (W x D x H): 380 x 252 x 19,9 mm
    Weight: 2 kg incl. battery

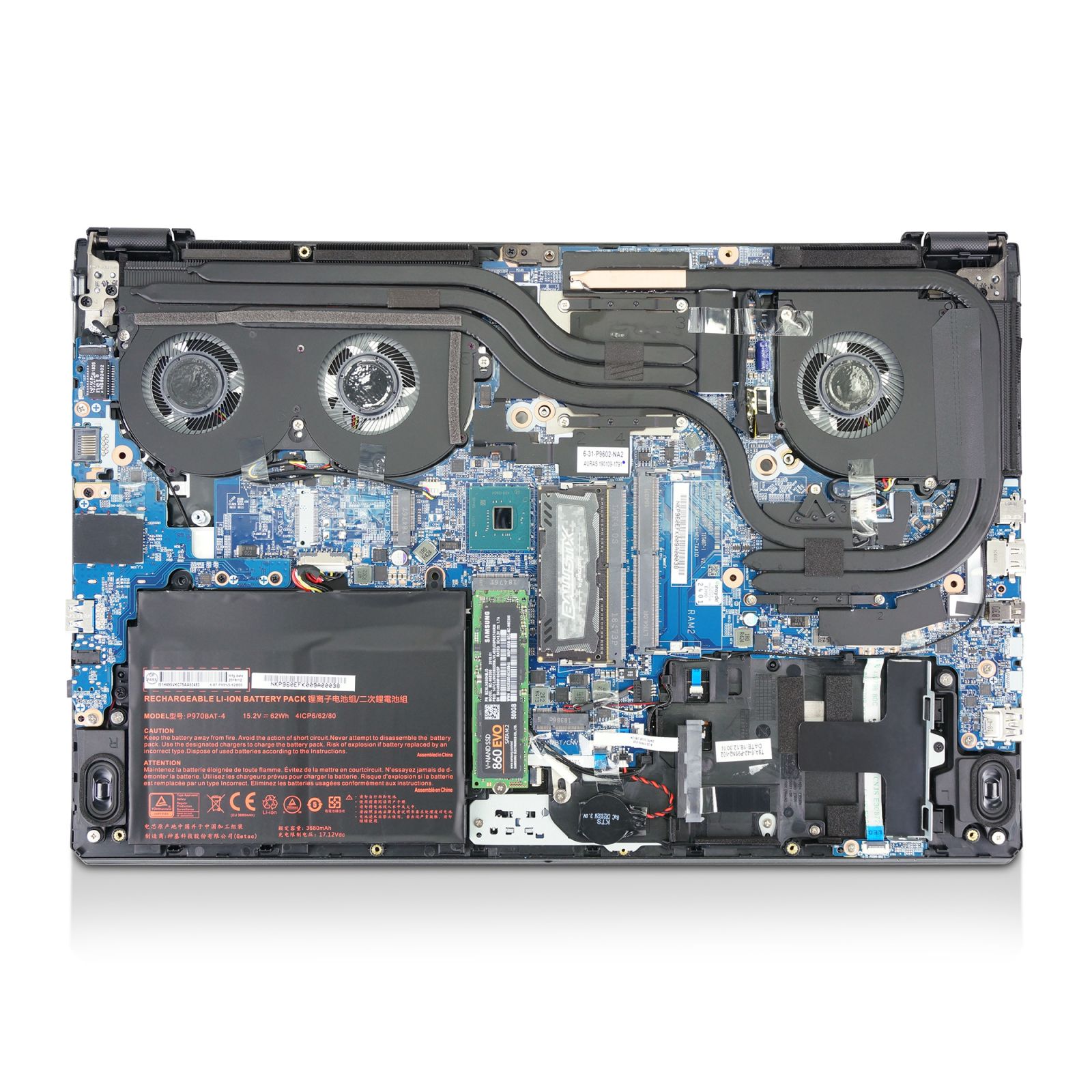

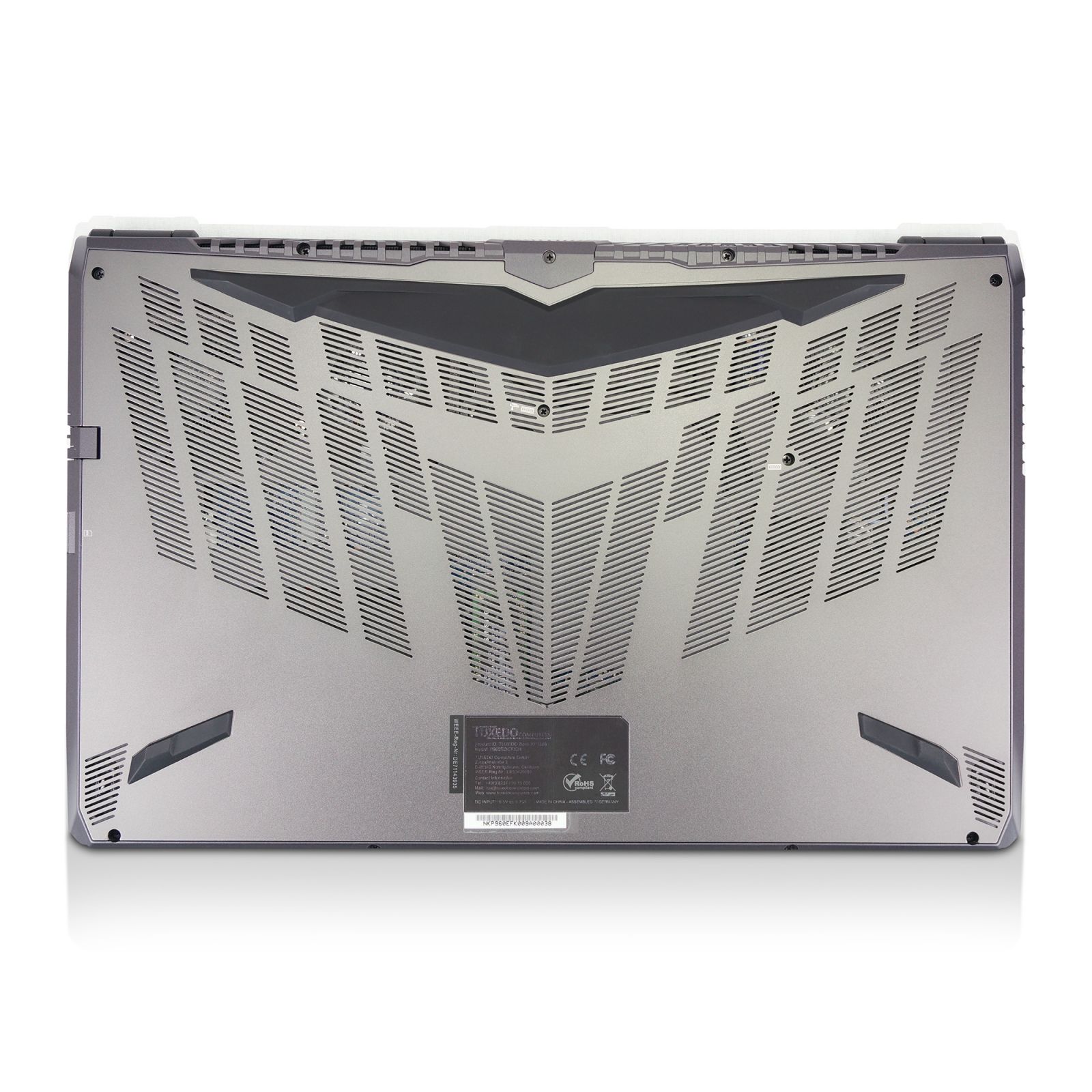

    After opening the base plate, the components & heatsink can be cleaned without loss of warranty.



    Battery & Power Supply

    4-cell lithium-ion battery, 62 Wh
    To change the battery, the base plate must be removed. Afterwards, it can be replaced with only two screws without any problems. It's not glued in.

    Power supply:
    19.5V, 9.23A, 180W power supply
    As a mobile travel power supply we recommend our 60/65W power supply. Power your notebook with enough power to perform normal office work on the go. An alternative is our 120W slim power supply, which covers almost all power requirements at maximum load. This supplies the device with sufficient energy on the road, but is relatively light and small. And if there should be a shortterm bottleneck, there is the built-in notebook battery!



    Lifetime of batteries

    Users are often advised to remove the battery during permanent mains operation in order to conserve it. The operation of all TUXEDO Books is also possible without battery.



    However, it is not necessary to detach the battery! With all our devices there is the point FlexiCharger in the BIOS in the Advanced Options under Advanced Chipset Control.  If you activate the FlexiCharger, you can adjust the charging level from and up to when the battery should be charged. So e.g. start charging from 40% and charge up to 95%. Thus a continuous loading and unloading of the battery can be prevented and it is automatically spared.



    Battery Life

    Battery life approx. 6 hours with min. brightness in idle mode

    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, WIFI & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!).
    This way you get an information of maximal possible battery life. Starting from this you can manage your individual battery life depending on your demands and to influence it e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Processor

    CPU:

    Intel Core CPU from the 8th generation "Coffee Lake".

    Intel Core i7-8750H (6x 2.2-4.1GHz Six-Core, 12 Threads, 9MB Cache, 45W TDP)

    Chipset: Intel HM 370 Express



    Graphics Card

    NVIDIA® GeForce® RTX 2060 6 GB GDDR6 VRAM (N18E-G1)
    NVIDIA® PhysX®, GeForce CUDA technology

    NVIDIA® GeForce® RTX 2070 Max-Q 8 GB GDDR6 VRAM (N18E-G2 Max-Q)
    NVIDIA® PhysX®, GeForce CUDA technology

    NVIDIA® GeForce® RTX 2080 Max-Q 8 GB GDDR6 VRAM (N18E-G3 Max-Q)
    NVIDIA® PhysX®, GeForce CUDA technology

    The notebook works with NVIDIA Optimus, which allows graphics switching between NVIDIA and Intel.

    Additional: Energy saving graphics chip integrated in CPU: Intel UHD Graphics 630

    The following resolutions are possible over all connections individually or parallel:

    1x Notebook display:
    Full-HD 1920 x 1080 connected by NVIDIA Optimus or directly to the NVIDIA GeForce.
    1x Mini-DisplayPort 1.4:
    1080p@240Hz, 1440p@240Hz, 1600p@200Hz, 4K@120Hz, 5K@60Hz, 8K@60Hz (with DSC) directly connected to the NVIDIA GeForce.
    1x DisplayPort 1.4 through USB-C:
    1080p@240Hz, 1440p@240Hz, 1600p@200Hz, 4K@120Hz, 5K@60Hz, 8K@60Hz (with DSC) directly connected to the NVIDIA GeForce.
    1x HDMI 2.0:
    1080p@240Hz, 1440p@120Hz, 1600p@120Hz, 4K@60Hz

    With these maximum resolutions, 4 displays can be controlled simultaneously, e.g. 1x notebook display and 3x external monitors. DaisyChaining also rows further displays together.

    Memory

    Type: DDR4 SO-DIMM
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Dual channel mode (with at least 2 modules)
    Current Laptop-U-CPUs do support only 2400MHz RAM officially. So even 2666MHz RAM is shown with 2400MHz inside the system. But in fact, the high-performance-RAM with 2666MHz squeezes around 5% more performance out of your laptop!



    Hard drive

    Standard 2,5" HDD or SSD
    Manufacturer and speed see configurator
    Standard and maximum see configurator



    Hard drive M.2 SSD

    Fast M.2 SSDs
    Manufacturer and speed see configurator
    Standard and maximum see configurator



    Communication/Network

    Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)

    Wireless/WIFI (optional):

    Intel Dual AC 9260 & Bluetooth (M.2 2230)

    WIFI
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 1,73Gbps (5GHz WIFI)

    Bluetooth
    Integrated in above Intel Dual Band Wireless-AC 9260
    Version: Dual Mode Bluetooth 5



    LTE Module

    LTE/HSDPA+ 4G Huawei ME936
    Form factor: M.2 Interface



    Supported frequency bands
    LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
    HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
    EDGE/ GPRS/GSM: 1900/1800/900/850 MHz



    Transfer rates
    LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
    HSPA+: ↑ 11 Mbps ↓ 42 Mbps
    WCDMA: ↑ 384 kbps ↓ 384 kbps



    GPS
    GPS Standalone, A-GPS, GPS XTRA, Glonass



    Security

    Kensington Lock

    TPM 2.0 (completely disabled/disableable in BIOS)

    In-Glass Fingerprint-Reader (Windows only!)

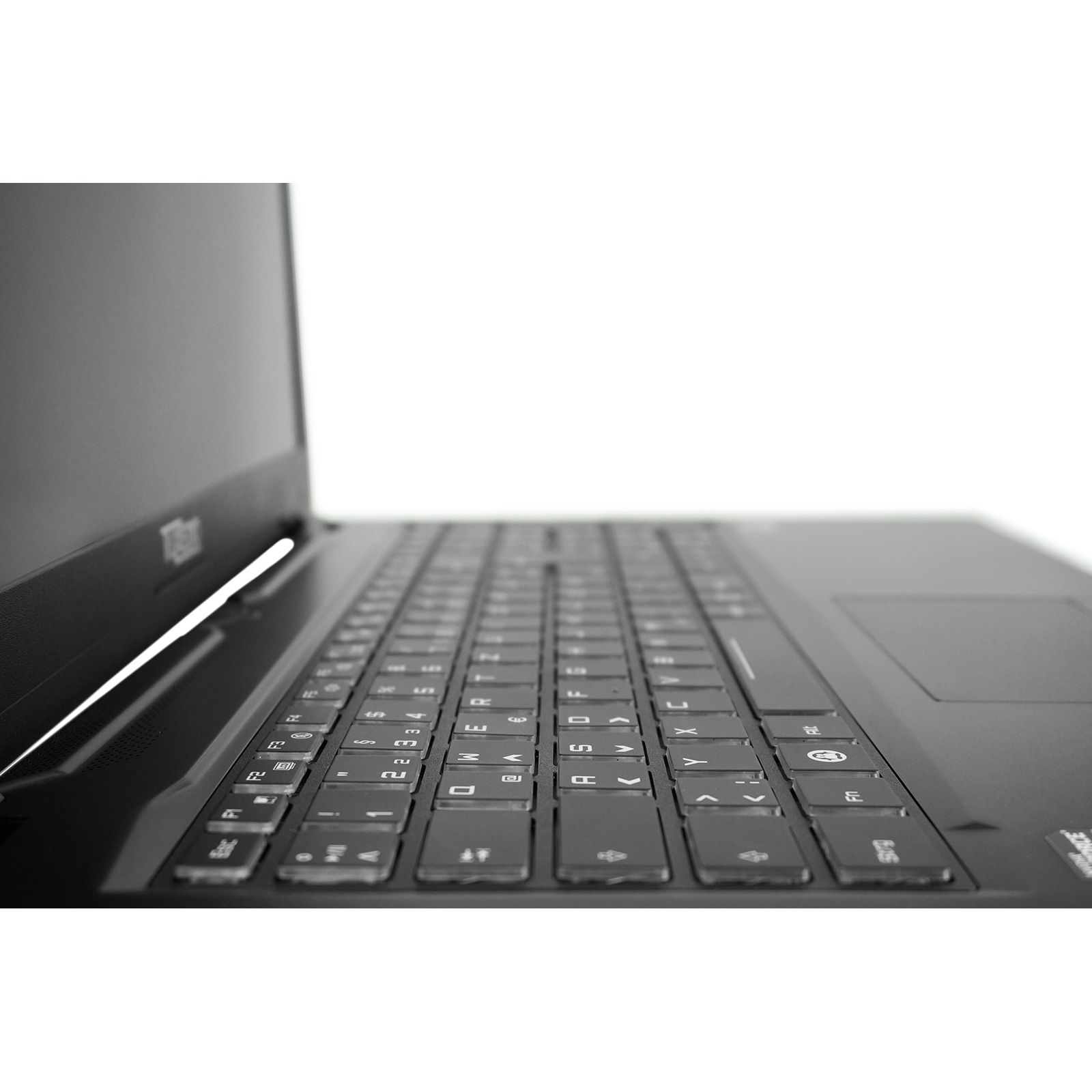

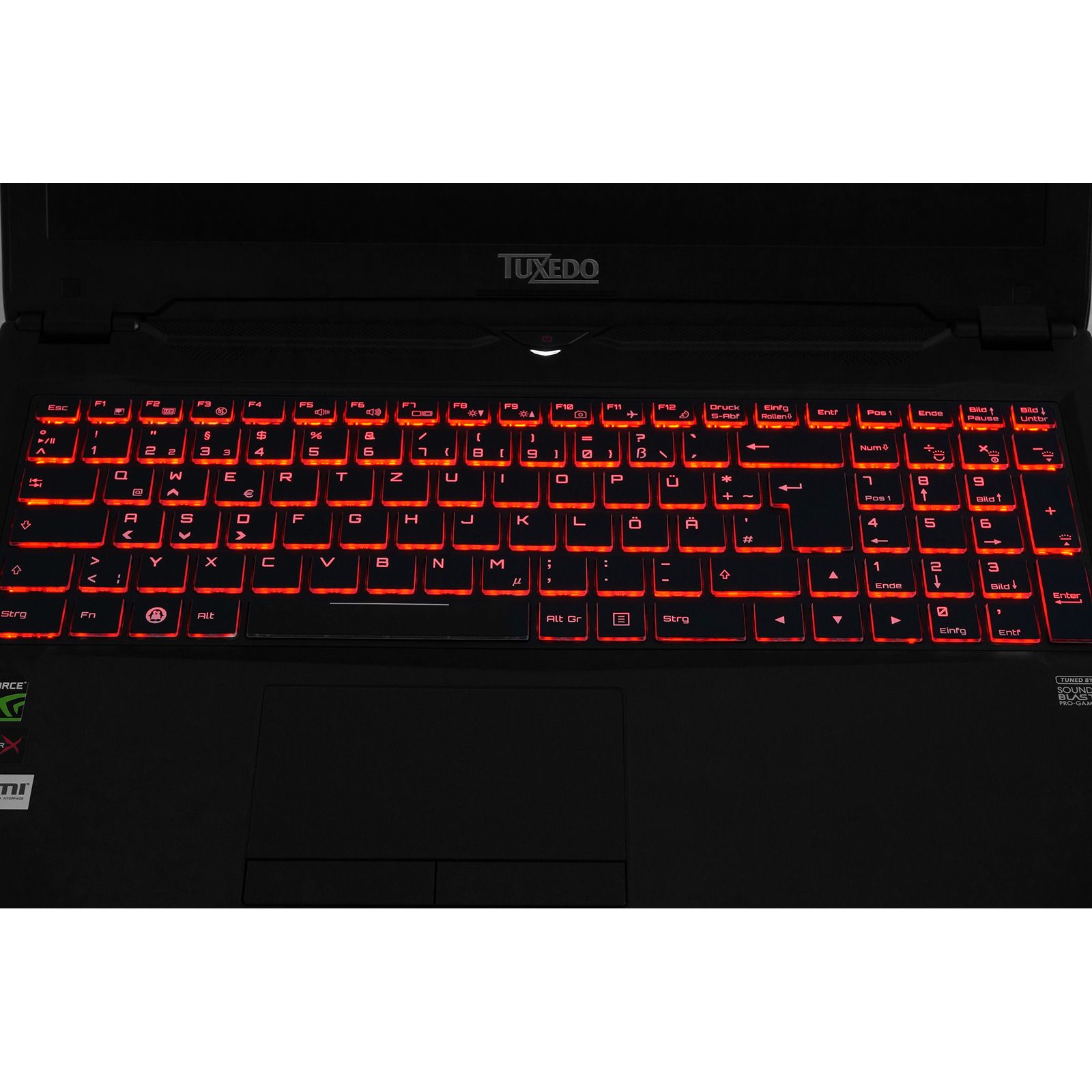

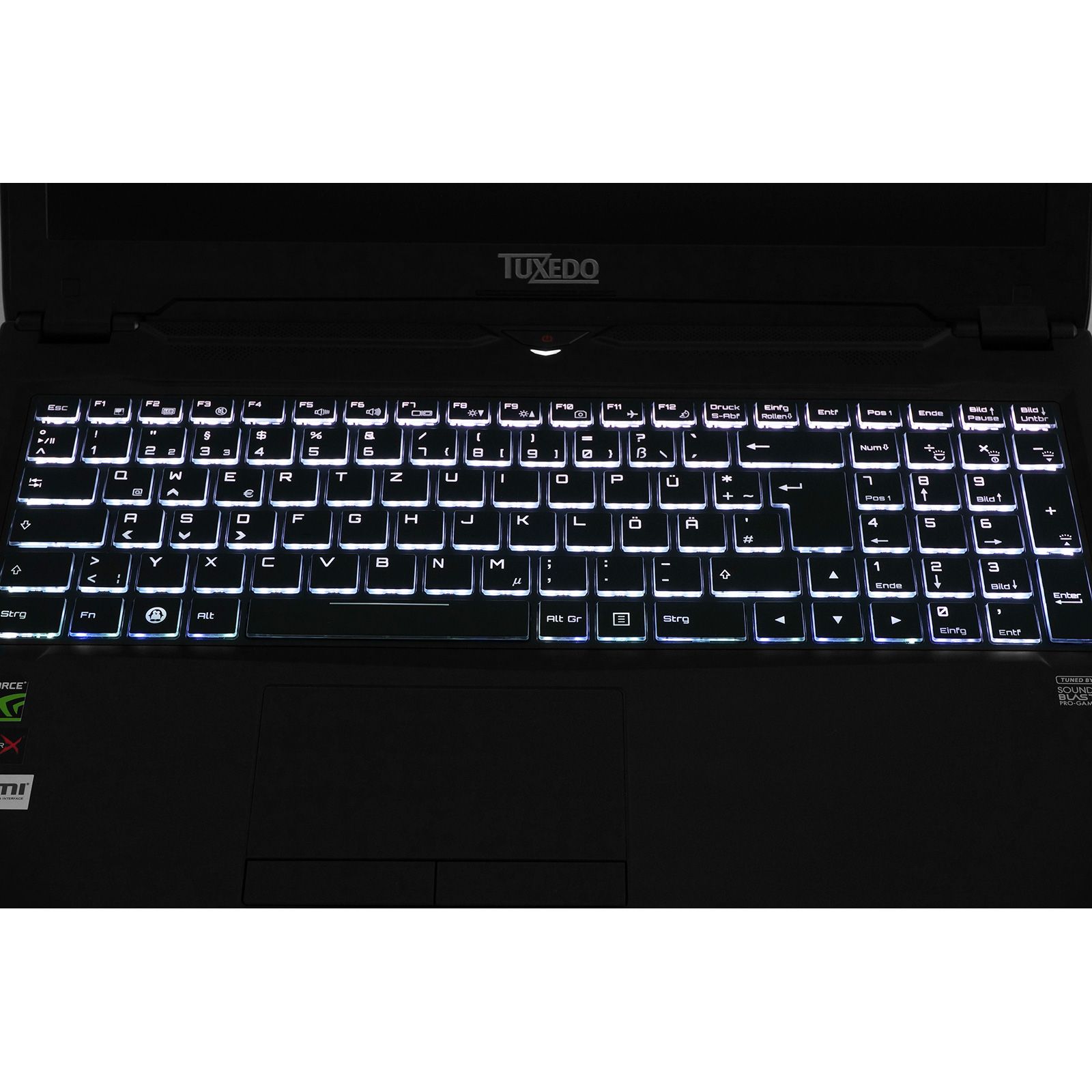

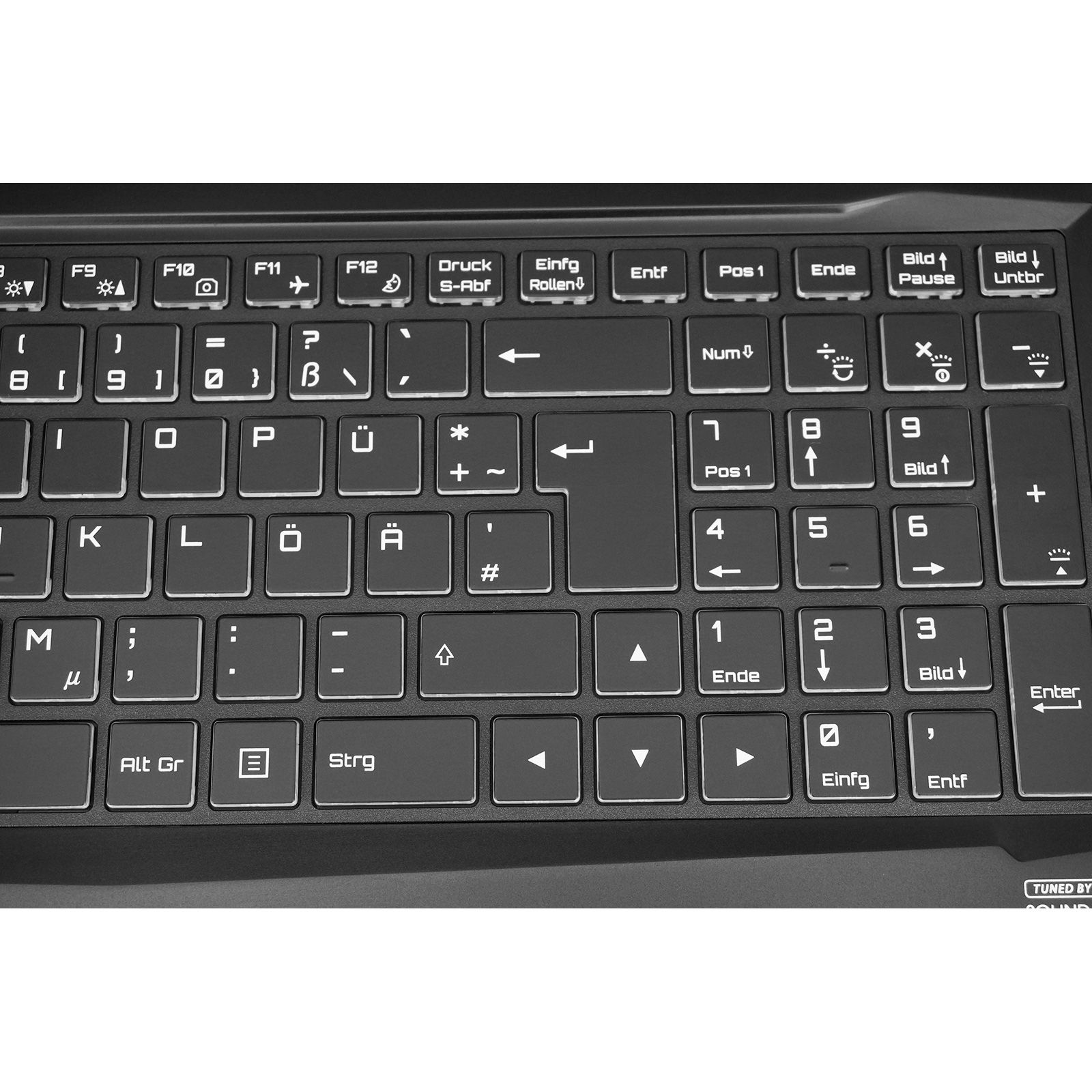

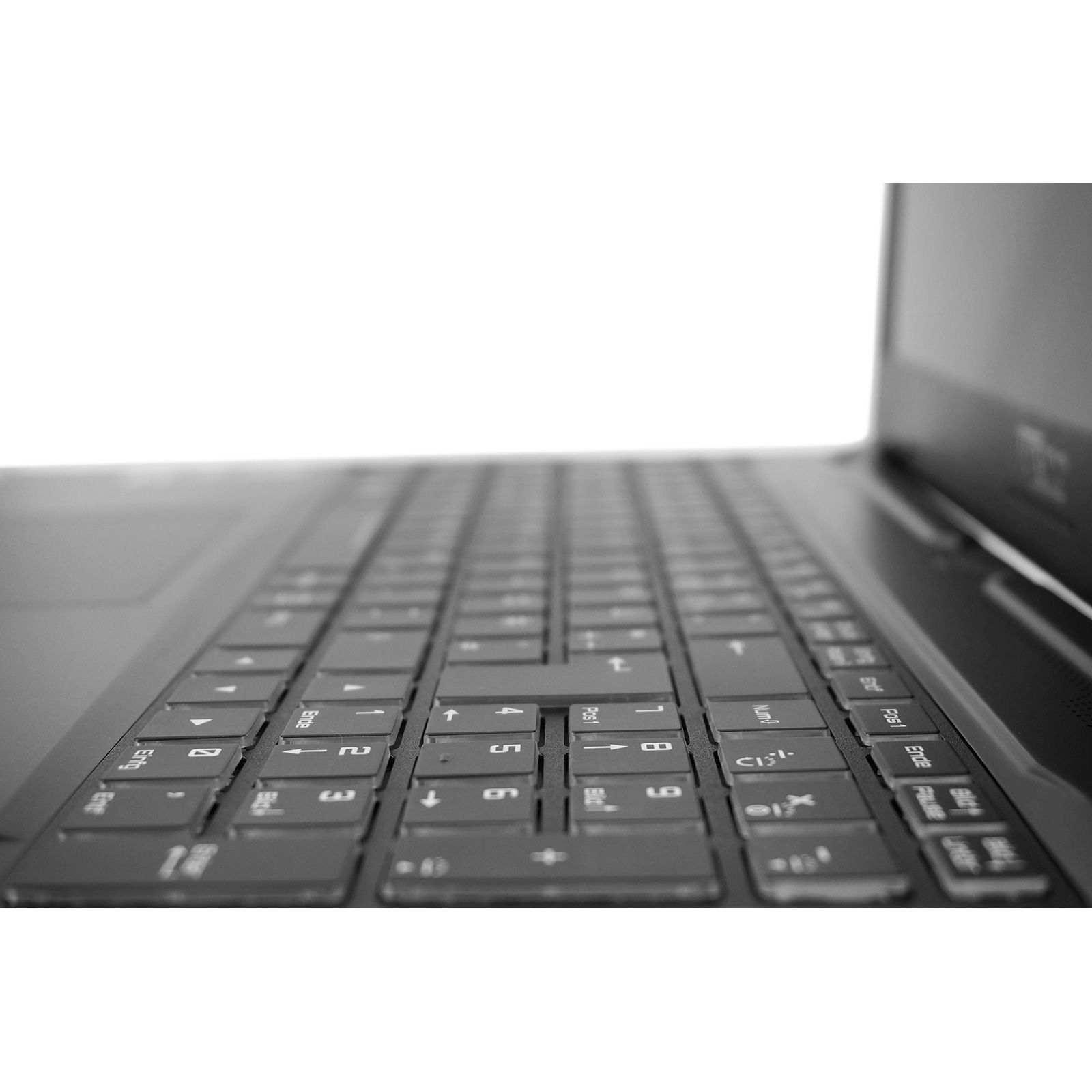

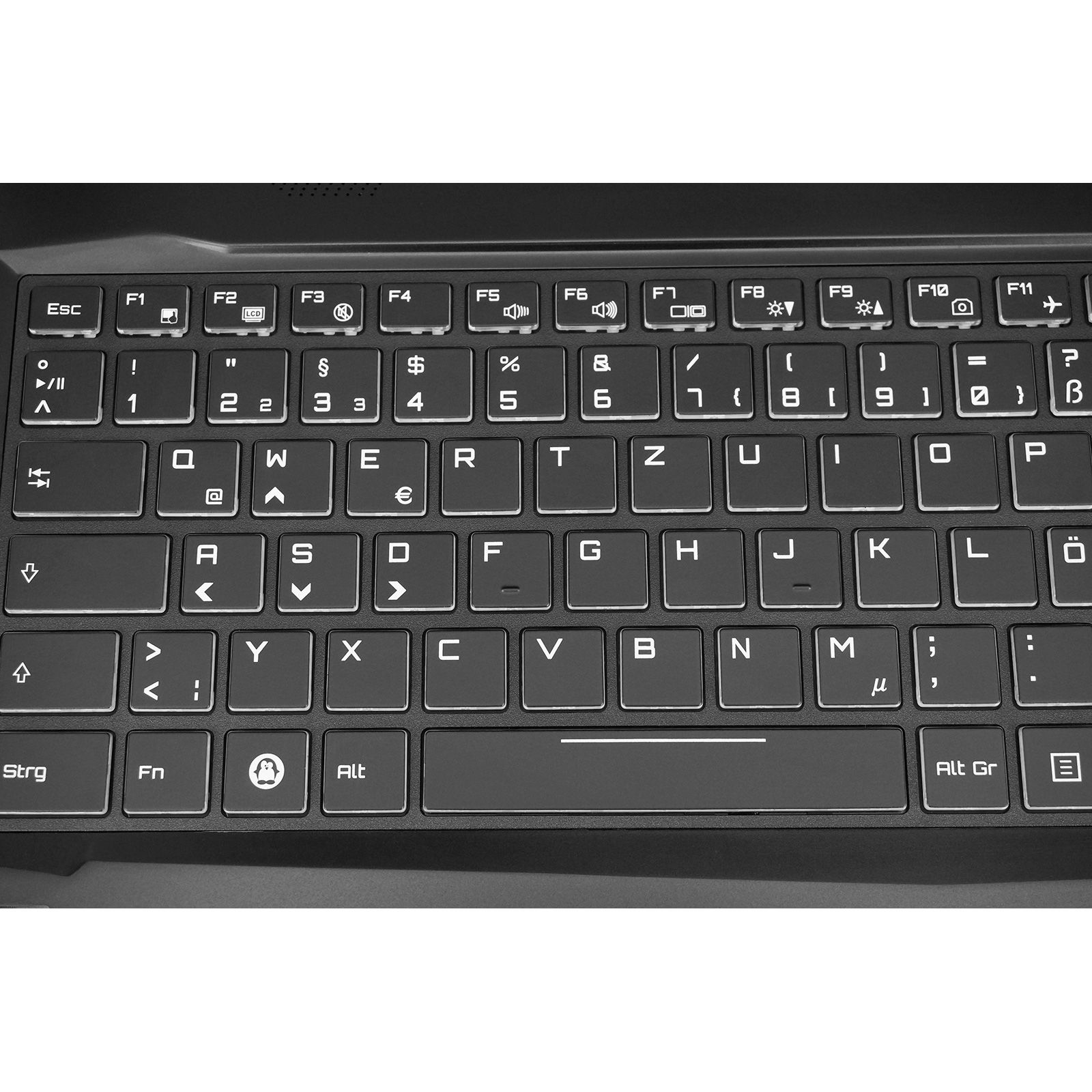

    Keyboard

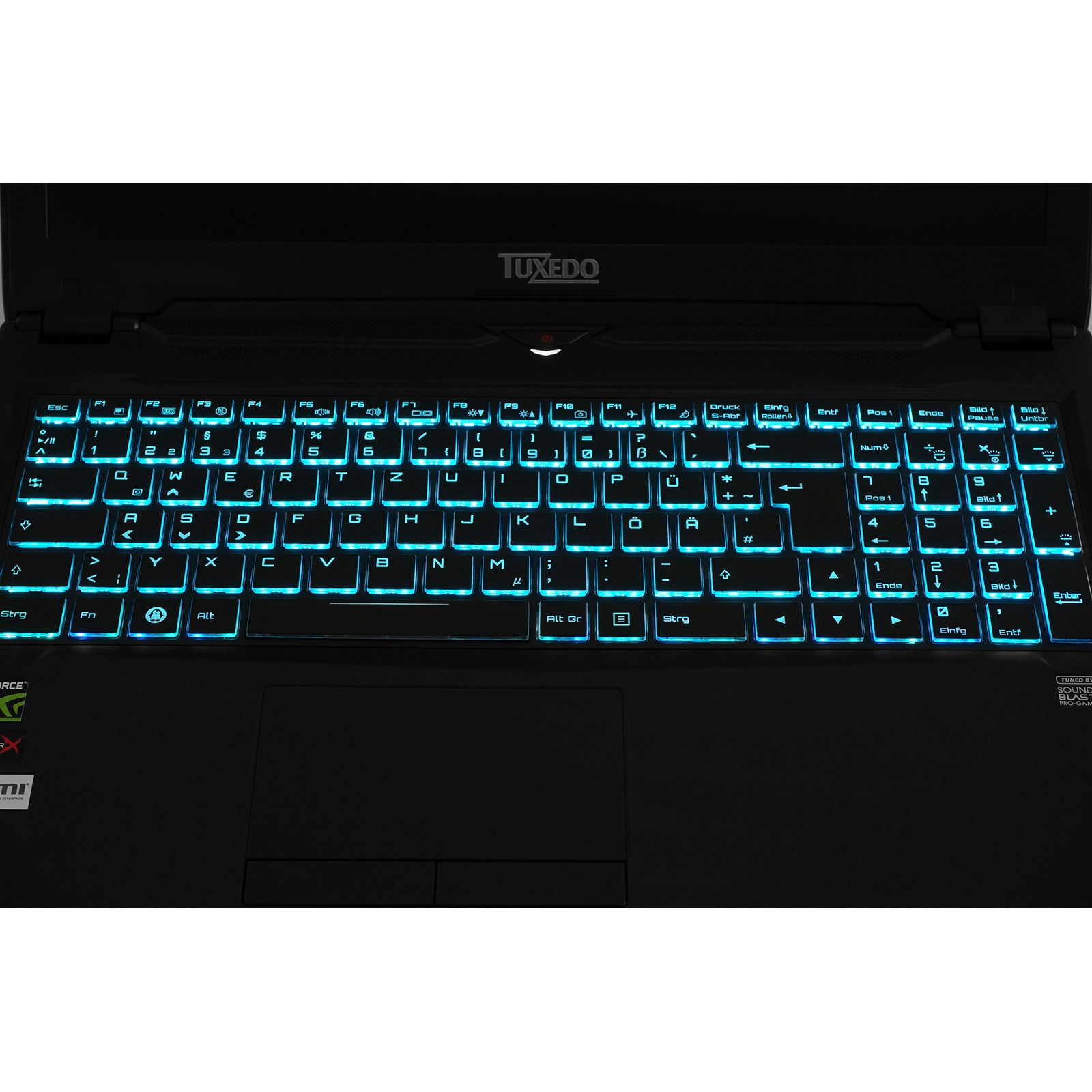

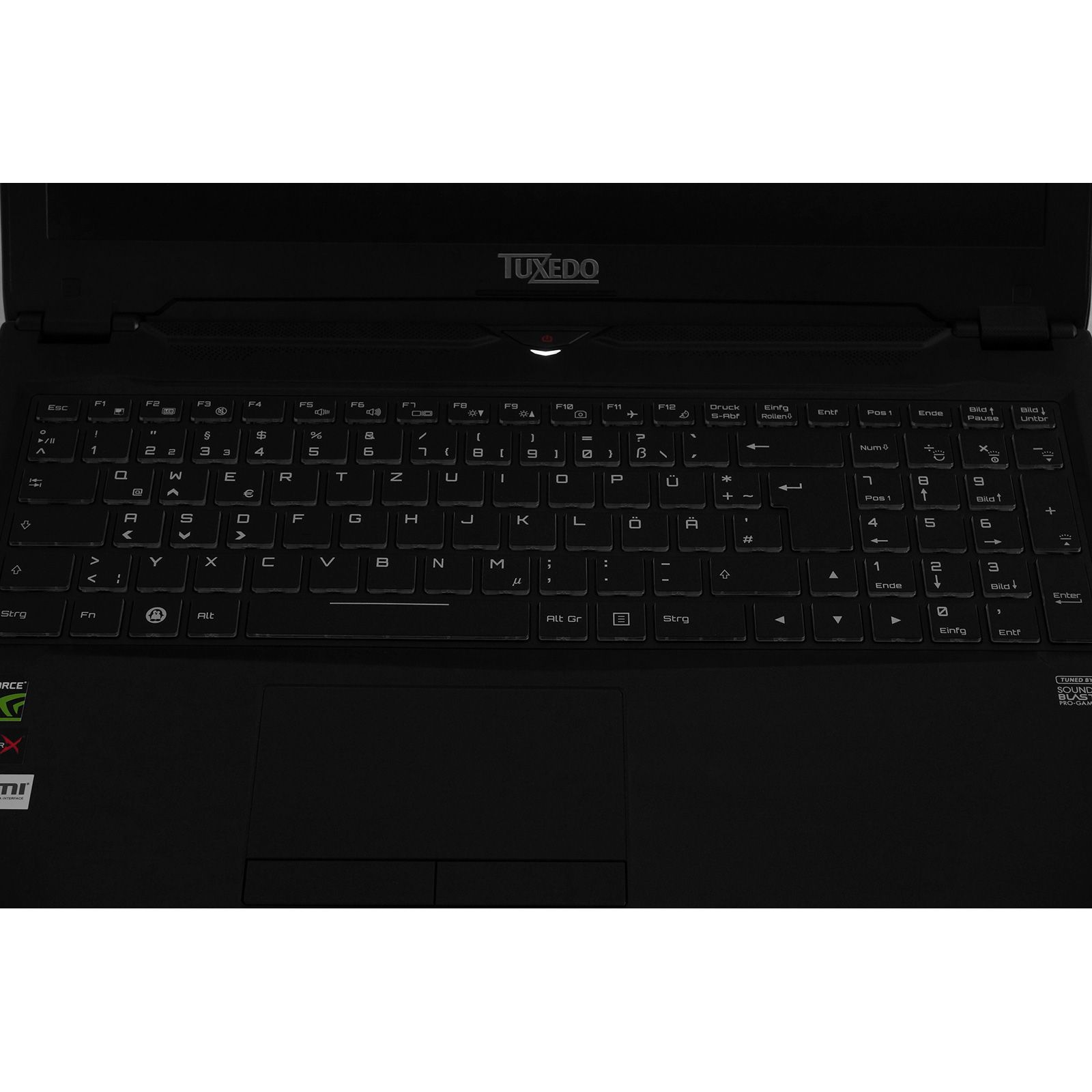

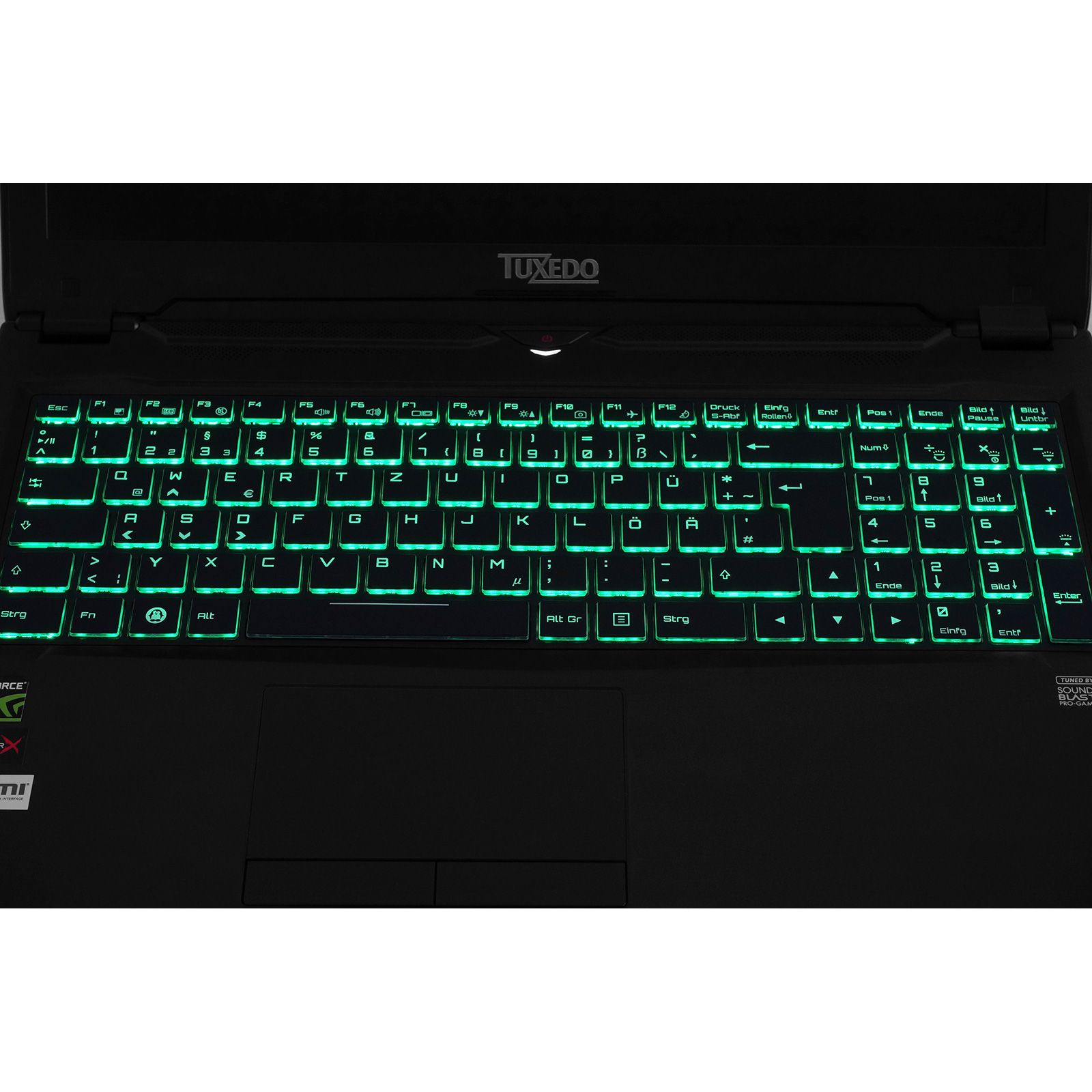

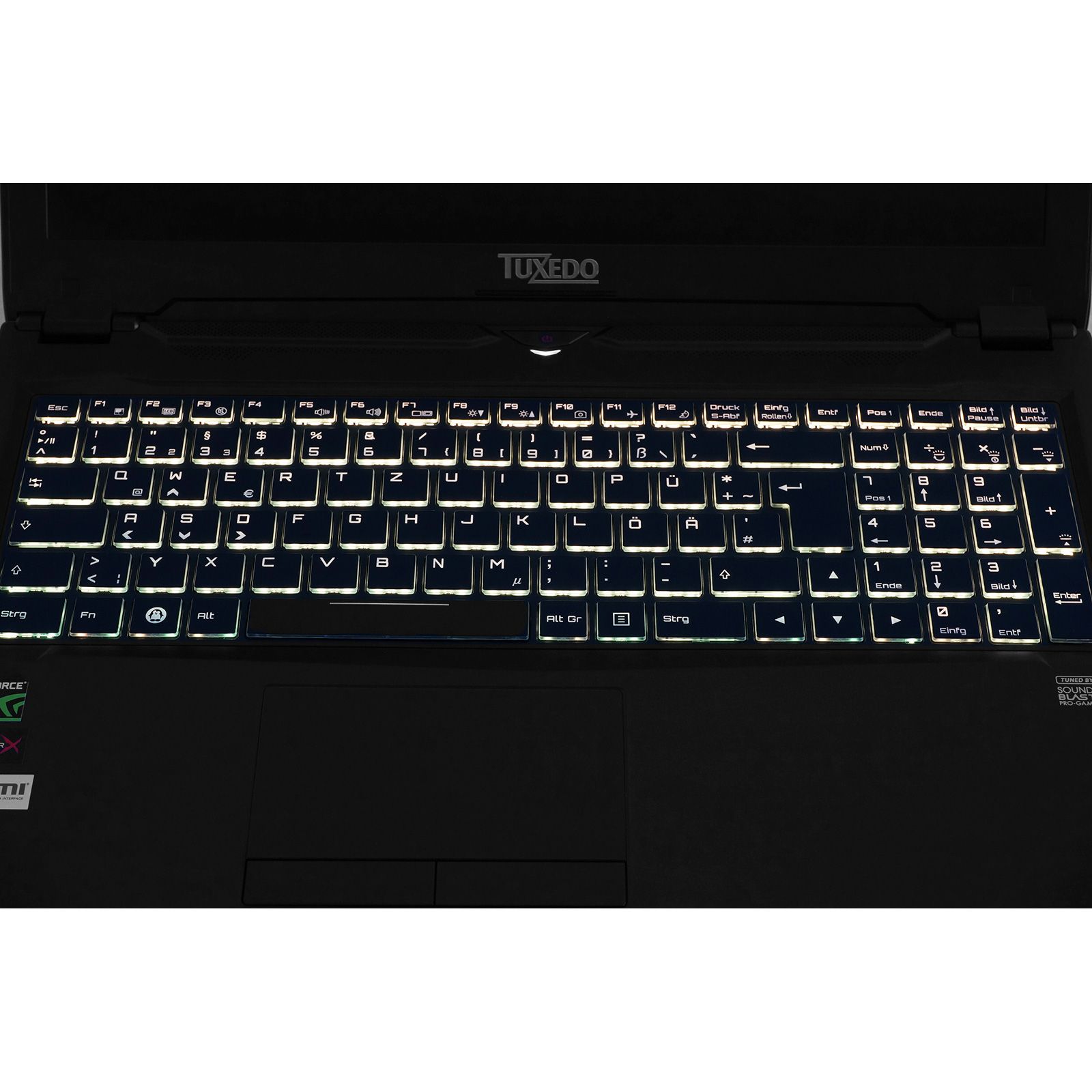

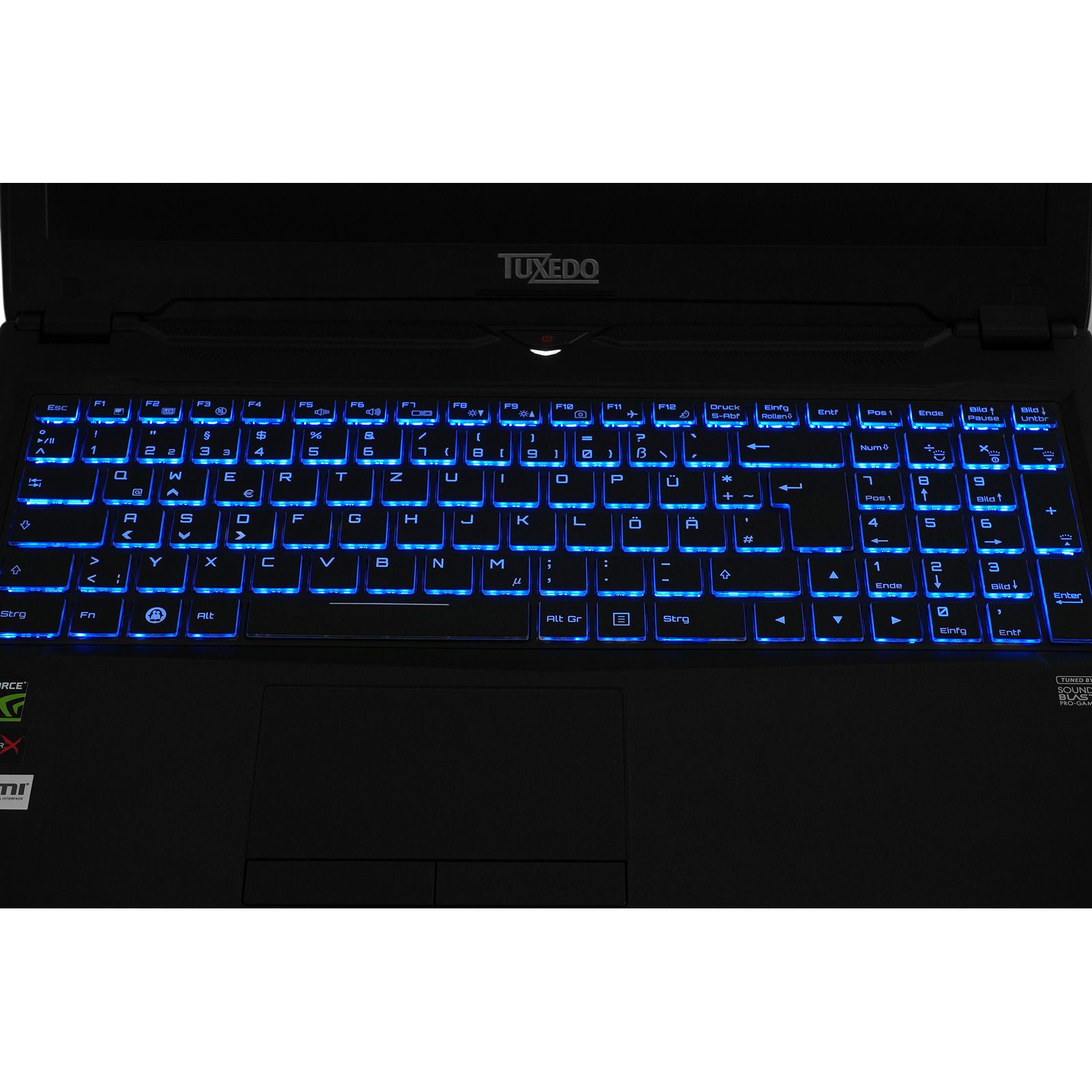

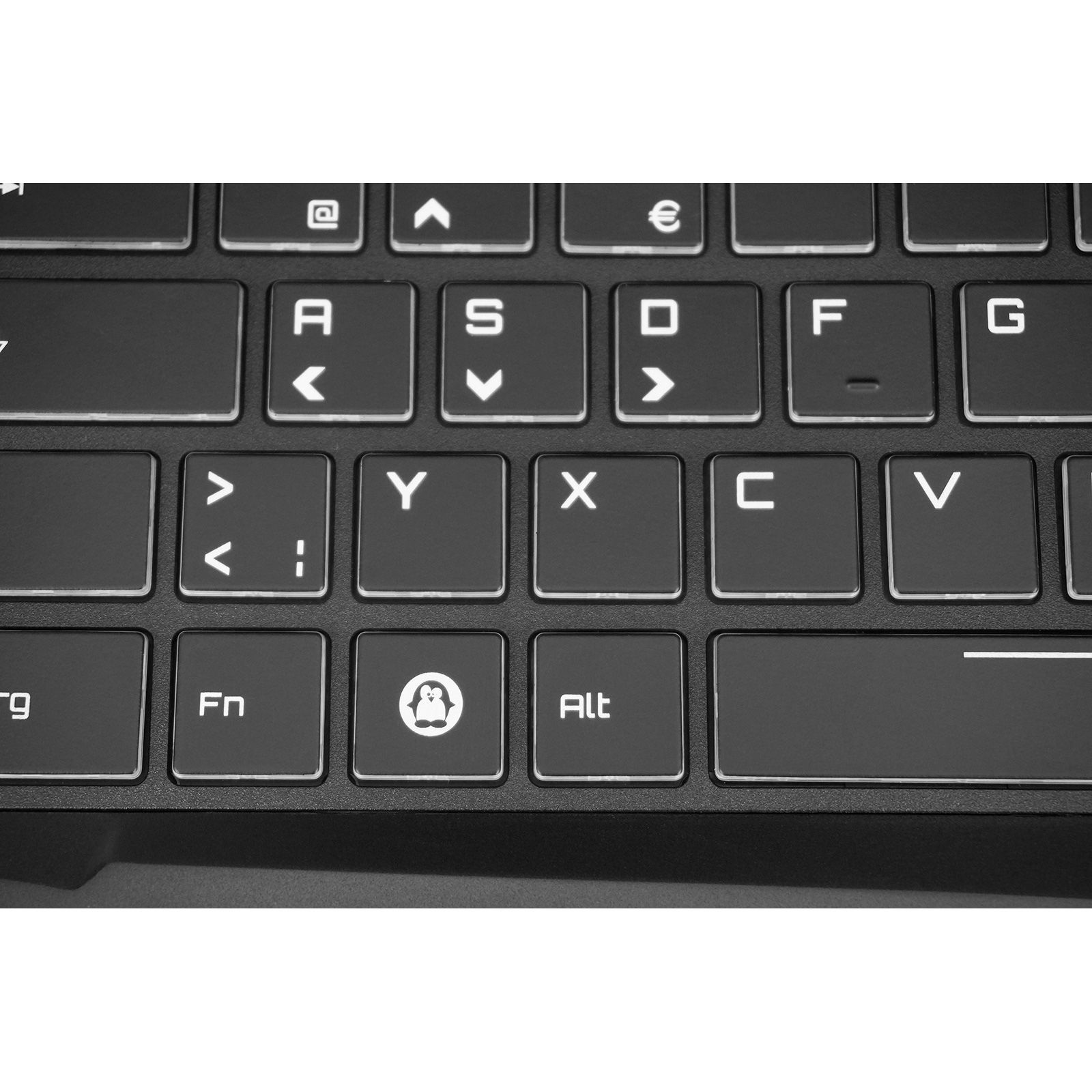

    Multi-coloured illuminated keyboard with penguin super key.

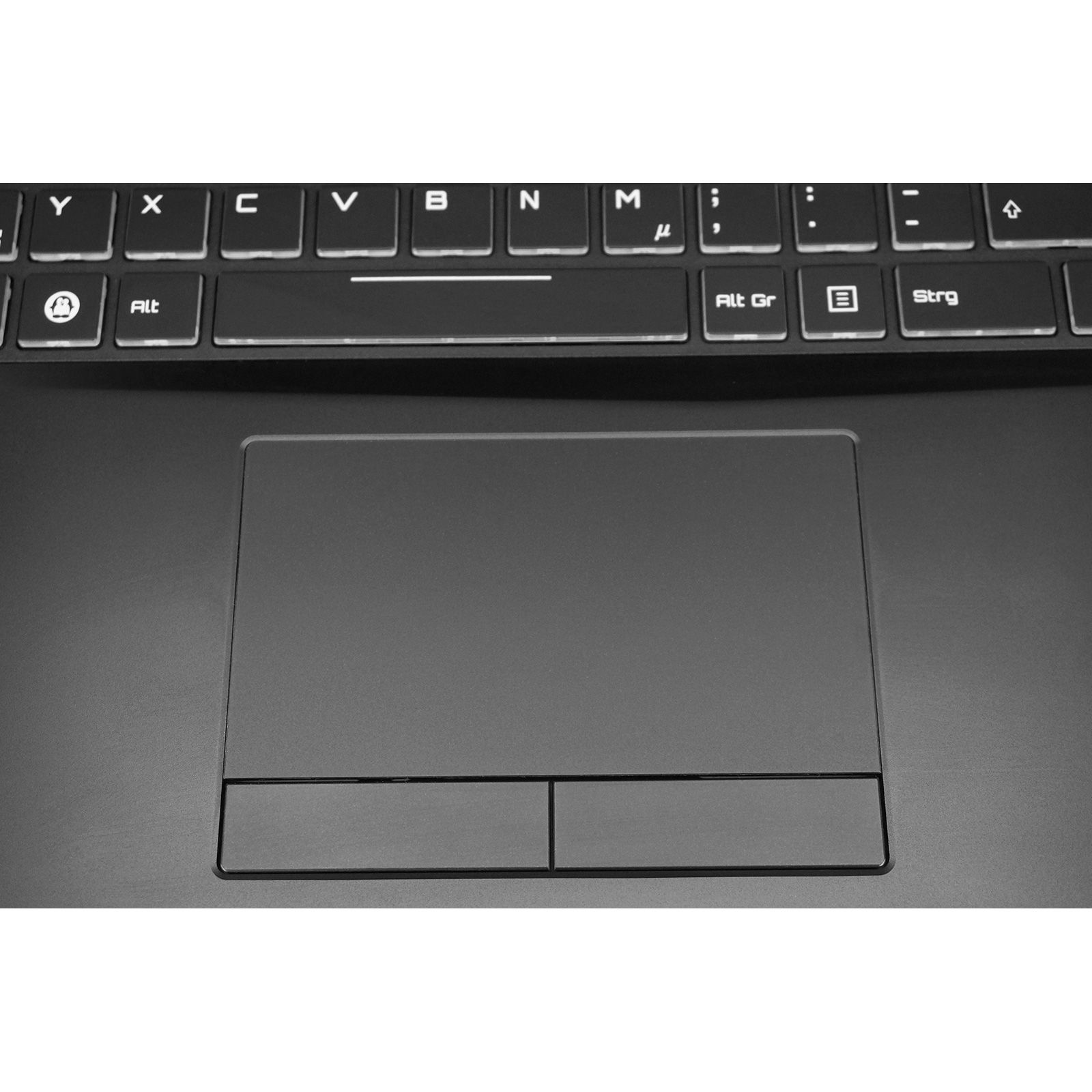

    Precision Glass-Touchpad with multi-gesture- & scroll-functions incl. two mouse-buttons



    Webcam / Laptop Camera

    Full-HD camera including microphone



    Sound / Audio

    High Definition Audio
    2x 2W Loudspeaker system
    Integrated microphone with noise suppression
    Optical S/PDIF output
    Sound BlasterX Pro-Gaming 360° (Windows only!)

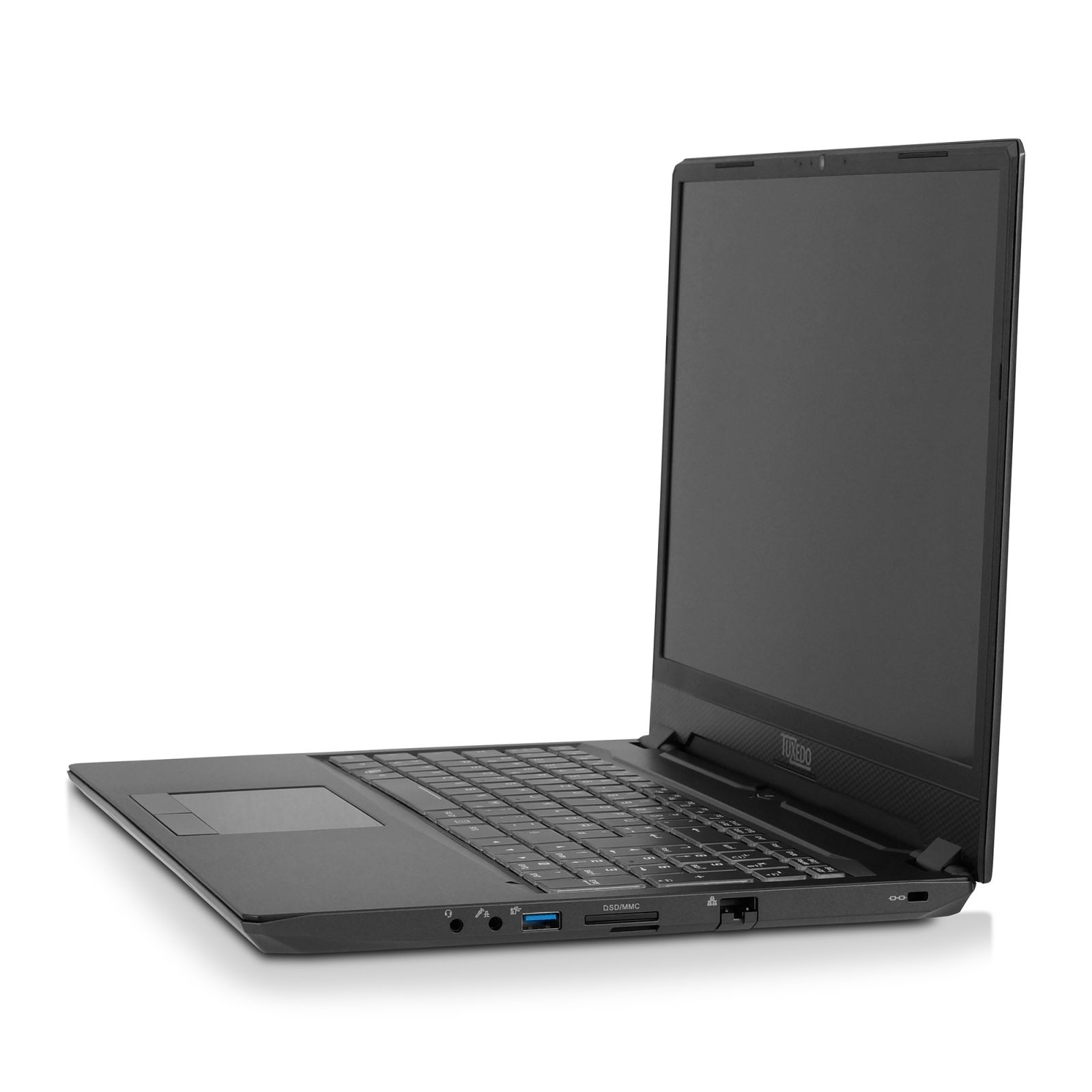

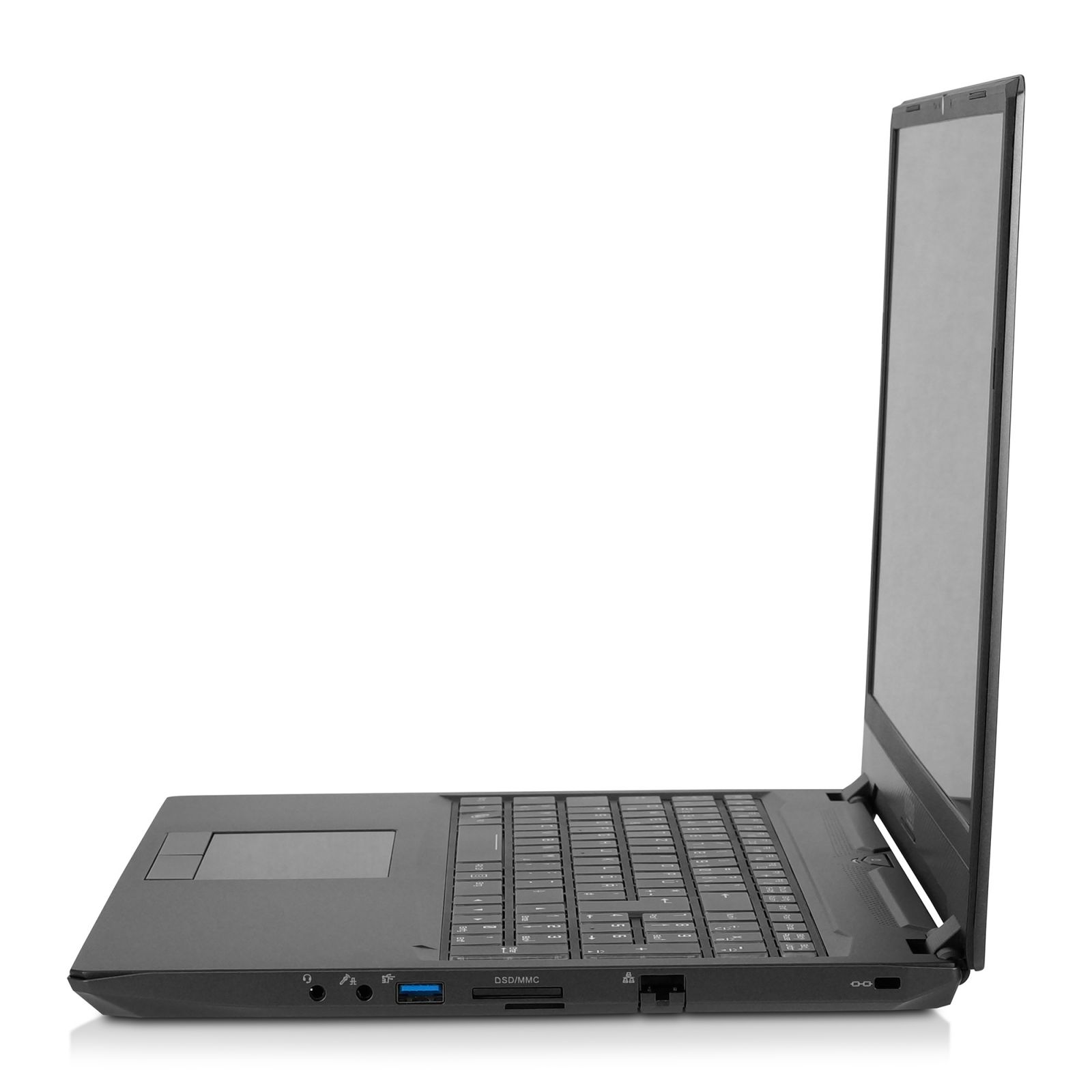

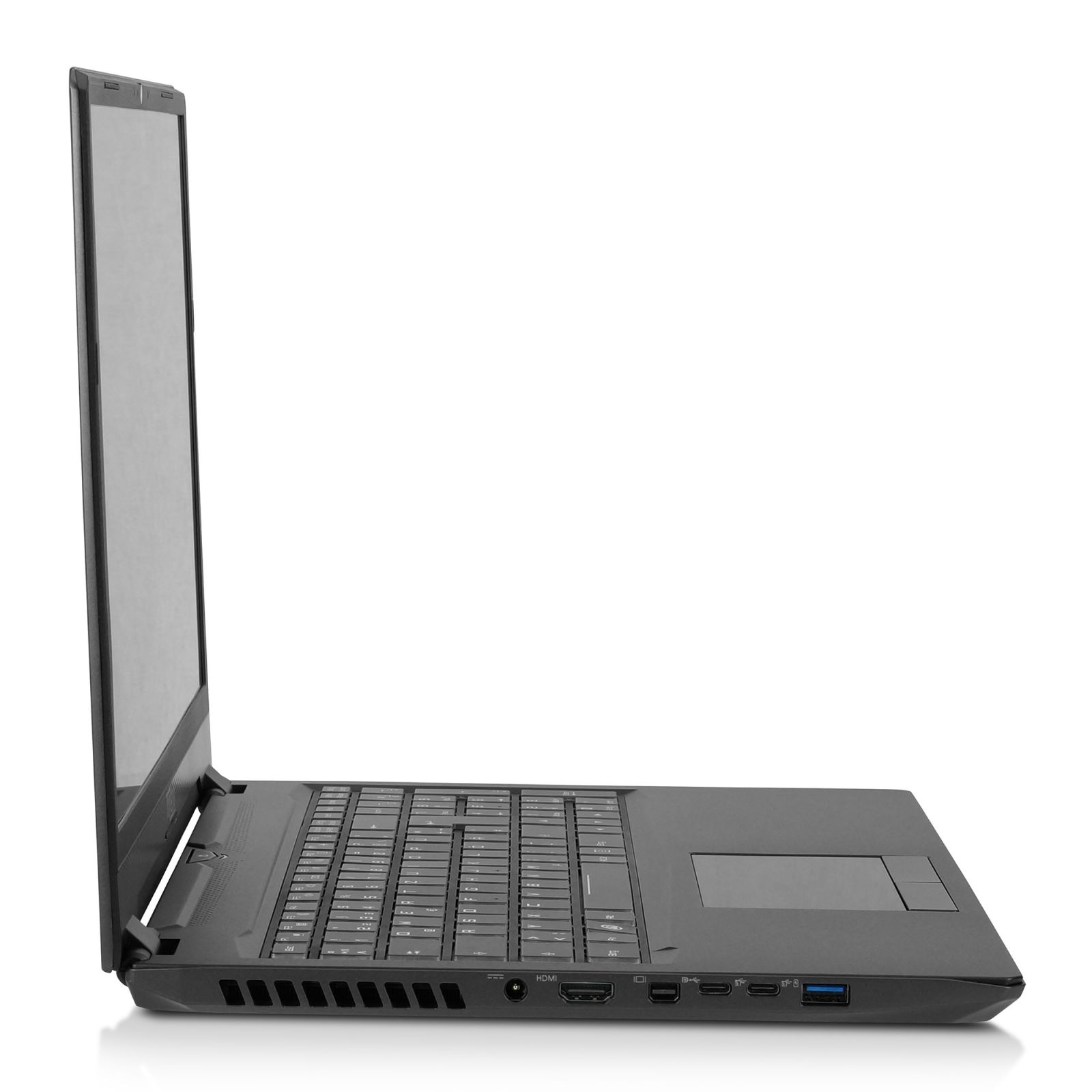

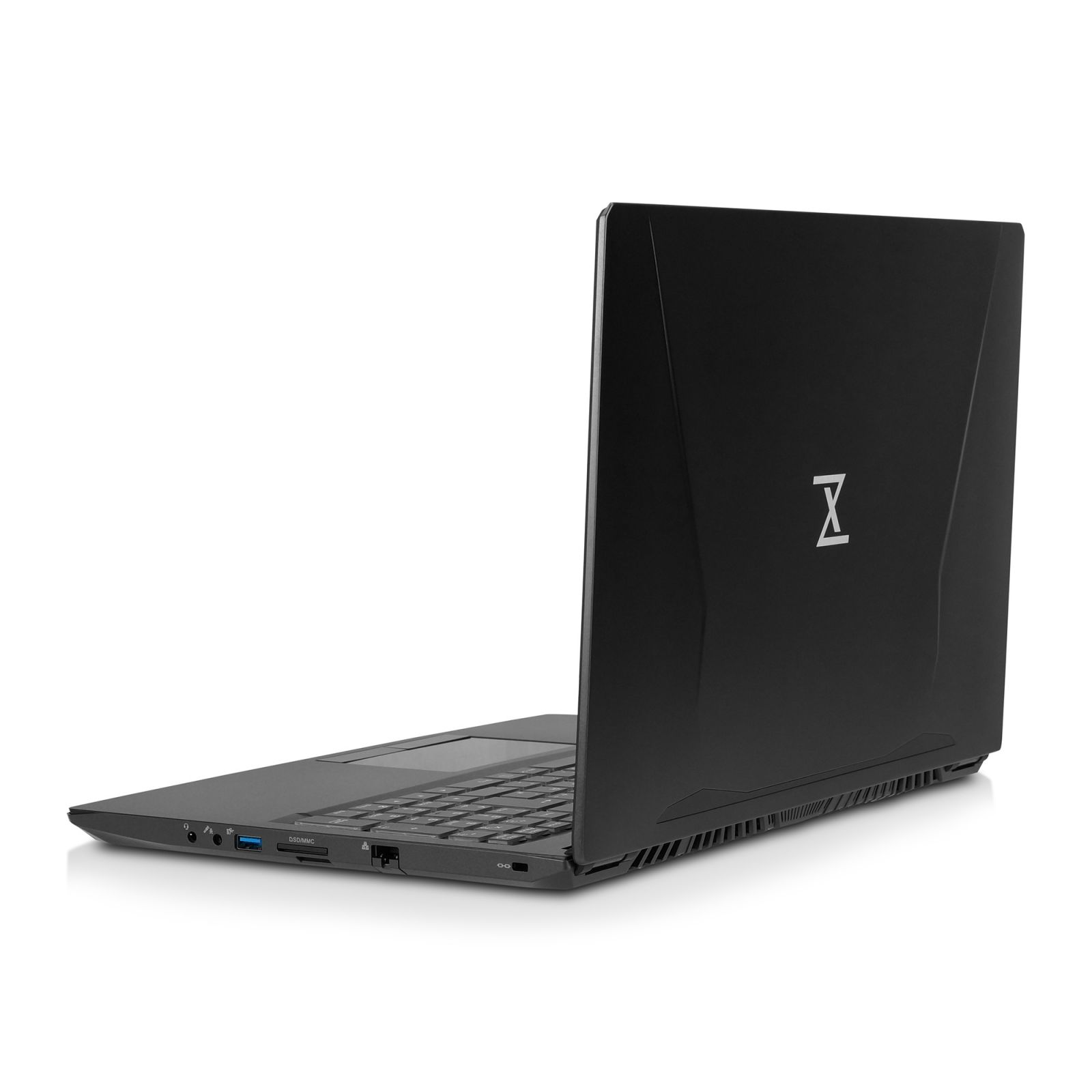

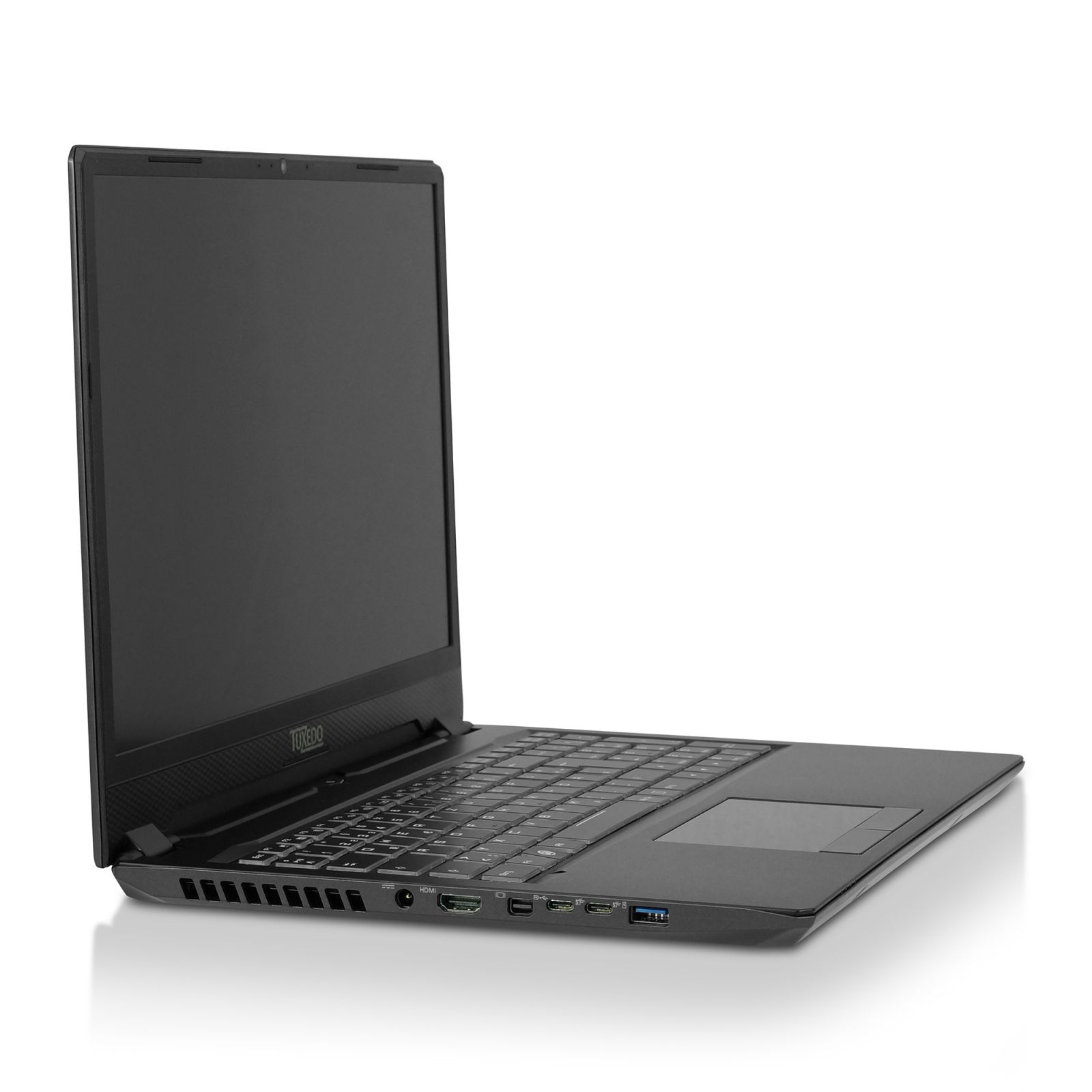

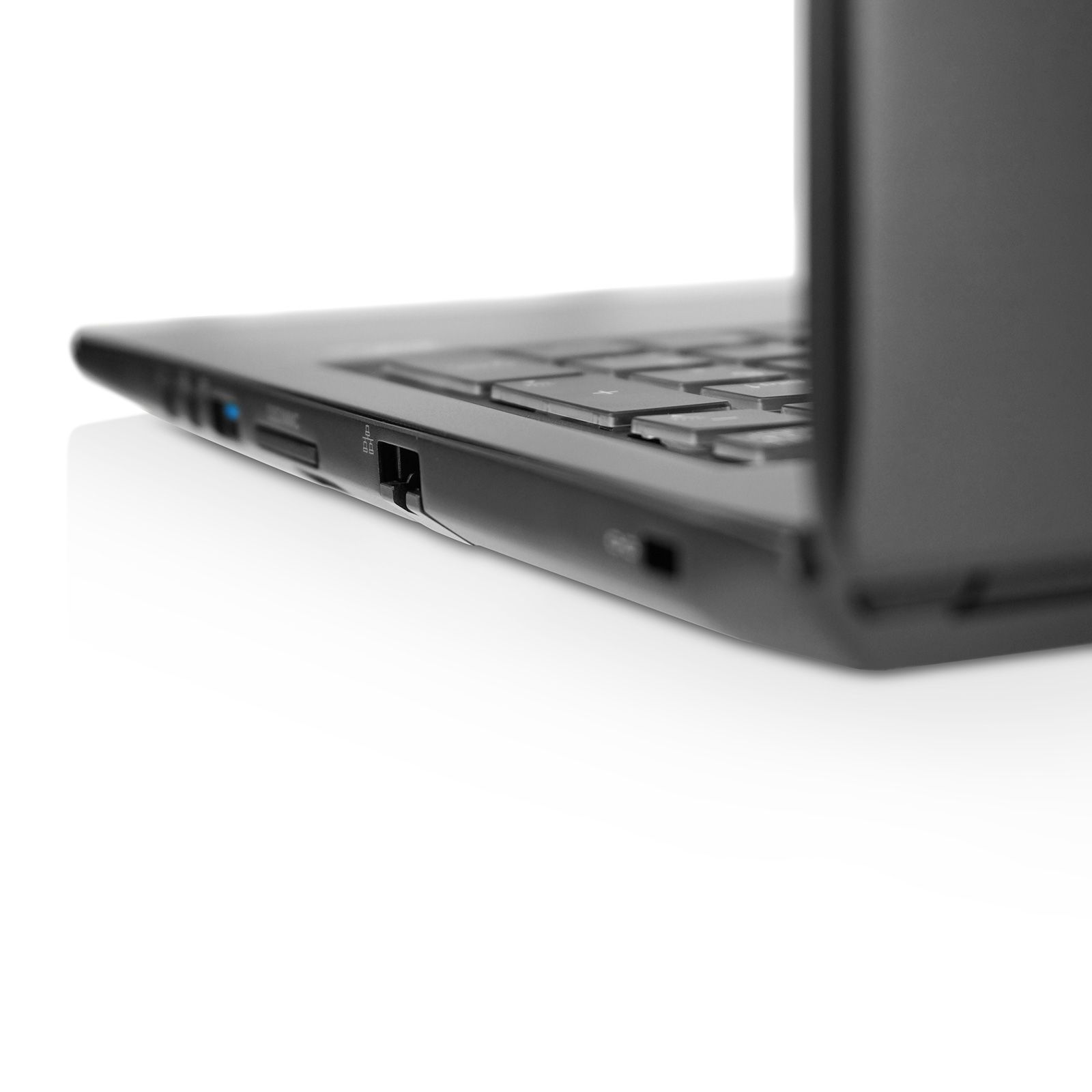

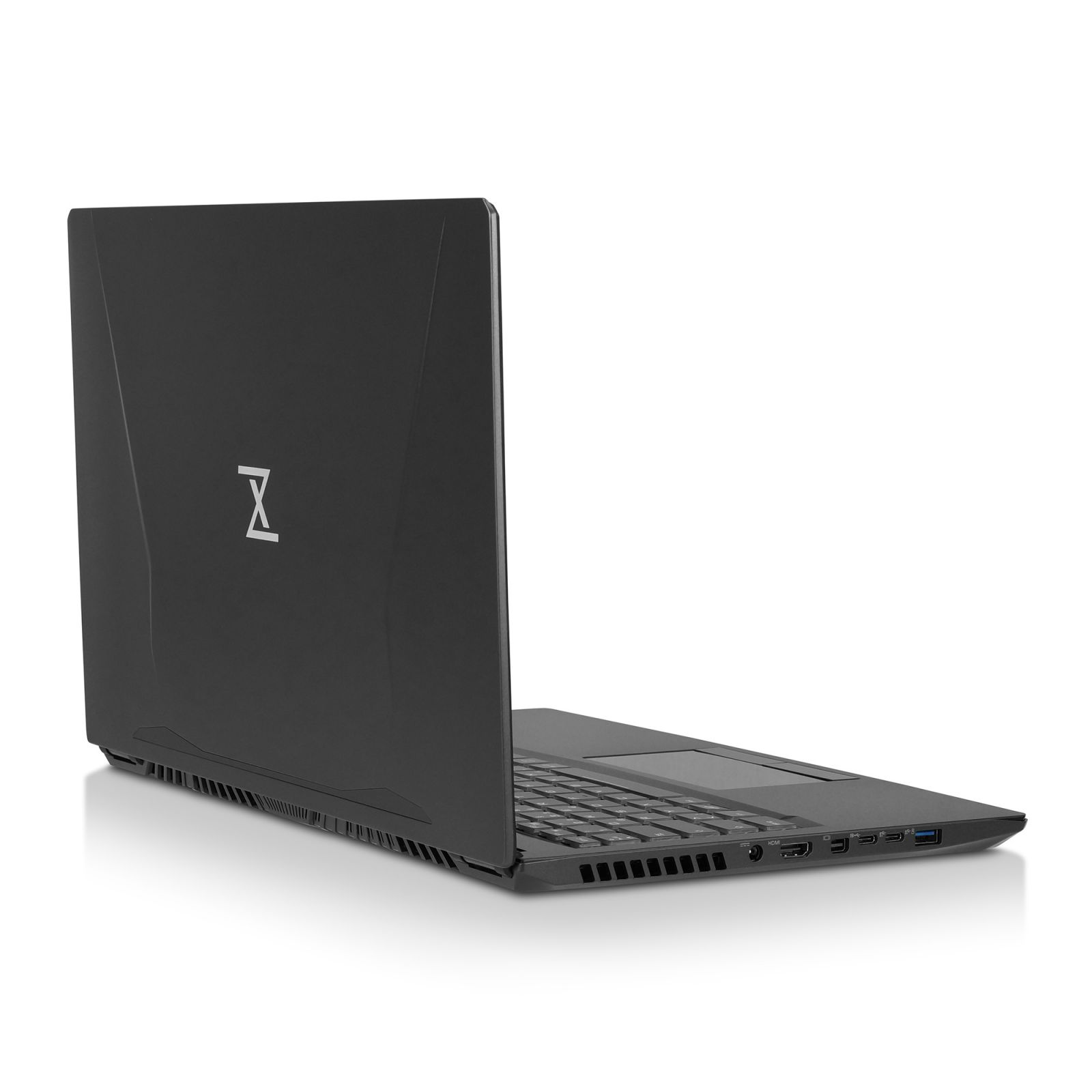

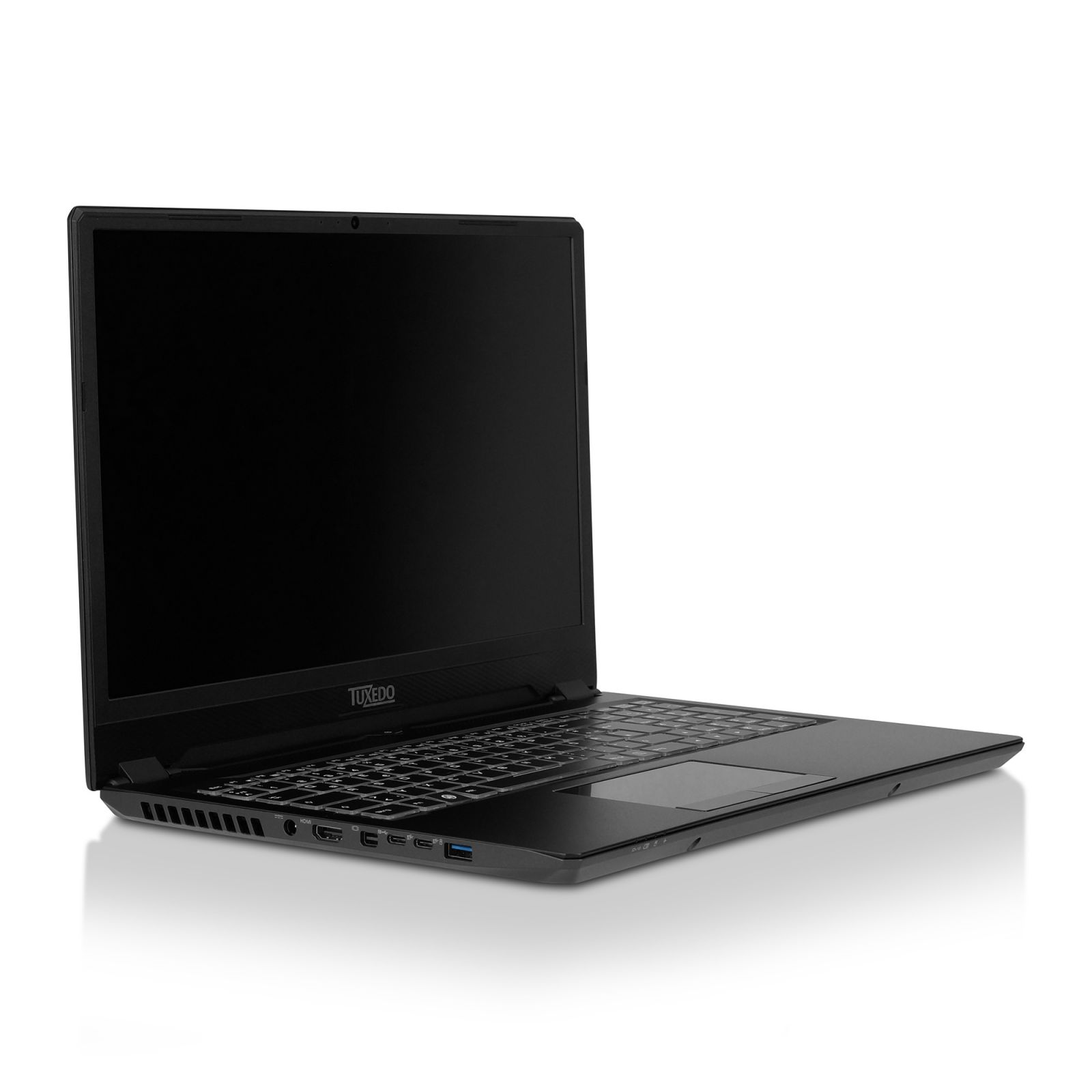

    Ports

    2x USB 3.0 Typ-A (1x powered)
    2x USB 3.1 Typ-C Gen2 (10 GBit/s) (no power-delivery/DC-IN)
    1x DisplayPort 1.4 by USB-C
    1x HDMI 2.0 (with HDCP)
    1x Mini-DisplayPort 1.4 (supports G-SYNC capable monitors)
    1x Ethernet Port / Gigabit-LAN (10/100/1000 MB); RJ45
    1x 2-in-1 audio (Headphone or Headset (Headphones & Microphone), 3.5mm coaxial)
    1x 2-in-1 audio (Microphone & S/PDIF optical, 3.5mm coaxial)
    1x Kensington Lock
    1x 6-in-1 Card Reader
    1x DC-IN/power connection



    Card Reader

    9-in-1 Card Reader
    - MMC / RSMMC
    - SD / SDHC / SDXC / Micro SD (Adapter necesssary)
    - MS / MS Pro / MS Duo

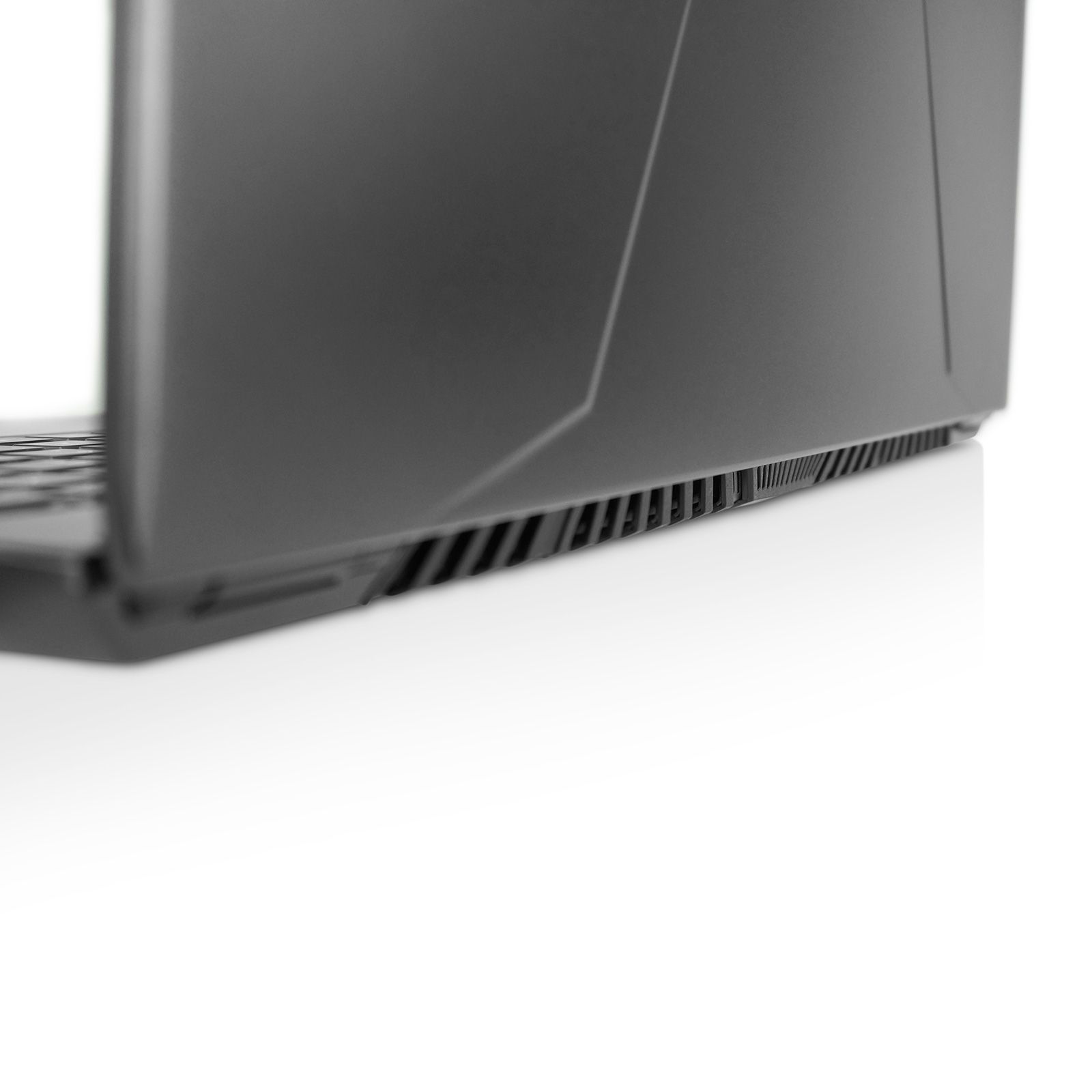

    Cooling System & Fan

    Temperature controlled silent fan
    At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.



    Self-developed heatsink paste
    Optimal cooling lies at our hearts of course. To get the most out of it we examined lots of different heatsink pastes. The result is that we let produce our own heatsink paste! This heatsink paste optimized and customized for our systems is used with every TUXEDO.

    System & Service

    Operating Systems

    We install Ubuntu and TUXEDO Budgie (based on Ubuntu Budgie) in the latest 64-bit version.

    For advanced users and selected devices we also offer openSUSE 15 with Xfce, Gnome or KDE plasma. Of course fully configured and installed with all available updates and device drivers. After numerous and very time-consuming tests and despite the big relationship to Ubuntu, we don't run Linux Mint for the time being due to poor compatibility for current hardware! A virtual online Ubuntu Linux to try out can be found here: Ubuntu Online



    For "self-installers" and everyone who is interested, we have set up a database with downloads, instructions, tips & tricks and offer a customization script called "tuxedo.sh", which makes our customizations automatically under openSUSE and Ubuntu: Help & Support Section | tuxedo.sh



    Encrypted Installation

    On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer. The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Accessories

    As accessories you can select an additional external display for enjoying dual display operating together with the laptop.



    Furthermore we deliver a wired or wireless keyboard including a mouse or an additional wired mouse. These input devices are produced by Logitech and are only available with German layout!



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



    For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
