  • TUXEDO Book BC1710



    • Price:
      incl. 19 % Tax excl. Shipping costs

    • 10900149
    • [INFO] |

    • Assembling Time:
      Product gets built individually for you!
    • x

    [B]usiness Series notebooks have energy-saving Intel HD graphics and can be equipped with powerful processors, plenty of memory and large hard drives. Ideal for daily work and professional use.

    The design and robust plastic housing of the TUXEDO Book BC17 is particularly torsion-resistant.
    The plugged-in battery ensures stress-free energy supply even when on the move - a spare battery can be ordered.

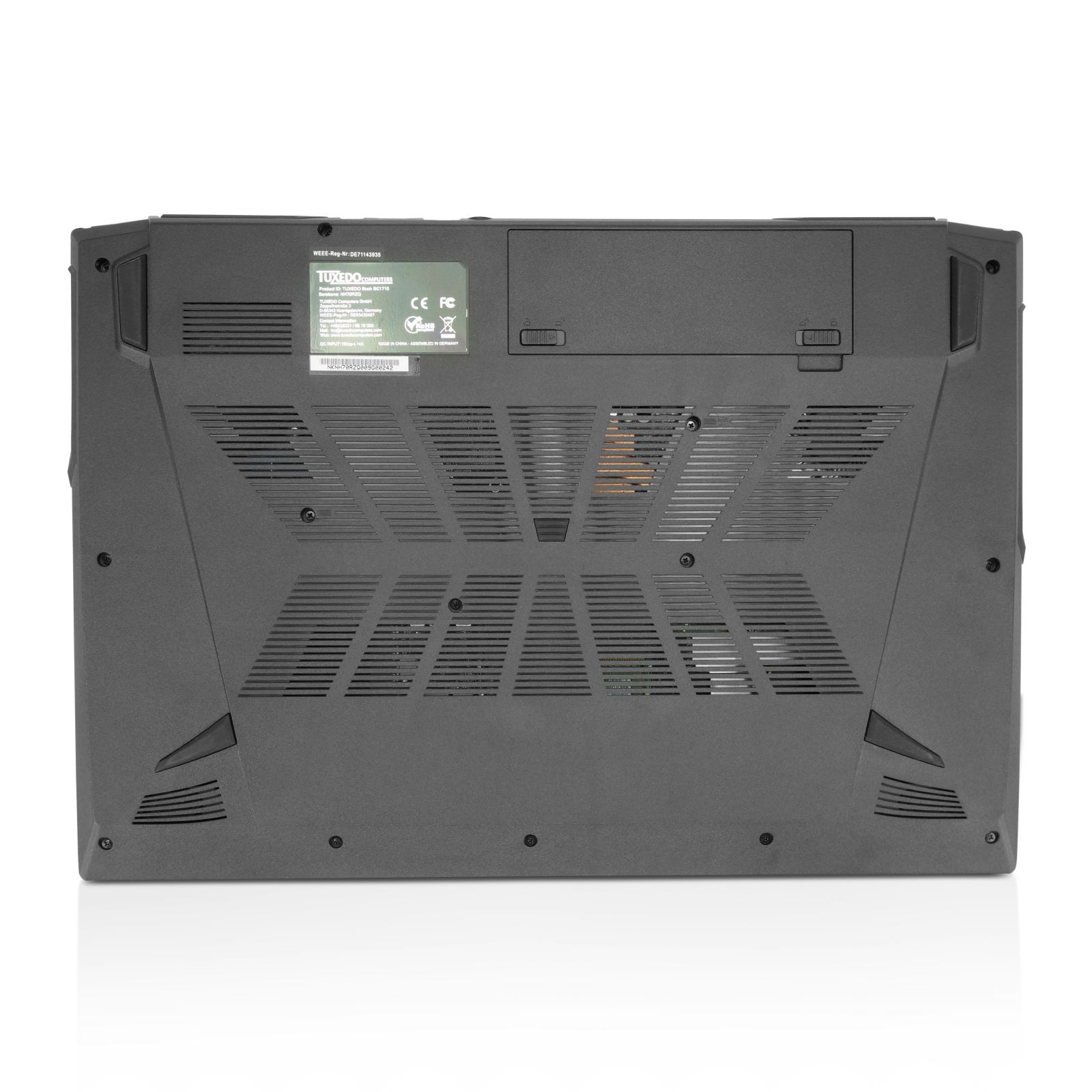

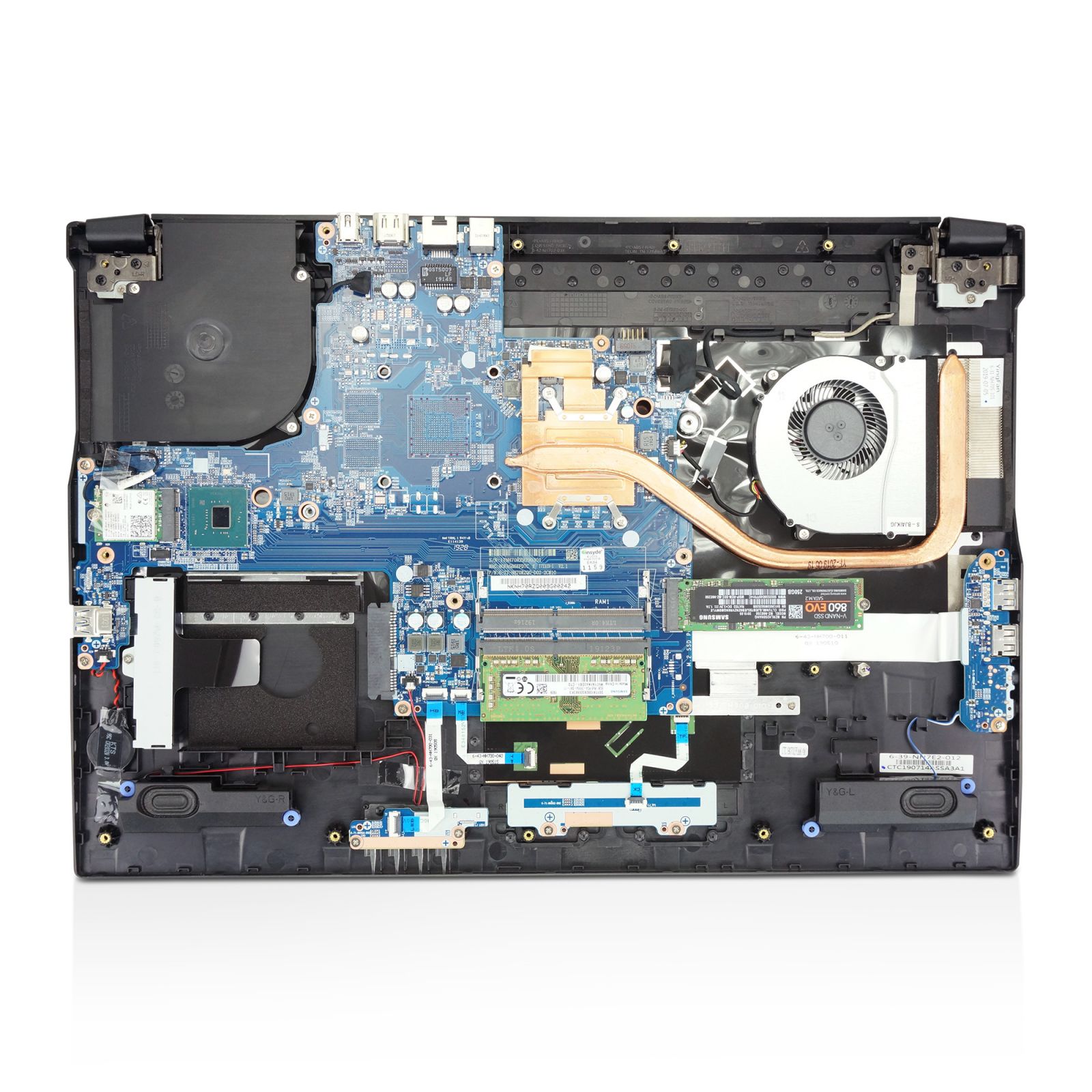

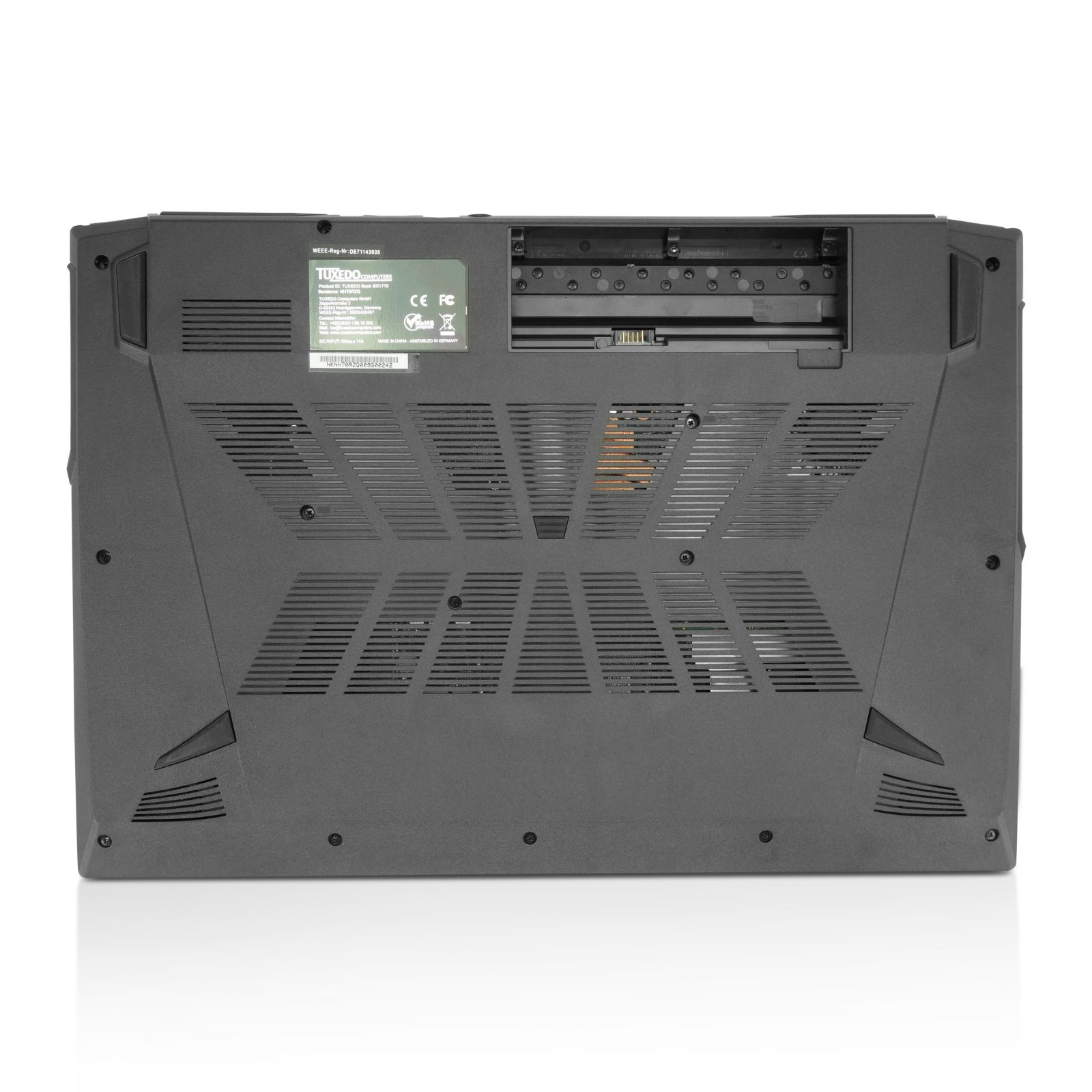

    After removing the bottom of the housing, all components are easy to maintain or replace.

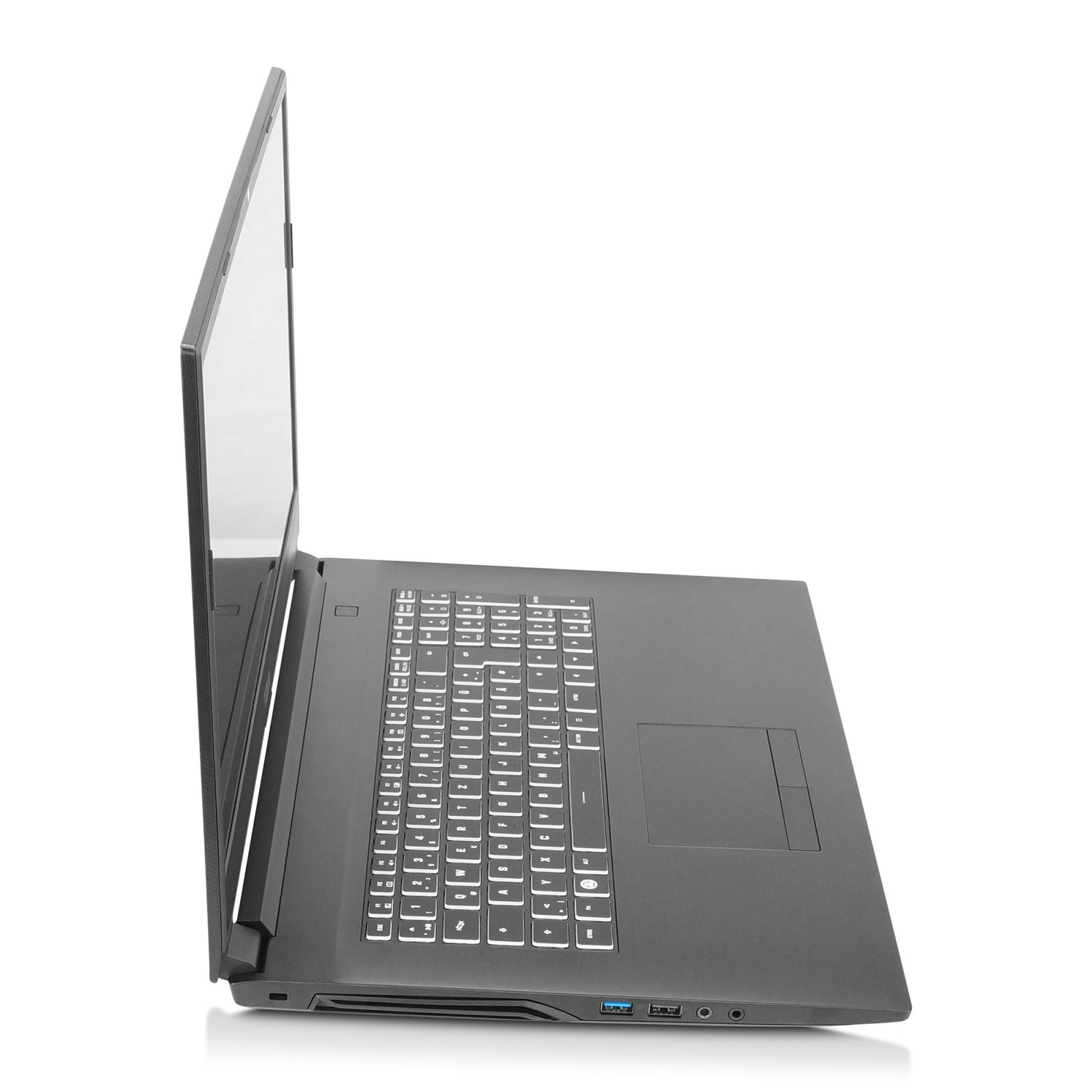

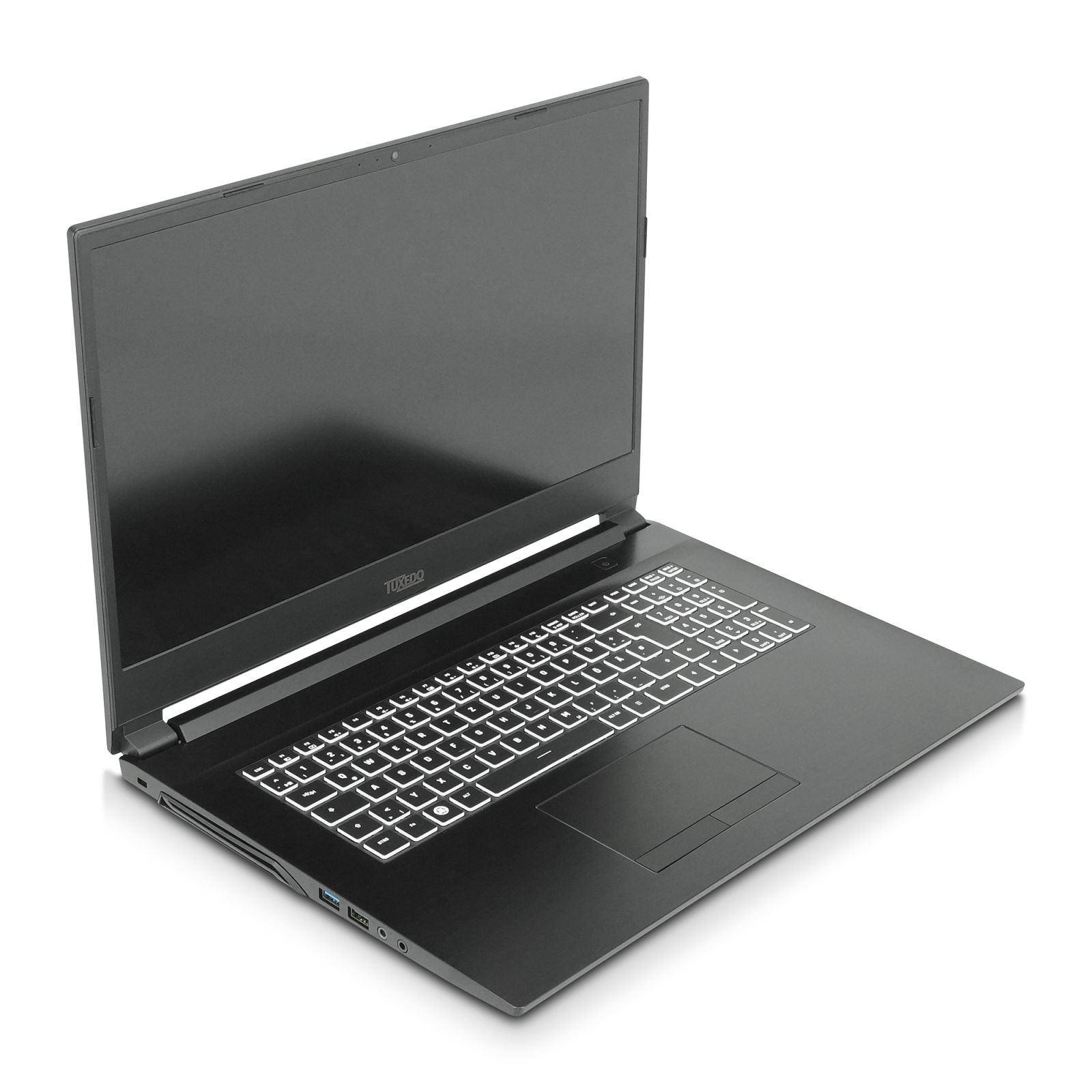

    Many typists will love the illuminated keyboard. It has a clear keystroke and enough key stroke to keep the writer in a good mood even for longer typing orgies. And it light up in any color you want, because it's a multicolor backlit keyboard - off course it is also possible to deactivate the keyboard backlit. All layout variants are equipped with a penguin super key ;)

    As a notebook of our [B]usiness Series the TUXEDO Book BC17 runs with energy-saving Intel UHD 630 Graphics. Thank to this the BC1710 is able to run up to 10h without getting recharged.

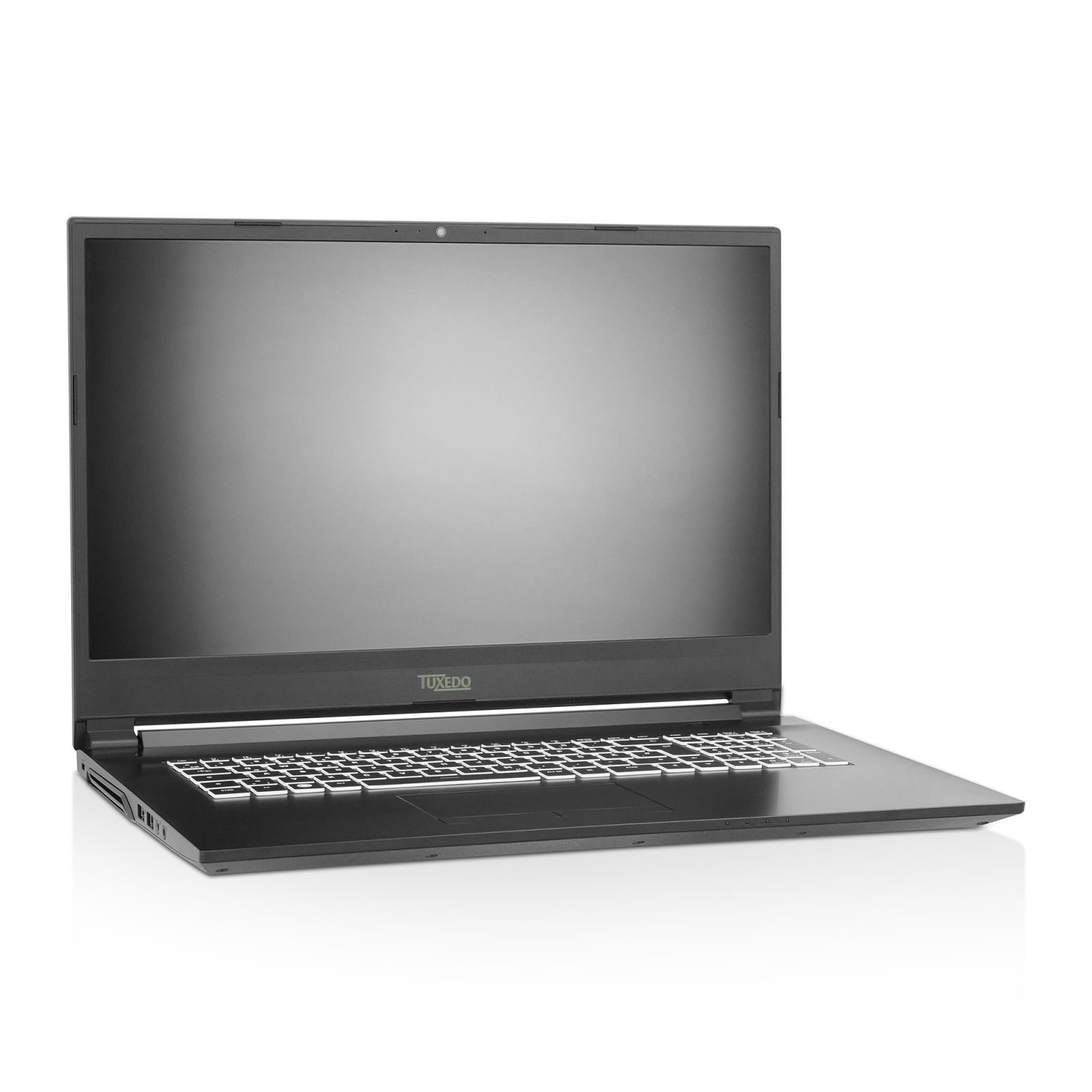

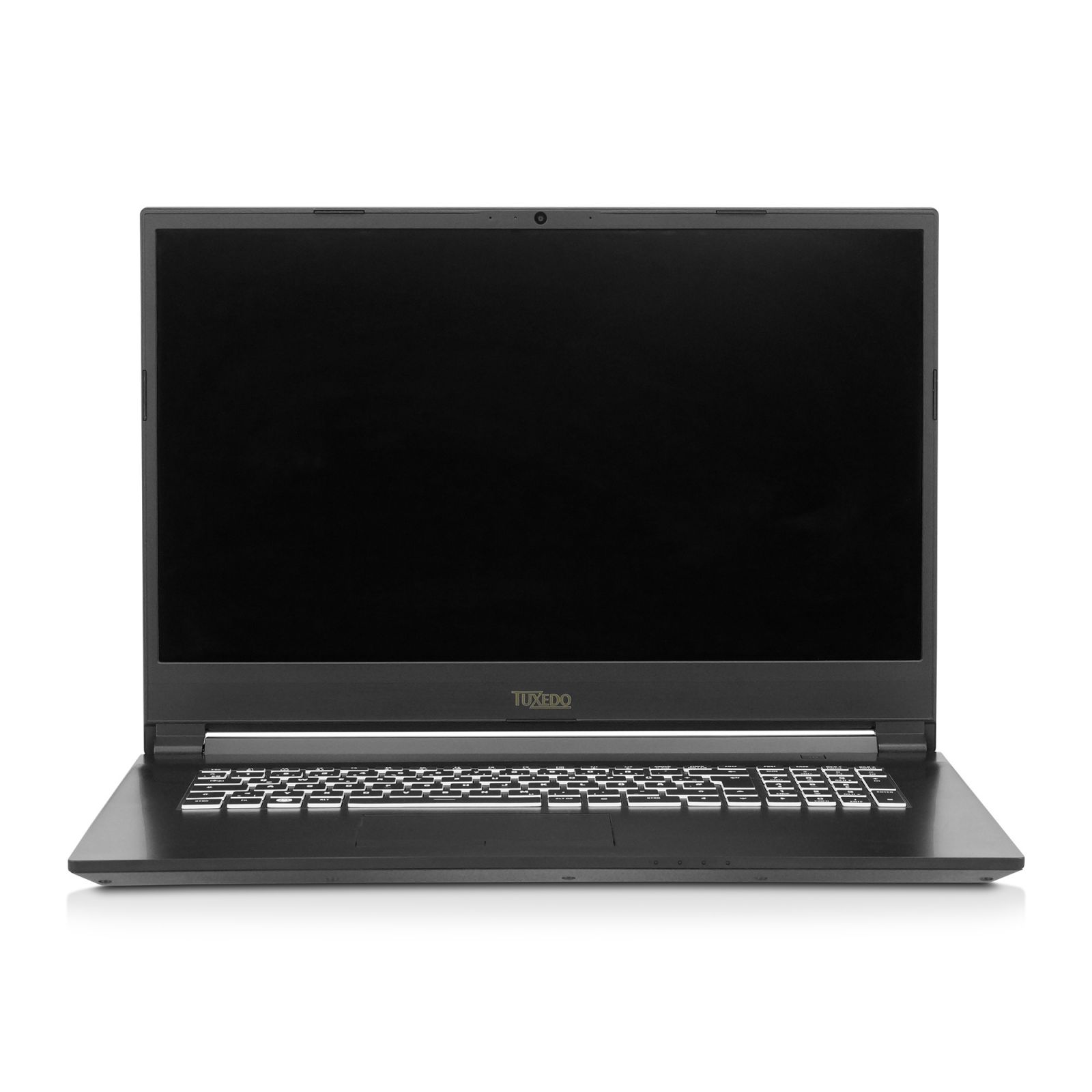

    The 17.3 inch large screen is like all TUXEDO Books non-glare, thanks to IPS technology extremely brigh and can display a resolution of 1920 x 1080 pixels, this corresponds Full-HD!
    Compared to the usual notebooks, the BC1710 can be equipped with Intel high-end CPU! Thus with up to an Intel Core i7 six-core processor and with up to 64 GB of DDR4 memory.

    With the hard disk on the fast SATA3 port (6Gb/s) you can either choose a classic 2.5 "hard disk in HDD form or an SSD. In addition, you can also choose a SSD in M. 2 form.
    You can provide the necessary network connections via WLAN, Bluetooth or via cable-based Gigabit-LAN. The other features also leave nothing to be desired: HD Webcam incl. micro, 1x USB3.1 Gen2 Typ-C, 1x USB3.1 Gen2 Typ-A, 1x USB3.0 and 1x USB2.0, HDMI, MiniDisplayPort, Card-Reader and of course one microphon and one headphone port.



    Configure individually and order directly

    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons.



    Type: LED-Backlight Display, non-glare
    IPS technology (particularly strong colours, extremely bright, very stable viewing angle)
    Size: 17,3" (43,9cm)
    Resolution: Full-HD, 1920 x 1080
    Viewing Angle: 85°/85°/85°/85°
    Display opening angle: approx. 140°
    Model: AUO B173HAN04.2
    Contrast: 800:1
    Luminance: 300 cd/m²



    Chassis

    Dimensions: width: 39,9cm; height: 2,5cm; depth: 28,2cm
    Weight: approx. 2,2 kg with battery (Depends on your configuration!)

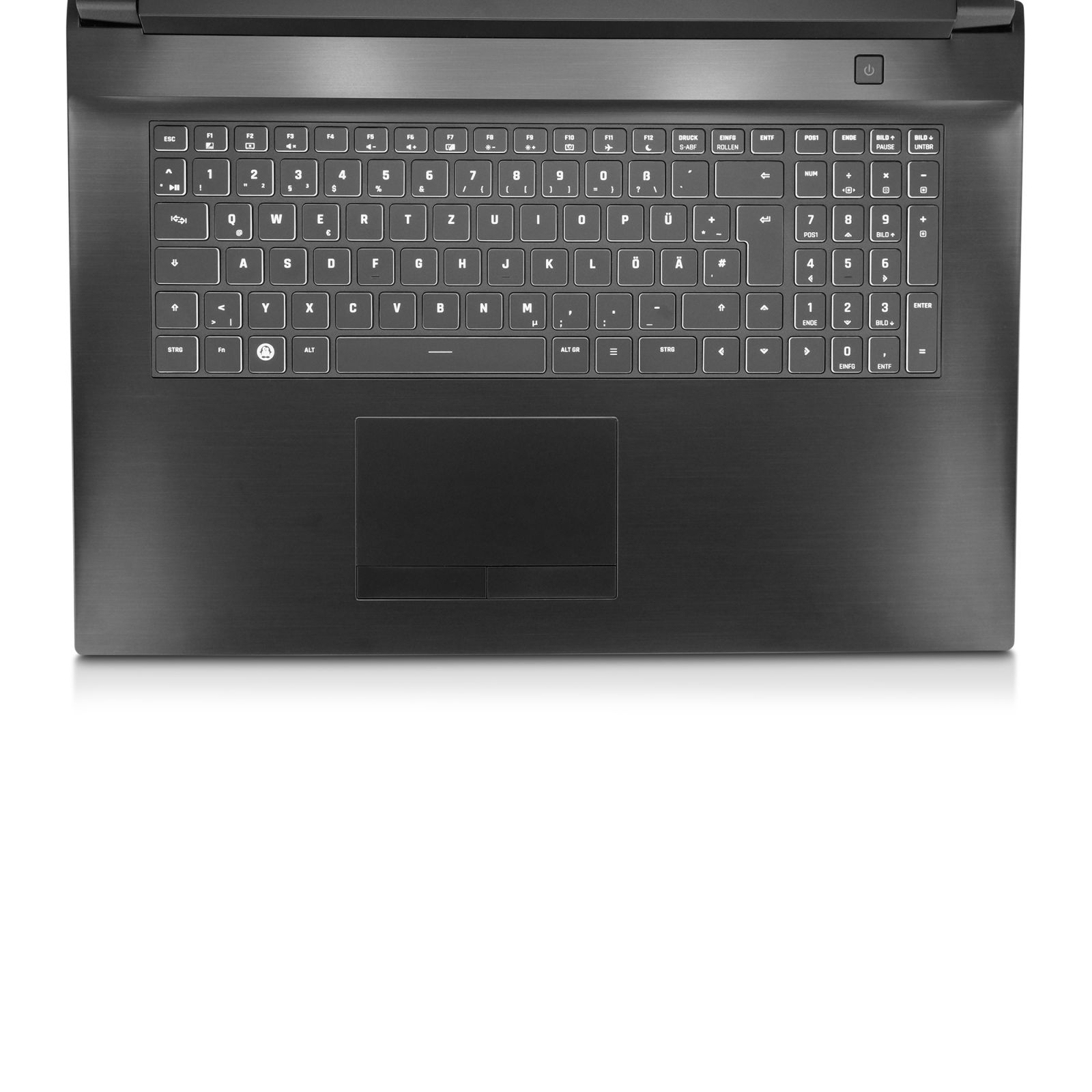

    Keyboard

    Full sized keyboard with number block.

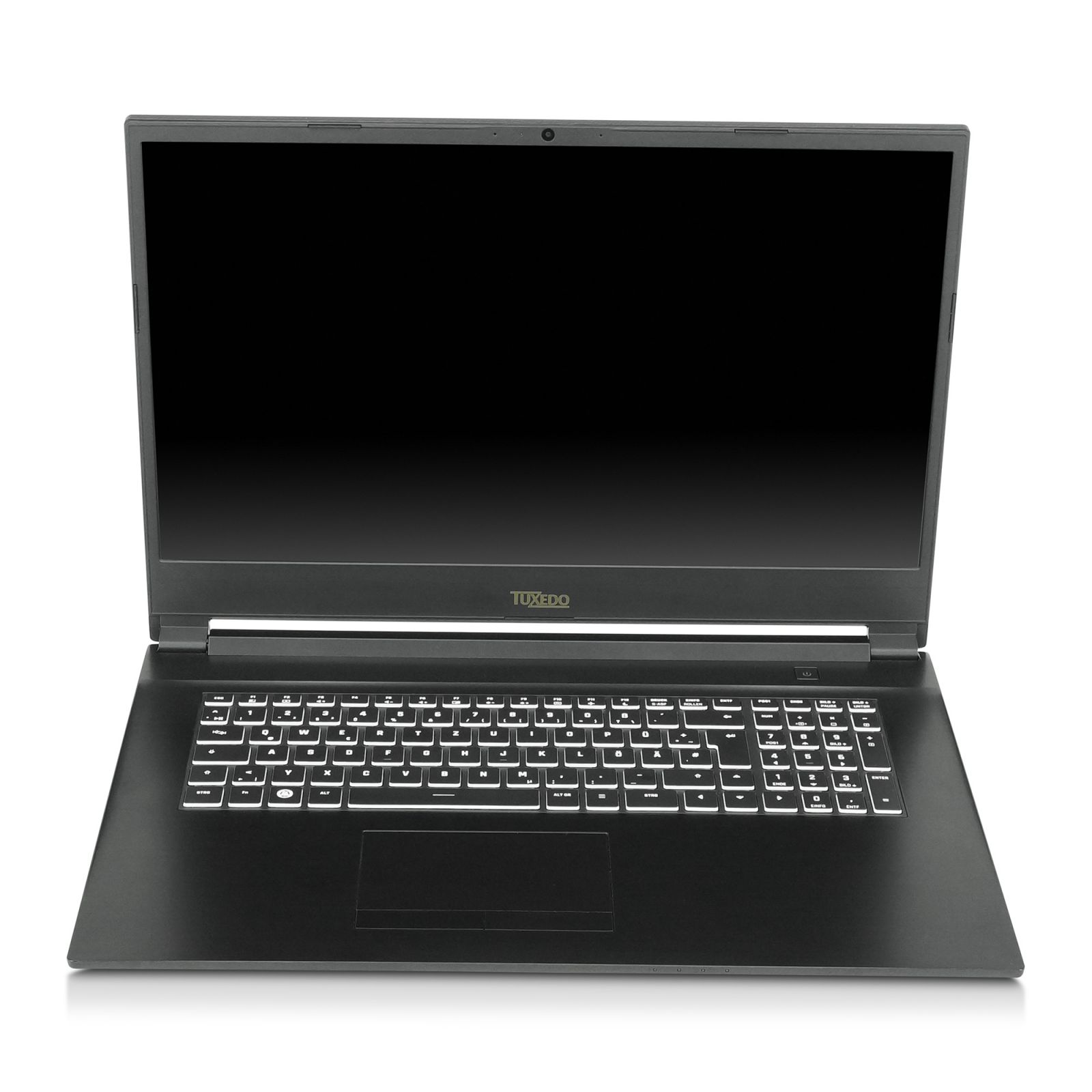

    Multicolor backlit keyboard, means that the writing on the keys have backlight! Color and brightness can be controlled and deactivated by special keys.
    Pinguin-Super-Key on all layouts!



    Battery & power supply

    Large 48,96 Wh battery, 4 cells lithium-ion
    Plugged in from outside, easy to remove without opening the notebook!
    90 Watt Power supply unit

    Battery life: (with our optimizations)
    about 10 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    about 6 hours at medium brightness with Wifi, at office work

    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, WIFI & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!).
    This way you get an information of maximal possible battery life. Starting from this you can manage your individual battery life depending on your demands and to influence it e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.





    Lifetime of batteries

    The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information



    Main processor

    Intel Core i high-end CPU 9th generation Coffee Lake Refresh

    Intel Core i5-9300H (4x 2.40-4.10 GHz Quad-Core, 8 Threads, 8 MB Cache, 45 W TDP)

    Intel Core i7-9750H (6x 2.60-4.50 GHz Six-Core, 12 Threads, 12 MB Cache, 45 W TDP)



    Graphics card

    Energy efficient CPU integrated Graphics:
    Intel UHD Graphics 630
    It is possible to connect at max. three screens at the same time. 1x internal + 2x external. It is not possible to connect more then three screens at the same time without additional equipment.



    Memory

    Type: DDR4 SO-DIMM
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Dual channel mode (with at least 2 modules)



    Hard drive

    Standard 2,5" HDD or SSD



    Mass storage (SSD / HDD)

    Fast M.2 SSDs



    Communication / Network

    Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)

    Wireless/WIFI (optional):
    Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX 200
    Version: Dual Mode Bluetooth 5.1



    Webcam / Laptop camera

    HD Webcam / camera including microphone



    Sound / Audio

    High Definition Audio
    2 speakers: 2x 2W
    Integrated microphone

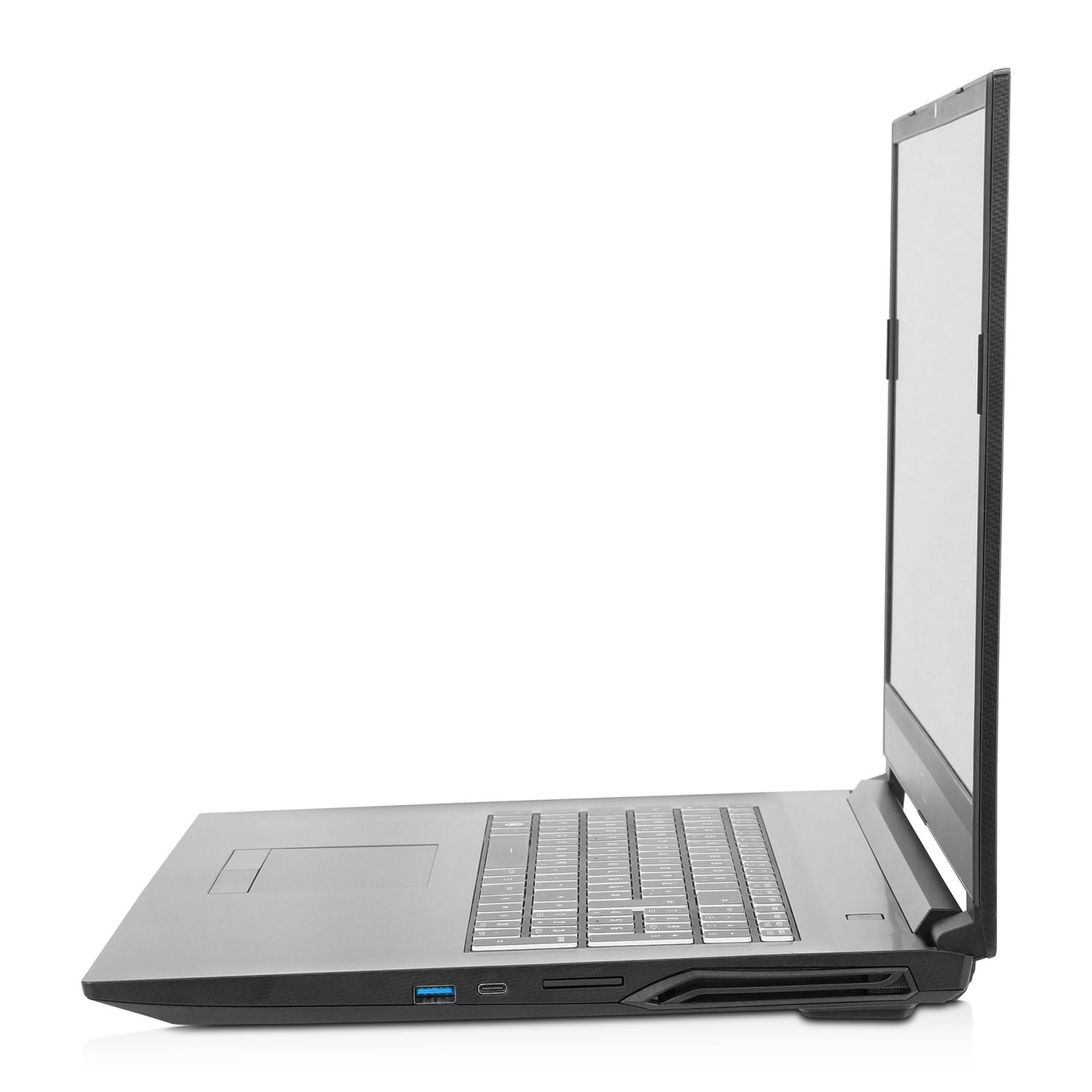

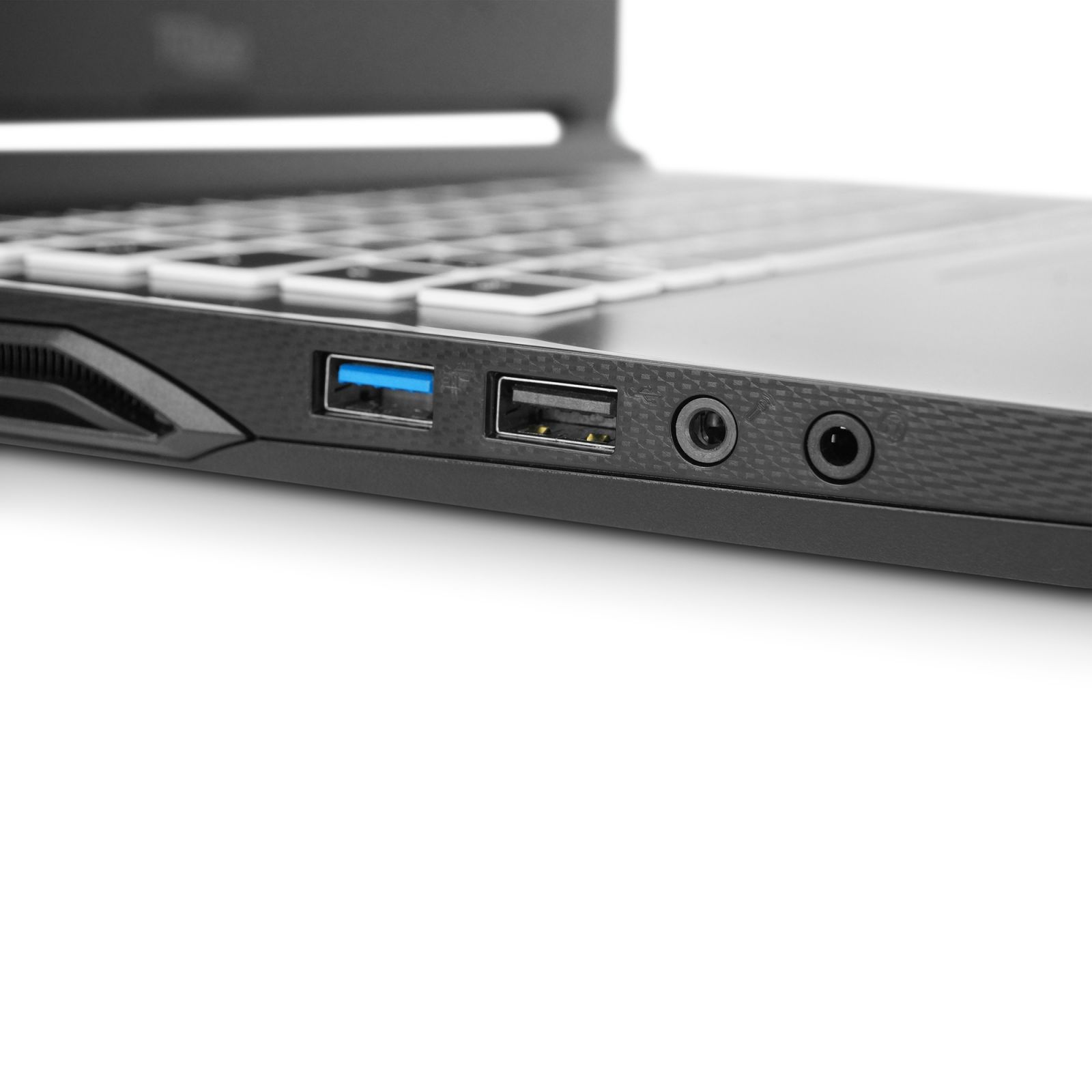

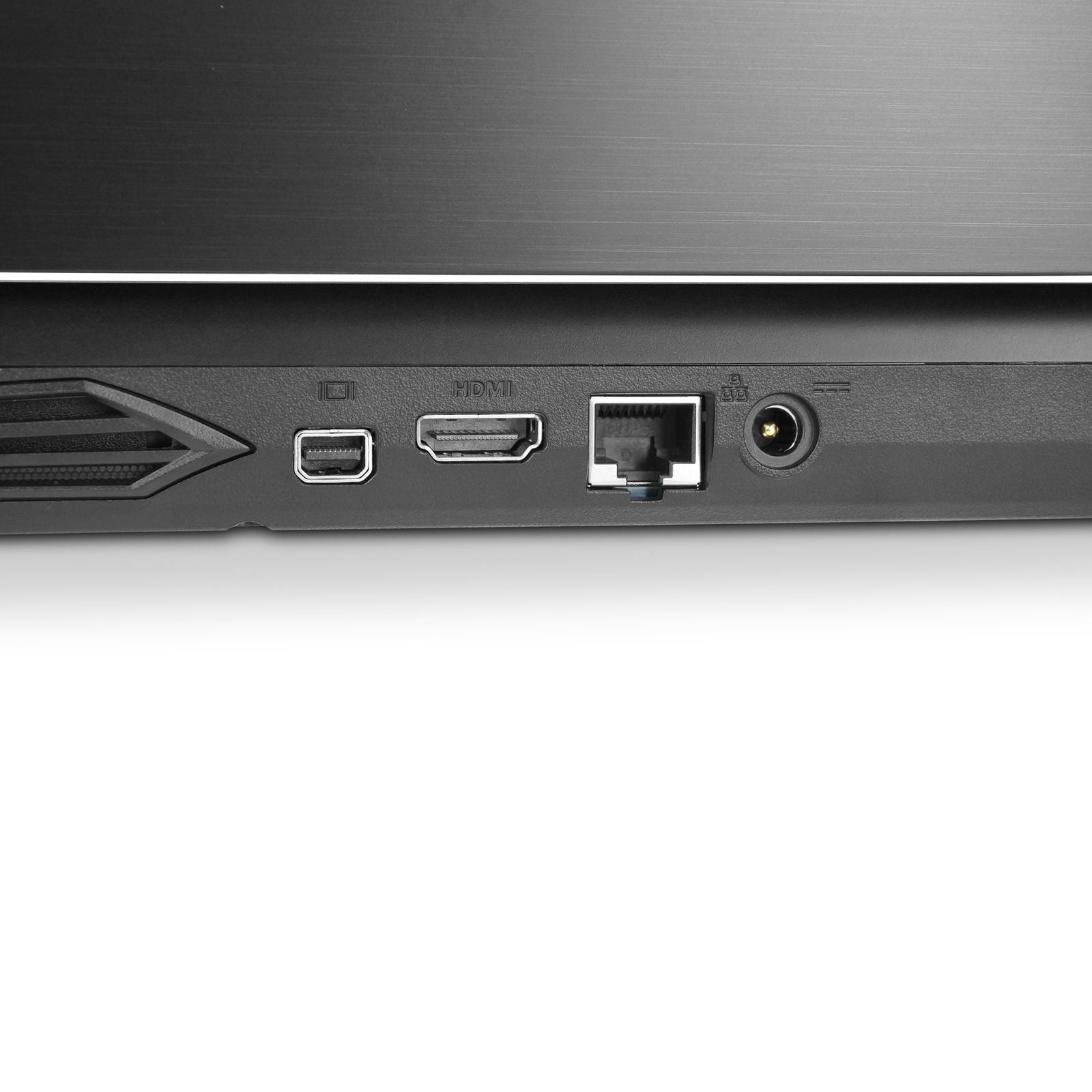

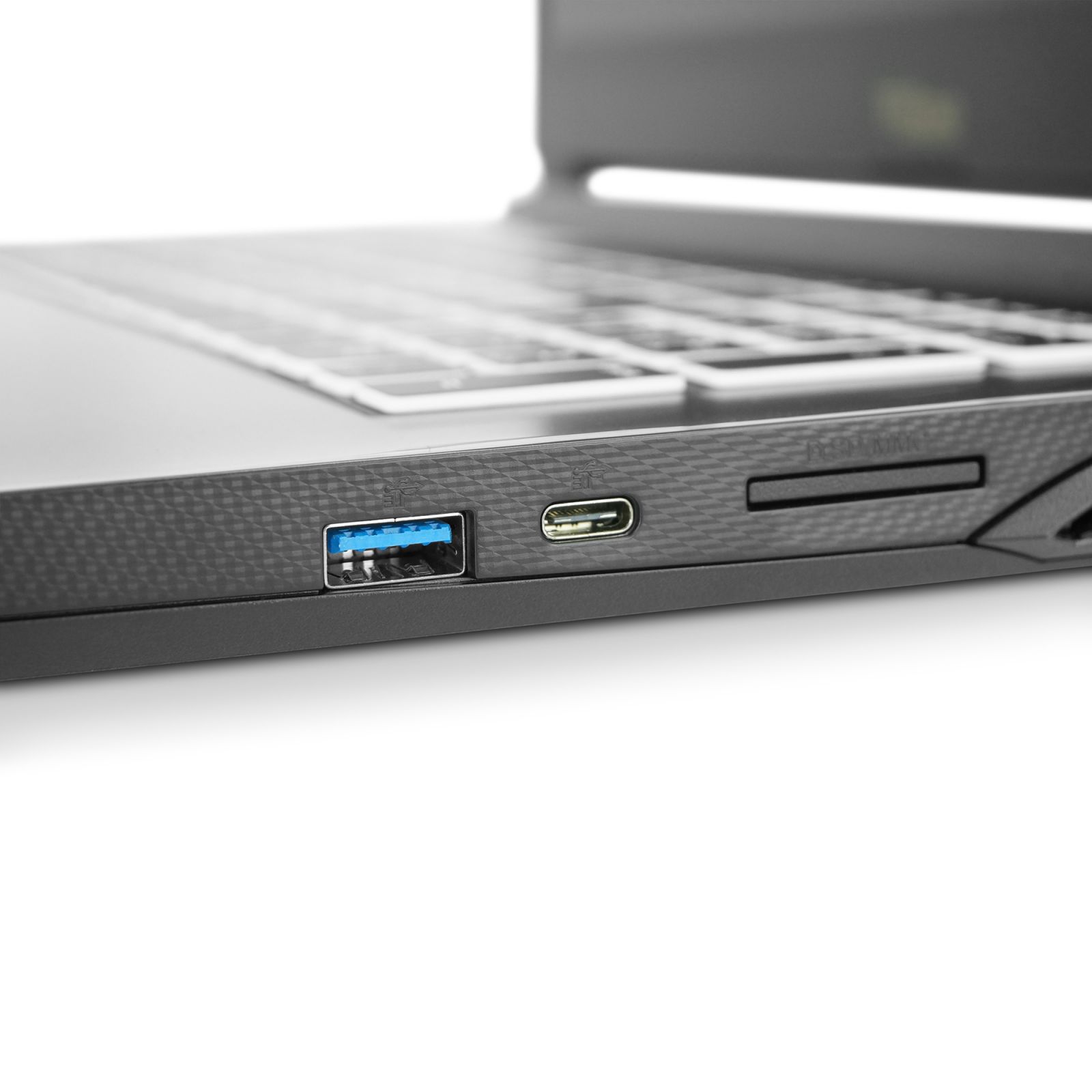

    Ports

    1x USB 3.1 Gen2 Typ-C
    1x USB 3.1 Gen2 Typ-A
    1x USB 3.0 (USB 3.1 Typ-A Gen1)
    1x USB 2.0
    1x HDMI 1.4b incl. HDCP (max. 2560x1600@60Hz or 3840x2160@30Hz)
    1x MiniDisplayPort 1.2 (max. 3840x2160@60Hz)
    1x Gigabit LAN/ethernet RJ45
    1x Microphone
    1x 2-in-1 Headphone/Headset (Headphone & Microphon)
    1x Kensington Lock
    1x Card-Reader



    Card reader

    9-in-1 Card Reader
    - MMC / RSMMC
    - SD / SDHC / SDXC / Micro SD (Adapter necesssary)
    - MS / MS Pro / MS Duo



    Cooling System & Fan

    Temperature controlled silent fan
    At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.

    Custom fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the behavior of the fans at yourself. This means that you get the ability to make your device as silent as possible. You are able to set the device almost passive cooled, without any fan noise most of the time!



    Configure individually and order directly

    System & Service

    Operating systems

    We install Ubuntu and TUXEDO_OS (based on Ubuntu with Budgie Desktop) in the latest 64-bit version.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For advanced users and selected devices we also offer openSUSE 15 with Xfce, Gnome or KDE plasma. Of course fully configured and installed with all available updates and device drivers.

    For "self-installers" and everyone who is interested, we have set up a database with downloads, instructions, tips & tricks and offer a customization script called "tuxedo.sh", which makes our customizations automatically under openSUSE and Ubuntu: Help & Support Section | tuxedo.sh



    Encrypted Installation

    On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively you are free to download alle Windows-Drivers from here.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



    For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
