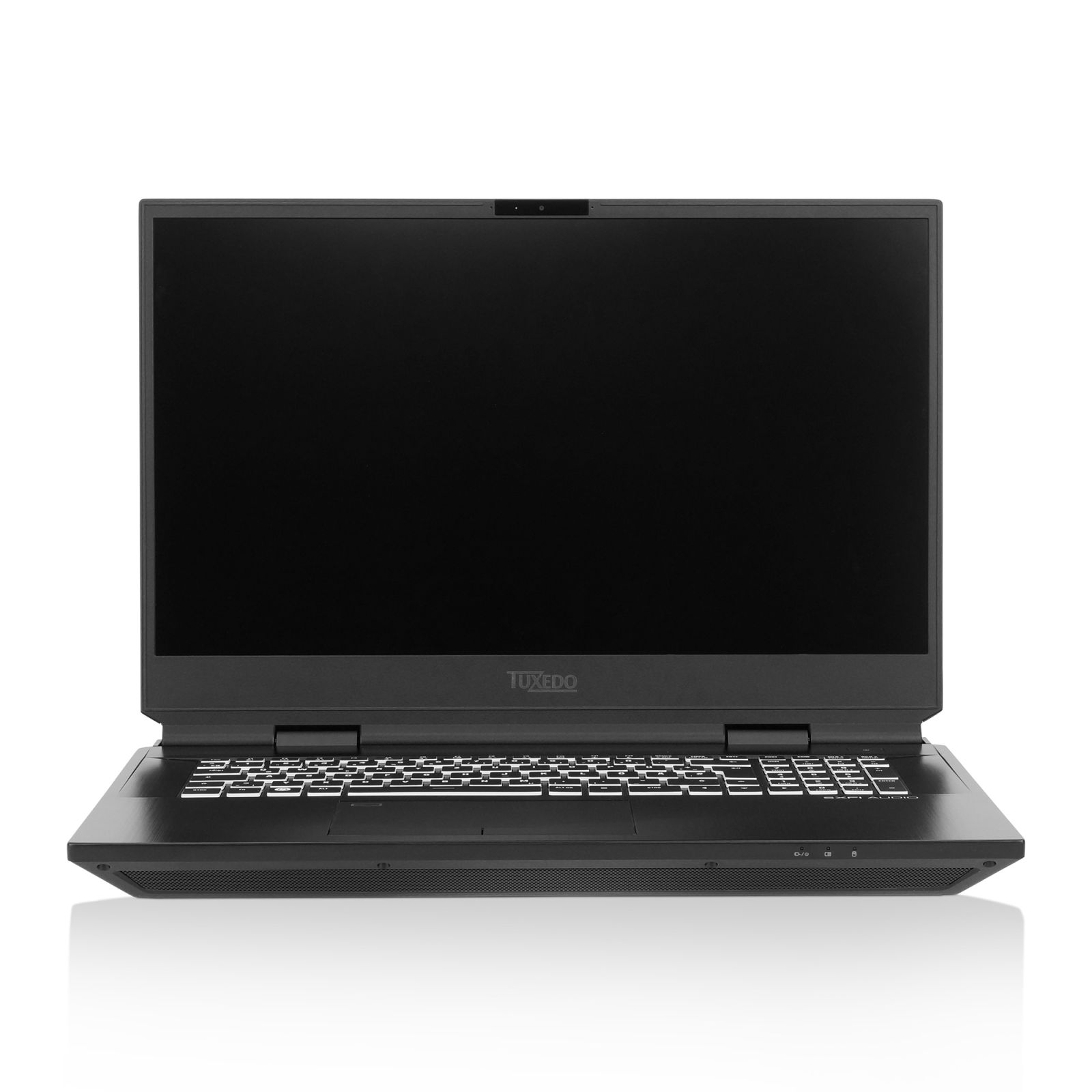

Display / Monitor
Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.
17.3" (43,9 cm) Full-HD (1920 × 1080) Non-Glare IPS 240Hz with G-Sync
Model: AUO B173HAN05.0
or
17,3" (43,9 cm) Ultra-HD (3840 × 2160) 4K Non-Glare IPS 60Hz with G-Sync
Model: AUO B173ZAN03.0
Viewing Angle: 89°/89°/89°/89°

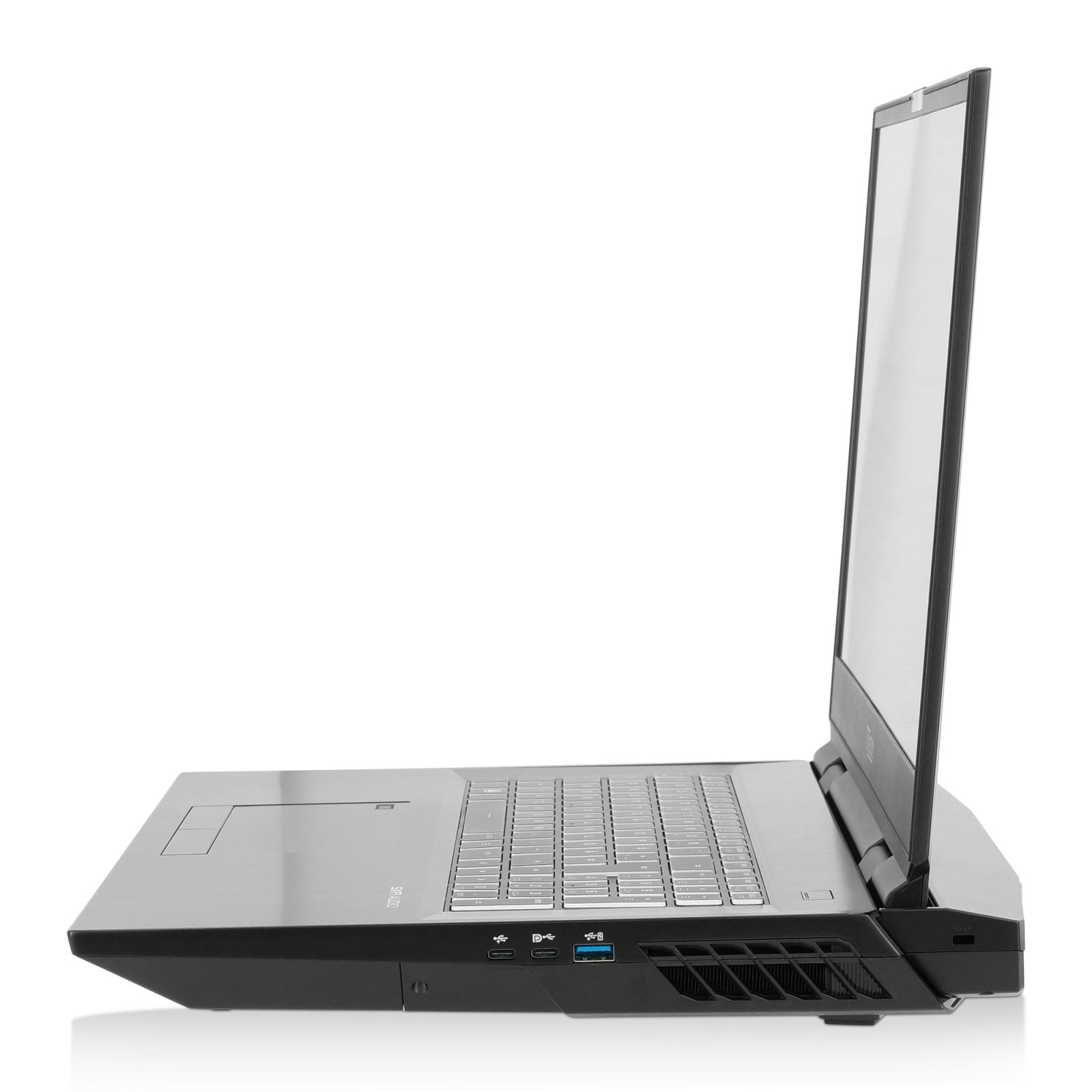

The maximum opening angle of the display hinges is about 130°.
Chassis
Dimensions (W x D x H): 399 x 319 x 43,5 mm
Weight: approx. 3.8 kg incl. battery

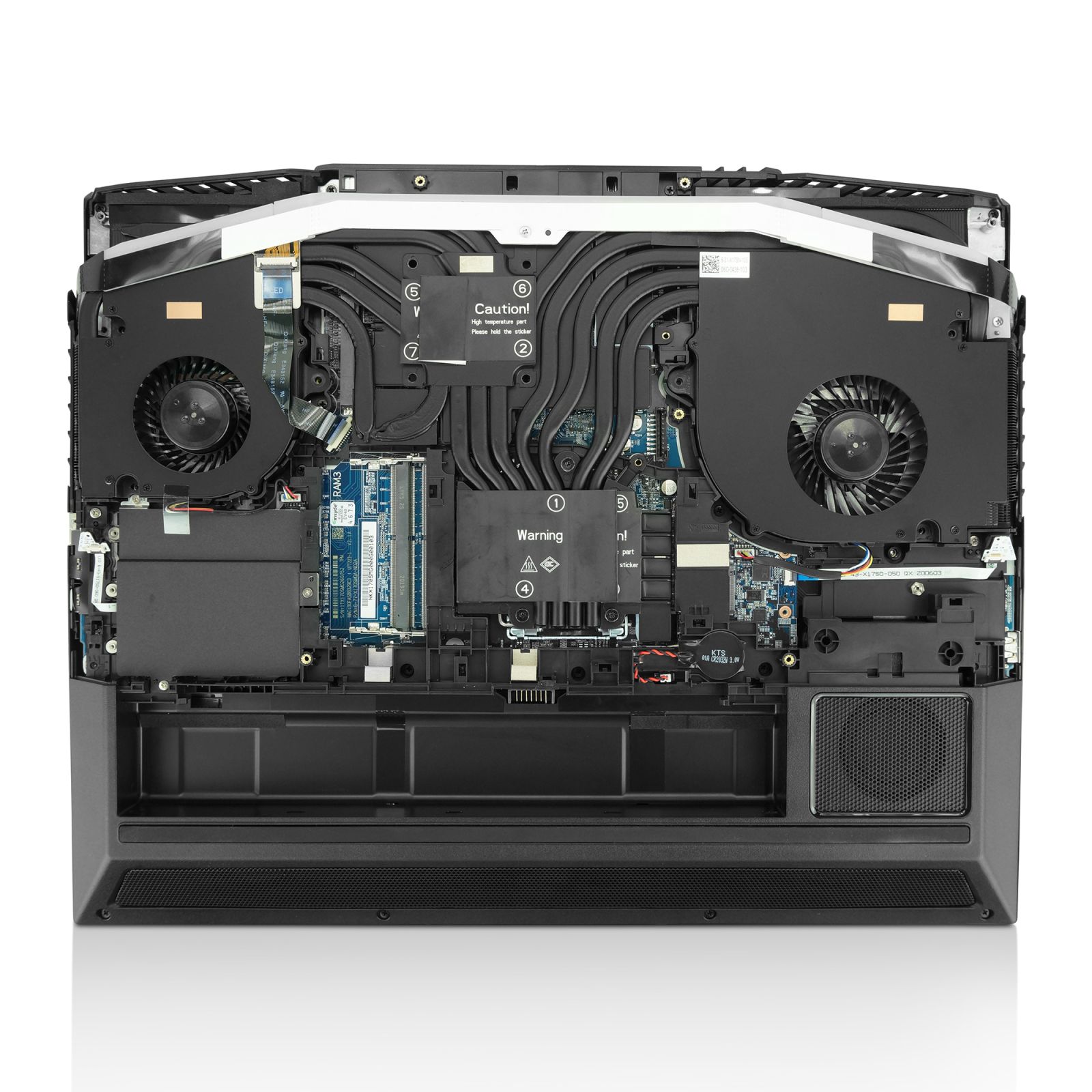

After opening the base plate, the components & heatsink can be cleaned without loss of warranty.
Battery & power supply
97Wh lithium-ion battery
Power supply:
2 x 280W power supply units
Dimensions: 180 x 35 x 85 mm (L x H x W)
Total weight: approx. 1.8 kg
Technical details:: AC in 100-240V / 50-60Hz; DC out 20V / 14A per each power supply
Lifetime of batteries
The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information
Battery runtime
up to 6 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
over 4 hours at medium brightness with Wifi, at office work
Please note: The relatively short battery life is due to the high power consumption of the desktop processors and the deliberate avoidance of NVIDIA Optimus and thus to get an extreme of performance!
Main processor
Intel 10th gen desktop CPUs (Comet Lake)
Intel Core i5-10500T (6x 2.3 - 3.8 GHz, 12 Threads, 12 MB Cache, 35 W TDP)
Intel Core i5-10500 (6x 3.1 - 4.5 GHz, 12 Threads, 12 MB Cache, 65 W TDP)
Intel Core i5-10700T (8x 2.0 - 4.5 GHz, 16 Threads, 16 MB Cache, 35 W TDP)
Intel Core i7-10700 (8x 2.9 - 4.8 GHz, 16 Threads, 16 MB Cache, 65W TDP)
Intel Core i7-10700K (8x 3.8 - 5.1 GHz, 16 Threads, 16 MB Cache, 125W TDP)
Intel Core i9-10900T (10x 1.9 - 4.6 GHz, 20 Threads, 20 MB Cache, 35W TDP)
Intel Core i9-10900 (10x 2.8 - 5.2 GHz, 20 Threads, 20 MB Cache, 65W TDP)
Intel Core i9-10900K (10x 3.7 - 5.3 GHz, 20 Threads, 20 MB Cache, 125W TDP)
Chipset:
Mobile Intel Z370 Express
Mit VT-d support!
Graphics card
• NVIDIA® GeForce® RTX 2070 Refresh | 8GB GDDR6 VRAM
or
• NVIDIA® GeForce® RTX 2070 SUPER | 8GB GDDR6 VRAM
or
• NVIDIA® GeForce® RTX 2080 SUPER | 8GB GDDR6 VRAM
Availability depending on the choice in the configurator!
Features: DirectX® 12, OpenGL 4.4, NVIDIA® CUDA, NVIDIA PhysX™, OpenCL
The following resolutions are possible via all connections individually or in parallel:
1x Notebook-Display: 1920*1080@60Hz or 3840*2160@60Hz (Depending on display selection in the configurator)
2x DisplayPort: 2x 3840*2160@60Hz or 2560*1600@120Hz
1x HDMI 2.0: 3840*2160@60Hz or 2560*1600@120Hz
With these maximum resolutions 4 displays can be controlled simultaneously, e. g. 1x notebook display and 3x external monitors.
Memory
Type: DDR4 SO-DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with at least 2 modules)
Mass storage (SSD / HDD)
Fast M.2 SSDs
Manufacturer and speed see configurator
Standard and maximum see configurator
4x M.2 2280 SSD, including 3x M.2 2280 SSD SATA interface (RAID 0/1/5), or 3x PCIe Gen3x4 interface (RAID 0/1/5)
Communication / Network
Wired/LAN: Killer 10/100/1000/2500Mb Base-TX Ethernet LAN
Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1
Security
- Kensington-Lock mounting
- Intel Management Engine (Intel ME) can be disabled directly via the BIOS
- Webcam & audio can be deactivated directly via the BIOS
- WLAN & Bluetooth can be deactivated directly via the BIOS
- TPM 2.0 Chip (by BIOS de-/activatable)
Webcam / Laptop camera
1 Megapixel (1 MP) camera including microphone
Sound / Audio
High Definition Audio
Built in two 3W speakers
Built in one 5W subwoofer speaker
SOUND BLASTER® Atlas
Integrated array microphone
S/PDIF digital output (optical)
Super X-Fi Headphone Holography

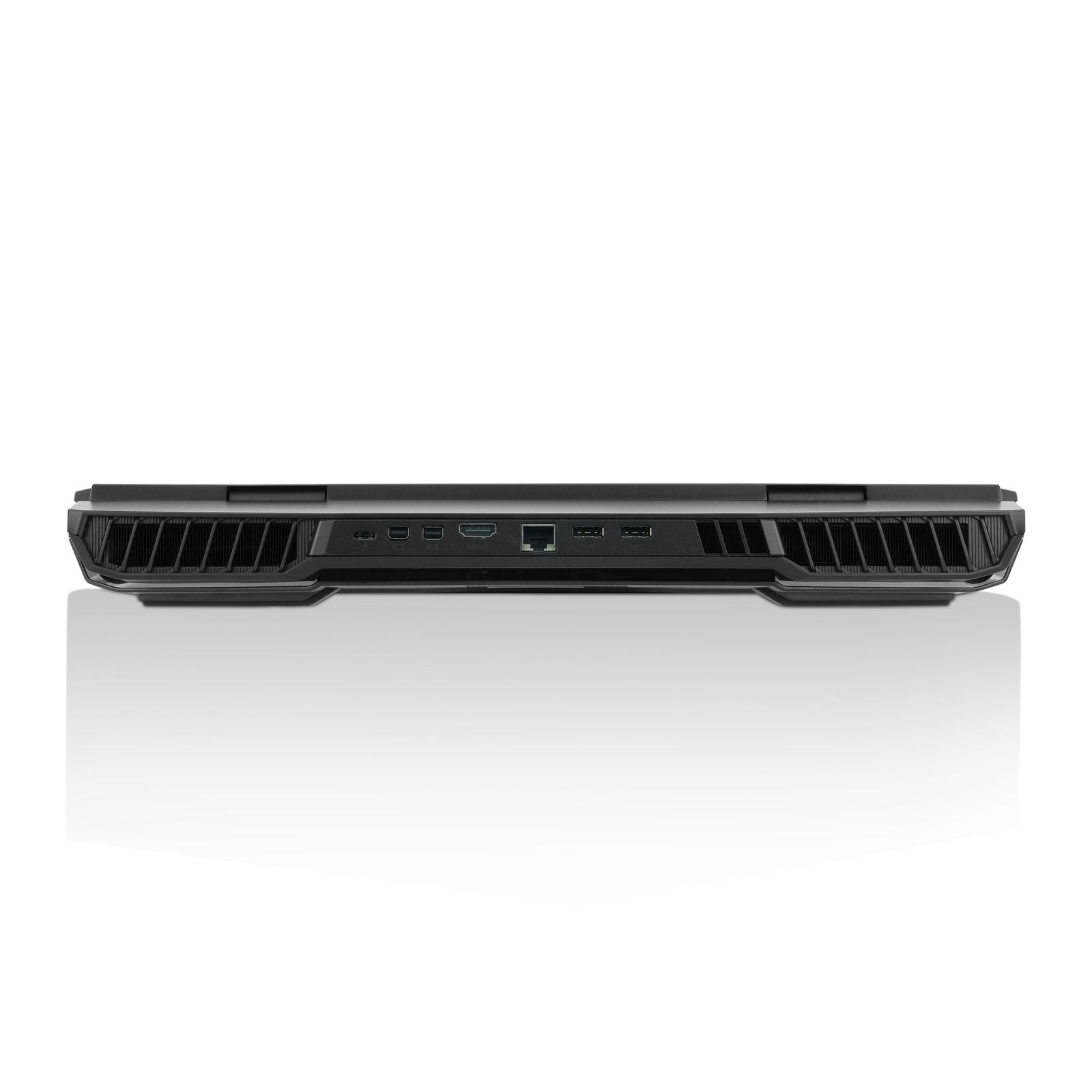

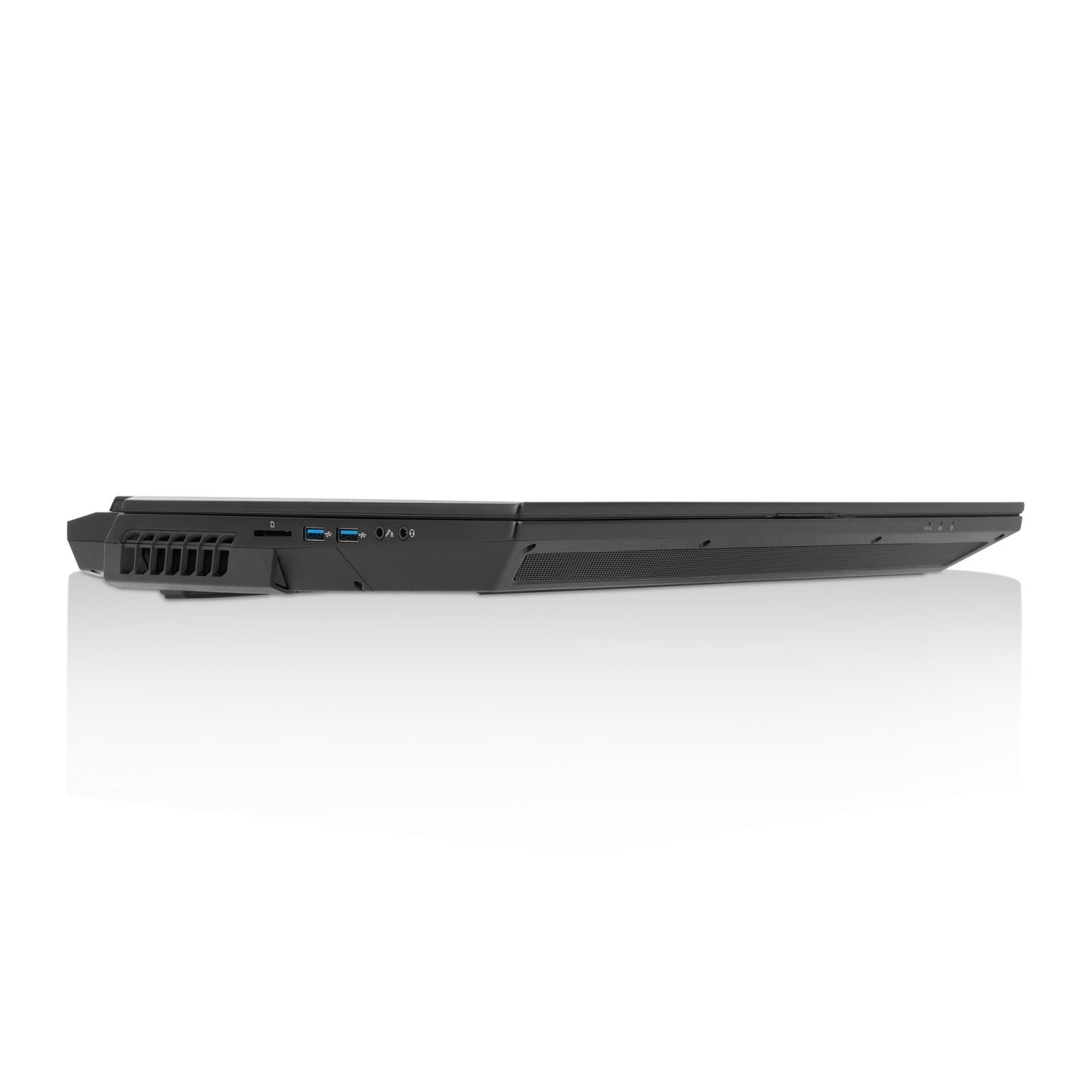

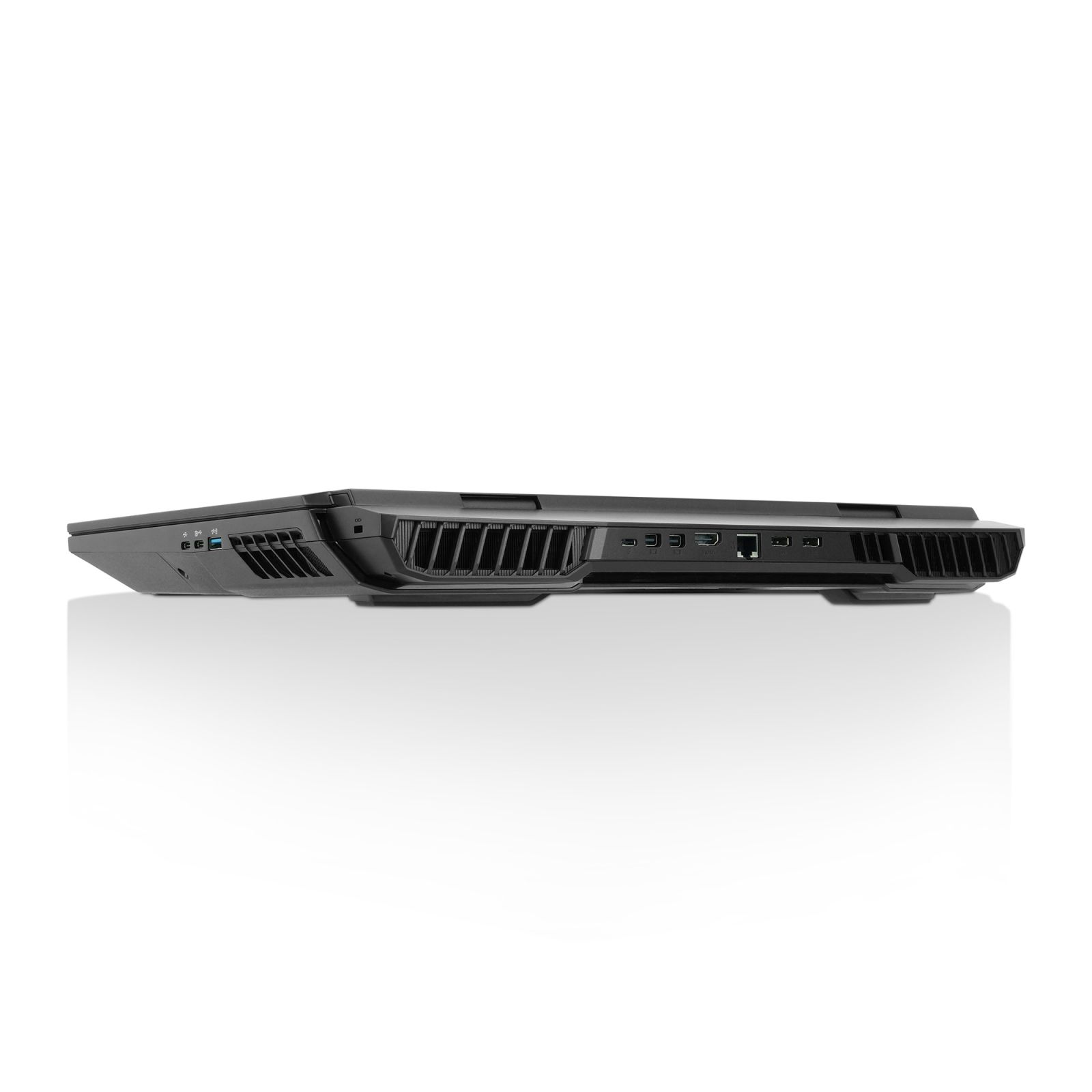

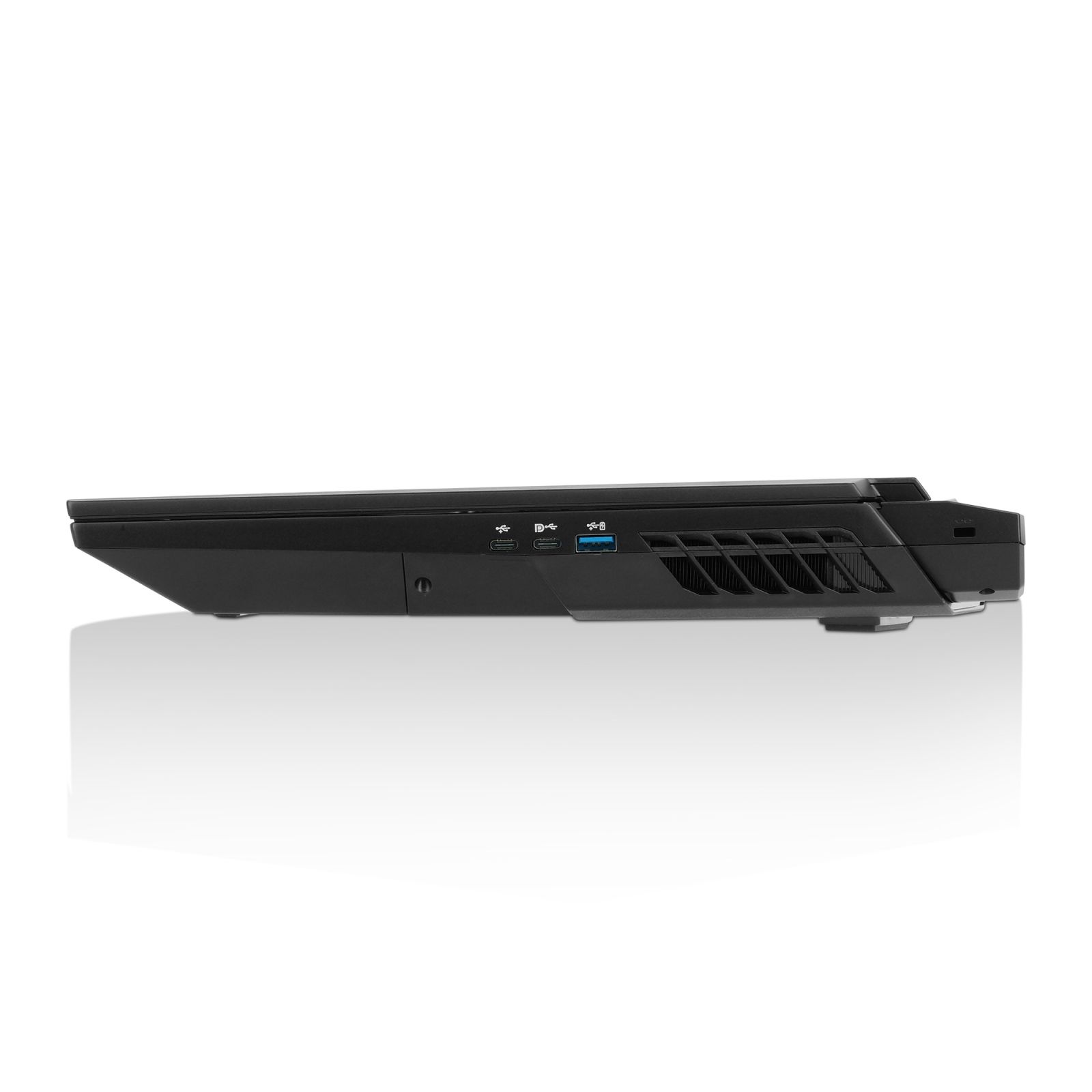

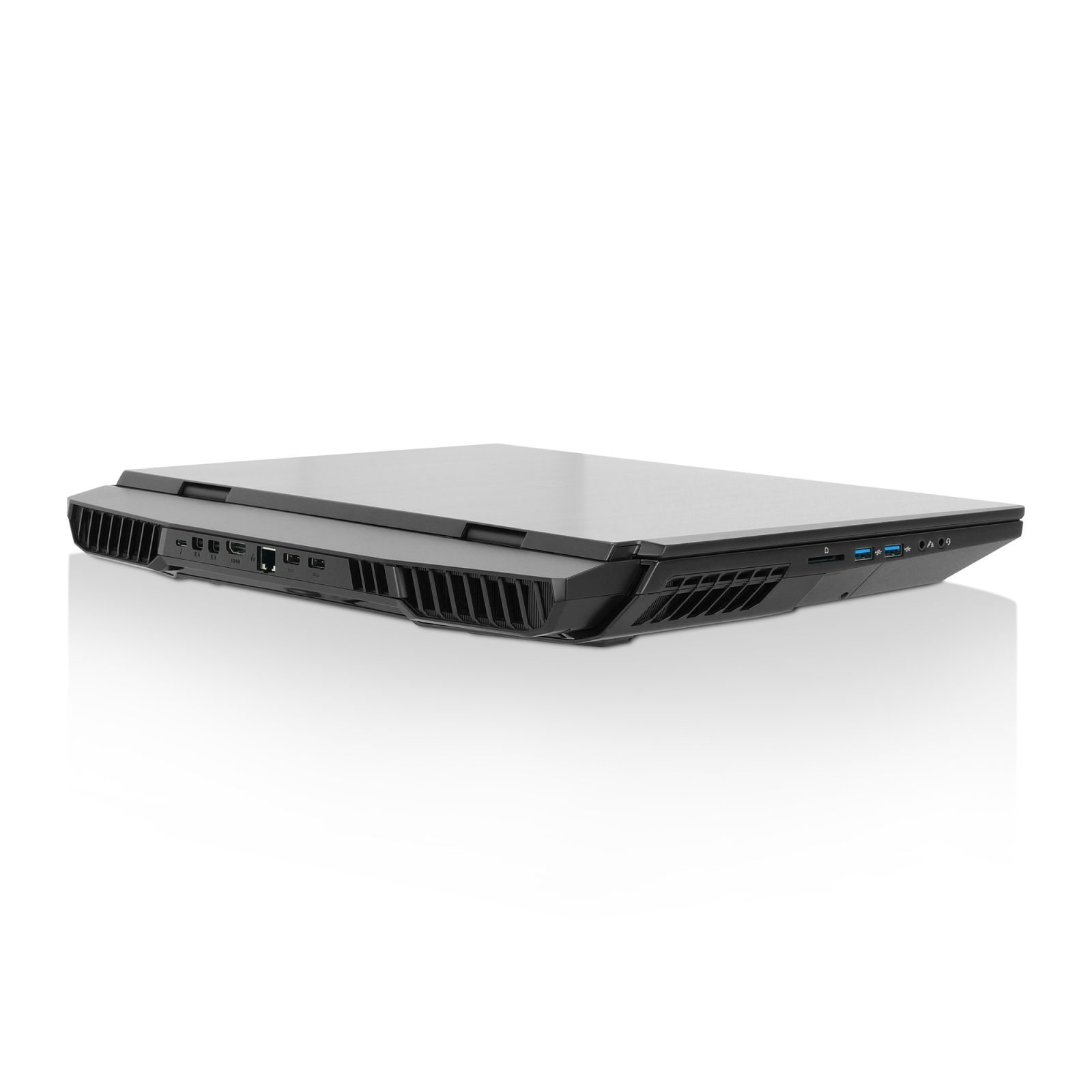

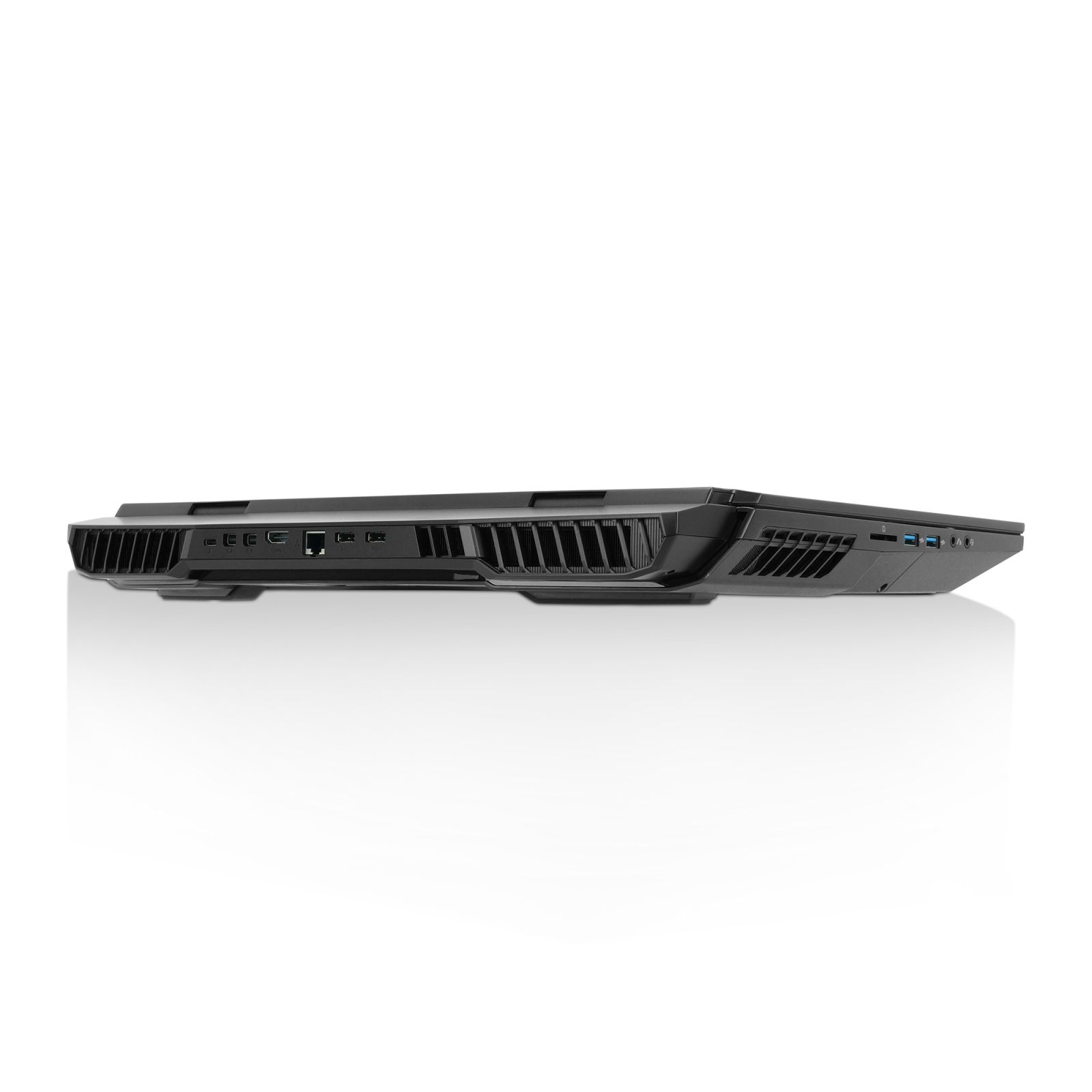

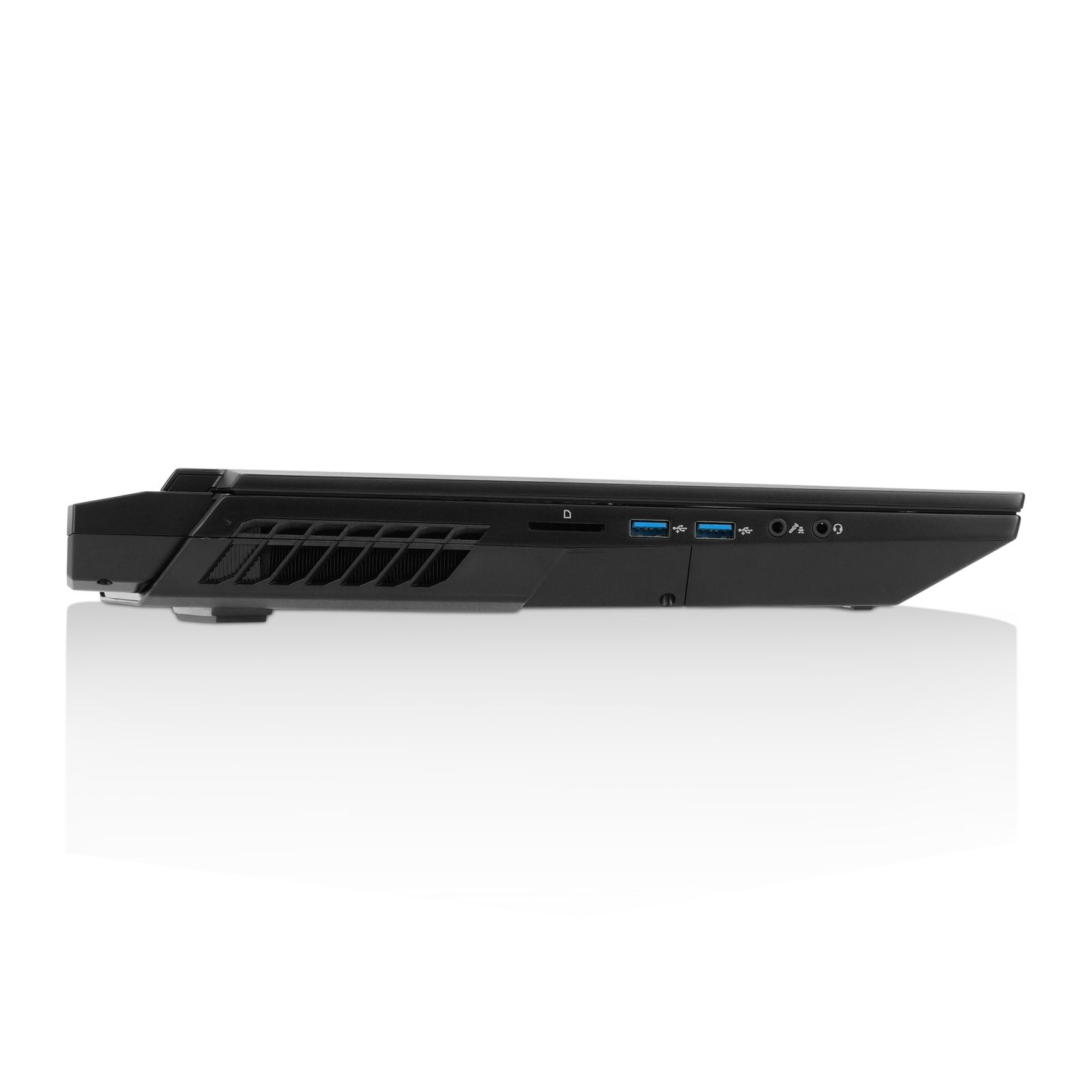

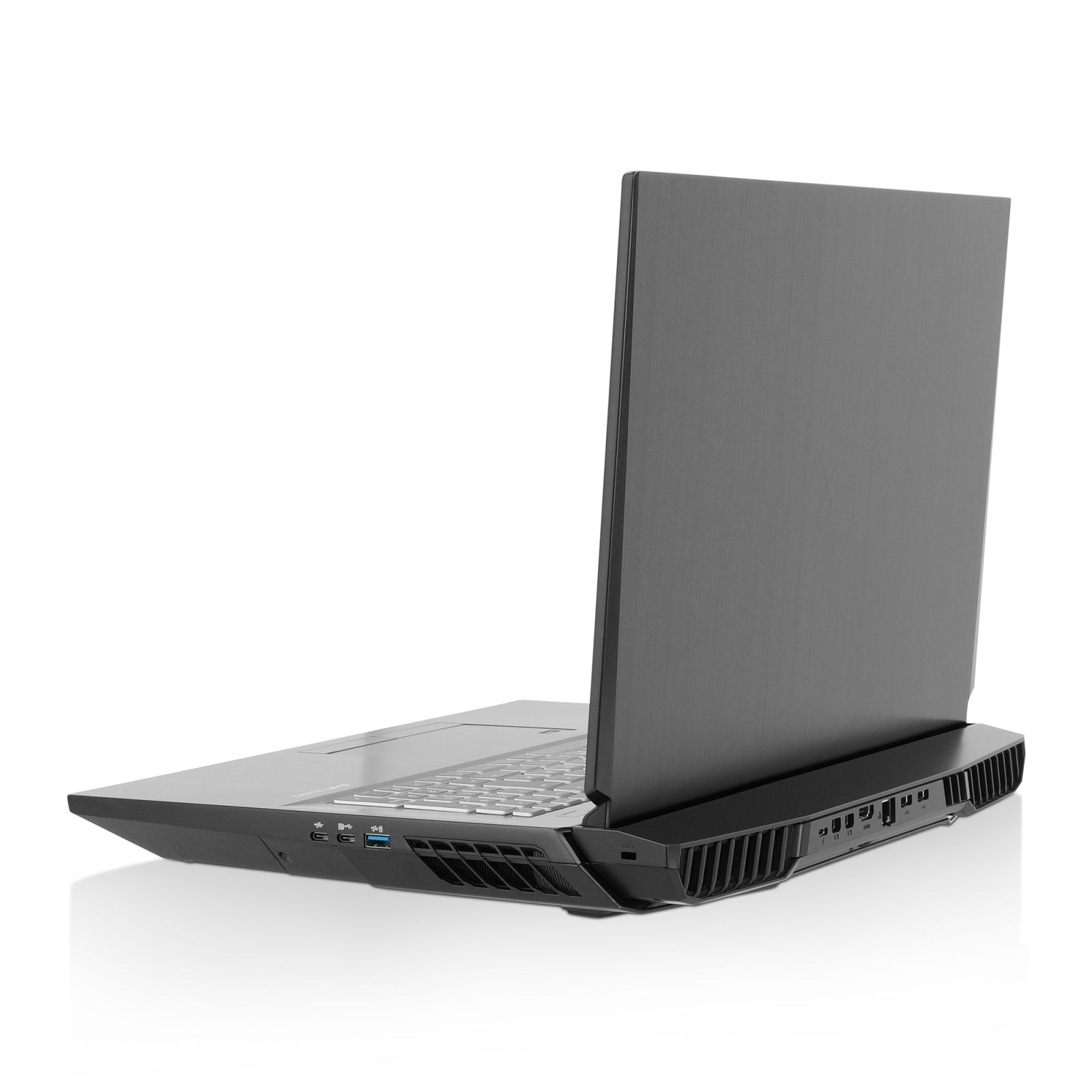

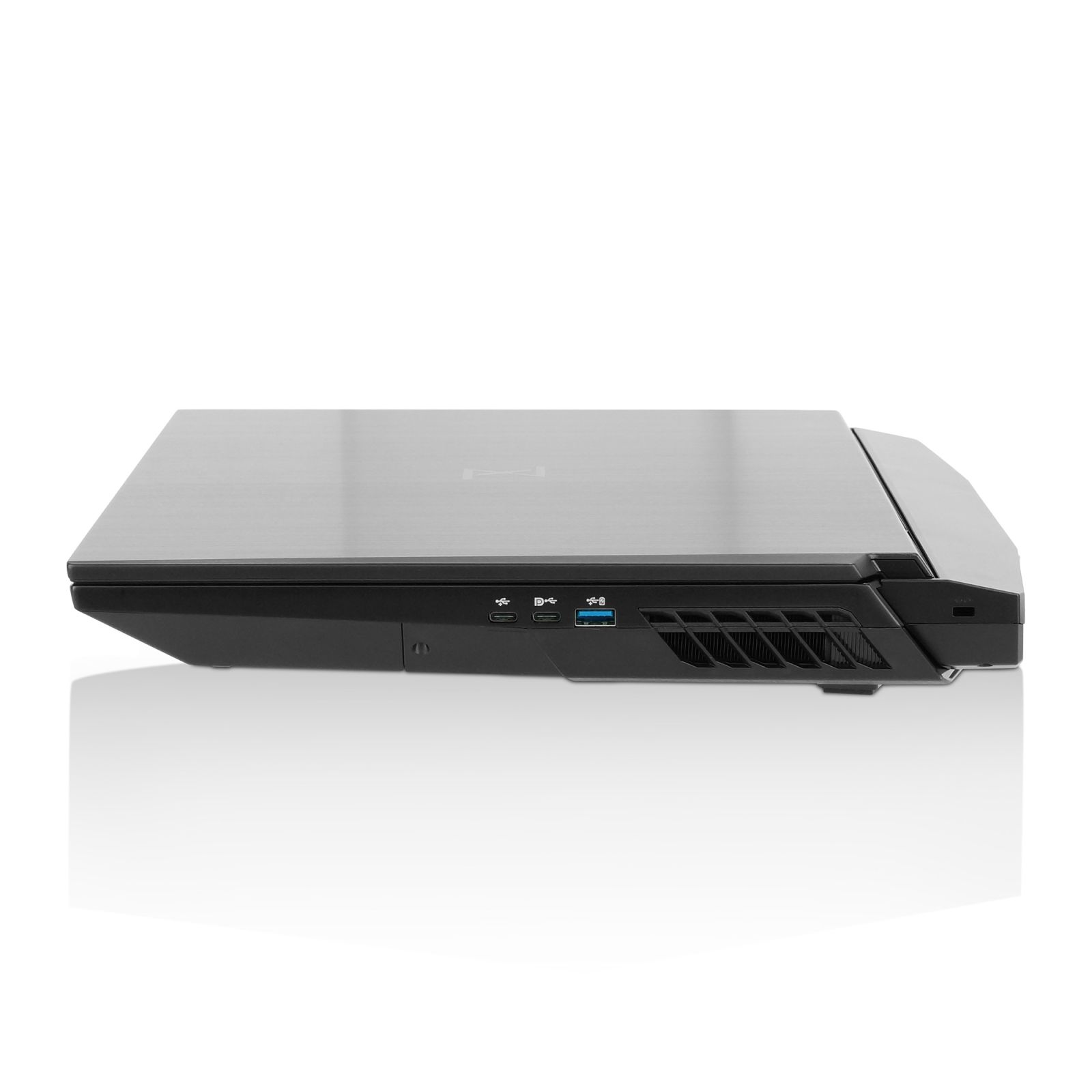

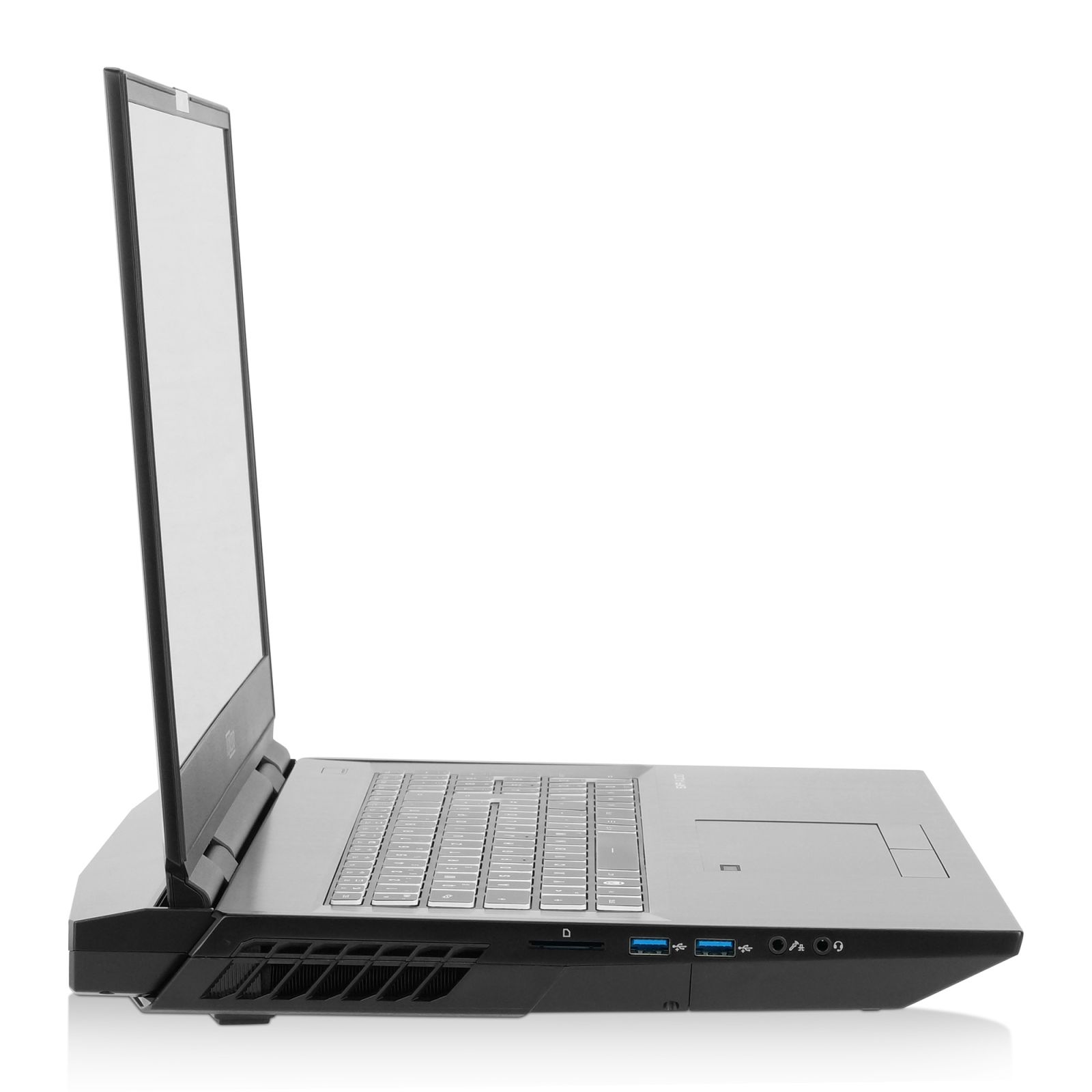

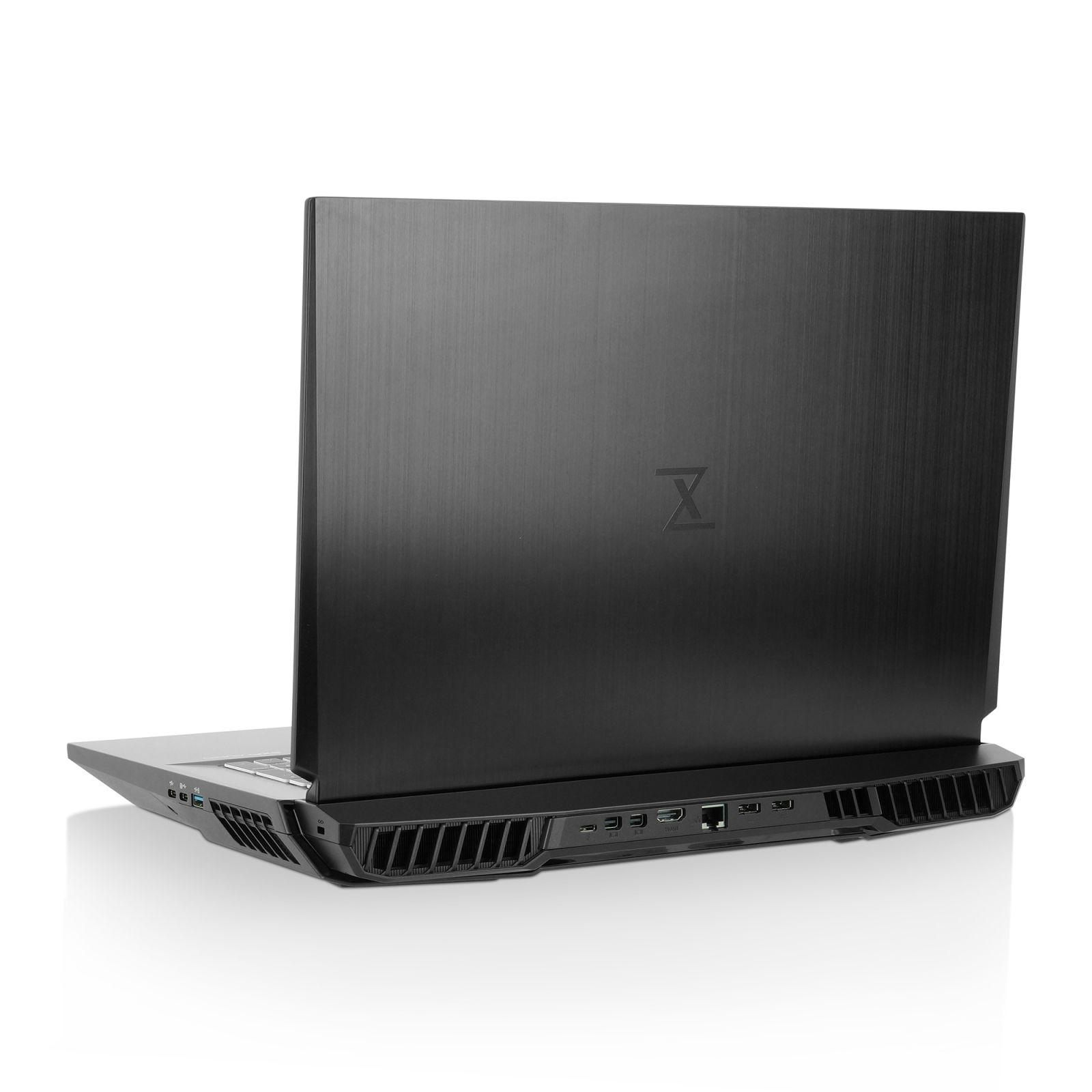

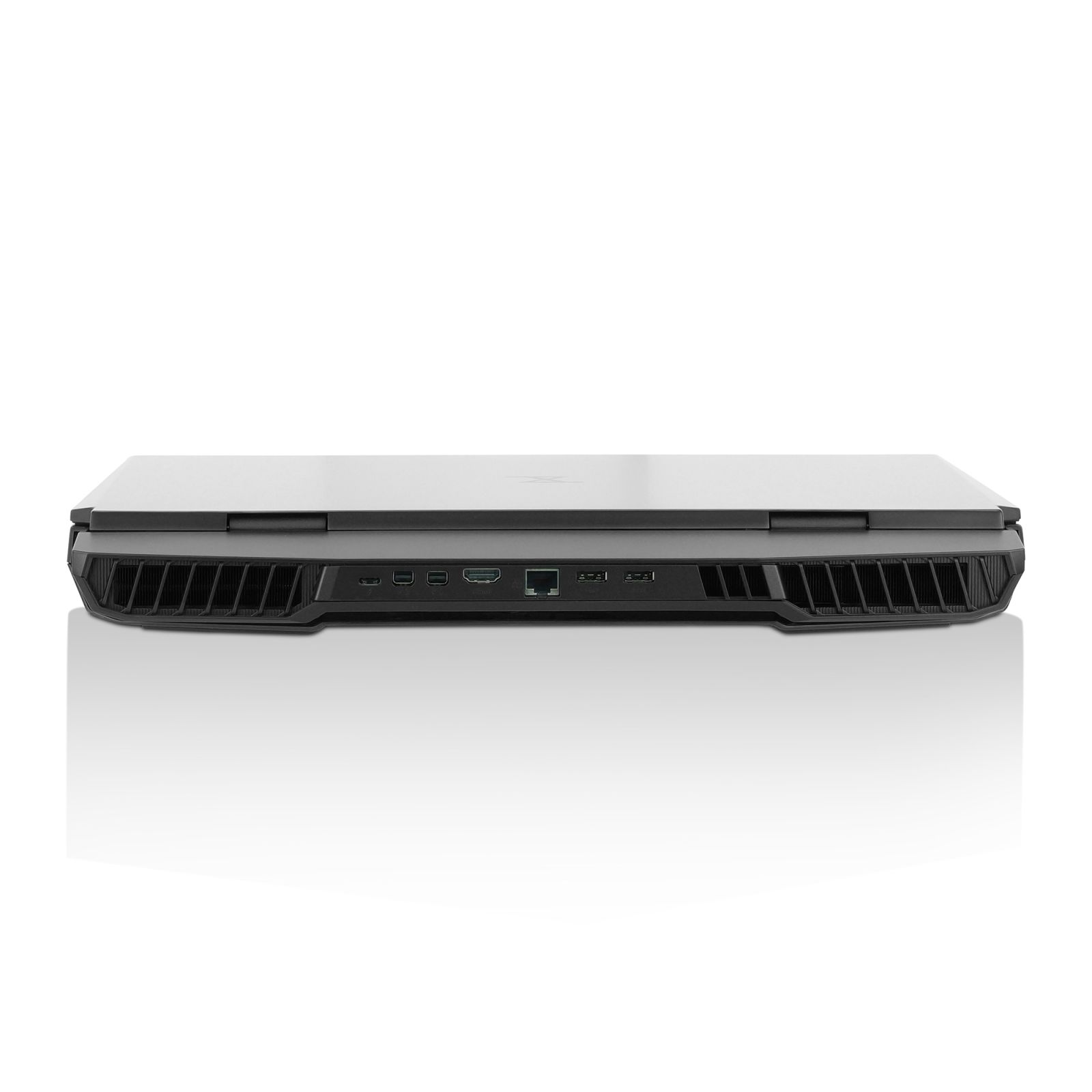

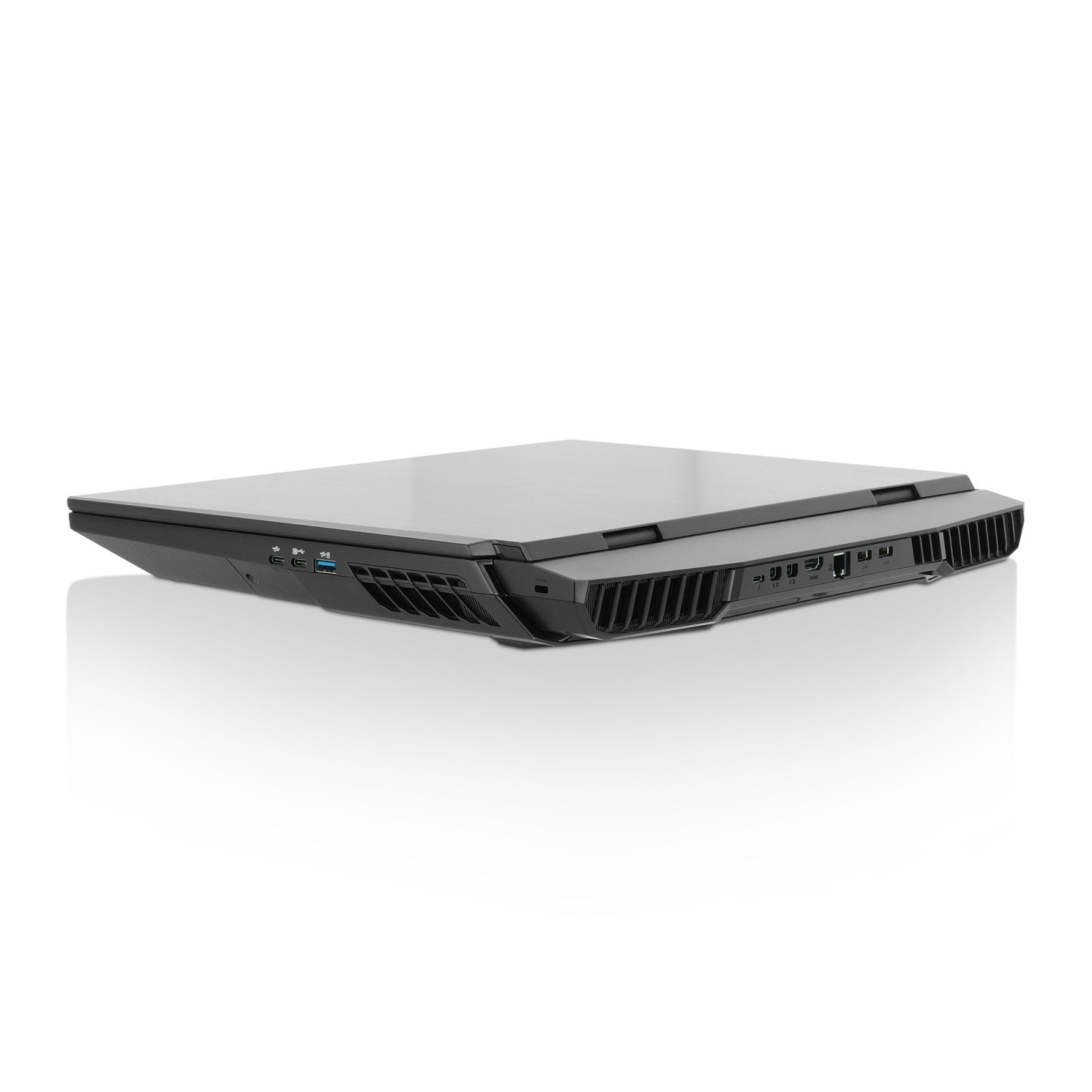

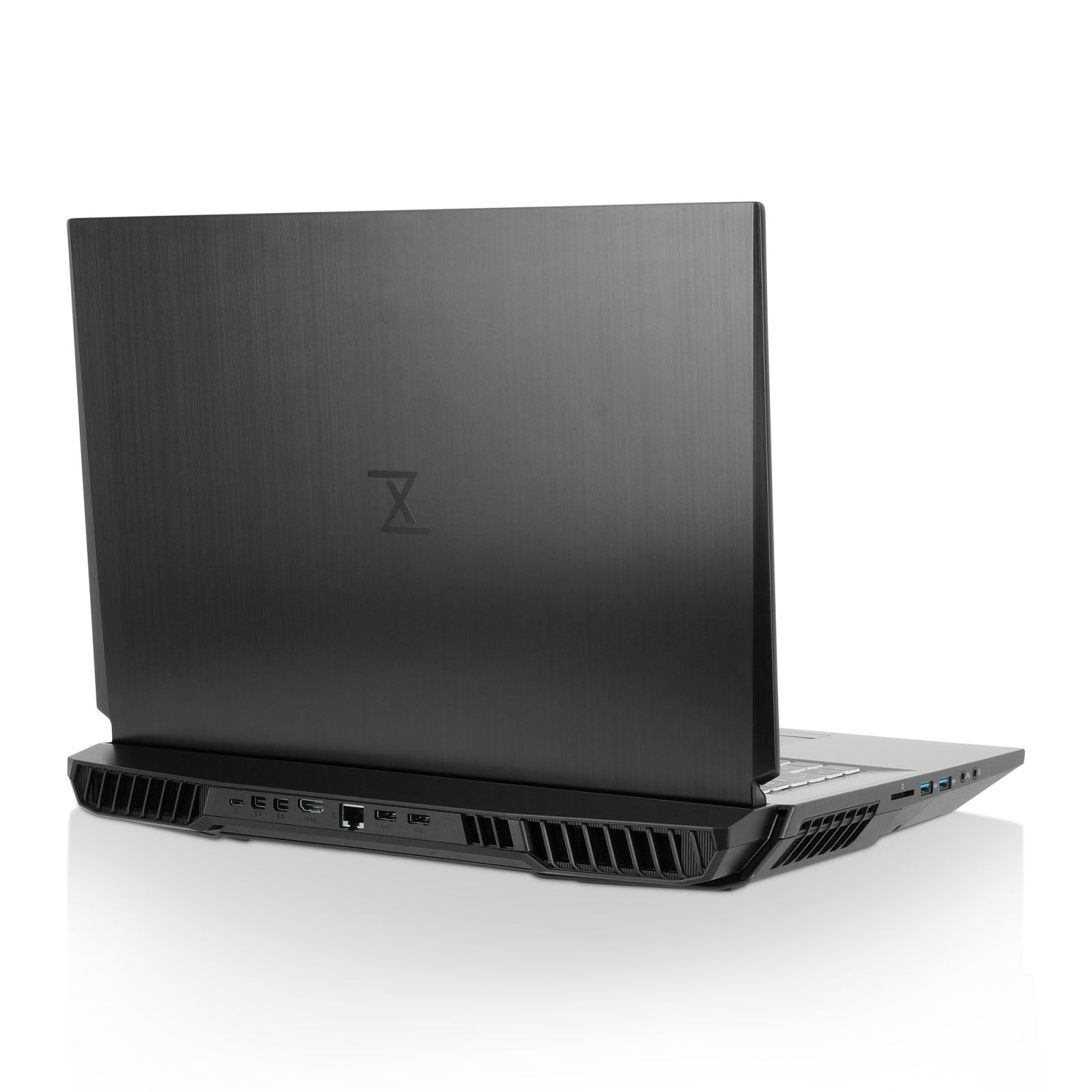

Ports
3x USB-A 3.2 Gen2 (1x powered)
1x USB-C 3.2 Gen2
1x USB-C 3.2 Gen2x2
1x Thunderbolt 3/USB-C 3.2 Gen2
2x Mini DisplayPort 1.4 (G-SYNC compatible)
1x HDMI 2.0 (with HDCP)
1x Headphone-Out (smartphone-headset compatible)
1x 2-in-1-Audio (Mic-In + S/PDIF optical)
1x RJ45 Port (LAN)
1x UHS-III card reader (SD/SDHC/SDXC)
1x Kensington Lock
Card reader
6 - in - 1 Card reader
- MMC / RSMMC
- SD / mini SD / SDHC / SDXC up to UHS-lll
Cooling System & Fan
Temperature controlled silent fan
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.
Custom fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the behavior of the fans at yourself. This means that you get the ability to make your device as silent as possible. You are able to set the device almost passive cooled, without any fan noise most of the time!
Model-ID: XUX711
Operating systems
We install Ubuntu and TUXEDO_OS (based on Ubuntu with Budgie Desktop) in the latest 64-bit version.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For advanced users and selected devices we also offer openSUSE 15 with Xfce, Gnome or KDE plasma. Of course fully configured and installed with all available updates and device drivers.
For "self-installers" and everyone who is interested, we have set up a database with downloads, instructions, tips & tricks and offer a customization script called "tuxedo.sh", which makes our customizations automatically under openSUSE and Ubuntu: Help & Support Section | tuxedo.sh
Encrypted Installation
On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively you are free to download alle Windows-Drivers from here.
BIOS
With all our notebooks you have the possibility to protect your privacy already on BIOS level. For this purpose the following functions can be completely deactivated:
- Intel Management Engine (IntelME)
- Webcam
- Audio (Microphone & Sound)
- WLAN & Bluetooth
In addition, our Premium BIOS allows chipset-specific settings and definitions for components via various profiles in order to operate the device optimally depending on its use. The profiles can be found in the BIOS menu under:
Advanced > Advanced Chipset Control > Performance Profile Select.
Further information can be found here in our manual.
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!
For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
