    TUXEDO Book XUX7

    Intel Core i9-11900K
    High-end Desktop CPUs

    NVIDIA GeForce RTX 3080
    Maximum TGP: 165 W

    Up to 32 Terabytes SSD
    Up to 128 GB DDR4 RAM

    2x Thunderbolt4 | 3x USB-A
    2x DisplayPort | 1x HDMI



    TUXEDO Book XUX7 with Intel Rocket Lake and NVIDIA GeForce RTX 3080

    The TUXEDO Book XUX7 is no ordinary notebook. It is aimed at enthusiasts who need the performance, storage and connectivity of a high-end desktop PC without wanting to completely sacrificing the mobility factor.

    In addition to Intel's fastest desktop processors up to the Core i9-11900K, NVIDIA's most powerful mobile graphics card, the GeForce RTX 3080 in the maximum performance variant with up to 165 watts also moves under the black aluminum hood of the 4.3 cm high colossus.

    This high-performance desktop replacement is flanked by 4x M.2 SSDs with up to 32 Terabytes of storage, max 128 GB of RAM and a comprehensive connectivity with 2x Thunderbolt 4 as well as two high-quality display options for every purpose.

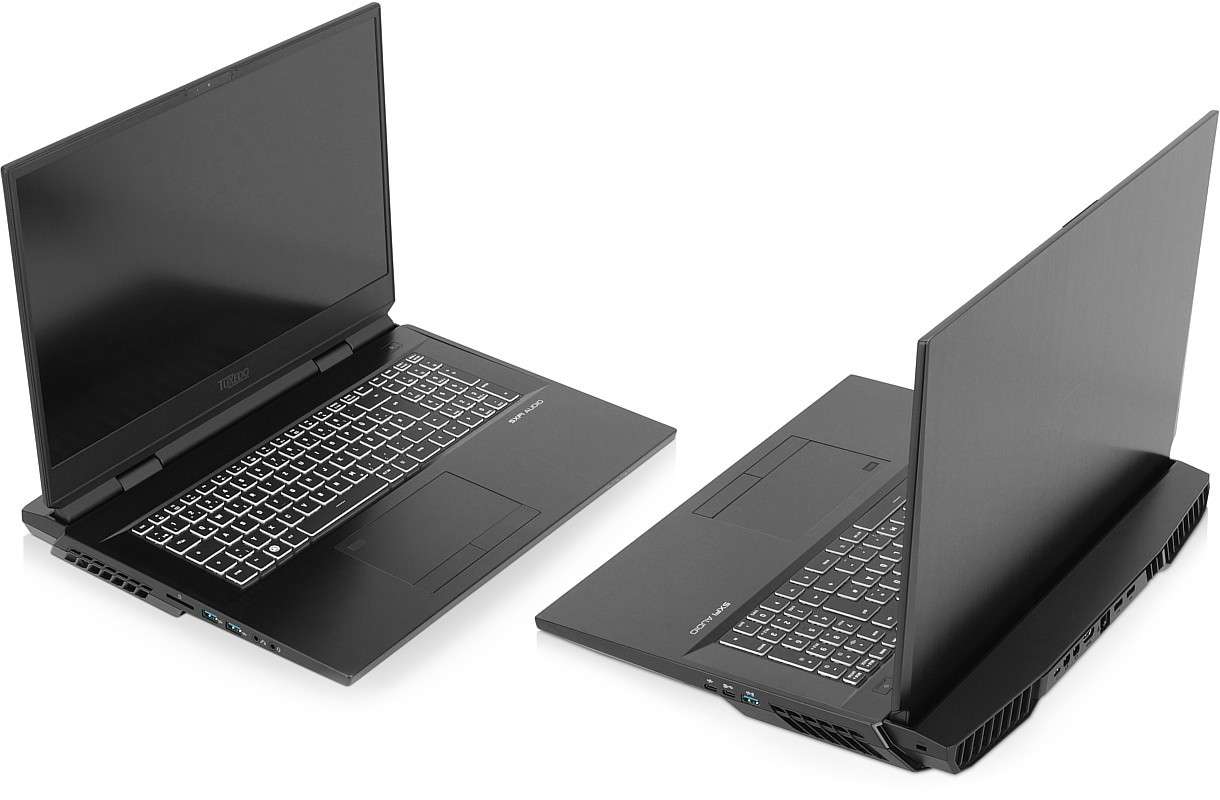

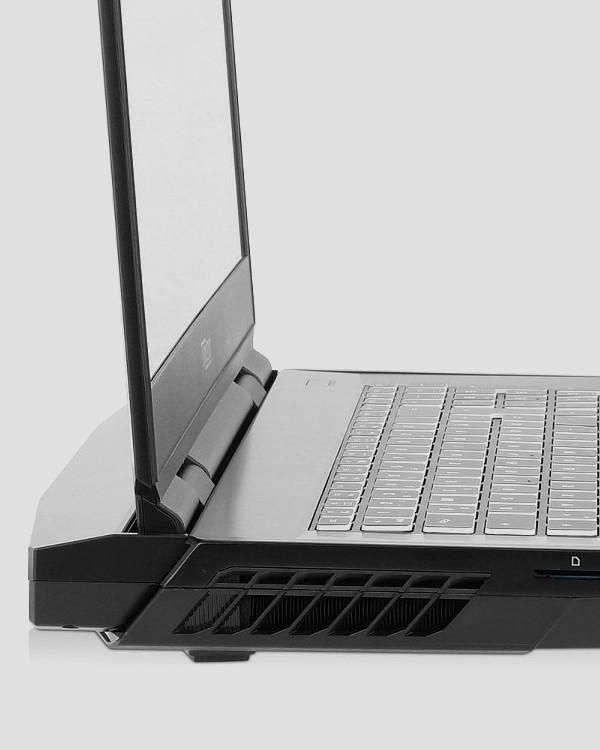

    Massive Appearance

    When looking at the TUXEDO Book XUX7, it quickly becomes clear: There is massive performance under the hood here! With a height of 4.3 cm and a weight of 4.6 kg, the XUX focuses on uncompromising high-end desktop performance in a somewhat portable 17-inch form factor.

    The chassis (display lid and base unit) is mainly made of brushed black aluminum and gives a solid, robust impression and high-quality, metallic haptics.

    The full-size keyboard with number pad and mandatory TUX super key has a well defined pressure point and comes with adjustable RGB per key backlight. The Microsoft Precision Touchpad provides a smooth 130 x 70 mm surface with separate soft-touch mouse buttons and a fingerprint reader (Windows only).

    In order to supply the energy-hungry high-end components with sufficient power and to charge the externally removable 97 Wh battery, the TUXEDO Book XUX7 is powered by 2x 280 Watt power supplies, which can be bundled together with the included power supply rack.



    Desktop PC performance

    One of the killer features of the XUX series are exchangeable, socketed high-end components. Intel's desktop processors from the mid-range model Core i5 up to the top tier model Core i9 of the 10th and 11th generation can be configured to take place on the FCLGA1200 socket. The top end configuration is headed by the two flaship models Intel Core i9-11900K with 8 cores and 16 threads and the 10-core Core i9-10900K.

    Both high-end desktop CPUs operate at a TDP (Thermal Design Power) of 125 watts and a maximum clock rate of 5.3 GHz. However, there are differences in the other specifications: While the i9-10900K can process up to 20 threads simultaneously, the new Rocket Lake model uses two cores less for an approximately 20% higher IPC (Instructions Per Cycle) performance in return.

    Both CPUs offer a very similar performance and are therefore perfectly suited for processor-heavy games. The Core i9-11900K and i9-10900K also provide plenty of computing power for complex video production and rendering tasks.



    Maximum Graphics Performance
    thanks to GeForce RTX 3080

    The GPU comes in an upgradable form factor as well: NVIDIA's fastest graphics card for notebooks, the GeForce RTX 3080 in its highest configuration with a TGP of up to 165 watts, replaces the old flagship model RTX 2080 SUPER.

     The high-end GPU from NVIDIA's latest Ampere architecture features 6144 CUDA cores, a massive 16 GB GDDR6 VRAM and a maximum power consumption of 150 watts. Using NVIDIA Dynamic Boost, the Total Graphics Power can be increased by another 15 watts when under low simultaneous CPU load (e.g. during render processes via the GPU).

    Compared to the predecessor, the GeForce RTX 2080 Super (TGP: 200 watts), the RTX 3080 features a significantly better performance-per-watt and offers an additional performance of 15-20% while even reducing the power consumption by up to 25%.

    The better efficiency does not only result in lower temperatures and a lower fan noise under load, but also provides the energy-hungry desktop CPU with a larger thermal headroom.

      Alternatively, the entry-level high-end model NVIDIA GeForce RTX 3060 with 3840 cores and up to 130 watts TGP or the mid-range high-end model, the GeForce RTX 3070, with 5120 CUDA cores and max. 140 watts TGP (both including Dynamic Boost) are also available.



    Outstanding performance meets outstanding cooling.

    To enable maximum performance in a notebook, a correspondingly massive cooling system must be implemented.

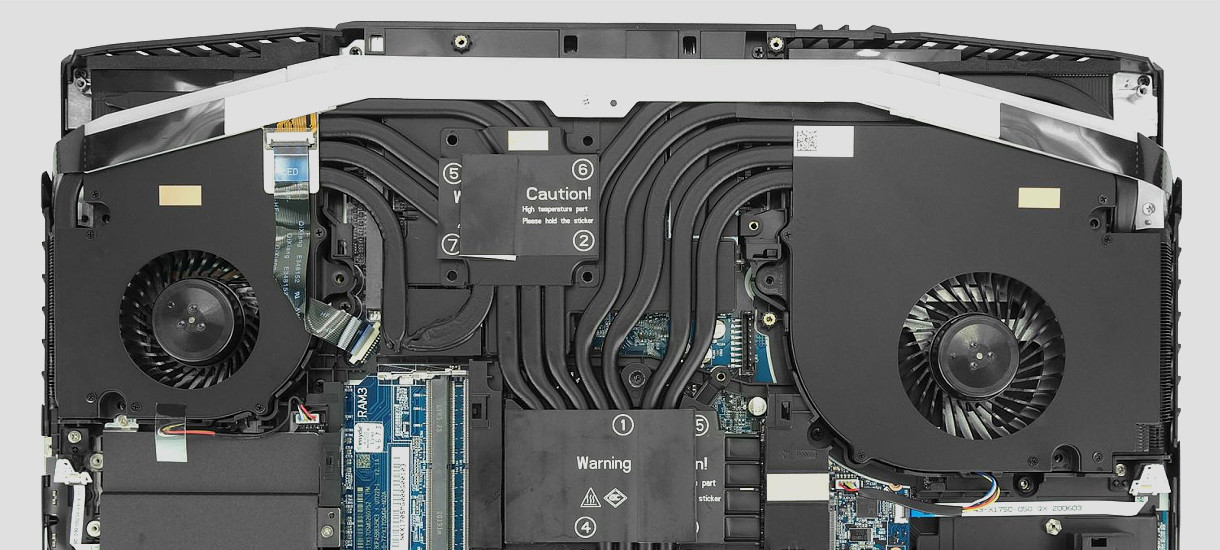

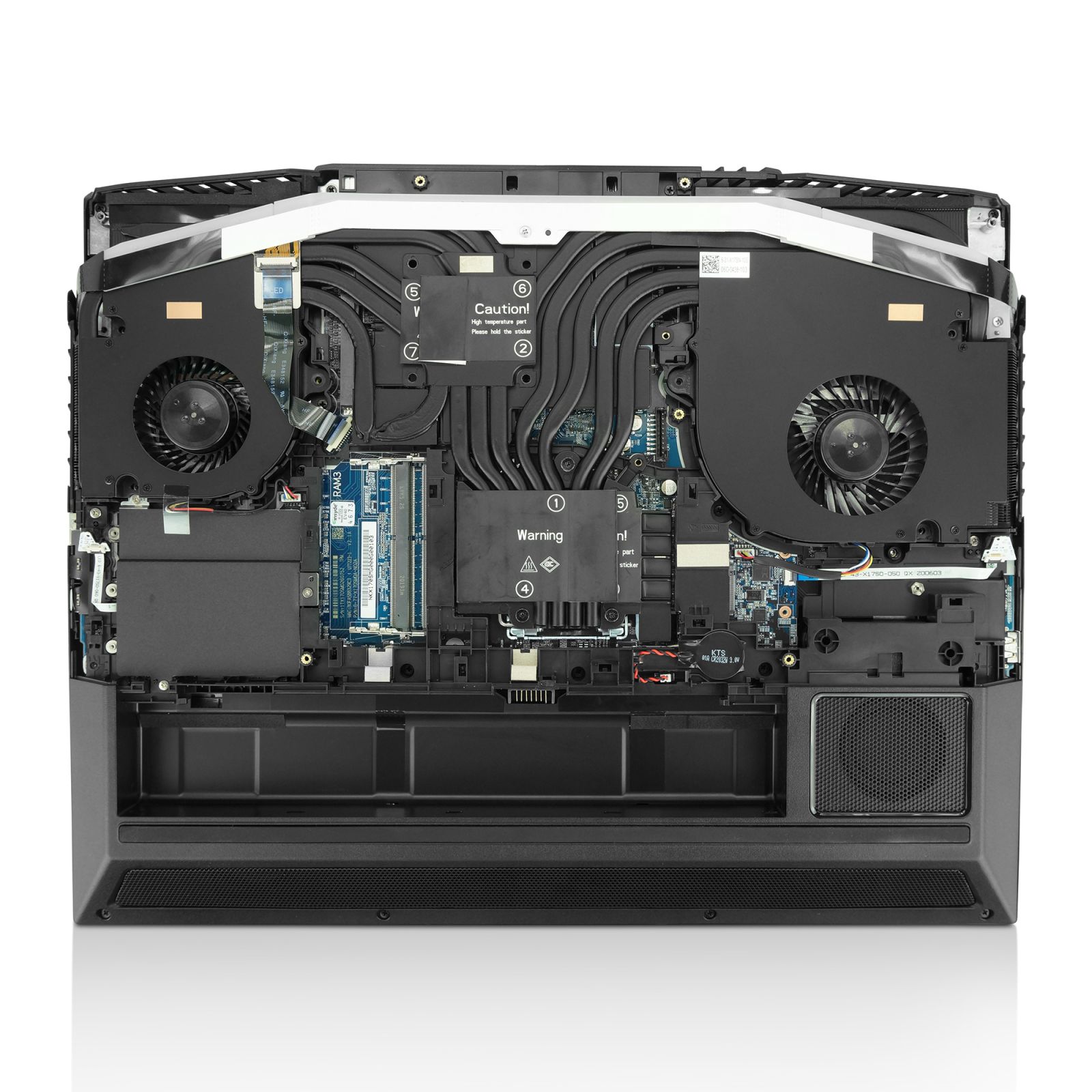

    The TUXEDO Book XUX7 therefore comes with no less than 9 heatpipes which distribute the heat from the CPU and GPU to 4 massive copper heatsinks. From there, the two big fans efficiently blow out the heat through each two side and two rear fan outlets.

    The TUXEDO Book XUX7 also raises the bar in terms of maintenance and upgrades: After removing just 4 screws, the large bottom panel can be lifted up easily and allows free access to the hardware components and the cooling system. By the way: Opening the device for maintenance and upgrade purposes is, of course, covered by your TUXEDO warranty if done properly!

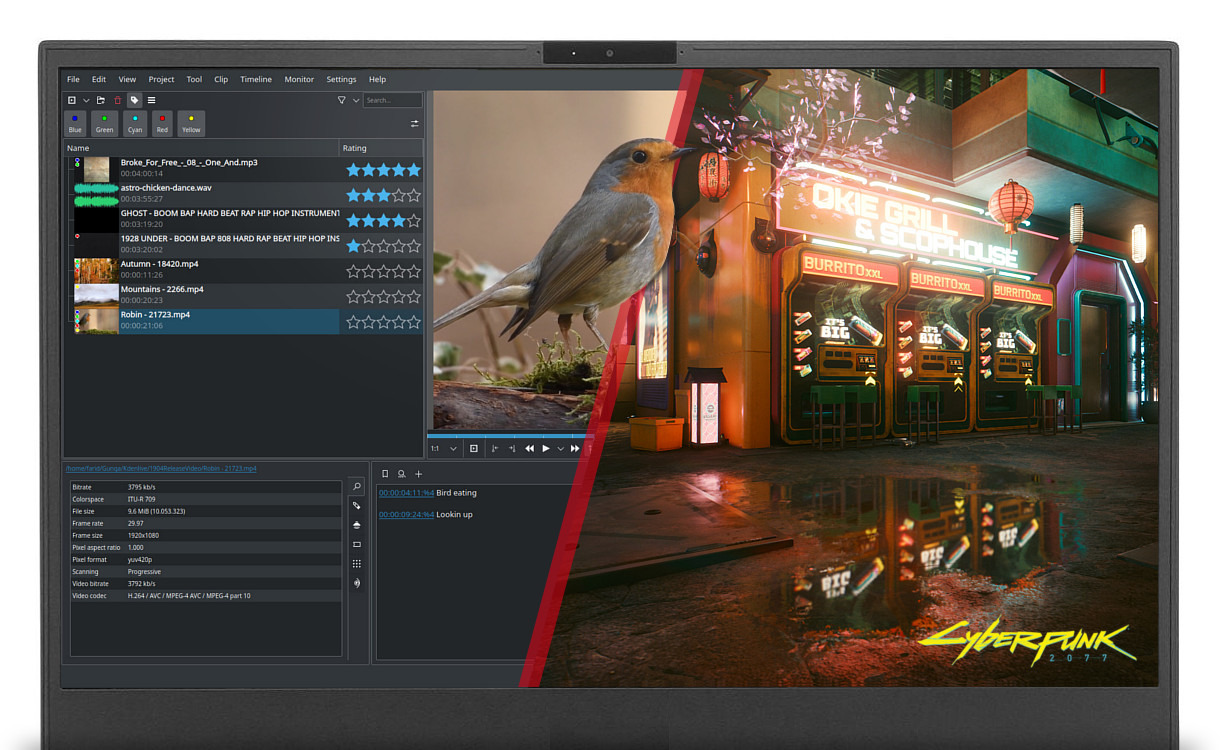

    Creator or Gamer?
    The right display for each and every task!

    The TUXEDO Book XUX7 provides high-quality display options for both ambitious content creators and demanding gamers:

    The 17.3-inch 4K IPS display is primarily aimed at media content creators who value an extremely high resolution of 3840 x 2160 pixels as well as professional color space coverage of the full AdobeRGB color gamut and the 400 nits of brightness. However, thanks to NVIDIA's G-SYNC technology, the 60 Hz display is also suitable for after-hours gaming sessions.

     For gamers with highest demands in terms of refresh rates and blazingly fast response times the XUX7 provides a WQHD IPS display with 2560 x 1440 pixels and a very fast 165 Hz refresh rate. As with the 4K panel, however, interdisciplinary use for media design is no problem with the ~350 nits bright 1440p display thanks to 95 % coverage of the sRGB color space.



    Desktop-PC-like Connectivity and Storage

    Another huge advantage of the TUXEDO Book XUX series is the unique connectivity and storage configuration, which is almost on par even with full-blown desktop PCs.

    "Connect Four": In terms of RAM and mass storage, there is not much left to wish for. Thus, the 17-inch desktop replacement notebook not only integrates 4x RAM slots for up to 128 GB of memory, which is extraordinary by notebook standards, but also 4x fast PCIe M.2 SSD slots for a maximum expansion of a whopping 32 Terabytes!

    The total amount of the XUX7's 6x USB ports includes 2x Thunderbolt 4 ports (USB-C 4.0 Gen3x2) for data speeds of up to 40 Gbit/s for lightning fast data transfers with external drives or for connecting 2x high-resolution 4K monitors using the integrated DisplayPort 1.4a signal. Additional external monitors can be connected via HDMI 2.1 as well as the 2x MiniDisplayPort 1.4 interfaces.

    On the data side, the TUXEDO Book XUX7 features 1x USB-C 3.2 Gen2, 3x USB-A 3.2 Gen2, a UHS-III card reader, and the obligatory RJ45 Ethernet jack.

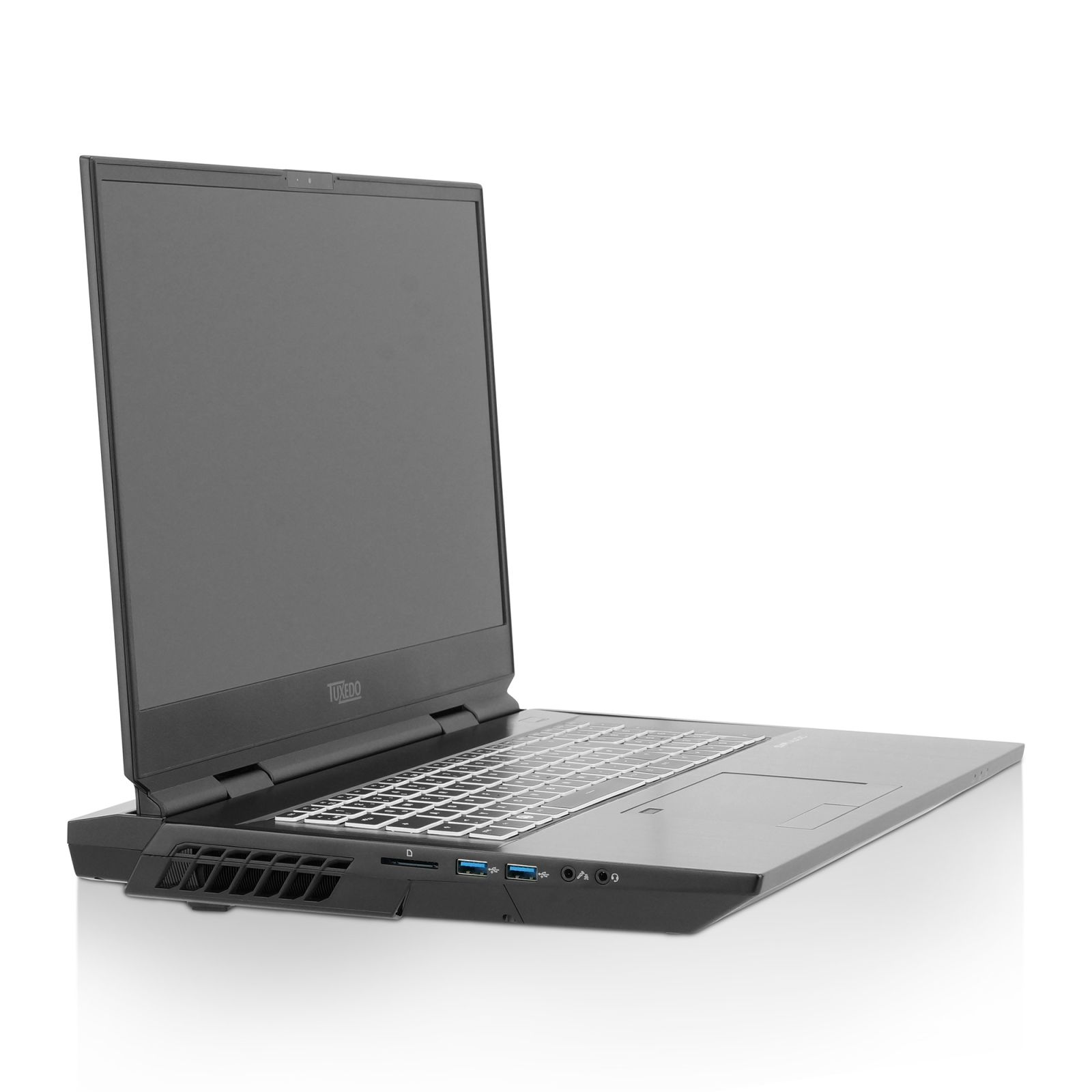

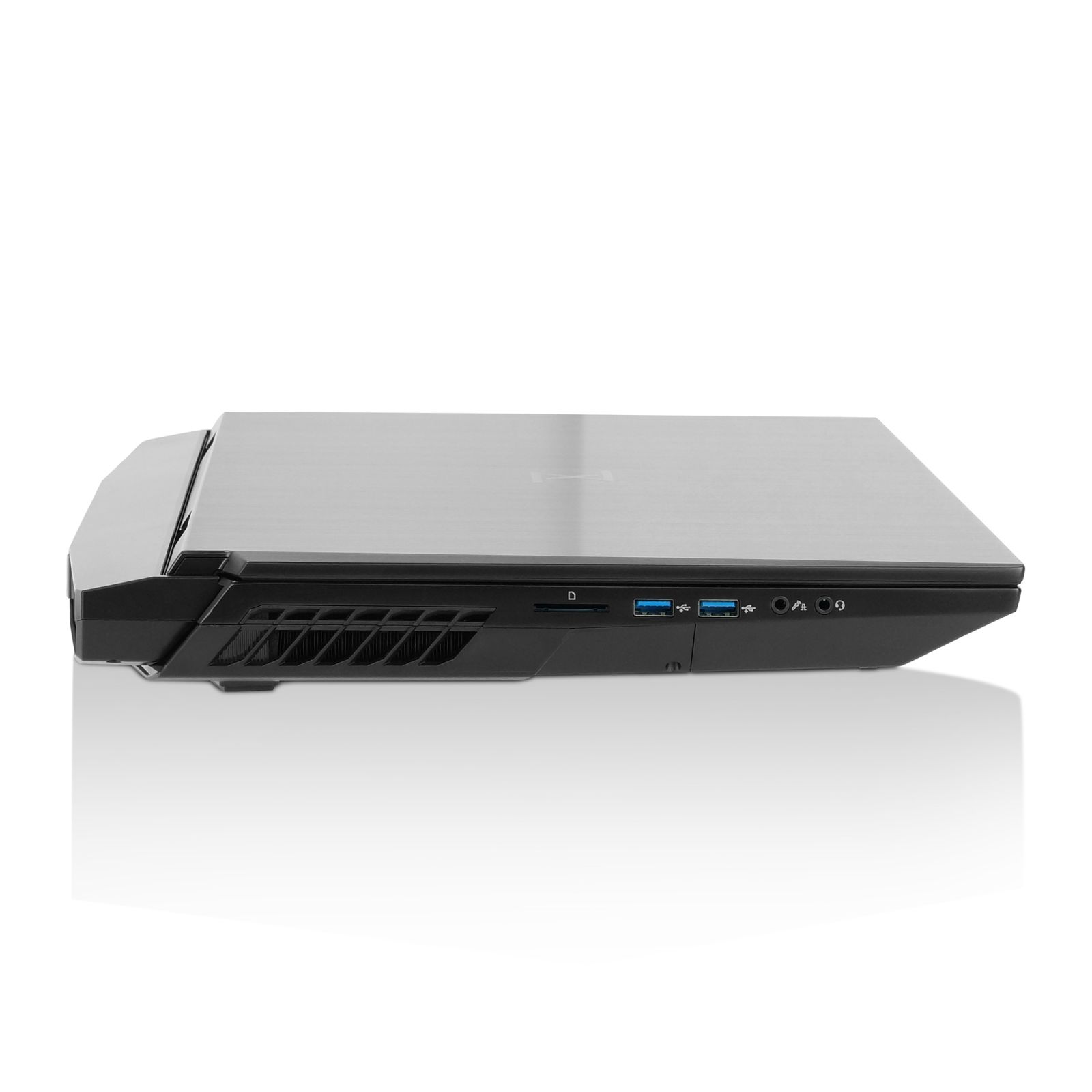

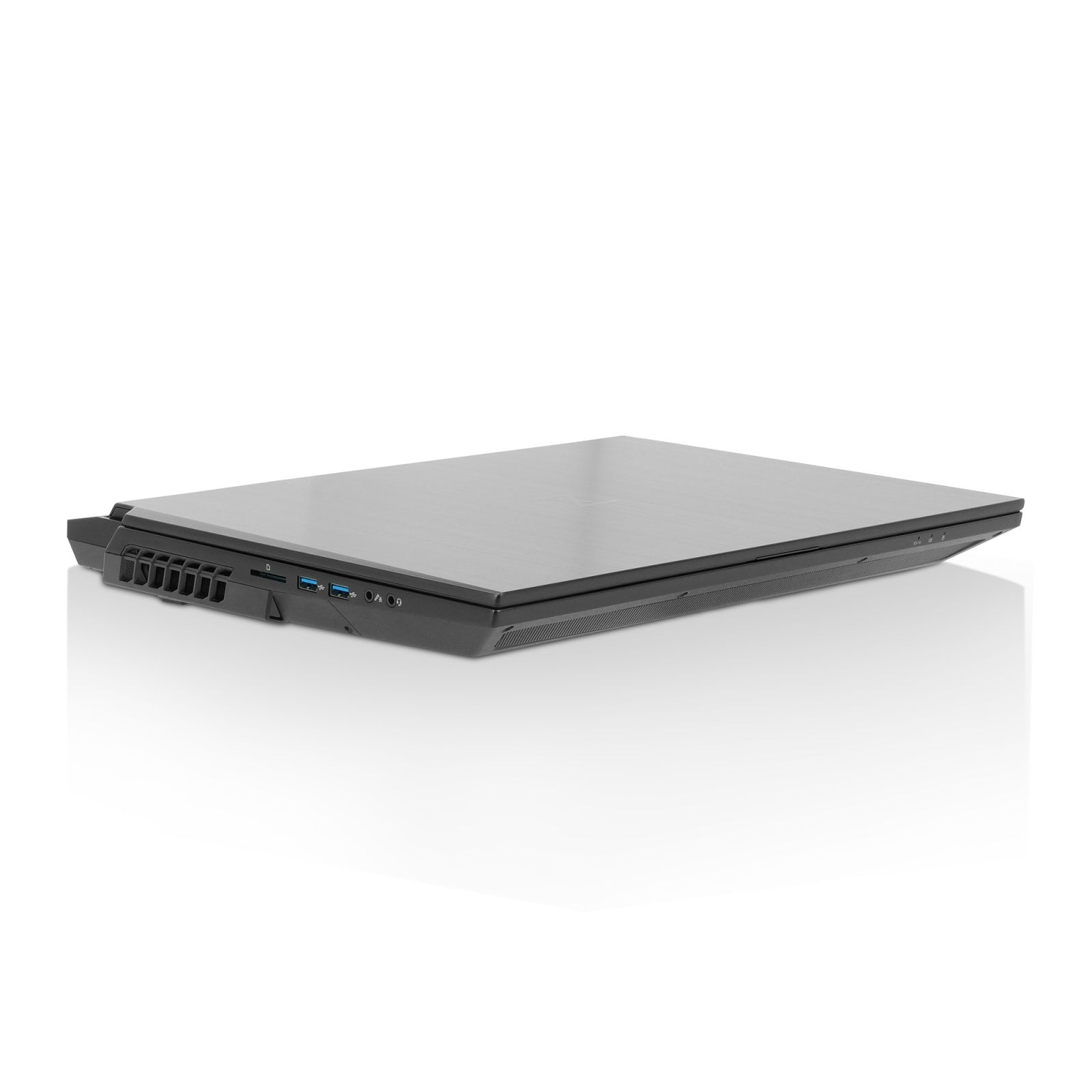

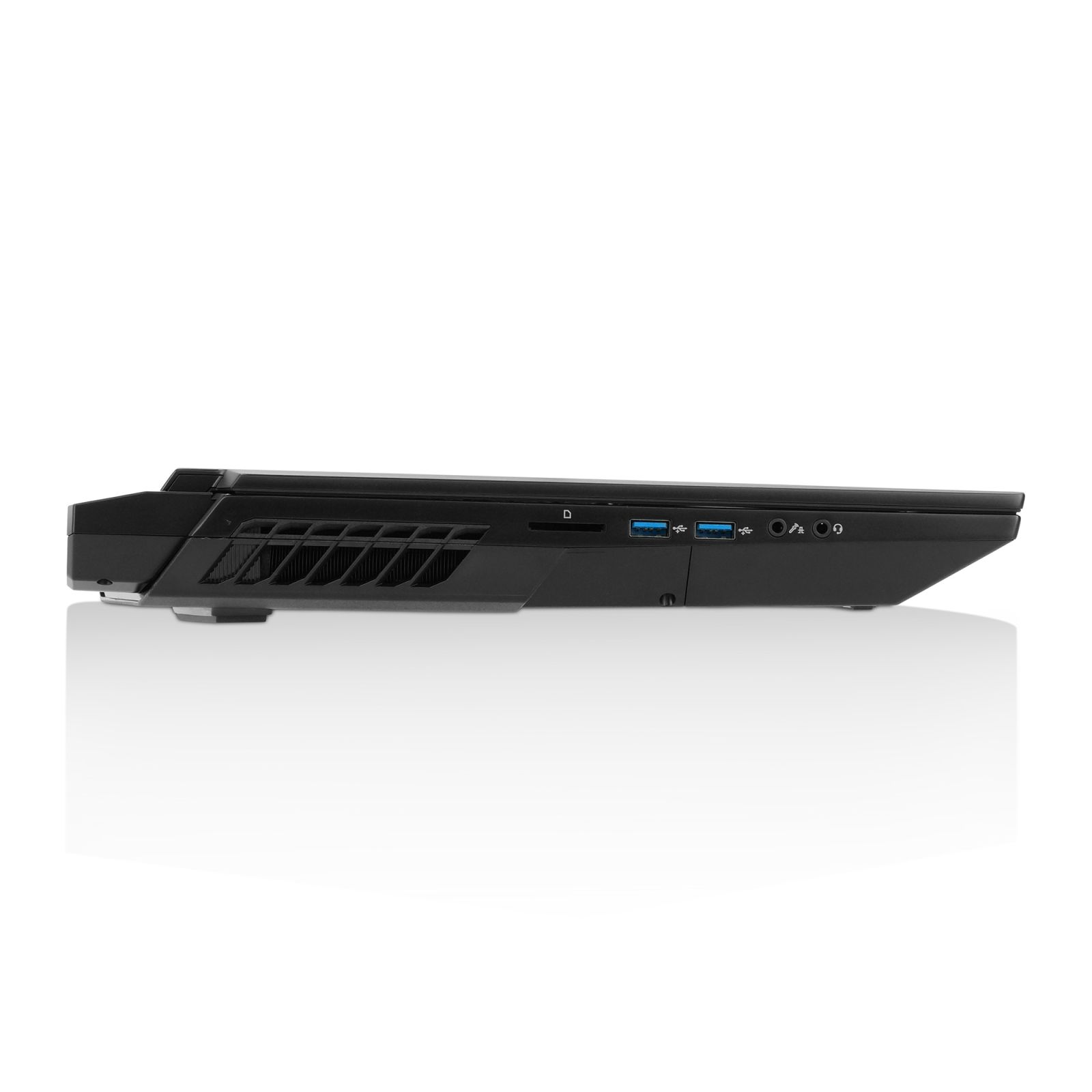

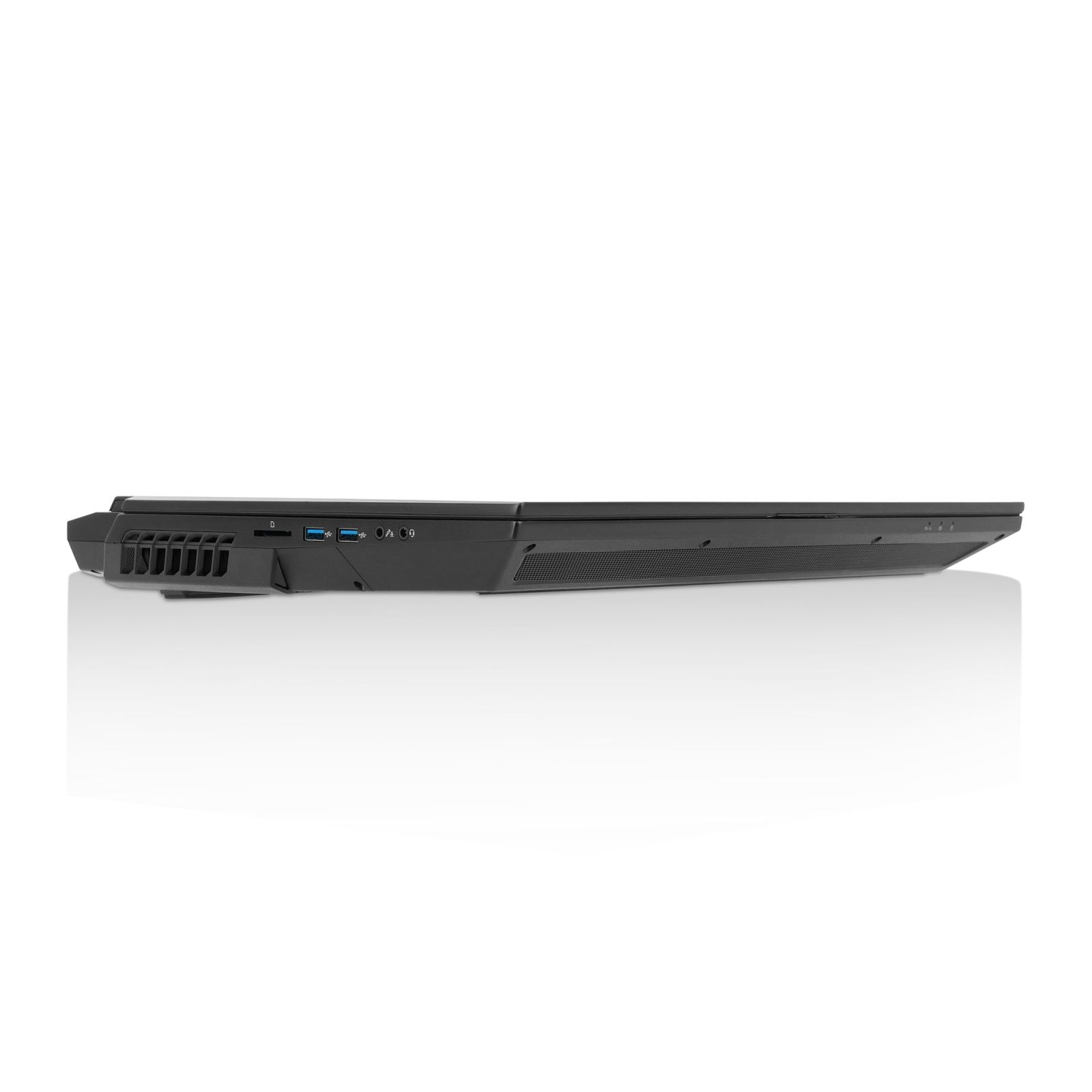

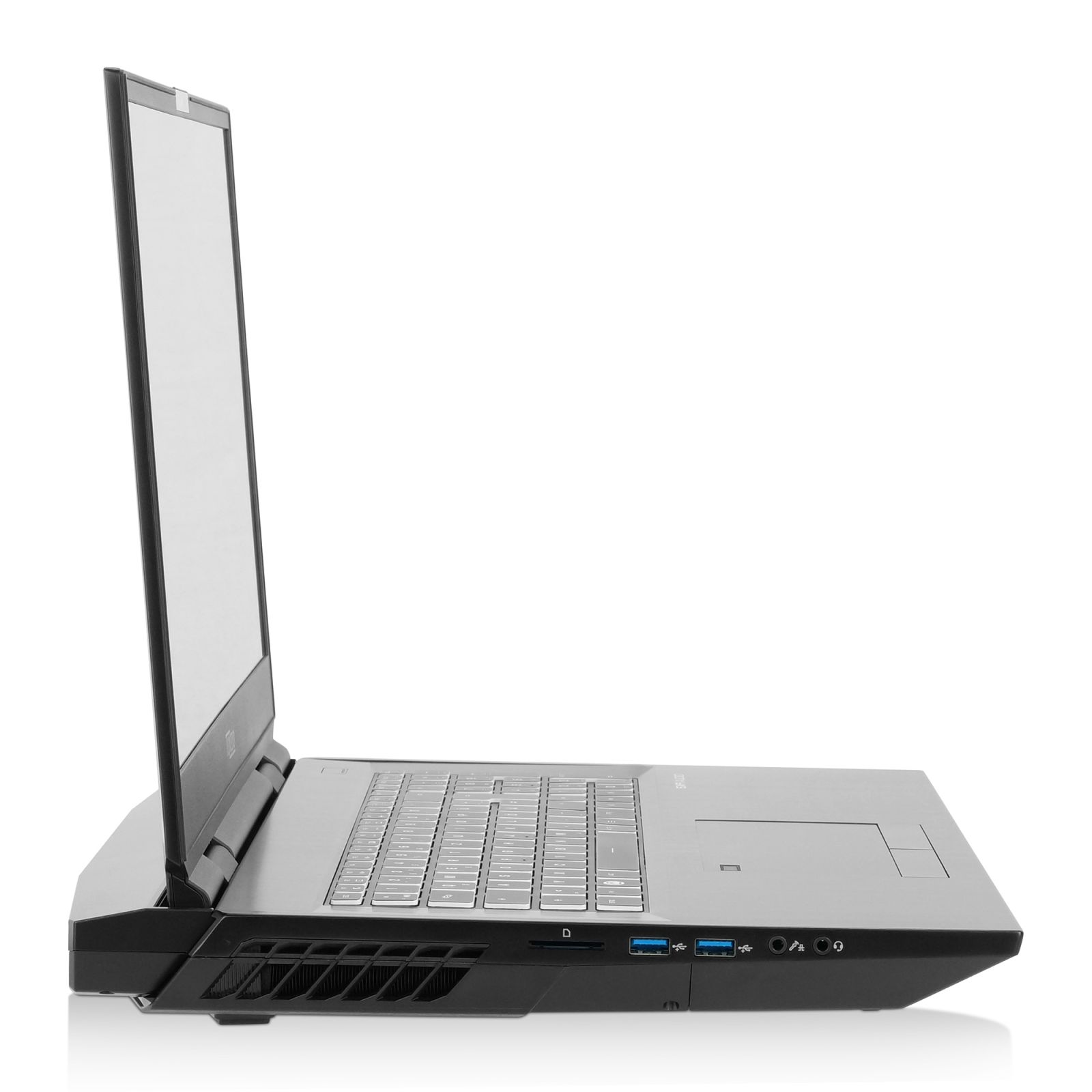

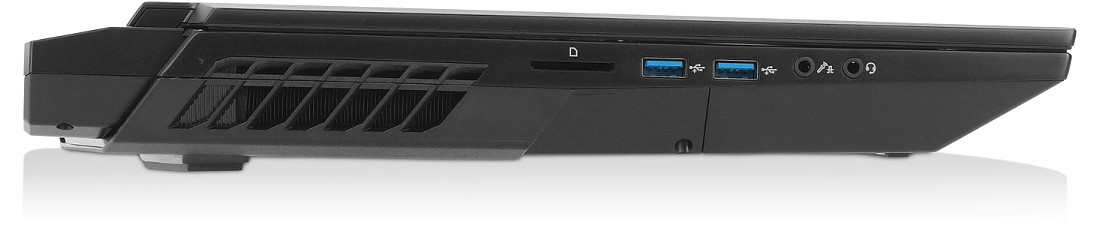

    XUX7 left ports

    From left to right: UHS-III card reader, 2x USB-A 3.2 Gen2, Microphone, headphone

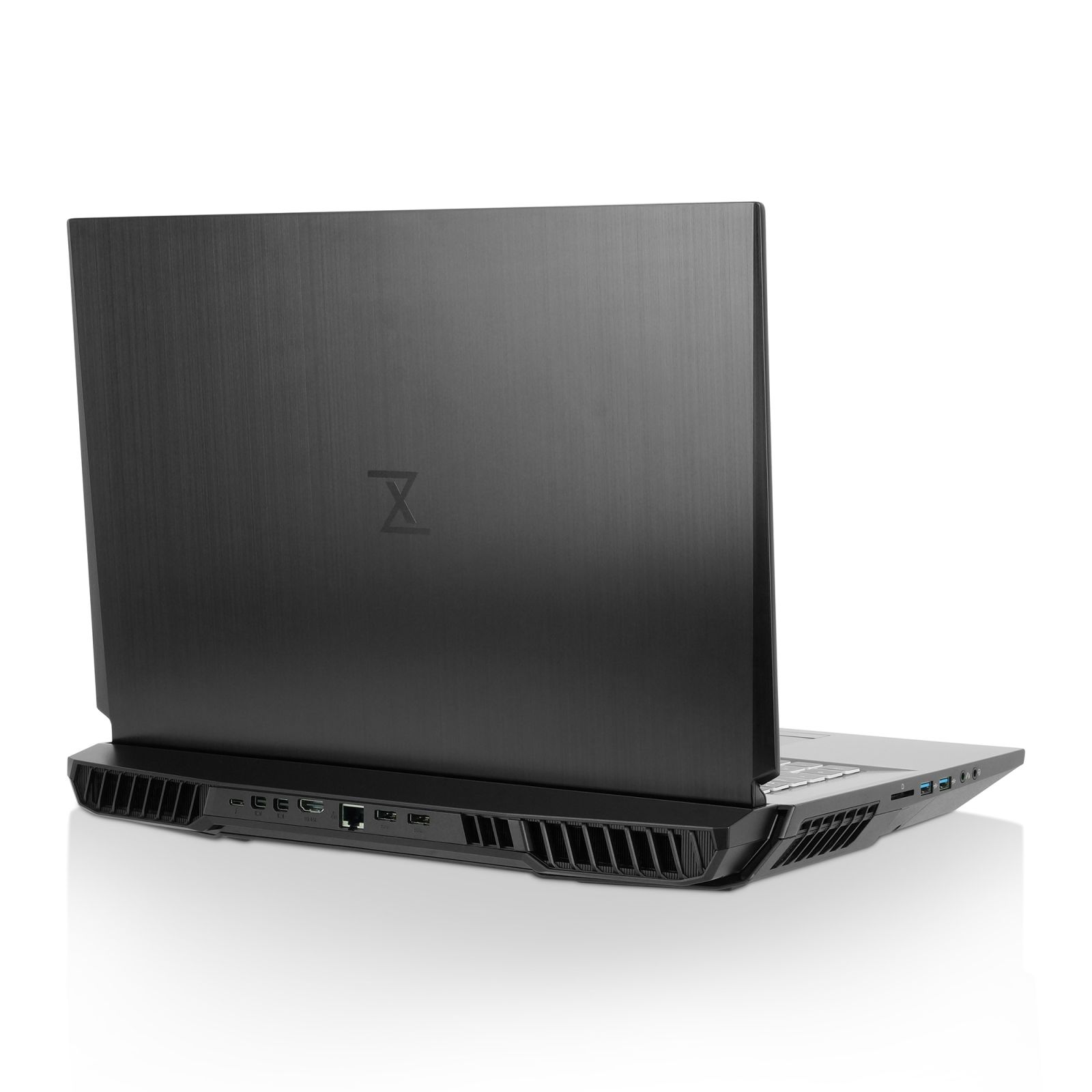

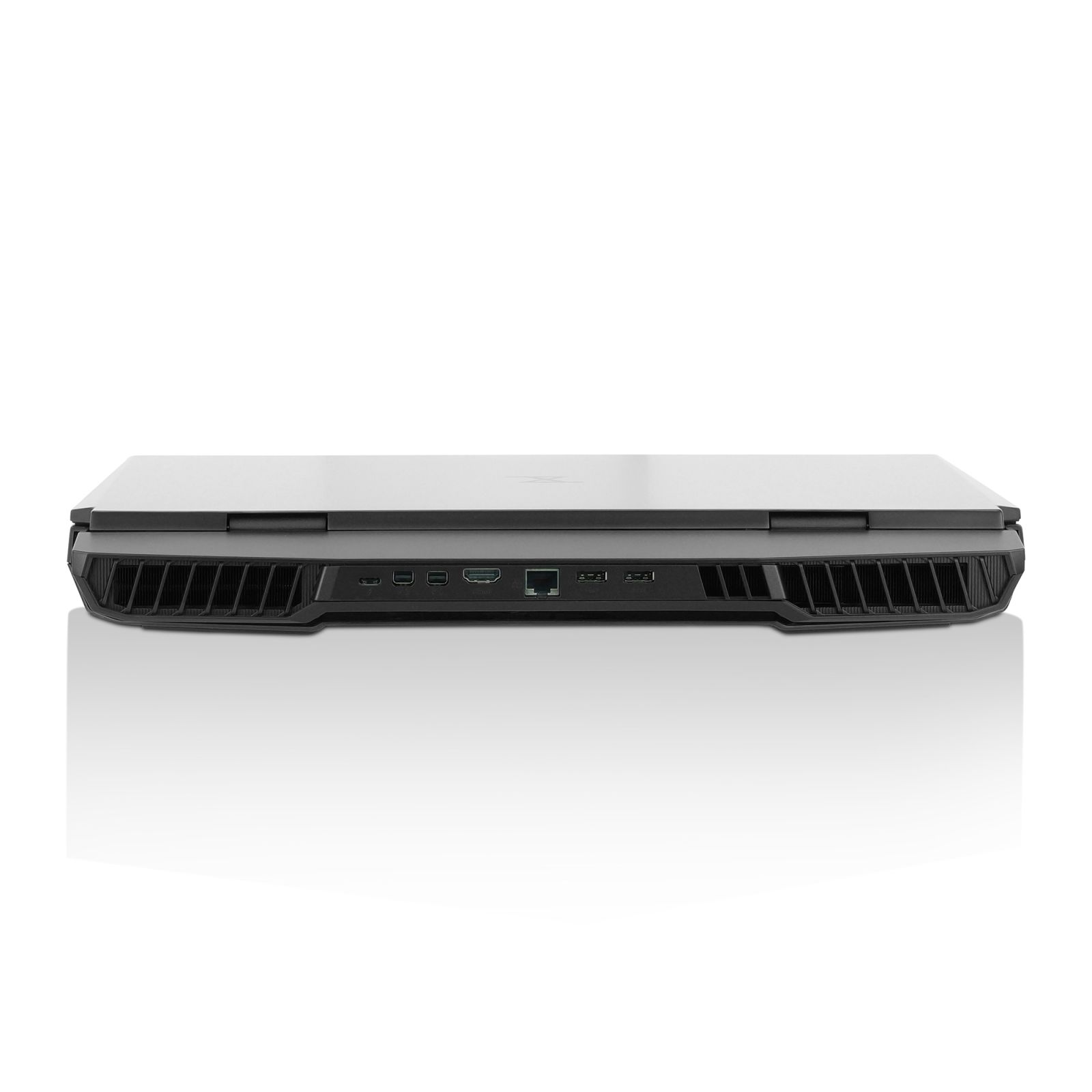

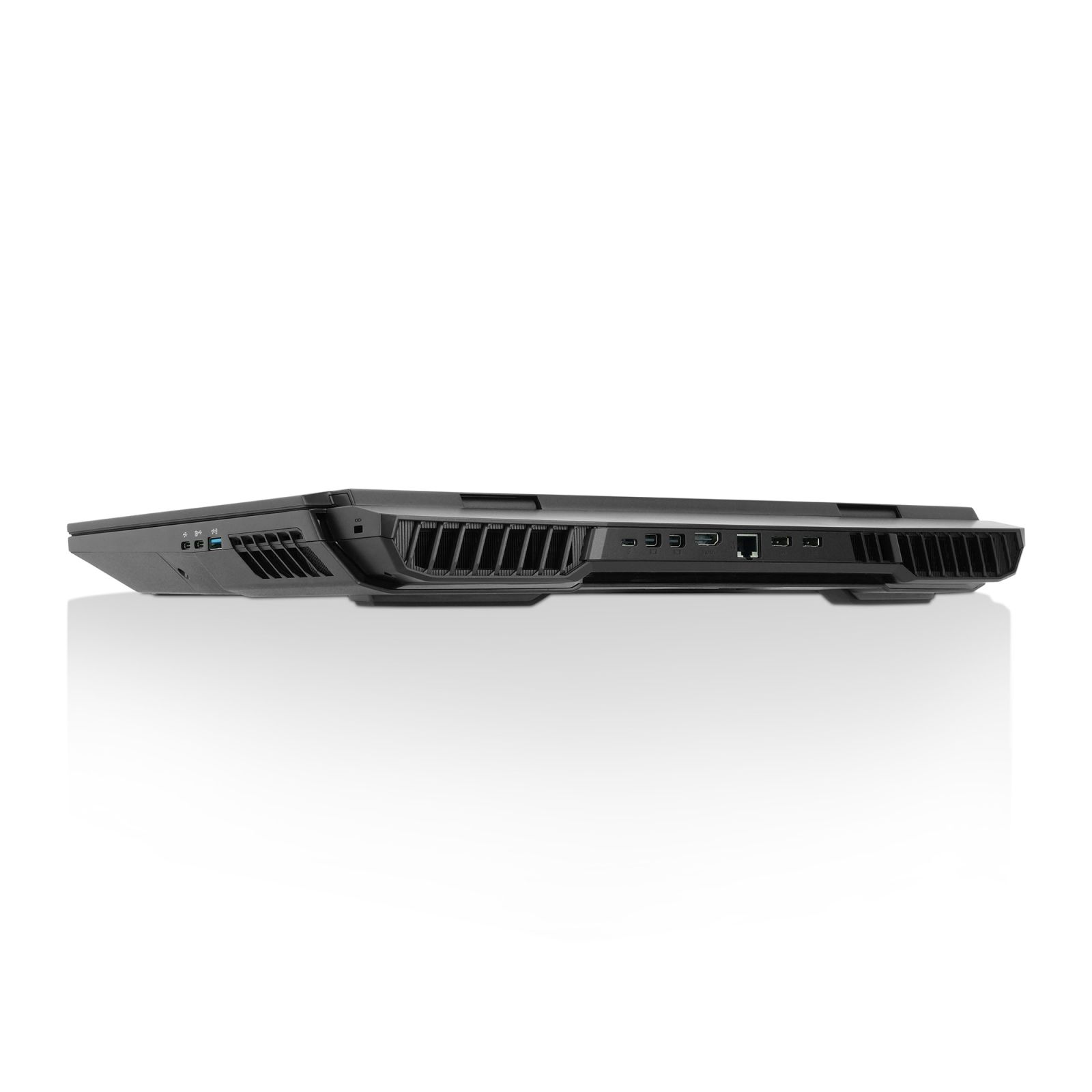

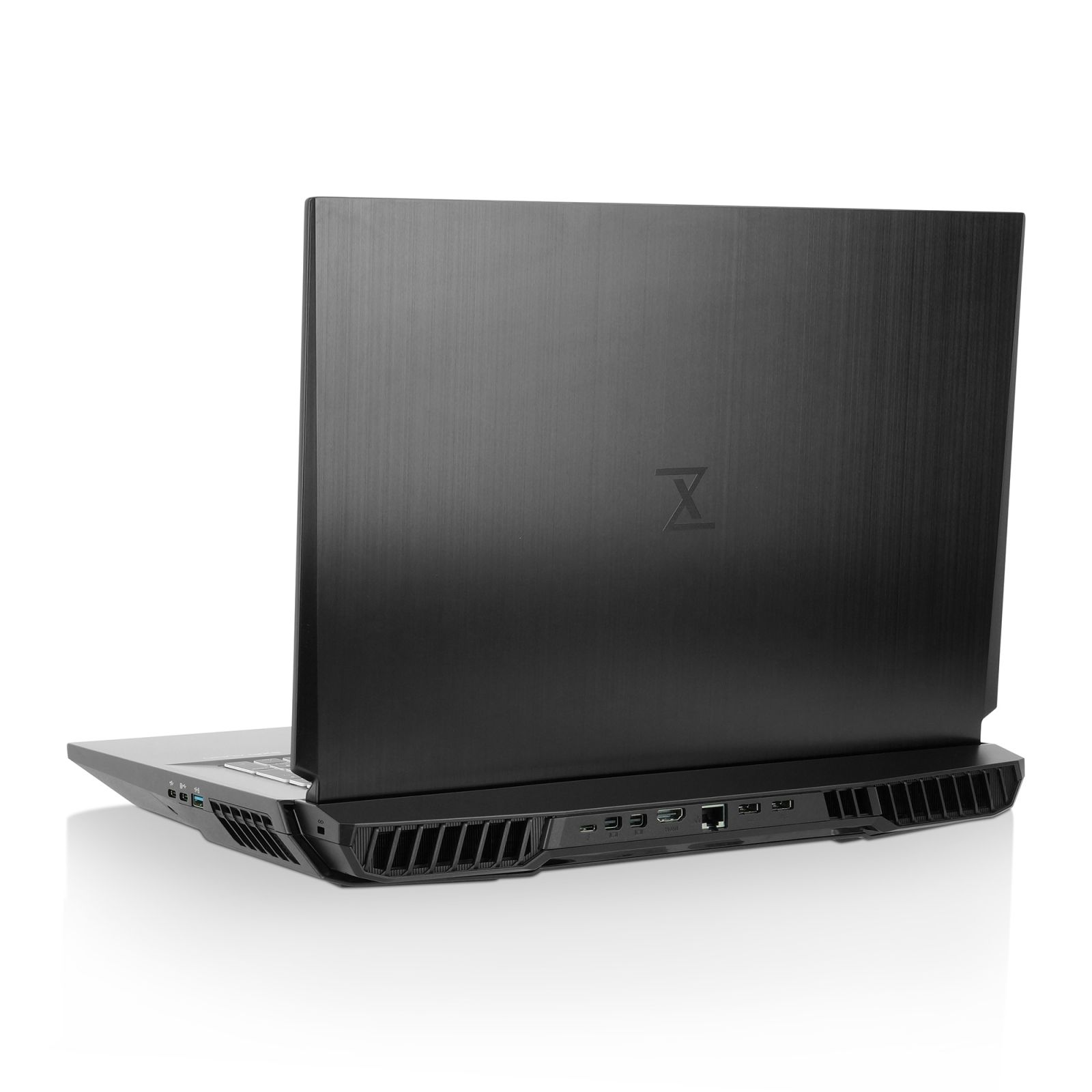

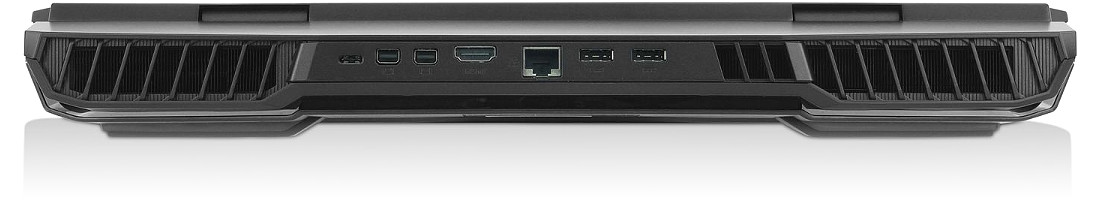

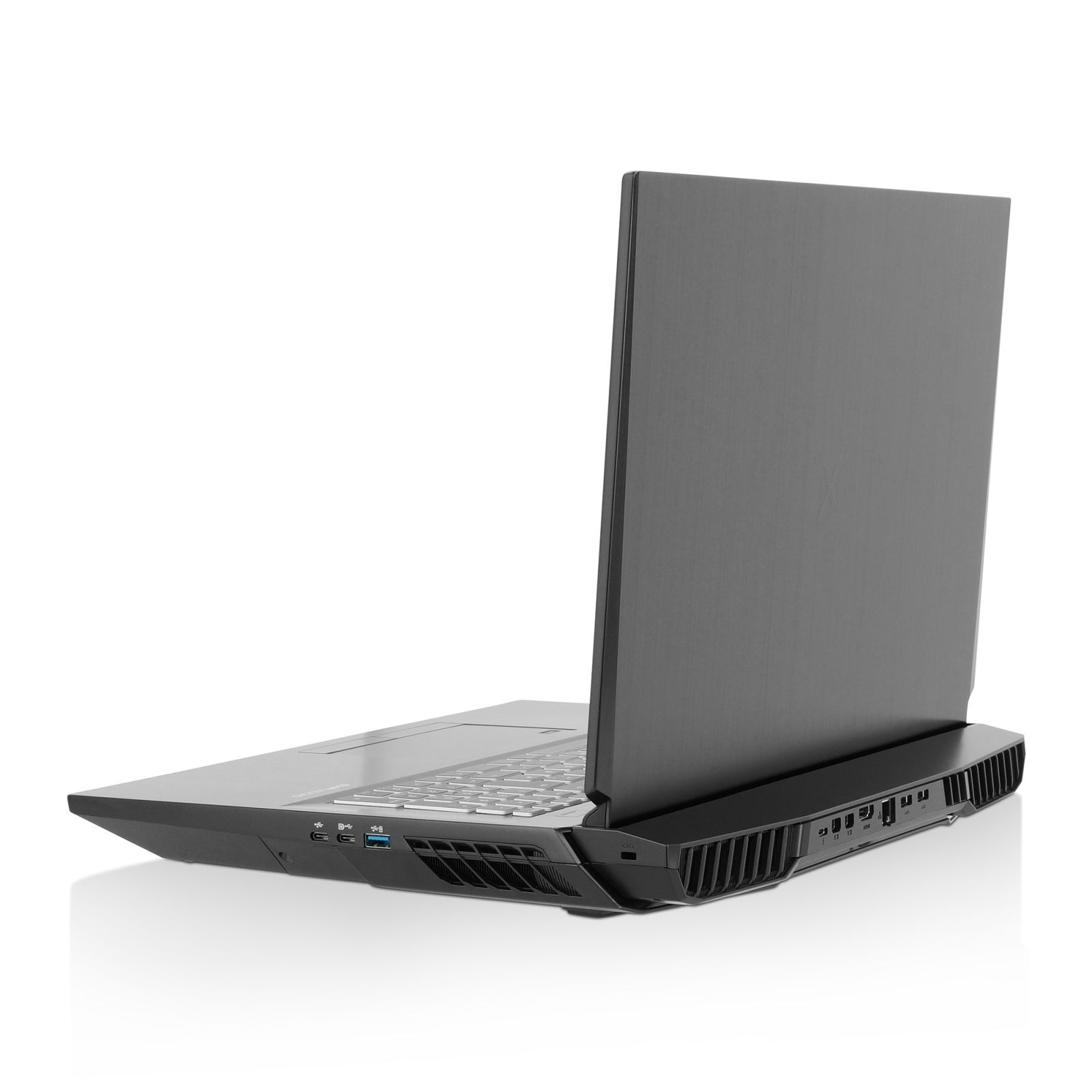

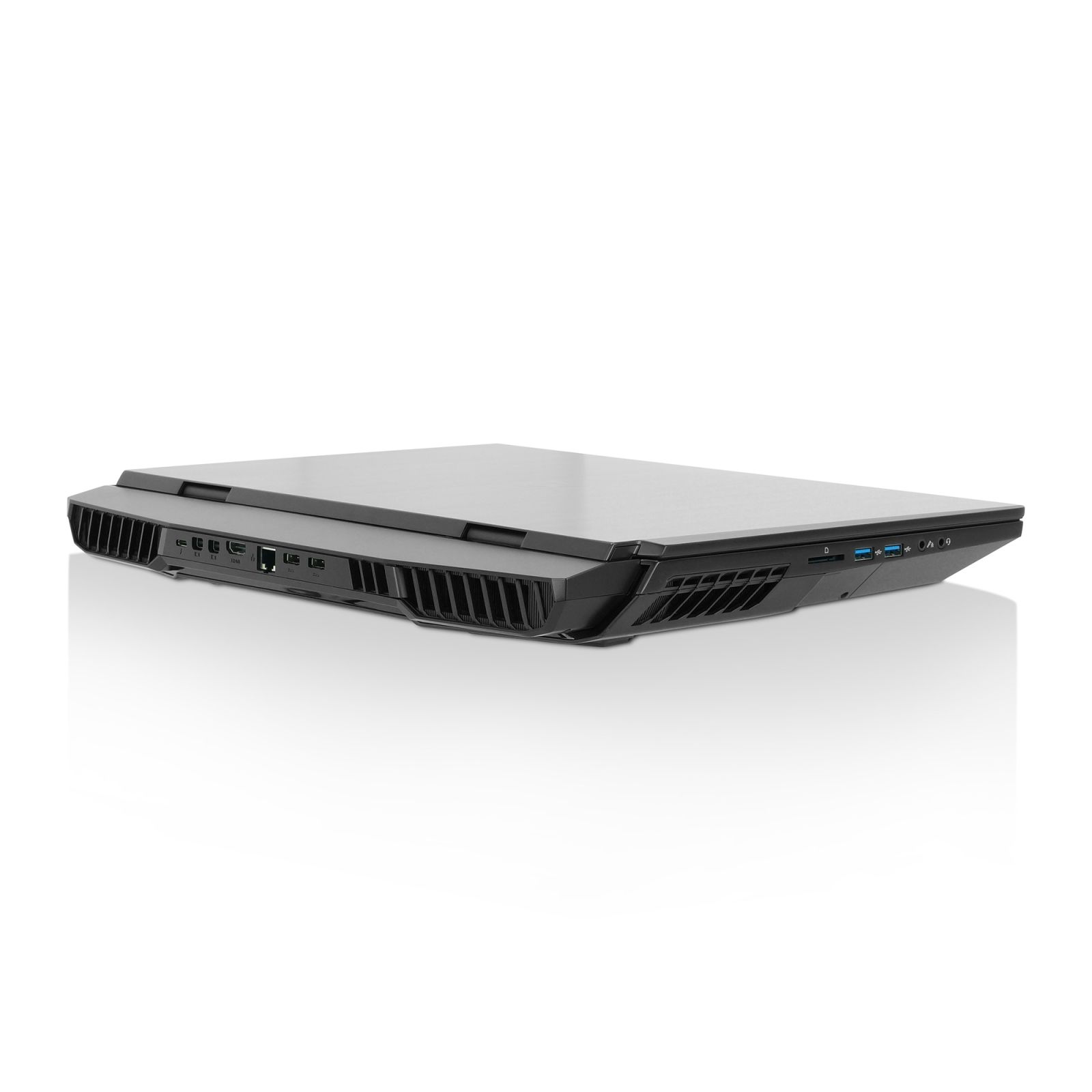

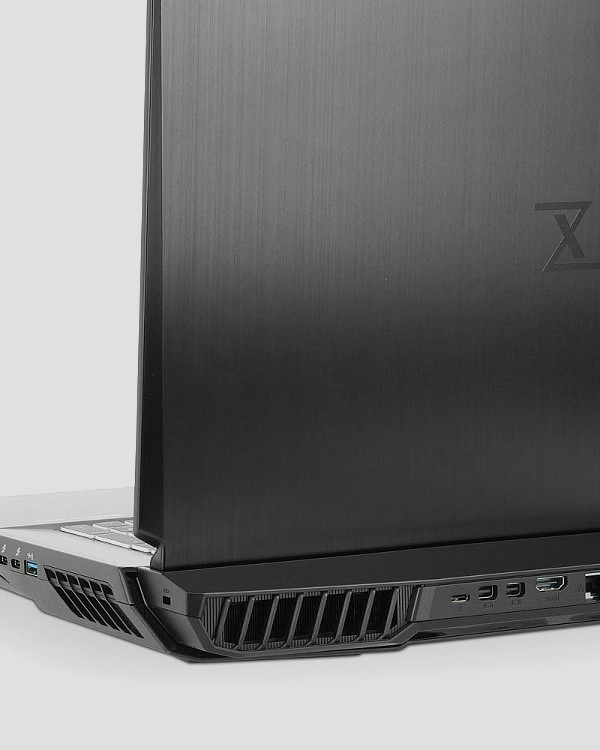

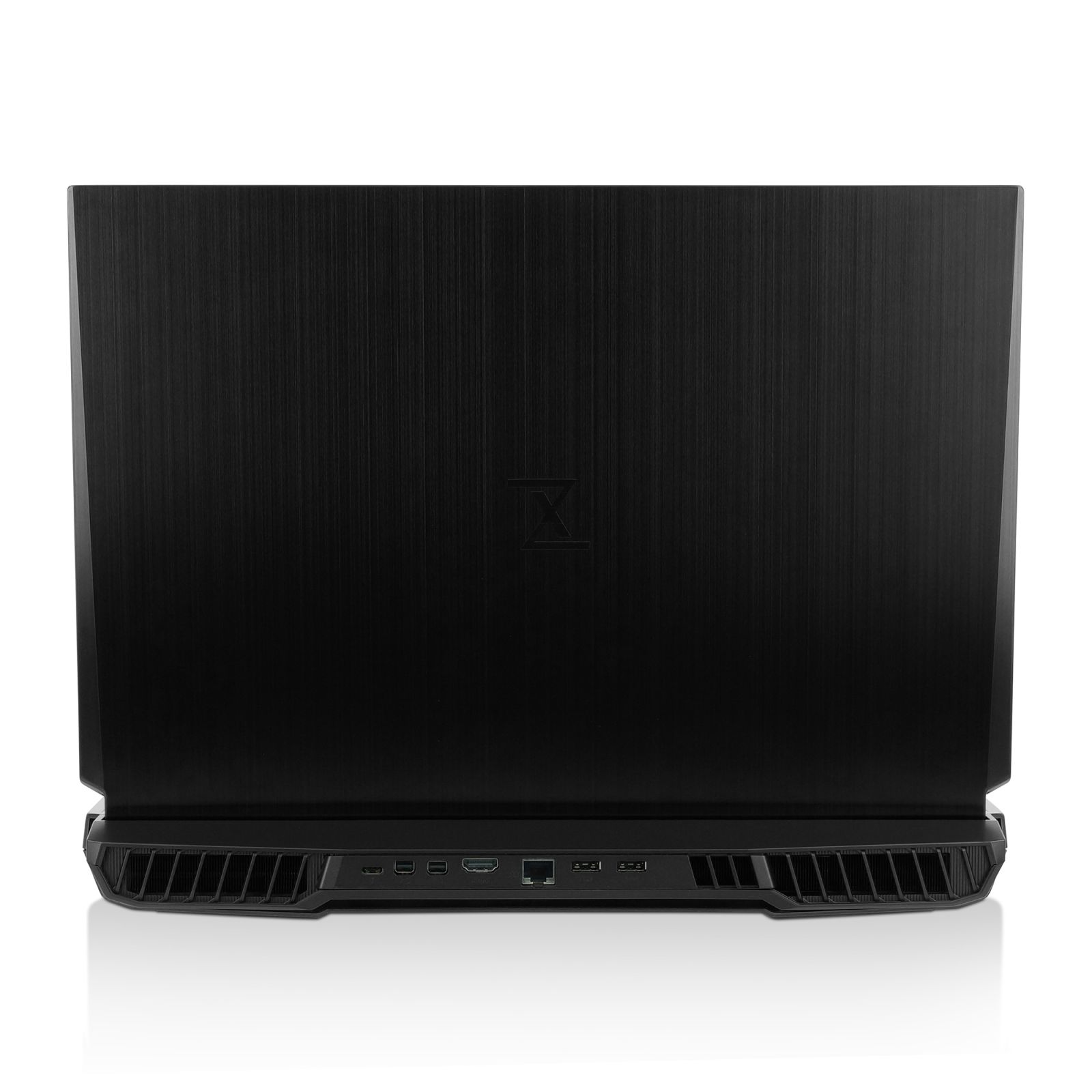

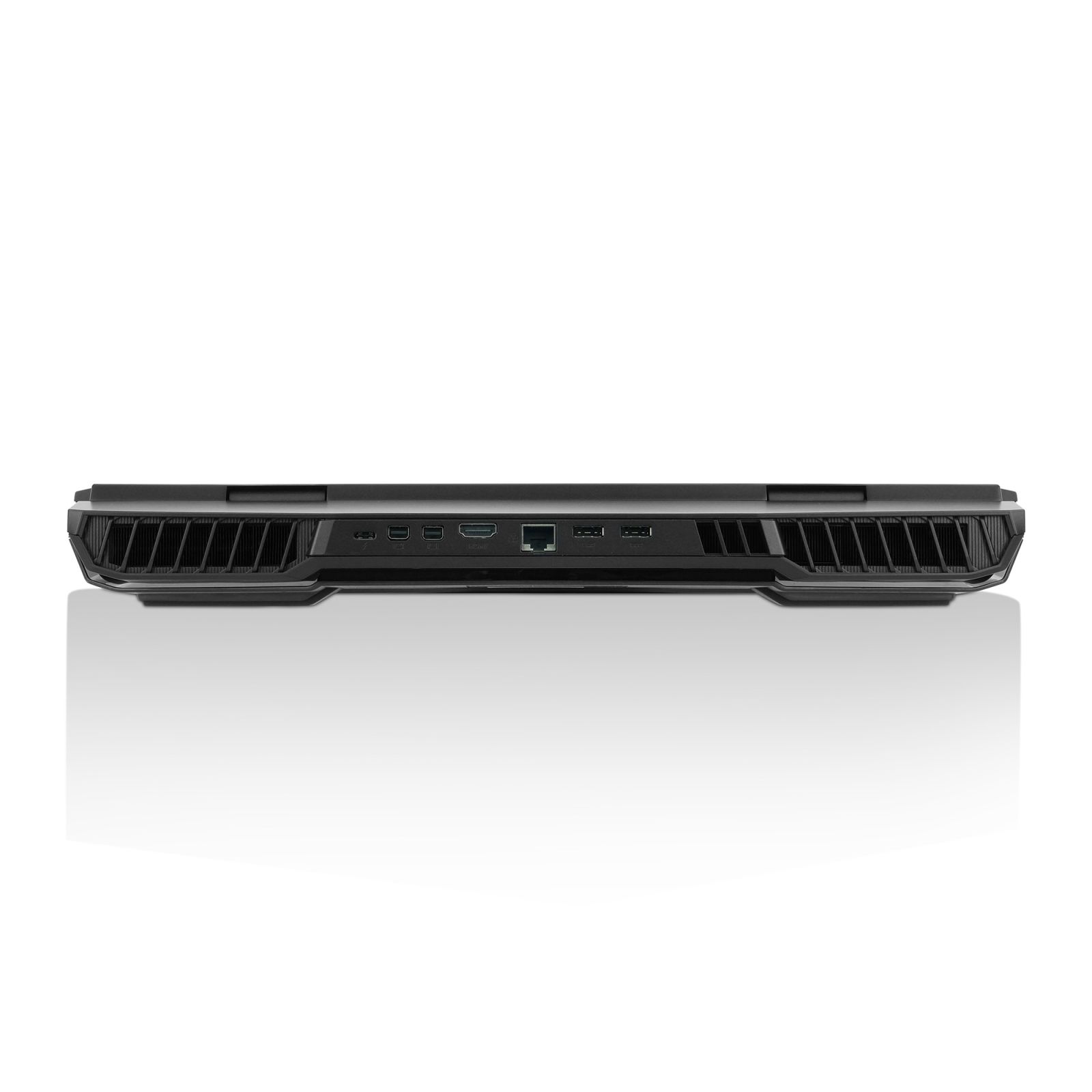

    XUX7 back ports

    From left to right: USB-C 3.2 Gen2, 2x Mini-DisplayPort 1.4a, HDMI 2.0, RJ45-LAN, 2x power connector

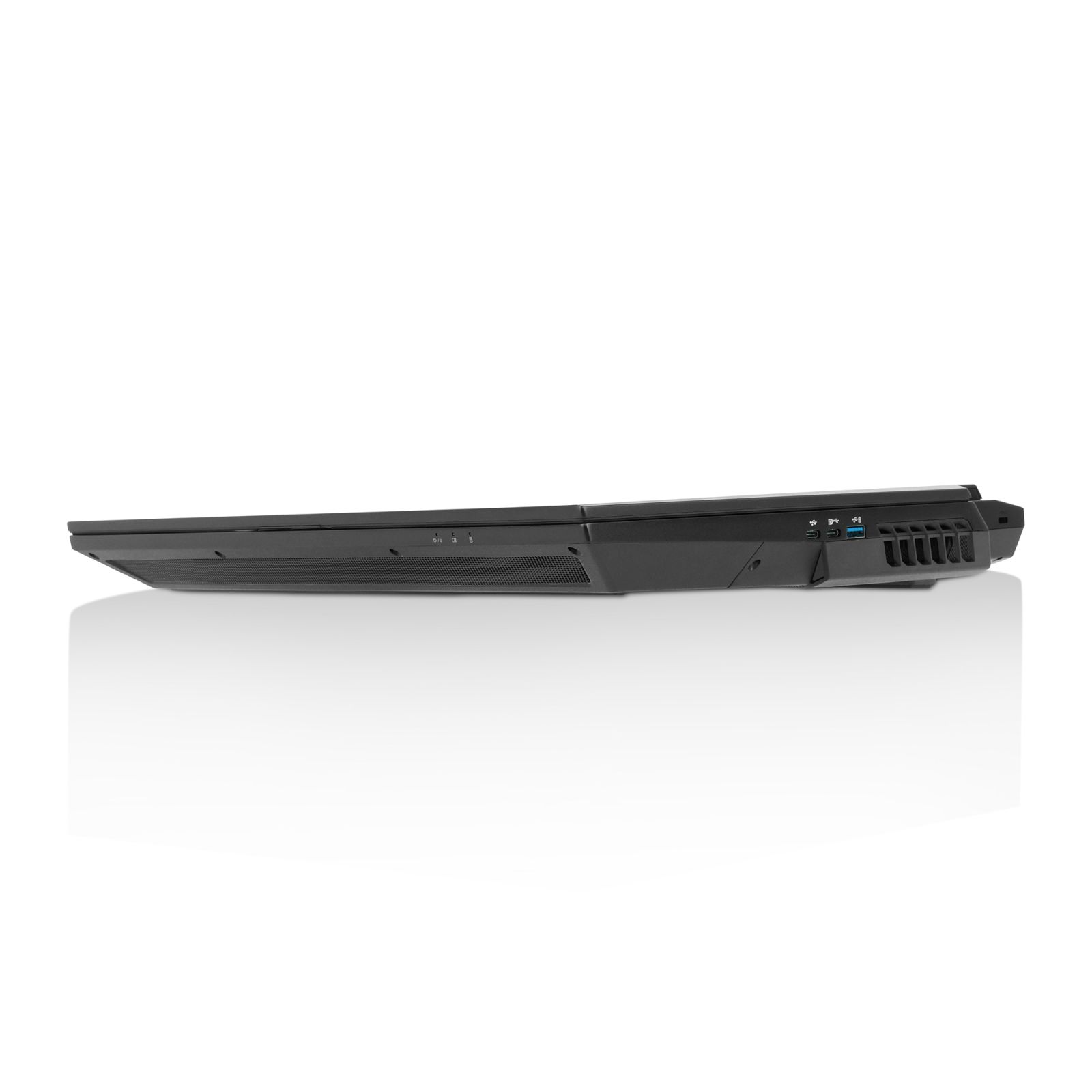

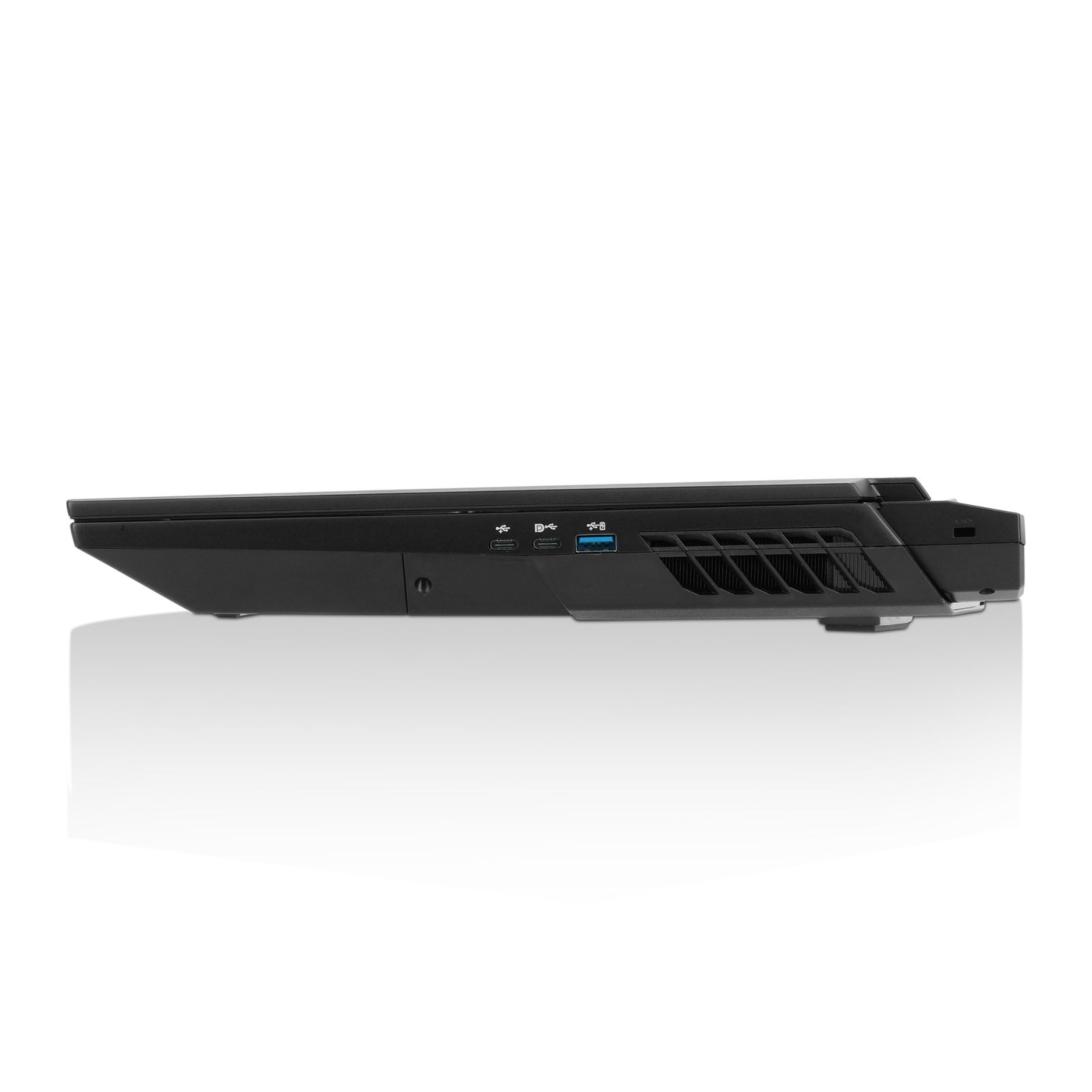

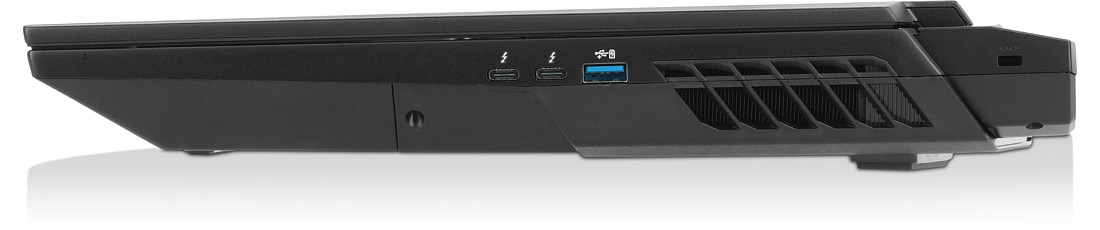

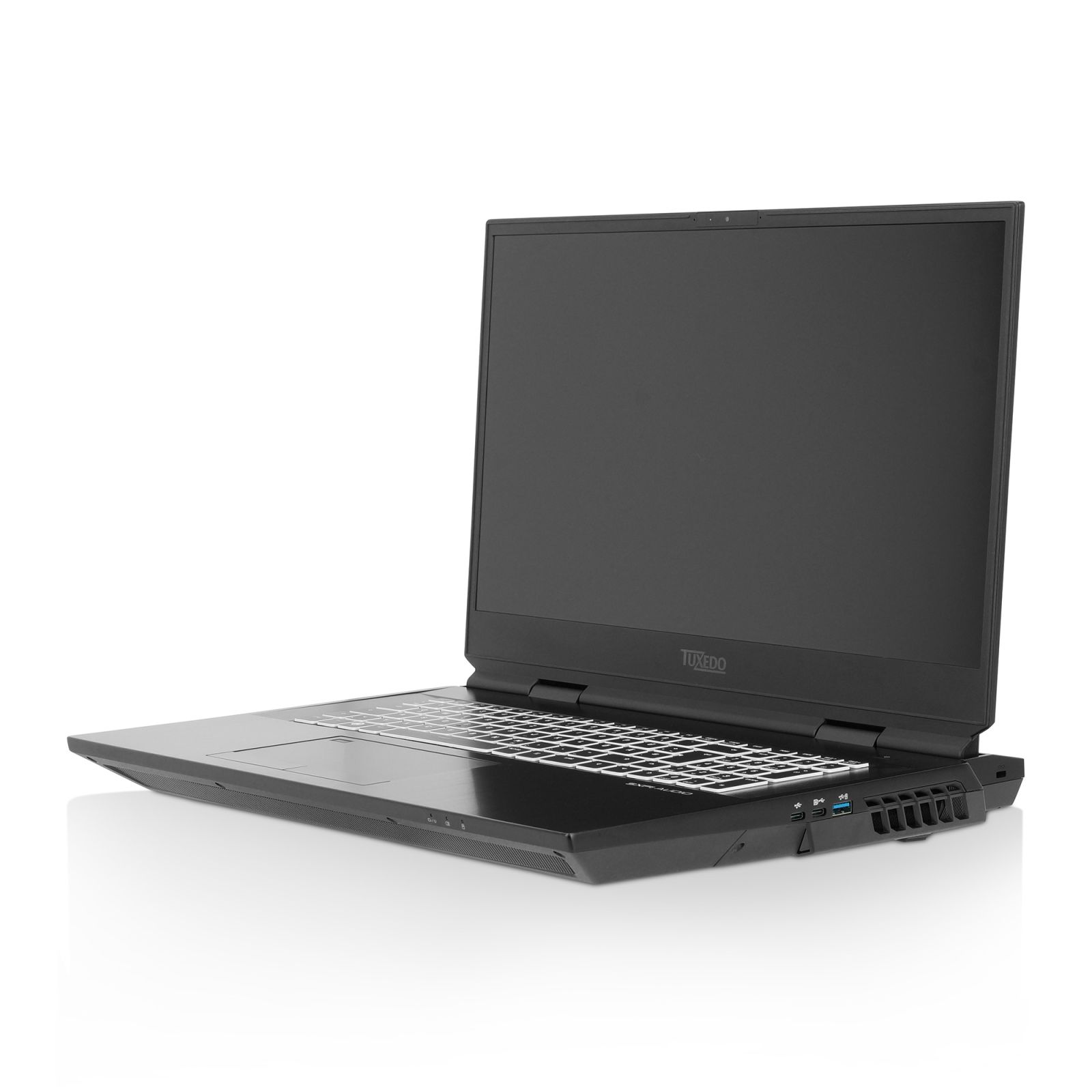

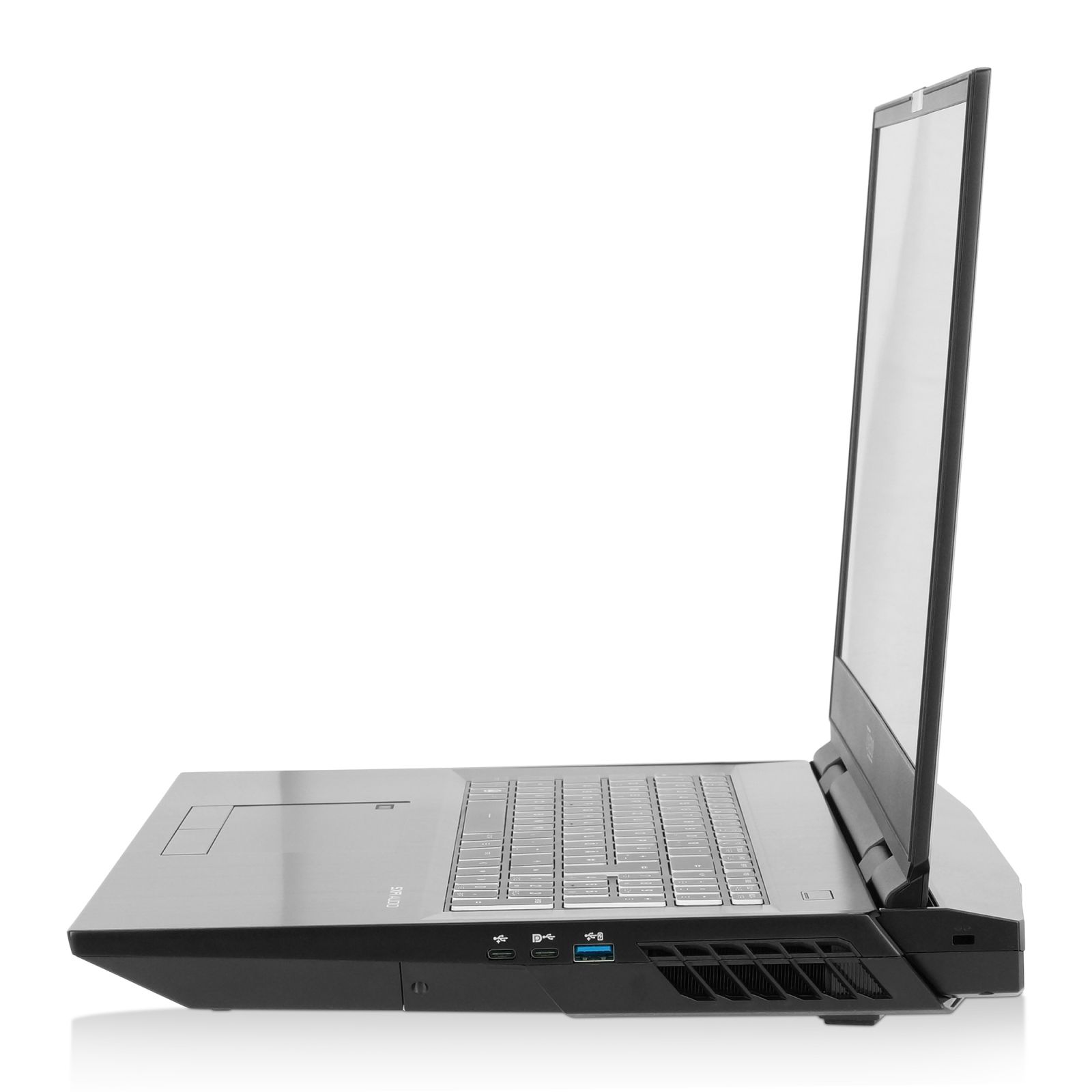

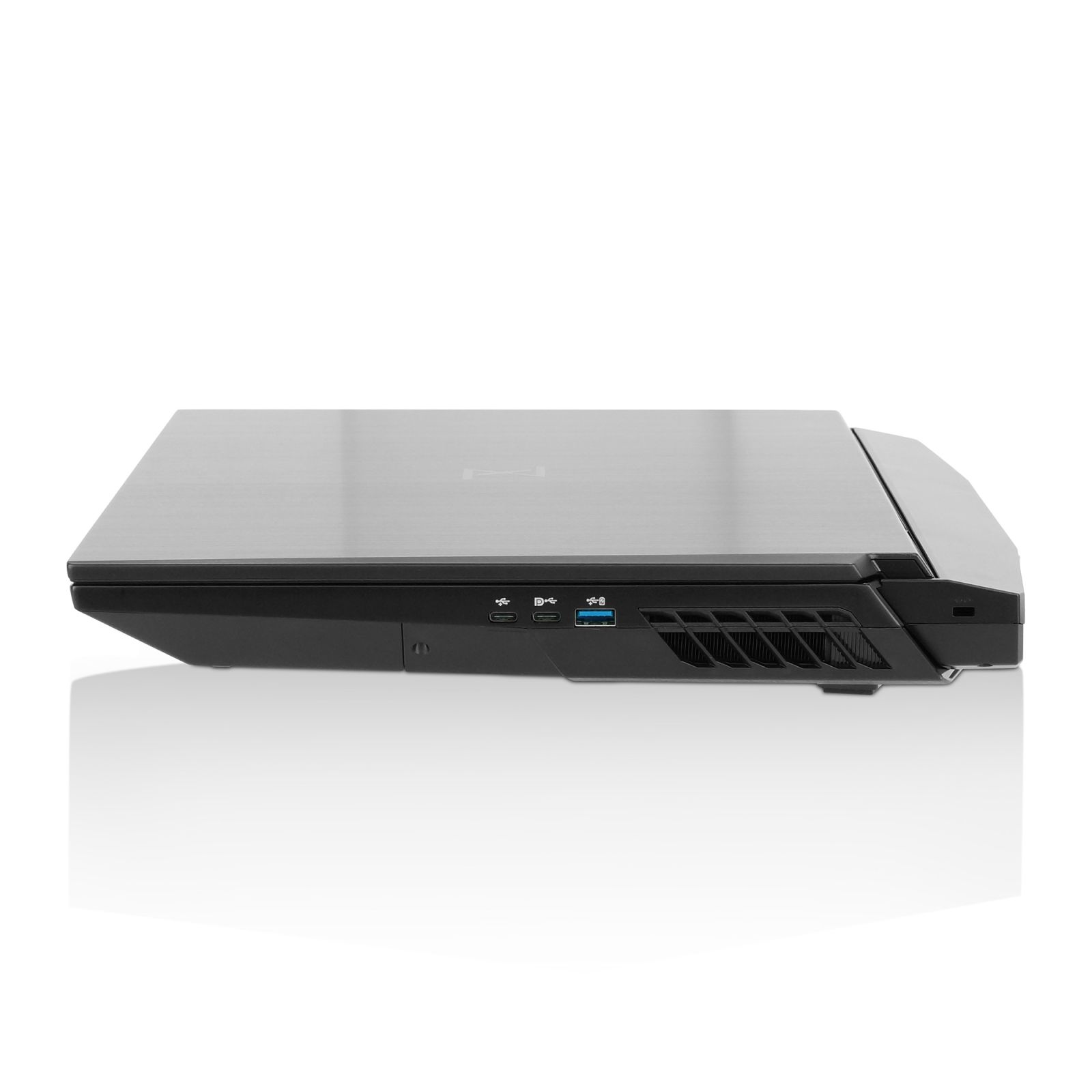

    XUX7 right ports

    From left to right: 2x Thunderbolt 4, USB-A 3.2 Gen2, Kensington Lock




    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    WQHD IPS 165 Hz
    17,3" (43,9 cm), 16:9, matte / non-glare
    Viewing angle: 89°/89°/89°/89°
    Resolution: 2560 x 1440 Pixel
    sRGB color gamut: 95 %
    Brightness: 350 nits
    Contrast: 1000:1
    Panel ID: BOE NE173QHM-NY2



    4K UHD IPS 60 Hz
    17,3" (43,9 cm), 16:9, matte / non-glare
    Viewing angle: 89°/89°/89°/89°
    Resolution: 3840 x 2160 Pixel
    AdobeRGB color gamut: 100 %
    Brightness: 400 nits
    Contrast: 1200:1
    Panel ID: AUO B173ZAN03.0



    The maximum opening angle of the display hinges is about 130°.



    Chassis

    Dimensions (W x D x H):  399 x 319 x 43,5 mm
    Weight: approx. 4.6 kg incl. battery

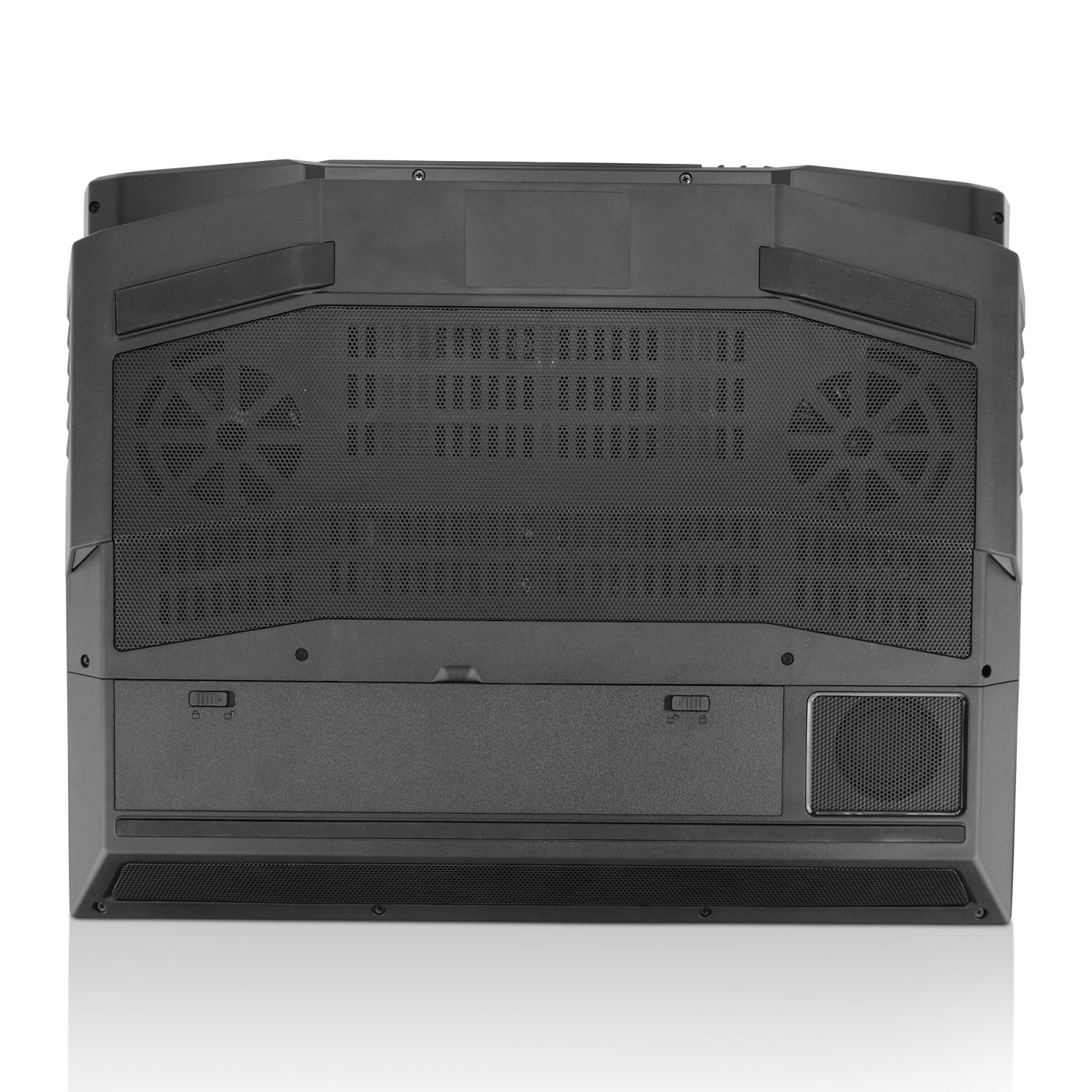

    After opening the base plate, the components & heatsink can be cleaned without loss of warranty.



    Battery & power supply

    97Wh lithium-ion battery

    Power supply:
    2 x 280W power supply units
    Dimensions: 180 x 35 x 85 mm (L x H x W)
    Total weight: approx. 2.22 kg
    Technical details:: AC in 100-240V / 50-60Hz; DC out 20V / 14A per each power supply



    Lifetime of batteries

    The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information



    Battery runtime

    up to 6 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    over 4 hours at medium brightness with Wifi, at office work

    Please note: The relatively short battery life is due to the desktop cpu's high power consumption and the deliberate avoidance of NVIDIA Optimus in order to achieve maximum performance!



    Main processor

    Intel Core i5-11400 (6x 2.6 - 4.4 GHz, 12 Threads, 12 MB Cache, 65 W TDP)
    Intel Core i5-11600 (6x 2.8 - 4.8 GHz, 12 Threads, 12 MB Cache, 65 W TDP)
    Intel Core i5-11600K (6x 3.9 - 4.9 GHz, 12 Threads, 12 MB Cache, 125 W TDP)
    Intel Core i7-10700 (8x 2.9 - 4.8 GHz, 16 Threads, 16 MB Cache, 65W TDP)
    Intel Core i7-10700K (8x 3.8 - 5.1 GHz, 16 Threads, 16 MB Cache, 125W TDP)
    Intel Core i7-11700 (8x 2.5 - 4.9 GHz, 16 Threads, 16 MB Cache, 65W TDP)
    Intel Core i7-11700K (8x 3.6 - 5.0 GHz, 16 Threads, 16 MB Cache, 125W TDP)
    Intel Core i9-10900 (10x 2.8 - 5.2 GHz, 20 Threads, 20 MB Cache, 65W TDP)
    Intel Core i9-10900K (10x 3.7 - 5.3 GHz, 20 Threads, 20 MB Cache, 125W TDP)
    Intel Core i9-11900 (8x 2.5 - 5.2 GHz, 16 Threads, 16 MB Cache, 65W TDP)
    Intel Core i9-11900K (8x 3.5 - 5.3 GHz, 16 Threads, 16 MB Cache, 125W TDP)

    Chipset:
    Mobile Intel Z370 Express
    Mit VT-d support!



    Graphics card

    NVIDIA® GeForce® RTX 3060 | 6 GB GDDR6 VRAM | TGP: 115 W (+15 W Dynamic Boost)
    NVIDIA® GeForce® RTX 3070 | 8 GB GDDR6 VRAM | TGP: 125 W (+15 W Dynamic Boost)
    NVIDIA® GeForce® RTX 3080 | 16 GB GDDR6 VRAM | TGP: 150 W (+15 W Dynamic Boost)

    Features: DirectX® 12, OpenGL 4.4, NVIDIA® CUDA, NVIDIA PhysX™, OpenCL

    The following resolutions are possible via all connections individually or in parallel:
    Notebook-Display: 1920 x 1080 @ 60Hz or 3840 x 2160 @ 60Hz (Depending on display selection in the configurator)
    Thunderbolt 4: 2x 4096 x 2160 30bpp @ 60 Hz
    DisplayPort 1.4a: 2x 3840 x 2160 @ 60Hz or 2560 x 1600 @ 120Hz
    HDMI 2.0: 3840 x 2160 @ 60Hz or 2560 x 1600 @ 120Hz

    In addition to the internal notebook display, 3 external screens can be driven simultaneously.



    Memory

    Type: DDR4 SO-DIMM
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Dual channel mode (with at least 2 modules)



    Mass storage (SSD / HDD)

    Fast M.2 SSDs
    Manufacturer and speed see configurator
    Standard and maximum see configurator


    1x M.2 2280 SSD via PCI Express 4.0 x4 (Caution! Only usable with Core 11th Gen CPU!)
    1x M.2 2280 SSD via PCI Express 3.0 x4
    2x M.2 2280 SSD via PCI Express 3.0 x4 oder SATA III



    Communication / Network

    Wired/LAN: Killer 10/100/1000/2500Mb Base-TX Ethernet LAN

    Wireless/WIFI (optional):
    Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX 200
    Version: Dual Mode Bluetooth 5.1



    Security

    - Kensington-Lock mounting
    - Intel Management Engine (Intel ME) can be disabled directly via the BIOS
    - Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
    - WLAN & Bluetooth can be deactivated directly via the BIOS


    - TPM 2.0 Chip (by BIOS de-/activatable)



    Webcam / Laptop camera


    1 Megapixel (1 MP) camera including microphone



    Sound / Audio

    High Definition Audio
    Built in two 3W speakers
    Built in one 5W subwoofer speaker
    SOUND BLASTER® Atlas
    Integrated array microphone
    S/PDIF digital output (optical)
    Super X-Fi Headphone Holography



    Ports

    2x Thunderbolt 4 / USB-C 4.0 Gen3x2 (DisplayPort 1.4a: yes | G-SYNC compatible | Power Delivery: no)
    1x USB-C 3.2 Gen2 (DisplayPort: no | Power Delivery: no)
    3x USB-A 3.2 Gen2 (1x powered)
    2x Mini DisplayPort 1.4a (G-SYNC compatible)
    1x HDMI 2.1 (with HDCP 2.3)
    1x Headphone-Out (smartphone-headset compatible)
    1x 2-in-1-Audio (Mic-In + S/PDIF optical)
    1x RJ45 Port 2.5 Gbit (LAN)
    1x UHS-III card reader (SD/SDHC/SDXC)



    Card reader

    UHS-III card reader (SD/SDHC/SDXC)



    Cooling System & Fan

    Temperature controlled fan
    At low system workload there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!



    Model-ID: XUX713





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO_OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and everyone who is interested, we have set up a database with downloads, instructions, tips & tricks and offer a software app called "Tomte", which makes our customizations automatically under Ubuntu and compatible derivates: Help & Support Section | tomte.sh



    Encrypted Installation

    On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively you are free to download alle Windows-Drivers from here.



    BIOS

    With all our notebooks you have the possibility to protect your privacy already on BIOS level. For this purpose the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth

    In addition, our Premium BIOS allows chipset-specific settings and definitions for components via various profiles in order to operate the device optimally depending on its use. The profiles can be found in the BIOS menu under:

    Advanced > Advanced Chipset Control > Performance Profile Select.

    Further information can be found here in our manual.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



    For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
