    Business Desktop Replacement

    TUXEDO InfinityBook S 17

    Intel Core i7-11370H
    Intel Iris Xe Graphics

    17'' display. 15'' format.
    93 % Screen-to-body ratio

    Lift-up hinge
    Enhanced ergonomics & cooling

    73 Wh battery
    up to 16 h runtime



    Slim and compact office laptop in
    large format

    The TUXEDO InfinityBook S 17 literally raises the bar and extends our popular InfinityBook series with a 17.3 inch business laptop.

    While desktop replacement notebooks are usually large and equipped with high-end hardware like the TUXEDO Polaris 17 or Stellaris 17 the InfinityBook S 17 takes a different approach as a comparatively compact and thin desktop replacement laptop for office or everyday use.

    Thanks to its modern, extremely thin screen bezels all around, the InfinityBook S 17 combines a large 17.3-inch Full HD display with chassis dimensions formerly seen only on 15-inch notebooks!

    But size alone is not everything. That's why the new IBS 17 is also packed with modern technology: The ergonomic and cooling-optimized Lift-Up hinge, power efficient Tiger Lake CPUs with integrated Iris Xe GraphicsThunderbolt 4 and a big 73 Wh battery are highlights of the large yet compact 17 inch Linux business notebook.



    Smallest 17 inch business laptop

    Admittedly: The words "small" and "17 inch" usually do not go together quite well.

    Nevertheless, the InfinityBook S 17 not only offers a screen-to-body ratio of 93 % due to its extremely slim bezel design all around, but it also integrates a large 17.3 inch FullHD IPS display on chassis dimensions of 395 x 250 x 19.8 mm, which were typical for 15.6-inch notebooks just a few years ago.

    This makes the office desktop replacement one of the smallest 17.3-inch notebooks on the market and combines a large screen with a robust partial-aluminum case (display lid and bottom panel) and a proportionally low weight of only 2.25 kg.



    Tiger Lake Core i7 with Iris Xe Graphics

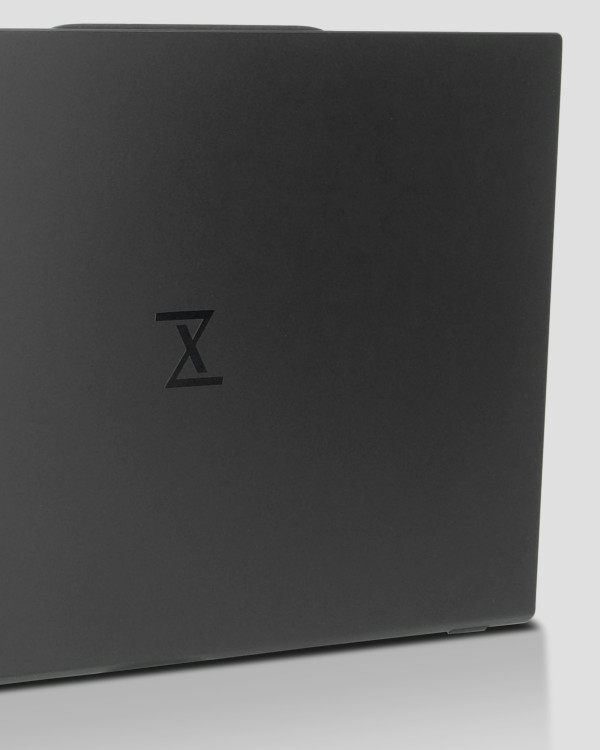

    Under the dark aluminum hood the Linux office notebook comes with Intels latest power efficient 11th Gen CPUs  (codename Tiger Lake), namely the Intel Core i7-11370H and the Core i5-11300H.

     At the top of this performance chain is the Intel Core i7-11370H, which can bare its teeth with a maximum TDP of 35 watts and tear apart even demanding everyday tasks in its claws.

    When its 4 cores, which can process up to 8 threads simultaneously, are not utilized, the CPU clocks down efficiently to save power and to help extending the battery life.

    The CPU's integrated Iris Xe Graphics with 96 execution units is responsible for screen output and graphics rendering and provides more than enough performance for all everyday tasks and even demanding activities.

    The CPU and iGPU are provided with 2x upgradable SO-DIMM slots for up to 64 GB 3200 MHz DDR4 memory in the performance-enhanced Dual-Channel configuration.

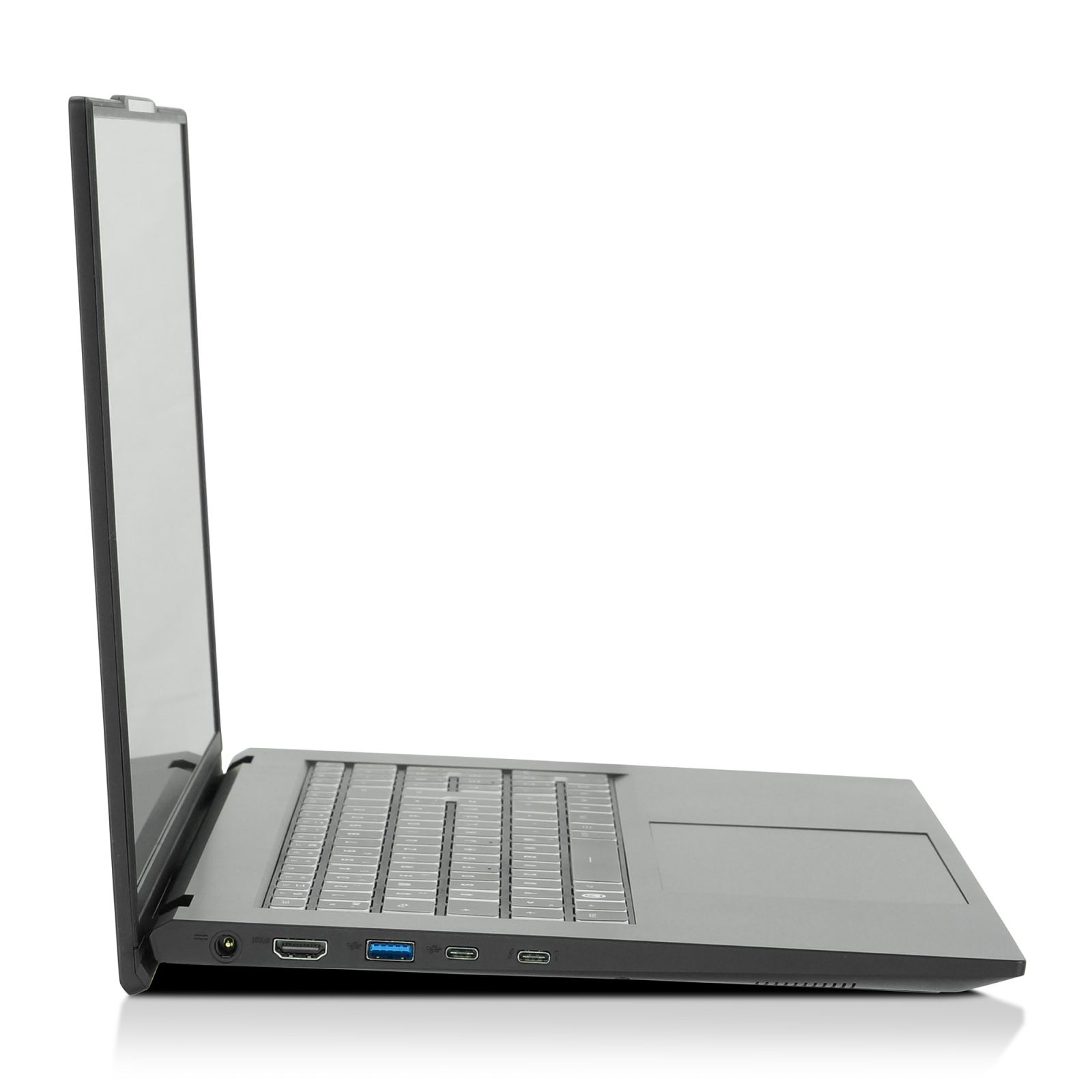

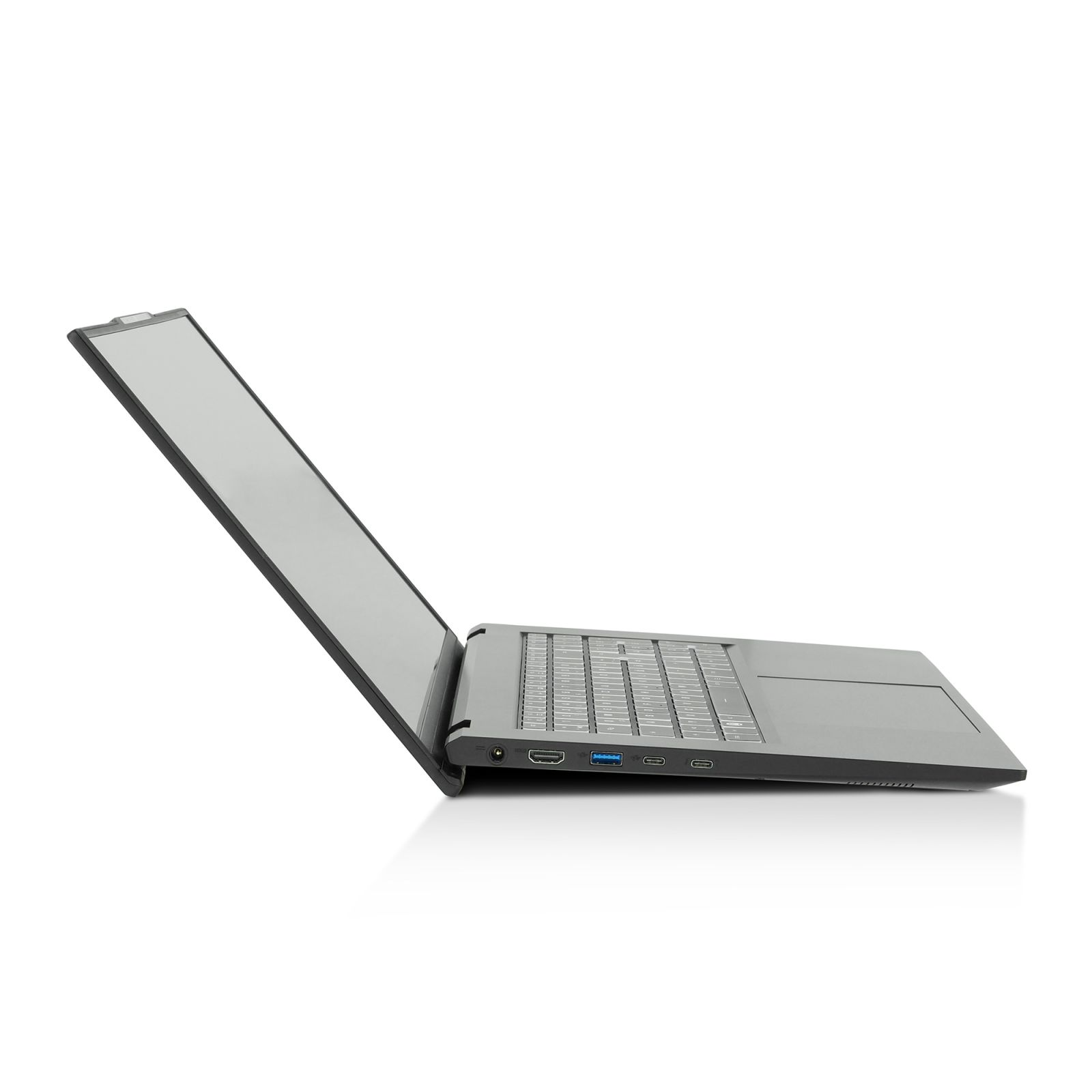

    Lift-up hinge for
    better ergonomics and cooling

    For a more ergonomic typing experience the InfinityBook S 17 comes with its special Lift-Up hinge, which uses the rear edge of the display lid as a stand and thus raise the notebook at an angle of around 2.3 °.

    In addition to the improved ergonomics due to the slightly angled keyboard, more fresh air can be sucked in by the fan this way, which helps for a cooler and quieter operation of the device.



    Up to 7 hours in office use

    The large, internally screwed 73 Wh battery allows for around 6-7 hours in practical office tasks with medium display brightness (~ 150 nits) and browsing the web. At idle runtimes of up to 16 hours are achievable with the big Linux business laptop.

    When the battery charge finally comes to an end, the small 65 watts power supply impresses with its low weight of roughly 300 grams (incl. power cord) and the very handy dimensions of only 88 x 50 x 28 mm. Alternatively the InfinityBook S 17 can be charged via Thunderbolt 4 using a USB-C power supply rated at 20V and min. 3.25A.

    If the device is mainly used as business desktop replacement connected to a power outlet, the battery charge level can be configured individually in the BIOS via the practical FlexiCharger function for increasing the battery's life span.



    Thunderbolt 4, Power Delivery
    and 2x USB Typ C

    Important for office work is a good port selection for data exchange or for connecting external monitors. The TUXEDO InfinityBook S 17 comes with several connectivity options:

    The Thunderbolt 4 port offers data speeds of max. 40 Gbit/s and integrates DisplayPort for connecting up to two external 4K monitors as well as and Power Delivery DC-In for charging the notebook via a practical USB-C power adapter (20V, min. 3.25A).

    In addition to HDMI 1.4b for connecting a third external screen, there are 2x USB-A and 2x USB-C ports in total, as well as a microSD card reader and the obligatory RJ 45 LAN port. The connectivity setup is completed by a combined headphone jack and microphone input as well as the Kensington Lock.

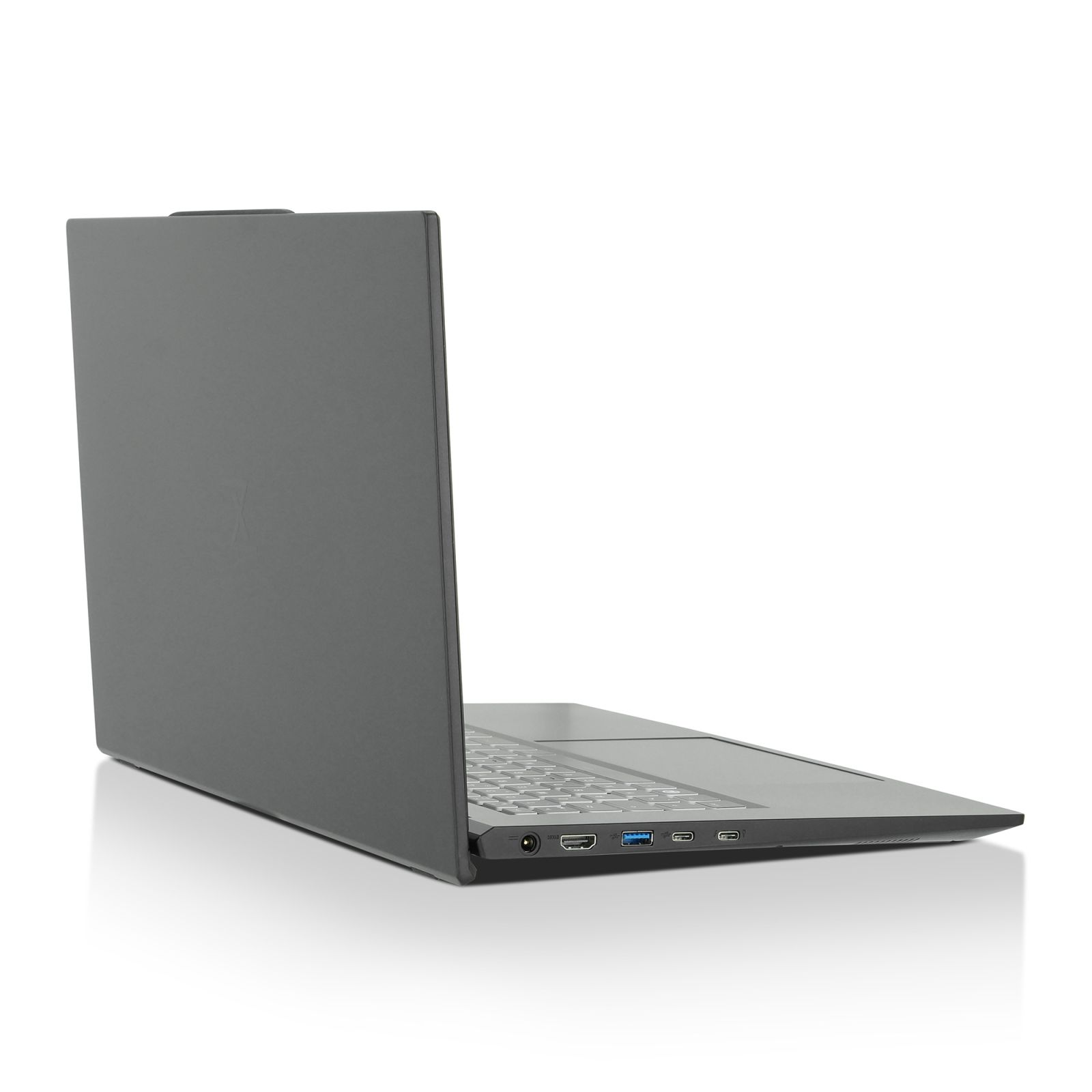

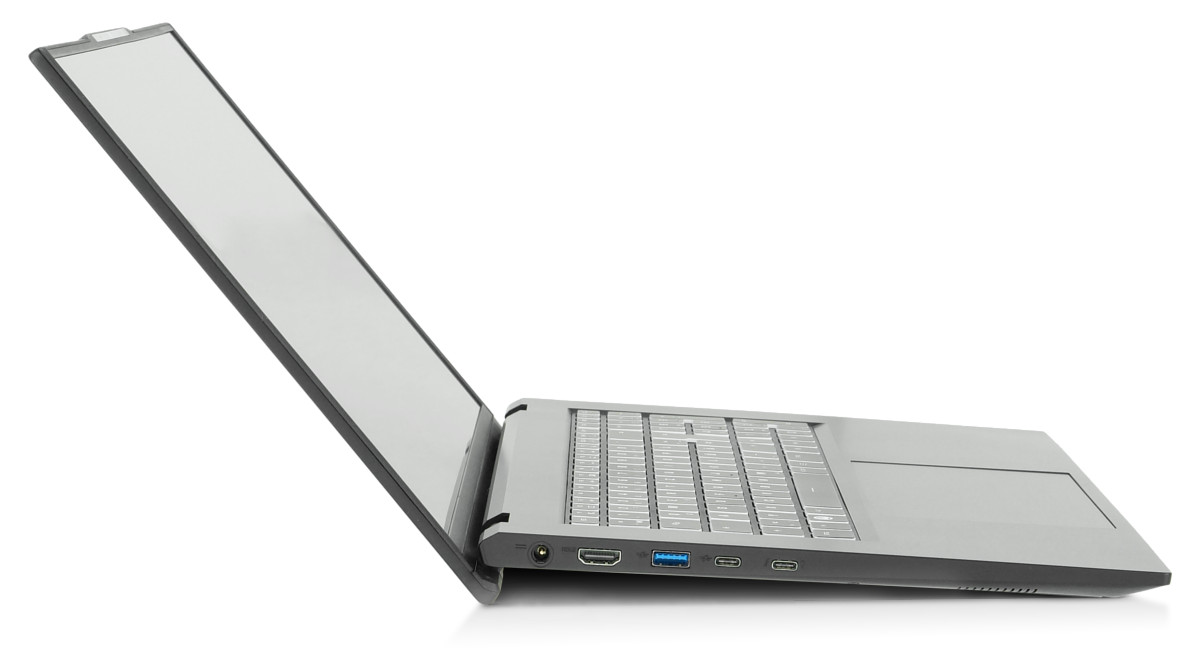

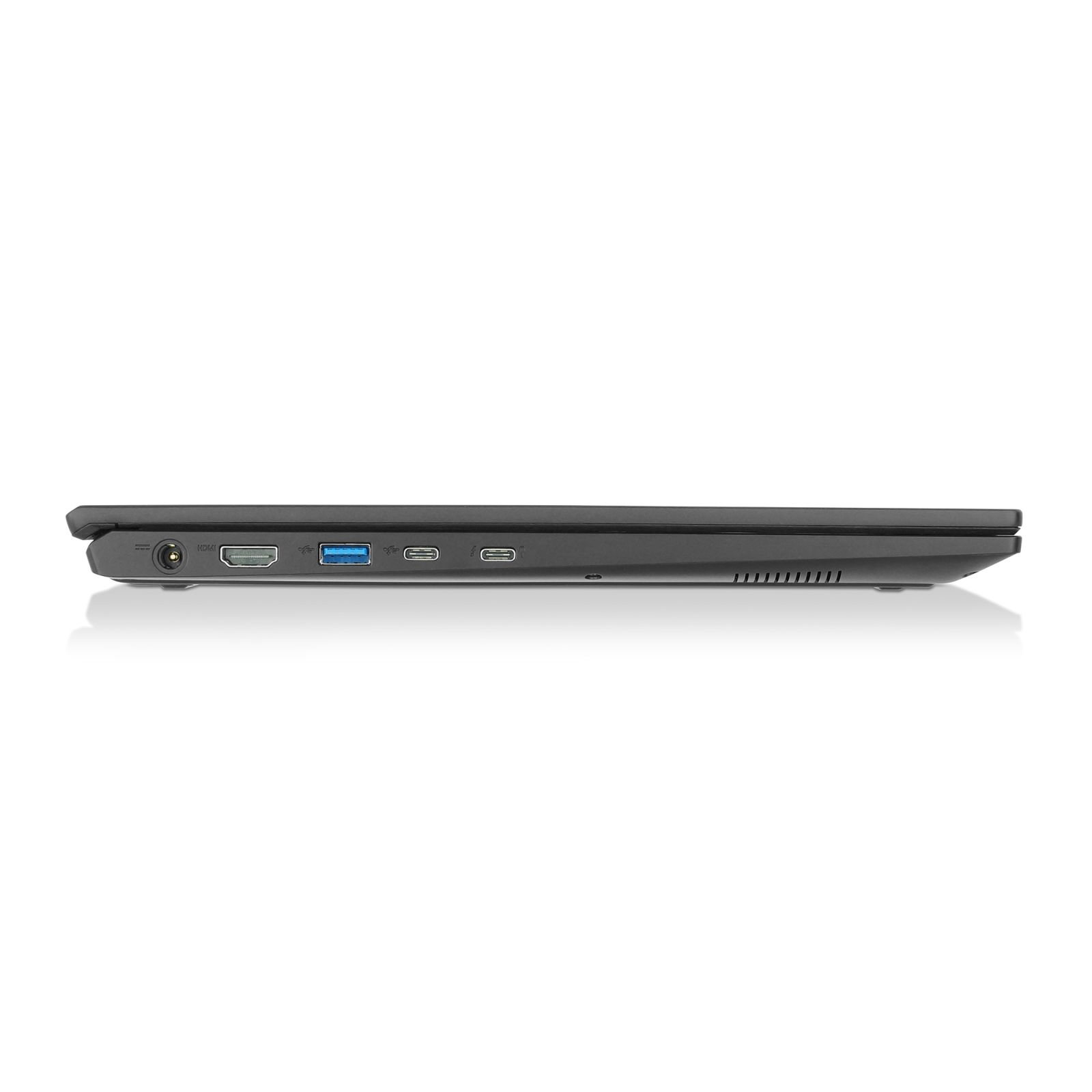

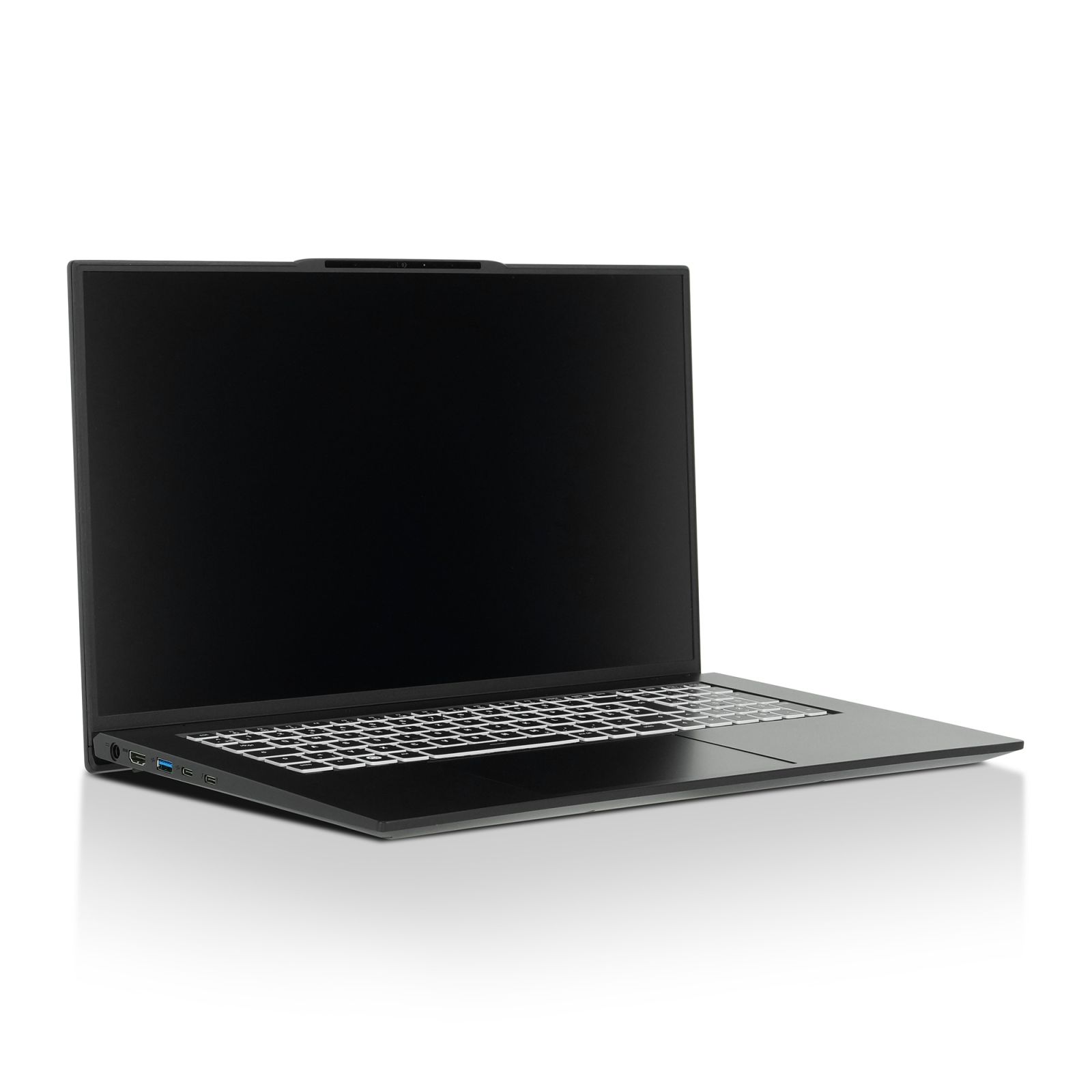

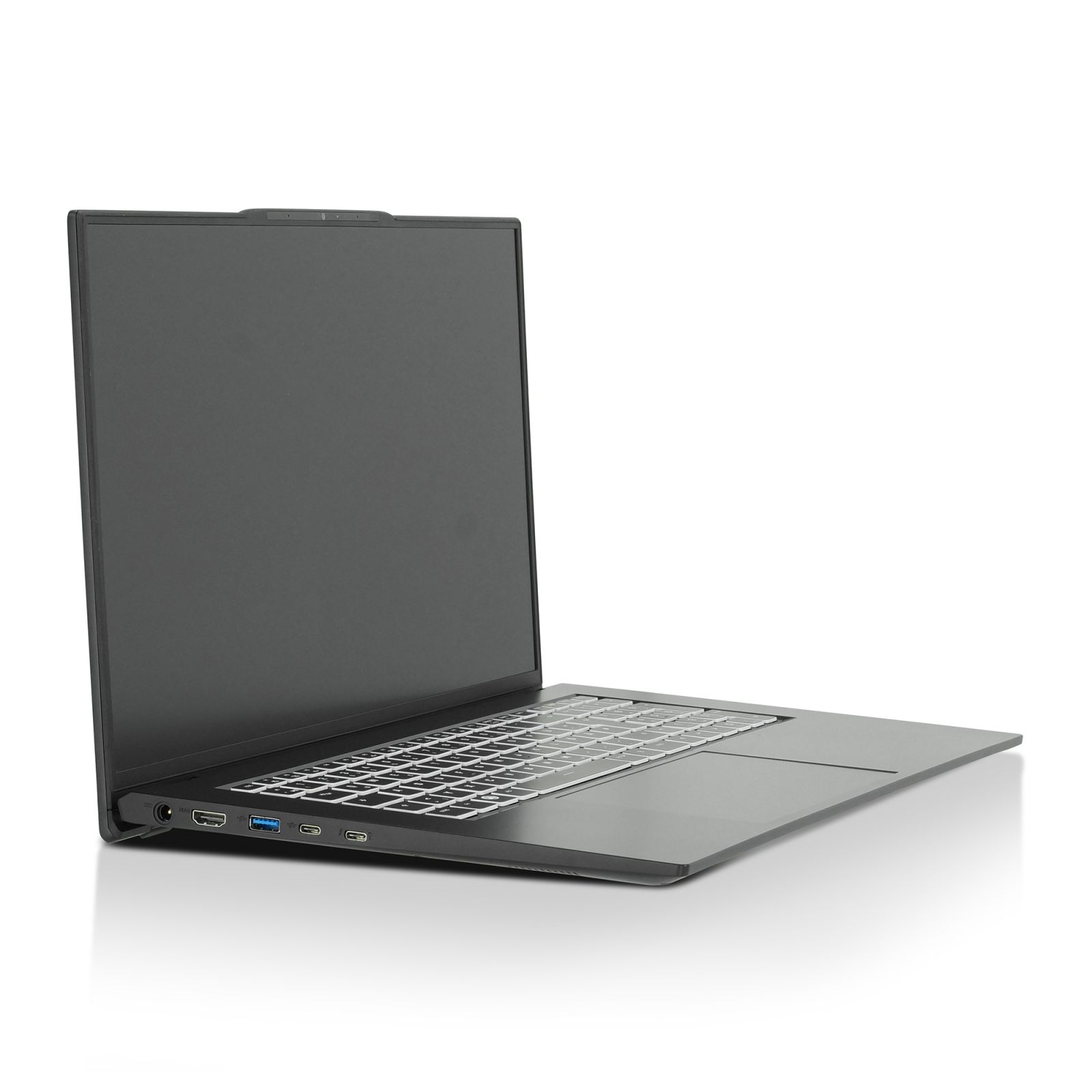

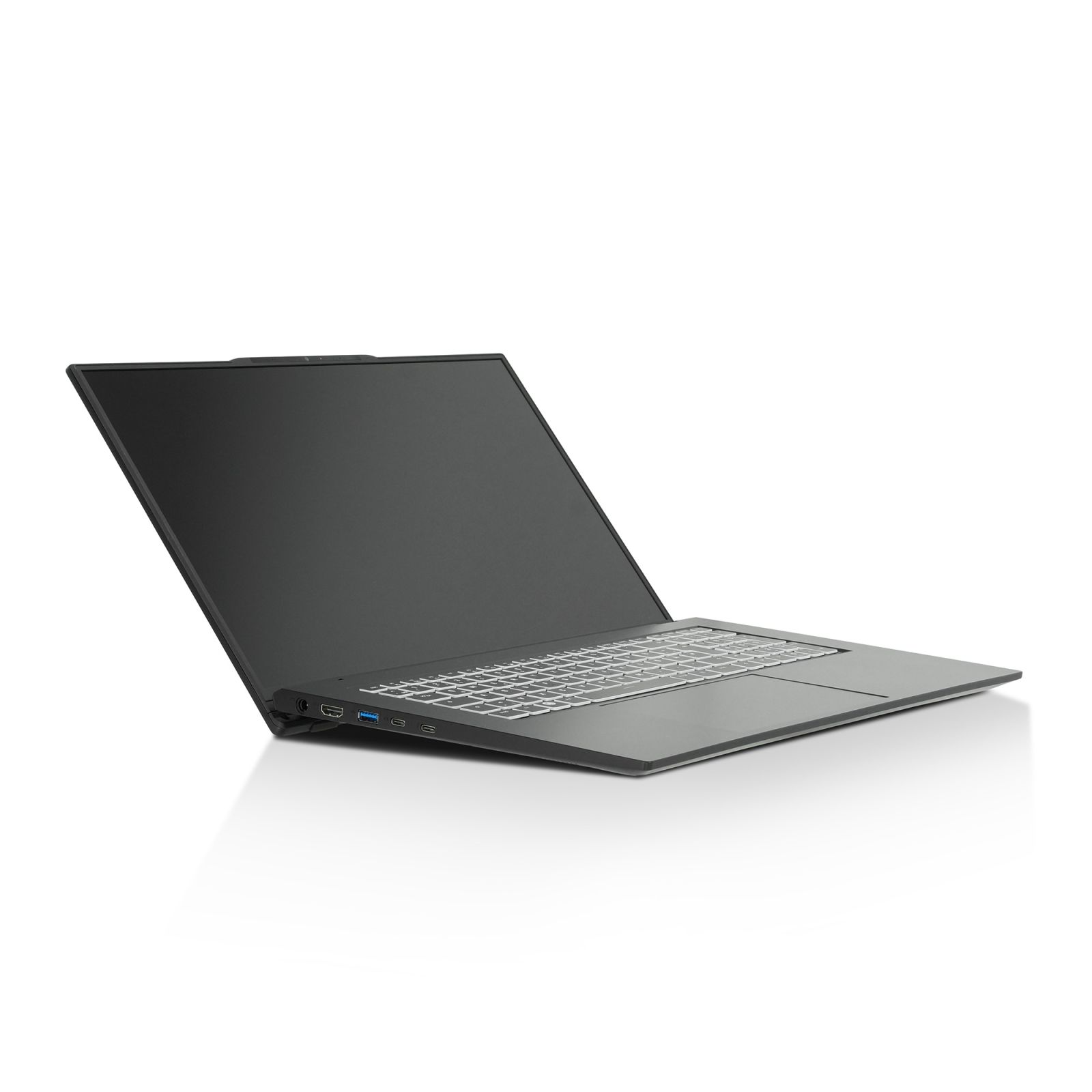

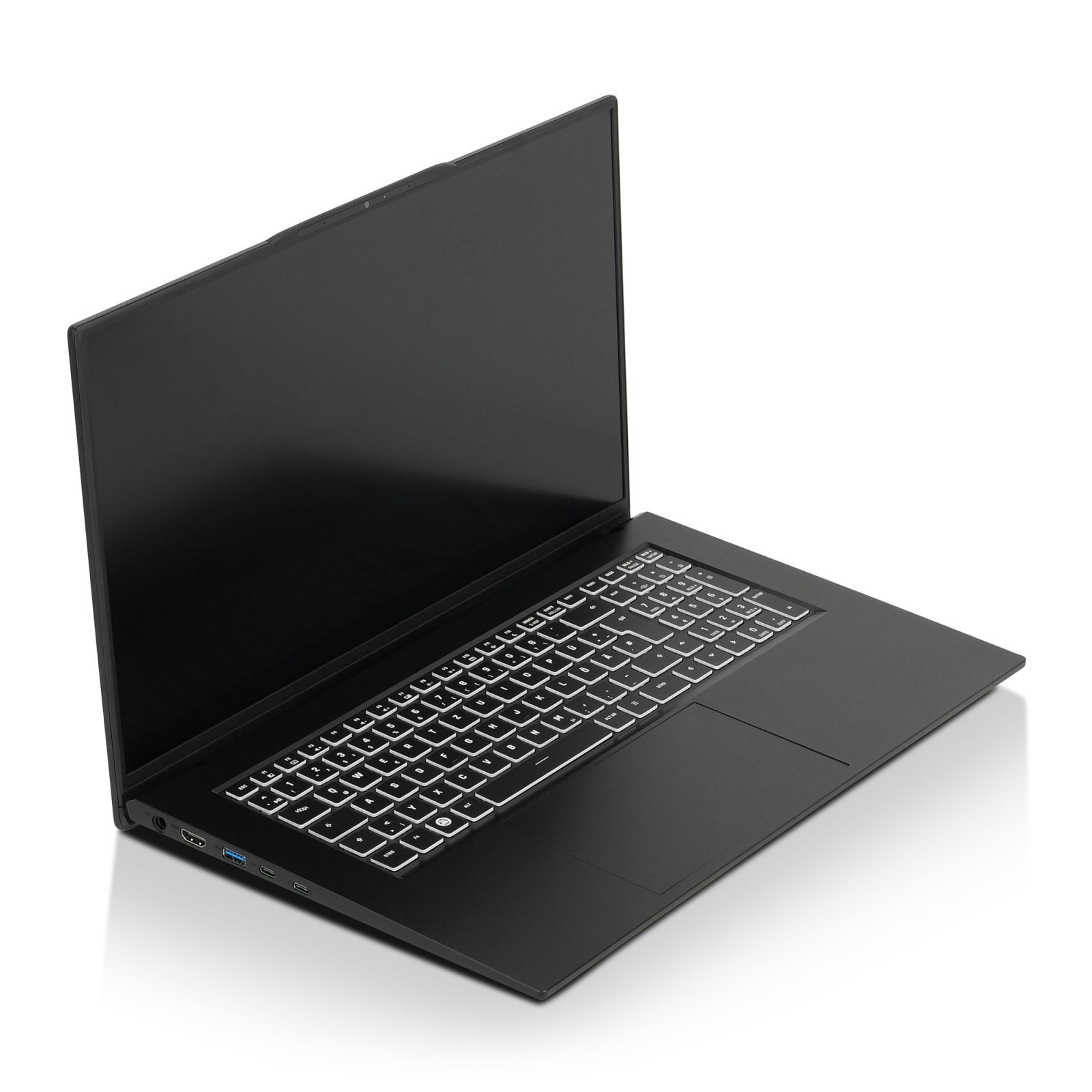

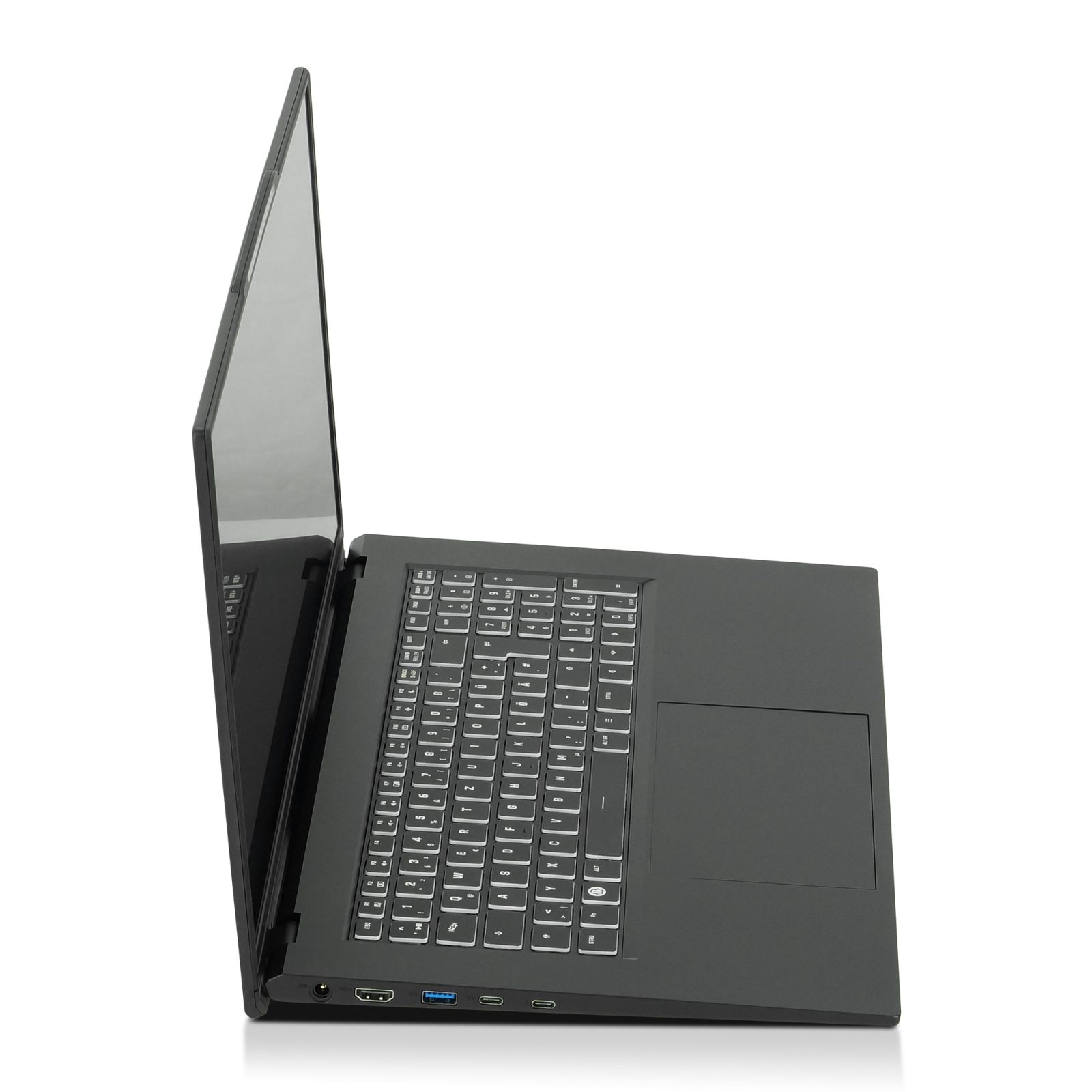

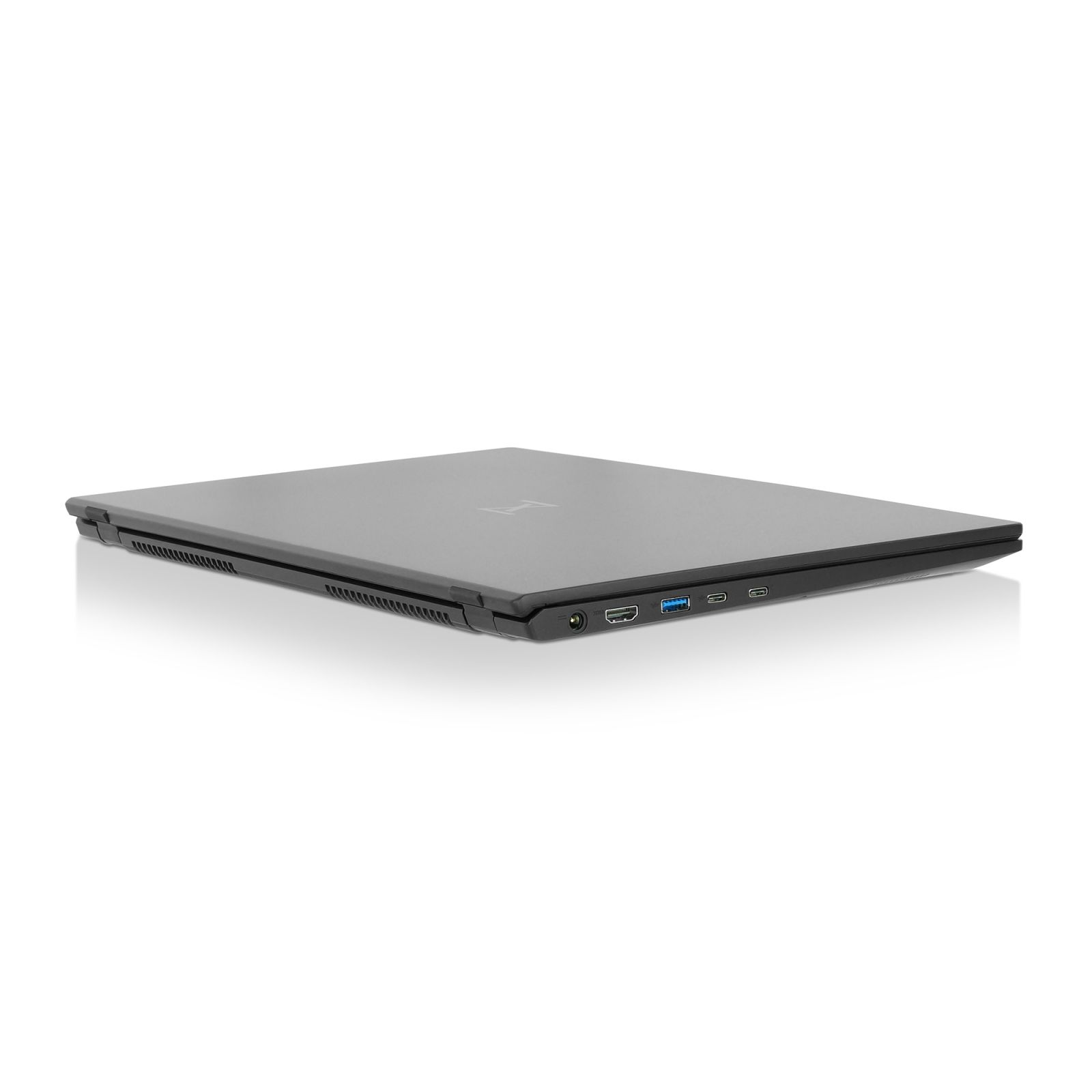

    InfinityBook S 17 left ports

    From left to right: Power connector, HDMI 1.4b, USB-A 3.2 Gen2, USB-C 3.2 Gen2, Thunderbolt 4 (USB-C)

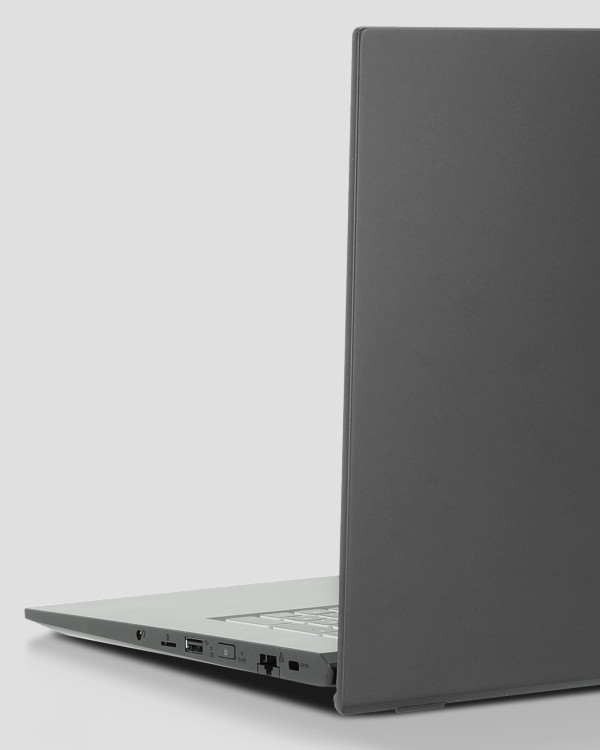

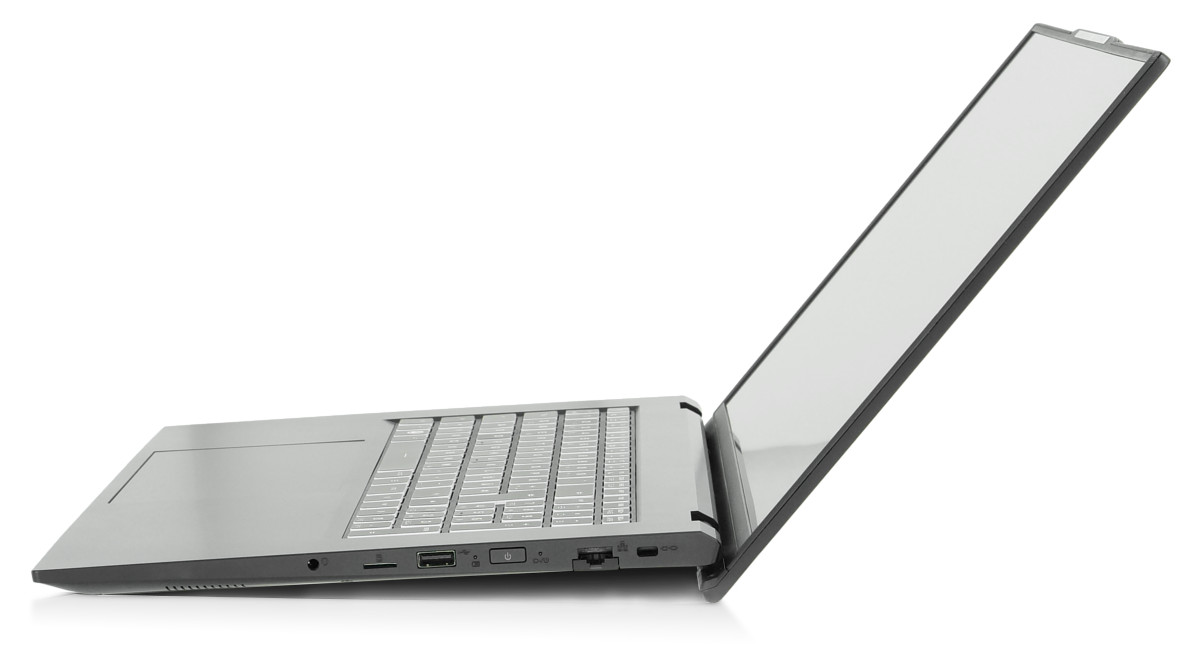

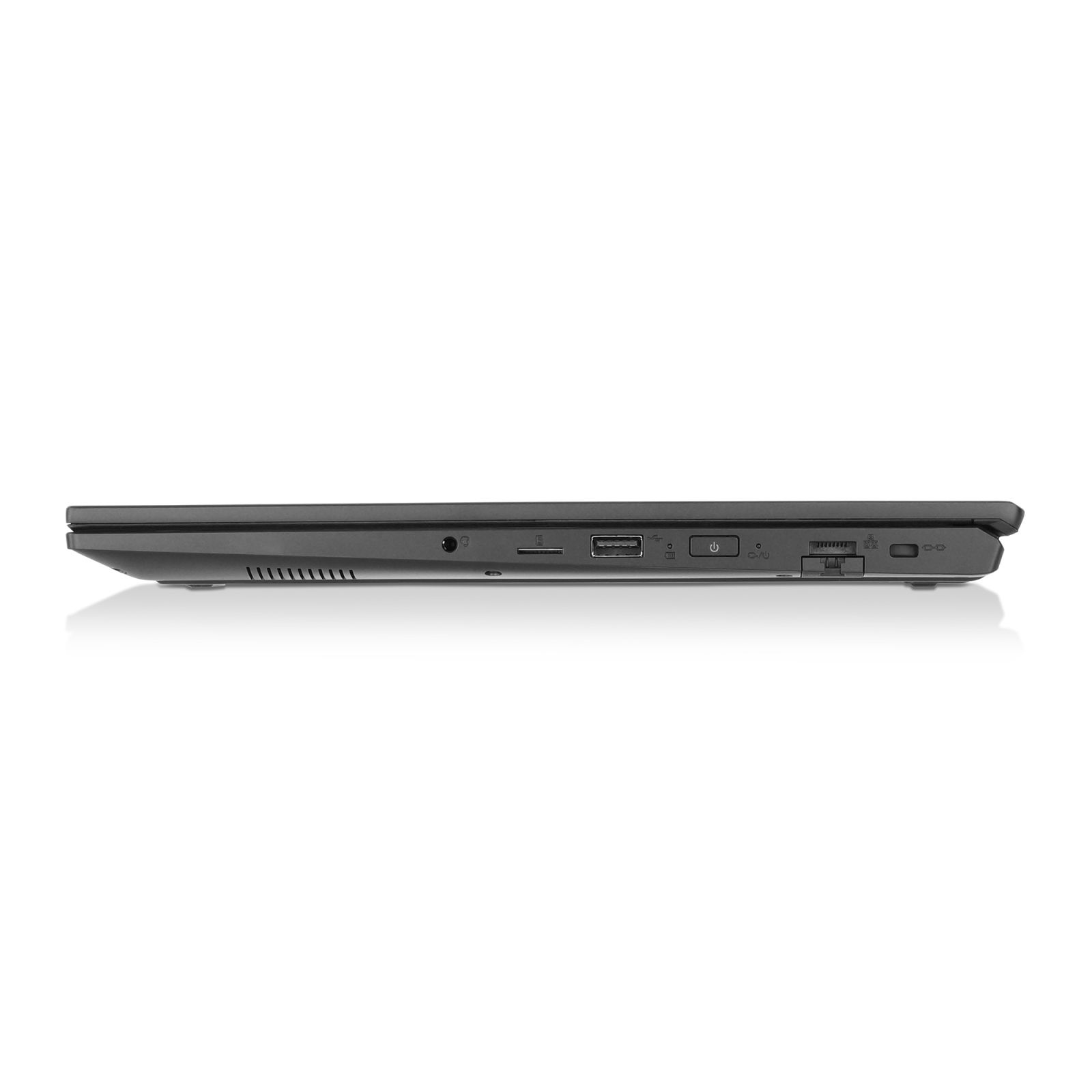

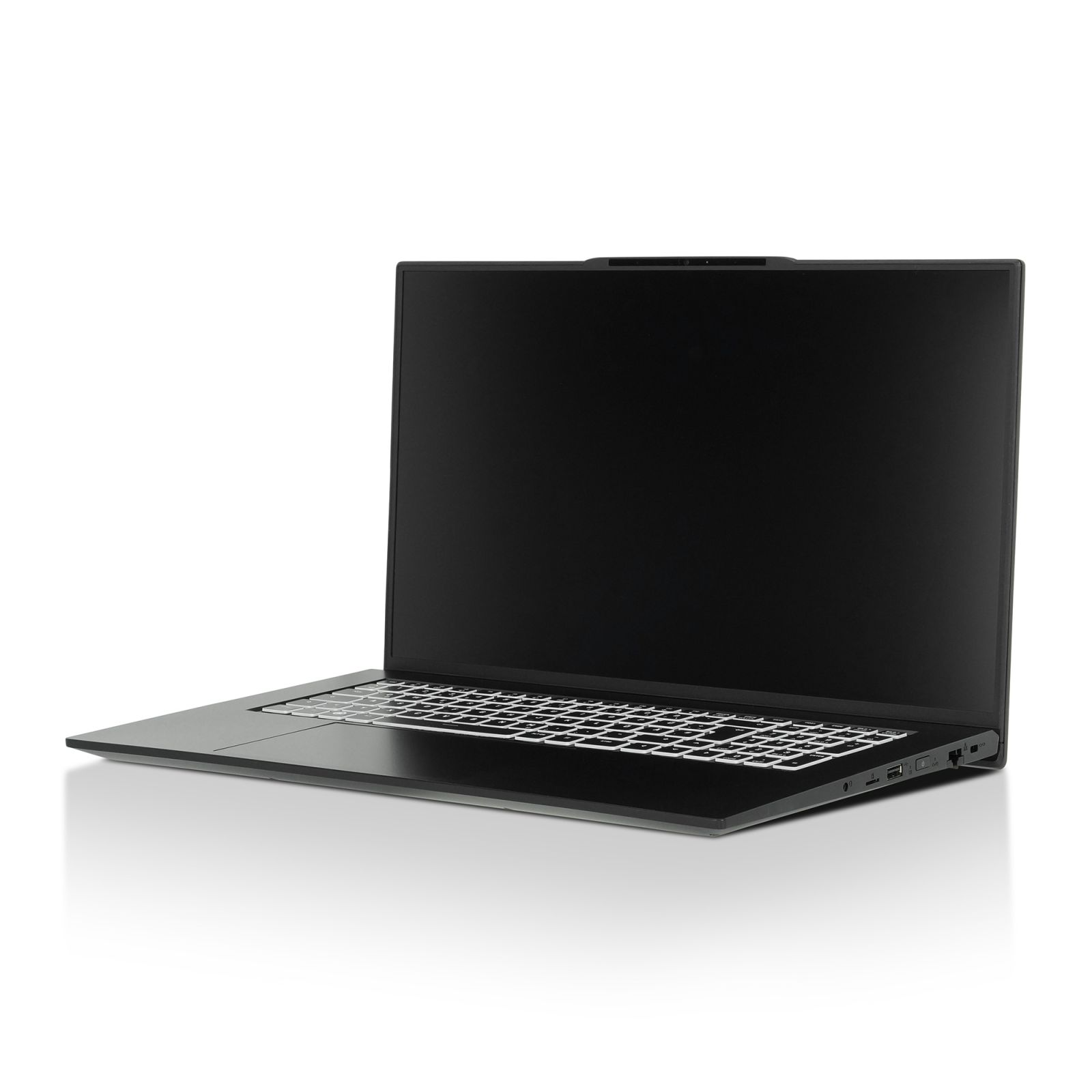

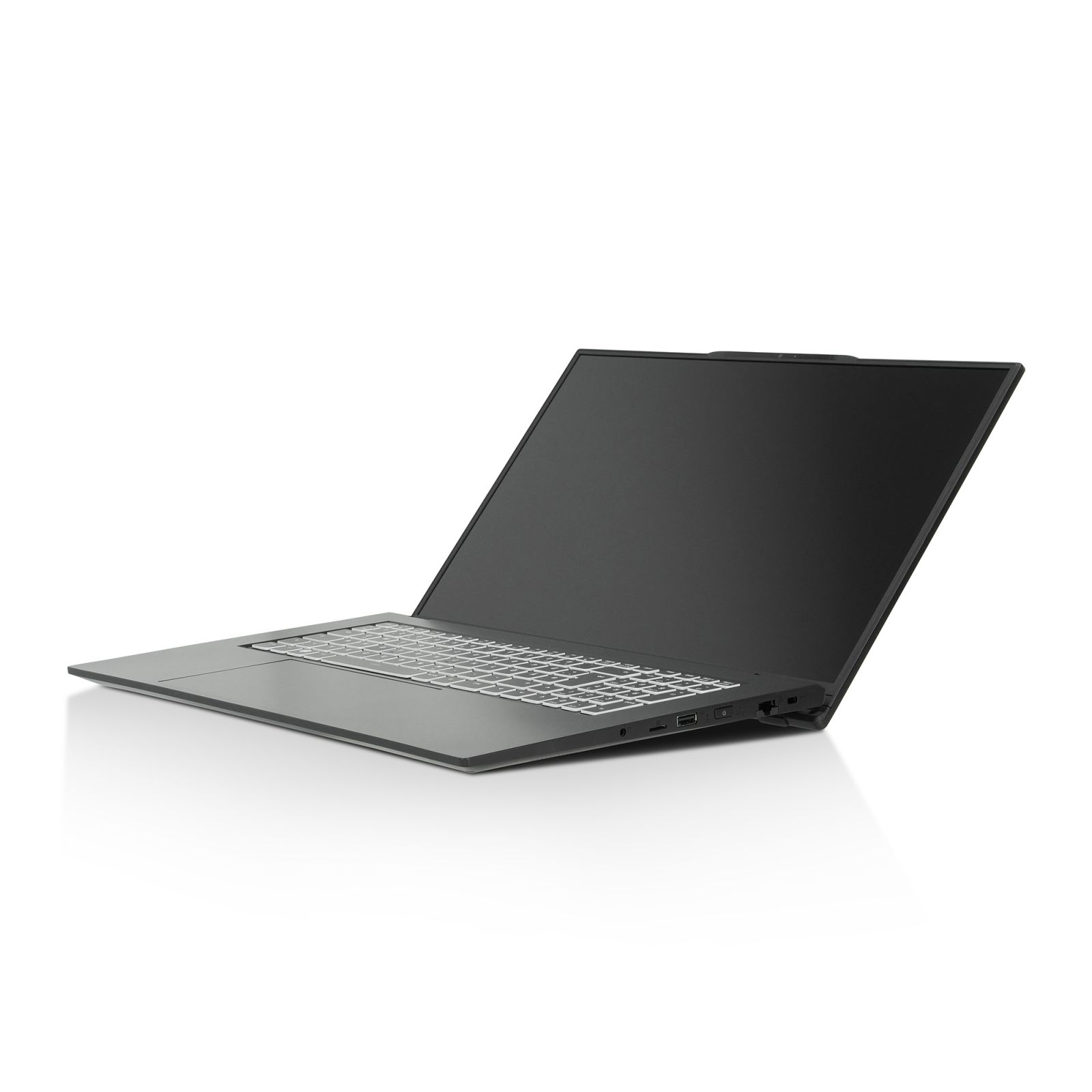

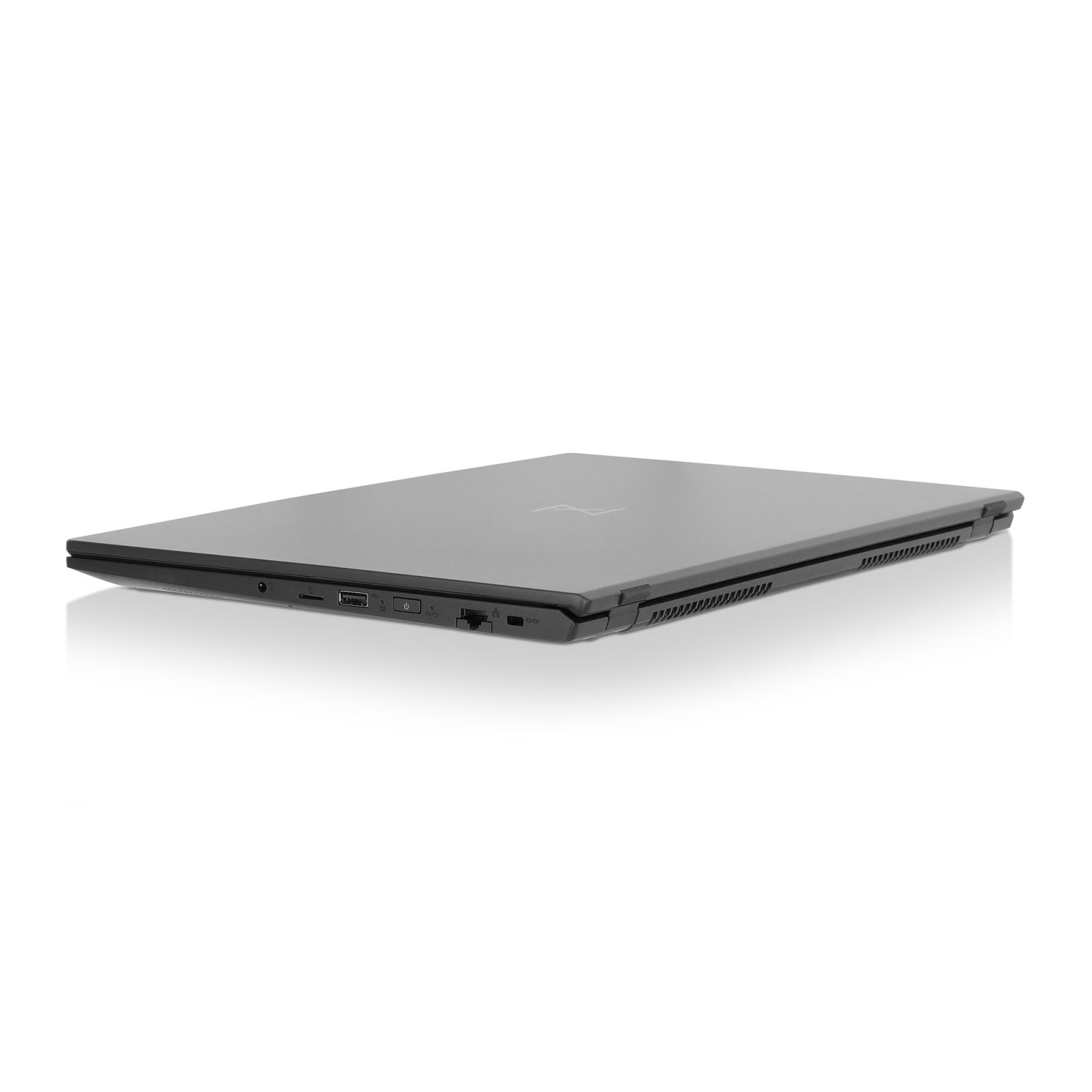

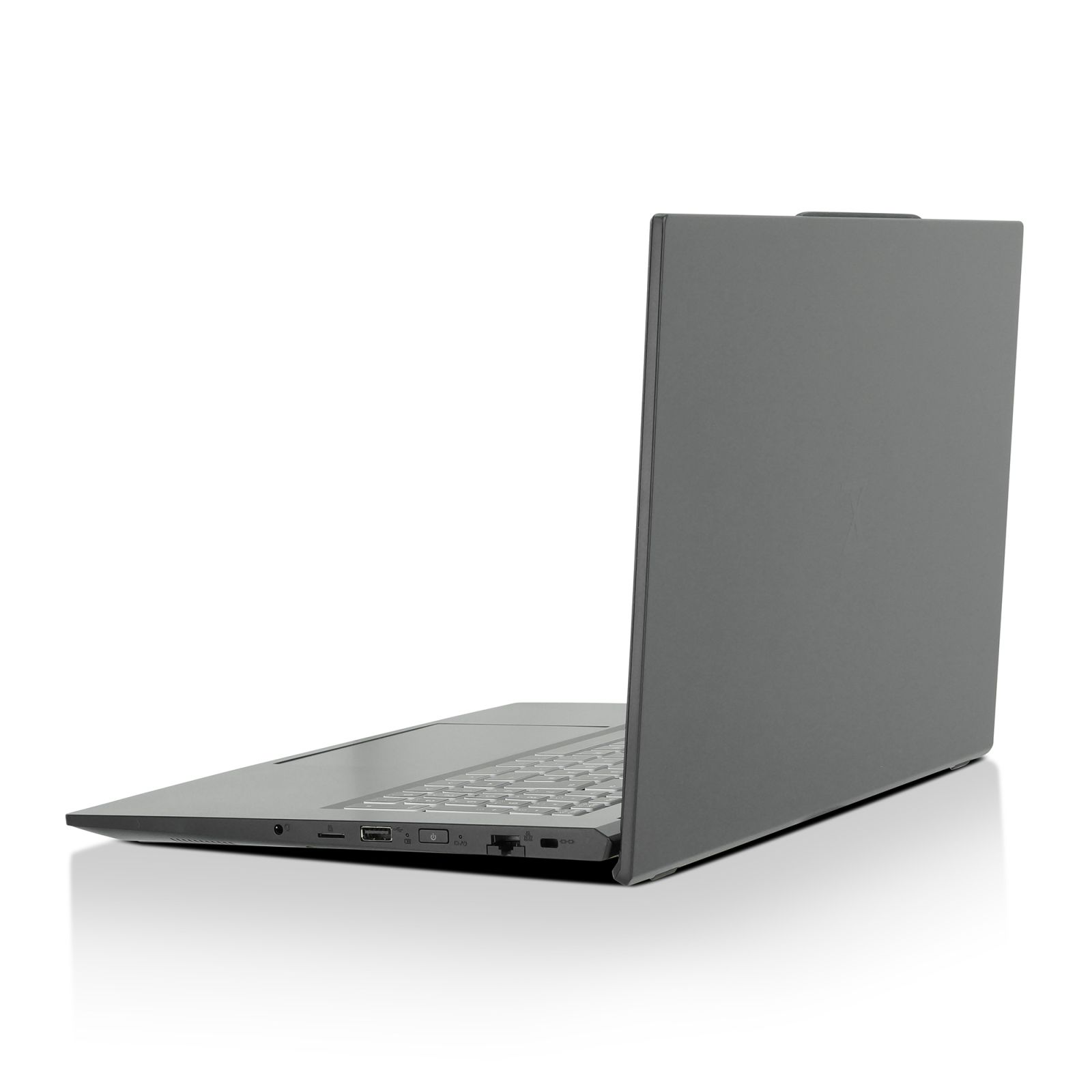

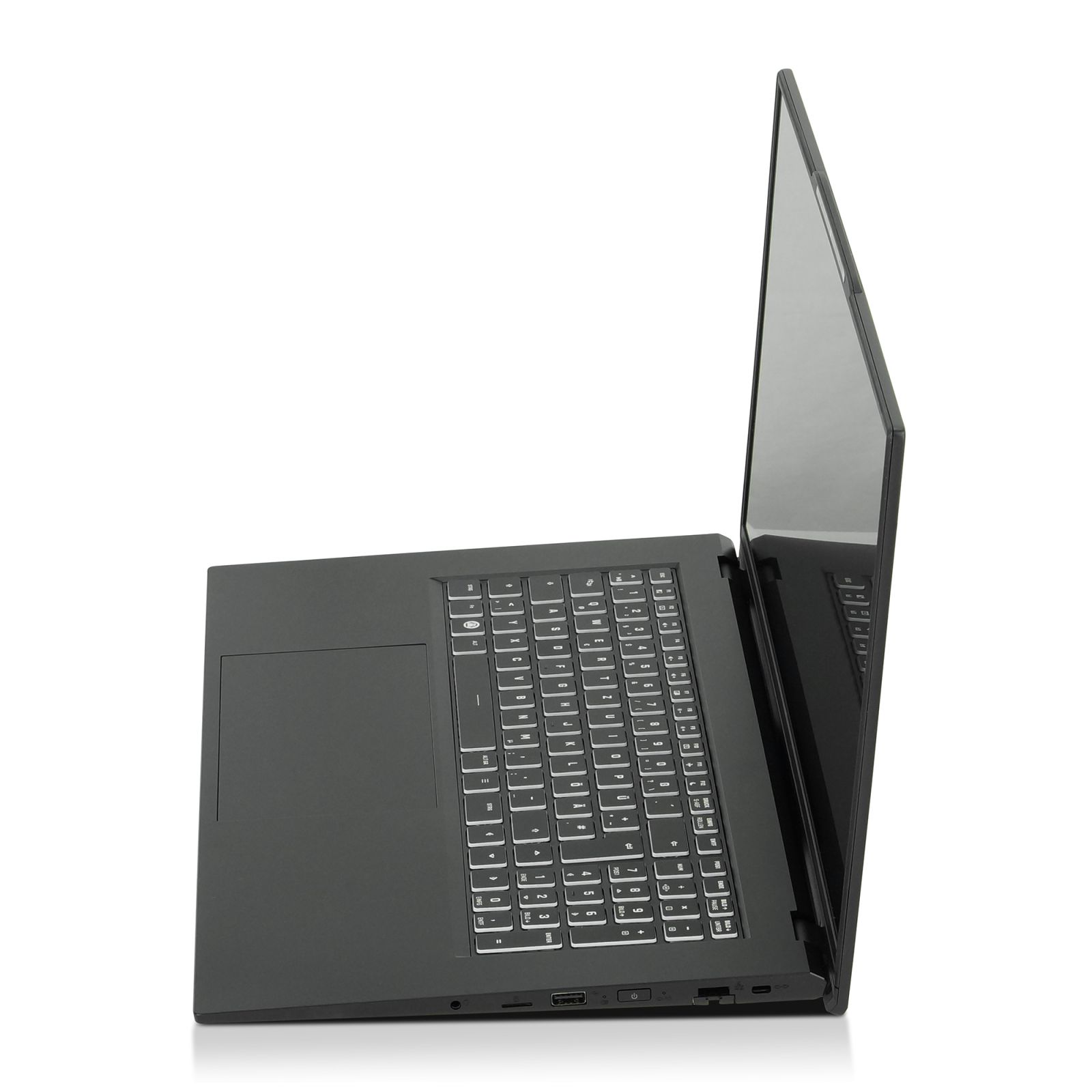

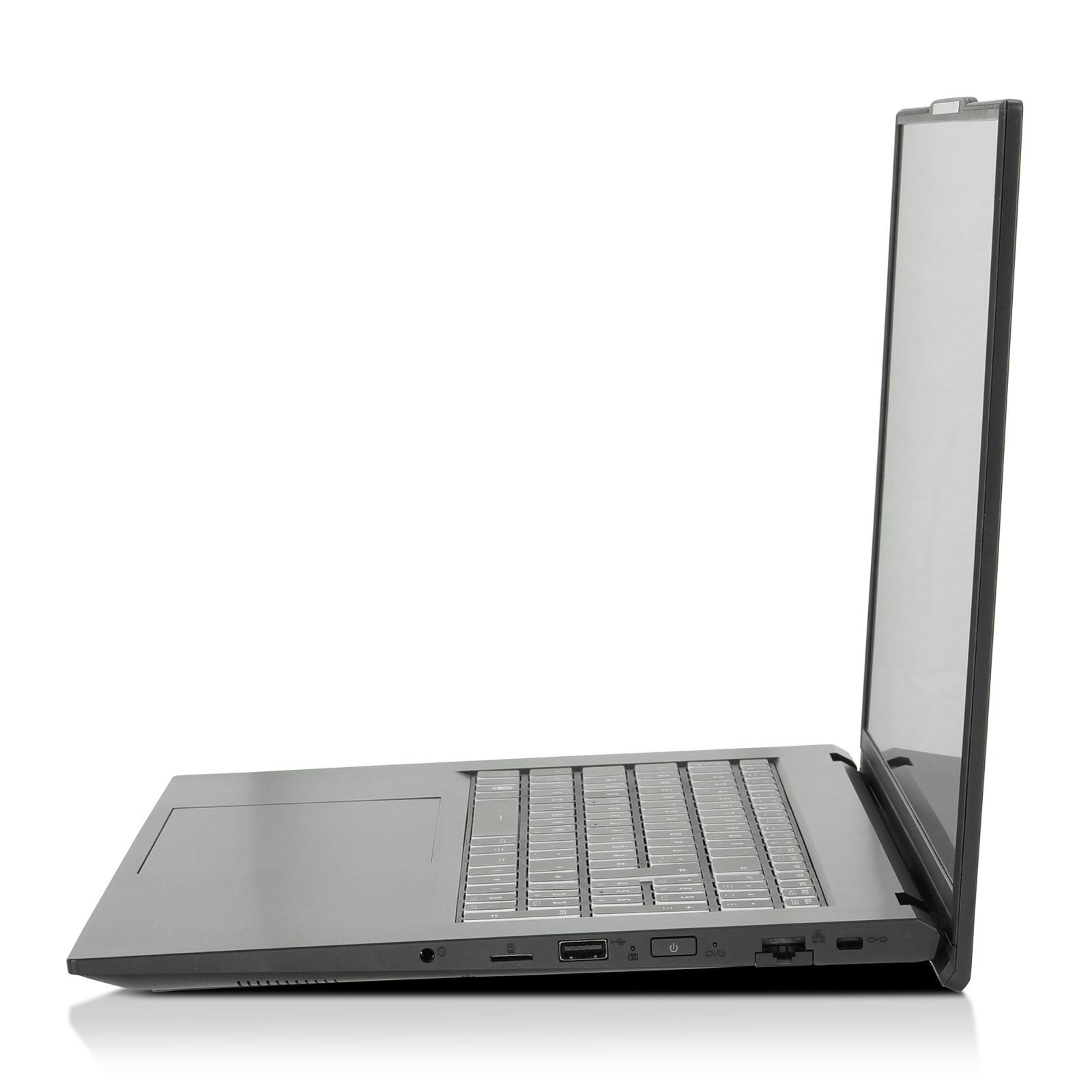

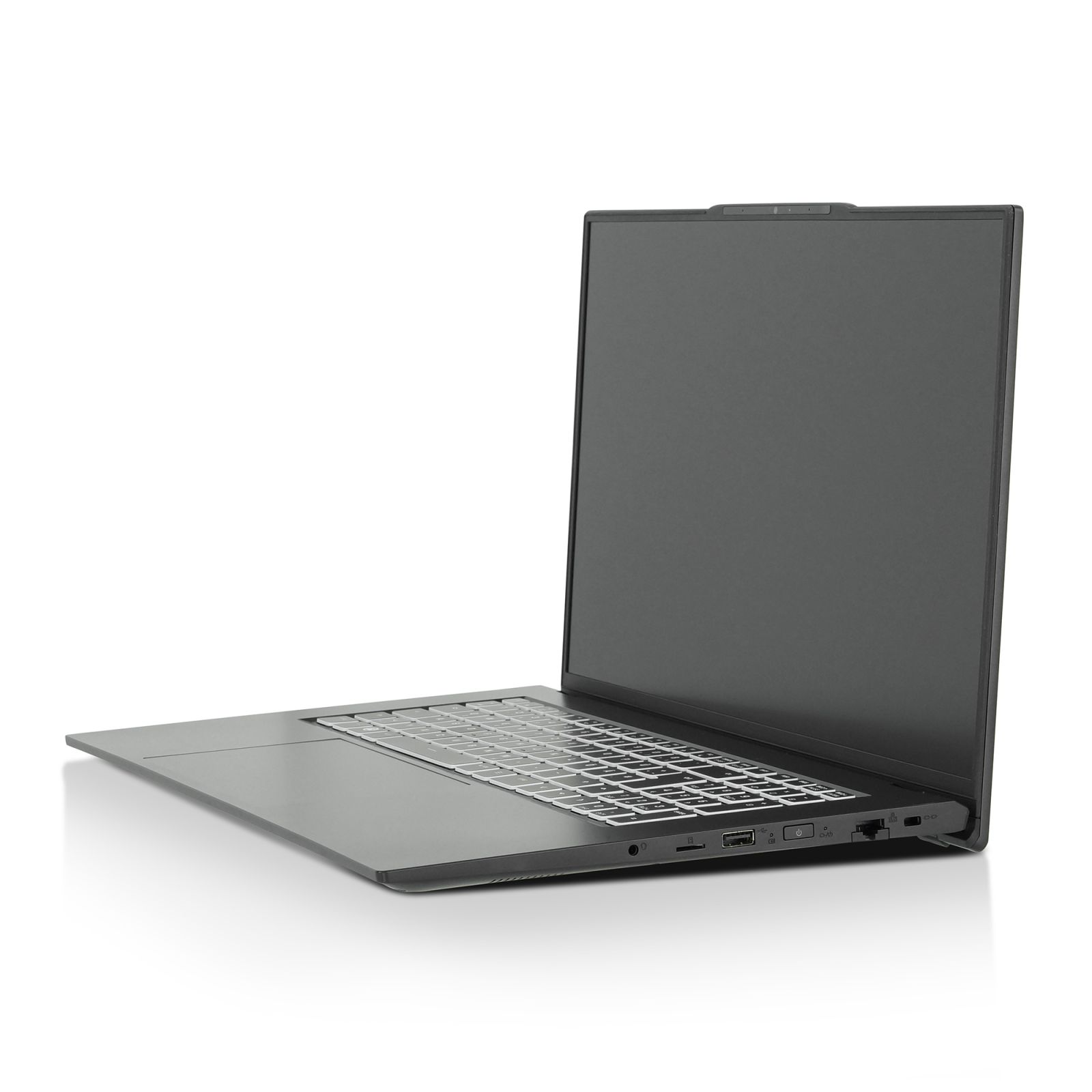

    InfinityBook S 17 right ports

    From left to right: 2-in-1 audio (headphone + mic), microSD card reader, USB-A 2.0, power button, Gigabit LAN (RJ 45), Kensington Lock




    Configure and order now

    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    Typ: LED-Backlight Display, anti-reflective / non-glare
    Size: 17.3 inch (43,94 cm)
    Viewing Angle: 89°/89°/89°/89°
    Display opening angle: approx. 145°
    Resolution: Full HD, 1920 x 1080
    Color Gamut: 95 % sRGB
    Maximum brightness: 350 nits
    Maximum contrast: 1300:1
    Model: LG LP173WF5-SPB3



    Chassis

    Notebook: Length: 395 mm; Width: 250,7 mm; Height: 19.8 mm
    Weight: ca. 2.25 kg incl. battery, depending on confiugration
    Material: Display lid and bottom panel made of aluminum, display frame and top case made of resin

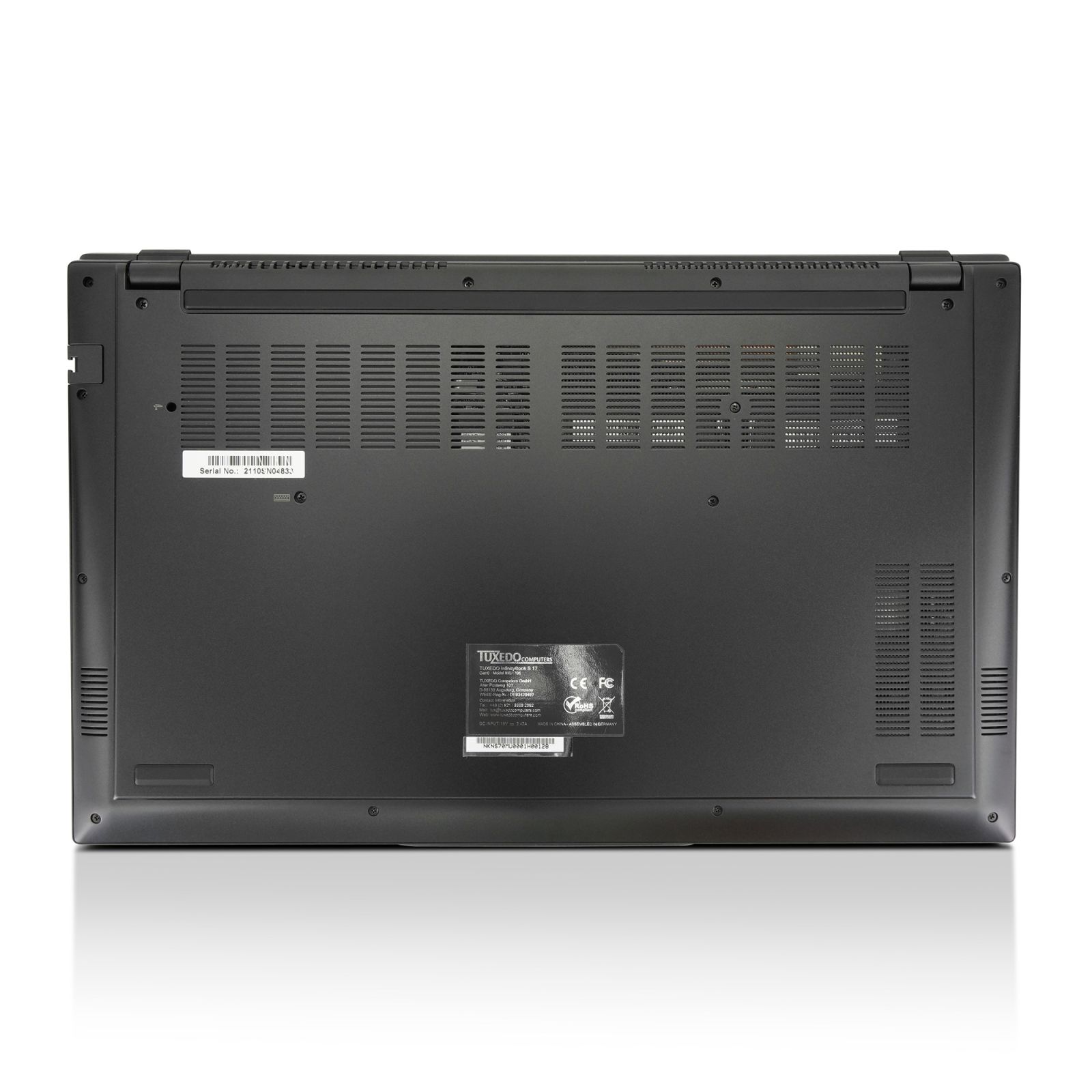

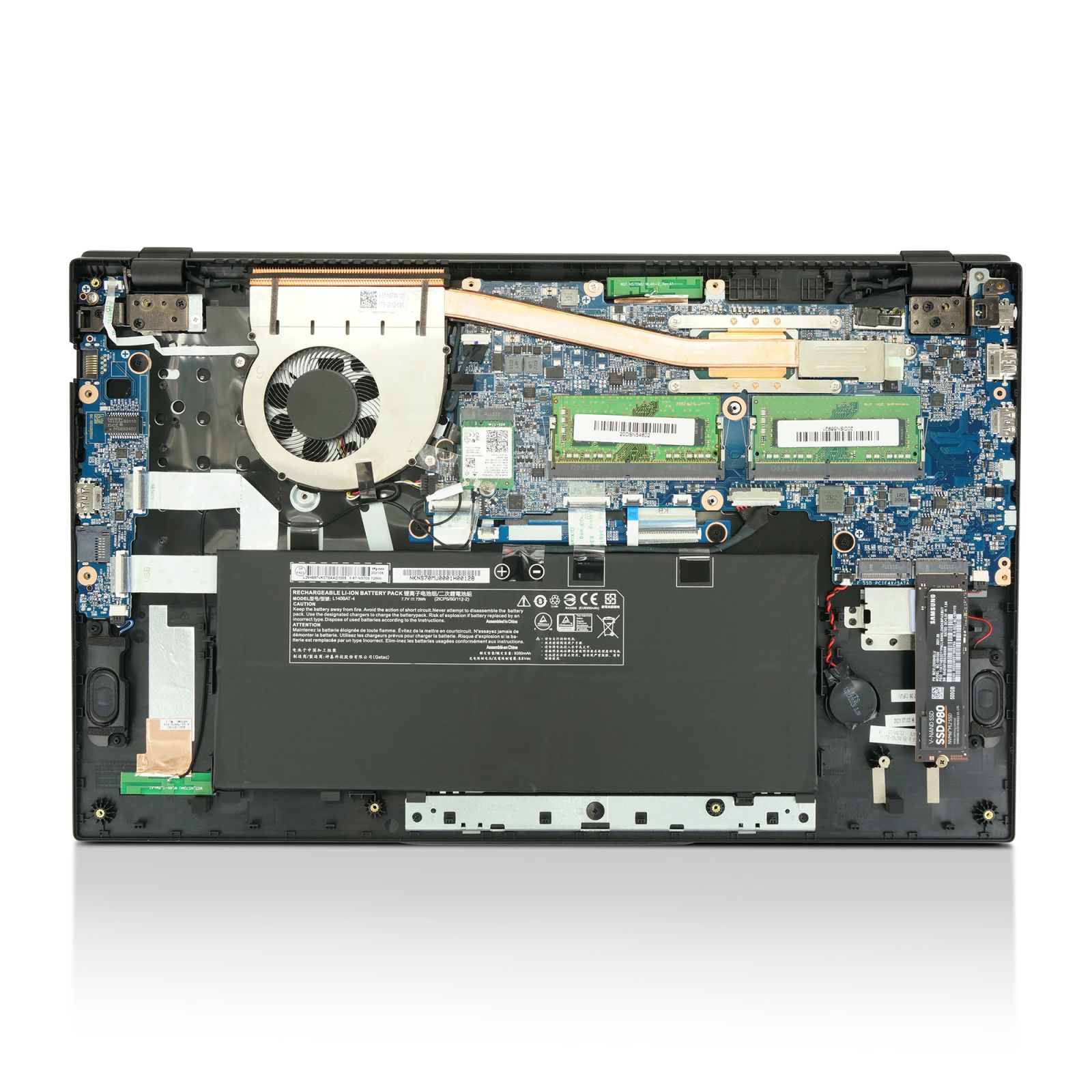

    Maintenance: After opening the base plate via a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.
    Power supply: Length: 88 mm; Width: 50 mm; Height: 28 mm | 0,33 kg



    Keyboard

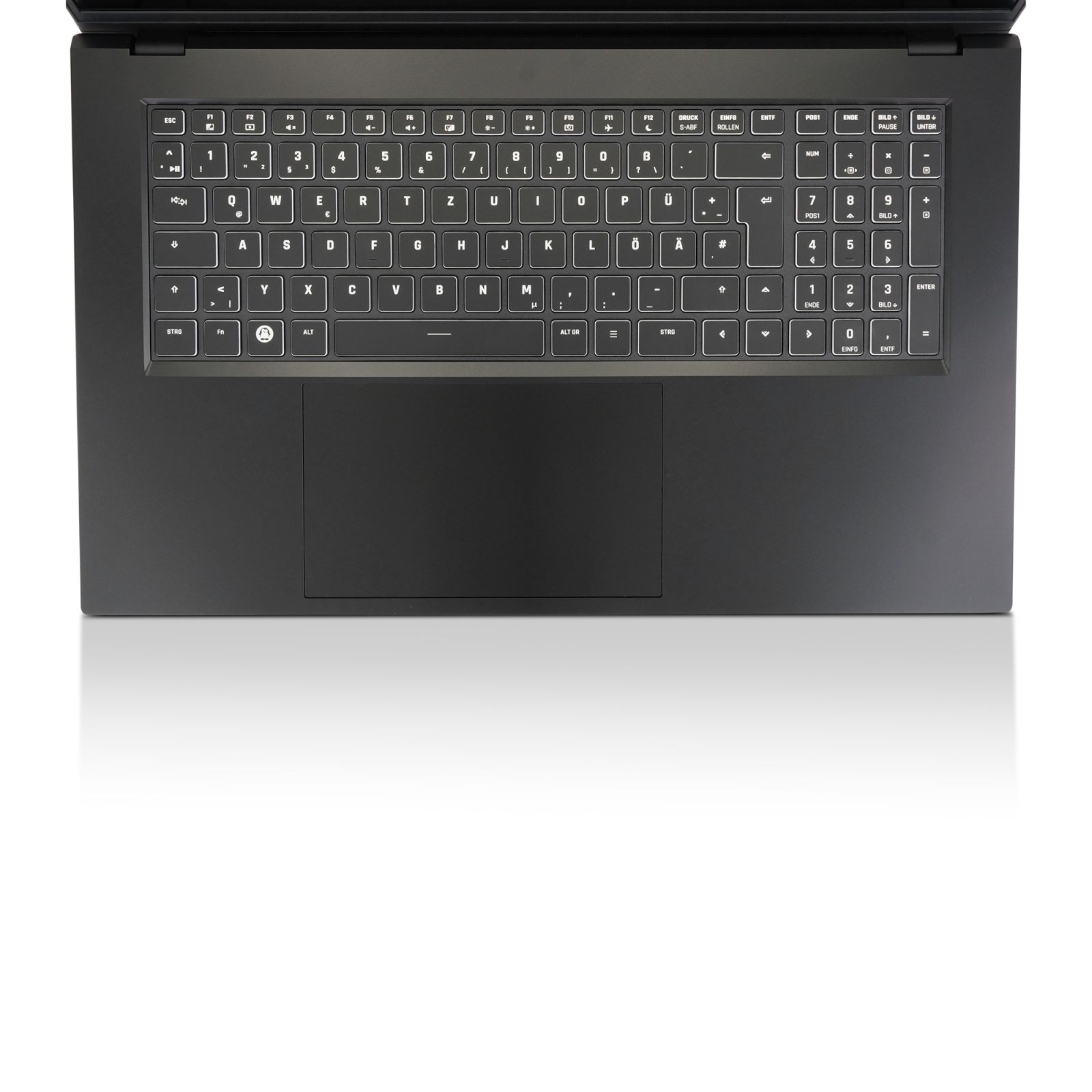

    Multicolor (RGB) backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
    TUX super-key on all layouts!

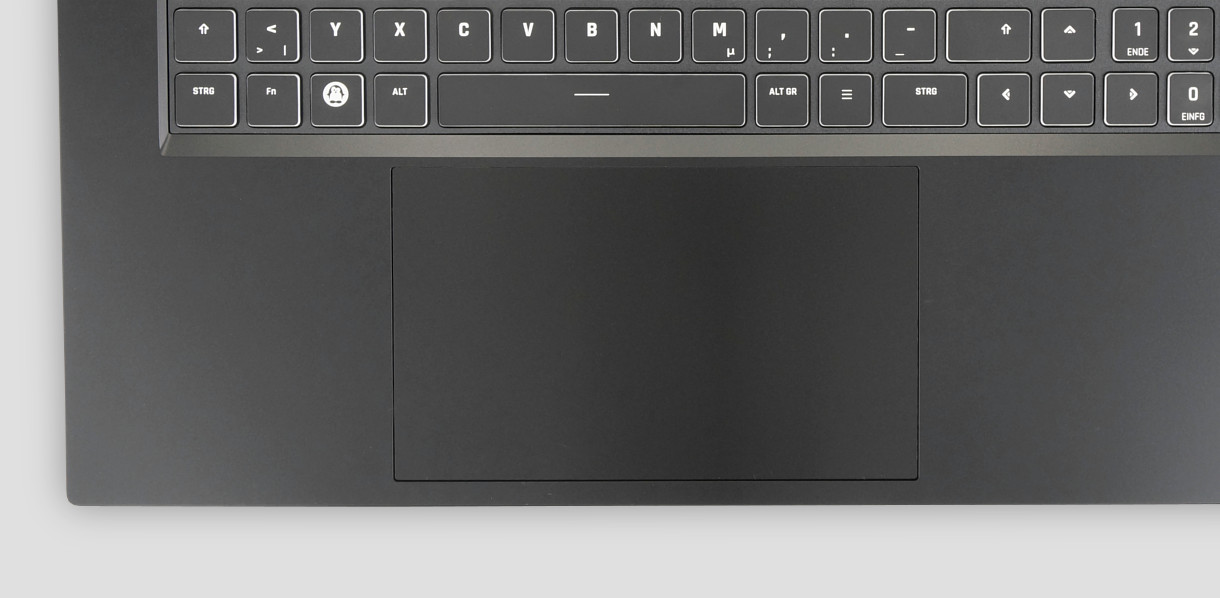

    Big precision clickpad (15 x 9 cm) with integrated buttons and multi-gesture- & scroll-function



    Ports

    1x Thunderbolt 4 (PCIe Gen3 4 Lanes) (DisplayPort 1.4a, Power Delivery DC-In*)
    1x USB-C 3.2 Gen2
    1x USB-A 3.2 Gen2
    1x USB-A 2.0
    1x HDMI 1.4b (with HDCP)
    1x Gigabit LAN / Network RJ45
    1x 2-in-1-Audio (headphone + microphone)
    1x microSD card reader
    1x Power connector (DC-In) (Charging via USB-C (Thunderbolt 4) possible*)

    * Requirement: 20V, min. 2A



    Card reader

    microSD card reader



    Security

    - Kensington-Lock mounting
    - Intel Management Engine (Intel ME) can be disabled directly via the BIOS
    - Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
    - WLAN & Bluetooth can be deactivated directly via the BIOS

    - TPM 2.0 (Windows 11 ready)



    Battery & power supply

    Integrated 73 Wh lithium-ion battery
    65 W mini power supply (AC) | 88 (L) x 50 (W) x 28 (H) mm | 0,33 kg (incl. power cord) | 100 - 240V | 50 - 60 Hz | Current (DC) Output 19 V, 3.42 A
    Power can also be supplied via USB-C (Thunderbolt 4 port). Requirement: 20V, min. 2A
    Shipping Mode (mode for minimizing battery discharge in the off state)

    Power plug:
    Type: Coaxial
    Inner diameter: 2.5mm
    Outer diameter: 5.5mm
    Length: 10mm



    Battery life:
    Up to 16 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    Up to 7 hours at medium brightness with Wifi, at office work

    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Lifetime of batteries

    The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information



    Main processor

    Intel Core i5-11300H
    (max. 4.4 GHz Quad-Core, 4 Cores / 8 Threads, 8 MB Cache, 35 W TDP)



    Intel Core i7-11370H
    (max. 4.8 GHz Quad-Core, 4 Cores / 8 Threads, 12 MB Cache, 35 W TDP)



    Graphics card

    Intel Iris Xe Graphics | Integrated CPU graphics | EUs (Execution Units): 96 (Core i7-11370H) 80 (Core i5-11300H)

    It is possible to drive 4 displays at the same time: 3 external plus the internal notebook display or 4 external displays.
    Max. resolution (HDMI 1.4b): 3840 x 2160 @30 Hz
    Max. resolution (DisplayPort 1.4a): 7680 x 4320 @60 Hz oder 2x 3840 x 2160 @ 60 Hz



    Memory

    DDR4 3200 MHz SoDIMM | 2 sockets upgradable | Max. 64 GB | Dual Channel



    Mass storage (SSD / HDD)

    1x M.2 2280 für NVME SSD (PCIe Gen4x4)
    1x M.2 2280 für NVME oder SATA SSD (SATA / PCIe Gen3x4)
    Intel Optane Technology



    Communication / Network

    Wireless/WIFI:
    Intel Wi-Fi 6 AX200 Series:
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX200 Series
    Version: Dual Mode Bluetooth 5.2



    Webcam / Laptop camera

    1.0 Megapixel webcam with face detection



    Sound / Audio

    High Definition Audio
    2 x integrated speakers
    Integrated microphone



    Cooling System & Fan

    Temperature controlled fan
    At low system workload there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!







    Model-ID: IBS1706



    Configure and order now

    System & Service

    Operating systems

    We install Ubuntu and TUXEDO_OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and everyone who is interested, we have set up a database with downloads, instructions, tips & tricks and offer a software app called "Tomte", which makes our customizations automatically under Ubuntu and compatible derivates: Help & Support Section | tomte.sh



    Encrypted Installation

    On request we install your Linux system completely encrypted. The pre-installation as dualboot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively you are free to download alle Windows-Drivers from here.



    BIOS

    With all our notebooks you have the possibility to protect your privacy already on BIOS level. For this purpose the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth

    In addition, our Premium BIOS allows chipset-specific settings and definitions for components via various profiles in order to operate the device optimally depending on its use. The profiles can be found in the BIOS menu under:

    Advanced > Advanced Chipset Control > Performance Profile Select.

    Further information can be found here in our manual.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



    For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
