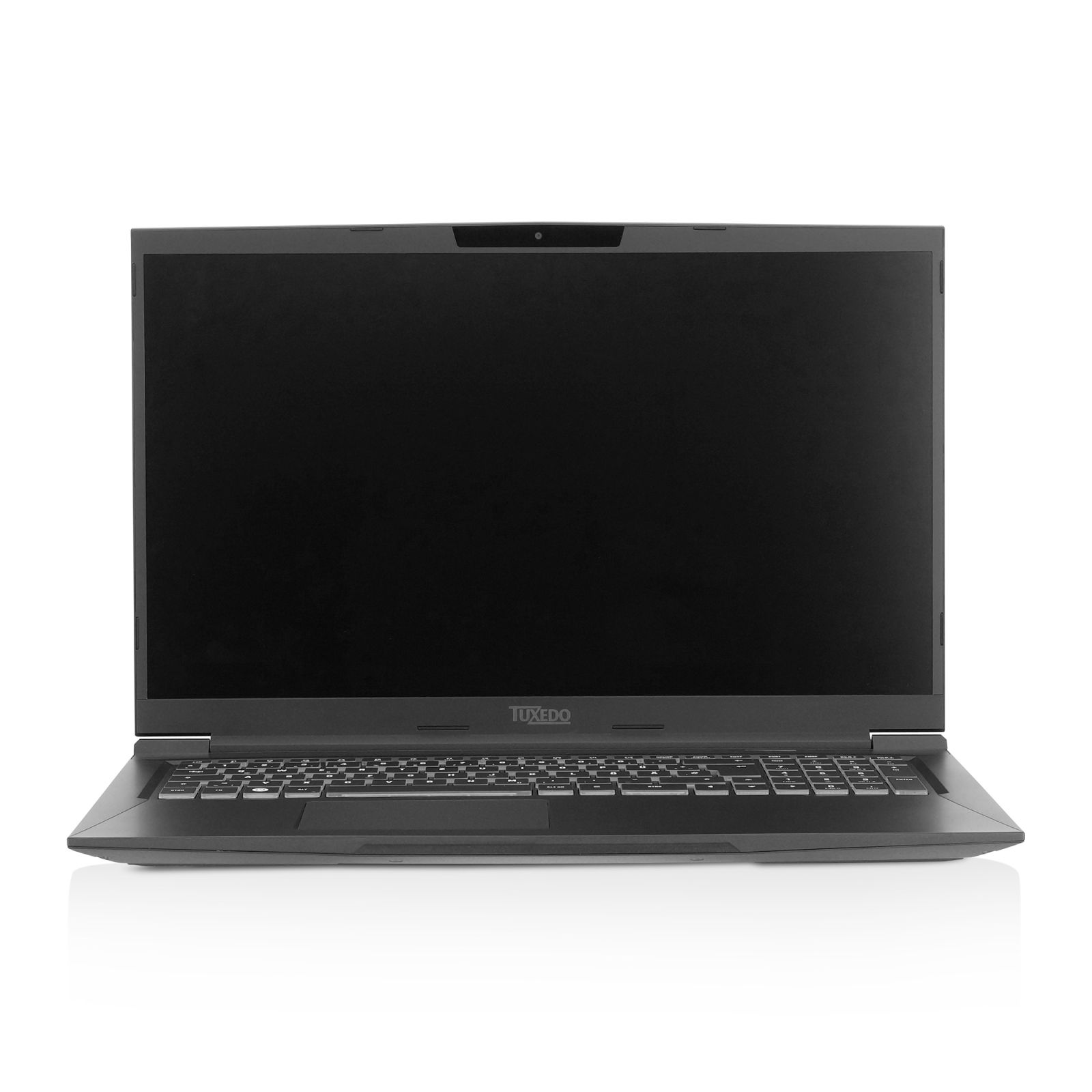

Display / Monitor

Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



Type: LED-Backlight Display, non-glare
IPS technology (particularly strong colours, extremely bright, very stable viewing angle)
Size: 17,3" (43.9cm)
Resolution: Full-HD, 1920 x 1080
Color Gamut: 100% sRGB
Viewing Angle: 89°/89°/89°/89°

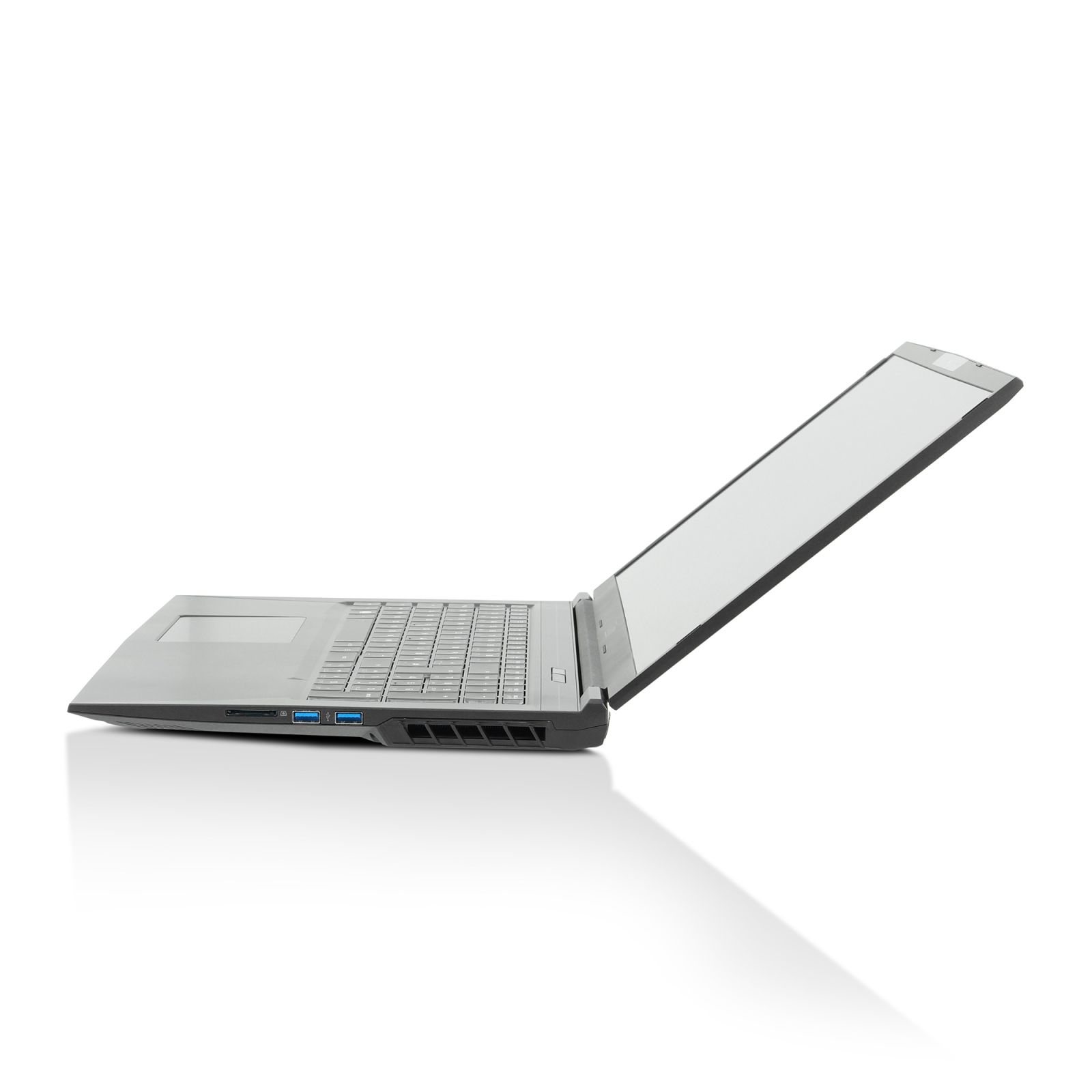

Display opening angle: approx. 145°
Model: Innolux N173HCE-G33
Contrast: 1000:1
Luminance: ~300 cd/m²

Chassis

Dimensions: width: 39.57 cm; height: 3.05 cm; depth: 26.08 cm
Weight: approx. 2.5 kg with battery

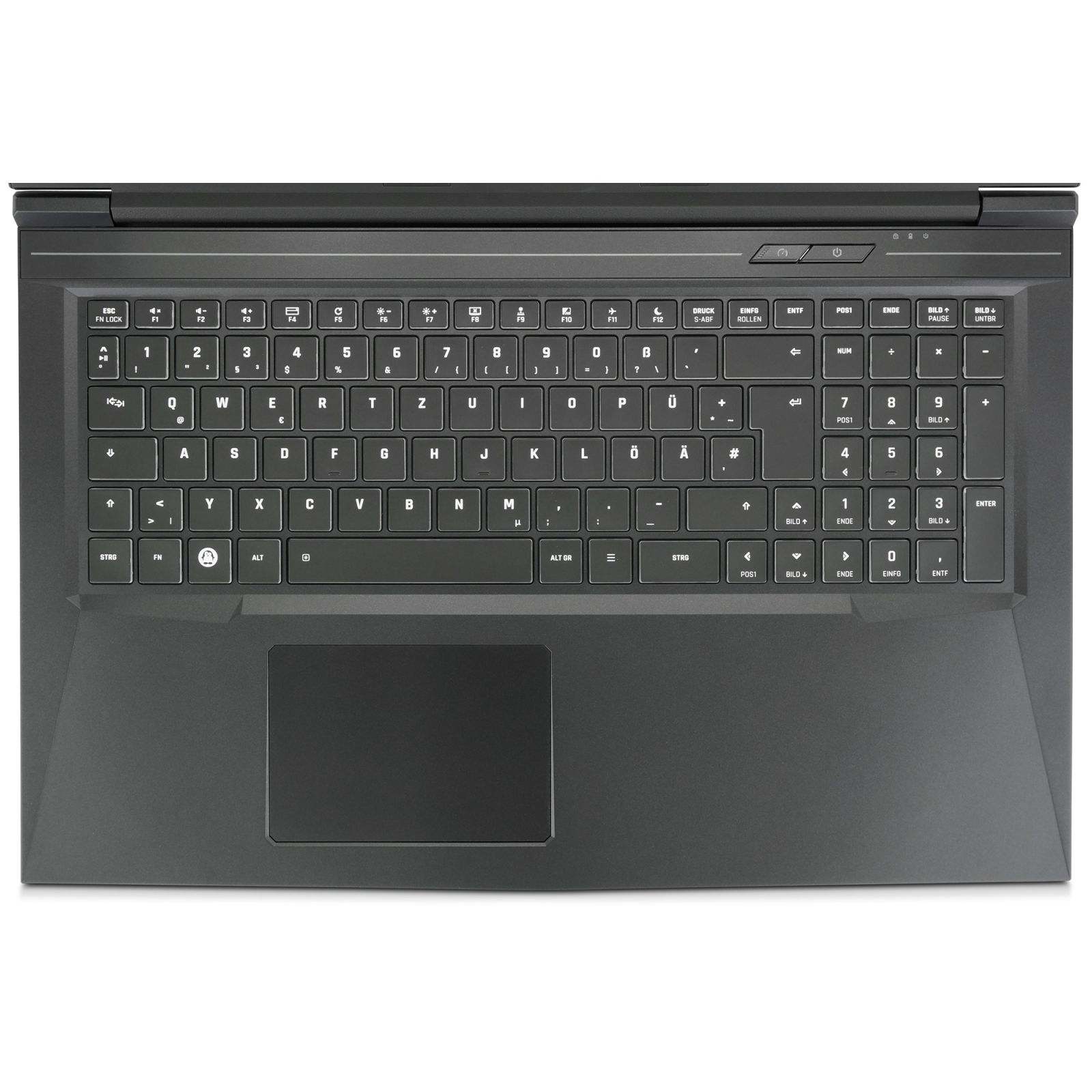

Keyboard

Full sized keyboard with number pad.
Multicolor (RGB) backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
TUX super-key on all layouts!
Big precision clickpad with integrated buttons and multi-gesture- & scroll-function

Battery & power supply

Big 62 Wh battery, 4 cells lithium-polymer
Changeable (screwed inside)
150 Watt (GTX 1650Ti) / 180 Watt (RTX 2060 Refresh) Power supply unit

Power plug:
Type: Coaxial
Inner diameter: 2.5mm
Outer diameter: 5.5mm
Length: 11mm

Battery life: (with our optimizations)
up to 10 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
up to 6 hours at medium brightness with Wifi, at office work



We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, WIFI & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!).
This way you get an information of maximal possible battery life. Starting from this you can manage your individual battery life depending on your demands and to influence it e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.

Main processor

• AMD Ryzen 5 4600H
  (6x 3.0 - 4.0 GHz Hexa-Core, 12 Threads, 8 MB L3-Cache, 45 W TDP)
• AMD Ryzen 7 4800H
  (8x 2.9 - 4.2 GHz Octa-Core, 16 Threads, 8 MB L3-Cache, 45 W TDP)
• Intel Core i7-10750H
  (6x 2.6 - 5.0 GHz Hexa-Core, 12 Threads, 12 MB L3-Cache, 45 W TDP)

Graphics card

NVIDIA® GeForce® GTX 1650Ti 4 GB GDDR6 VRAM (N18P-G62-A1)
NVIDIA® PhysX®, GeForce CUDA technology

NVIDIA® GeForce® RTX 2060 Refresh 6 GB GDDR6 VRAM (N18E-G1-B)
NVIDIA® PhysX®, GeForce CUDA technology



Energy efficient CPU integrated Graphics:
AMD Radeon™ RX Vega 6 Graphics (AMD Ryzen 5 4600H)
AMD Radeon™ RX Vega 7 Graphics (AMD Ryzen 7 4800H)
Intel UHD Graphics 630 (Intel Core i7-10750H)

Memory

Typ: DDR4 SO-DIMM (up to 3200 MHz)
Manufacturer and speed see configurator
Default and maximum see configurator
Performant Dual Channel mode (2 slots)

Mass storage (SSD / HDD)

Two slots for super fast SSDs in space-saving M.2 form factor

1x PCIe NVMe or SATAIII, 1x PCIe NVMe only

Communication / Network

Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)

Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1



Webcam / Laptop camera

HD Webcam / camera including microphone

Sound / Audio

High Definition Audio
2 speakers: 2x 2W
Integrated microphone

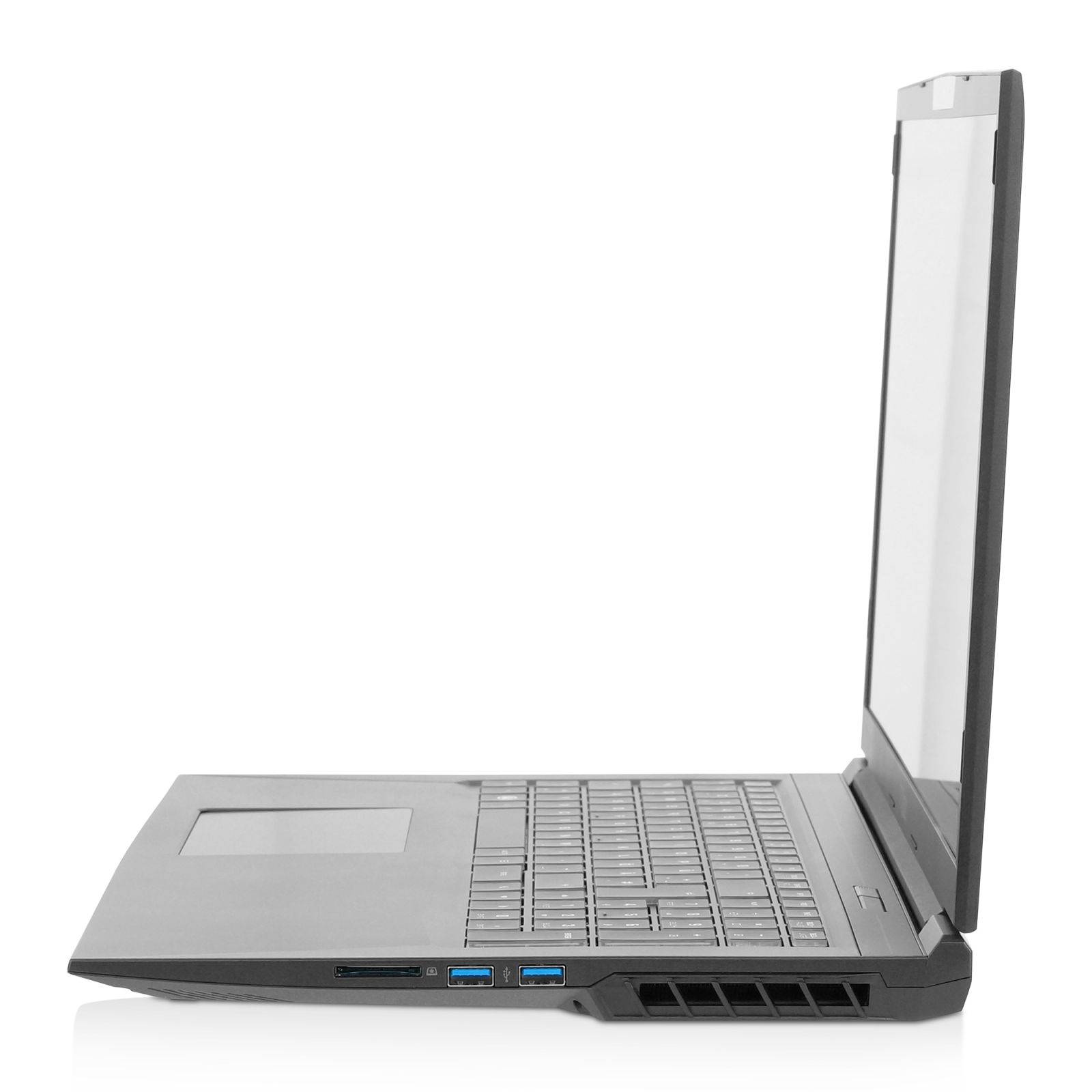

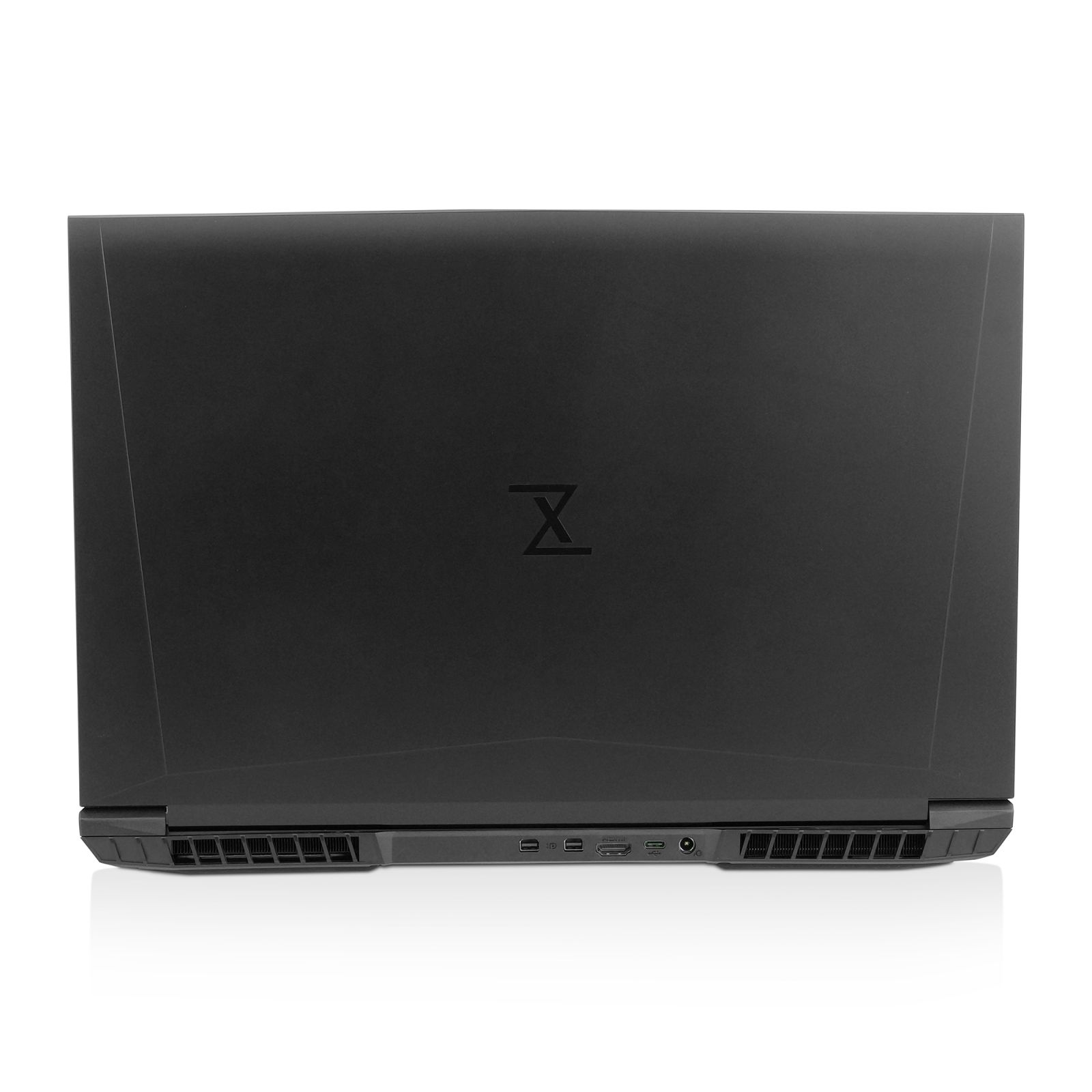

Ports

1x USB 3.2 Gen1 (Intel) Gen2 (AMD) Type-C (DisplayPort: no; Power Delivery: no)
2x USB 3.2 Gen1 Type-A
1x USB 2.0 Typ-A
2x Mini DisplayPort 1.4 (G-SYNC), 1x HDMI 2.0 (HDCP 2.2)
1x Gigabit LAN/network RJ45
1x Headphone-out
1x Mic-in
1x Card reader (SD/SDHC/SDXC)

Card reader

Micro SD Cardreader

Cooling System & Fan

Temperature controlled silent fan
At low system workload/stress there is less heat emerging. The cooling system fans have to spin accordingly fast or slow or even turn themselves off completely. But the device doesn't produce any disturbing noises even at full load, no high frequency sounds or clatter, just air swooshing.

Custom fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the behavior of the fans at yourself. This means that you get the ability to make your device as silent as possible. You are able to set the device almost passive cooled, without any fan noise most of the time!

Operating systems





Warranty

2 years pick up and return (12 months on wearing parts like battery & power supply)

Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)

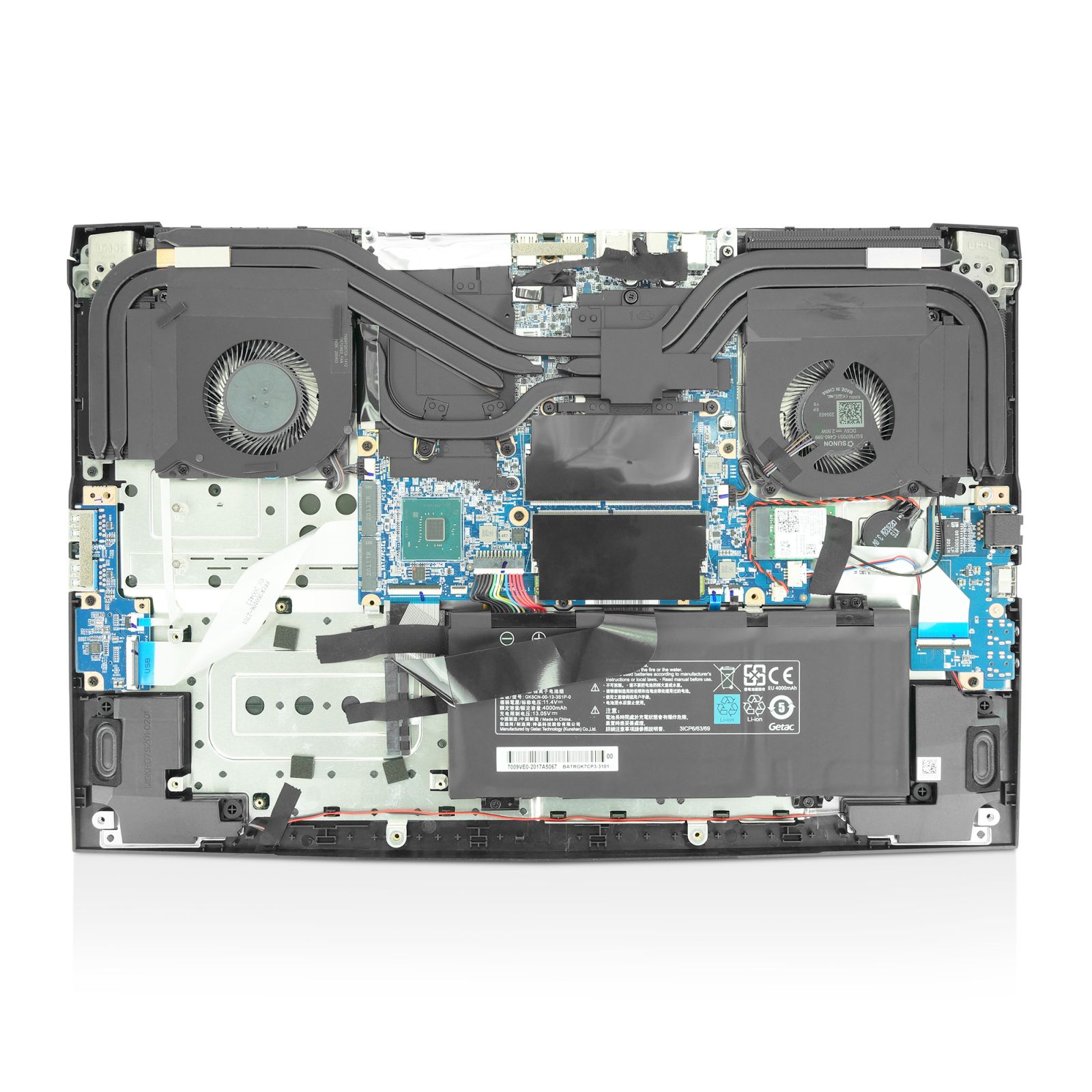

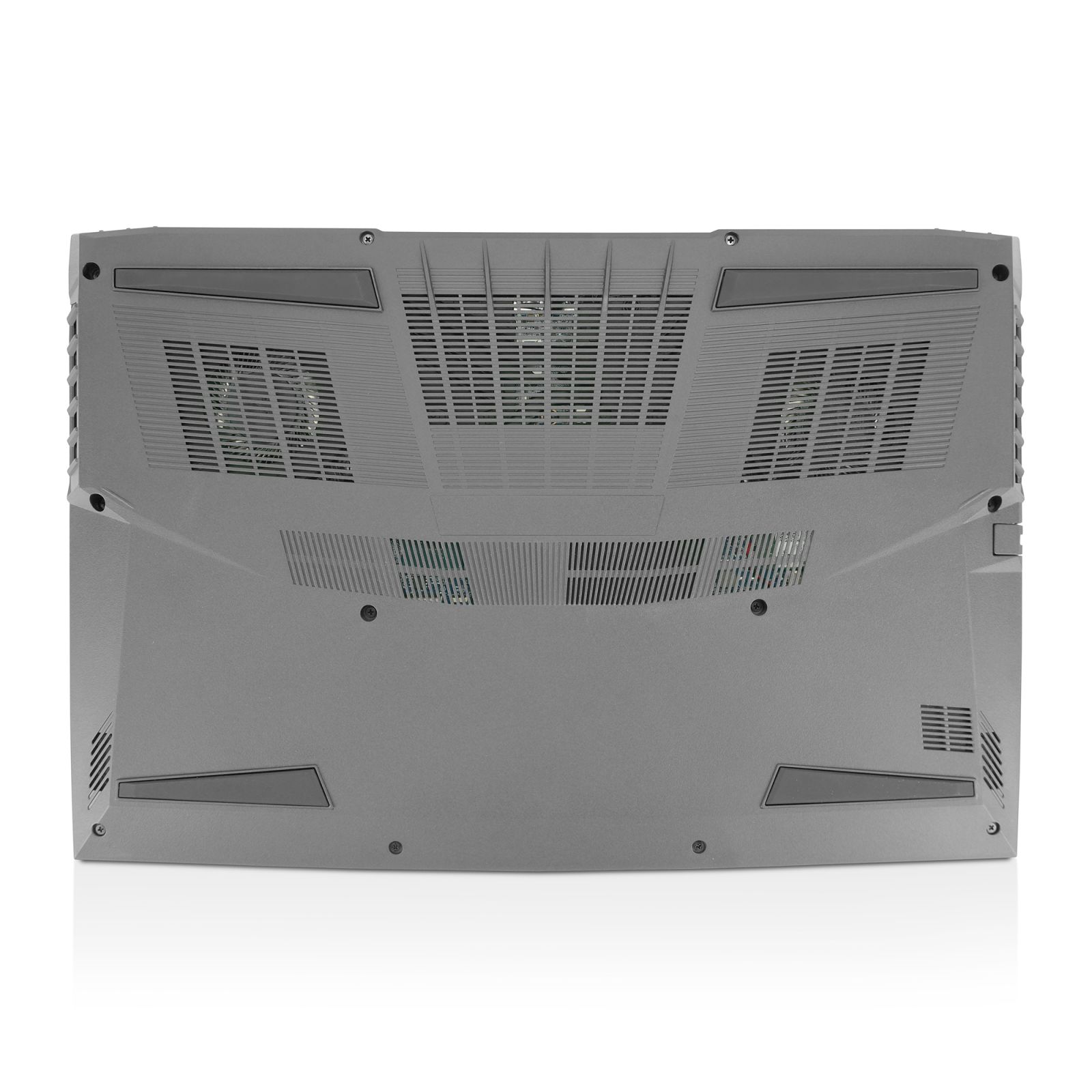

All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course even after expiration of your warranty period we're offering replacement parts and service for many years!



For warranty cases we'll provide you with free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions

Package Contents

1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
1x TUXEDO Computers fan package consisting of two posters, two pens and additional, seasonal goodies :)
