    Stylish appearance

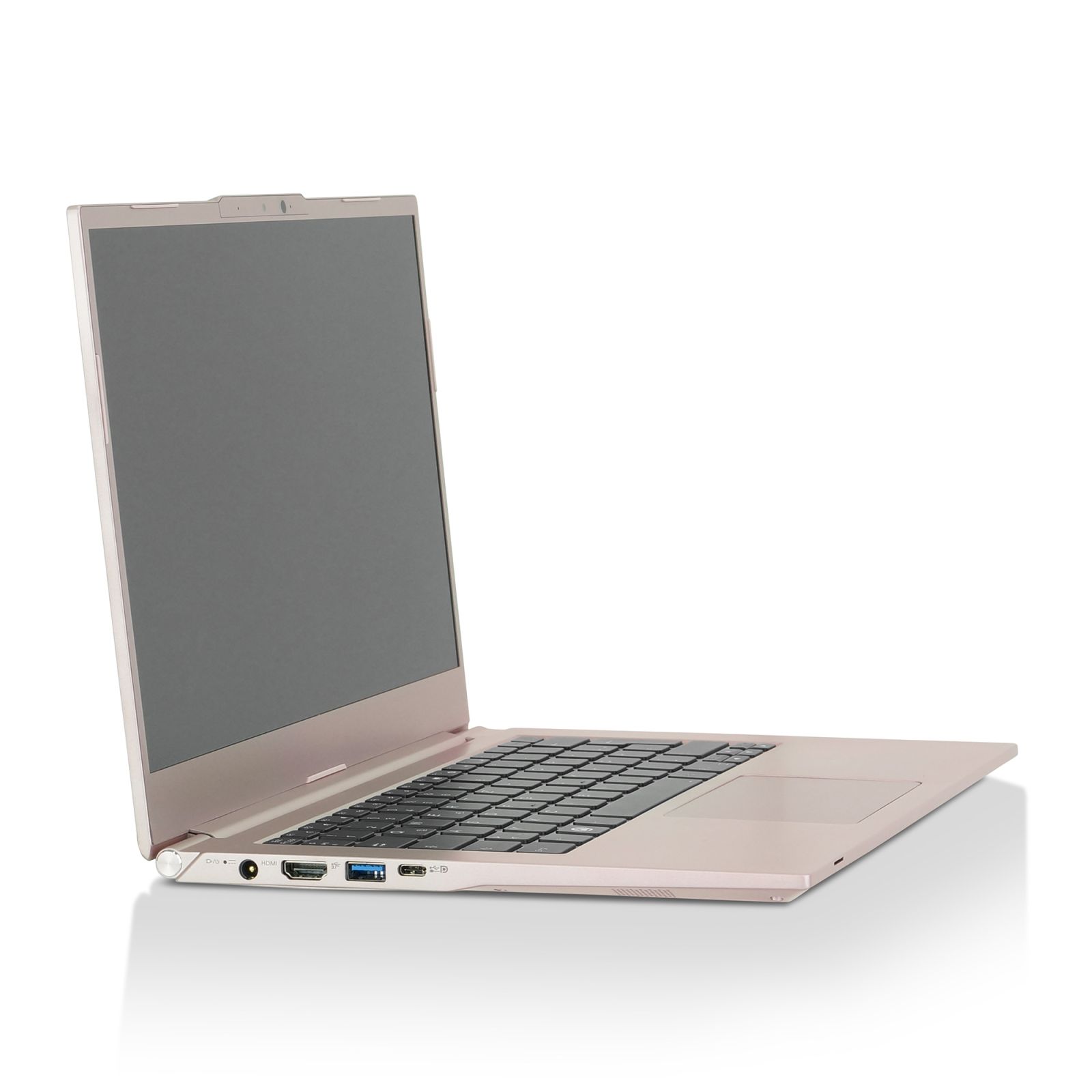

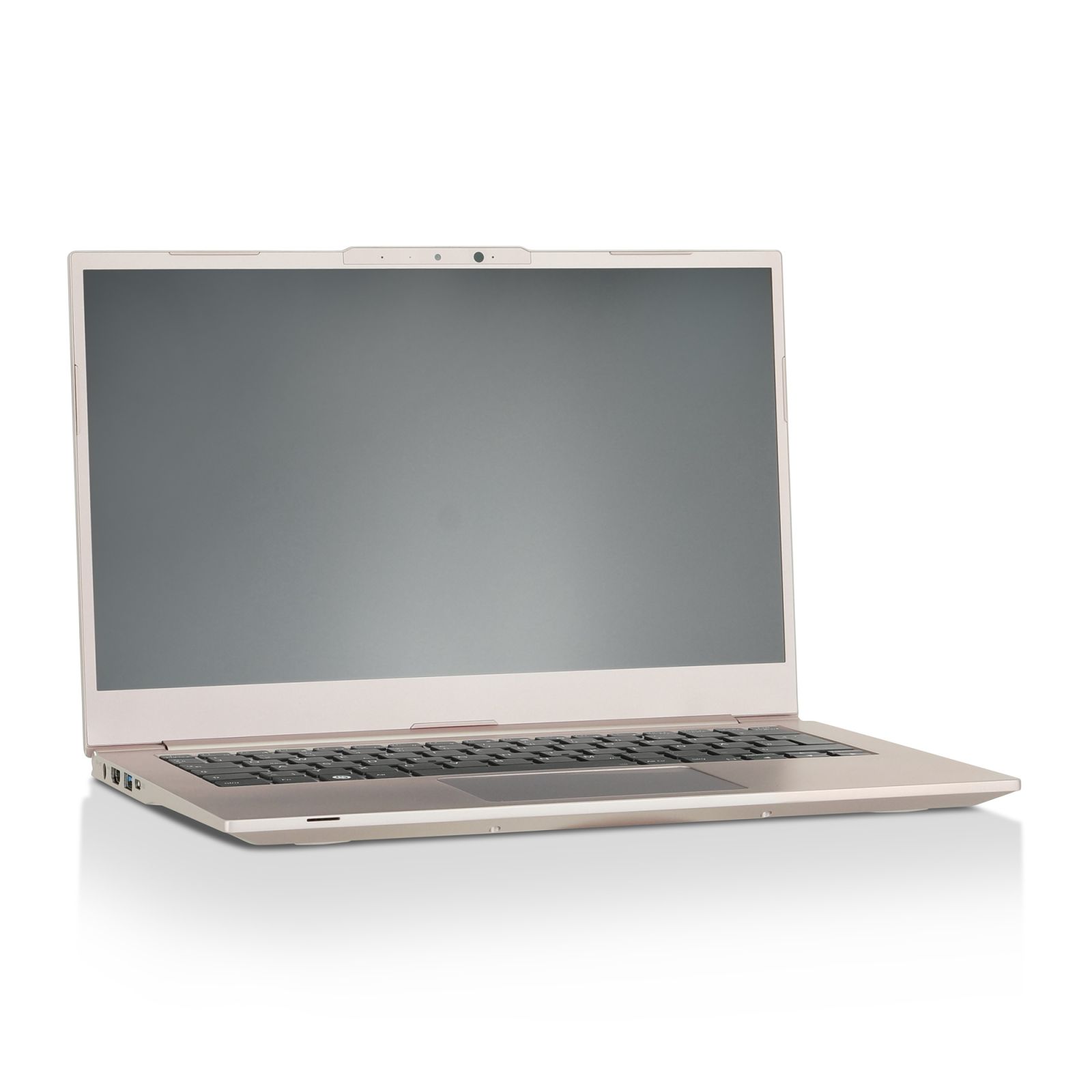

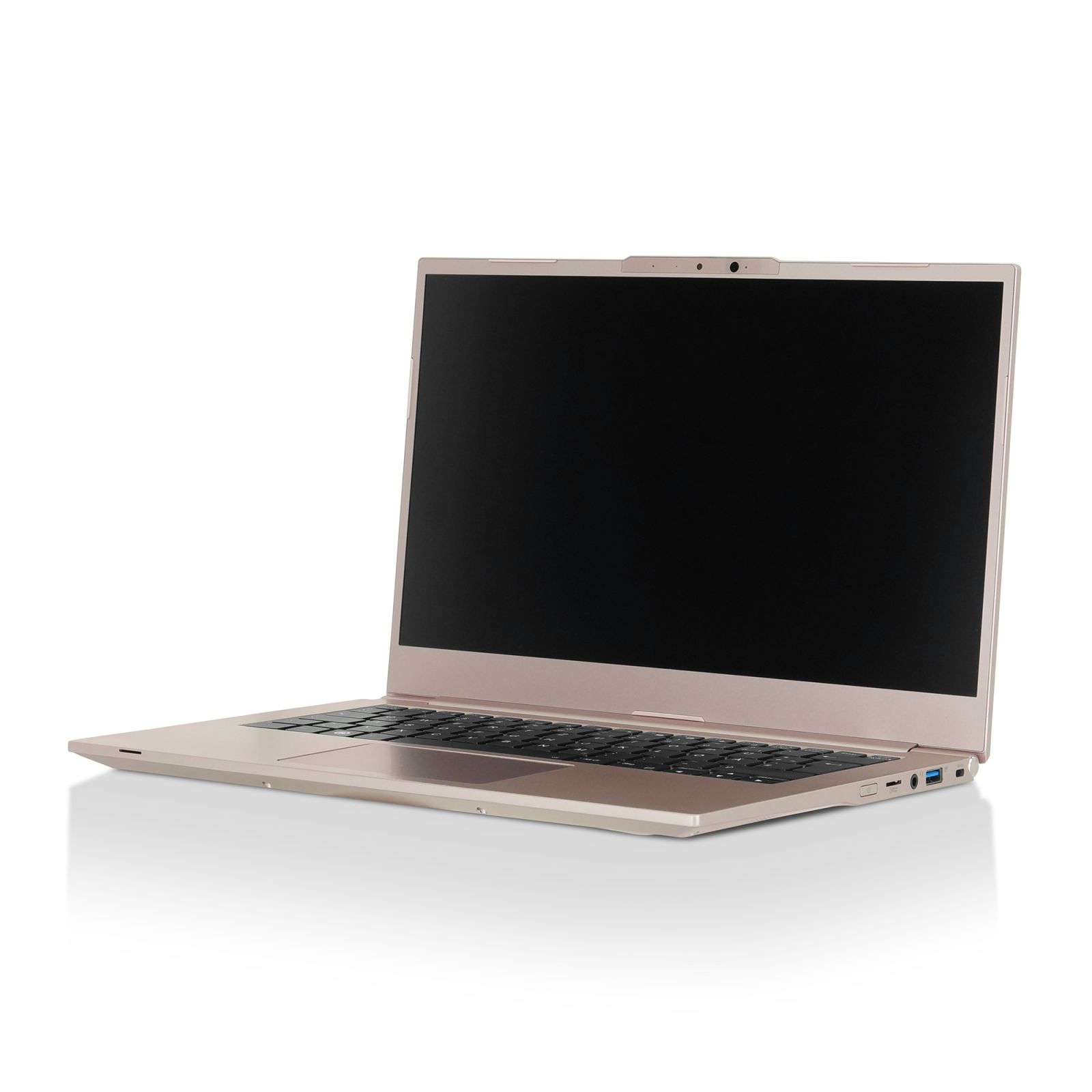

    TUXEDO InfinityBook S14 - PEARL Edition

    Intel Core i5-1135G7
    Intel Iris Xe Graphics

    Up to 24 hours battery life
    73 Wh battery and
    Low Power display

    1,1 kg light
    16,8 mm thin

    Metallic rosé special color
    Trendy & exclusive



    Everything else is ordinary!

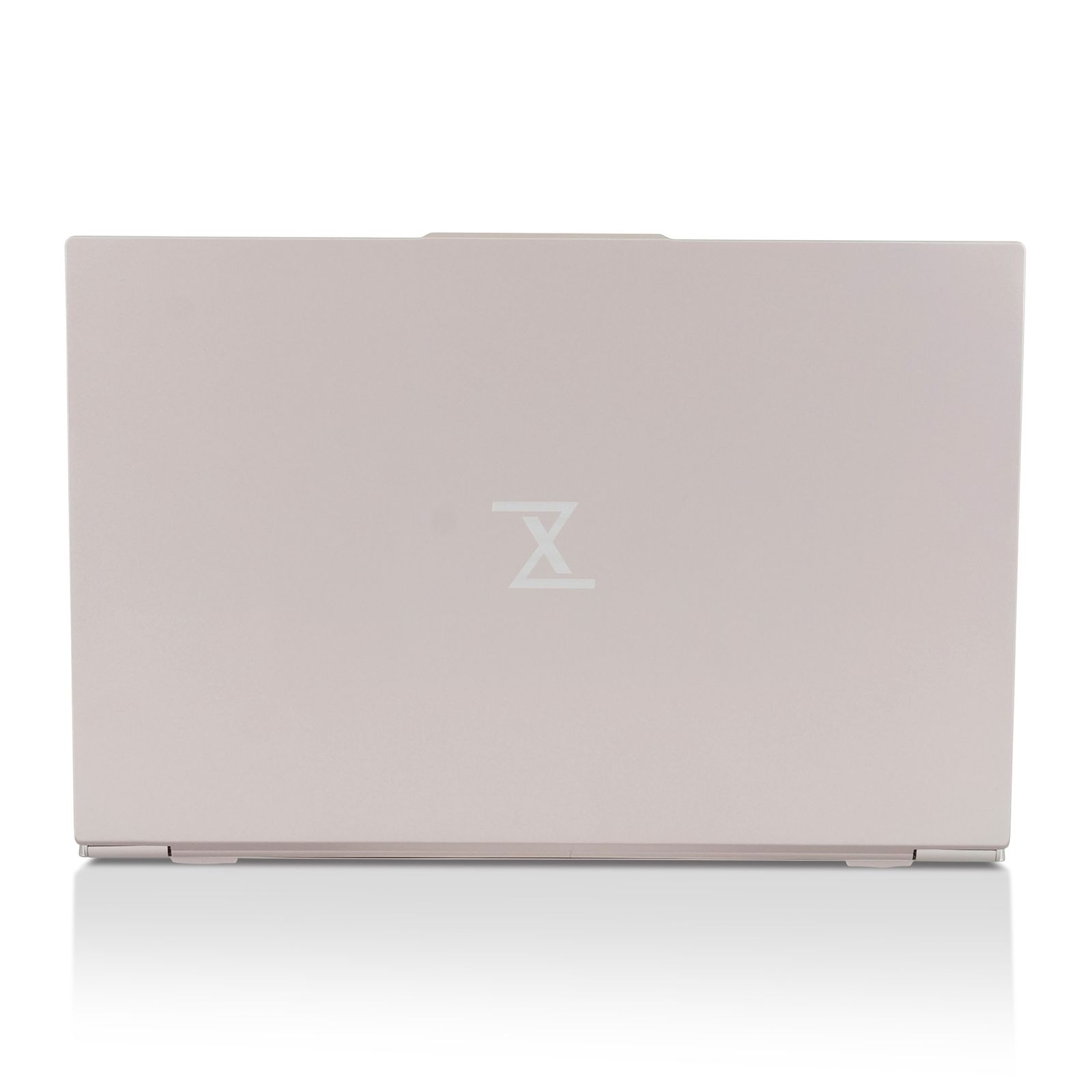

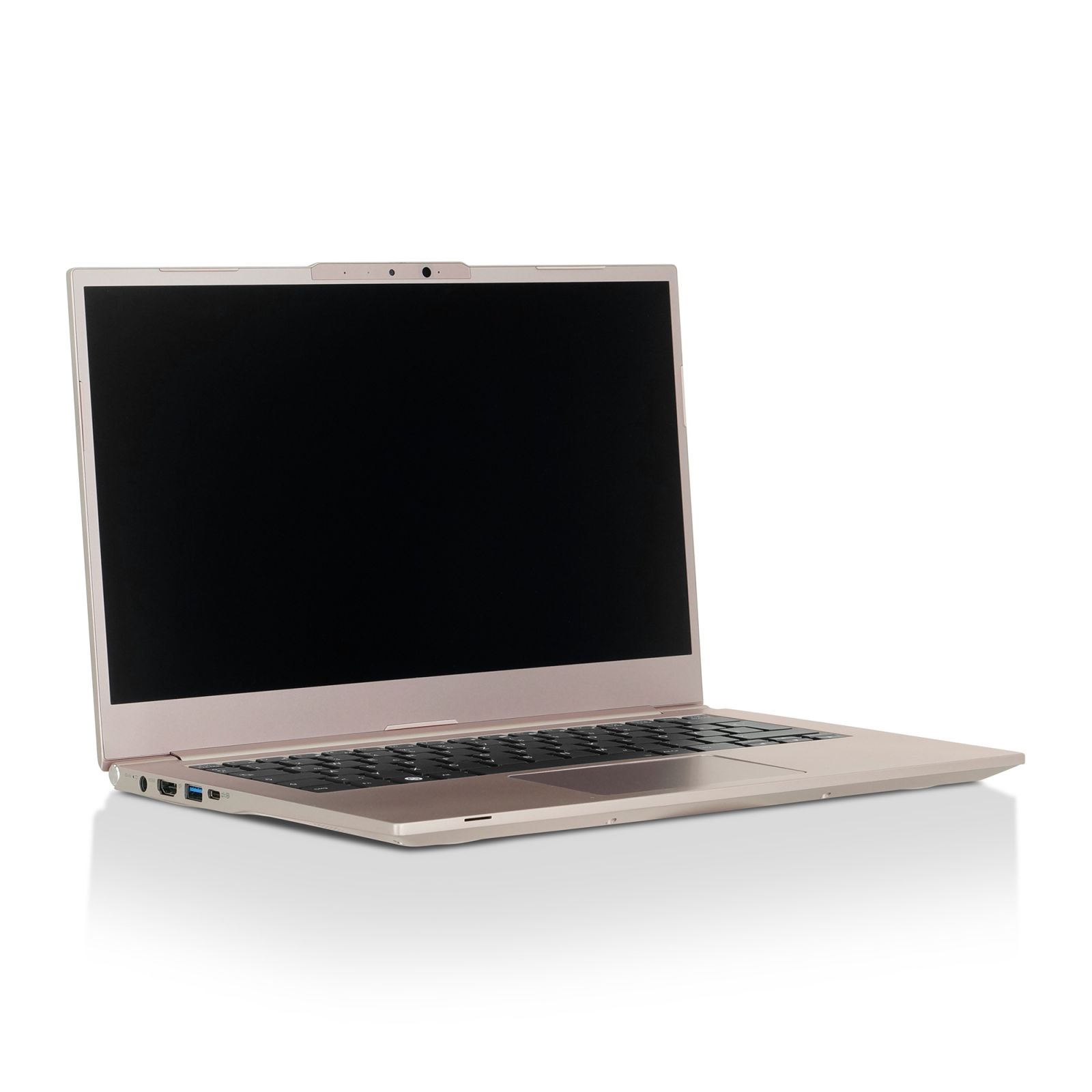

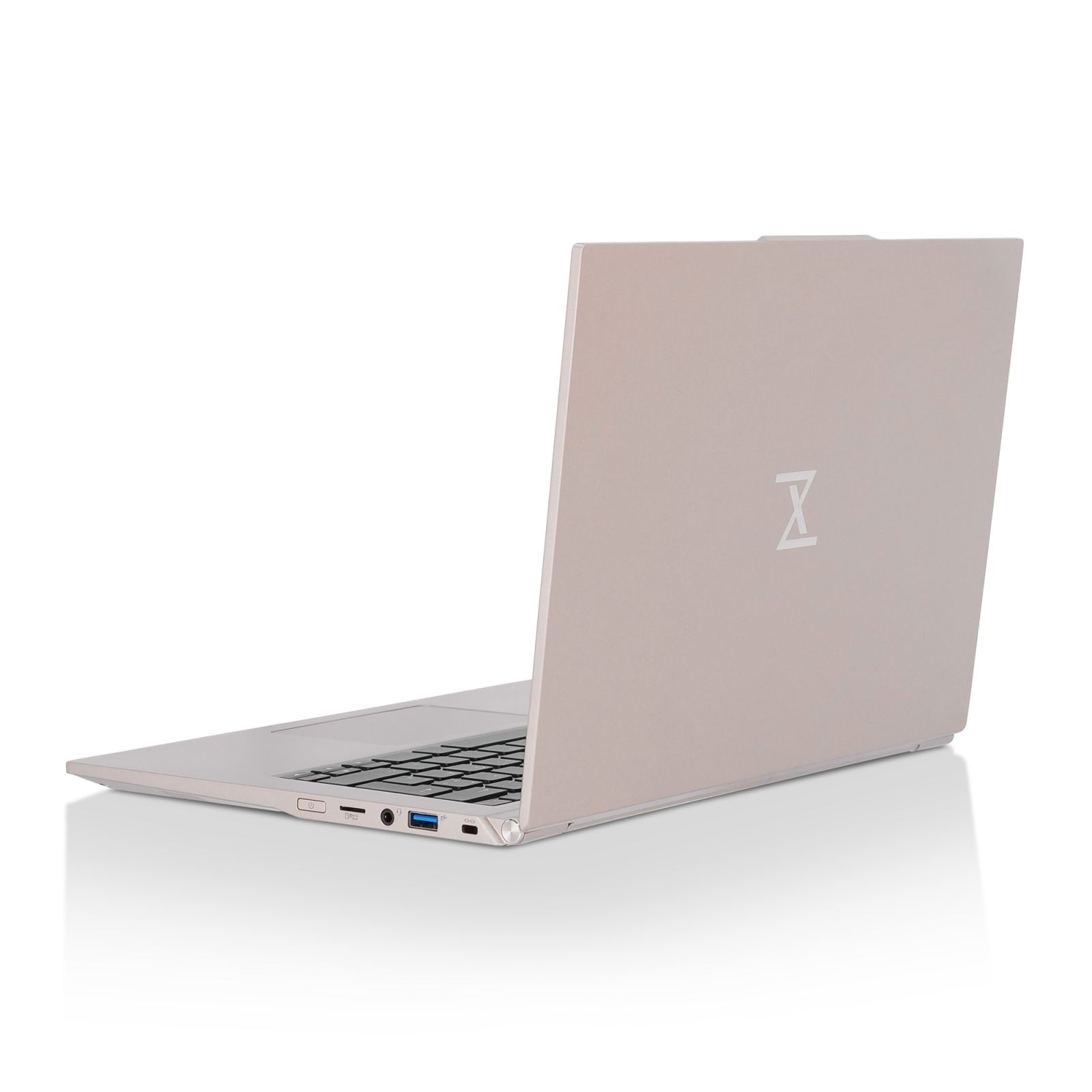

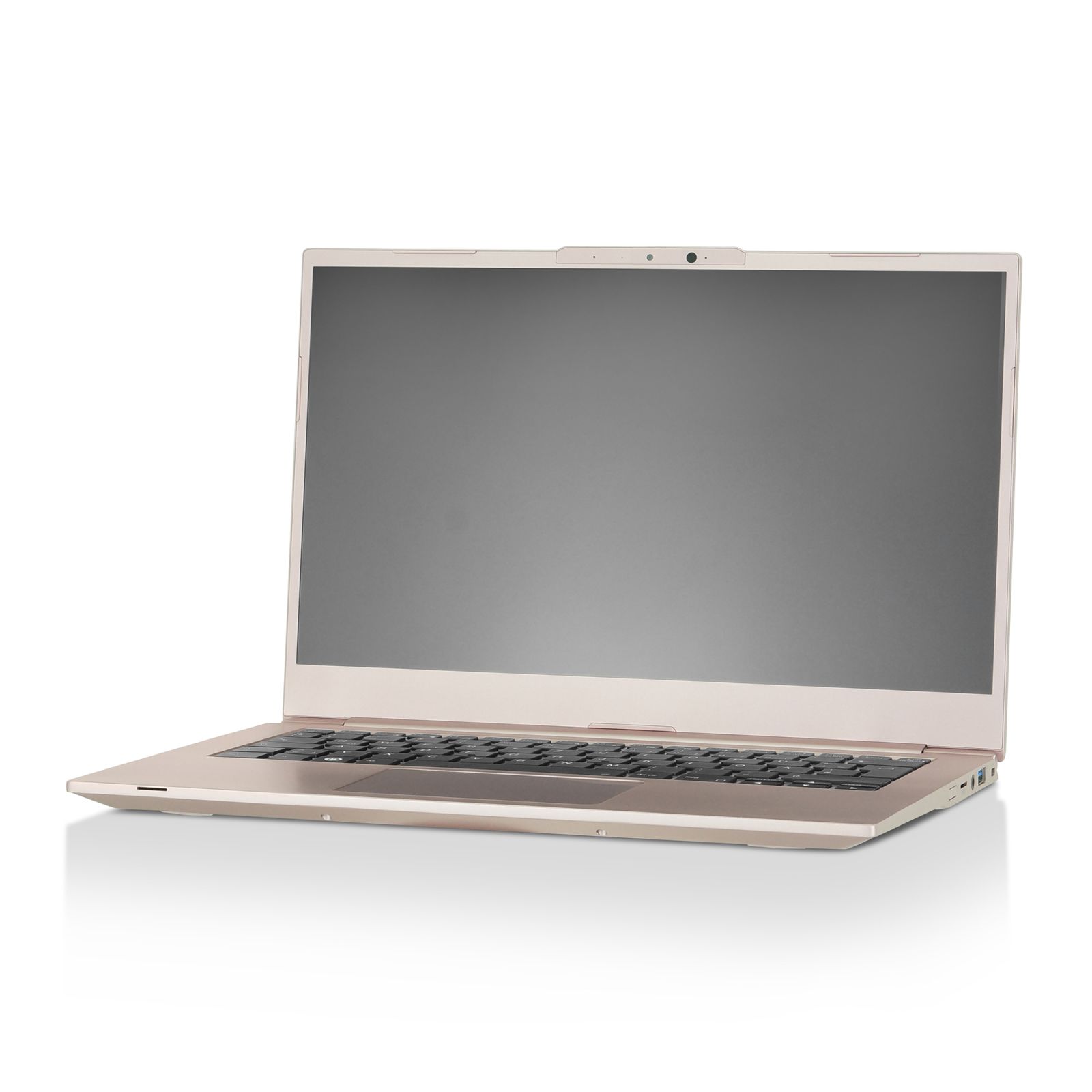

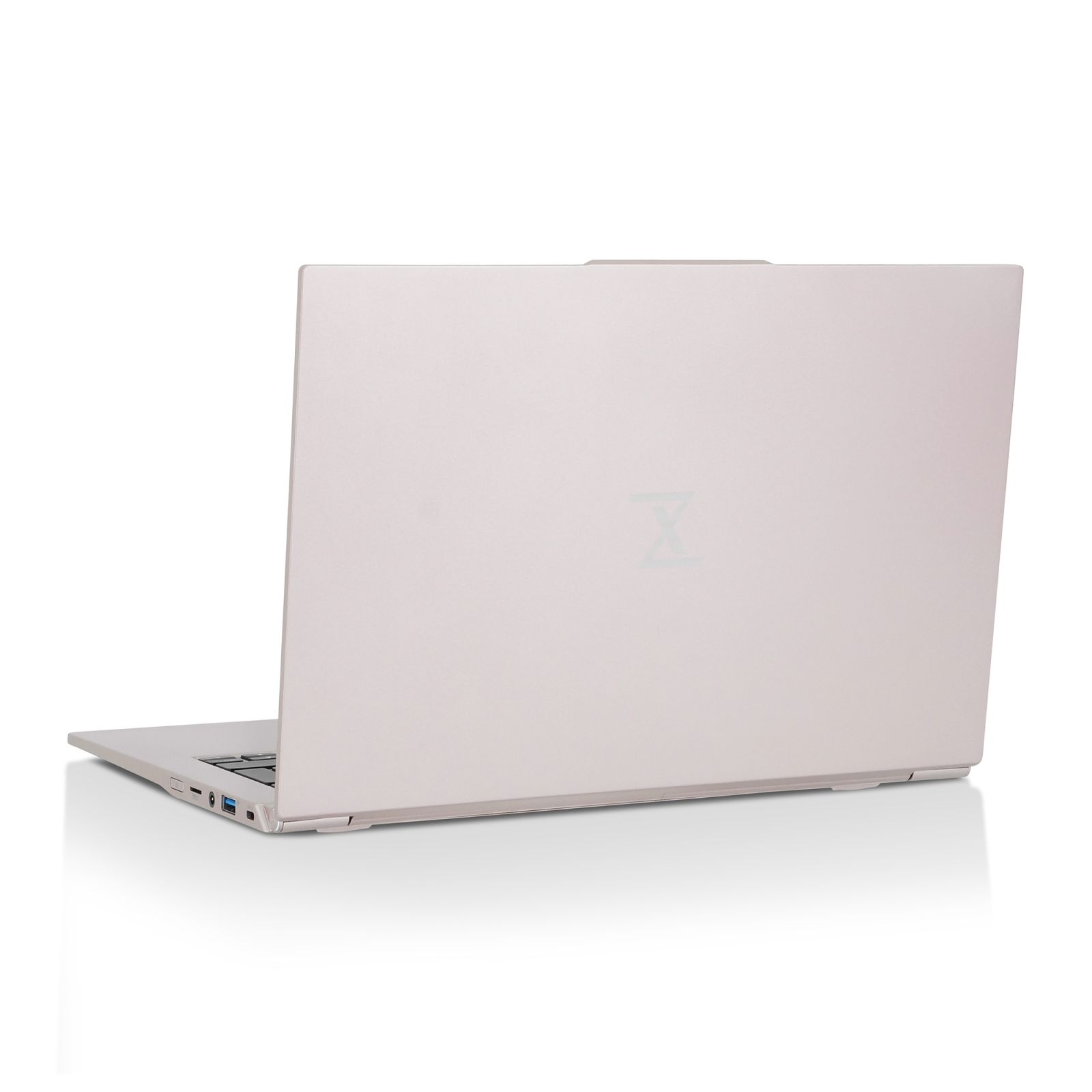

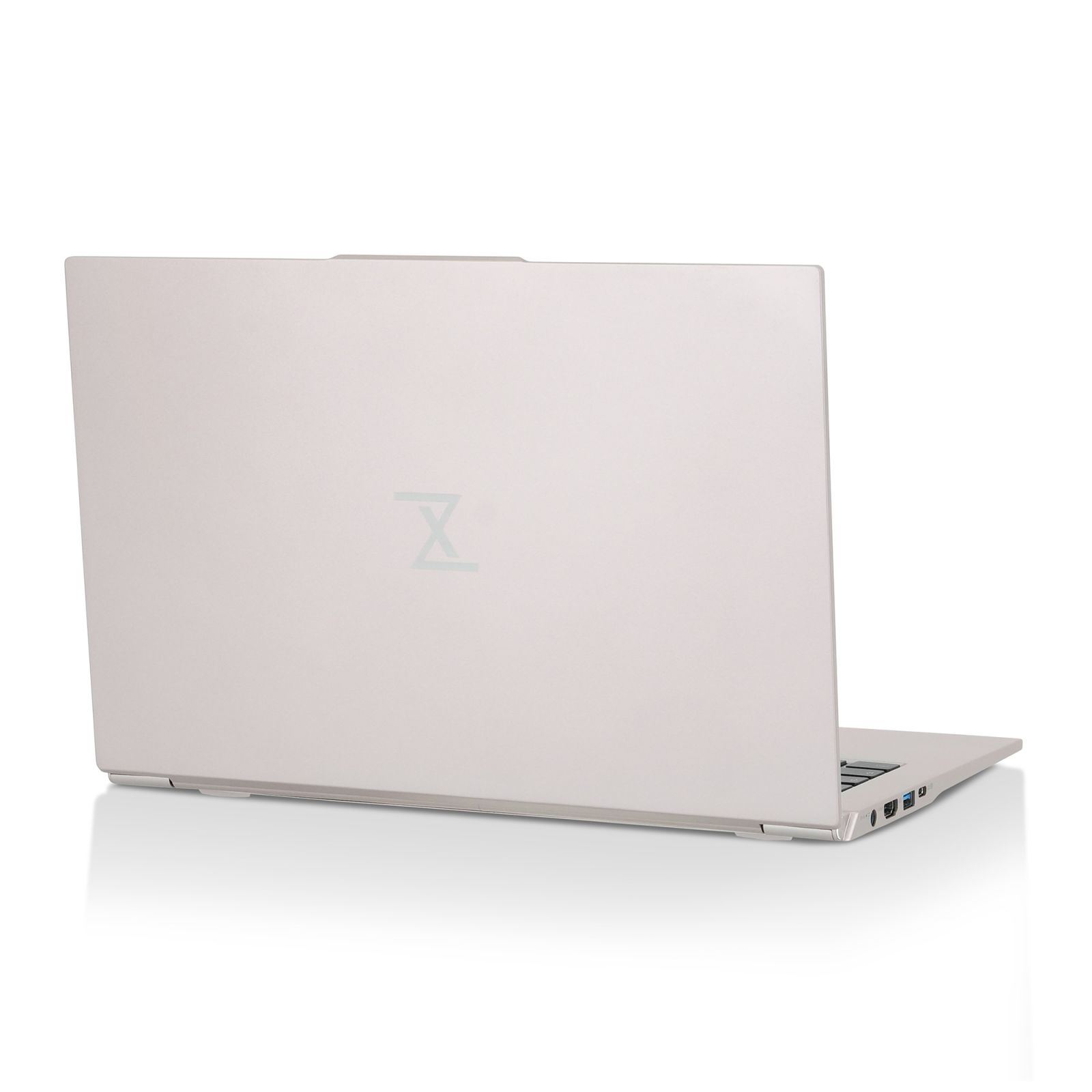

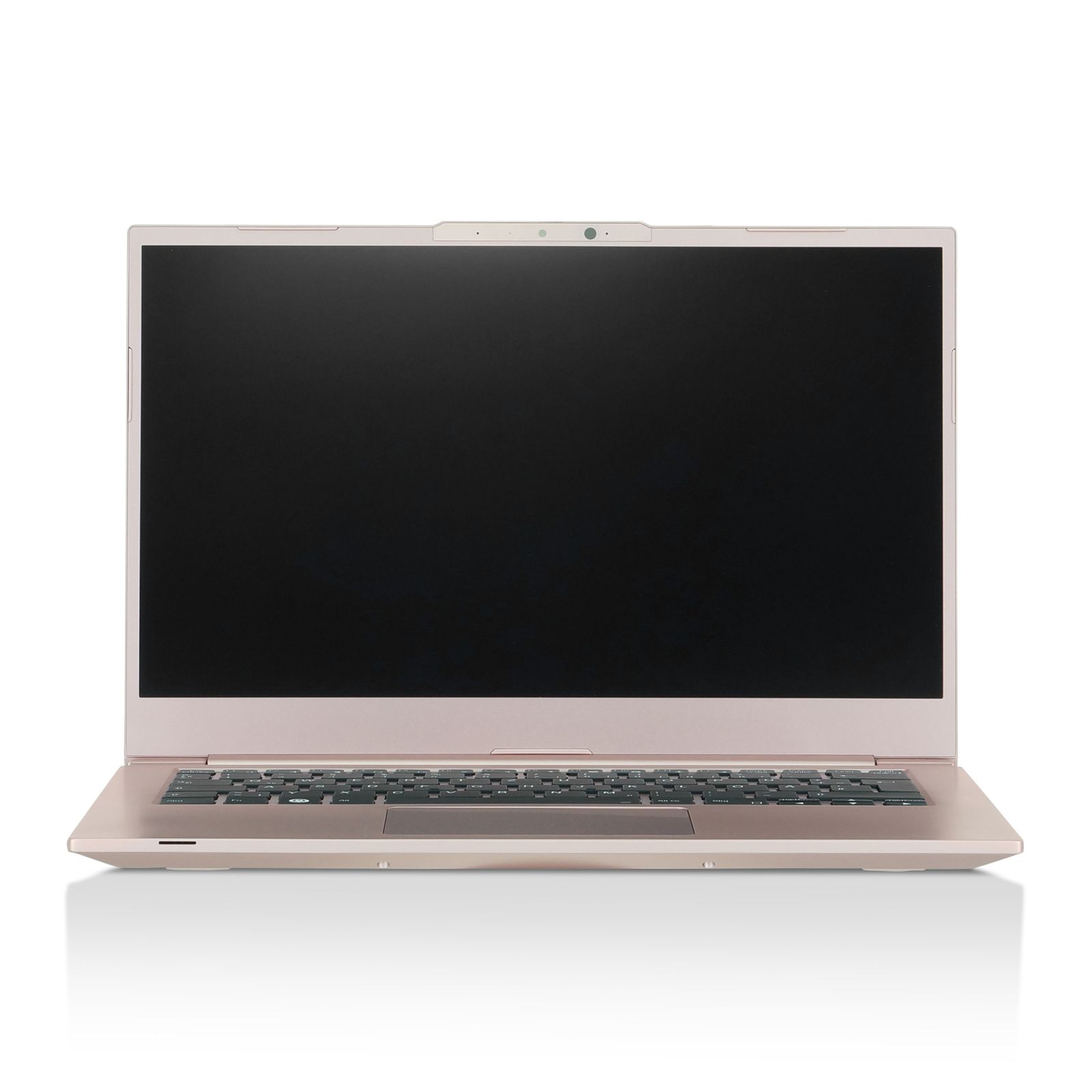

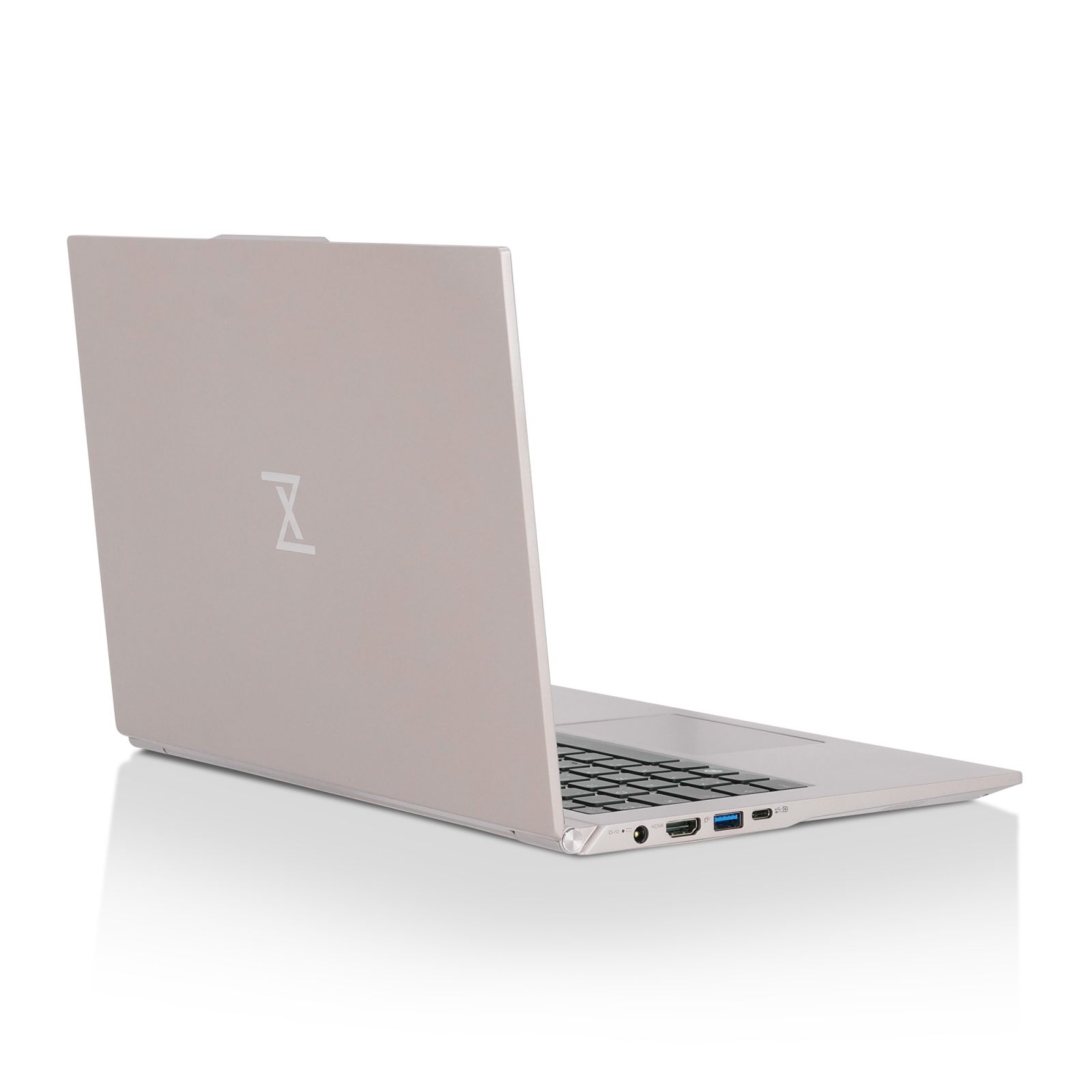

    The InfinityBook S 14 - PEARL Edition in trendy metallic rosé.

    Life is not black or white! So why your laptop?

    With its 1.1 kg light magnesium chassis in modern metallic rosé color, the TUXEDO InfinityBook S 14 - PEARL Edition swims against the tide and is confident enough to break with standard color conventions.

    Under the stylish looking hood, the fast but power efficient Intel Core i5-1135G7 provides processing power for all everyday tasks, while the large 73 Wh lithium-ion battery in combination with the innovative Low-Power display ensures spectacular runtimes of even up to 24 hours.

    Confident enough for the TUXEDO InfinityBook S 14 - PEARL Edition?
    Then better hurry up as our trendsetter is only available in a highly limited edition!

    You prefer the classic InfinityBook S 14 in silver?
    Click here to visit its dedicated product page.



    Cuts a fine figure

    After many requests from our community for more color alternatives to the mostly black or silver-grey notebooks, we present the TUXEDO InfinityBook S 14 - PEARL Edition in a fashionable, eye-catching metallic-rosé color.

    The 14-inch Linux ultrabook features an extremely light (1.1 kg) and thin (16.8 mm) as well as robust chassis made with magnesium alloy, which is certified according to military standard MIL-810G.



    Infinitely individual

    It's up to you! Get creative and make your InfinityBook S 14 - PEARL Edition your very own TUXEDO Linux laptop!

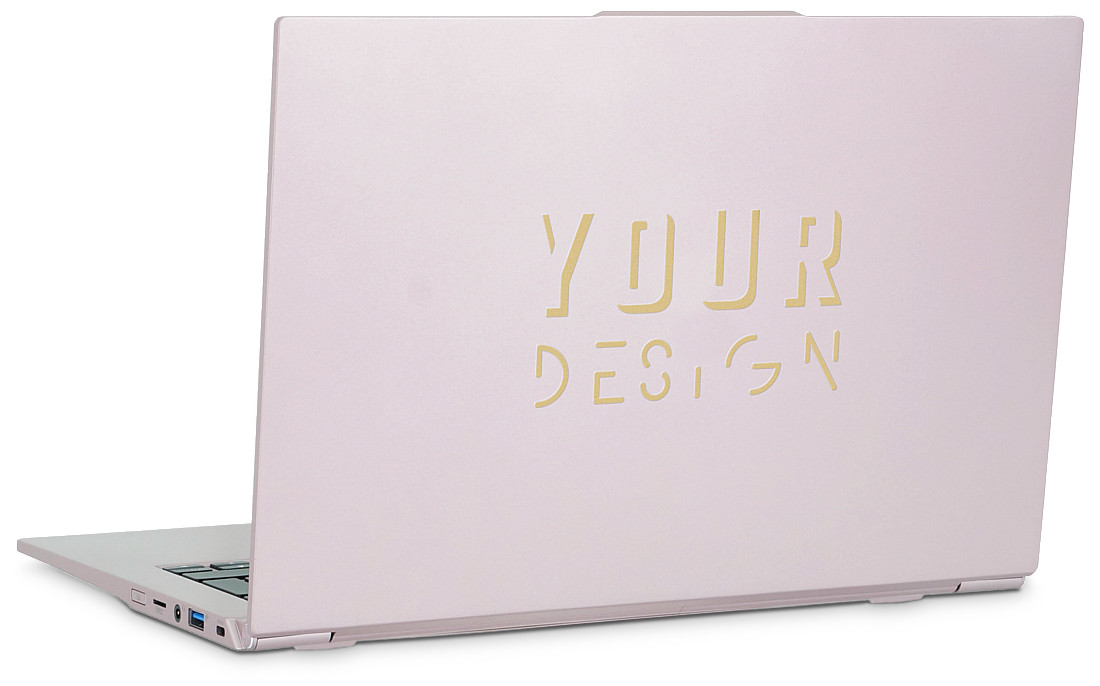

    With every InfinityBook S 14 - PEARL Edition, you get our exclusive chassis printing customization service for free!
    Create your own logo or graphic design and we will personalize your TUXEDO with our multicolor printing technique, which is also used for the original TUXEDO-X logo.

    As an option we even laser-engrave your self-created keyboard layout! You prefer a certain font, you want your logo on the Super key or you require a different, logical keyboard layout? Go for it!

    Please note! Please be sure to follow all the instructions on our info page closely to ensure that we can provide you with our customization service flawlessly.



    Improved efficiency and performance:
    Intel Tiger Lake

    Stylish on the outside, but old-fashioned on the inside? Not at all!
    Under the hood the TUXEDO InfinityBook S 14 - PEARL Edition is powered by the Intel Core i5-1135G7.

    The 10 nm quad-core processor can handle up to 8 threads simultaneously thanks to Hyperthreading technology and combines low power consumption with great performance for all everyday tasks - from emails and web surfing to office programs, multimedia and even light image / video editing.

    For graphics processing the Core i5-1135G7 integrates the Iris Xe Graphics with 80 EUs (Execution Units), which offers greatly improved performance compared to the predecessor generation. CPU and integrated GPU share up to 40 GB DDR4 RAM (8 GB on board + max. 1 x 32 GB SO-DIMM).

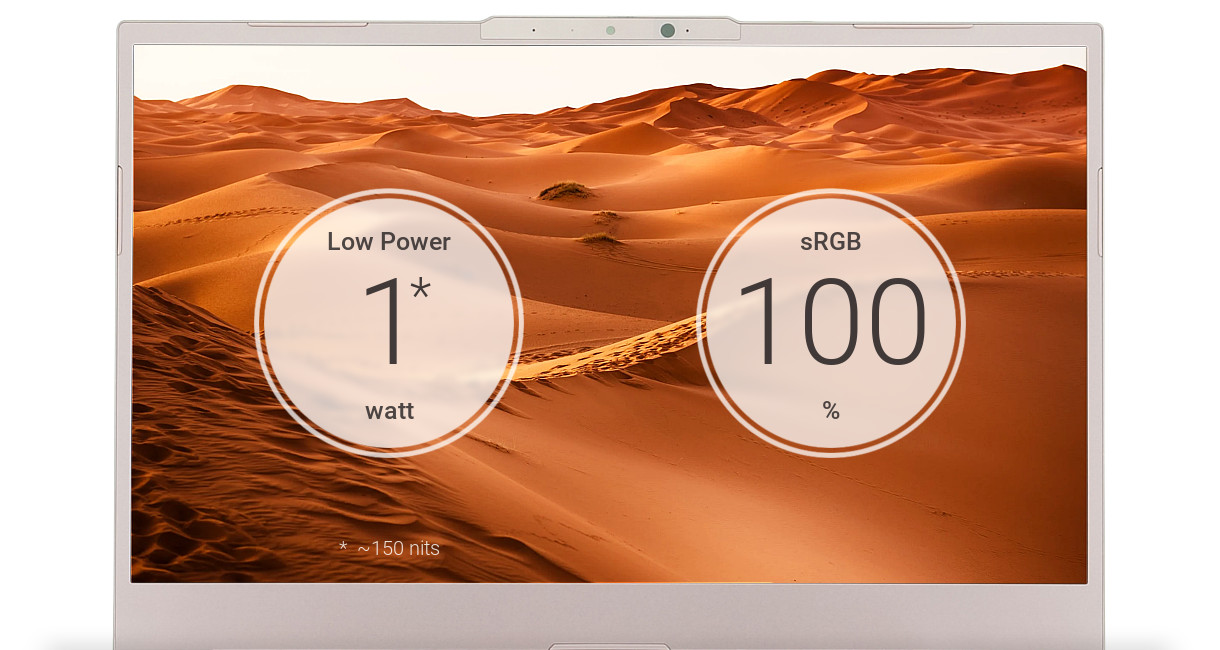

    Low power. High pleasure!

    Another unique feature of the TUXEDO InfinityBook S 14 is the innovative Low-Power display, which only draws about 1 watt of power at a brightness of ~150 nits and thus consumes about 50% less power than conventional displays!

    Despite its low power consumption the 14 inch panel offers a resolution of 1920 x 1080 pixels (Full-HD), a brightness of 300 nits and even covers the full sRGB color gamut.

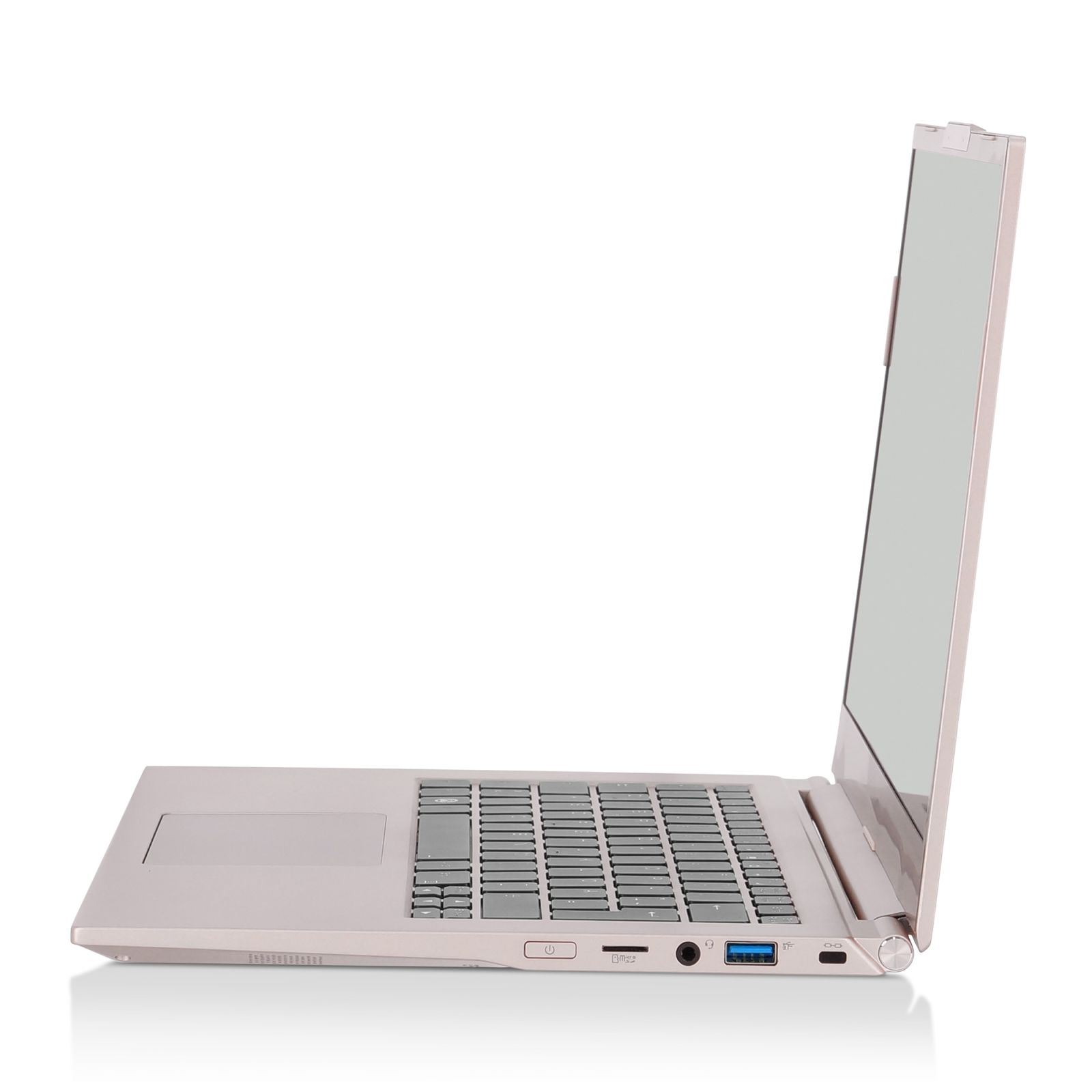

    The 180° opening angle of the rigid hinge allows free adjustment of the viewing angle at any time, which enables comfortable use thanks to the matte display coating and the IPS-typical image properties.



    Endurance for loooong working days

    The large and internal screwed 73 Wh lithium-ion battery provides runtimes of around 14 hours in practical use (video streaming via WLAN @ 150 nits). In most power-saving idle mode even a maximum battery life of up to 24 hours is achievable.

    The handy and very light (140 grams65 watts power supply emphasizes the ultra portability form factor of the 14 inch Linux ultrabook.

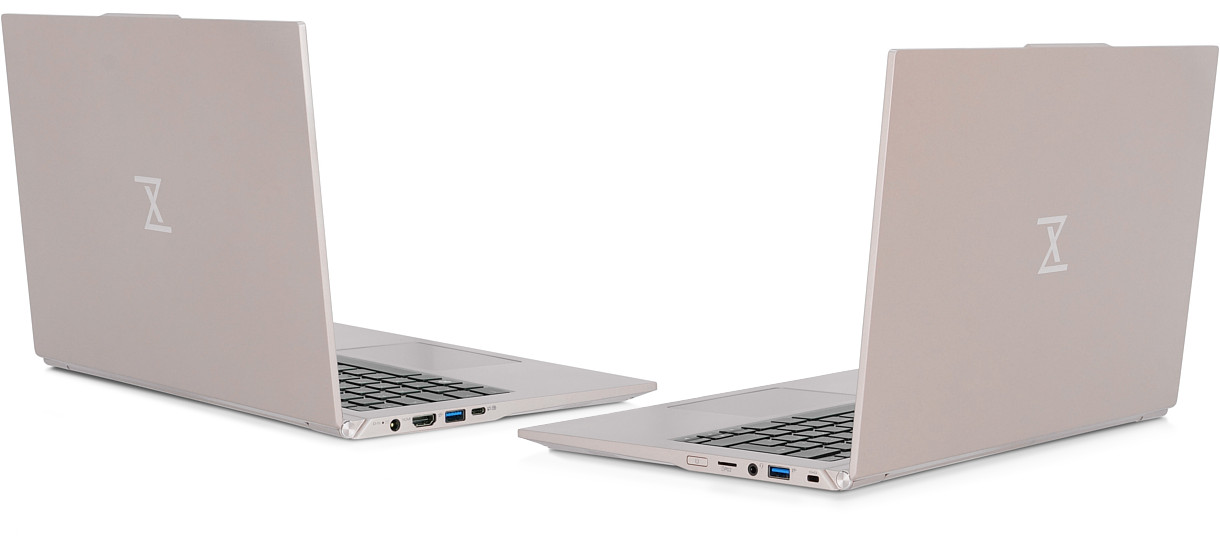

    Thunderbolt 4, microSD card reader and an optional LTE module

    Besides its full featured-USB-C 4.0 / Thunderbolt 4 port the Infinitybook S 14 features two additional USB Typ-A ports (1x USB 3.2 Gen1, 1x USB 3.2 Gen2) as well as a microSD card reader.

    For a great multi monitor setup the laptop comes with DisplayPort (integrated in the Thunderbolt 4 port) and HDMI 1.4b, which allow the connection of up to 3 external display (besides the internal laptop screen).

    Furthermore the InfinityBook S 14 can be configured with an optional LTE module (M.2 slot; not suitable for SSDs!), which provides the Linux ultrabook with mobile Web access anywhere using a Micro-SIM card.

    The second available M.2 slot supports SSDs with PCIe 4.0 x4 and PCIe 3.0 x4 for highest read and write rates and a mass storage capacity of up to 2 terabytes.



    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    Typ: LED-Backlight Display
    Model: AUO B140HAN06.2
    Size: 14 Inch (35,56cm)
    Viewing Angle: 89°/89°/89°/89°
    The opening angle of the display hinges is 180°
    Resolution: Full-HD IPS-Panel, 1920 x 1080, matt/anti-reflective/non-glare
    Power consumption: Low power design (max. 1,65 W)
    Maximum brightness: 300 cd/m²
    Maximum contrast: 1200:1
    NTSC: N7 | sRGB: 100%



    Chassis

    Notebook: Length: 322 mm; Width: 216,8 mm; Height: 16,5 mm
    Weight: ca. 1,1 kg incl. battery, depending on equipment
    Material: Display lid, top and bottom case made of magnesium alloy (AZ91D), Display frame made of resin
    Certified according to military standard MIL-STD 810G

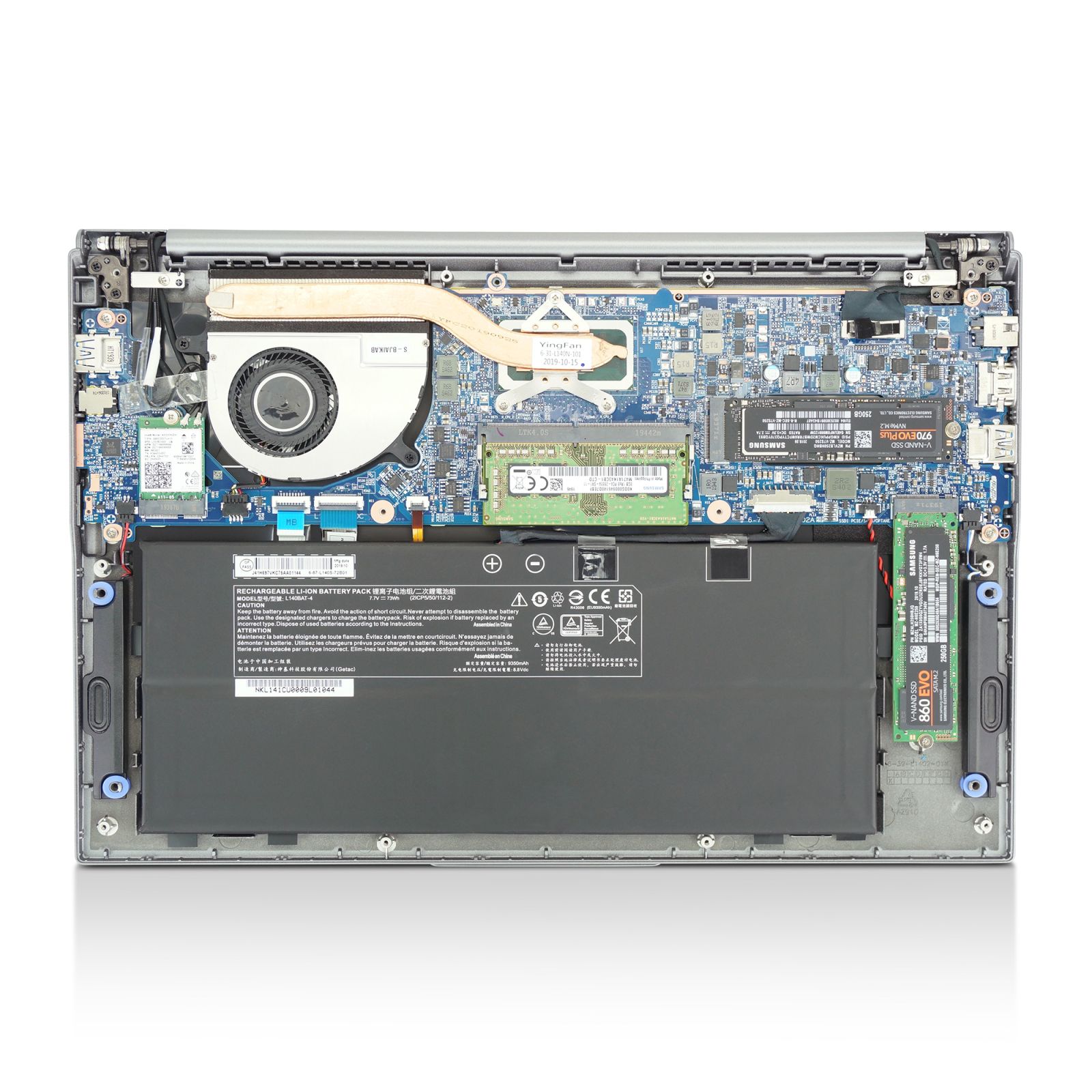

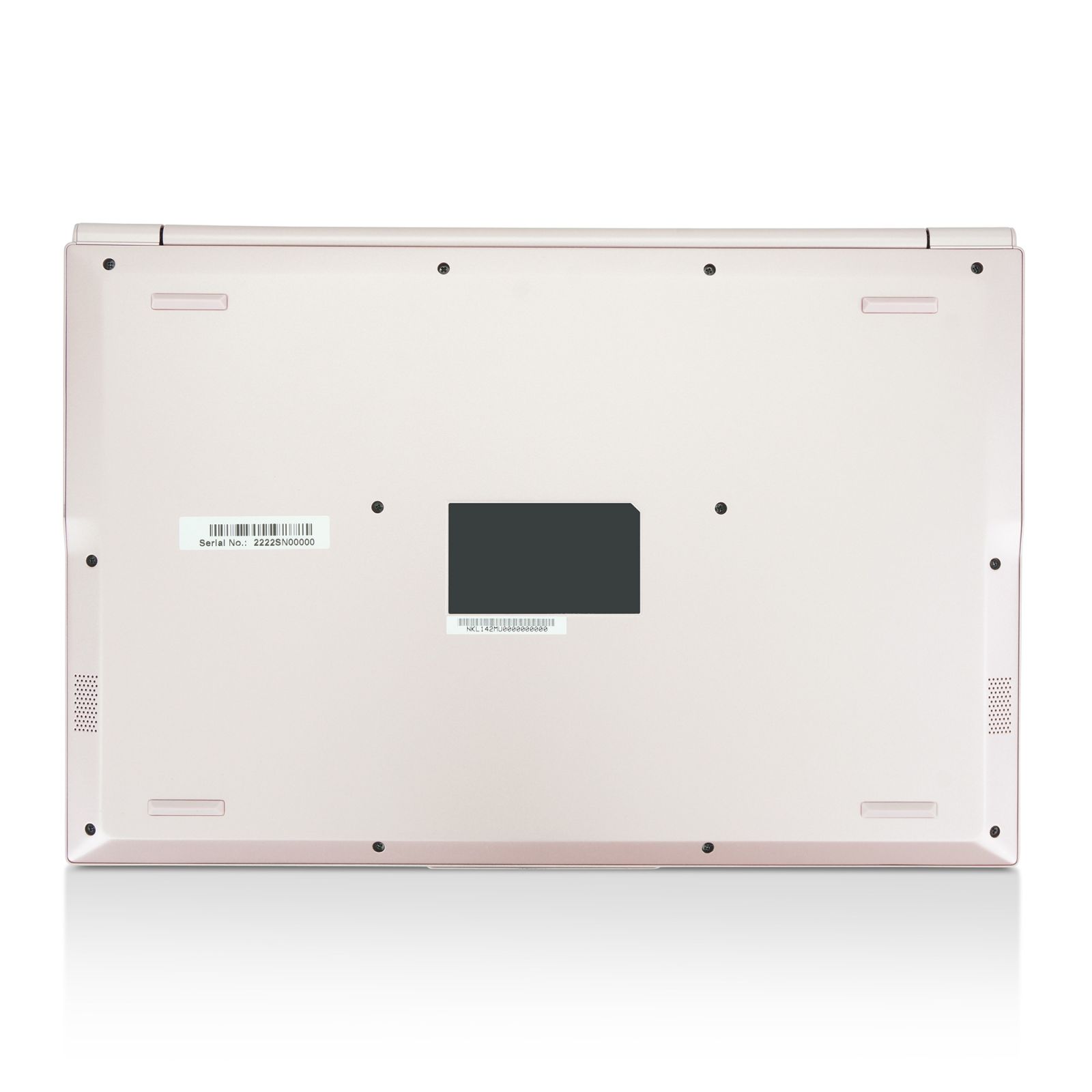

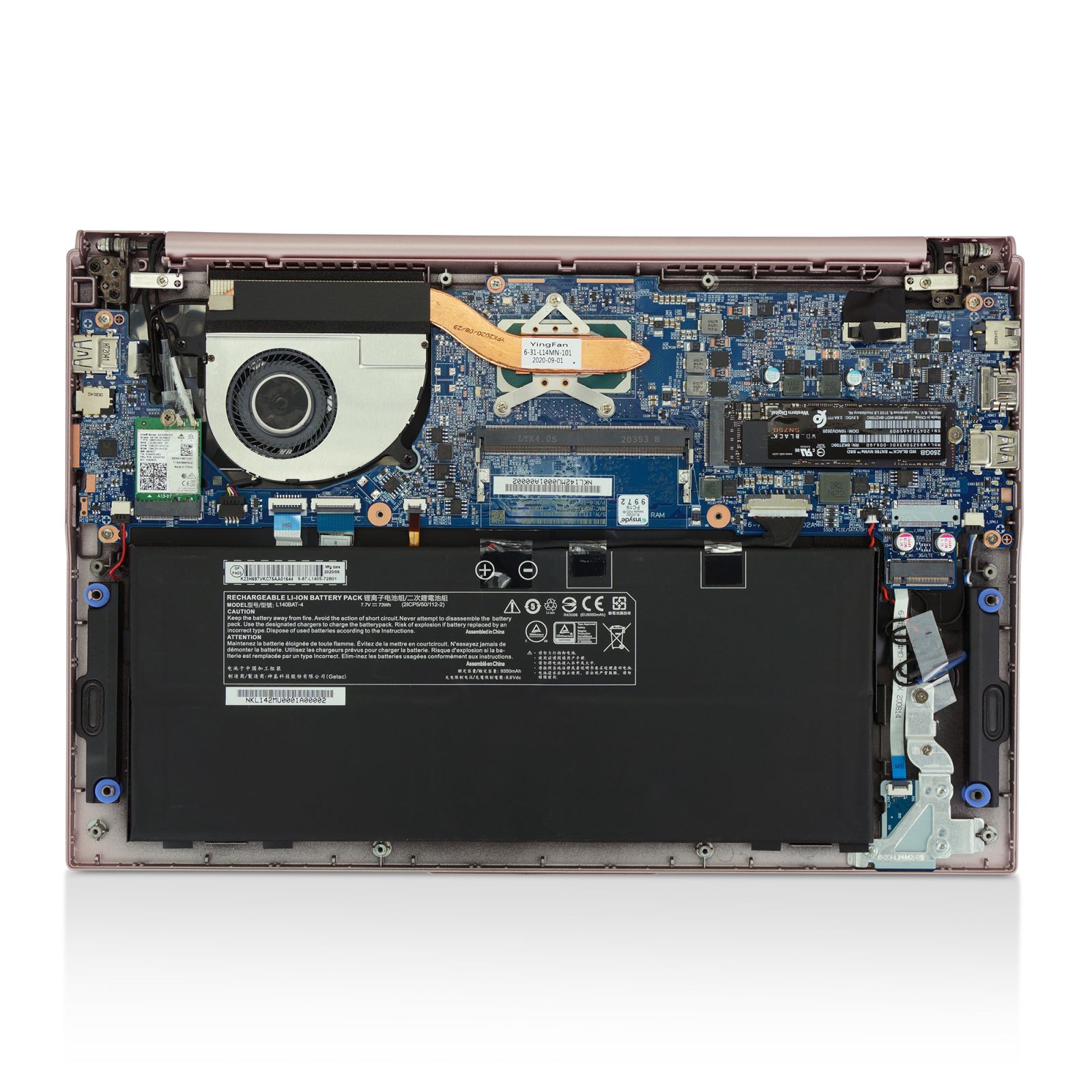

    Maintenance: After opening the base plate via a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.
    Power supply: Length: 97 mm; Width: 52 mm; Height: 15 mm | 0,14kg

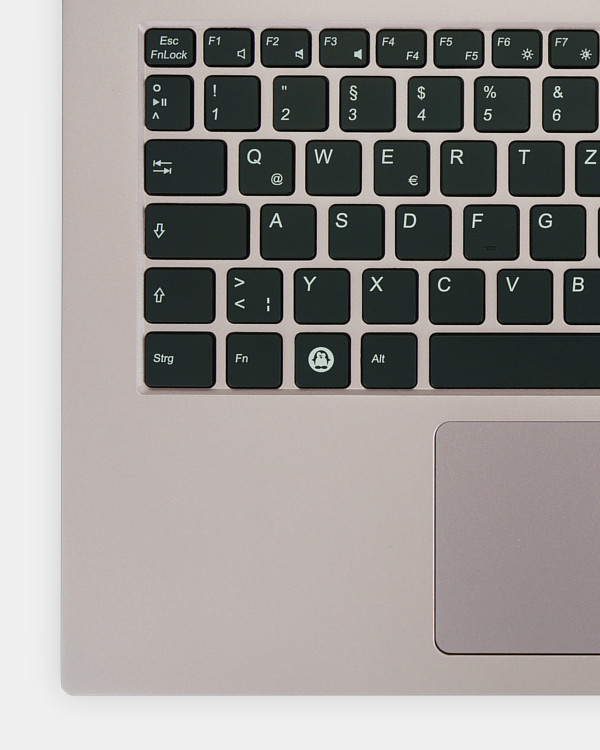

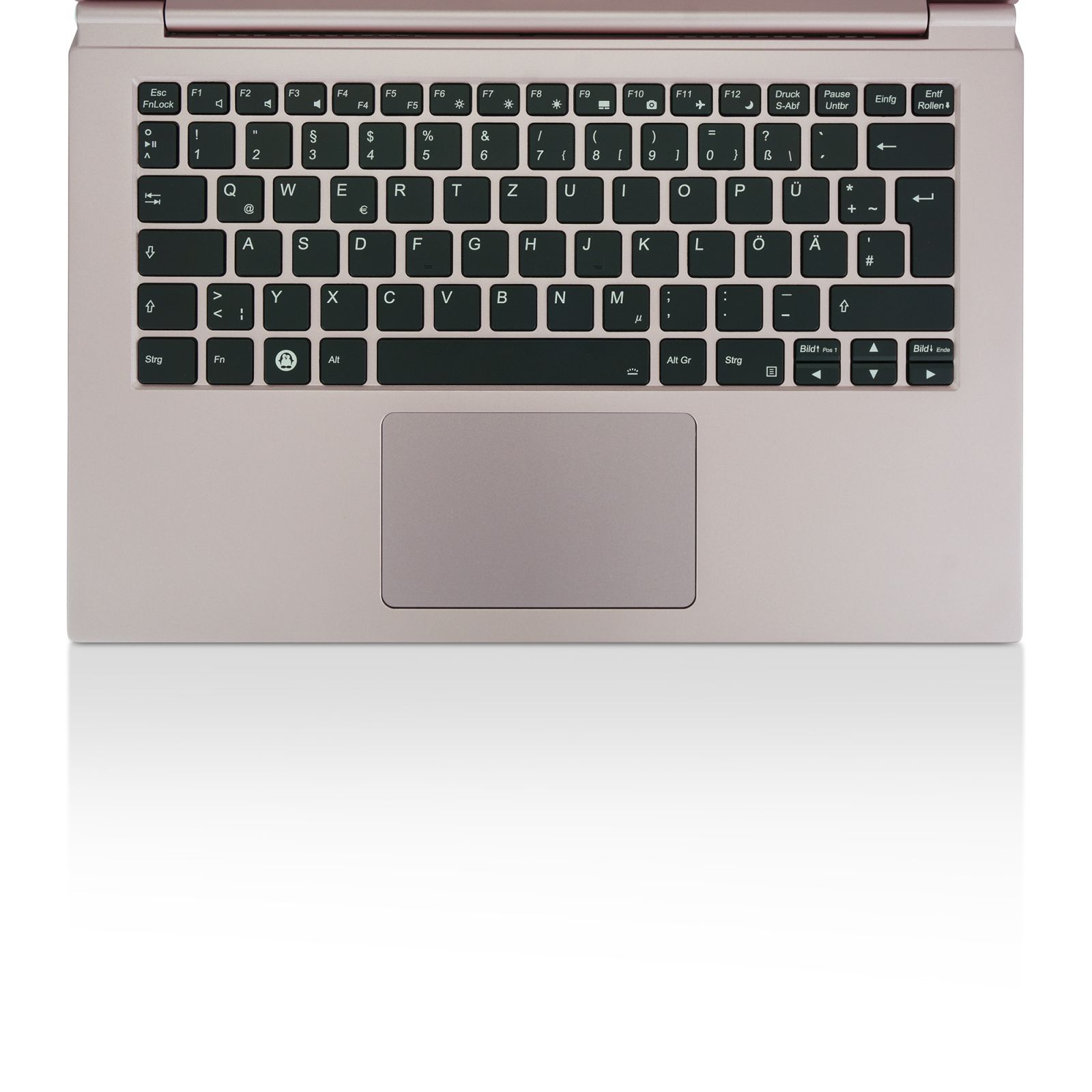

    Keyboard and Touchpad

    Monocolor (white) backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
    TUX super-key on all layouts!
    Big precision clickpad with integrated buttons and multi-gesture- & scroll-function

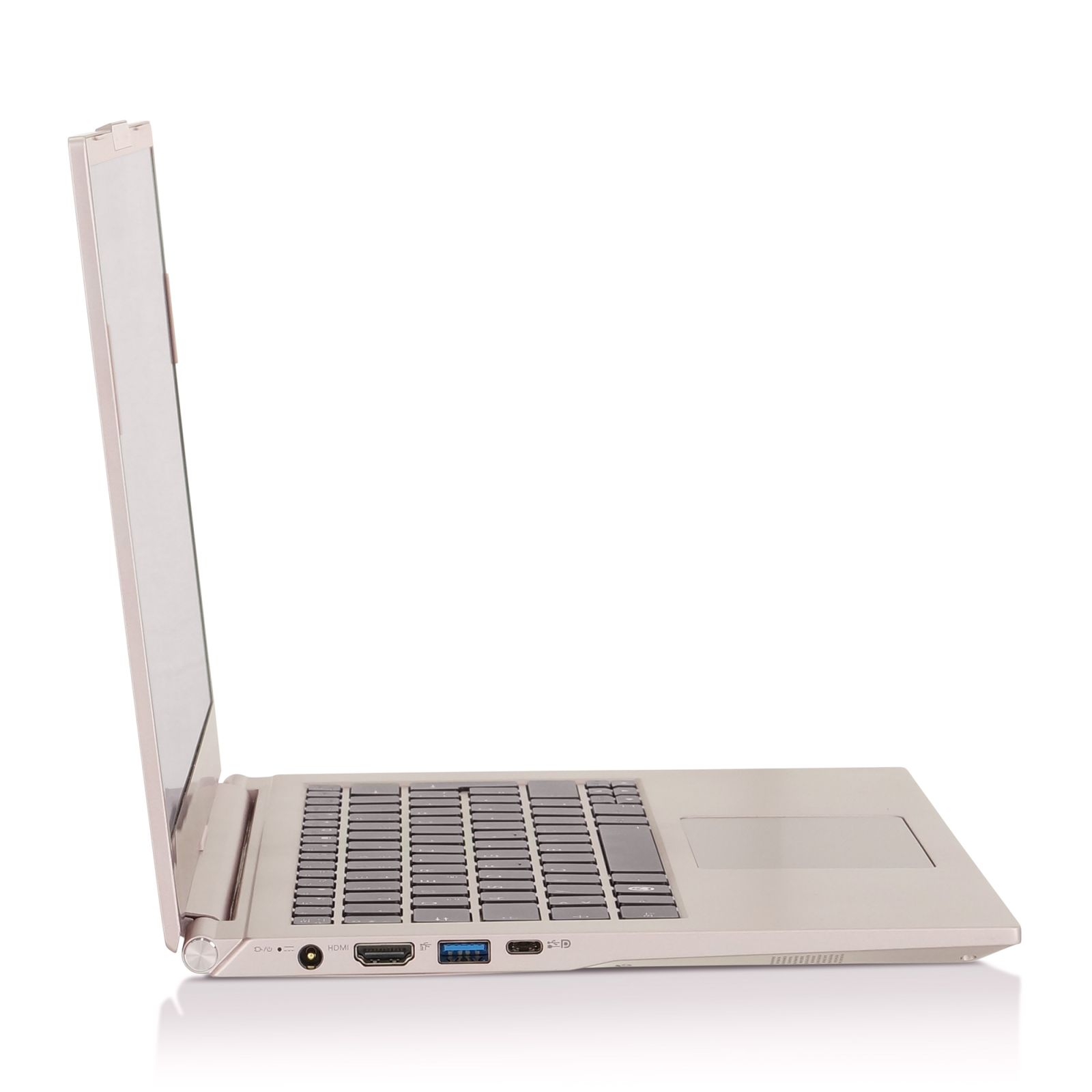

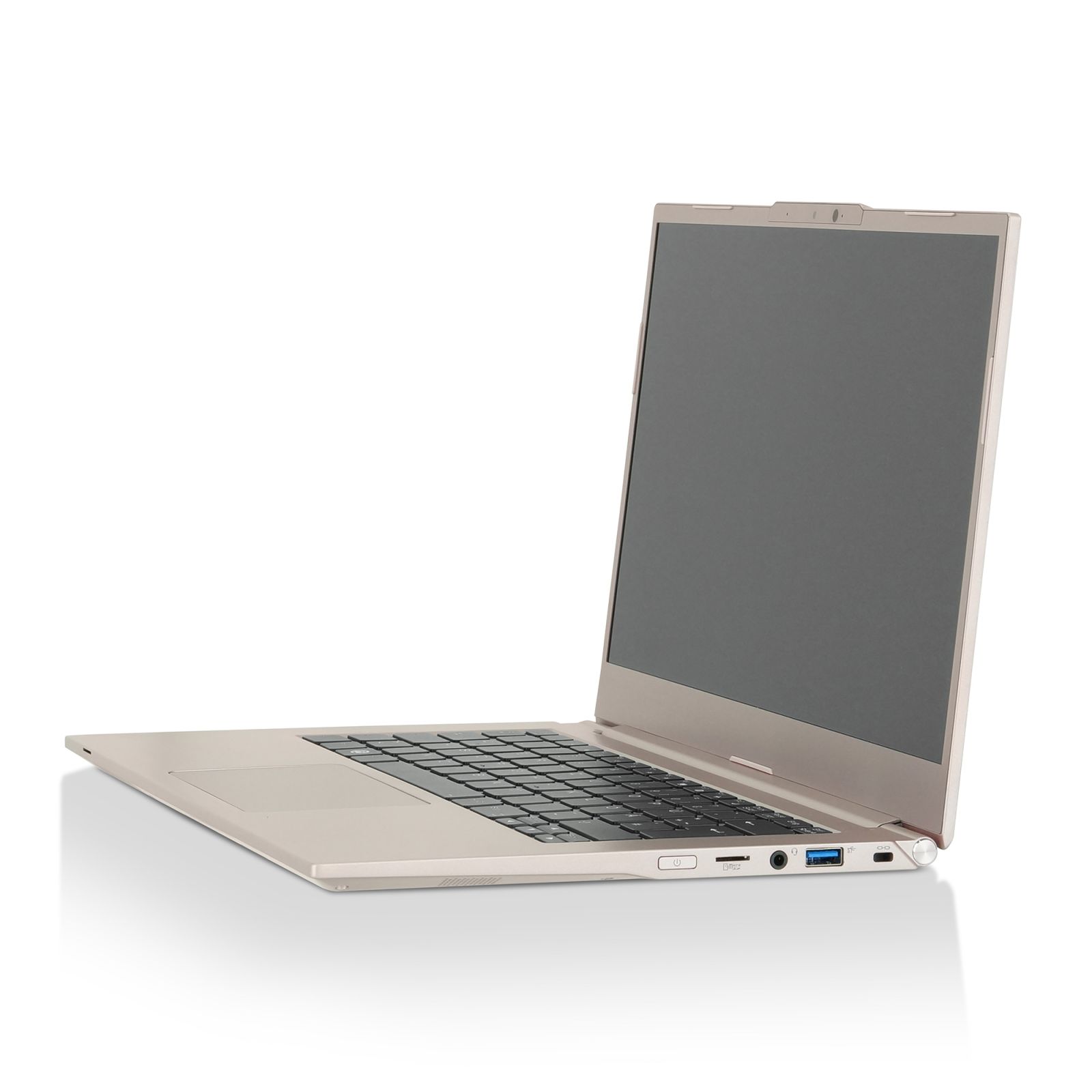

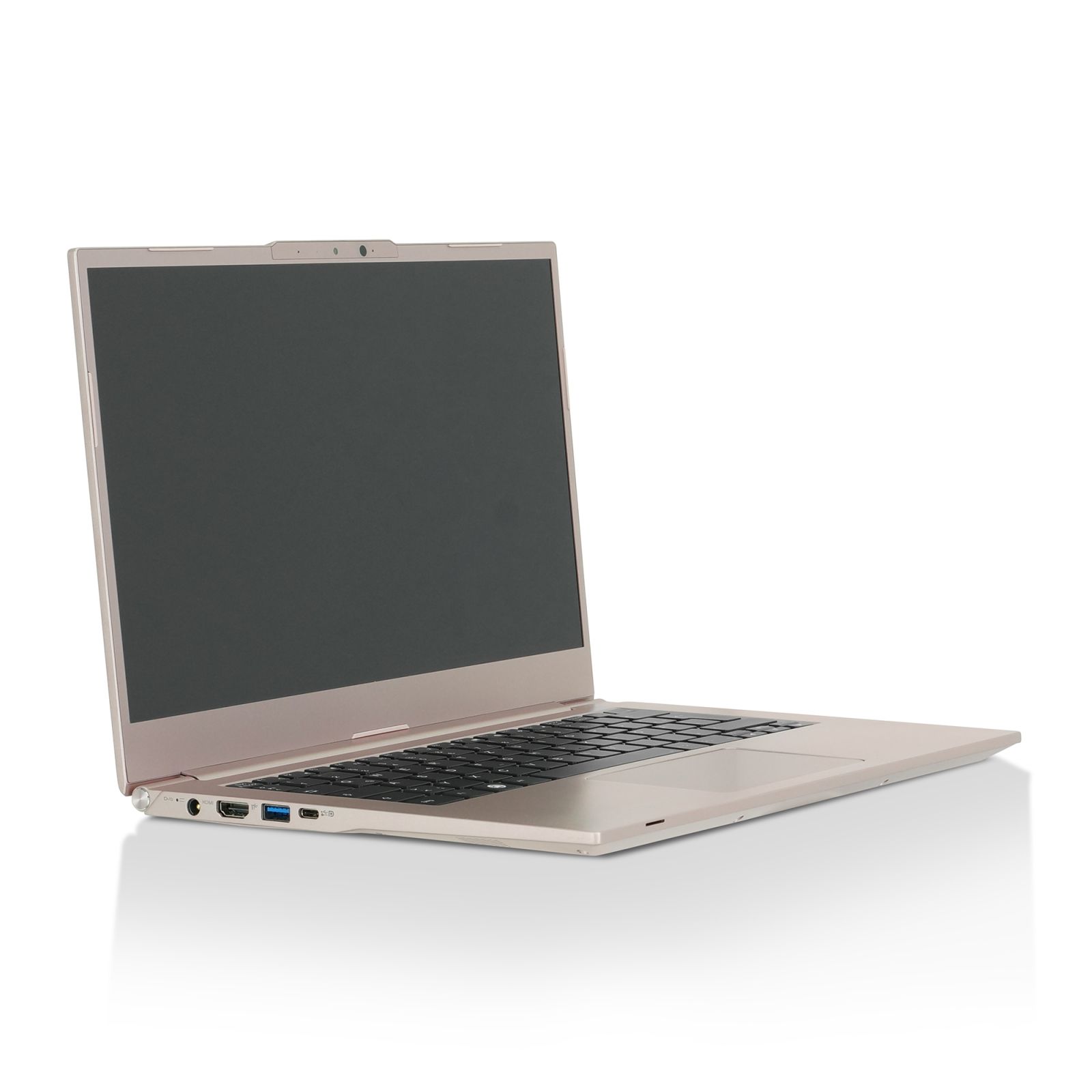

    Ports

    1x USB-A 3.2 Gen1
    1x USB-A 3.2 Gen2
    1x Thunderbolt 4 (PCIe Gen3 4 Lanes) / USB-C 4.0 Gen3x2 (DisplayPort 1.4a, Power Delivery DC-In*)
    1x HDMI 1.4b (with HDCP)
    1x 2-in-1 audio (headphone + mic)
    1x microSD card reader
    1x SIM card slot (LTE; Size: Micro-SIM)
    1x DC-IN/power connection (also via USB-C*)

    * Requirement: 20V, min. 2A



    Card reader

    Micro SD Cardreader
    SIM card slot (LTE; Size: Micro-SIM)



    Security

    - Kensington-Lock mounting
    - Intel Management Engine (Intel ME) can be disabled directly via the BIOS
    - Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
    - WLAN & Bluetooth can be deactivated directly via the BIOS

    - TPM 2.0 chip (can be activated/deactivated via BIOS)



    Battery & power supply

    Integrated 73 Wh polymer smart lithium-ion battery (glued, but easy to detach)
    65 W mini power supply (AC) | 97 (L) x 52 (W) x 15 (H) mm | 0,14kg | 100 - 240V | 50 - 60 Hz | Currrent (DC) Output 19 V, 3.42 A
    Power can also be supplied via USB-C. Requirement: 20V, min. 2A
    Shipping Mode (mode for minimizing battery discharge in the off state)

    Power plug:
    Type: Coaxial
    Inner diameter: 2.5mm
    Outer diameter: 5.5mm
    Length: 10mm

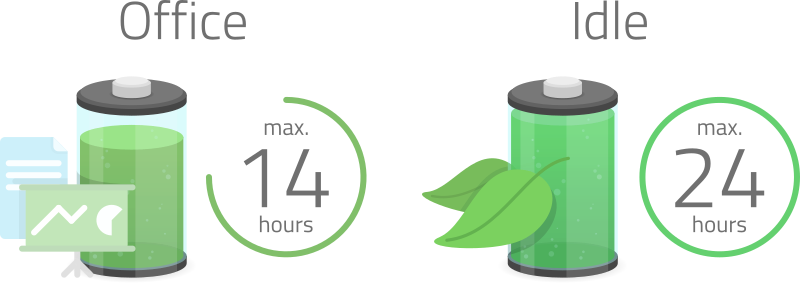

    Battery life:
    Up to 24 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    Up to 14 hours at medium brightness with Wifi, at office work

    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Lifetime of batteries

    The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information



    Main processor

    Intel Core i5-1135G7
    (max. 4.2 GHz Quad-Core, 4 cores / 8 threads, 8 MB Cache, 15 W TDP)



    Graphics card

    Intel Iris Xe Graphics | Integrated CPU graphics | Clock rates: 1300 MHz | EUs (Execution Units): 80

    It is possible to drive 4 displays at the same time. 3 external plus the internal notebook display or 4 external displays.
    Max. resolution (HDMI 1.4b): 3840 x 2160 @30 Hz
    Max. resolution (DisplayPort 1.4a): 7680 x 4320 @60 Hz oder 2x 3840 x 2160 @ 60 Hz



    Memory

    DDR4 3200 MHz SoDIMM | 8 GB on board | 1 socket changeable | Max. 40 GB | Dual Channel up to 16 GB



    Mass storage (SSD / HDD)

    1x M.2 2280 for NVME or SATA SSD (PCI-Express 4.0 x4 or PCI-Express 3.0 x4)
    1x M.2 2280 for a LTE module (not usable for SSDs!)
    Intel Optane Technology



    Communication / Network

    Wireless/WIFI:
    Intel Wi-Fi 6 AX200 Series:
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX200 Series
    Version: Dual Mode Bluetooth 5.2



    Webcam / Laptop camera

    1.0 Megapixel webcam with face detection



    Sound / Audio

    High Definition Audio
    2 x integrated speakers
    Integrated microphone



    Cooling System & Fan

    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!







    Model-ID: IBS1406





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).



    For this purpose, the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth



    In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.



    Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
