    Affordable Business Allrounder

    TUXEDO Aura 15 - Gen2

    AMD Ryzen 7 5700U
    8 Cores | 16 Threads

    Full-Featured*-USB-C 3.2 Gen2
    DisplayPort 1.4*
    Power Delivery*
    (* Only with Ryzen 5 & Ryzen 7)

    1,99 cm | 1,65 kg
    Thin & Lightweight

    4G / LTE
    Mobile high-speed web access optional



    Discreet appearance,
    remarkably powerful.

    Never change a running system: Following this principle, our popular, affordable Linux office laptop TUXEDO Aura 15 gets a selective refresh and improves the predecessor's already very solid CPU performance even further.

    Under the hood of the thin and unobtrusive matte black chassis the AMD Ryzen 7 5700U with 8 physical and now 16 virtual cores is responsable for all processing power and proves to be an energy-saving, but still powerful CPU

    On the other hand, the advantages of the TUXEDO Aura 15 - Gen1 remain unchanged in the form of the sleek and robust partial aluminum case, the optional LTE module, the fast Full-Featured*-USB-C 3.2 Gen2 port with integrated DisplayPort 1.4*, and the 49 Wh battery with charging limit (Flexicharger).
    (* Only with Ryzen 5 & Ryzen 7)

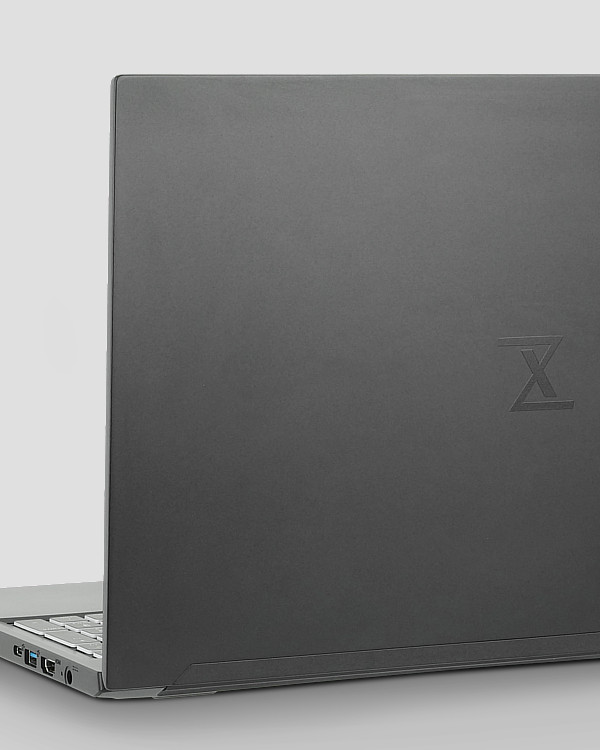

    Subtle yet robust partial aluminum case

    The Linux office laptop prefers the aura of simplicity and goes for a classic and discreet business appearance. At the same time, the matte black chassis combines a low weight with sturdy transportability, in which the outer surfaces (display lid and bottom panel are made of aluminum.

    The slim profile with a height of only 1,99 cm and the low weight of 1.65 kg emphasize the mobility factor of the TUXEDO Aura 15 further, while the 180° rotatable display hinge offers maximum flexibility for adjusting viewing angles freely depending on lighting conditions or for use on steeply angled notebook stands.

    F1: (De)activate clickpad
    F2: Turn off display
    F3: Mute audio volume
    F4: No secundary function
    F5: Reduce audio volume
    F6: Increase audio volume
    F7: Connect external screen
    F8: Reduce display brightness
    F9: Increase display brightness
    F10: (De)activate webcam
    F11: (De)activate flight mode
    F12: Suspend mode


    Strong performance for office work and content creation

    In the TUXEDO Aura 15 - Gen2, AMD's Ryzen 7 5700U replaces the former Ryzen 7 4700U, whose 8 processor cores can now handle up to 16 threads simultaneously. The Ryzen 7 4700U's already very solid multi-core performance is thus increased once again and makes the TUXEDO Aura 15 - Gen2 a fast and highly portable Linux business notebook for office work and content creation.

    Even resource-intensive workloads, such as demanding image and video editing, do not pose any problems for the fast energy-saving processor. Thanks to AMD's very efficient Zen2 architecture, the Ryzen 7 5700U operates very energy-efficiently with a Thermal Design Power (TDP) of only 15 watts even under high computing loads.

    The AMD Radeon RX Vega 8 graphics unit is integrated into the main processor and has also been improved. It handles all graphic processing tasks and now features 8 GPU cores (instead of 7 GPU cores on the Ryzen 7 4700U) and a clock rate of up to 1900 MHz. This makes the integrated GPU even suitable for low-level gaming of graphically less demanding games in reduced settings.

    For optimal performance, we strongly recommend running the Aura 15 in a dual channel RAM configuration (at least 2 x 8 GB).

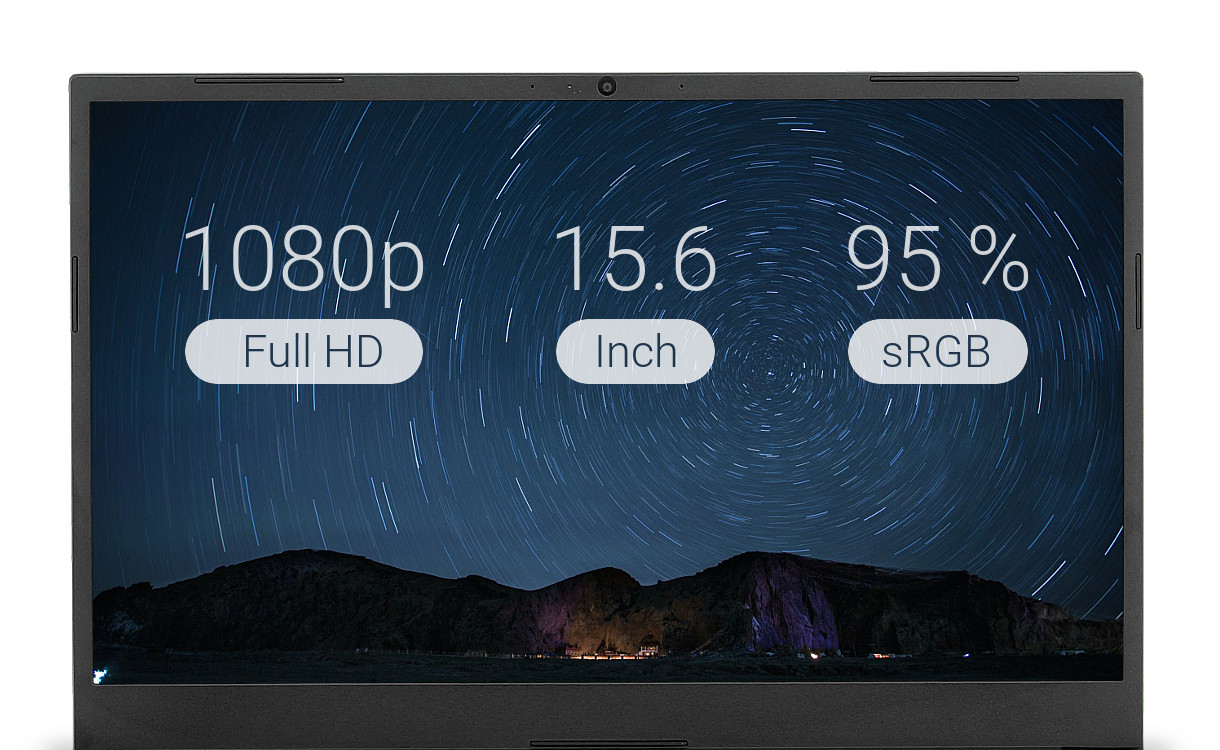

    15.6 inch Full-HD with 95% sRGB

    The display is one of the most important components, especially when you work on it for several hours. The 15.6-inch Full HD display of the TUXEDO Aura 15 lives up to this claim.

    In addition to the decent pixel densitiy due to the 1080p resolution, the pleasant maximum brightness of around 300 nits also allows working in bright indoor environments as well as in shady outdoor areas, while the 95 % coverage of the sRGB color space ensures detailed and vivid colors that are even sufficient for semi-professional image editing.



    Up to 3 external monitors and optional LTE module

    Whether in the office or on the go, the TUXEDO Aura 15 offers a wide range of connectivity options for flexible work use.

    The fast Full-Featured*-USB-C 3.2 Gen2 port with up to 10 Gb/s data speed integrates DisplayPort 1.4* for connecting up to two external monitors (via MST adapter), while a third screen can be connected via HDMI 1.4.
    (* Only with Ryzen 5 & Ryzen 7)

    Data wise, the Aura 15 comes with a total of 4 USB ports (1x USB-C, 3x USB-A), Gigabit LAN (RJ45) and a MicroSD card reader. For mobile use, the optional LTE module provides the Linux business notebook with mobile high-speed web access on the go.

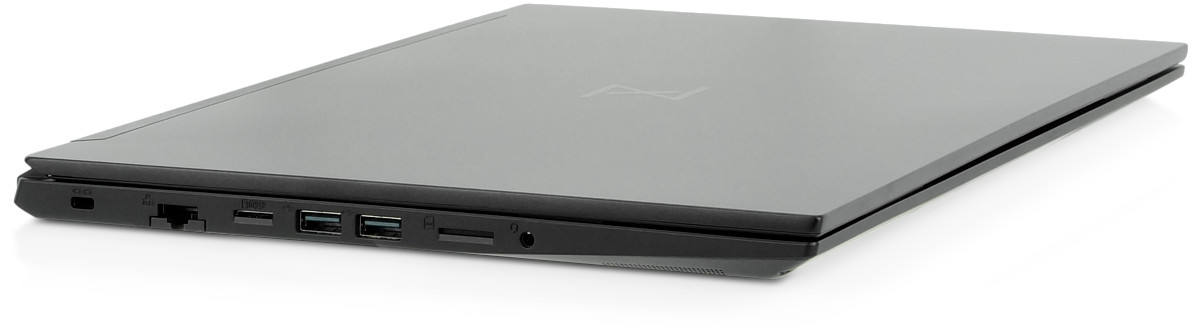

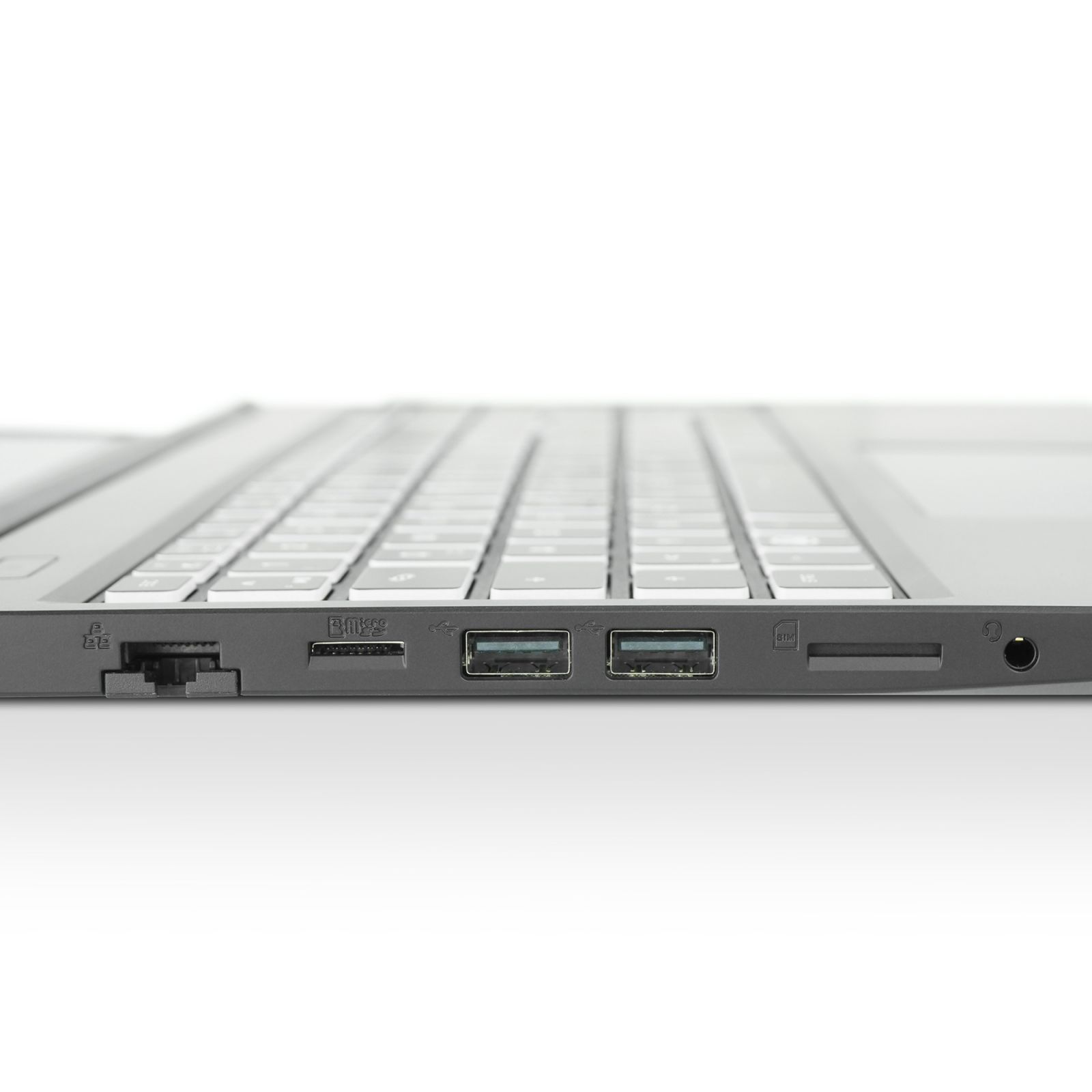

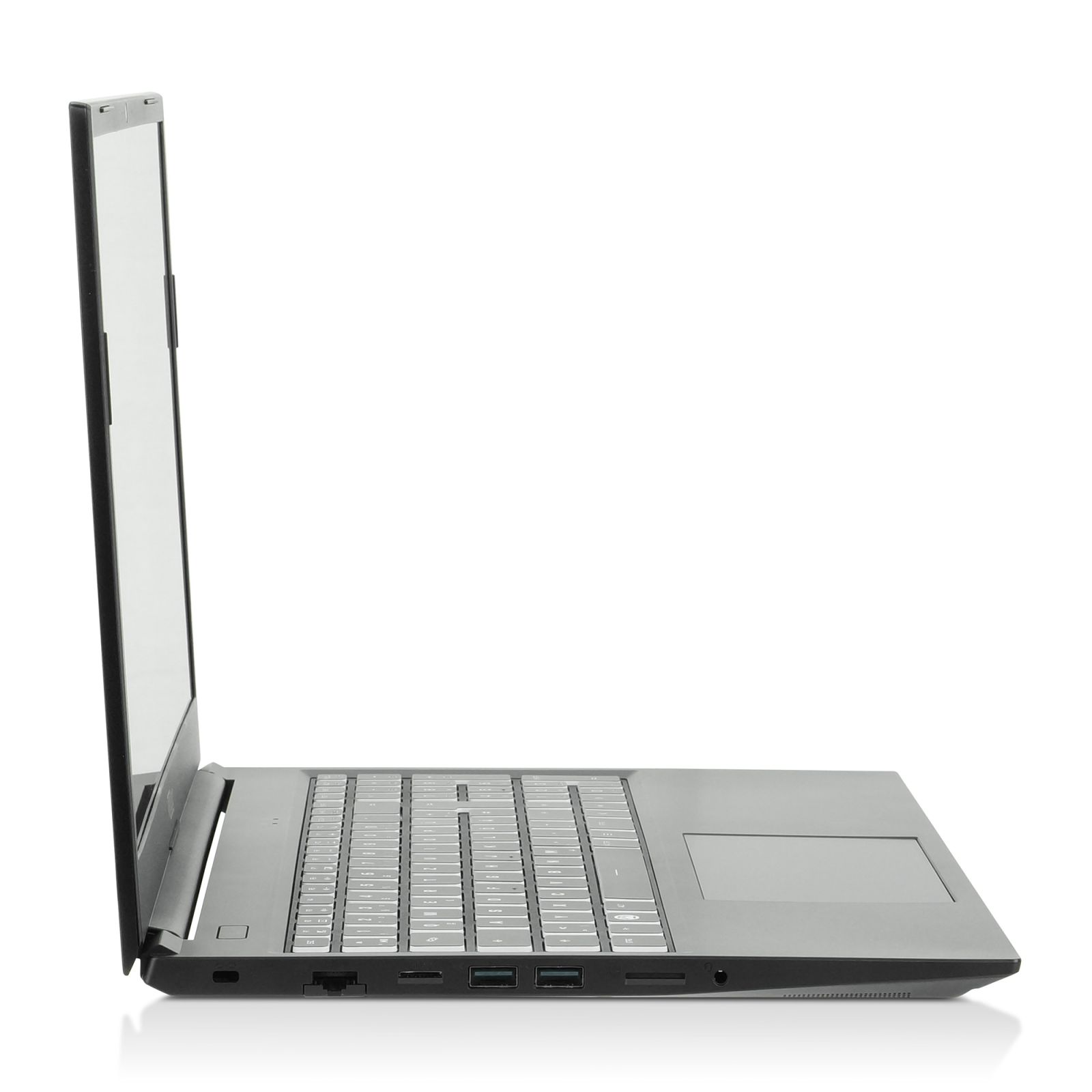

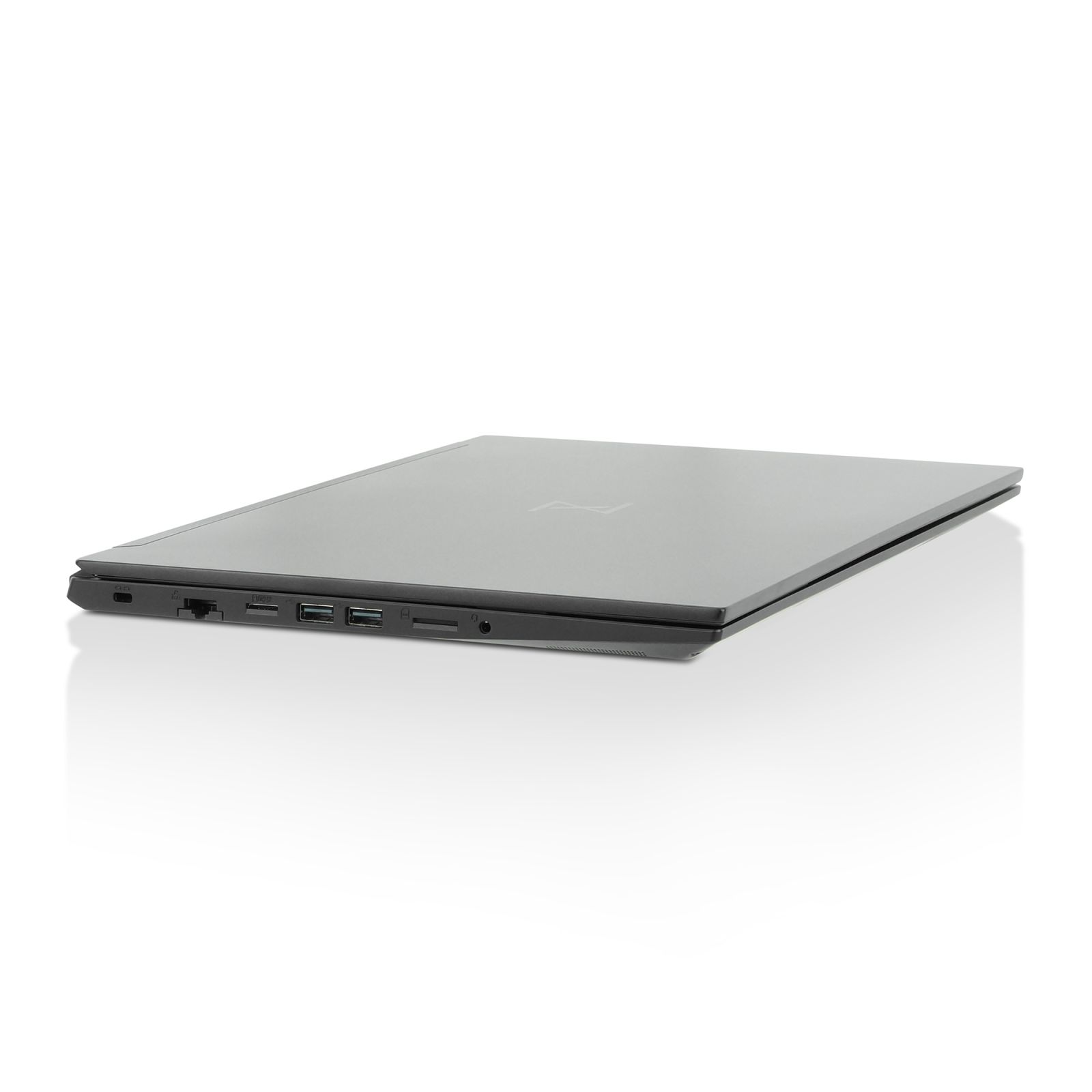

    Aura 15 left ports

    From left to right: Kensington Lock, LAN RJ45, Micro-SIM card slot, 2x USB-A 2.0, MicroSD card reader, 3.5 mm-audio combo

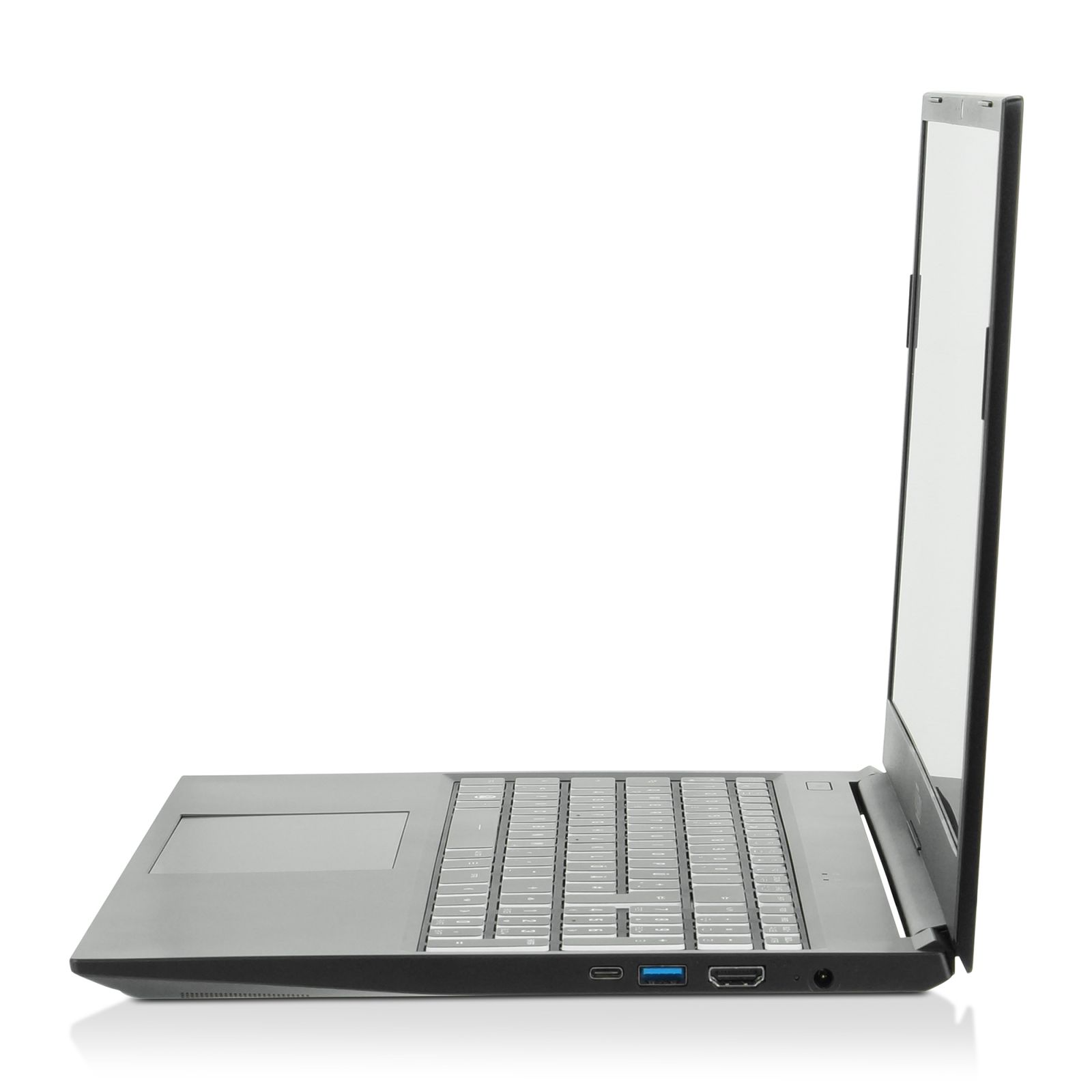

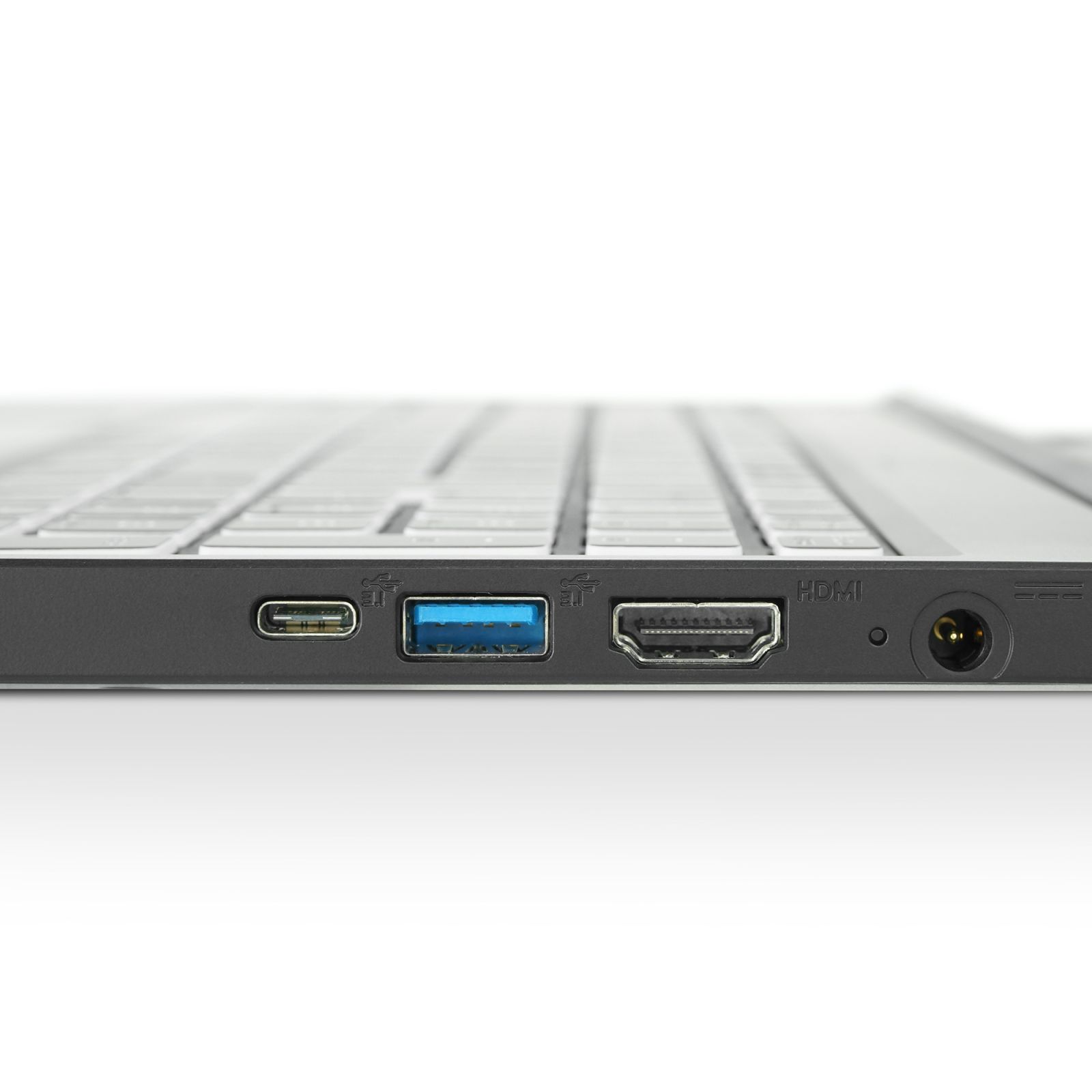

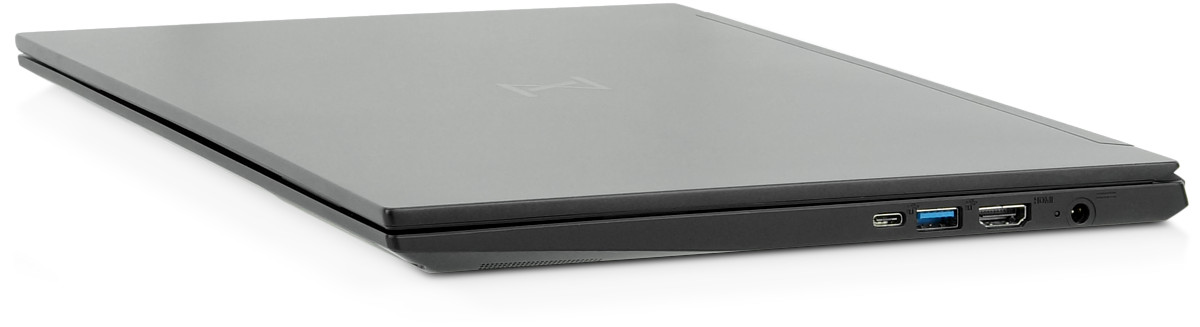

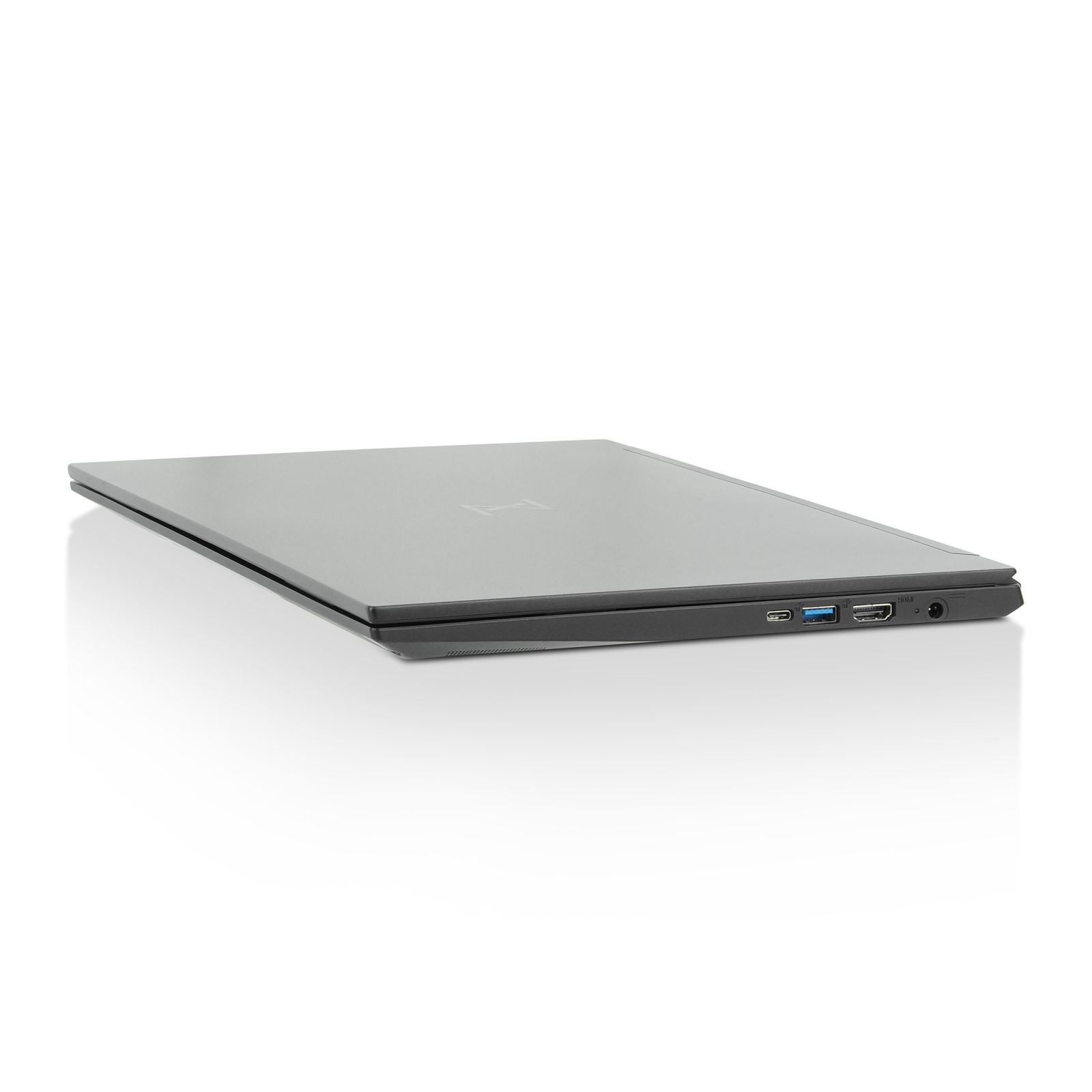

    Aura 15 right ports

    From left to right: Full-Featured*-USB-C 3.2 Gen2 (DisplayPort 1.4*, Power Delivery*), USB-A 3.2 Gen1, HDMI 1.4, power supply
    (* Only with Ryzen 5 & Ryzen 7)

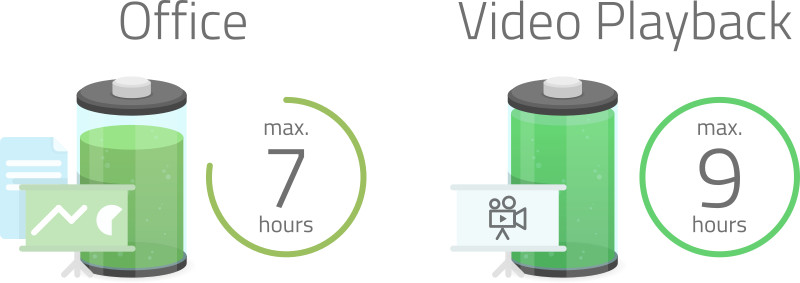

    Up to 9 hours of endurance

    Thanks to AMD's highly efficient Ryzen 7 5700U the internal screwed 49 Wh lithium-ion battery provides runtimes of up to 9 hours in 1080p video playback @ 150 nits brightness and wireless modules turned off in combination with.

    For daily work with office apps and browsing the web via Wifi and on medium display brightness runtimes of around 6 to over 7 hours are realistic. In Idle mode a maximum of up to 15 hours of battery runtime is achievable.

    For even longer trips away from the power outlet, we recommend the compact TUXEDO Powerpack which expands the Aura 15's battery capacity by another 96 Wh. Otherwise, the 95 x 40 mm small and 280 gram light 65 watt power adapter does not weigh too much in the truest sense of the word.




    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    Type: LED-Backlight Display, non-glare
    IPS technology (particularly strong colours, extremely bright, very stable viewing angle)
    Size: 15,6" (39,62cm)
    Resolution: Full-HD, 1920 x 1080
    Color Gamut: 95% sRGB
    Viewing Angle: 89°/89°/89°/89°
    Model: Innolux N156HCA-EA1
    Contrast: 700:1
    Luminance: ~300 cd/m²



    Display opening angle: 180°



    Chassis

    Notebook: Length: 360 mm; Width: 239 mm; Height: 19,9 mm
    Weight: ca. 1,65 kg incl. battery, depending on equipment
    Material: Aluminum (Displaylid and bottom case), plastic (Screen bezel and wrist rest)

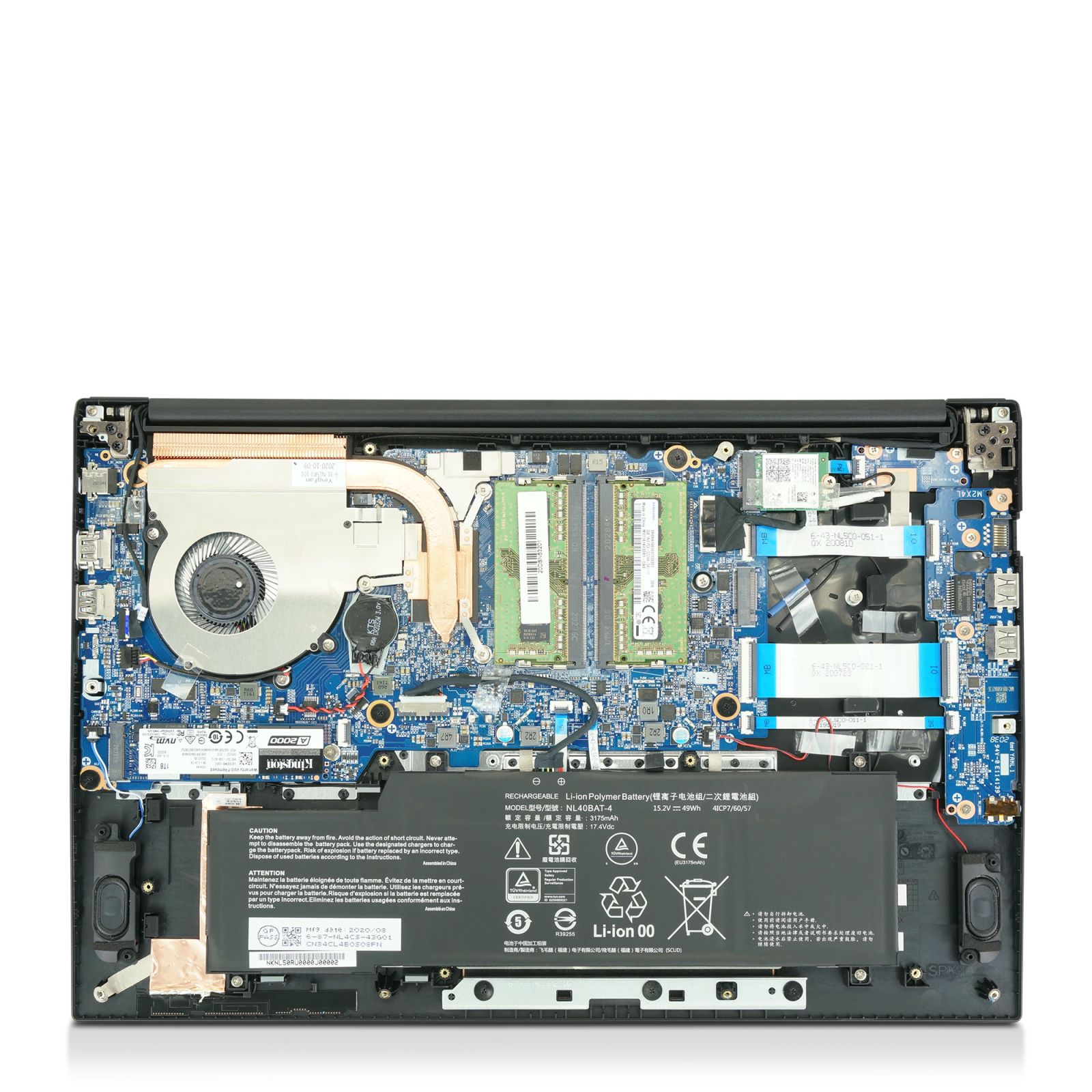

    Maintenance: After opening the base plate via a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.
    Power supply: Length: 95 mm; Width: 40 mm; Height: 26 mm | 280 grams

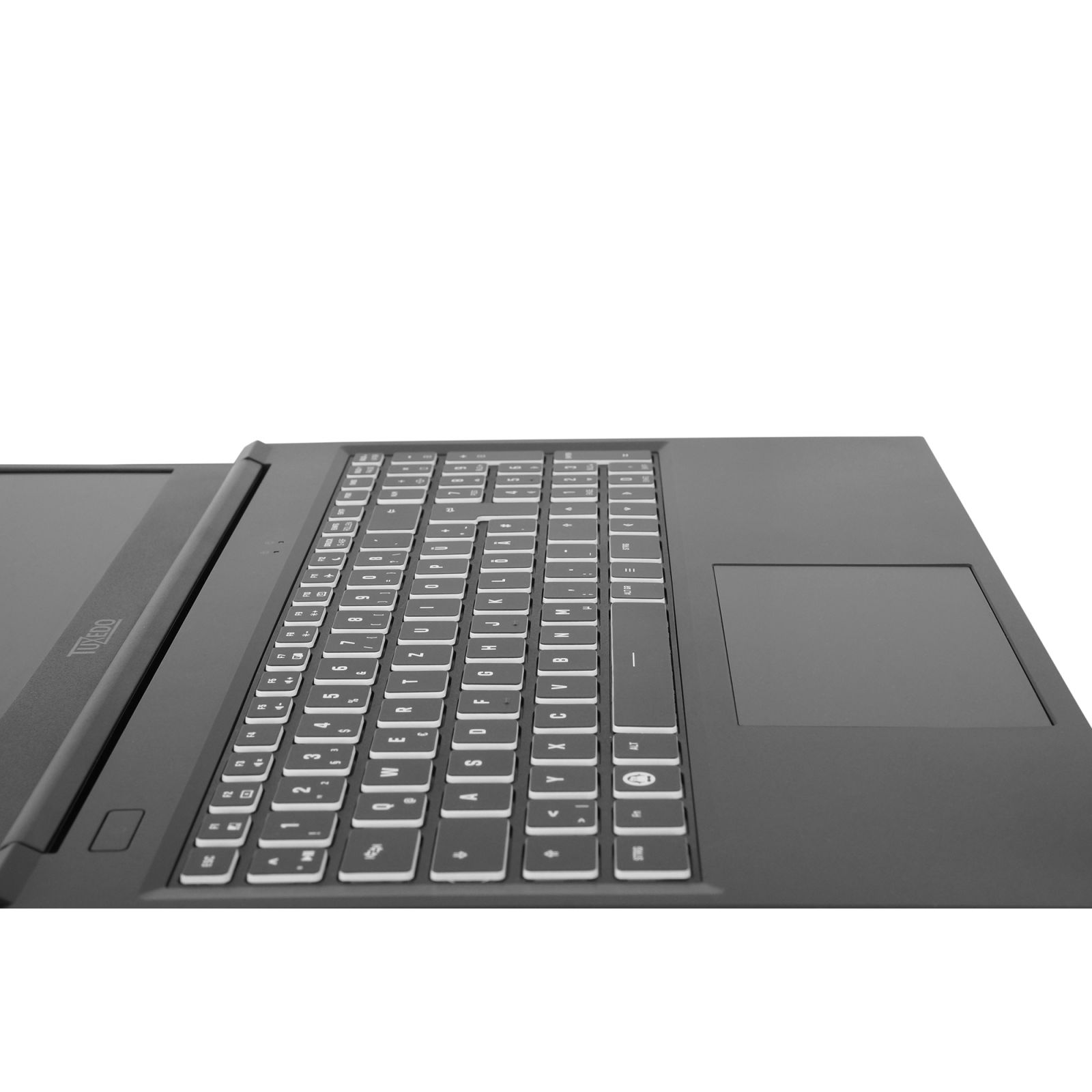

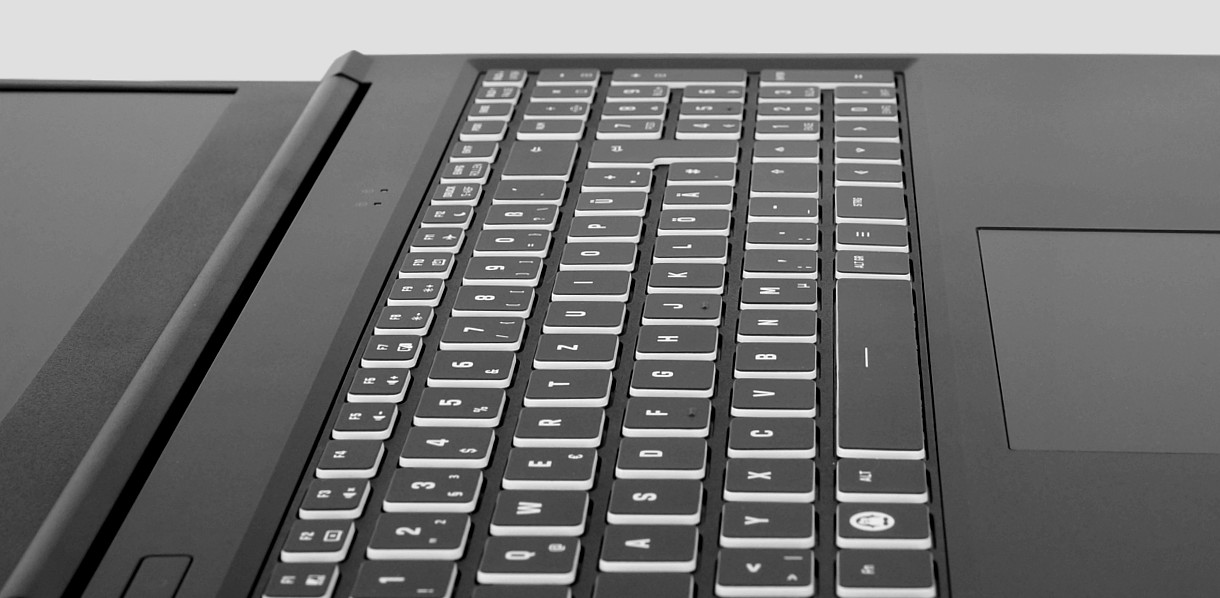

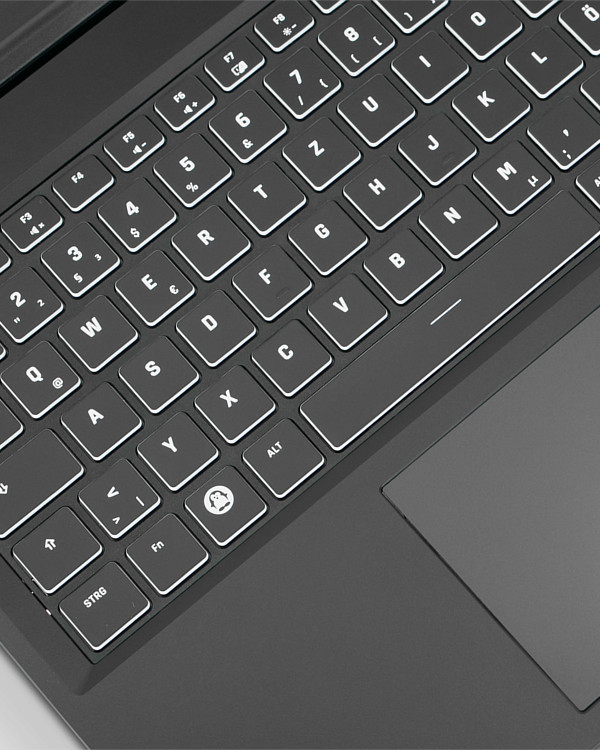

    Keyboard and Touchpad

    Full sized keyboard with number pad
    Mulit-color backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.

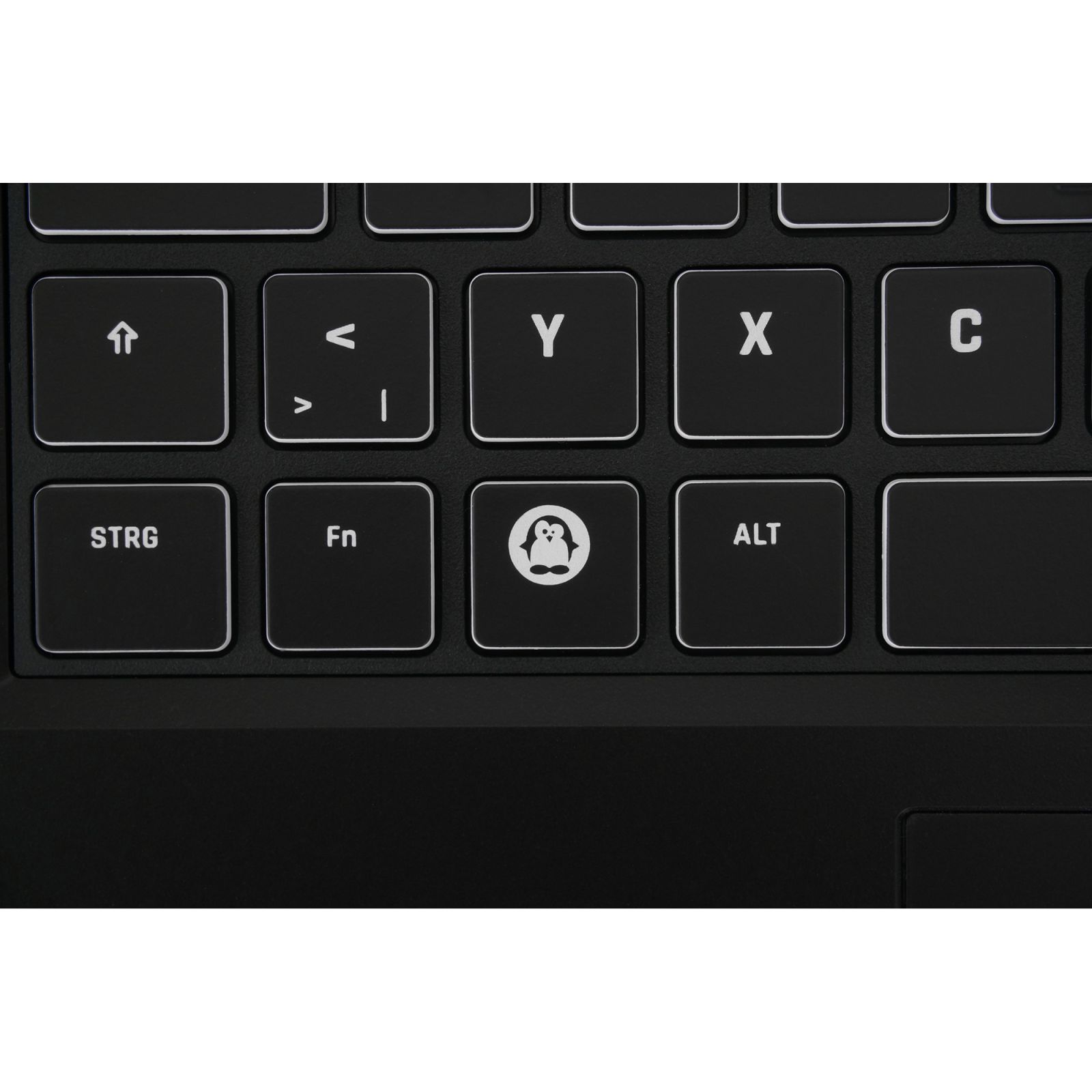

    TUX super-key on all layouts!

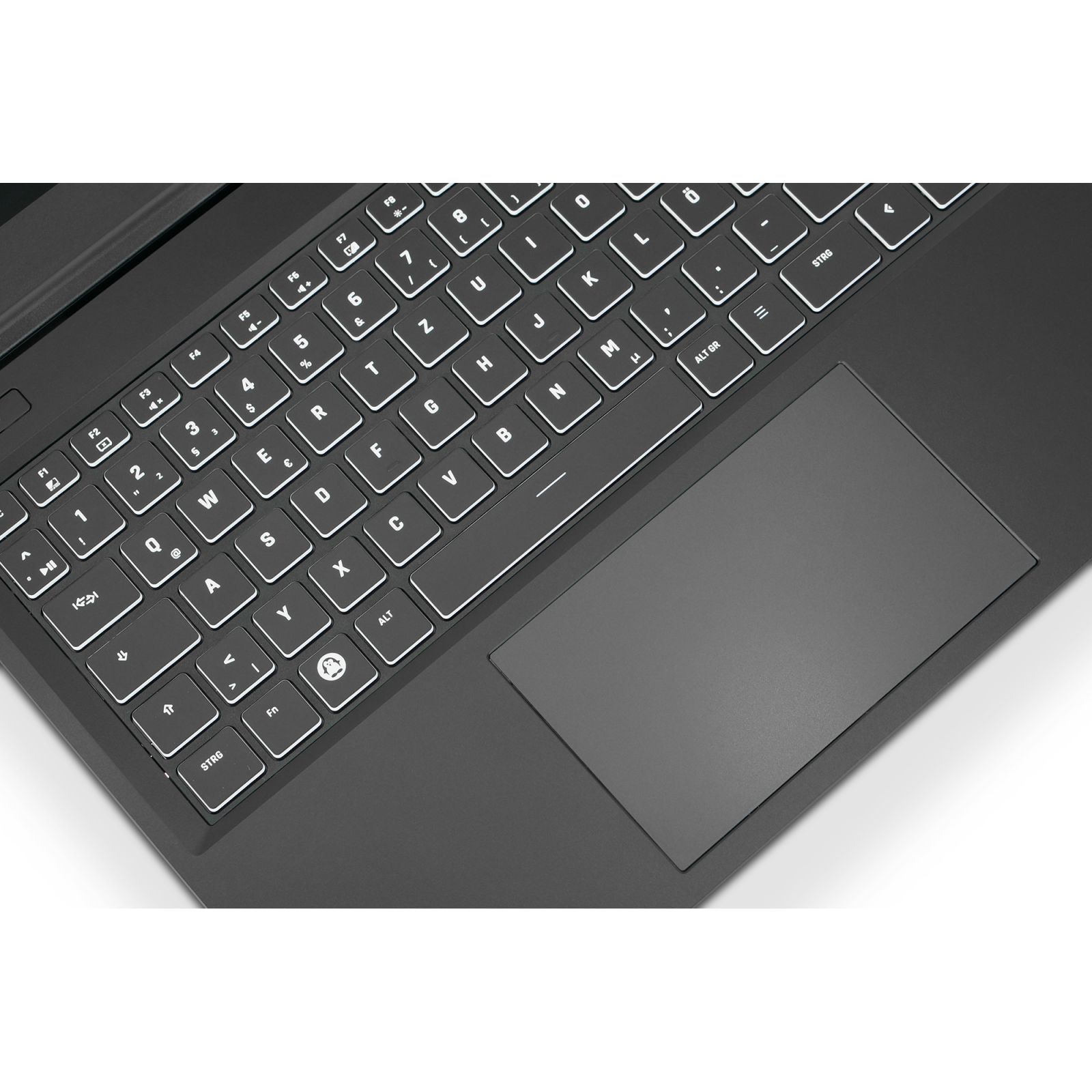

    Big clickpad (120 x 72 mm) with integrated buttons and multi-gesture- & scroll-function



    Battery & power supply

    49 Wh battery, 4 cells Lithium-Ion
    Changeable (screwed inside)
    65 watts power supply unit (included)
    (Length: 95 mm; Width: 40 mm; Height: 26 mm | 280 grams)

    Power plug:
    Type: Coaxial
    Inner diameter: 2.5mm
    Outer diameter: 5.5mm
    Length: 12.5mm


    With Ryzen 5 & Ryzen 7 the device can also be charged via USB-C alternatively, USB-C power supply is not included.
    For more information, please have a look at our article Charging via USB-C power supply (Power Delivery DC-In).



    Lifetime of batteries

    The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information


    Battery life:
    up to 15 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    up to 7 hours at medium brightness with Wifi, at office work



    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Main processor

    AMD Ryzen 3 5300U
    (4x 2.6 - 3.8 GHz Quad-Core, 8 Threads, 4 MB L3-Cache, 15-35 W TDP)

    AMD Ryzen 5 5500U
    (6x 2.1 - 4.0 GHz Six-Core, 12 Threads, 8 MB L3-Cache, 15-35 W TDP)

    AMD Ryzen 7 5700U
    (8x 1.8 - 4.3 GHz Octa-Core, 16 Threads, 8 MB L3-Cache, 15-35 W TDP)



    Graphics card

    Energy efficient CPU integrated Graphics:
    AMD Radeon™ RX Vega Graphics | 8 GPU cores | max. 1900 MHz



    Memory

    Typ: DDR4 SO-DIMM (up to 3200 MHz)
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Performant Dual Channel mode (2 slots)



    Mass storage (SSD / HDD)

    1x SATAIII or NVMe / PCIe Gen3 x4



    Communication / Network

    Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)

    Wireless/WIFI (optional):
    Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX 200
    Version: Dual Mode Bluetooth 5.1



    Webcam / Laptop camera

    1MP Webcam / camera including microphone



    Sound / Audio

    High Definition Audio
    2 speakers: 2x 2W
    Integrated microphone



    Ports

    1 x USB 3.2 Gen2 Typ C (Full-Featured*, Displayport 1.4 (max. 7680 × 4320@60Hz)*, Power Delivery DC in Charging-Function*)
    1x USB 3.2 Gen1 Typ-A
    2x USB 2.0 Typ-A
    1x HDMI 1.4 inkl. HDCP (4K UHD @30Hz (native) | 4K UHD @60hz (with Chroma Subsampling))
    1x Gigabit LAN/Netzwerk RJ45
    1x 2-in-1 Headphone/Headset (Headphone & Microphon
    1x Kensington Lock
    1x Card-Reader (micro-SD)
    1x SIM card slot (Size: Mini-SIM, "2FF", needs optional LTE modem)
    1x DC-IN/power connection (also via USB-C*)

    * Needs at least 20V/3.25A USB-C power supply, only with Ryzen 5 & Ryzen 7!



    Card reader

    Micro SD Cardreader
    SIM card slot (LTE; Size: Mini-SIM, needs optional LTE modem)



    Security

    - Kensington-Lock mounting
    - WLAN & Bluetooth can be deactivated directly via the BIOS



    LTE module

    LTE/HSDPA+ 4G Huawei ME936
    Form factor: M.2 Interface

    Supported frequency bands
    LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
    HSPA+/HSPA/UMTS: B1/B2/B4/B5/B8
    EDGE/ GPRS/GSM: 1900/1800/900/850 MHz

    Transfer rates
    LTE FDD: ↑ 50 Mbps ↓ 100 Mbps
    HSPA+: ↑ 11 Mbps ↓ 42 Mbps
    WCDMA: ↑ 384 kbps ↓ 384 kbps

    GPS
    GPS Standalone, A-GPS, GPS XTRA, Glonass


    LTE/HSDPA+ 4G Huawei ME906s
    Form factor: M.2 Interface

    Supported frequency bands
    LTE (FDD): B1/B2/B3/B5/B7/B8/B20/B28
    HSPA+/HSPA/UMTS: B1/B2/B5/B8
    EDGE/ GPRS/GSM: 1900/1800/900/850 MHz

    Transfer rates
    LTE FDD: ↑ 50 Mbps ↓ 150 Mbps
    HSPA+: ↑ 5.76 Mbps ↓ 42 Mbps
    WCDMA: ↑ 384 kbps ↓ 384 kbps

    GPS
    GPS Standalone, A-GPS, GPS XTRA, Glonass

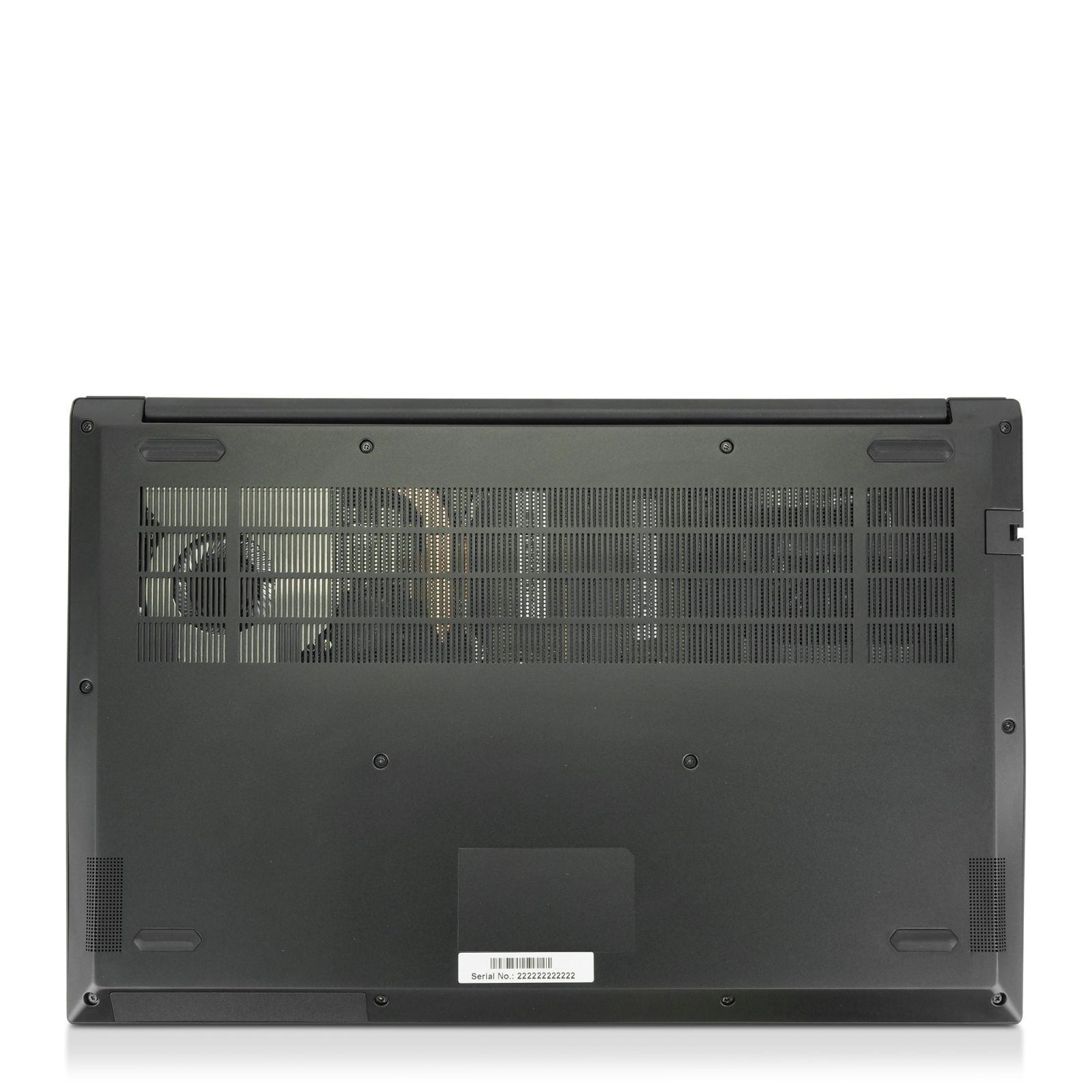

    Cooling System & Fan

    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!





    Model-ID: AURA1502





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks you have the possibility to protect your privacy already on BIOS level. For this purpose the following functions can be completely deactivated:

    • Webcam
    • WLAN & Bluetooth

    In addition, our Premium BIOS allows chipset-specific settings and definitions for components via various profiles in order to operate the device optimally depending on its use.

    Further information can be found here in our manual.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
