Display / Monitor
Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.

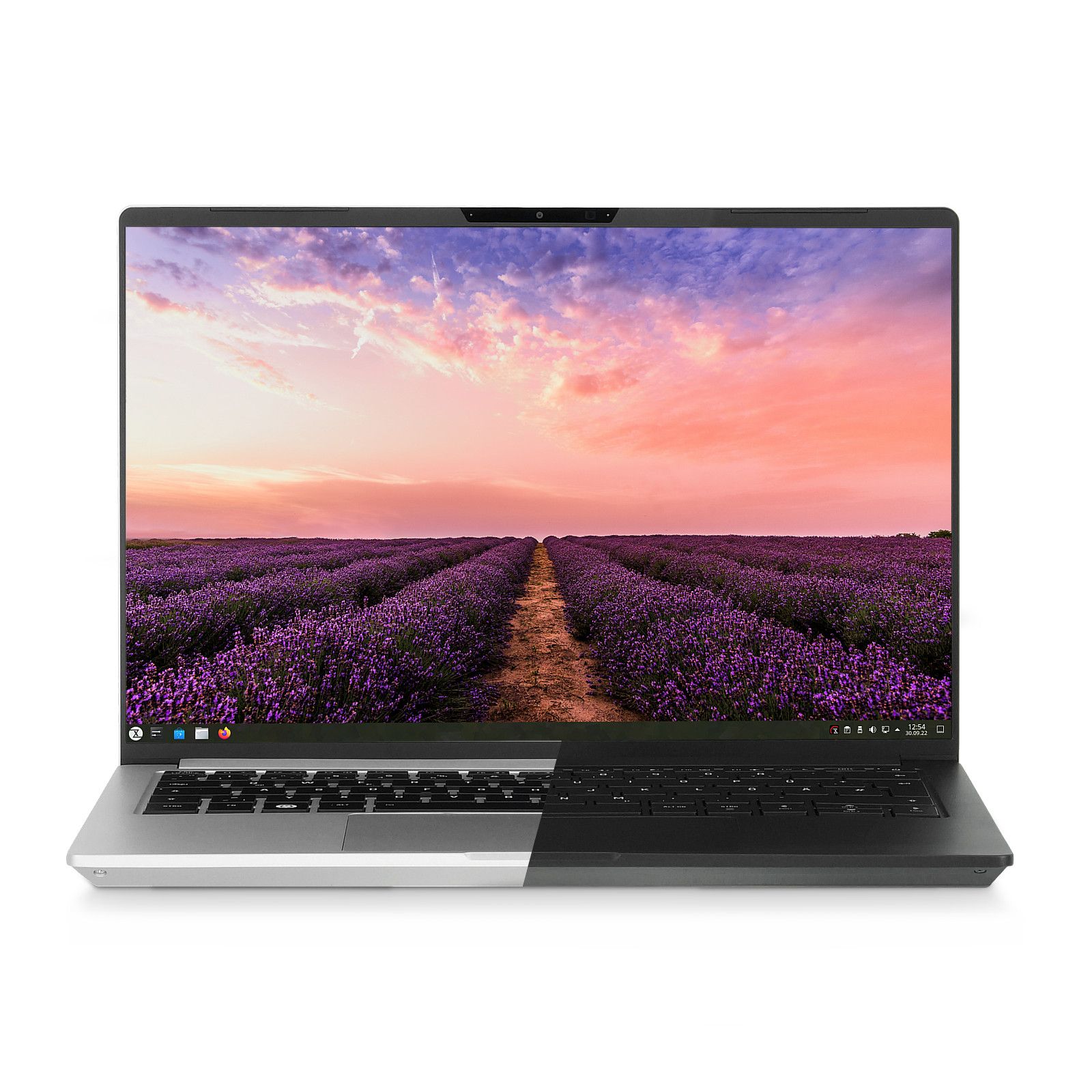

14'' 3K Omnia-Display | IPS | 16:10 | 90 Hz
Type: LTPS TFT-LCD, matte / non-glare
Screen size: 14"
Viewing angle: 89°/89°/89°/89°
Resolution: 2880 x 1800 Pixel
Color gamut (sRGB | AdobeRGB | DCI-P3): 99 % | 74,7% | 81,1%
Brightness: 400 nits
Contrast: 1500:1
Additional features: supports 60 Hz
Display model: Optoelectronics T3 MNE007ZA1-1
For technical production reasons, the measured values always vary slightly from panel to panel. More
information
Display opening angle: approx. 150°
Chassis
Notebook: Length: 308.8 mm; Width: 215 mm; Height: 16,6 mm
Weight: 1.3 kg incl. battery

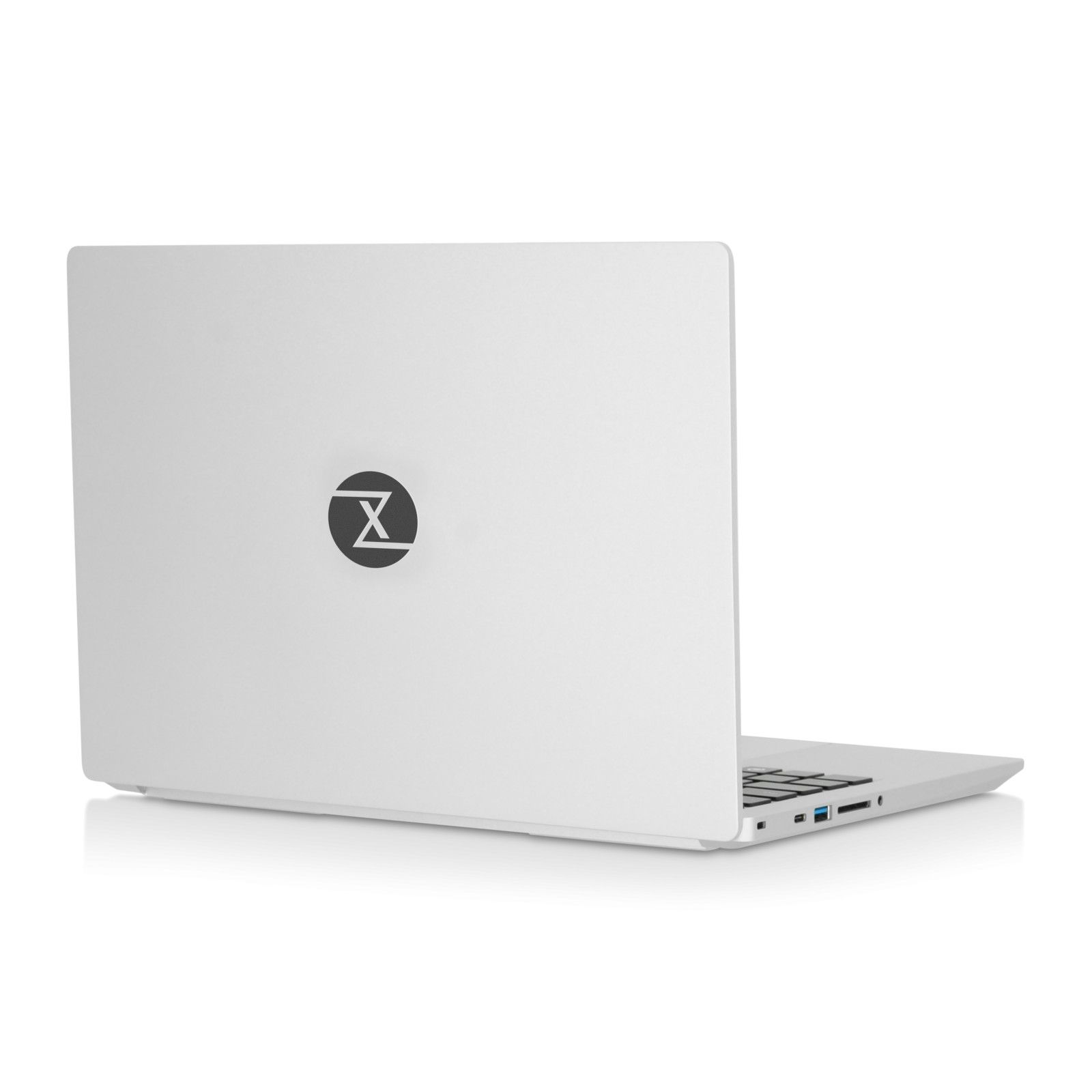

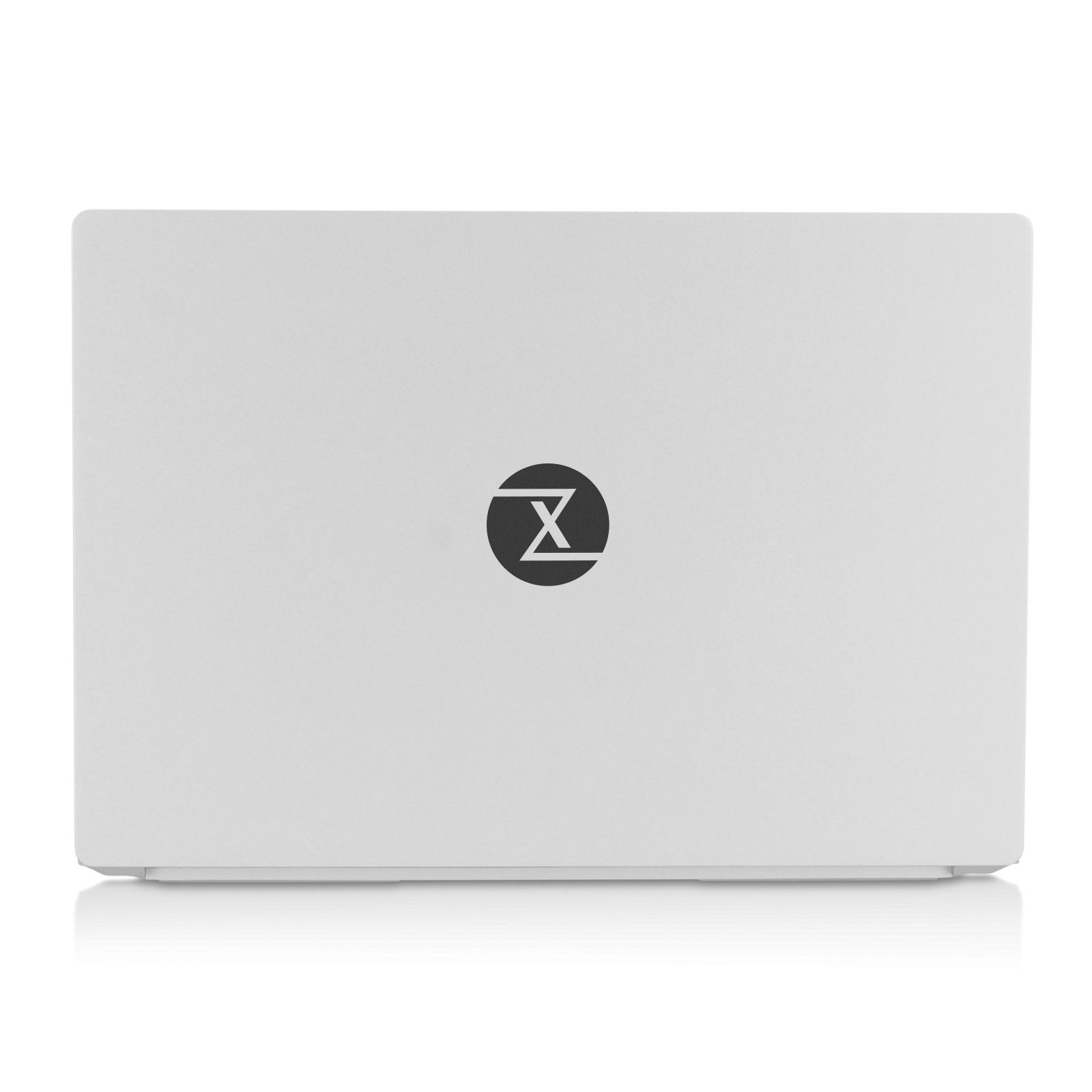

Material: Display lid, top and bottom case made of magnesium alloy (AZ91D), Display frame made of plastic

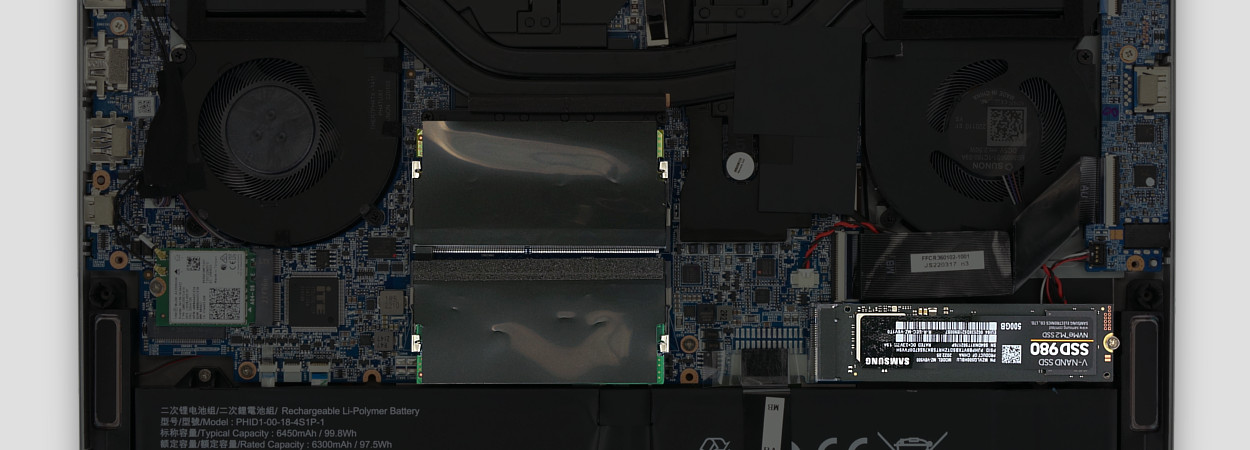

Maintenance: After opening the base plate via a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.
Power supplies:
Without RTX 3050: 120 Watts | 135 x 65 x 25 mm | 500 g incl. power cord
With RTX 3050: 150 Watts | 114 x 65 x 25 mm | 500 g incl. power cord)
Power cord length: 170 cm

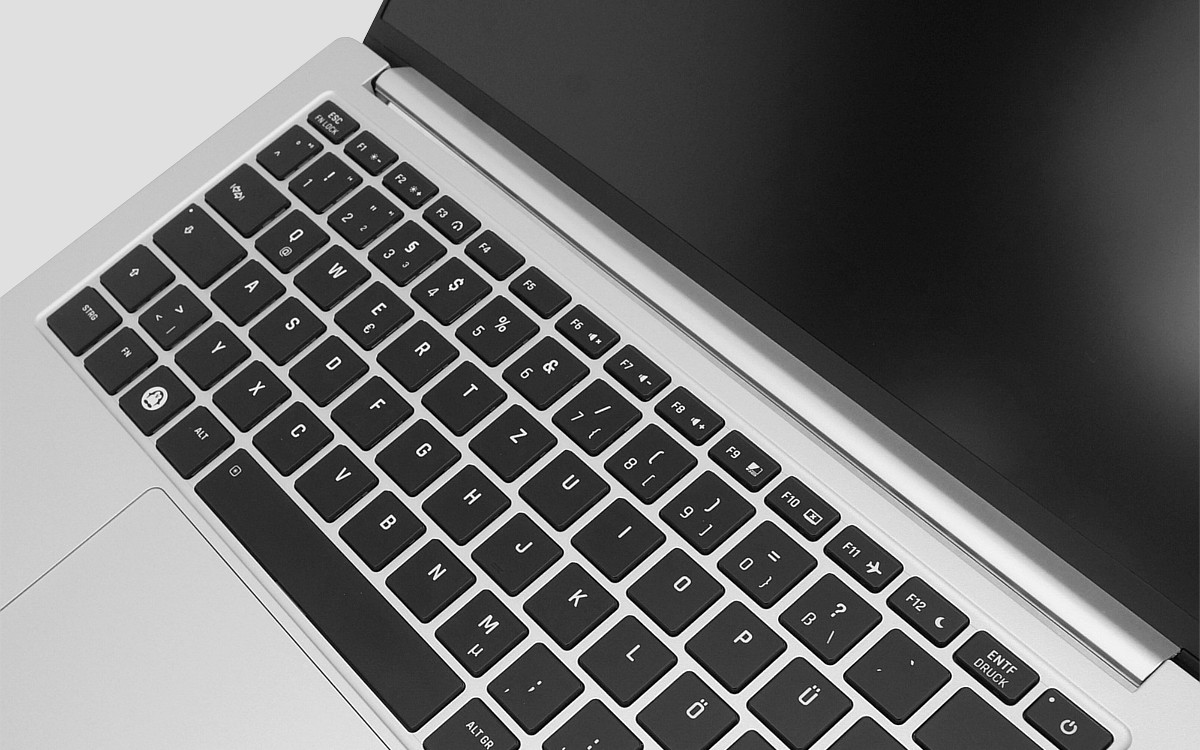

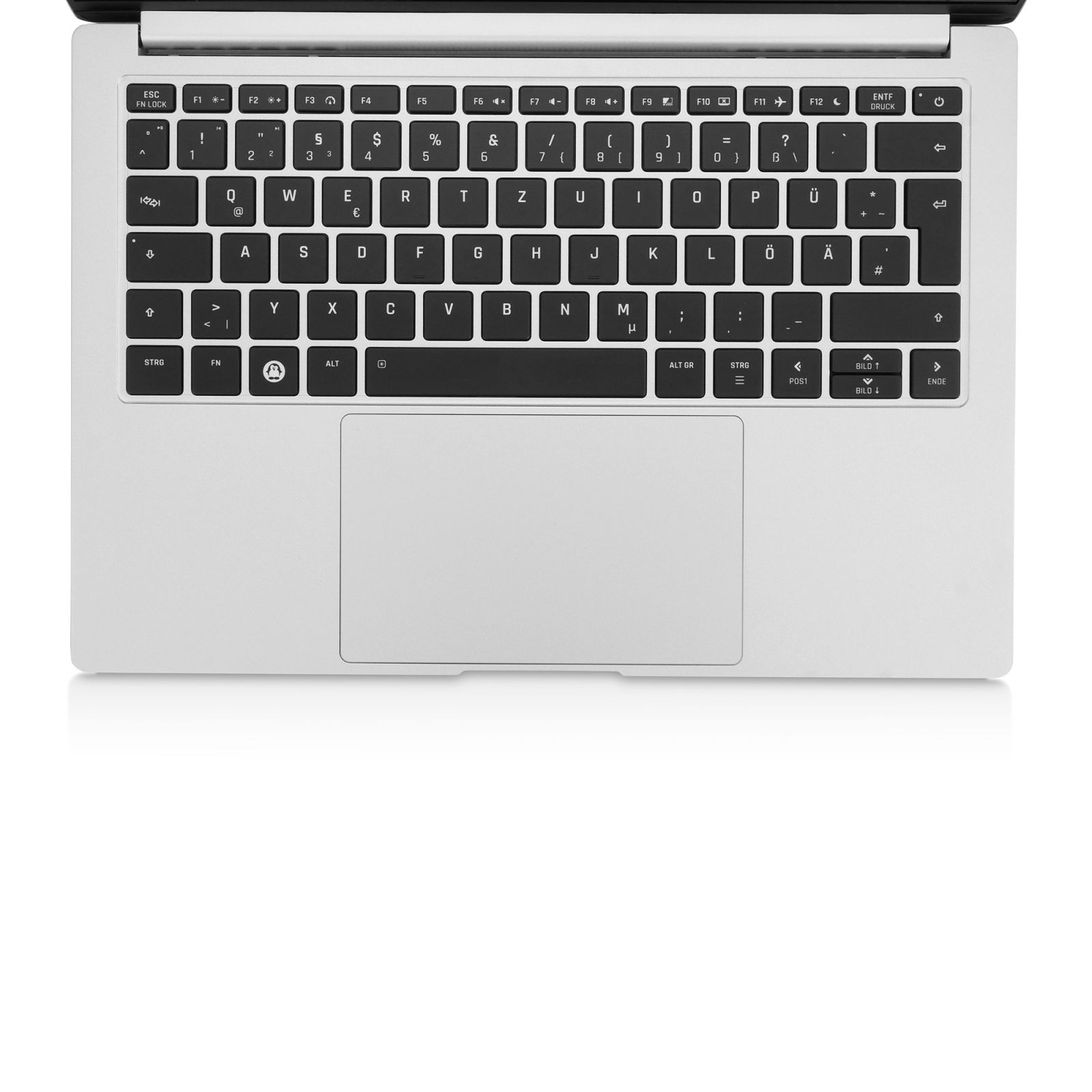

Keyboard and Touchpad
Monocolor (white) backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
TUX super-key on all layouts!
Big precision glass clickpad with integrated buttons and multi-gesture- & scroll-function
Ports

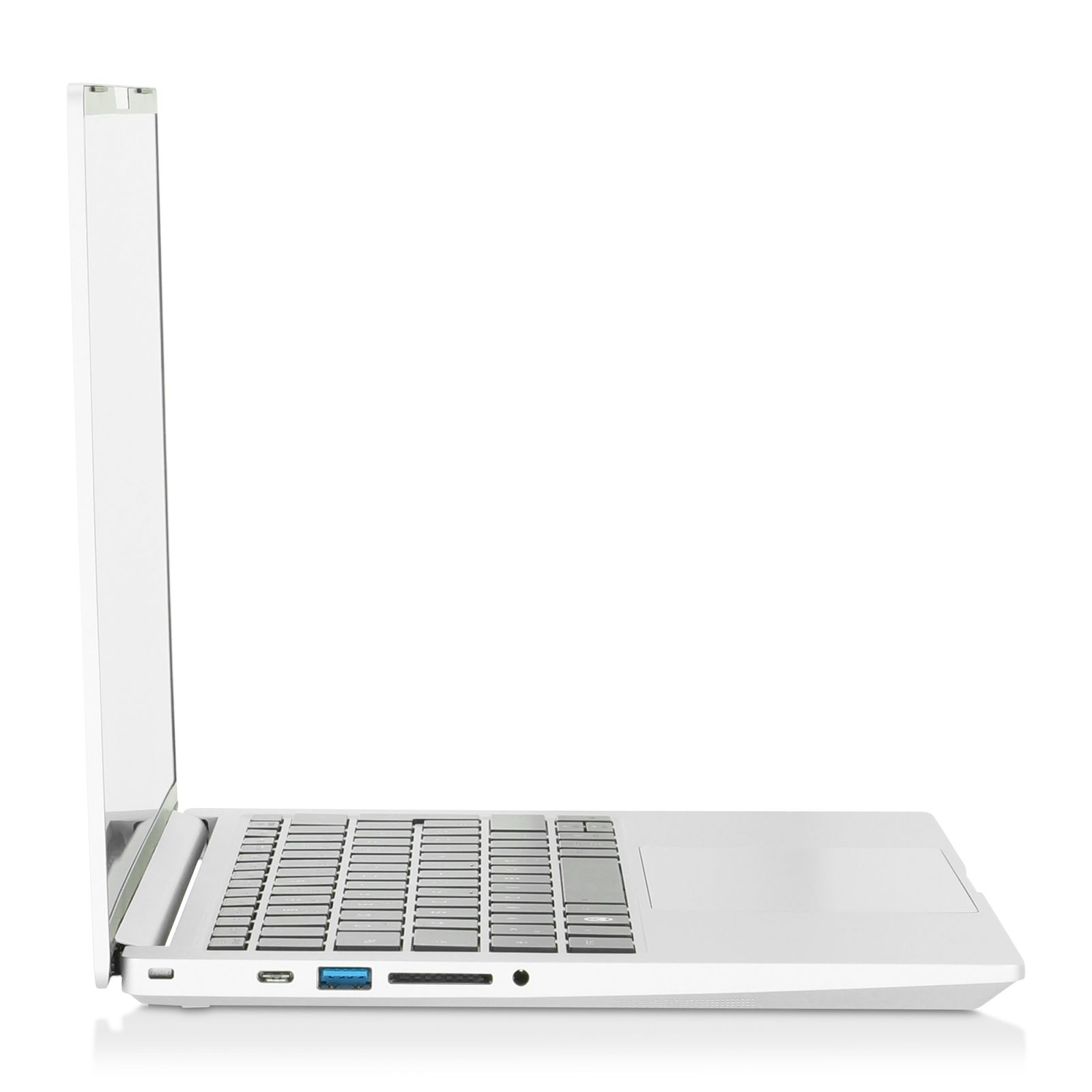

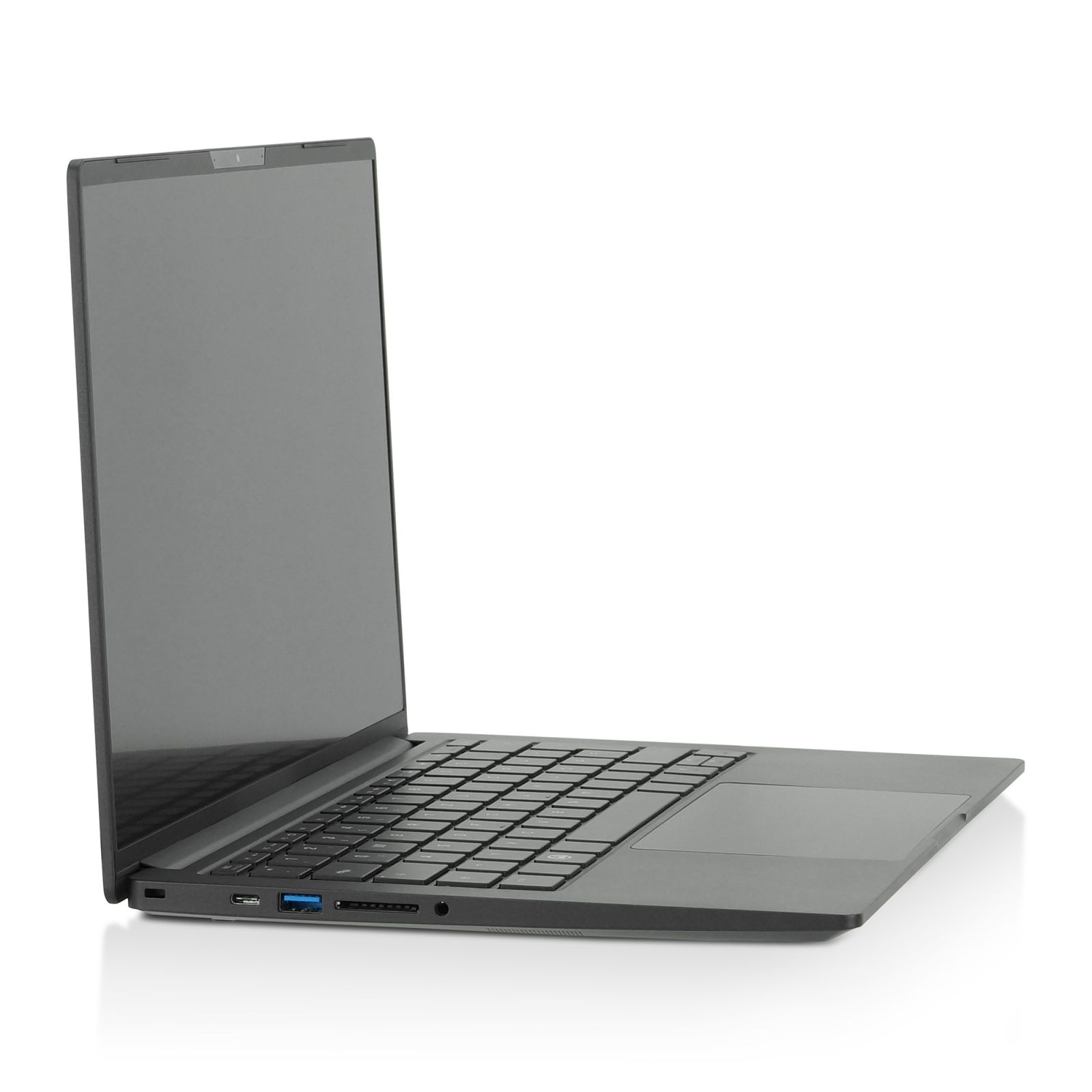

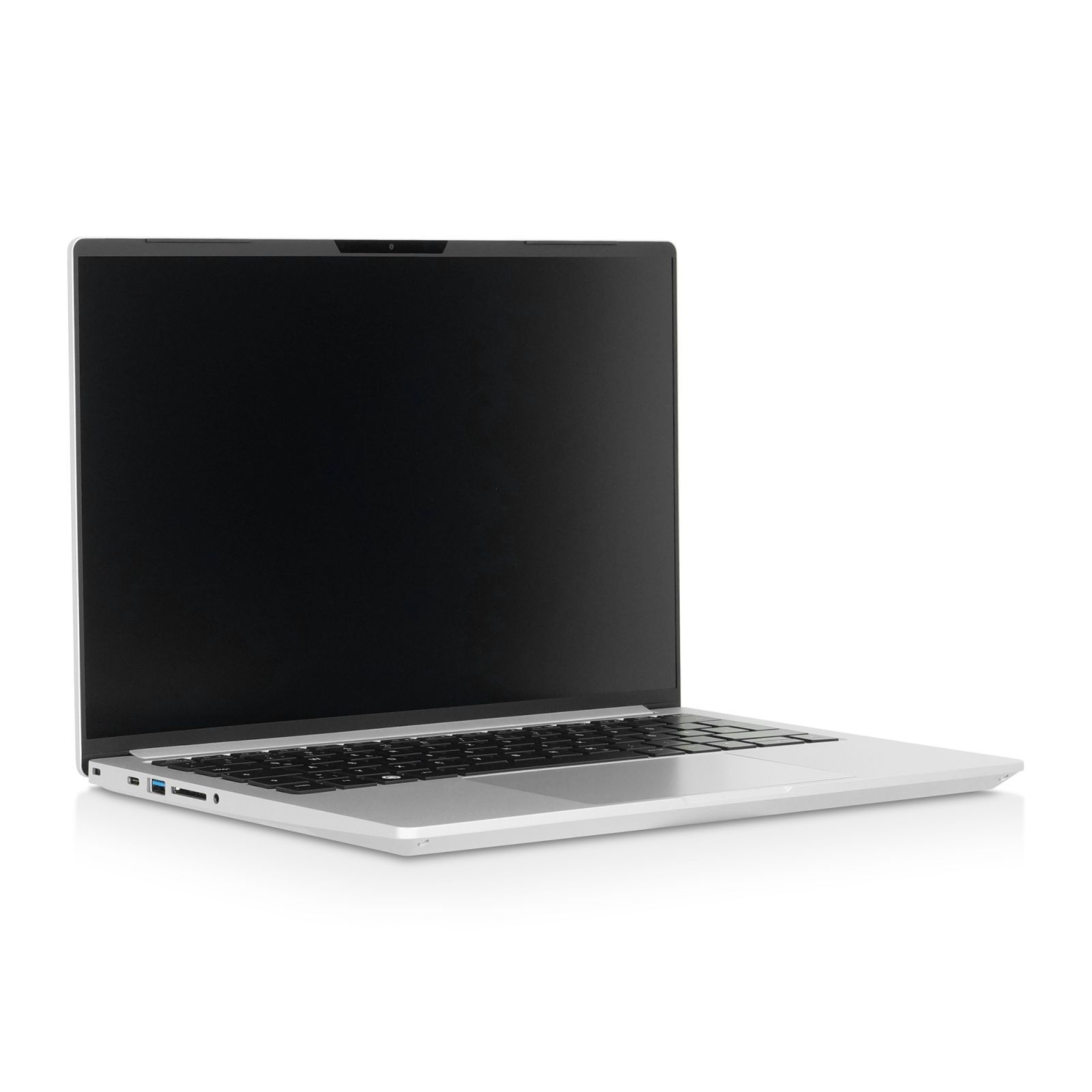

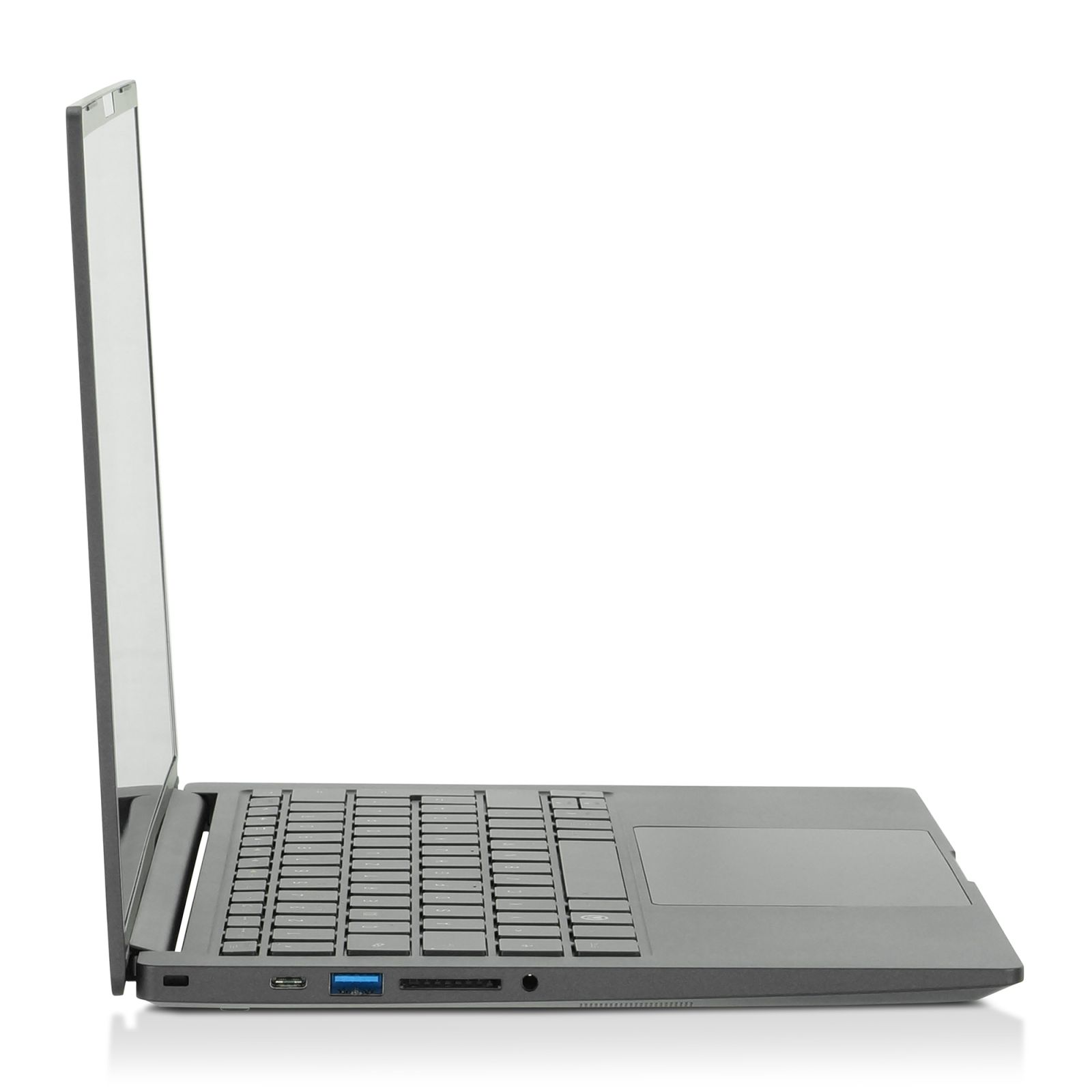

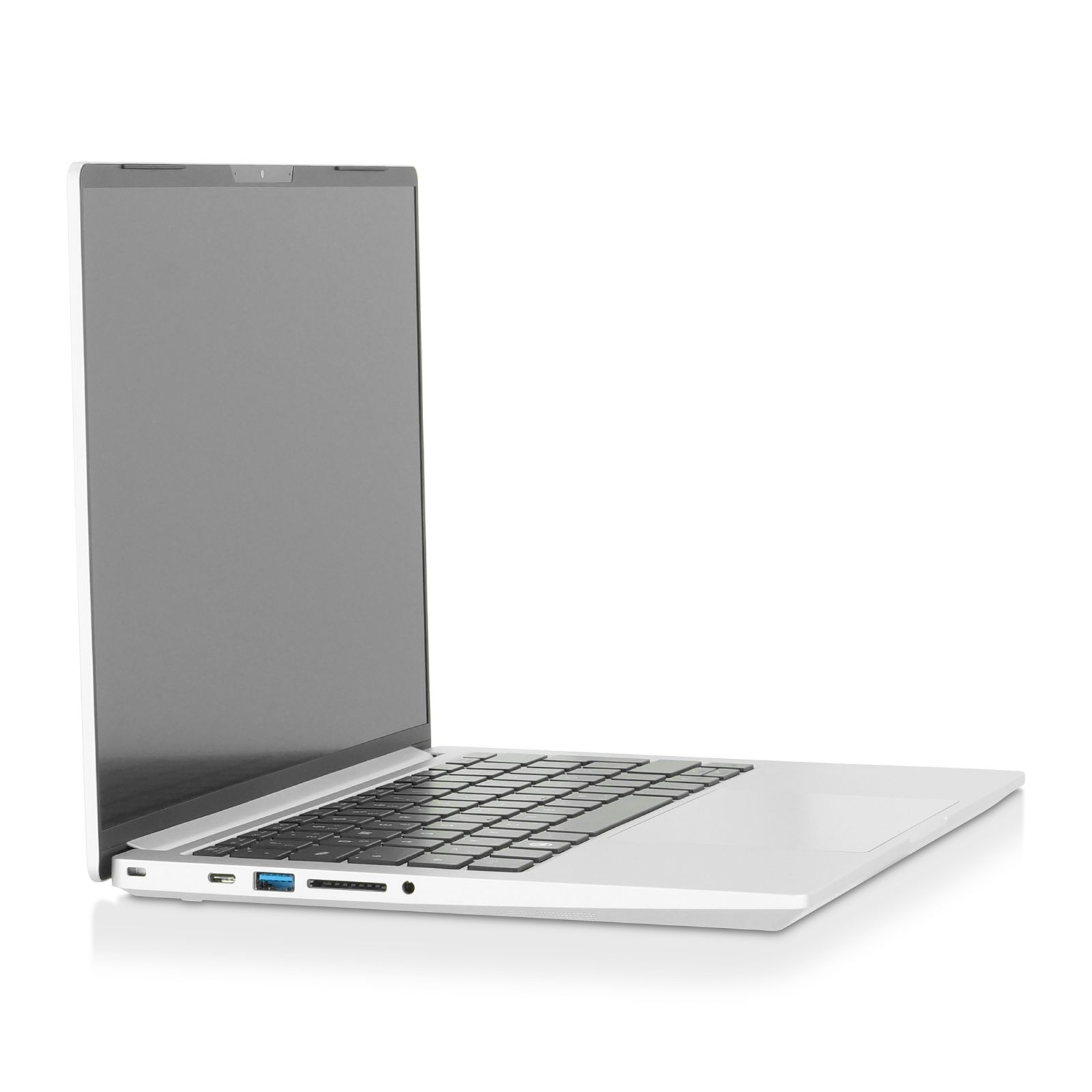

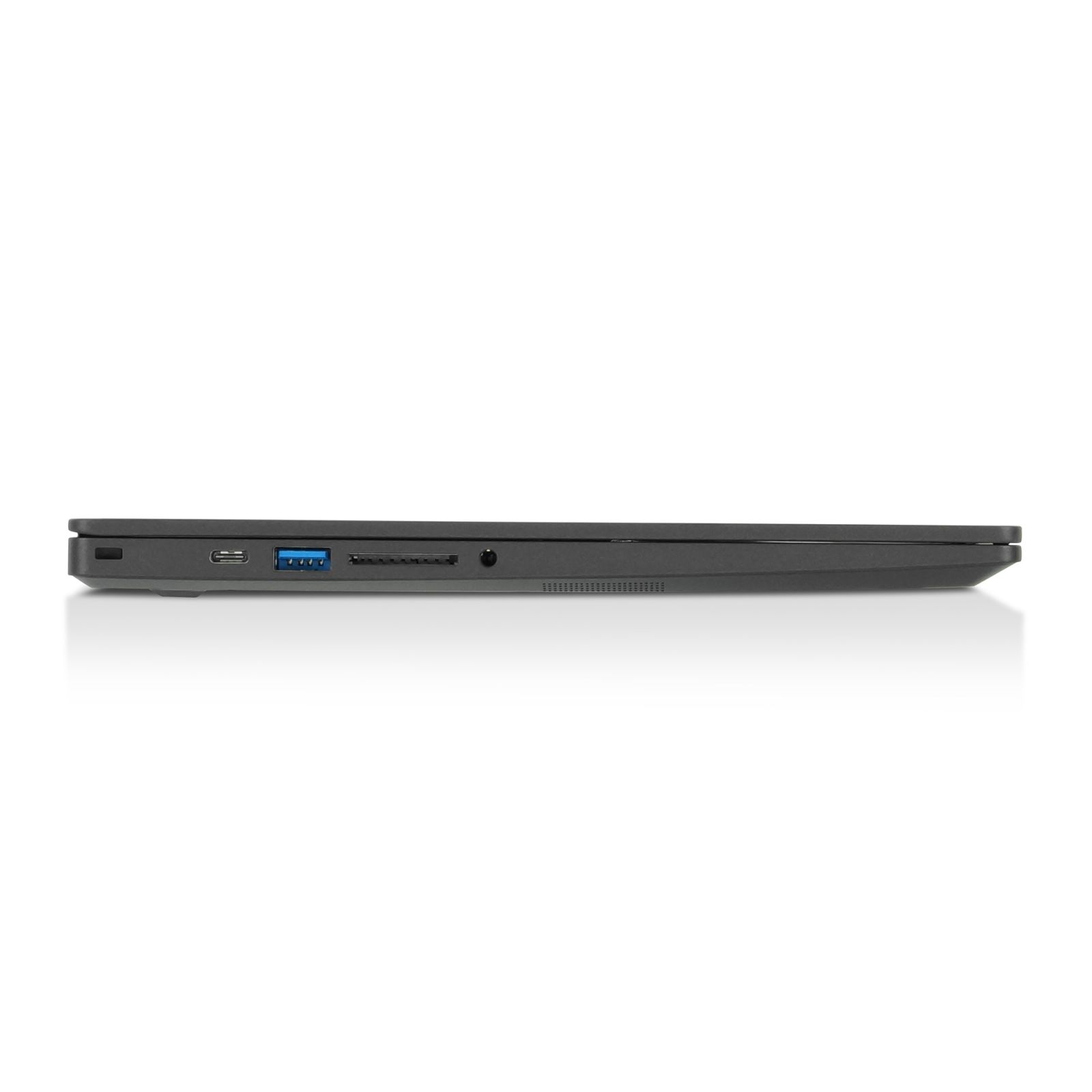

Left side (from left to right):
- Kensington Nano Security Slot™
- USB-C 3.2 Gen2 (Connected to: dGPU | DisplayPort 1.4* | no Power Delivery DC-In | DC-Out: 5V/3A)
- USB-A 3.2 Gen1
- Full size SD card reader
- 2-in-1 audio (headphone + mic)

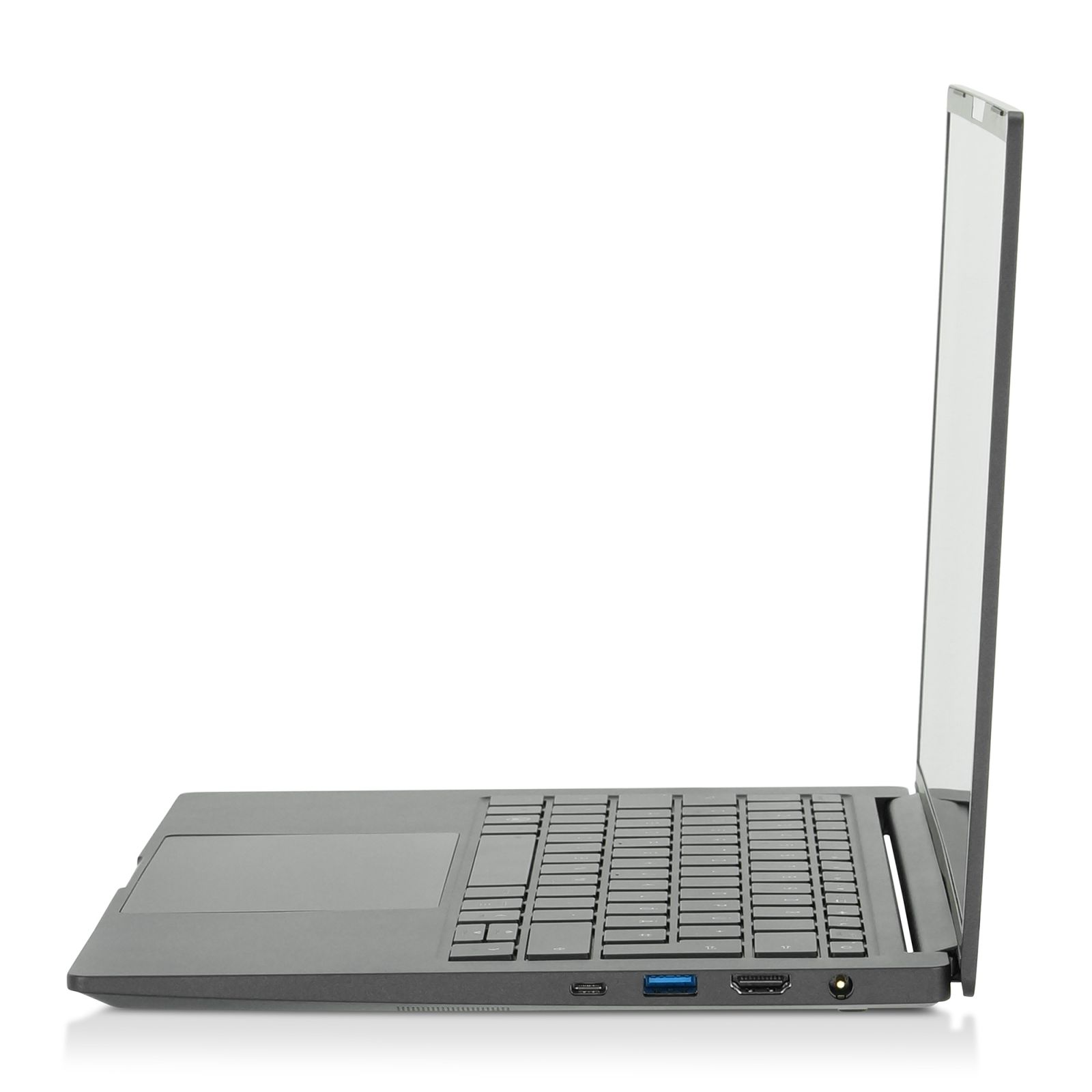

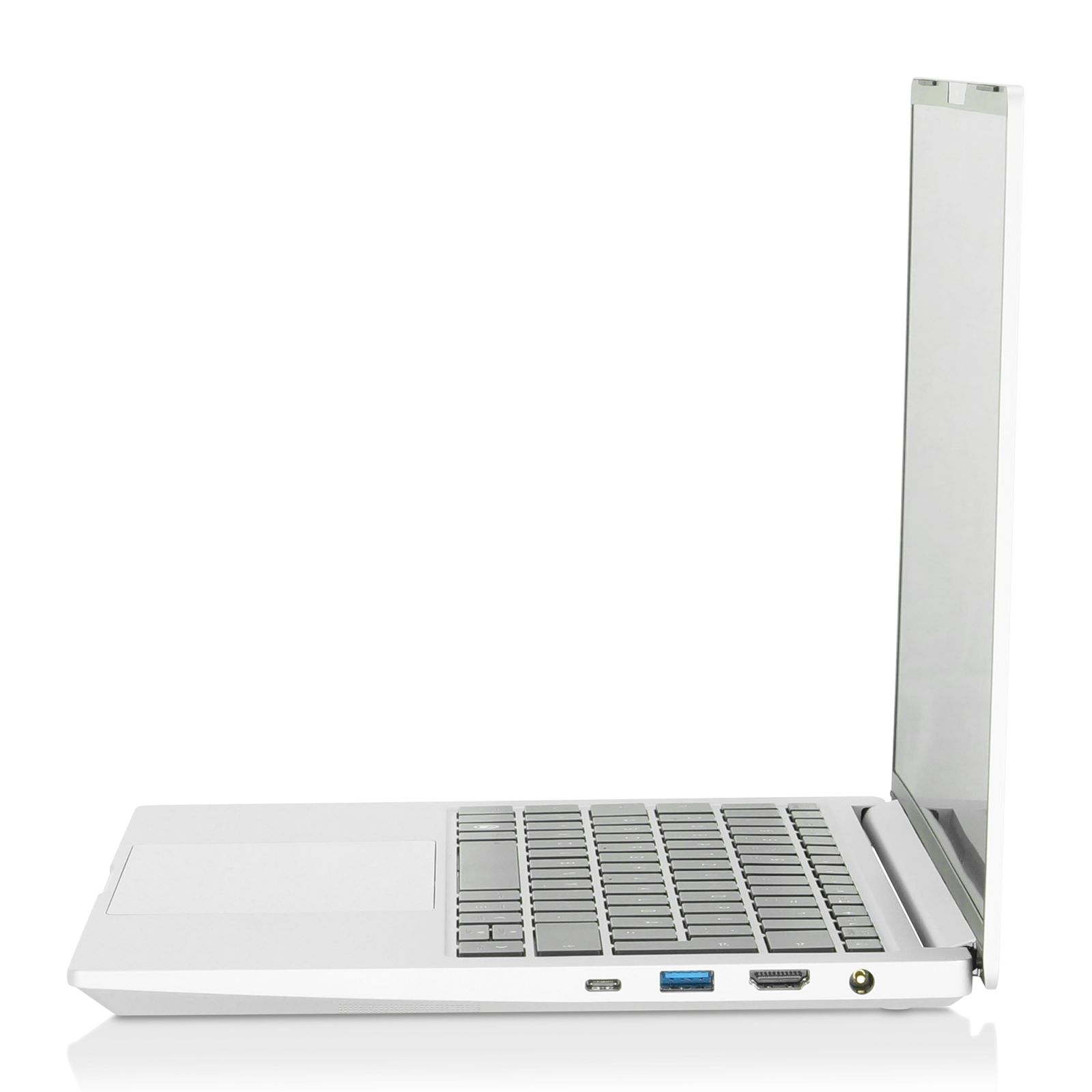

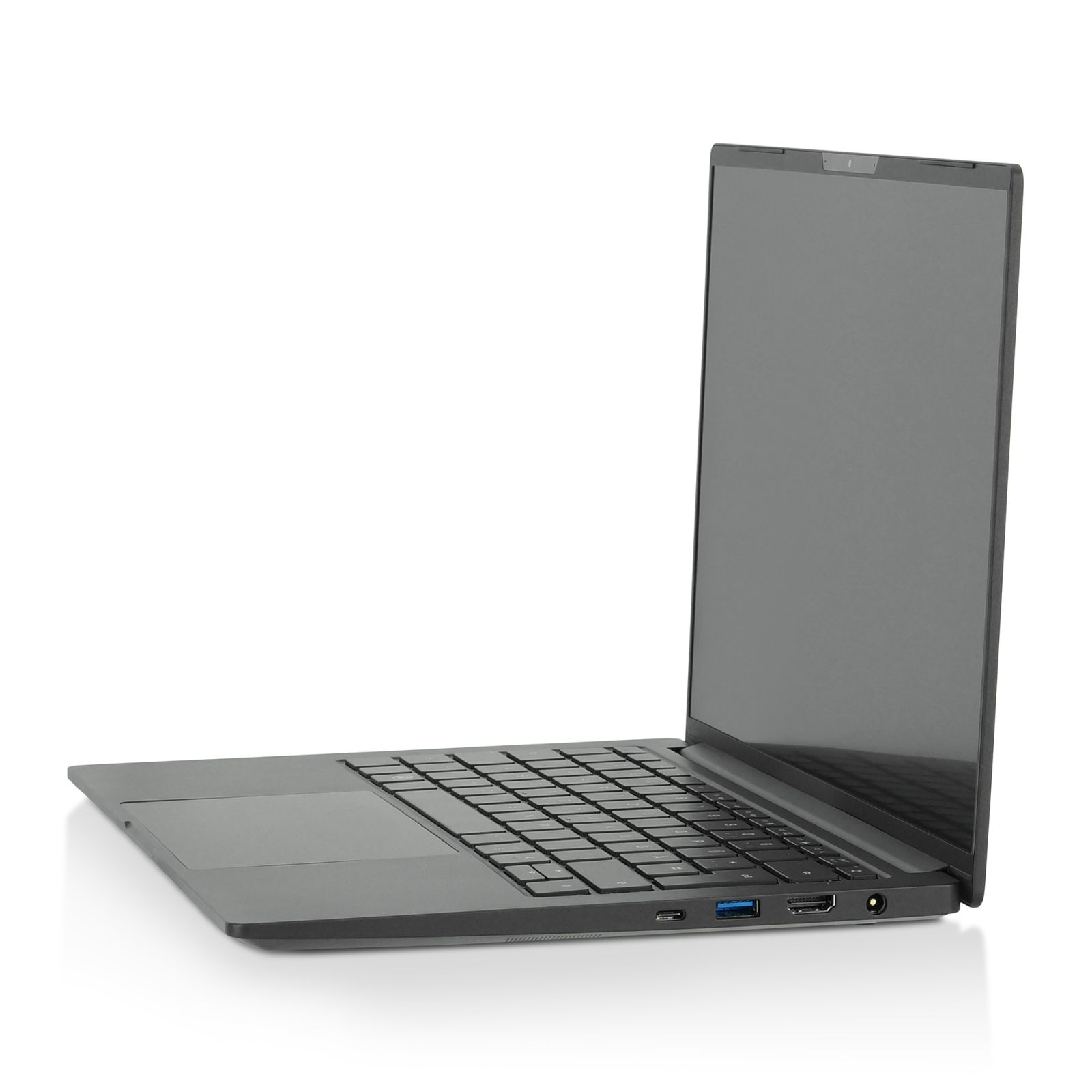

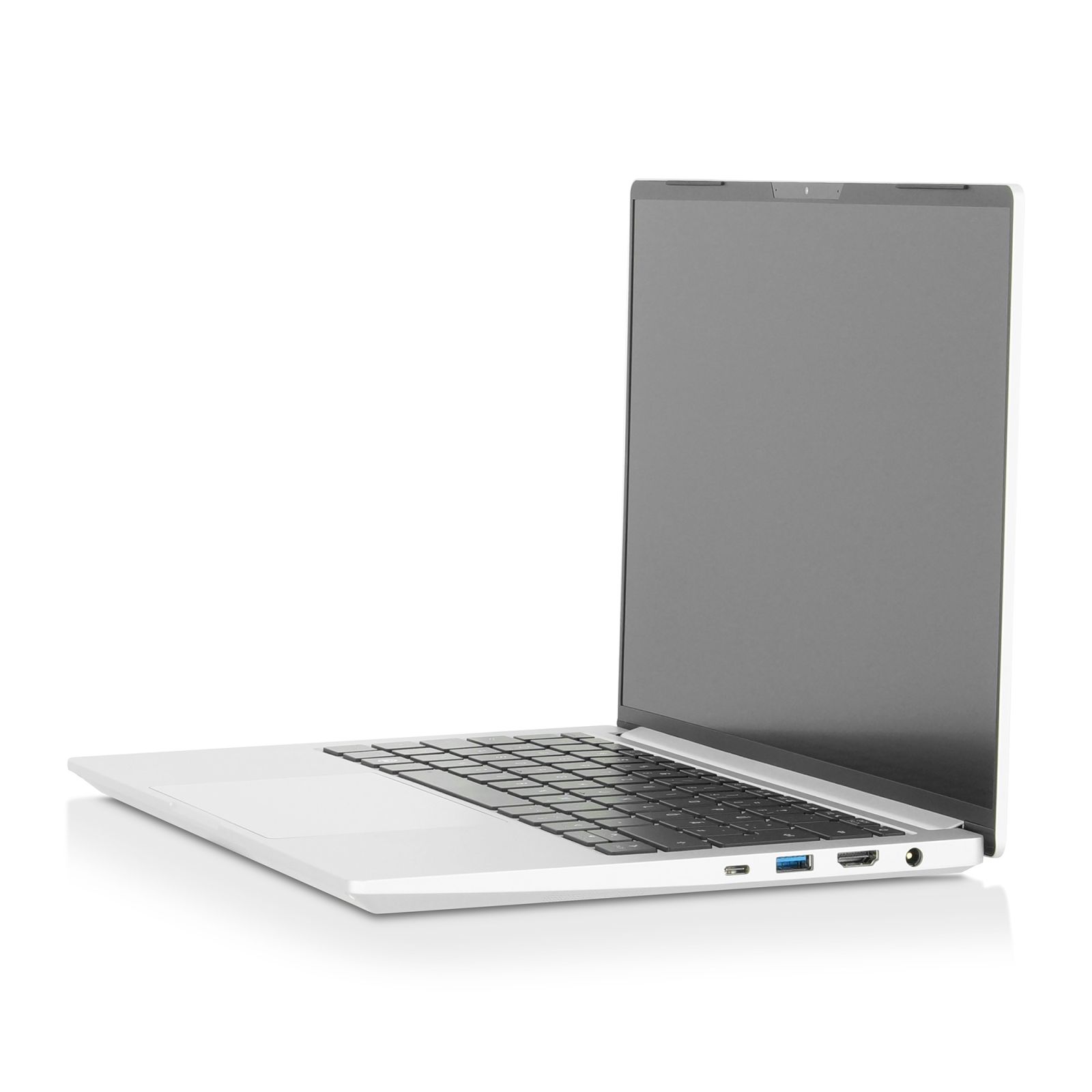

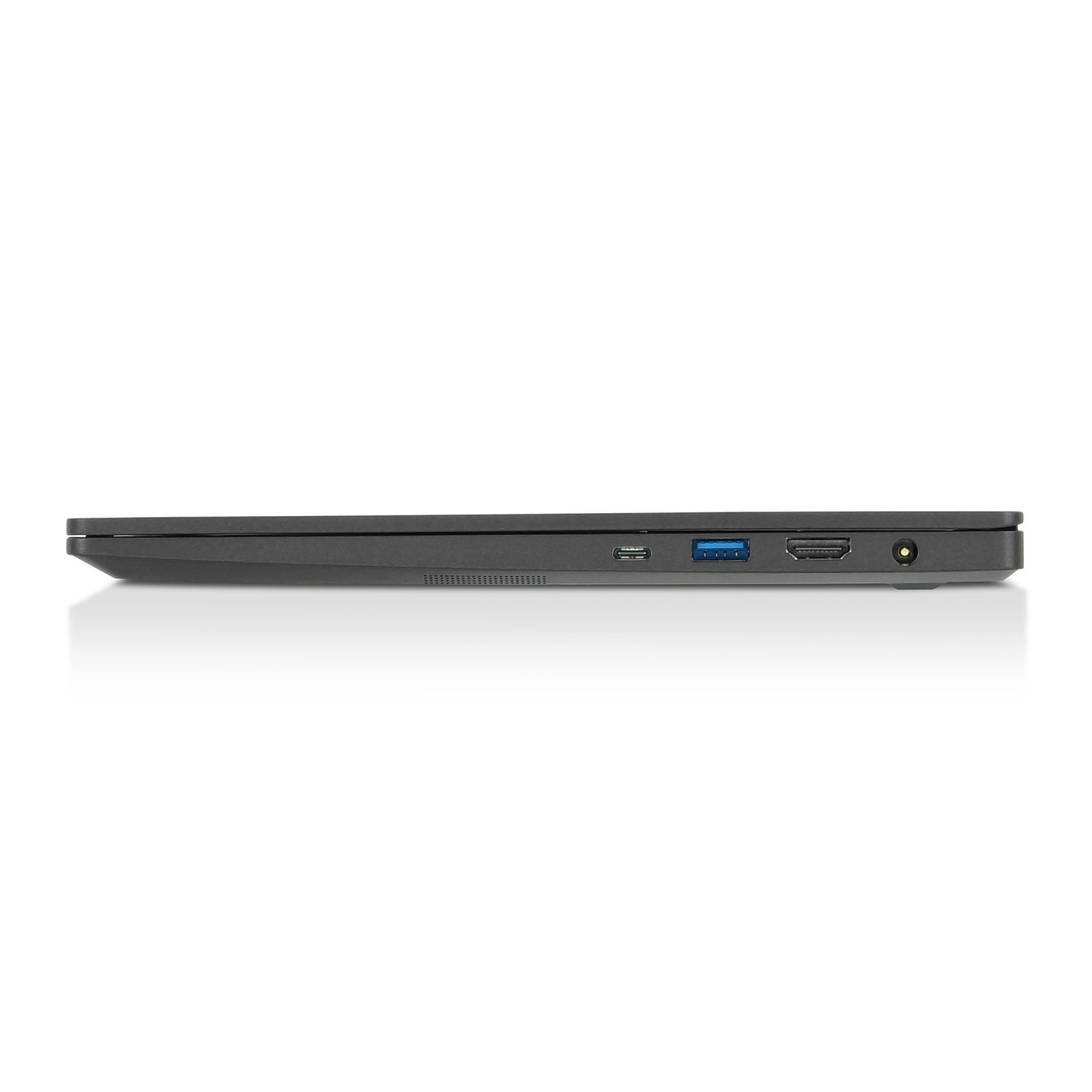

Right side (from left to right):
- Thunderbolt 4 (PCIe Gen3 4 Lanes) / USB-C (Connected to: iGPU | DisplayPort 1.4a | Power Delivery DC-In** | DC-Out: 5V/3A)
- USB-A 3.2 Gen1
- HDMI 2.0b
- DC-IN / power connection
* Monitor connection only possible with NVIDIA graphics, because the port is hardwired to it. No DisplayPort available without NVIDIA graphics.
** Requirement: min. 20V/3.25A (65W)
Card reader
Full size SD card reader (SD/SDHC/SDXC)
Security
- Kensington-Lock mounting
- Intel Management Engine (Intel ME) can be disabled directly via the BIOS
- Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
- WLAN & Bluetooth can be deactivated directly via the BIOS
- TPM 2.0 (via Intel PTT) (can be activated/deactivated via BIOS)
Battery & power supply

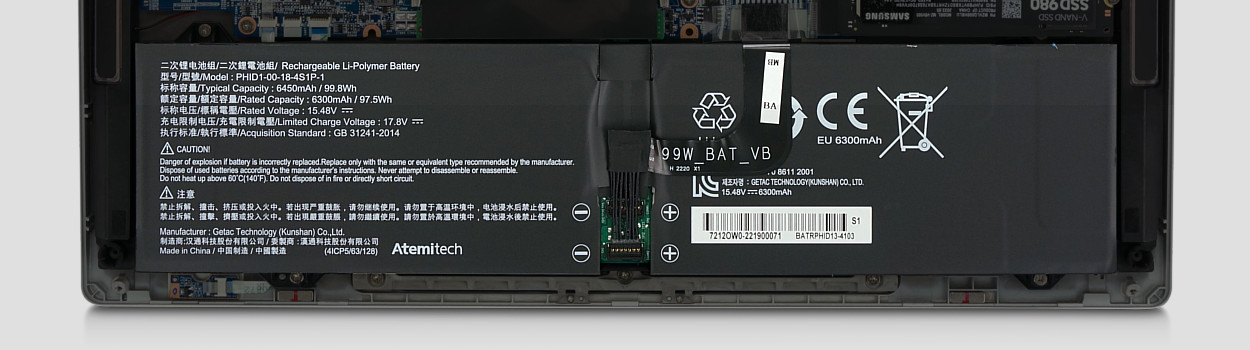

Integrated 99 Wh lithium-polymer battery
Power supplies:
Without RTX 3050: 120 Watts | 135 x 65 x 25 mm | 500 g incl. power cord
With RTX 3050: 150 Watts | 114 x 65 x 25 mm | 500 g incl. power cord)
Power cord length: 170 cm
Power plug:
Type: Coaxial
Inner diameter: 2.5mm
Outer diameter: 5.5mm
Length: 10mm
Power can also be supplied via
USB-C (Power Delivery DC-In)
Requirement: min. 20 V / 3,25 A (65 W), max. 20V/5A (100W)
For more information, please have a look at our article
Charging via USB-C power supply (Power Delivery DC-In).
Battery life:
Up to 16 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
Up to 9 hours at medium brightness with Wifi, at office work
We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.
Main processor
Intel Core i7-13700H
(14 Cores (6 Performance-cores | 8 Efficient-cores) | 20 Threads | Max. 5,0 GHz | 24 MB Cache, 40 W TDP)
Intel Core i7-13620H
(10 Cores (6 Performance-cores | 4 Efficient-cores) | 16 Threads | Max. 4,9 GHz | 24 MB Cache, 40 W TDP)
Liquid metal thermal compound between CPU die and heatsinks for optimal heat transfer
Graphics card
Optional: NVIDIA GeForce RTX 3050 Refresh | 6 GB GDDR6 VRAM | 45 W TGP (+ up to 5 W Dynamic Boost)
Intel Iris Xe Graphics | Max. clock speed: 1500 MHz
EUs (Execution Units): 64 at i7-13620H | 96 at i7-13700H
It is possible to drive 3 displays at the same time (2 external plus the internal notebook display). For connecting more than one monitor via Thunderbolt 4, we recommend using an USB-C-to-DisplayPort MST hub.
Max. resolution (HDMI 2.0b): 3840 x 2160 @60 Hz (hardwired to the iGPU)
Max. resolution (DisplayPort 1.4a): 7680 x 4320 @60 Hz oder 2x 3840 x 2160 @ 60 Hz (hardwired to the iGPU)
Memory
DDR5 4800 MHz SoDIMM | 2 sockets upgradeable | max. 64 GB | Dual Channel
Mass storage (SSD / HDD)
1x M.2 2280 for NVME (PCI-Express 4.0 x4 oder PCI-Express 3.0 x4)
Communication / Network
Wireless/WIFI:
Intel Wi-Fi 6 AX201:
Interface: M.2 2230 / CNVio2
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX201
Version: Dual Mode Bluetooth 5.2
Webcam / Laptop camera
Full HD (1080p) Webcam / camera including microphone
Supports Windows Hello
Sound / Audio
High Definition Audio
2 x W integrated speakers
Integrated microphone
Cooling System & Fan
Temperature controlled fan
At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

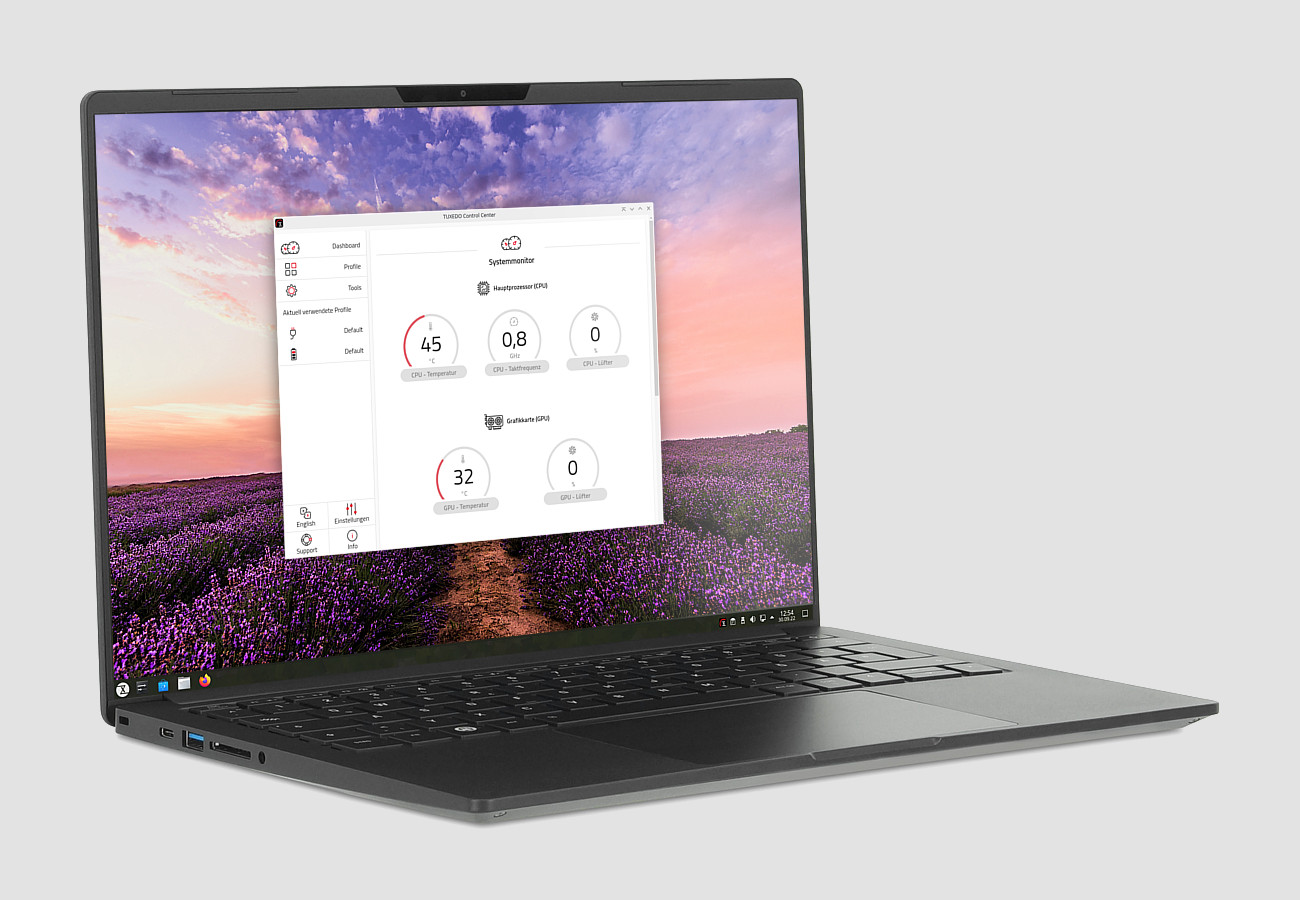

Custom performance and fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!
Model-ID: IBP1408
Operating systems
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
UEFI firmware
With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).
For this purpose, the following functions can be completely deactivated:
- On Intel CPUs: Intel Management Engine (IntelME)
- Webcam
- On Intel CPUs: Audio (Microphone & Sound)
- WLAN & Bluetooth
In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.
Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!
For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
