    Premium-class business companion

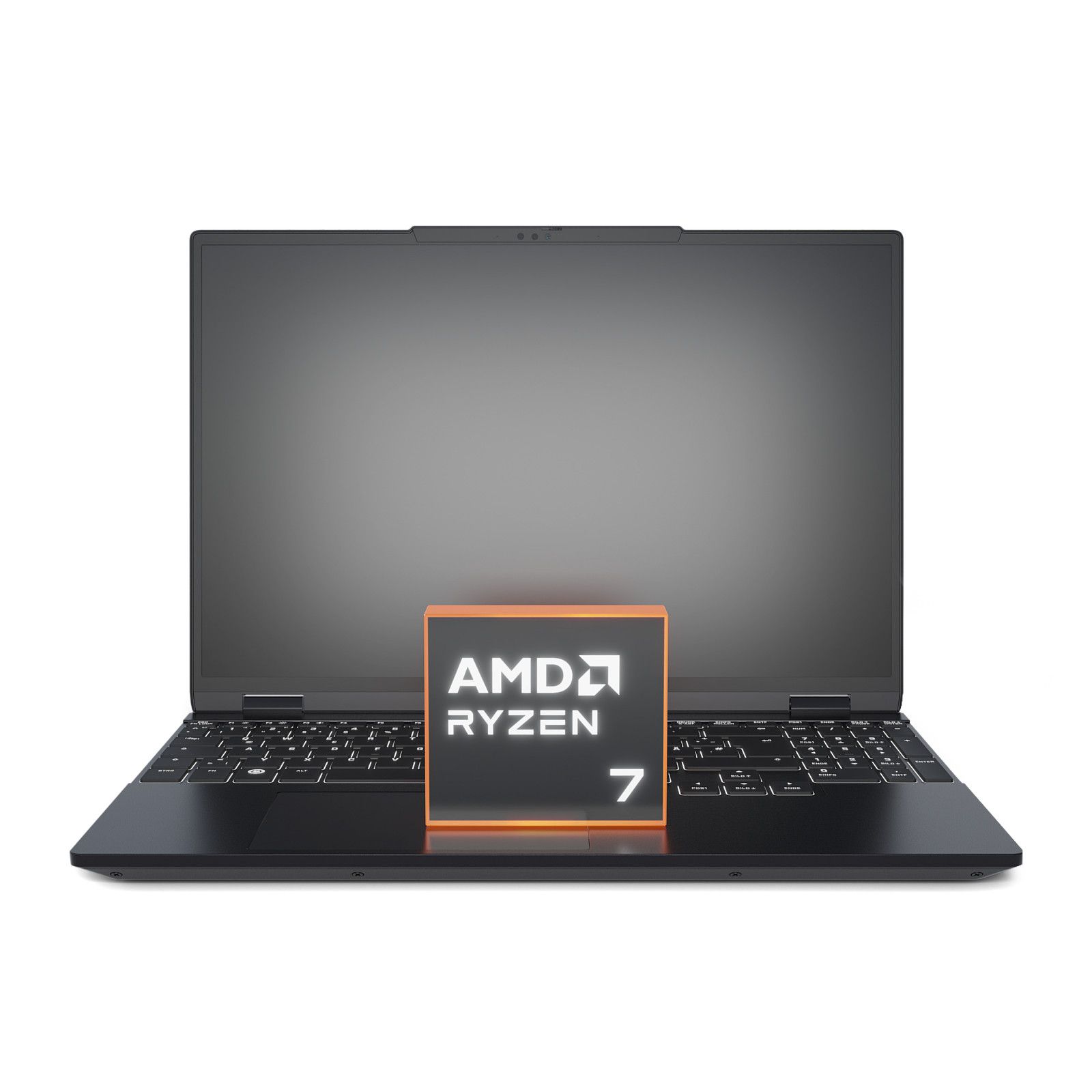

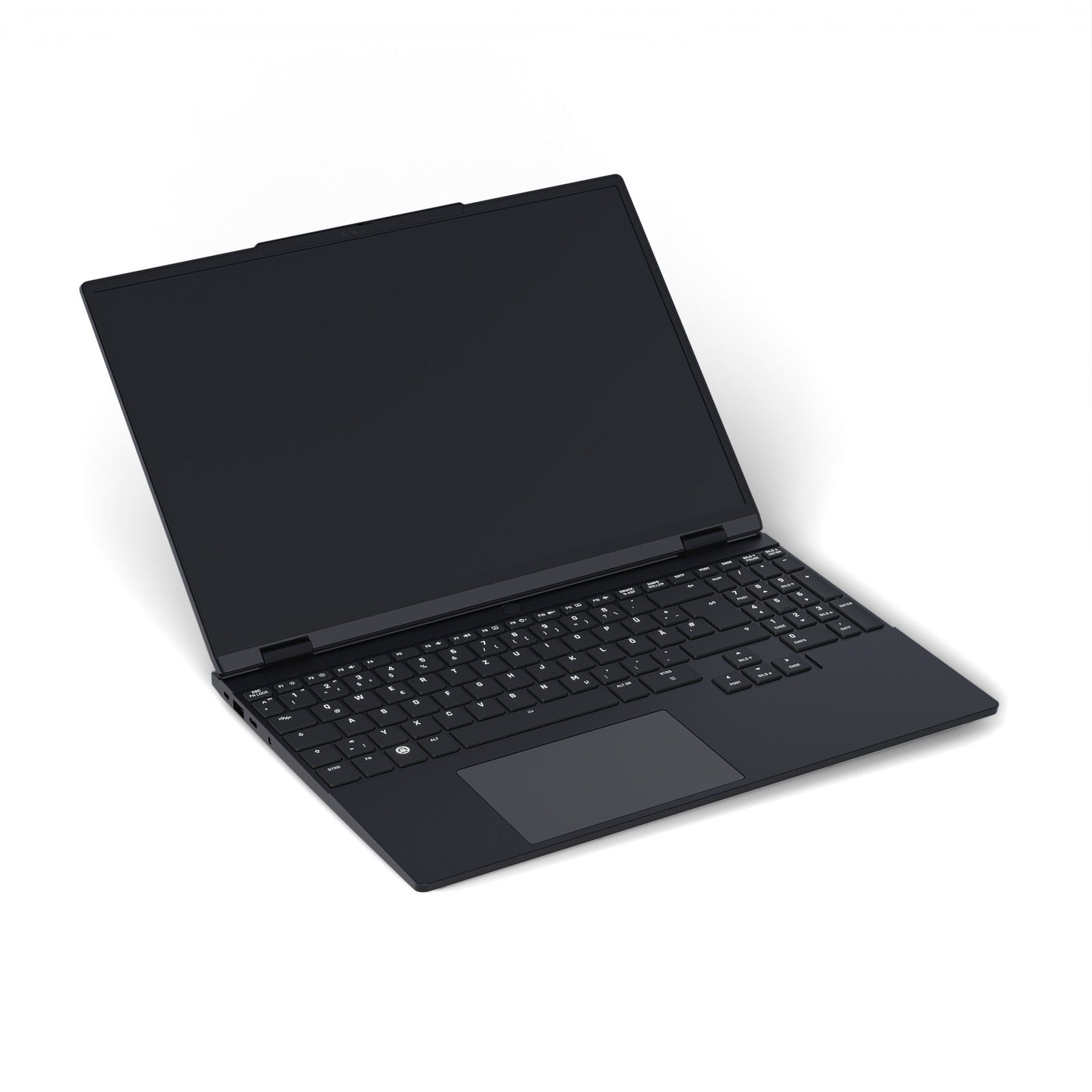

    TUXEDO InfinityBook Pro 15 - Gen9 - AMD



    The InfinityBook Pro 15 combines a pleasantly large, bright 15.3-inch high-res screen and a lot of processing performance with an outstanding mobility factor, consisting of an extremely thin and light all-aluminum body, a maximum allowed 99 Wh battery and flexible USB-C charging.

    Less than 20 mm thin and 1.6 kg light while providing a reasonable large screen, the InfinityBook Pro 15 is a greatly portable high-quality business ultrabook for job or private use with fast computing power for software developers or media professionals thanks to the AMD Ryzen 7 8845HS.

    Intel or AMD? You prefer the InfinityBook Pro 15 with Intel Core Ultra 7 155H? Then please click here to get to the corresponding product webpage. If you need higher graphics performance, we recommend to take a look at the Stellaris Slim 15, which is nearly the same size or to consider an external GPU enclosure (eGPU) connected via USB4.



    At a glance: How well is this TUXEDO tailored to your needs?

    Rating compared to the entire TUXEDO laptop range (as of 06/2024). Longer is better.

    Chassis quality

    CPU performance

    Graphics performance

    Acoustic comfort

    Mobility

    Battery life



    Product features

    Please click on the tiles for detailed information.

    Icon Gehäuse

    Very thin and light all-aluminum chassis

    34.2 x 2.0 x 23.8 cm | 1.6 kg

    Icon Display

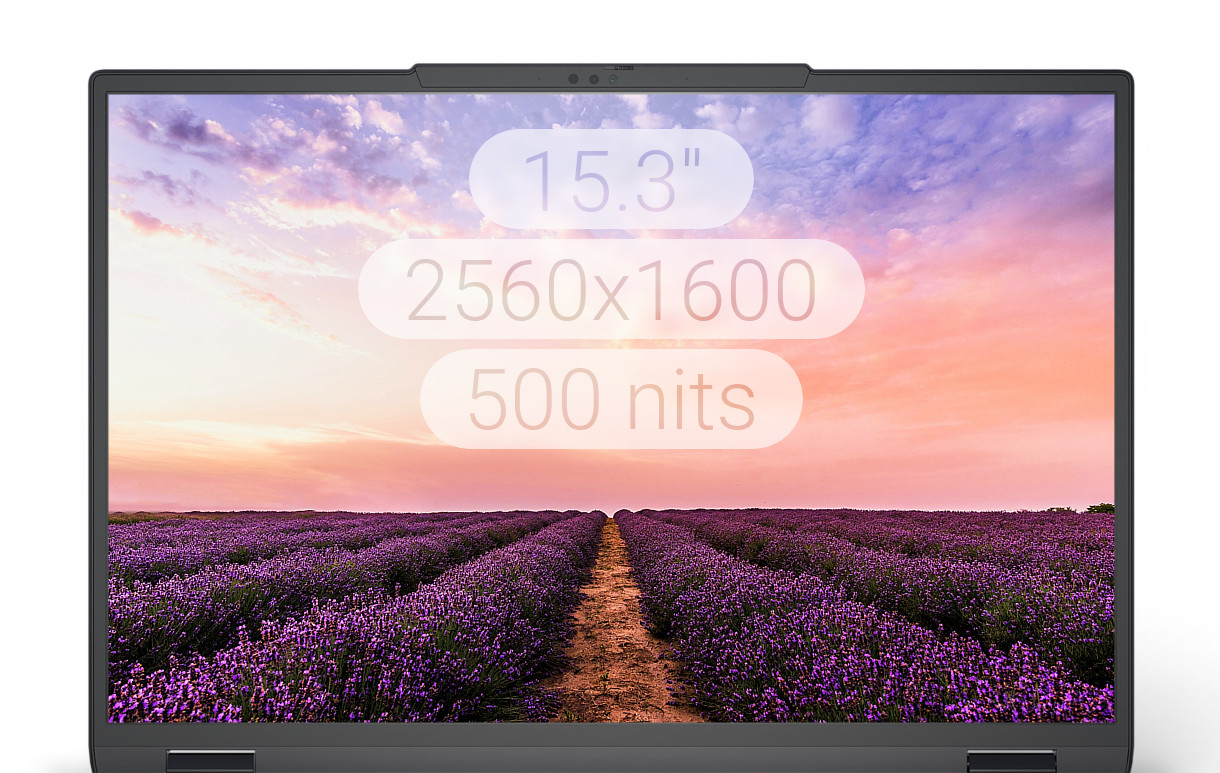

    Brand-new, bright 15.3-inch display

    2560 x 1600 | 500 nits | max. 240 Hz

    Icon Akku

    Maximally large 99 Wh battery

    Up to 13 hours of runtime

    Icon CPU

    AMD Ryzen 7 8845HS

    8 cores | 16 threads | 54 watts

    Icon GPU

    Fast yet power-saving: AMD Radeon 780M

    12 GPU cores | 2700 MHz

    Icon Speicher

    Up to

    8 TB SSD and 96 GB RAM

    2x PCIe 4.0 SSD | 2x DDR5-5600-RAM

    Icon Anschlüsse

    3 external screens and USB-C charging

    USB4 | HDMI 2.1 | 5x USB



    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    15.3-inch Omnia display
    15.3", 16:10, matte / non-glare
    Viewing angle: 89°/89°/89°/89°
    Refresh rates: 240 Hz, 60 Hz
    Resolution: 2560 x 1600 pixels
    sRGB color gamut: ~100 %
    Brightness: ~500 nits
    Contrast: ~1000:1
    Display model: BOE NE153QDM-NZ1

    For technical production reasons, the measured values always vary slightly from panel to panel. More information
    Display opening angle: ~180°



    Chassis

    Display lid, base unit and bottom case made of aluminum
    Display frame made of plastics

    Width: 34.2 cm; Height: 2 cm; Depth: 23.8 cm
    Weight: 1.6 kg incl. battery

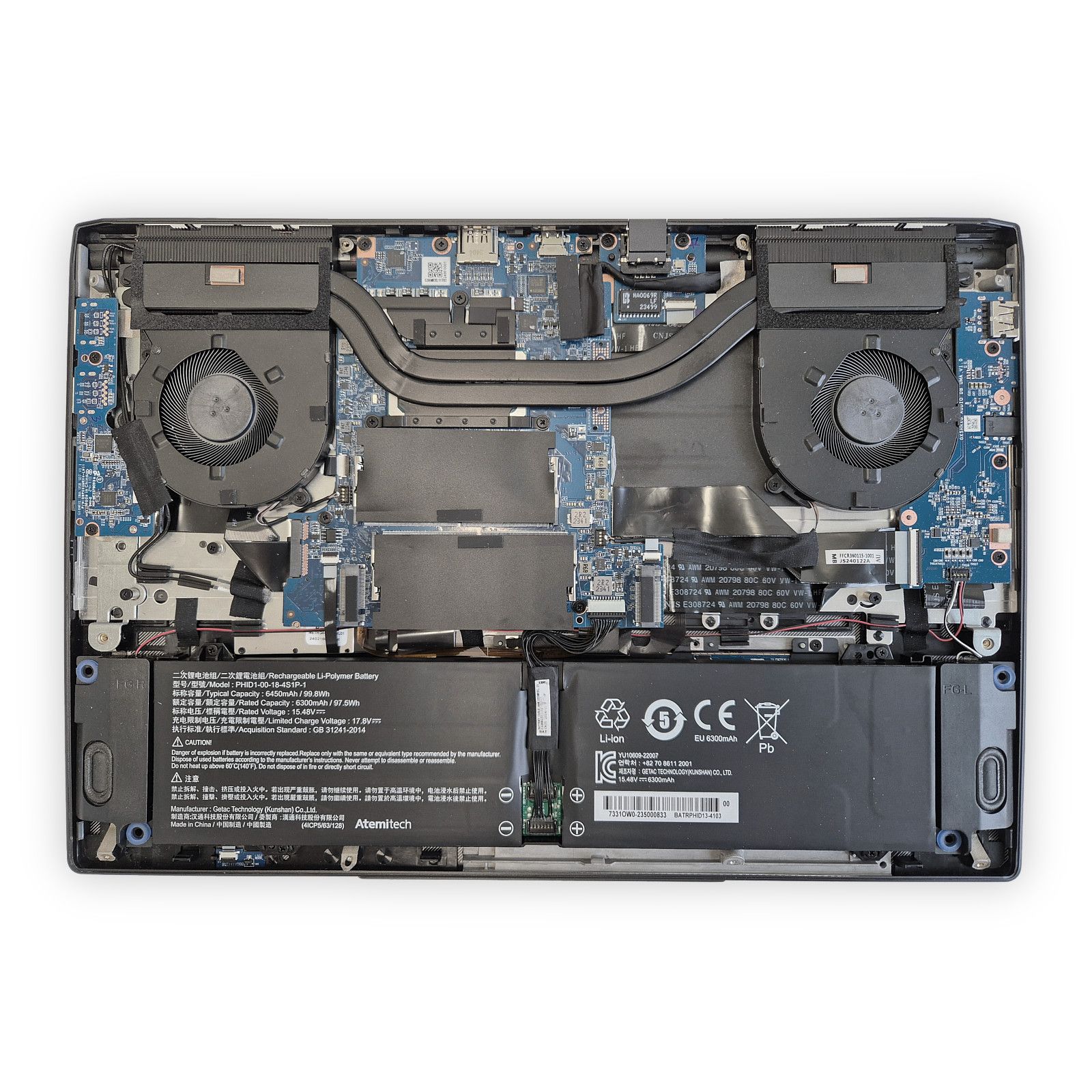

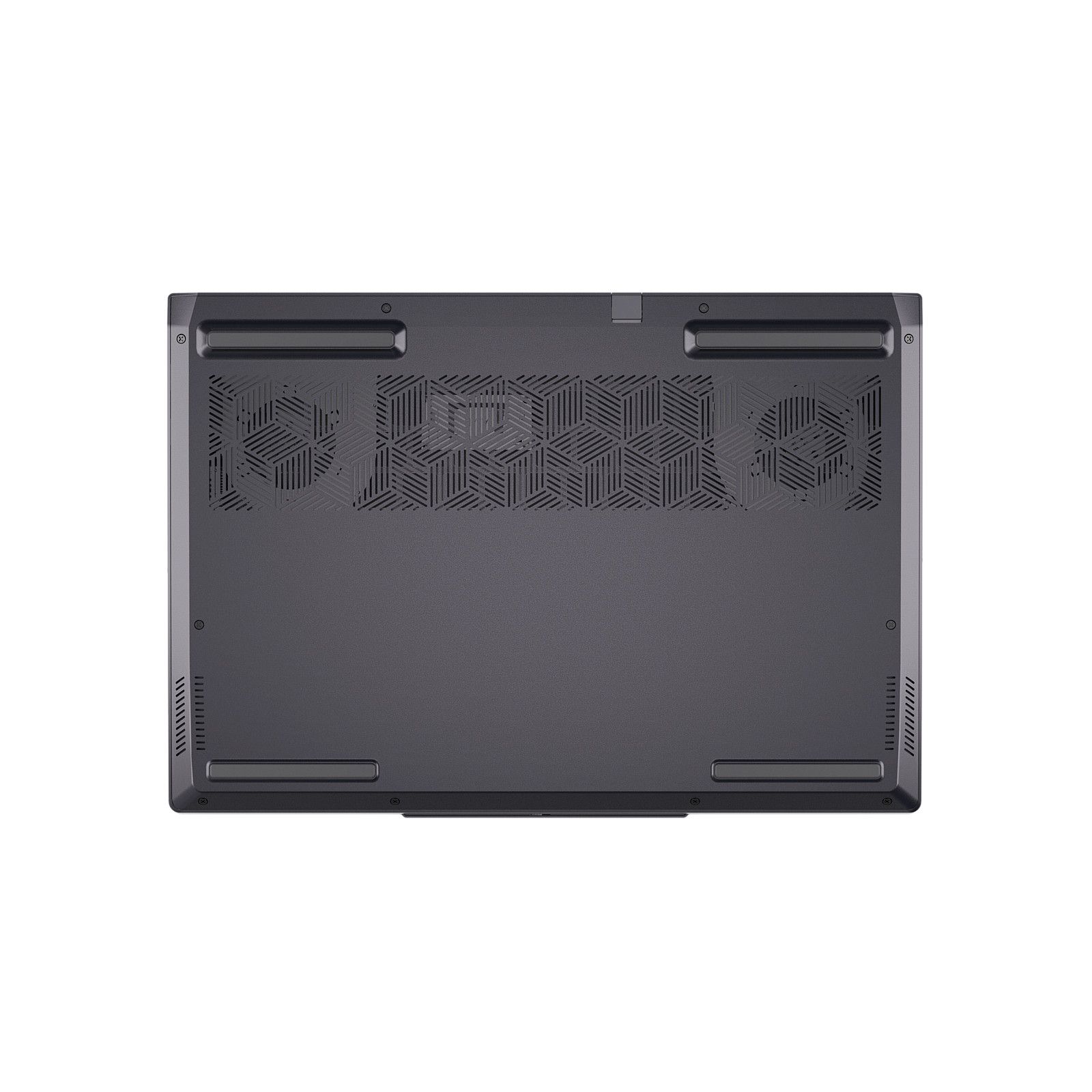

    Maintenance: After removing a series of screws from the bottom panel, RAM, Wi-Fi card, SSDs and fans are easily accessible, easy to maintain, clean and replace.

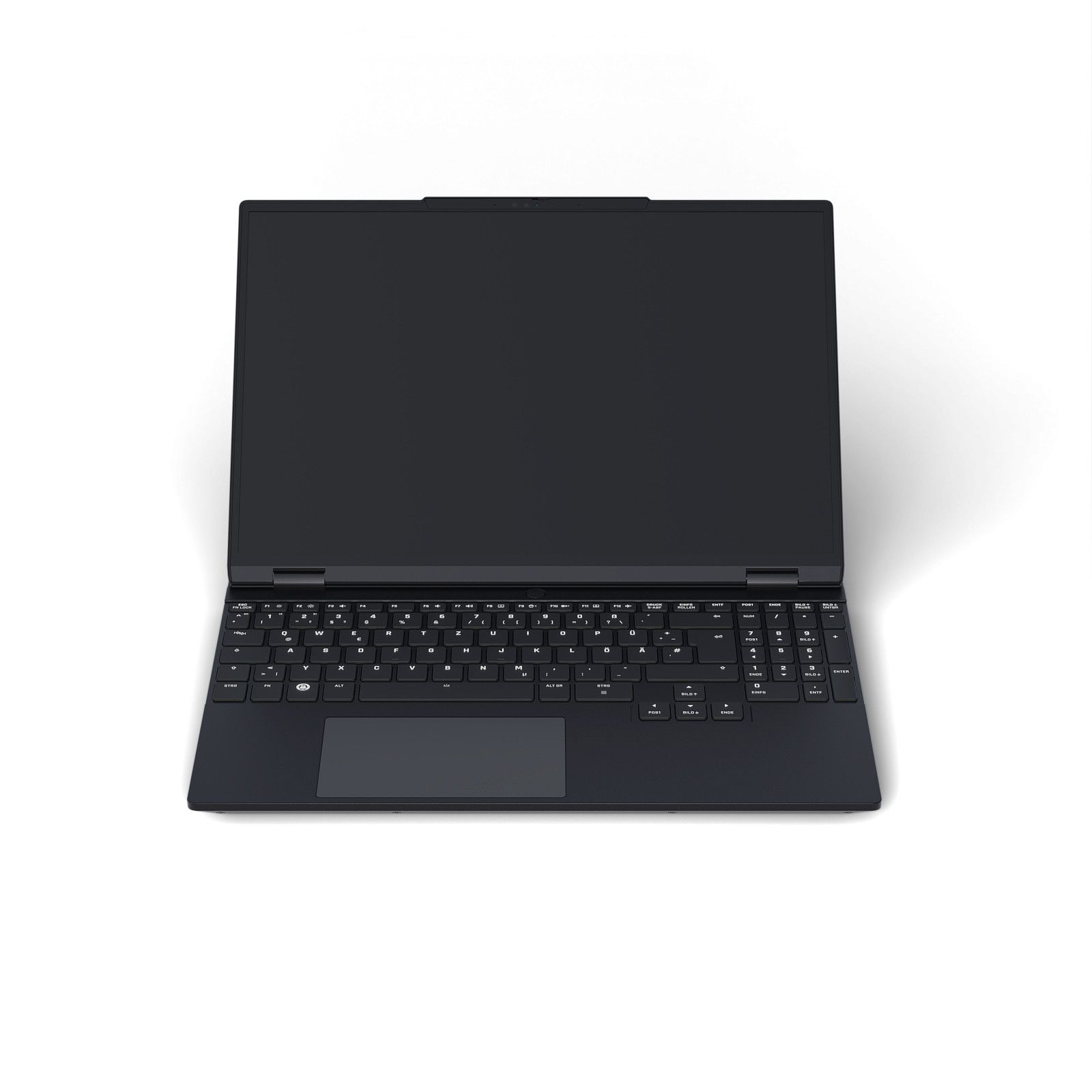

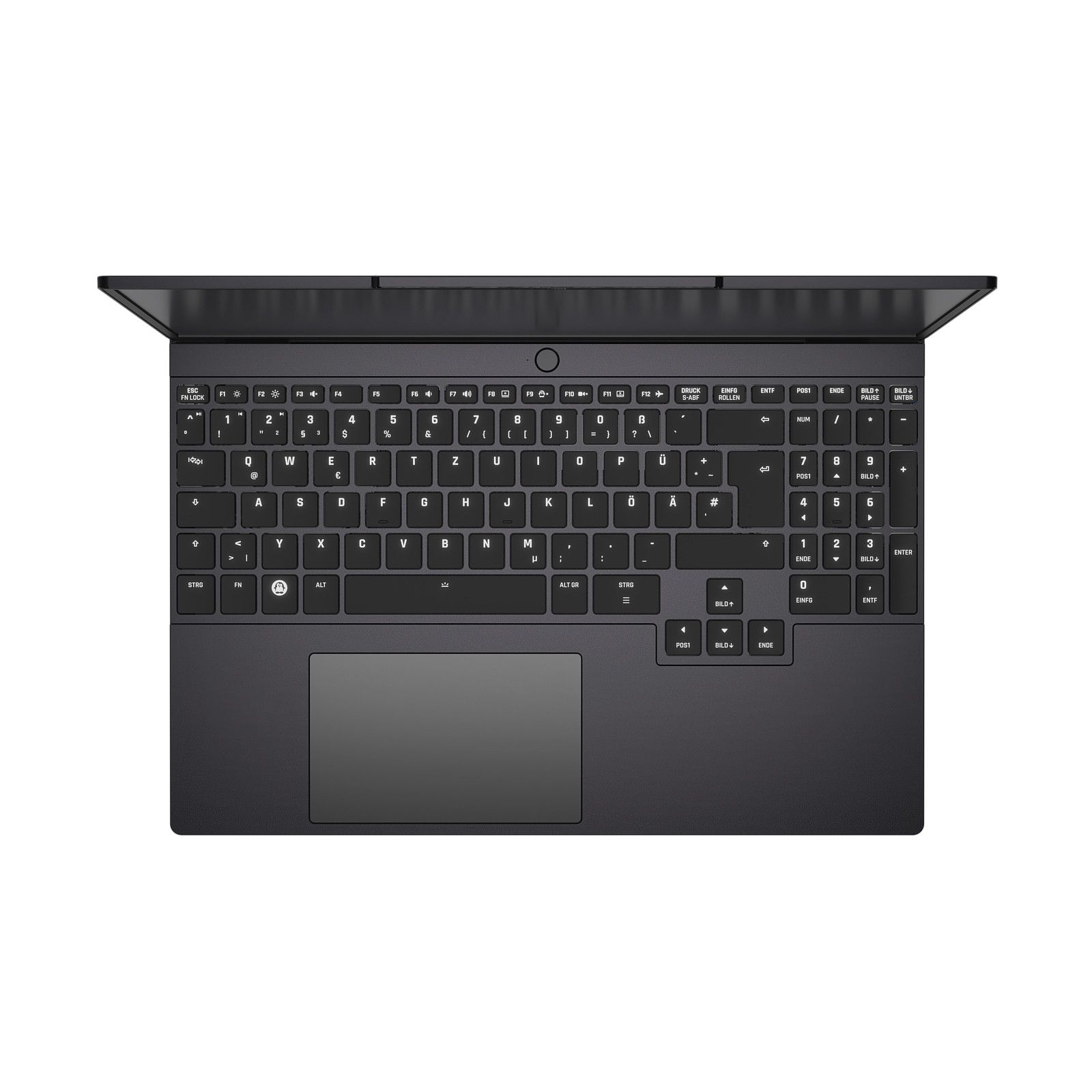

    Keyboard and Touchpad

    Quiet rubberdome / membrane keyboard with 4-row number pad and full-size arrow keys.
    White keyboard backlight Brightness can be controlled and deactivated by special keys.
    TUX super-key on all layouts.

    Glass precision clickpad (121 x 73 mm) with integrated buttons and multi-gesture- & scroll-function



    Security

    - Kensington Lock
    - Webcam shutter
    - Wi-Fi & Bluetooth can be deactivated directly via the UEFI
    - TPM 2.0 (via fTPM) (can be activated/deactivated via the UEFI)



    Battery & power supply

    Maximally large 99 Wh battery, Lithium polymer (screwed inside)

    Power supply:
    100 W | 20 V / 5 A | USB-C Power Delivery DC-In | 124 x 64 x 29 mm | 350 g incl. cable

    Battery life:

    Up to 18 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlight, in idle mode
    Up to 13 hours at medium brightness (~ 150 nits), without Wifi & Bluetooth, without keyboard backlight, in local video playback
    Up to 10 hours at medium brightness (~ 150 nits) with Wifi on, at office work



    Main processor

    AMD Ryzen 7 8845HS
    (8 Cores | 16 Threads | Max. 5,1 GHz | 16 MB L3-Cache, 54 W*)

    * Maximum sustained performance at full fan speed.



    Graphics card

    Energy efficient CPU integrated Graphics:
    AMD Radeon 780M (GPU Cores: 12 |  Max. clock speed: 2,7 GHz)

    It is possible to drive 4 displays at the same time (3x external screens plus the internal notebook display.)
    - 1x internal notebook display
    - 1x HDMI 2.1
    - 2x USB-C (DisplayPort 1.4)

    Max. resolution (HDMI 2.1): 3840 x 2160 @120 Hz or 7680x4320 @ 60 Hz
    Max. resolution (DisplayPort 1.4a): 7680 x 4320 @ 60 Hz or 2x 3840 x 2160 @ 60 Hz

    Memory

    DDR5-5600 MHz SO-DIMM | 2 sockets upgradeable | max. 96 GB (4800 MHz) | Dual Channel



    Mass storage (SSD / HDD)

    2x M.2 2280 for NVME (PCI-Express 4.0 x4)
    Intel Optane Technology



    Communication / Network

    Wired LAN:
    1 Gigabit LAN (Motorcomm YT6801, 10/100/1000 Mbit/s)

    Wireless/WIFI:
    Intel Wi-Fi 6E AX210:
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz (160 MHz)
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5 GHz WiFi)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX210
    Version: Dual Mode Bluetooth 5.3



    Webcam / Laptop camera

    2.0 Megapixel (1920 x 1080 pixels) webcam with camera shutter



    Sound / Audio

    High Definition Audio
    2 x W integrated speakers
    Integrated microphone



    Ports

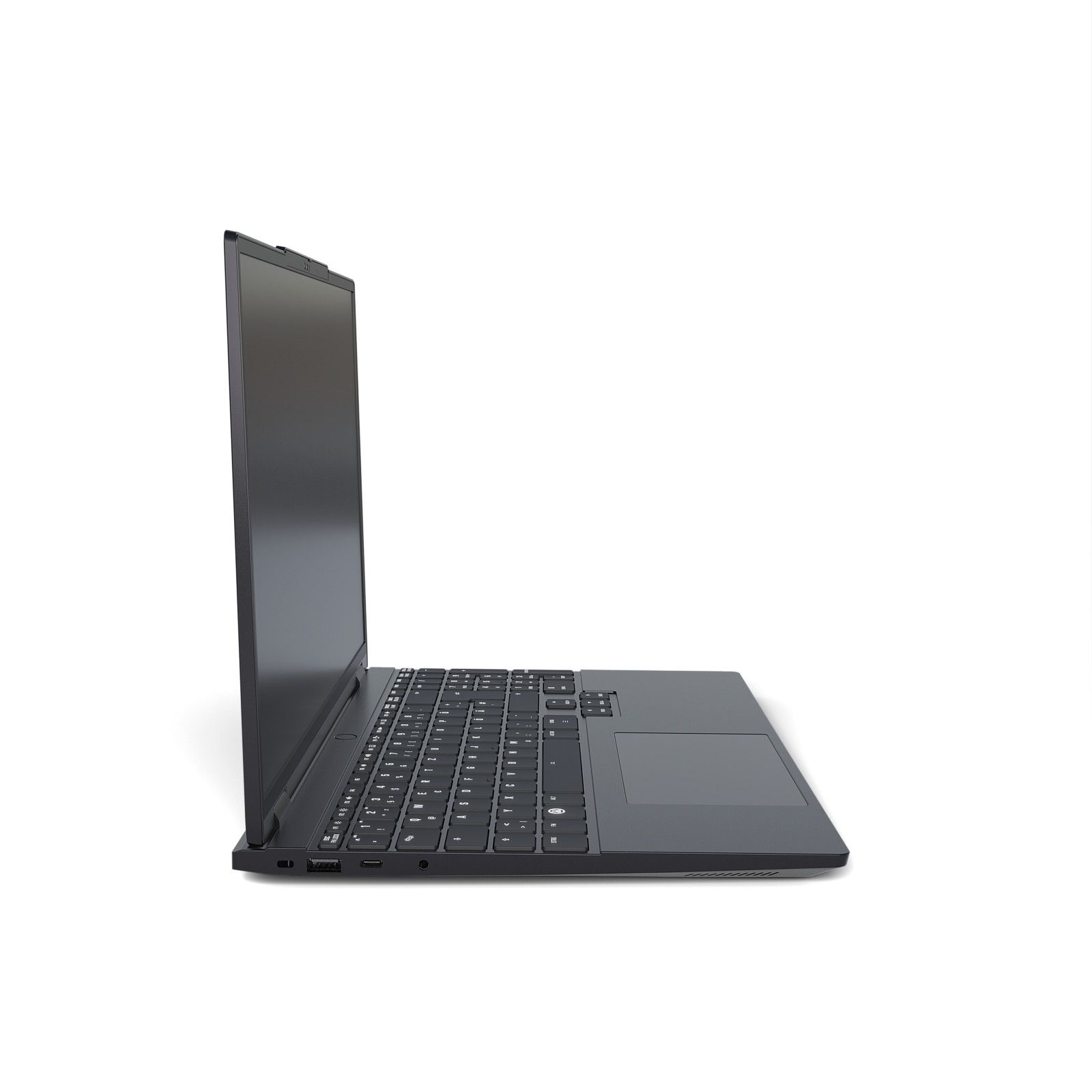

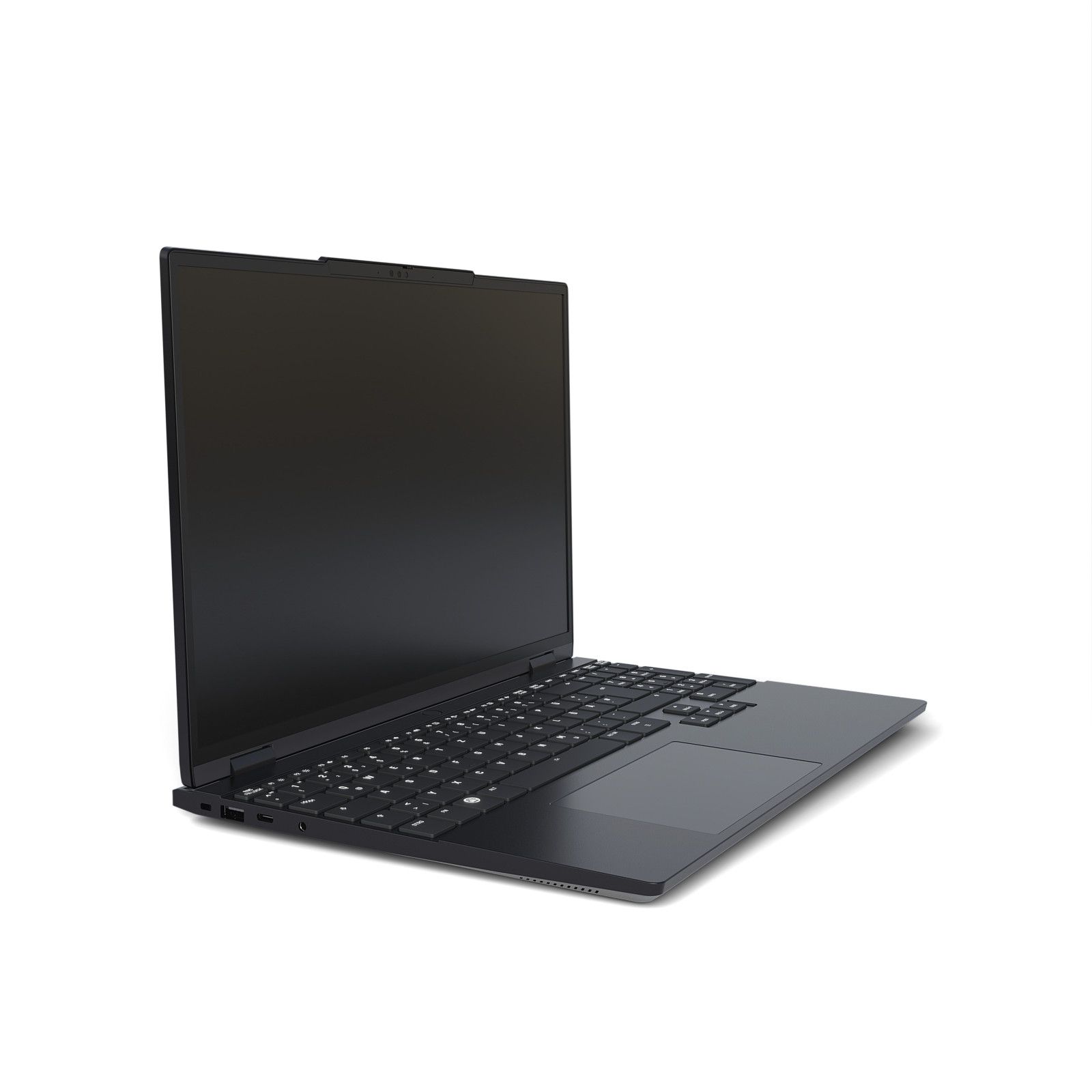

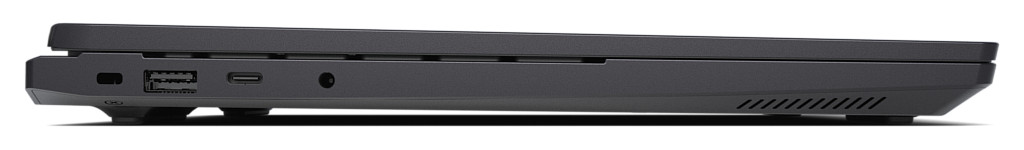

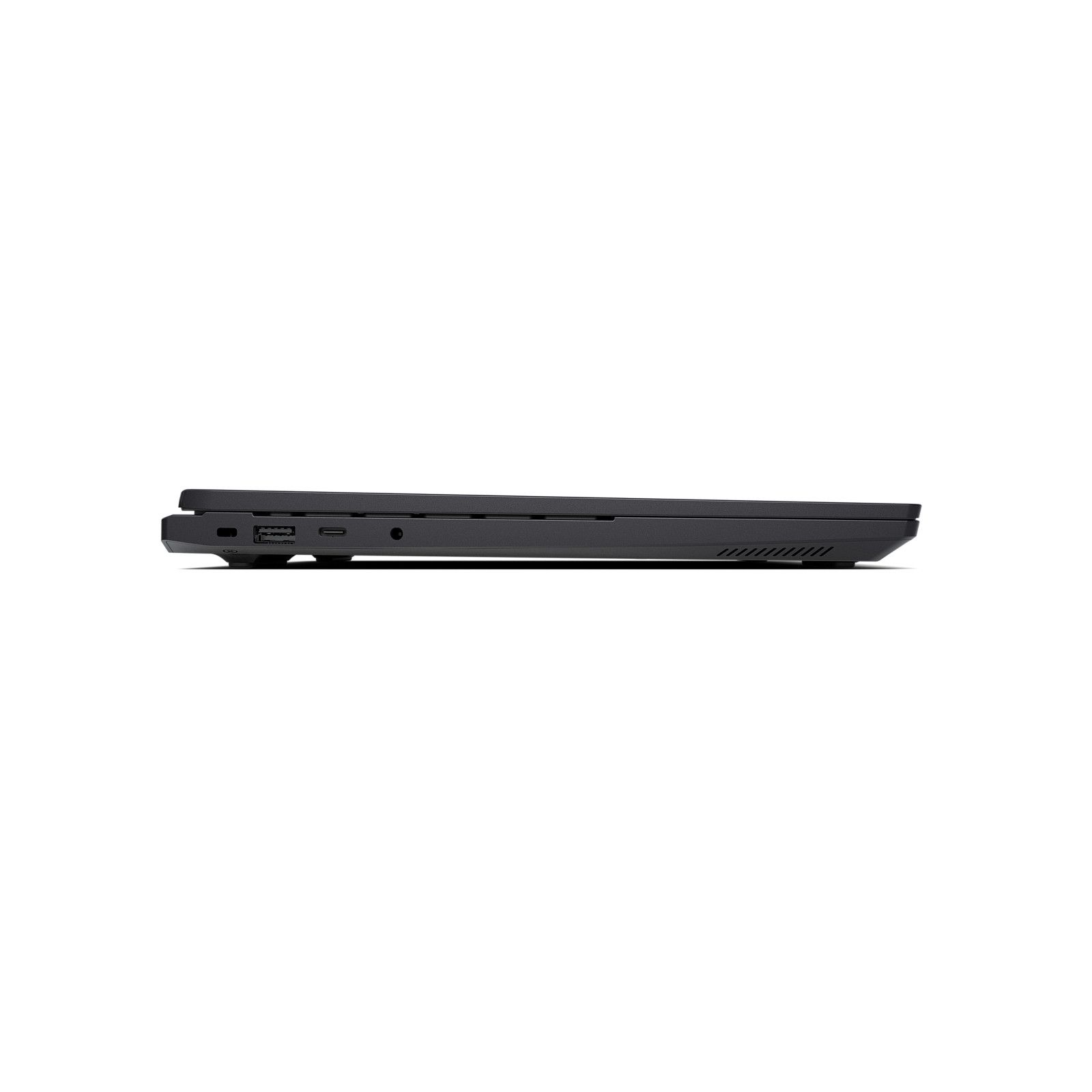

    Left side (from left to right):
    - Kensington Security Slot
    - USB-A 2.0
    - USB-C 3.2 Gen2 (10 GBit/s | DisplayPort 1.4 | Power Delivery DC-In*)
    - 2-in-1 audio (headphone + mic)

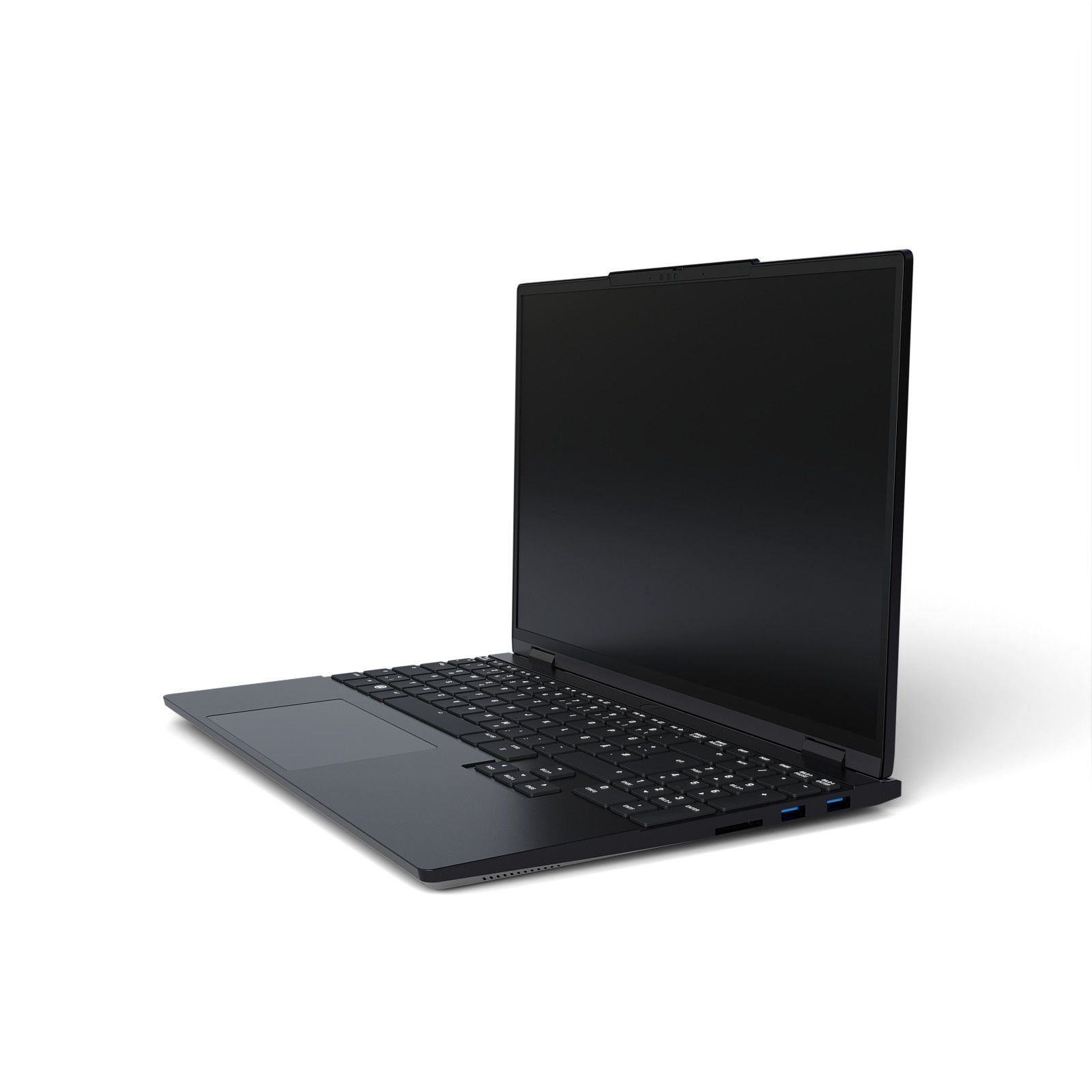

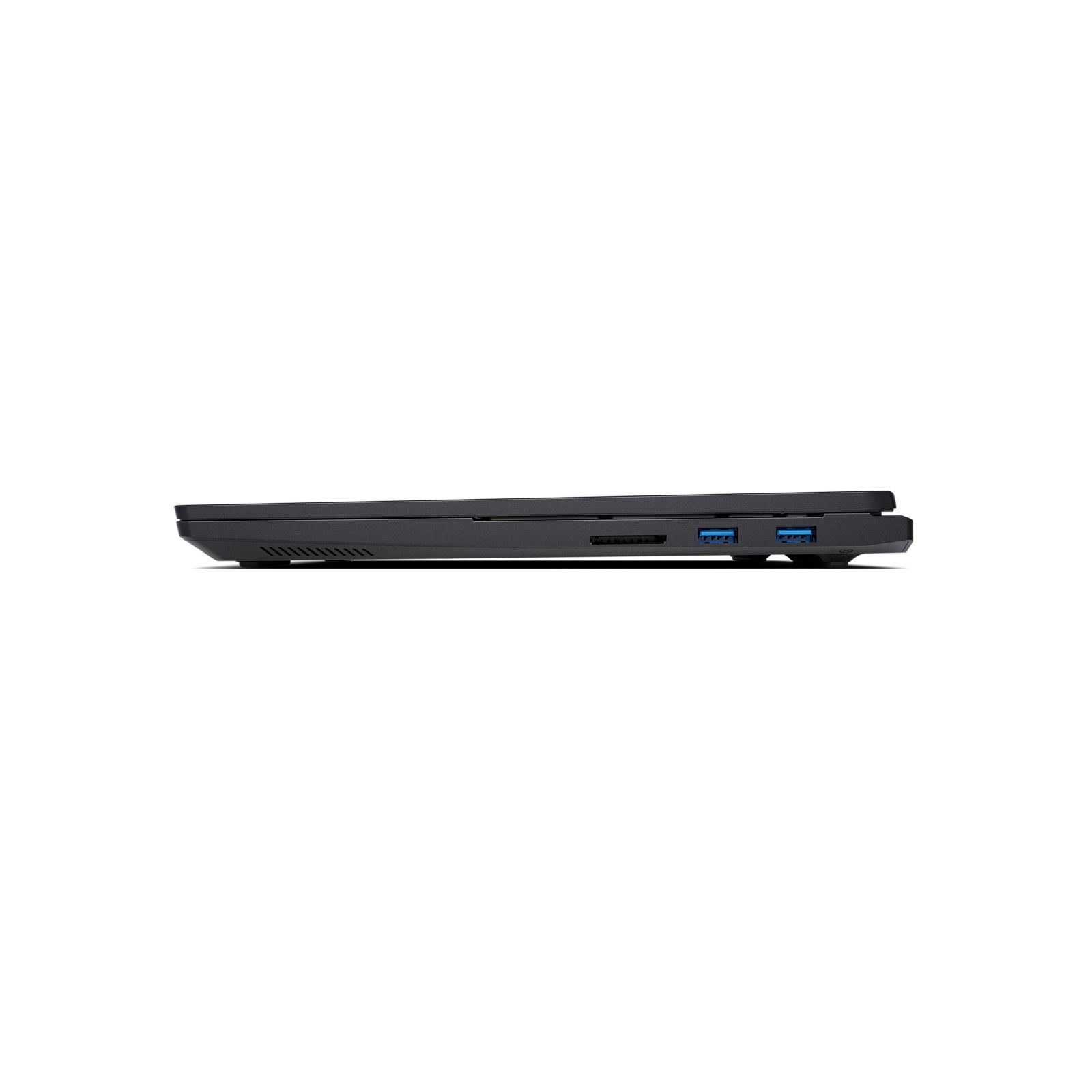

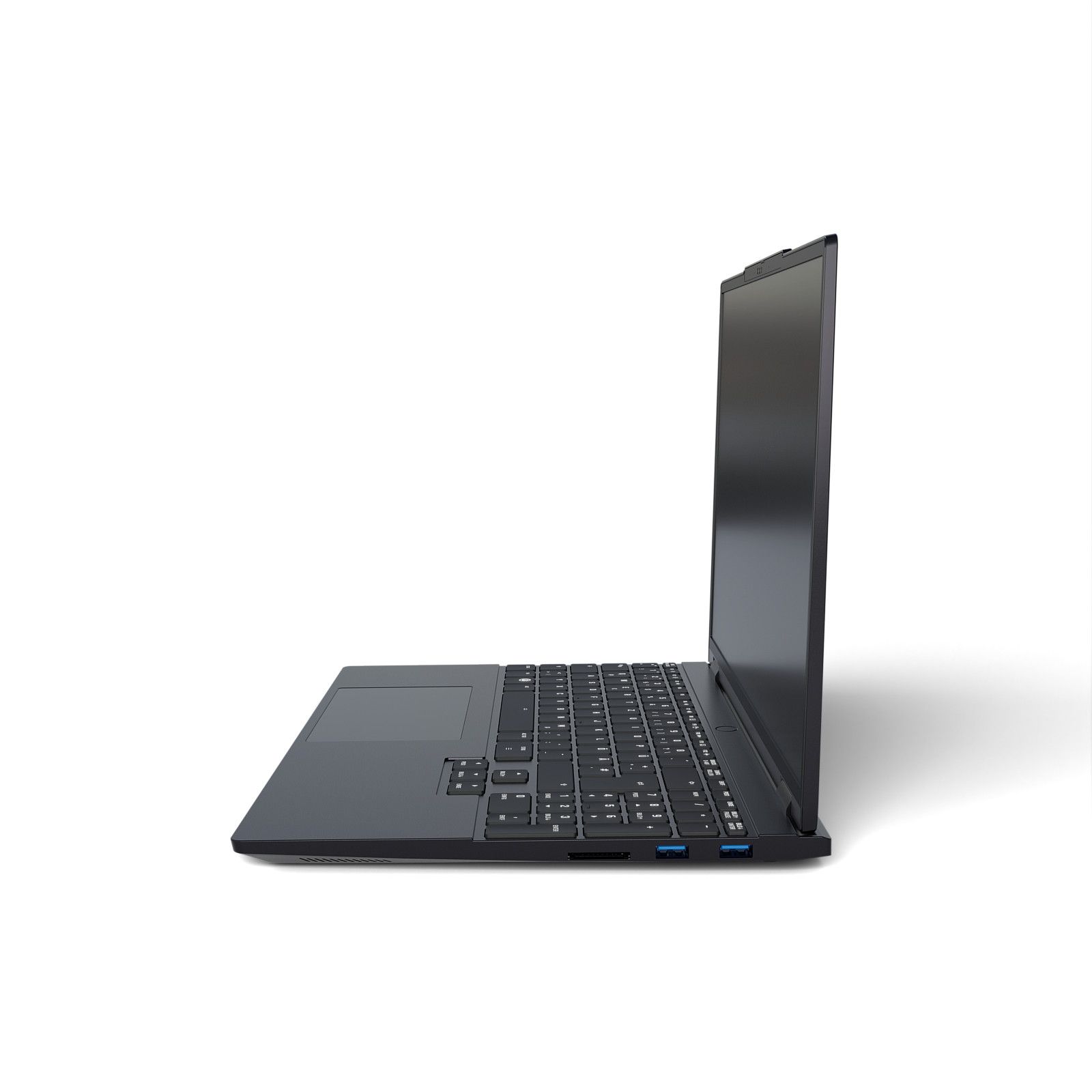

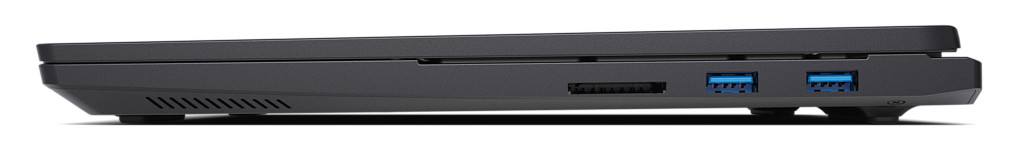

    Right side (from left to right):
    - Card reader (SD/SDHC/SDXC)
    - 2x USB-A 3.2 Gen1

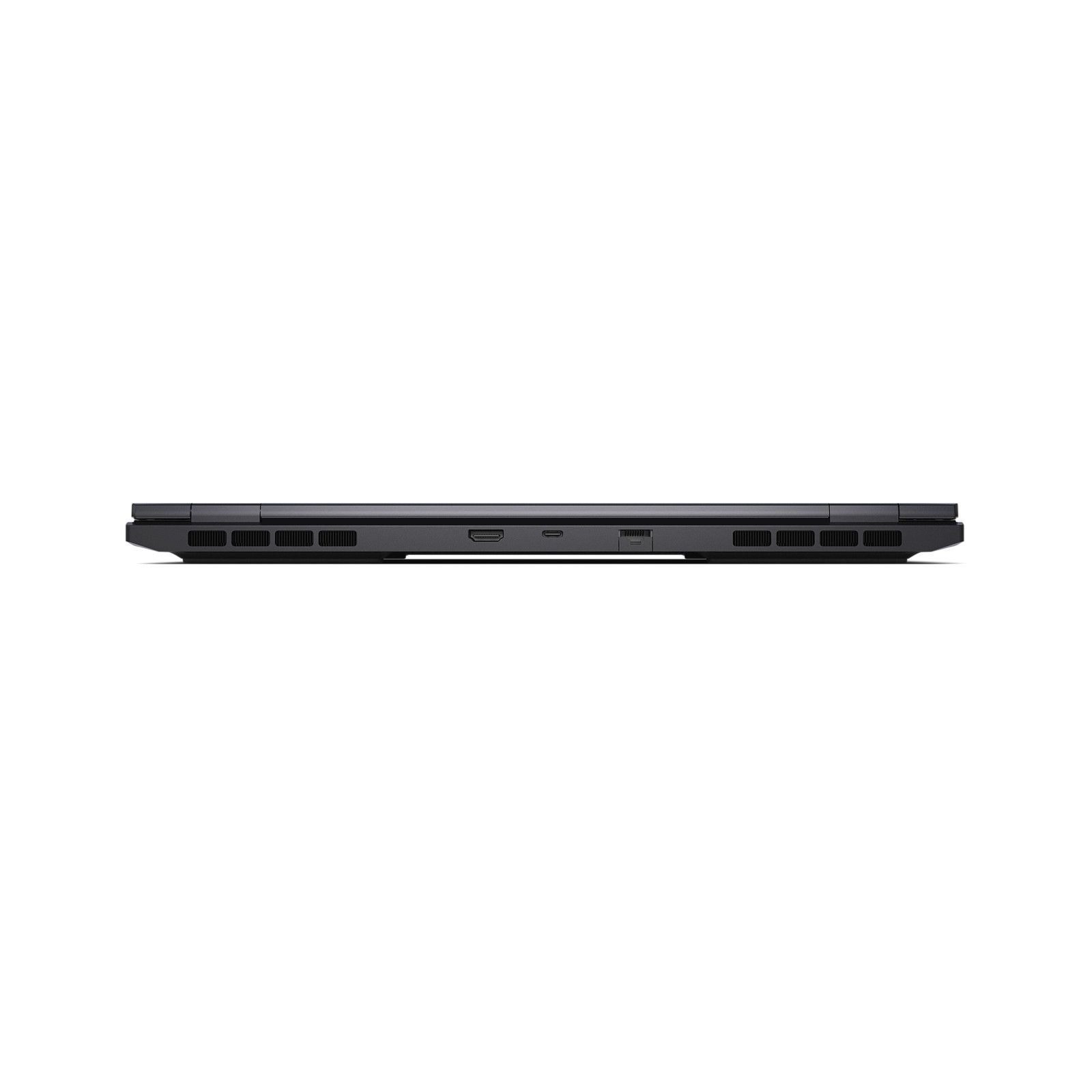

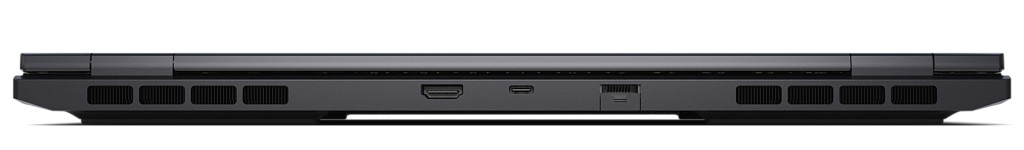

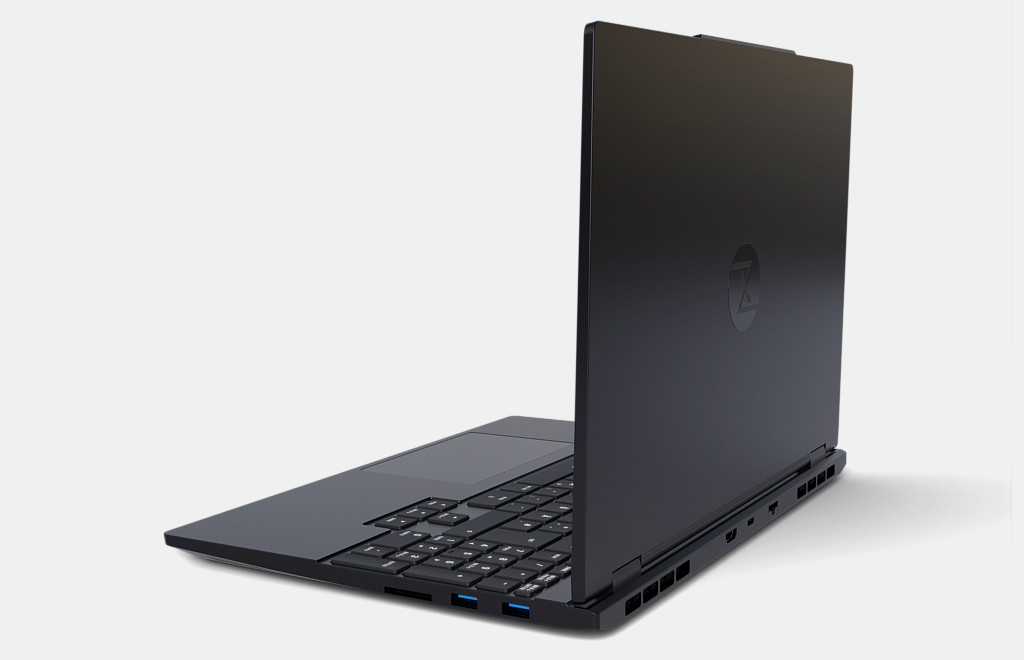

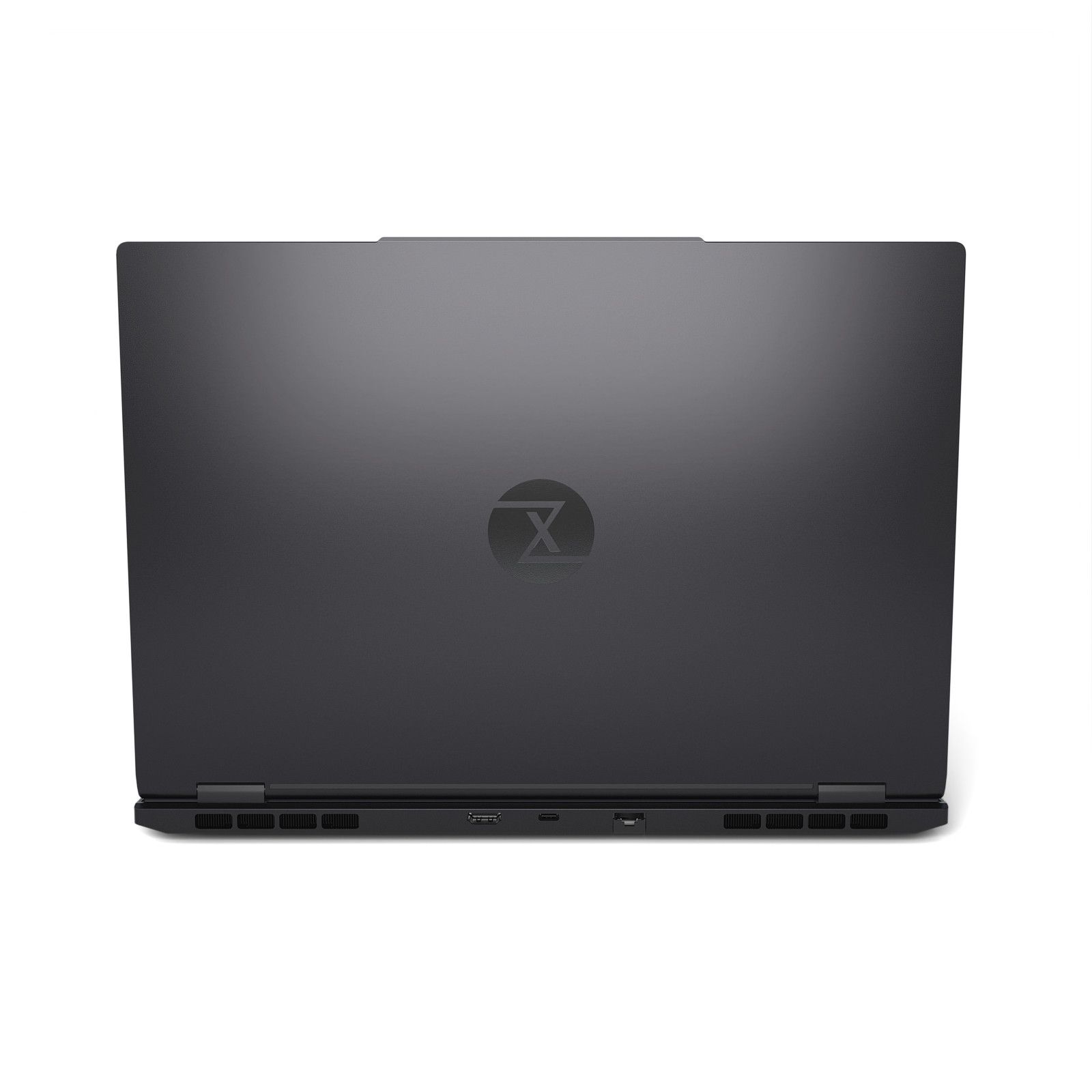

    Back side (from left to right):
    - HDMI 2.1 (HDCP 2.3)
    - USB4 (40 GBit/s | DisplayPort 1.4 | Power Delivery DC-In* | DC-Out: max. 15 watts (5 V / 3 A))
    - RJ45 Port 1 Gbit (LAN)

    * Requirement: 20V / 5A (100 watts)



    Card reader

    SD card reader (SD / SDHC / SDXC)
    Data speeds:
    SD Express up to 900/500 MB/s
    SDXC UHS-II up to 270/230 MB/s

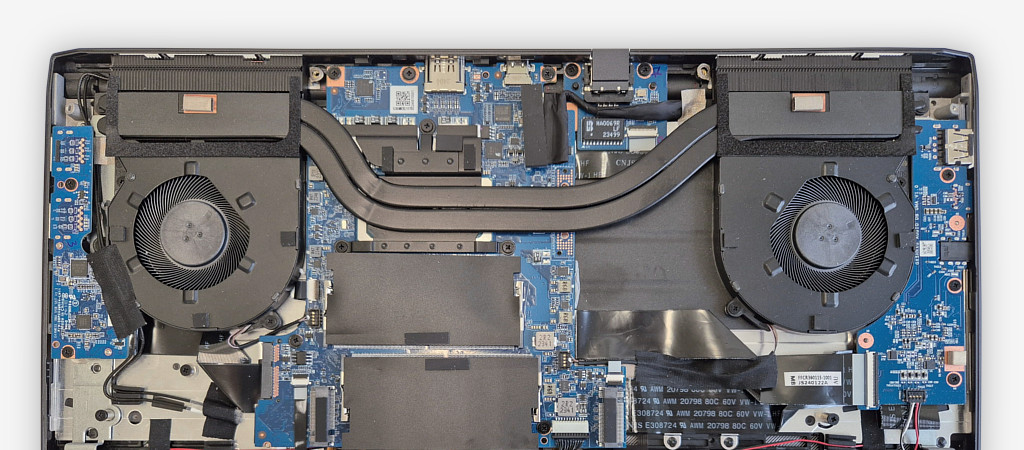

    Cooling System & Fan

    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).



    For this purpose, the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth



    In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.



    Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
