    Exciting Binary Star

    TUXEDO Sirius 16 herobanner

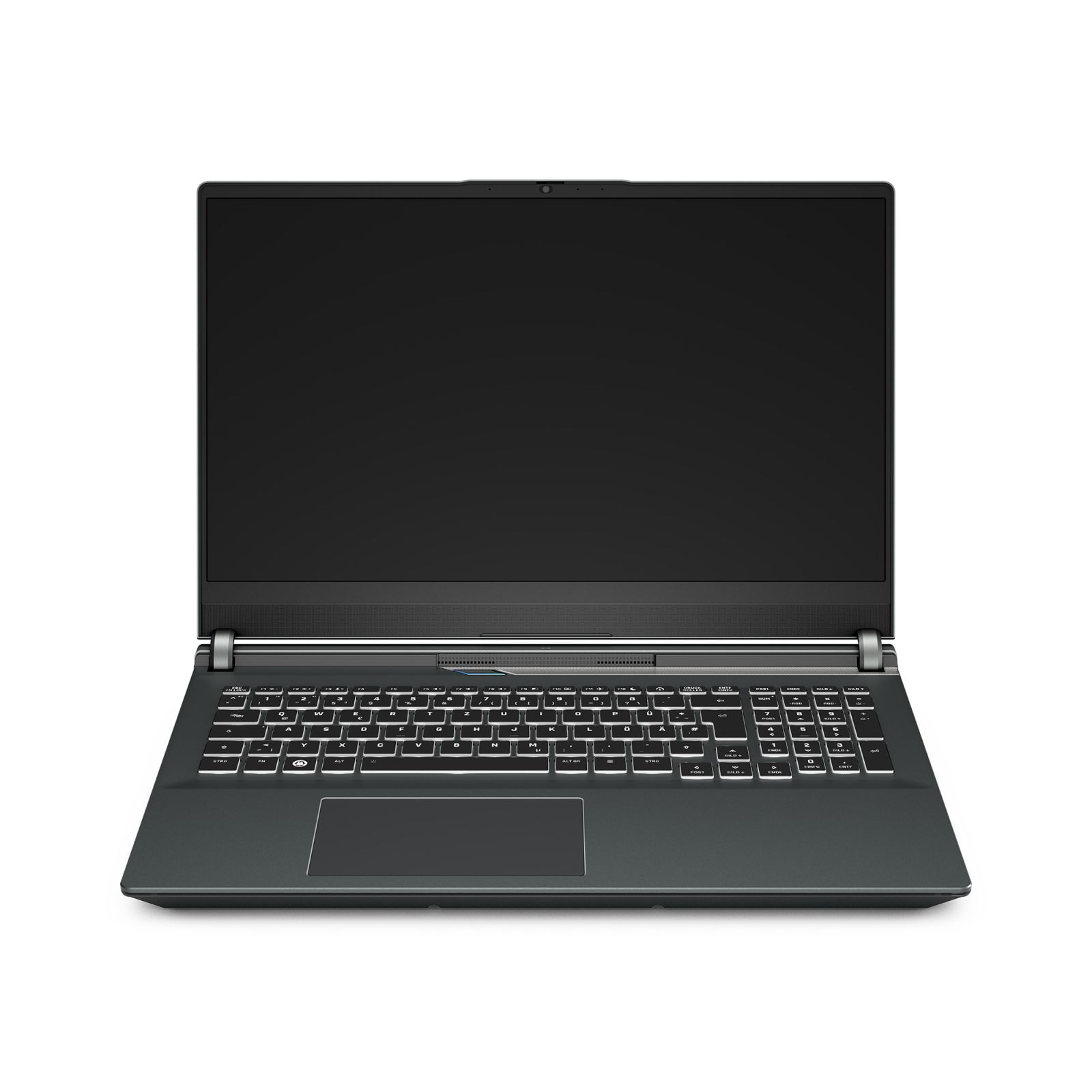

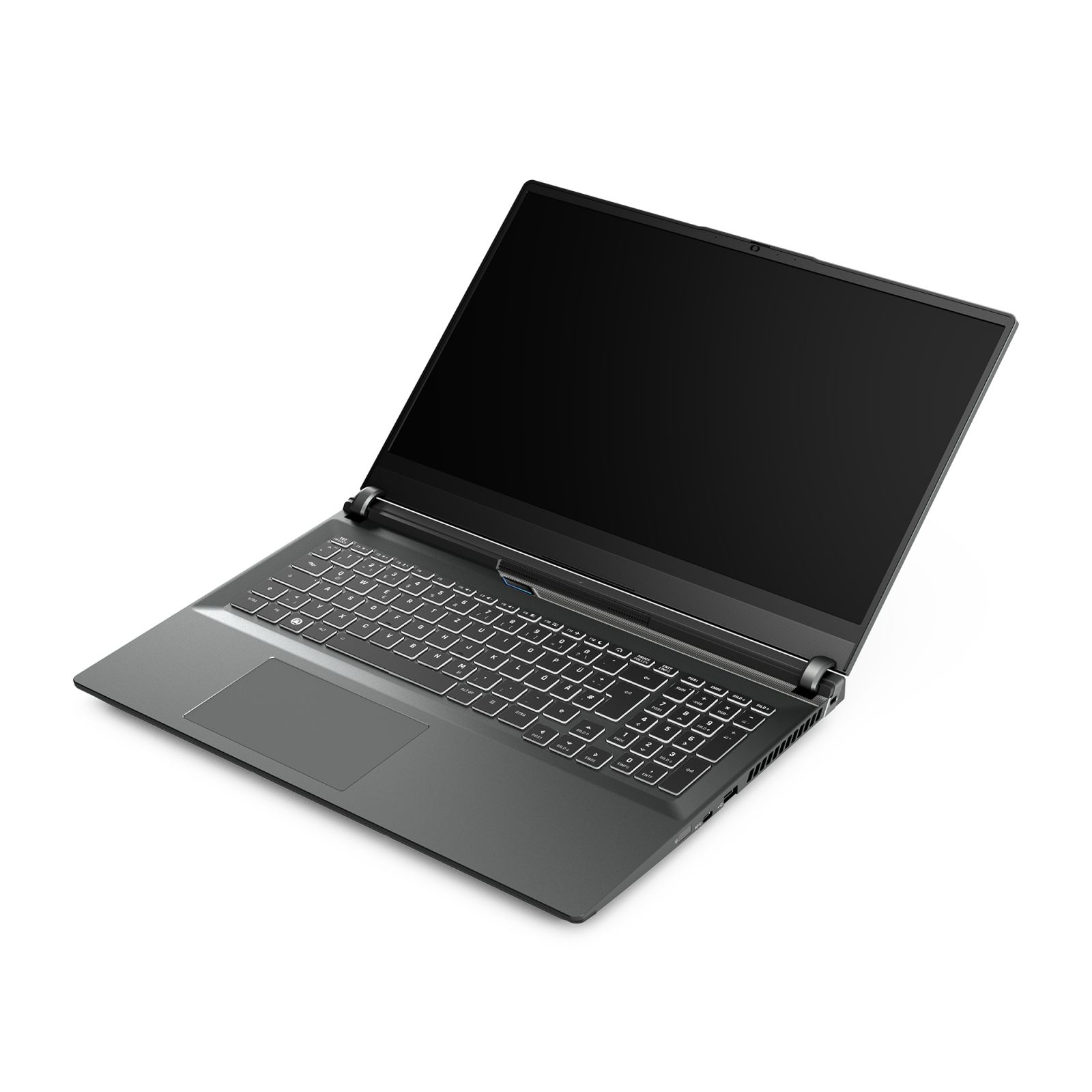

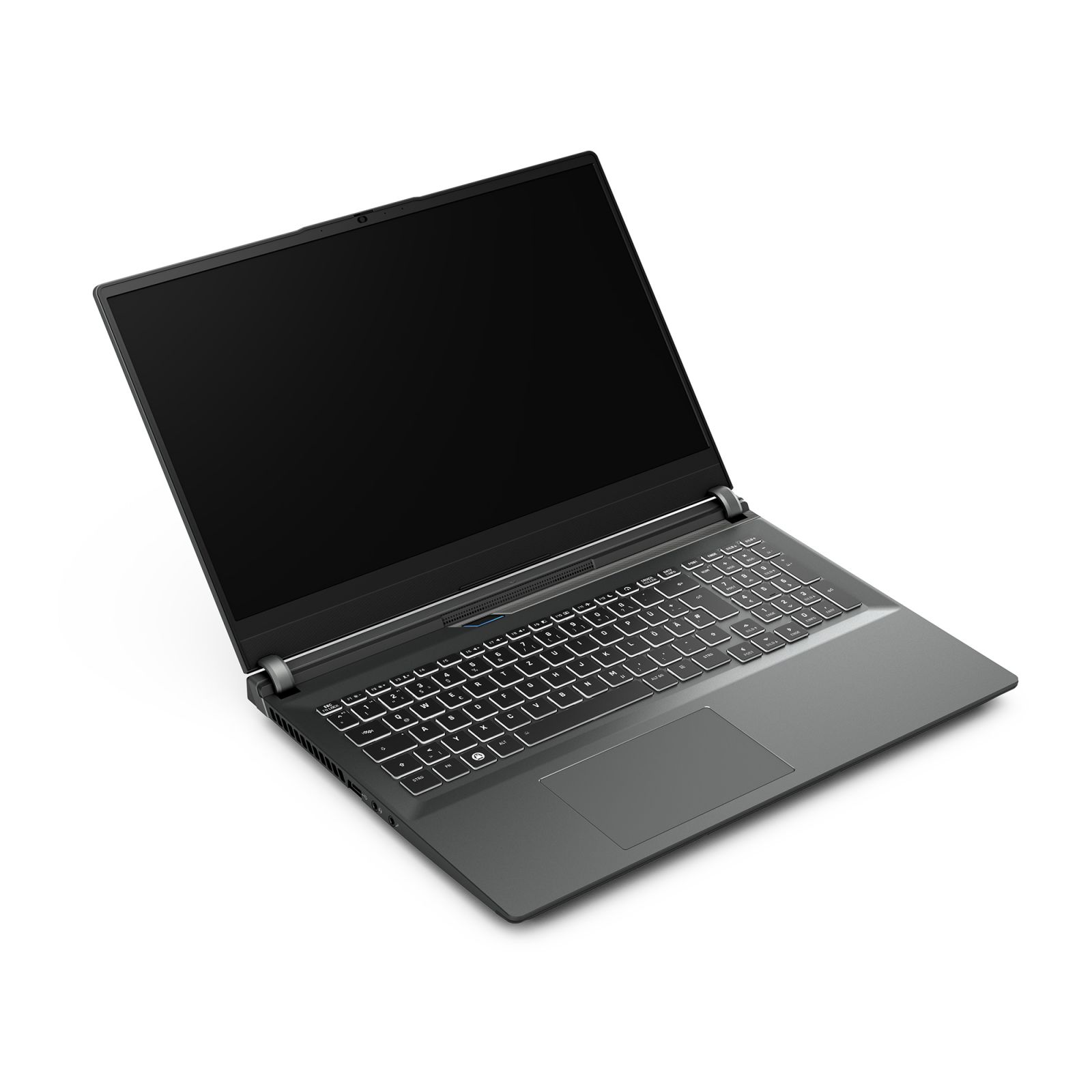

    TUXEDO Sirius 16 - Gen1



    "Are you Sirius?", you might ask. Yes, we are!

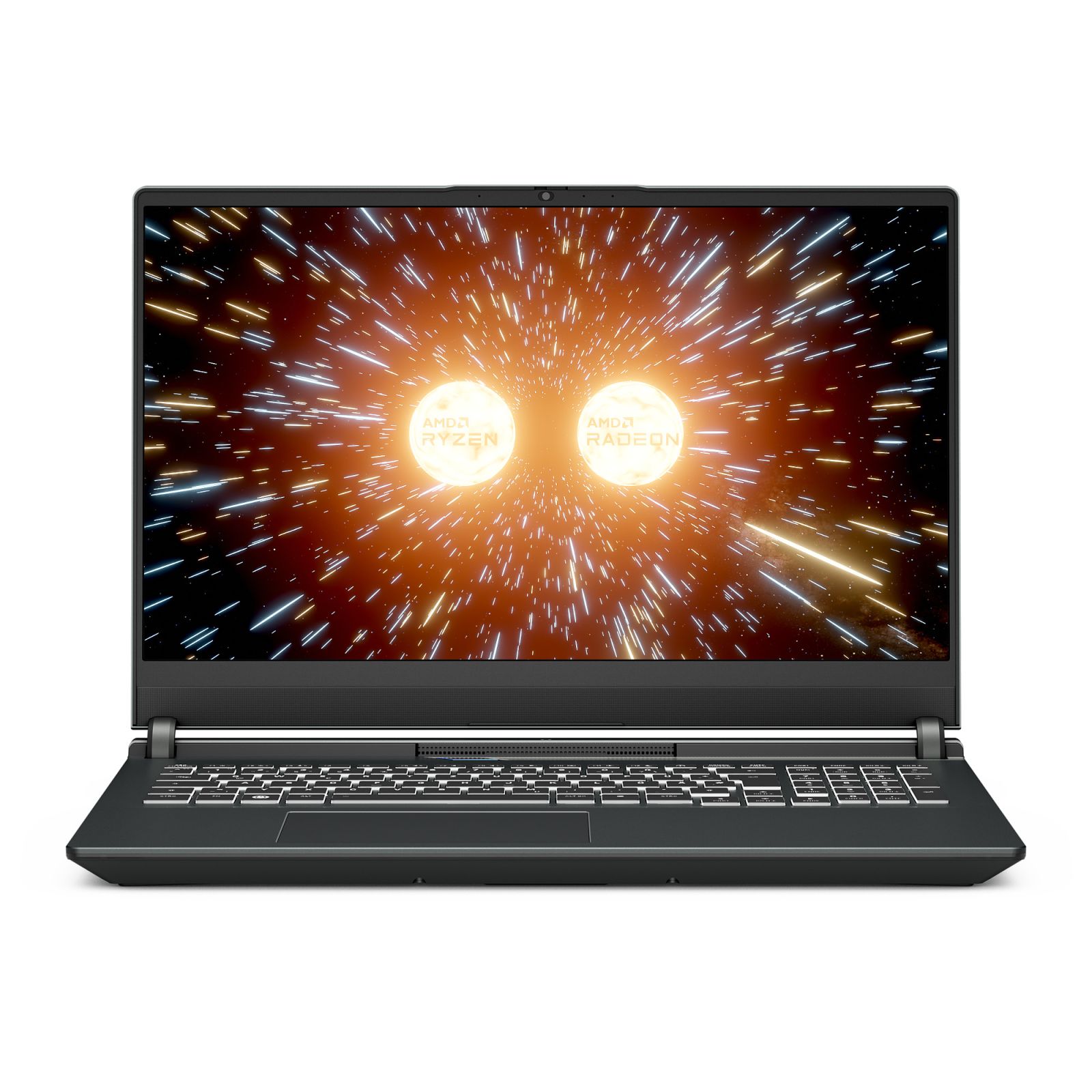

    First all-AMD Linux gaming laptop with highly efficient Ryzen 7 7840HS and fast Radeon RX 7600M XT graphics.

    Sirius is the brightest star in the night sky and a binary star system. With the new Sirius 16 - Gen1, TUXEDO is breaking new ground and launching the first and long-awaited AMD Linux gaming notebook named after the celestial body, especially since the TUXEDO Sirius 16 is also powered by a particularly exciting binary star, consisting of the AMD Ryzen 7 7840HS and the AMD Radeon RX 7600M XT.

    CPU performance

    Graphics performance

    Mobility

    Battery life

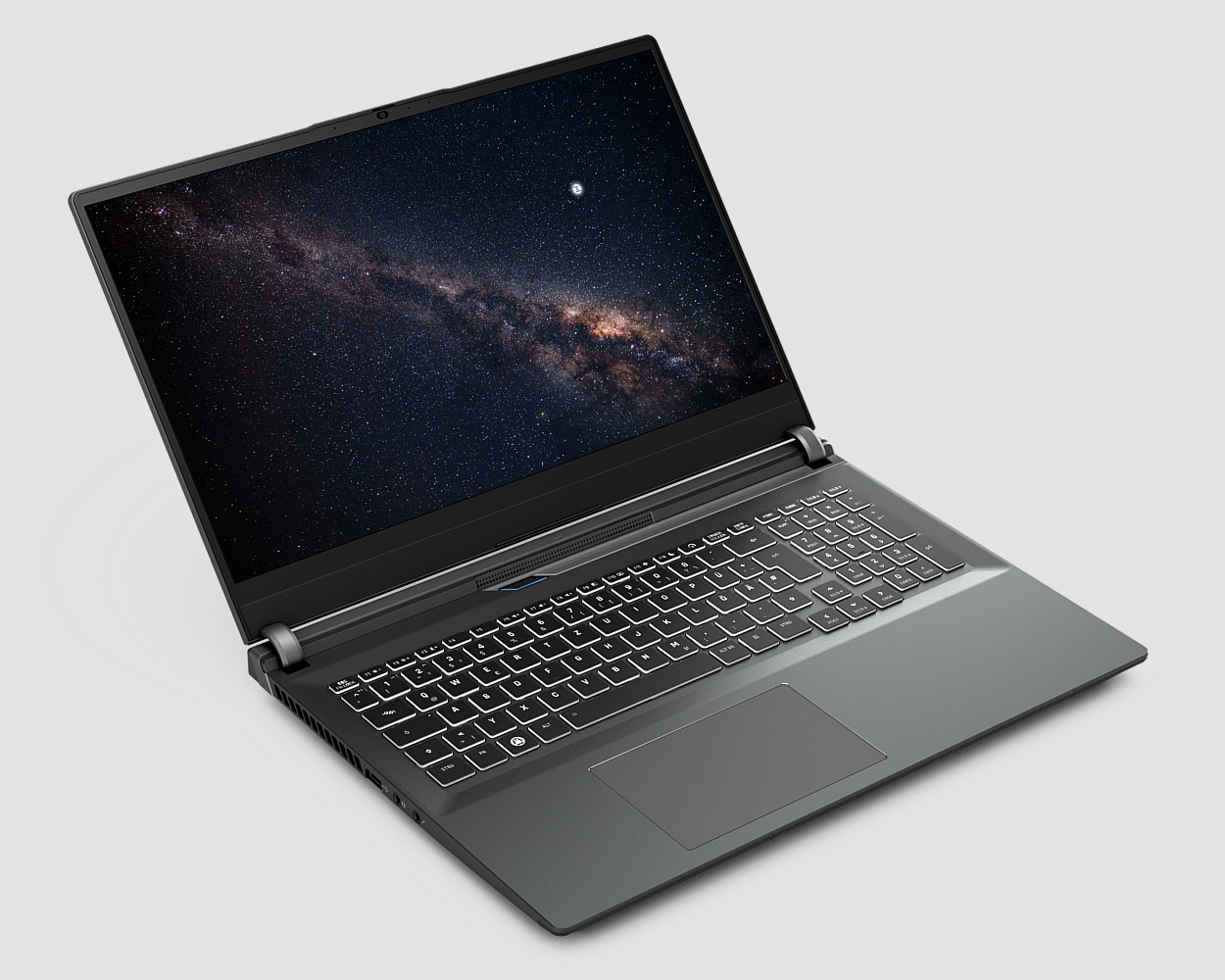

    After years in deep space, the TUXEDO Sirius 16 has finally arrived in Earth's orbit and impresses with a robust all-aluminum chassis with sleek gamer aesthetics, a large 16.1-inch display with a resolution of 2560x1440 pixels, a large 80 Wh battery, up to 96(!) GB DDR5-5600 RAM, 8 TB PCIe 4.0 SSD storage and extensive connectivity, including USB 4.0, HDMI 2.1 and Wi-Fi 6E.

    Icon CPU

    Comet-like efficiency and great performance: AMD Ryzen 7 7840HS

    80 Watts | 8 Cores | 16 Threads

    Icon GPU

    Rare yet fast graphics star: AMD Radeon RX 7600M XT

    Max. 130 Watt | 8 GB GDDR6

    Icon Gehäuse

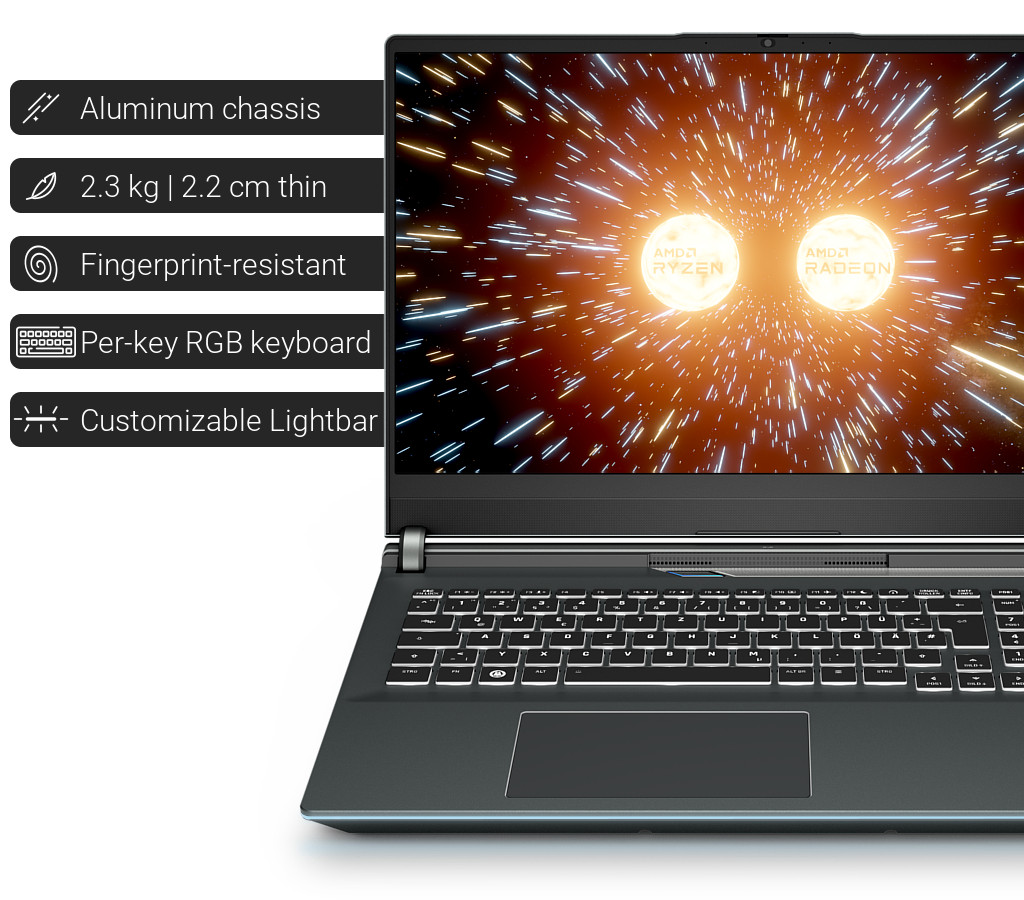

    Robust aluminum chassis with discreet gaming aesthetics

    2.3 kg light | 2.2 cm thin

    Icon Display

    Big 16.1-inch WQHD display

    2560 x 1440 | 165 Hz | 100 % sRGB

    Icon Akku

    80 Wh battery and USB-C charging

    Up to 6 hours | incl. battery charging control

    Icon Speicher

    Storage behemoth with up to 96 GB RAM

    2x M.2 SSD | 2x DDR5-5600

    Icon Anschlüsse

    USB 4.0, HDMI 2.1 und Wi-Fi 6E

    Up to 3 external screens



    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    16.1'' WQHD IPS | 165 Hz | 16:9
    Type: LED-Backlight Display, matte/non-glare
    Refresh rates: 165 Hz, 120 Hz, 96 Hz, 72 Hz, 60 Hz
    Viewing angles: 89°/89°/89°/89°
    Resolution: 2560 x 1440 Pixels
    Color gamut: 100 % sRGB
    Brightness: 300 nits
    Contrast: 1000:1
    Additional features: MUX switch, AMD FreeSync
    Display model: NE161QHM-NY1

    For technical production reasons, the measured values always vary slightly from panel to panel. More information

    Internal display connection (changeable via UEFI):
    iGPU: Hybrid Graphics Mode
    dGPUDiscrete Mode or SAG 1.5 (via MUX switch)

    Opening angle: ~ 140°



    Chassis

    Chassis materials:
    Display lid, base unit and bottom cover made of aluminum. Display frame made of plastic.
    Fingerprint-resistent due to matte, slightly rough aluminum material and  »gunmetal grey« color

    Dimensions: width: 36.8 cm; height: 2.2 cm; depth: 26.6 cm
    Weight: 2.3 kg with battery

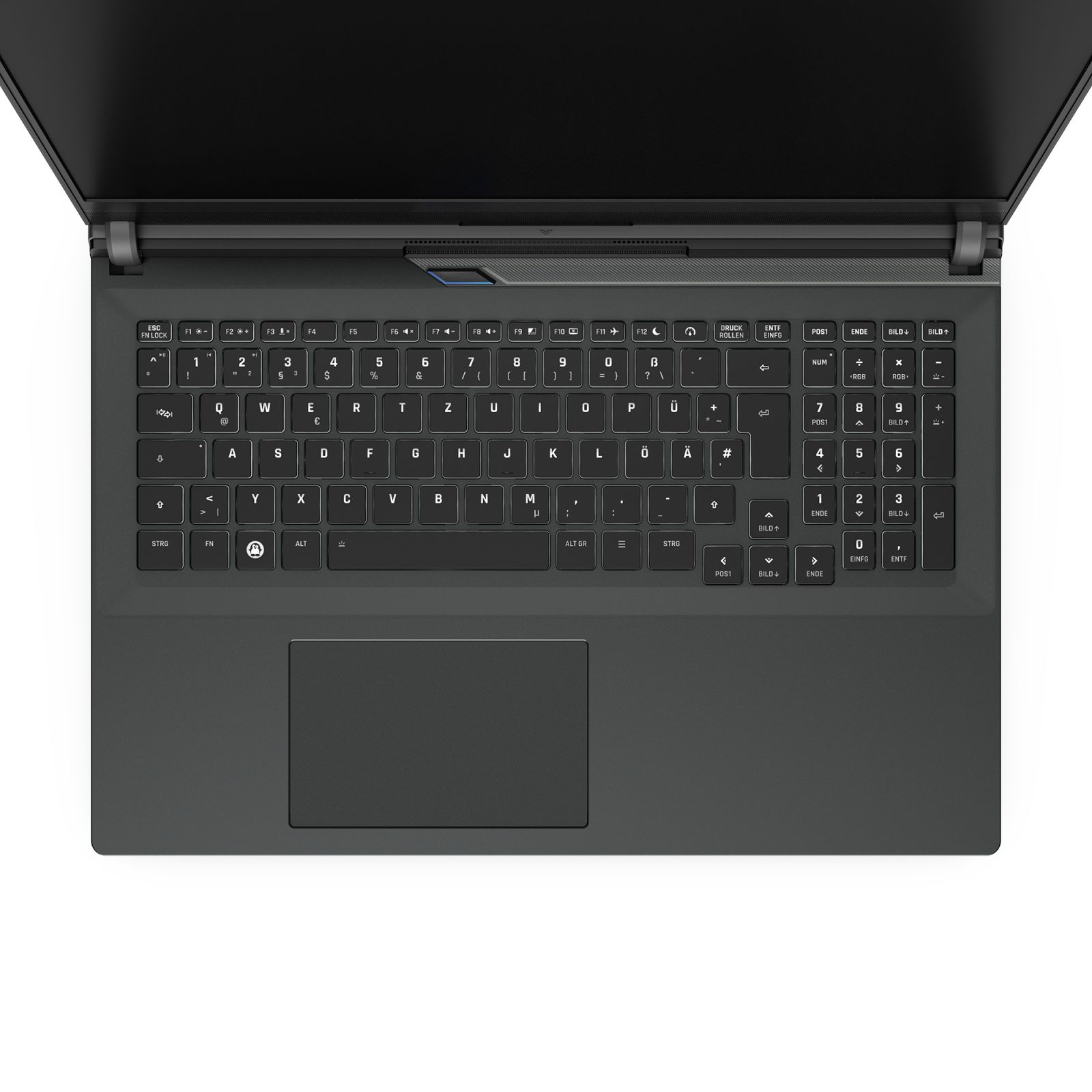

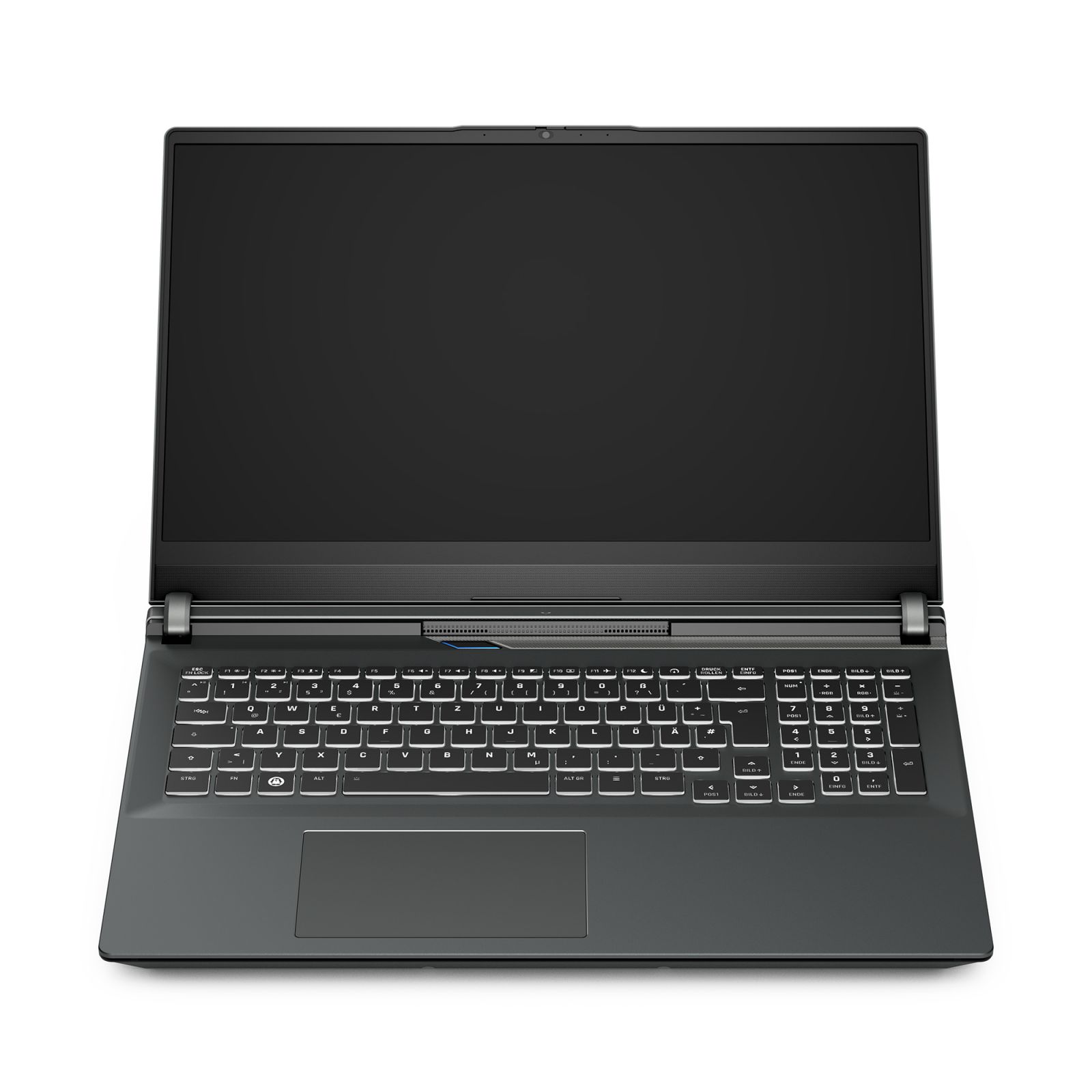

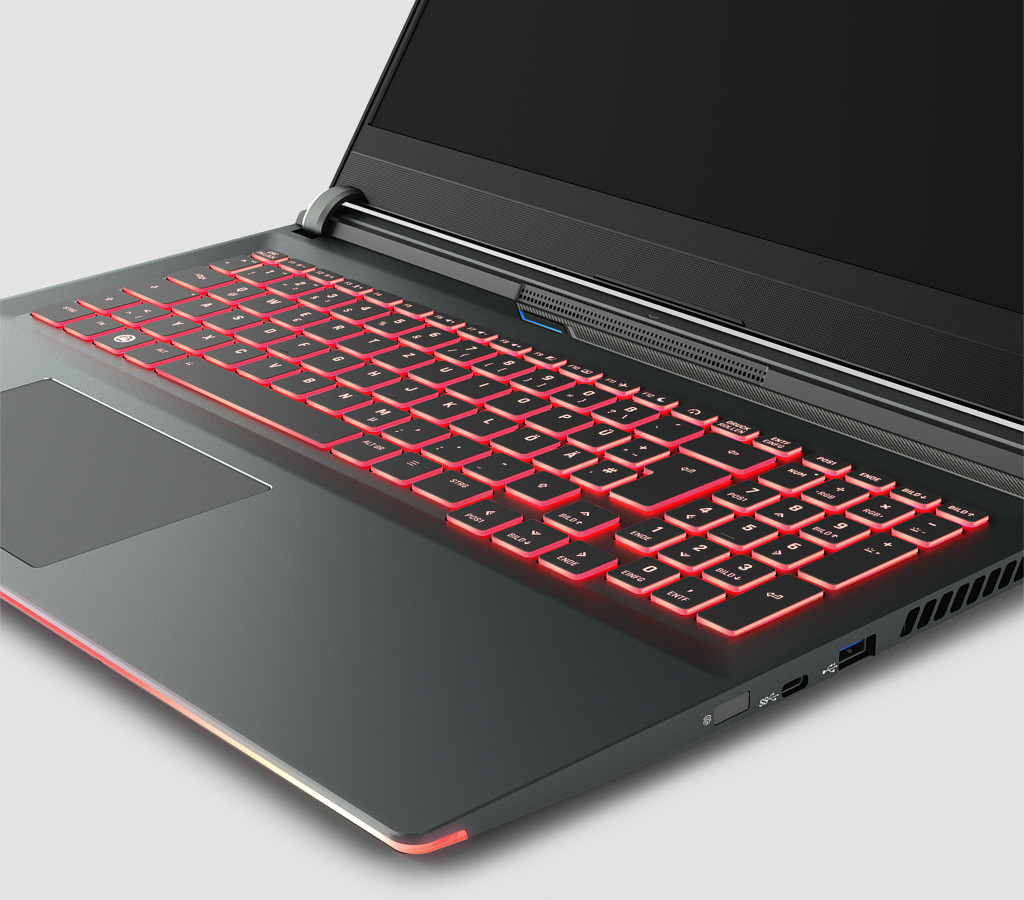

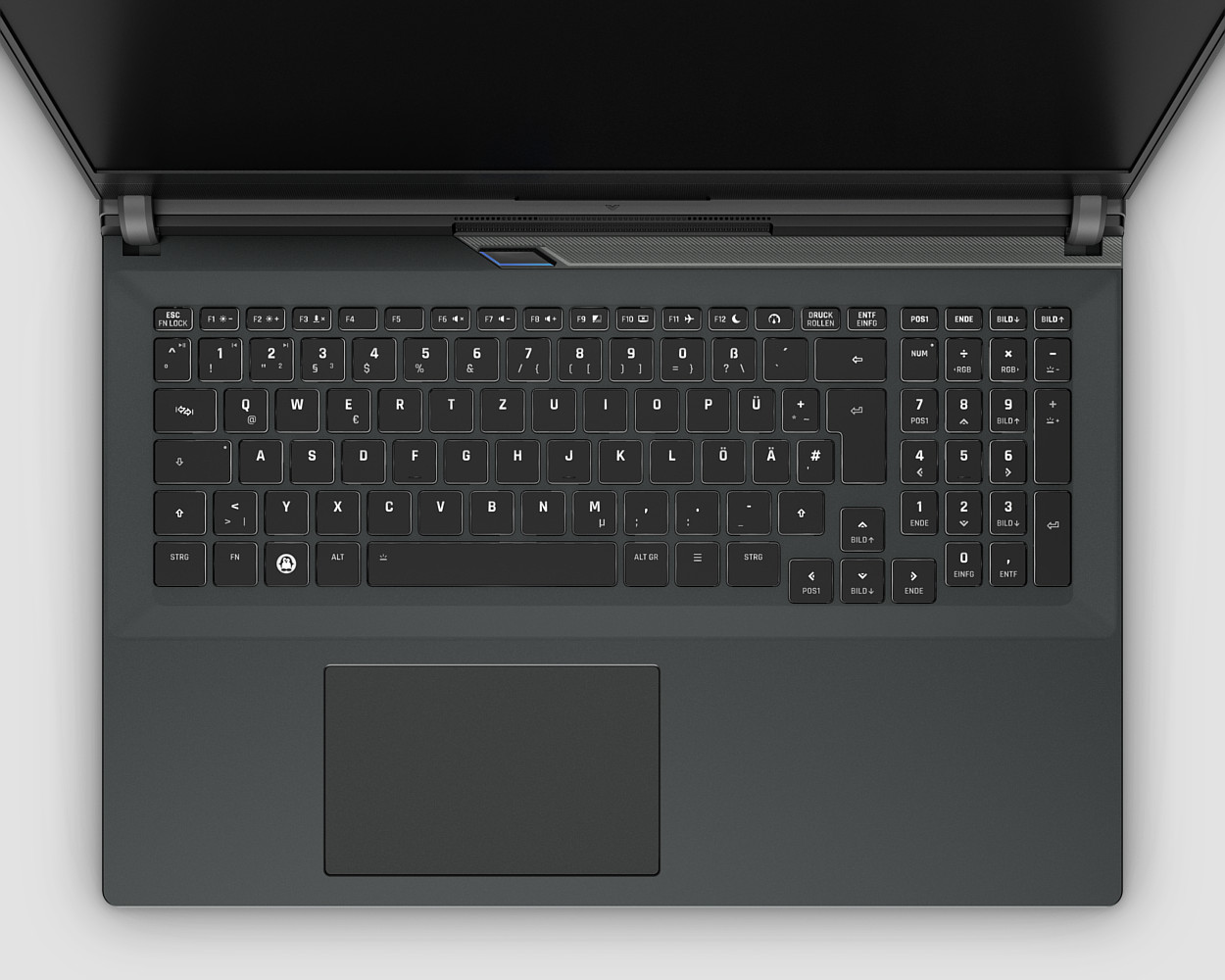

    Keyboard and Touchpad

    Quiet rubberdome / membrane keyboard with number pad.

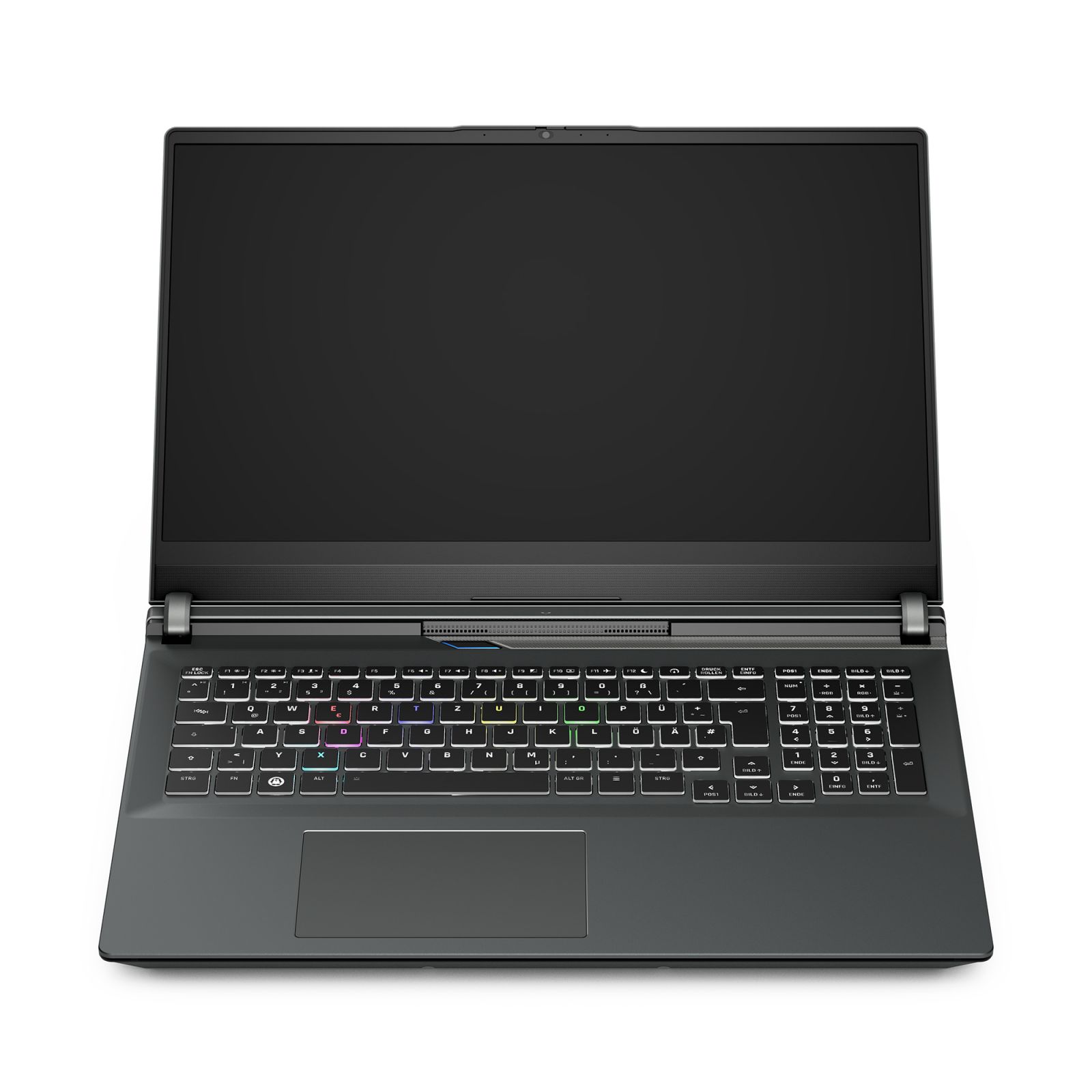

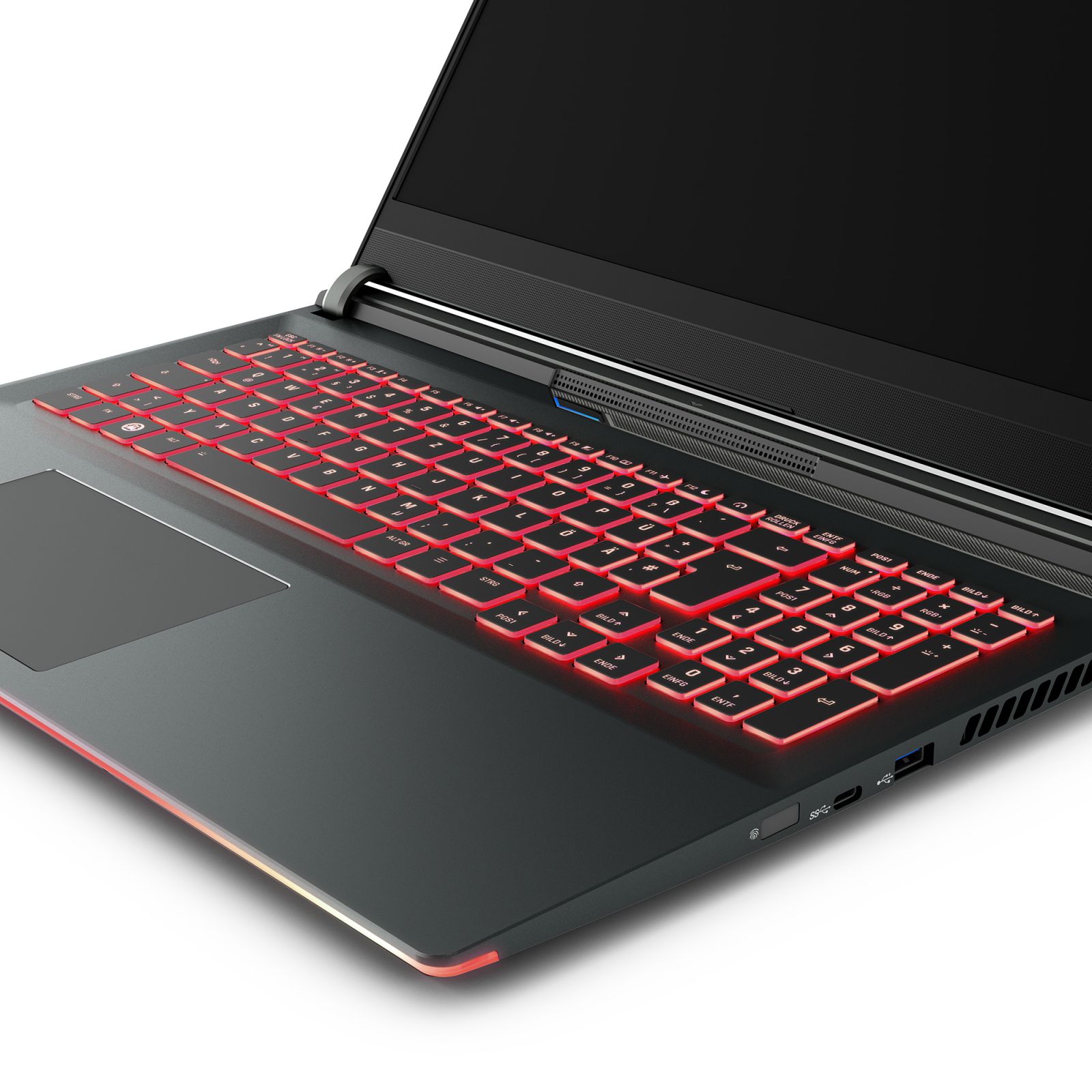

    Multicolor (RGB) backlit keyboard. TUX super-key on all layouts!

    Multi gesture clickpad (119 x 74 mm) with integrated buttons and multi-gesture- & scroll-function.



    Battery & power supply

    80 Wh battery, Lithium polymer
    Changeable (screwed inside)

    Power supply:
    230 Watts (155 x 75 x 25 mm)

    Battery life:
    up to 10 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    up to 6 hours at medium brightness with Wifi, at office work

    Charging profiles available in the UEFI

    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Main processor

    AMD Ryzen 7 7840HS
    (8 Cores | 16 Threads | Max. 5,1 GHz | 24 MB Cache (L2+L3), 54 W TDP *)

    * The Thermal Design Power (TDP) only describes the power consumption under load at base clock frequency.
    For full performance, the power draw is increased greatly for a short time or sustained (depending on the notebook's cooling capacity).



    Graphics card

    AMD Radeon RX 7600M XT | 8 GB GDDR6 VRAM | 120 W TGP (+10 W Smart Shift)

    Energy efficient CPU integrated Graphics:
    AMD Radeon 780M (GPU Cores: 12 |  Max. clock speed: 2,7 GHz)

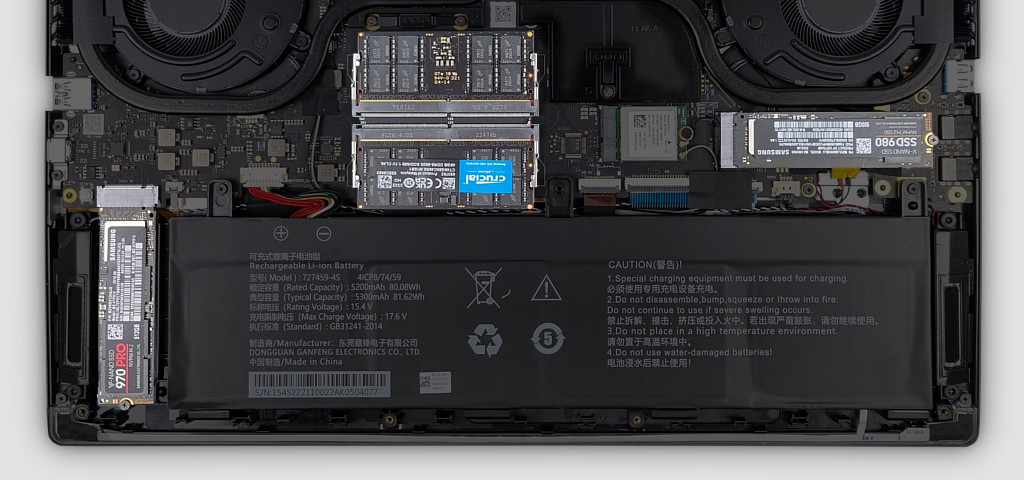

    Memory

    Type: DDR5 SO-DIMM (up to 5600 MHz)
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Performant Dual Channel mode (2 slots)



    Mass storage (SSD / HDD)

    Two slots for super fast SSDs in space-saving M.2 form factor

    2x M.2 2280 SSD via PCI Express 4.0 x4



    Communication / Network


    Wired LAN: 1x RJ45 (10/100/1000 Mb/s)

    Wireless LAN / WiFi:
    Intel Wi-Fi 6 AX210: 2.4 GHz, 5 GHz, 6 GHz | 802.11a/b/g/n/ac/ax | 2400 Mb/s

    Bluetooth:
    Version: 5.2 | Integrated in above WiFi modules



    Webcam / Laptop camera

    Full HD (1080p) Webcam / camera including microphone
    Mechanical privacy shutter for covering the camera lens included



    Sound / Audio

    High Definition Audio
    4 speakers: 2x 2W, 2x 1W
    Integrated microphone



    Ports

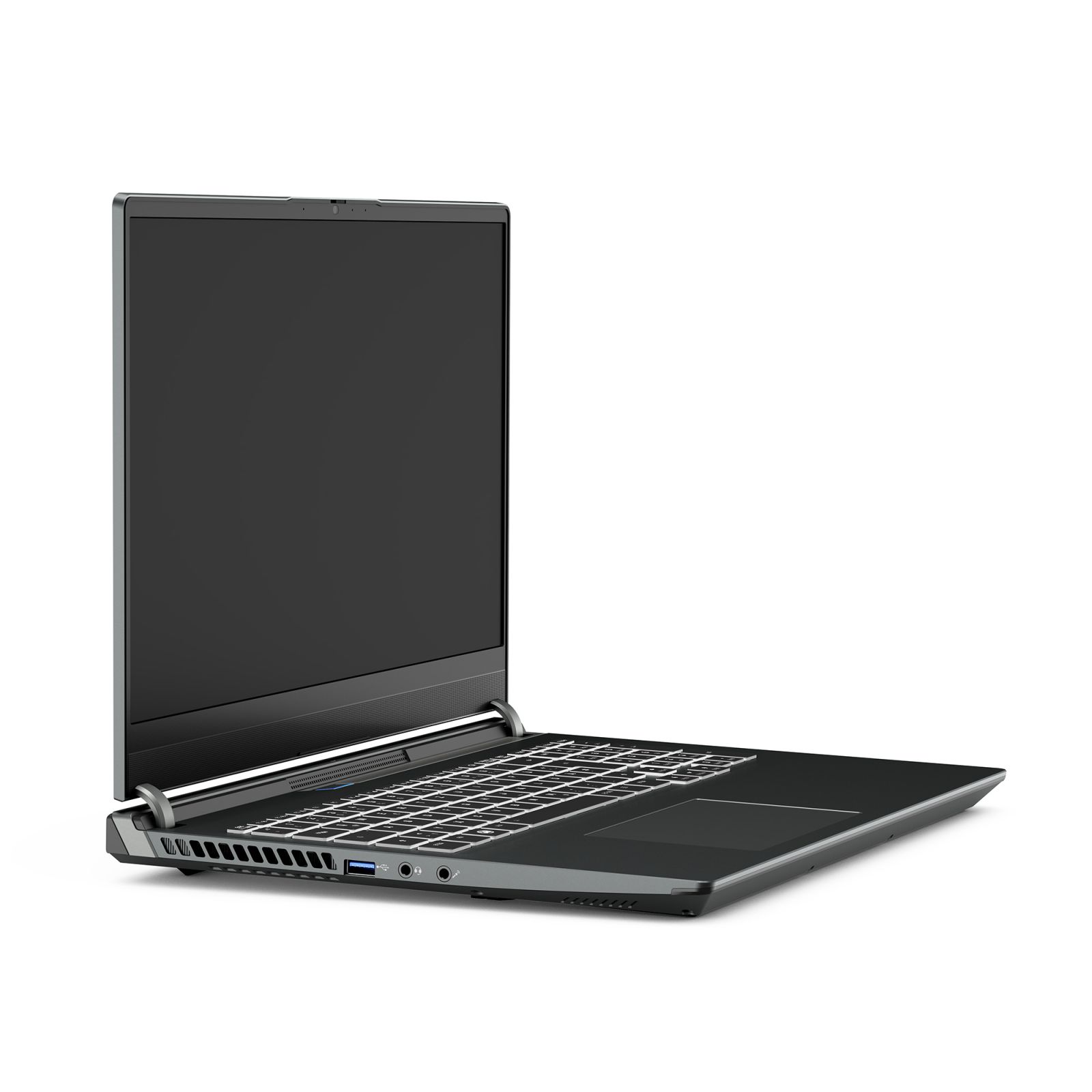

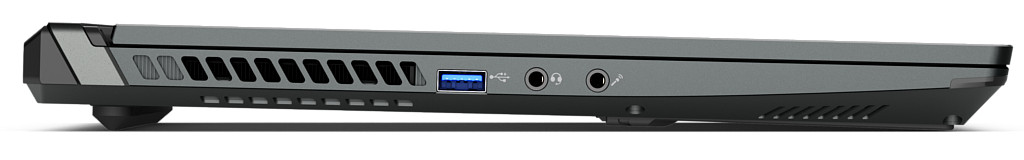

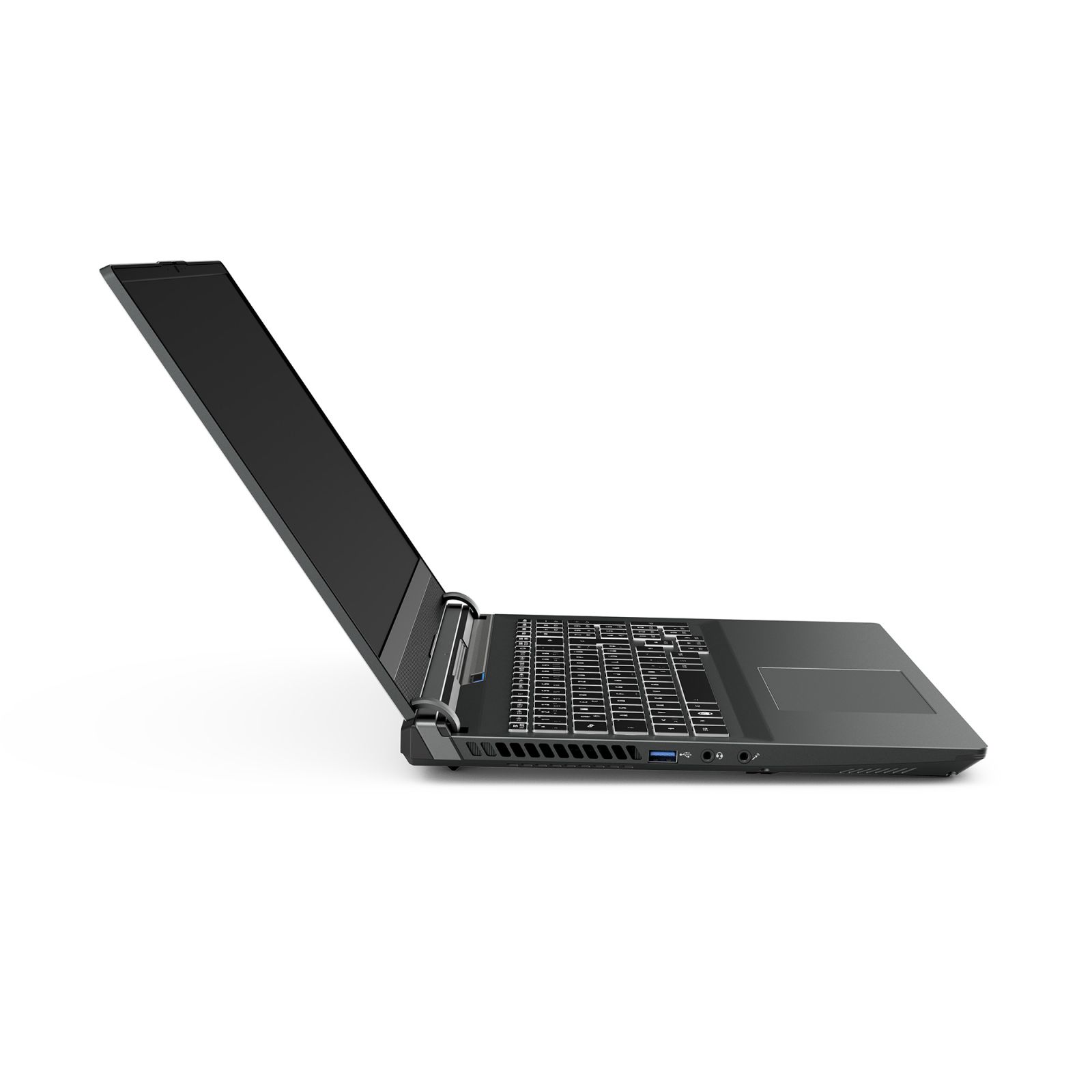

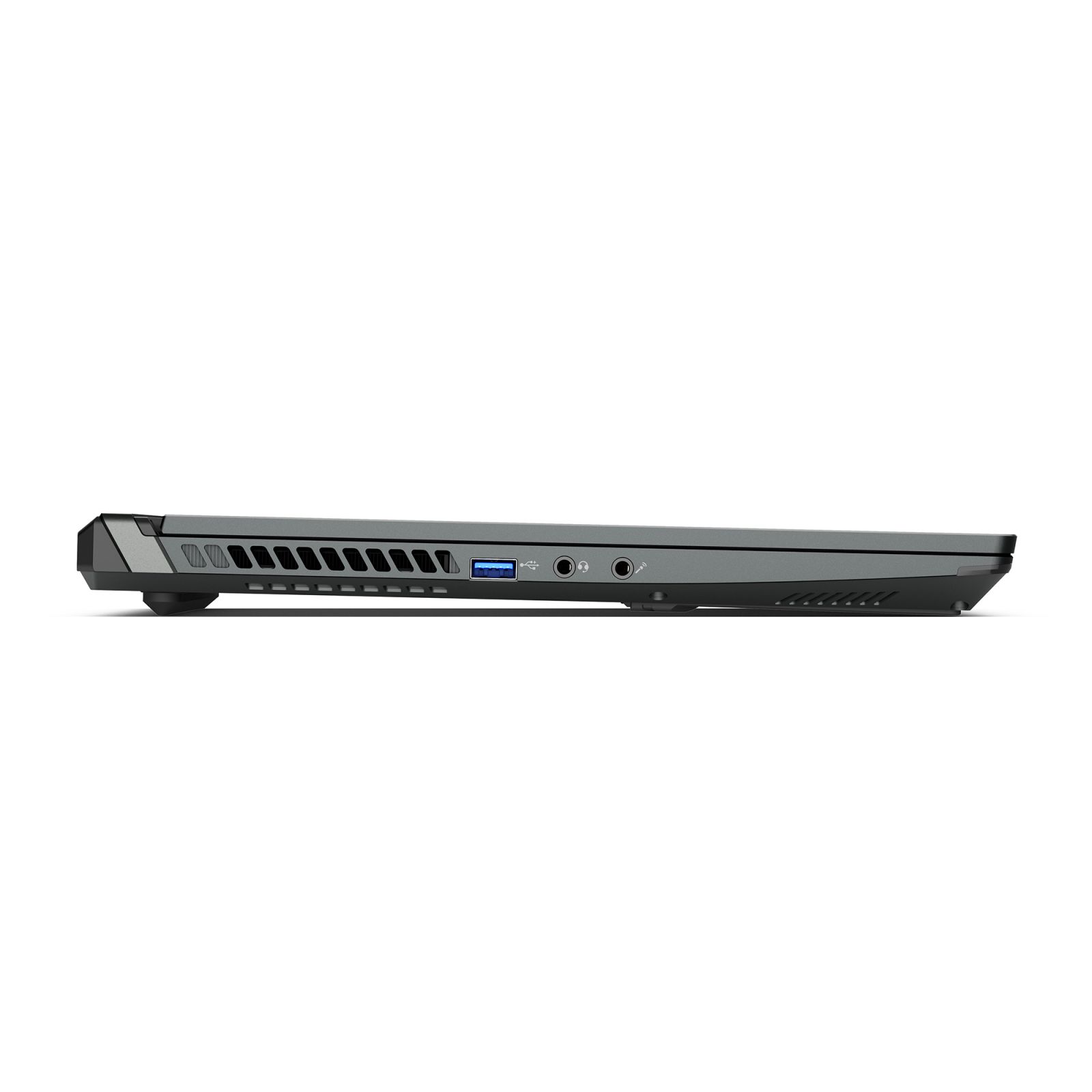

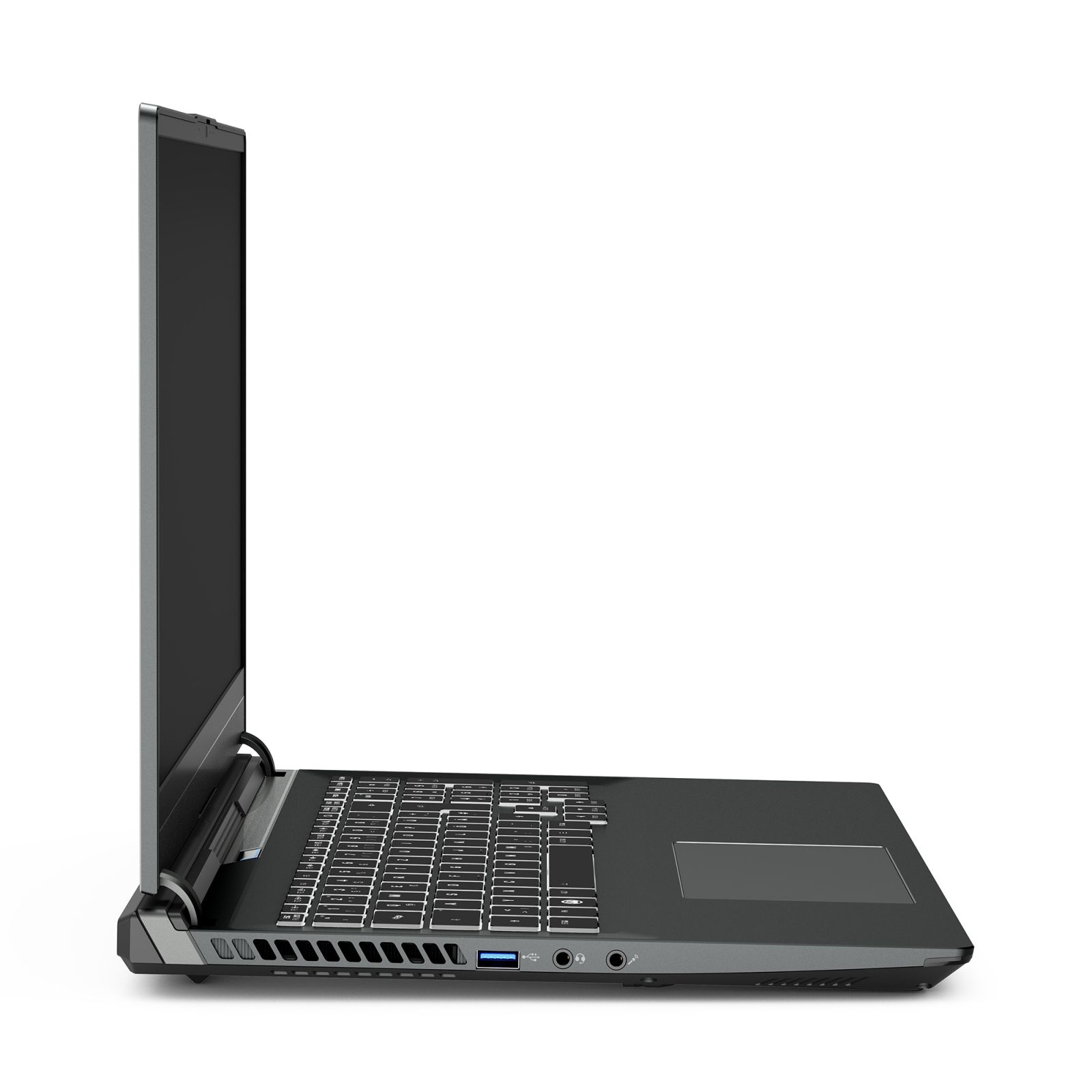

    Left side (from left to right):
    - USB-A 3.2 Gen2 (10 Gbps)
    - Headphone-out (compatible with combi-plugs)
    - Microphone-in

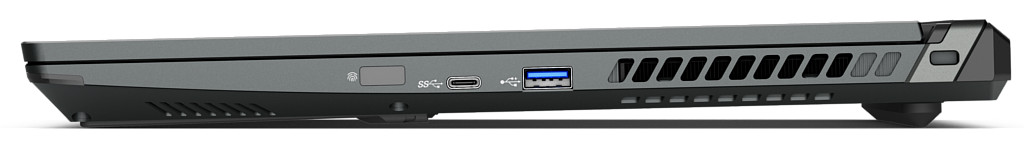

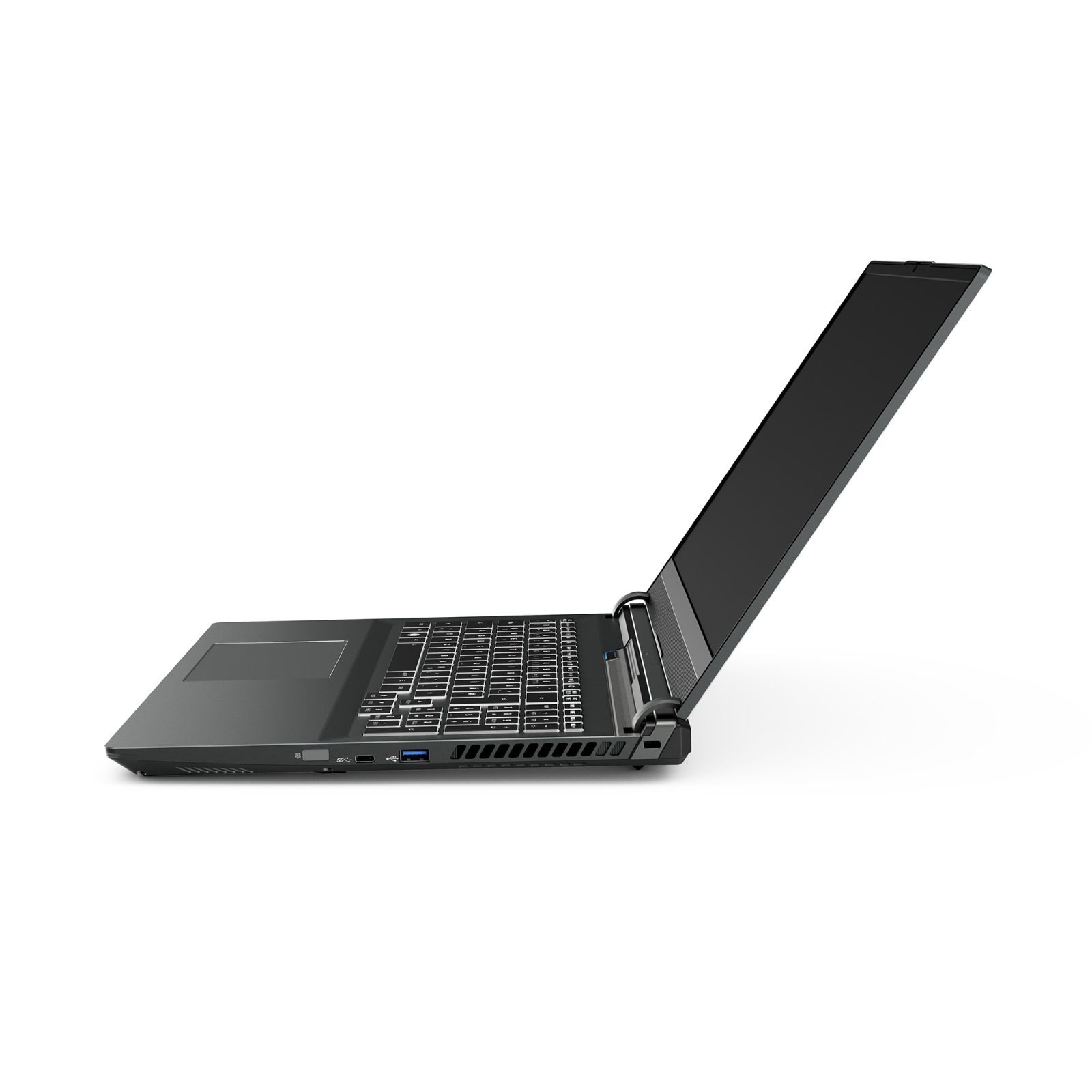

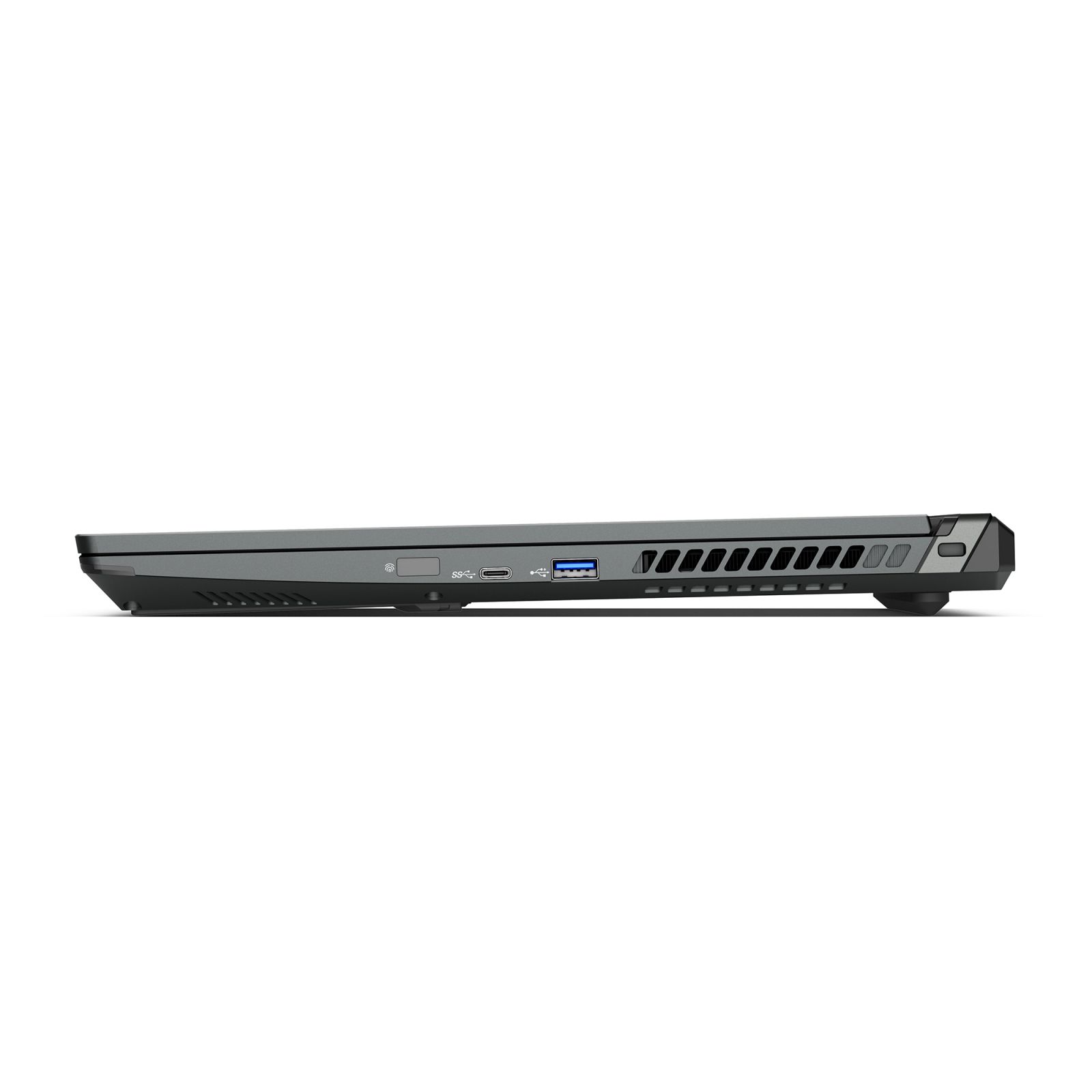

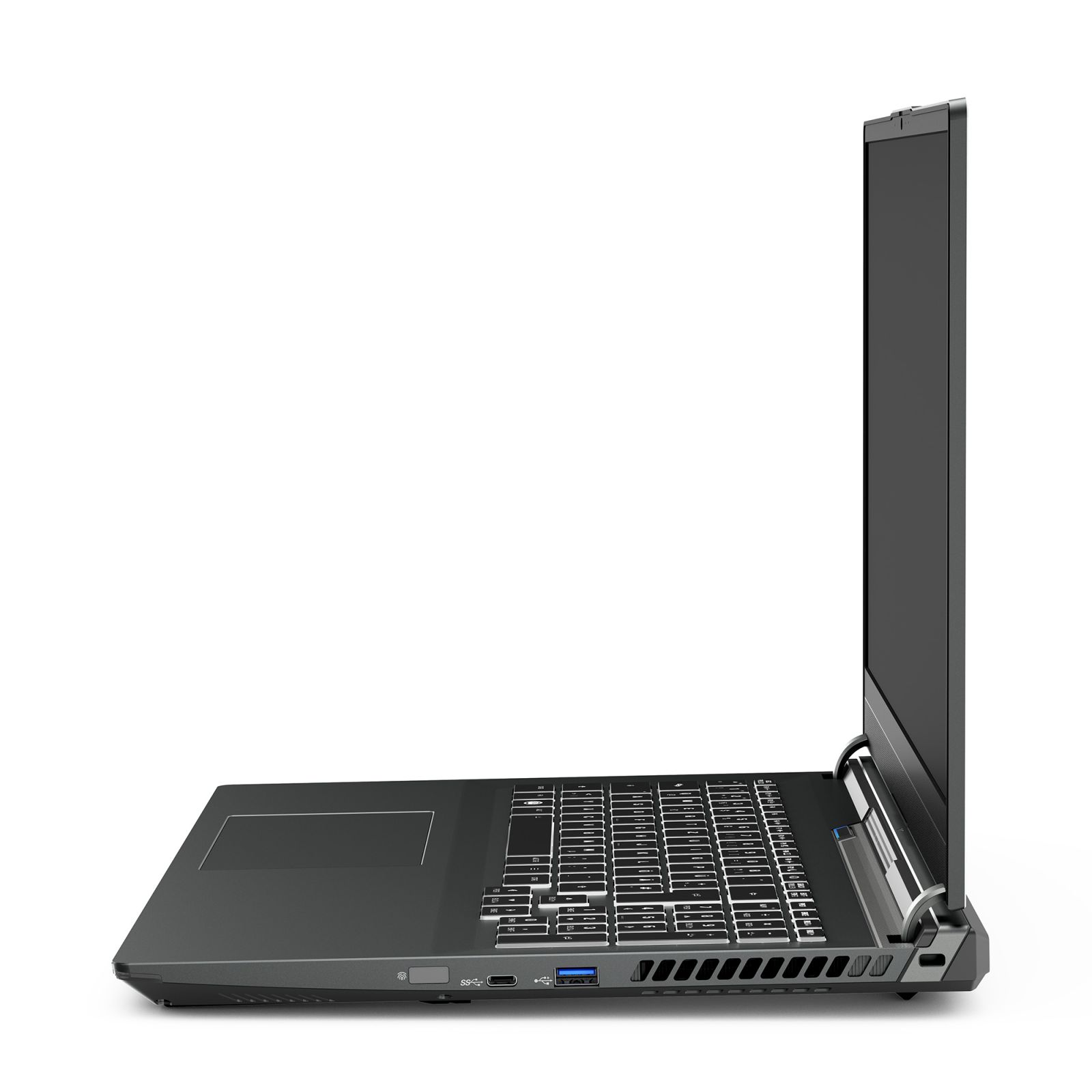

    Right side (from left to right):
    - Fingerprint reader (Windows-only)
    - USB-C 4.0 Gen3x2 (Hardwired to: iGPU | 40 Gbps | DisplayPort 1.4 | PowerDelivery DC-In)
    - USB-A 3.2 Gen2 (10 Gbps)

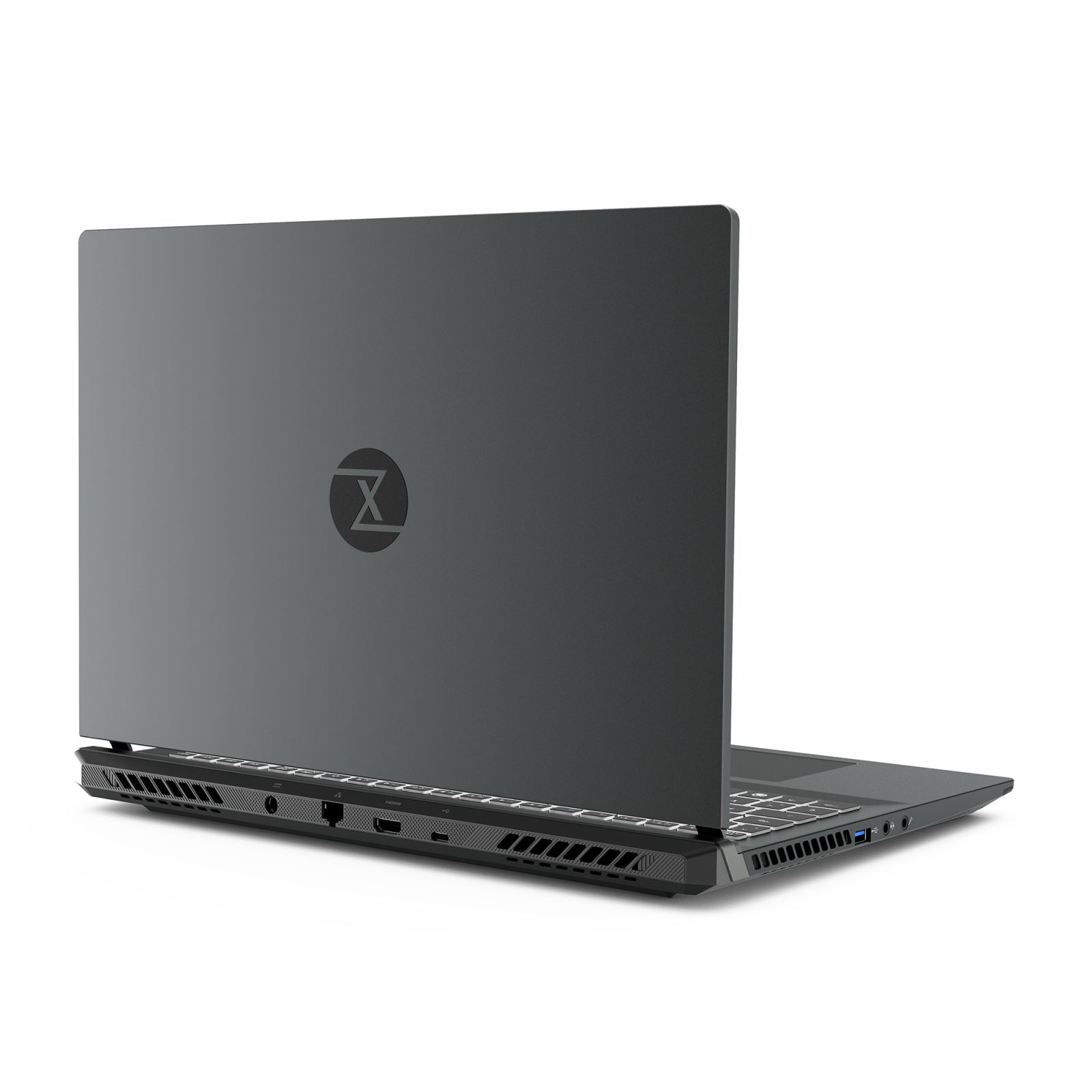

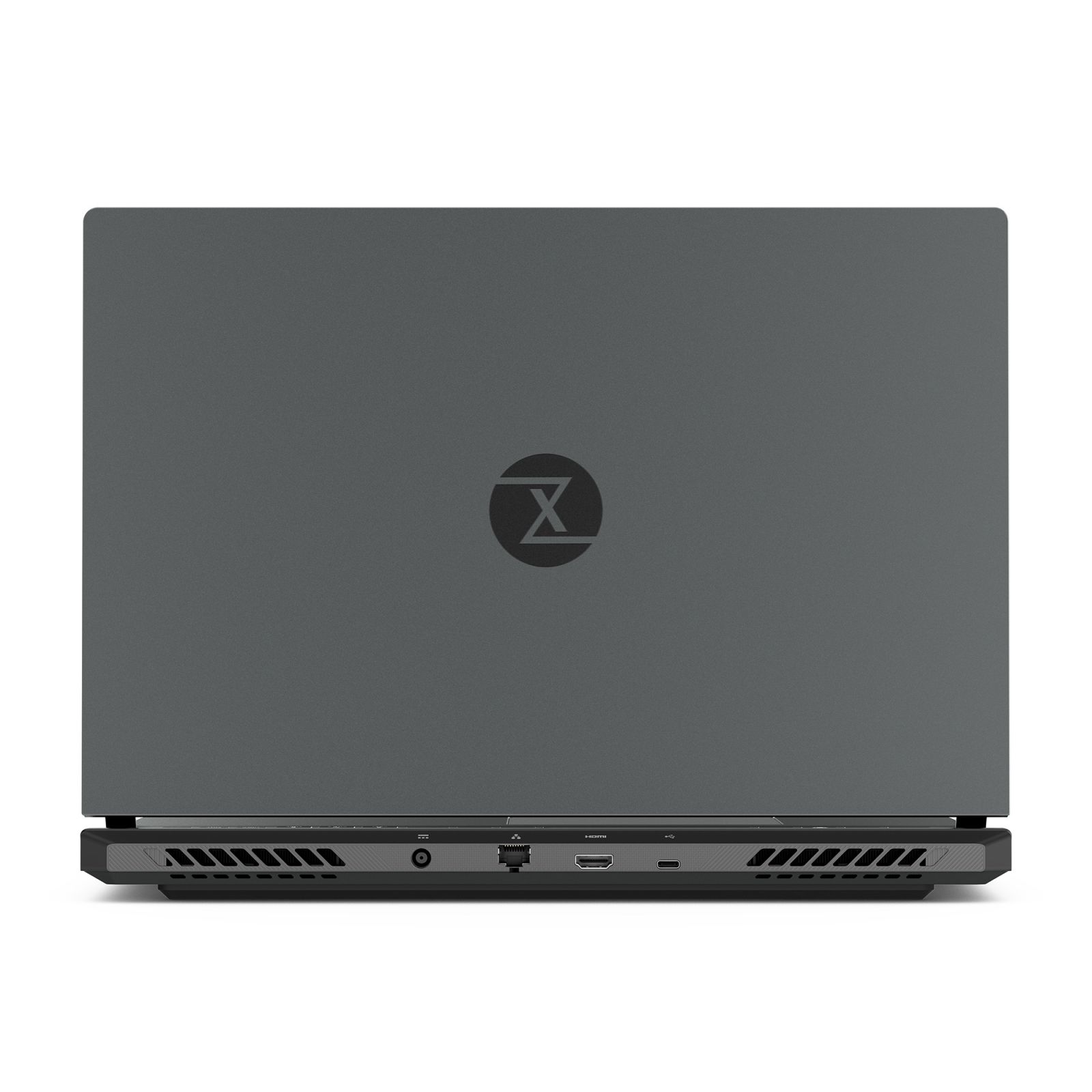

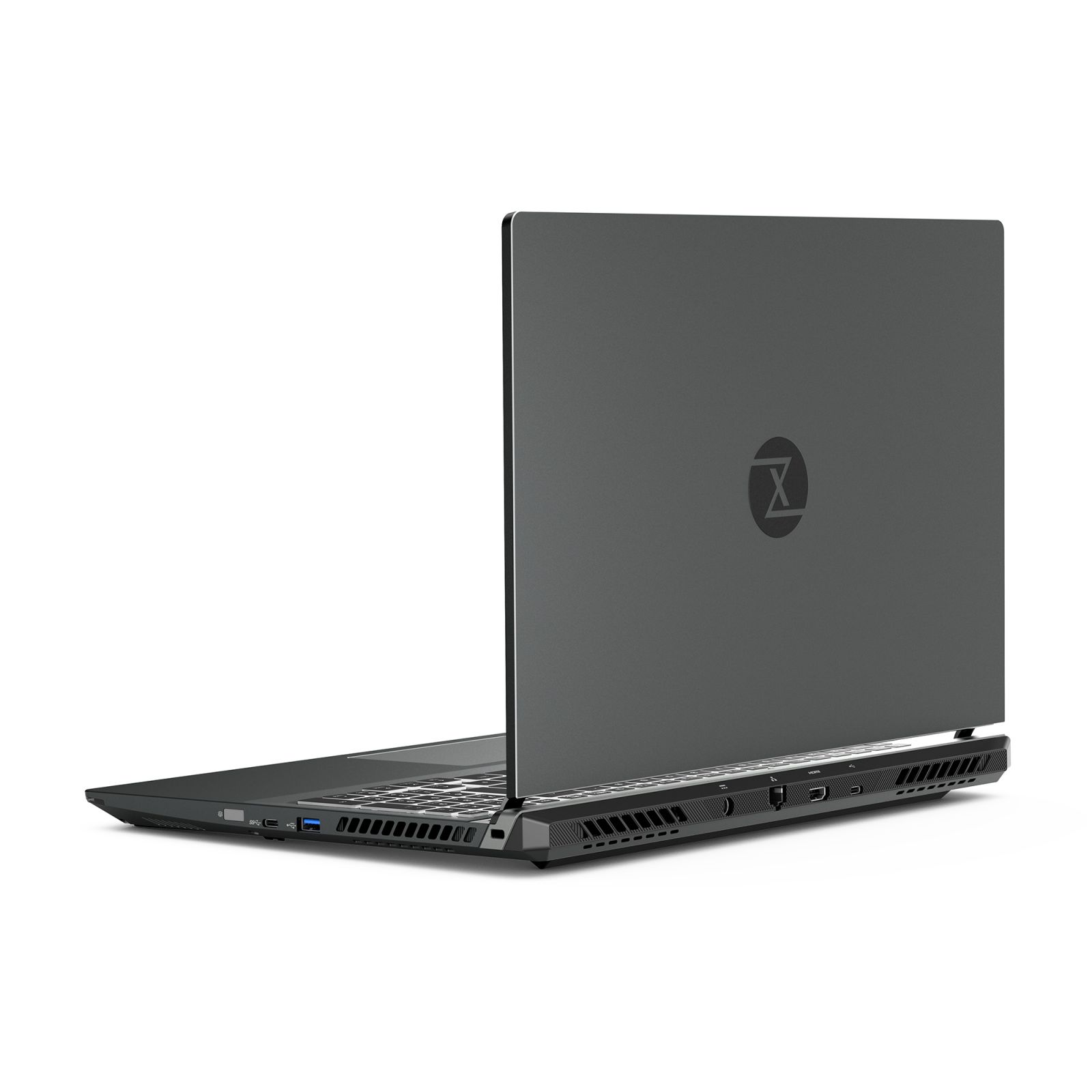

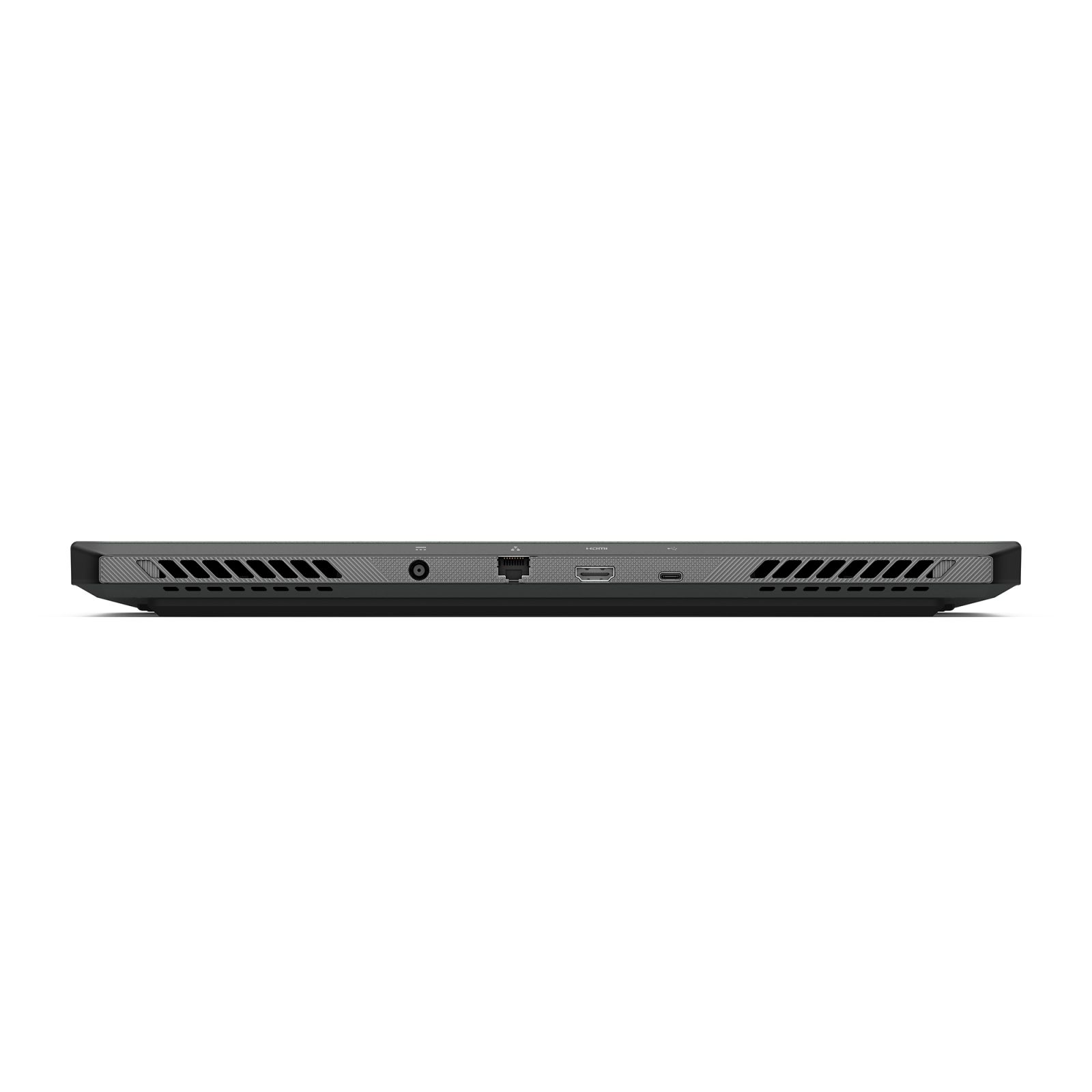

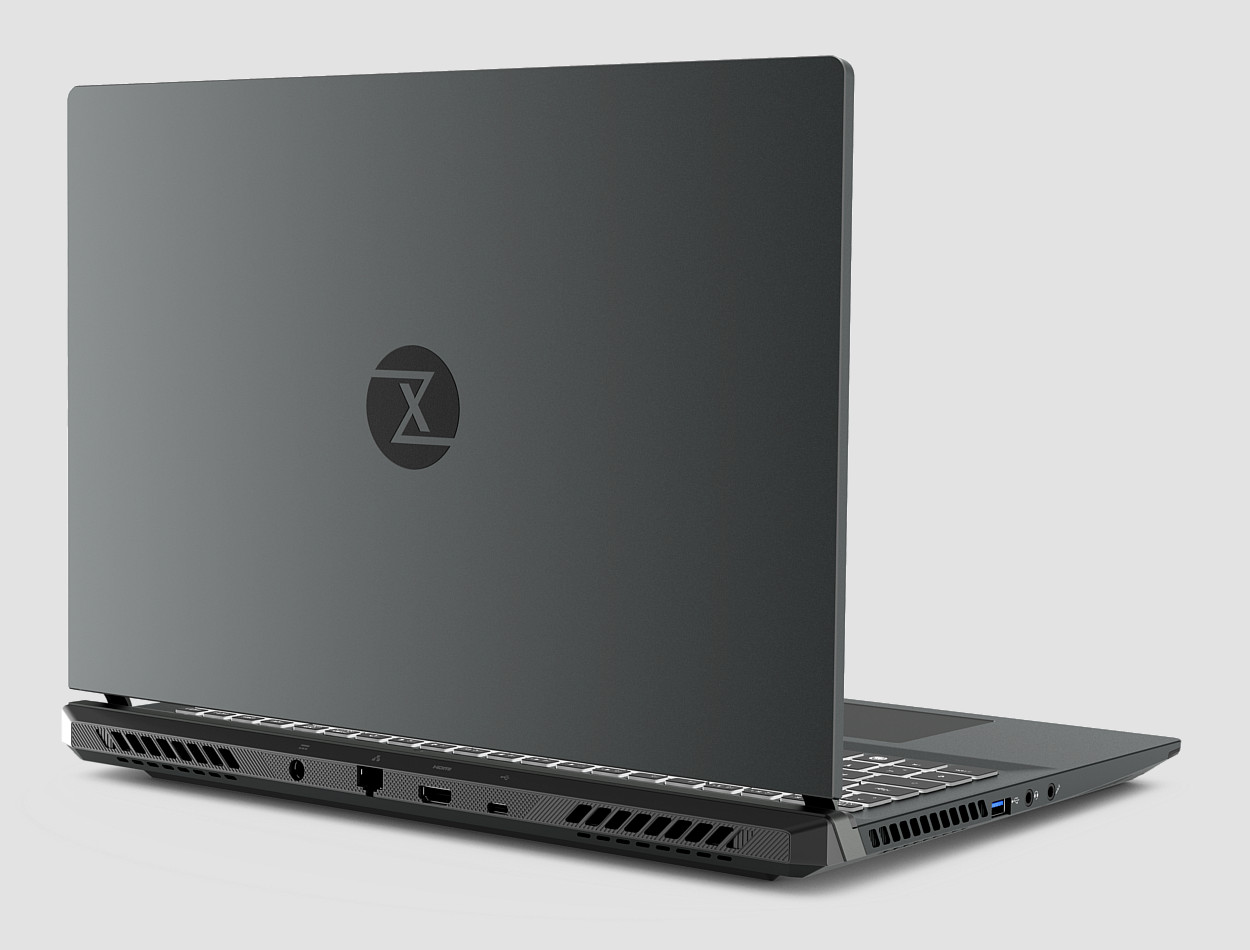

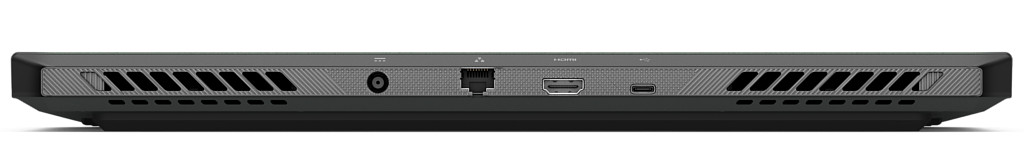

    Back side (from left to right):
    - Power plug (DC-in)
    - RJ45 1 Gbit LAN
    - HDMI 2.1 (Hardwired to: dGPU | HDCP 2.3 | AMD FreeSync)
    - USB-C 3.2 Gen2×1 (Hardwired to: dGPU | 10 Gbps | DisplayPort 1.4 | AMD FreeSync)



    Security

    - Kensington-Lock mounting
    - Webcam & audio can be deactivated directly via the BIOS
    - Wifi & Bluetooth can be deactivated directly via the BIOS
    TPM 2.0

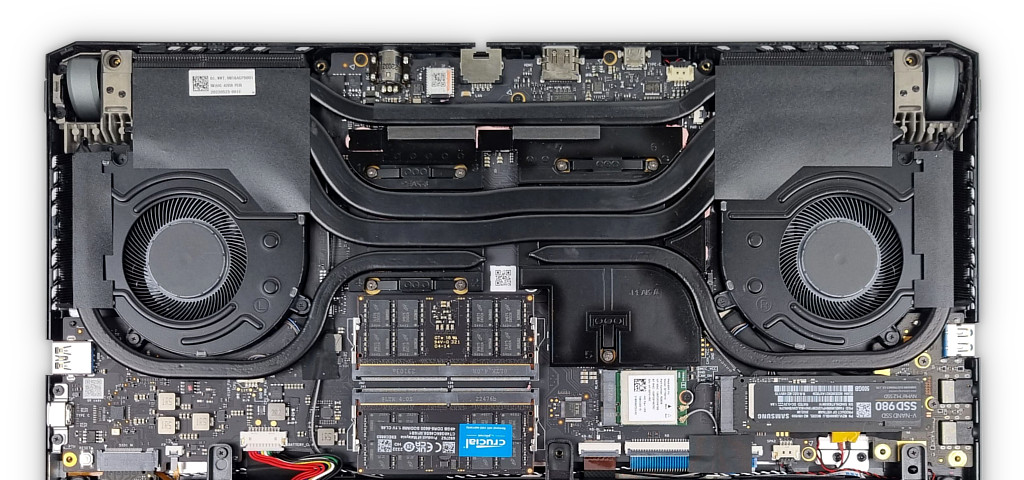

    Cooling System & Fan

    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).



    For this purpose, the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth



    In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.



    Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)

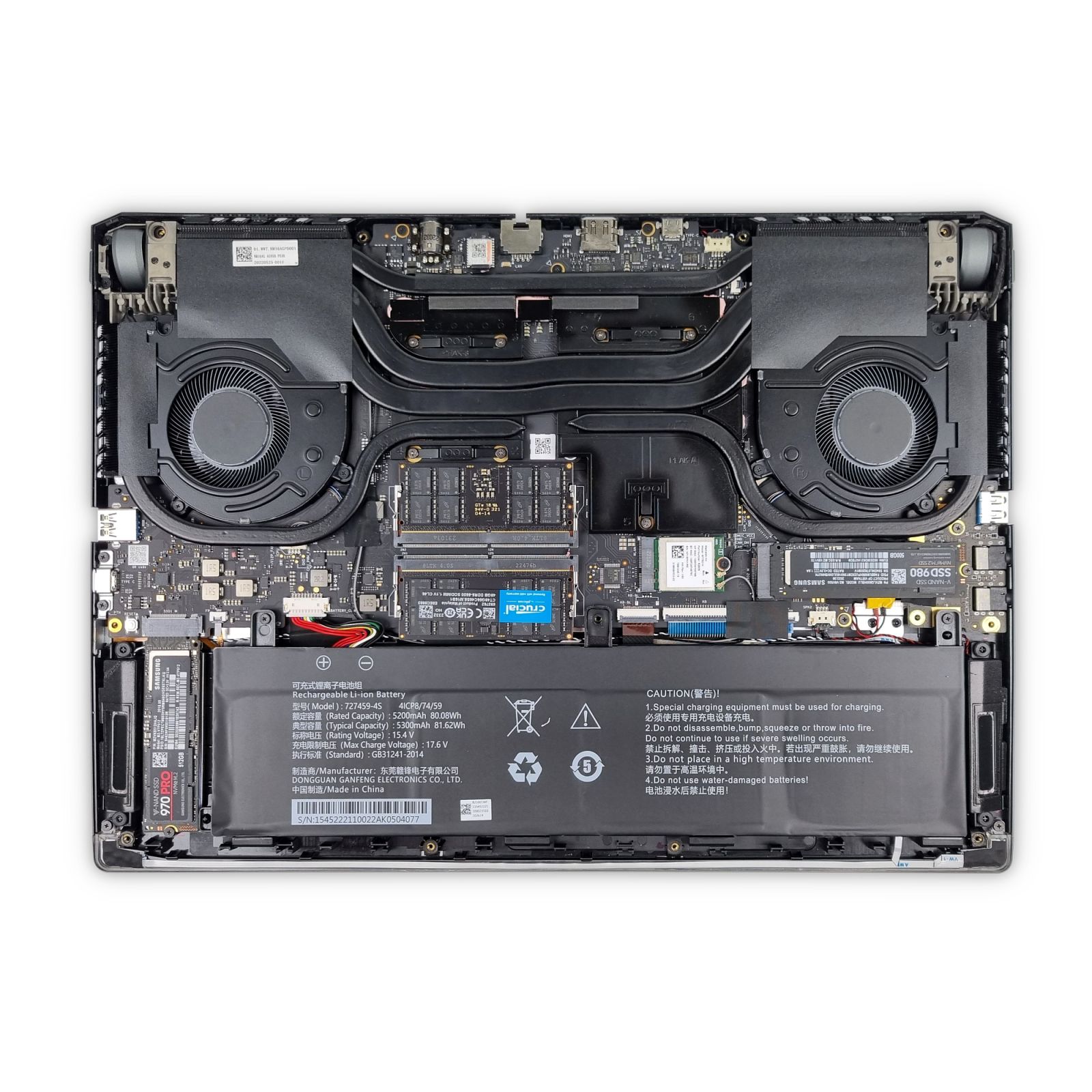

    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
