XUX just like[X]treme[U]ser[X]perience, because with XUX-series devices you are guaranteed extreme user experiences!
Devices of the XUX series are aimed at customers who not only want the strongest and best, but also all those who want extreme conditions. XUX therefore also stands for irrationality, for too much power, so much that you don't really need it... but absolutely want to!
Everything at the newly developed XUX708 has been developed to a XUX! That's why an desktop processor works here, even up to the strongest Core-i9-K processor Intel has to offer. The fact that up to a GeForce GTX 1080 graphics card from NVIDIA is possible should be self-evident and consistent.

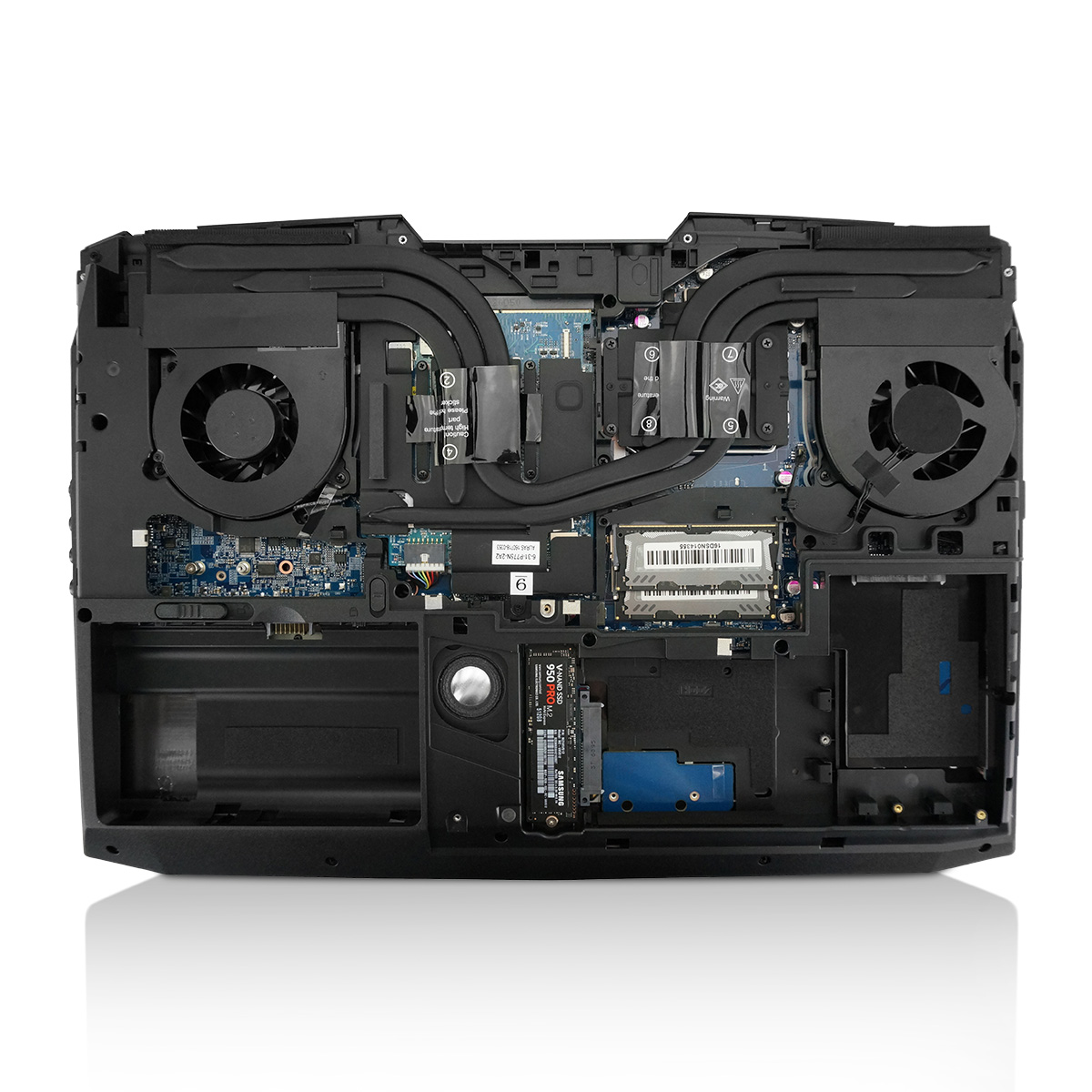

The symmetrically arranged cooling system, which is equipped with two extra-large fans, each cooling CPU and graphics card via three heatpipes, is synchronized via two additional heatpipes and thus works in parallel on the cooling of the system, which is as quiet as it is powerful.
Of course, all this requires space, but it is also good for accommodating up to 4 DDR4 memory bars (up to 64 GB DDR4), two large 2.5" hard disks and two M. 2 NVMe PCIe-x4 SSDs. Also on board are USB 3.1 type C Gen2 ports, one of them with Thunderbolt, four USB3.0 ports, two mini display ports and one HDMI 2.0 port as well as various audio connections and a gigabit LAN port!
Mandatory but not missing are a cardreader, of course. Headset inputs and outputs, a webcam incl. microphone and a Kensington lock.

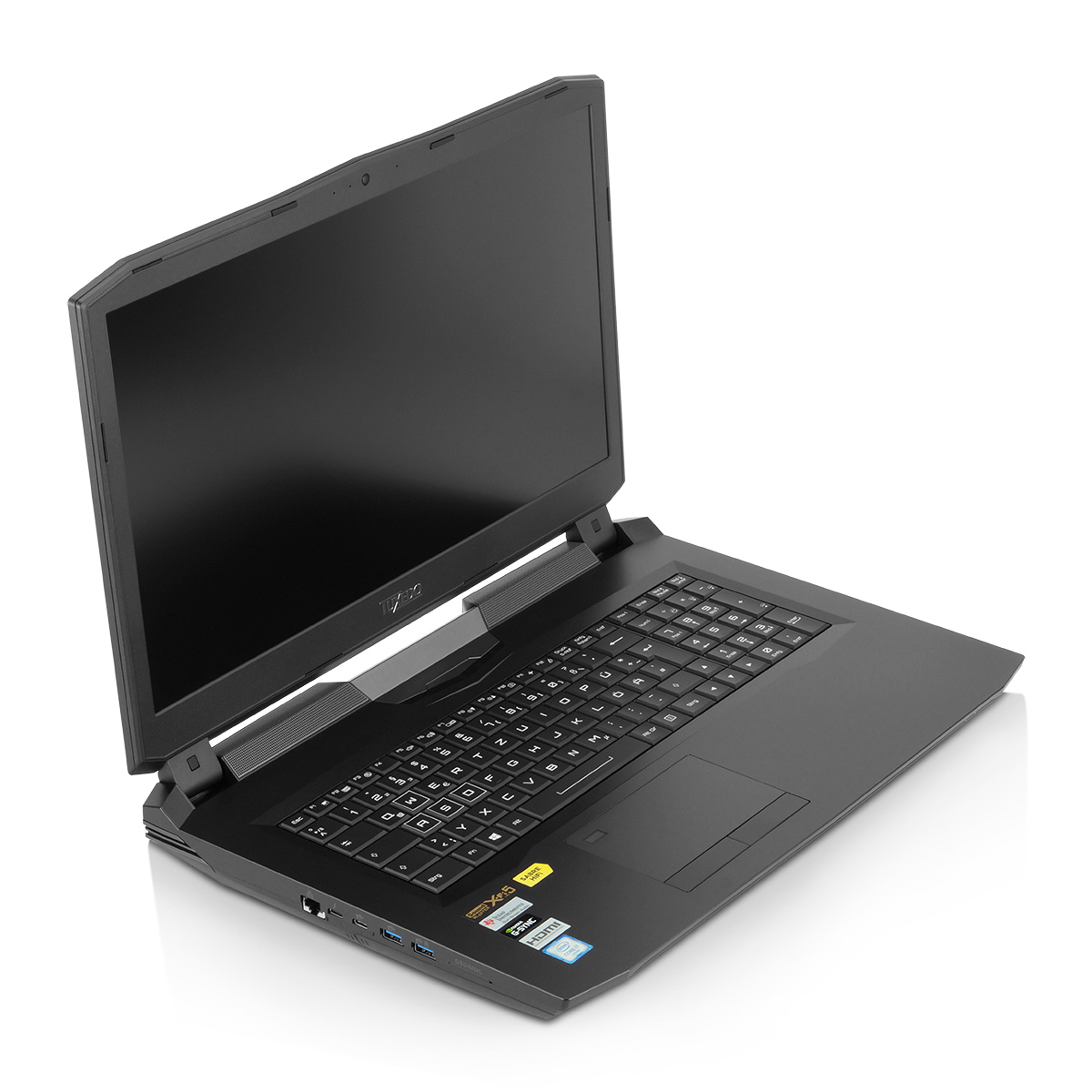

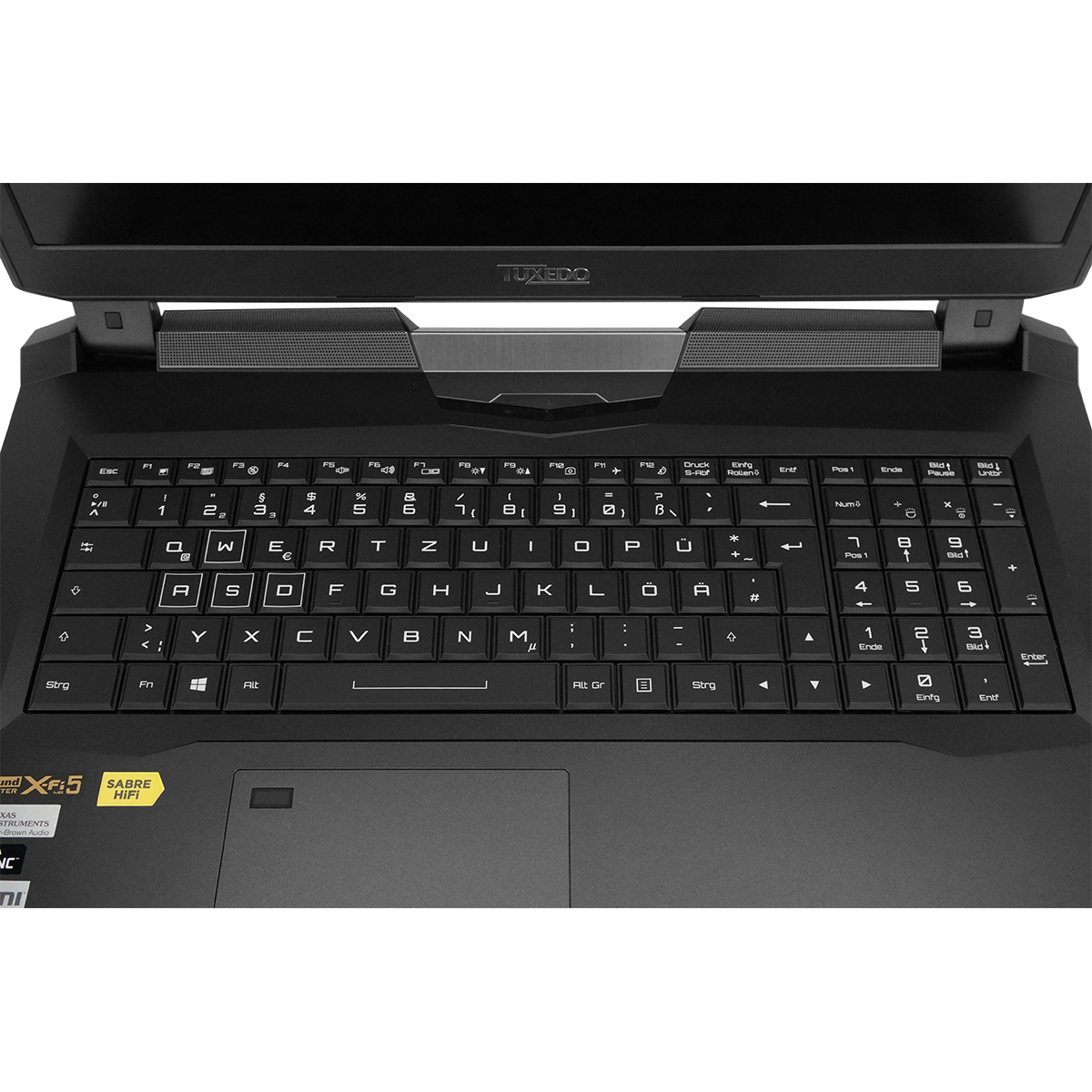

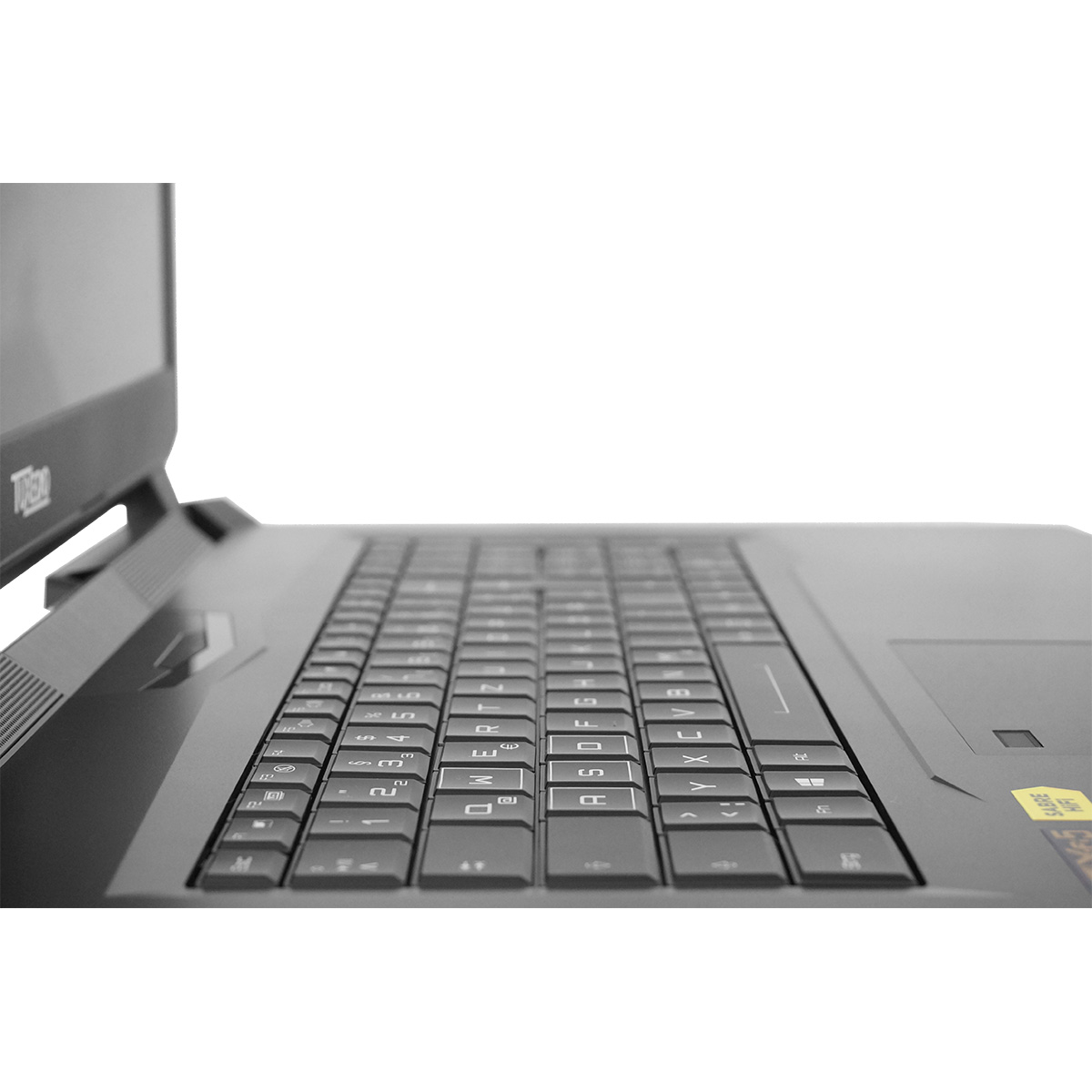

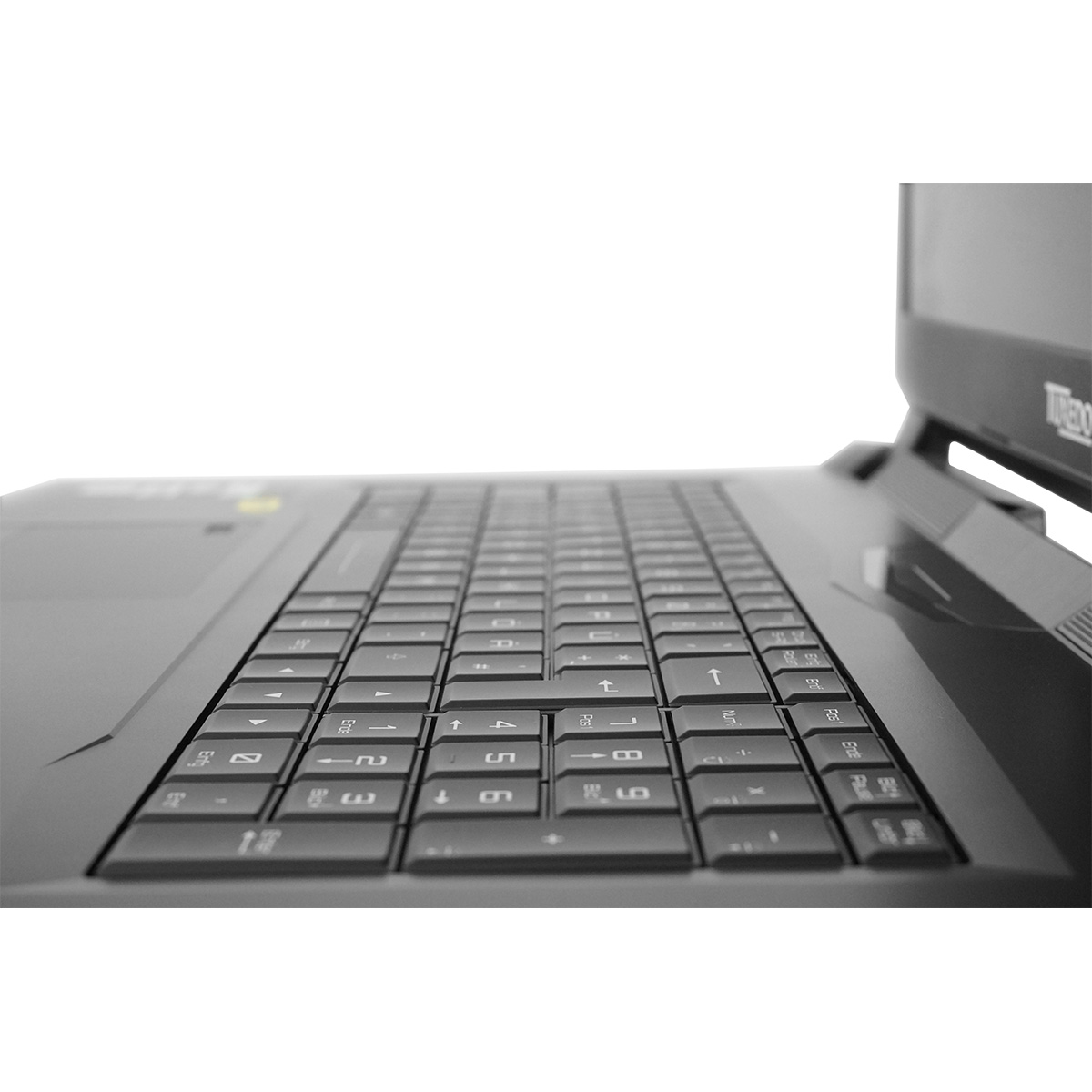

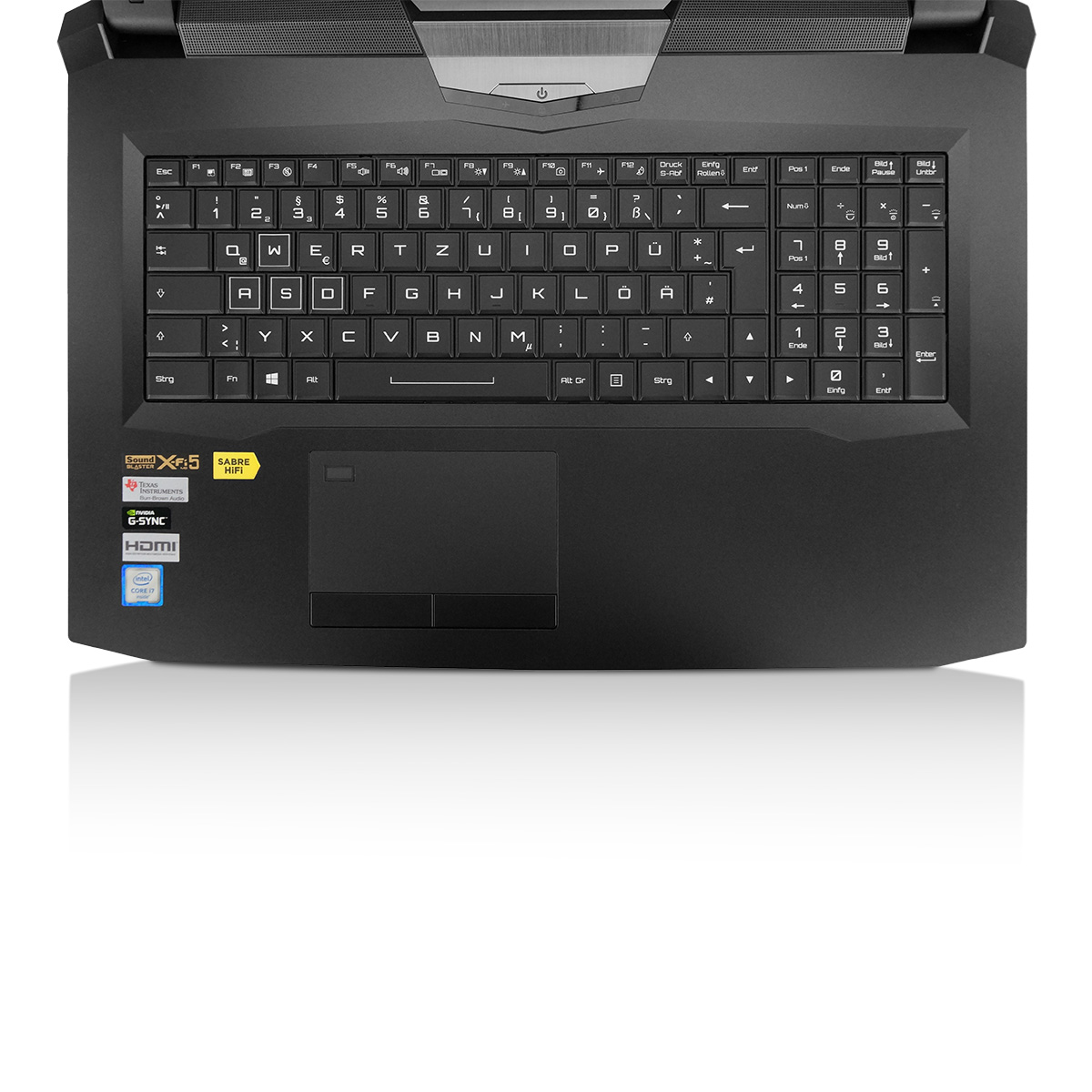

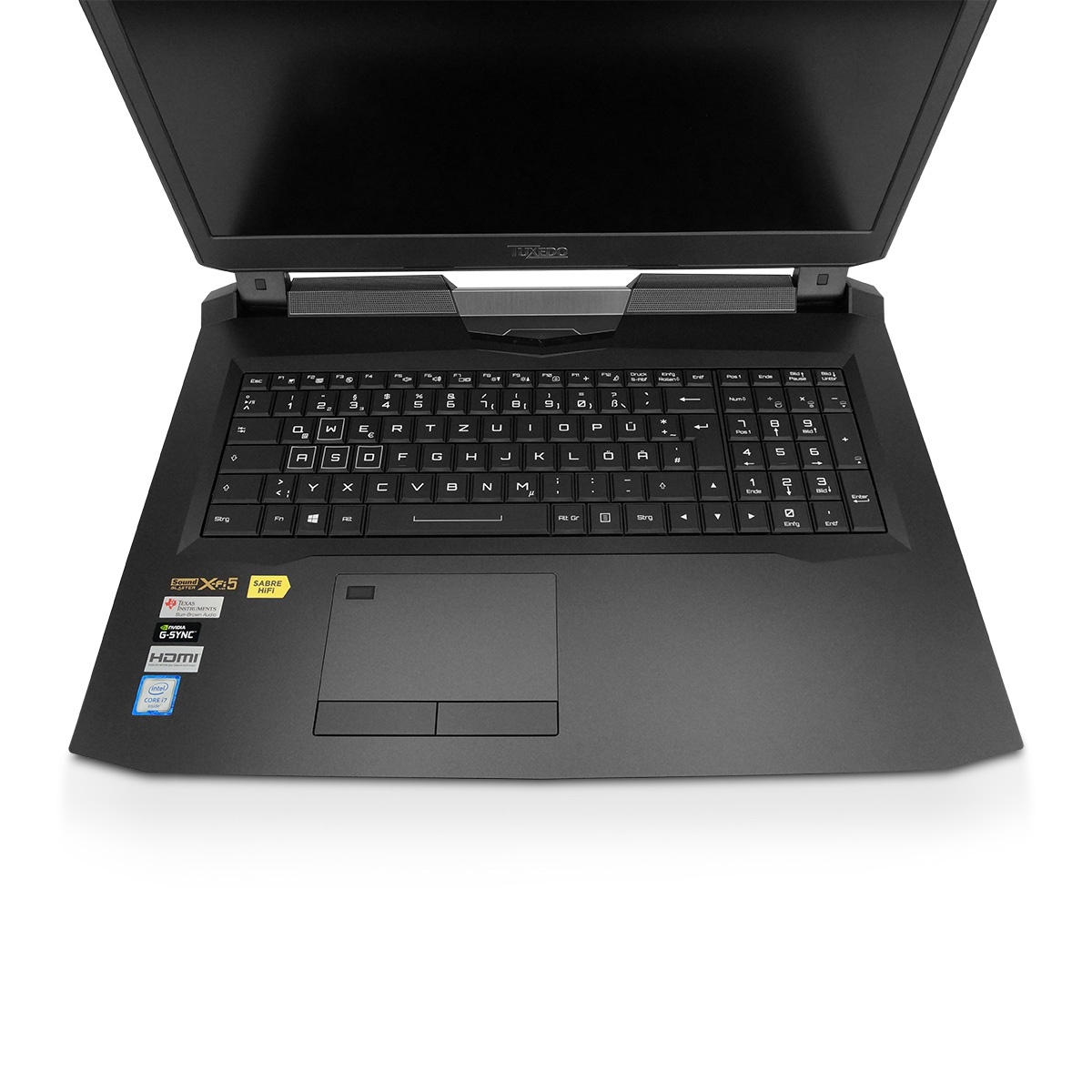

The keyboard, also developed for an XUX, invites you to type thanks to lighting as well as curvature and a clear pressure point! Even frequent typists won't want to take their hands off the device, which almost feels velvety due to its scratch-resistant rubberized surface.
The user-focused Onkyo 2.0 and SOUND BLASTER® X-FI® MB5 sound system also delivers great sound.

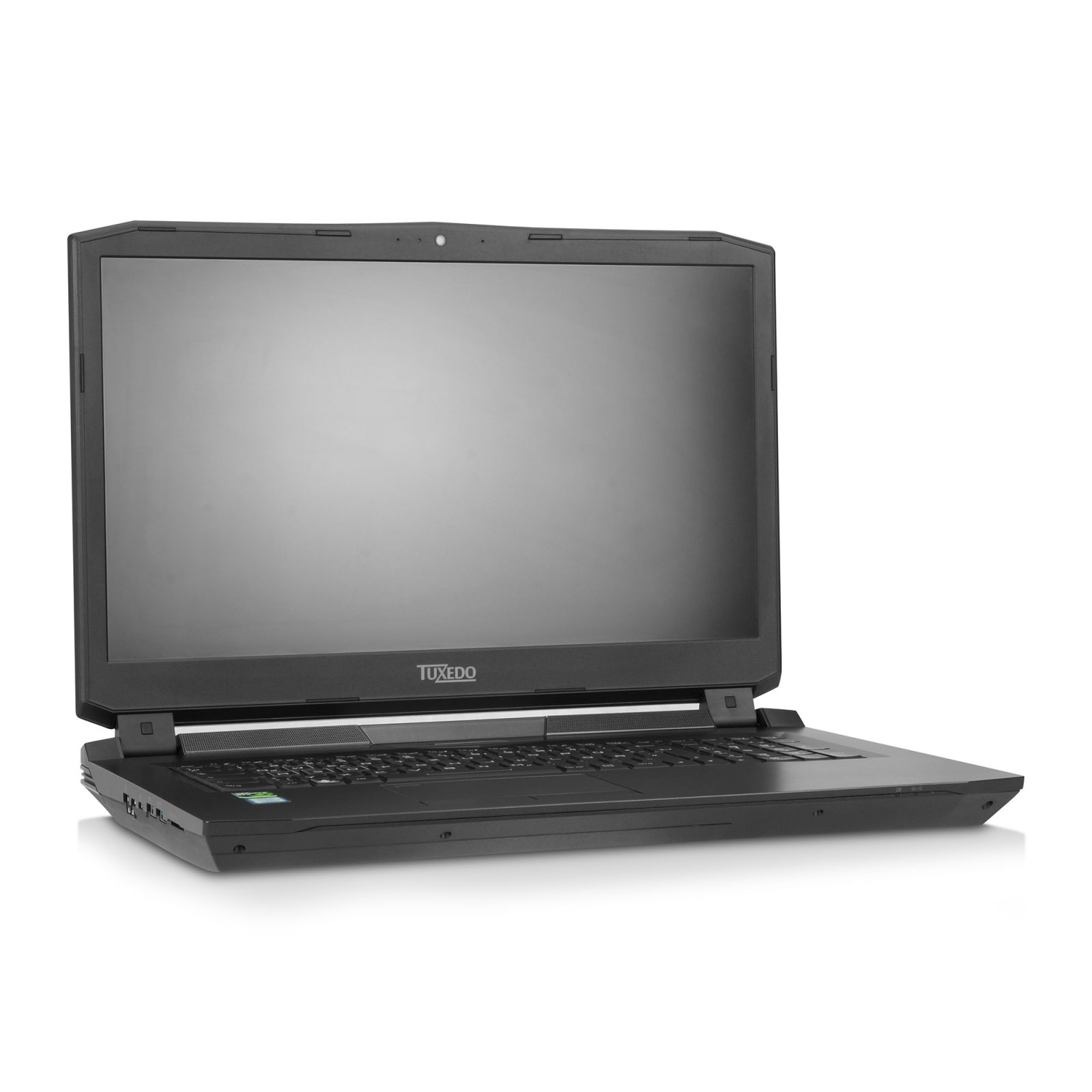

A 17.3-inch IPS display with its extremely bright and high-contrast display and matt surface makes your eyes shine!
By default, 8 GB DDR4 memory is already built in, but upgrading to up to 64 GB is no problem thanks to four RAM slots!

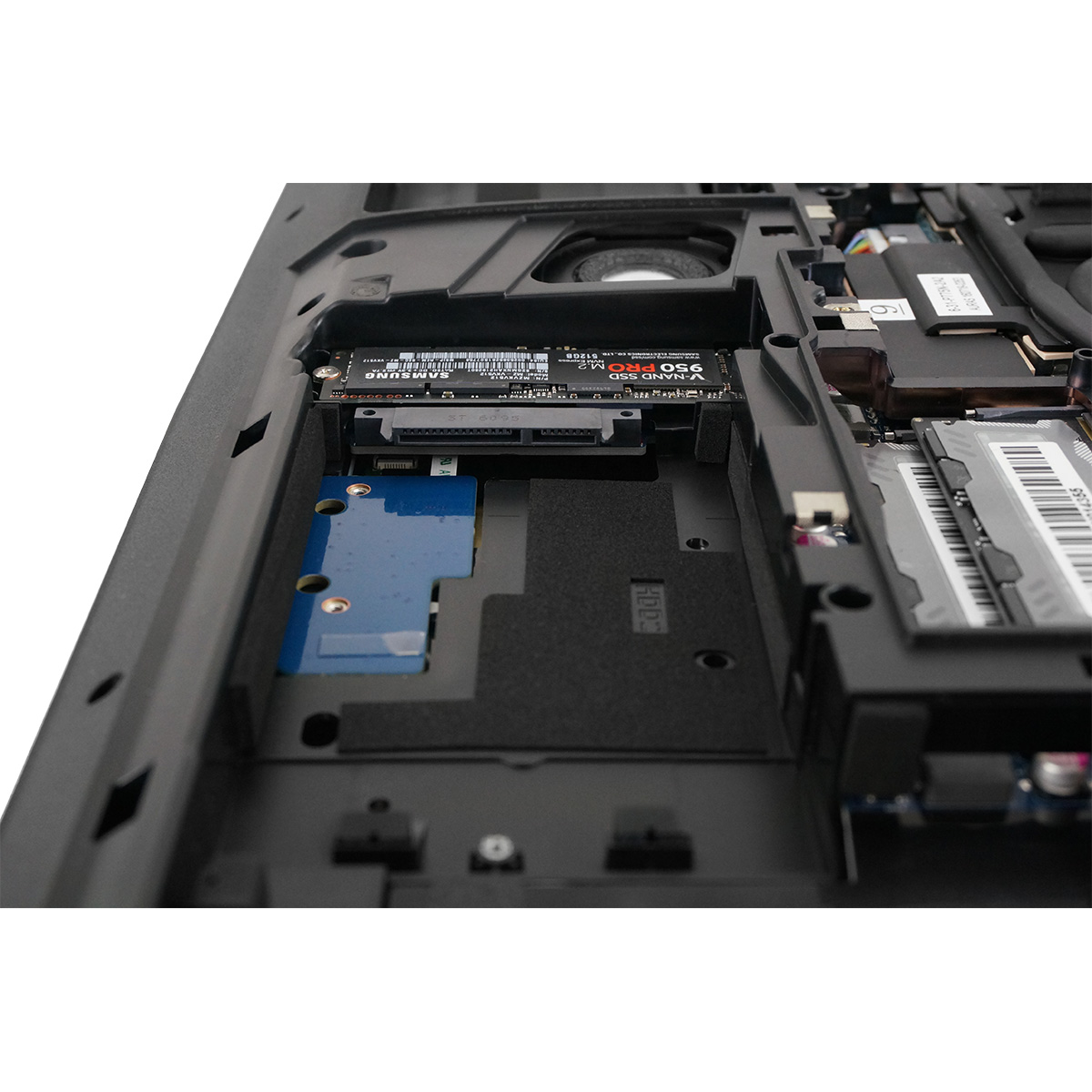

A harddisk with 500 GB comes in the basic configuration and can be upgraded to up to two HDDs or SSDs. If that is still not enough, you can choose up to two more M. 2-SSD hard disks! Of course, the latter two are also connected to NVMe/PCIe.
Whom the graphic power of the NVIDIA Geforce GTX 1060 is not enough can still upgrade to the GTX 1070 or even GTX 1080!
Display / Monitor
Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.
17.3" (43,9 cm) Full-HD (1920 × 1080) Non-Glare IPS with G-Sync
Model: LG LP173WF4-SPD1
or
17,3" (43,9 cm) WQHD (2560 × 1440) Non-Glare IPS with 120Hz and G-Sync
Model: AUO B173QTN01
or
17,3" (43,9 cm) Ultra-HD (3840 × 2160) 4K Non-Glare IPS with G-Sync
The maximum opening angle of the display hinges is about 120°.
Chassis
Dimensions (W x D x H): 418 x 295,3 x 39,9 mm
Weight: approx. 3.8 kg incl. battery

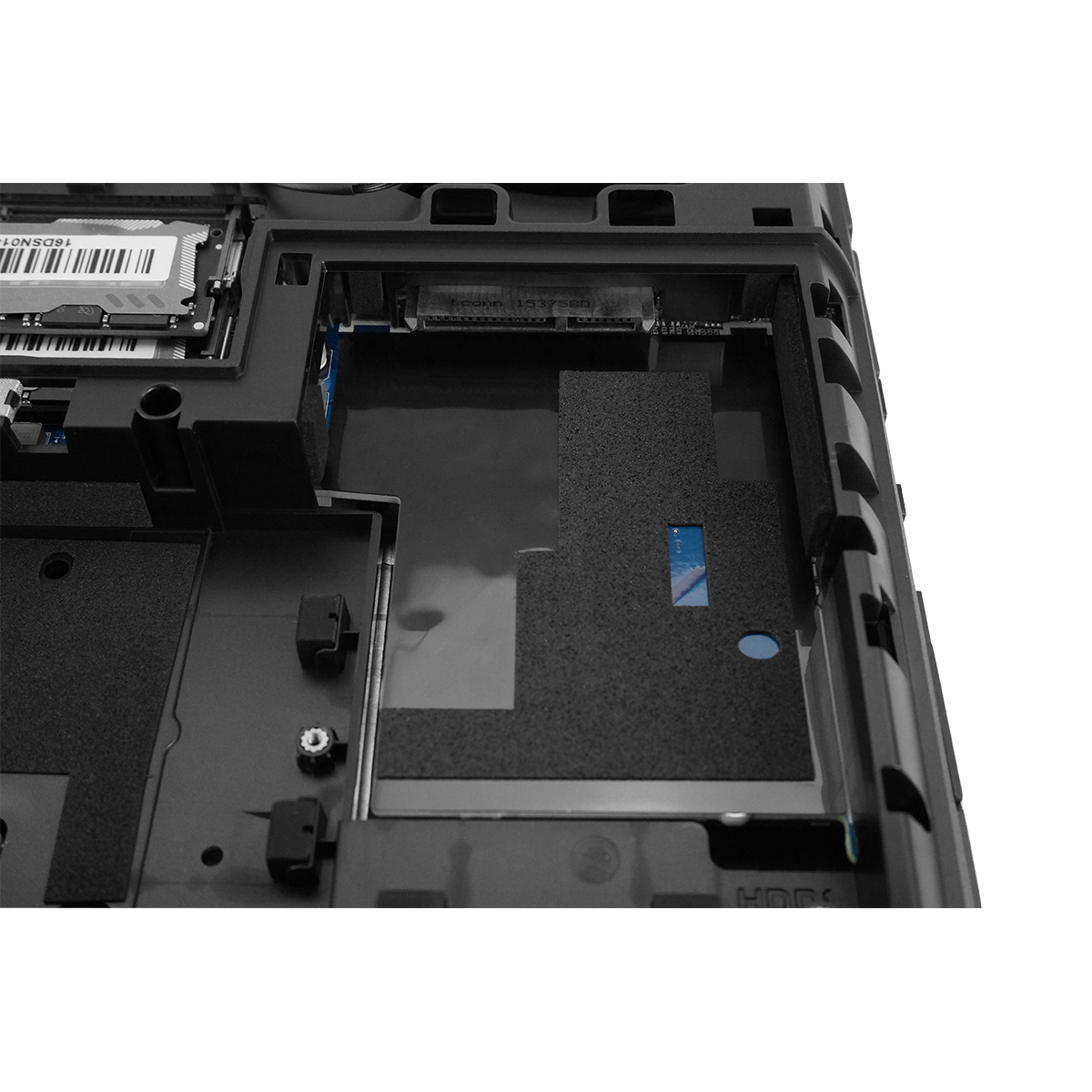

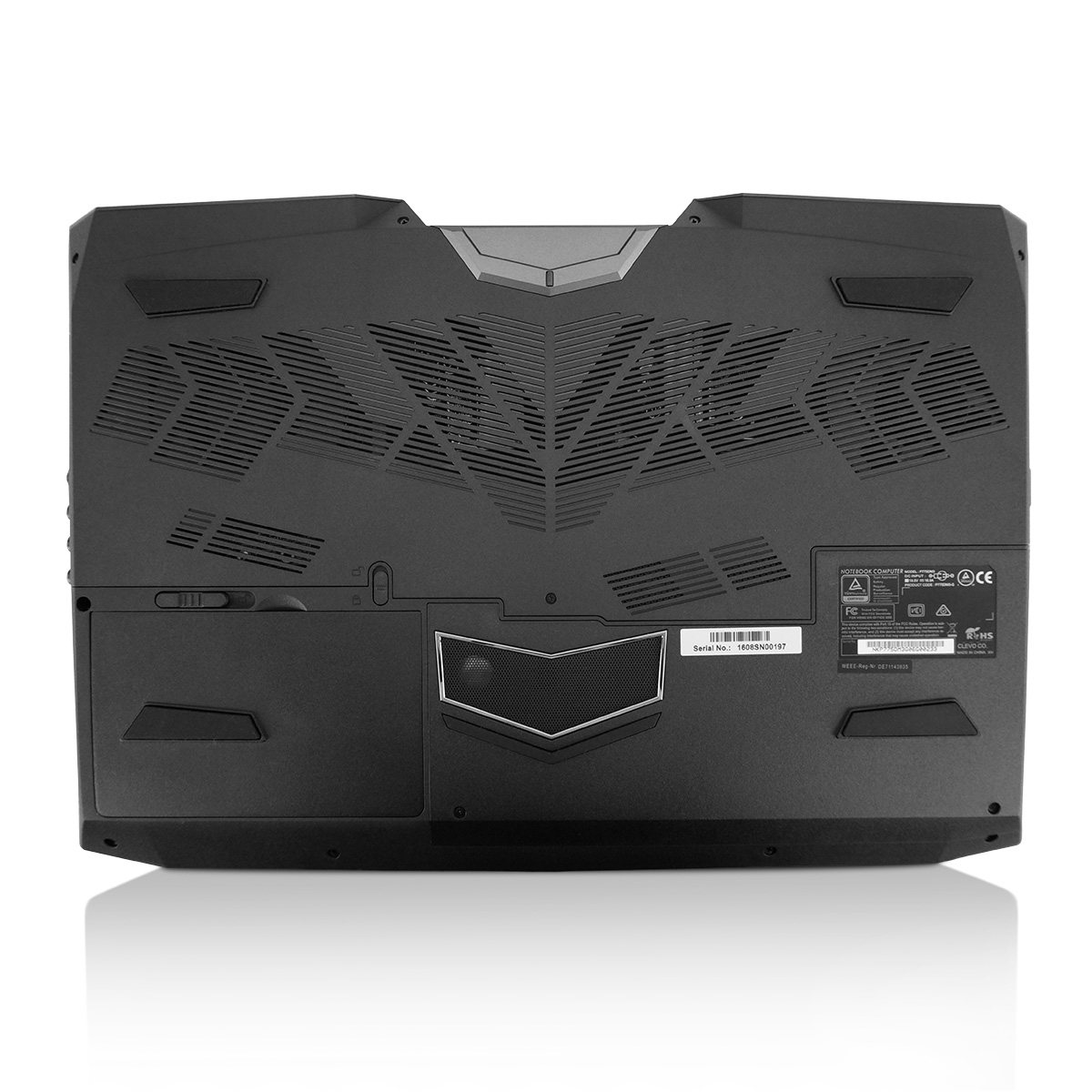

After opening the base plate, the components & heatsink can be cleaned without loss of warranty.
Battery & power supply
82Wh lithium-ion battery
Power supply:
330W power supply unit
Dimensions: 200 x 44 x 100 mm (L x H x W)
Weight: approx. 0.9 kg
Total cable length (from socket to notebook): 3.6m
Lifetime of batteries
The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information
Battery runtime
Approx. 3 hours battery life at low load.
The relatively short battery life is due to the relatively high power consumption of the desktop processors and the deliberate avoidance of NVIDIA Optimus and thus to get an extreme of performance, XUX!
Main processor
Intel Core High-End CPU Coffee Lake-Series
Intel Core i5-8400 (6x 2.8-4.0GHz Six-Core, 6 Threads, 9MB Cache, 65W TDP)
Intel Core i5-8600K (6x 3.6-4.3GHz Six-Core, 6 Threads, 9MB Cache, 95W TDP)
Intel Core i7-9700K (8x 3.6-4.9GHz Eight-Core, 8 Threads, 12MB Cache, 95W TDP)
Intel Core i9-9900K (8x 3.6-5.0GHz Eight-Core, 16 Threads, 16MB Cache, 95W TDP)
Chipset:
Mobile Intel Z370 Express
Mit VT-d support!
Graphics card
• NVIDIA® GeForce® GTX 1060 OC 6GB GDDR5 VRAM (Pascal graphics chip)
or
• NVIDIA® GeForce® GTX 1070 OC 8GB GDDR5 VRAM (Pascal graphics chip)
or
• NVIDIA® GeForce® GTX 1080 8GB GDDR5 VRAM (Pascal graphics chip)
Availability depending on the choice in the configurator!
Features: DirectX® 12, OpenGL 4.4, NVIDIA® CUDA, NVIDIA PhysX™, OpenCL
The following resolutions are possible via all connections individually or in parallel:
1x Notebook-Display: 1920*1080@60Hz or 3840*2160@60Hz (Depending on display selection in the configurator)
2x DisplayPort: 2x 3840*2160@60Hz or 2560*1600@120Hz
1x HDMI 2.0: 3840*2160@60Hz or 2560*1600@120Hz
With these maximum resolutions 4 displays can be controlled simultaneously, e. g. 1x notebook display and 3x external monitors.
Memory
Type: DDR4 SO-DIMM
Manufacturer and speed see configurator
Default and maximum see configurator
Dual channel mode (with at least 2 modules)
Hard drive
Hard drives:
Hard drive: Default 2,5" HDD or SSD
Hard drive 2: Default 2,5" HDD or SSD
Both hard disk slots can also be operated as RAID 0/1 regardless of the configuration.
Mass storage (SSD / HDD)
Fast M.2 SSDs
Manufacturer and speed see configurator
Standard and maximum see configurator

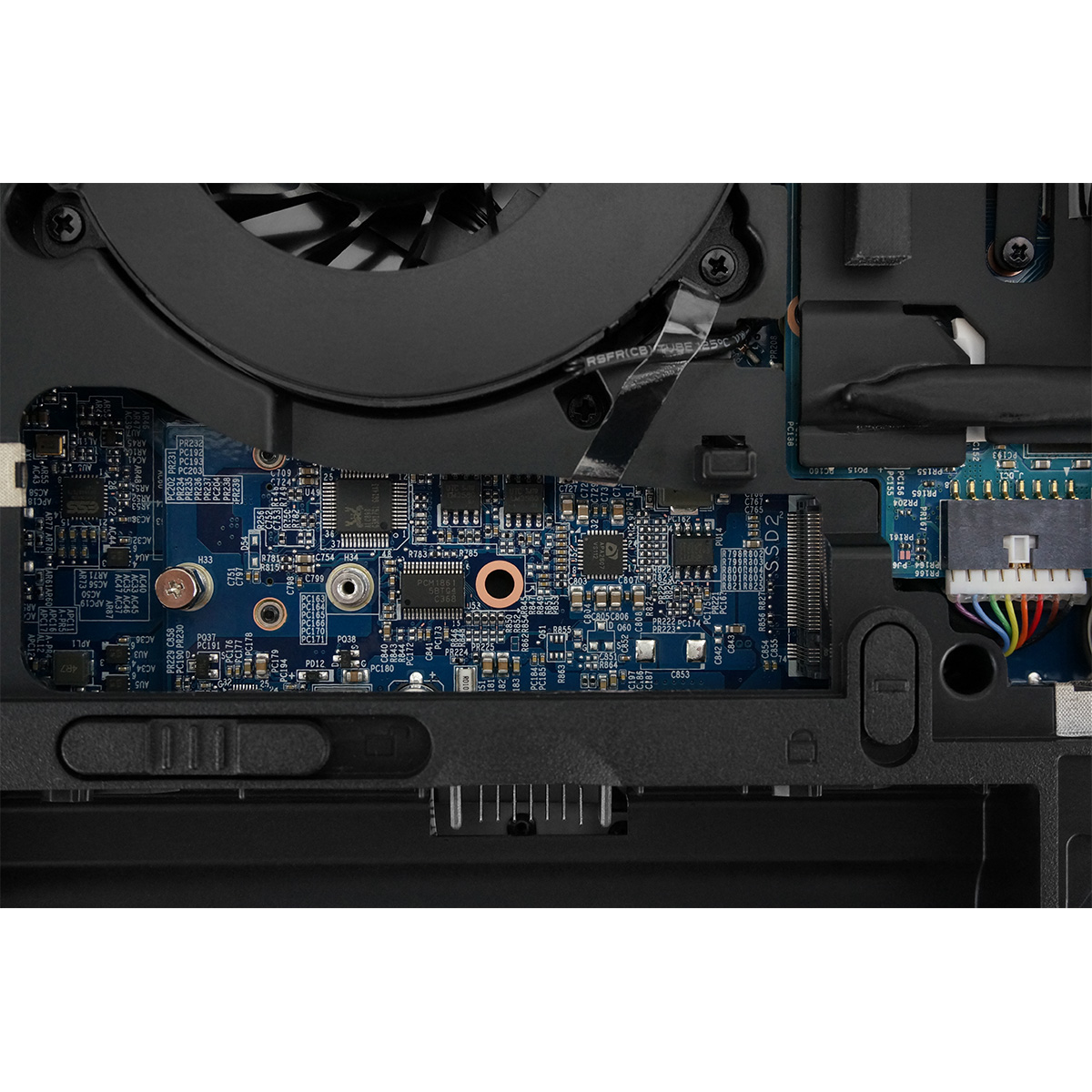

Both M. 2 slots can be operated as RAID 0/1 in both SATA and PCI Express mode.
Communication / Network
Wired/LAN: Gigabit LAN (Realtek RTL8168/8111 Ethernet, 10/100/1000 Mbit)
Wireless/WIFI (optional):
Intel Dual Band Wi-Fi 6 AX 200 & Bluetooth (M.2 2230):
Interface: M.2 2230
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi AX 200
Version: Dual Mode Bluetooth 5.1
Security
- Kensington-Lock (please check for the needed size)
- Intel Management Engine (Intel ME) can be disabled directly via the BIOS
- Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
- WLAN & Bluetooth can be deactivated directly via the BIOS
- TPM 2.0 Chip (by BIOS de-/activatable)
Webcam / Laptop camera
2 Megapixel (2 MP) camera including microphone
Sound / Audio
High Definition Audio
SOUND BLASTER® X-FI® MB5
Onkyo 2.0 System Speaker-System
Integrated microphone
S/PDIF digital output (optical)

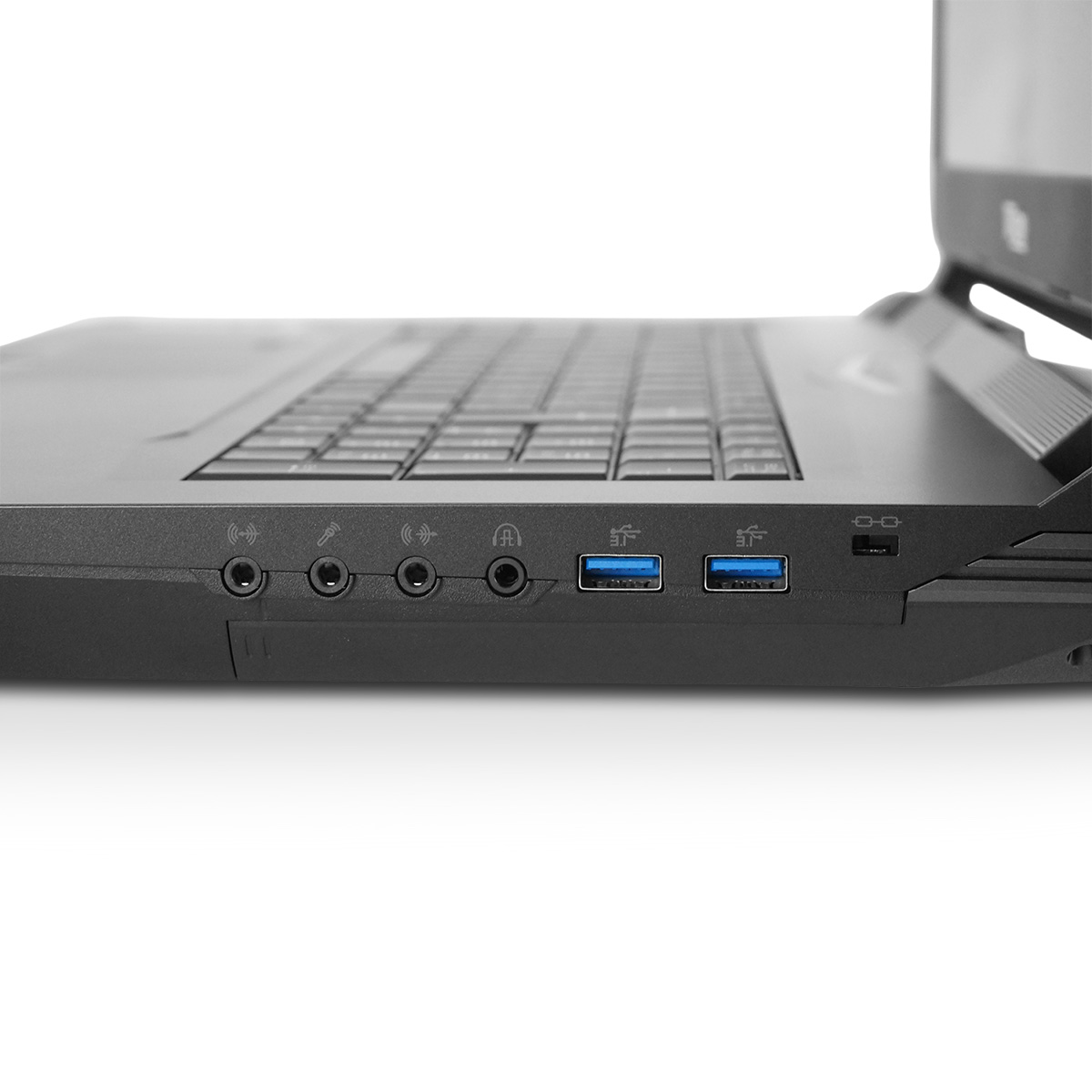

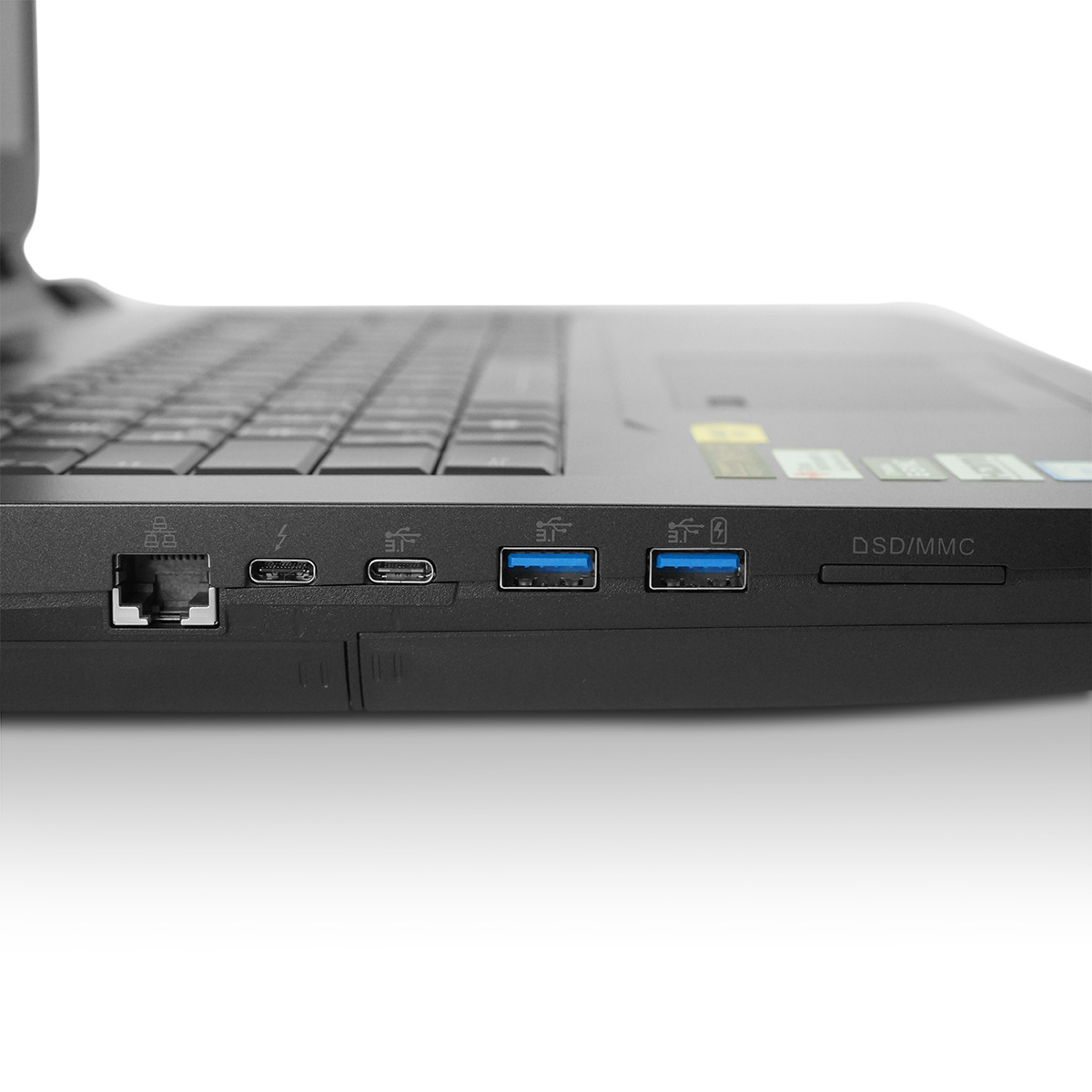

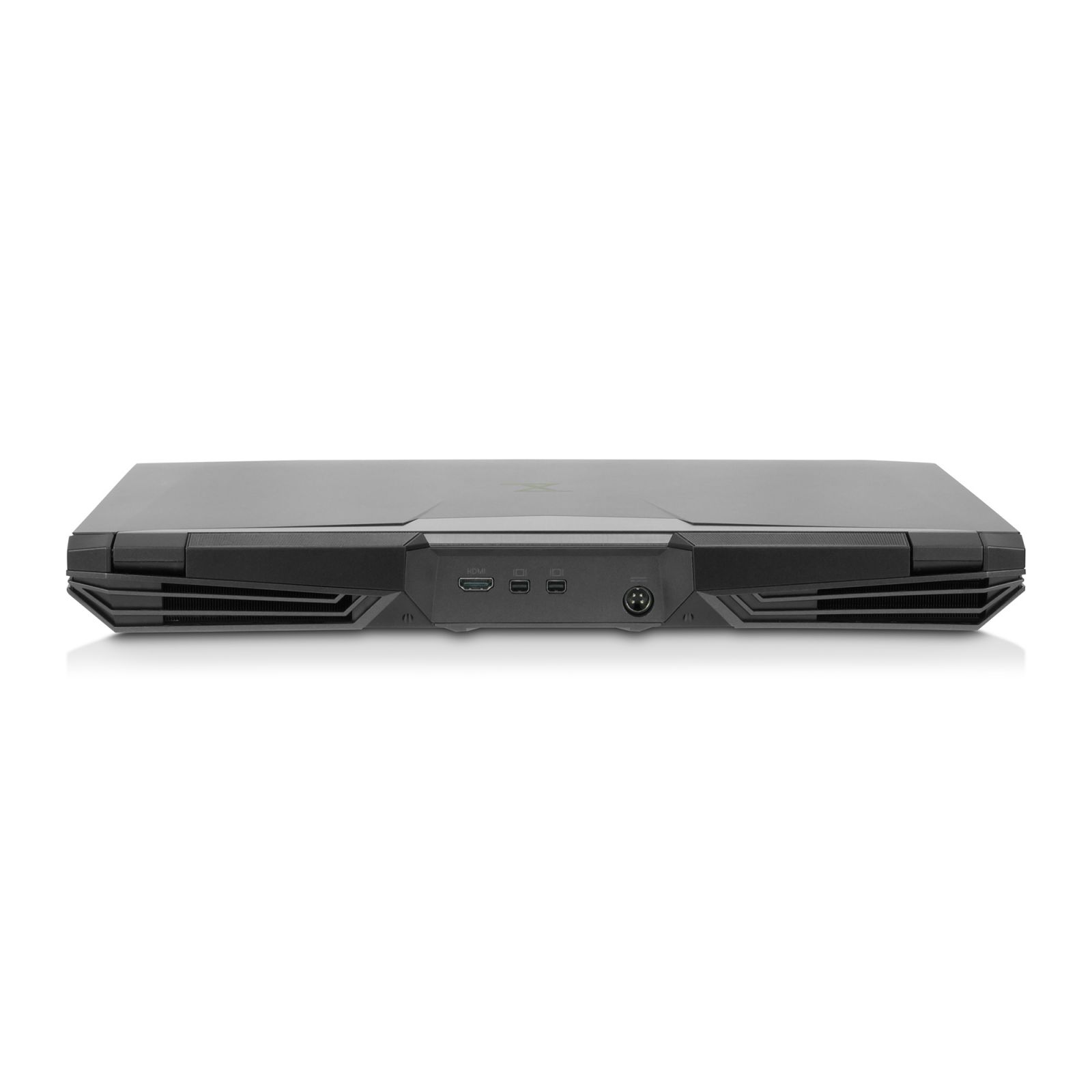

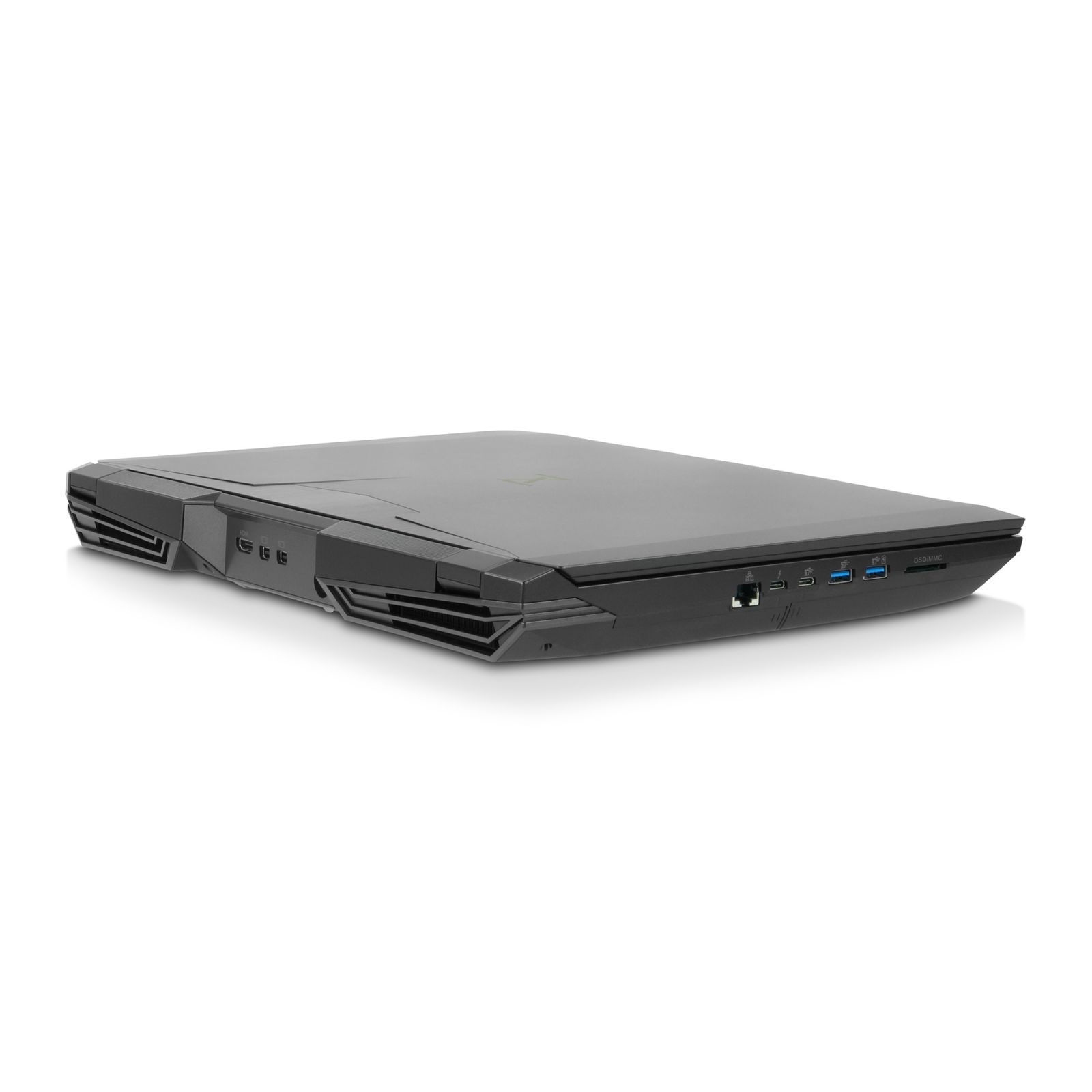

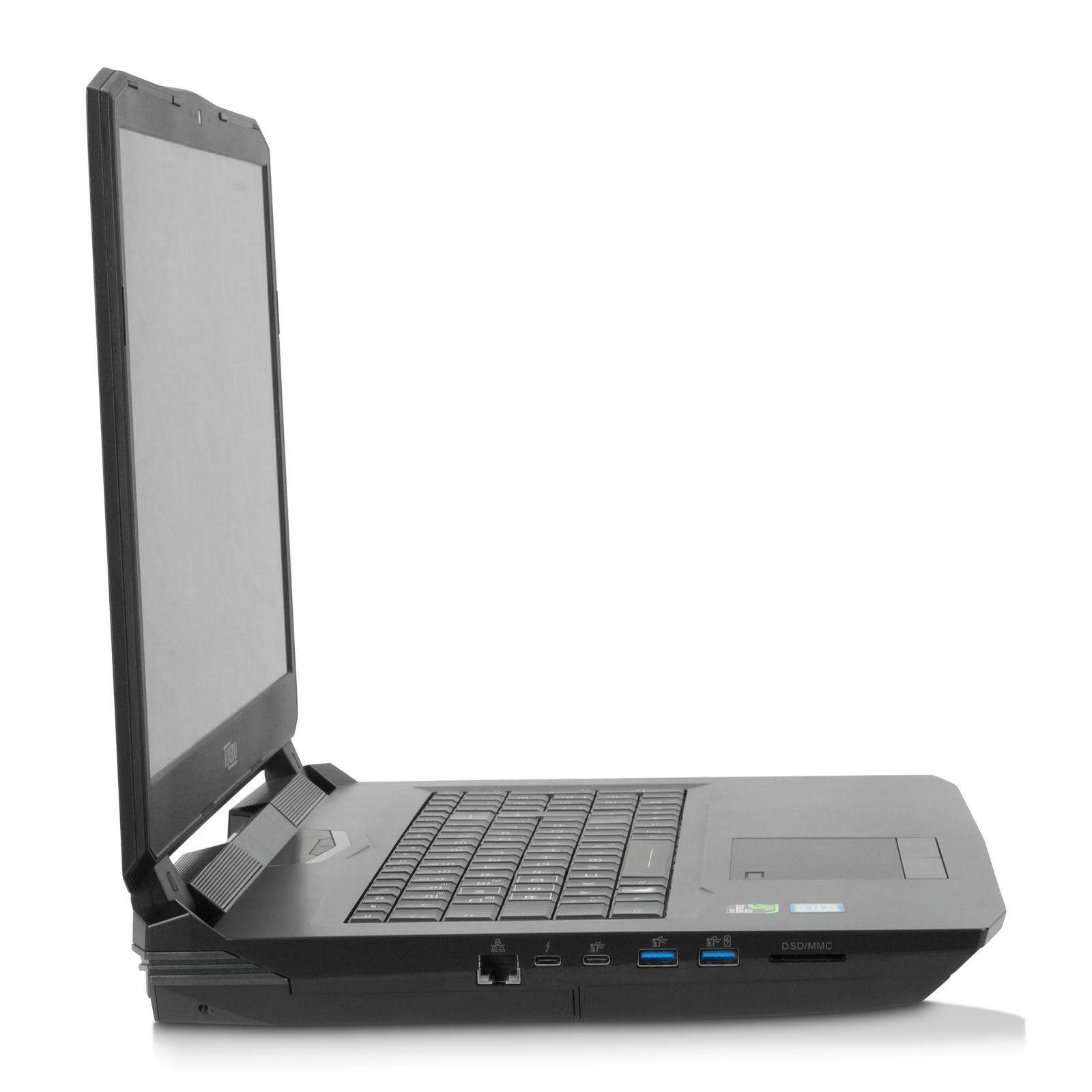

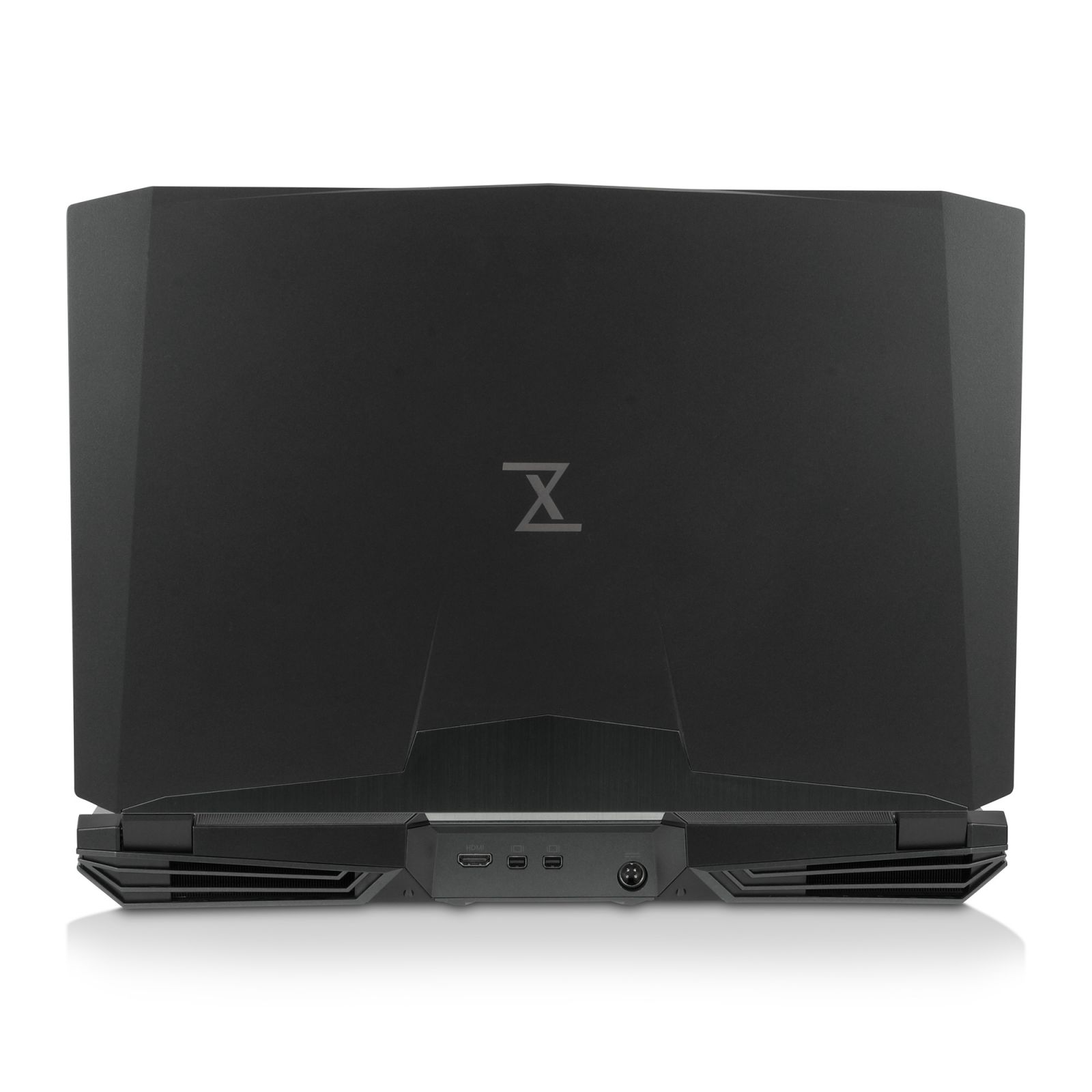

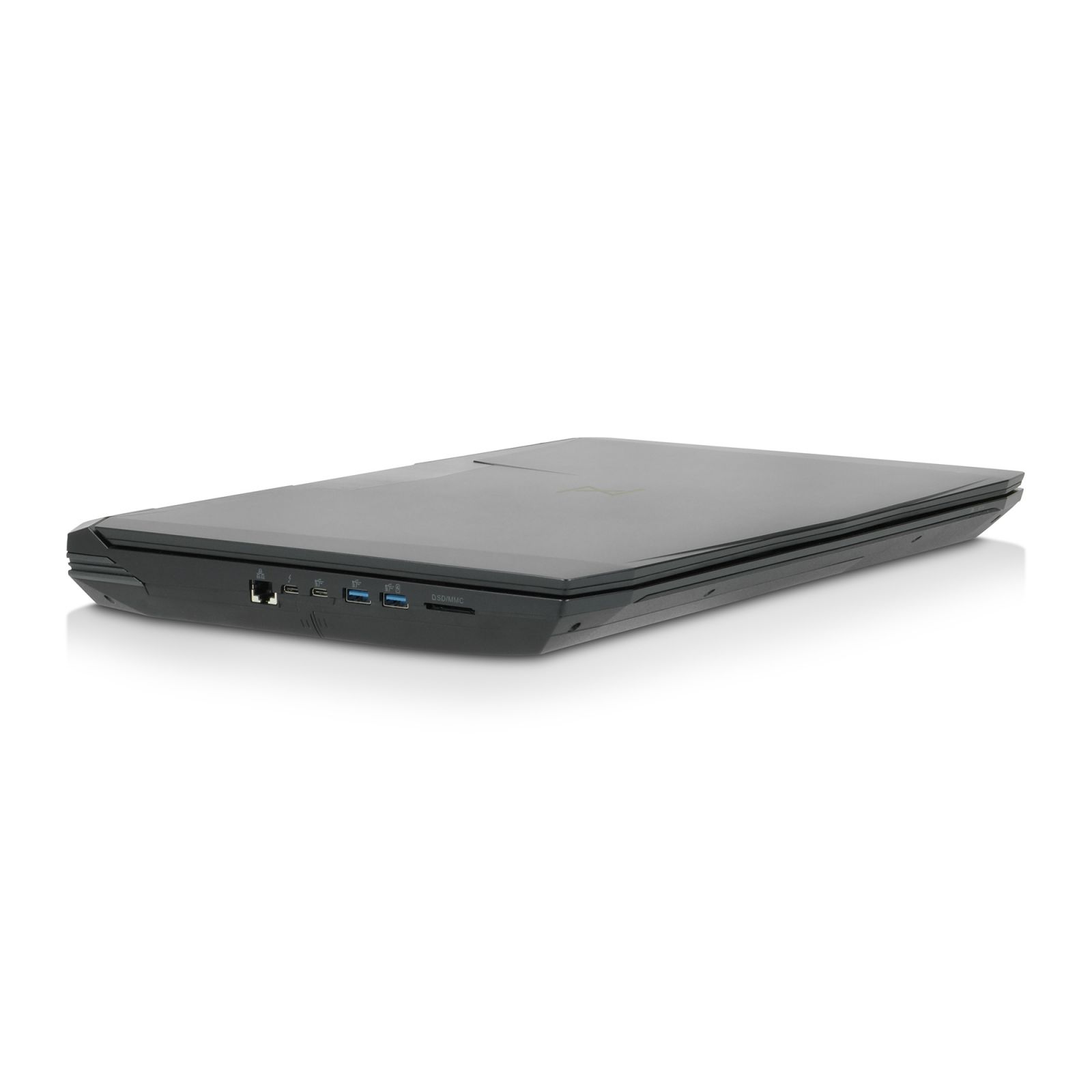

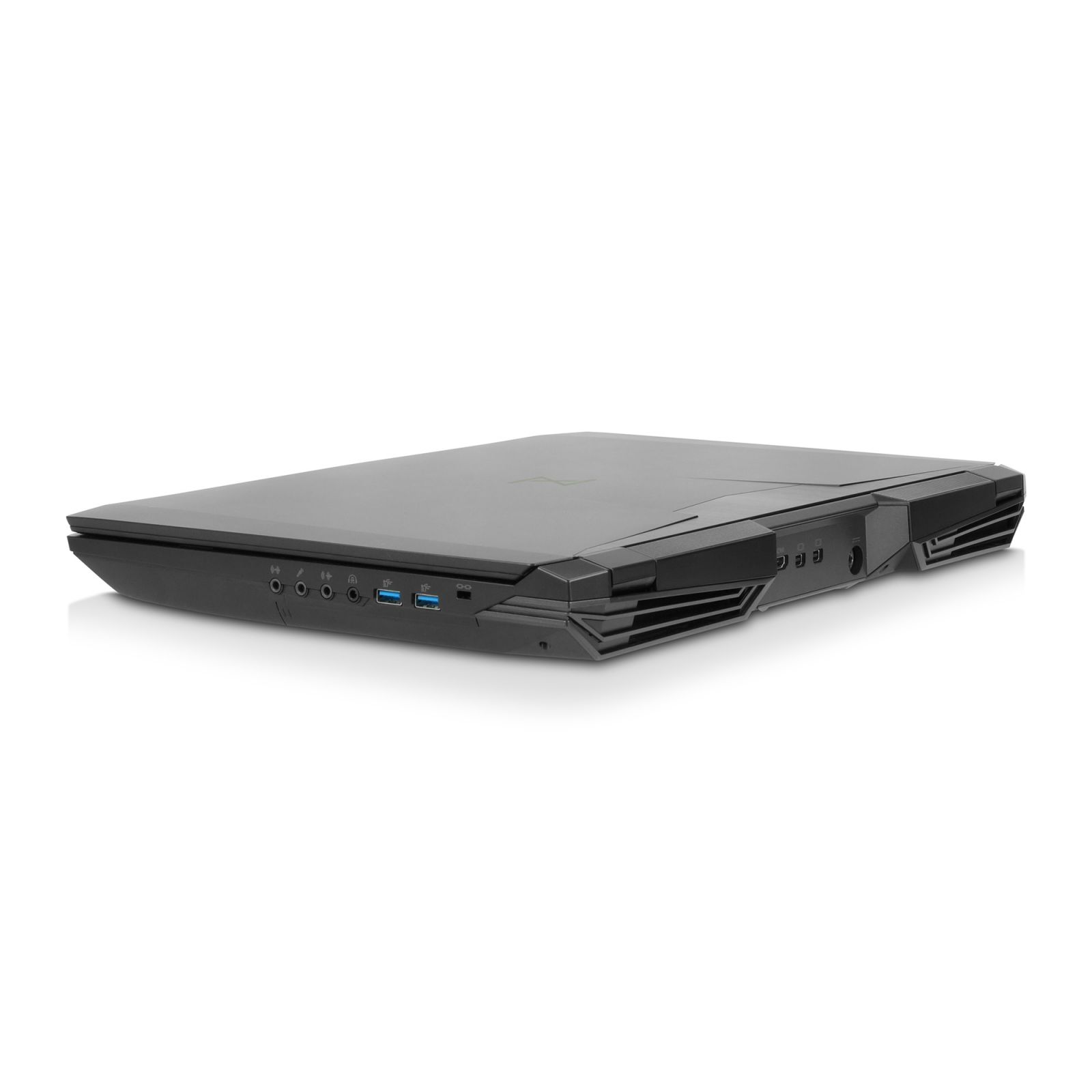

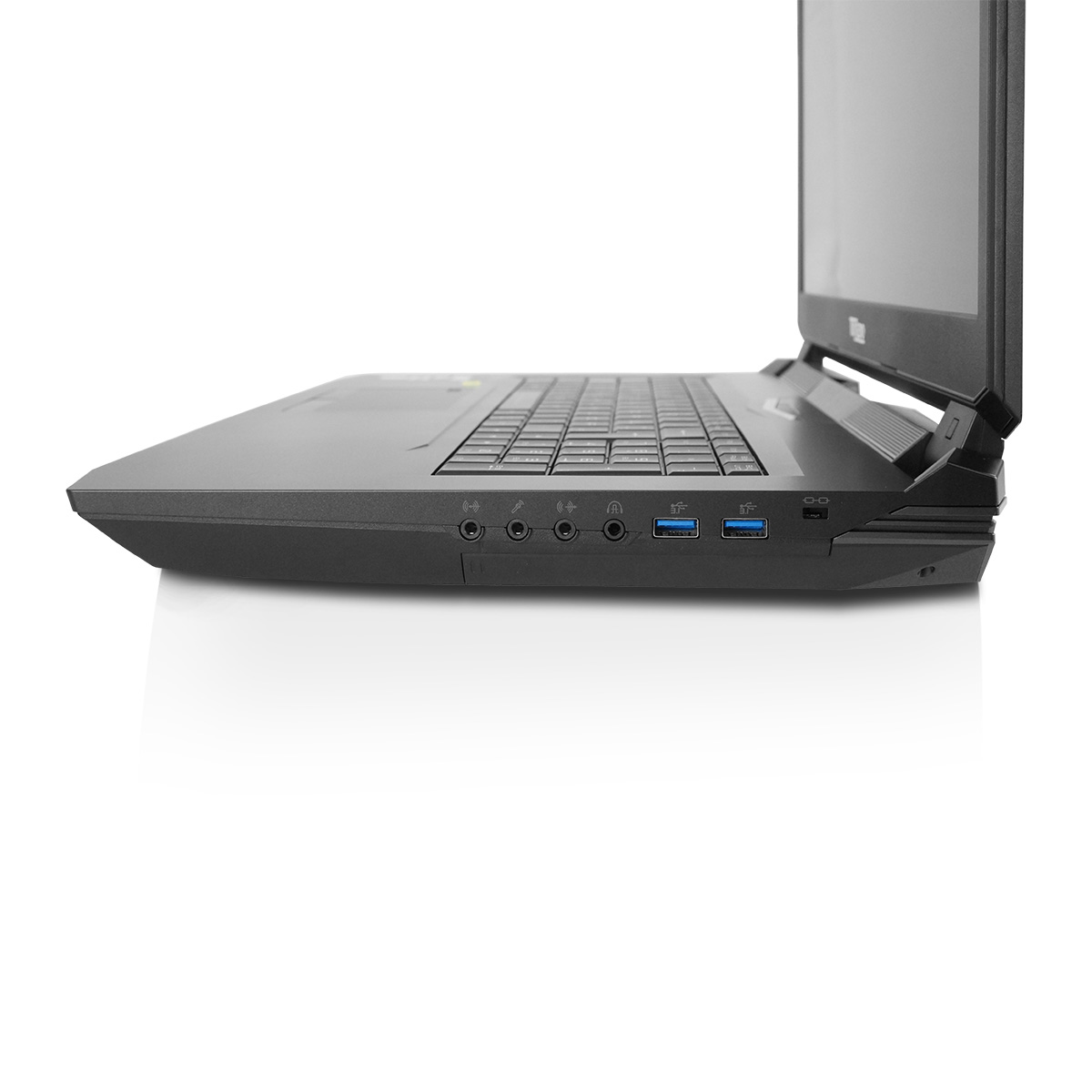

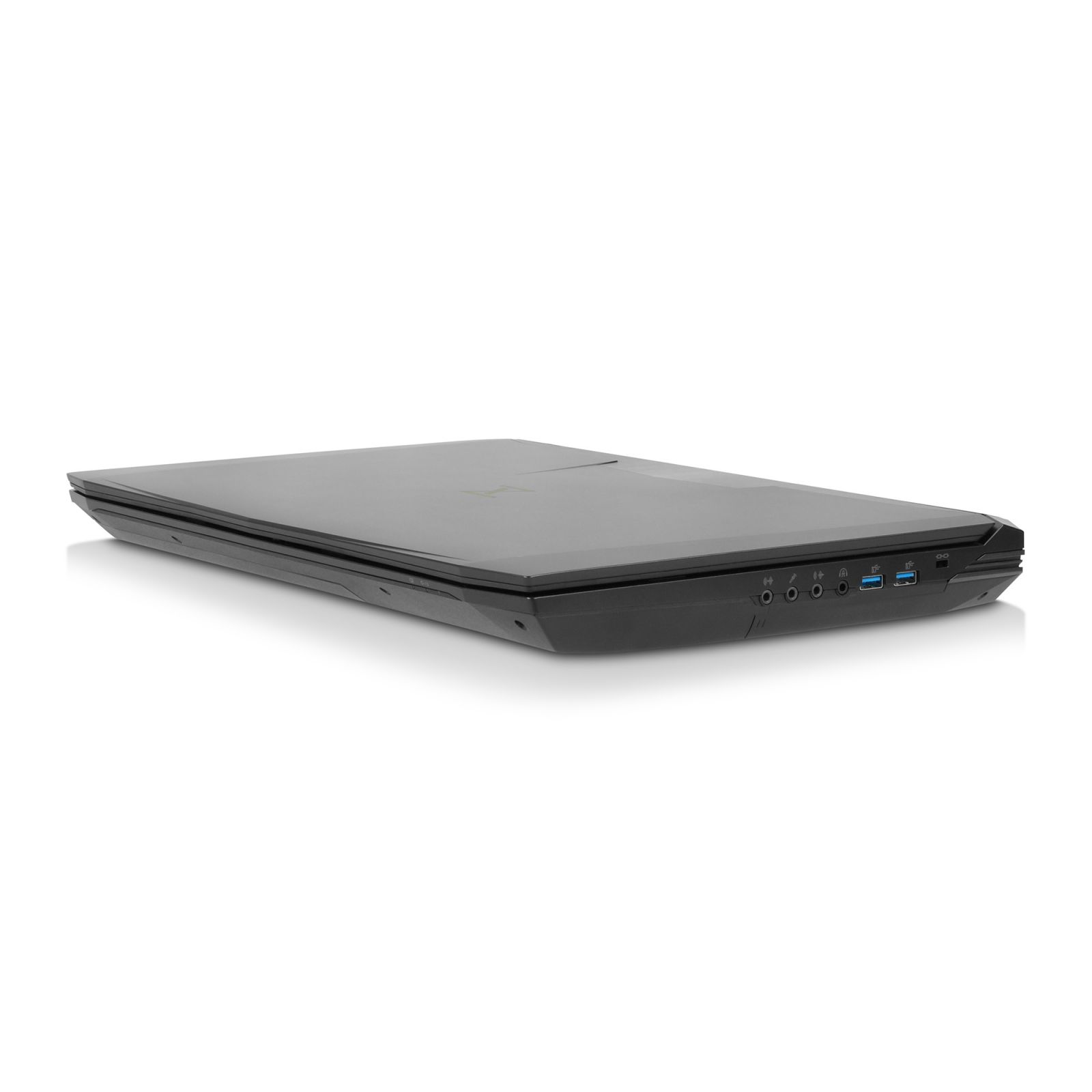

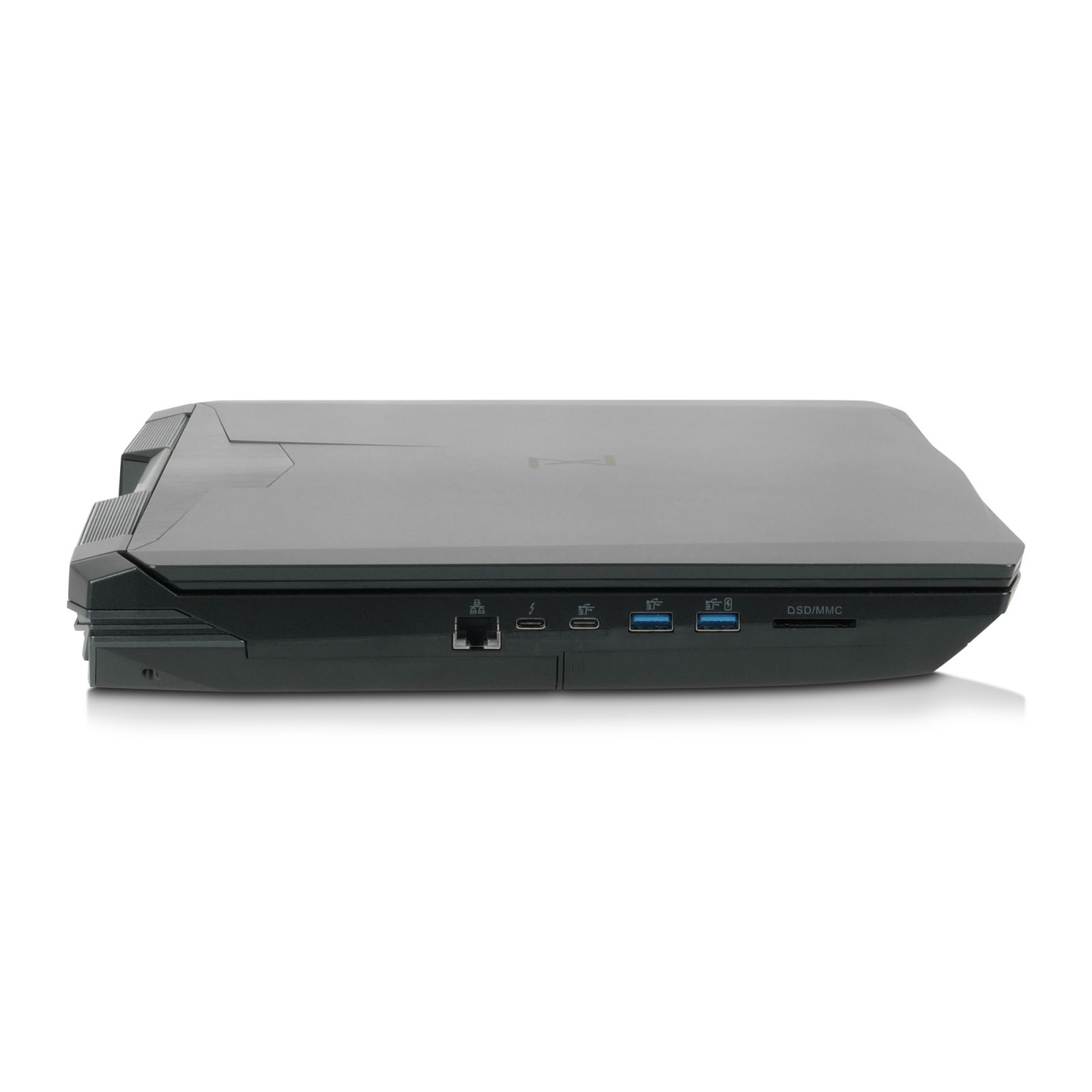

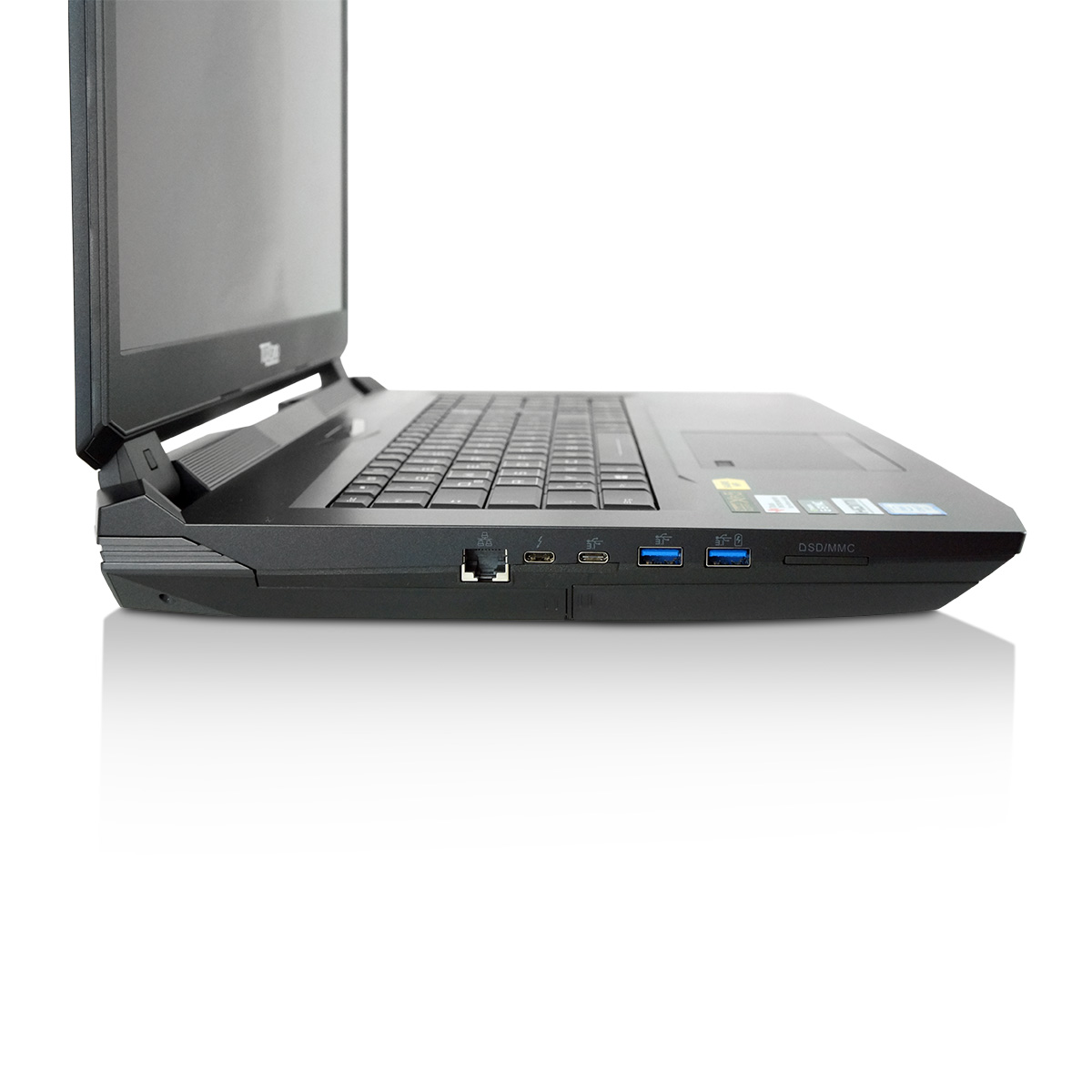

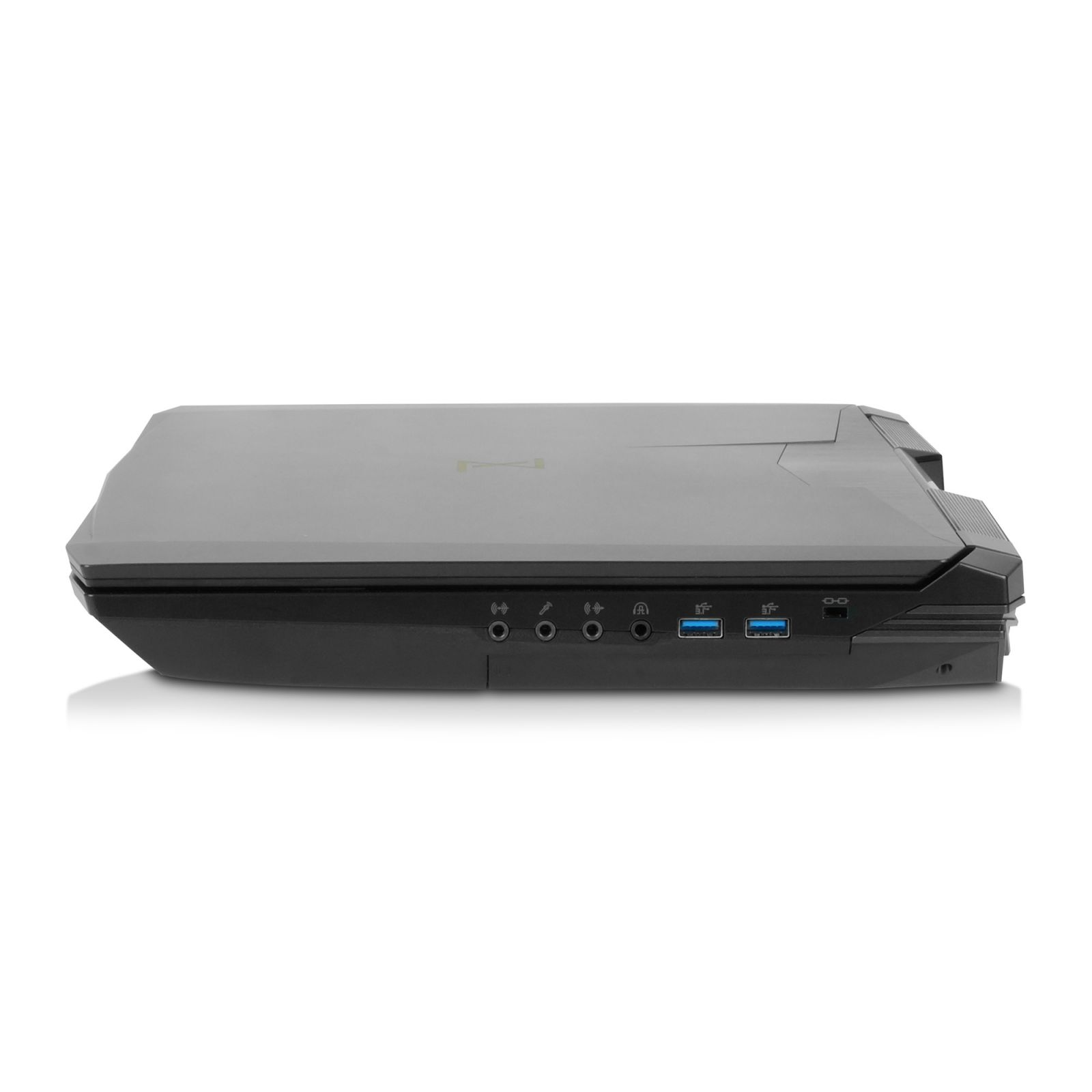

Ports
1x HDMI 2.0 (mit HDCP) (3840*2160@60Hz oder 2560*1600@120Hz)
2x Mini-DisplayPort 1.4 (2x 3840*2160@60Hz oder 2560*1600@120Hz)
3x USB 3.0 (Typ-A; 1x powered USB AC/DC)
1x USB 3.1 Gen2 (Bis 10Gbit/s) (Typ-C)
1x USB 3.1 & Thunderbolt 3 Combo-Port (Typ-C)
1x USB 2.0 (Typ-A)
1x RJ45; Gigabit-LAN (10/100/1000 MB)
1x 9-in-1 Card-Reader
1x Mikrofoneingang
1x 2-in-1 Audio Ausgang (Kopfhörer und optisch S/PDIF)
1x Line-out
1x Line-in
1x Kensington Lock
Card reader
9-in-1 Card Reader
- MMC / RSMMC
- SD / SDHC / SDXC / Micro SD (Adapter necesssary)
- MS / MS Pro / MS Duo
Cooling System & Fan
Temperature controlled fan
At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.
Custom performance and fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!
Operating systems
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
Accessories
As accessories you can select an additional external display for enjoying dual display operating together with the laptop.
Furthermore we deliver a wired or wireless keyboard including a mouse or an additional wired mouse. These input devices are produced by Logitech and are only available with German layout!
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!
For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
