Display / Monitor
Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.

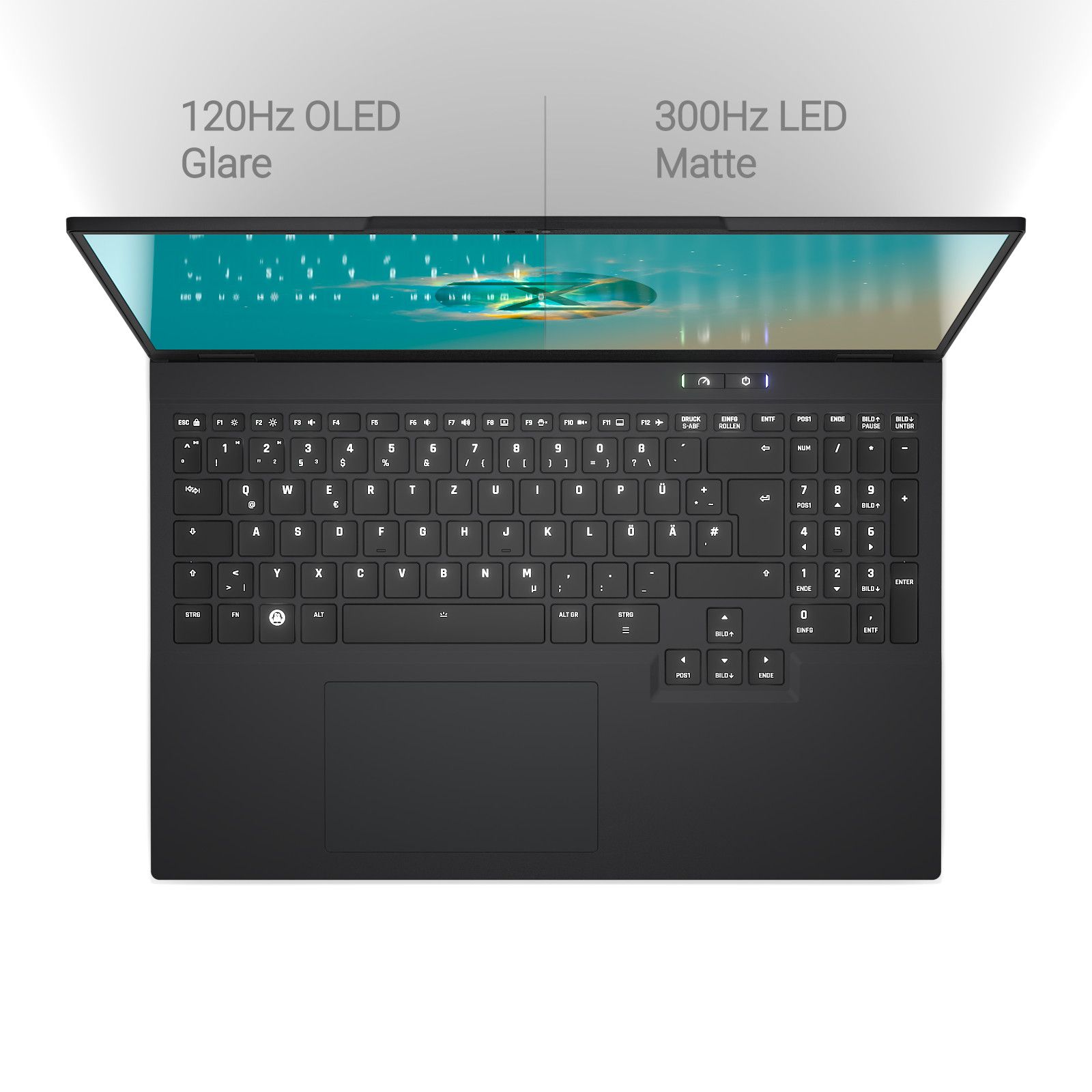

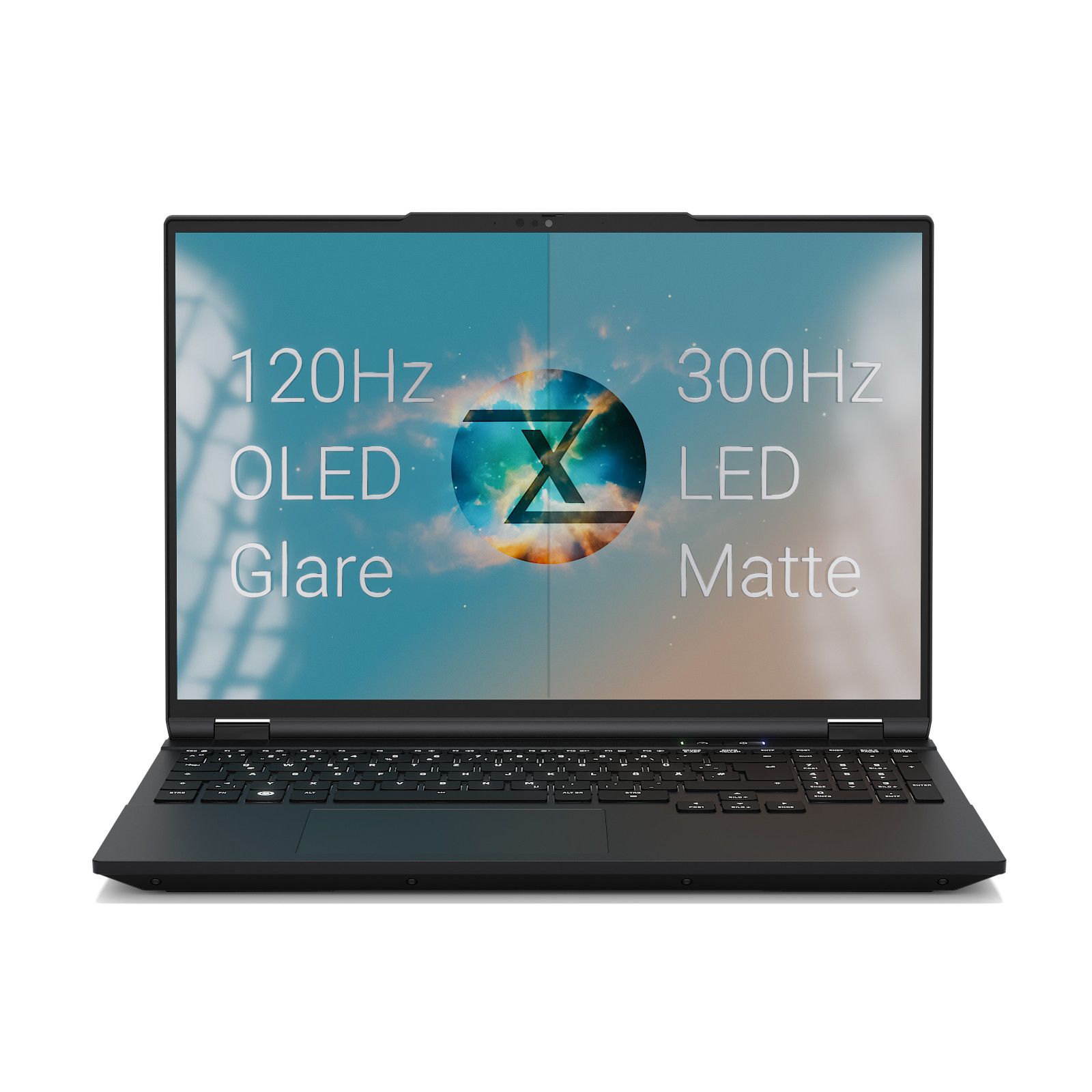

16'' WQXGA LED | 16:10 | 300Hz
Type: LED backlight display, matte / non-glare
Viewing angles: 89°/89°/89°/89°
Refresh rates: 60 / 240 / 300Hz
Resolution: 2560 x 1600 Pixels
Color gamut: 100% DCI-P3
Brightness: 500nits
Contrast: 1200:1
Additional features: MUX switch
Display models: CSOT MNG007DA6-4, Tianma TL160ADMP36
16'' WQXGA OLED | 16:10 | 120Hz
Type: Self-illuminated OLED display, glossy / glare
Viewing angles: 89°/89°/89°/89°
Refresh rates: 60 / 120Hz
Resolution: 2880 x 1800 Pixels
Color gamut: 100% DCI-P3
Brightness: 400 nits
Contrast: Infinite (black pixels are switched off / unlit)
Additional features: MUX switch
Display model: Samsung ATNA60CL10
For technical production reasons, the measured values always vary slightly from panel to panel. More information
Opening angle: ~ 180°
Internal display connection (changeable via UEFI):
iGPU: iGPU Only or MsHybrid (NVIDIA Optimus)
dGPU: dGPU Only (via MUX switch)
Chassis
Display lid, base unit and bottom case made of aluminum
Display frame made of plastics
Dimensions: width: 357mm; height: 23mm; depth: 254mm
Weight (incl. battery):
With OLED display: 2.1kg
With LED display: 2.2kg

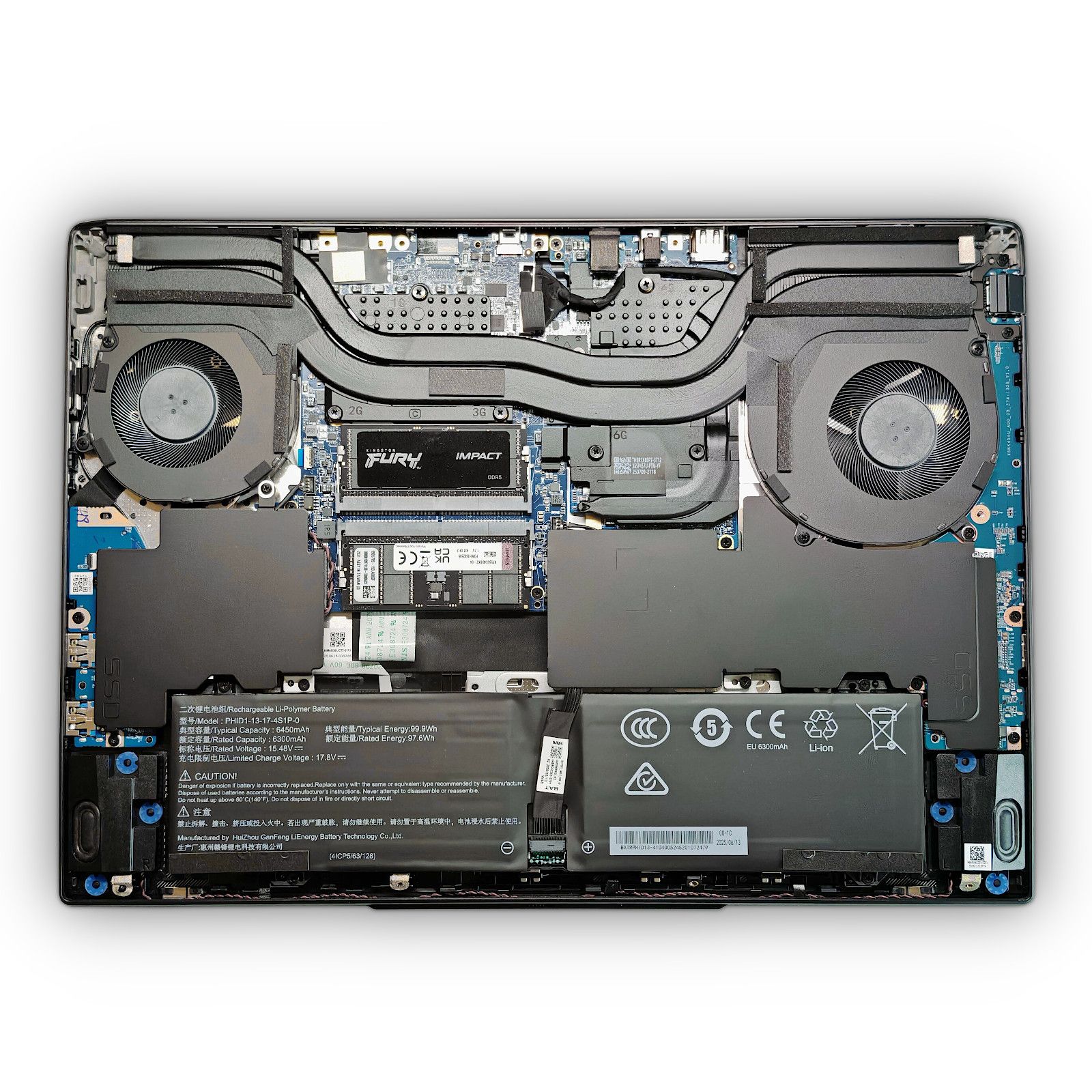

Maintenance: The bottom case is allowed to be removed by unscrewing a number of PH 0 screws for cleaning the fans, upgrading RAM, SSD, Wi-Fi or for exchanging the battery.
Please follow our maintenance instructions

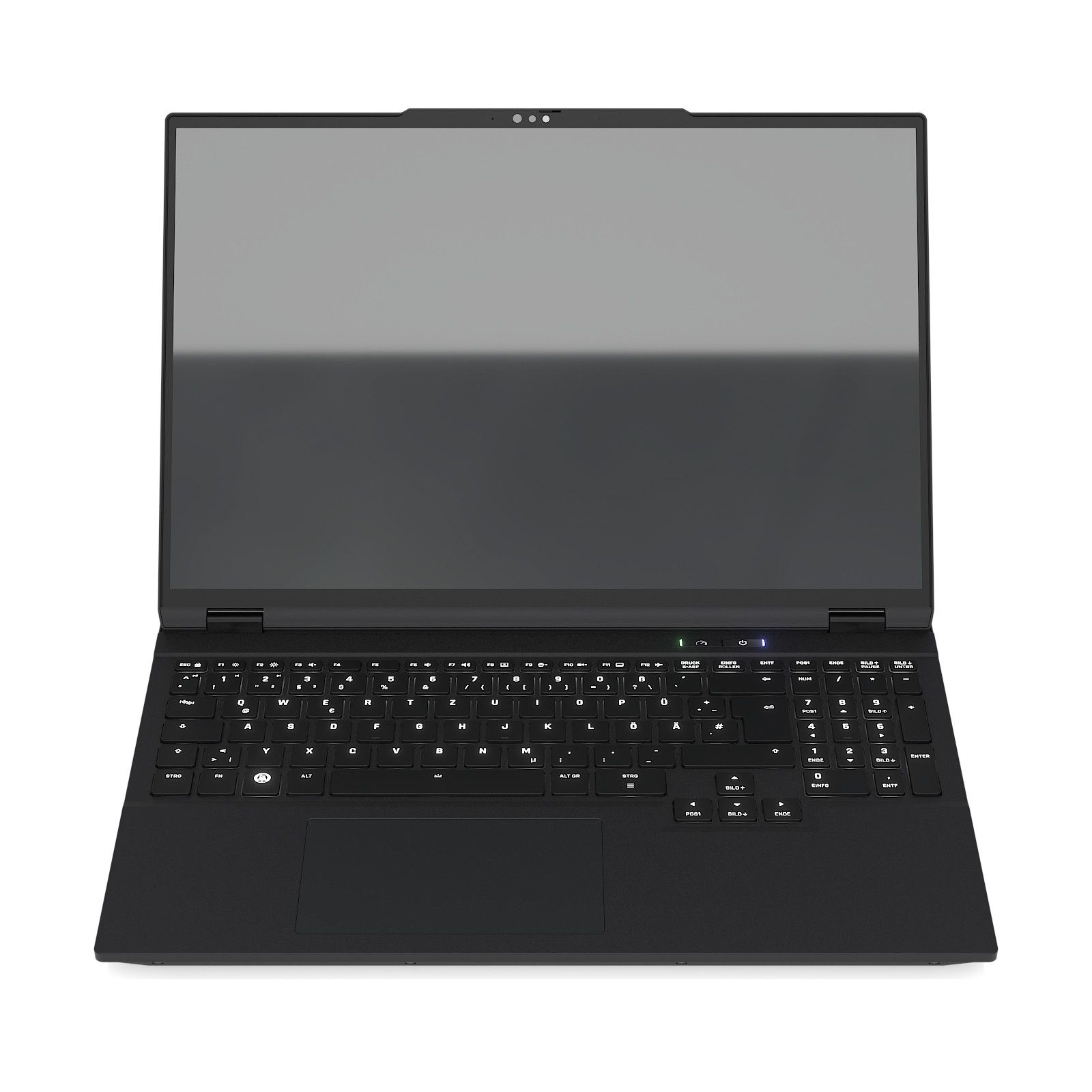

Keyboard and Touchpad
Quiet rubberdome / membrane keyboard with 4-row number pad and full-size arrow keys.
Color-adjustable keyboard backlight (Linux: single color | Windows: per-key RGB).
TUX super-key on all layouts!
Glass Precision Clickpad (123 x 78 mm) with integrated buttons and multi-gesture- & scroll-function
Battery & power supply
Maximally allowed 99 Wh battery, Lithium polymer
Changeable (screwed inside)
Power supply units (cable socket C6):
240W (125 x 70 x 25mm | 0.6kg incl. power cable)
Power plug:
Type: Coaxial
Inner diameter: 2.5mm
Outer diameter: 5.5mm
Length: 12.5mm
Power can also be supplied via USB-C (
USB Power Delivery | max. 140W).
Requirement: min. 100W (20V / 5A), recommended: 140W (20V / 7A)
For more information, please have a look at our article
Charging via USB-C power supply (Power Delivery DC-In).
Battery life:
Up to 8 hours (web browsing via Wi-Fi with reduced display brightness | NVIDIA graphics deactivated)

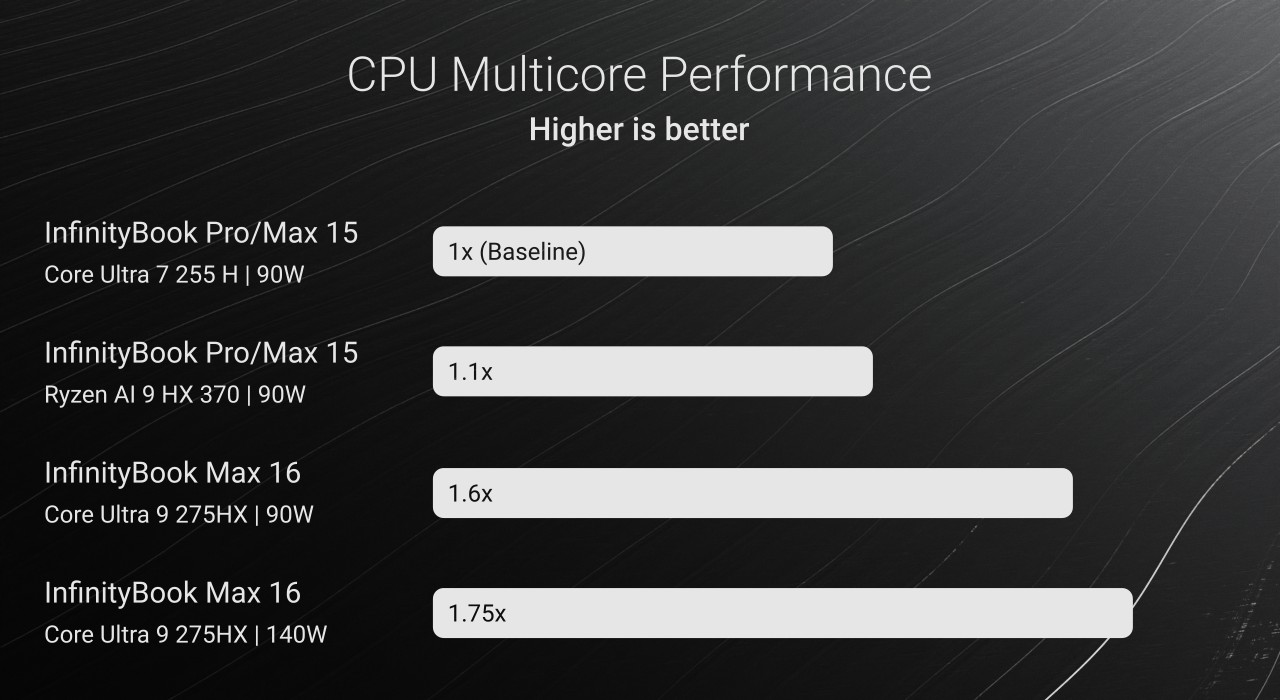

Main processor
Intel Core Ultra 9 275HX
(24 Cores (8 Performance cores | 16 Efficient cores | 24 Threads | Max. 5,4GHz | 36MB Intel Smart Cache, 10 - 140W*)
*Power limits can be set within the range specified above using the TUXEDO Control Center
Thermal compound: Honeywell PTM7958
Graphics card
NVIDIA GeForce RTX 5060 | 8 GB GDDR7 VRAM | 50 - 100W TGP (+15 W Dynamic Boost)*
NVIDIA GeForce RTX 5070 | 8 GB GDDR7 VRAM | 50 - 100W TGP (+15 W Dynamic Boost)*
*Power limits can be set within the range specified above using the TUXEDO Control Center
Thermal compound: Honeywell PTM7958
Energy efficient CPU integrated Graphics:
Intel Graphics | 4 Xe Grafikkerne | max. 1.9 GHz graphics frequency
5 displays can be driven simultaneously:
- 1x internal notebook display (iGPU or dGPU)
- 1x HDMI 2.1 (dGPU)
- 1x Mini DisplayPort 2.1 (dGPU)
- 1x Thunderbolt 4 (DisplayPort 2.1 | iGPU)
- 1x USB-C (DisplayPort 1.4 | iGPU)
Max. Resolution (HDMI 2.1): 3840 x 2160 @ 120 Hz
Max. Resolution (DisplayPort 2.1): 7680 x 4320 @ 60 Hz | 3840 x 2160 @ 240 Hz
Max. Resolution (DisplayPort 1.4): 7680 x 4320 @ 30 Hz | 3840 x 2160 @ 120 Hz
Memory
2x DDR5 SO-DIMM (up to 6400 MT/s)
Manufacturer and speed see configurator
Default and maximum see configurator
Mass storage (SSD / HDD)
Two slots for super fast SSDs in space-saving M.2 form factor
1x M.2 2280 SSD via PCI Express 5.0 x4
1x M.2 2280 SSD via PCI Express 4.0 x4
Communication / Network
Wired/LAN:
2.5 Gigabit LAN (10/100/1000 Mbit/s)
Wireless/WIFI:
Intel Wi-Fi 6E AX211:
Interface: M.2 2230 / CNVio2
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
Bands: 2.4GHz, 5GHz, 6GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2.4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi 6E AX211
Version: Dual Mode Bluetooth 5.3
Wireless/WIFI:
Intel Wi-Fi 7 BE200:
Interface: M.2 2230 / USB
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax/be
Bands: 2.4GHz, 5GHz, 6GHz
Communication channels: 2x2
Transfer rate: max. 5.8 Gpbs (320MHz,4096QAM)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi 7 BE200
Version: Bluetooth 5.4
Webcam / Laptop camera
FullHD (1080p) Webcam / camera including microphone
Camera lens shutter
Compatible with »Windows Hello«
Sound / Audio
High Definition Audio
2 speakers: 2x 2W
Integrated microphone
Ports

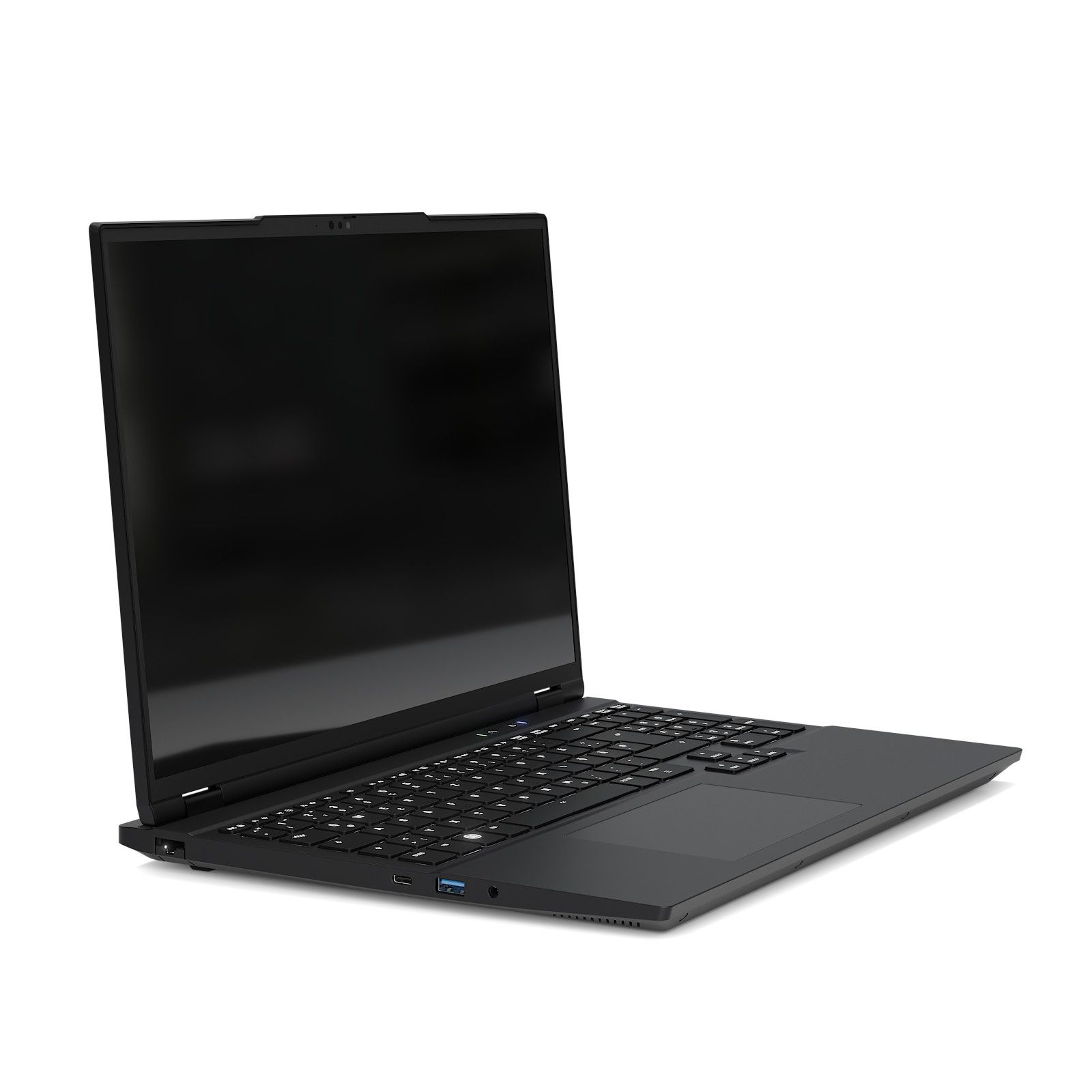

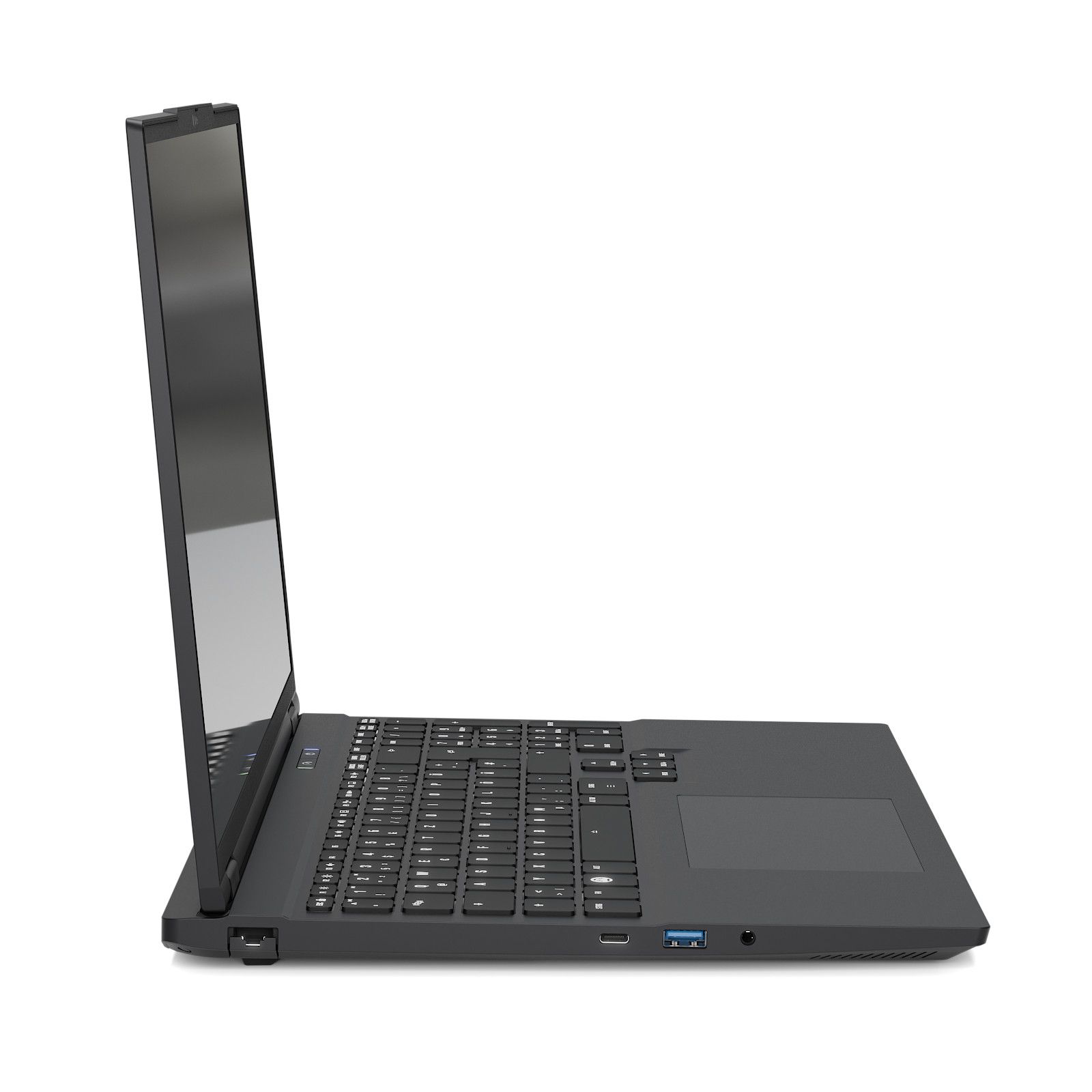

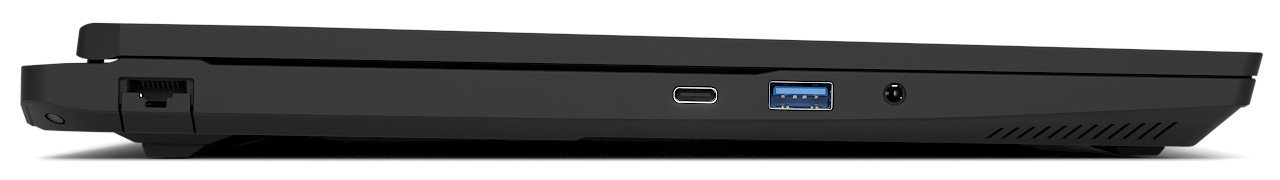

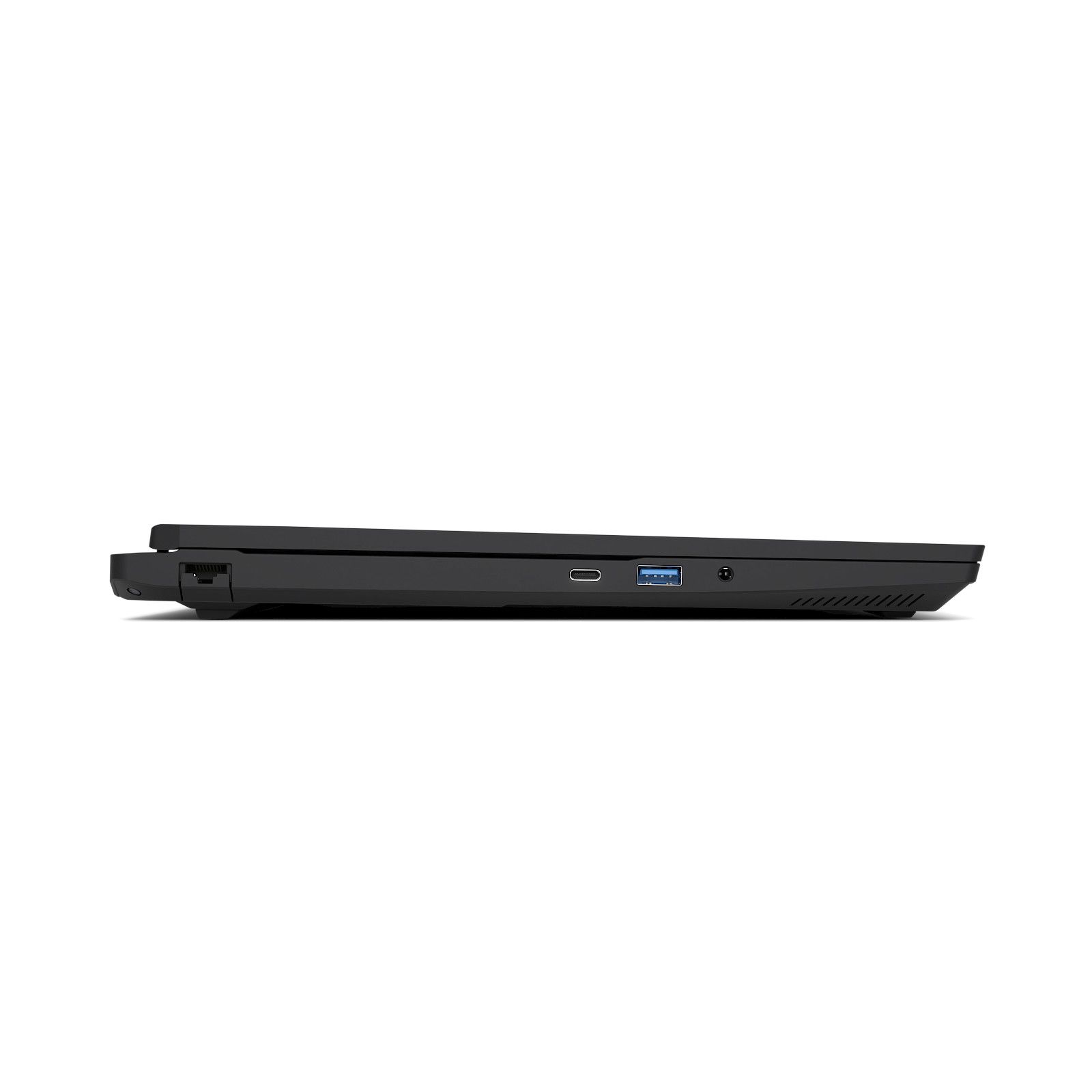

Left side (from left to right):
- RJ45 LAN (2.5GBit/s)
- USB-C 3.2 Gen2 (Hardwired to: iGPU | 10GBit/s | DisplayPort 1.4a (up to 32.4GBit/s) | 100W PowerDelivery DC-In*)
- USB-A 3.2 Gen1 (5 GBit/s)
- 2-in-1-Audio (Microphone & headphone)

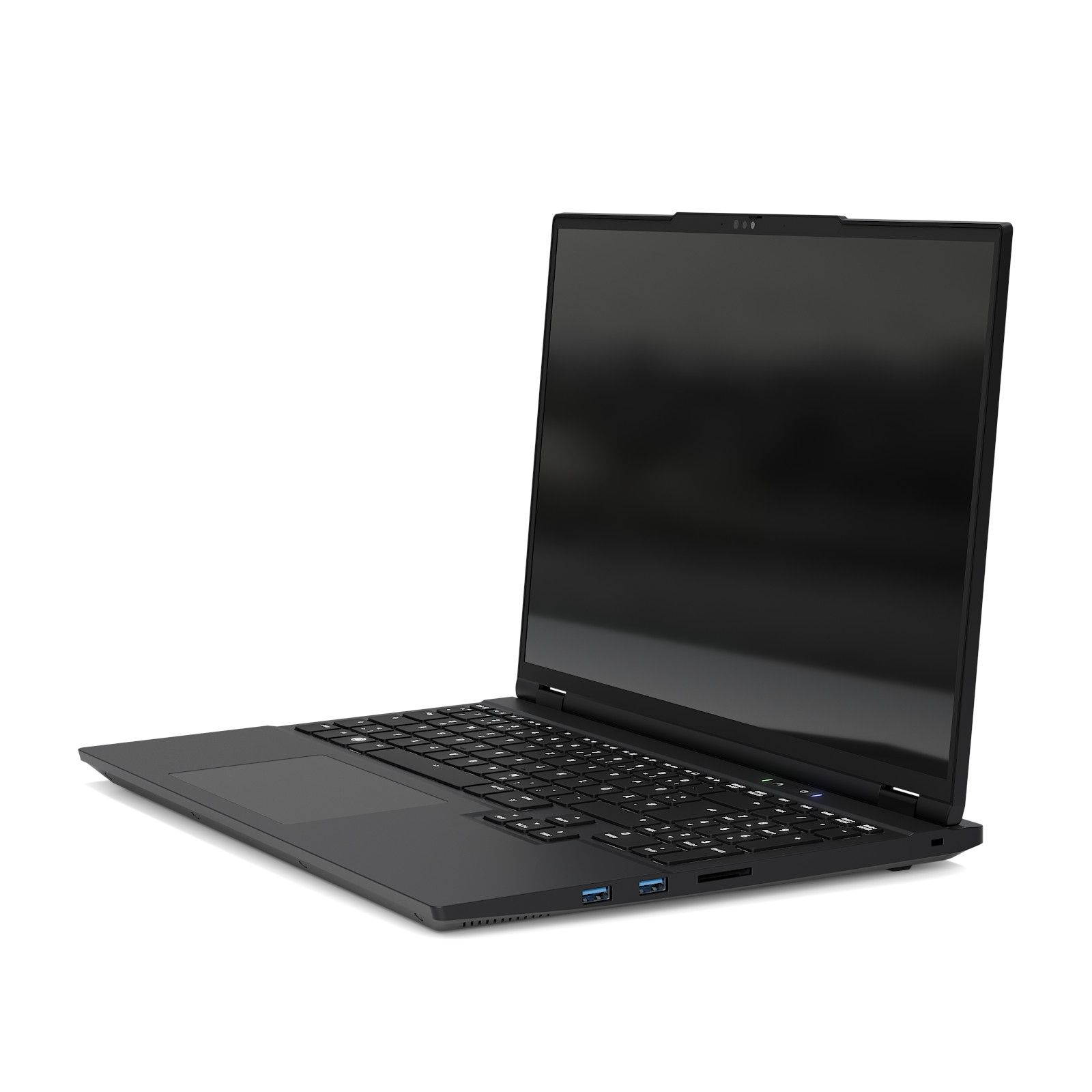

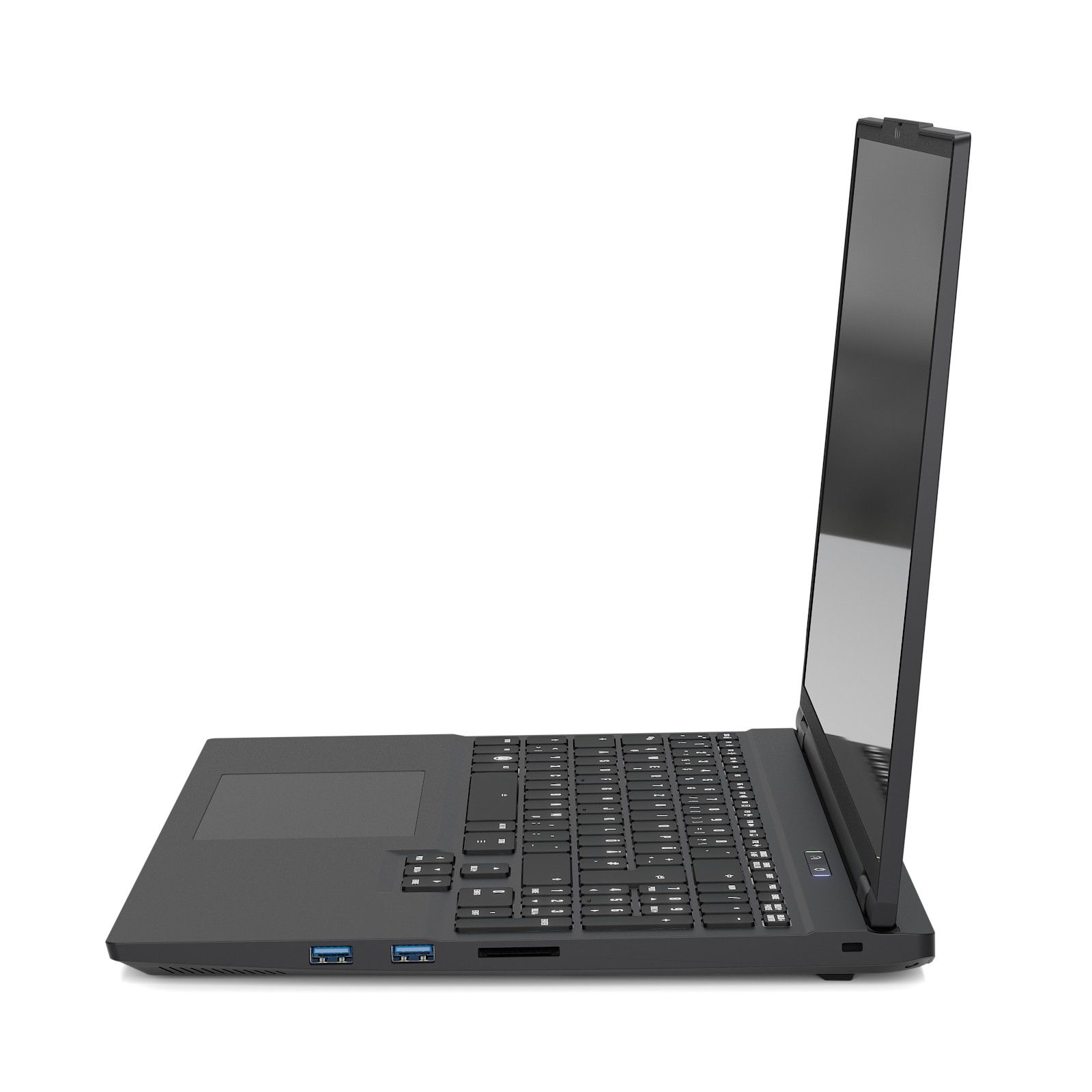

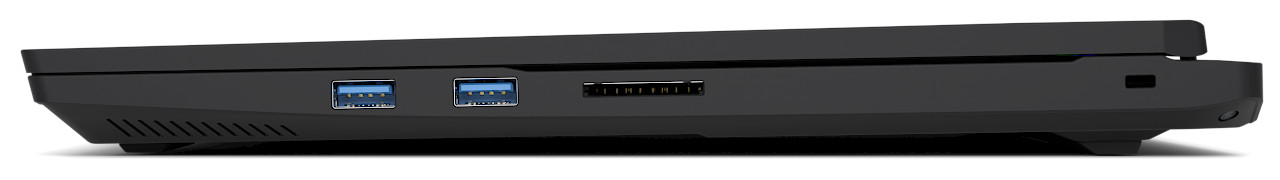

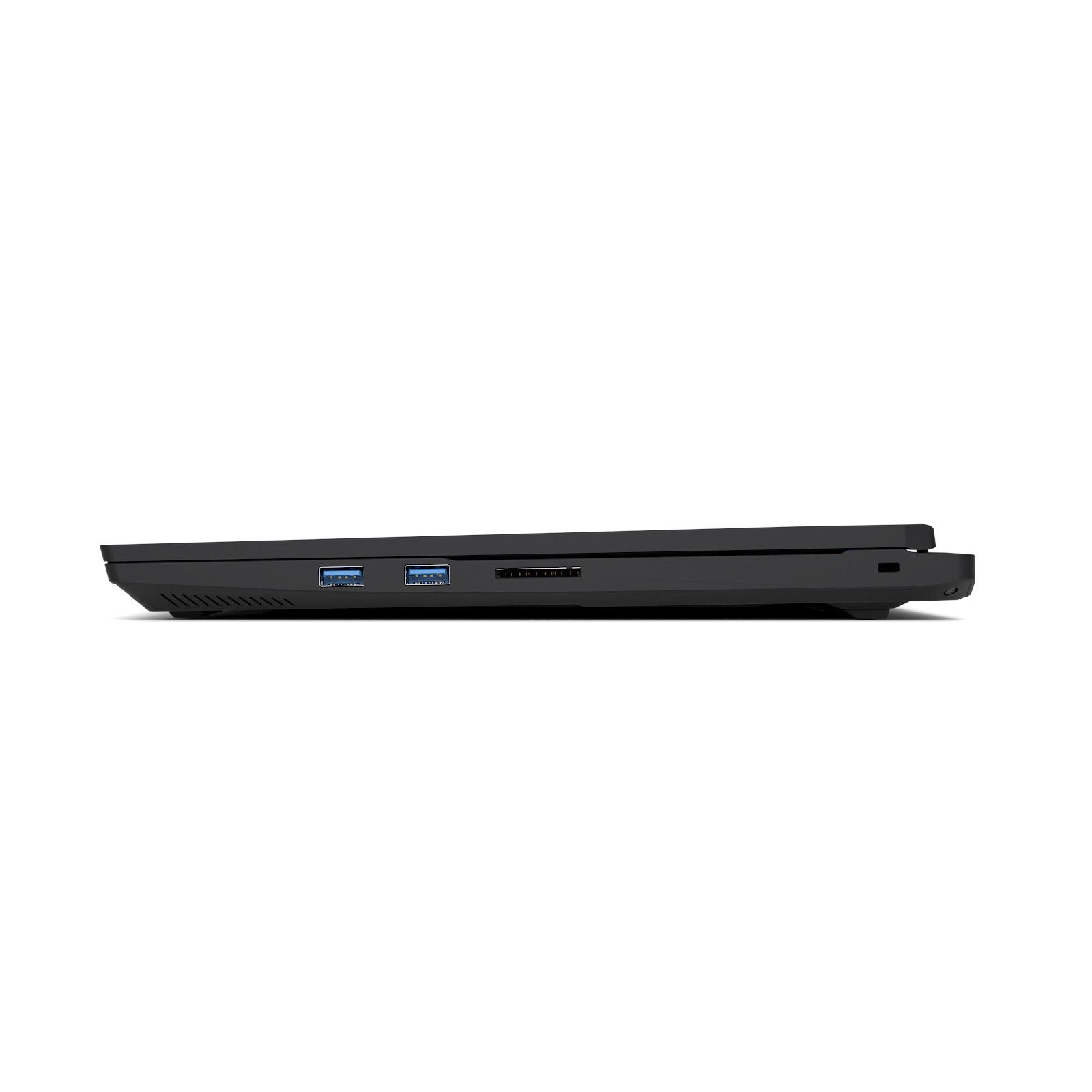

Right side (from left to right):
- 2x USB-A 3.2 Gen1 (5GBit/s)
- SD card reader (SD/SDHC/SDXC | SD Express | UHS-II)
- Kensington Lock (NanoSaver)

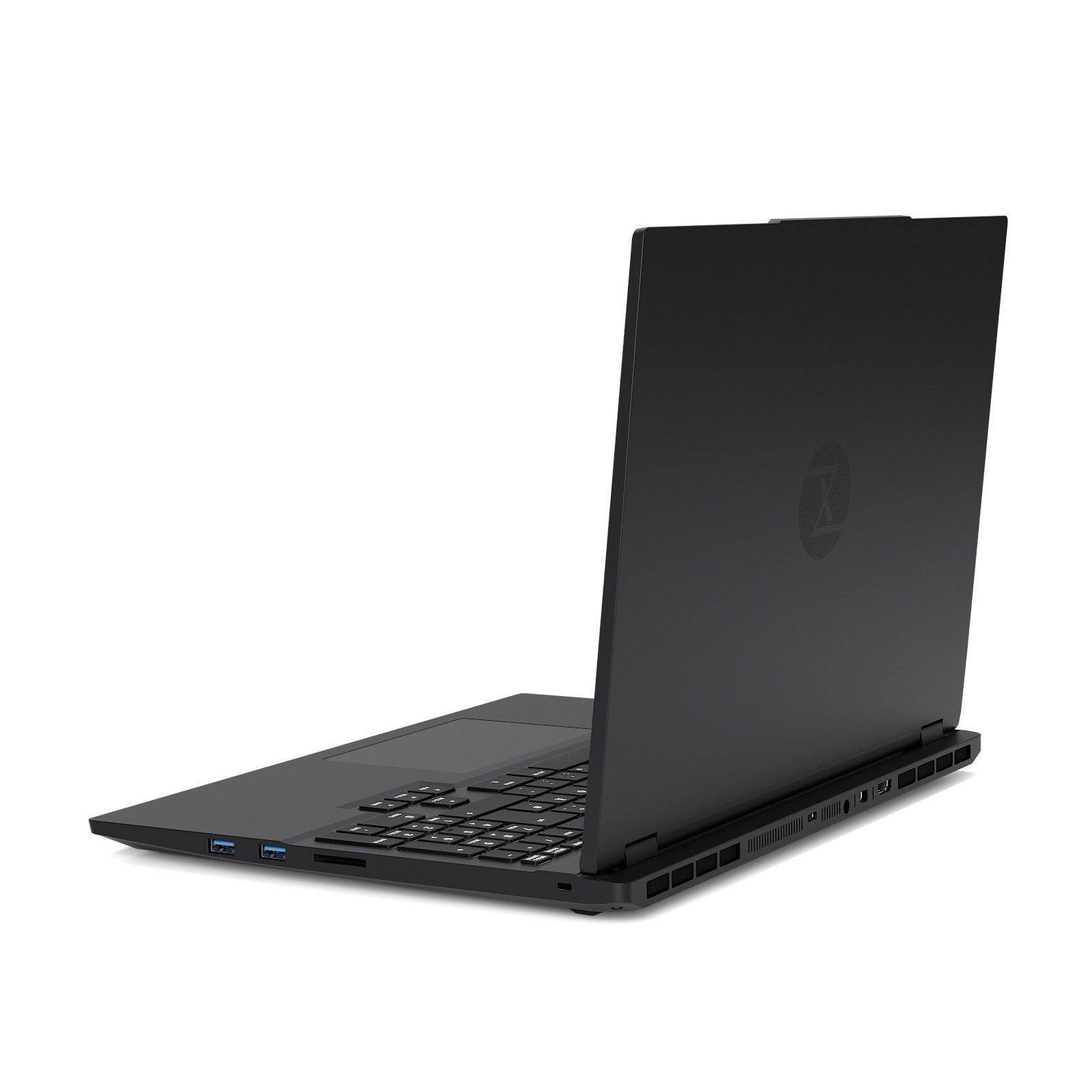

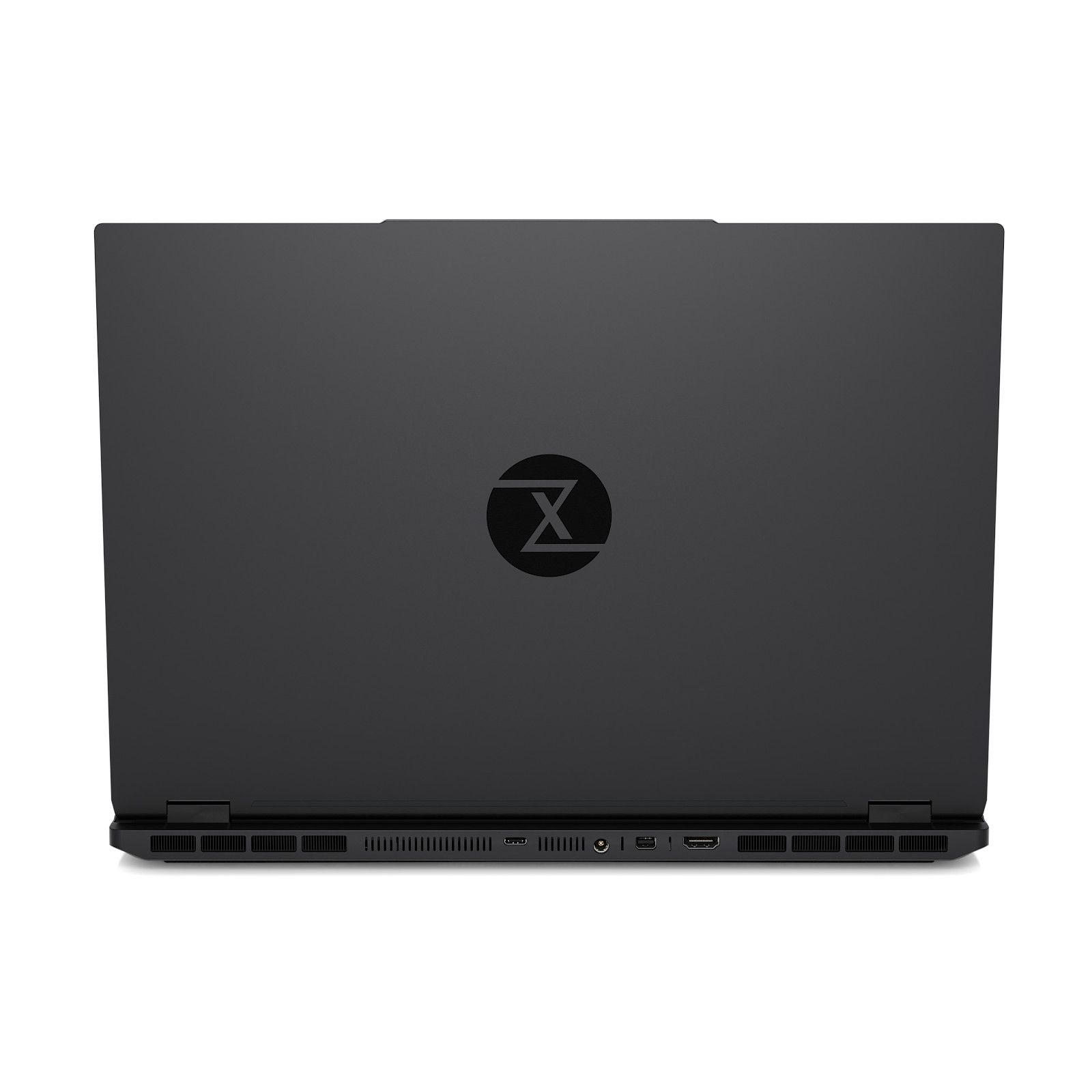

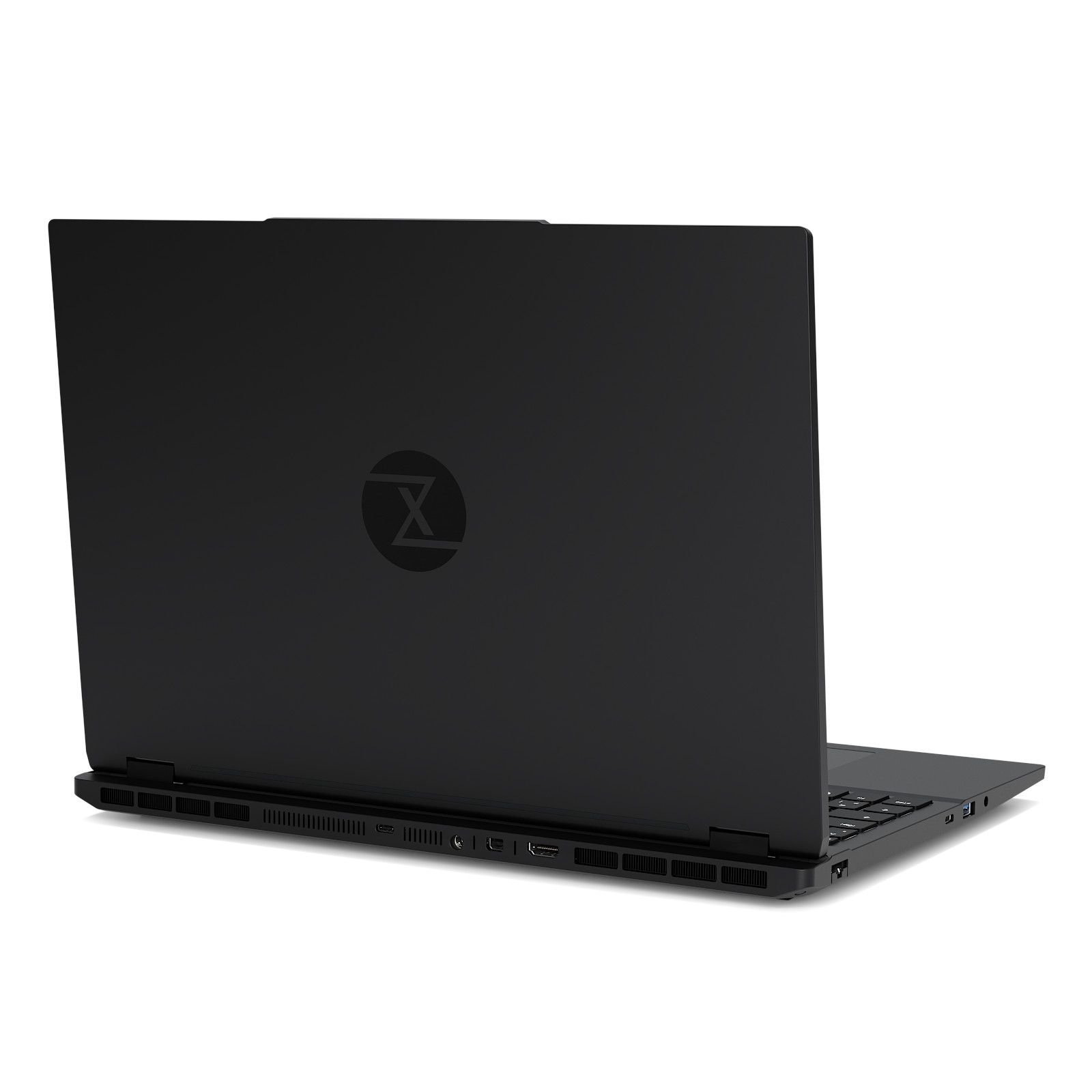

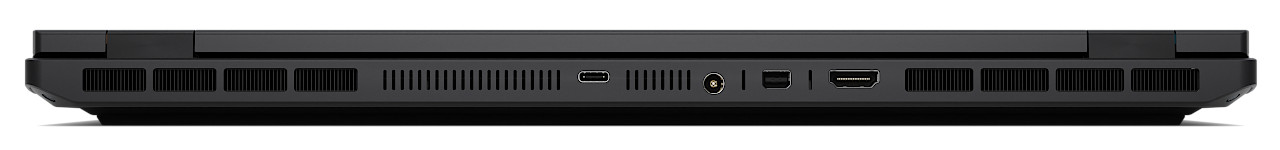

Back side (from left to right):
- Thunderbolt 4 (Hardwired to: iGPU | 40GBit/s | DisplayPort 2.1 (up to 80GBit/s) | PowerDelivery DC-In**)
- Power plug (DC-In | 5,5 x 12,5 mm)
- Mini DisplayPort 2.1 (Hardwired to: dGPU | up to 80GBit/s (DP80))
- HDMI 2.1 (Hardwired to: dGPU | up to 48GBit/s | HDCP 2.3 | VRR / G-SYNC)
*Requirement: 20V / 5A (100W)
**Requirement: min. 20V / 5A (100W) | recommended: 20V / 7A (140W)
Card reader
Full size SD card reader (SD/SDHC/SDXC)
Speed: UHS-II
Model: Genesys Logic GL9767
Security
- Kensington-Lock mounting
- Webcam & audio can be deactivated directly via the BIOS
- Wifi & Bluetooth can be deactivated directly via the BIOS
- TPM 2.0

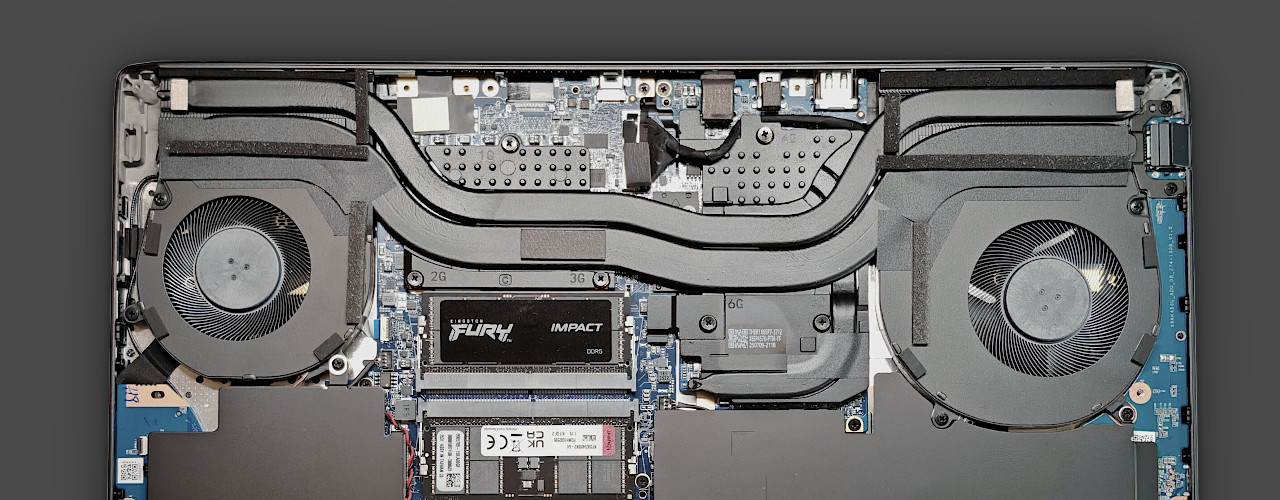

Cooling System & Fan
Number of fans: 2
Size of the fans: 80mm x 8mm
Cooling capacity:
CPU: Up to 140W (sustained)
dGPU: Up to 115W (sustained)
CPU + dGPU: Up to 170W (sustained)
Temperature controlled fan
At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.
Custom performance and fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!
Operating systems
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
UEFI firmware
With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).
For this purpose, the following functions can be completely deactivated:
- Webcam
- Audio (Microphone & Sound)
- WLAN & Bluetooth
In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.
Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard (no CSM).
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!
For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
