    Level up!
    Premium business ultrabook goes workstation.

    TUXEDO InfinityBook Pro 14 - Gen7

    Max size 99 Wh battery
    for up to 16 hours

    Intel Core i7-12700H
    14 Cores | 20 Threads

    3K Omnia display
    16:10 | 2880 x 1800 Pixel

    Magnesium chassis
    1.7 cm thin | 1.3 kg light



    Ultra mobile business workstation
    with 16:10 3K display and 99 Wh battery!

    The list of superlatives is long: While our InfinityBook Pro 14 - Gen6 already boasted an extremely light and compact magnesium chassis and a 2880 x 1800 pixel high-resolution display in the highly requested 16:10 aspect ratio, the new Generation 7 takes the ultra mobile Linux business notebook even to a whole new level!

    With Intel's new high-performance CPUs in the form of the Core i7-12700H with 14 CPU cores, truly high-end performance now finds its way into the Linux ultrabook and turns it into a fully-fletched and maximally mobile CPU workstation.

    Speaking of "mobile": In order to provide you with the best possible flexibility and runtimes of up to 16 hours away from the power outlet, the InfinityBook Pro 14 - Gen7 pushes its battery capacity to the absolute limits by featuring a whopping 99 Wh battery which is simply astonishing in this form factor!

    Last but not least the ultra mobile high-end Linux ultrabook is now available in two chassis colors: Deep Grey or Ice Grey. Which one will you choose?



    99 Wh battery vs 4 TB RAID SSD:
    Choose your edition.

    Maximum endurance or maximum storage? It is up to you!

    If you are good to go with solid (instead of outstanding) battery runtimes of around 6 to 8 hours - depending on the usage - and if you prefer the highest possible storage capacity of up to 4 terabytes with optional RAID for maximum read-write speeds or increased data loss protection instead, we recommend the slightly cheaper InfinityBook Pro 14 - Storage Edition.



    Tiny
    battery monster

    17 mm thin, 1.3 kg light, a footprint of only 31 x 21.5 cm, 99 Wh battery - these are the InfinityBook Pro 14's impressive key figures in terms of its phenomenal mobility factor.

    "On the right rear side" - we thought we should rather mention where the power port is right at the beginning before you might forget its position as rarely as you will need it.

    The reason is the new and stunning 99 Wh lithium polymer battery, that is nearly unique in a notebook of this size and which - despite its high-end hardware - provides battery life for around 10 hours while surfing the web on WiFi and even up to 16 hours in fully power-saving idle mode.

    Considering such spectacular runtimes it could easyly happen that you forget where the power connector is located. Well, at least you even have two options to provide your InfinityBook Pro 14 with power: In addition to the handy 90-Watt power supply, the high-performance Linux ultrabook can also be charged via a convenient USB-C power supply (Power Delivery DC-In).



    Ultra compact magnesium chassis

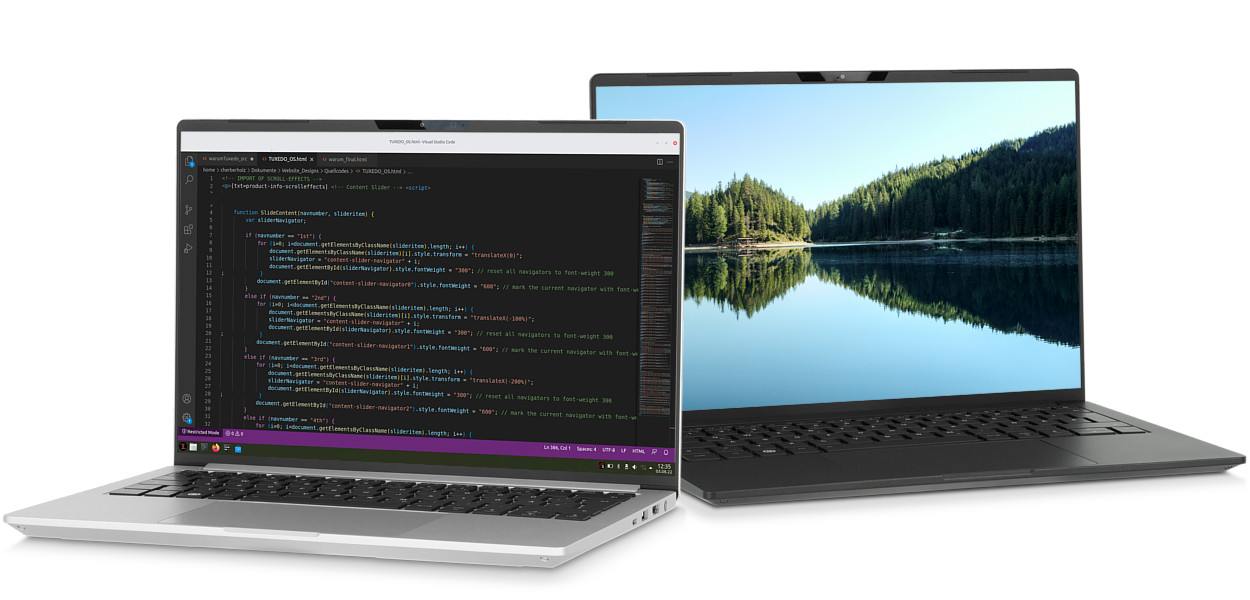

    in Deep Grey or Ice Grey

    The elegant and with a height of only 17 mm extremely thin and very light (1.3 kg) magnesium chassis the InfinityBook Pro 14 - Gen7 fits seamlessly into our high-quality InfinityBook business series and now gives you the choice of 2 chassis colors: Do you prefer classic understatement in anthracite grey (Deep Grey) or a more bright and stylish-looking silver (Ice Grey)?

    The AZ91D magnesium alloy provides the chassis with a good stability despite its extremely slim build, while the very thin display bezels all around create an incredibly compact footprint similar to former 13.3-inch notebooks not long ago.

    The huge glass clickpad with integrated mouse buttons is predestined for mobile usage without the need for plugging in an external mouse and can be deactivated via a double tap in the upper left corner to effectively avoid typos during writing on the white backlit keyboard.

    To be well prepared for the Intel Core i7-12700H's power consumption (TDP) of up to 45 watts, the InfinityBook Pro 14 is equipped with a dual-fan cooling system with 2 fans and 2 heatpipes and liquid metal thermal compound compared to usual single-fan cooling designs with only one fan and heatpipe of many lower-performing competitor models.



    14 CPU cores for groundbreaking performance

    With Intel's 12th generation of their Core processor line-up (codename: Alder Lake), the chip giant is back at the top of performance. Responsible for this performance increase is the innovative hybrid architecture, which is completely new in the PC segment. The total of 14 processing units are divided into particularly energy-saving efficiency cores (8) and performance-optimized performance cores (6).

    At low load, the CPU saves energy by using the efficiency cores, while the faster performance cores are additionally switched on when the system is under full load. Thanks to hyperthreading technology, they can handle up to 12 processes and even 20 processes simultaneously together with the E cores.

    This not only results in a very high multi-core performance for content creators and developers equally, but also makes the InfinityBook Pro 14 - Gen7 stand out as maximum mobile CPU workstation.

    Intel Alder Lake H Mobilprozessor Banner



    Bye bye, pixels!

    "Omnia" is the equivalent of totality, of the whole.

    In order to enjoy a whole new dimension of screen space and HiDPI pixel density, the TUXEDO InfinityBook Pro 14 - Gen7 features our Omnia 3K display in 16:10 aspect ratio, with which we also meet many customer and community requests for a Linux notebook with 16:10 display.

    The advantage is obvious: more vertical screen space compared to a conventional 16:9 aspect ratio for more effective use of space for work and productivity.

    With a razor-sharp resolution of 2880 x 1800, pixesls do not only become nearly invisibly small even from very close viewing distances, but the display brightness of around 400 nits as well as the virtually complete sRGB color gamut ensure a vivid and high-contrast image while the matte coating prevents reflections for outdoor use.



    Video game console in an ultra compact business form factor

    After writing the last e-mail of the day and finishing calculations and presentation slides it is time to end work and to let the games begin - without having to change the device!

    Configure your InfinityBook Pro 14 optionally with the NVIDIA GeForce RTX 3050 Ti and turn your lightweight business laptop into an ultra-portable gaming console!

    The upper mid-range GPU is based on NVIDIA's current Ampere generation and includes 4 GB GDDR6 graphics memory. Due to the Linux ultrabook's extremely thin and compact chassis, the RTX 3050 Ti is specified to run as very power-efficient Max-Q variant with a TGP of 35 watts. However, NVIDIA's Dynamic Boost technology can increase the total graphics power up to 45 watts depending on the simultaneous CPU load.

    To boost performance even more, the GeForce RTX 3050 Ti - like all NVIDIA "RTX" graphics cards - supports Deep Learning Super Sampling, DLSS for short.
    This A.I.-based upscaling technology renders the game in a lower resolution and interpolates it to the native screen resolution via well-engineered algorithms - with impressive results in terms of visual quality and frame rate performance.

    Work hard, play hard: No problem on the new TUXEDO InfinityBook Pro 14 with NVIDIA GeForce RTX 3050 Ti - at least until the boss calls!



    Thunderbolt 4 with Power Delivery

    For the literal lightning-fast data exchange, the TUXEDO InfinityBook Pro 14 comes with Thunderbolt 4 for data speeds of max. 40 Gbit/s. This USB-C port furthermore supports the Power Delivery DC-In function* for charging the notebook via a practical USB-C travel power adapter and allows connecting up to two 4K monitors.

    Speaking of monitor ports: There is also a HDMI 2.0b port on the right side of the chassis and a second USB-C connector with DisplayPort 1.4 functionality on the left.

    The connectivity is completed by two USB-A ports, the full size SD card reader, the combined headphone jack and microphone input and the Kensington Lock.

    *For more information, please have a look at our article Charging via USB-C power supply (Power Delivery DC-In).

    InfinityBook 14 left ports

    From left to right: Kensington Lock (Nano), USB-C 3.2 Gen2 (DP 1.4 / Power Delivery), USB-A 3.2 Gen1, SD card reader,  2-in-1 audio (headphone + mic)

    InfinityBook 14 right ports

    From left to right: Thunderbolt 4 (DP 1.4 / Power Delivery), USB-A 3.2 Gen1, HDMI 2.0b, power connector



    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    3K HiDPI Omnia Display non-glare 90 Hz

    14", 16:10, anti-reflective, LTPS
    Viewing angle: 89°/89°/89°/89°
    Resolution: 2880 x 1800 Pixel
    Model: Optoelectronics T3 MNE007ZA1-1
    Color gamut (sRGB | AdobeRGB | DCI-P3): 99 % | 74,7% | 81,1%
    Maxiumum brightness: 400 cd/m2
    Contrast: 1500:1



    Display opening angle: approx. 150°



    Chassis

    Notebook: Length: 308.8 mm; Width: 215 mm; Height: 16,6 mm
    Weight: 1.3 kg incl. battery, depending on equipment
    Material: Display lid, top and bottom case made of magnesium alloy (AZ91D), Display frame made of plastic
    Maintenance: After opening the base plate via a series of screws, all components and fans are easily accessible, easy to maintain, clean and replace.
    Power supply: 90 watts | Length: 129 mm; Width: 54 mm; Height: 30 mm | Weight: 326 grams
    Power cord: Length: 170cm | Weight: 156 grams



    Keyboard and Touchpad

    Monocolor (white) backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
    TUX super-key on all layouts!
    Big precision glass clickpad with integrated buttons and multi-gesture- & scroll-function



    Ports

    2x USB-A 3.2 Gen1
    1x USB-C 3.2 Gen2 (incl. DisplayPort 1.4, Power Delivery DC-In* | Output: 5V/3A)
    1x Thunderbolt 4 (PCIe Gen3 4 Lanes) / USB-C (DisplayPort 1.4a, Power Delivery DC-In* | Output: 5V/3A)
    1x HDMI 2.0b
    1x 2-in-1 audio (headphone + mic)
    1x Full size SD card reader
    1x DC-IN/power connection (also via USB-C*)
    1x Kensington Nano Security Slot™

    * Requirement: min. 20V/3.25A (65W)

    USB-C 3.2 Gen2 (left side): Power Delivery DC-In only when powered on or in energy-saving mode, not enabled when powered off or in sleep mode.
    Thunderbolt 4 (right side): Power Delivery DC-In even when powered off.



    Card reader

    Full size SD card reader (SD/SDHC/SDXC)



    Security

    - Kensington-Lock mounting
    - Intel Management Engine (Intel ME) can be disabled directly via the BIOS
    - Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
    - WLAN & Bluetooth can be deactivated directly via the BIOS

    - TPM 2.0 (via Intel PTT) (can be activated/deactivated via BIOS)



    Battery & power supply

    Integrated 99 Wh lithium-polymer battery

    Power supply:
    90 W power supply (AC) | 129 x 53 x 30 mm | 482 g incl. EU power cable

    Power can also be supplied via USB-C (Power Delivery DC-In)
    Requirement: min. 20 V / 3,25 A (65 W), recommended 20V/5A (100W)

    For more information, please have a look at our article Charging via USB-C power supply (Power Delivery DC-In).



    Power plug:
    Type: Coaxial
    Inner diameter: 2.5mm
    Outer diameter: 5.5mm
    Length: 10mm



    Battery life:

    Unit with Intel integrated graphics only:
    Up to 16 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    Up to 9 hours at medium brightness with Wifi, at office work



    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Main processor

    Intel Core i7-12700H
    (14 Cores (6 Performance-cores | 8 Efficient-cores) | 20 Threads | Max. 4,7 GHz | 24 MB Cache, 45 W TDP)



    Graphics card

    Intel Iris Xe Graphics 96 | Max. clock speed: 1400 MHz | EUs (Execution Units): 96

    Optional: NVIDIA GeForce RTX 3050 Ti | 4 GB GDDR6 VRAM | 35 W TGP (+10 W Dynamic Boost)



    It is possible to drive 4 displays at the same time. 3 external plus the internal notebook display or 4 external displays.
    Max. resolution (HDMI 2.0b): 3840 x 2160 @60 Hz (hardwired to the iGPU)
    Max. resolution (DisplayPort 1.4a): 7680 x 4320 @60 Hz oder 2x 3840 x 2160 @ 60 Hz (hardwired to the iGPU)

    All display ports are connected to the iGPU of the main processor for power efficient operation.



    Memory

    DDR4 3200 MHz SoDIMM | 2 sockets upgradeable | max. 64 GB | Dual Channel



    Mass storage (SSD / HDD)

    1x M.2 2280 for NVME (PCI-Express 4.0 x4 oder PCI-Express 3.0 x4)
    Intel Optane Technology



    Communication / Network

    Wireless/WIFI:
    Intel Wi-Fi 6 AX200 Series:
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX200 Series
    Version: Dual Mode Bluetooth 5.2



    Webcam / Laptop camera

    Full HD (1080p) Webcam / camera including microphone
    Supports Windows Hello



    Sound / Audio

    High Definition Audio
    2 x W integrated speakers
    Integrated microphone



    Cooling System & Fan

    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!







    Model-ID: IBP1407





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).



    For this purpose, the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth



    In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.



    Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
