Premium-Class Business Companion
TUXEDO InfinityBook Pro 15 - Gen10 - INTEL
The InfinityBook Pro 15 combines a lot of processing speed and a pleasantly large, bright 15.3-inch screen with an outstanding mobility factor, consisting of an extremely thin and very light all-aluminum body, a maximum-sized 99 Wh battery and flexible USB-C charging.
Thanks to its powerful yet power saving Intel Core Ultra 255H processor and particularly fast but still upgradable DDR5-6400 RAM, the high-quality business ultrabook offers plenty of performance for software developers or media professionals or up to 10 hours of battery life.
This TUXEDO is Tailored to Your Needs, if ...
... you want to combine medium-high to high CPU performance and fast entry-level graphics as well as a pleasantly large screen with very high portability and great battery life in a stylish, slim and high-quality aluminum housing.
Product Features
Please click on the tiles for detailed information
Very Thin and Light All-Aluminum Chassis
342 x 20 x 240 mm | 1.75 kg
Brand-New, Bright 15.3-Inch Display
2560 x 1600 | 500nits | 100% sRGB
Maximally Large 99 Wh Battery
Up to 10 Hours of Runtime
Intel Core Ultra 7 255H
16 Cores | max. 90W
Fast yet Power-Saving Integrated Graphics
Intel Arc 140T
Up to
8TB SSD and 128GB RAM
2x PCIe 4.0 SSD | 2x DDR5-6400 RAM
3 External Screens and USB-C Charging
Thunderbolt 4 | HDMI 2.1 | 5x USB
Further Information
At TUXEDO, we are working on optimizing our notebooks for best-possible Linux compatibility. In many cases, you will also receive free feature updates after purchase, which further improve the Linux experience with your TUXEDO.
Downloads & Drivers
Frequently Asked Questions
Help For My Device
Display / Monitor
Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.
15.3-inch Omnia display
15.3", 16:10, matte / non-glare
Viewing angle: 89°/89°/89°/89°
Refresh rates: 60Hz, 240Hz
Resolution: 2560 x 1600 pixels
sRGB color gamut: ~100%
Brightness: ~500 nits
Contrast: ~1000:1
Display model: BOE NE153QDM-NZ2
For technical production reasons, the measured values always vary slightly from panel to panel. More information
Display opening angle: ~180°
Chassis
Display lid, base unit and bottom case made of aluminum
Display frame made of plastics

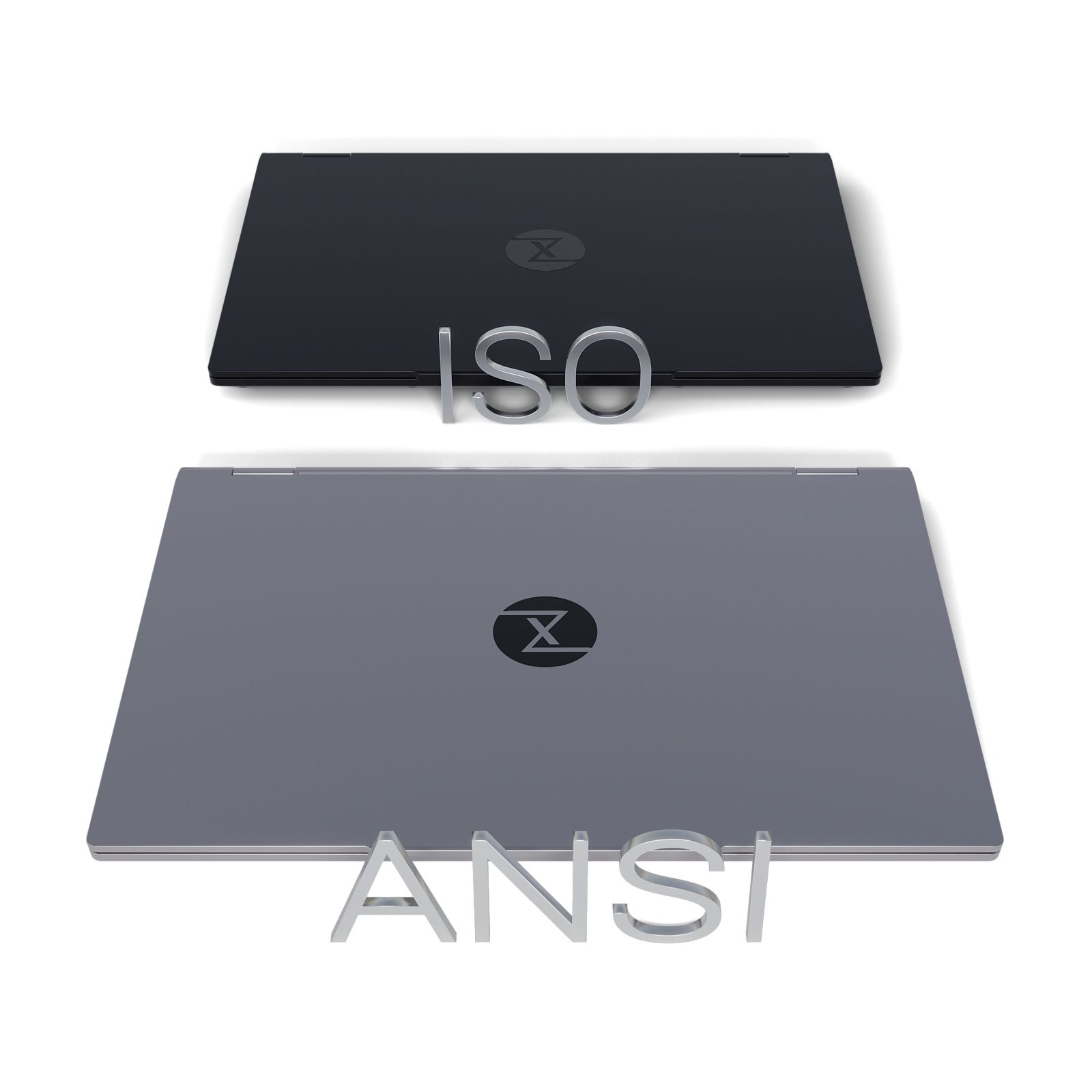

Chassis colors:
Model with ISO keyboard: Black
Model with ANSI keyboard: Silver-gray
Width: 34.2 cm; Height: 2 cm; Depth: 23.8 cm
Weight: 1.75 kg incl. battery

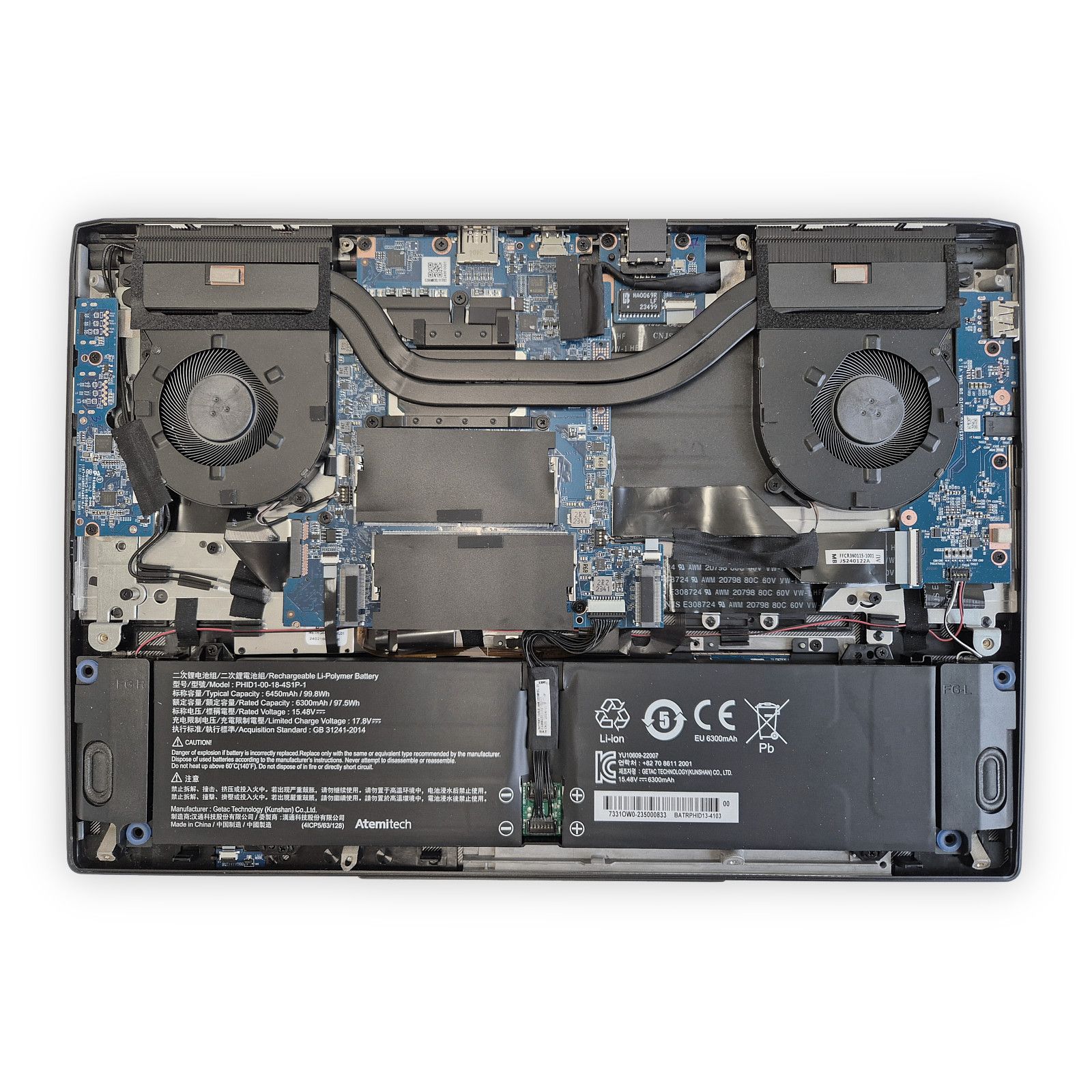

Maintenance: After removing a series of screws from the bottom panel, RAM, Wi-Fi card, SSDs and fans are easily accessible, easy to maintain, clean and replace.

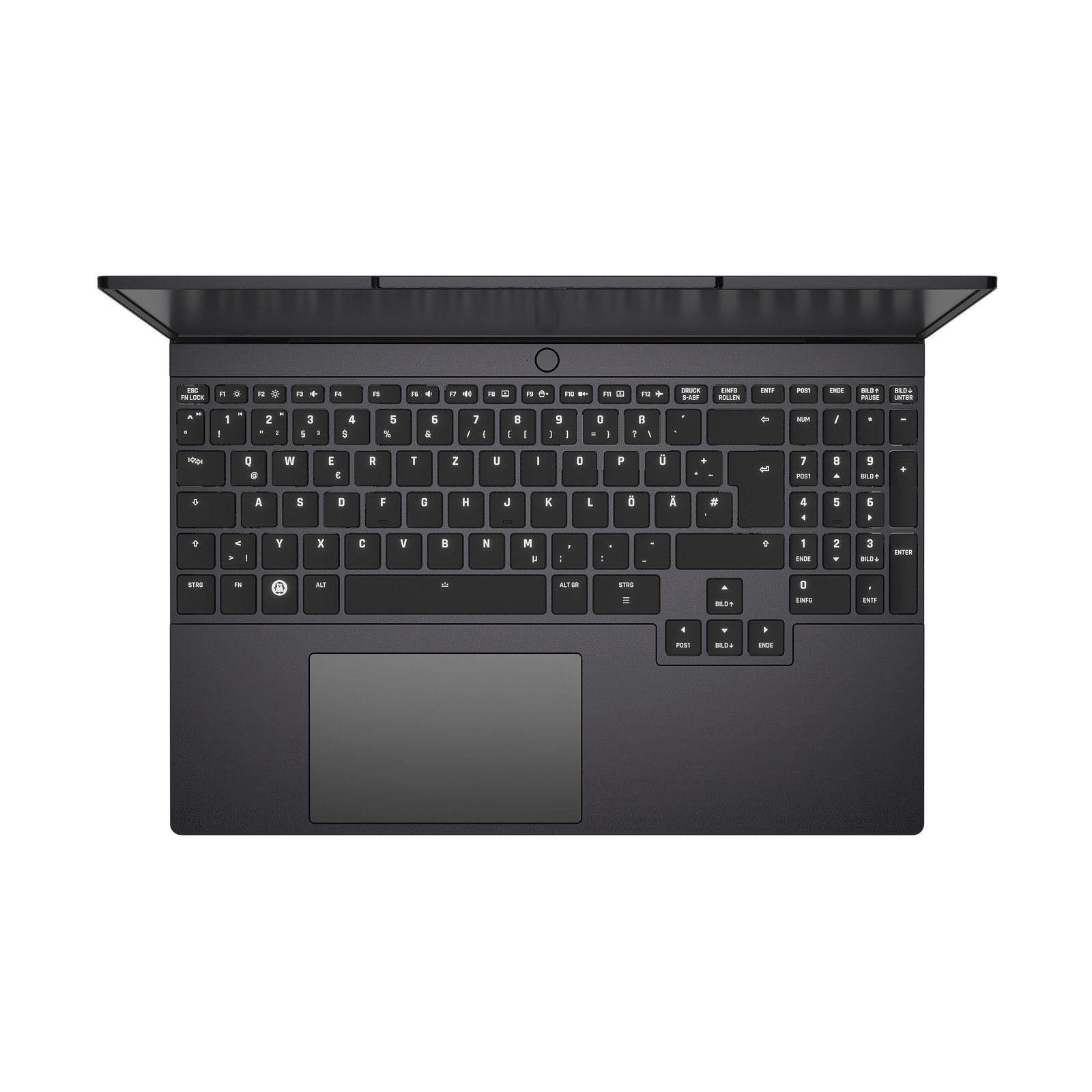

Keyboard and Touchpad
Quiet rubberdome / membrane keyboard with 4-row number pad and full-size arrow keys.
White keyboard backlight Brightness can be controlled and deactivated by special keys.
TUX super-key on all layouts.
Glass precision clickpad (123 x 77,5 mm) with integrated buttons and multi-gesture- & scroll-function
Security
- Kensington Lock
- Webcam shutter
- Wi-Fi & Bluetooth can be deactivated directly via the UEFI
- TPM 2.0 (via fTPM) (can be activated/deactivated via the UEFI)
- Secure Boot (can be activated/deactivated via the UEFI)
Battery & power supply
Maximally large 99 Wh battery, Lithium polymer (screwed inside)
Power supply:
150 W | 20 V / 5 A | USB-C Power Delivery DC-In | 114 x 65 x 23 mm | 500 g incl. cable
Battery life:
Up to 10 hours for browsing the web (Wi-Fi on, Bluetooth off, no peripherals connected, display brightness ~150 nits)
Main processor
Intel Core Ultra 7 255H
(16 Cores (6 Performance cores | 4 Efficient cores | 2 Low Power Efficient cores) | 22 Threads | Max. 5.1 GHz | 24 MB L3-Cache, max. TDP: 35-90W*)
* Power limits can be adjusted in 3 stages (max. 35watts | max. 45watts | max. 90watts) using the TUXEDO Control Center
Thermal compound: Honeywell PTM7958
Graphics card
Energy efficient CPU integrated Graphics:
Intel Arc 140T (GPU cores: 8 | Max graphics frequency: 2.25GHz)
It is possible to drive 4 displays at the same time (3x external screens plus the internal notebook display)
- 1x internal notebook display
- 1x HDMI 2.1
- 2x USB-C (DisplayPort)
Max resolution (HDMI 2.1): 3840 x 2160 @120 Hz
Max resolution (DisplayPort 1.4a 32.4 GBit/s): 7640 x 4320 @ 60 Hz oder 3840 x 2160 @ 120 Hz
Max resolution (DisplayPort 2.1): 7680 x 4320 @ 85 Hz | 2x 3840 x 2160 @ 60 Hz
Memory
Max. DDR5-5600 SO-DIMM | 2 sockets / upgradeable | max. 96GB DDR5-6400 or max. 128GB DDR5-5600 | Dual Channel
Mass storage (SSD / HDD)
2x M.2 2280 for NVME (PCI-Express 4.0 x4)
Supports double-sided SSDs
Communication / Network
Wired LAN:
1 Gigabit LAN (Motorcomm YT6801, 10/100/1000 Mbit/s)
Wireless/WIFI:
Intel Wi-Fi 6E AX211:
Interface: M.2 2230 / CNVio2
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
DualBand 2,4 / 5 / 6 GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)
Bluetooth:
Integrated in above Intel Dual Band Wi-Fi 6E AX211
Version: Dual Mode Bluetooth 5.3
Webcam / Laptop camera
2.0 Megapixel (1920 x 1080 pixels) webcam with camera shutter
IR camera for face recognition
Sound / Audio
High Definition Audio
2 x W integrated speakers
Integrated microphone with noise canceling
Ports

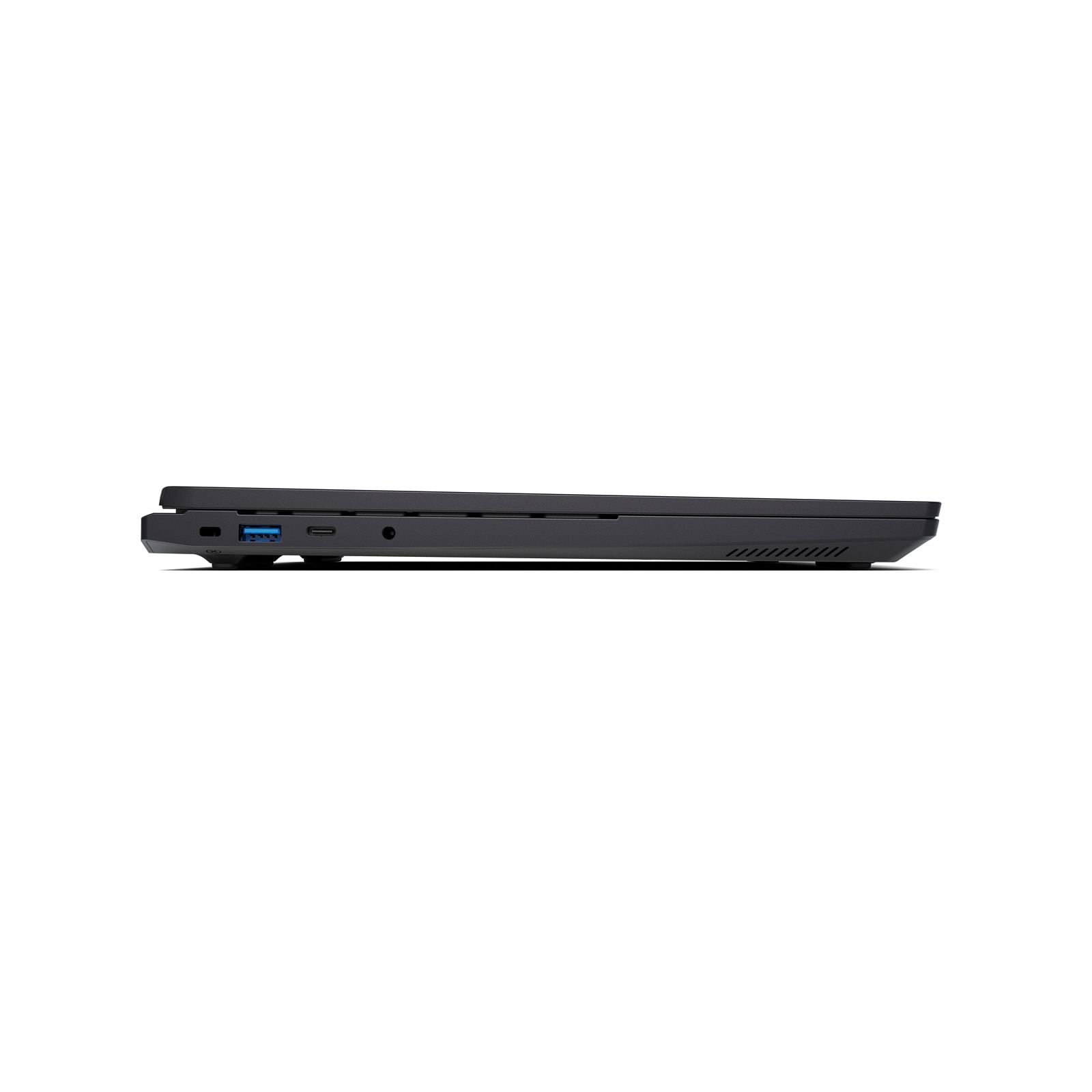

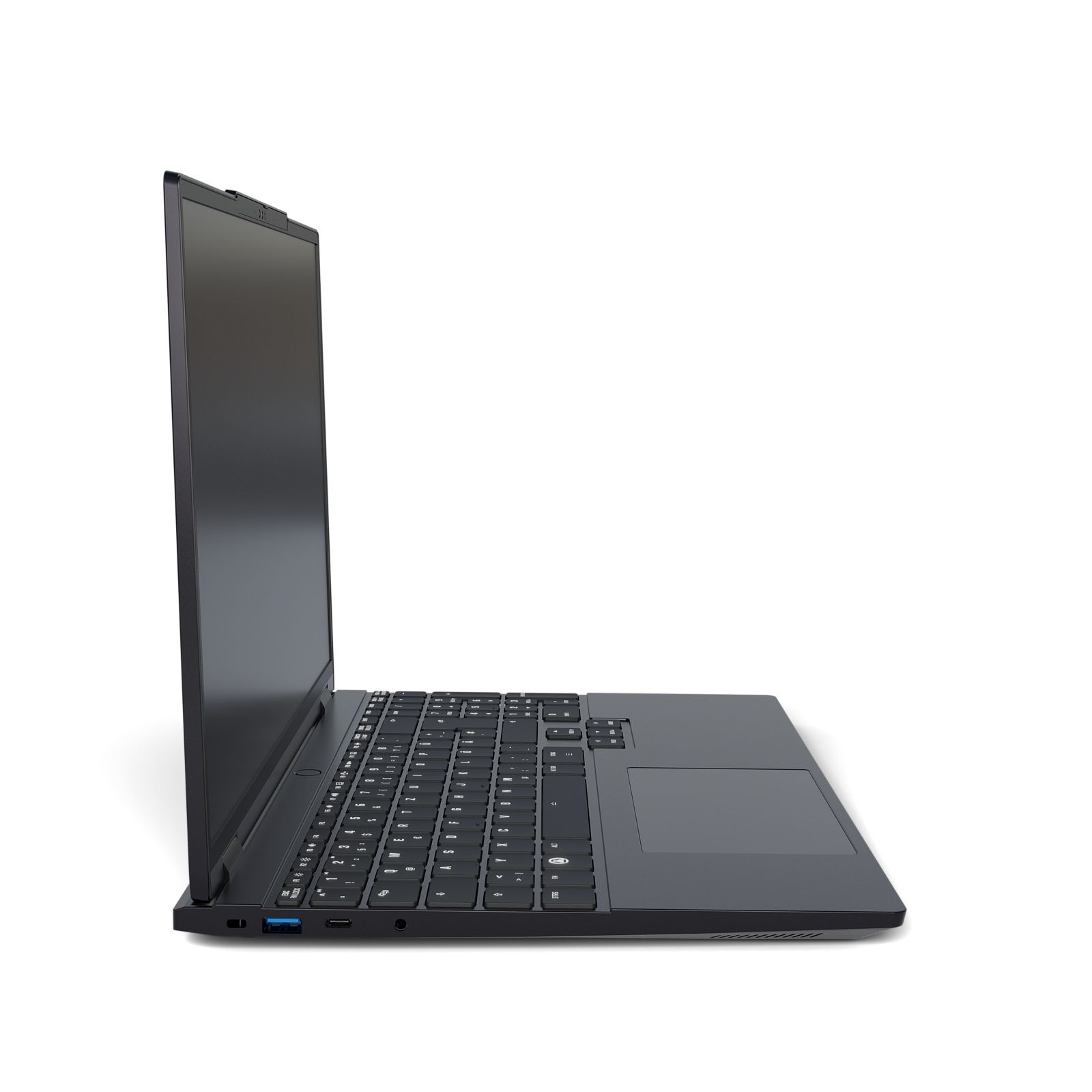

Left side (from left to right):
- Kensington Lock NanoSaver
- USB-A 3.2 Gen1 (5GBit/s)
- USB-C 3.2 Gen2 (10GBit/s | DisplayPort 1.4a (32.4GBit/s) | Power Delivery DC-In*)
- 2-in-1 audio (headphone + mic)

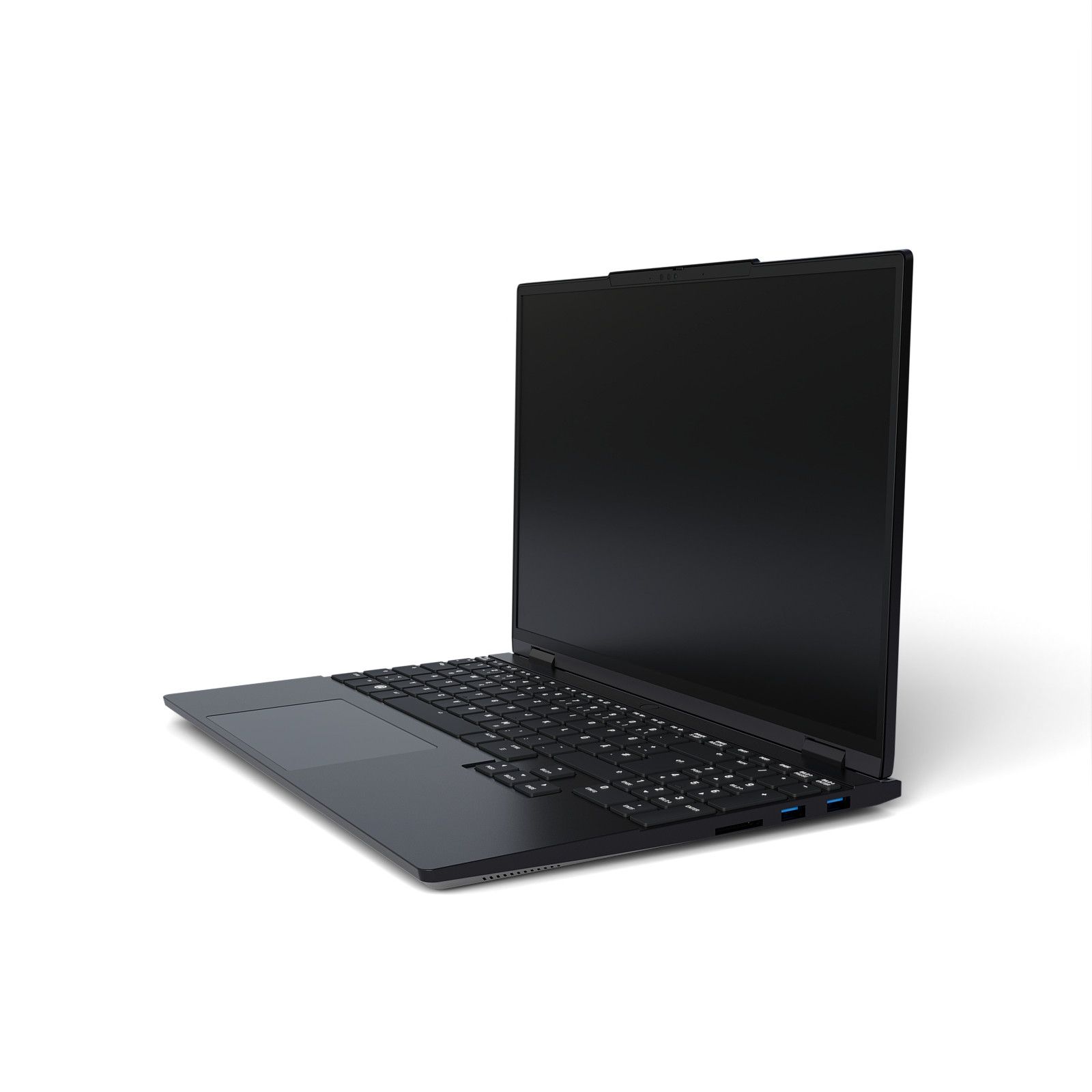

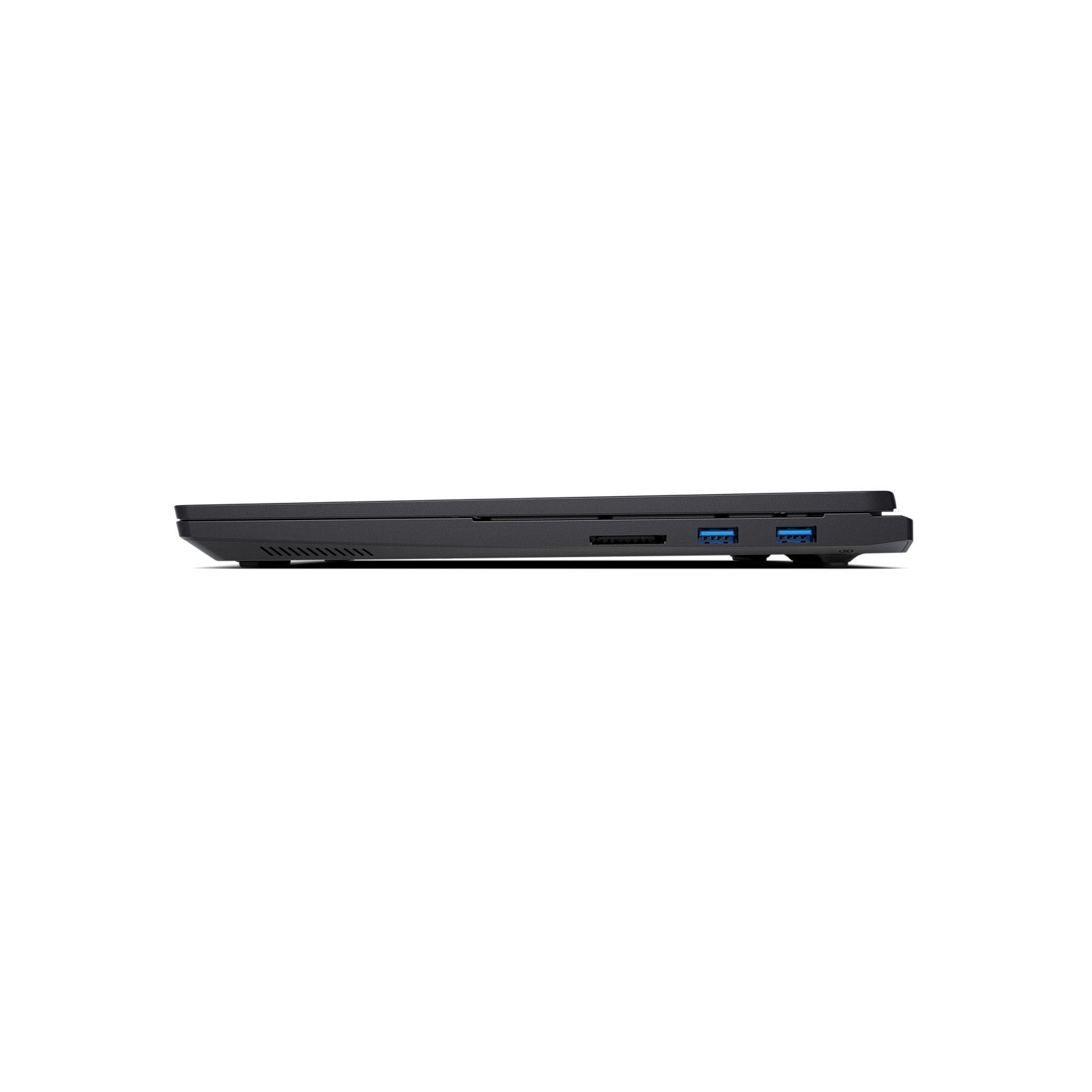

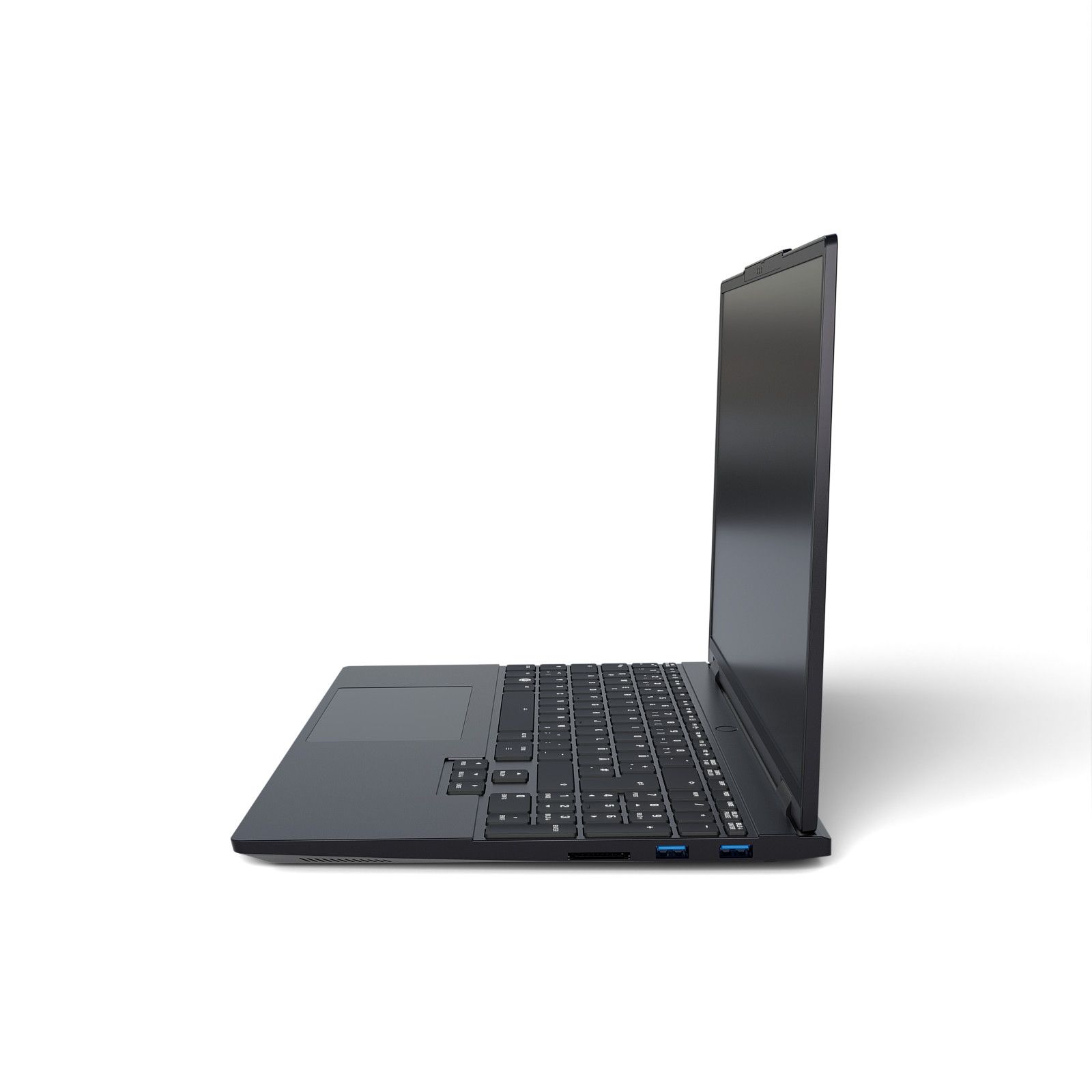

Right side (from left to right):
- Full-size card reader (SD/SDHC/SDXC/SD Express/UHS-II)
- 2x USB-A 3.2 Gen1

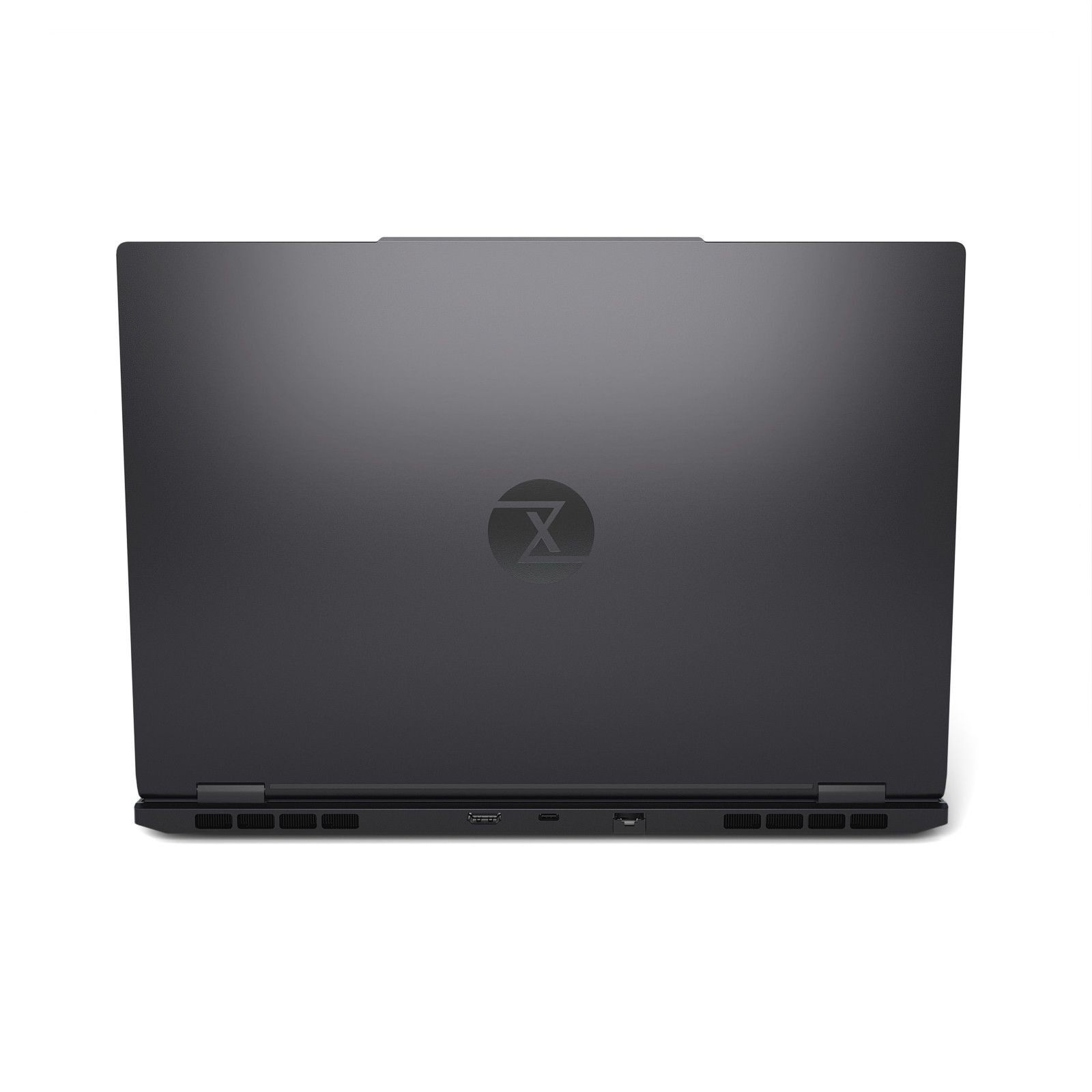

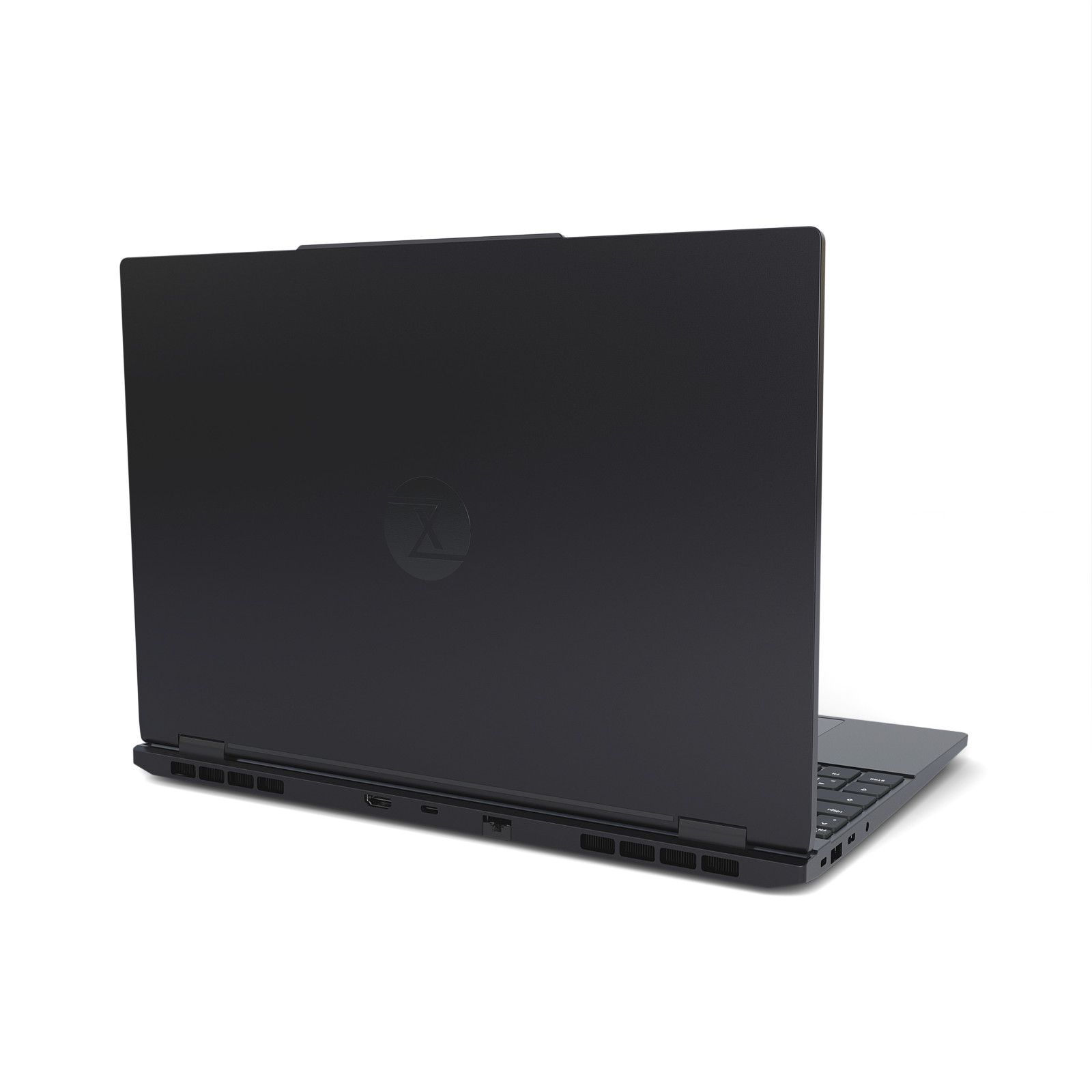

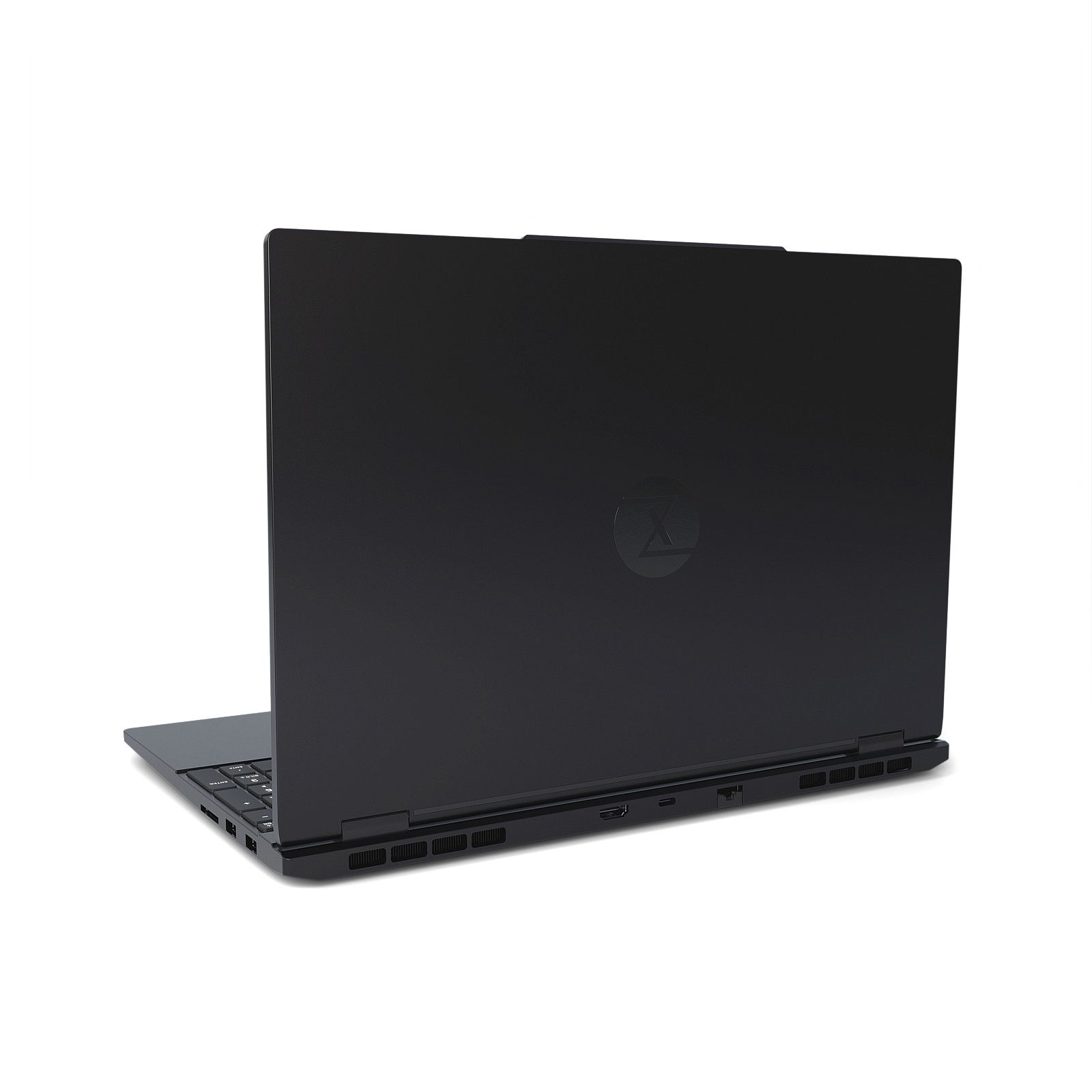

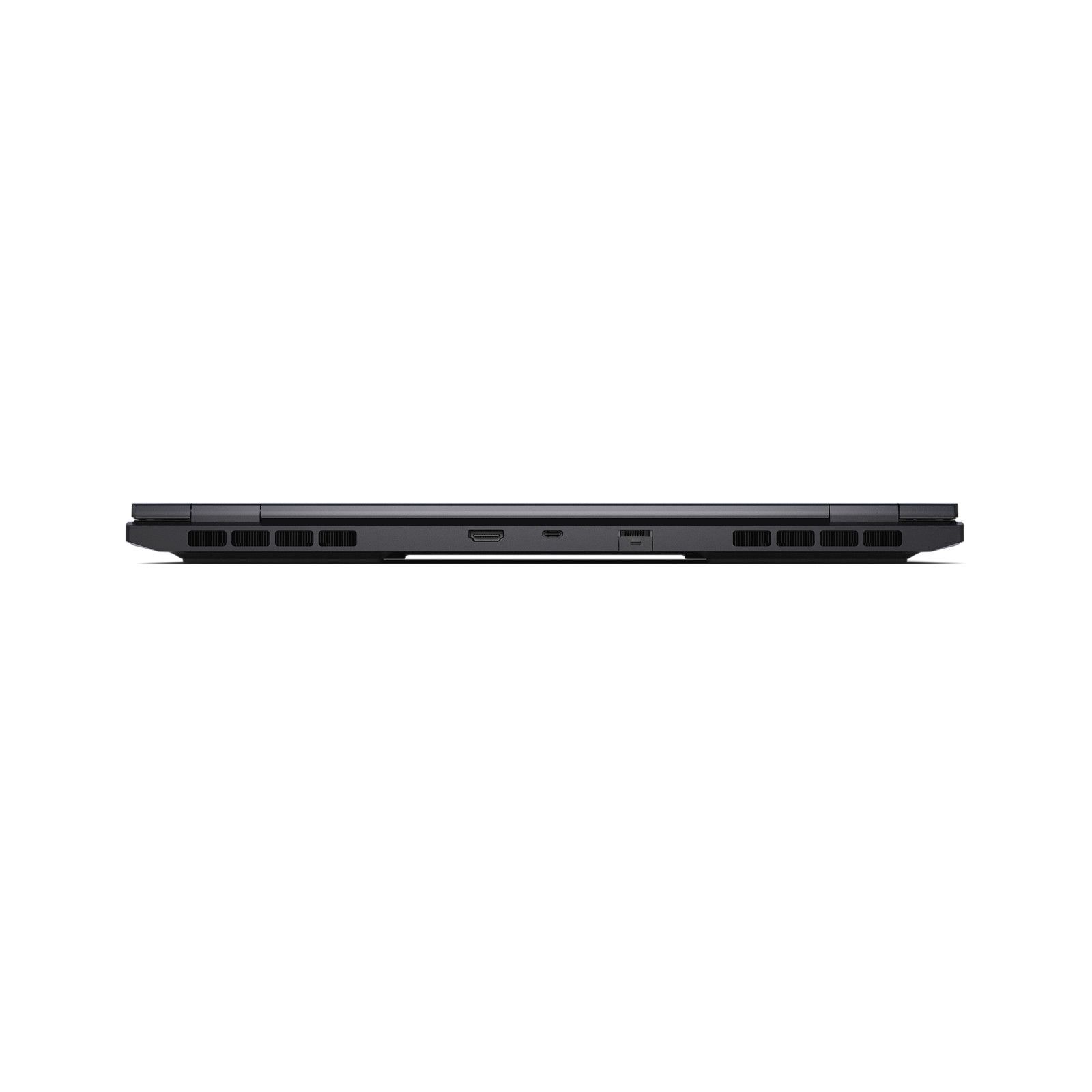

Back side (from left to right):
- HDMI 2.1 (32GBit/s | max. 4K / 120Hz)
- Thunderbolt 4 (40GBit/s | DisplayPort 2.1 (80GBit/s) | Power Delivery DC-In**)
- RJ45 Port LAN (1GBit/s)
* Minimum: 20V / 3A (60W) | Recommended / Maximum: 20V / 5A (100W)
** Minimum: 20V / 3A (60W) | Recommended / Maximum: 20V / 7.5A (150W)
Card reader
SD card reader (SD / SDHC / SDXC)
Data speeds:
SD Express up to 900/500MB/s
SDXC UHS-II up to 270/230MB/s

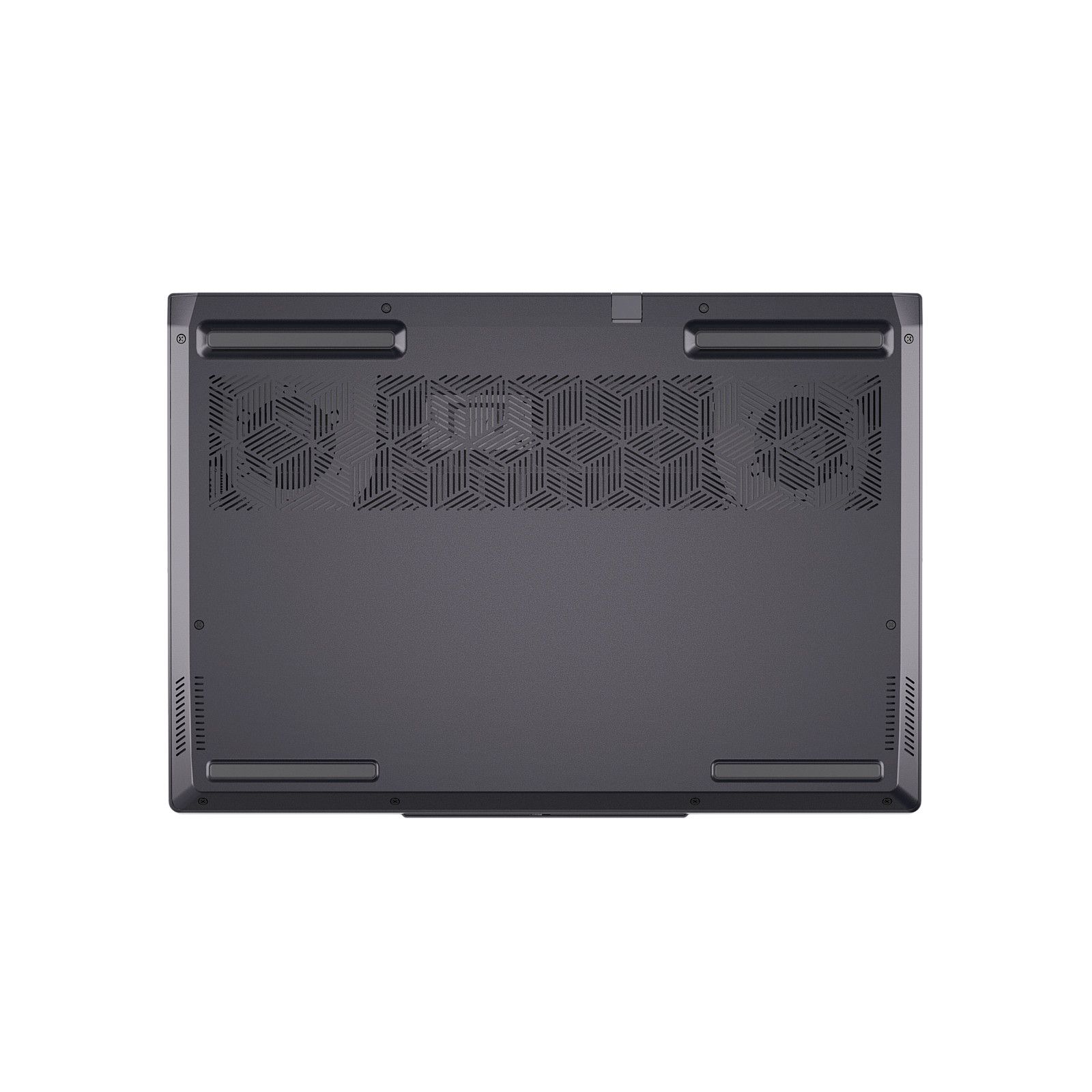

Cooling System & Fan
Number of fans: 2
Size of the fans: 47mm x 7mm
Number of heatpipes: 2
Cooling capacity (CPU + GPU | 100% fan speed): 90W
Temperature controlled fan
At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.
Custom performance and fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!
Operating systems
We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.
With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.
For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:
Encrypted Installation
On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
Further details as well as a detailed introduction to encryption can be found here.
Windows on request
If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!
Windows Drivers
The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.
UEFI firmware
With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).
For this purpose, the following functions can be completely deactivated:
- Intel Management Engine (IntelME)
- Webcam
- Audio (Microphone & Sound)
- WLAN & Bluetooth
In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.
Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.
Warranty
2 years pick up and return (12 months on wearing parts like battery & power supply)
Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)
All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!
For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions
Package Contents
1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
