    Great power efficiency and performance
    in an ultra portable form factor

    TUXEDO Pulse 14 - Gen4



    Ultra portable CPU workstation with AMD Ryzen 7 8845HS, high-res 3K display and 32 GB LPDDR5X-6400 high-efficiency RAM.

    Great power efficiency and high performance in an ultra portable form factor: The TUXEDO Pulse 14 combines energy saving operation with a lot of processing power, very quiet cooling for better concentrated working, a bright 16:10 3K display (400 nits, 100% sRGB) and integrates all this in an ultra light (1.4 kg) and thin (18 mm) partial aluminium chassis.

    CPU performance

    Graphics performance

    Mobility

    Battery life


    Under its unobtrusive looking, matte black chassis the Linux ultrabook features the highly efficient Zen 4 AMD Ryzen 7 8845HS CPU with performant, integrated Radeon 780M graphics. Flanked by 32 GB ultra fast, high-efficiency LPDDR5X-6400 RAM, the TUXEDO Pulse 14 delivers a lot of performance for software development, content creation or even light gaming.

    Icon CPU

    Highly efficient & powerful: AMD Ryzen 7 8845HS

    54 Watts | 8 Cores | 16 Threads

    Icon GPU

    Fast yet power-saving graphics: AMD Radeon 780M

    12 GPU cores | up to 2700 MHz

    Icon Speicher

    High-speed RAM & storage

    LPDDR5X-6400 | 2x PCIe 4.0 M.2

    Icon Gehäuse

    Ultra portable aluminum chassis

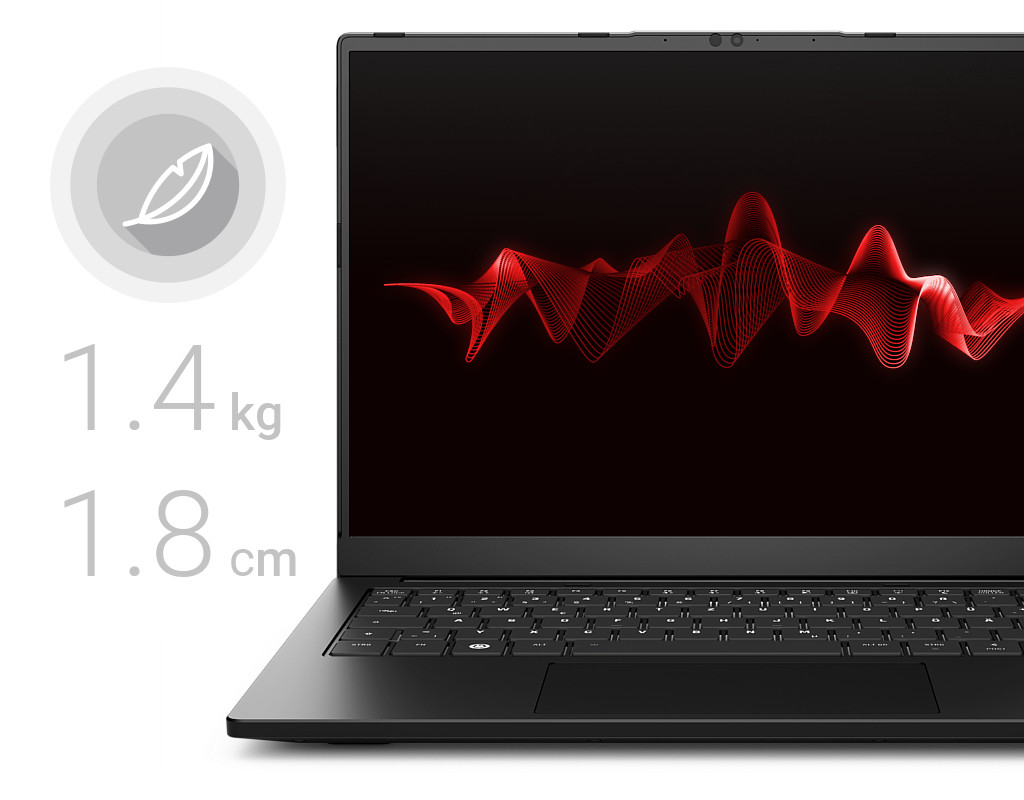

    18 mm thin | 1.4 kg light

    Icon Display

    High-res 14-inch Omnia display

    2880 x 1800 | 100 % sRGB | 400 nits

    Icon Akku

    USB-C-Charging and 60 Wh battery

    Up to 11 hours | incl. battery charging control

    Icon Anschlüsse

    4x USB, HDMI and 2x USB-C DisplayPort

    Up to 3 external screens



    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.

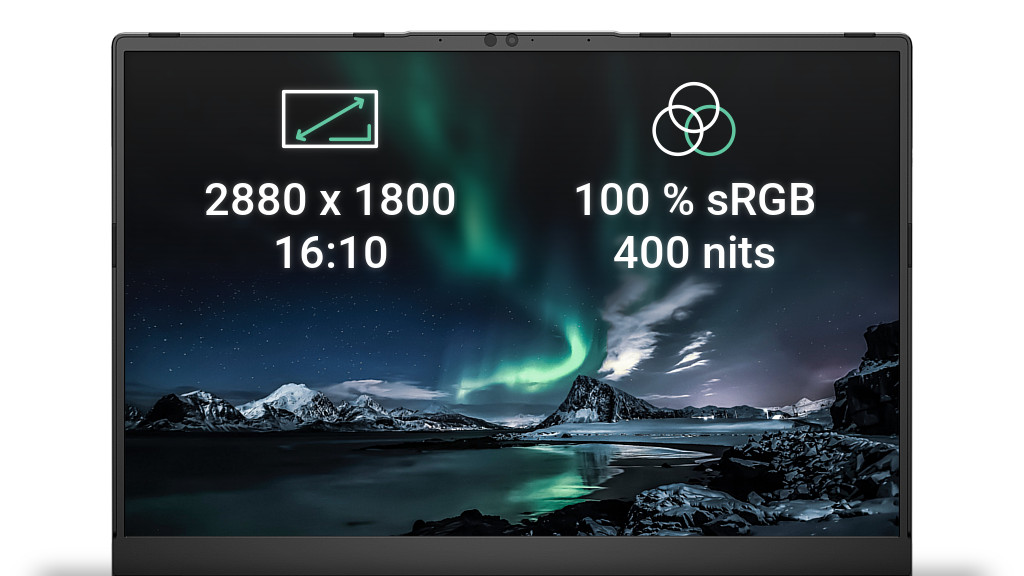

    14.0'' 3K Omnia display | LTPS | 16:10
    Type: LED-Backlight Display, matte/non-glare
    Refresh rates: 120 Hz, 60 Hz
    Viewing angles: 89°/89°/89°/89°
    Resolution: 2880 x 1800 Pixels
    Color gamut: 100 % sRGB
    Brightness: 400 nits
    Contrast: 1500:1
    Additional features: AMD FreeSync
    Display model: TL140ADXP24-03

    For technical production reasons, the measured values always vary slightly from panel to panel. More information

    Internal display connection (changeable via UEFI): iGPU

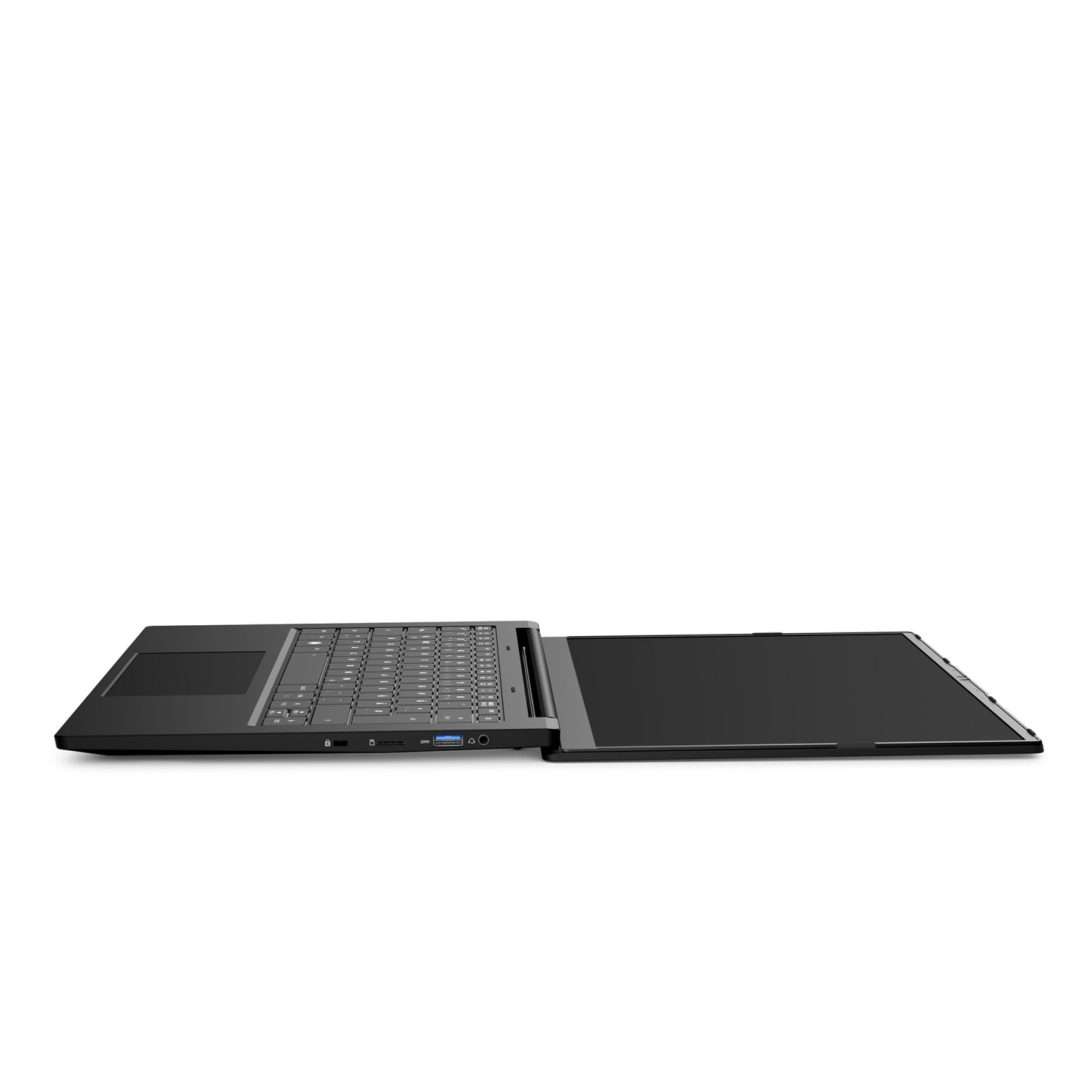

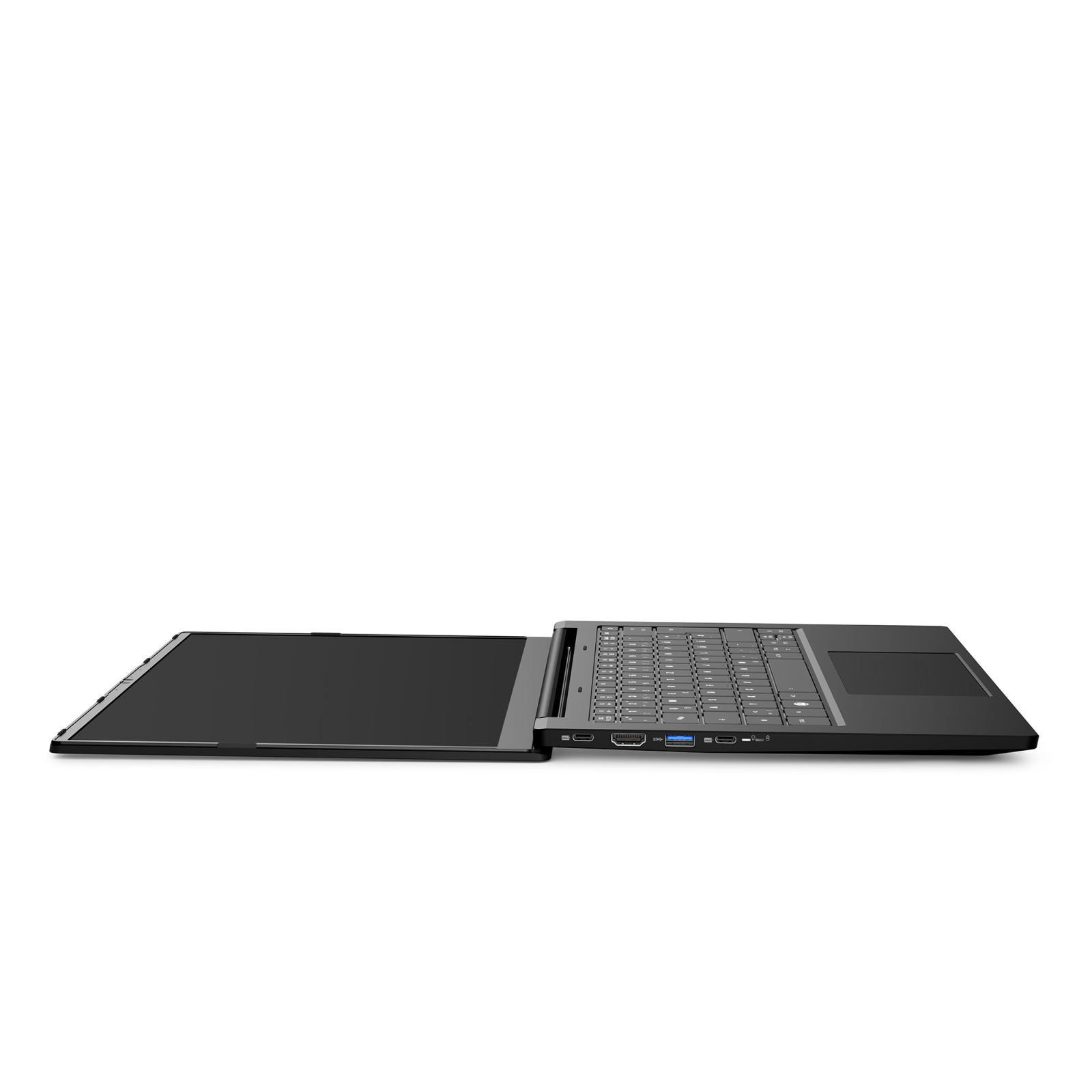

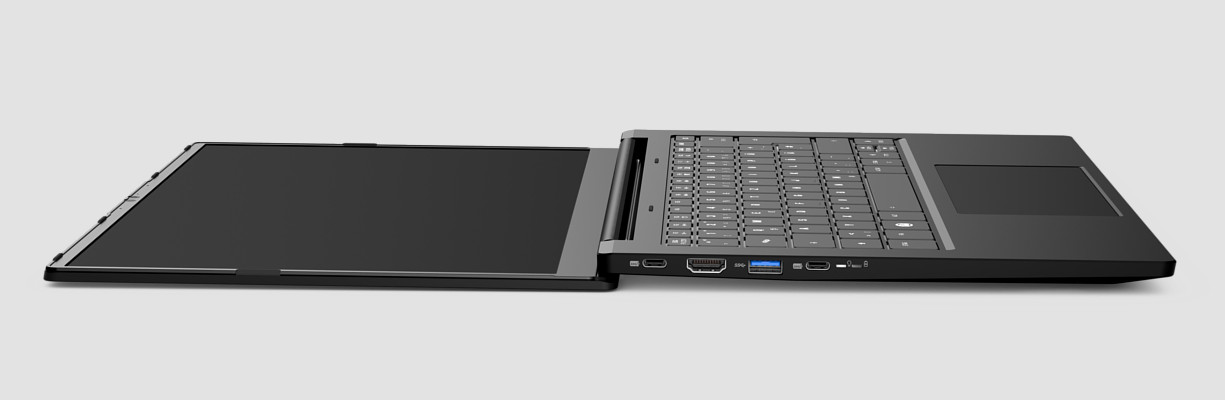

    Opening angle: 180°



    Chassis

    Dimensions: width: 31.3 cm; height: 1.8 cm; depth: 22.2 cm
    Weight: 1.4 kg incl. battery

    Chassis materials:
    Display lid and bottom panel made of aluminum, baseunit and display frame made of plastics

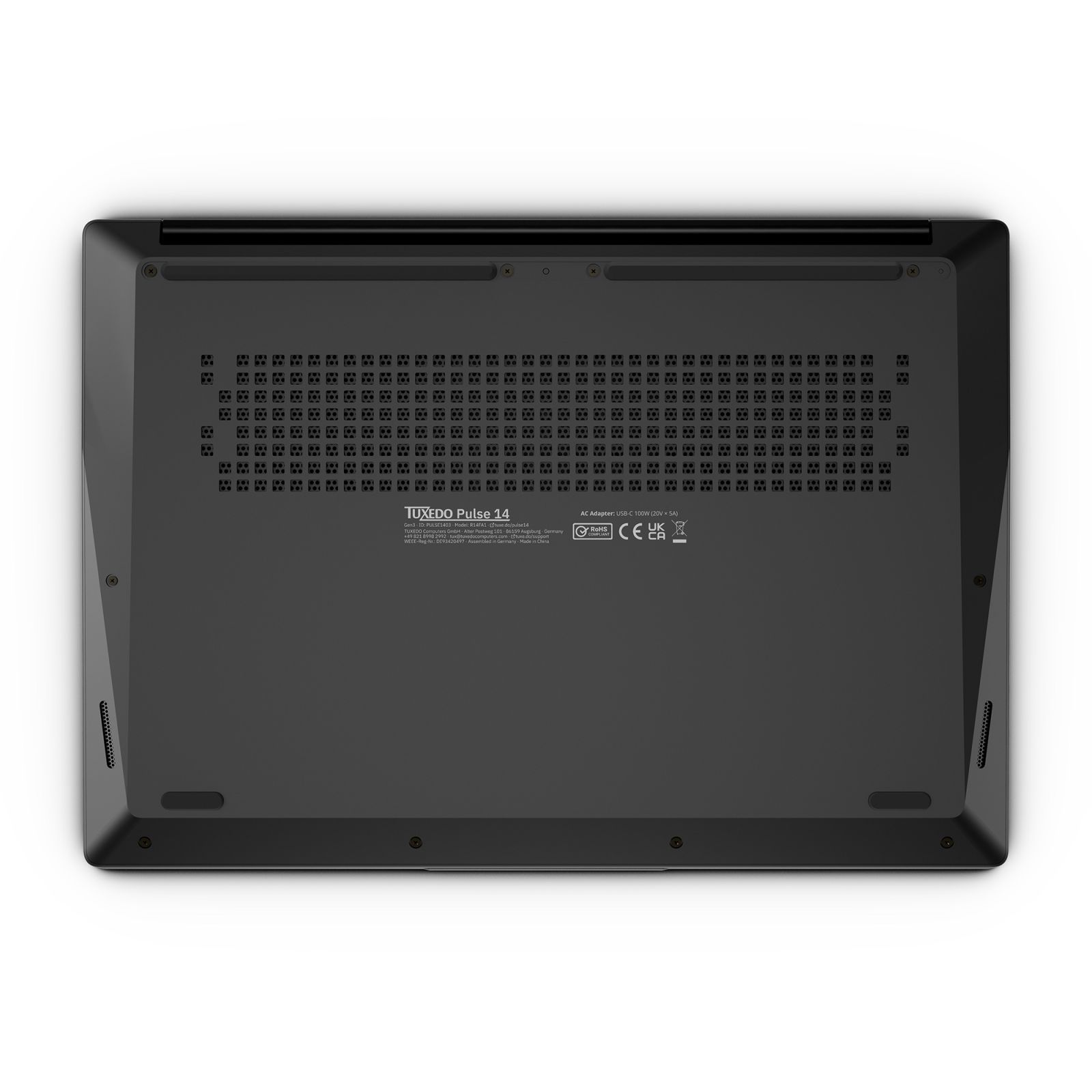

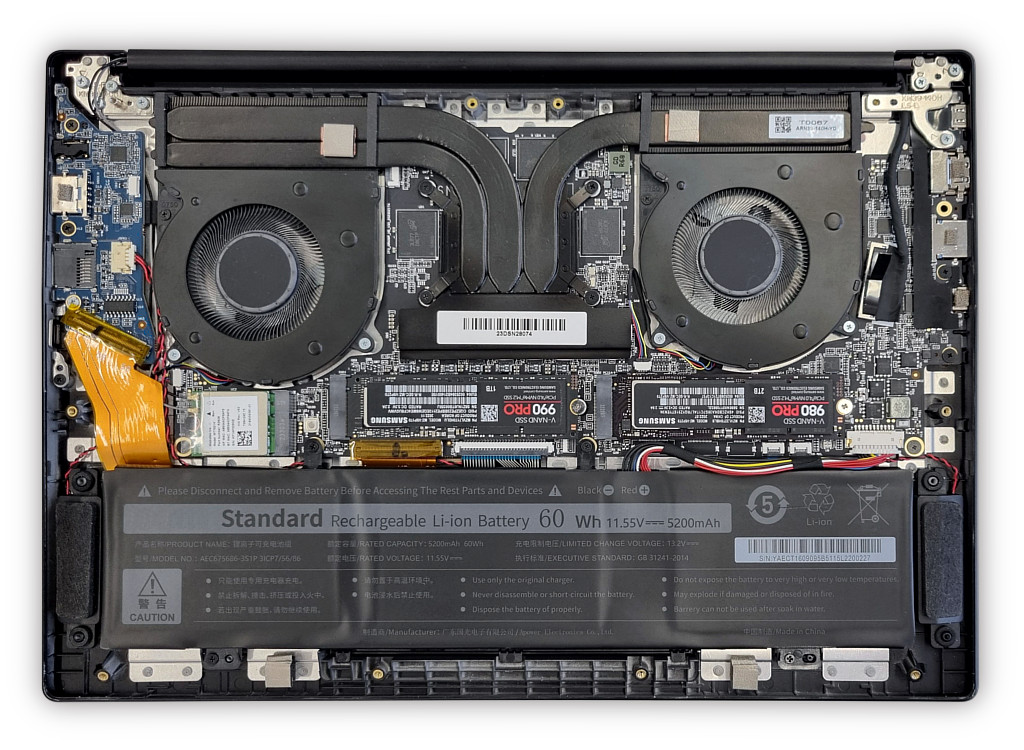

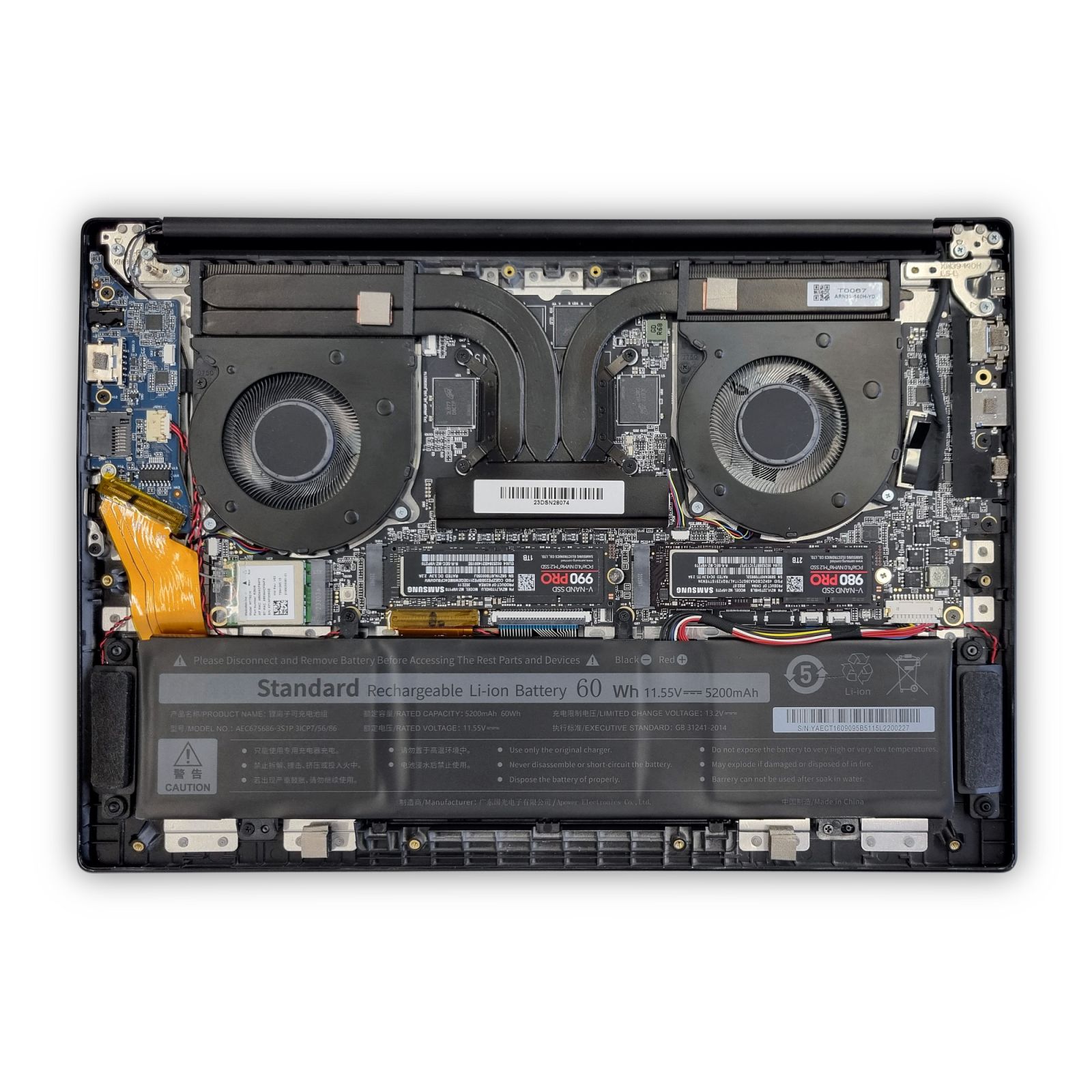

    Maintenance: After removing the bottom panel via a series of screws (type PH0), all components and fans are easily accessible for cleaning and replacement.

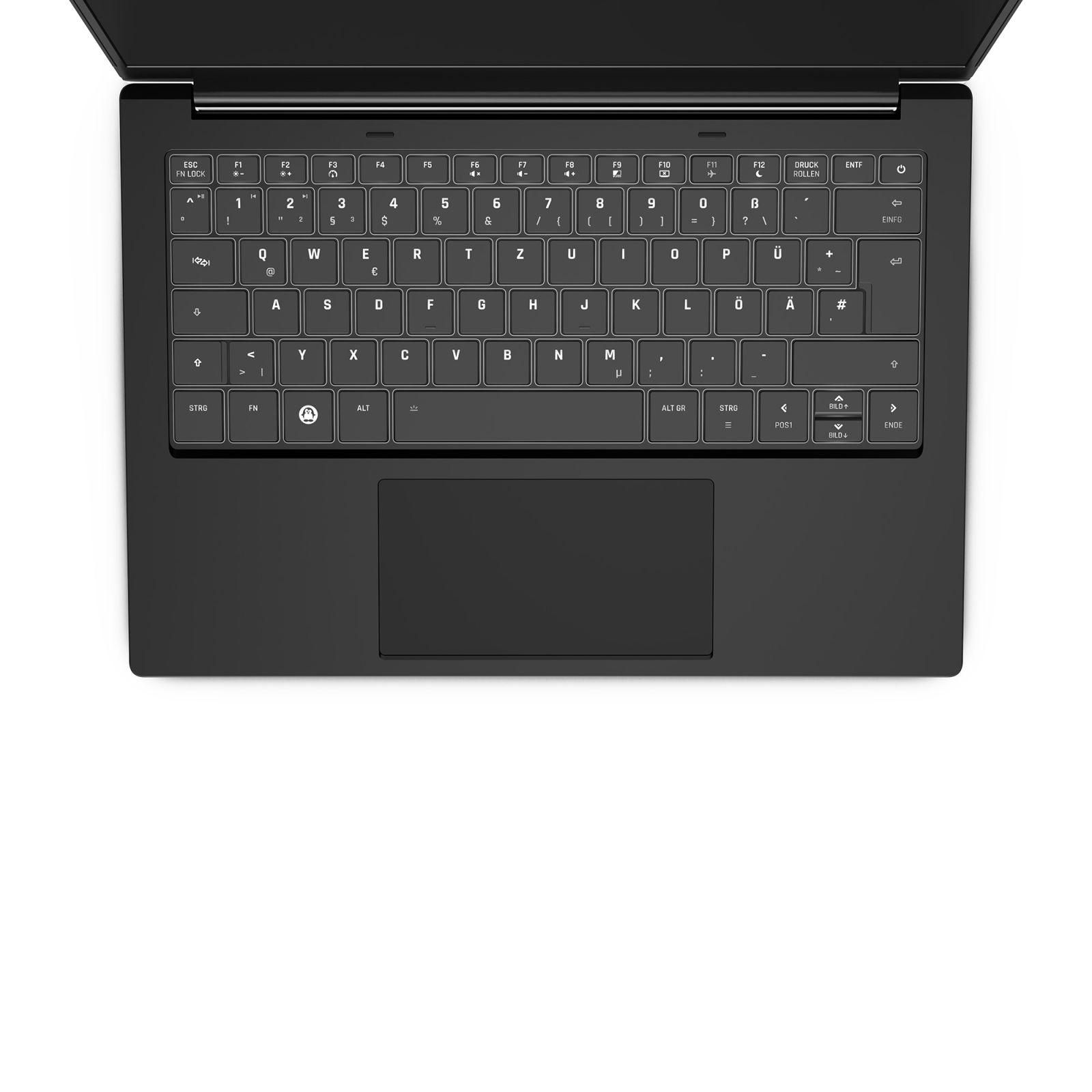

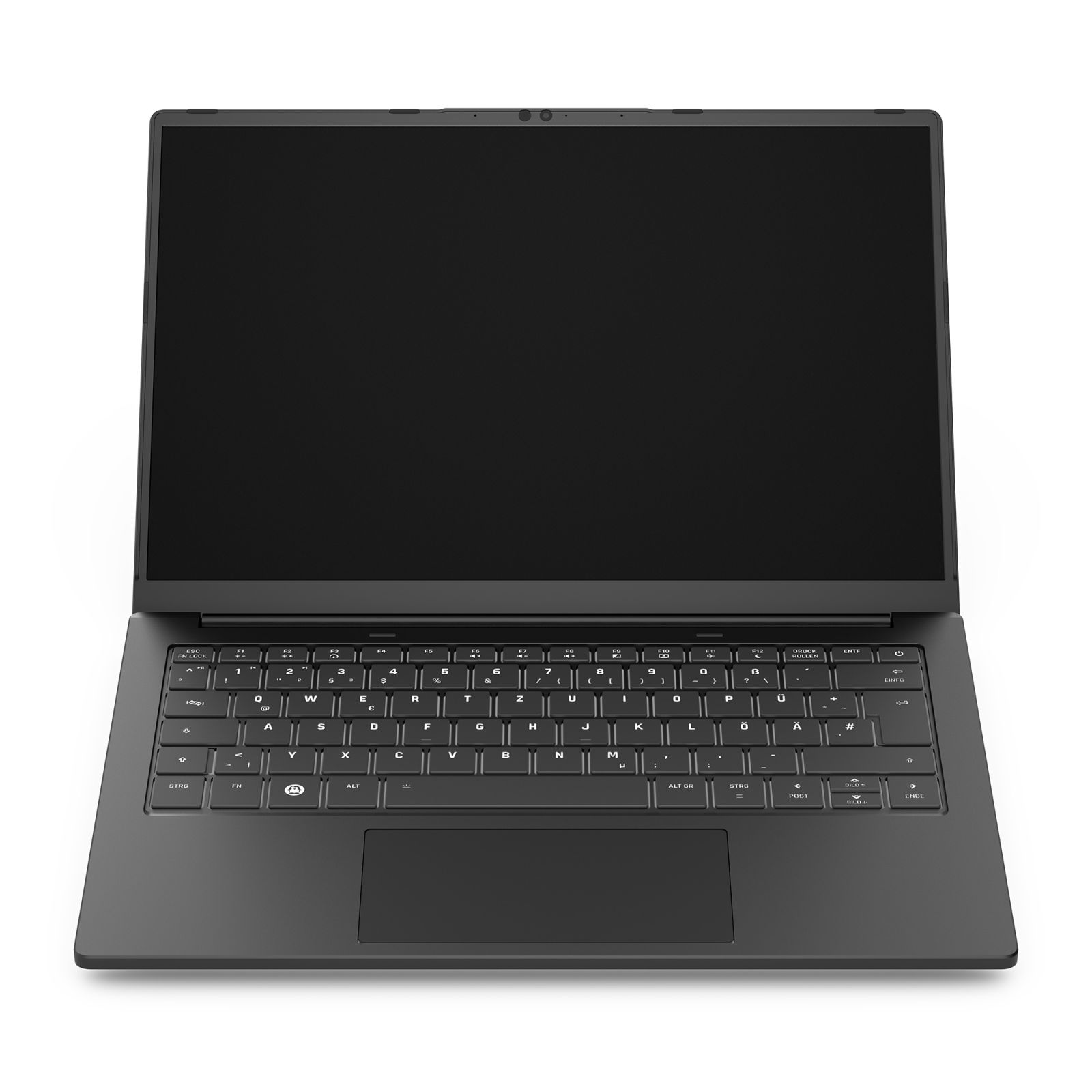

    Keyboard and Touchpad

    Quiet rubberdome / membrane keyboard | White backlight | TUX super-key on all layouts!

    Multi gesture clickpad (125 x 65 mm) with integrated buttons and multi-gesture- & scroll-function.



    Battery & power supply

    Power supply:
    Type USB-C | 100 Watts (110 x 75 x 35 mm | 265 g incl. power cord)

    Please note: Under low load smaller power supplies (min. 65 Watts) are sufficient.
    Please make sure that the voltage is 20V and that the USB-C cable is labeled »E-Mark«

    60 Wh battery, Lithium polymer
    Changeable (screwed inside)

    Battery life:
    up to 14 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    up to 9 hours at medium brightness with Wifi, at office work



    Lifetime of batteries

    The operation of all TUXEDO Books is also possible without battery. Users are often advised to remove the battery during permanent mains operation in order to conserve it. Thanks to FlexiCharger this is not necessary. Further Information



    Main processor

    AMD Ryzen 7 8845HS
    (8 Cores | 16 Threads | Max. 5,1 GHz | 24 MB Cache (L2+L3), 54 W TDP)



    Graphics card

    Energy efficient CPU integrated Graphics:
    AMD Radeon 780M (GPU Cores: 12 |  Max. clock speed: 2,7 GHz)

    It is possible to drive 4 displays at the same time (3x external screens plus the internal notebook display.)
    Max. resolution (HDMI 2.0): 3840 x 2160 @ 60 Hz
    Max. resolution (DisplayPort 1.4a): 7680 x 4320 @ 60 Hz or 2x 3840 x 2160 @ 60 Hz



    Memory

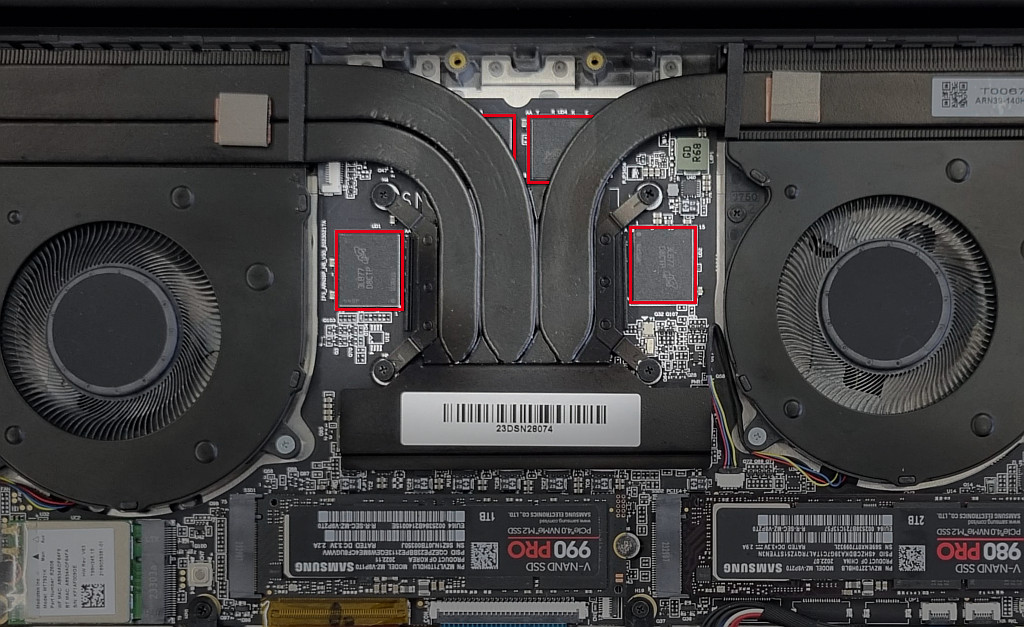

    32 GB LPDDR5X-6400 (4x 8GB; Dual-Channel; soldered; Not upgradable)

    Low Power DDR5X RAM is particularly power efficient which leads to better battery life and more performance (up to 6400 Mbps).

    For more information, please check out the "High-speed RAM & storage" info tile above.



    Mass storage (SSD / HDD)

    Two slots for single-sided high-speed SSDs in space-saving M.2 form factor

    2x M.2 2280 SSD via PCI Express 4.0 x4



    Communication / Network

    Wireless LAN / Wi-Fi: Wi-Fi 6 | 2.4 GHz, 5 GHz | 802.11a/b/g/n/ac/ax | up to 2400 Mb/s

    Bluetooth: Up to version 5.3 | Integrated in the Wi-Fi module



    Webcam / Laptop camera

    HD (720p) Webcam / camera including microphone
    Supports Windows Hello



    Sound / Audio

    High Definition Audio
    2 speakers: 2x 2W
    Integrated microphone



    Ports

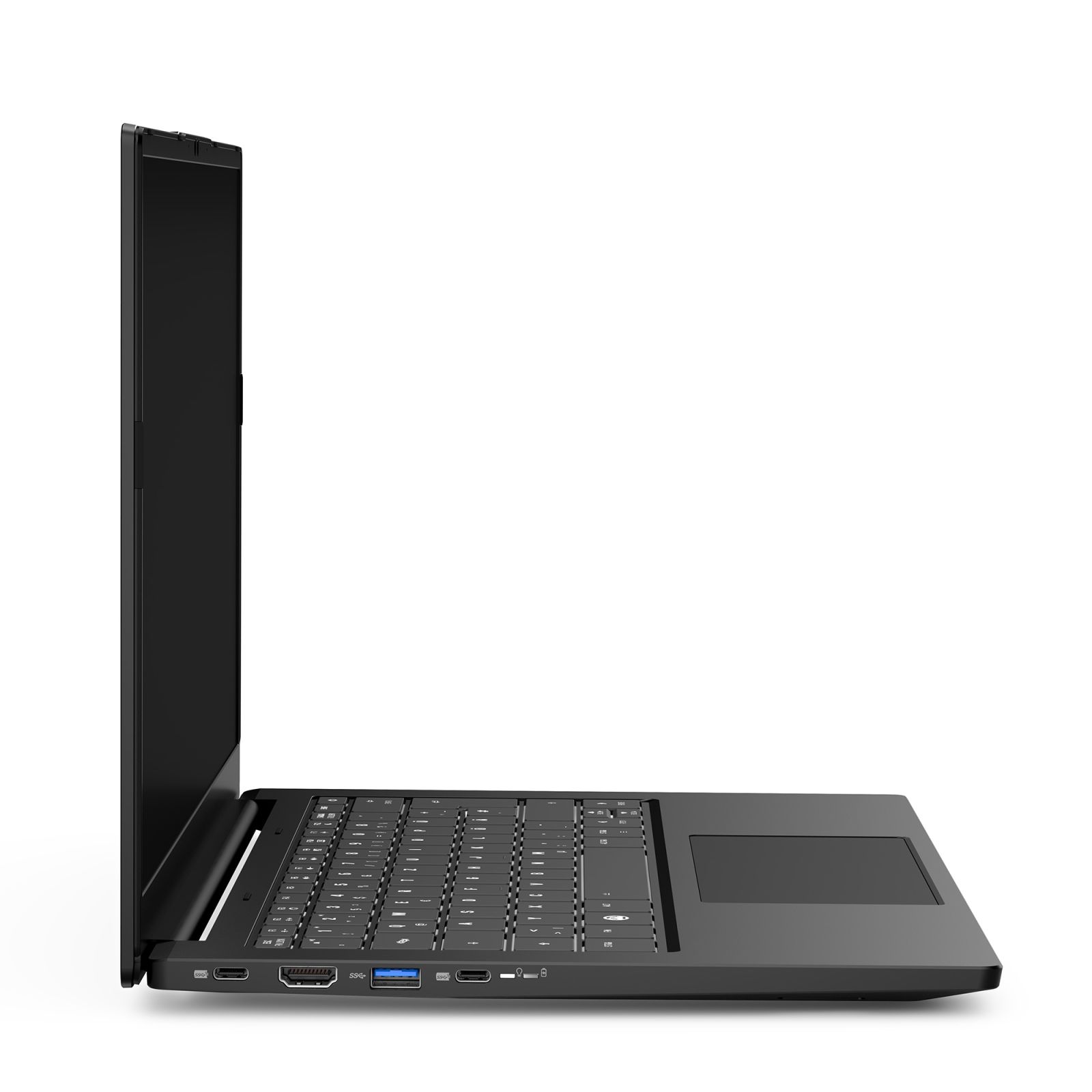

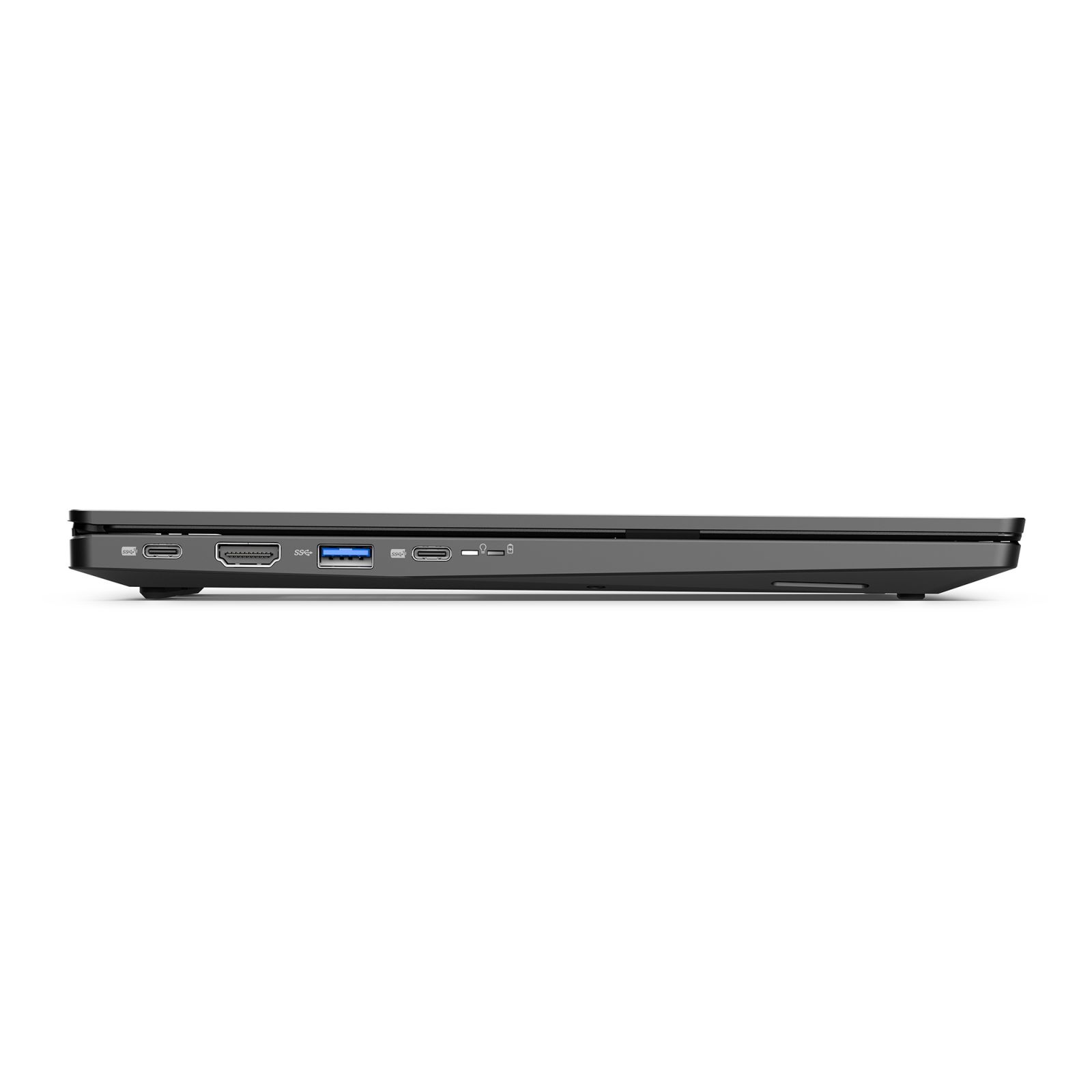

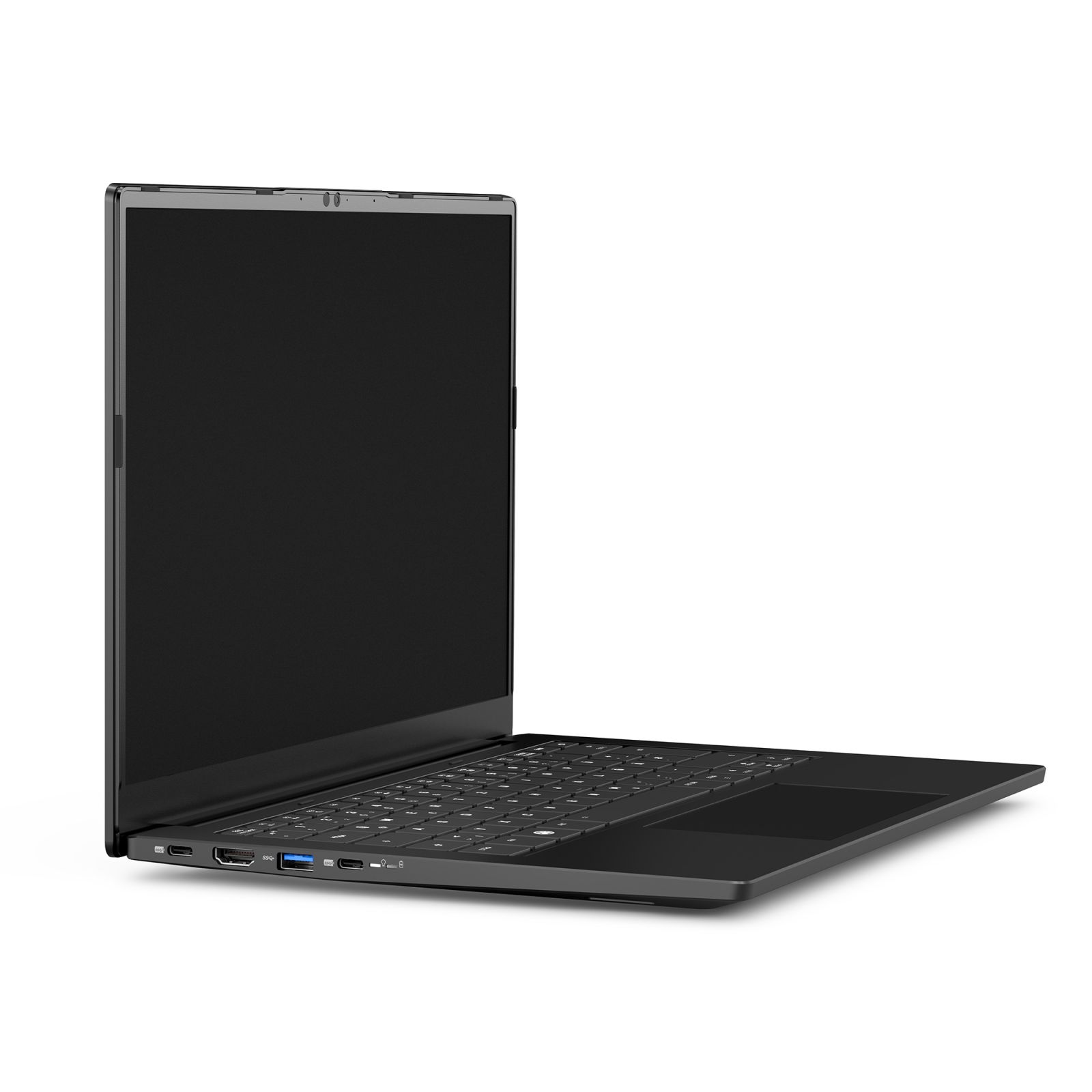

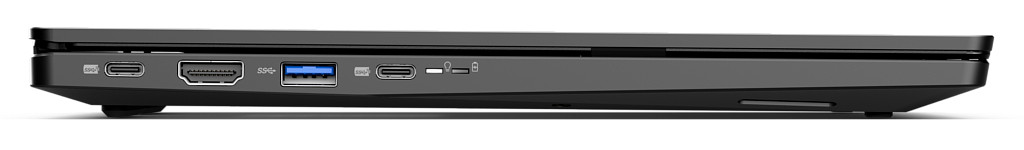

    Left side (from left to right):
    - USB-C 3.2 Gen2 (10 Gbps | DisplayPort 1.4a | Power Delivery DC-In | Charging peripherals also when shut off (requires power supply))
    - HDMI 2.0 (HDCP 2.2 | FreeSync compatible)
    - USB-A 3.2 Gen1 (5 Gbps)
    - USB-C 3.2 Gen2 (10 Gbps | DisplayPort 1.4a | Power Delivery DC-In | Charging peripherals also when shut off (requires power supply))

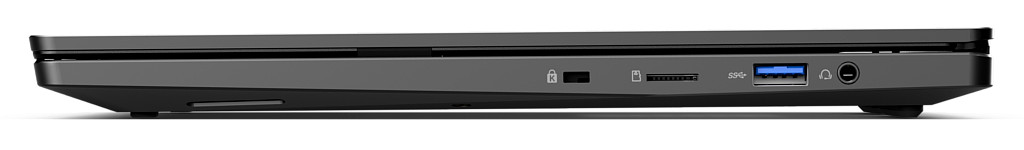

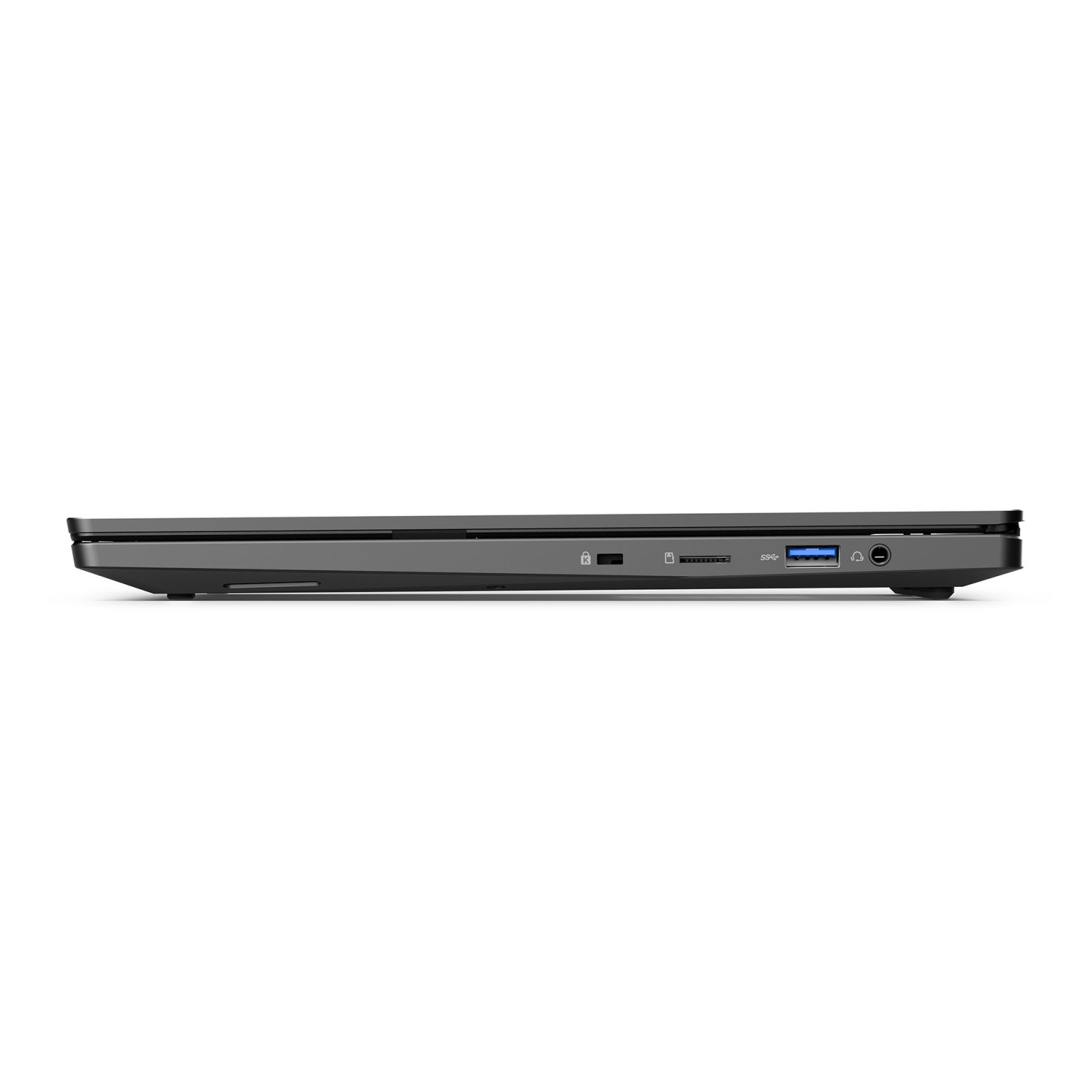

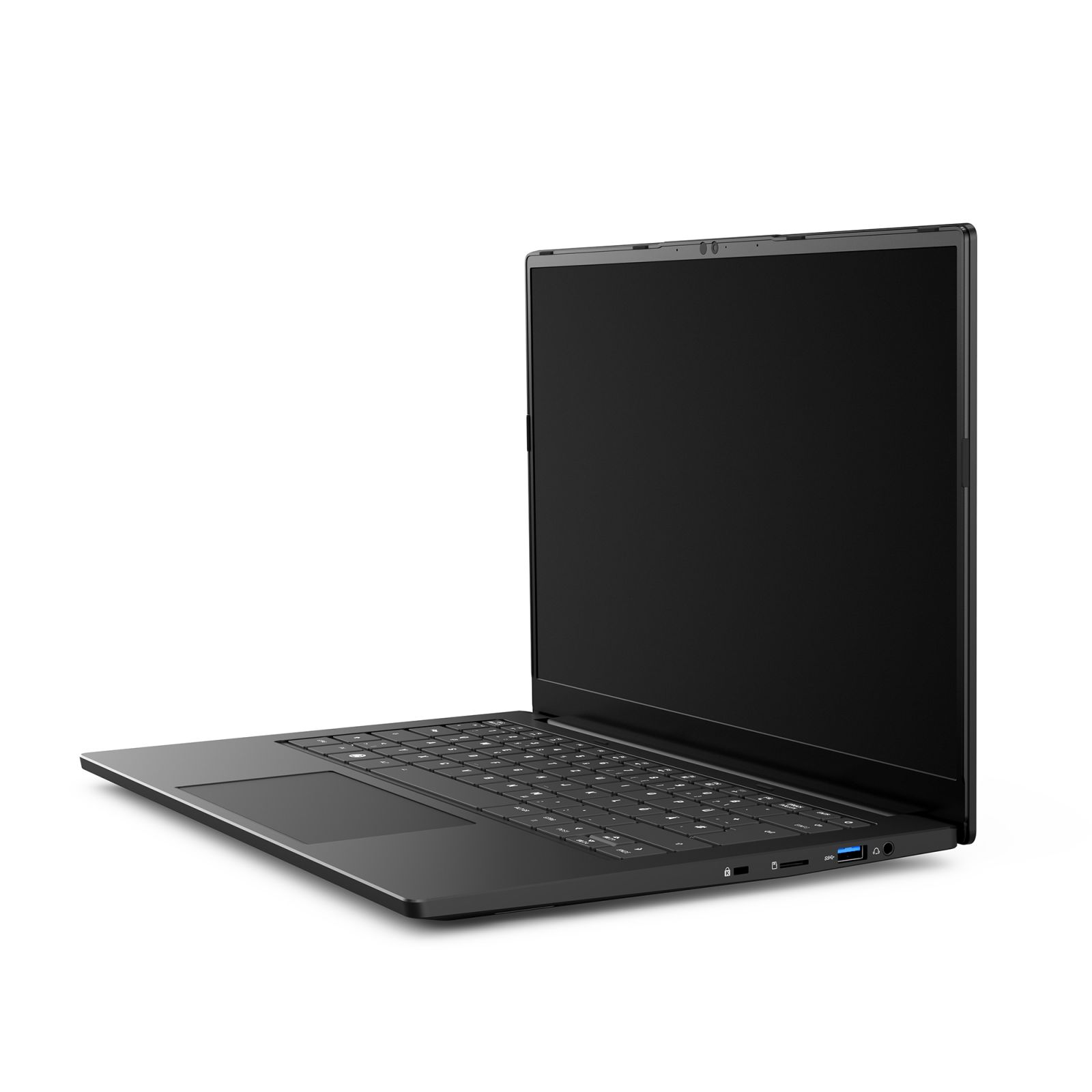

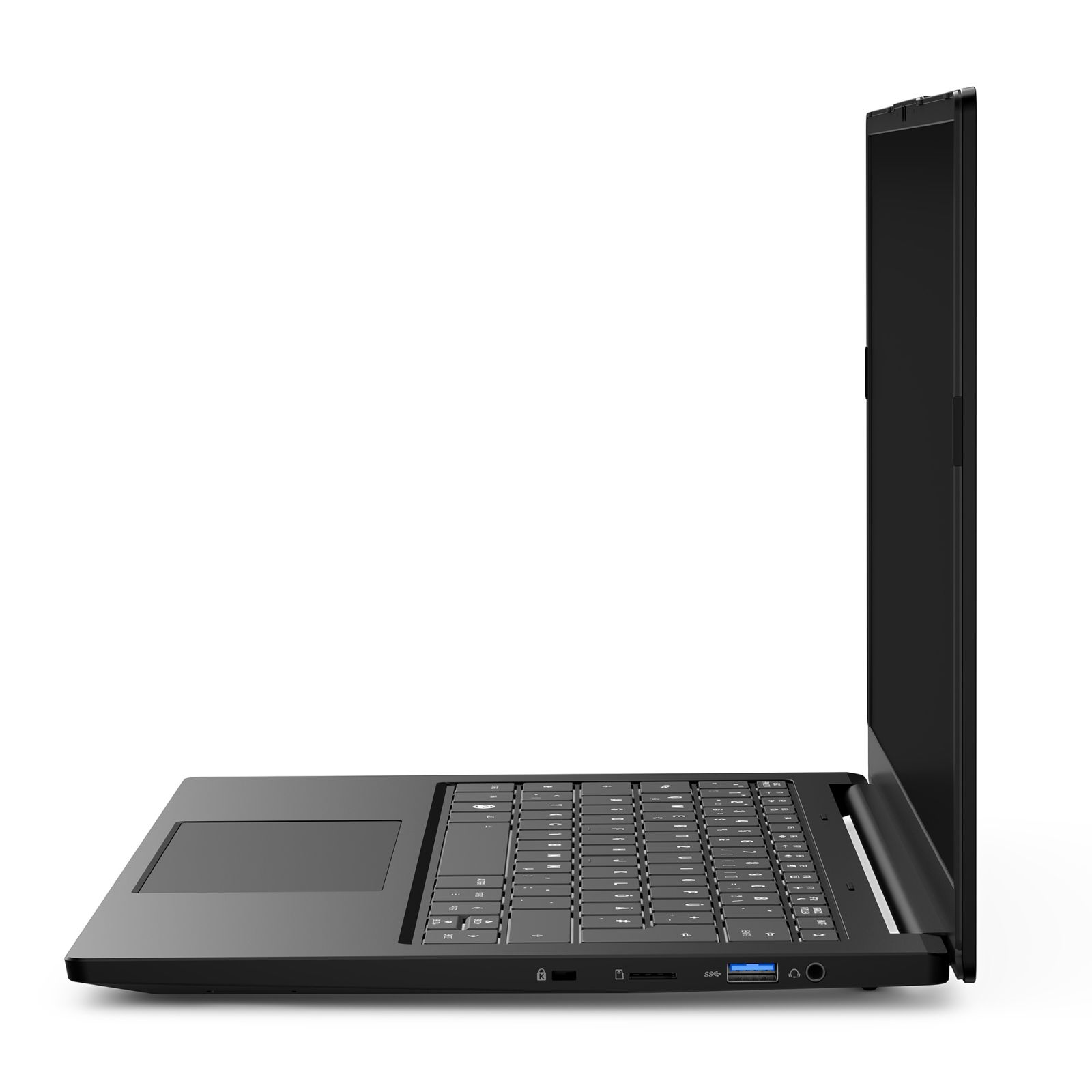

    Right side (from left to right):
    - Kensington Lock (NanoSaver)
    - microSD card reader
    - USB-A 3.2 Gen1 (5 Gbps)
    - 2-in-1 audio (headphone + microphone)



    Card reader

    microSD card reader
    Speed: UHS-I



    Security

    - Kensington-Lock mounting
    - Webcam & audio can be deactivated directly via the BIOS
    - Wifi & Bluetooth can be deactivated directly via the BIOS
    - fTPM



    Cooling System & Fan

    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).

    For this purpose, the following functions can be completely deactivated:
    - iGPU VRAM („Graphics Aperture Size“)
    - TPM
    - AMD-V and AMD-Vi (IOMMU)
    - SMT (Simultaneous Hyper Threading)
    - SSD slots
    - WiFi, Bluetooth, microphone / audio, card reader, every single USB port
    - SSD security / encryption options
    - LAN boot via USB / LAN adapter or docking station



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
