Display / Monitor

Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.

16'' WQXGA LED | 16:10 | 300 Hz
Type: LED backlight display, matte / non-glare
Viewing angles: 89°/89°/89°/89°
Refresh rates: 60 Hz, 240 Hz, 300 Hz
Resolution: 2560 x 1600 Pixels
Color gamut: 100 % DCI-P3
Brightness: 500 nits
Contrast: 1200:1
Additional features: MUX switch (see "Internal display connetion" below)
No PWM
Display models: BOE NE160QDM-NZM, CSOT MNG007DA6-4, Tianma TL160ADMP36

16'' WQXGA Mini-LED | 16:10 | 300 Hz
Type: Mini-LED backlight display, matte / non-glare
Viewing angles: 89°/89°/89°/89°
Refresh rates:  60 Hz, 240 Hz, 300 Hz
Resolution: 2560 x 1600 Pixels
Color gamut: 100 % DCI-P3
Brightness: 750 nits (SDR) / 1000 nits (HDR*)
Additional features: G-SYNC, Advanced Optimus
Display model: BOE NE160QDM-NM9
*Please note: HDR is currently only fully supported on Windows 11!

16'' WQXGA OLED | 16:10 | 240 Hz
Type: Self-lit OLED display, glare
Viewing angles: 89°/89°/89°/89°
Refresh rates: 60 Hz, 240 Hz
Resolution: 2560 x 1600 Pixels
Color gamut: 100 % DCI-P3
Brightness: 500 cd/m² (SDR) / 1000 cd/m² (HDR*)
Contrast: 100000:1
Additional features: MUX switch (see "Internal display connetion" below)
Display model: Samsung ATNA60HU01-0

*HDR is currently fully supported only on Windows

For technical production reasons, the measured values always vary slightly from panel to panel. More information

Opening angle: ~ 180°

Internal display connection (changeable via UEFI):

iGPU: iGPU Only or MsHybrid (NVIDIA Optimus)
dGPU: dGPU Only (via MUX switch)

Please note: Both displays DO NOT support G-SYNC and Advanced Optimus

Chassis

Display lid, base unit and bottom case made of aluminum
Display frame made of plastics

Dimensions: width: 357 mm; height: 28 mm; depth: 260 mm

Weight (incl. battery):
With OLED display: 2.6 kg
With LED display: 2.65 kg
With Mini-LED display: 2.8 kg

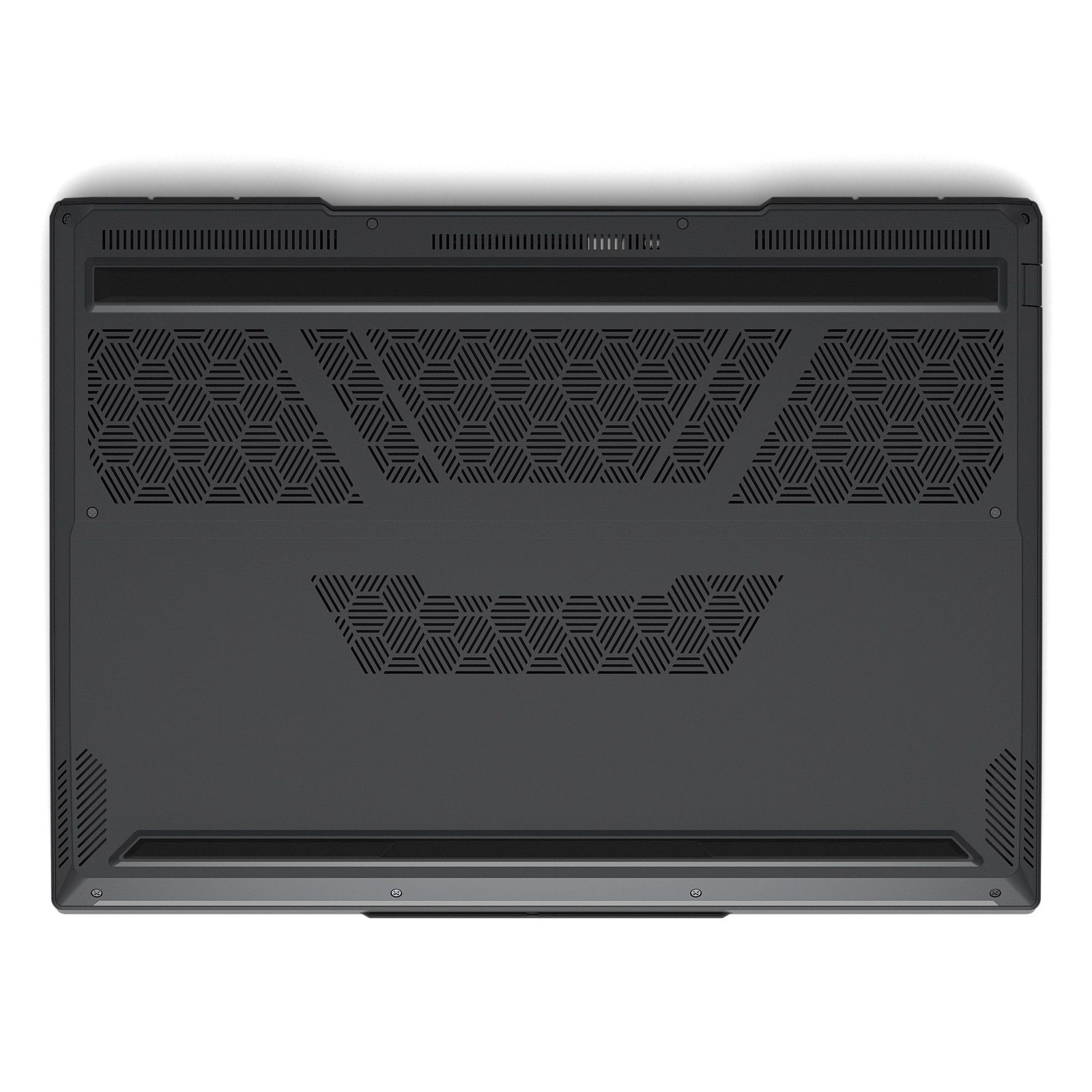

Maintenance: The bottom case is allowed to be removed by unscrewing a number of PH 0 screws for cleaning the fans, upgrading RAM, SSD, Wi-Fi or for exchanging the battery.
Please follow our maintenance instructions

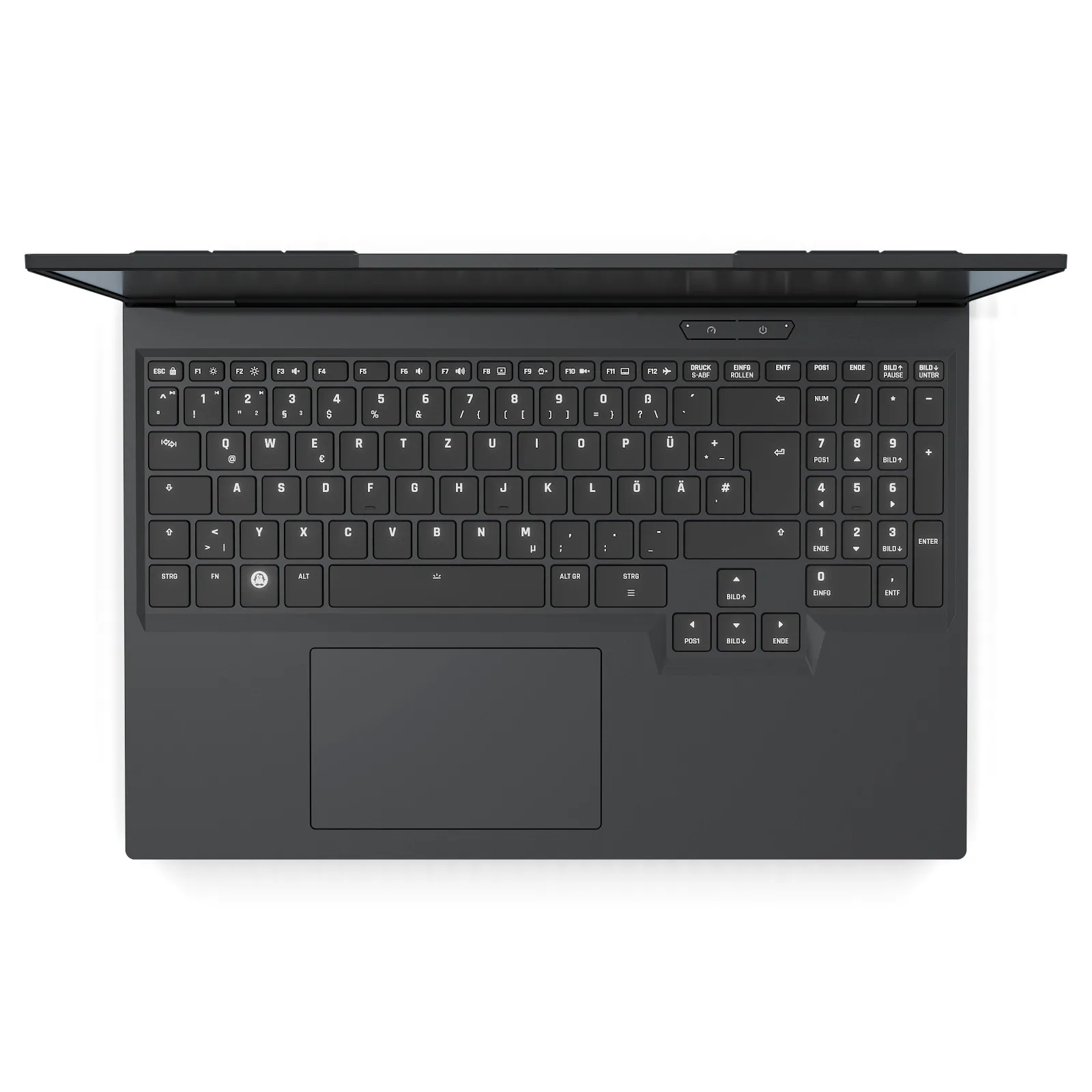

Keyboard and Touchpad

Quiet rubberdome / membrane keyboard with 4-row number pad and full-size arrow keys.
Color-adjustable keyboard backlight (Linux: single color | Windows: per-key RGB).

TUX super-key on all layouts!

Glass Precision Clickpad (123 x 78 mm) with integrated buttons and multi-gesture- & scroll-function

Battery & power supply

Maximally allowed 99 Wh battery, Lithium polymer
Replaceable (screwed inside)

Power supply units (cable socket C14):
With RTX 5070 Ti: 330 Watts (165 x 75 x 25 mm | 0.75 kg incl. power cable)
With RTX 5080 / 90: 420 Watts (179 x 81 x 27 mm | 0.8 kg incl. power cable)

Power plug:
Type: Coaxial
Inner diameter: 2.5mm
Outer diameter: 5.5mm
Length: 12.5mm

We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.

Main processor

Intel Core Ultra 9 290HX Plus
(24 Cores (8 Performance cores | 16 Efficient cores | 24 Threads | Max. 5,5 GHz | 36 MB Intel Smart Cache, 10 - 160W*)

* Adjustable via TUXEDO Control Center

Thermal compound: Honeywell PTM7958

Graphics card

NVIDIA GeForce RTX 5070 Ti | 12 GB GDDR7 VRAM | 60 - 115W TGP (+25 W Dynamic Boost)
NVIDIA GeForce RTX 5080 | 16 GB GDDR7 VRAM | 80 - 150W TGP (+25 W Dynamic Boost)
NVIDIA GeForce RTX 5090 | 24 GB GDDR7 VRAM | 90- 150 W TGP (+25 W Dynamic Boost)

Thermal compound: Honeywell PTM7958

Energy efficient CPU integrated Graphics:
Intel Graphics | 4 X^e Grafikkerne | max. 1.9 GHz graphics frequency

At least 4 displays can be driven simultaneously:
- 1x internal notebook display
- 1x HDMI 2.1
- 1x Mini DisplayPort 2.1
- 1x Thunderbolt 4 (DisplayPort 1.4) (additional displays possible via Thunderbolt dockingstation or MST adapter (not tested)).

Max. Resolution (HDMI 2.1): 3840 x 2160 @ 120 Hz
Max. Resolution (DisplayPort 2.1): 7680 x 4320 @ 85 Hz | 2x 3840 x 2160 @ 60 Hz

Memory

Type: DDR5 SO-DIMM / CSO DIMM (up to 6400 MT/s)
Manufacturer and speed see configurator
Default and maximum see configurator
Performant Dual Channel mode (2 slots)

Mass storage (SSD / HDD)

1x M.2 2280 SSD via PCI Express 5.0 x4
1x M.2 2280 SSD via PCI Express 4.0 x4

Communication / Network

Wired/LAN:
2,5 Gigabit LAN (10/100/1000/2500 Mbit/s)

Wireless/WIFI:
Intel Wi-Fi 6E AX211:
Interface: M.2 2230 / CNVio2
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
Bands: 2.4GHz, 5GHz, 6GHz
Communication channels: 2x2
Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2.4Gbps (5GHz WIFI)

Bluetooth:
Integrated in above Intel Dual Band Wi-Fi 6E AX211
Version: Dual Mode Bluetooth 5.3

Wireless/WIFI:
Intel Wi-Fi 7 BE200:
Interface: M.2 2230 / USB
Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax/be
Bands:  2.4GHz, 5GHz, 6GHz
Communication channels: 2x2
Transfer rate: max. 5.8 Gpbs (320MHz,4096QAM)

Bluetooth:
Integrated in above Intel Dual Band Wi-Fi 7 BE200
Version: Bluetooth 5.4

Webcam / Laptop camera

FullHD (1080p) Webcam / camera including microphone
Camera lens shutter
Compatible with »Windows Hello«

Sound / Audio

High Definition Audio
2 speakers: 2x 2W
Integrated microphone

Ports

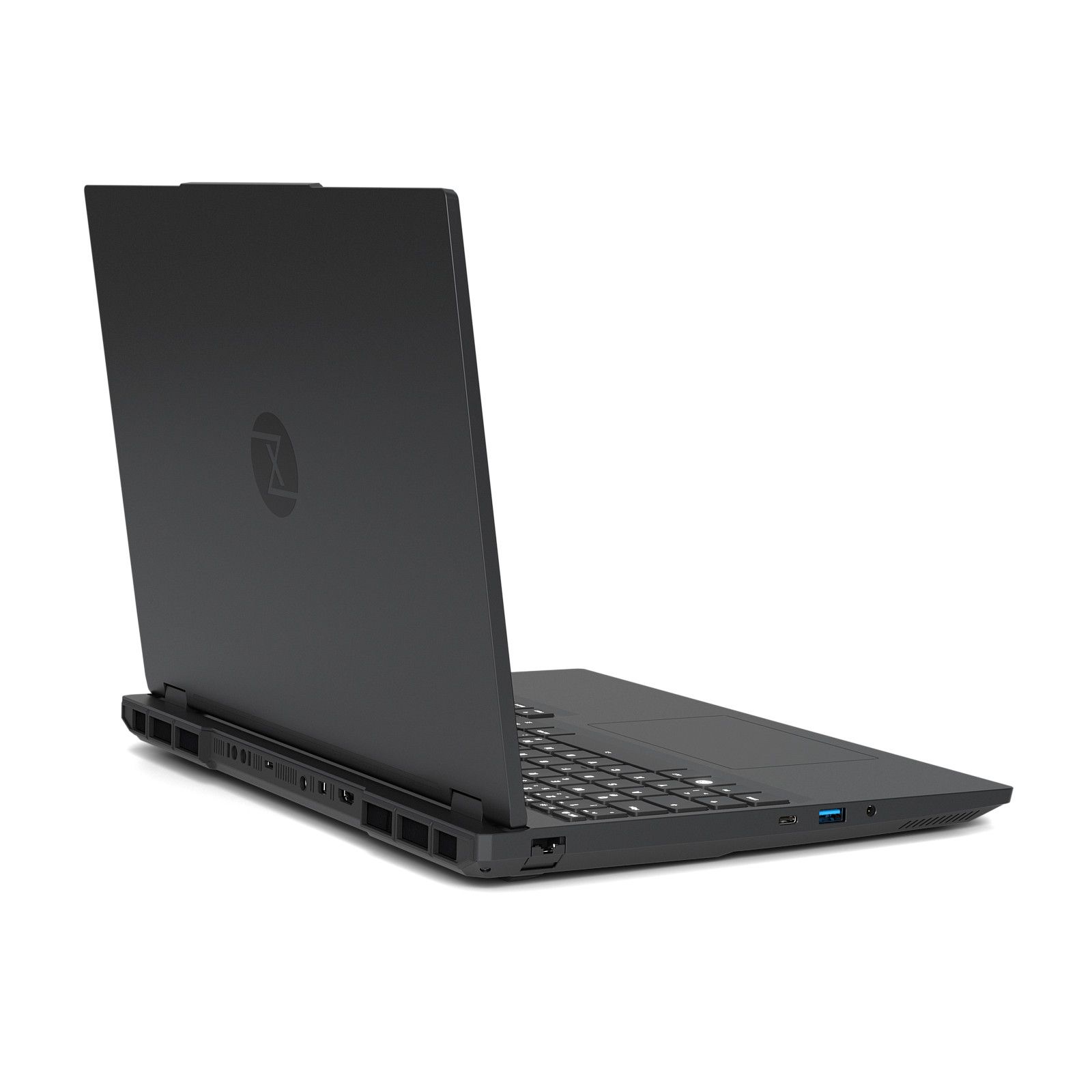

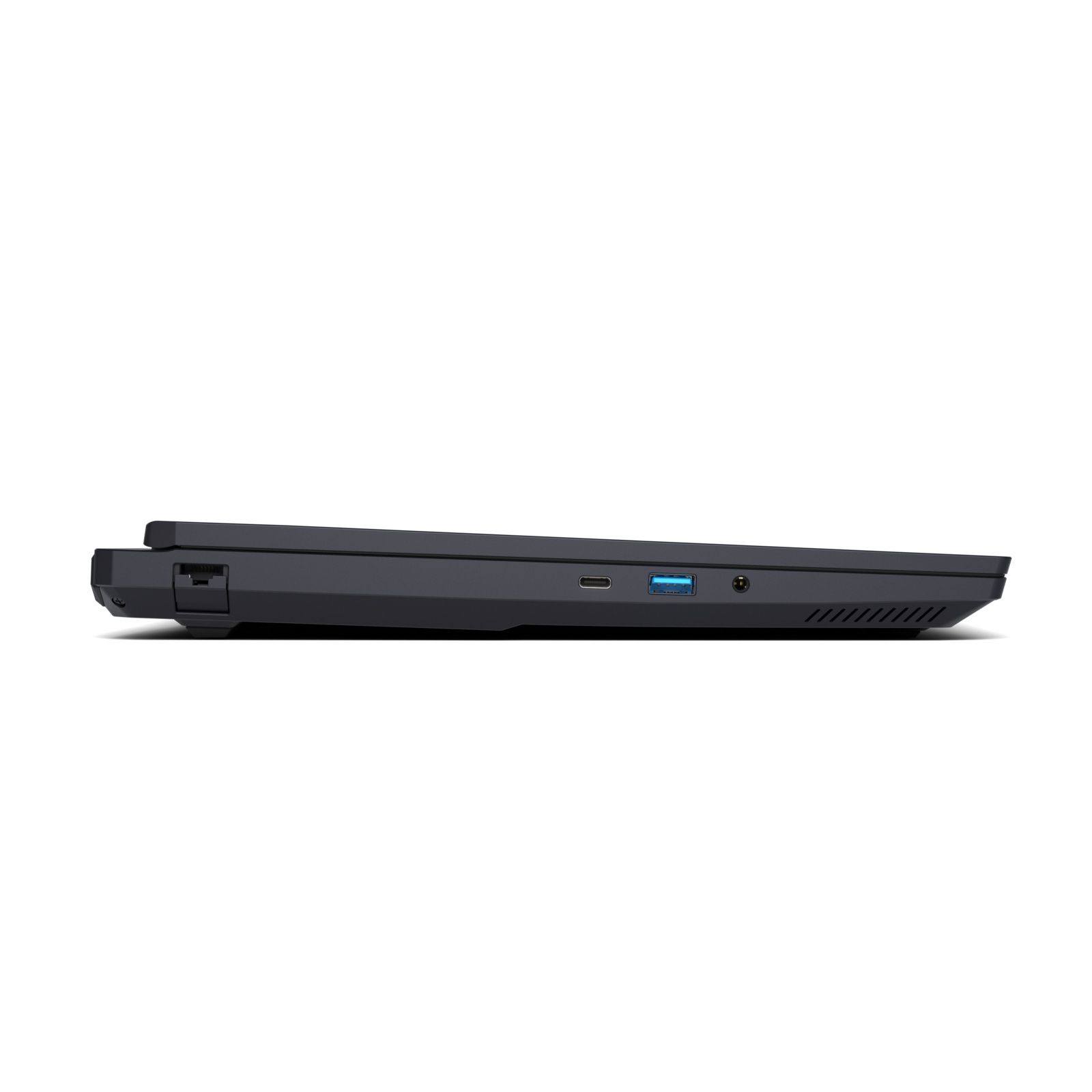

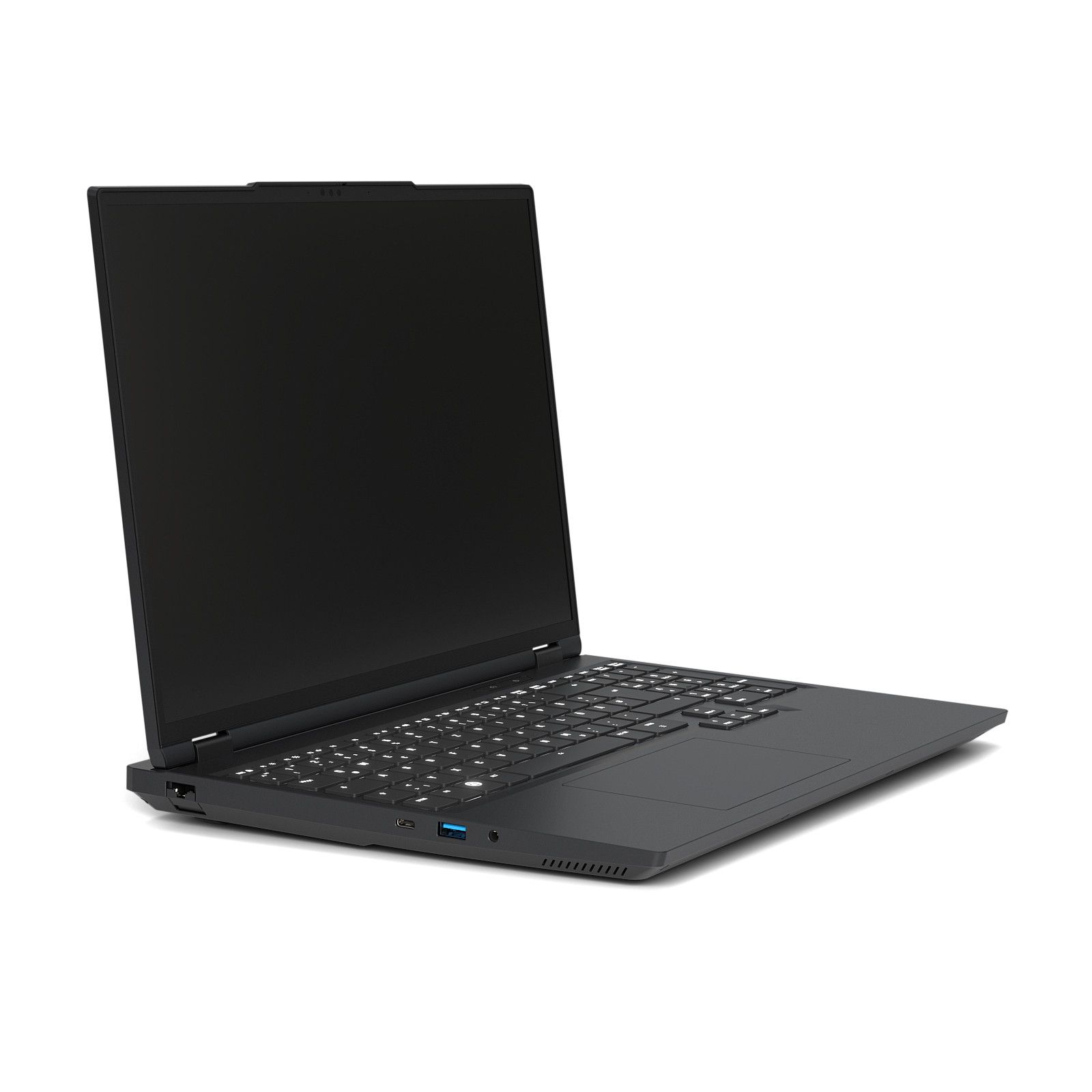

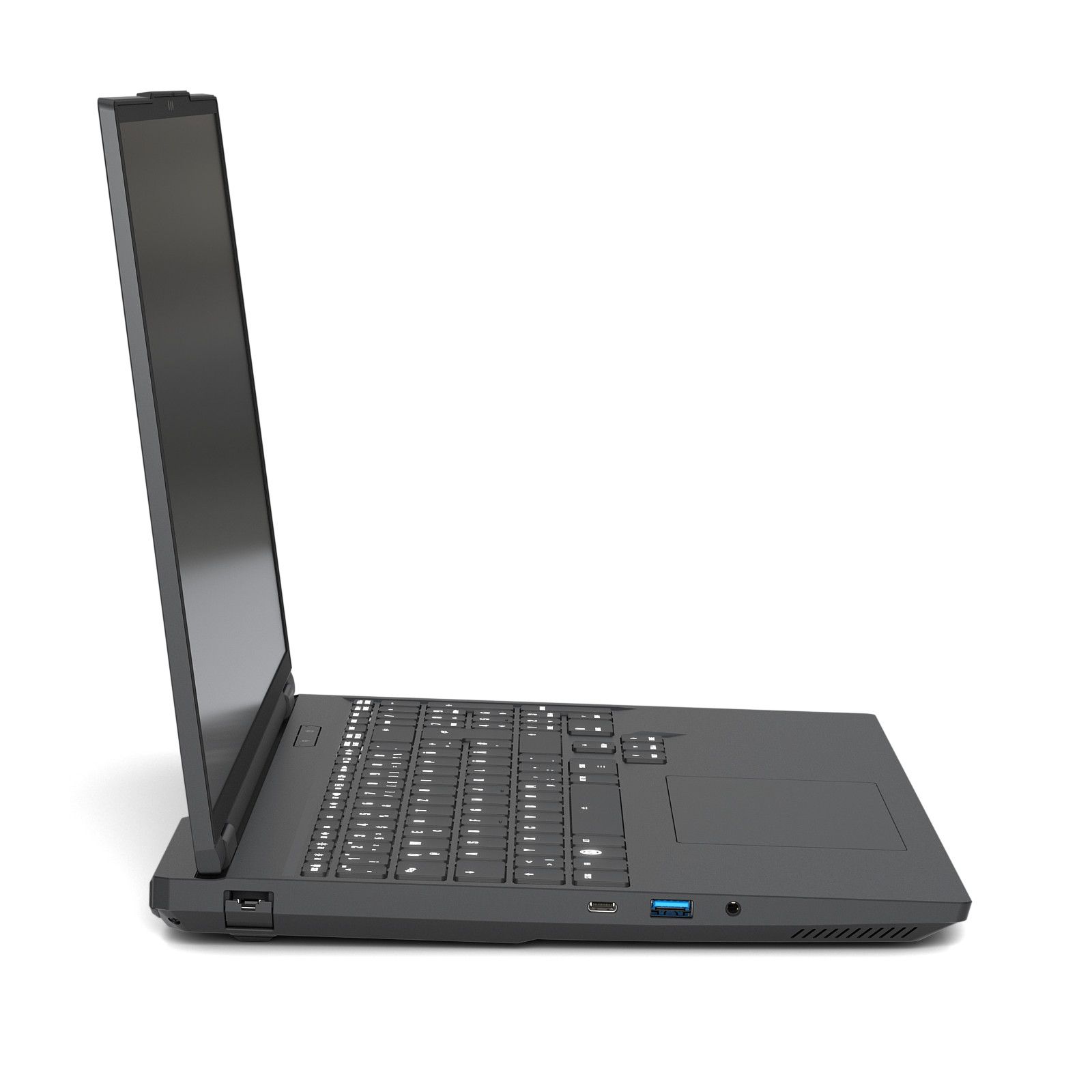

Left side (from left to right):
- RJ45 LAN (2,5 GBit/s)
- USB-C 3.2 Gen2 (Hardwired to: iGPU | 10 GBit/s | DisplayPort 1.4a (up to 32,4 GBit/s) | 100 W PowerDelivery DC-In*)
- USB-A 3.2 Gen1 (5 GBit/s)
- 2-in-1-Audio (Microphone & headphone)

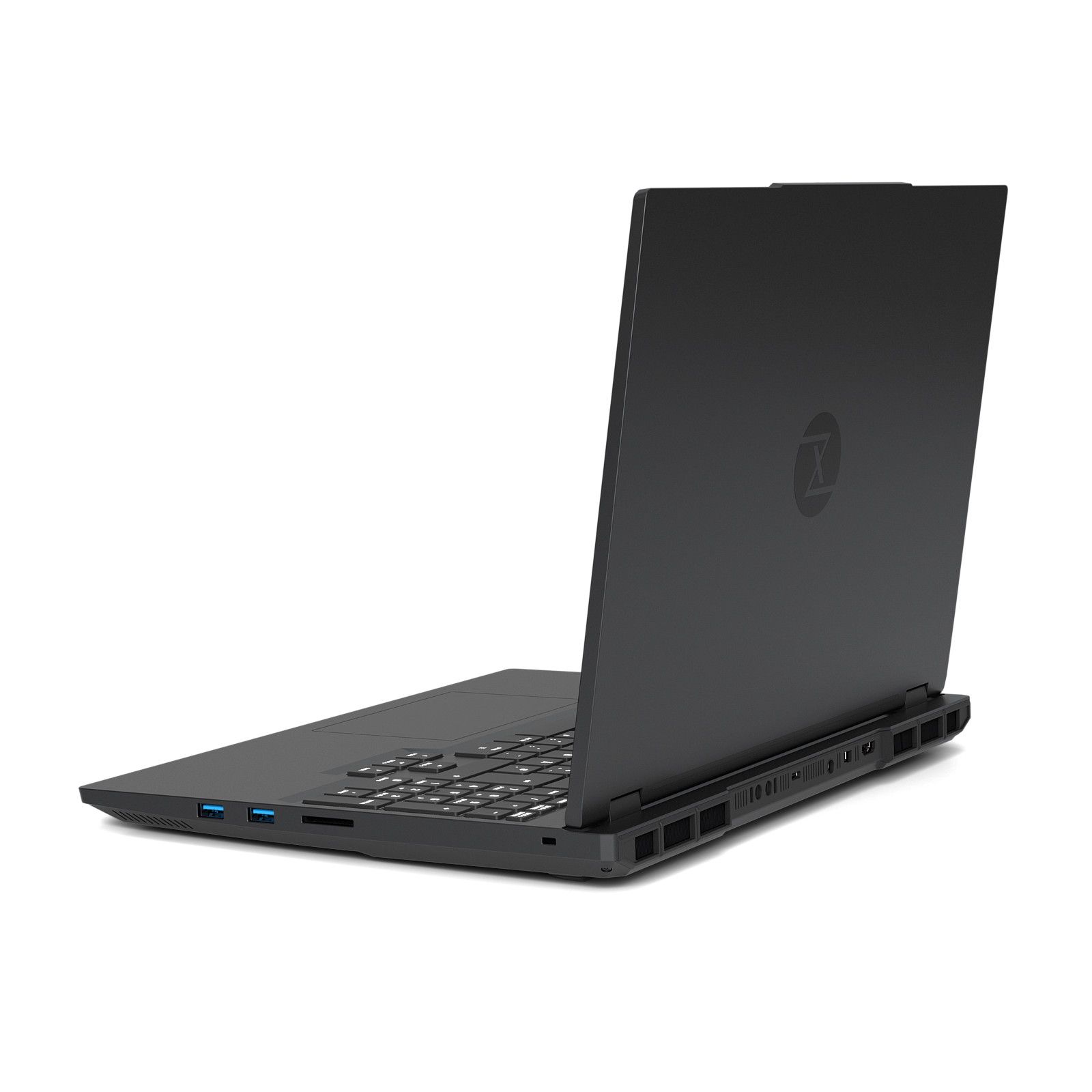

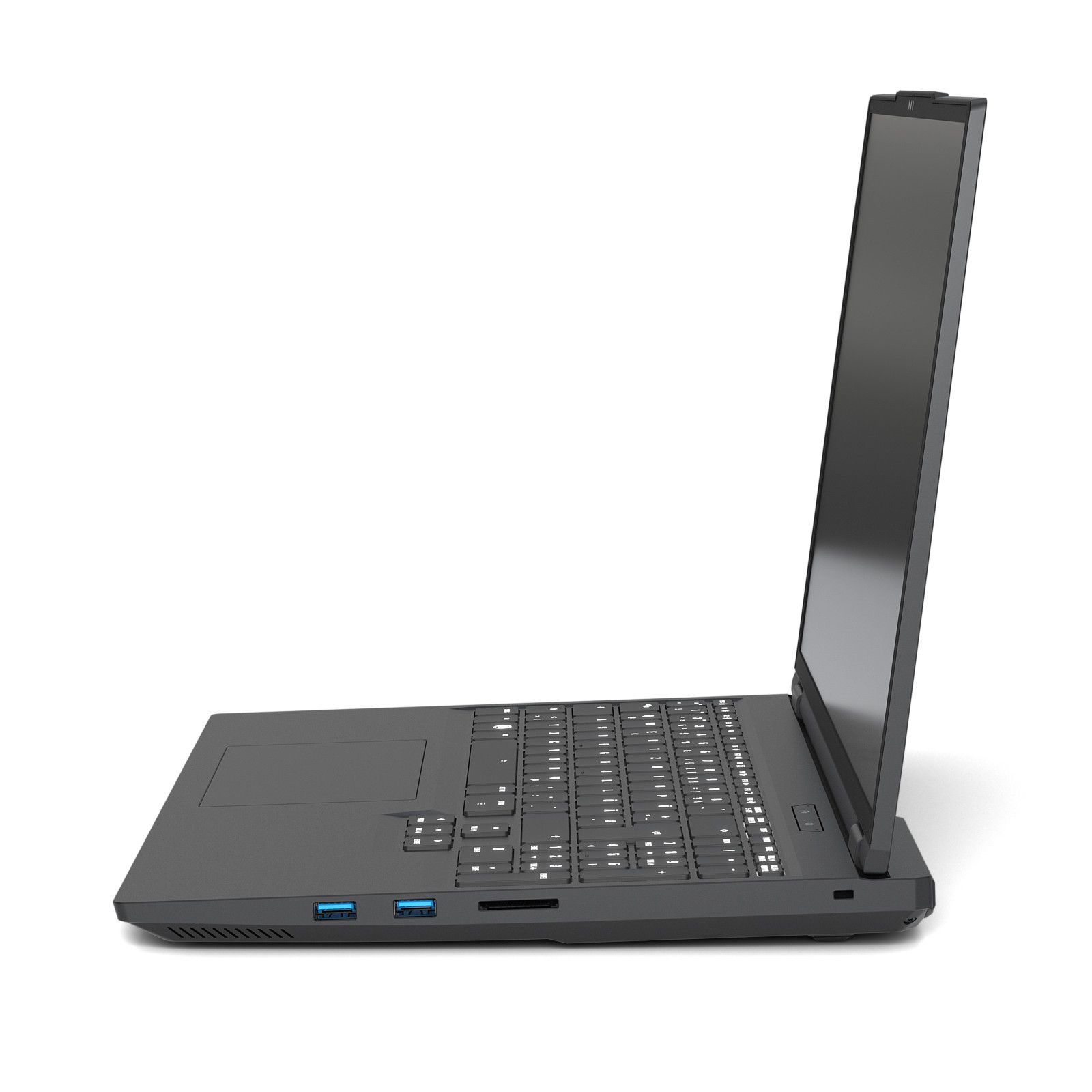

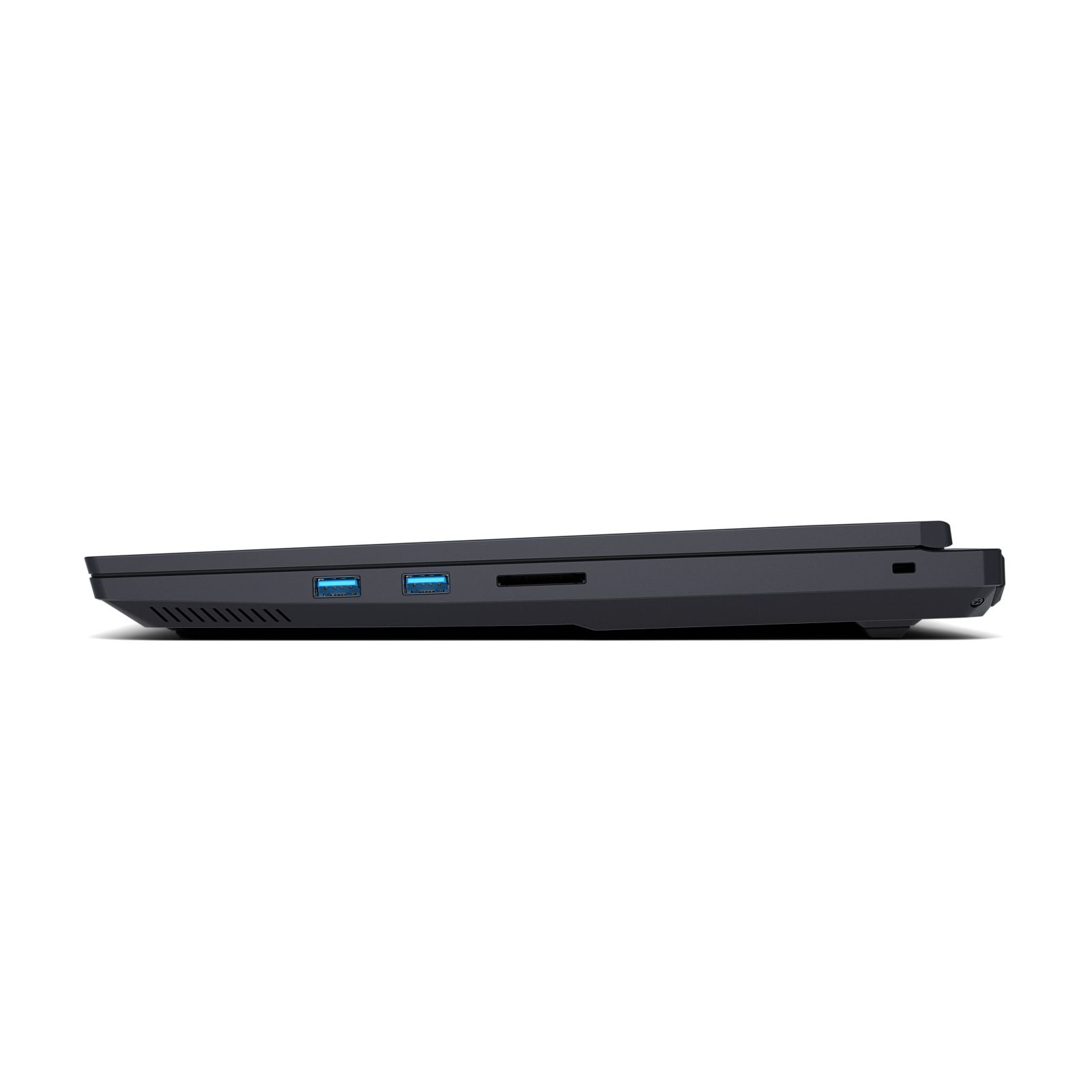

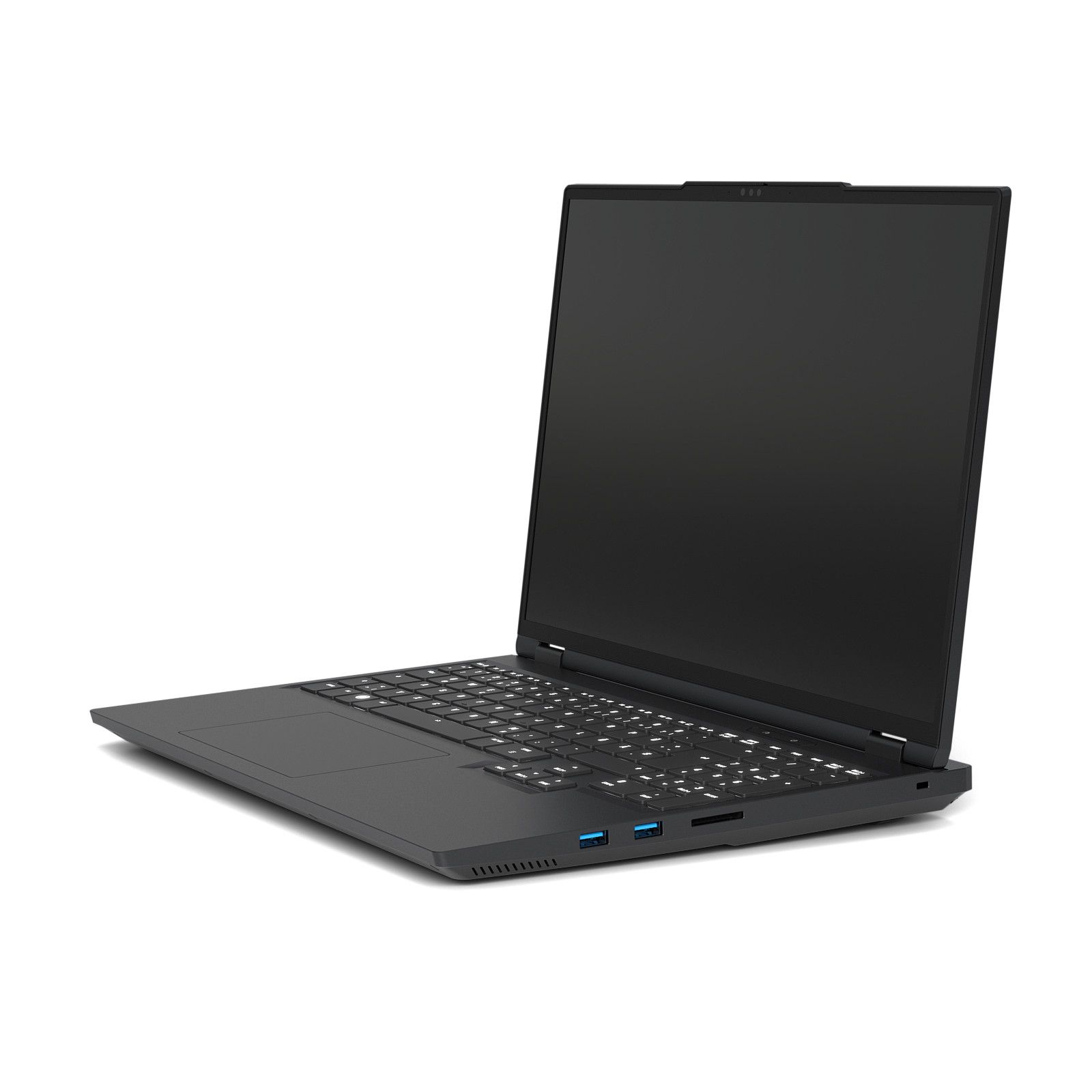

Right side (from left to right):
- 2x USB-A 3.2 Gen1 (5 GBit/s)
- SD card reader (SD/SDHC/SDXC | SD Express | UHS-II)
- Kensington Lock

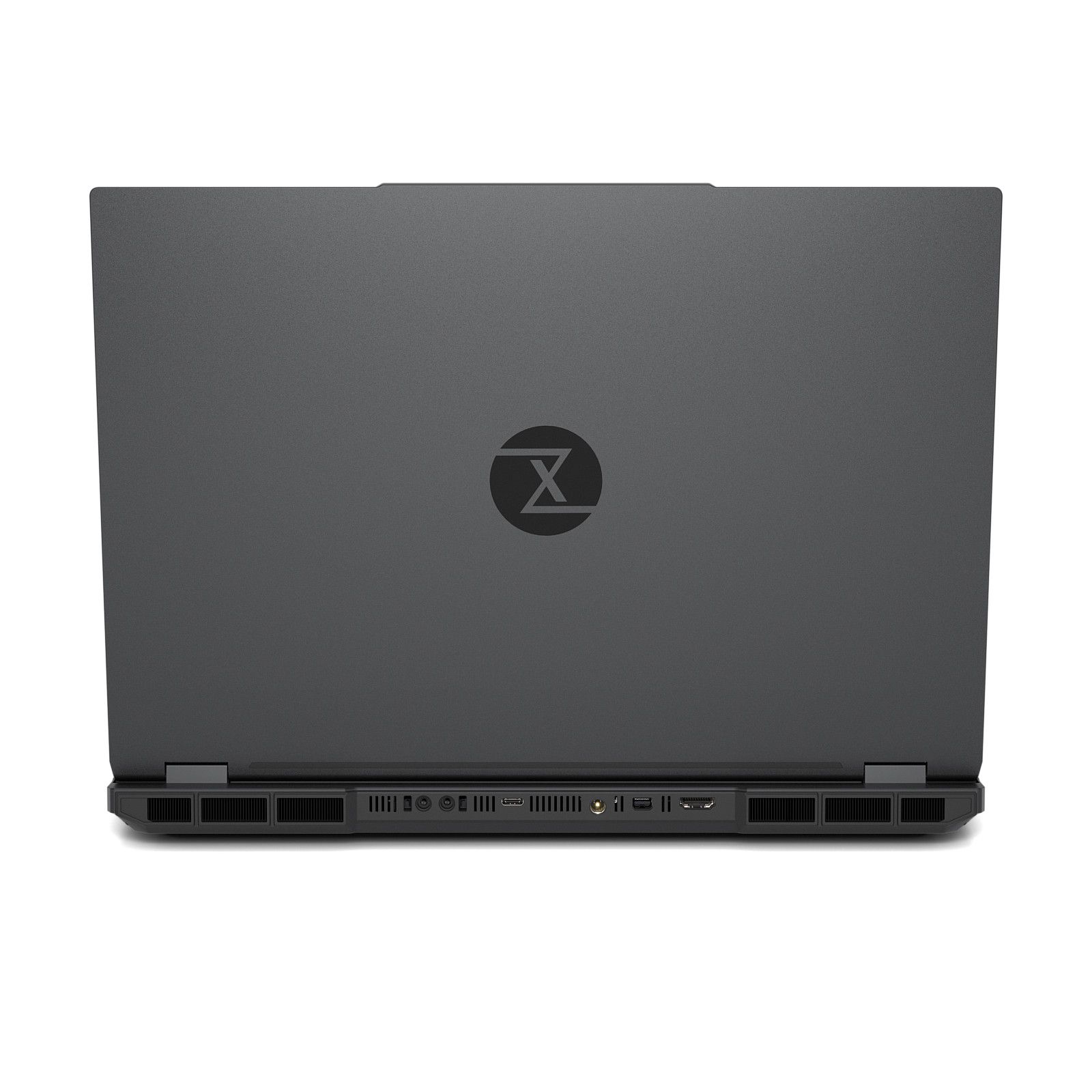

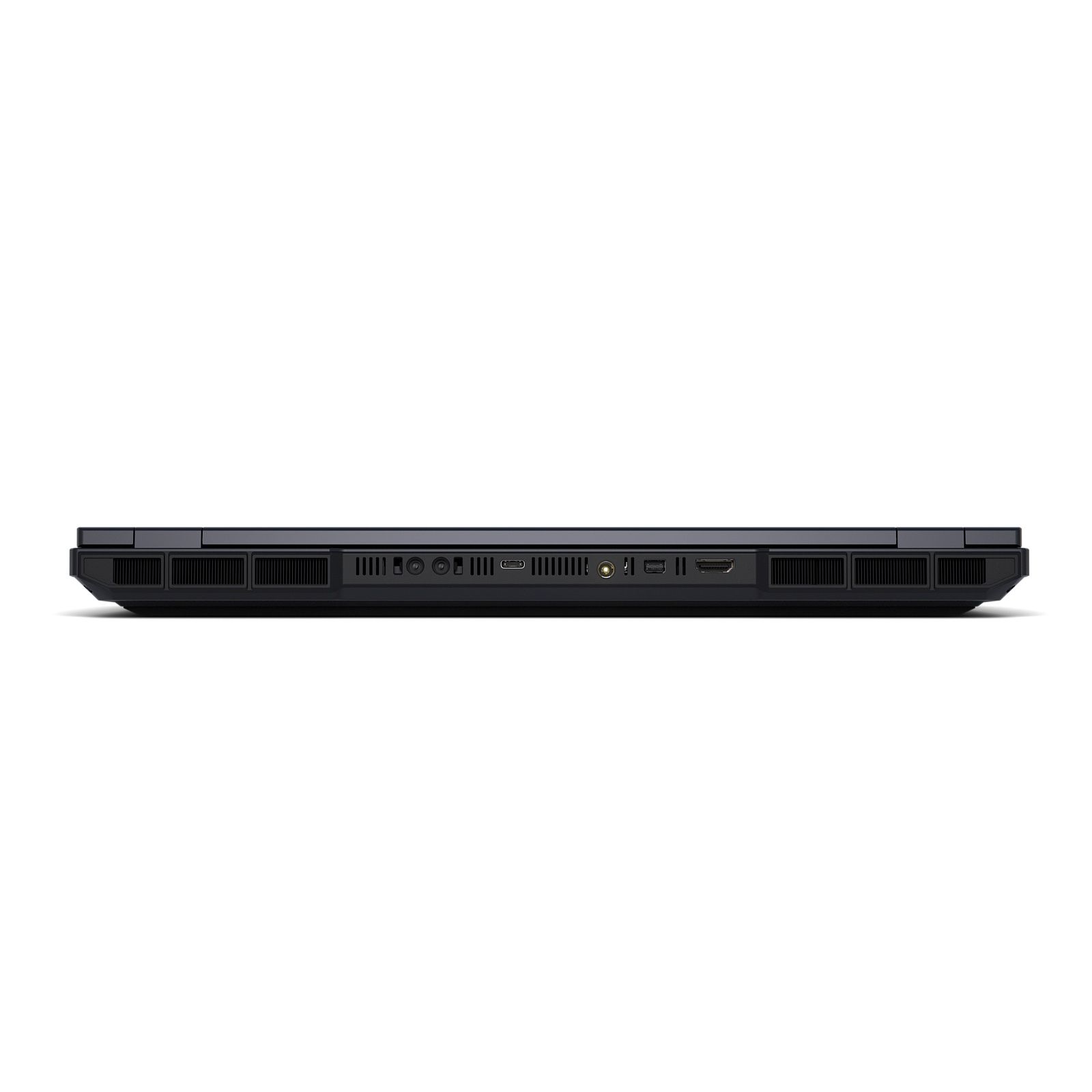

Back side (from left to right):
- Liquid cooling connector for TUXEDO Aquaris
- Thunderbolt 4 / USB4 (Hardwired to: iGPU | DisplayPort 2.1 (up to 40 GBit/s) | 140 W PowerDelivery DC-In**)
- Power plug (DC-In)
- Mini DisplayPort 2.1 (Hardwired to: dGPU | up to 80 GBit/s (DP80))
- HDMI 2.1 (Hardwired to: dGPU | up to 48 GBit/s | HDCP 2.3 | VRR / G-SYNC)

*Requirement: 20 V / 5 A (100 W)
**Requirement: 20 V / 7 A (140 W)

Card reader

Full size SD card reader (SD/SDHC/SDXC)
Speed: UHS-II

Security

- Kensington-Lock (please check for the needed size)
- Intel Management Engine (Intel ME) can be disabled directly via the BIOS
- Webcam & audio (only on Intel CPUs) can be deactivated directly via the BIOS
- WLAN & Bluetooth can be deactivated directly via the BIOS

- TPM 2.0 (via Intel PTT) (can be activated/deactivated via BIOS)

Cooling System & Fan

Height of fans and heatsinks: 12 mm
Number of fans: 3
Fan diameter: 2x 80 mm | 1x 46 mm

Cooling capacity:
CPU: Up to 160 W (sustained)
dGPU: Up to 175 W (sustained)
CPU + dGPU: Up to 240 W (sustained)

Temperature controlled fan
At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

Custom performance and fan control with the TUXEDO Control Center
With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!

Operating systems

Warranty

2 years pick up and return (12 months on wearing parts like battery & power supply)

Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)

All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!

For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions

Package Contents

1x TUXEDO Book preinstalled & configured
1x Power supply
1x Power cord
1x Recharchable battery
1x First steps manual incl. short technical manual
1x WebFAI USB drive (www.webfai.de) for Linux recovery
1x Drivers for Windows downloadable
1x For the installation of own SSDs or HDDs necessary screws
