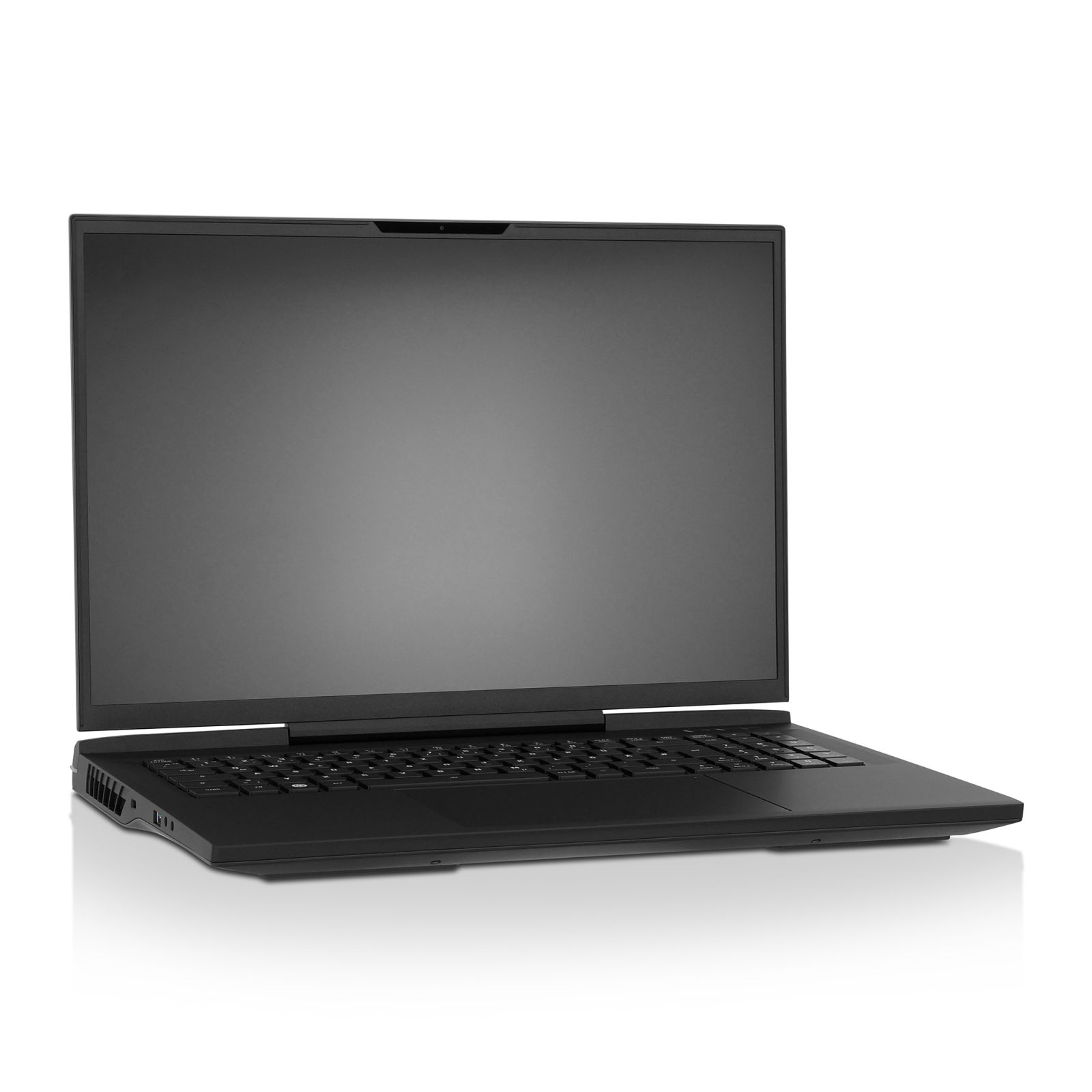

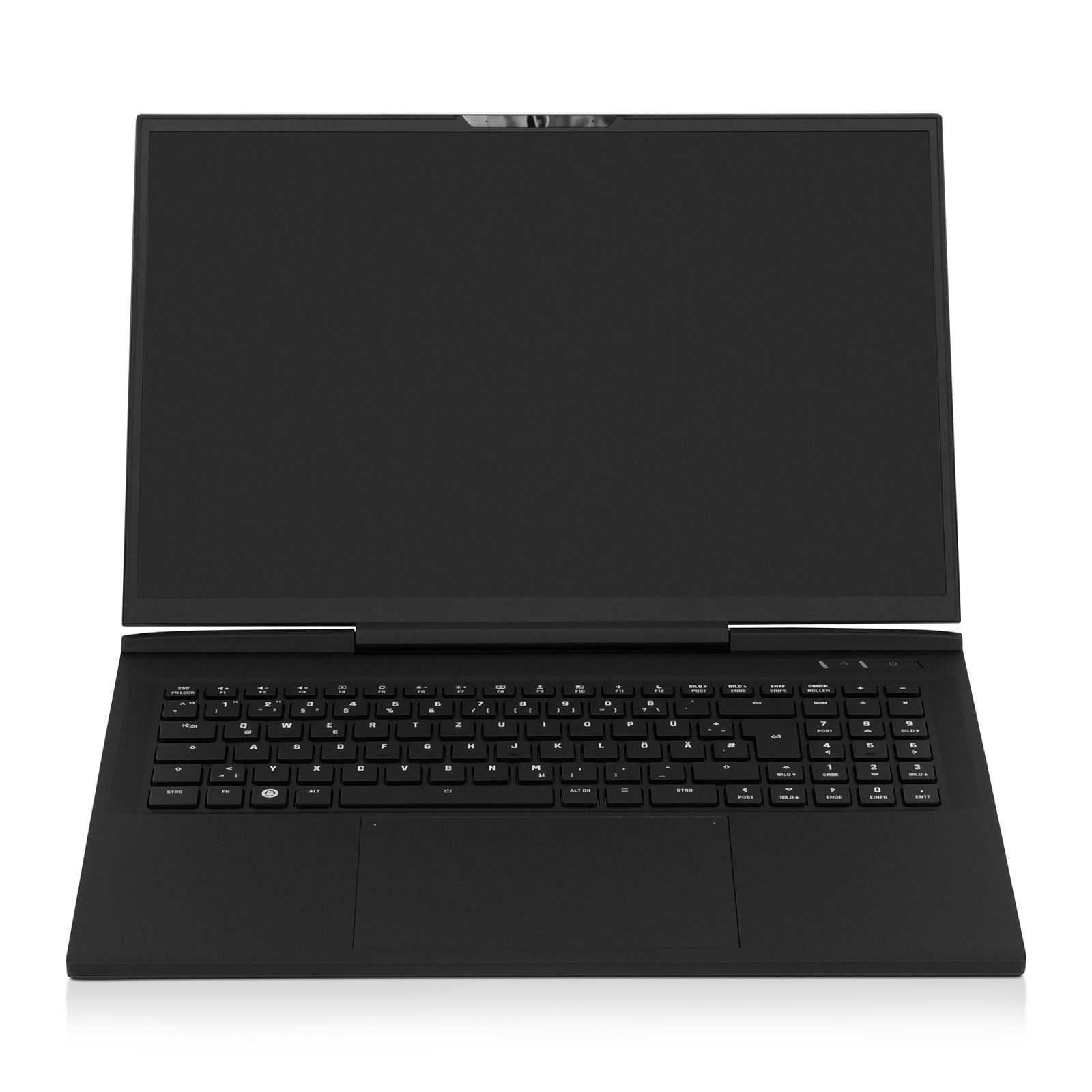

    TUXEDO Stellaris 17 - Gen4

    AMD Ryzen 9 6900HX
    Efficiency and high-end performance

    NVIDIA GeForce RTX 3080 Ti
    TGP up to 175 W*

    Cherry MX mechanical switches
    Premium low profile keyboard

    16:10 WQHD display
    2.560 x 1.600 pixels | 240 Hz



    Interstellar performance in a
    17-inch premium enclosure

    The TUXEDO Stellaris series features the most powerful notebook hardware on the market without losing sight of the mobility aspect. The result? Maximum high-end performance in a still relatively compact chassis and a large battery for a great combination of power and portability.

    The TUXEDO Stellaris 17 - Gen4 raises the level of the series to a whole new level with its new premium-quality enclosure, high-quality 16:10 WQHD display, new Cherry MX mechanical keyboard and - compared to its predecessor - improved cooling.

    As befits the top-of-the-line configuration, it features no less than the fastest graphics card for laptops with the NVIDIA GeForce RTX 3080 Ti (TGP up to 175 watts) and AMD's most powerful Ryzen 6000 CPU, the Ryzen 9 6900HX, for outstanding performance and class-leading efficiency.

    The maximum-sized 99 Wh lithium polymer battery, brand-new DDR5-4800 MHz RAM, and support for TUXEDO Aquaris stationary water cooling gadget underscore the TUXEDO Stellaris 17 - Gen4's high-tech credentials.



    Rock solid premium chassis with great balance of cooling performance and mobility

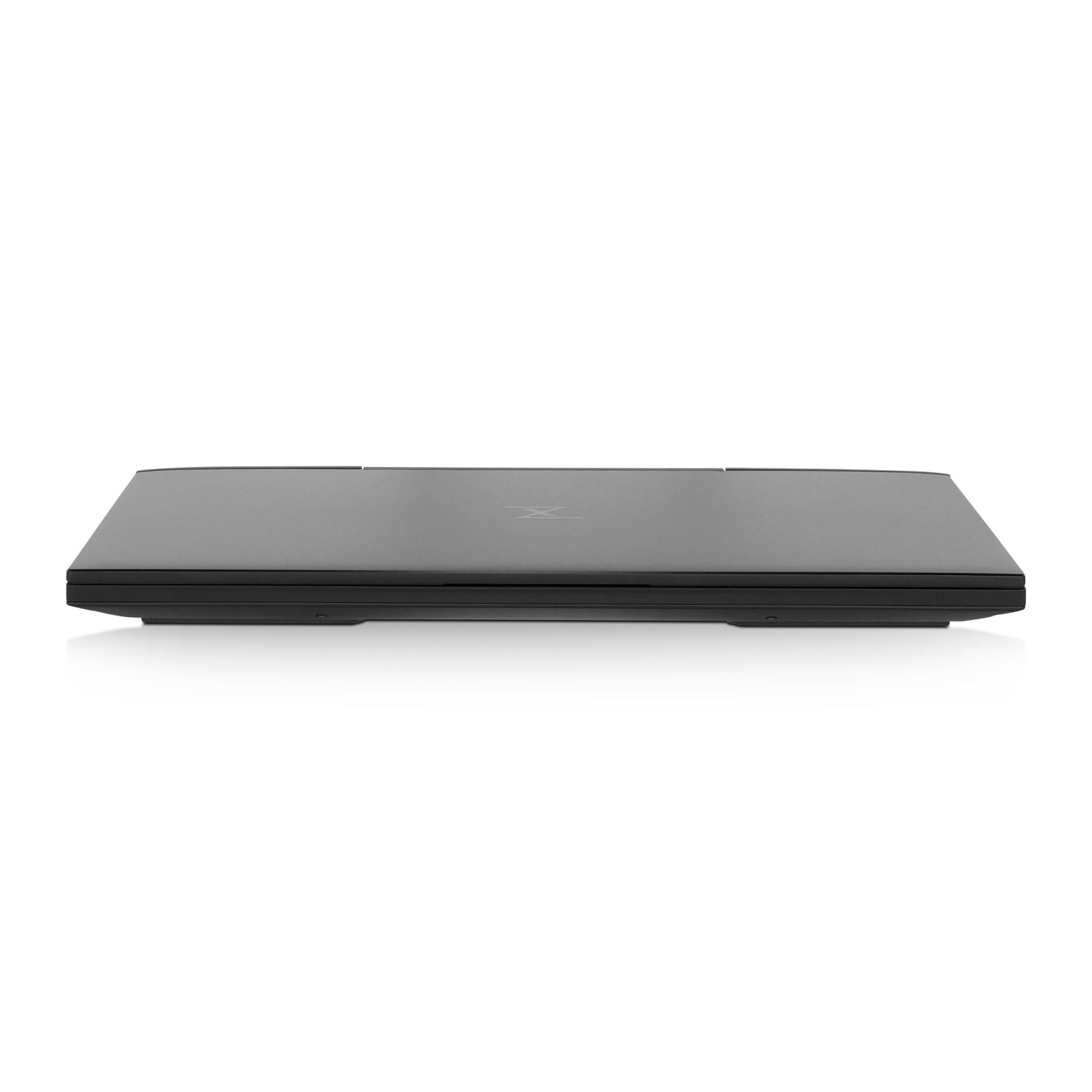

    In Generation 4, the Stellaris 17 does not only come with a new, but the simply best quality TUXEDO notebook enclosure to date. The high-quality aluminum chassis not only impresses with its excellent stability and robustness, but also with very solid, high quality haptics.

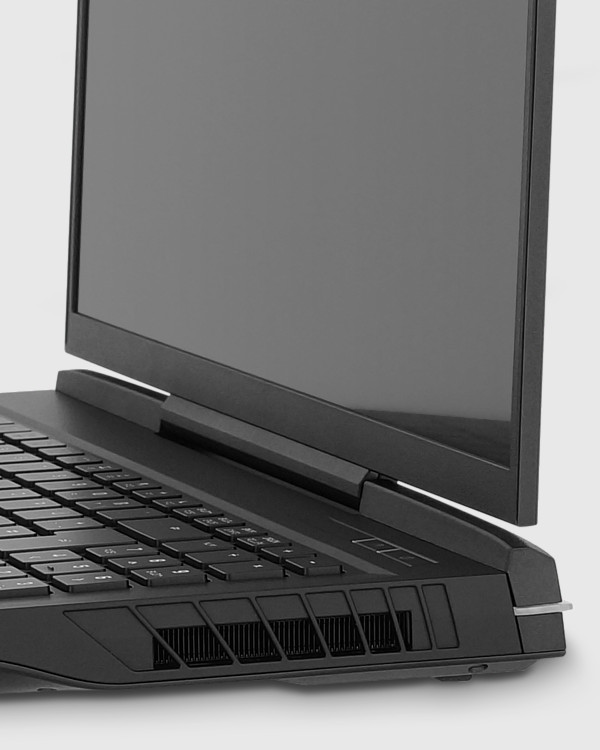

    While the large aluminum display lid is held stably in position thanks to its perfectly tight centered hinge, the base unit of the Linux high-end notebook offers a rubberized and grippy soft-touch coating.

    TUXEDO Stellaris 17TUXEDO Stellaris 17

    Thanks to a - for a high-end desktop replacement - moderate weight of 2.8 kg and an chassis height of 27 mm, the Stellaris 17 not only offers enough space for the mechanical Cherry MX keyboard with a long key travel, but also for a powerful cooling system that is superior to the ones of typical thin-and-light gaming notebooks and has to dissipate no less than the heat of the fastest notebook components on the market.

    Giving customers the option to maintain and upgrade their Linux laptop is a top priority at TUXEDO. Therefore, besides the two accessable cooling fans, all other upgradeable components are located easily accessible as well: The two DDR5 SO-DIMM RAM slots, the two M.2 SSD slots below the left fan, the replaceable wireless module below the right fan as well as the internally screwed 99 Wh battery.

    TUXEDO Stellaris 17TUXEDO Stellaris 17

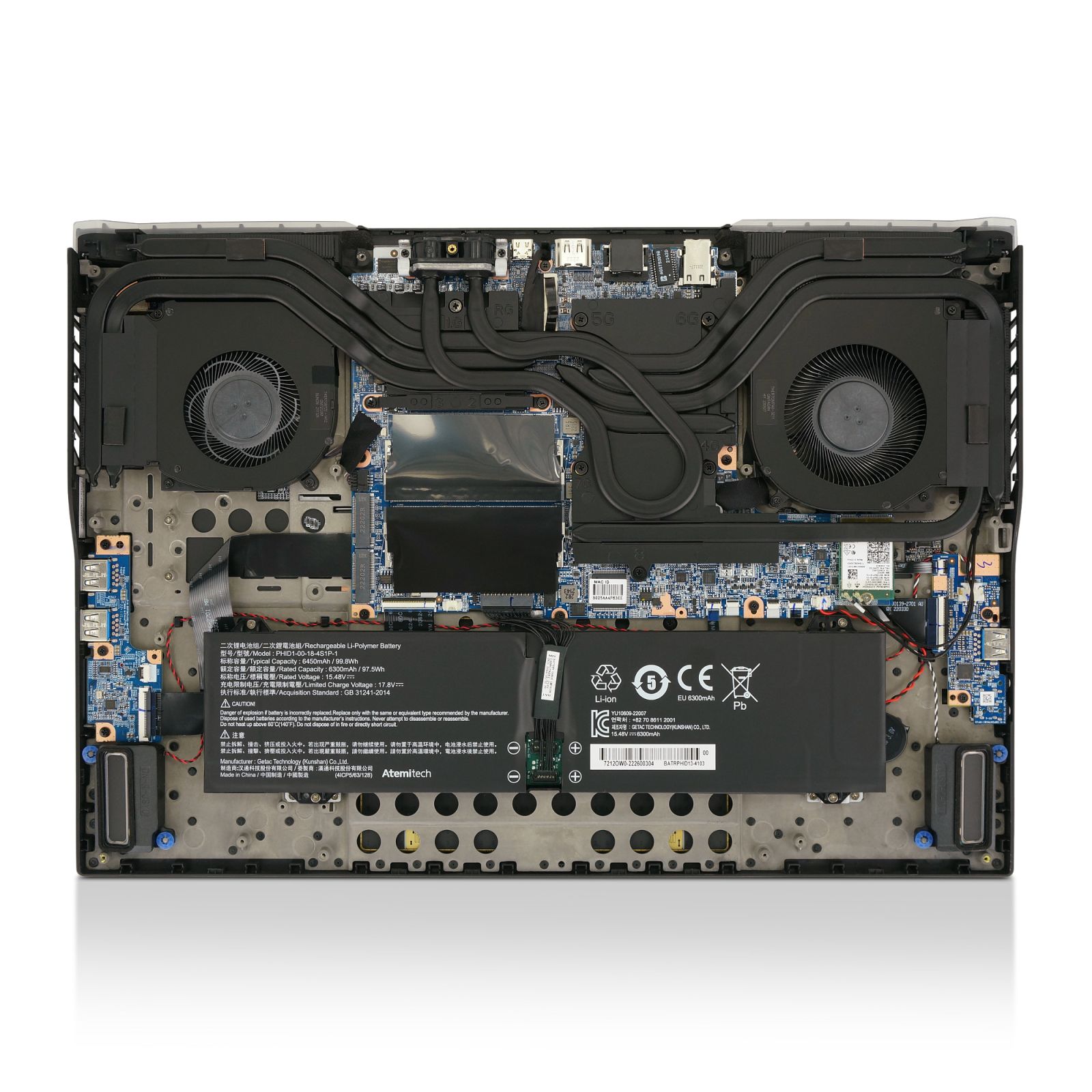

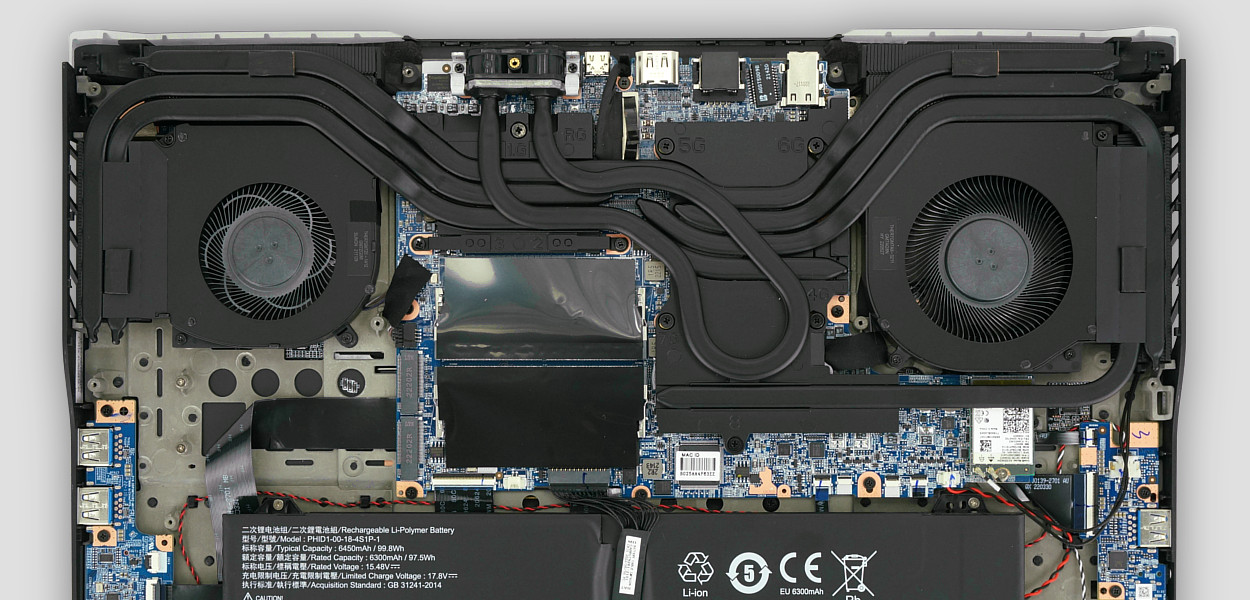

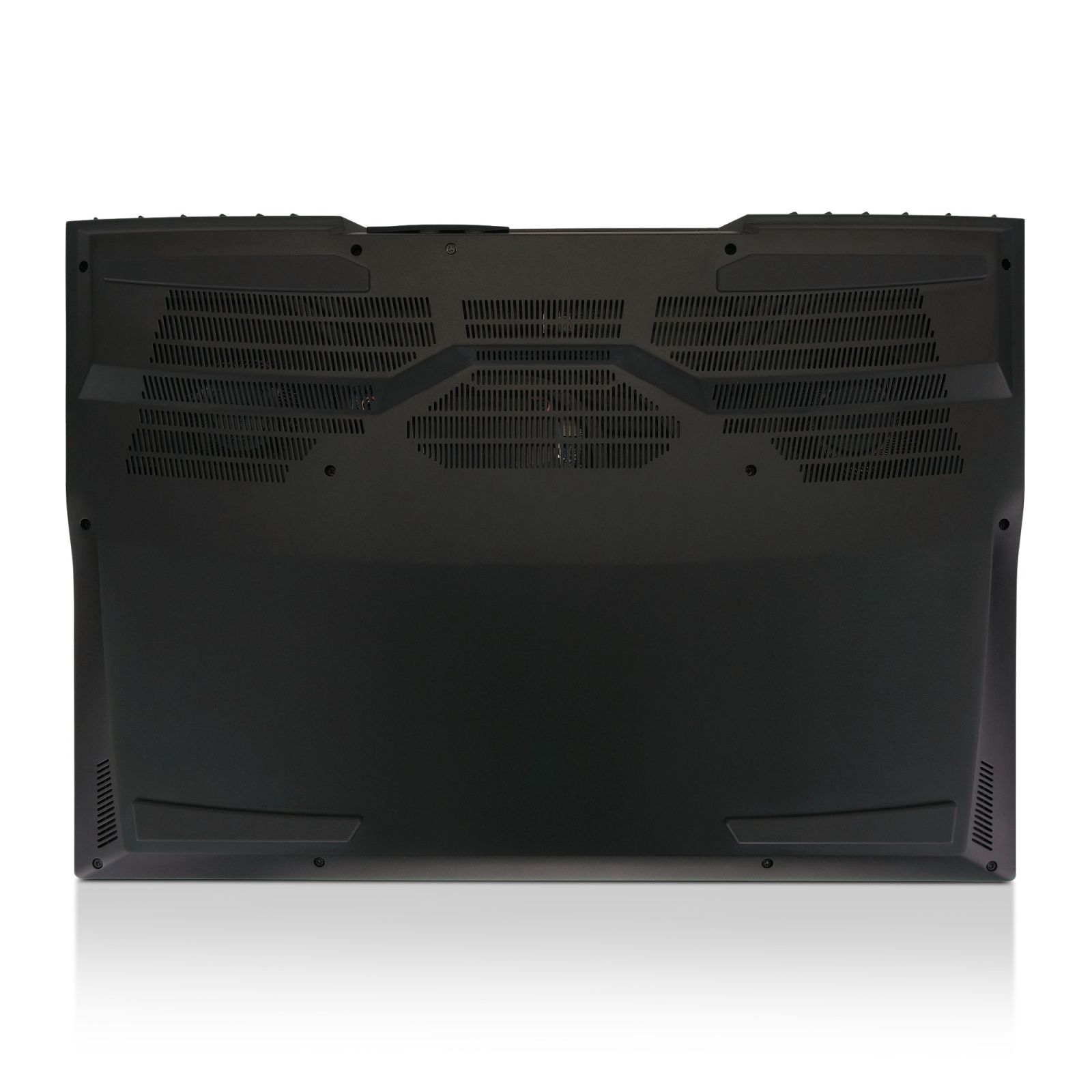

    TUXEDO Stellaris 17 Kühlsystem


    Galactic graphics performance
    thanks to maximum TGP

    With the GeForce RTX 3080 and RTX 3080 Ti in NVIDIA's maximum power limit configuration (Total Graphics Power up to 175 watts*) and massive 16 GB GDDR6 VRAM, the TUXEDO Stellaris 17 - Gen4 offers the absolute top models on the market!

    For more price-conscious customers the Linux gaming notebook can also be configured with the GeForce RTX 3070 Ti with a TGP of up to 150 watts* and 8 gigabyte GDDR6 graphics memory.

    Whether video or 3D rendering at highest speeds or maximum frame rates in the most demanding PC games - with NVIDIA's top three fastest laptop graphics cards, the TUXEDO Stellaris 17 plays in the top league and offers best possible future-proofing in terms of performance.

    TUXEDO Stellaris 15


    High-end performance meets
    outstanding efficiency: AMD Ryzen 9 6900HX

    Intel's long-term competitor AMD has placed a big hit with its Ryzen processors: The unprecedented efficiency in this performance class continues to set standards and - together with the 99 Wh battery - helps the high-end Linux notebook to run up to 12 hours with one charge.

    But AMD's fastest Ryzen 6000 series mobile CPU doesn't disappoint either when it comes to raw performance: With its 8 efficiency-enhanced cpu cores (Zen 3+), which can each handle 2 processes simultaneously for a total of up to 16 threads, the Ryzen 9 6900HX offers real high-end performance for content creation and gaming.

    The up to 4.9 GHz (single-core) fast processor is specified with a standard TDP of 45 watts, which - as with all CPUs - has to be far exceeded for full performance. Thanks to the Stellaris 17's new improved cooling system, the high-end Linux laptop can maintain a sustained power draw of over 65 watts (up to 80 watts via TUXEDO Aquaris) to consistently provide great performance for fast multicore renderings.

    AMD Ryzen 9 6900HX

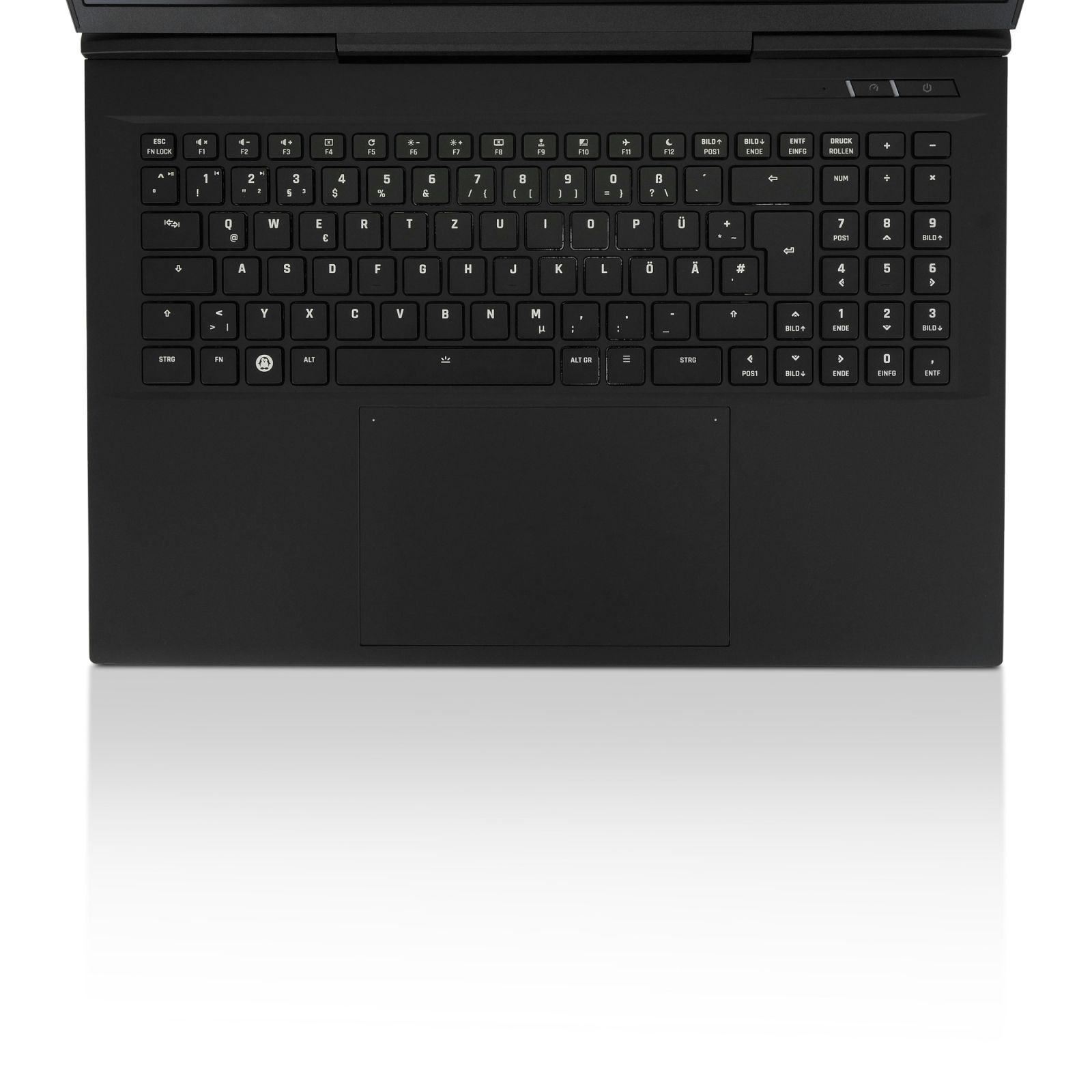

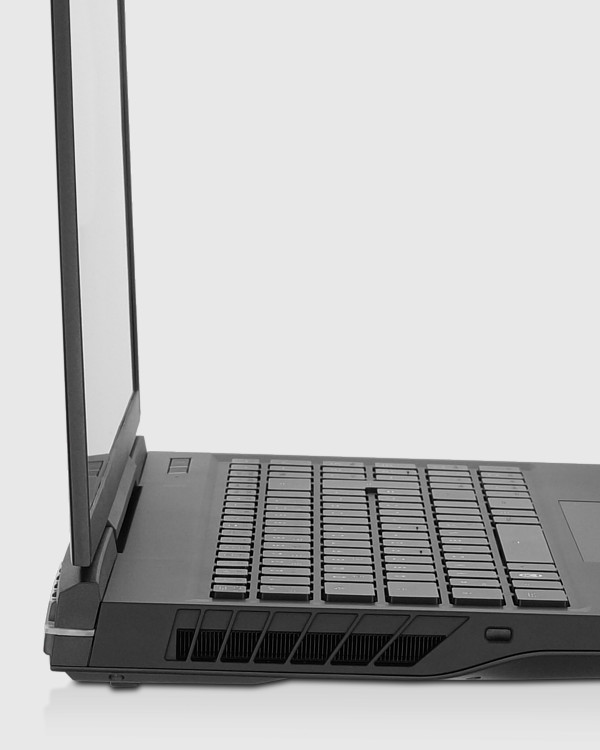

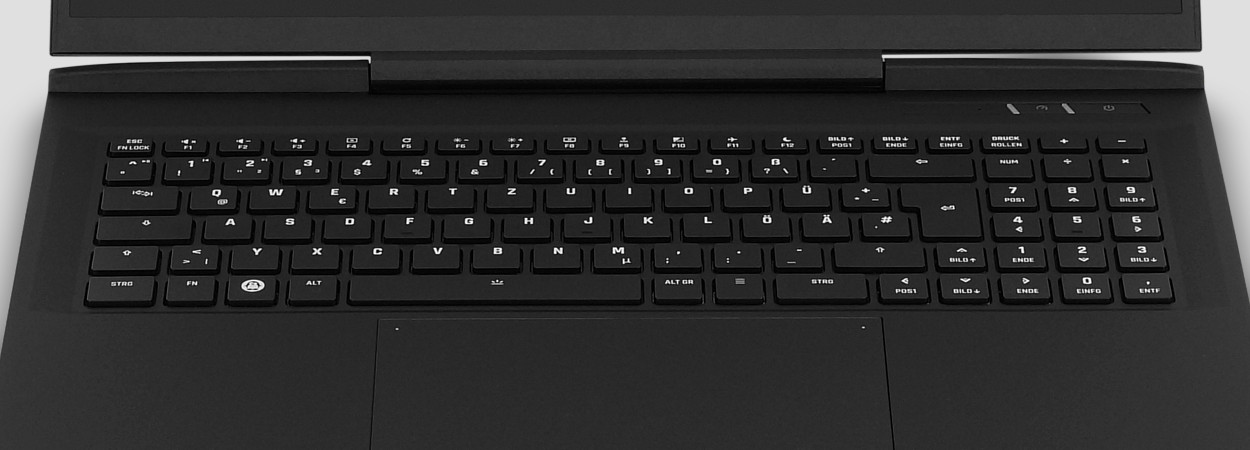

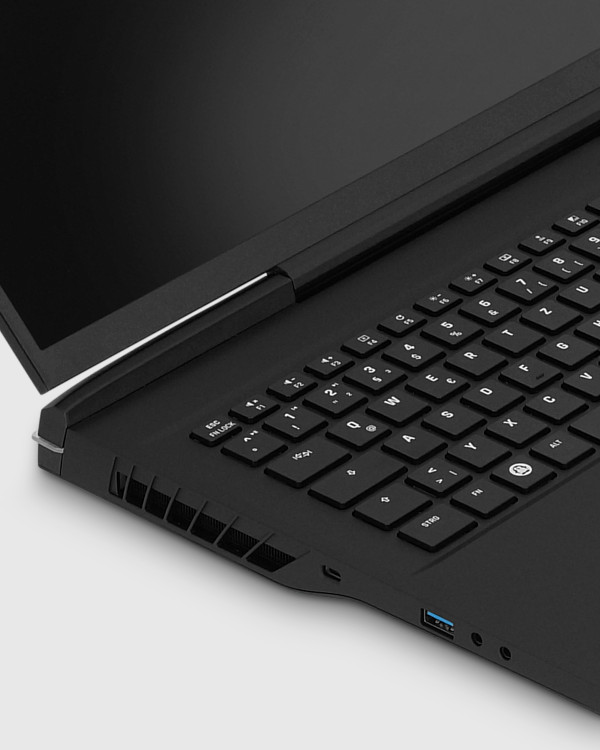

    Mechanical premium keyboard
    with Cherry MX switches

    To meet the needs of many gamers, the TUXEDO Stellaris 17 relies on a high-quality, mechanical keyboard with special low-profile switches from the renowned keyboard manufacturer Cherry.

    The Cherry MX low profile switches produce a very audible and typical trigger noise and provide an excellent and rock-solid typing experience with a total key travel of 1.8 mm with a per slight press- resistant perceptible pre travel of 0.8 mm.

    Features important for sophisticated, competitive gaming, such as N-key rollover and anti-ghosting, are as well supported as per key RGB illumination and - typical for TUXEDO - the laser-etched TUX Super key. The numpad for quick digit input as well as the function keys at the top of the keyboarde equipped with significantly quieter, but no less solid membrane key switches.

    The 150 x 95 mm glass clickpad with integrated mouse buttons comes with a huge and smooth surface and allows to be either fully (double tap in the upper left corner) or partly (right half; Double tap in the upper right corner) deactivated.

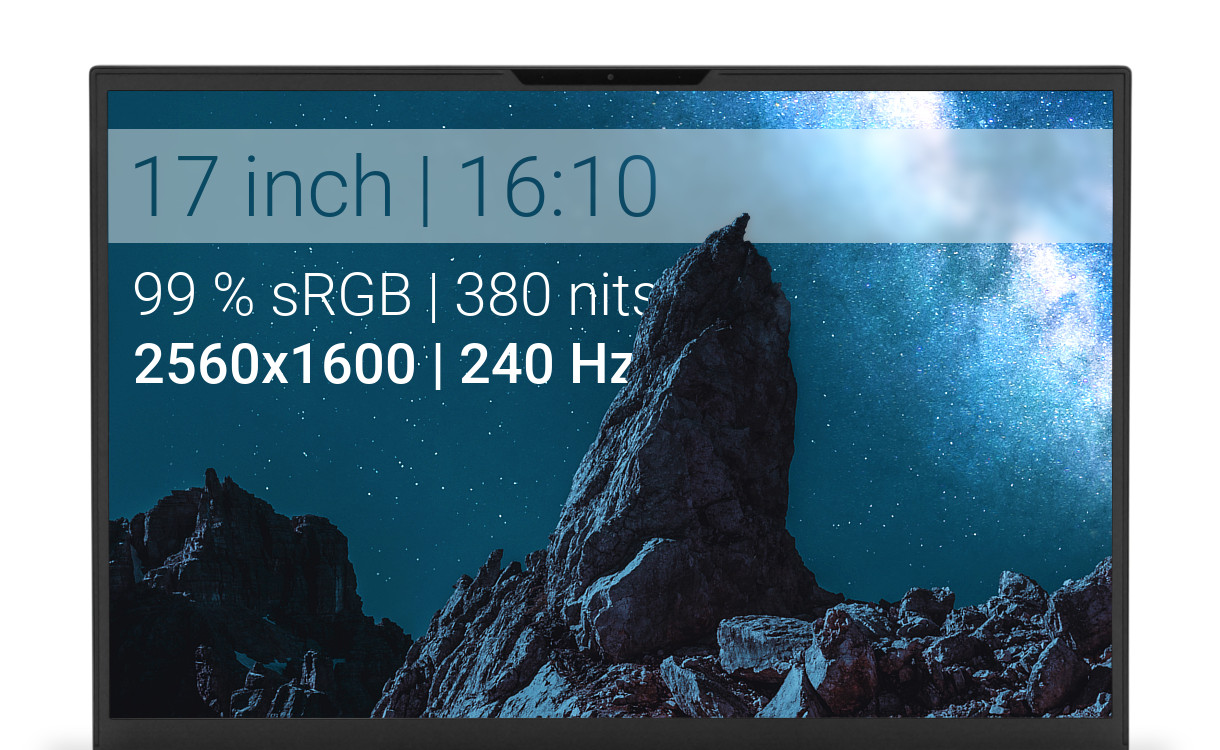

    240 Hz WQHD 16:10 display

    As high-end Linux gaming notebook and high-performance workstation in one, the TUXEDO Stellaris 17 not only serves the most sophisticated competitive gamers with an extraordinary high refresh rate of 240 Hz, but also offers above-average image properties for productive tasks, such as video and image editing.

    In addition to the WQHD resolution of 2560 x 1600 pixels which is the sweet spot of image sharpness and performance, the anti-glare 17-inch panel relies on the widely appreciated 16:10 aspect ratio to provide more vertical screen space compared to conventional 16:9 displays.

    The virtually full sRGB color gamut ensures a vivid colorful image, while the screen brightness of over 380 nits makes it possible to use your Stellaris 17 in bright indoor or shadowy outdoor environments giving you flexiblity for your preferred work location.



    Outstanding battery life
    thanks to a 99 Wh battery

    Even though the primary habitat of the Stellaris 17 is going to be the desk, the advantage of a transportable high performance desktop replacement is that it can also be used in a flexible manner in the living room, the garden or on the balcony.

    In addition to the - for this performance class -  impressively power-saving AMD Ryzen 9 6900HX processor under low load, the largest possible battery also helps: For this reason, the Stellaris 17 is equipped with a 99 Wh battery, which is the maximum allowed capacity for hand luggage transport on an airplane.

     The internal screwed lithium polymer battery elicits runtimes of up to 12 hours which is outstanding for this type of notebook as portable desktop replacement. Under more realistic working conditions with active Wifi, medium display brightness and surfing the web or working in office programs, the 99 Wh battery supplies the 17 incher with energy for around 8 to 9 hours.

    We recommend our specially tweaked power profiles in our TUXEDO Control Center for optimizing your Stellaris 17 for most energy-saving operation.



    External water cooling
    for stationary use

    When the heat is on in virtual battles or the most computationally intensive renderings, the TUXEDO Stellaris 17 - Gen4 pushes the limits of cooling with the new, external liquid cooling gadget TUXEDO Aquaris!

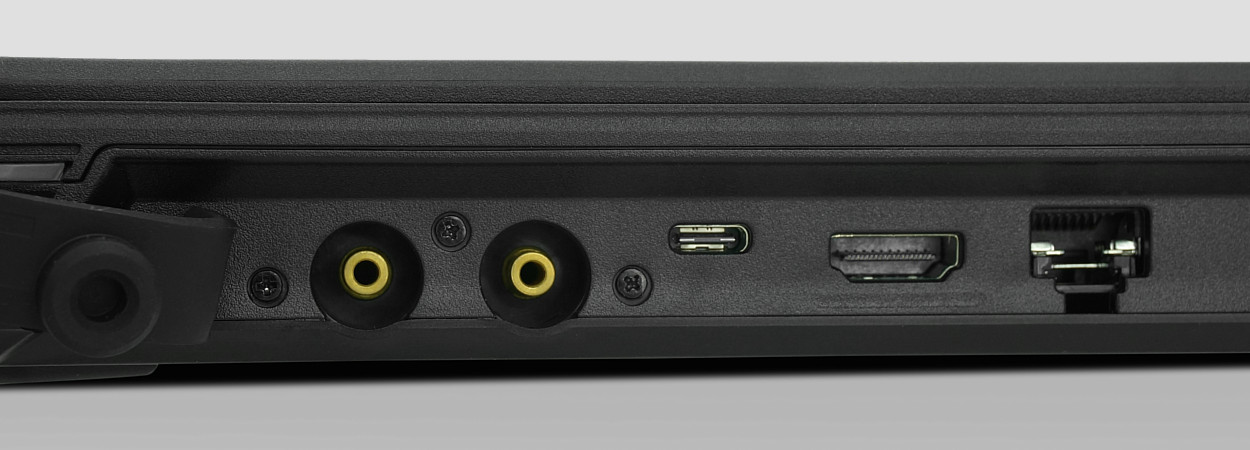

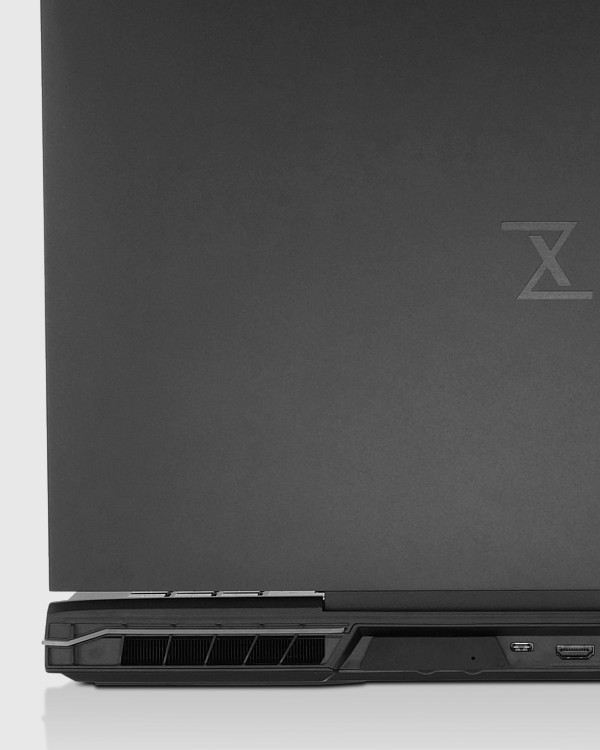

    Hidden under a black rubber cap on the back of the Stellaris 17 - Gen4 is the quick release connector for plugging the two 650 mm long and 9 mm thick, black sleeved tubes into the notebook. The cooling liquid, which is in the scope of delivery, gets then pumped from the Aquaris' reservoir through a specific cooling tube that sits right on top of the regular air cooling heatpipes inside the Stellaris 17's chassis.

    TUXEDO Stellaris 17

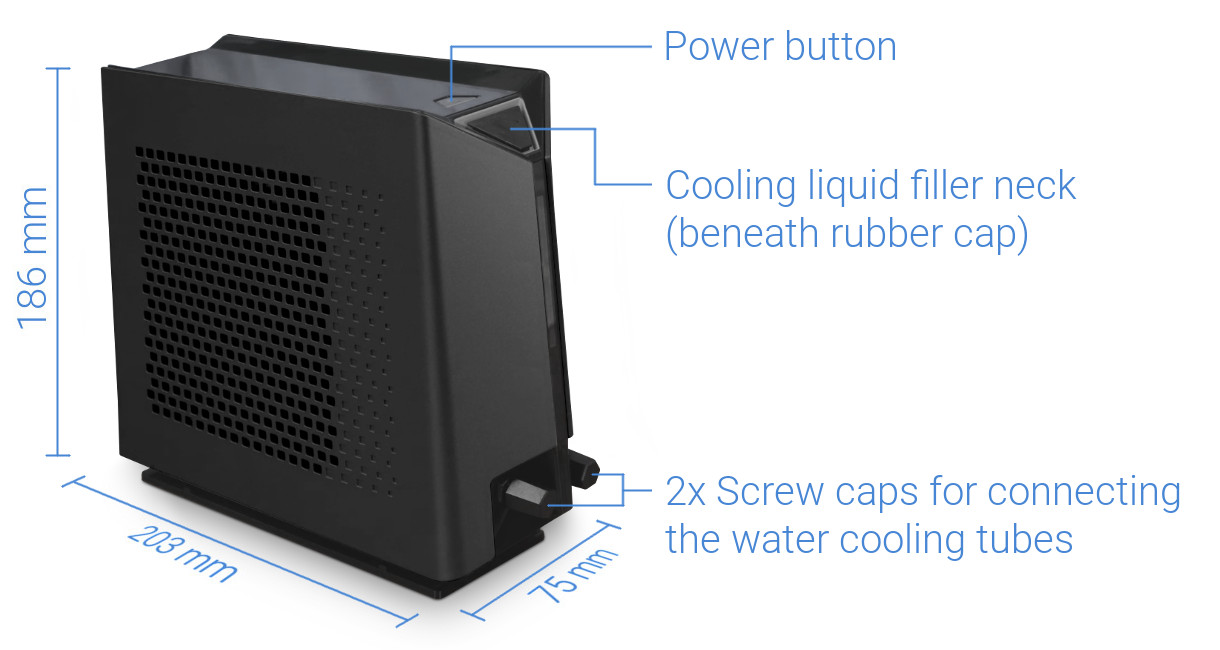

    This way, the notebook‘s conventional air cooling gets amplified by TUXEDO Aquaris, resulting in significantly reduced surface and hardware temperatures and lower fan noise. Alternatively, the additional cooling capacity can be invested in maximized CPU performance for rendering at highest speeds.

    The TUXEDO Aquaris' weight of 1.39 kg and its relatively small case dimensions of 203 x 75 x 186 mm allow an occasional transport, although - due to the need to carefully empty the Stellaris' water cooling pipe and - if transport may require it - the liquid cooling box beforehand each time - it is clearly designed for stationary use at the desk.

    TUXEDO Stellaris 15


    Versatile connectivity

    The connectivity of the Linux gaming laptop leaves hardly anything to be desired and offers HDMI 2.1 and USB-C 3.2 Gen2×1 with DisplayPort 1.4a (1x each max. 4K @ 120 Hz) for connecting two external high-resolution monitors. The latter offers the possibility to connect a 3rd monitor to the Stellaris 17 via a MST splitter for a total of 4 screens (3x external, 1x internal).

    On the data side, 3x USB Type A ports and a full-size card reader (SD/SDHC/SDXC) are available besides the USB-C 3.2 Gen2×1 port. The connectivity is completed the headphone jack, microphone input, RJ 45 LAN and the optional external water cooling gadget TUXEDO Aquaris.

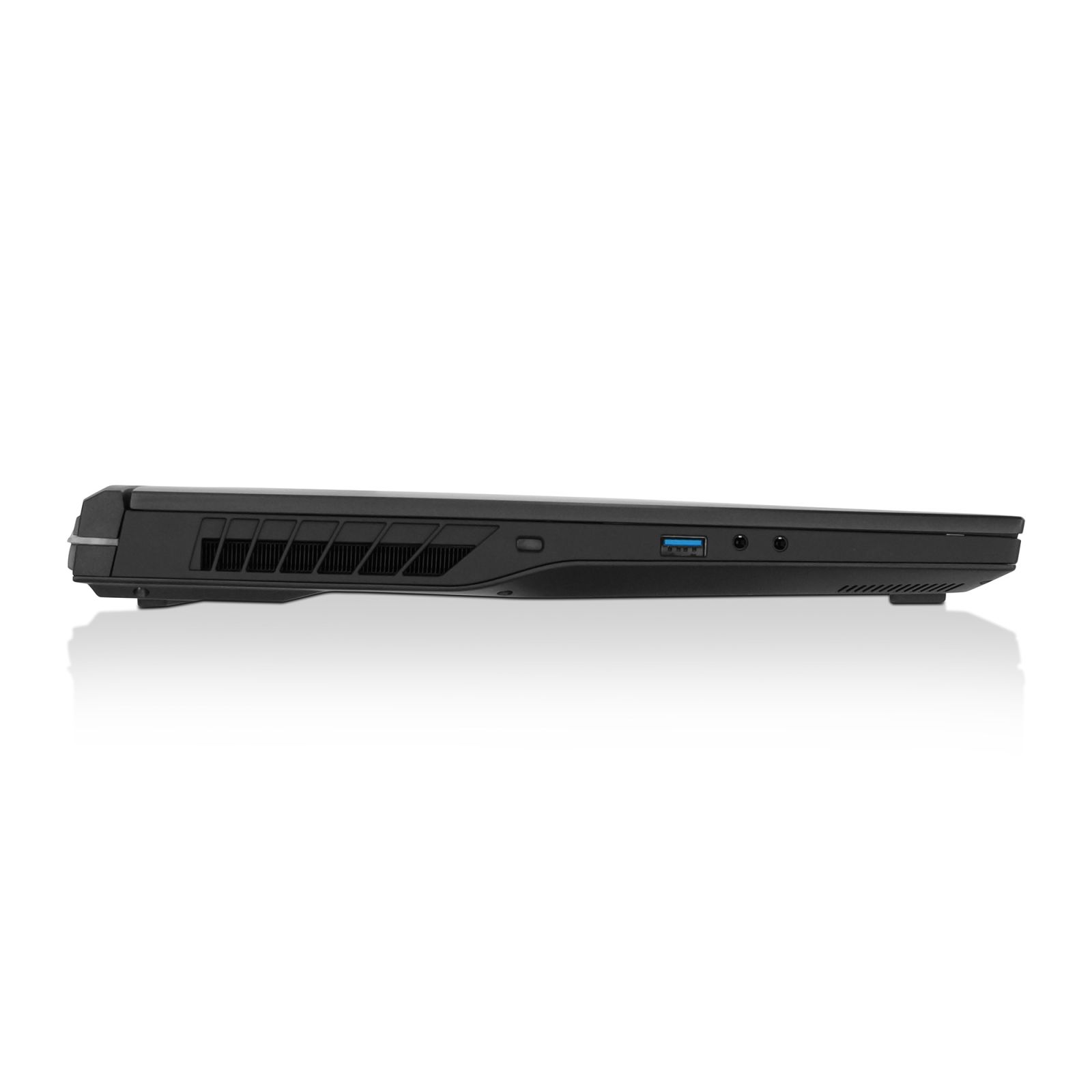

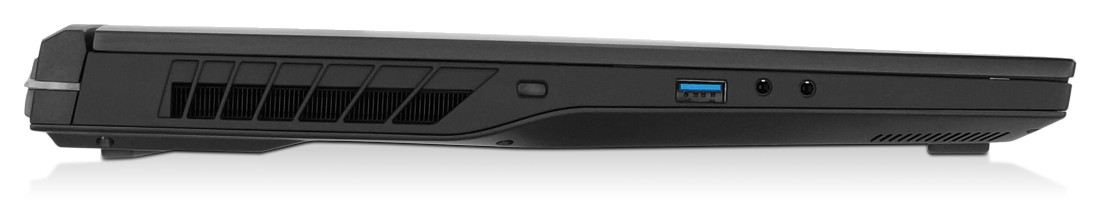

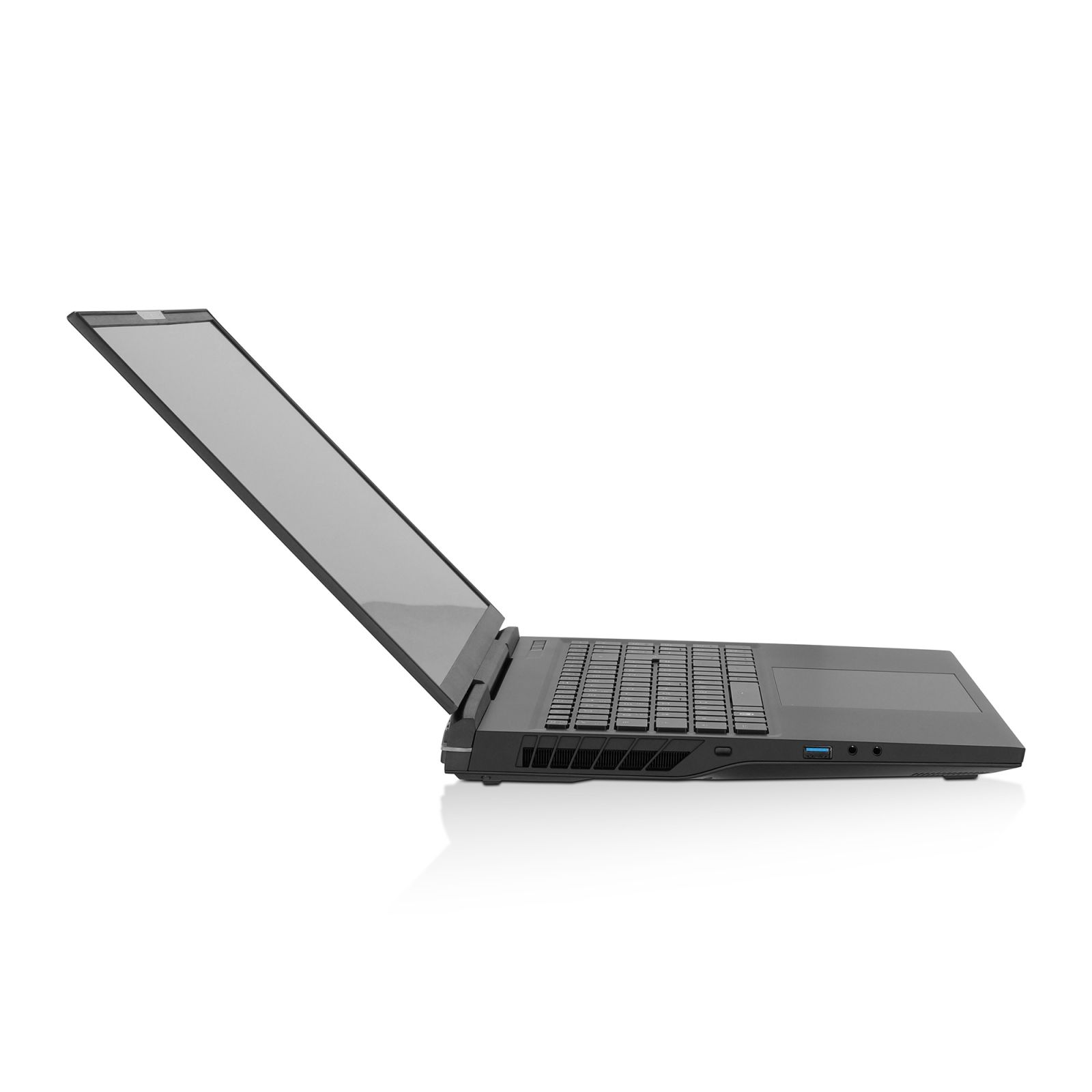

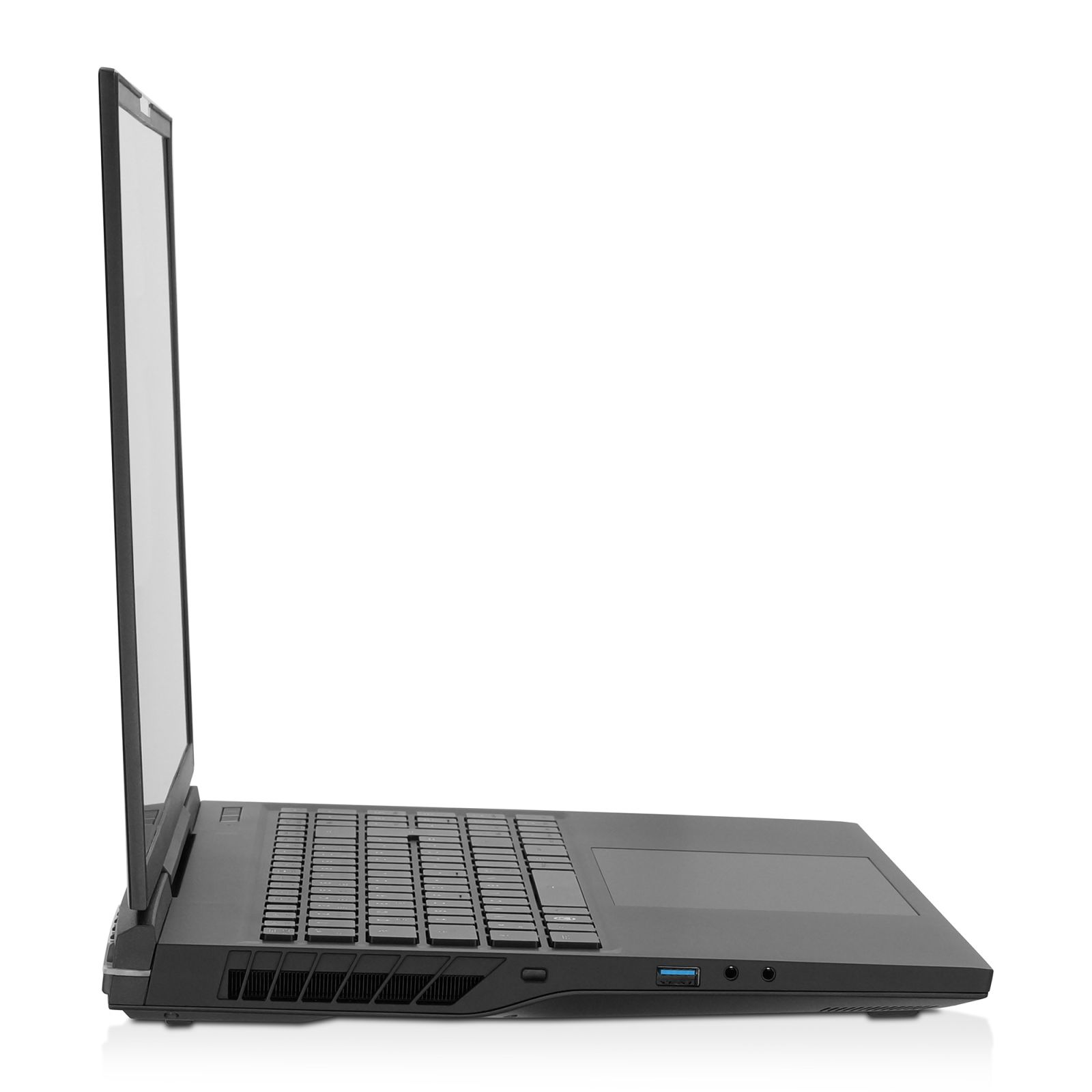

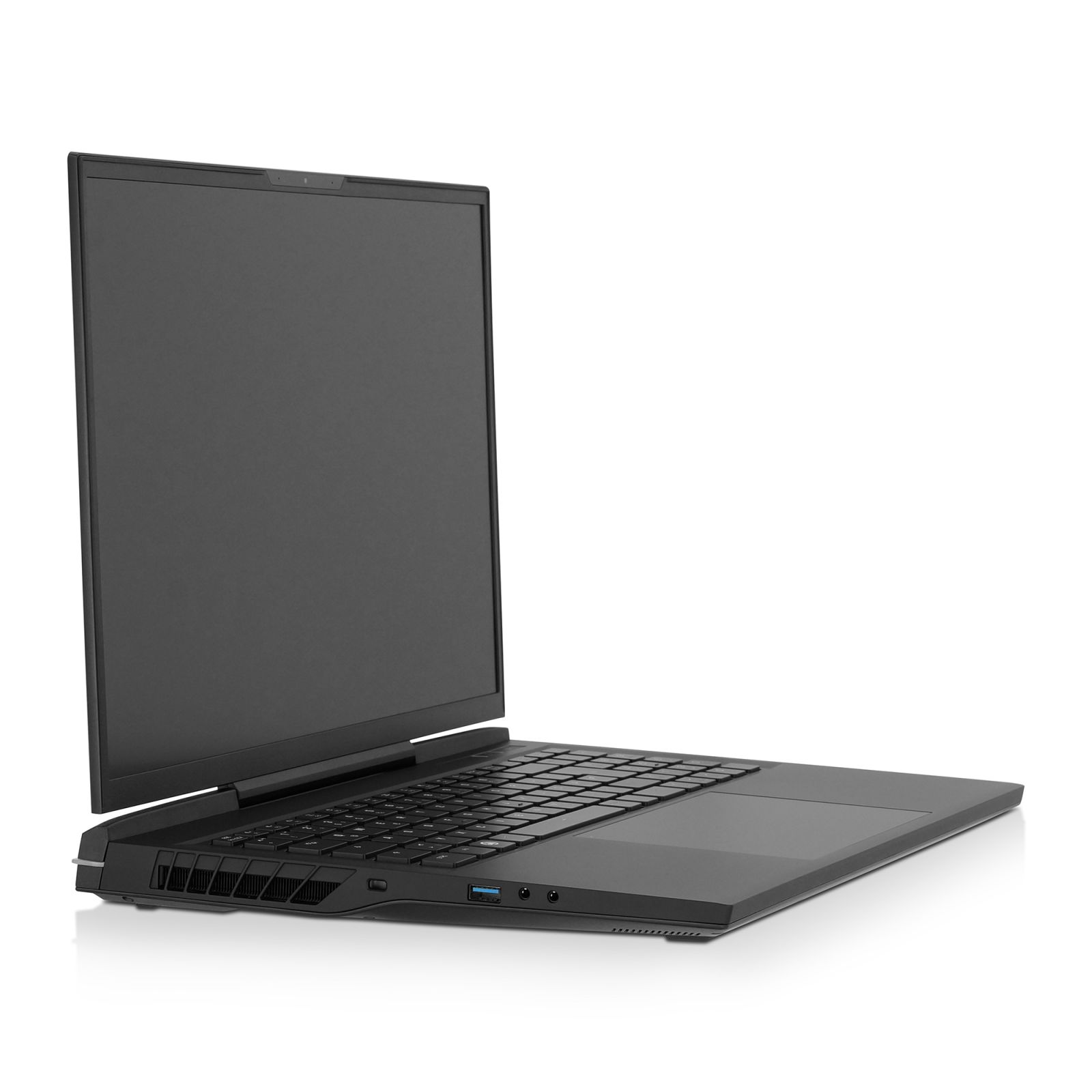

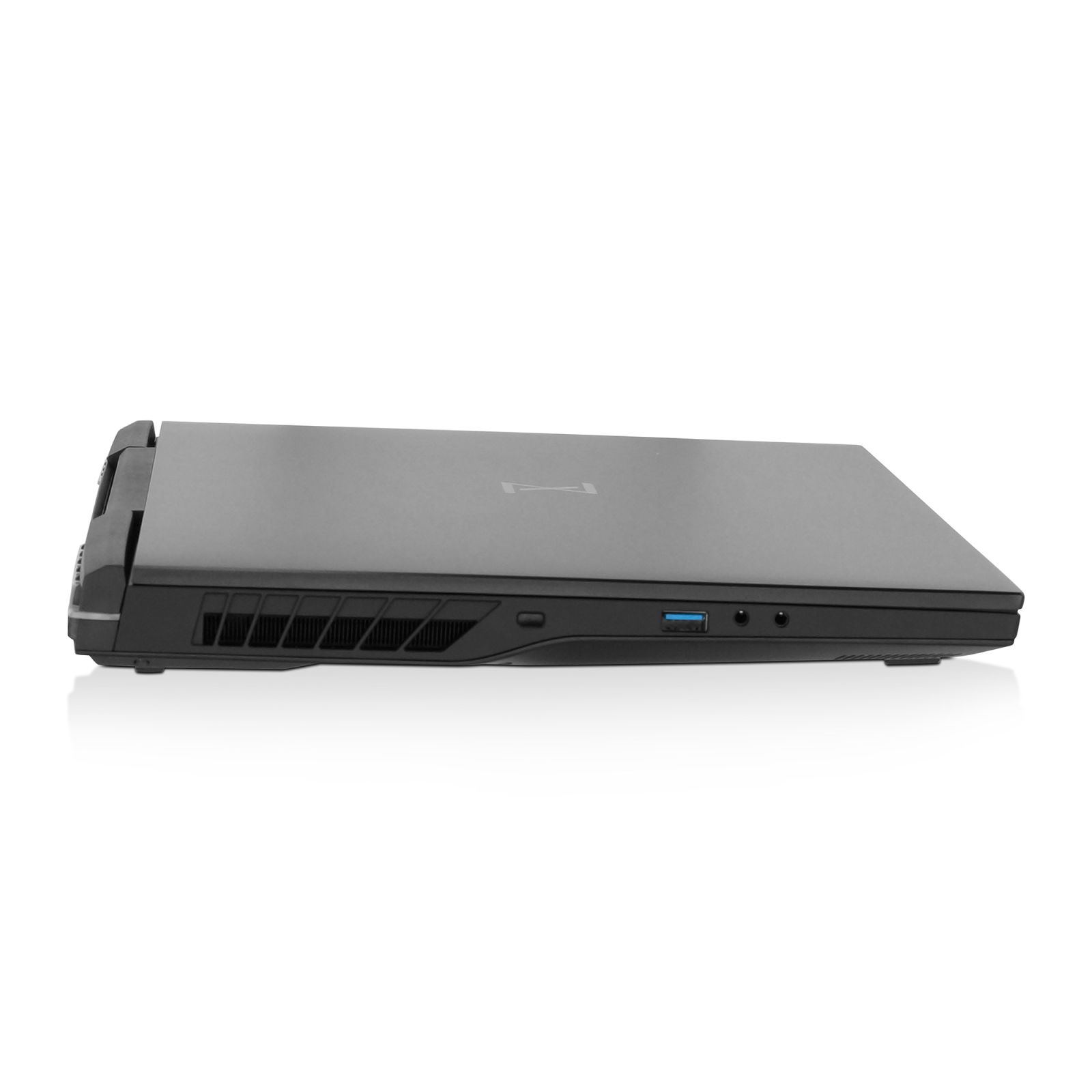

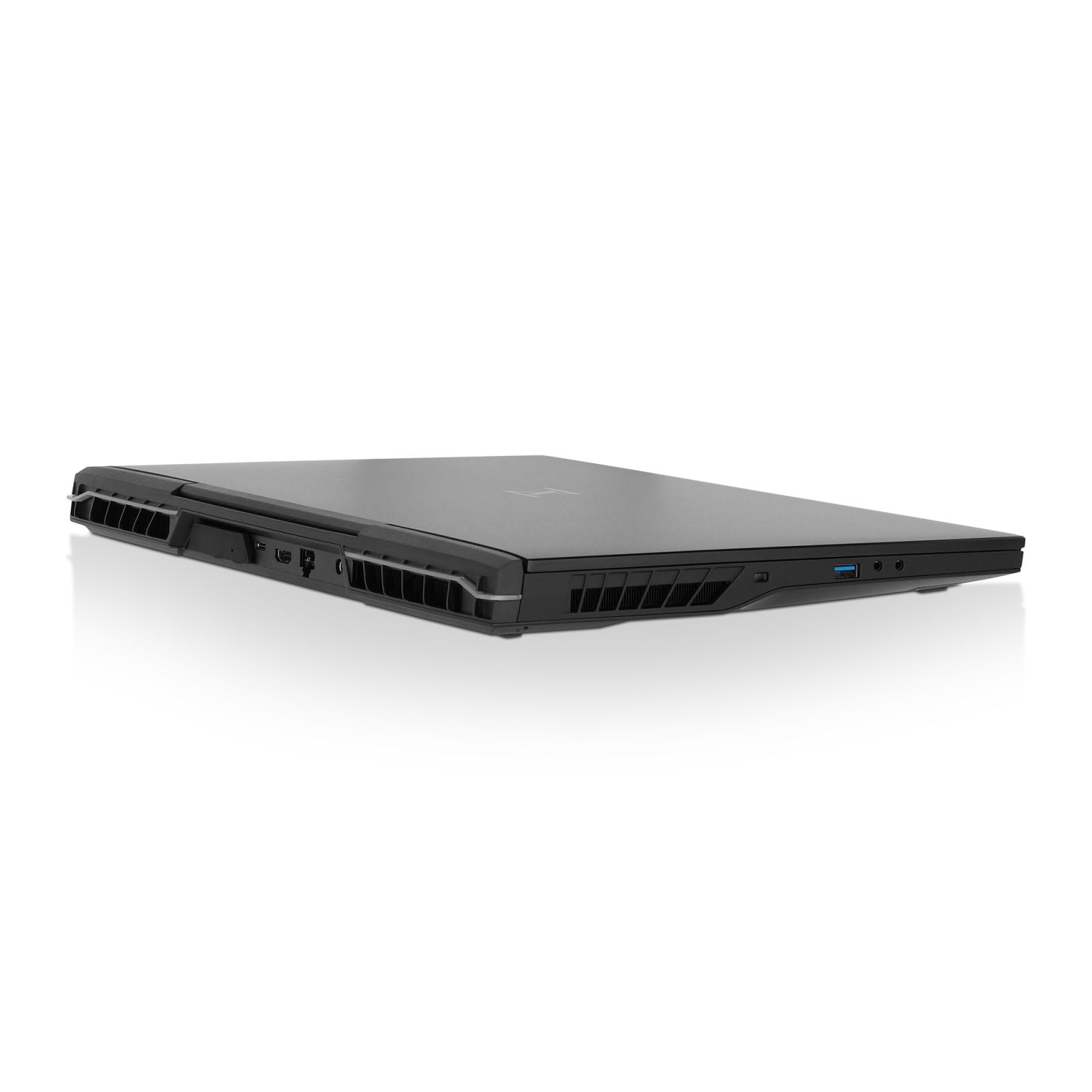

    Stellaris 17 left ports

    From left to right:Kensington Lock, USB-A 3.2 Gen2x1, microphone input, headphone output

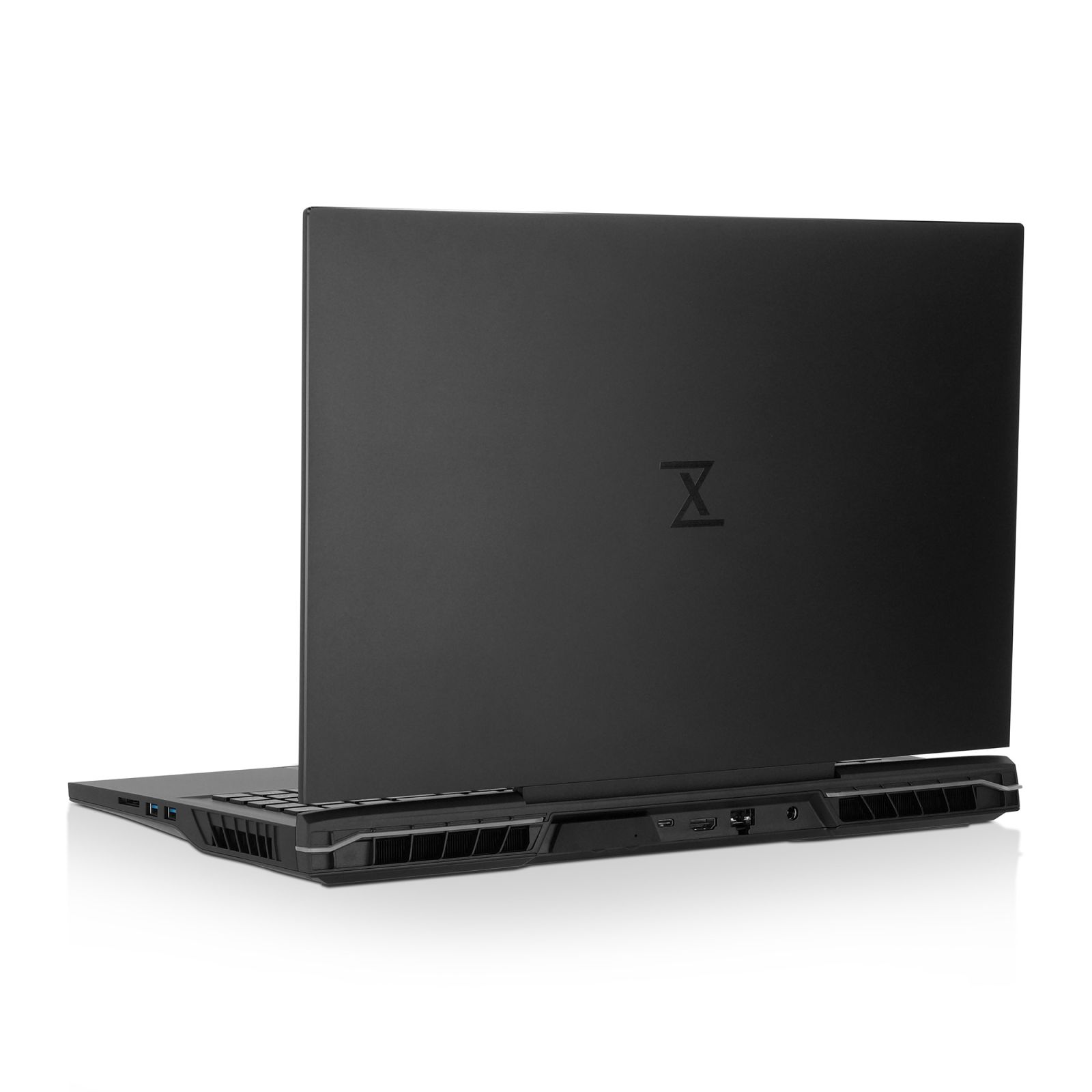

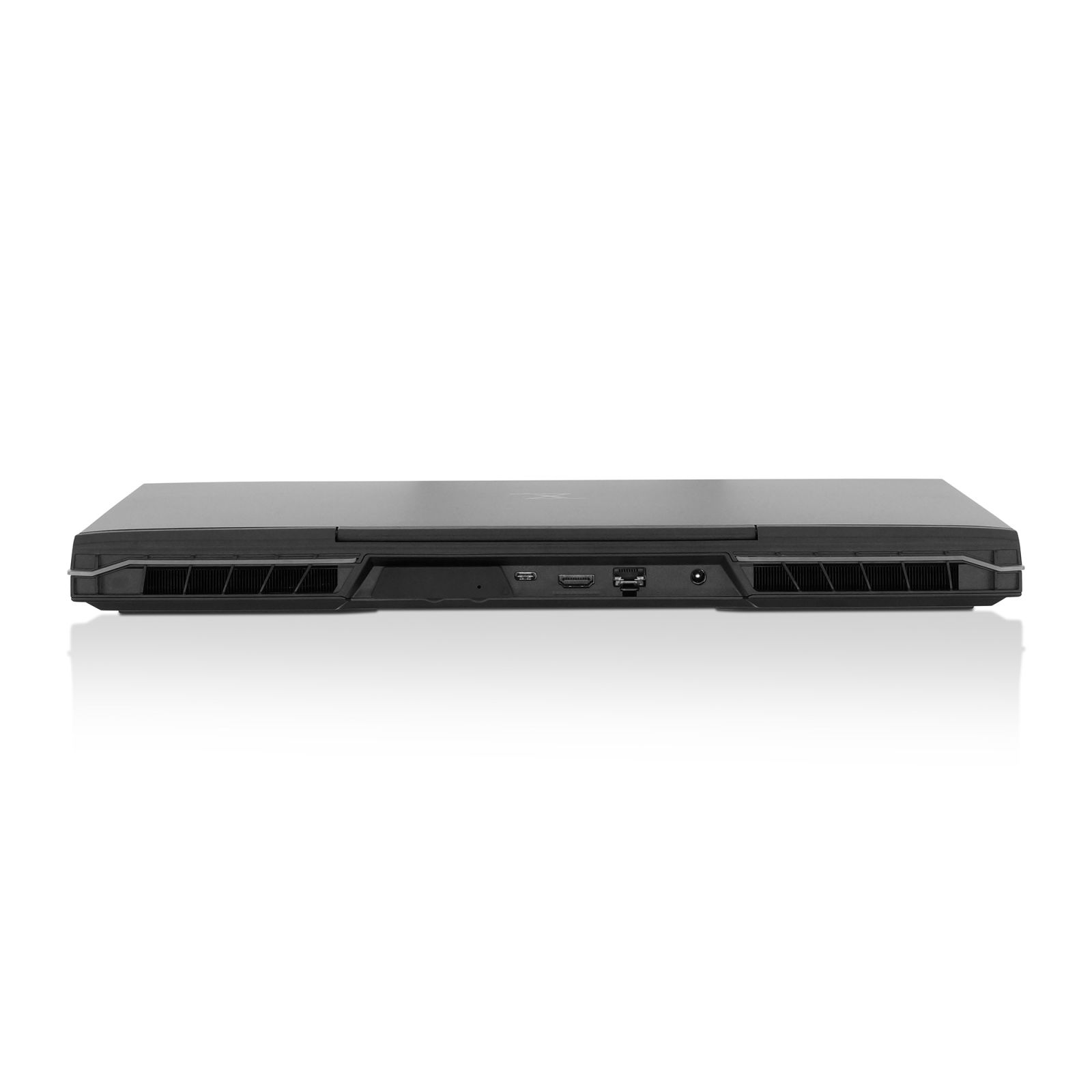

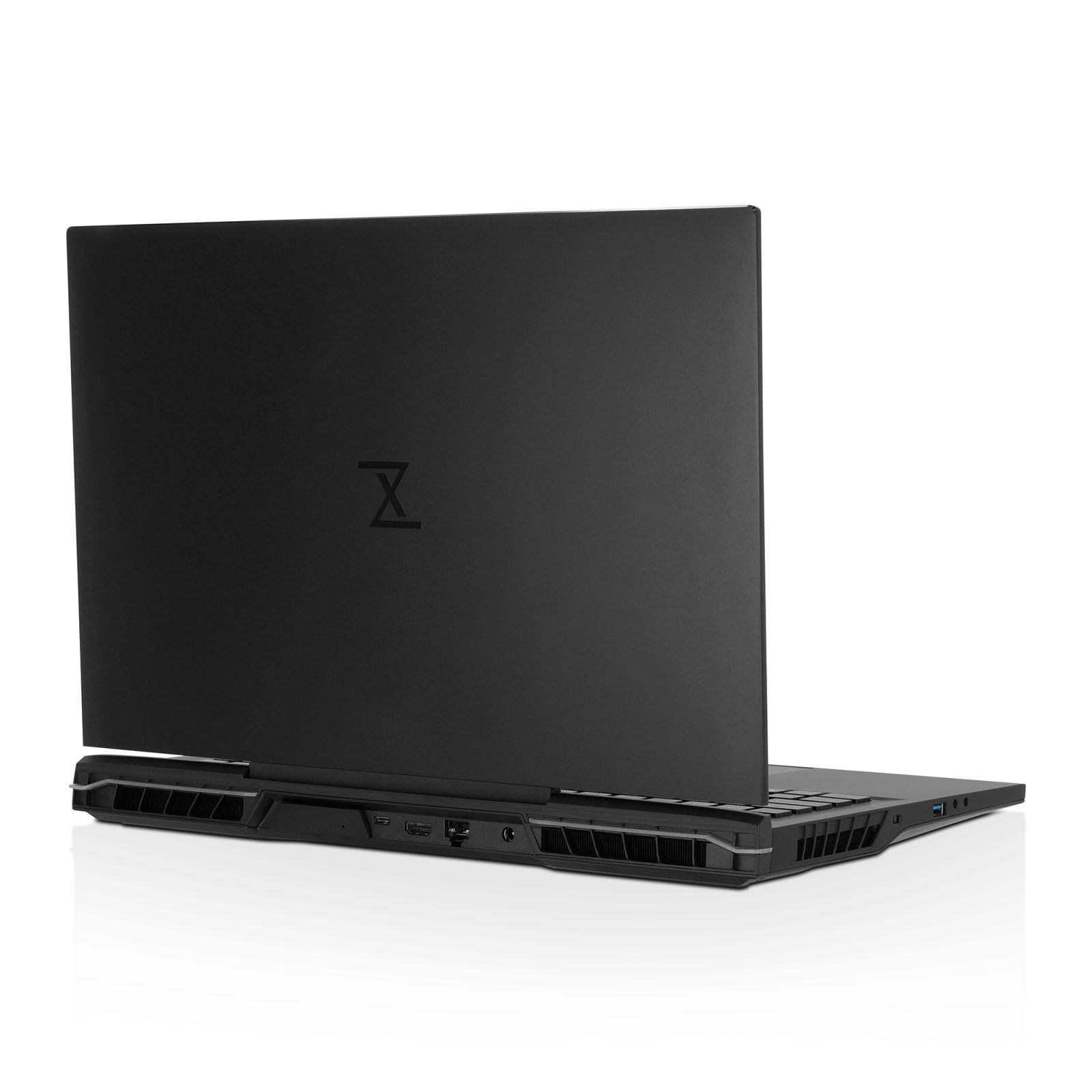

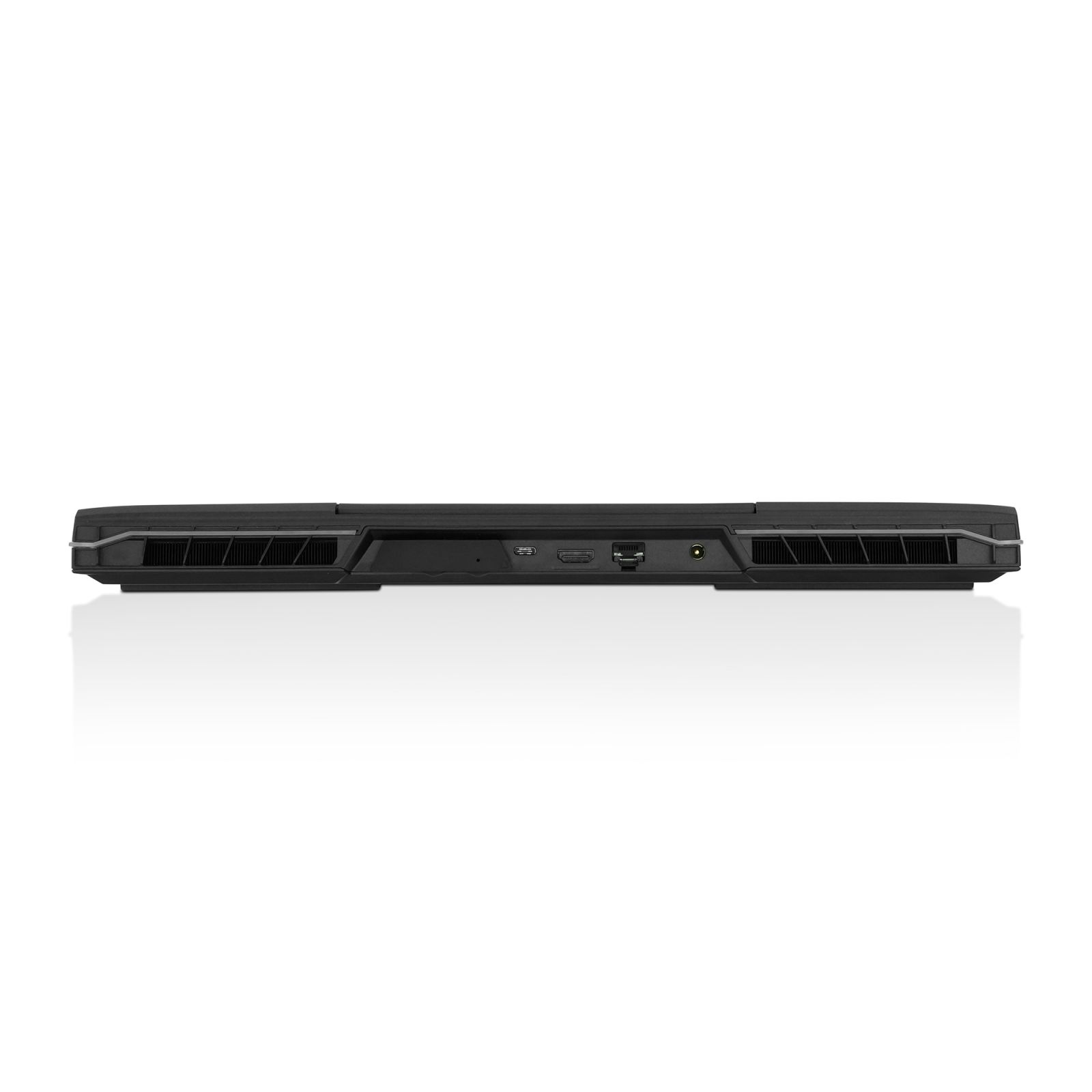

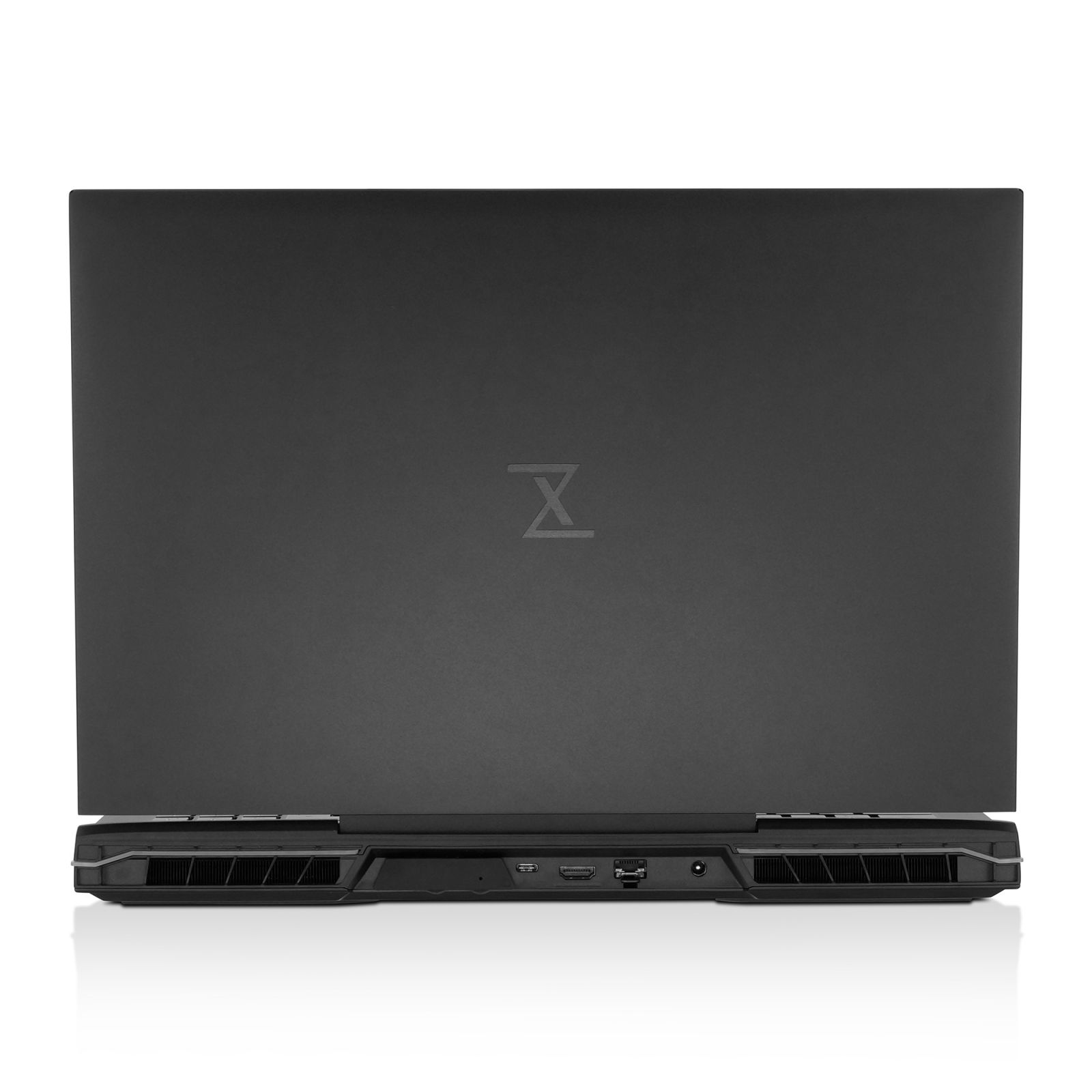

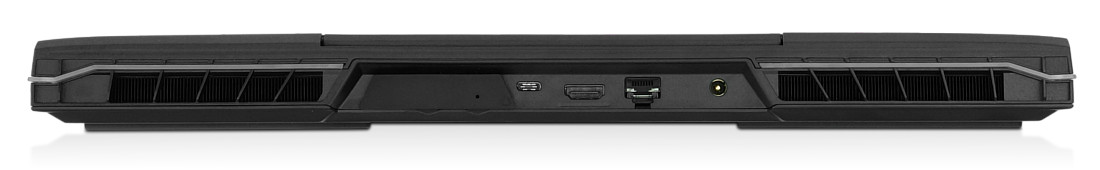

    Stellaris 17 back ports

    From left to right: ports for TUXEDO Aquaris, USB-C 3.2 Gen2x1, HDMI 2.1, Gigabit-LAN, power connector

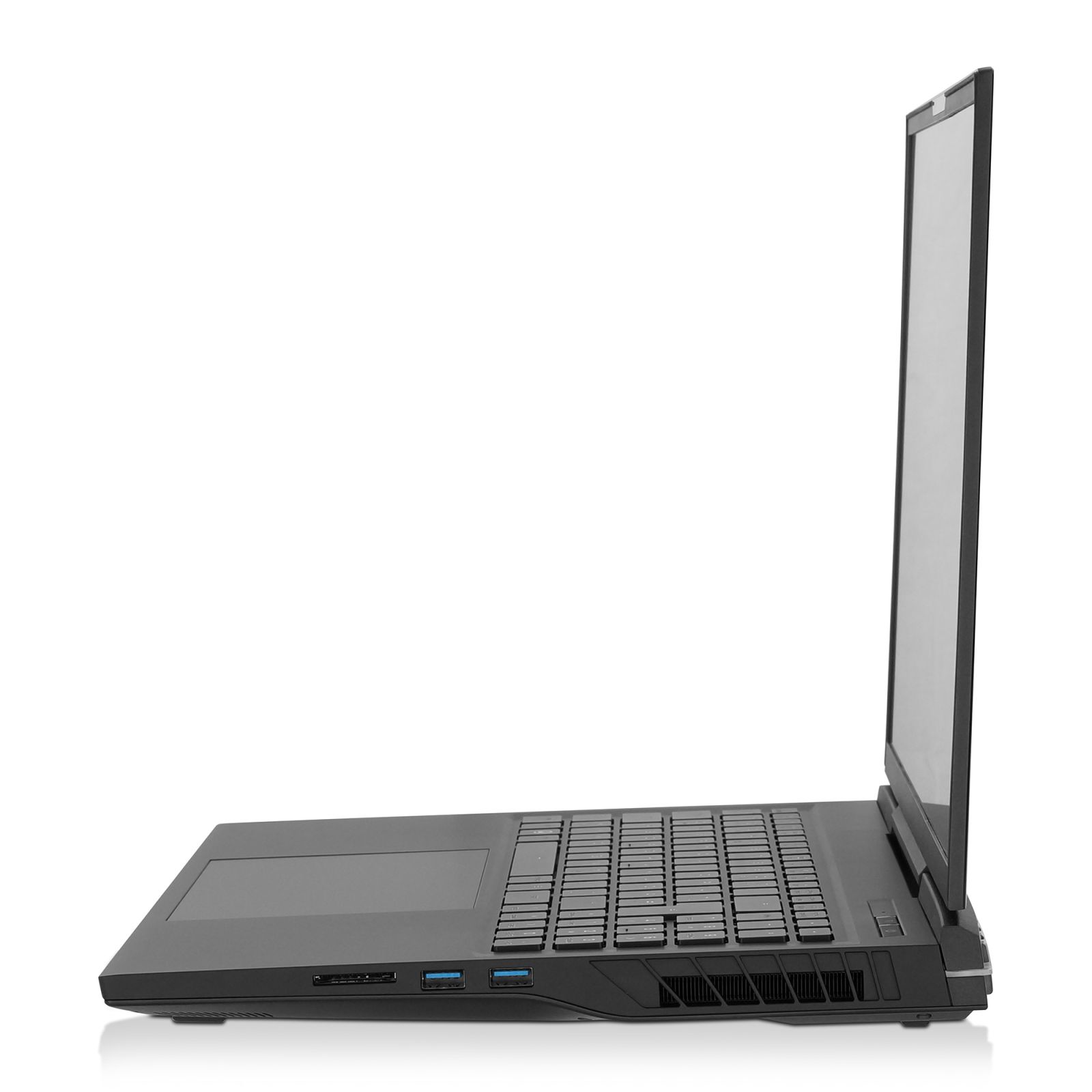

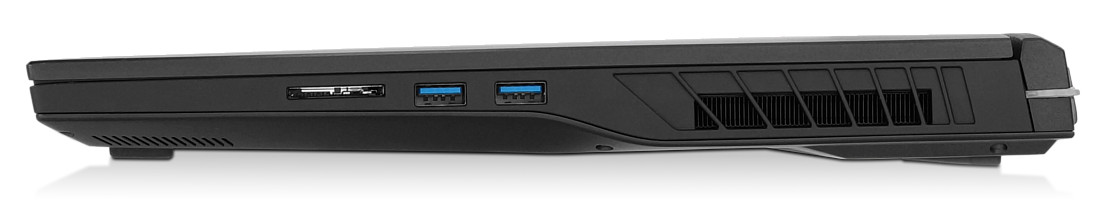

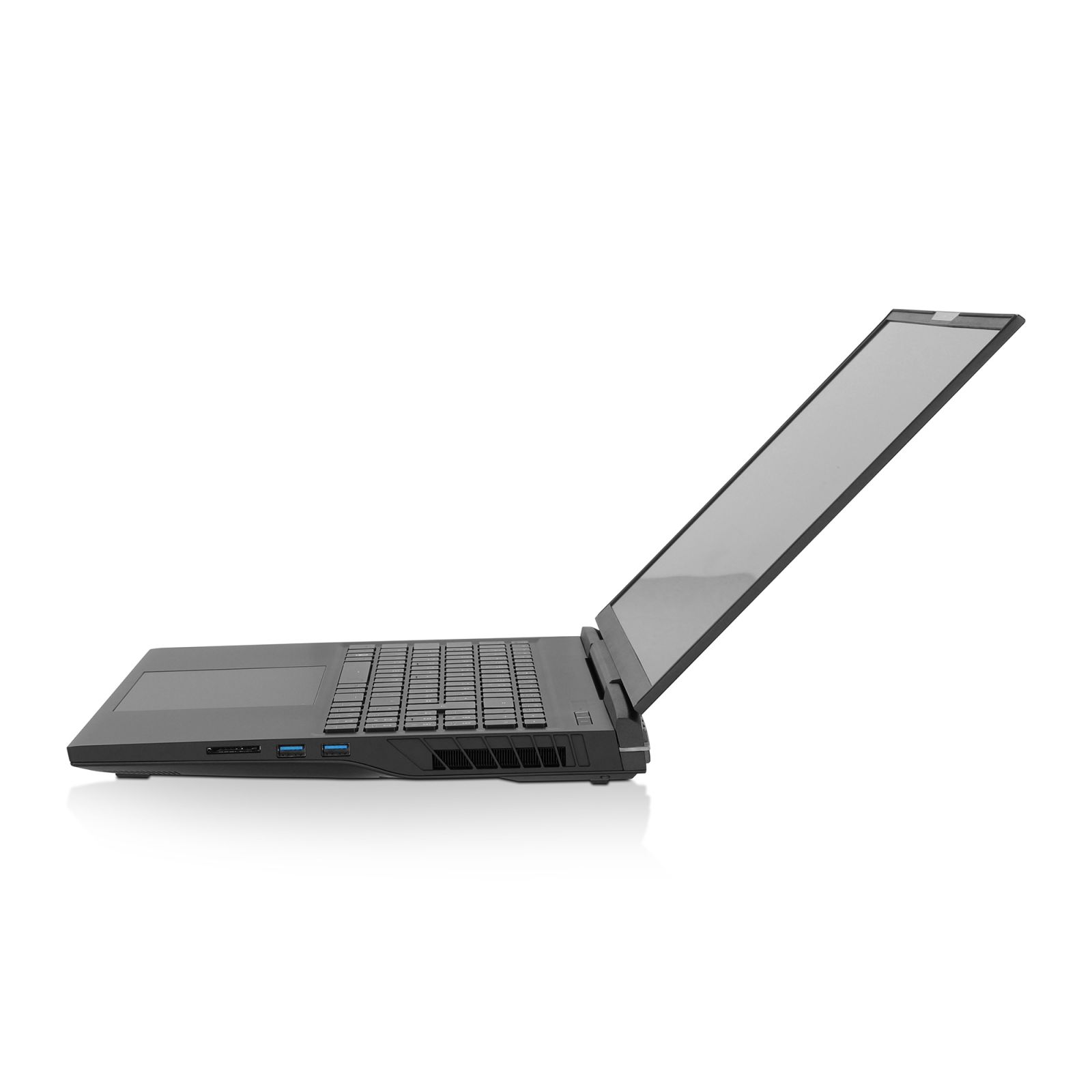

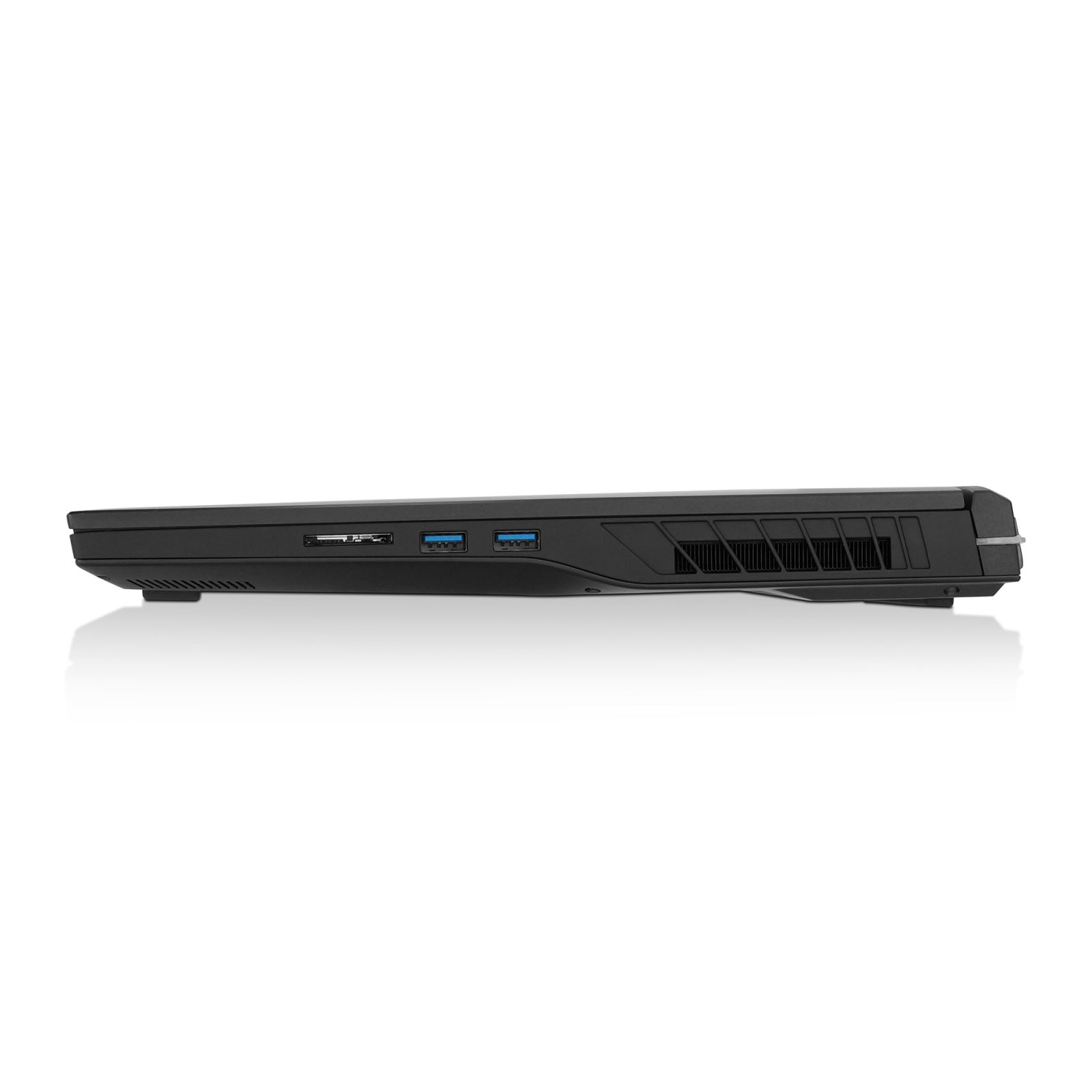

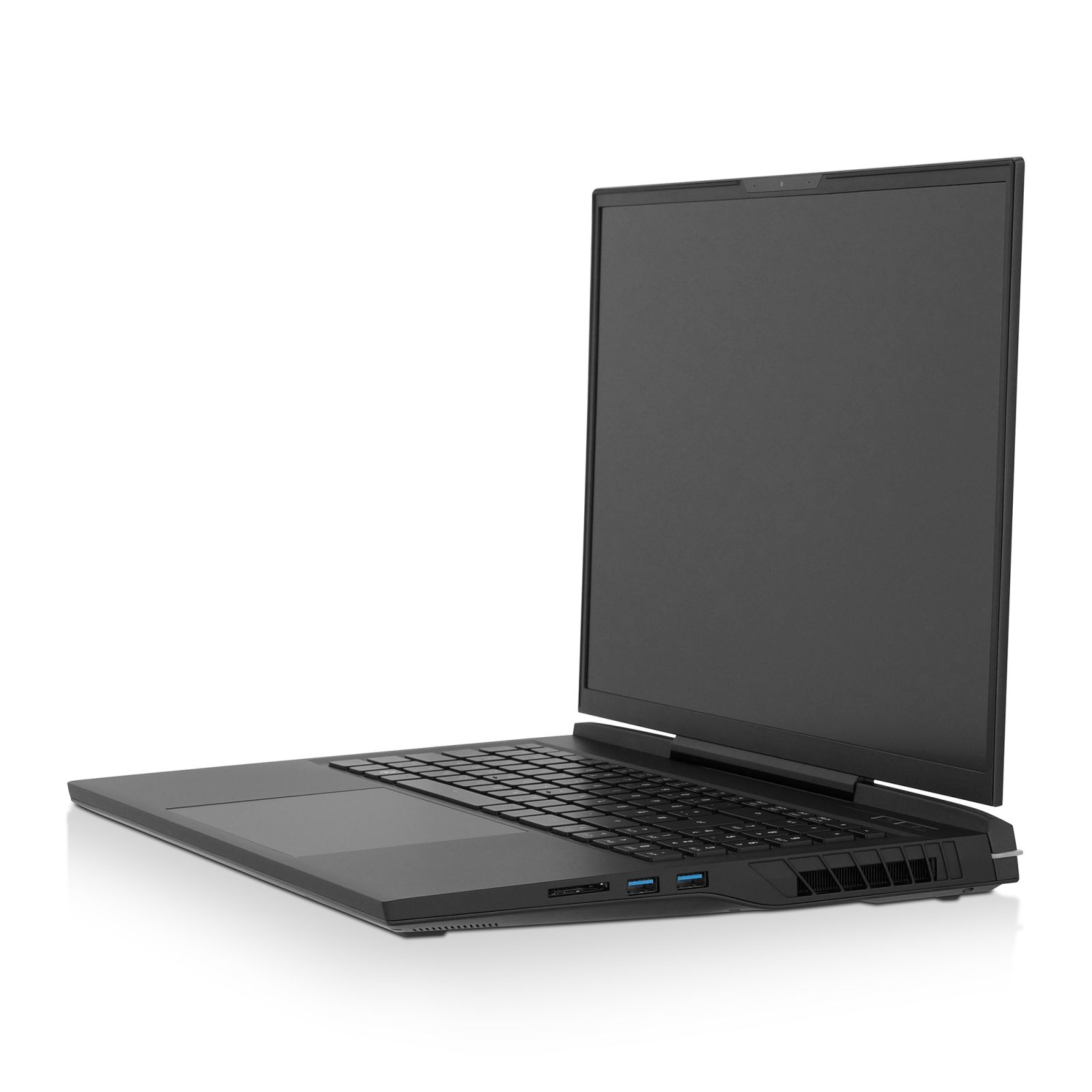

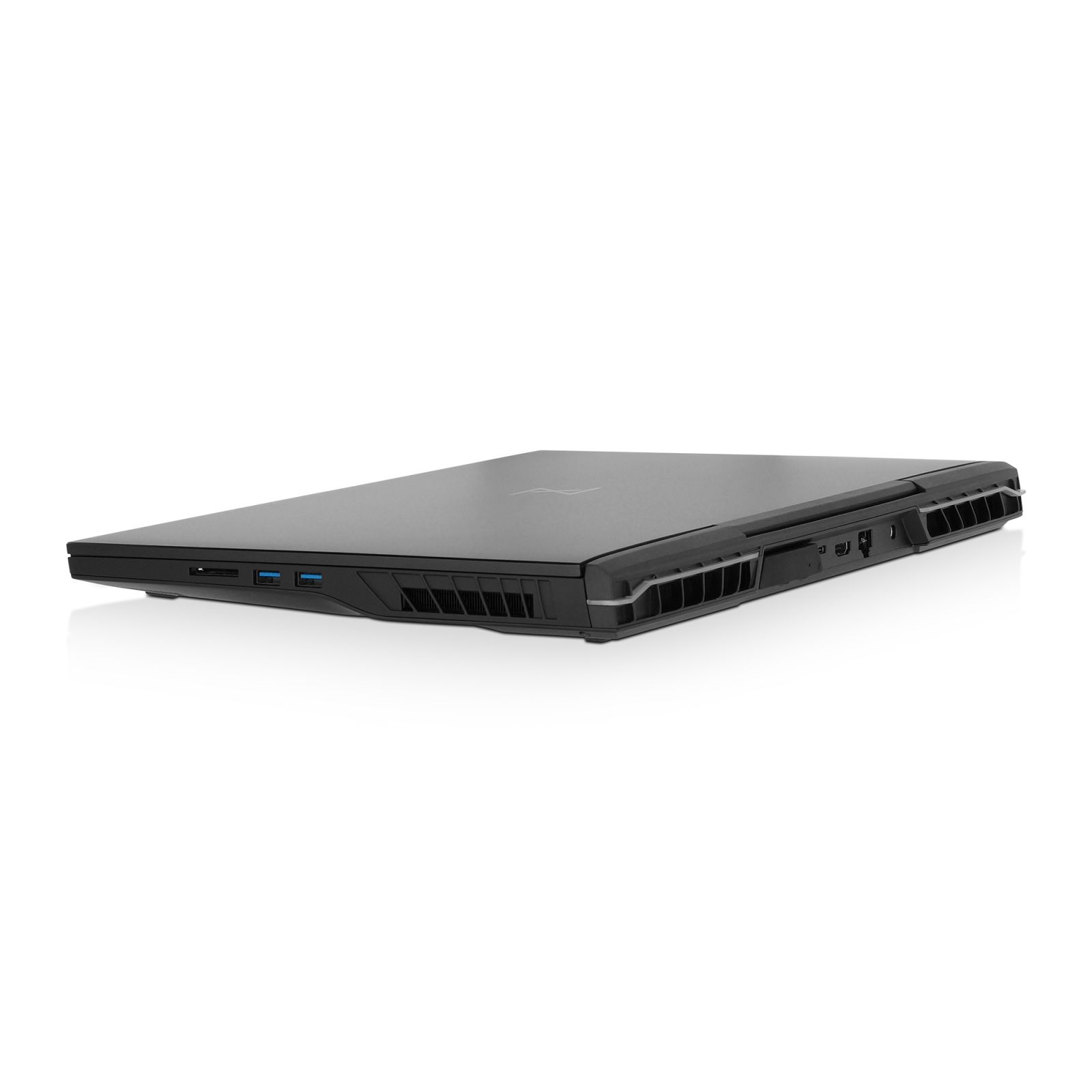

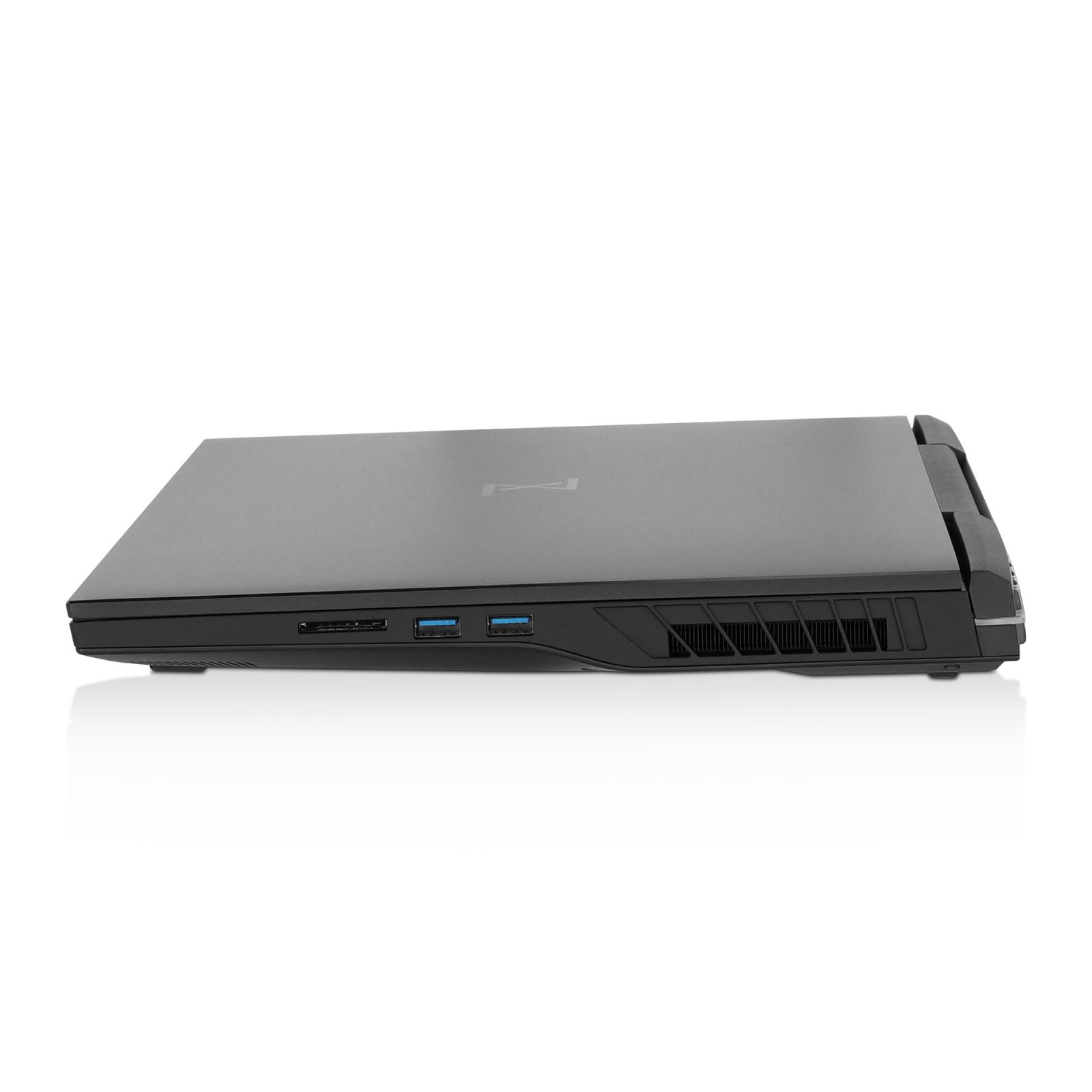

    Stellaris 17 right ports

    From left to right: SD memory card reader, 2x USB-A 3.2 Gen1



    Technical Details

    Display / Monitor

    Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here.



    17'' WQHD IPS | 16:10 | 240 Hz
    Type: LED-Backlight Display, matte/non-glare
    Screen size: 17"
    Viewing angles: 89°/89°/89°/89°
    Resolution: 2560 x 1600 Pixels
    Color gamut: ~99 % sRGB
    Brightness: ~380 nits
    Contrast: ~950:1
    Additional features: G-SYNC
    Display model: BOE NE170QDM-NZ1



    For technical production reasons, the measured values always vary slightly from panel to panel. More information



    Opening angle: ~ 135°

    Internal display connection (changeable via UEFI):

    iGPU: iGPU Only or MsHybrid (NVIDIA Optimus)
    dGPUdGPU Only (via MUX switch)



    Chassis

    Display lid and bottom case made of aluminum
    Display frame made of plastic
    Base unit made of plastic with rubberized coating

    Dimensions: width: 38.2 cm; height: 2.7 cm; depth: 27.3 cm
    Weight: 2.8 kg with battery



    Keyboard and Touchpad

    Mechanical keyboard with number pad.
    Cherry MX ultra low profile switches | Total key travel: 1,8 mm | Pre travel: 0,8 mm (The numpad and function keys are equipped with much quieter, but no less solid membrane keys for technical reasons.)
    Multicolor (RGB) per-key backlit keyboard, means that the writing on the keys have backlight! Brightness can be controlled and deactivated by special keys.
    TUX super-key on all layouts!

    Glass precision clickpad (150 x 95 mm) with integrated buttons and multi-gesture- & scroll-function



    Battery & power supply

    Maximally large 99 Wh battery, Lithium polymer
    Changeable (screwed inside)

    Power supply: 330 Watts (185 x 85 x 35 mm | 1185 g incl. power cord)

    Power plug:
    Type: Coaxial
    Inner diameter: 2.5mm
    Outer diameter: 5.5mm
    Length: 12.5mm



    Battery life:
    up to 12 hours at min. display-brightness, without Wifi & Bluetooth, without keyboard backlit, in idle mode
    up to 9 hours at medium brightness with Wifi, at office work



    We're testing battery time always in idle mode, at minimal display brightness, with keyboard backlight deactivated, Wi-Fi & Bluetooth disabled and without any further connected devices (USB, LAN, HDMI, VGA etc. unplugged!). We always test with integrated graphics when a dedicated and integrated graphics chip is installed.
    This way you get an information of maximal possible battery life. Starting from this, you can manage your individual battery life depending on your demands and to influence it, e.g. is keyboard backlight unnecessary during daylight. Bluetooth is also only needed to be turned on, if there's a Bluetooth device connected. Full display brightness as well is hardly always necessary.



    Main processor

    AMD Ryzen 9 6900HX
    (8 Cores | 16 Threads | Max. 4,9 GHz | 16 MB L3-Cache, 45 W TDP)



    Graphics card

    NVIDIA GeForce RTX 3070 Ti | 8 GB GDDR6 VRAM | 125 W TGP (+25 W Dynamic Boost)
    NVIDIA GeForce RTX 3080 | 16 GB GDDR6 VRAM | 150 W TGP (+25 W Dynamic Boost)
    NVIDIA GeForce RTX 3080 Ti | 16 GB GDDR6 VRAM | 150 W TGP (+25 W Dynamic Boost)



    Energy efficient CPU integrated Graphics:
    AMD Radeon 680M | 12 GPU cores | 2400 MHz GPU frequency



    Memory

    Type: DDR5 SO-DIMM (up to 4800 MHz)
    Manufacturer and speed see configurator
    Default and maximum see configurator
    Performant Dual Channel mode (2 slots)



    Mass storage (SSD / HDD)

    Two slots for super fast SSDs in space-saving M.2 form factor

    2x M.2 2280 SSD via PCI Express 4.0 x4



    Communication / Network

    Wired/LAN: 2,5 Gigabit LAN (Realtek RTL8125BG Ethernet, 10/100/1000/2500 Mbit/s)

    Wireless/WIFI:
    Intel Wi-Fi 6 AX200 Series:
    Interface: M.2 2230
    Wireless LAN / WLAN standards: 802.11 ac/a/b/g/n/ax
    DualBand 2,4 / 5 GHz
    Communication channels: 2x2
    Transfer rate: 300 Mbit/s (2.4GHz WIFI) / 2,4Gbps (5GHz WIFI)

    Bluetooth:
    Integrated in above Intel Dual Band Wi-Fi AX200 Series
    Version: Dual Mode Bluetooth 5.2



    Webcam / Laptop camera

    FullHD (1080p) Webcam / camera including microphone



    Sound / Audio

    High Definition Audio
    2 speakers: 2x 2W
    Integrated microphone



    Ports

    1x USB-C 3.2 Gen2x1

    • Hardwired to: dGPU (for best performance)
    • DisplayPort 1.4a: Yes
    • Power Delivery: No
    • Support for VR headsets
    • G-SYNC compatible

    1x USB-A 3.2 Gen2
    2x USB-A 3.2 Gen1
    1x HDMI 2.1

    • Hardwired to: dGPU (for best performance)
    • HDCP 2.3
    • G-SYNC compatible

    1x Headphone-out
    1x Mic-in
    1x Gigabit LAN/network RJ45
    1x Card reader (SD/SDHC/SDXC)
    1x Quick Release connector for TUXEDO Aquaris (beneath rubber cap)
    1x power plug (DC-in)



    Card reader

    Full size SD card reader (SD/SDHC/SDXC)
    Speed: UHS-I



    Security

    - Kensington-Lock mounting
    - Webcam & audio can be deactivated directly via the BIOS
    - Wifi & Bluetooth can be deactivated directly via the BIOS
    TPM 2.0



    Cooling System & Fan

    Temperature controlled fan
    At low system workload, there is less heat emerging. The cooling system fans can spin accordingly slow or even turn themselves off completely. Depending on the chassis, cooling system and CPU and GPU, high to very high fan noise (air swooshing) is produced under full load. Thinner notebooks normally tend to get louder due to less cooling capacity.

    Custom performance and fan control with the TUXEDO Control Center
    With the TUXEDO Control Center you are able to control the performance and the behavior of the fans by yourself. This means that you get the ability to make your device as quiet as possible. By heavily reducing the performance you are able to set the device almost passive cooled, without any fan noise most of the time!





    Model-ID: STELLARIS1XA04





    System & Service

    Operating systems

    We install Ubuntu and TUXEDO OS (based on Ubuntu with KDE Plasma Desktop) in the latest 64-bit version with long term support.

    With our fully automatic installation WebFAI you can easily perform a Linux installation exactly as we at TUXEDO Computers do it in our production! You can choose from all distributions that we also offer in our configurator. Depending on the distribution, you have the choice between different desktop interfaces. More backgrounds and a video demo as well as detailed instructions can be found here.



    For "self-installers" and all who are interested, we have set up a database with downloads, instructions, tips & tricks and offer Tomte, a tool that automatically makes our adjustments under Ubuntu, elementary OS and Linux Mint:





    Encrypted Installation

    On request, we install your Linux system completely encrypted. The pre-installation as dual boot with Windows is technically not possible.
    Further details as well as a detailed introduction to encryption can be found here.



    Windows on request

    If you don't want or can't do without Windows, we install the desired Windows version next to Linux or alone. Please understand that a dual-boot installation can take 1-2 working days longer, even though the process is fully automatic. Please also note that we provide you with a correct Windows license incl. license sticker and installation DVD!



    Windows Drivers

    The corresponding Windows drivers are already included as standard with every device, regardless of whether it is with or without Windows or operating system installation. Alternatively, you are free to download all Windows-Drivers from here.



    UEFI firmware

    With all our notebooks, you have the possibility to protect your privacy already on firmware level using the UEFI (Unified Extensible Firmware Interface).



    For this purpose, the following functions can be completely deactivated:

    • On Intel CPUs: Intel Management Engine (IntelME)
    • Webcam
    • On Intel CPUs: Audio (Microphone & Sound)
    • WLAN & Bluetooth



    In addition, our Premium UEFI firmware allows chipset-specific settings and definitions for hardware components in order to run adjust the device optimally to your use case.



    Please note: All notebooks built in 2021 and later do not support switching the UEFI firmware to the outdated BIOS firmware standard.



    Warranty

    2 years pick up and return (12 months on wearing parts like battery & power supply)

    Optional: Up to 5 years pick up and return (12 months on wearing parts like battery & power supply)



    All devices have a maintenance-friendly design. Depending on the model, the essential hardware components such as processor, drive, hard disks, RAM, WIFI modules etc. can be accessed via maintenance flaps or removable floor trays. Furthermore the battery is replaceable if not stated differently. Of course, even after expiration of your warranty period, we're offering replacement parts and service for many years!



    For warranty cases, we'll provide you with a free return label after getting in touch with us. Warranty handling is done via our technical support. Please note our warranty conditions



    Package Contents

    1x TUXEDO Book preinstalled & configured
    1x Power supply
    1x Power cord
    1x Recharchable battery
    1x First steps manual incl. short technical manual
    1x WebFAI USB drive (www.webfai.de) for Linux recovery
    1x Drivers for Windows downloadable
    1x For the installation of own SSDs or HDDs necessary screws
    1x TUXEDO fan stuff package
